感谢 gad · line+ studio 予gooood的分享。更多关于他们：gad · line+ studio on gooood。
Appreciation towards gad · line+ studio for providing the following description:

东梓关村民活动中心位于富阳东梓关回迁农居以北，新老村落交接处。项目作为东梓关村民活动的公共场所，以本土地域为独有文化背景，努力构筑村民共建共享的“村庄活力源”。活动中心共有两层，一层对外开放，二层局部联通，兼具村民自发活动和红白宴会的双重属性。开放的空间特质满足不同时态下的功能需求，连同连续起伏的屋面与村民生活化的场景，共同构筑“大屋檐下的微型小世界”。

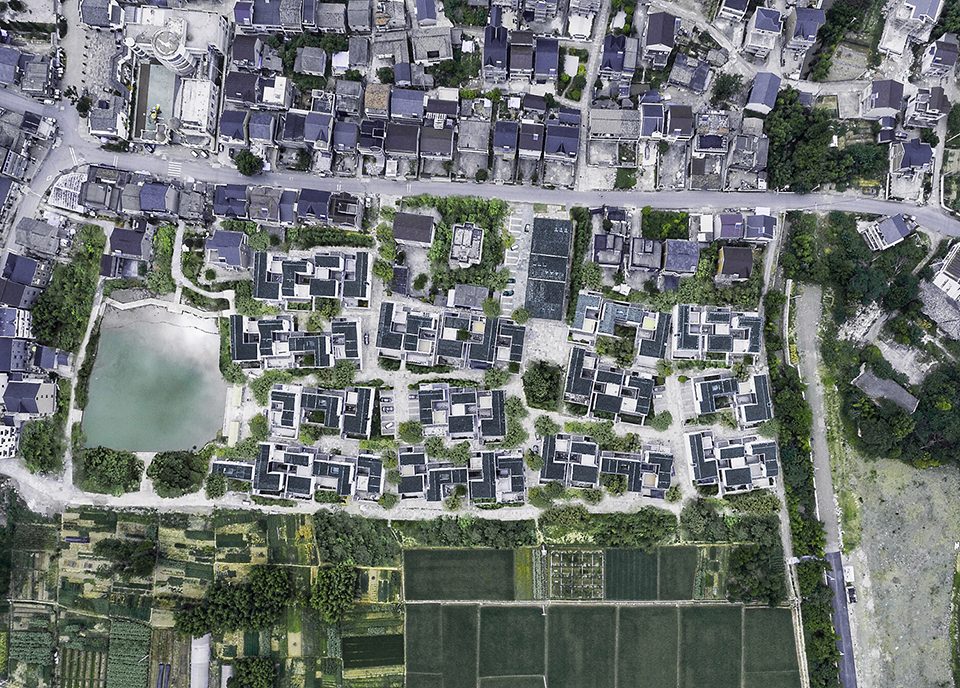

▼场地鸟瞰图，aerial view ©范翌

The site is located at the junction of the old and new villages, north of Dongziguan affordable housing in Fuyang. The project, as a public venue for villagers’ activities, takes the local regional culture as its unique background, and strives to create a “Vitality Source” for villagers to jointly build and share. The activity center has two floors. The first floor is open to the outside and the second floor is partially connected. It has the dual functions of weddings, funerals and villagers’ spontaneous activities. The open space characteristics meet the functional requirements under different conditions, together with the life of the villagers and the continuous ups and downs of the roof to jointly build a “micro-small world under the big roof.”

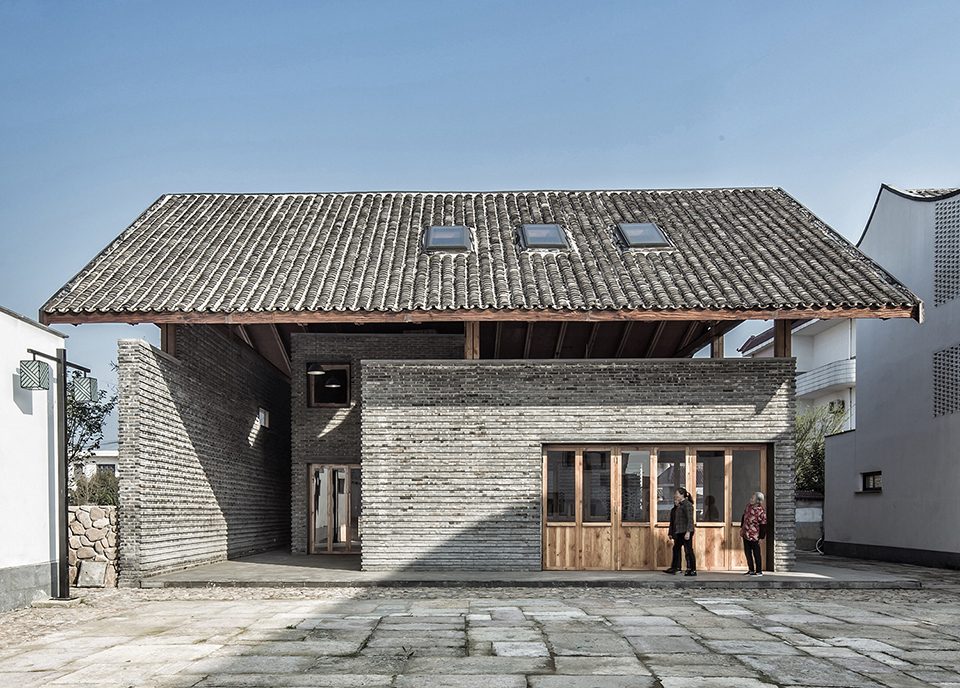

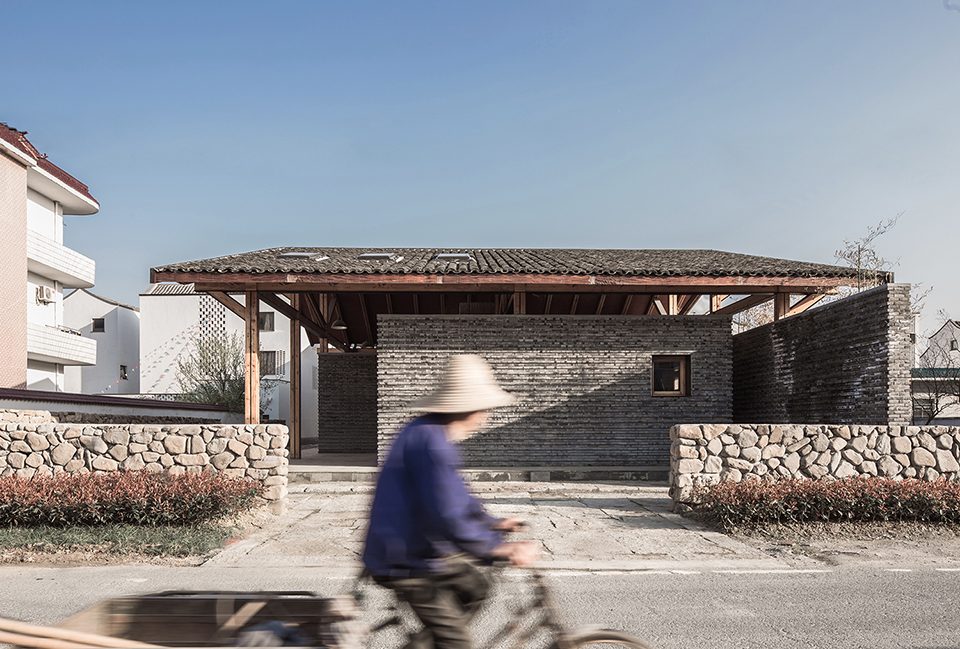

▼活动中心外观，exterior view of the activity centre ©范翌

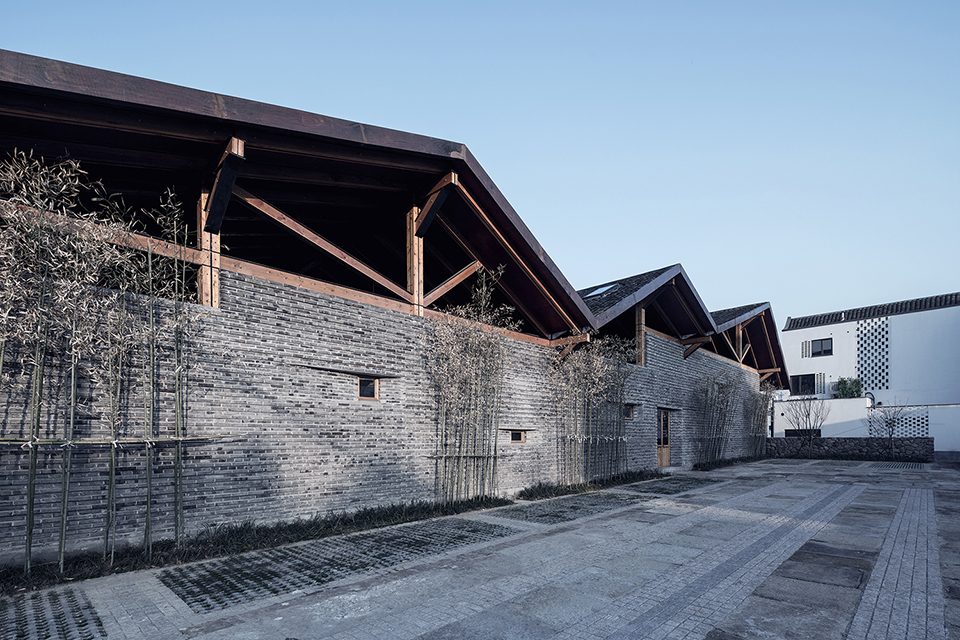

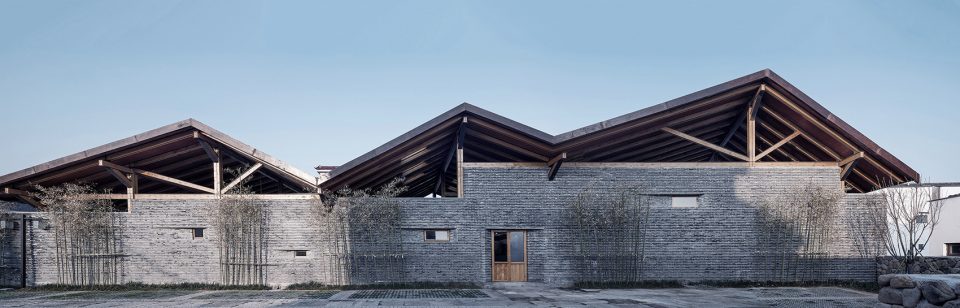

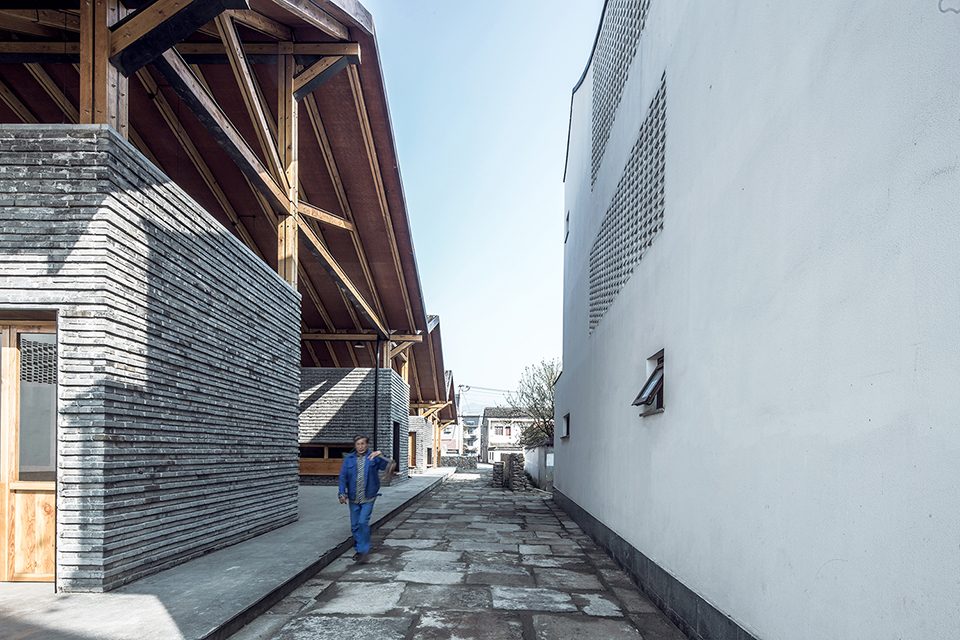

▼后方立面，rear facade ©范翌

▼连续起伏的屋面，the waving roof ©范翌

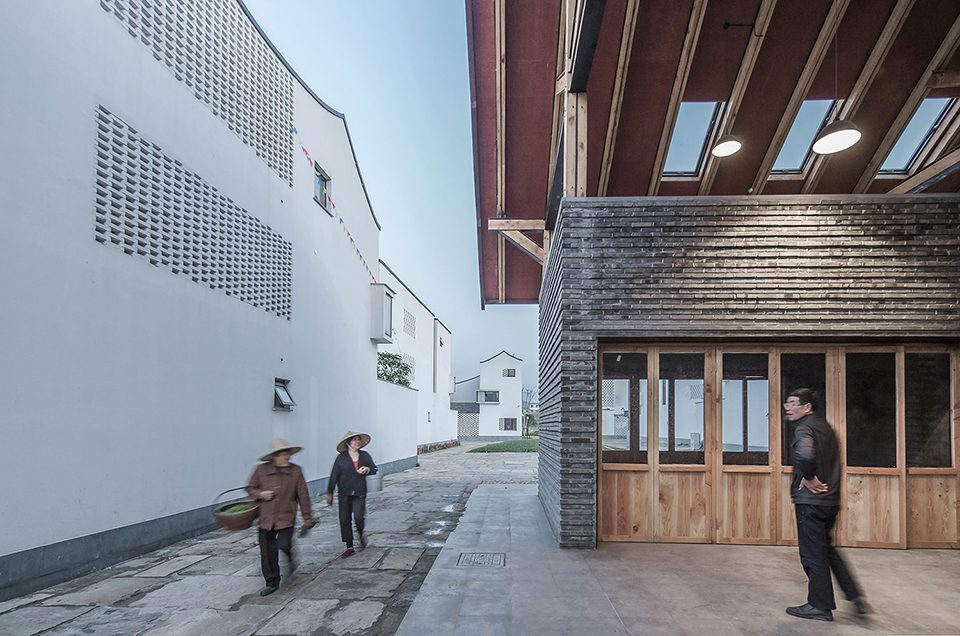

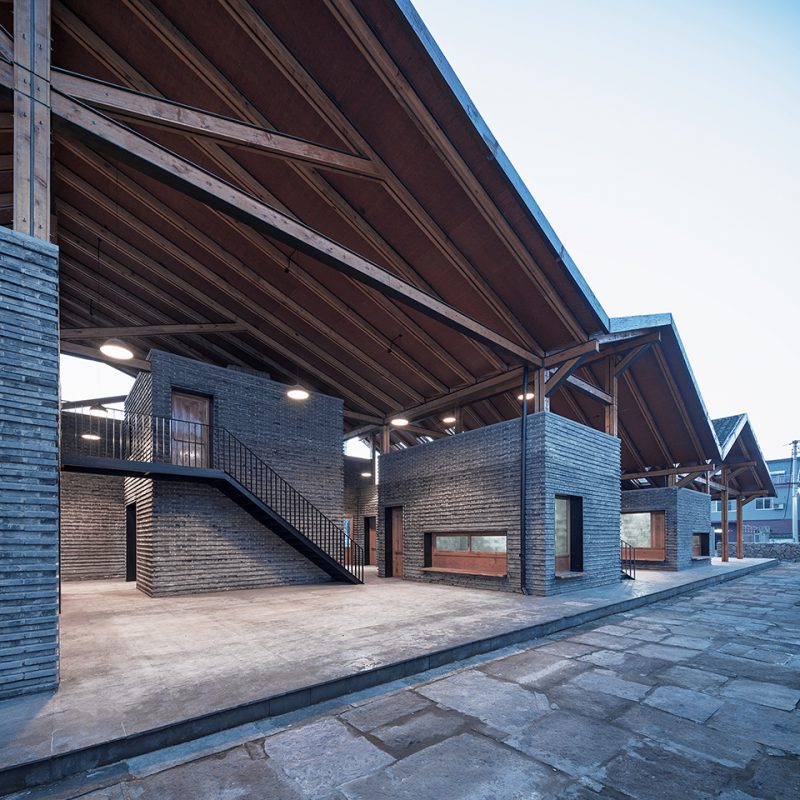

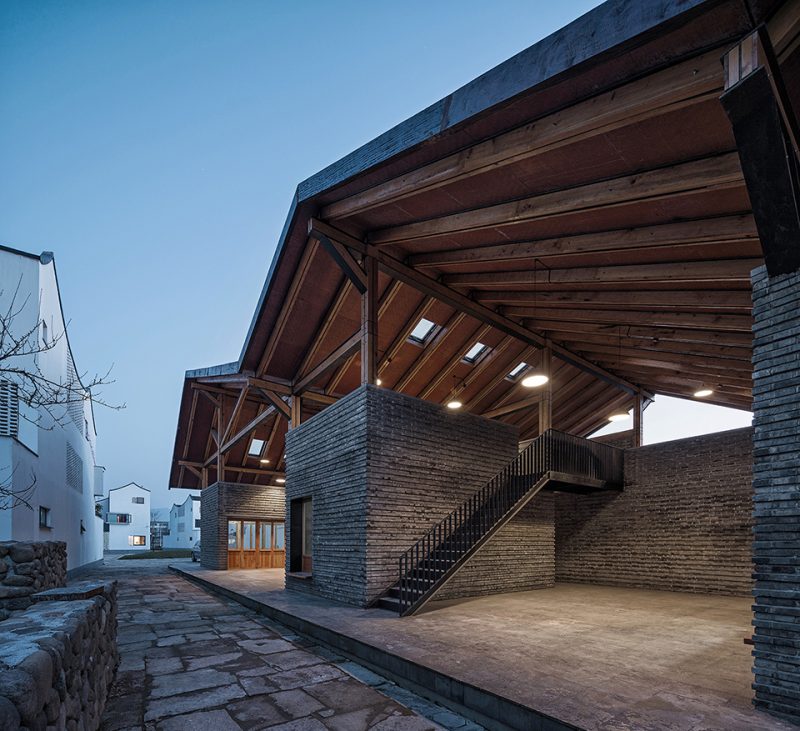

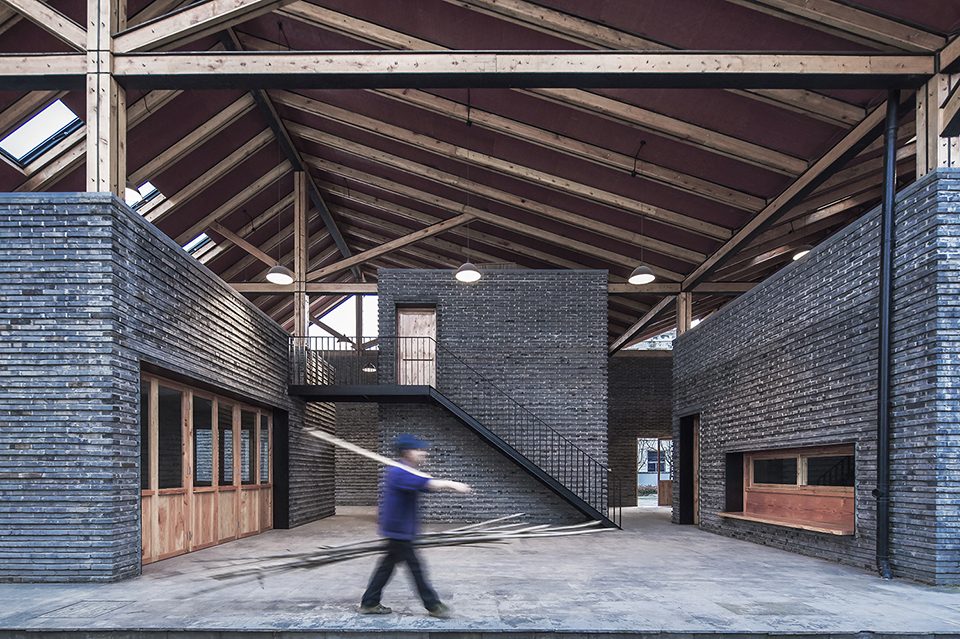

▼首层的开放空间，open space on the ground floor ©范翌

©赵奕龙

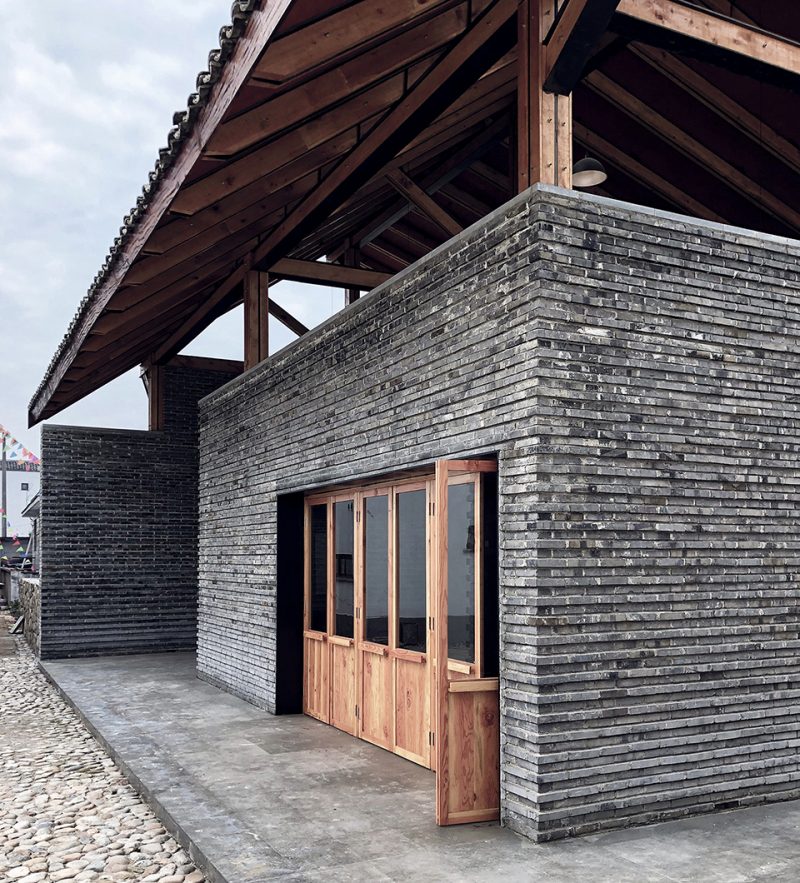

▼立面细部，detailed view ©孟凡浩

相较于当代大多数村民活动中心因长期封闭而失去活力的使用状态，本次设计希望通过开放而鲜活的空间场景，延续村庄独有的生命力，以流动的空间体系、本土化的材料语言和充满自发性的建造手段，将有形的空间载体和无形的场所精神融为空间本身的建构逻辑，为村庄注入新的活力。

Compared with the use of the majority of villagers’ activity centers in the contemporary period that have lost their vigor due to long-term closure, this design hopes to continue the unique vitality of the village through open and lively space scenes. With a flowing spatial system, localized material language, and spontaneous construction methods, the tangible space carrier and intangible place spirit are merged into the construction logic of the space itself, injecting new vitality into the village.

▼整个空间被覆盖在一个连续的钢构屋面之下，the entire space is covered under a continuous steel roof with timber wrapped outside ©范翌

▼青砖墙体呈棱状凹凸排布，the grey-brick wall is in a prismatic convex and concave arrangement ©范翌

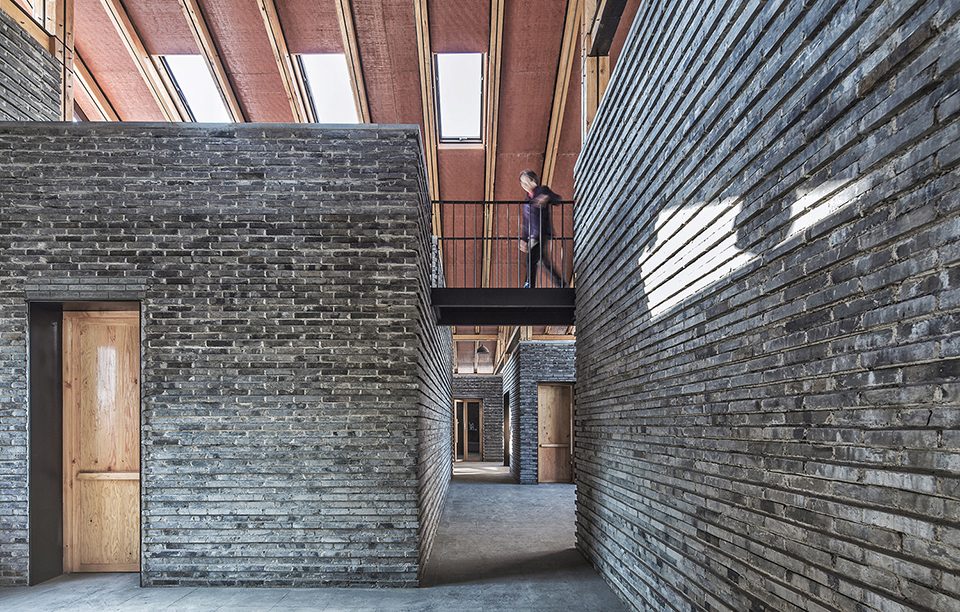

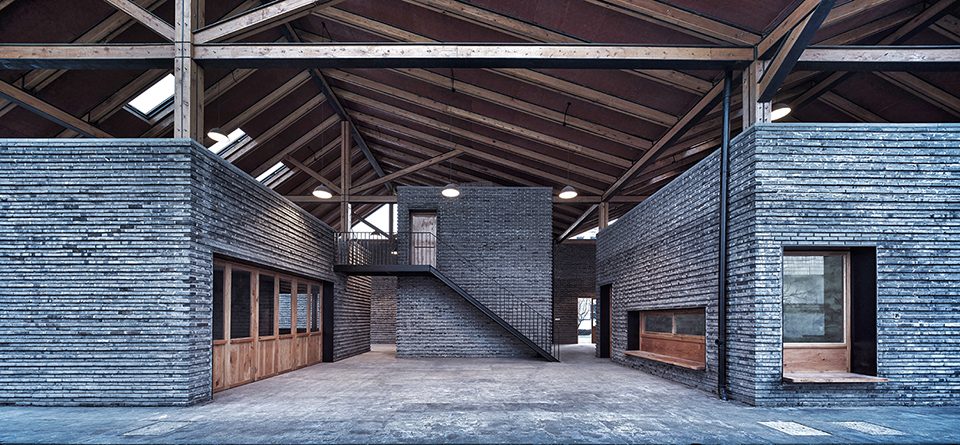

▼立体丰富的空间秩序，an open, three-dimensional spatial sequence ©范翌

作为承载东梓关全体村民的公共活动场所，设计以较小的尺度单元承载生活的多样性、丰富性和细微性。从棋牌放映、体育活动，到小铺叫卖，生活化的语境被细分为相对独立的小场景，来往的人群可在连通内外的灰空间里自由穿梭、停留，空气、光和自然则在无形中成为公共生活的背景。集会、看戏、红白喜事等相对重要且人群密集的场合，则可通过合理的布局将空间再次整合。

As a public activity venue for all villagers in Dongziguan, the design hopes to carry the diversity, richness, and subtlety of life with smaller scale units. From chess and card screenings, sports activities, to the peddling, the context of daily life is subdivided into relatively independent small scenes. The people passing through can freely shuttle and stay in the gray space connecting inside and outside, while the air, light and nature are virtually become the background of public life. When it comes to important and crowded occasions such as gatherings, theatre, weddings and funerals, the space can be re-integrated through a reasonable layout.

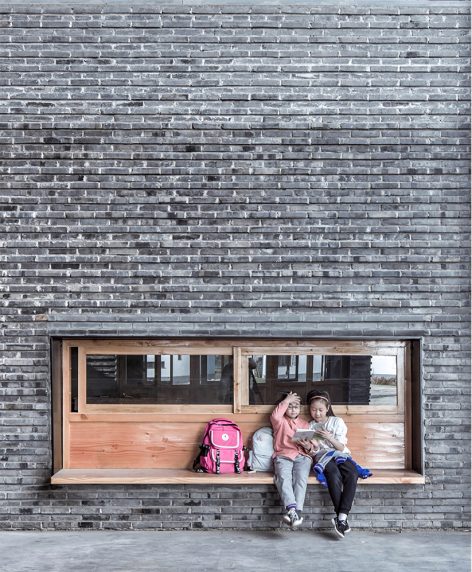

▼生活化的语境被细分为相对独立的小场景，the context of daily life is subdivided into relatively independent small scenes ©赵奕龙

▼本土化的材料语言为村庄注入新的活力，the localized material language injects new vitality into the village ©赵奕龙

整个空间被覆盖在一个连续的钢构屋面之下，外有木材包裹；顶部设置多个天窗，满足采光需要，也引入周边自然；下压的屋檐和外延的挑台板限定出可让人安静下来的空间。不同高度的小尺度单元与连廊的组合，空间序列开始变得立体且丰富；青砖墙体呈棱状凹凸排布，以深色石材压顶，由当地村民亲手打磨，与当地常见建筑材料共同呈现自然、传统与当代生活的融合，也映射出村民熟悉的生活场景。

The entire space is covered under a continuous steel roof with timber wrapped outside. The roof is designed with multiple skylights to meet the lighting needs, and also introduces the natural surroundings. Low hanging eaves and extensions define a space that can calm people down. With the combination of small-scale units and corridors of different heights, the spatial sequence has begun to become three-dimensional and rich. The grey-brick wall is in a prismatic convex and concave arrangement and is topped with dark colored stone. It is hand-polished by local villagers, with the common local building materials, showing the integration of natural, traditional and contemporary life, and also mapping out the familiar scenes of the villagers.

▼活动中心的外观与当地常见建筑材料共同呈现自然、传统与当代生活的融合，the appearance of the activity centre shows an integration of natural, traditional and contemporary life ©赵奕龙

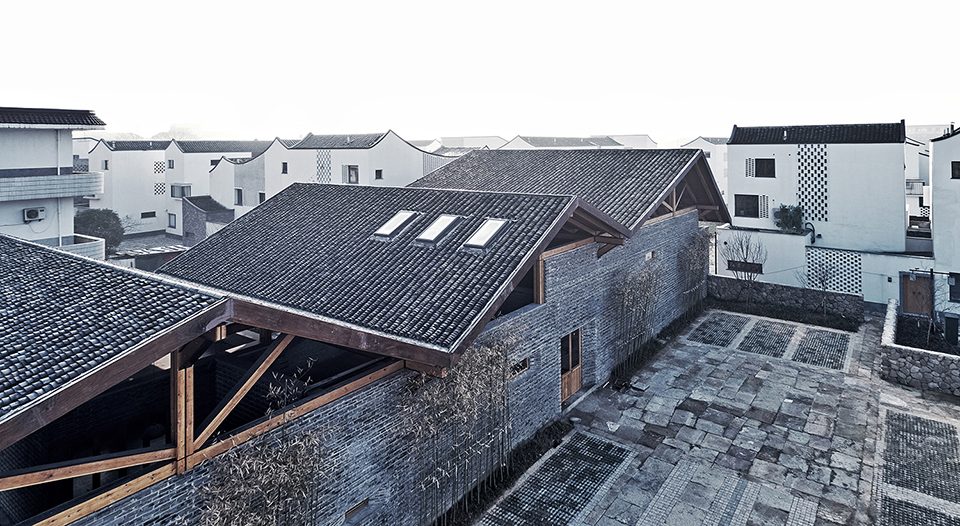

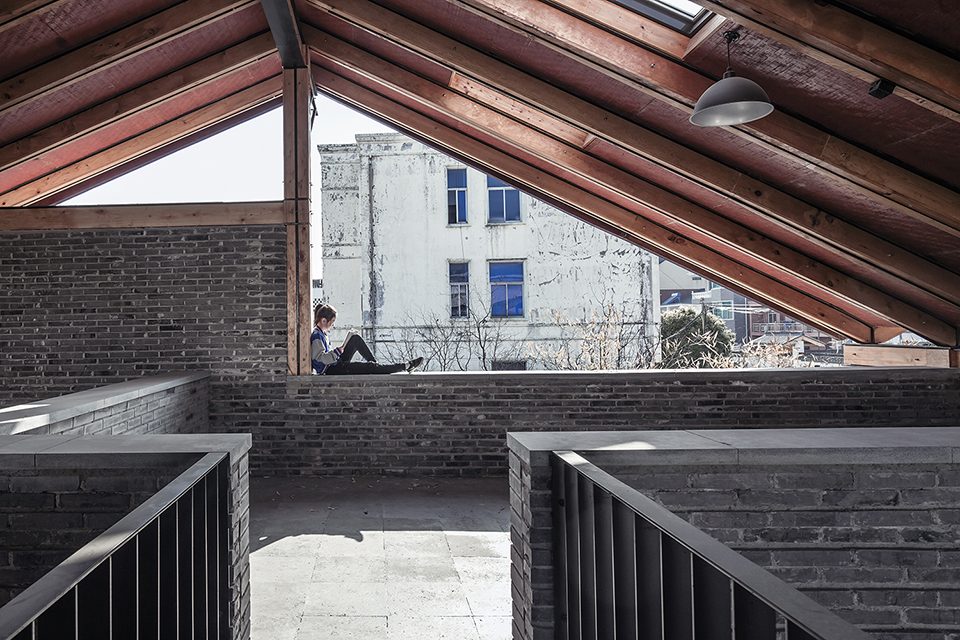

▼顶部设置多个天窗，满足采光需要，the roof is designed with multiple skylights to meet the lighting needs ©赵奕龙

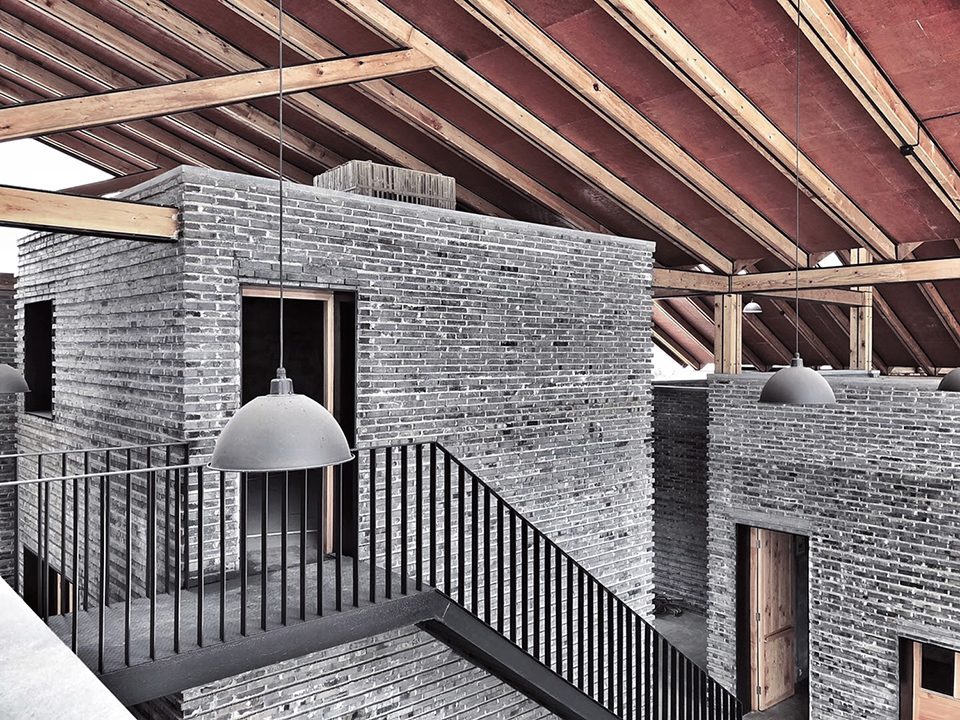

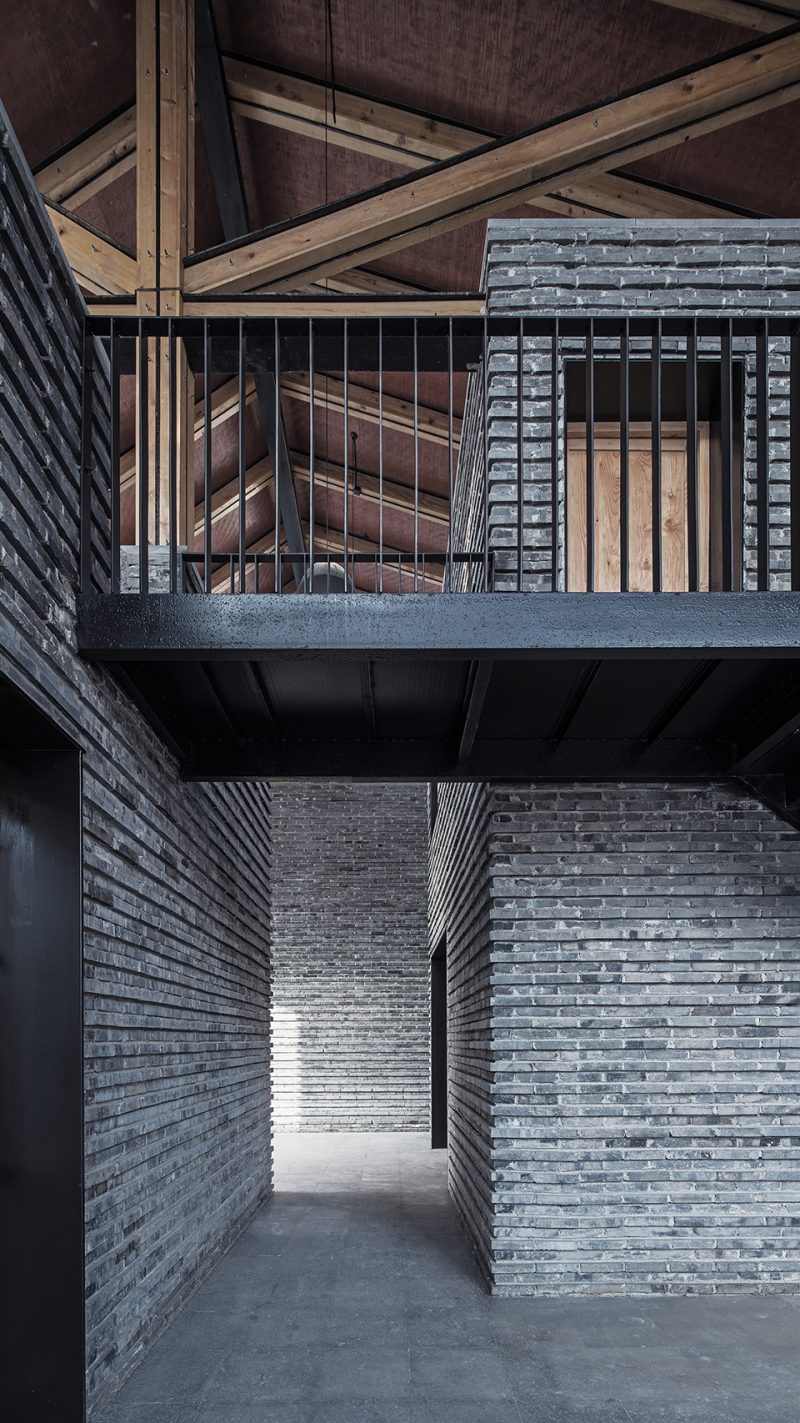

▼小尺度单元与连廊的组合，the combination of small-scale units and corridors of different heights ©孟凡浩

▼下压的屋檐和外延的挑台板限定出可让人安静下来的空间，low hanging eaves and extensions define a space that can calm people down ©赵奕龙

关于价值感的归属，也体现在建构方式中。村民活动中心关于公共性的实践和时间记忆的存储，由村民施工队共同参与并最终投入使用。这样的建造模式能激发甚至自发形成公共活动，而建筑则作为一种媒介，成为人与人之间的最大化连接。

The attribution of sense of value is also reflected in the way of construction. The villagers’ activity center is the practice of public and the storage of memory, which is jointly participated by the villagers’ construction team and finally put into use. Such a construction mode can stimulate or even spontaneously form public activities, and the building on the other hand, serves as a medium to promote the maximum connection between people.

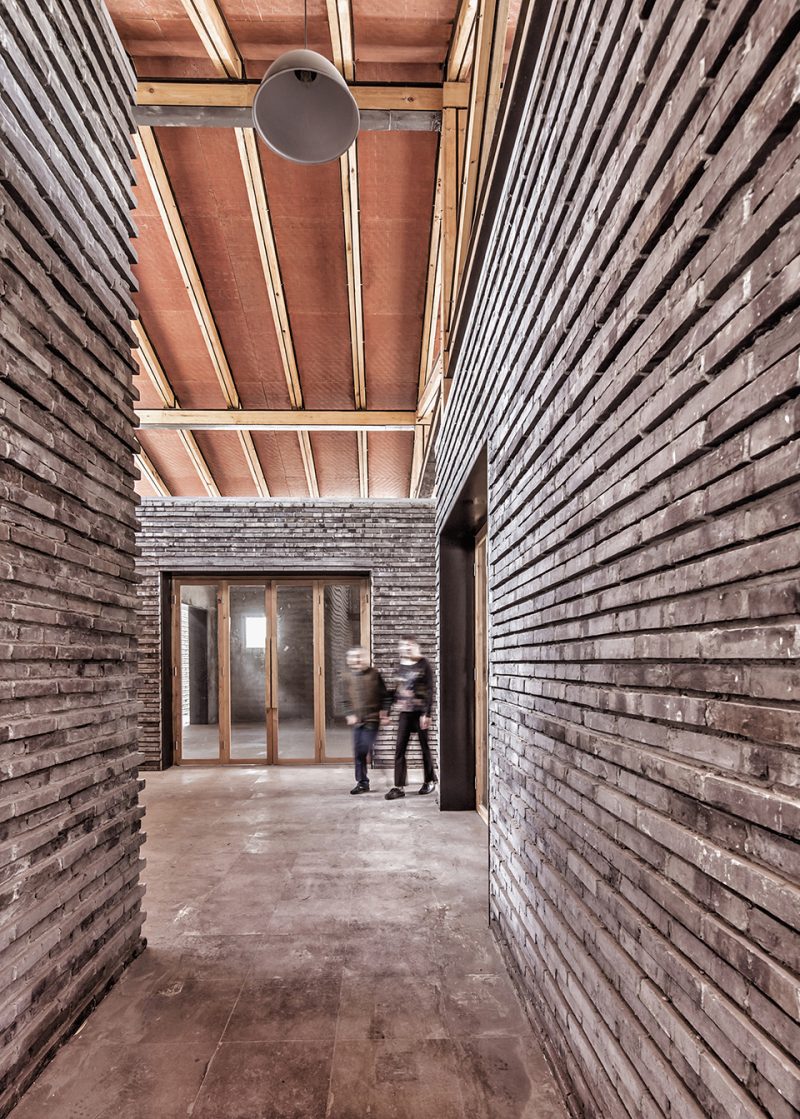

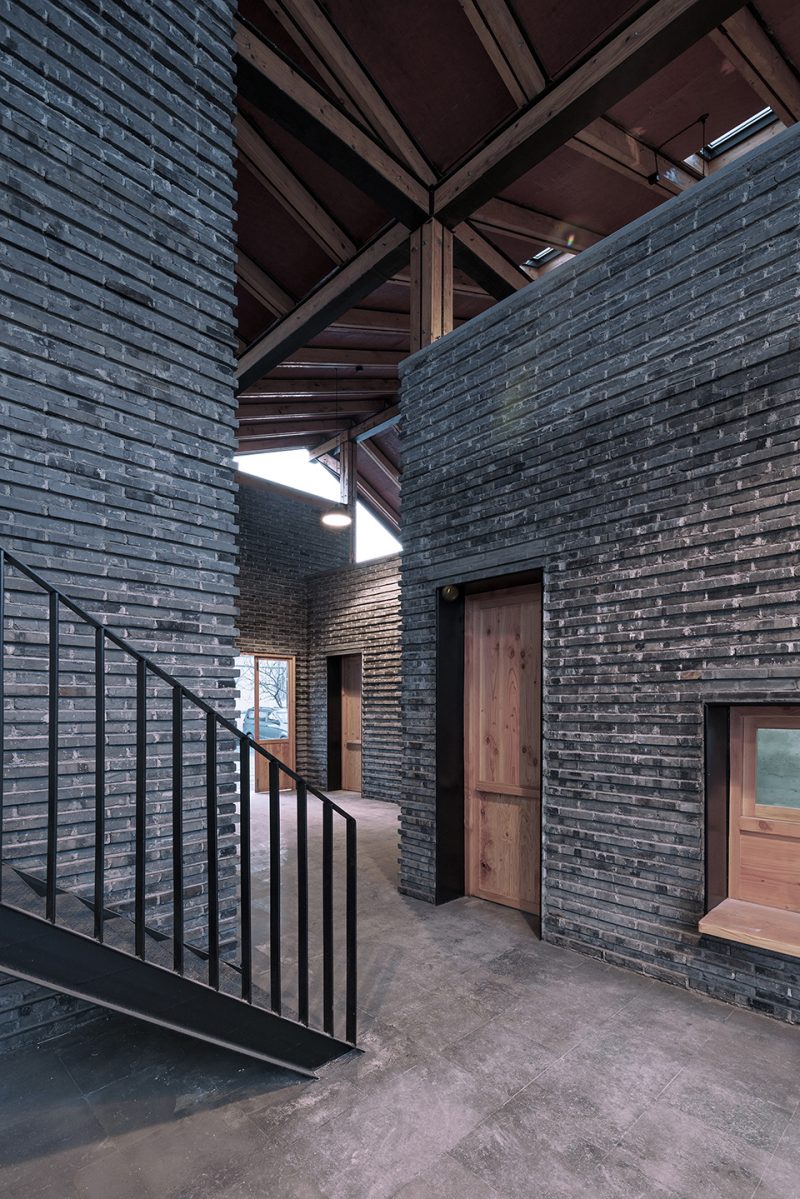

▼室内细部，detailed view ©赵奕龙

▼概念生成图，concept diagram

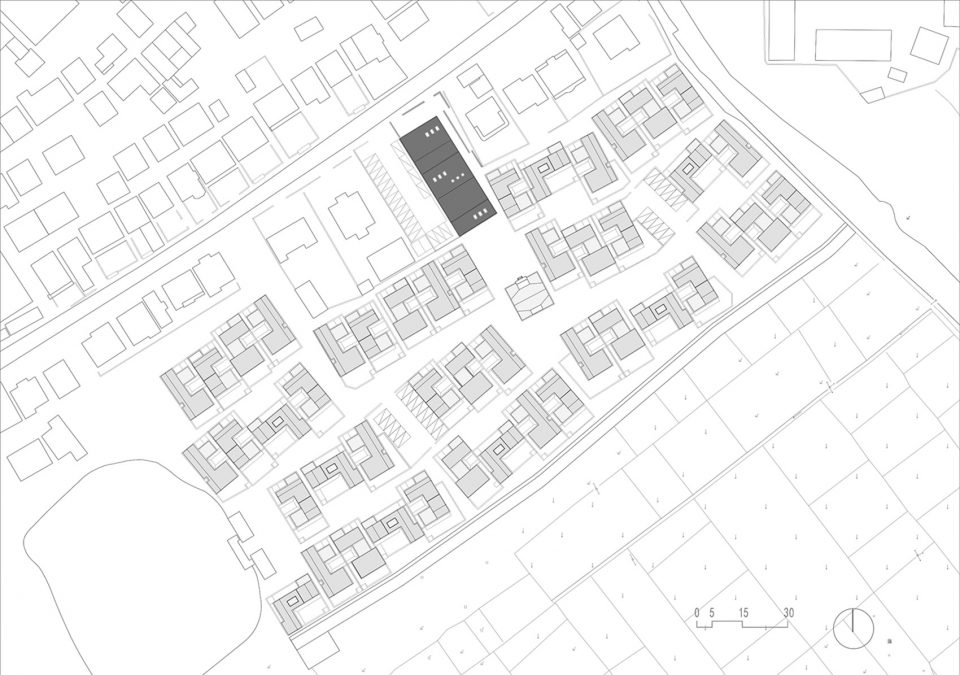

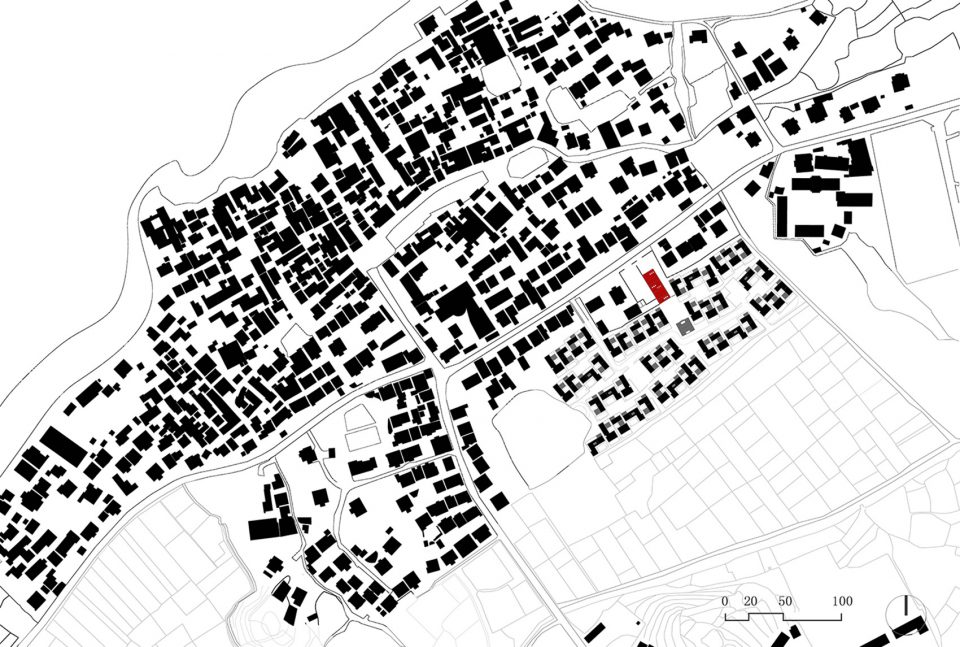

▼总平面图，master plan

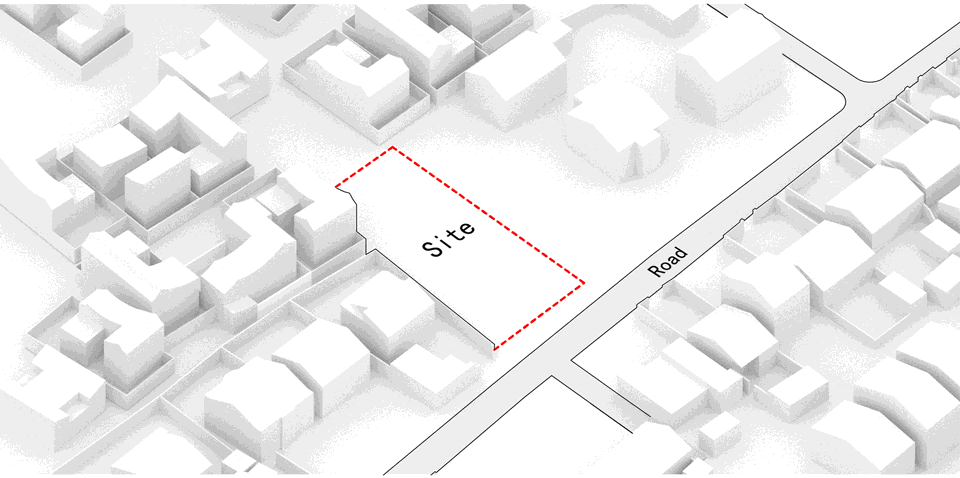

▼场地平面图，site plan

▼首层平面图，plan level 1

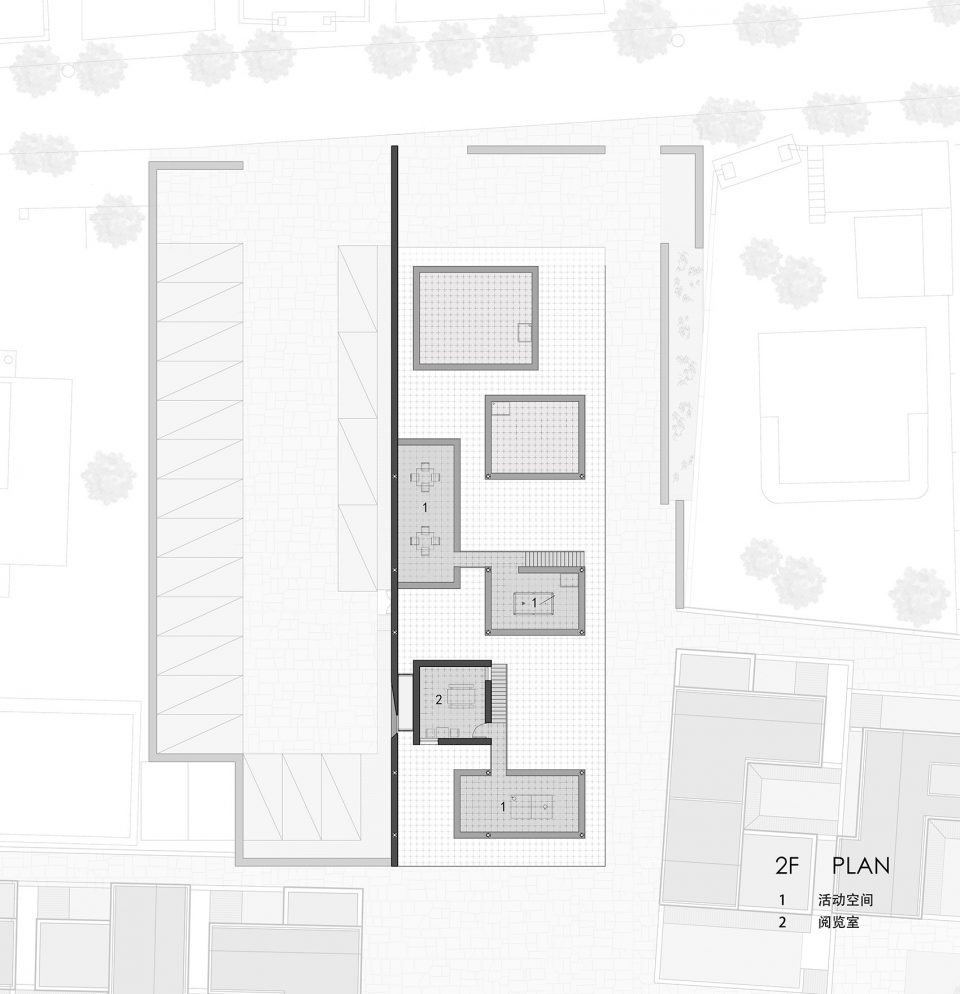

▼二层平面图，plan level 2

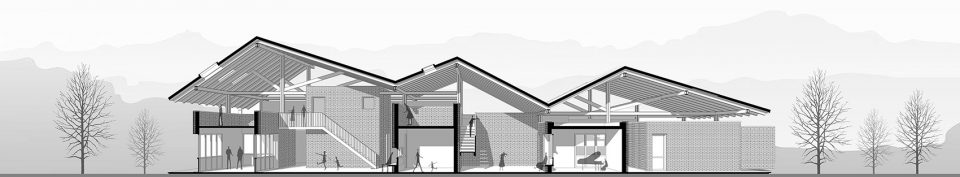

▼剖透视图，sectional perspective

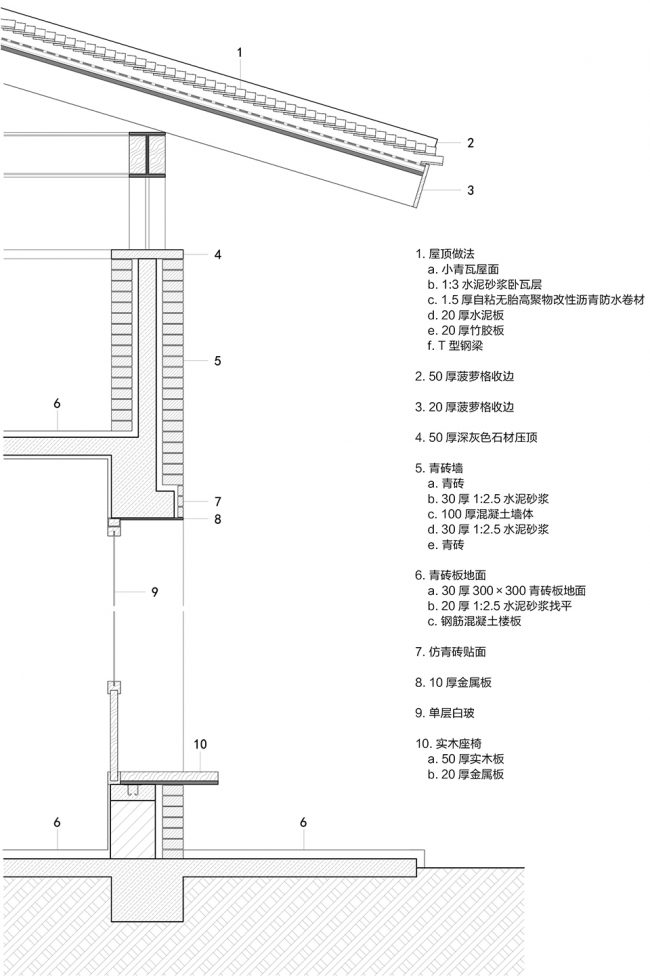

▼结构细部，structure detail

设计单位：gad × line+ studio
地址：杭州市富阳区东梓关村
竣工时间：2017
建筑面积：686.6㎡
主创建筑师：孟凡浩
设计团队：朱敏何雅量曹喆（实习）
结构设计：胡达敏钱路曦
设备设计：崔大梁张跃强王扬
景观设计：爱境设计
业主：杭州市富阳区场口镇政府
摄影师：范翌赵奕龙孟凡浩
Architects: gad × line+ studio
Project location: Dongziguan Village, Fuyang District, Hangzhou, China
Completion Year: 2017
Gross Built Area: 686.6 square meters
Lead architect: Meng Fanhao
Design Team: Zhu Min, He Yaliang, Cao Zhe (Intern)
Structural design: Hu Damin, Qian Luxi
Equipment design: Cui Daliang, Zhang Yueqiang, Wang Yang
Landscape design: Greentown Akin
Client: Changkou Town Government in Fuyang District of Hangzhou
Photo credits: Fan Yi, Zhao Yilong, Meng Fanhao
