非常感谢上海都设建筑设计有限公司将以下内容授权gooood发行。更多请至： DSD on gooood
Appreciation toward DSD for providing the following description:

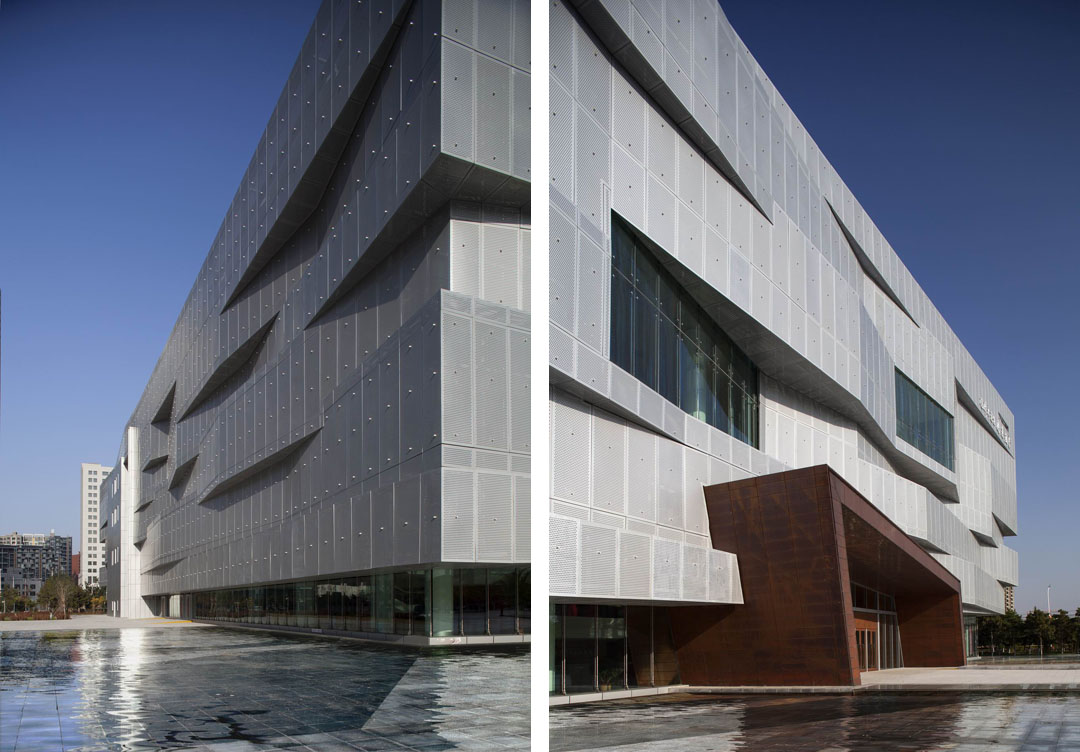

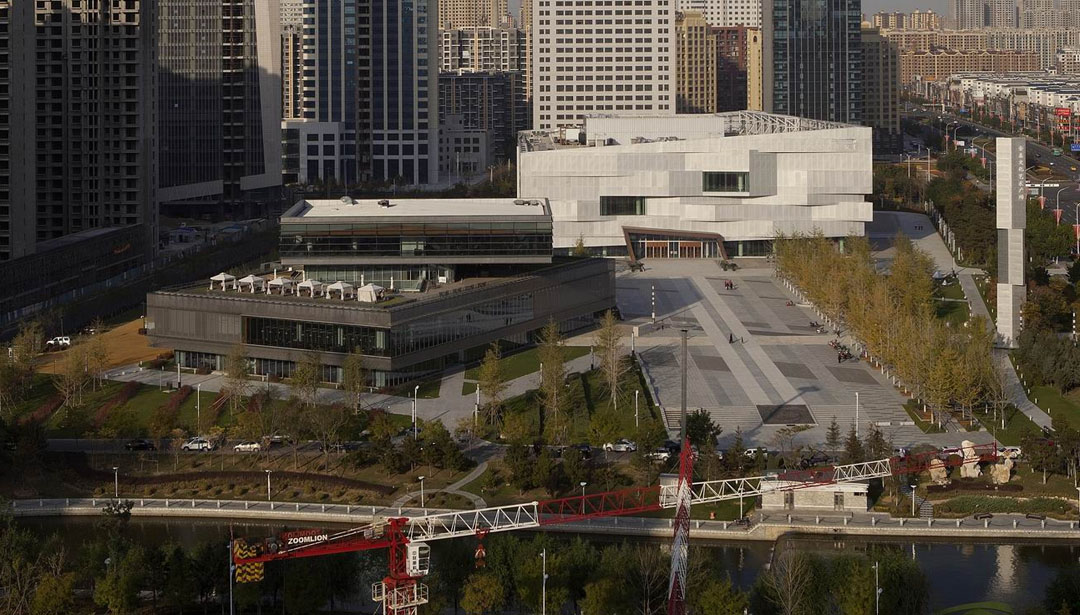

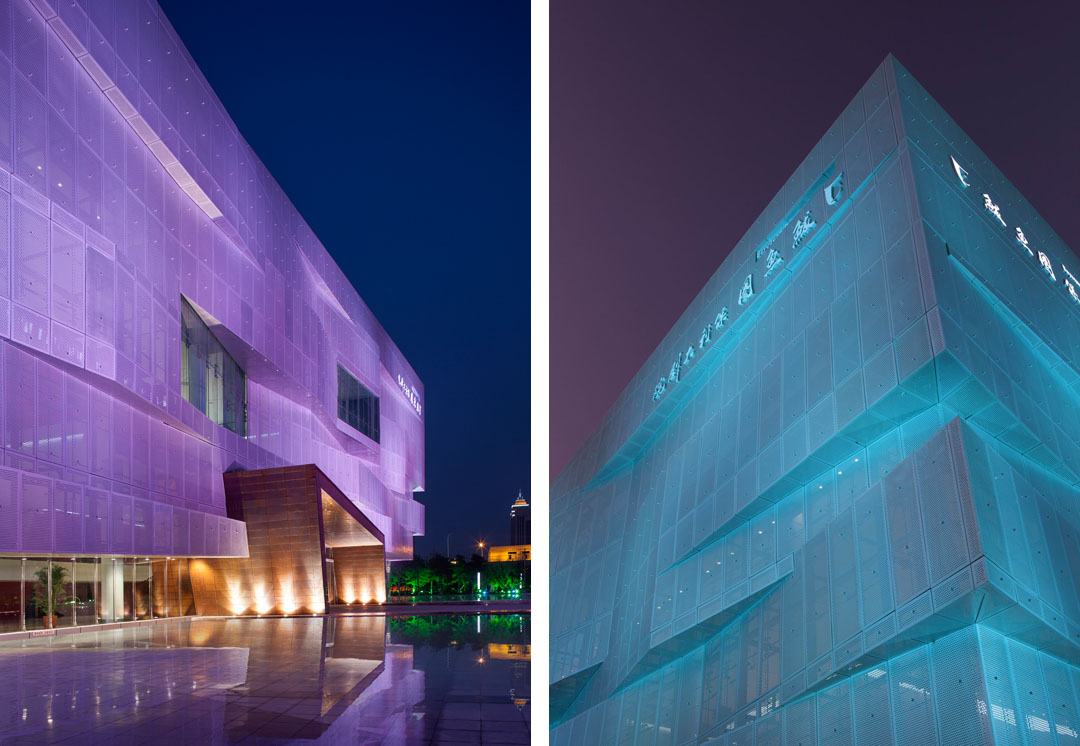

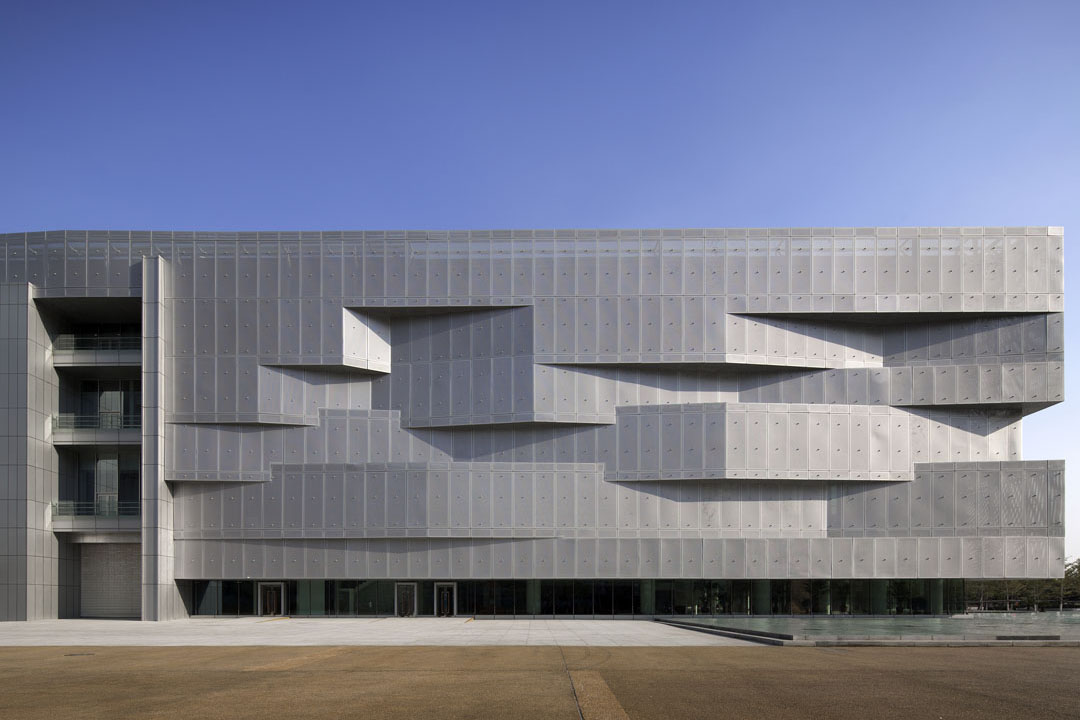

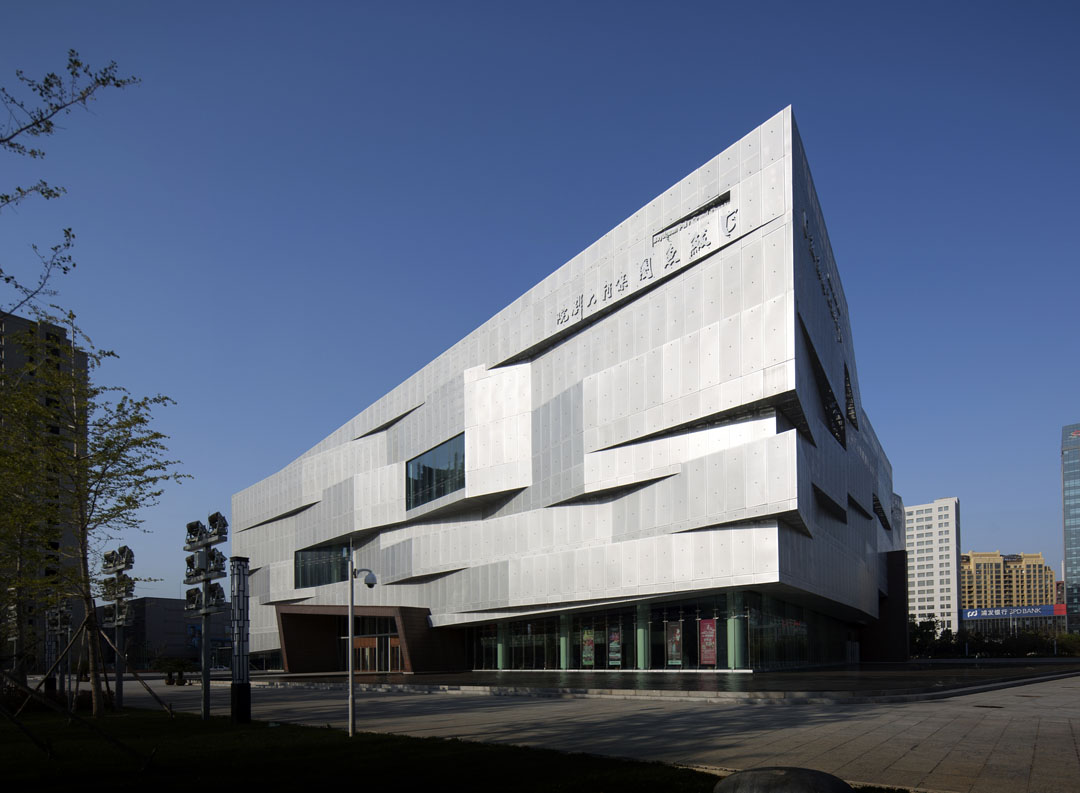

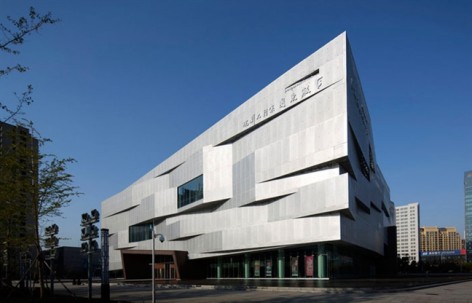

大剧院采用简洁的体量，丰富的细节表现出现代建筑实用、美观、富有时代感的特性，极富时代感的外墙喻示营口经济开发区奔向国际的新气象。大剧院既要考虑东南侧景观，也要考虑到日月大道视线，因此，各个立面统一采用波浪形金属半透明材料，形成统一的立面形象，在此基础上根据功能情况又作了不同的细节处理，使其在和谐统一中富有变化。建筑东高西低，这样的处理使平安大街和日月大道上的人看不到剧场高起的部分，保持了建筑的整体形象。外墙分为水平的7段，每一段都是交错起伏，在体形相对简洁的前提下形成丰富的外墙效果，结合不同透明度的外墙材料，形成极富标志性和特色的大剧院。在设计中我们始终强调“规模不大，特点突出”，力求树立一个印象久远的地标性建筑。

By DSD
Architects: Kege Ling, Qi Xu
Assisted by Yin Qin, Ding Wu and Long Chen from Shanghai Zhongsen Architecture Design
Interior Design: DSD, China Architecture Design & Research Group, Tsinghua Gongmei
Interior Designer: Jianguo Wang, Ye Zhang
Acoustic Design: China IPPR International Engineering Corporation
Stage Facility: China PLA General Armament Department

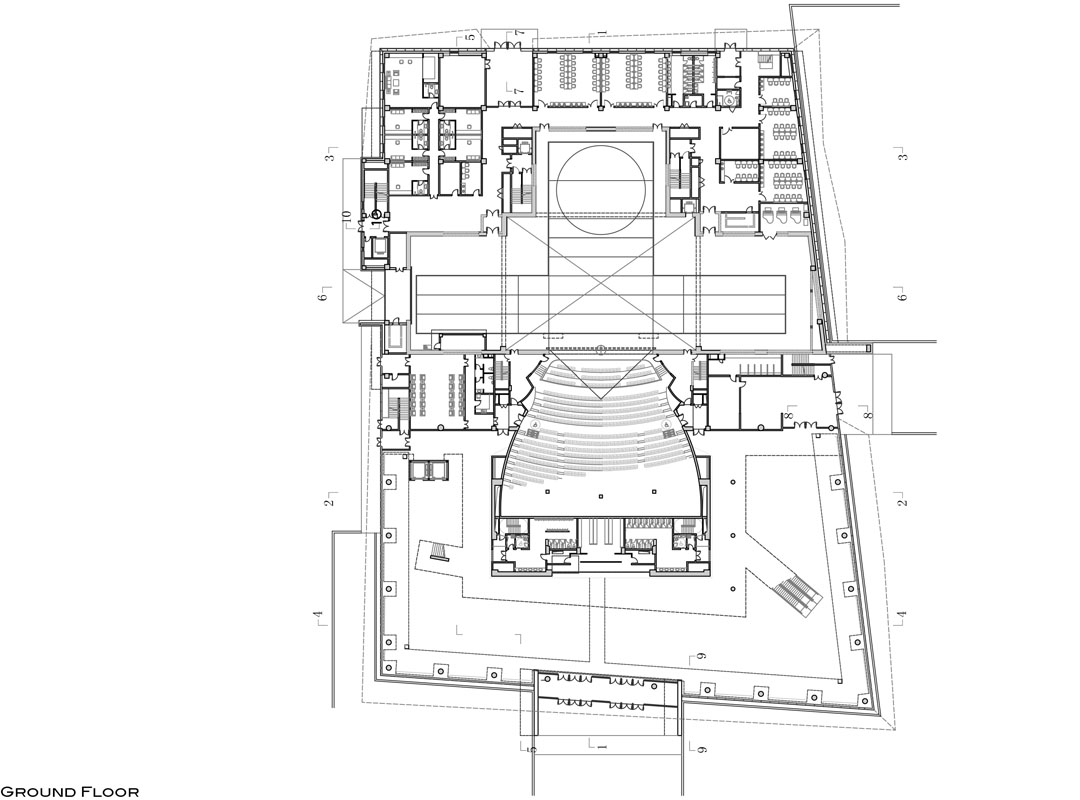

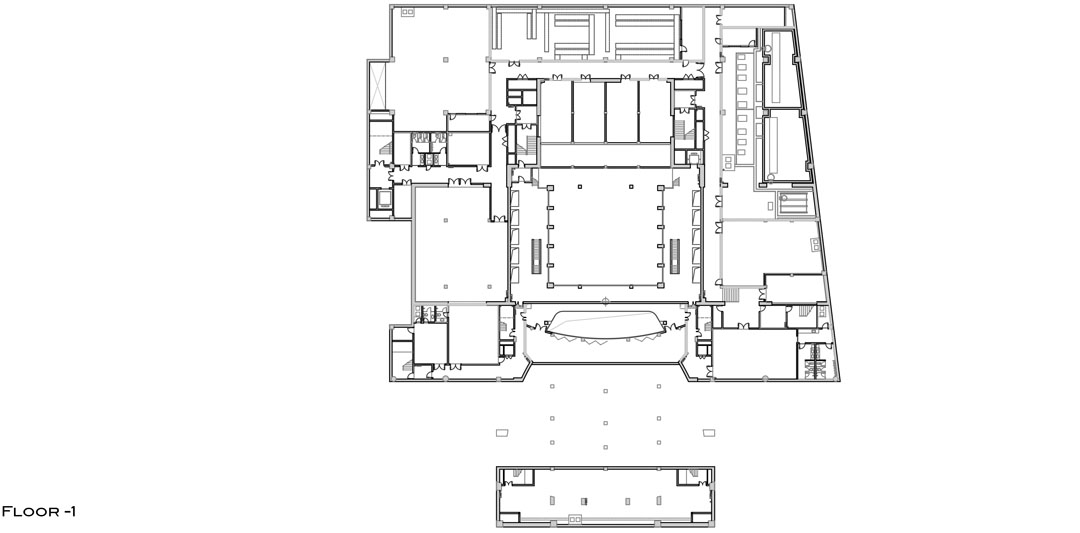

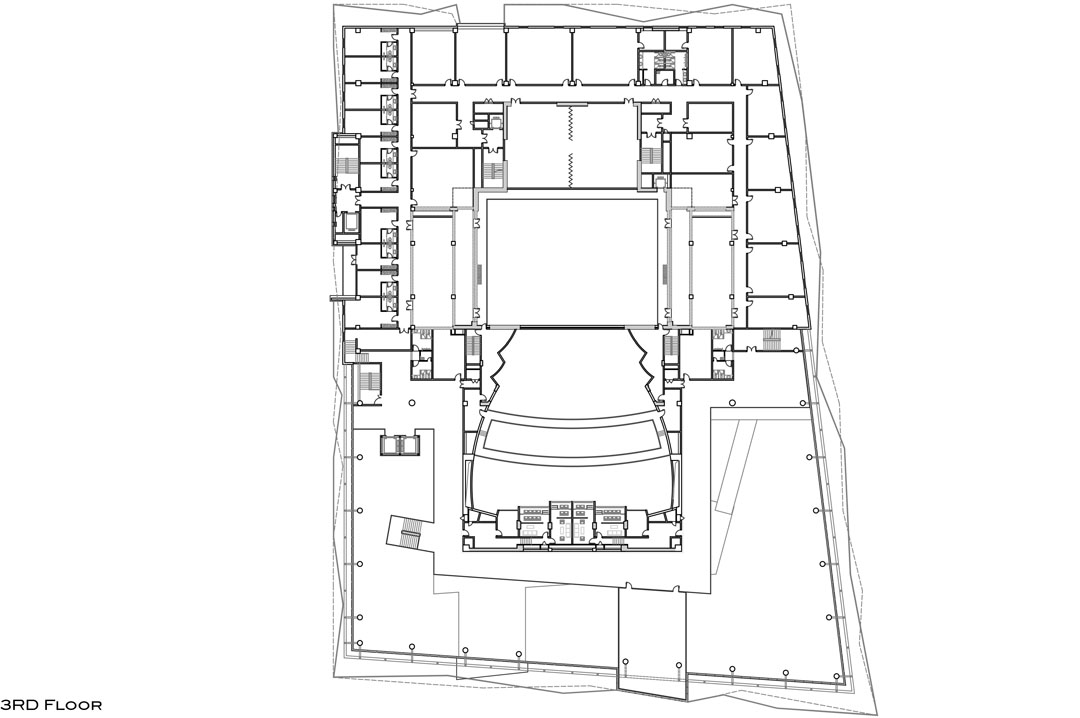

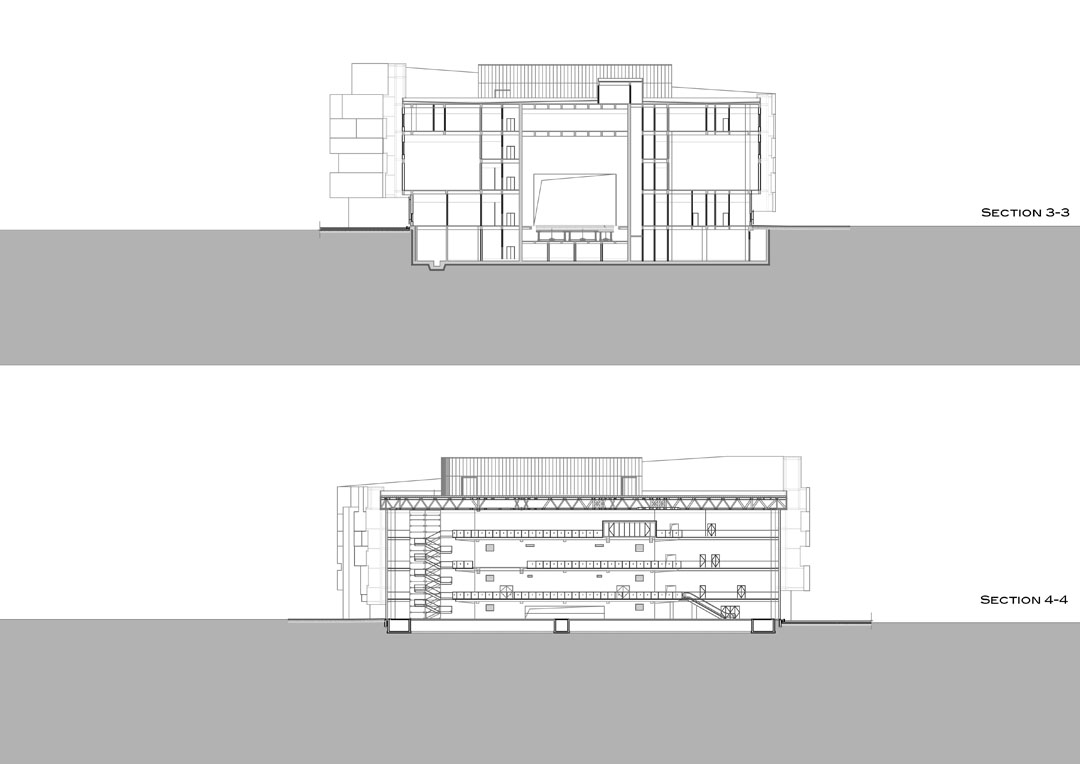

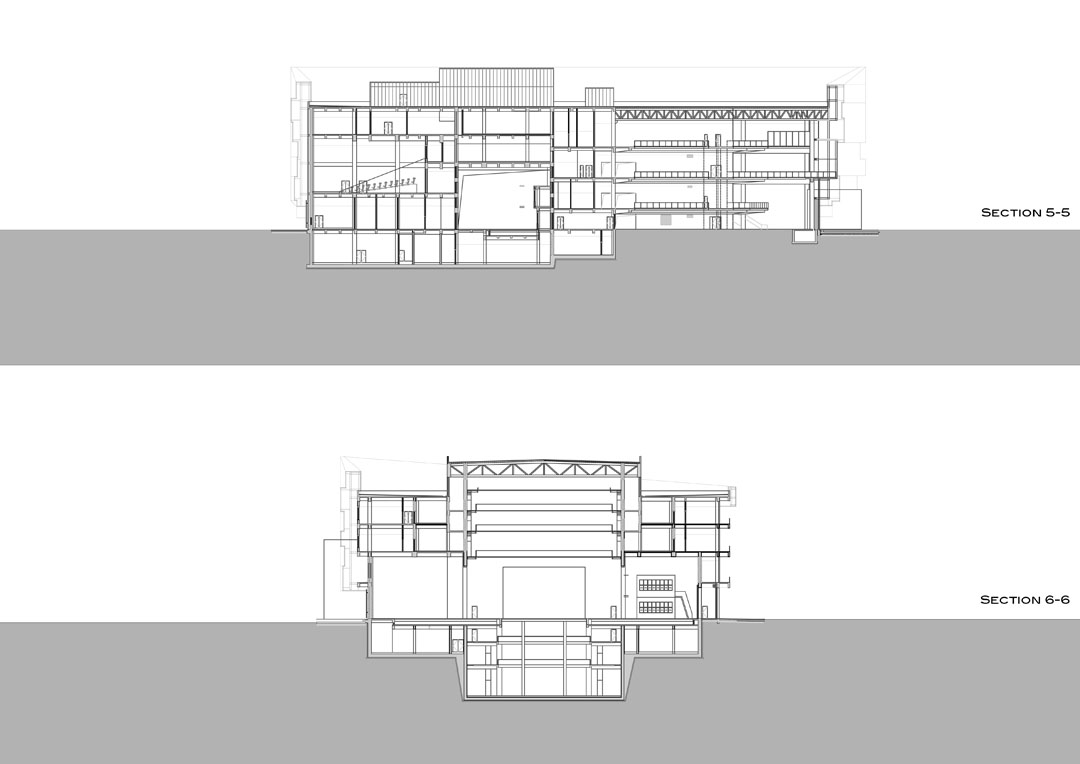

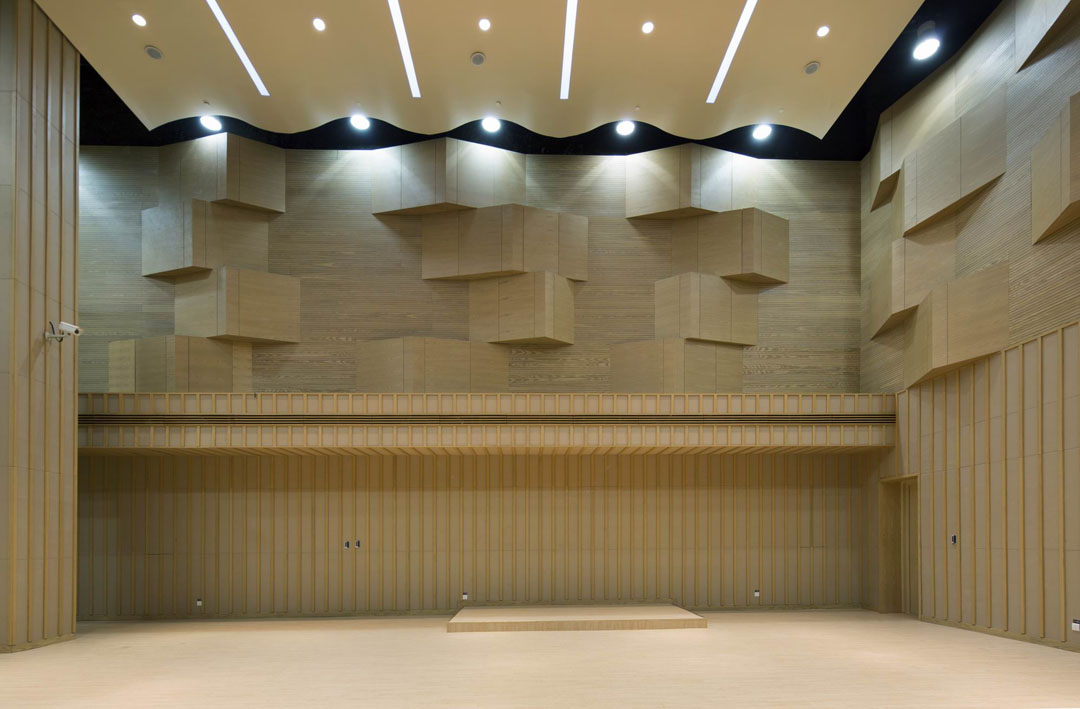

Bayuquan Baoli Theatre has 3 levels above the ground level. The main construction contains a large Dance Theatre which is specific for dancing and musical performaces with a capacity of 1600 people and a multi-functional theatre which can hold 800 people for drama play.

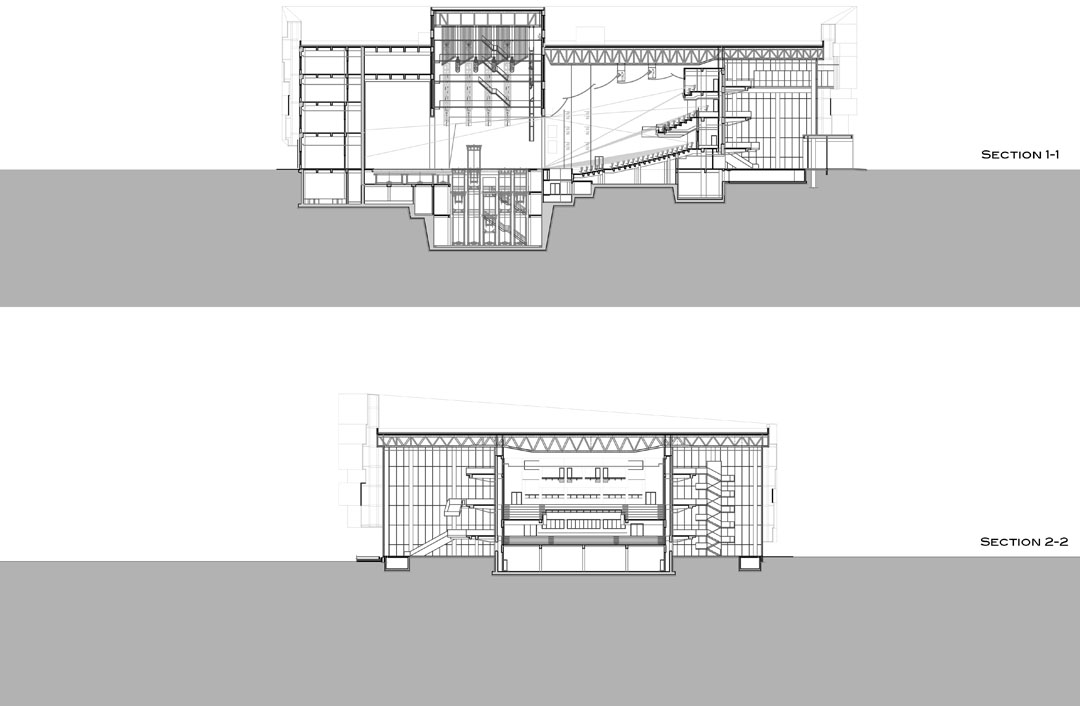

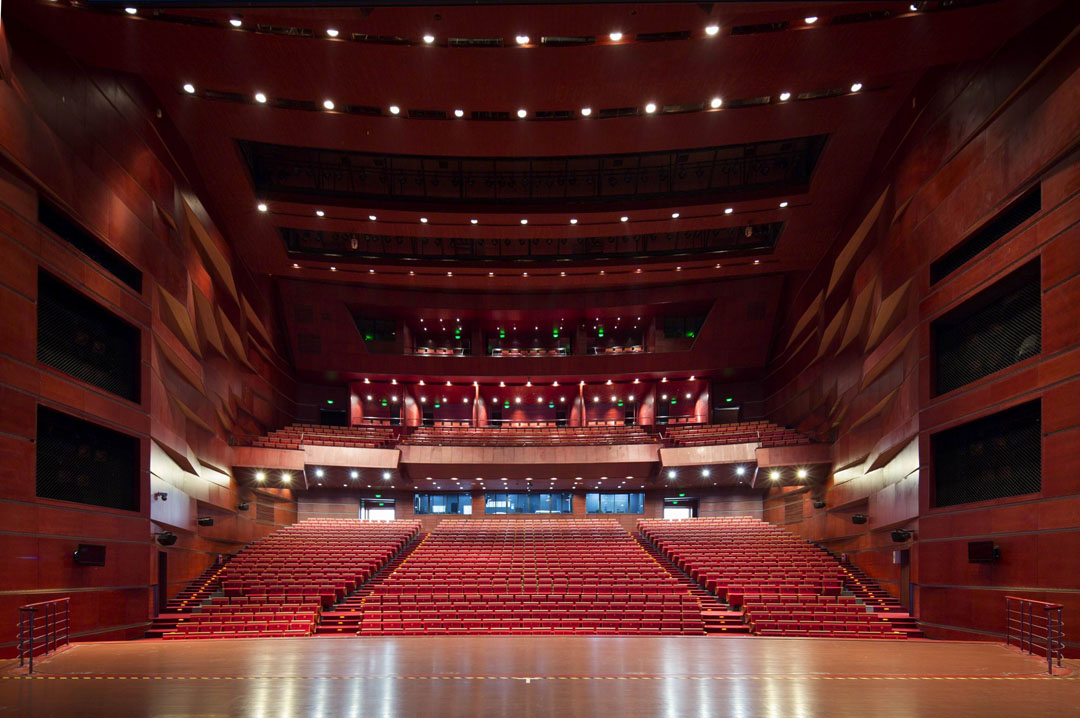

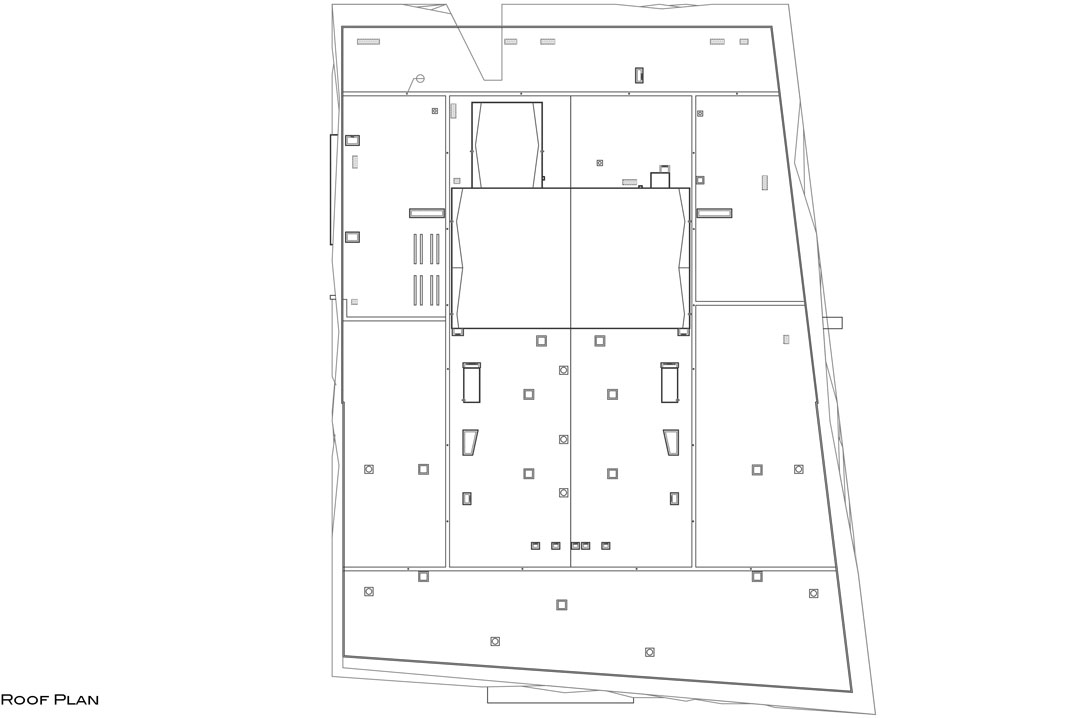

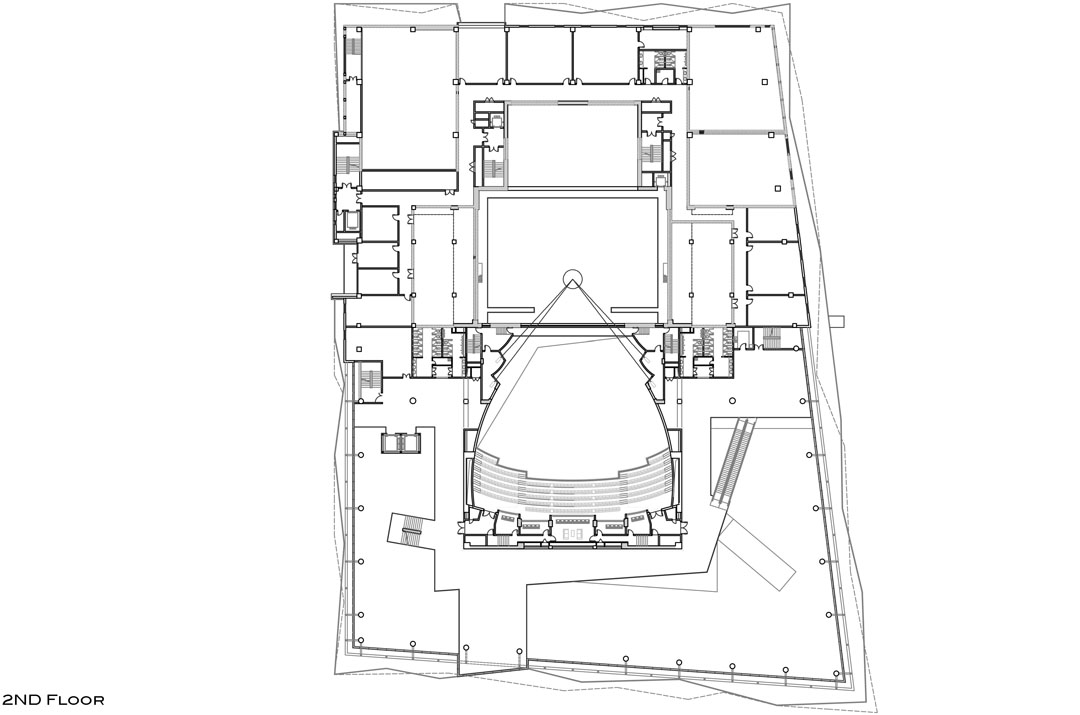

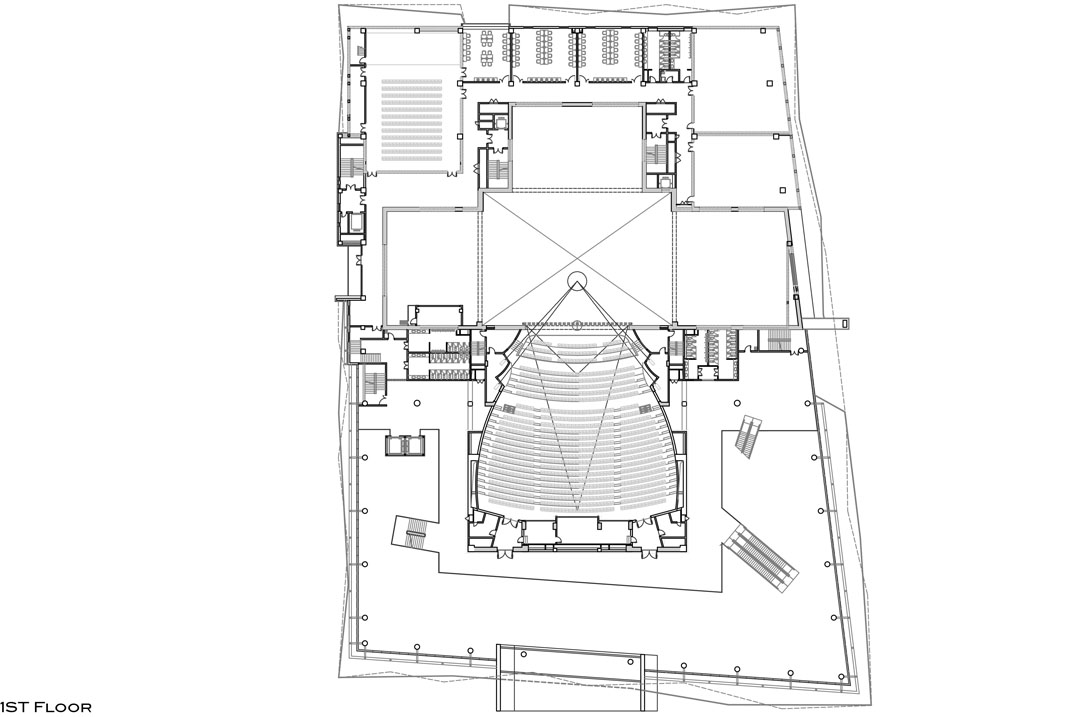

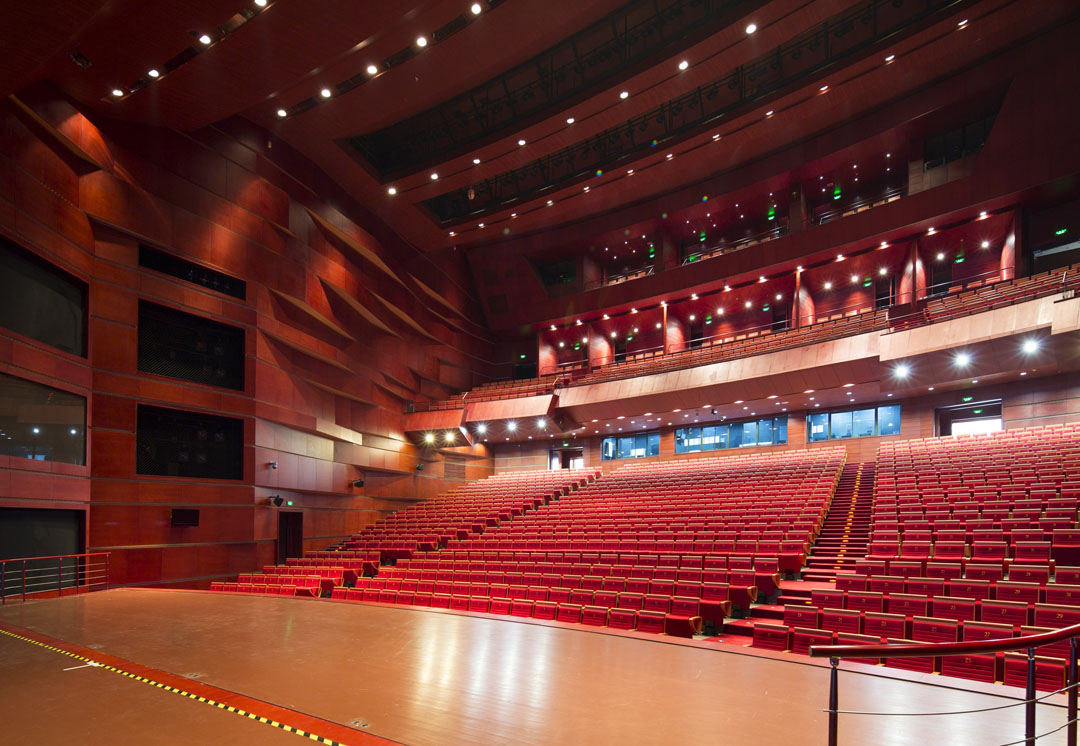

The dome of the main Dance Theatre was designed for both structural purpose and a special function. The steel-frame dome can be rotated, opened and closed to meet different performance requirements. The interior U-shape plan adopts the form of roman traditional theatre and the space is separated into 3 levels vertically. Sight analysis was carried out to allocate the seats in the theatre. To ensure best acoustic performance, the main source will be natural and each seat for audience takes up 7.7 m³(the total volume is 12300 m³). The reverberation time could be adjusted due to different performance requirements.

MORE: 上海都设建筑设计有限公司 DSD，更多请至： DSD on gooood

Project Specs

DSD
