FHV建筑事务所给gooood分享了他们在瑞士圣叙尔皮斯的集合公寓住宅项目St-Sulpice。更多请至：FHV on gooood

这栋外观为黑色的公寓其东南面是一片灌木丛生的缓坡，公寓轻轻镶入坡体，在地面层设置车库，往上三层标高皆高过地形，加上所有的窗户都是推拉落地窗，能让住户最大限度欣赏周围林地景色。

公寓的交通楼梯安排在中心，顶上的天窗保证光线充足。每层有四个公寓单元，每个单元的水电功能区域靠近楼梯布置，在楼梯和功能层之间有用户私人的交通走廊。每户人家均双面采光，有双面大阳台。因为紧凑的功能布局，该建筑达到了能效要求。

form the architect:The project nestles on a southeast-facing slope surrounded by a thicket of mature trees. Rimmed in dark metal, three floors of apartments, wrapped in balconies, look ontosurrounding woodland, which reflect off the floor-to-ceiling windows. The approach to the building and underground parking is gained via a concrete entrance cut into the planted bank. The apartments sit above, appearing to float.

The floor plan is organized concentrically on four floors around a central, light-filledstairwell. A layer of bathrooms, storage and hallways on the top three floors forms a mediating layer between the outer rooms and the central circulation. Each apartment opens onto a balcony with two sides. Despite the fully-glazed facade, the building achieves the required level of energy efficiency due to the compact organization of the plan.

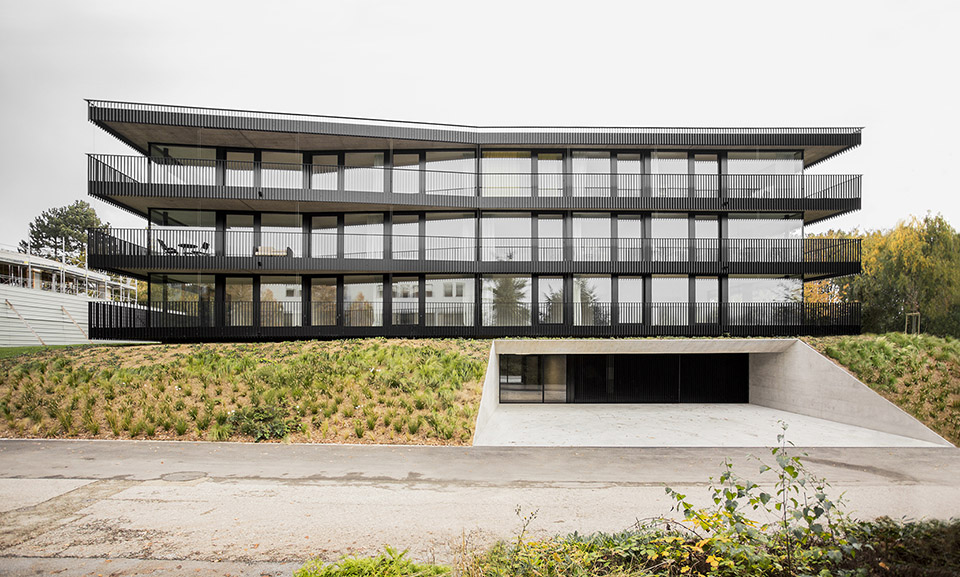

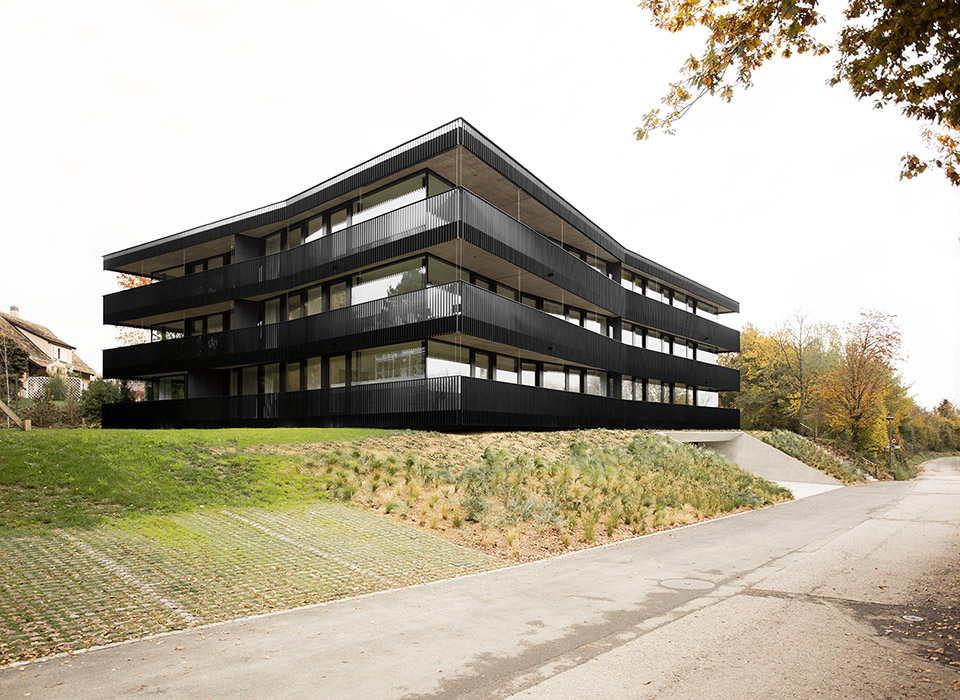

▲ 黑色外观，全落地窗窗户。地步入口层左侧是人行入口，右侧是车行入口。

▲ 微变的方体形体，通透的栏杆和透明的落地窗外表皮，让黑色不再沉重，而是轻盈有度。

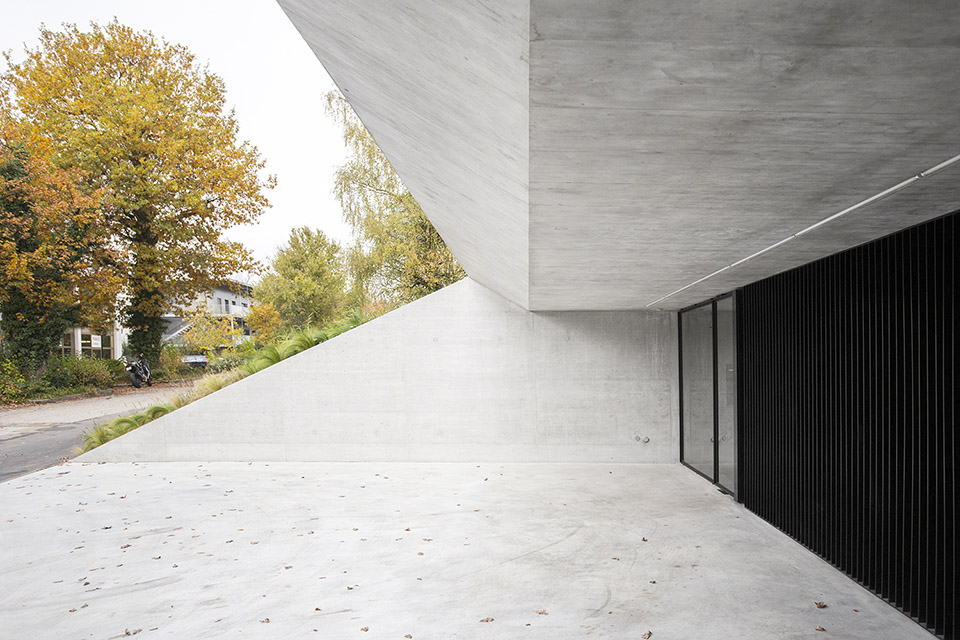

▲ 混凝土极简造型入口。

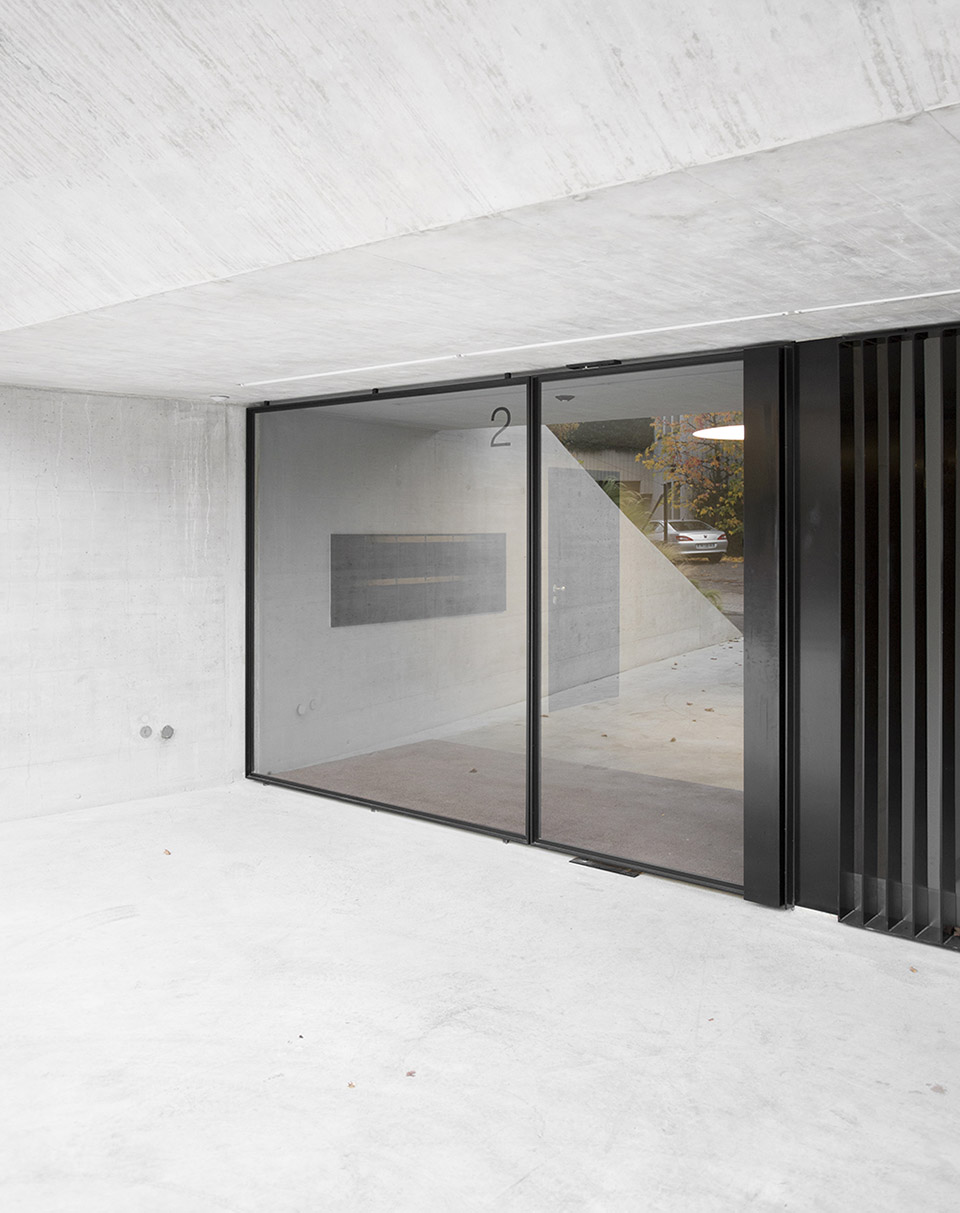

▲人行入口

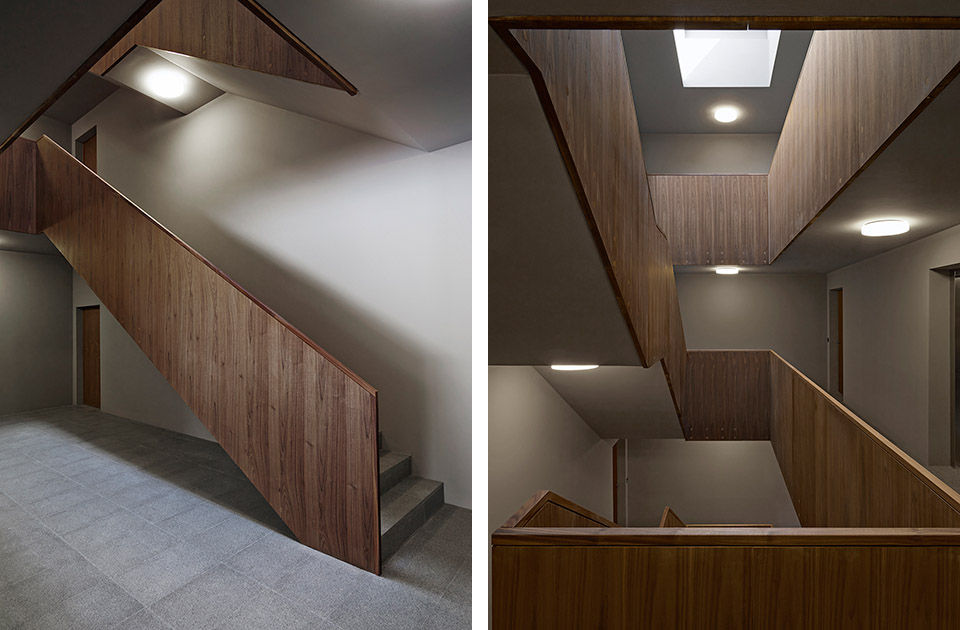

▲ 明亮的楼梯间。顶部有天光落下。一梯四户。

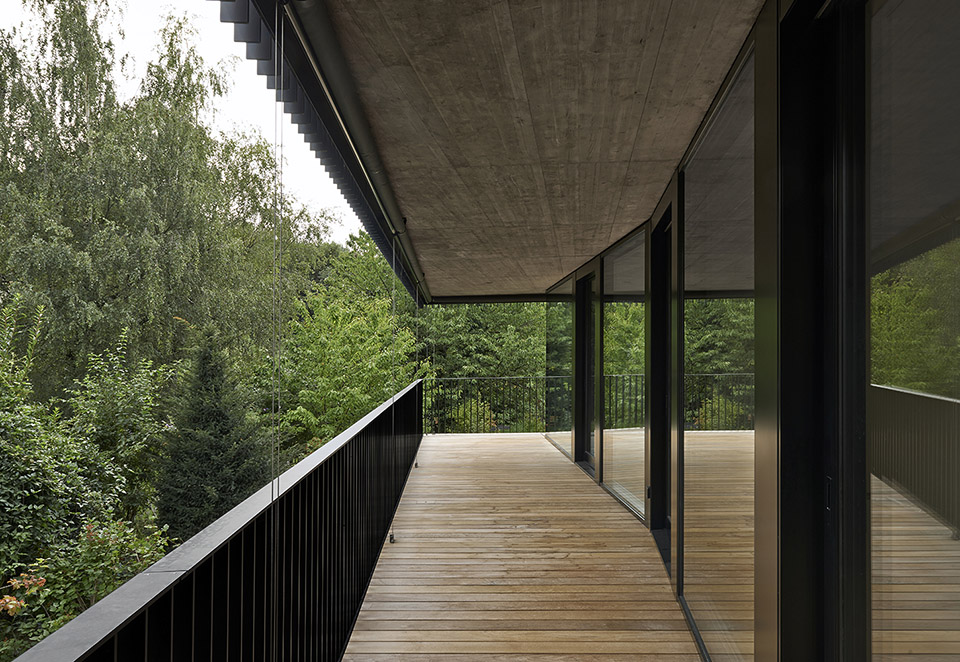

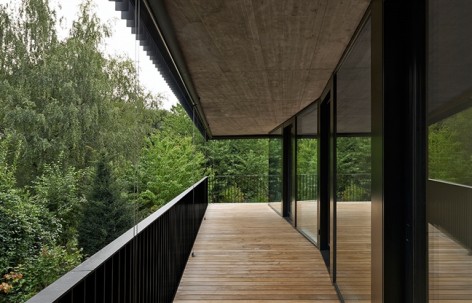

▲ 每户人家都有双面采光，落地窗加大阳台能够让住户最大限度的欣赏绿色景观。

▲ hi，自然，hi，树林。

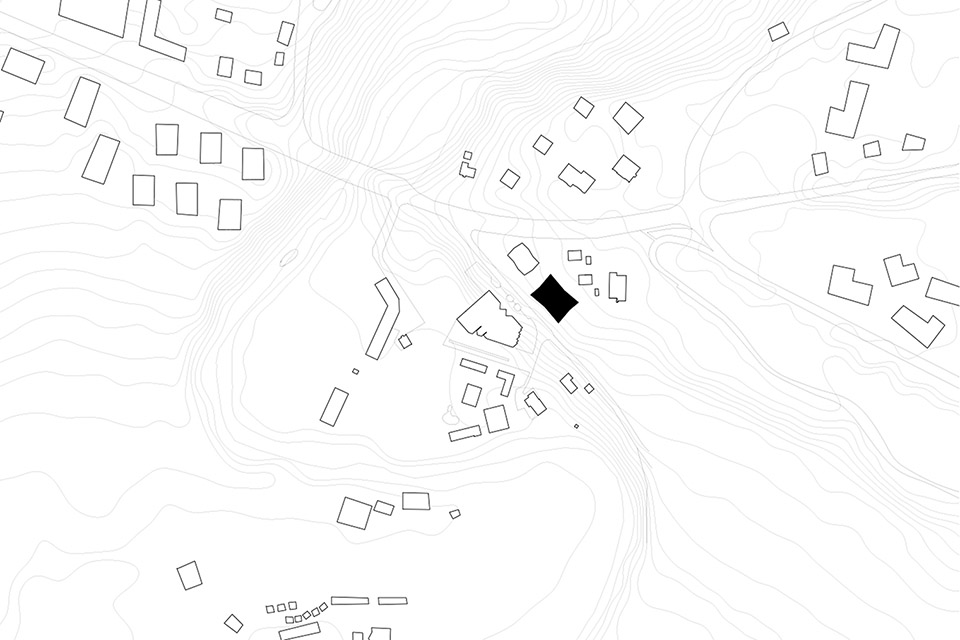

▲site plan 场地平面

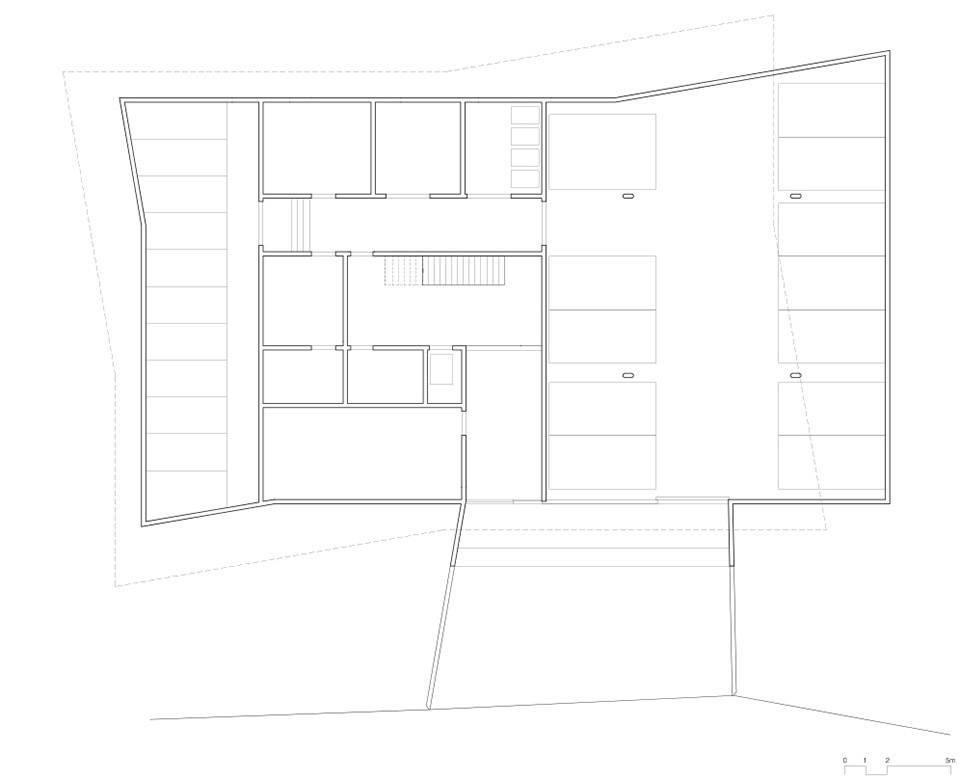

▲ground floor 地面层

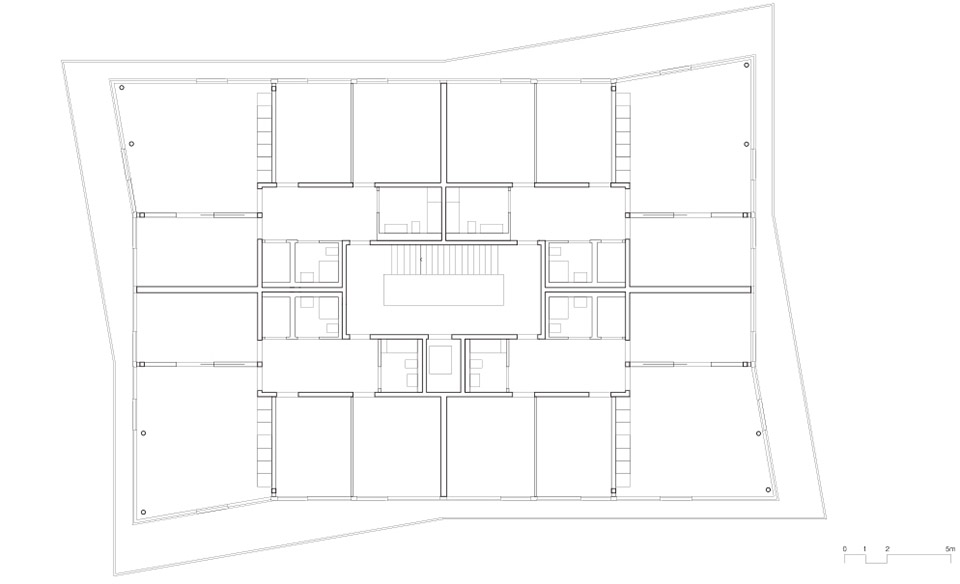

▲ apartment floor 公寓标准层

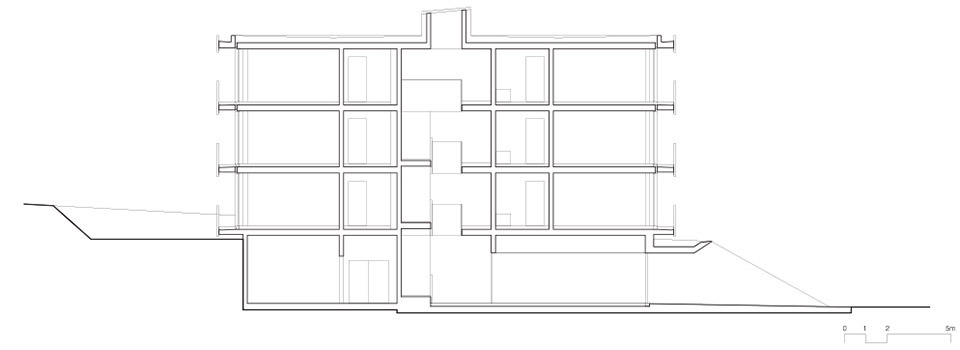

▲ cross section 剖面

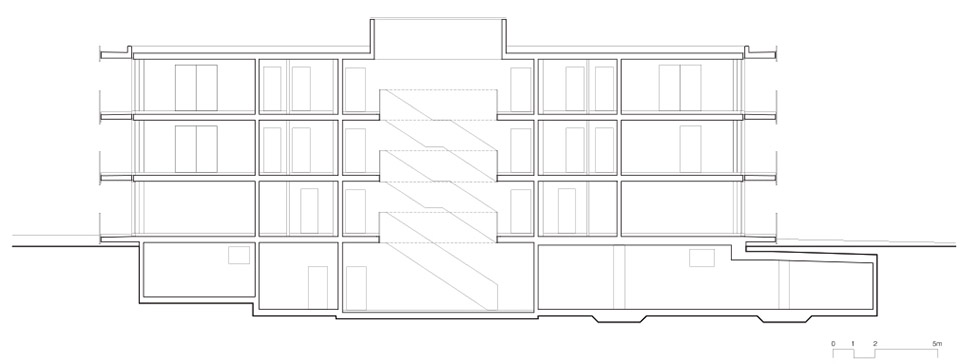

▲ long section 剖面

St-sulpice
apartment building
CLIENT: Edipresse Développement SA
PROGRAM: Housing
TYPE: Competition, 1st Prize
LIEU: St-Sulpice, Switzerland
BUDGET : 7’400’000 CHF
PERIOD: 2012-2014
team: Claudius Fruehauf, Guillaume Henry, Carlos Viladoms,
Francesca Fraschini, Alberto Sols
Construction Management: Pragma SA

MORE: FHV建筑事务所，更多请至：FHV on gooood
