感谢 深圳汤桦建筑设计事务所有限公司 予gooood分享以下内容。更多关于他们: Tanghua Architect & Associates on gooood. Appreciation towards Tanghua Architect & Associates for providing the following description:

图书馆位于校园中心区，地处教学组团和生活组团之间。用地东侧与校园主干道接驳。现状为东西向延展的梯田，最大高差约6米，其南北为相对高度不超过20米的小山。计划安排1200个阅览座位，容纳100万册图书。图书馆垂直于梯田等高线沿正南北方向布置，较薄的条形体量有利于自然采光和通风，并在室内形成长卷式的景观画面。

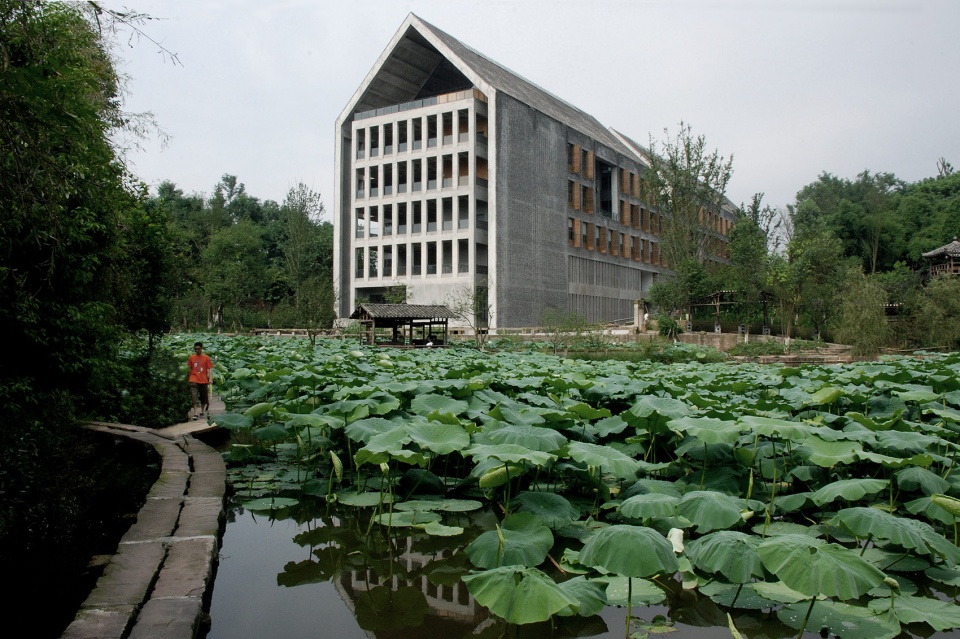

▼建筑远景，view from distance

The library is located at the heart of the Sichuan Fine Arts Institute Huxi campus, situated between the academic sector and the living sector. To its east is the main avenue of the campus. The library accommodates 1,200 seats and approximately one million books. The building is a thin and elongated south-oriented rectangular mass, which allows for better natural light and ventilation. This characteristic of the design also creates a view of panorama landscape that resembles the traditional Chinese style horizontal scroll.

▼项目概览，overview

▼具有地域精神的建筑形式与刻意保留和设计的农业景观形成有意味的关系，the architectural form is derived from the vernacular architecture in the countryside

四川美术学院有着浓厚的乡土情结，对地域传统的独特关注影响了几代美术家的性格成长。图书馆的设计立足于这种乡土性，取材于重庆地方随处可见的建筑原型，如砖窑、仓库等，以一种简洁整体的形式屹立于山地中，与校园已形成的小体量分散布局的建筑物形成对比。具有地域精神的建筑形式与刻意保留和设计的农业景观形成有意味的关系；简明的体型在创造最大化的空间通用性的同时，也暗合了传统建筑空间的构成方式。材料的选择除了依据其构造逻辑外，更重要的是考虑到历史逻辑。建筑主体的外表皮采用青色粘土砖叠砌，由屋面到墙身并一直延伸到广场地面。内部墙体及梁柱则采用清水混凝土，与外表青砖在色彩、质感上统一且具有变化。在外墙和内部楼梯间上均使用了木材。建筑山墙面和空中花园四周则大量使用玻璃，以使图书馆内部活动能够清晰展示出来。建筑外表的材料是高密度、坚硬和凝重的，而内部材料则倾向于细腻、亲和及轻盈。

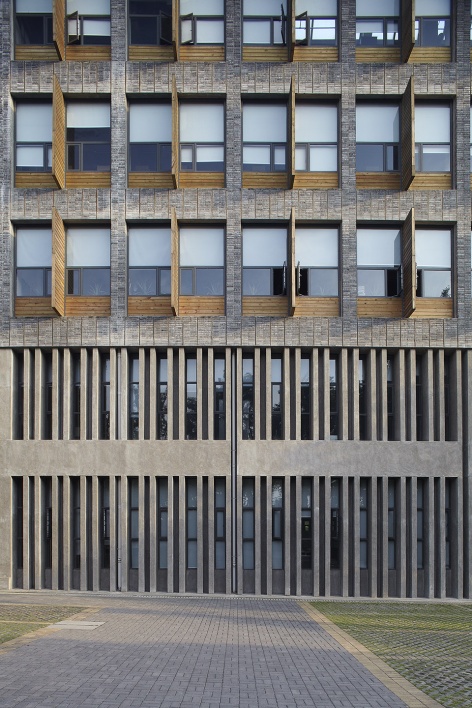

▼材料的选择除了依据其构造逻辑外，更重要的是考虑到历史逻辑，materials are selected for both tectonic and historical reasons

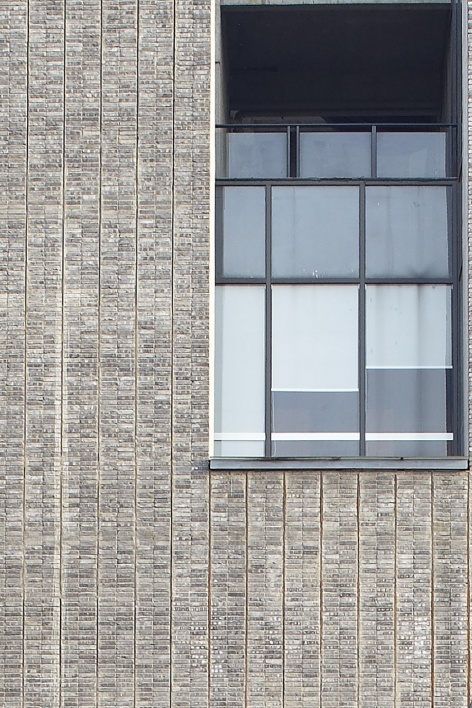

▼外表皮采用青色粘土砖叠砌，grey bricks are used for the exterior walls

The library site on a complex mountainous site, propagated by terraced paddy fields. The minimal and holistic form of the building distinguishes itself from the other existing scattered and small-scale buildings on the campus. The architectural form is derived from the vernacular architecture in the countryside. Therefore the simplistic volume maximizes the versatility of the space, also implying the spatial structure of the traditional housing of Sichuan region.The building materials are selected for both tectonic and more importantly, historical reasons. Grey bricks are used for the exterior walls, as to reflect the vernacular architectural language. The interior walls and exposed structural members are constructed in concrete to resonate with, at the meanwhile also to distinguish from, the colour and texture of the exterior. Timber is used for both exterior and interior to enhance the resonance even more. Commonalities aside, the exterior materials tend to be dense, hard and solemn, and the interior is designed to be soft, intimate and light.All the gable-side facades and the roof gardens comprise large areas of glass material to expose the interior activities to the outside spaces and to invite the outside views to the interior space.

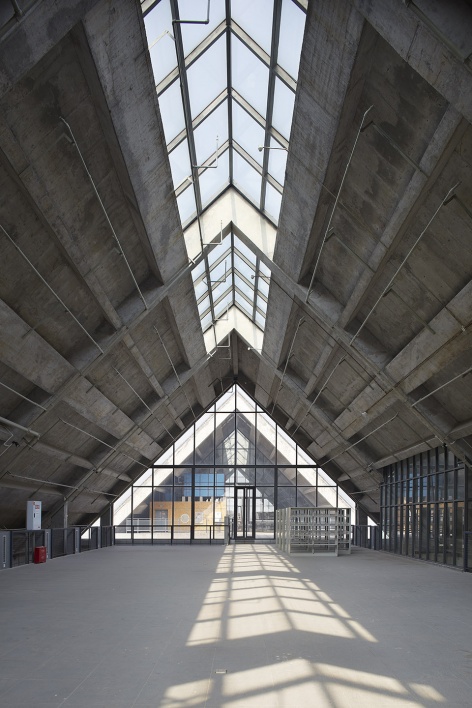

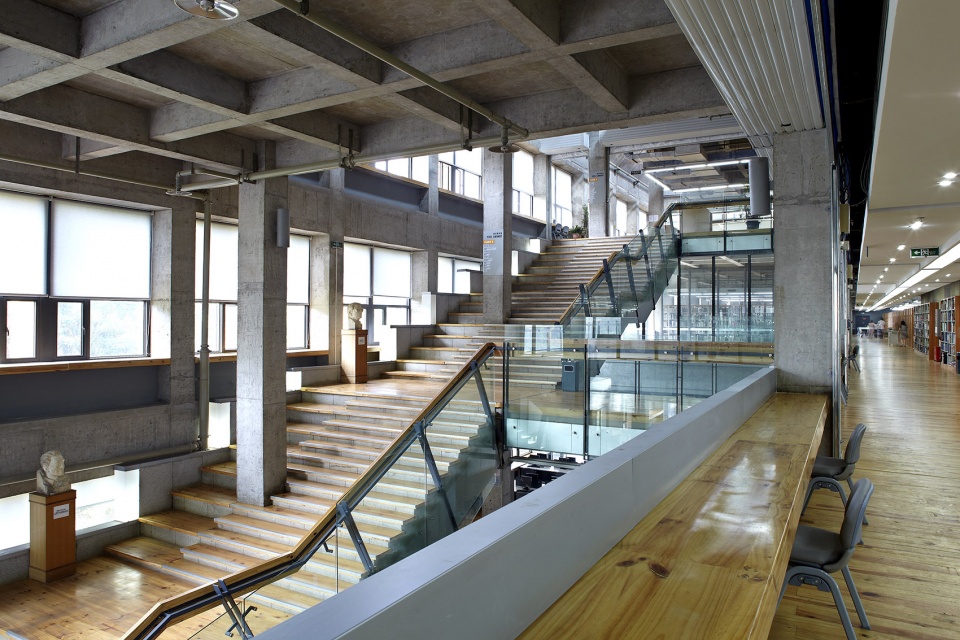

▼内部墙体及梁柱则采用清水混凝土，与外表青砖在色彩、质感上统一且具有变化，he interior walls and exposed structural members are constructed in concrete to resonate with, at the meanwhile also to distinguish from, the colour and texture of the exterior

▼室内阶梯，interior staircase

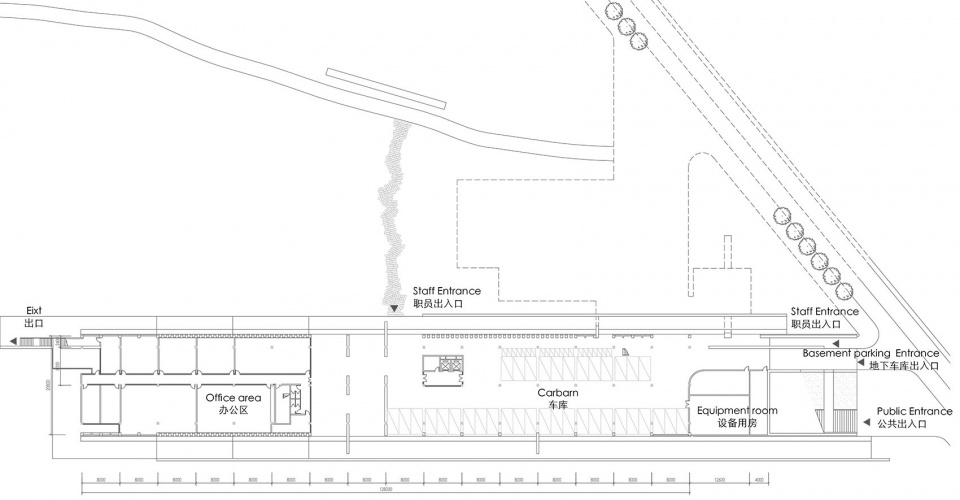

▼负一层平面图，-1F plan

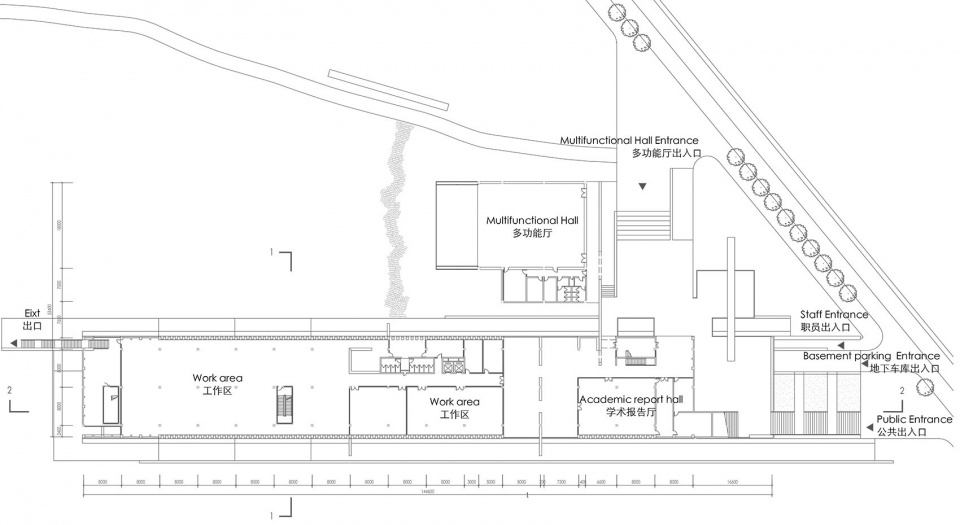

▼一层平面图，1F plan

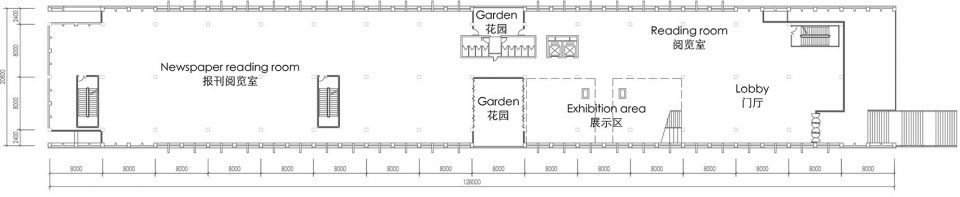

▼二层平面图，2F plan

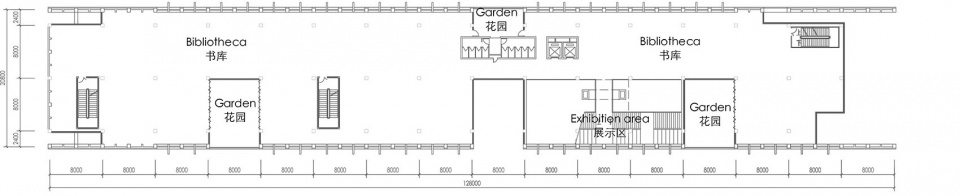

▼三层平面图，3F plan

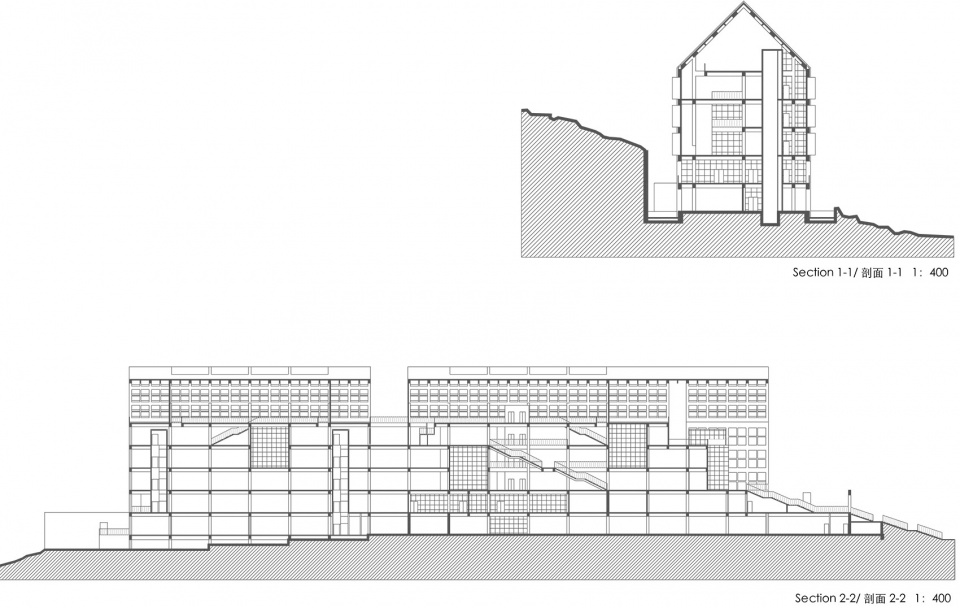

▼剖面图，sections

项目名称：四川美术学院虎溪校区图书馆
设计团队：汤桦、胡铮、韩海兵、孙伟、高卫国等
合作单位：重庆市设计院
项目地点：重庆
委托机构：四川美术学院
用地面积：28636㎡
建筑面积：14260㎡
设计时间：2006.02-2007.11
建成时间：2009.03
建筑摄影：戴琼、汤桦、傅兴

Project Name：Sichuan Fine Arts Institute Library, Huxi Campus
Designer Team：Tang Hua, Hu Zheng, Han Haibing, Sun Wei, Gao Weiguo etc.
Cooperation Unit：Chongqing Design Institute
Location：Chongqing
Client：Sichuan Fine Arts Institute
Site Area：28636㎡
Gross Floor Area：14260㎡
Design Time：2006.02-2007.11
Completed Date：2009.03
Photographer：Dai Qiong, Tang Hua, Fu Xing
