来自Paredes Pedrosa arquitectos对gooood的分享。更多请至：Paredes Pedrosa arquitectos on gooood
Appreciation towards Paredes Pedrosa arquitectos for providing the following description:
All photos by Luis Asín and Paredes Pedrosa Arquitectos

新塞维利亚警察局大楼是一座颇有些“另类”的建筑。大楼靠近基地的东南侧，面向弧形的街道展示出开放的姿态。受到监视系统模型的启发，建筑师设计了一座不规则的醒目的四角星形建筑。沿着建筑的周边，建筑师设计了一条景观带，并将其延伸至外部的围栏，将整个建筑环抱其中。特殊的造型让建筑的立面得到延伸，让更多的房间可以直接对外开窗。

The new police station in Seville is a detached construction that leans on the southeast edge of the site and opens up towards a circular street. The building is shaped as an irregular four-pointed star, which determines the image of the building, inspired in a panoptical model. A landscaped strip then surrounds the construction. This natural belt is extended up to the exterior fence and it naturally embraces the wings of the building. This way, the proposed volume achieves an extensive facade length with a maximum number of rooms opening towards the outdoor spaces in between the wings.

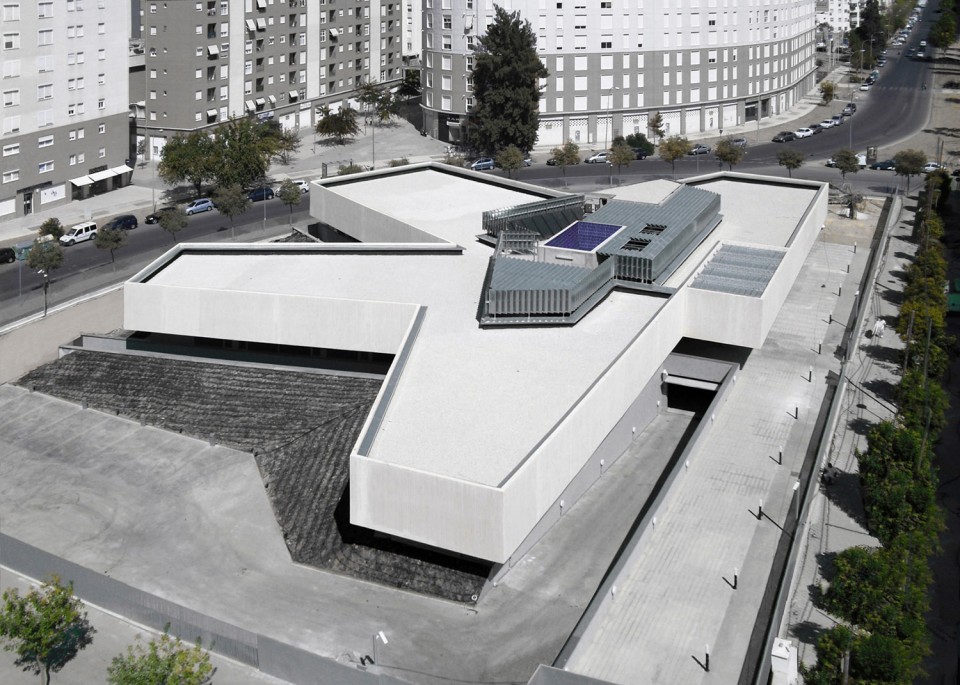

▽ 鸟瞰，bird view

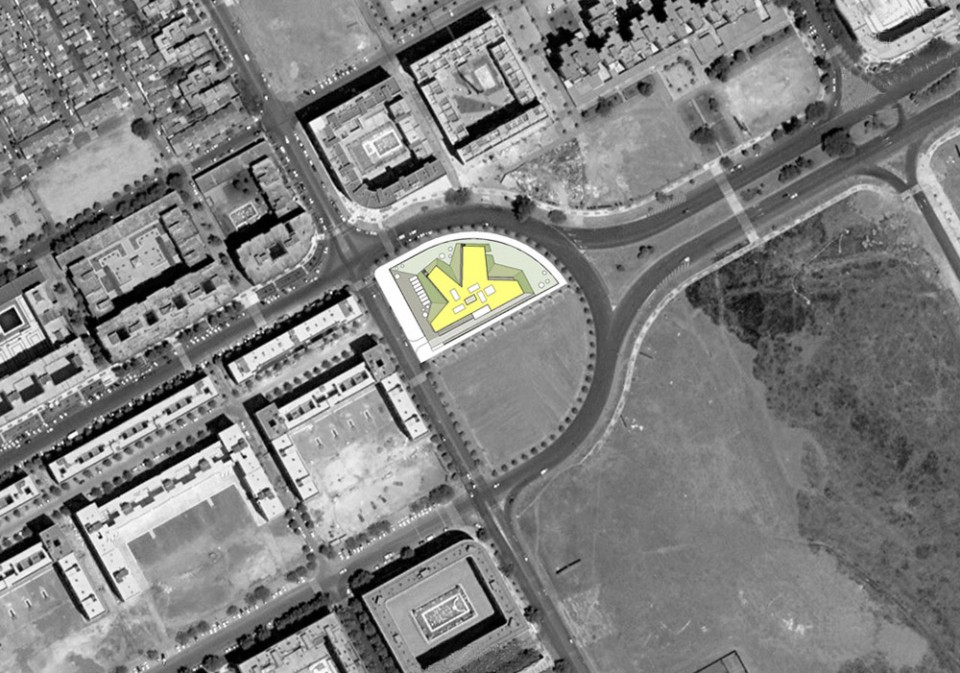

▽ 总平面图，site

外立面分为两个层次。上部，是一面连续的悬挑的素混凝土墙，包裹在建筑的周边。墙面上的波形纹路使它看上去像一面不间断的帘布，从上方的楼板上悬挂下来。下部，可以根据太阳方位自动调节的覆膜玻璃将强烈的阳光阻挡在外，为室内营造舒适的微气候。

The external facade is composed in two differentiated levels. Above, a continuous suspended wall made of white concrete wraps the perimeter of the building. This skin has a corrugated appearance and looks as an uninterrupted curtain hanging from the superior slab. Beneath this solid eyeshade, a glass wrapping shelters the interior from the harsh sunlight thanks to a gradual protection that adapts itself according to changing orientations.

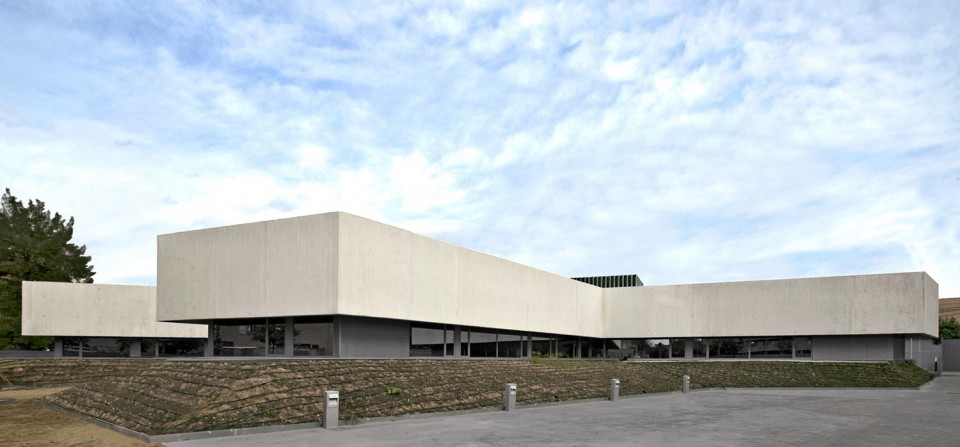

▽ 立面造型，facade

所需要的空间都被安置在四角星形的建筑内。公共区域位于入口的右侧，通过透明的立面，向走近的市民传递亲切的信号。入口大厅在垂直方向上被蓝色瓷砖贴面的采光庭院穿过，后者将地平层划分为公共和内部区域两个部分。

The programme is contained within the four wings of the star. The public areas are located right next to the entrance, behind a transparent skin that conveys an appearance of proximity to the citizen who approaches the police station. This entrance is crossed vertically by a patio-lightwell, built with blue ceramics, that separates public and internal areas. The building typology is highly adapted to its administrative use.

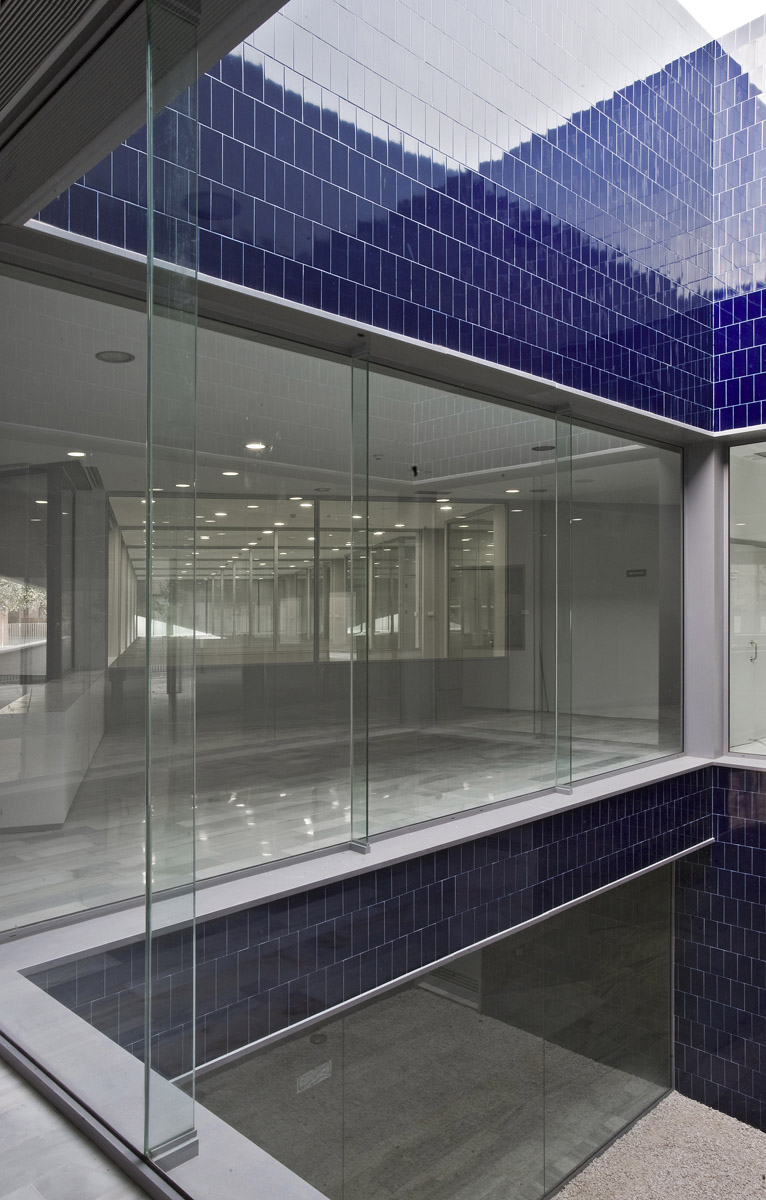

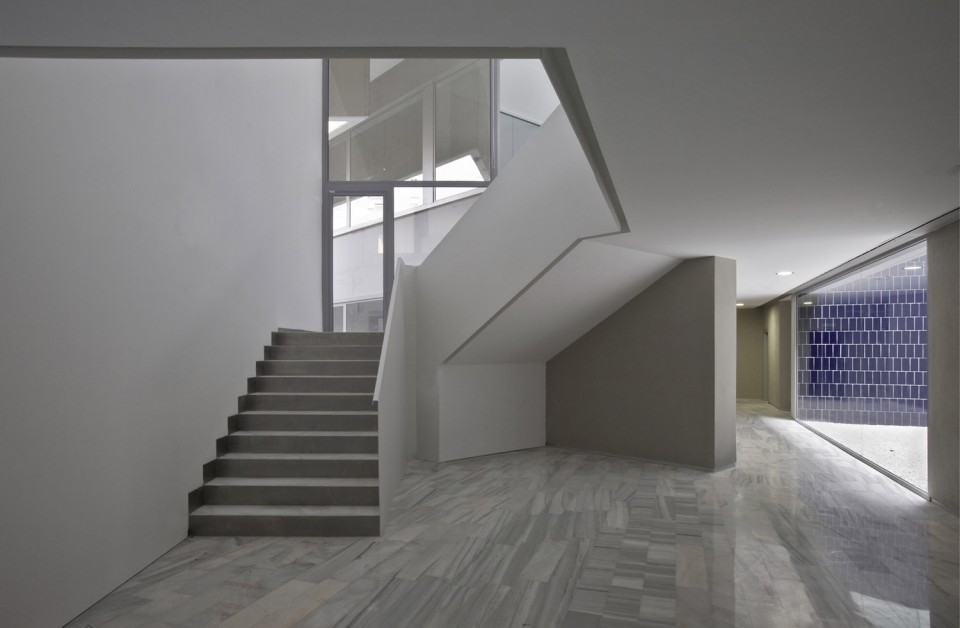

▽（左）采光庭院，（右）交通空间； (left) the patio, (right) the circulation

这座建筑虽然造型独特，但实用性非常强。警察局的内部房间被设置在两个楼层内，其中一层位于地下。环绕建筑的绿色景观带除塑造了警察局的外部形态外，还起到保护地下停车场及办公室的作用。

The program is developed in two levels, one of which is partially built underground. Green slopes that shape the external appearance of the police station protect the underground level, which hosts the internal parking area and cells.

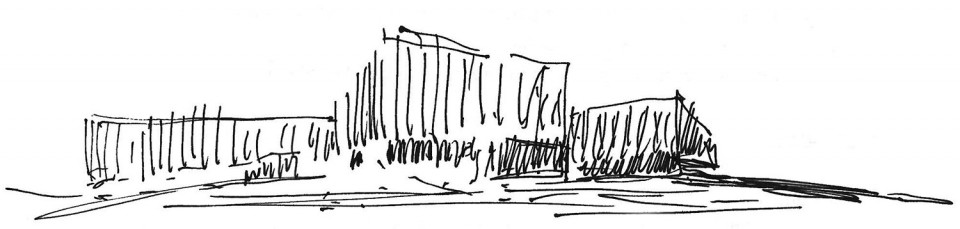

▽ 草图，sketch

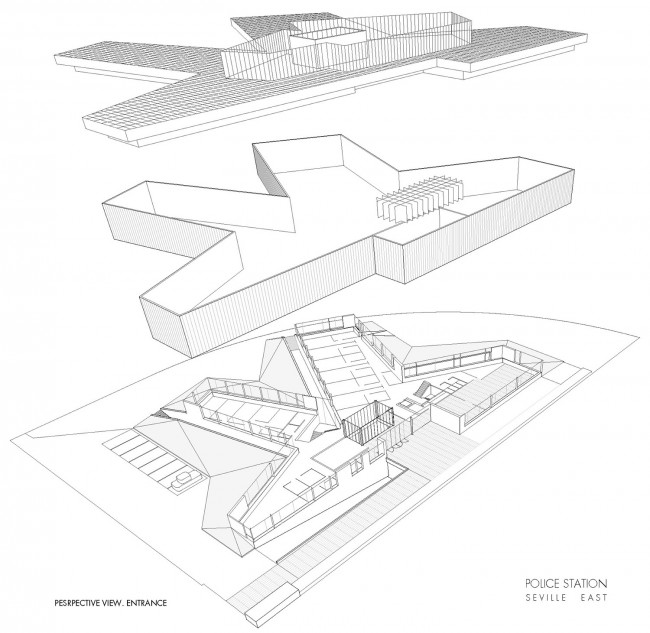

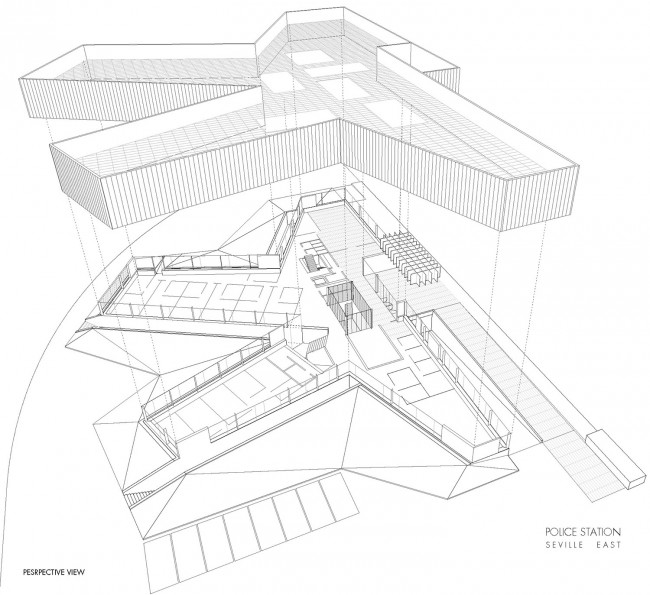

▽ 平面图透视图，perspective views

Project 2006
Construction: 2008 – 2009
Architects: Ángela García de Paredes. Ignacio Pedrosa
Project team: Álvaro Oliver, Álvaro Rábano, Clemens Eichner, Eva Urquijo, Djamila Hempel, Jorge López
Architects on site: Ángela García de Paredes. Ignacio Pedrosa, Álvaro Oliver
Technical control: Luis Calvo. Gonzalo Cátedra
Structure: GOGAITE S.L.
Mechanical engineers: GEASYT S.A
Location: Avenida Emilio Lemos / Calle Médicos Mundi. 41020 Seville
Client: GIESE. Gerencia de Infraestructuras de la Seguridad del Estado
Contractor: JOCA Ingeniería y Construcción S.A.
Programme: Police station and offices
Floor area: 3.178 sq.
Photos: Luis Asín

Drawings: Paredes Pedrosa arquitectos
English Text: Paredes Pedrosa arquitectos
Chinese Text:gooood

MORE: Paredes Pedrosa arquitectos，更多请至：Paredes Pedrosa arquitectos on gooood
