滴水湖一号码头位于上海市临港新城滴水湖80米环湖绿化带内，同时邻近地铁16号线滴水湖终点站，是连接临港新城与上海市区的重要节点。按照总体规划，这里将是一个供游船停泊与游客登船的场所，并且设置了配套建筑以提供服务。鉴于特定的场所和功能定位，一号码头不应只是一个独立于环湖绿带的点缀性建筑，而是要力争使得整个场地能够彻底融入滨水环境，成为环湖景观的一部分。

▼视频，Video ©林伟杰、盛晨晨

The Pier One Dishui Lake is located within the 80 meter green belt surrounding Dishui Lake in Lingang New Town, Shanghai. It is also adjacent to the Dishui Lake terminal station of Metro Line 16 and is an important node connecting Lingang New Town and the urban area of Shanghai. According to the overall plan, this will be a place for cruise ships to dock and tourists to board, and supporting buildings will be set up to provide services. Given its specific location and functional positioning, Pier One should not be just an embellishment building independent of the green belt surrounding the lake, but should strive to fully integrate the entire site into the waterfront environment and become a part of the lake landscape.

▼夕阳下的滴水湖一号码头，融入环湖 80 米绿化景观，Dishui Lake Pier No.1 in the Sunset, Integrated into 80m Lakeside Green Belt ©田方方

▼融入绿化景观中的码头建筑，Pier Architecture Integrated with Green Landscape ©田方方

▼晨曦中的滴水湖一号码头，Pier No.1 at Dawn ©田方方

滴水湖一号码头项目创造性地采用了一种地景化的建筑设计策略，避免了由于用地规划而导致的码头建筑与绿地景观的分隔，让码头建筑与景观充分融合，从而营造出一种超越日常性、同时又能够包容多重功能与行为活动的滨水空间体验。滴水湖一号码头建筑通过富有创意的结构形式设计，将绿带景观与码头功能结合在一起，将不同的流线进行立体化布局，改变了环湖绿化带单调贫乏的氛围，维护了滨水岸线在景观、公共活动、以及生态上的连续性。

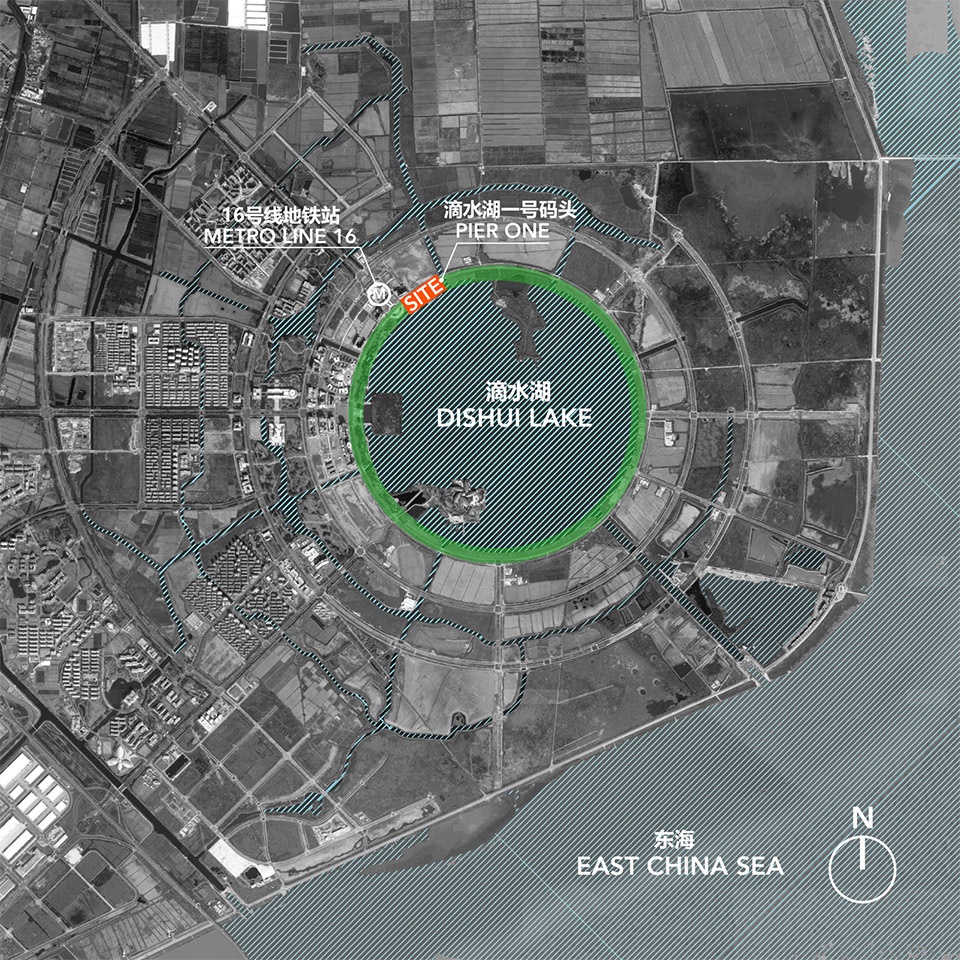

▼项目区位图，滴水湖是一个象征着新城的圆形符号，Project Location – Dishui Lake as a Circular Symbol of the New City © 梓耘斋建筑

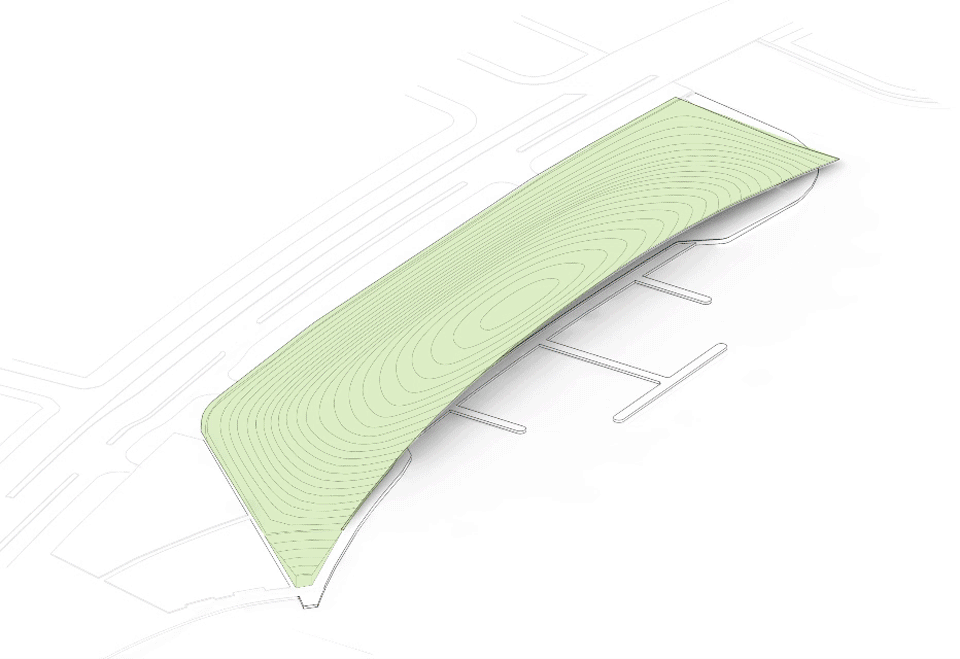

▼方案生成过程，Design Generation Process © 梓耘斋建筑

The Pier One Dishui Lake project creatively adopts a landscape oriented architectural design strategy, avoiding the separation of pier buildings and green landscapes caused by land use planning, allowing the pier buildings and landscapes to fully integrate, thus creating a waterfront space experience that transcends daily life while accommodating multiple functions and behavioral activities. The architecture of Pier One Dishui Lake combines the green belt landscape with the pier function through creative structural design. Different flow lines are arranged in a three-dimensional manner, changing the monotonous and impoverished atmosphere of the lake surrounding green belt and maintaining the continuity of the waterfront in terms of landscape, public activities, and ecology.

▼从绿化坡地看向码头，View of Pier from Green Slope ©田方方

▼结合草坡的楼梯与大台阶二层相连，Slope-integrated Staircase Connecting to Second Level of Grand Steps ©田方方

▼结合草坡的楼梯与大台阶二层相连，Slope-integrated Staircase Connecting to Second Level of Grand Steps © 黄潇颖

▼屋面延伸至码头两侧场地尽端，Roof Extending to Both Ends of the Pier Site © 黄潇颖

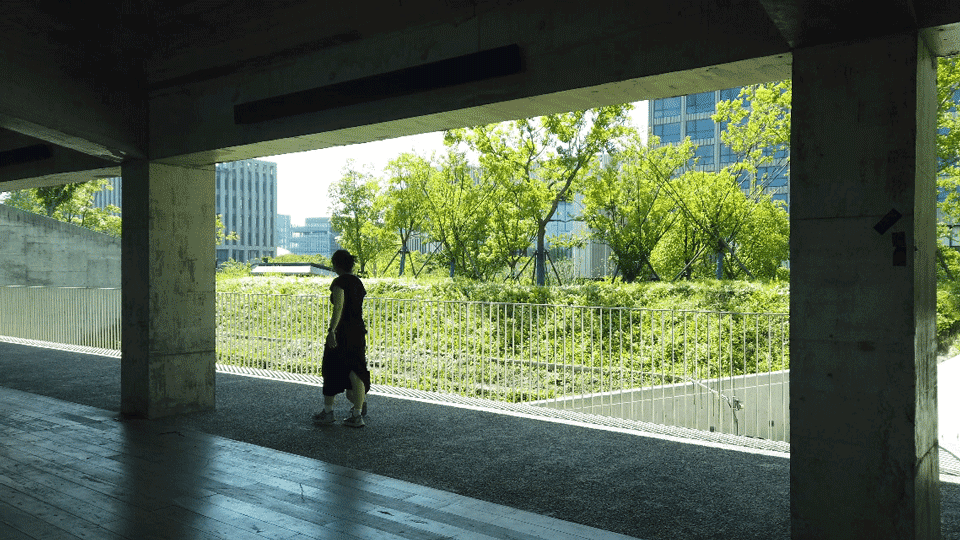

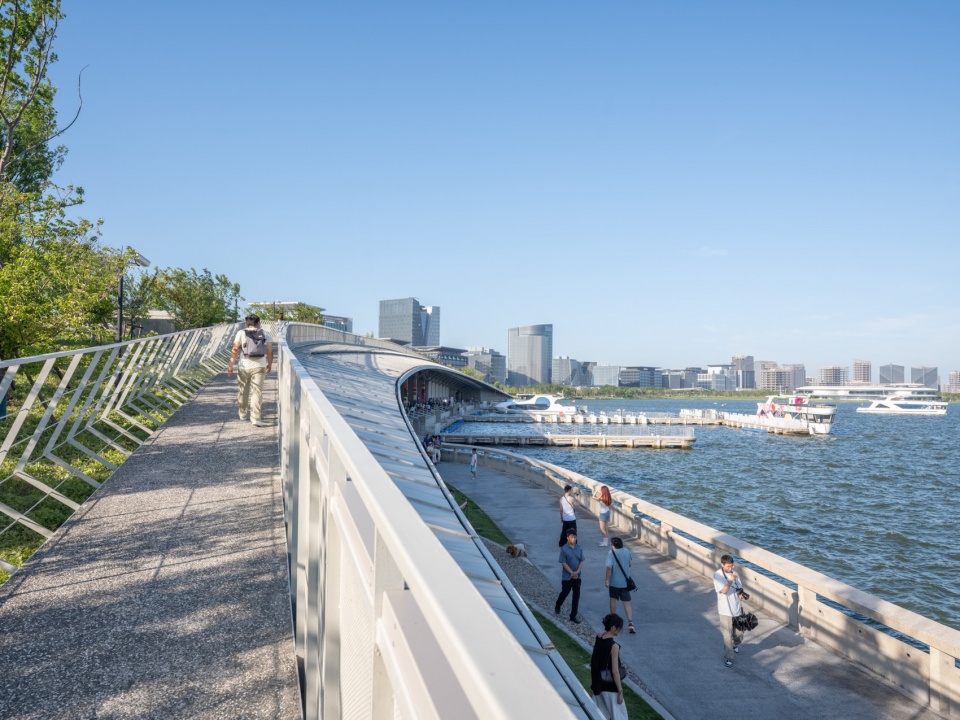

▼屋顶的上人通道，Accessible Roof Pathway ©田方方

▼屋顶的上人通道，Accessible Roof Pathway © 黄潇颖

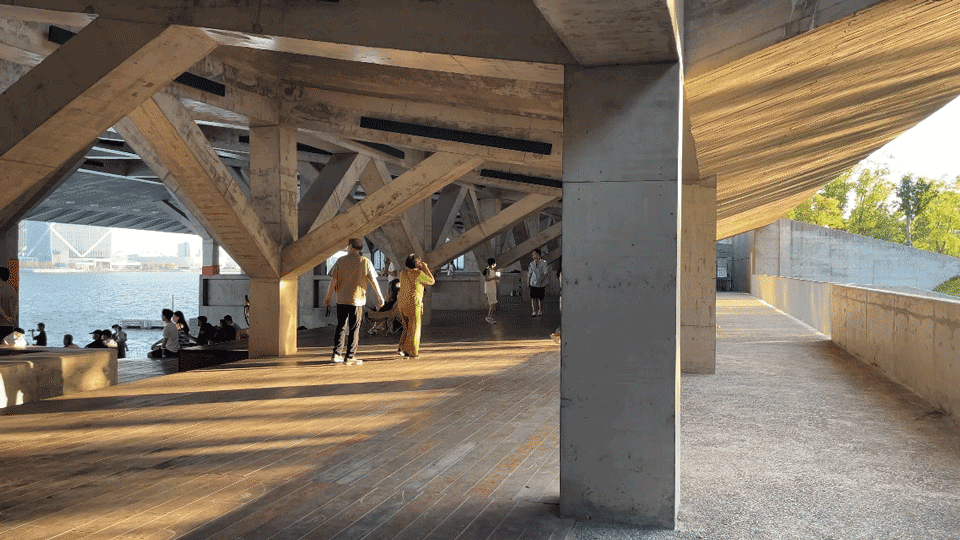

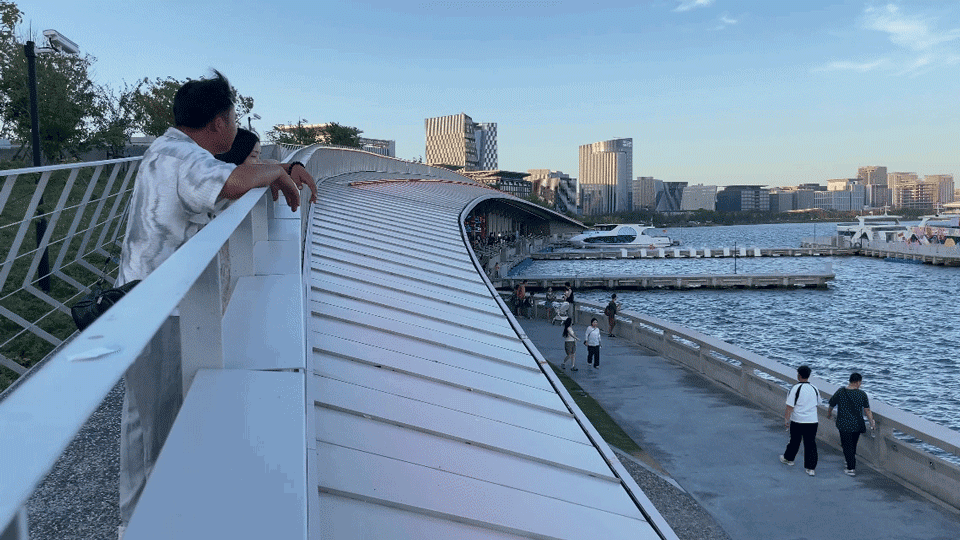

▼通道与悬挑屋面构成开放滨水体验，Passage and Cantilevered Roof Form an Open Waterfront Experience © 黄潇颖

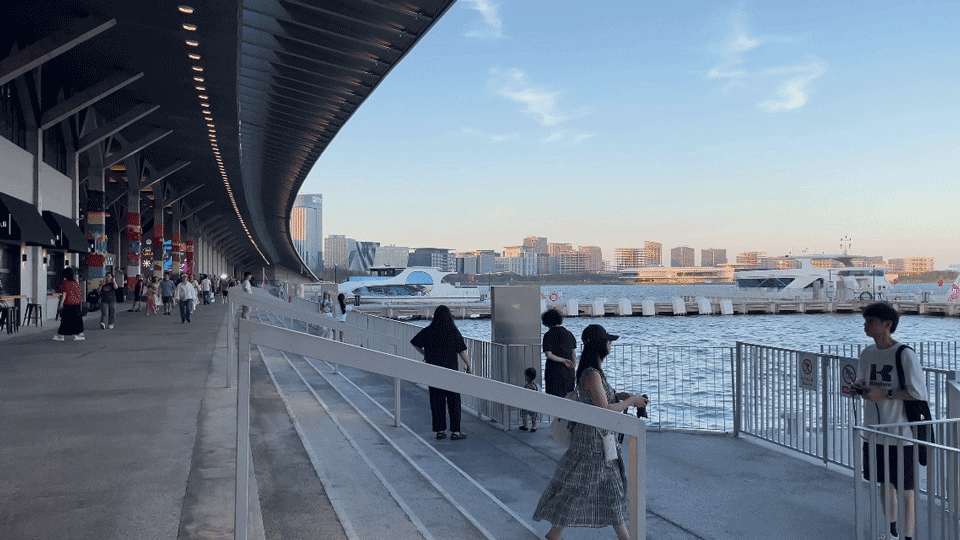

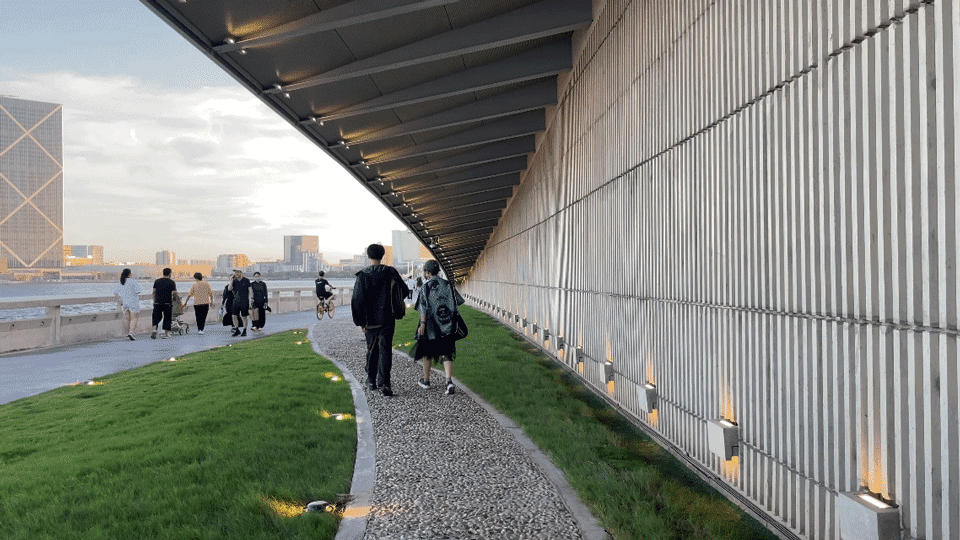

▼骑行与散步的市民络绎不绝，Cyclists and Pedestrians in Constant Flow © 黄潇颖

▼滴水湖码头建成后从大台阶看向湖面，View from Grand Steps to Lake after Completion © 黄潇颖

滴水湖一号码头设计方案采取了最大程度地公共空间系统介入，通过一个覆盖场地的多孔状、弧形种植屋架将码头建筑和绿地景观统合起来，将滨水休憩活动容纳到一个有丰富光影、绿树、及空间体验的“空腔”之中。在空腔中的大台阶、平台、树池、坡道、楼梯、庭院……构成了建筑丰富的空间层次。同时，码头建筑周边及屋架上的绿化在等待着茂盛，或将这个建筑彻底容纳和隐匿到绿树与光影之中，而其空间结构在场所上所构建的公共空间系统，则将成为这个建筑最重要的标识。

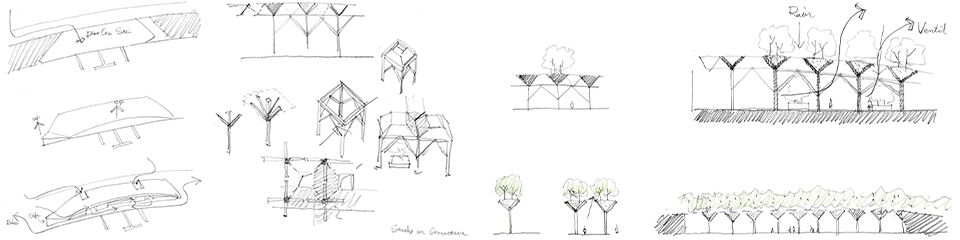

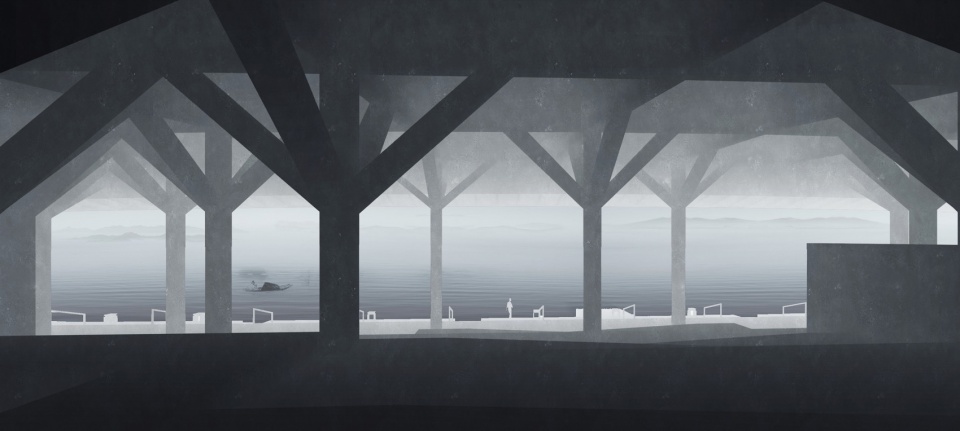

▼设计草图，Design Sketch © 梓耘斋建筑

▼码头中央的大台阶，Grand Steps at the Center of the Pier © 梓耘斋建筑

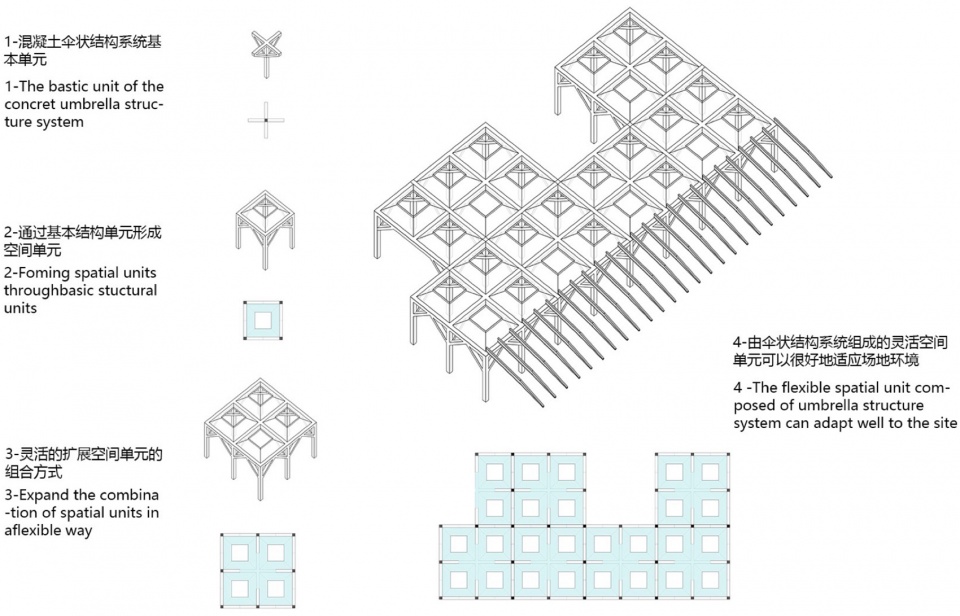

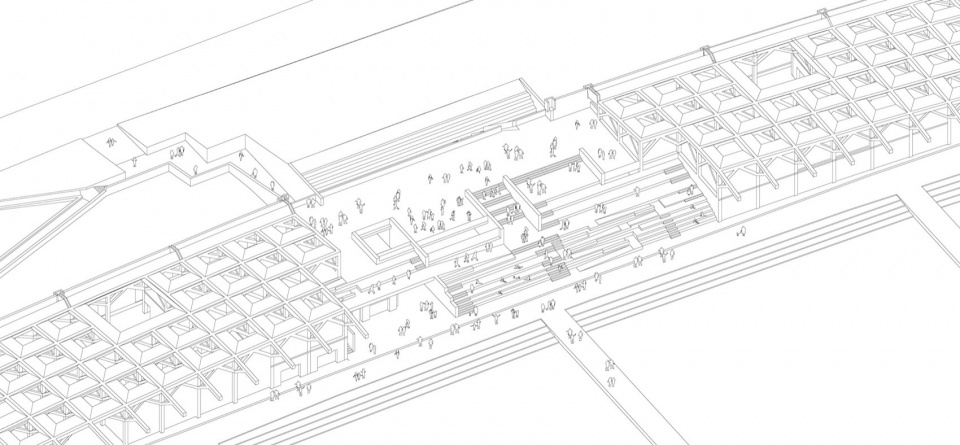

▼伞状结构系统的扩展，Expansion of Umbrella Structure System © 梓耘斋建筑

The new design plan for the Pier One Dishui Lake adopts a strategy which maximizes the intervention of public space systems and integrates the pier building and green landscape with a multi hole arc-shaped planting roof covering the site. It accommodates people’s waterfront leisure activities under a “cavity” with rich light and shadow, green trees, and spatial experience. The wide steps, platforms, tree pools, ramps, stairs, courtyards, etc. in the cavity constitute the rich spatial hierarchy of the building. At the same time, the greenery around the dock buildings and on the roof trusses is waiting to flourish, or to completely accommodate and conceal the building in green trees and light, while the public space system constructed by its spatial structure on the site will become the most important symbol of this building.

▼建筑师将 200 米滨水区域纳入场地设计，形成巨大舒适的庇护空间，200m Waterfront Integrated into Site Design to Create Large Sheltered Space ©田方方

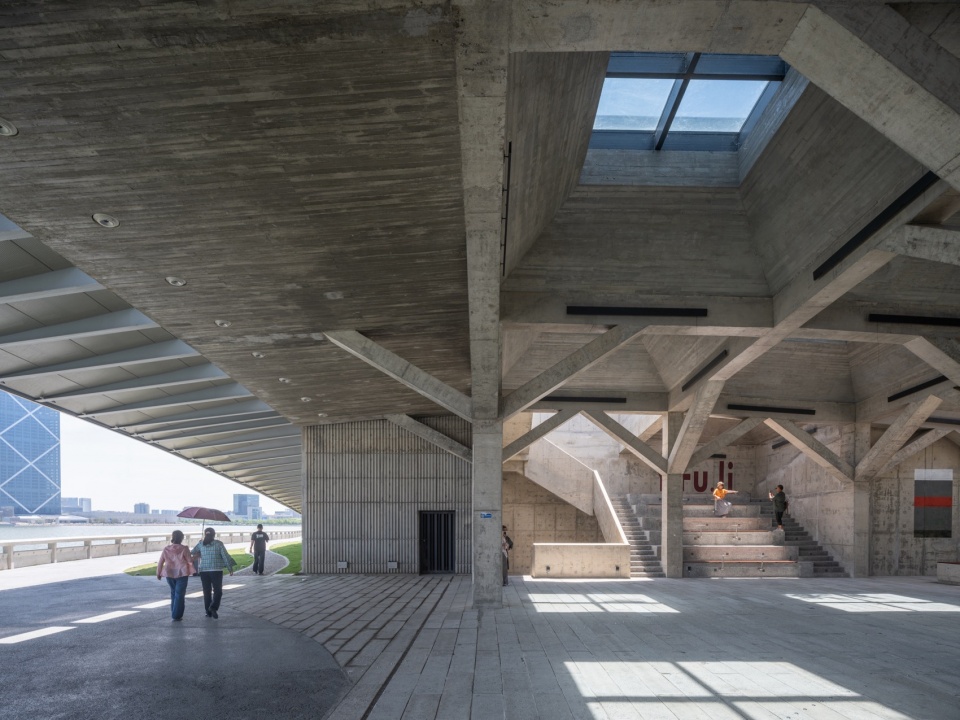

▼伞状结构支撑的屋面覆盖空间，Roofed Space Supported by Umbrella Structure ©田方方

▼屋面覆盖下的台阶平台空间取代了建筑的外观，成为码头建筑最鲜明的标识，Stepped Terrace under Roof Canopy Replaces Façade as Pier’s Key Identity ©田方方

▼码头入口区域与地下车库、上人屋面及滨湖通道的联系，Pier Entrance Connected to Basement Parking, Accessible Roof, and Lakeside Path ©田方方

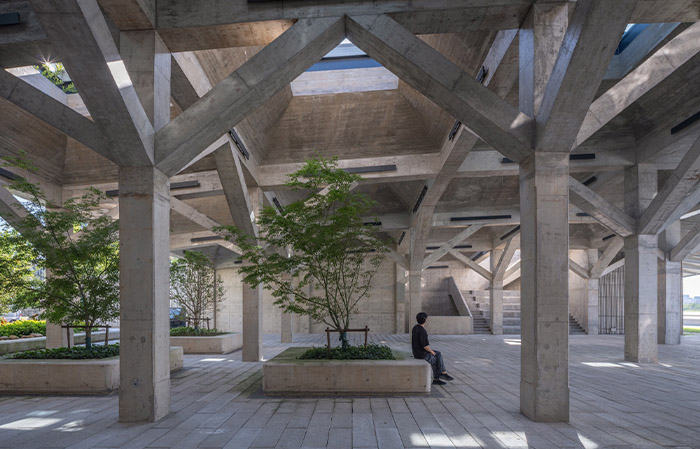

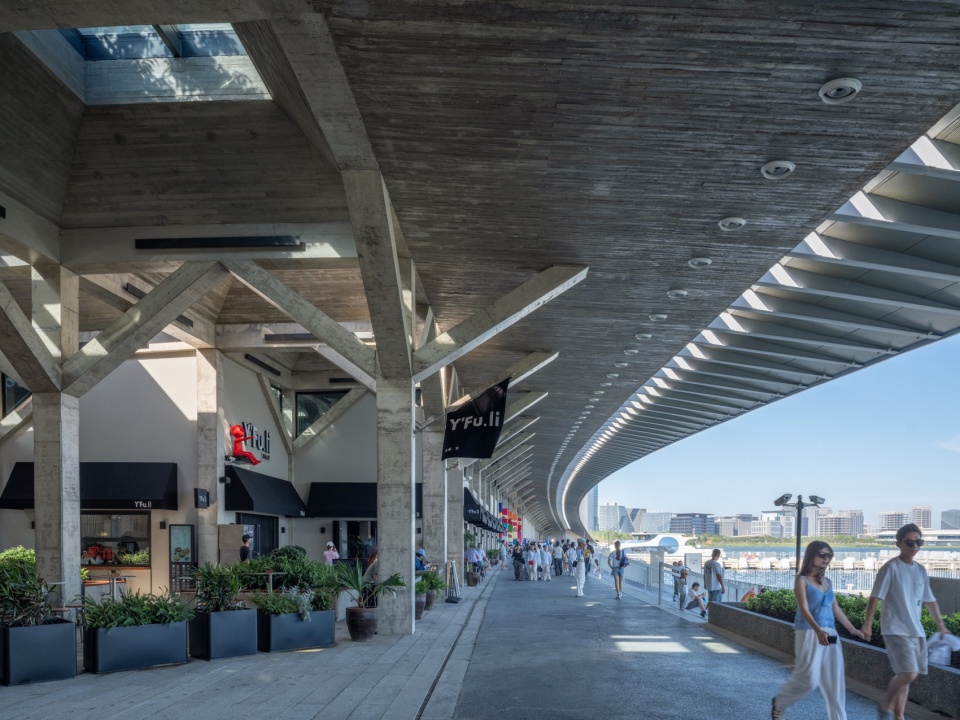

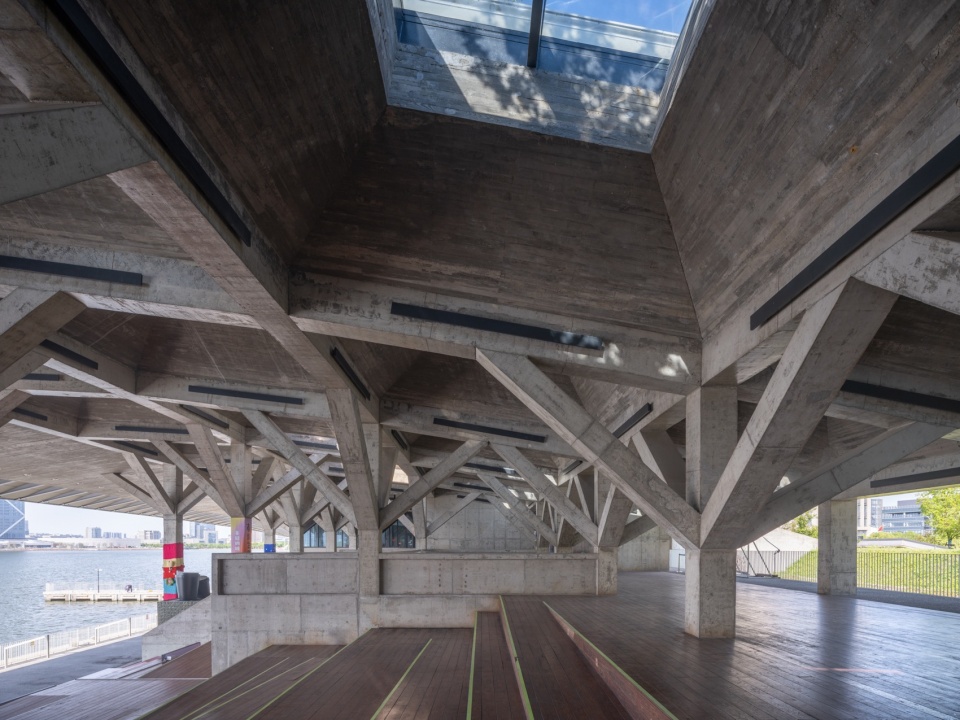

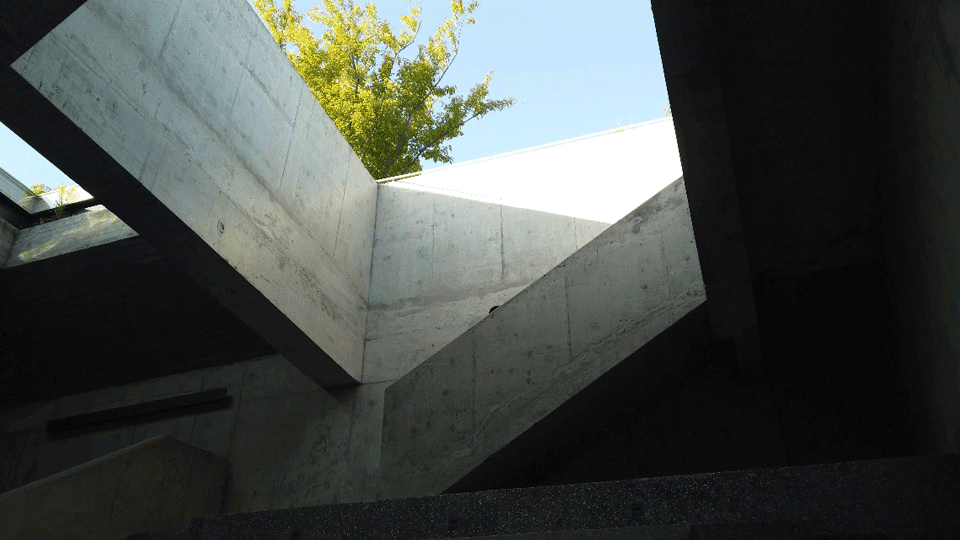

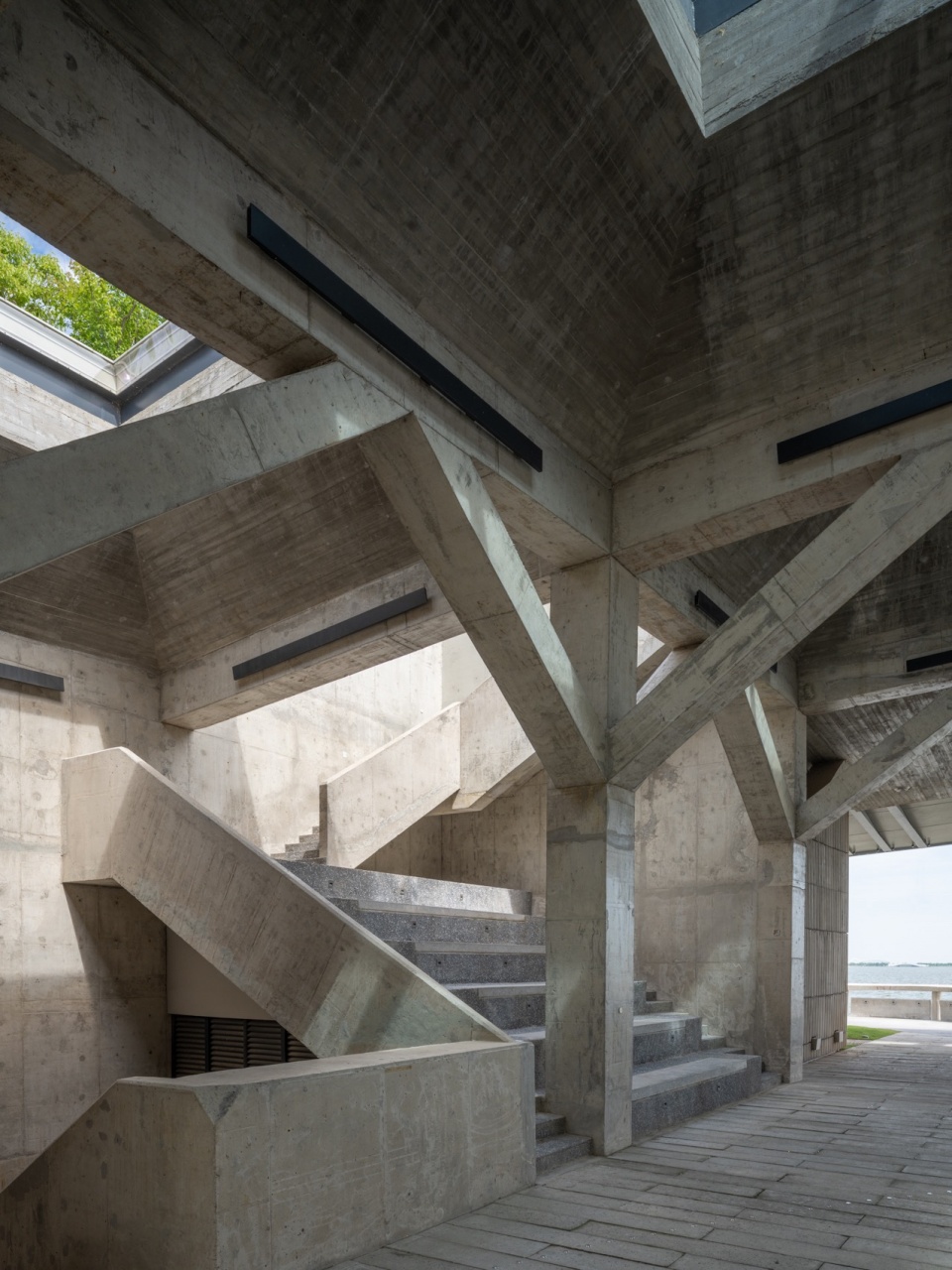

▼以伞状结构支撑的混凝土空间，通过光孔引入自然光，Concrete Space with Umbrella Structure Filtering Natural Light ©田方方

▼坐在大台阶上的人们随时间感受景色变化，People Experiencing Changing Scenery from Grand Steps ©田方方

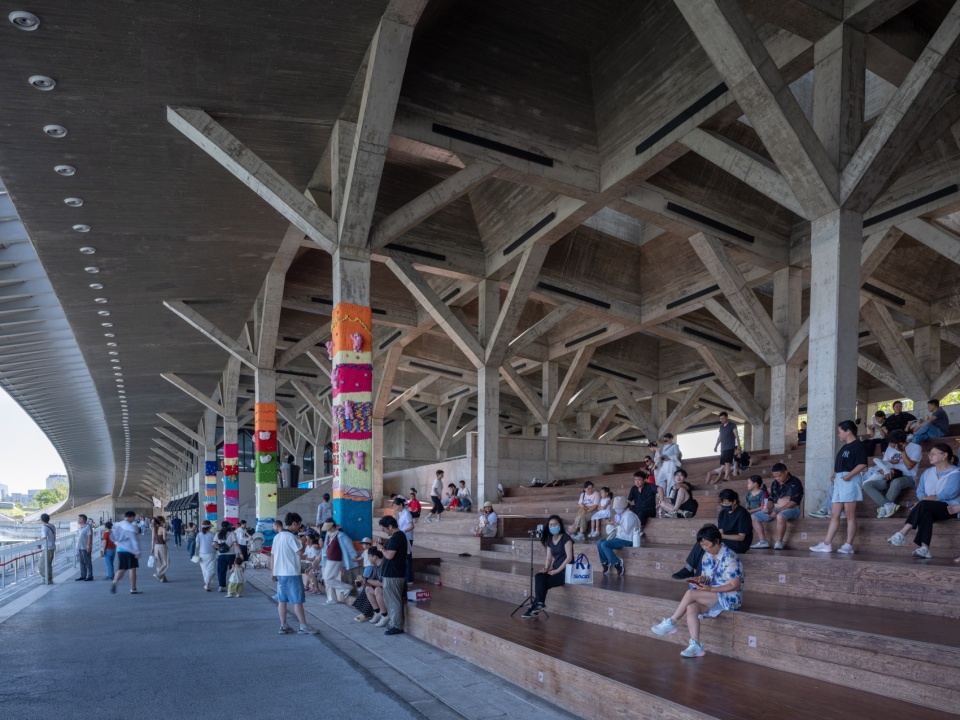

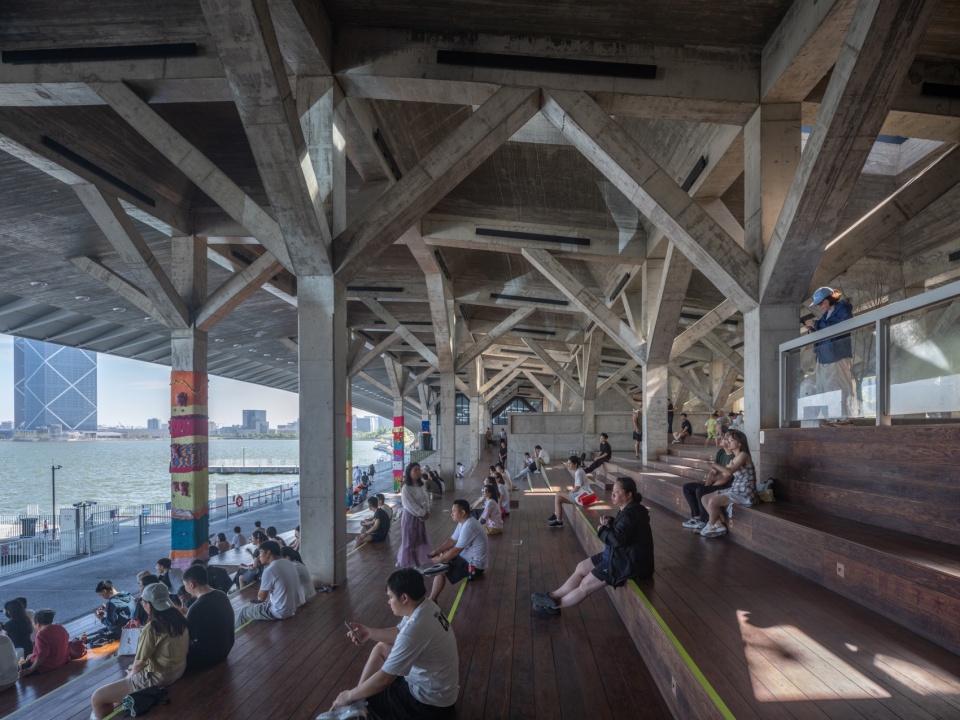

▼大台阶上坐满休息的人，Grand Steps Filled with Resting Visitors ©田方方

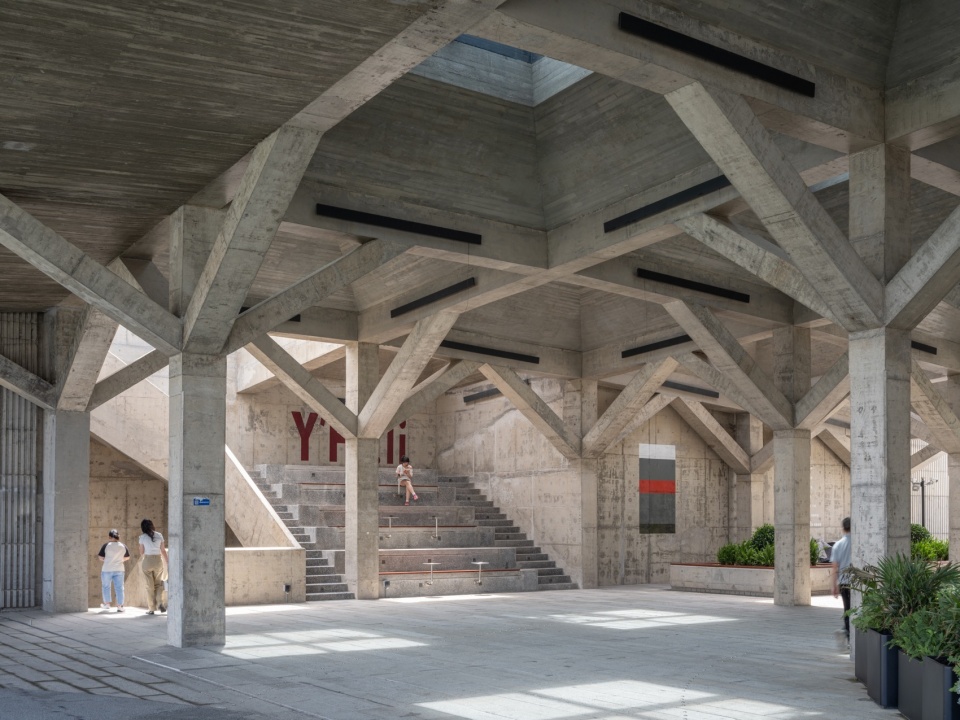

▼码头下的多样公共活动，Various Public Events under the Pier ©田方方

▼二层平台与大台阶连接，Second-level Platform Connected to Grand Steps © 黄潇颖

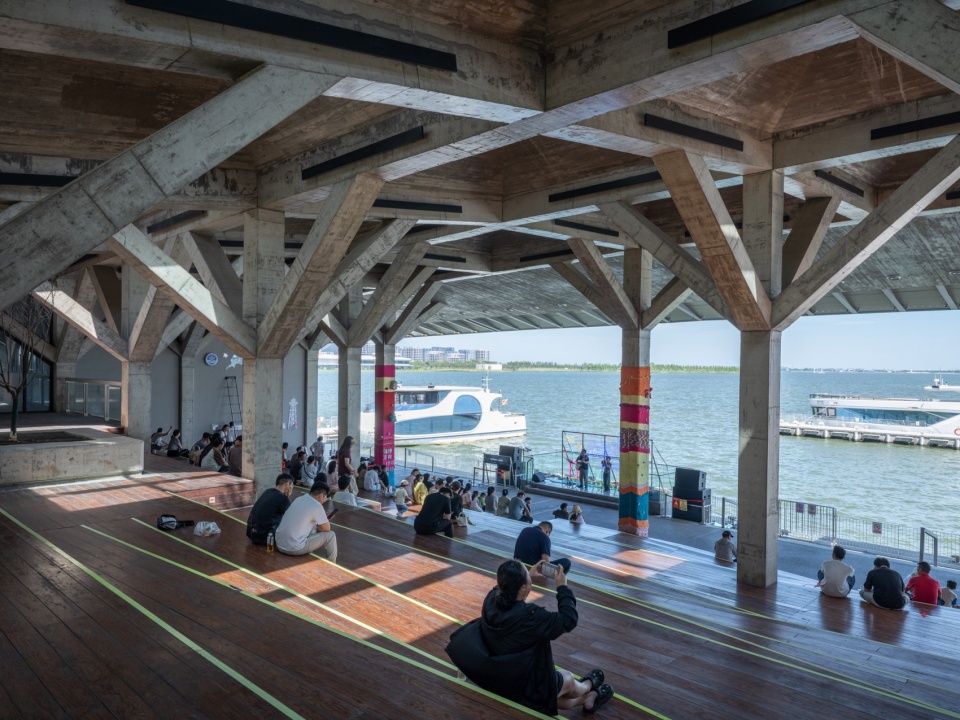

▼人们分散坐在台阶与平台各处，People Sitting across Steps and Platforms © 黄潇颖

▼上人屋面与码头地面区域以台阶连接，Accessible Roof Connected to Pier Ground via Steps © 黄潇颖

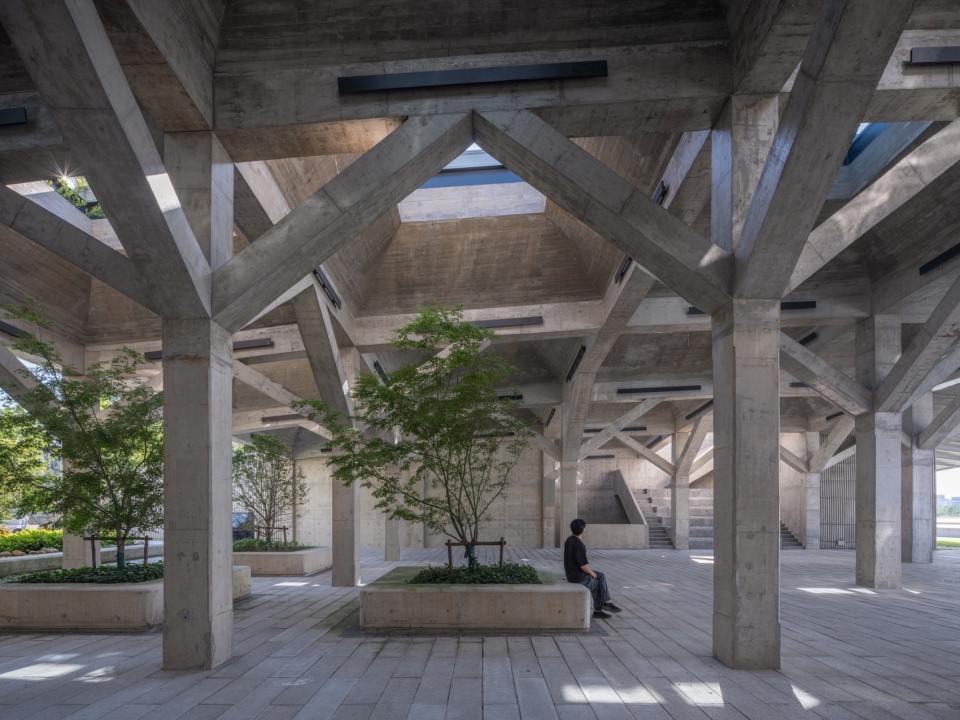

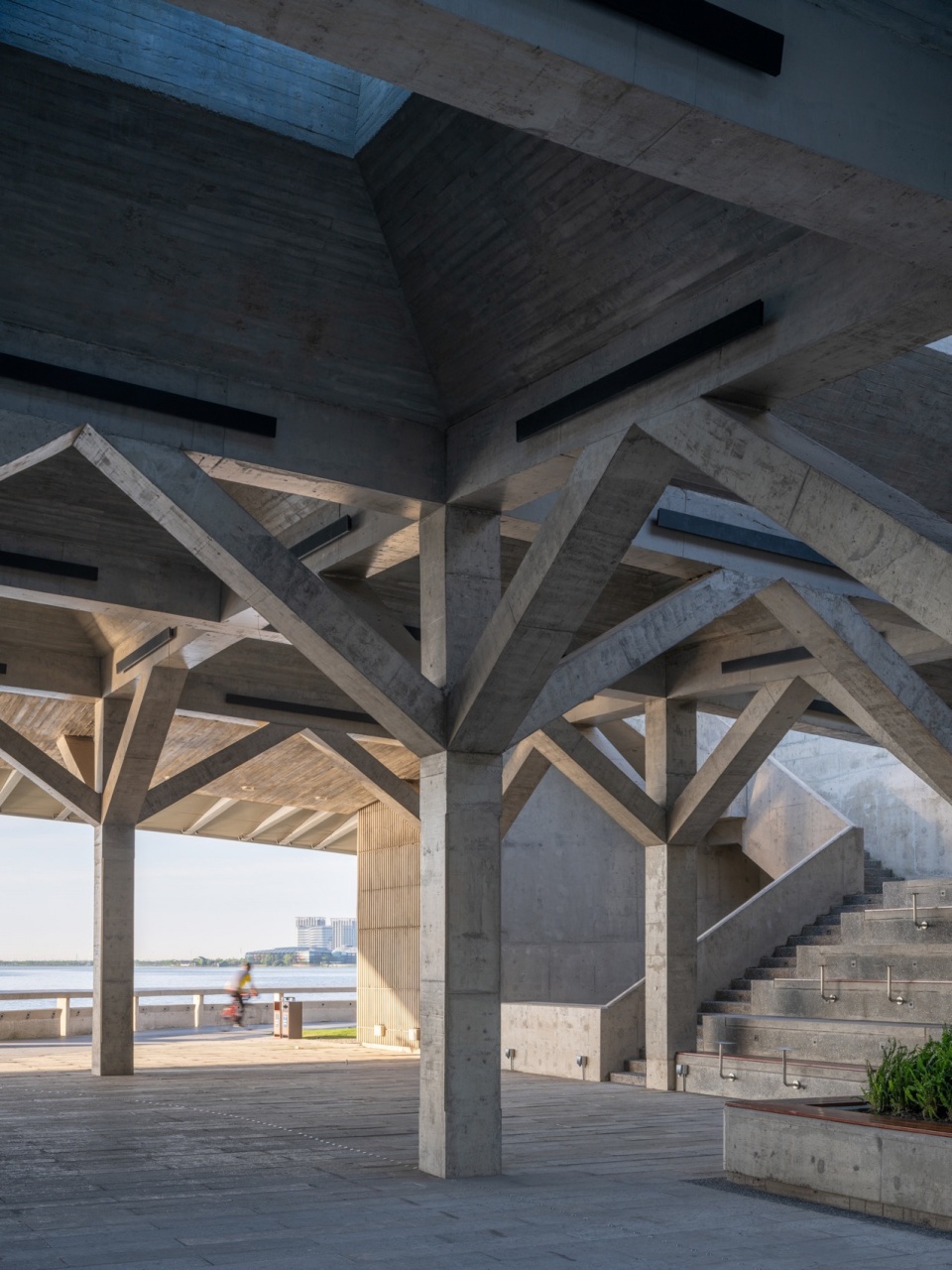

▼伞状结构，Umbrella Structure ©田方方

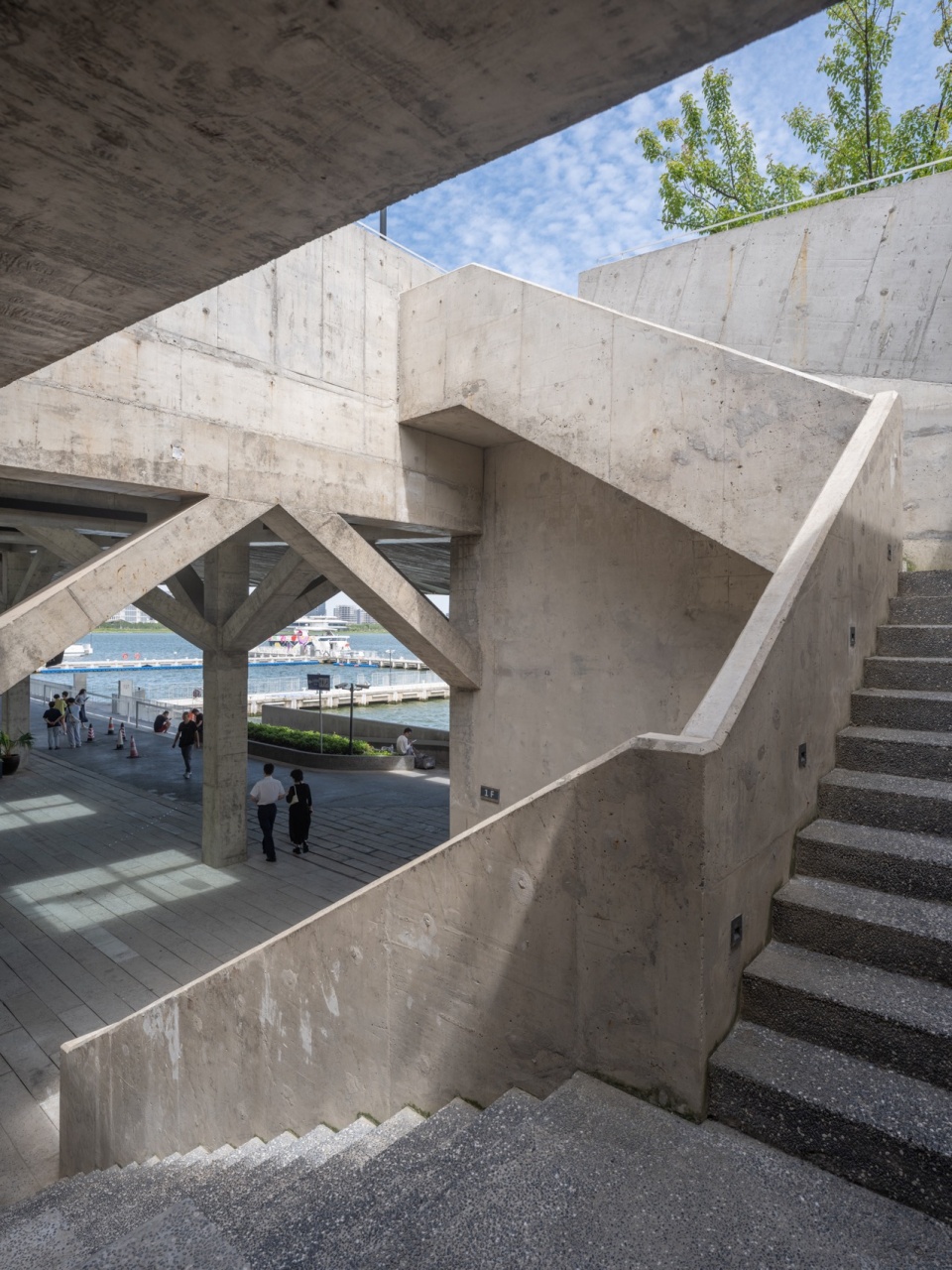

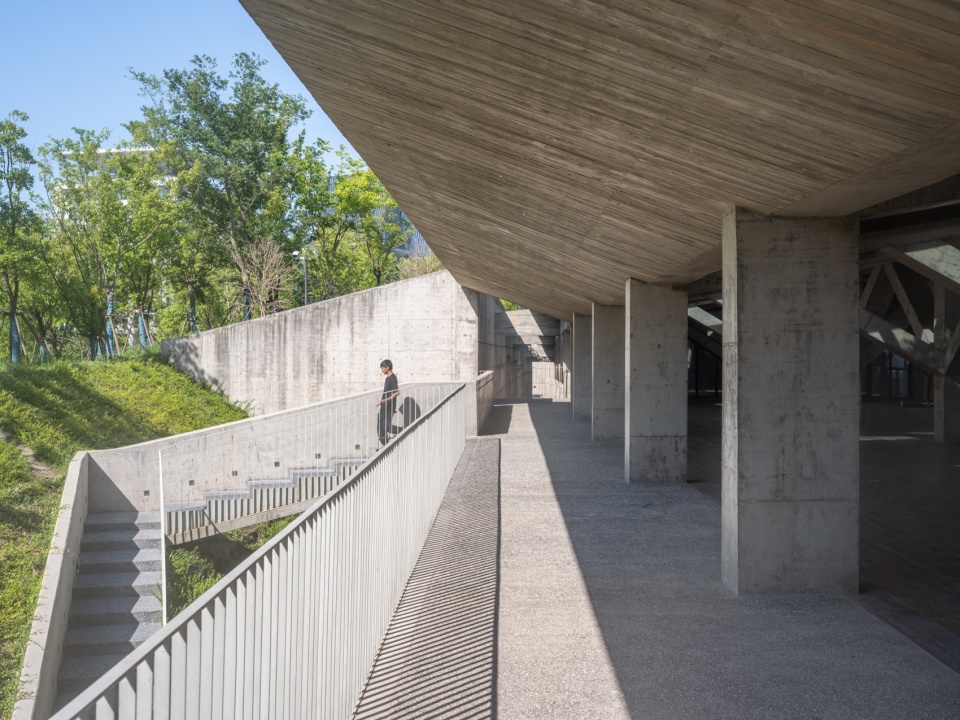

▼码头两侧楼梯直达地下车库，Side Stairs Leading Directly to Basement Parking ©田方方

▼上人屋面与码头地面区域以台阶连接，Accessible Roof Connected to Pier Ground via Steps ©田方方

滴水湖一号码头将交通设施塑造成为一个特征鲜明的公共空间，为远离上海市中心的临港新城滴水湖打造了独特的滨水环境。借助这种新型的景观建筑，一号码头试图唤起人们对场地价值的认知，并在自然中孕育生态特质。它激发了场地内频繁的日常活动和节庆活动，为这座新城带来了可持续的活力。

The Pier One Dishui Lake has transformed transportation facilities into a distinctive public space, creating a unique waterfront environment for Dishui Lake, a new city located far from the center of Shanghai. With the help of this new type of landscape architecture, Pier One attempts to awaken people’s awareness of the value of the site and nurture ecological characteristics in nature. It has stimulated frequent daily activities and festive events within the venue, bringing sustainable vitality to this new city.

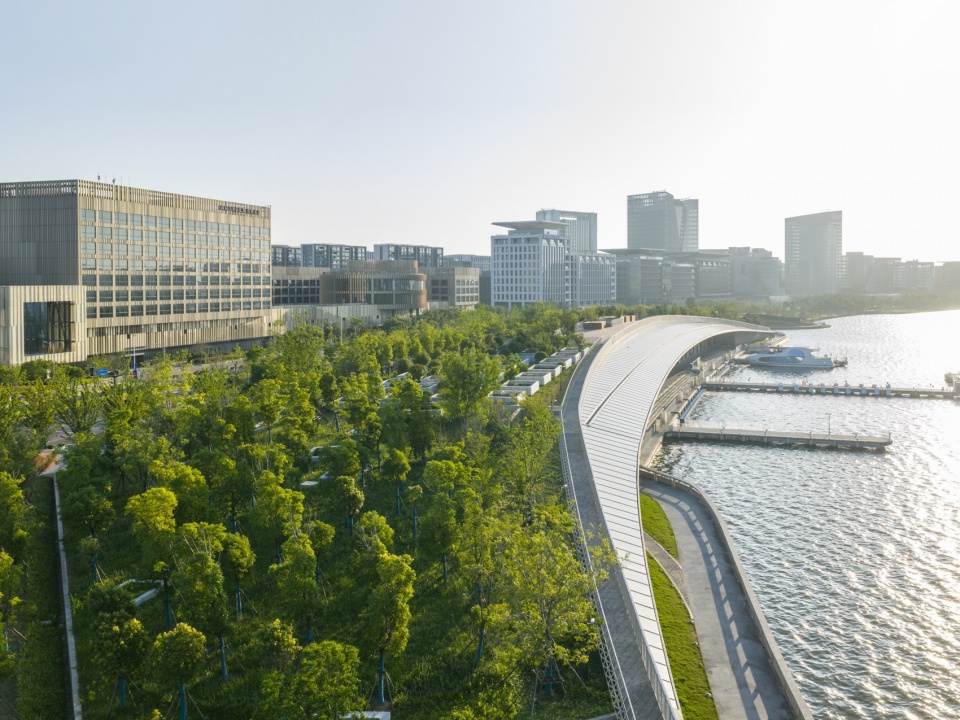

▼滴水湖一号码头微隆于地面，融入整体环境，Pier No.1 Slightly Rising above Ground, Blending into Surroundings © 黄潇颖

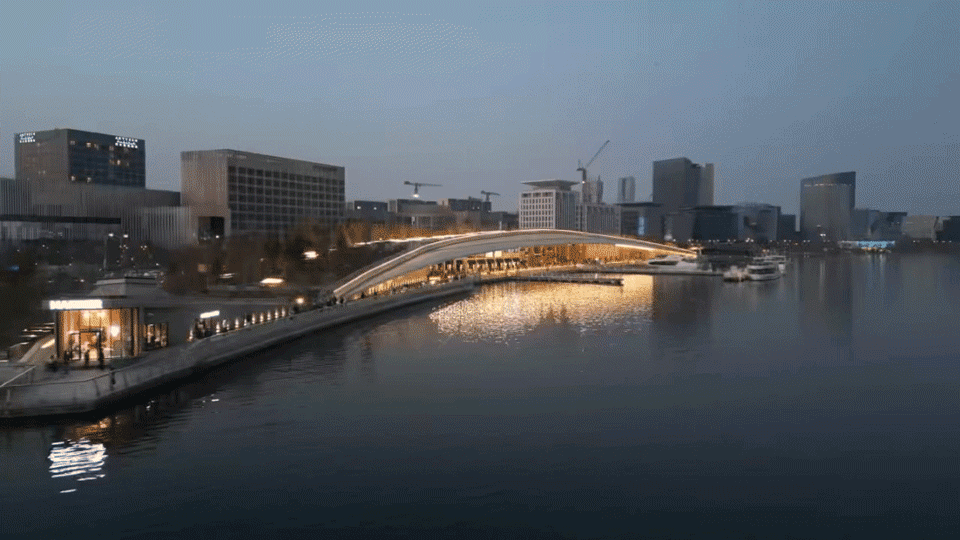

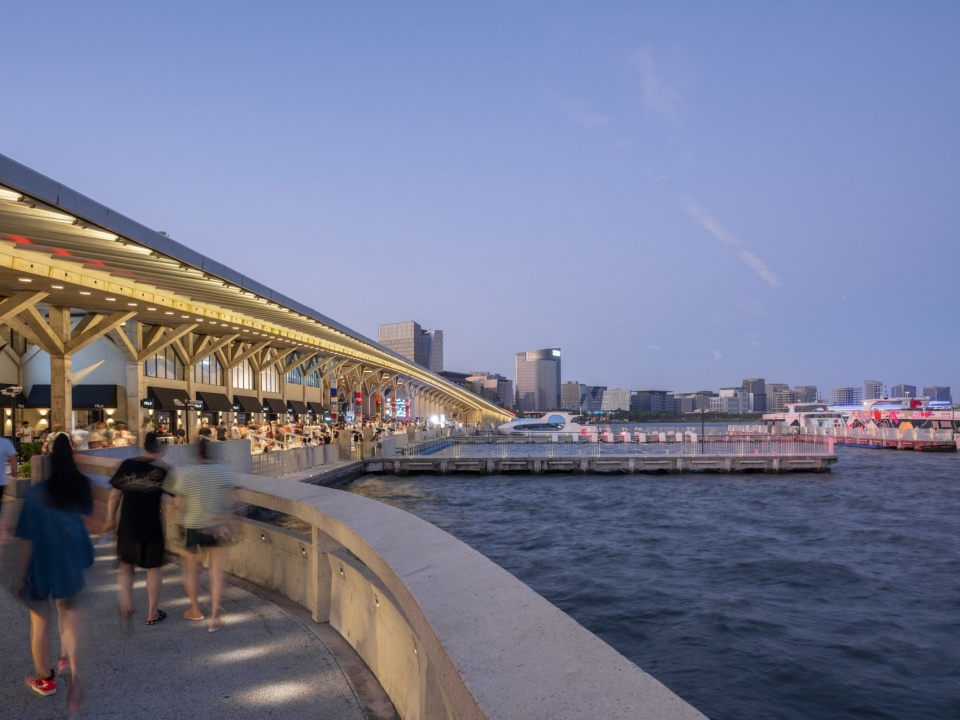

▼夜幕下的码头水岸，Pier Waterfront at Night ©田方方

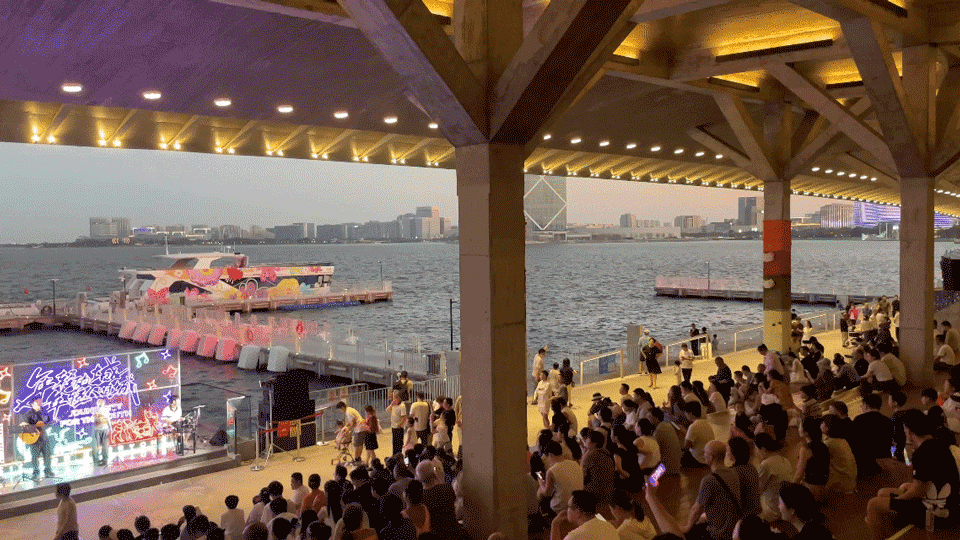

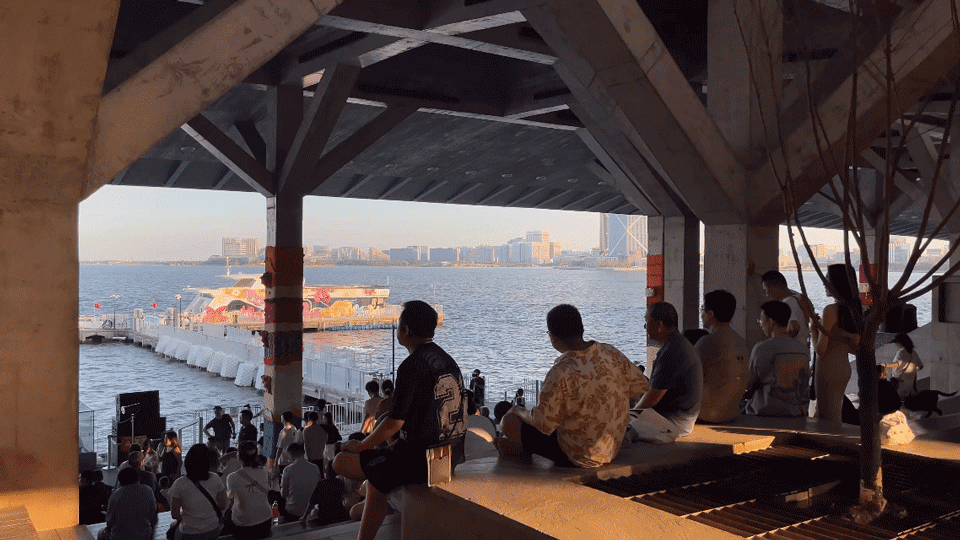

▼码头下的周末演唱活动，Weekend Concerts under the Pier © 黄潇颖

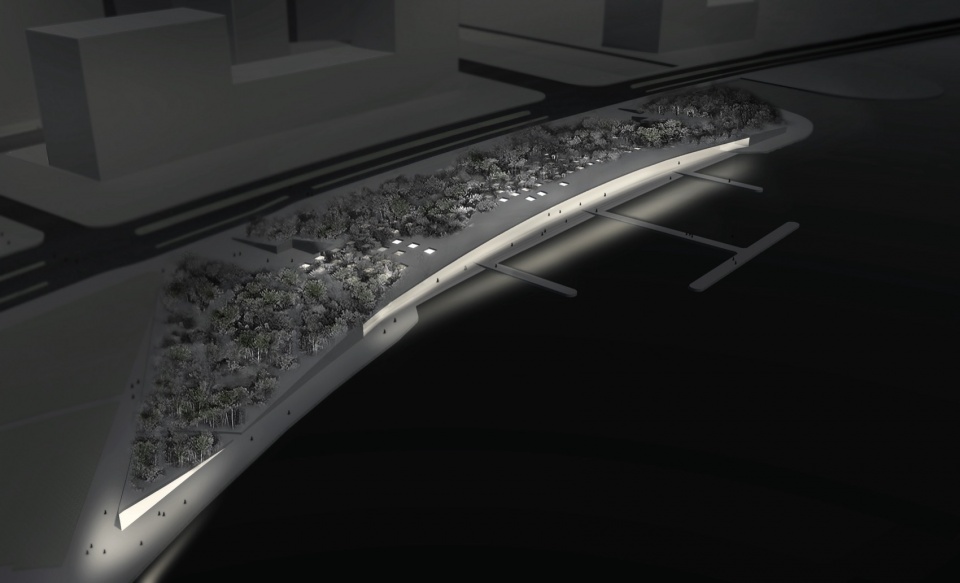

▼最初的方案模型推敲，Early Concept Model Study © 梓耘斋建筑

▼最初的方案模型空间推敲，Early Spatial Model Study © 梓耘斋建筑

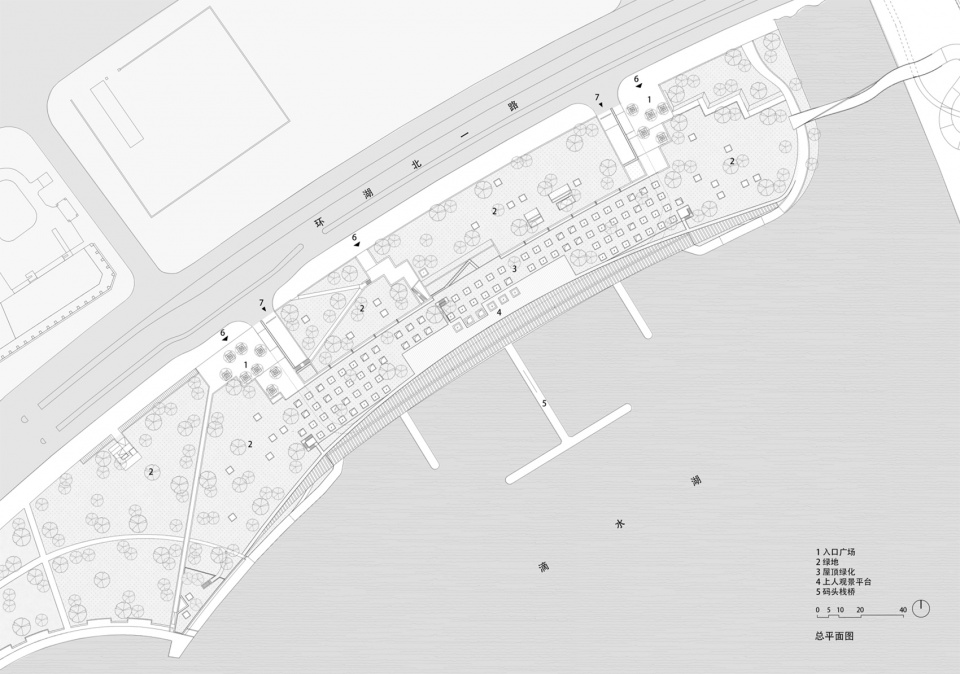

▼总平面图，Site Plan © 梓耘斋建筑

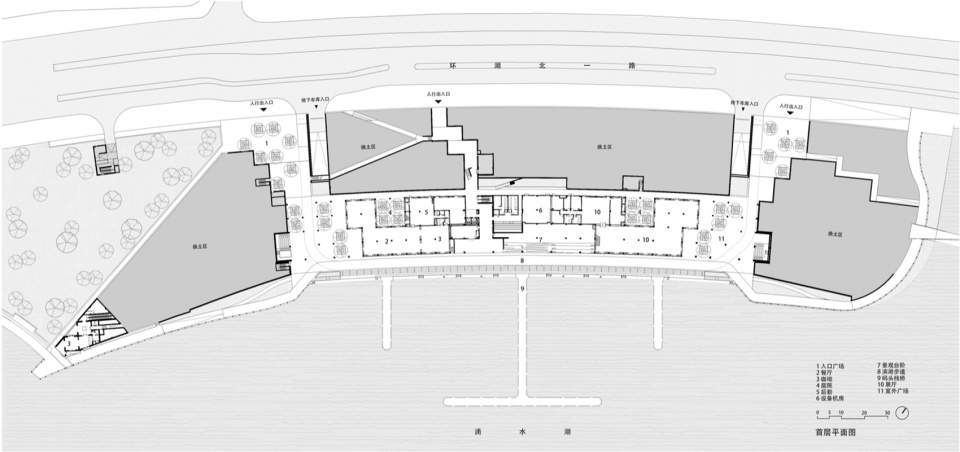

▼首层平面图，Ground Floor Plan ©梓耘斋建筑

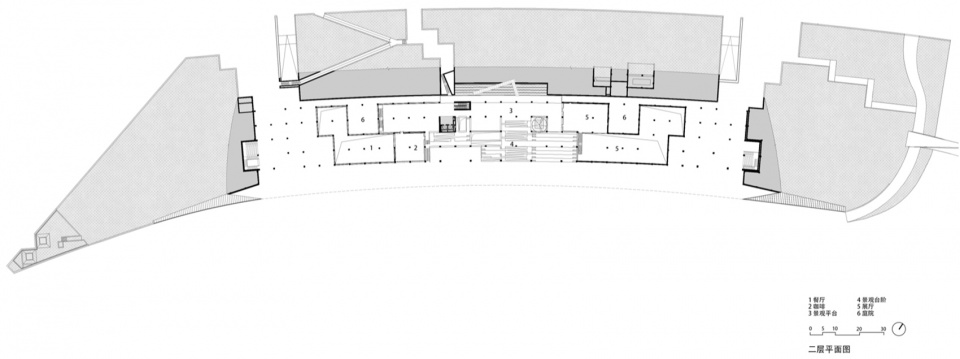

▼二层平面图，Second Floor Plan ©梓耘斋建筑

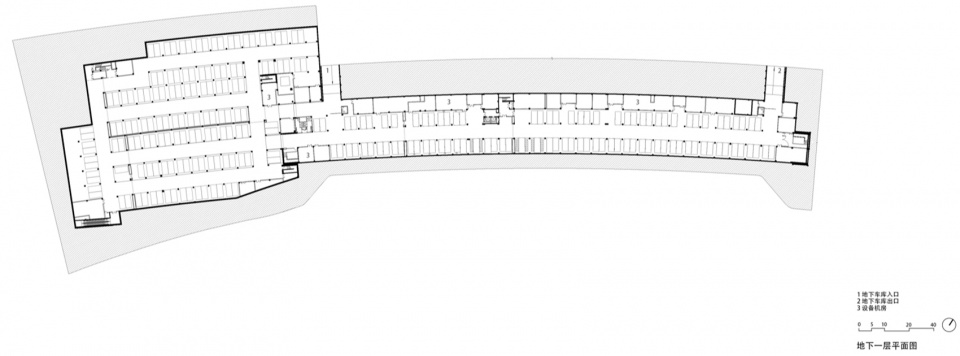

▼地下平面图，Basement Floor Plan ©梓耘斋建筑

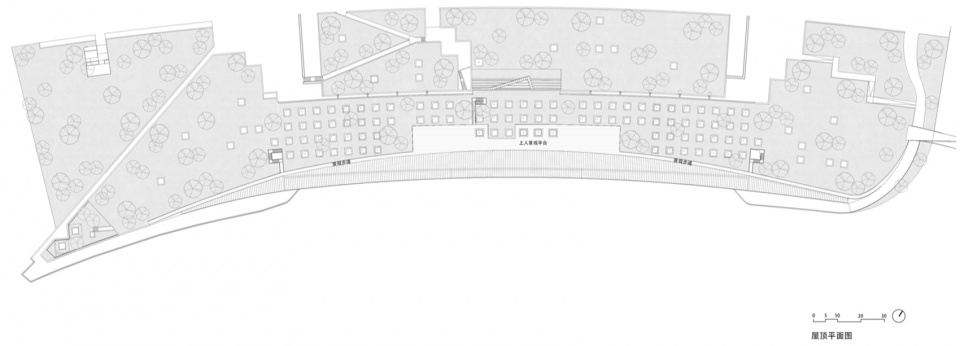

▼屋顶平面图，Roof Plan ©梓耘斋建筑

▼短立面，Short Elevation ©梓耘斋建筑

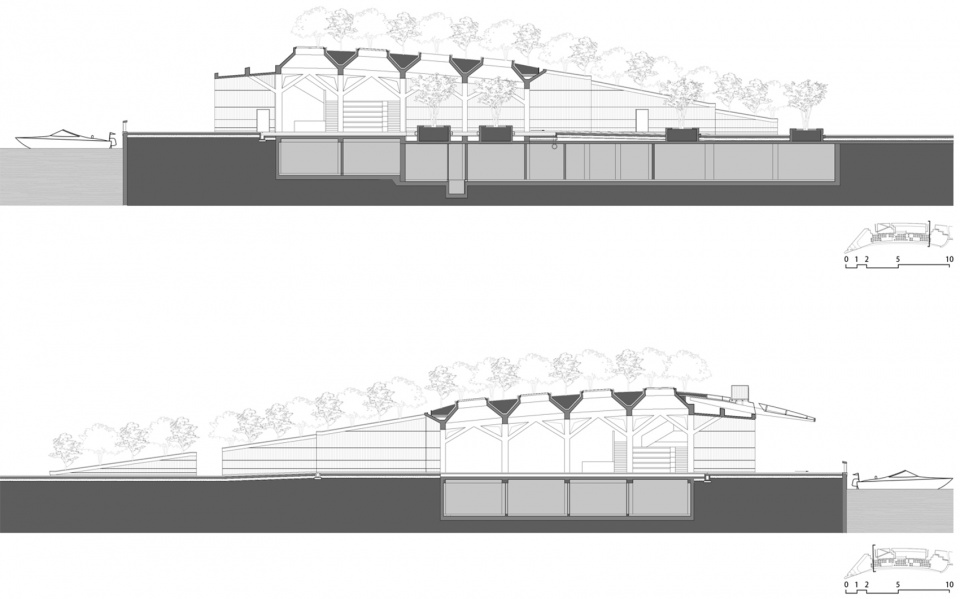

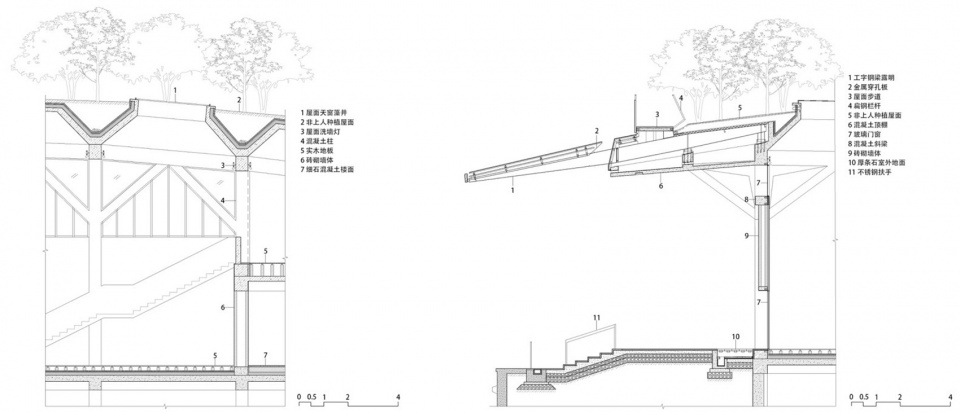

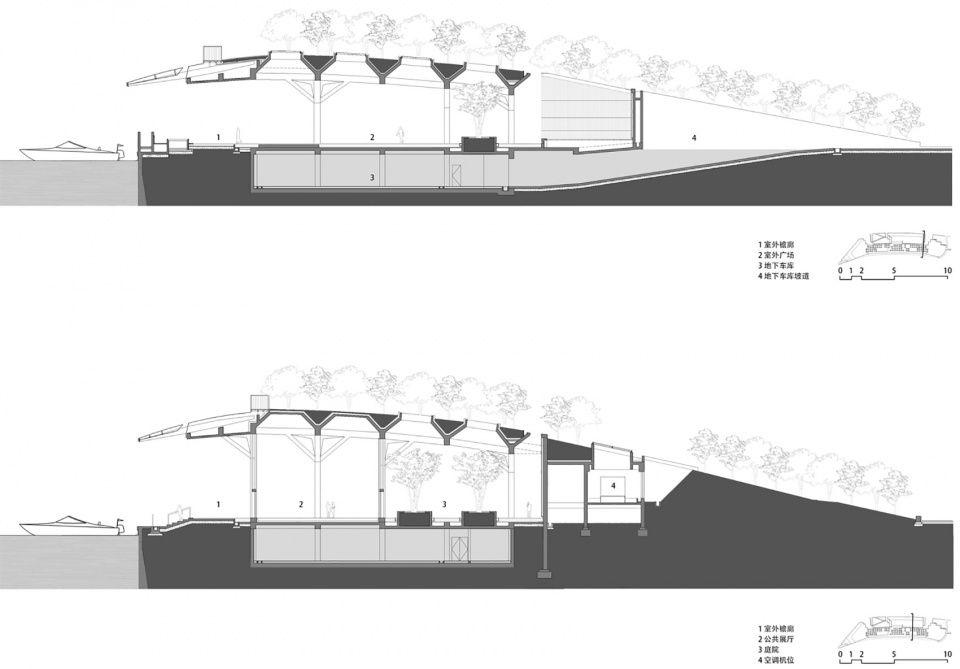

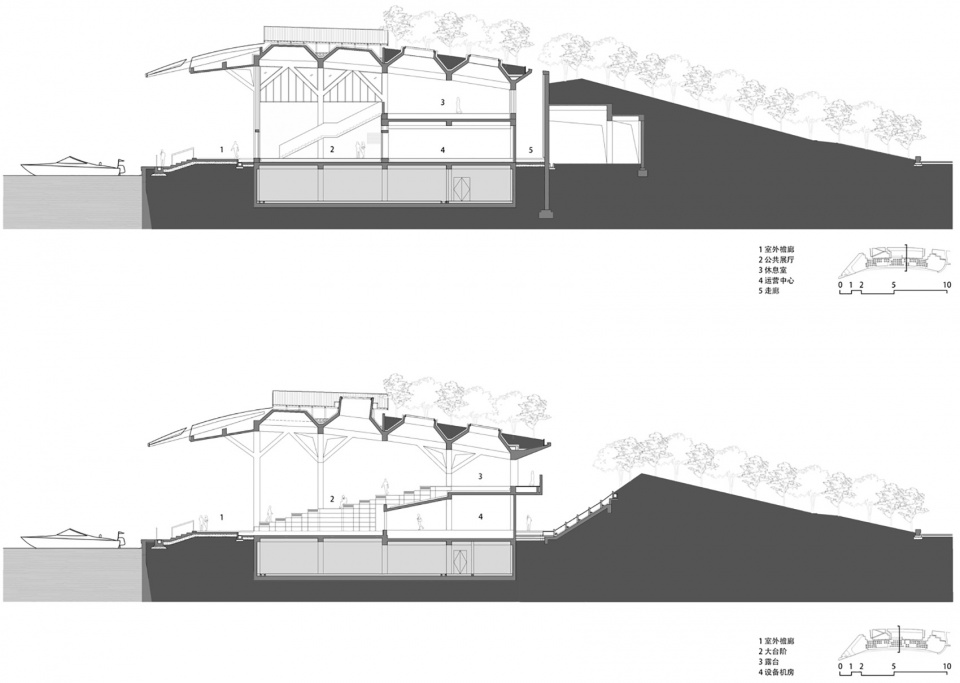

▼剖面图，Sections ©梓耘斋建筑

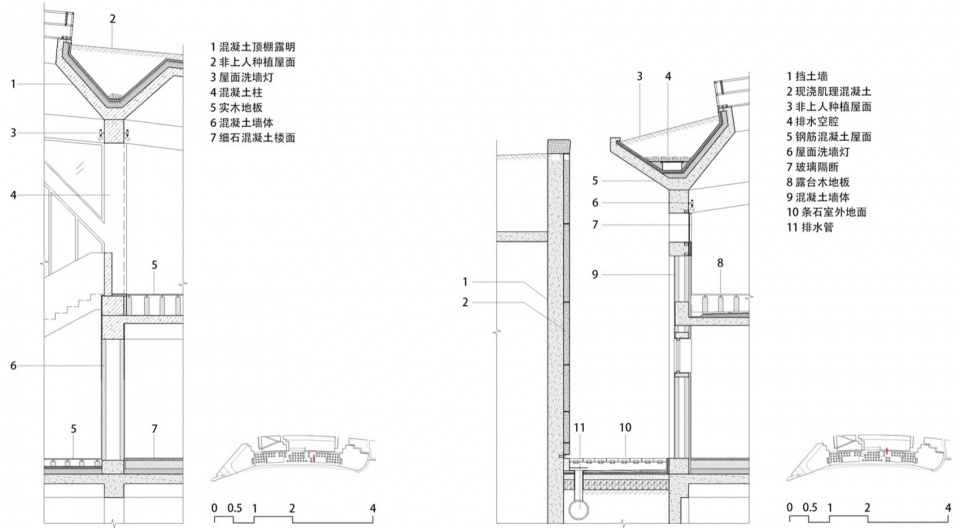

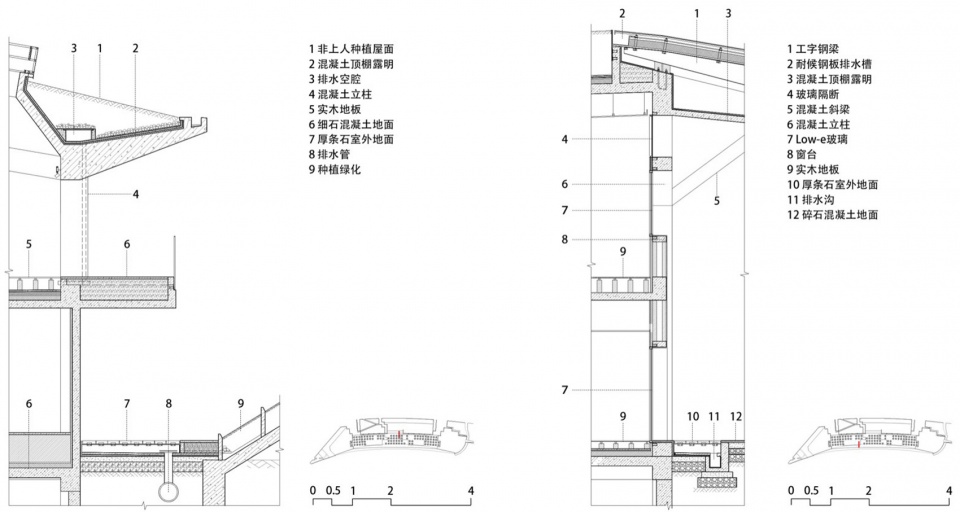

▼大样图，Details ©梓耘斋建筑
