非常感谢MLZD将以下内容授权gooood发行。更多请至：MLZD on gooood
Appreciation towards MLZD for providing the following description:

瑞士建筑事务所MLZD通过竞赛赢得了古尔腾阁设计权。古尔腾阁是一座位于山顶，俯瞰全城的全年营业节日宴会厅。建筑师把握住场地拥有壮丽景色，设计出一个悬挑在山坡上的宽大钢平台—活动就在上面进行，围绕平台共有两层表皮，它们与钢索共同加工为一体应对风荷载与结构力。在温暖的夜晚，客人可以坐在靠外的位置或者阳台上欣赏令人惊赞的美丽景色。

建筑的材料构成丰富而和谐。黑色涂层的钢结构，金色的遮阳窗帘，加了图恩湖黄色矿石的水磨石地面，巨大的黄铜门，以及透明的玻璃和银色的柱子。建筑还设有屋顶通风，地板加热，全功能空气调节等装置来应对山顶上万千变化的气候，旨在最短时间内调整到最适宜的室内环境。

The Gurten Pavilion is a festive and functional venue available throughout the year for large public events.

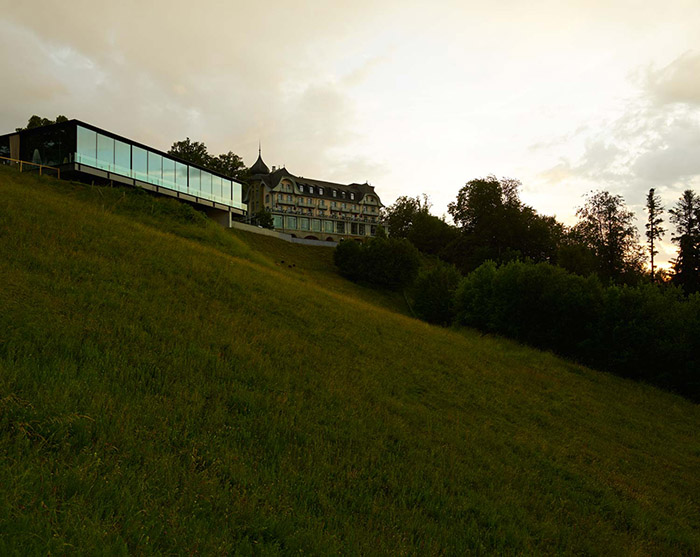

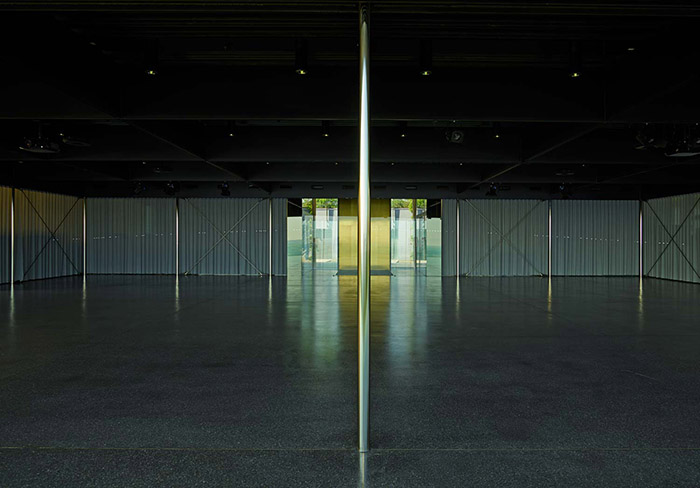

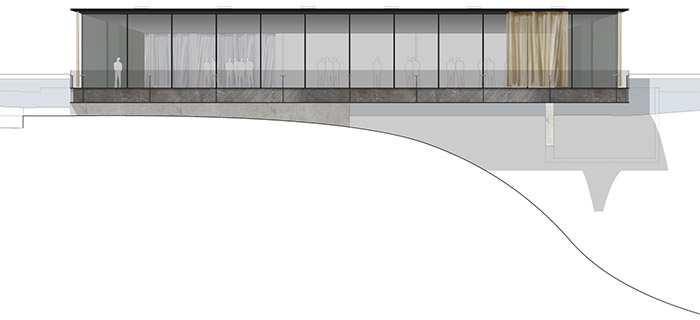

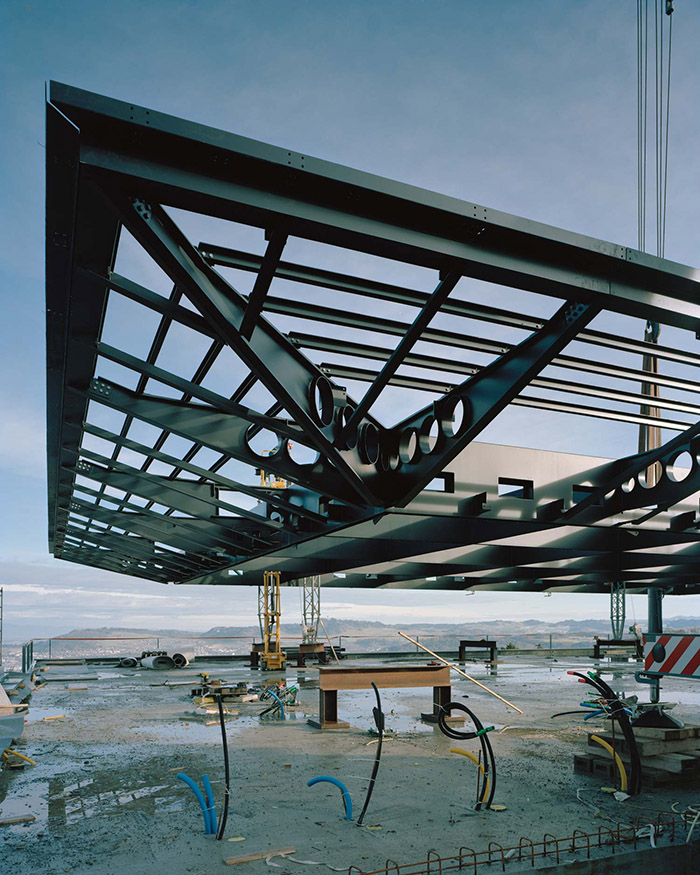

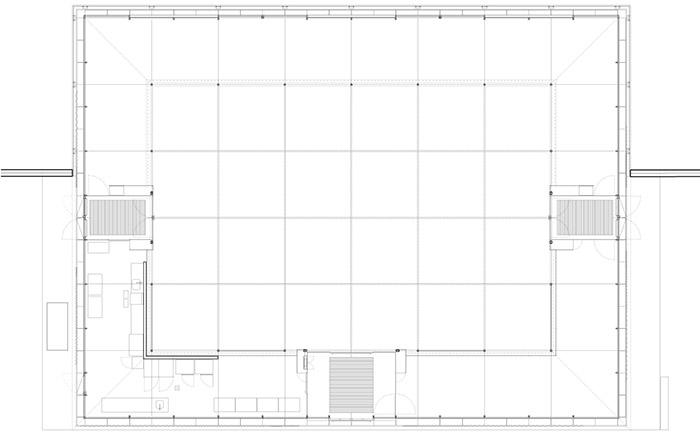

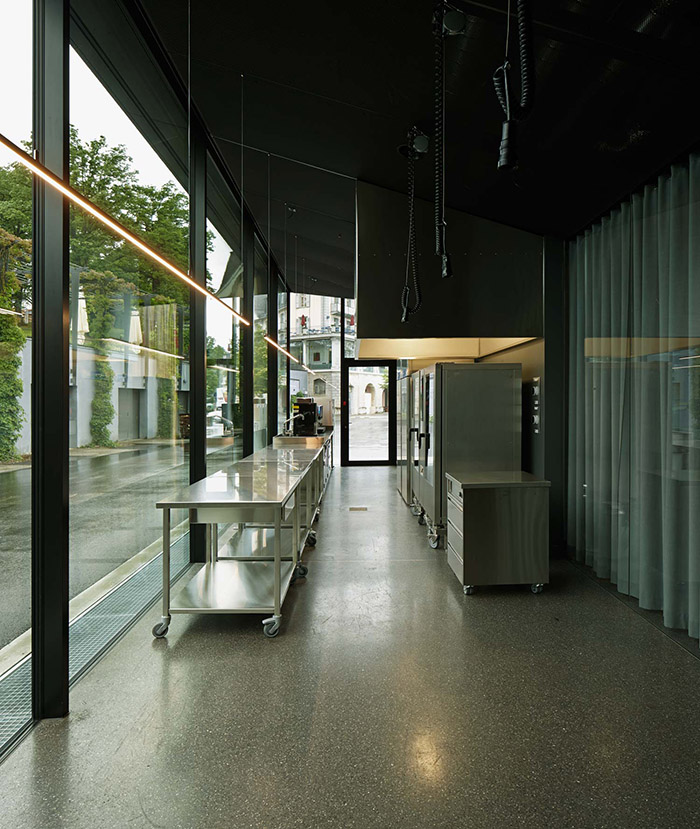

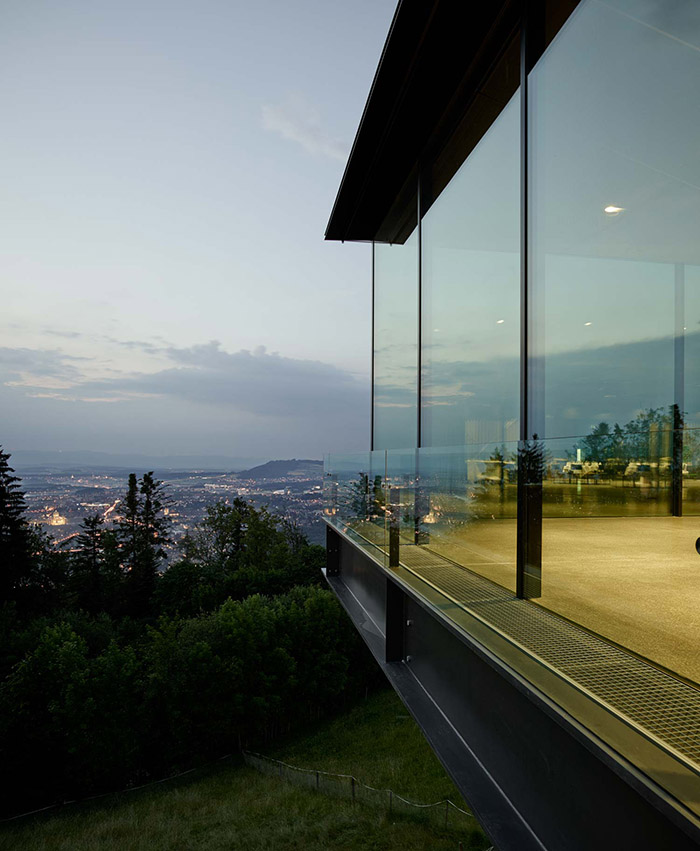

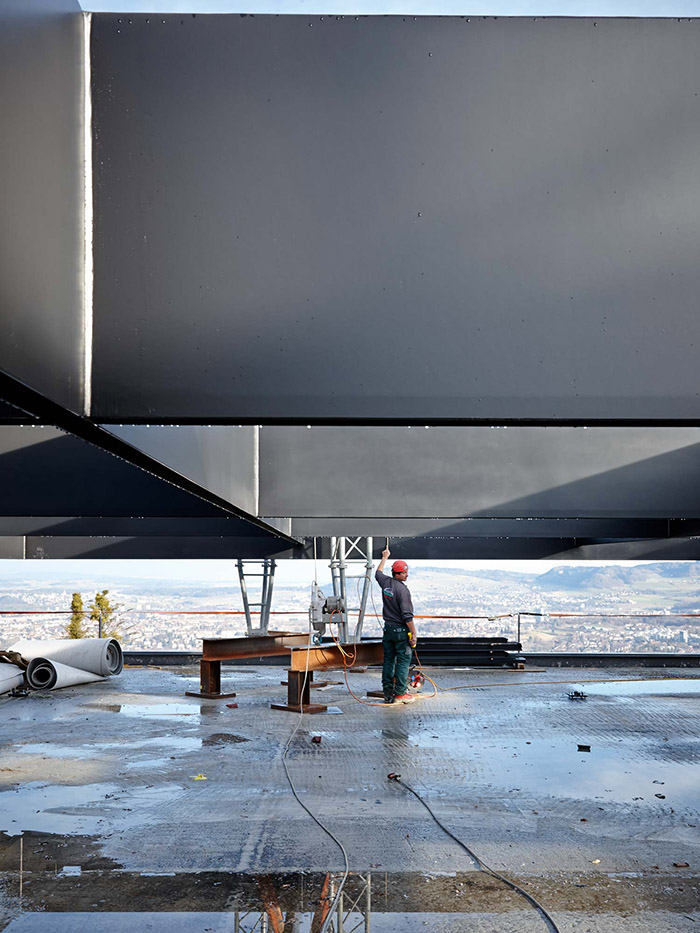

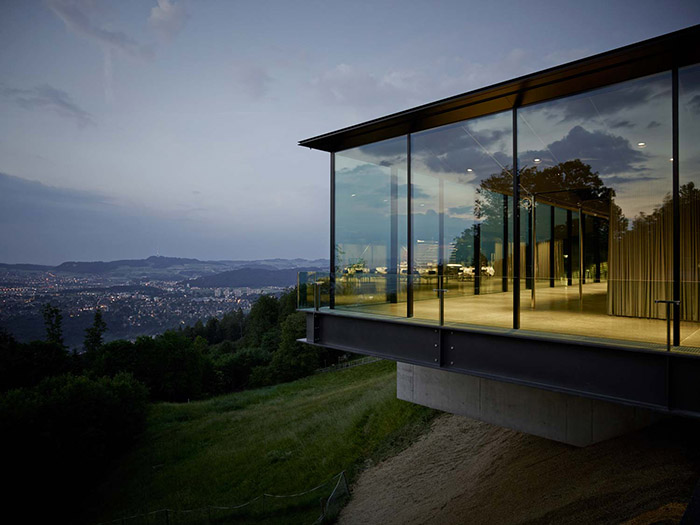

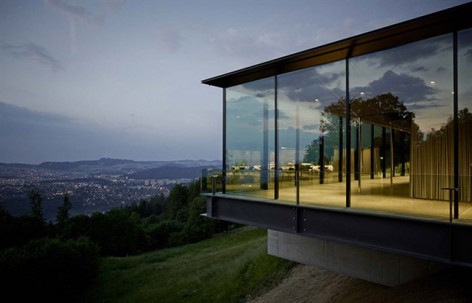

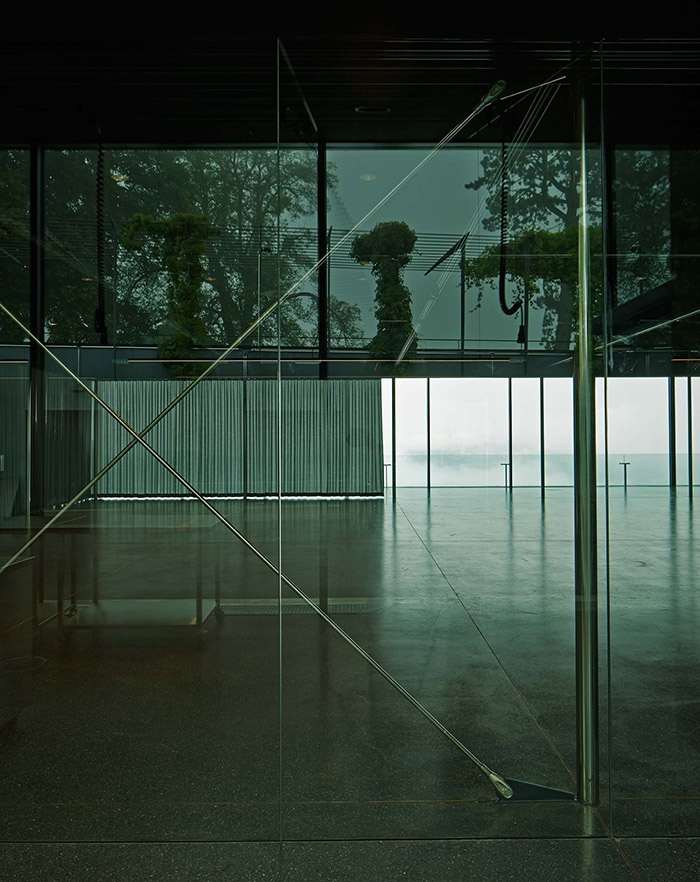

The pavilion is located on the site of the old Belvedere, offering the most exquisite view of Bern and The Alps since the construction of the first Gurten restaurant in the mid 19th century. The building , the winning entry of a design competition, captures this motif with its exceptional transparency and its unique, uninterrupted magnificent view. The hall – glazed on all sides – is perched on a projecting steel platform. The edge of the frame of the broad-spanned roof tapers to a graceful thin strip. The roof seems to float, its support structure comprised only of an inner circle of sleek, shiny nickel-plated reflecting massive steel stanchions. This stanchion row runs between the hall proper and the kitchen running along the southern façade on the mountain side with the cloakroom. The criss-crossing steel cable bracings are also integrated in the same section. They absorb the wind load and provide for the structure’s seismic safety and resistance to earthquakes.

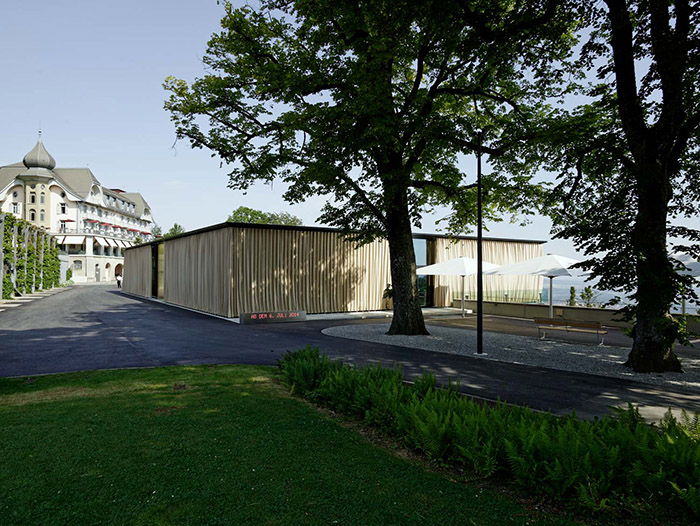

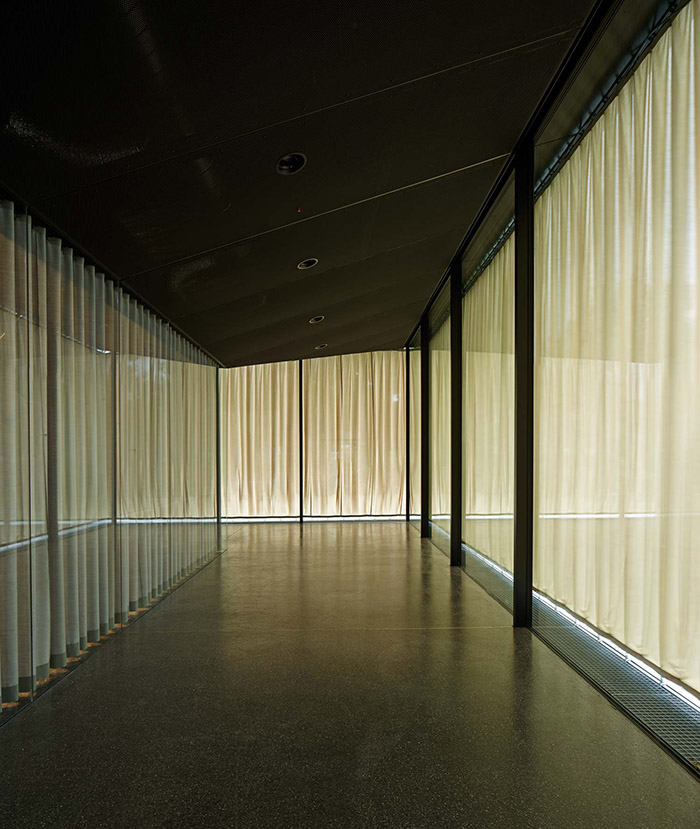

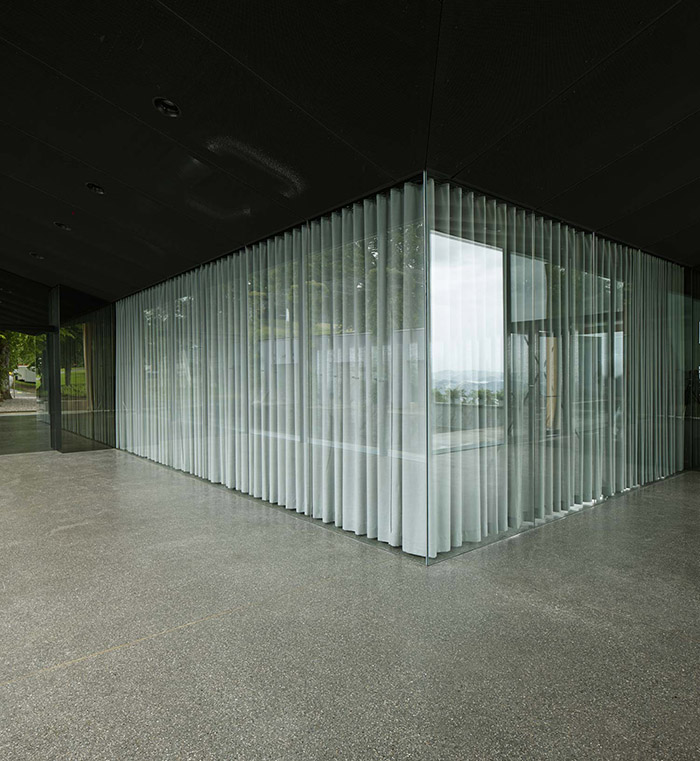

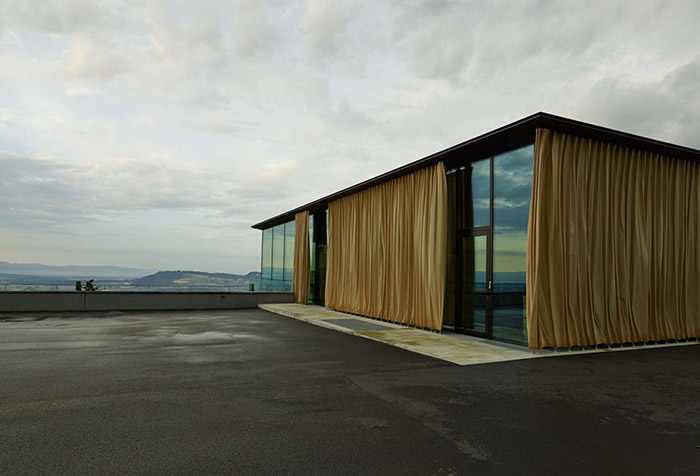

Three sections of the north-side façade can be opened up so that on balmy evenings guests can sit outside on the balcony that encircles the building and take in the breath-taking panoramic view via the glass balustrade of the balcony. The black-coated metal structure of the comparatively modest building is made festive by the gleaming golden floor-to-ceiling sunshade curtains, the terrazzo floor with its reddish-yellow pyrite gravel from Lake Thun, and the monumental brass gates. The entire building is enriched by virtue of the artintegrated in it, i.e. the aluminium letters of a song text embedded in the terrazzo running along the north façade and the motif of the horizon on the silver curtains subdividing the hall. The external solar blind, the roof ventilation, the underfloor heating and the forced-air heating – the latter enabling the building to be brought to the desired ambient temperature within a brief period of time – all provide for the structure’ senergy-efficient climate control in a wide variety of weather and operating conditions.

Christoph Schläppi

Project Fact Sheet GUPA

Project Name:   gupa – Gurten Pavillon
Location:    Gurtenkulm CH-3084 Wabern, Switzerland
Use:     new pavilion for festival and banquet occasions
Client:     Stiftung Gurten – Park im Grünen, Wabern
Architects:    :mlzd, CH-Biel/Bienne
Team :    Roman Lehmann, Stefan Leiseifer, Claude Marbach, Pat Tanner, Daniele Di Giacinto, Julia Wurst,
Johannes Weisser, Moritz Werner
Site Area:     1500 m2
Bldg. Area:    820 m2
Floor space:    760 m2
Gross Floor Area:   m2
Bldg. Coverage Ratio: %
Gross Floor Ratio:   %

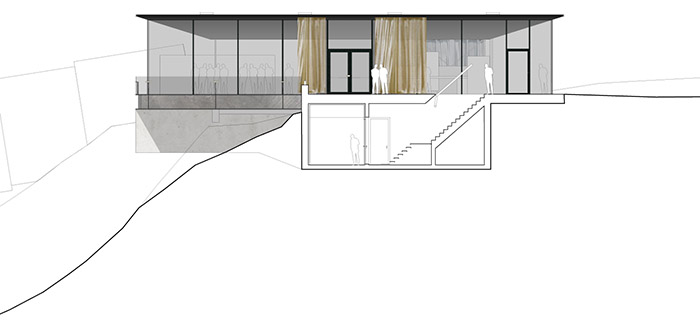

Bldg. Scale:    1 stories above Ground, 1 Stories below
Structure :    steel
Max. Height :    4.50m
Landscape Area :   m2
Exterior Finish :   glas front with external curtains
Competition:   march 2012
Completion:   june 2014
photographer & holder of copyrights: alexander jaquemet
