非常感谢 Delution Architect 予gooood分享以下内容。更多请至：Delution Architect on gooood
Appreciation towards Delution Architect for providing the following description:

在听到政党办公室一词的时候，你会想到什么？在Delution事务所看来，印度尼西亚的政党办公室是一个令人感到刻板、封闭、不友好，乃至与社会有所隔阂的场所。也许这种印象来自于党内和党外的各类冲突以及民众游行，但从哲学层面上看，一个政党仅仅存在于固步自封的世界里，与其本质是非常矛盾的。作为本项目的委托方，雅加达特别行政区的戈尔卡党是印度尼西亚最早建立的政党之一，它致力于通过革新手段成为一个更加现代、透明、协作和开放的政党，从而吸引更多拥有政治抱负的年轻人积极加入，因此，新的办公大楼也必须与这一愿景相适应，从而发挥其“文化脸面”的作用。

What do you think when you hear a political party office? For us, Delution, political office especially in Indonesia has a rigid impression, sealed, unfriendly, and fortify themselves from the society. Perhaps the frequent internal or external conflicts of the party and also the public demos are the main reasons for the impression of the fortified and sealed offices of the party, but philosophically, it is very contradictory to see that the life of a political party exists in its own constituents. Golkar Party of DPD DKI Jakarta, as the project owner and one of the oldest party in Indonesia intends to conduct a revolution to become a more modern, transparent, collaborative, and open party so that it can begin to attract the attention of young people who are interested in politics to practice directly, of course all the visions must be in line with the office building which is the main container of activity and “face of civilization” of this political party.

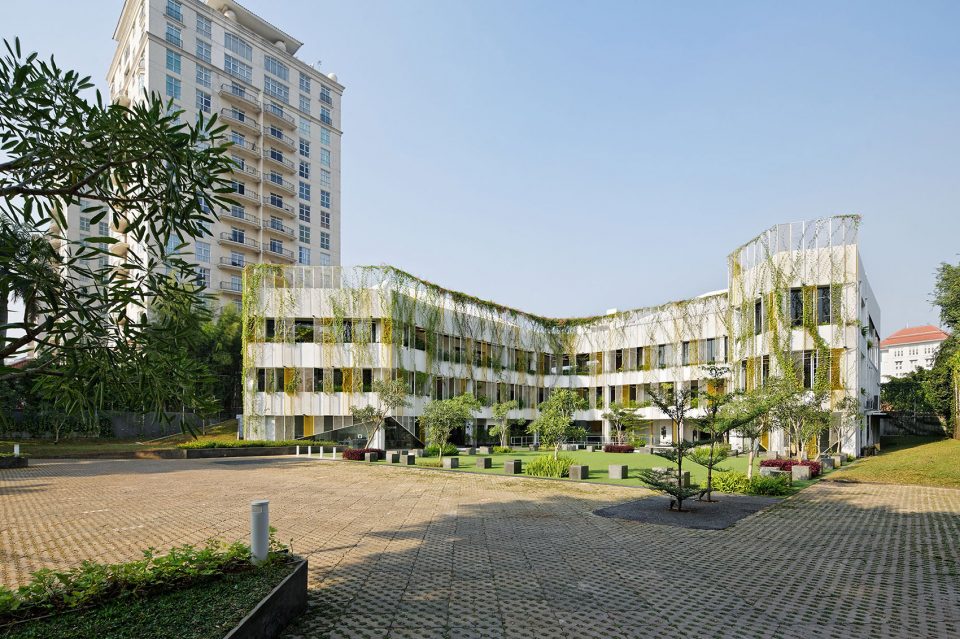

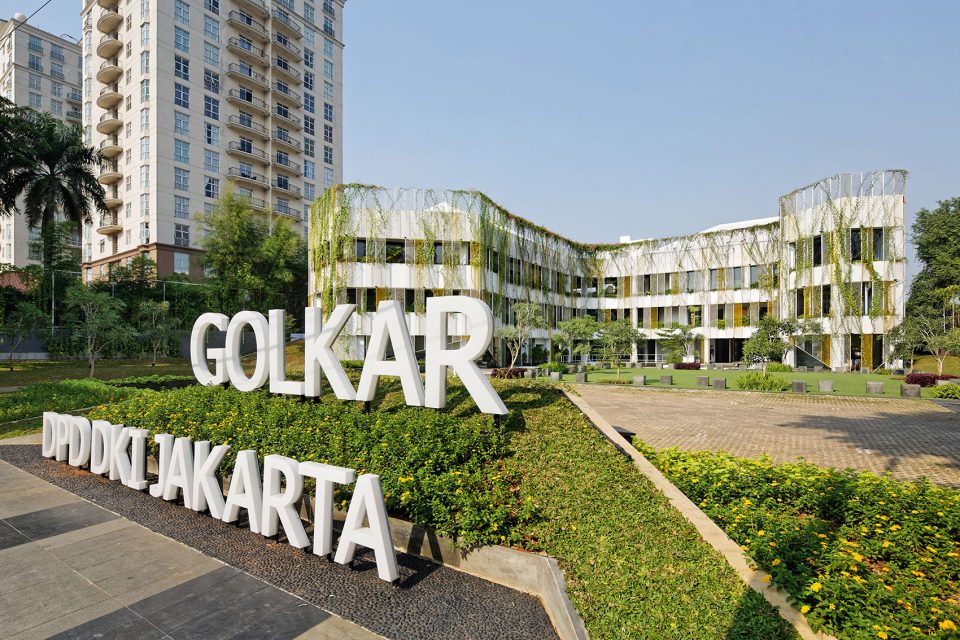

▼办公楼外观，external view

项目中包含两座既有的建筑，一座是办公大楼，另一座是遗留下来的混凝土骨架。由于当时的戈尔卡党正在角逐雅加达行政长官的竞选，并且希望将新办公楼作为投票的场地，与民众共同观看票数的清点，因而该项目的资金来源于党内成员的匆促集资。考虑到这一点，建筑师需要在尽可能降低成本的情况下对建筑进行改造。建筑师尝试从“革新”这一主题入手，不仅使建筑本身得到更新，更要让作为新建筑使用者的党内成员和集体在行动和意志上也产生变化。作为新建筑的设计基石，革新的主题分为4个部分：开放与透明；绿色复兴；协作及团体中心；以及发扬民族主义。

Seeing the existing condition, this project has 2 initial buildings consisting of 1 building that functioned as office, and 1 more building that left behind bone and concrete like newly built building. The architects had to make a change with the budget as minimal as possible, considering the party’s funds derived from the collectivity of its members in a very fast tempo, because at that time the Golkar party were chasing the moment of election of the governor of Jakarta, where Golkar wants to use the new office as an election venue where the public could watch the calculation of vote together with the Governor who carried by Golkar party itself. The architects try to start the concept of restoration of this building with the main theme is “Revolution”, where the renovation is not only form a new building, but also a lot of revolutionize the behavior and mental of party members and the community itself as a user of this building. The concept of Revolution itself carries 4 main concepts as the basis of the building. The four concepts are Open and Transparency, Green Reviving, Collaborative & Community Hub, and Raising the Nationalism.

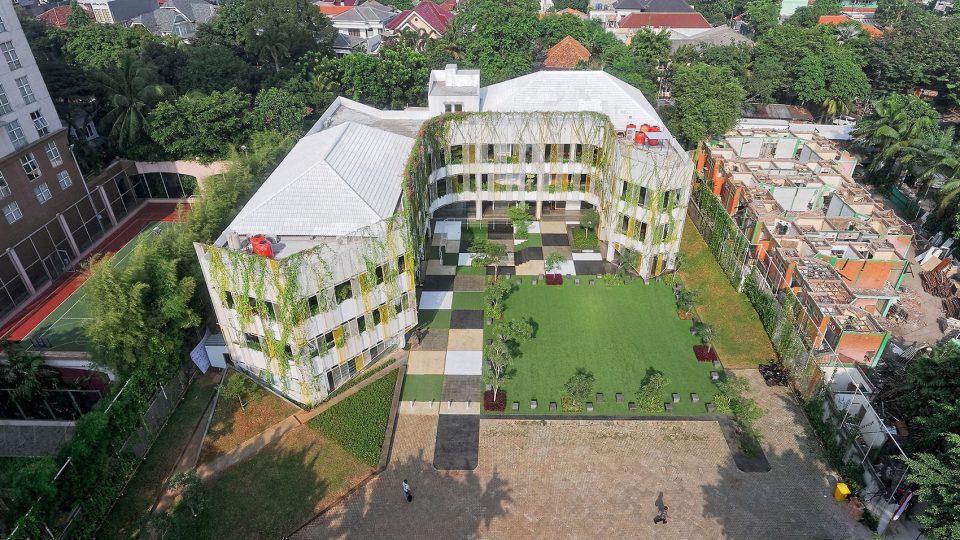

▼鸟瞰图，aerial

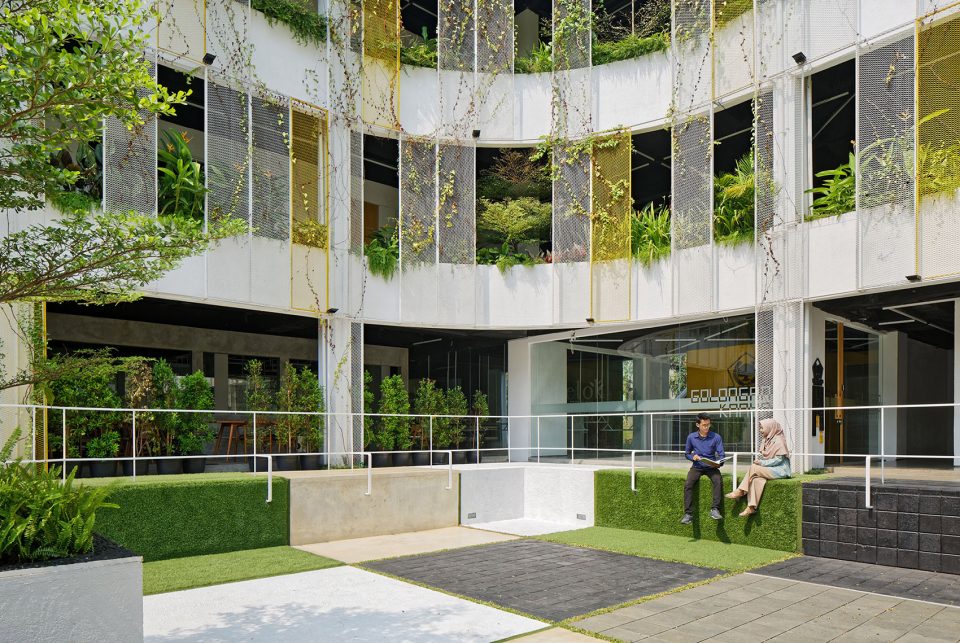

▼园内近景，a shot of the project

从第一个概念谈起，开放与透明不仅仅体现在建筑的装饰，还体现在对内部活动的影响上。无围墙式的设计迎合了政党对社会开放的意愿，消除了封闭和排外的刻板印象。在这座3层的建筑中，至少有1层是完全向公众开放的基础设施。这些基础设施还拥有配套的公园、清真寺、露天剧场、城市种植公园和图书馆，以及花店、创意商店、面包店、便利店、咖啡馆等商业空间作为经济上的支持。2层和3层包含一系列办公室，整个空间皆由宽阔透明的玻璃构成，因而也不会出现任何封闭和隐蔽的讨论活动。透明的概念使政党的行为活动变得更加开放化，人们无需再相互躲藏。

Starting from the First concept, Open and Transparency is not just an architectural decoration, it will also change the behavior of those inside it, starting with the concept of non-fence, is a concept whereby the party wants to open up to the Society so that it will change the society’s perception that the party does not sealed and forming exclusivity. At least the 1st floor of a building with a total of 3 floors is a public facility that can be accessed by the public. It also could give the problem in Jakarta, which is the society feel lack of green area for playing area, and socialize. The facility is equipped by public park, mosque, amphitheater, urban farming gardens, library, as well as commercial facilities such as flower shop, creative shop, bakery shop, minimart, and café as supporting facilities economically. 2nd and 3rd floors are filled with office spaces where the whole room is made with very large transparent glass, so there is no room for a closed and concealed discussion like typical party people. The concept of transparency trains as well as revolves the behavior of political parties that are generally closed to be more open and no one needs to be hidden from each other.

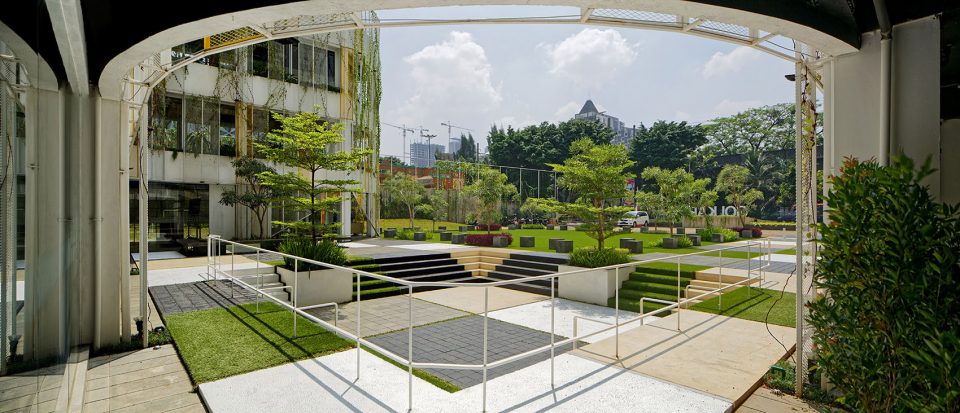

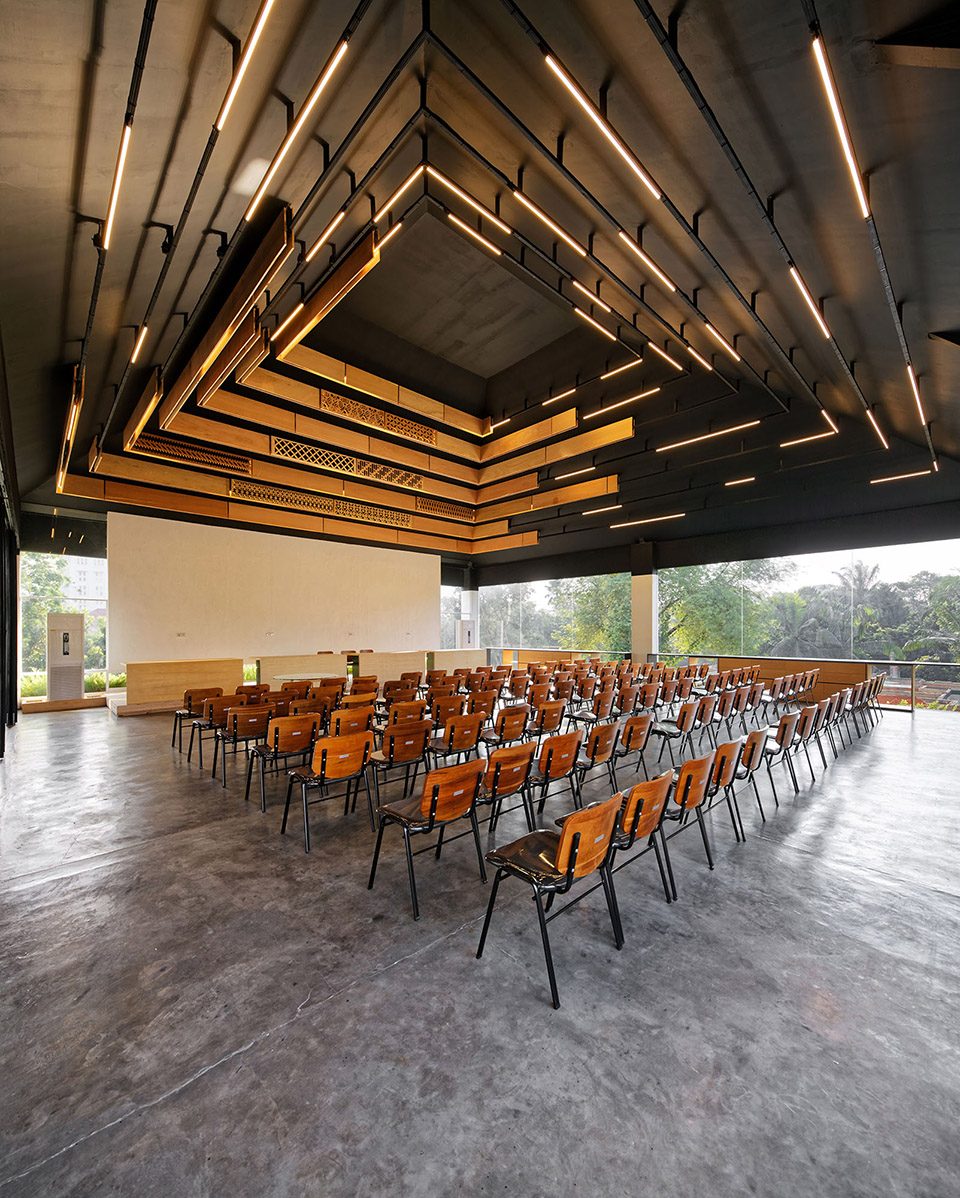

▼露天剧场，the amphitheater

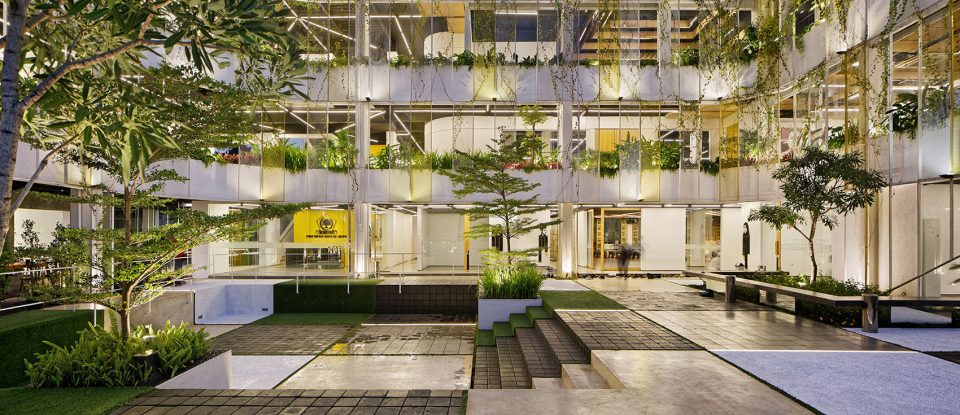

▼夜景，night view

绿色复兴的价值观体现在成本和时间等多方面的高效，以及为建筑带来更高品质的外观和气候。当然，这一过程的实施无需将建筑原本的骨架拆除，因而可以完成得更加迅速。“富有生机”的新建筑立面证明了自由、不受束缚的环境才能够使植物成长得更好。绿色的概念不仅来自于“植物”，同时也体现在对能源节约的关注：建筑中的所有空间都具备充分的采光和通风，从而最大程度降低了空调系统的使用量。

The Second value is Green reviving, where the old bone-wrap solution with plants is a solution that feels most efficient both from cost, time, and produces a better face and a better architectural climate. Of course, this way can be done without change the old bone building so the work could be done faster. The “Lively” impression of a previous building that looked like a soulless also gave a new philosophy of spirit to rebuild so that everything would always grow better without boundaries like the nature of the plant itself. Green concept is not only from “Plants” but also pay attention to save energy aspect, where every space in this building is very rich of sunshine and air so that minimize the use of air conditioner in it.

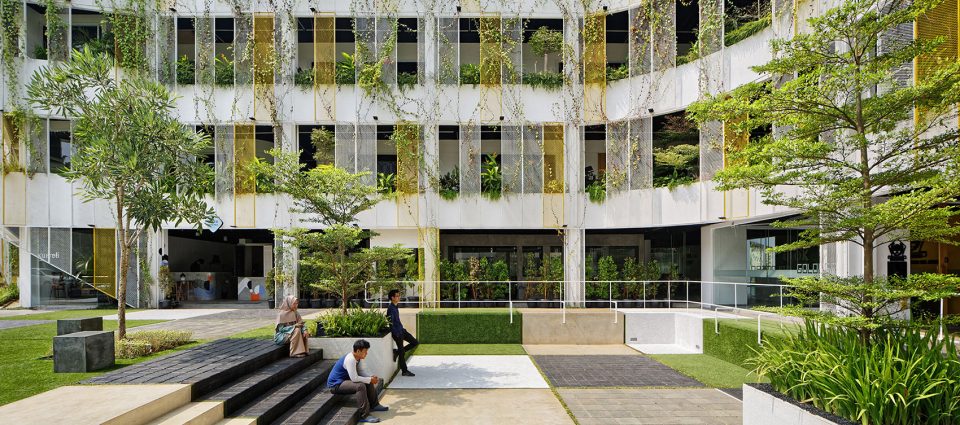

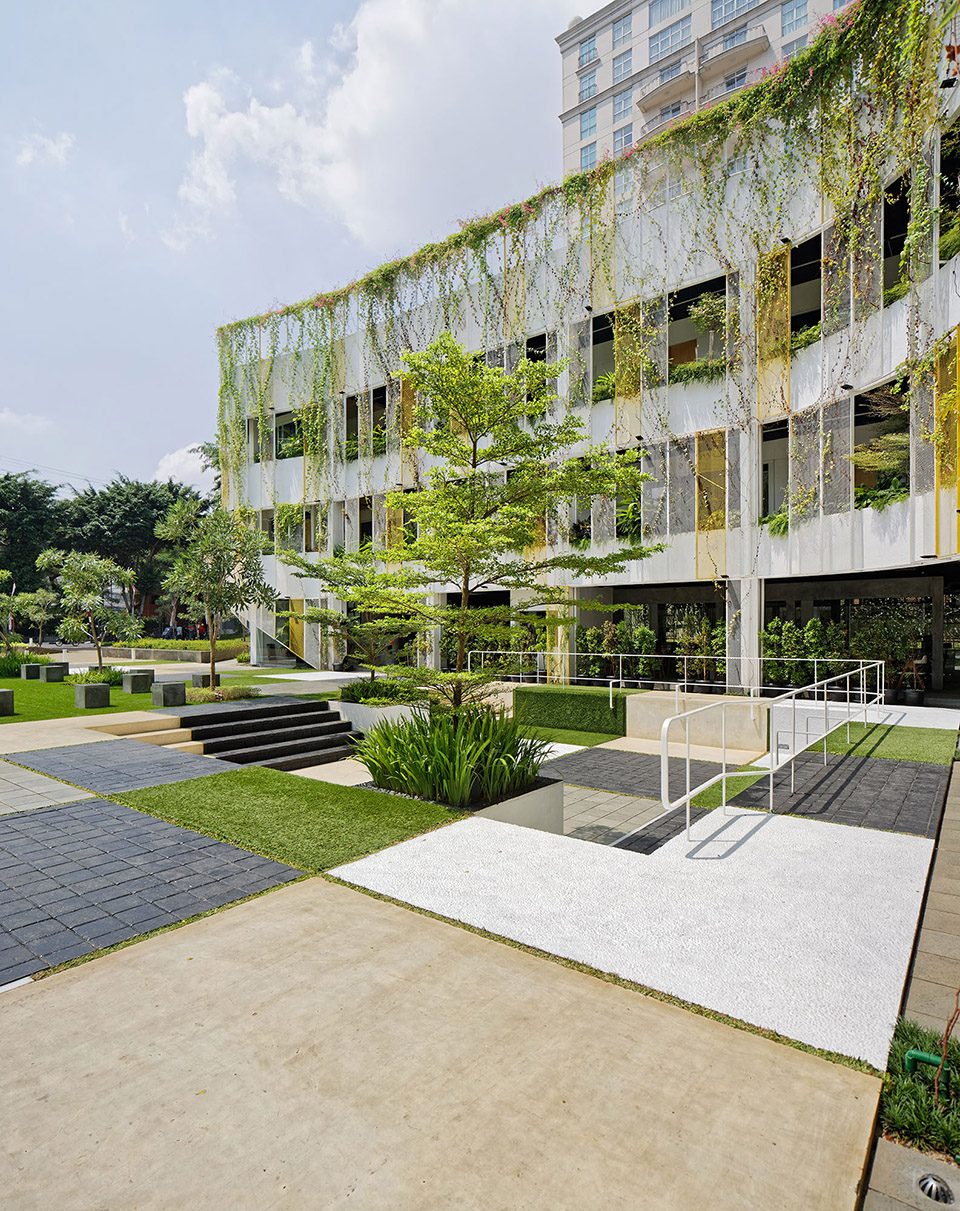

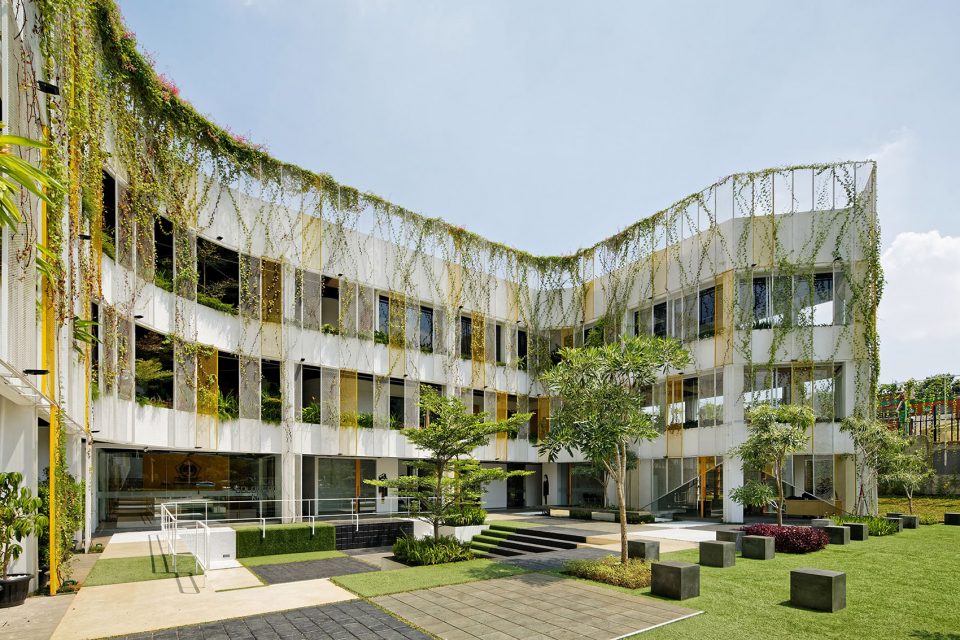

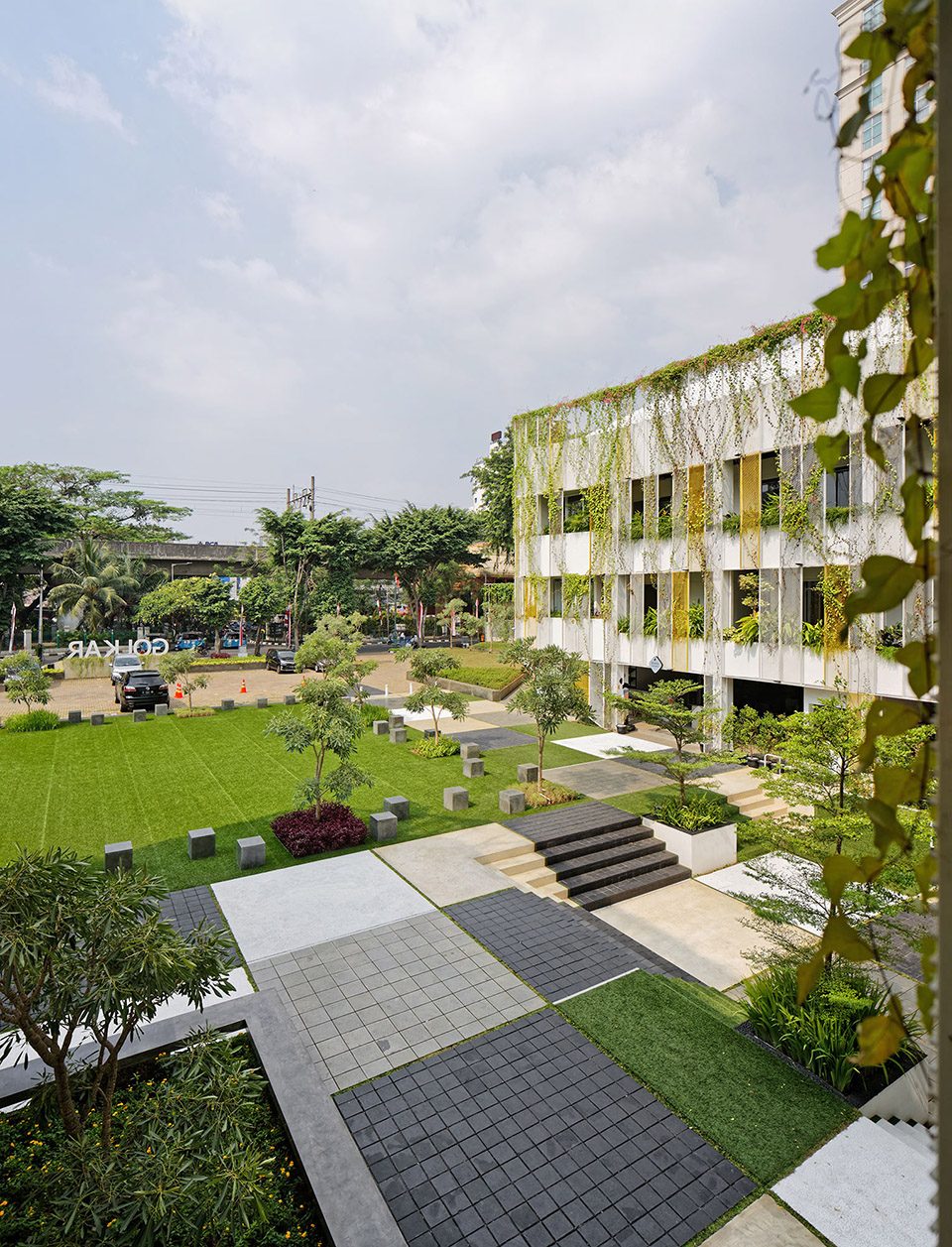

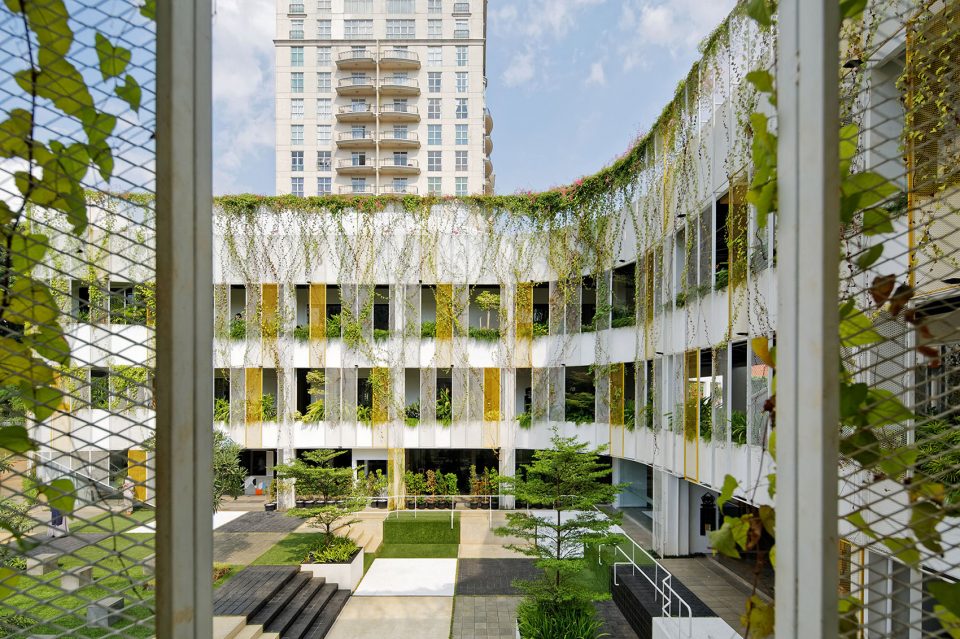

▼绿植立面和景观，the building facade and landscape full of greenery

开放式走廊的布局为建筑原先的庞大体量带来了75%的开放空间，这些空间从办公区域延伸至公共区域，无需使用任何空调设备。这一概念同时也令场地的微气候变得愈来愈凉爽，并间接地改变了印尼社会和政党人士不太喜欢植物和花园的作风，植物带来的美观也会令使用建筑的人更加关心植物。当然，我们也可以了解一下发达国家对于城市植物和绿地的关心和重视。

Existing buildings that previously massive we also make with the concept of open corridor layout so that it can make 75% of the building area is an open area and no air conditioning, ranging from the office area to the public area. This concept at the same time make the micro atmosphere in this land become cooler and colder, this also indirectly revolutionize behavior of society and party people in Indonesia which generally do not appreciate plants and garden. With the concept of a beautiful building because of plants, of course make people who use this building to be more keep the plants themselves. Surely we can turn to the more developed nations how they appreciate a “plant and greenery” in their city.

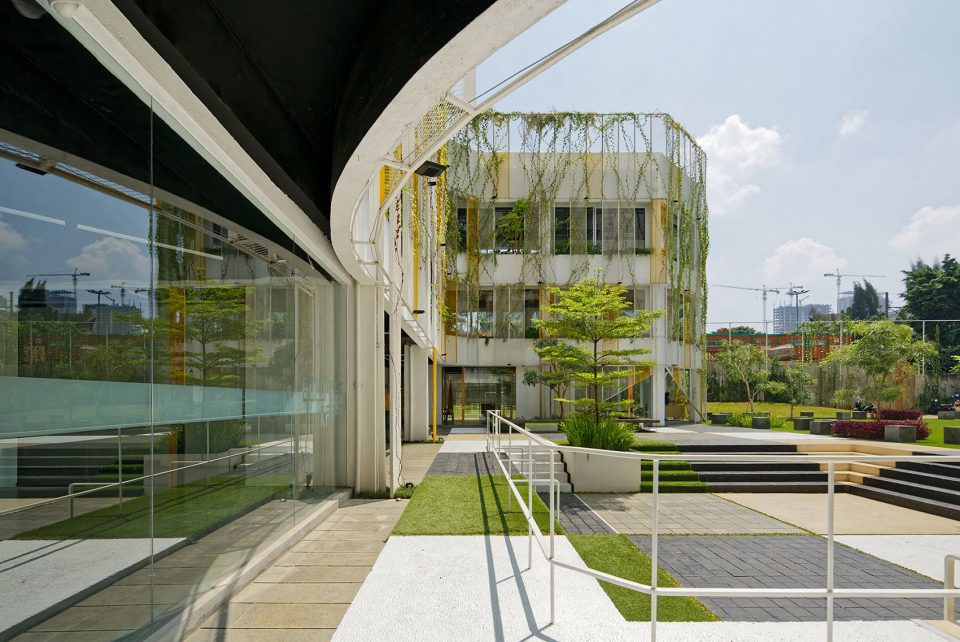

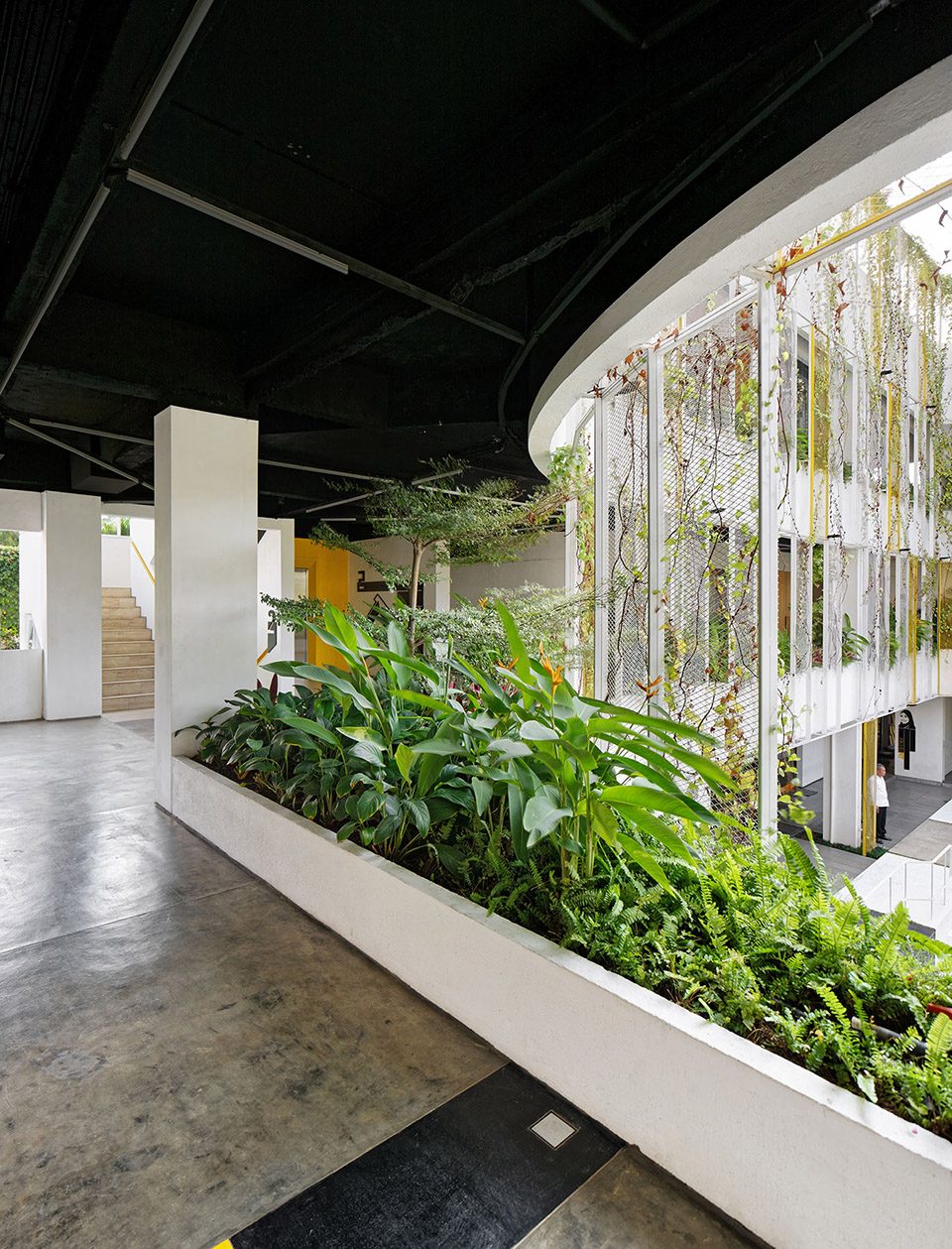

▼绿色的开放空间从办公区域延伸至公共区域，the planted open space is ranging from the office area to the public area

第三个概念是协作及团体中心。戈尔卡党期望通过这一目标向大众表明，团结协作是解决国家现有问题的最有力的途径，孤立前行是不可取的道路。团结、互助与协作是信息和媒体公开的当下时代中的必然选择。建筑师从最基本的工作环境入手，取消了“主席室”和“秘书室”，使所有办公空间变得共享，并永远向党内成员开放。这一做法无疑对党政的组织结构产生了巨大的影响，消除了领导与普通成员之间的距离。

The Third value is Collaborative & Community Hub, the concept is encouraging with a goal where Golkar Jakarta can show to the public that the collaboration is a strongest solution to the existing problems that is faced by this nation. It’s no longer time to move alone. United, mutual cooperation and collaboration are things that are mandatory in the era and age of this information and media disclosure. We apply this concept from the most basic of the members of the party itself, where there is no more private and individual space such as the “Chair Room” or “Secretary Room”. All the rooms are shared, can be shared, and always open to anyone who becomes a Golkar cadre. This of course greatly changed the behavior of high-ranking party / organization that generally exclusively because of the position he held, so oftenly there is a distance between the leadership and members.

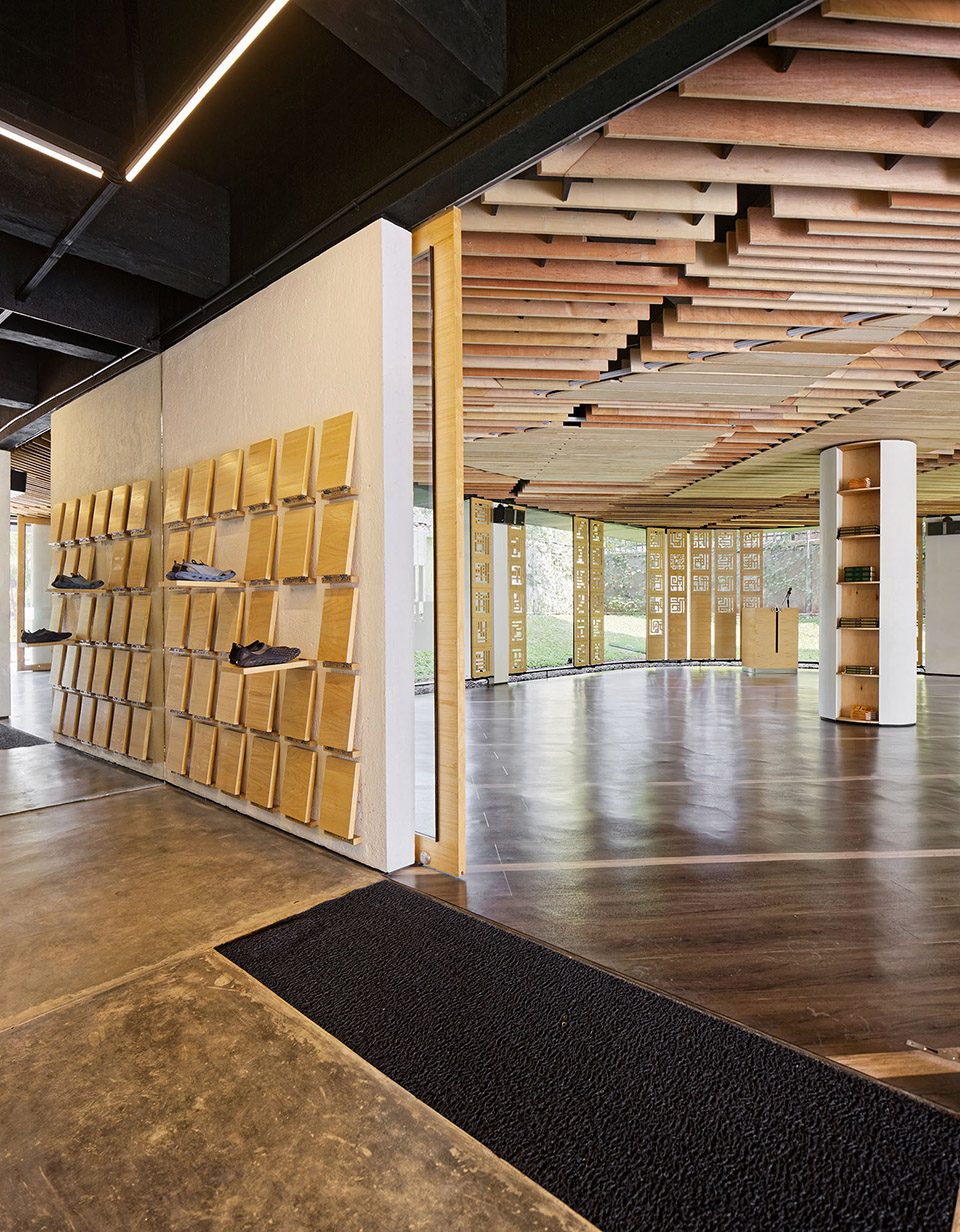

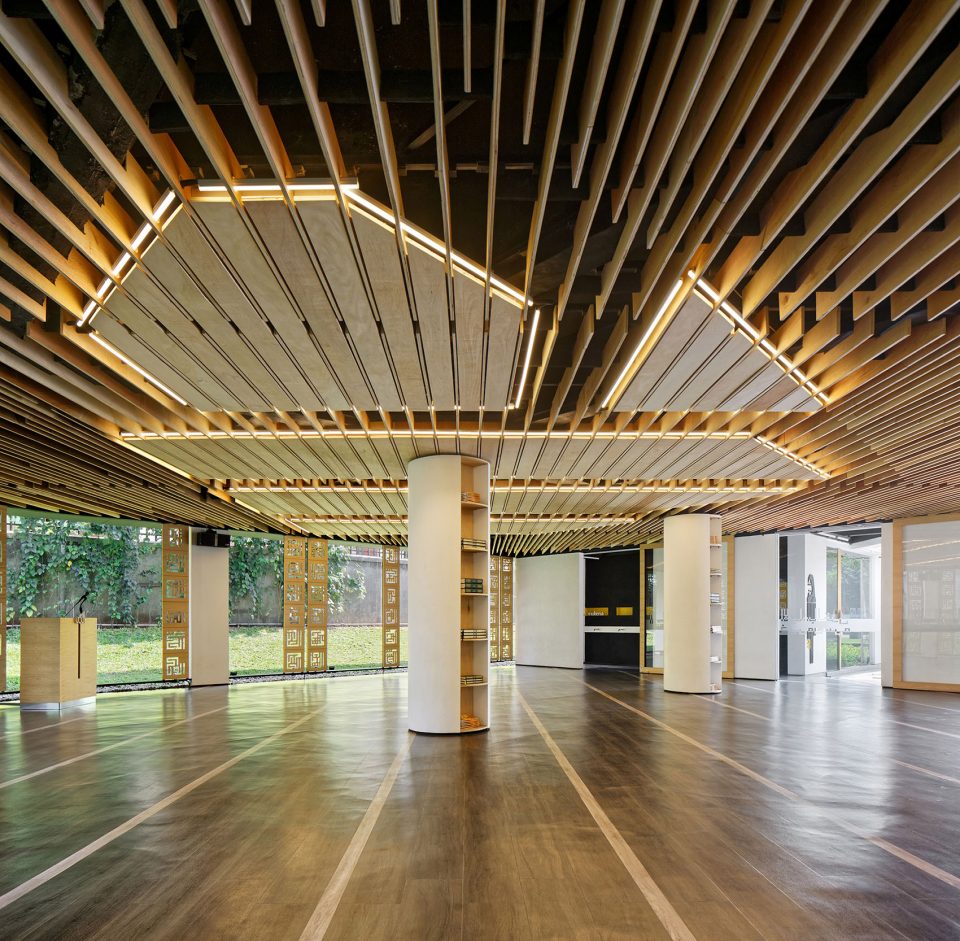

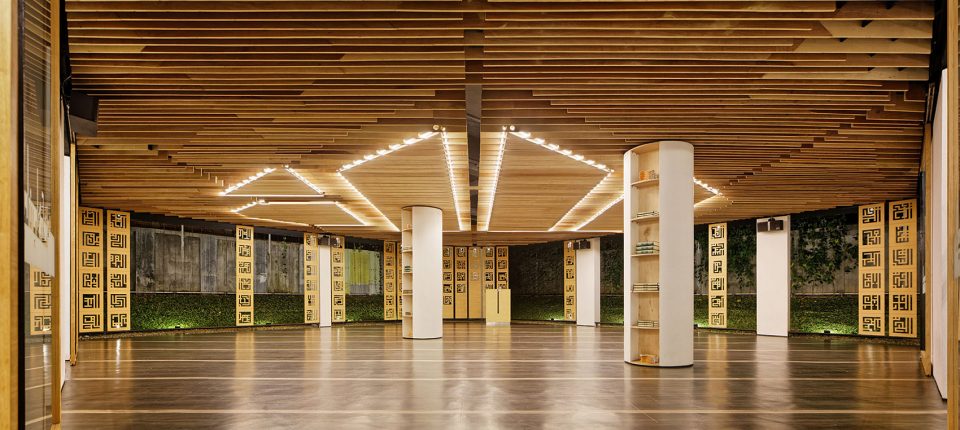

▼活动及会议空间，space for events and meetings

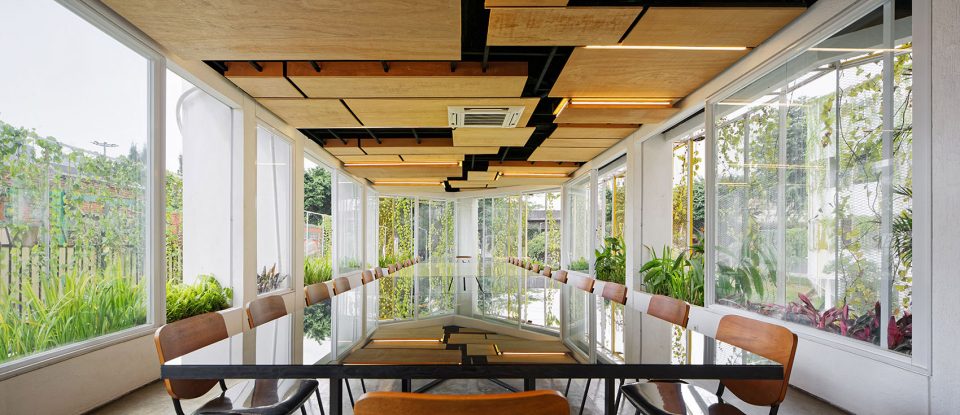

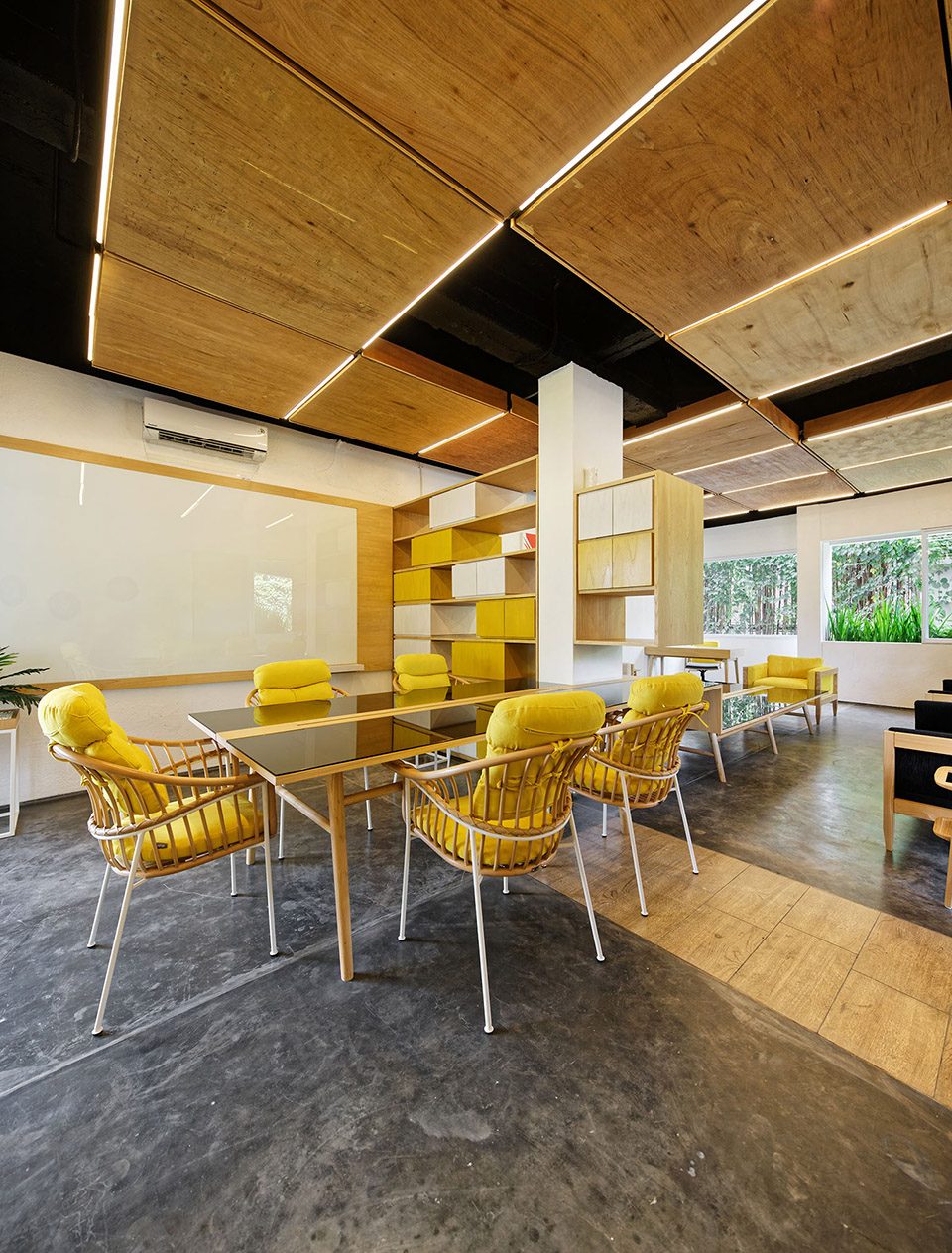

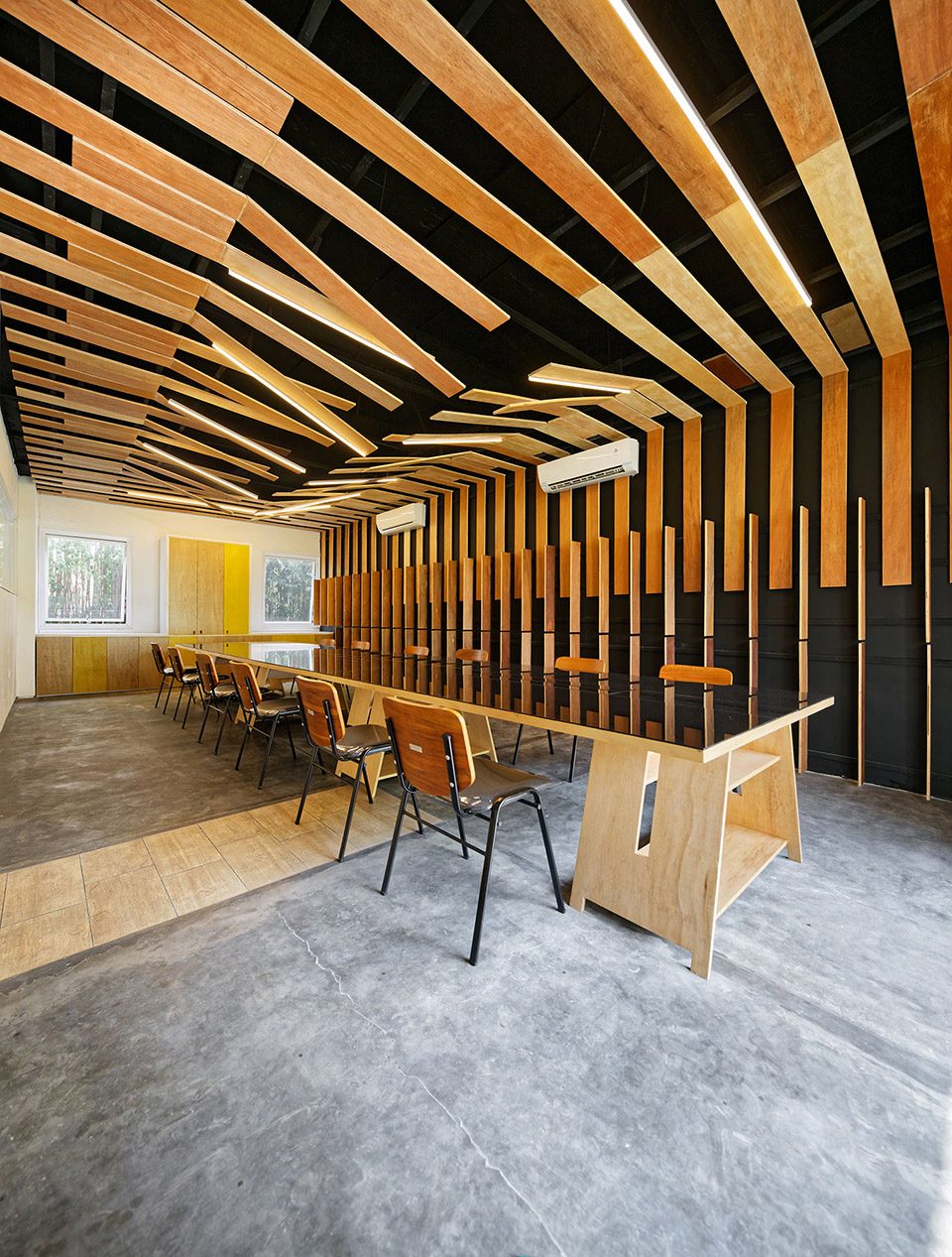

▼会议室，meeting room

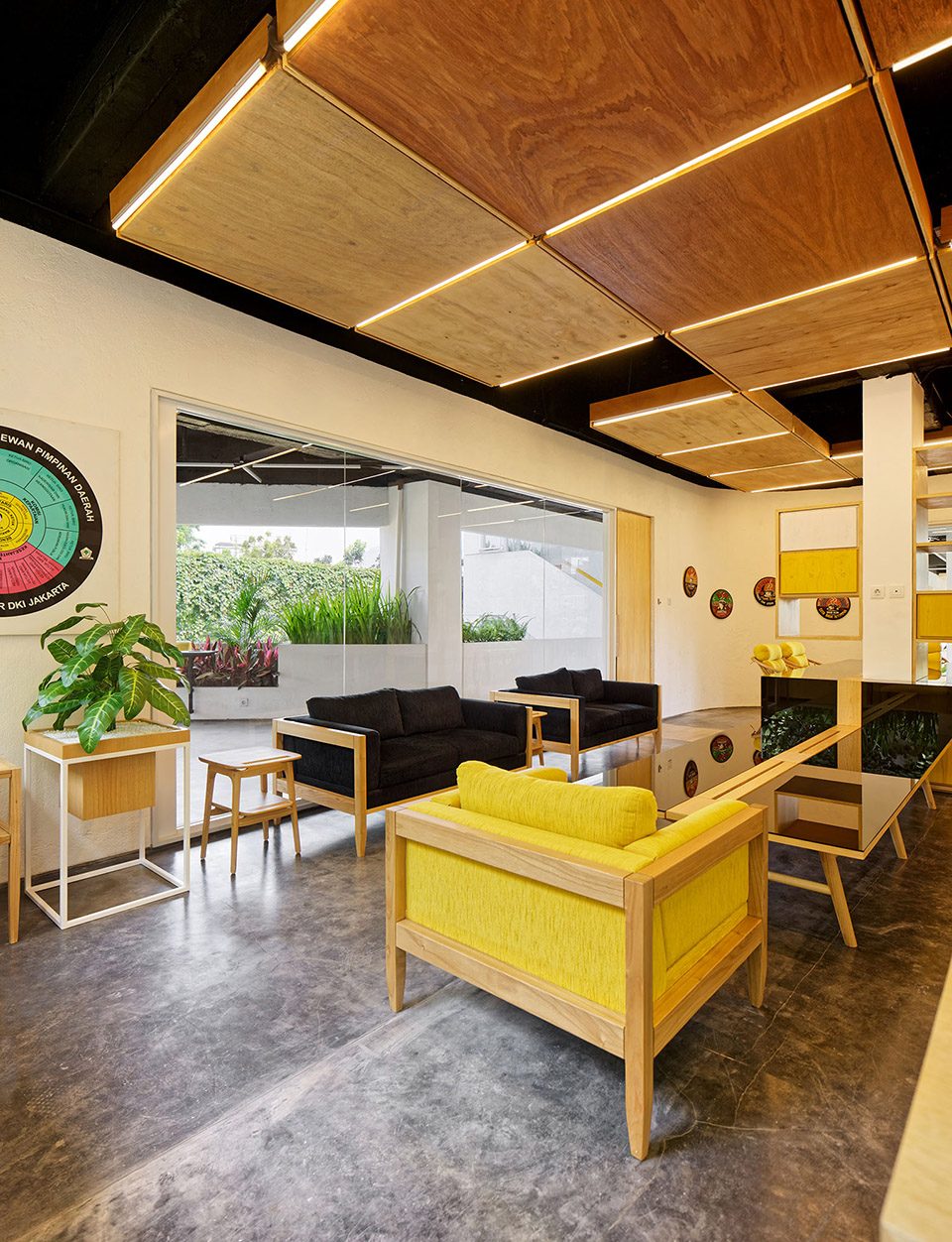

▼各类集会和交流空间，communal spaces

建筑师打开了1层和二层的基础设施，使之成为供雅加达居民和各类团体（可以达到数千个）共同使用的讨论场所。露天剧场可以用于举办小型会议，以及访谈节目、音乐表演、艺术表演、展览等其它各类活动。除了露天剧场以外，中央公园也可用于进行各类团体活动，如会议讨论、游戏乃至婚礼等等。

For Community Hub, we apply by opening the facilities on the 1st floor to become a forum of joint activities between residents and communities in Jakarta which is so many communities, could be thousands. This activity can be found with amphitheater which can be an area for small seminars, and other similar community events such as talk show, music performance, art performance, exhibition, and more. In addition to amphitheater, the central park can also be used for various community events, ranging from meetings, community discussions, playmates, to a wedding venue with the concept of outdoor party.

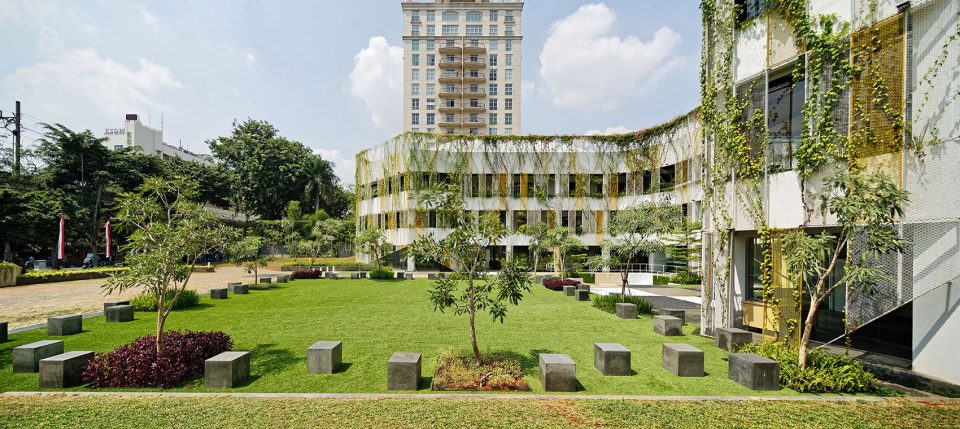

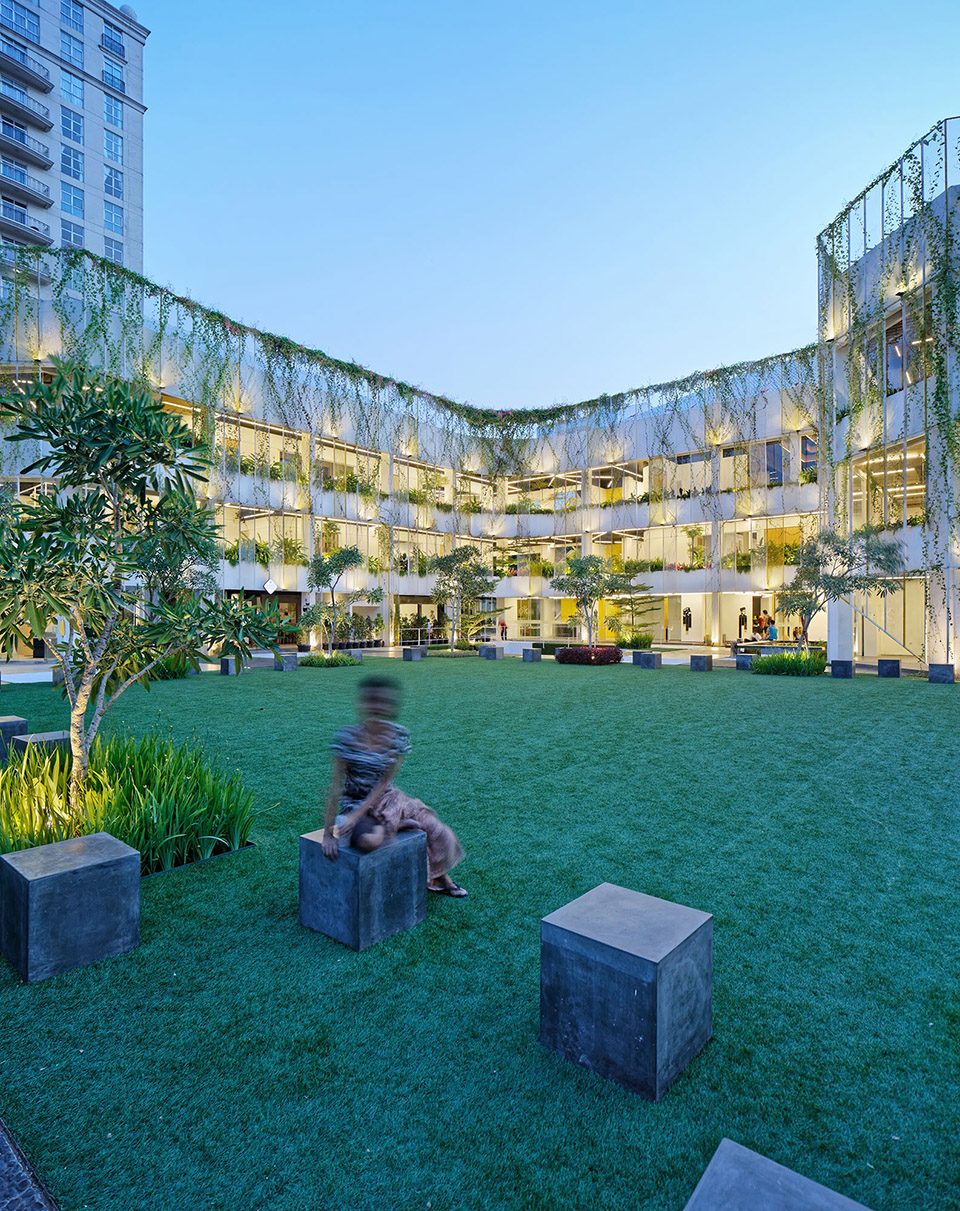

▼中央公园，the central park

最后，发扬民族主义的概念体现在对党内成员、支持者以及来访者的爱国精神的唤醒和激发。建筑师为此在每个空间使用了国家特有的符号，例如Bhineka Tunggal Ika、Pancasila、Sumpah Pemuda、Proklamasi、Indonesia Raya，以及历届总统的姓名。这样一来，工作人员就可以以国家符号来称呼各个空间，从而唤起印度尼西亚当今社会中逐渐消退的国家意识。除了上述的4个主要观念之外，建筑师还使用了未经表面修饰却十分美观的材料，不仅降低了成本，更缩短了工期，使之成为一个共赢的方案。每个楼层的空间和区域中还运用了大量的引导标识，让使用者的信息获取变得更加便捷。

The last value and the 4th grade is Raising the Nationalism, where we want to regenerate the spirit of nationalism that every member, sympathizer, and the people who come to this Golkar office. Where the spirit of nationalism that we apply in the form of the name of every room that uses the symbols of nationality such as Bhineka Tunggal Ika, Pancasila, Sumpah Pemuda, Proklamasi, Indonesia Raya, and the names of presidents who served in Indonesia ranging from the first president such as Soekarno to the existing president such as Joko Widodo. This concept we apply to make their day, when run the activity, they can call the rooms as the symbol of nationality. This is in the context of a campaign to re-awaken the values of nationality itself which is slowly starting to disappear in the midst of Indonesian society. In addition to the 4 main values as the implementation of the concept of revolution above, the architects also implement the use of materials that are un-finished, but shaped and packaged aesthetically, not only for cost savings, but also shorten the work time so it becomes a win-win solution between display, cost, and time. Architects also apply a lot of way-finding as signposts on each floor, spaces and areas, these are could make this building more friendly at information to its users.

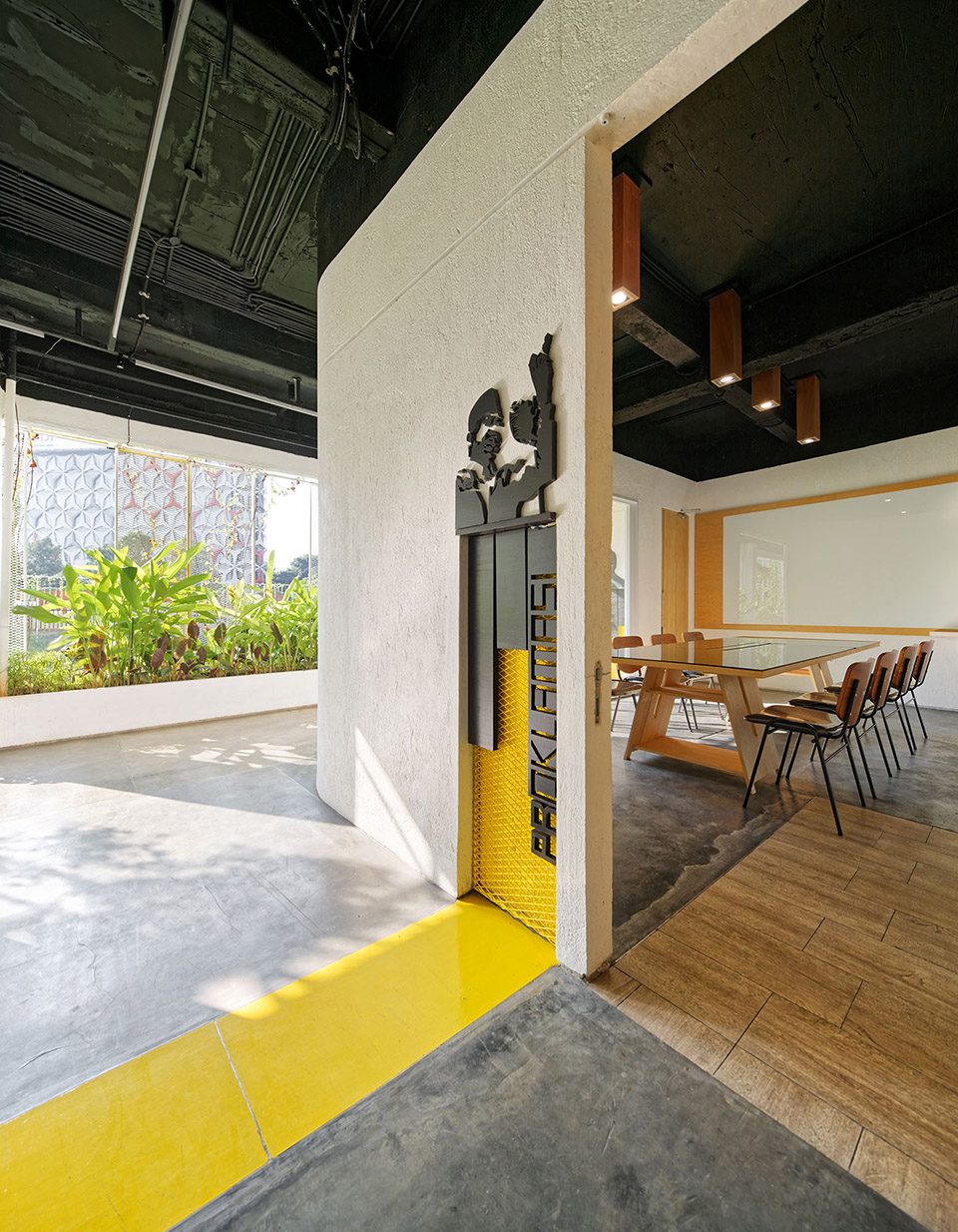

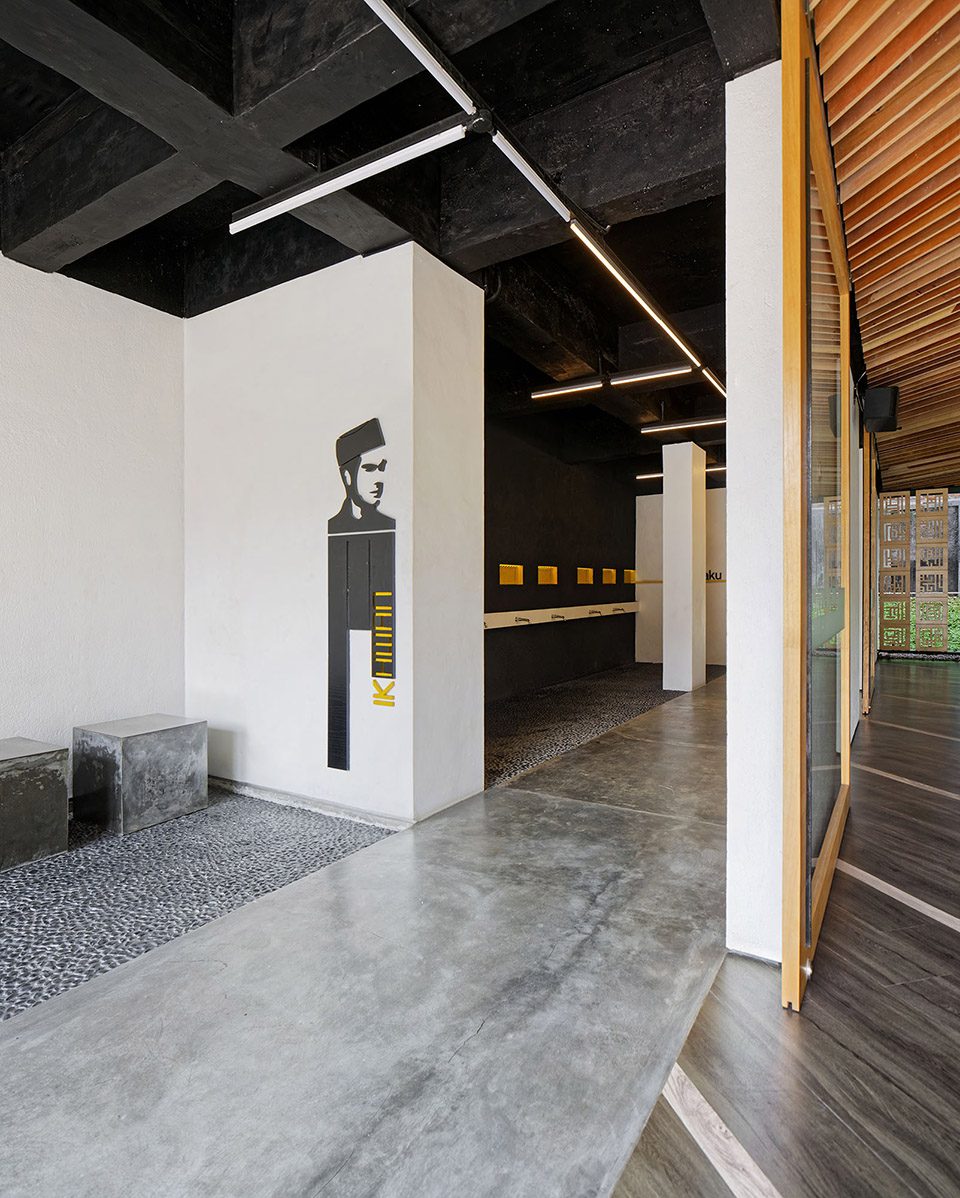

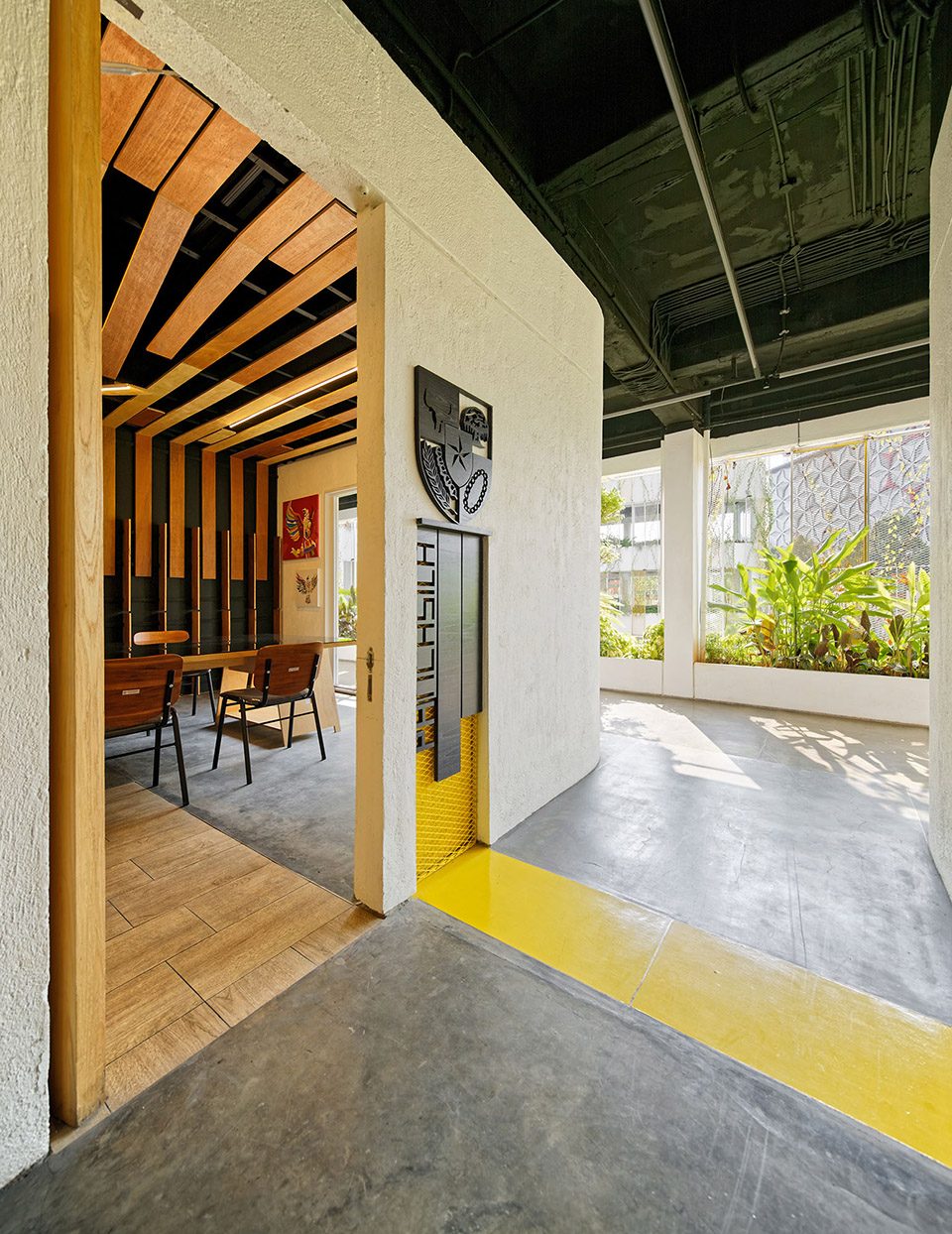

▼楼层中运用了大量国家象征符号，symbols of nationality are widely used in each floor and room

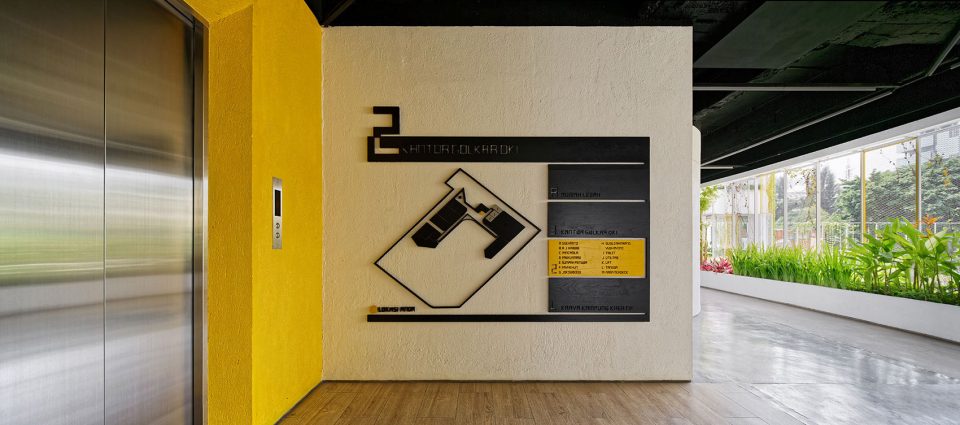

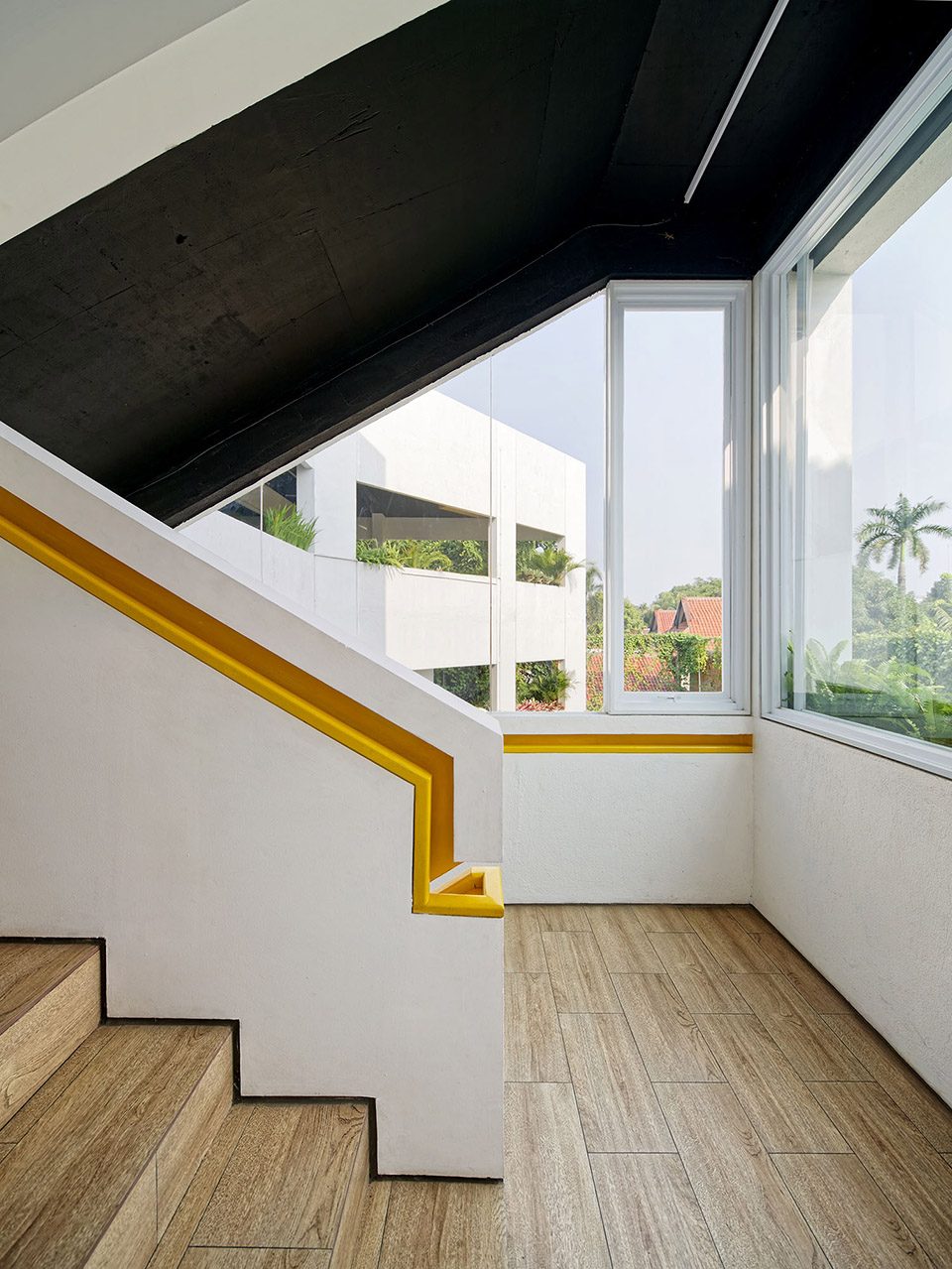

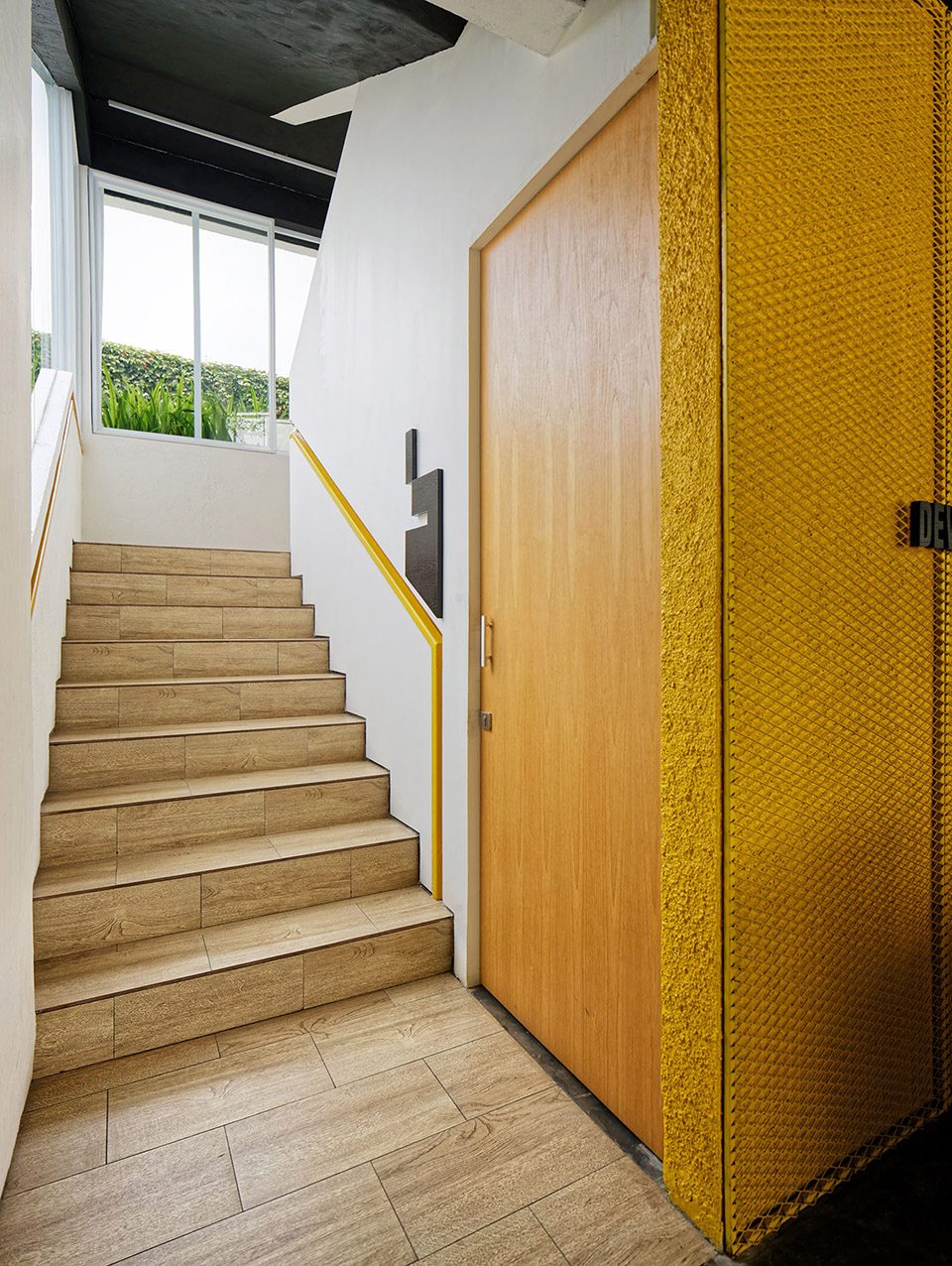

▼交通空间，circulation area

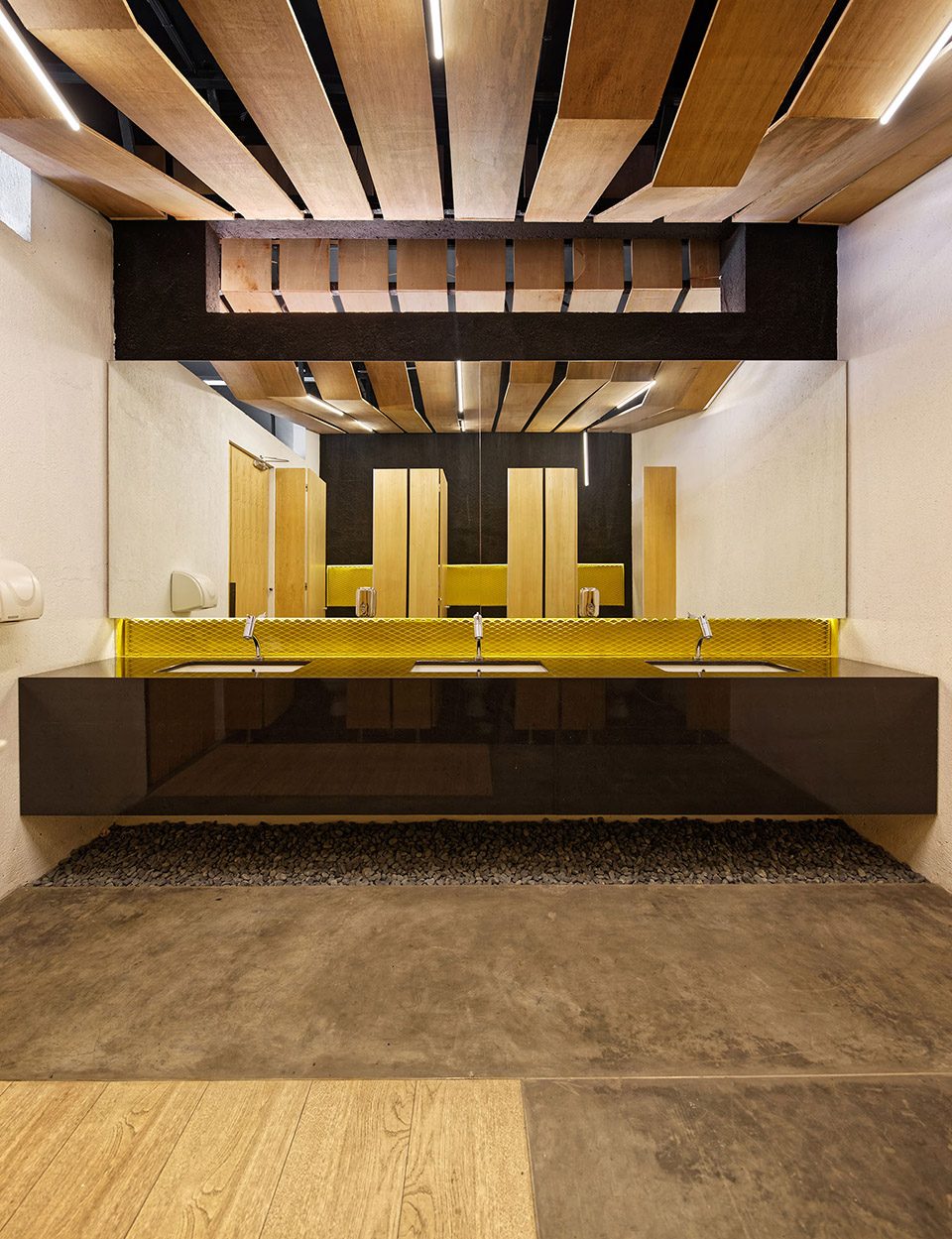

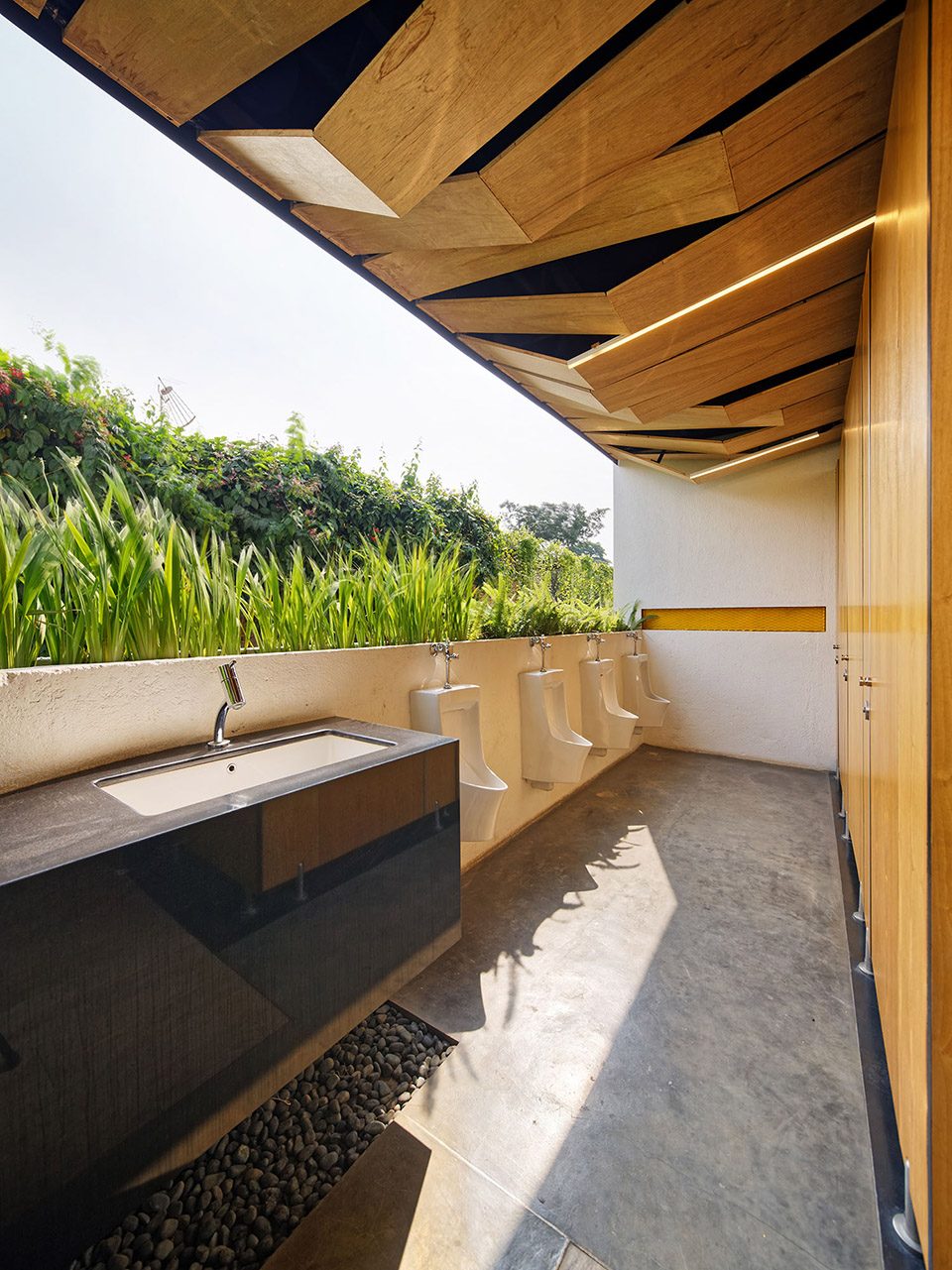

▼洗手间，toilet

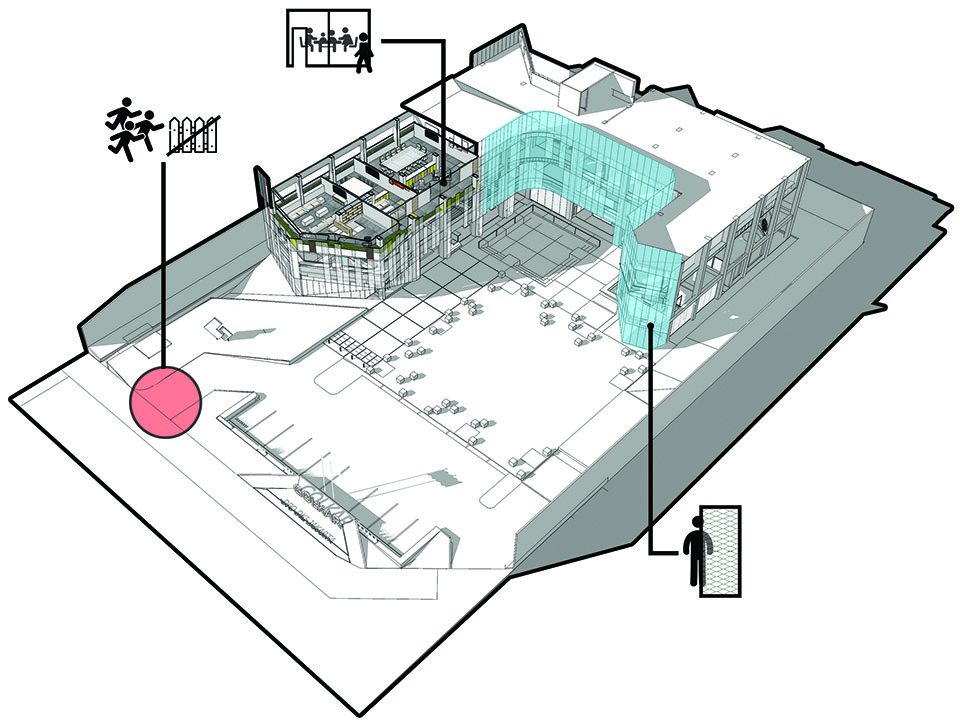

▼透明空间示意图，transparency diagram

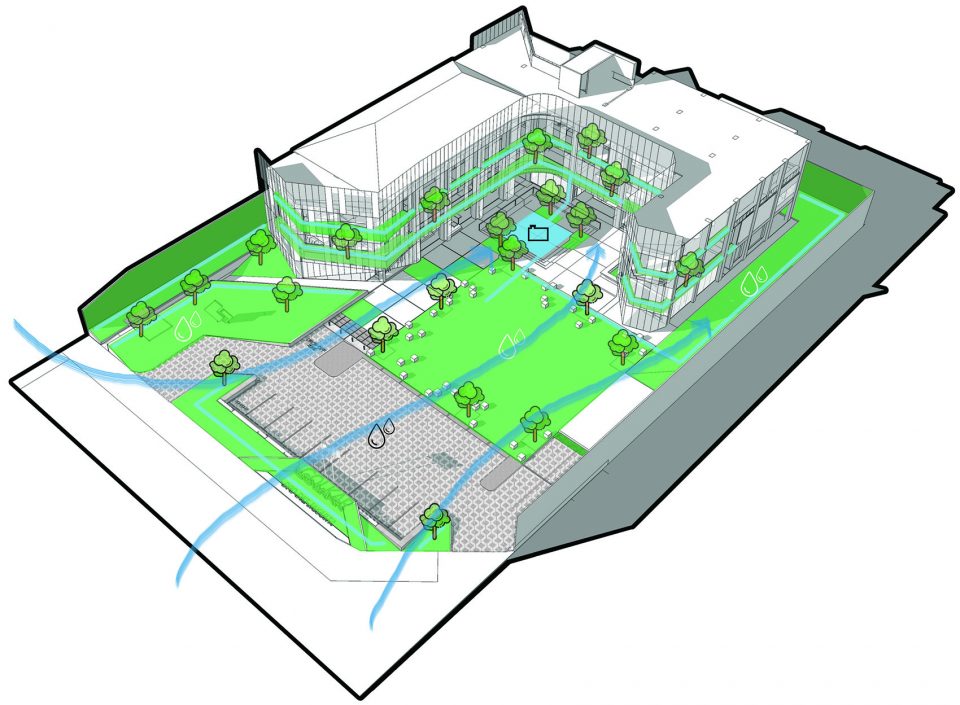

▼绿色空间示意图，green area diagram

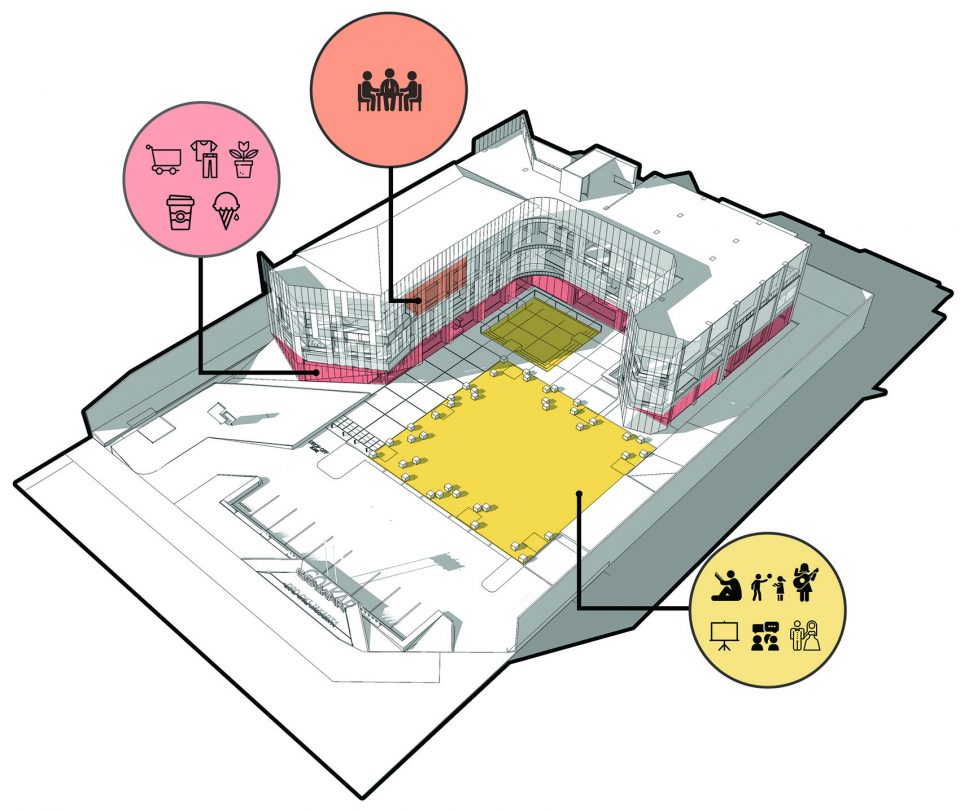

▼公共空间示意图，collaborative space diagram

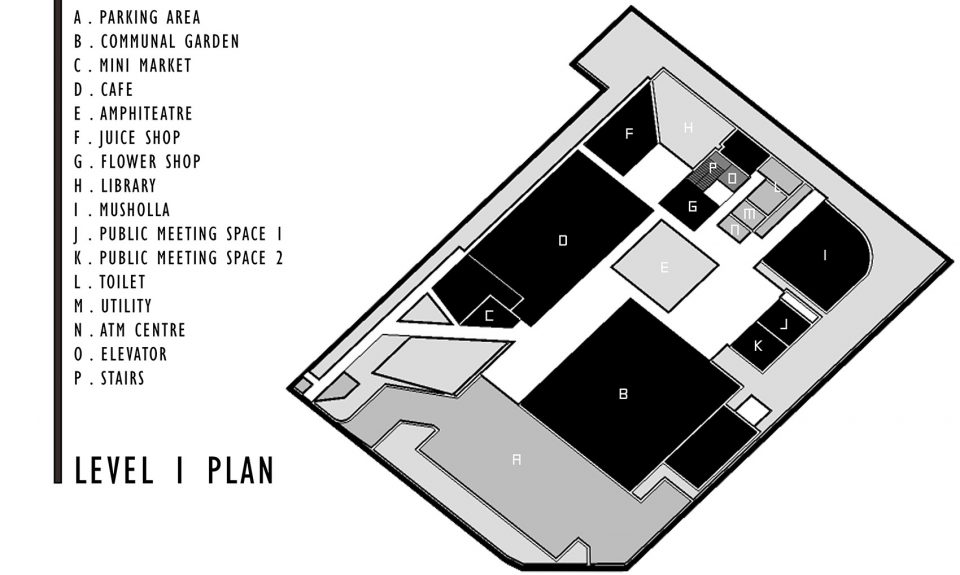

▼首层平面图，level 1 plan

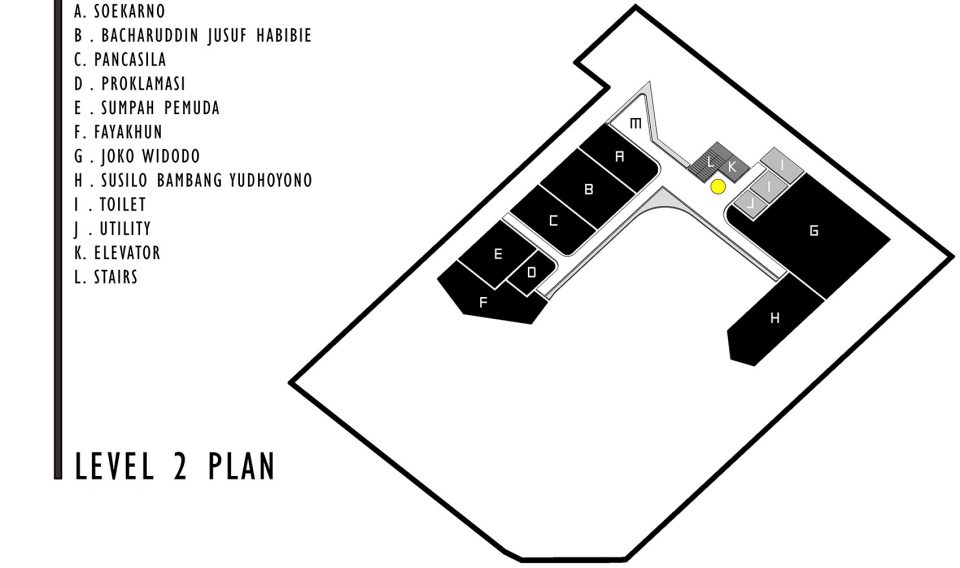

▼二层平面图，level 2 plan

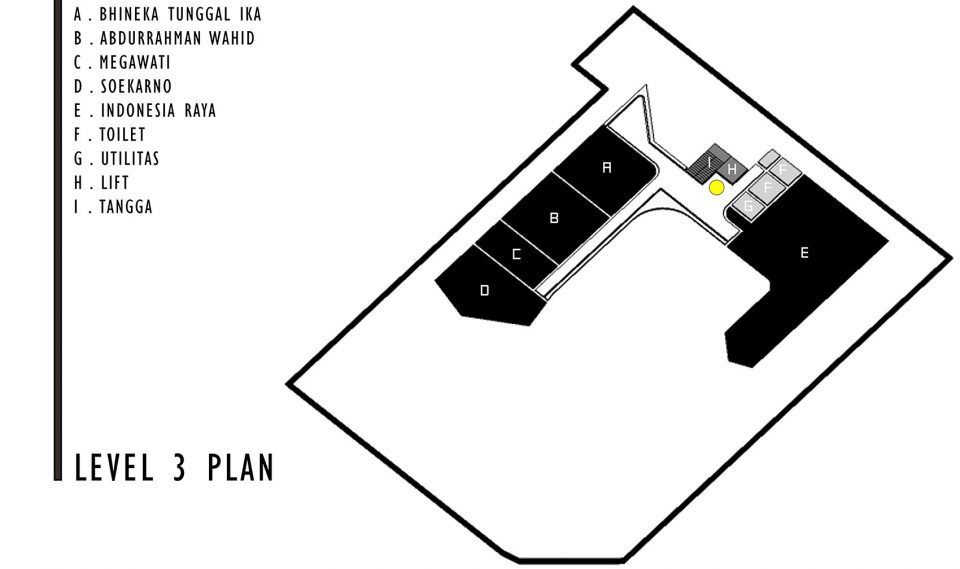

▼三层平面图，level 3 plan

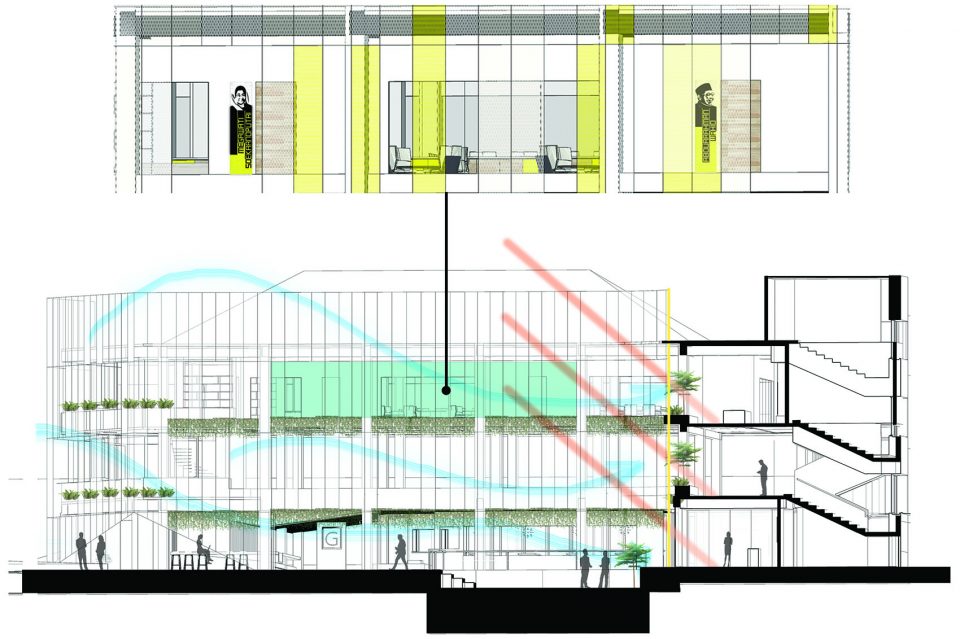

▼剖面图，section

Project Type: Commercial & Public Space
Location: Cikini, Menteng, jakarta Pusat
Client: DPD Golkar Jakarta
Architect & Interior Designer: Delution Architect
Principal Architect: Muhammad Egha,Hezby Ryandi, Fahmy Desrizal
Architect Team: Naufal Ryandi
Building Area: 2600m2
Site Area: 3400m2
Project Year: 2017

More: Delution Architect，更多请至：Delution Architect on gooood
