Reuter Raeber给gooood分享了他们在瑞士巴塞尔的新阁楼改建项目。更多请至：Reuter Raeber on gooood

在这个项目中，一个活动式家具厨房挂在了一栋旧式木阁楼的现存结构上。同时，这个大家具每一个面都有不同的功能：一面是厨房，一面是书架，还有一面是壁炉。

Patrick Reuter, Lukas Raeber, Camille Schneider

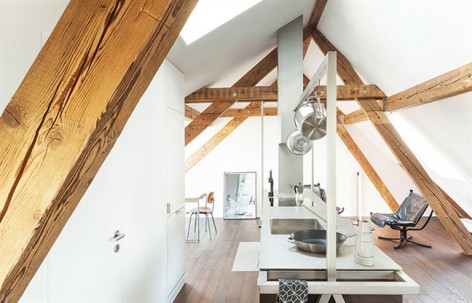

Reuter Raeber recently completed a new project with a special living-furniture kitchen which hangs on the existing structure of an old wooden attic. it has a different facets from each side: once kitchen, once bookshelf, once fireplace.

这里原是巴塞尔一栋19世纪初建成的公寓楼。其历史建筑的外观大部分被保留，公寓内部按照原来旧房子的摸样被仔细修复。而顶部的阁楼则改造成一栋独立公寓。

阁楼扩建部分遵照了现有的屋顶几何形状，只新加了一个前面带有窗台的屋顶窗，创造了一种空间拓展感。公寓是一个宽敞的开阔空间。按照平面图和屋顶不同的几何形状，公寓楼被依次划分不同的区域。其核心特征是一个悬挂式客厅家具，包括厨房，书架和壁炉，三位一体。这一家具在一个局限的空间内提供了多重用途。住户可以根据需求使用并组装这些家具。例如物件可以被置于书架上，或挂在厨房的支架上。

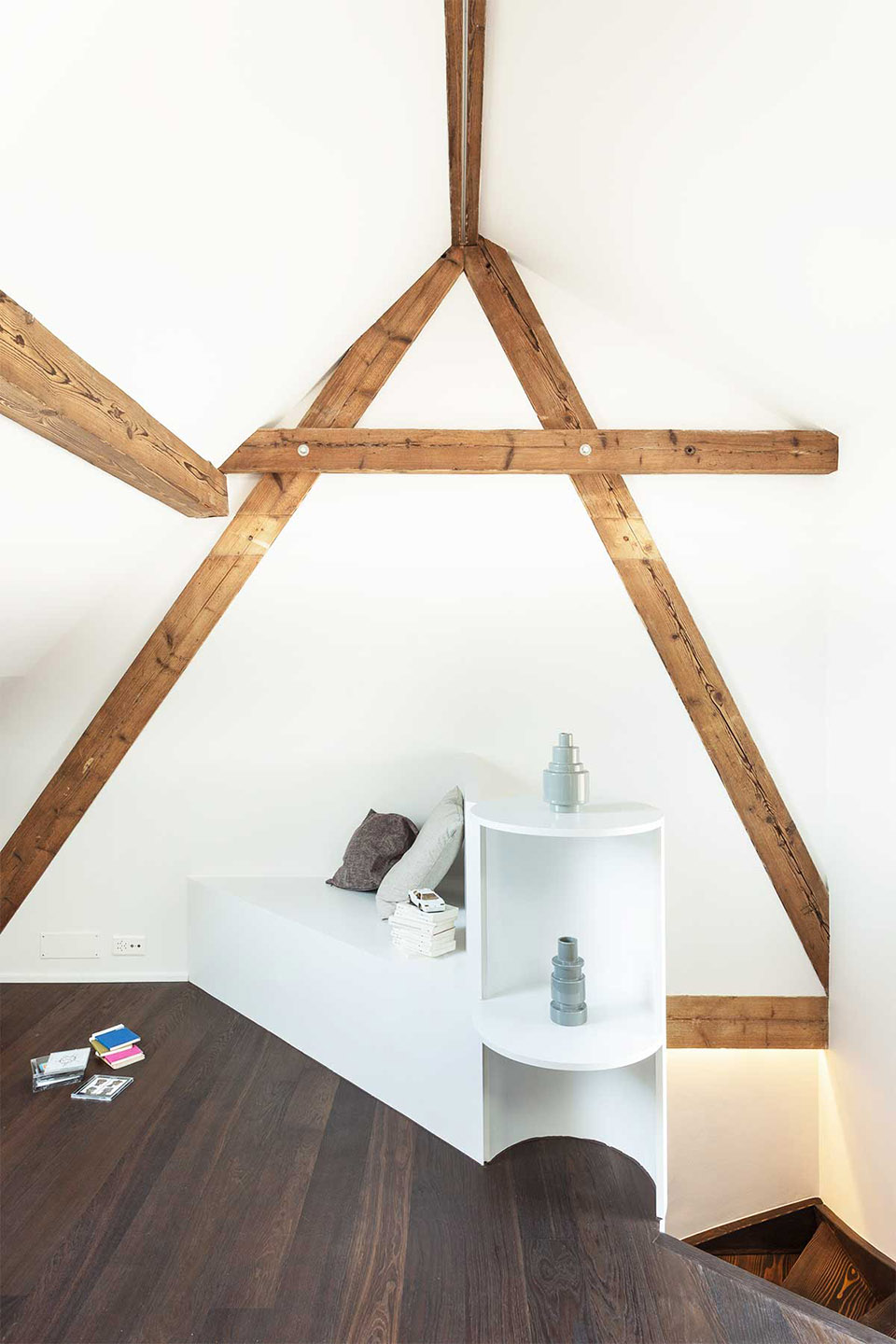

The starting point of the design was an apartment building from the beginning of the 19th century in Basel. On the outside the heritage building was mainly left as found. On the inside the apartments on the lower five levels were carefully restored in the manner of the old house. The attic on top was remodeled into an independent apartment.

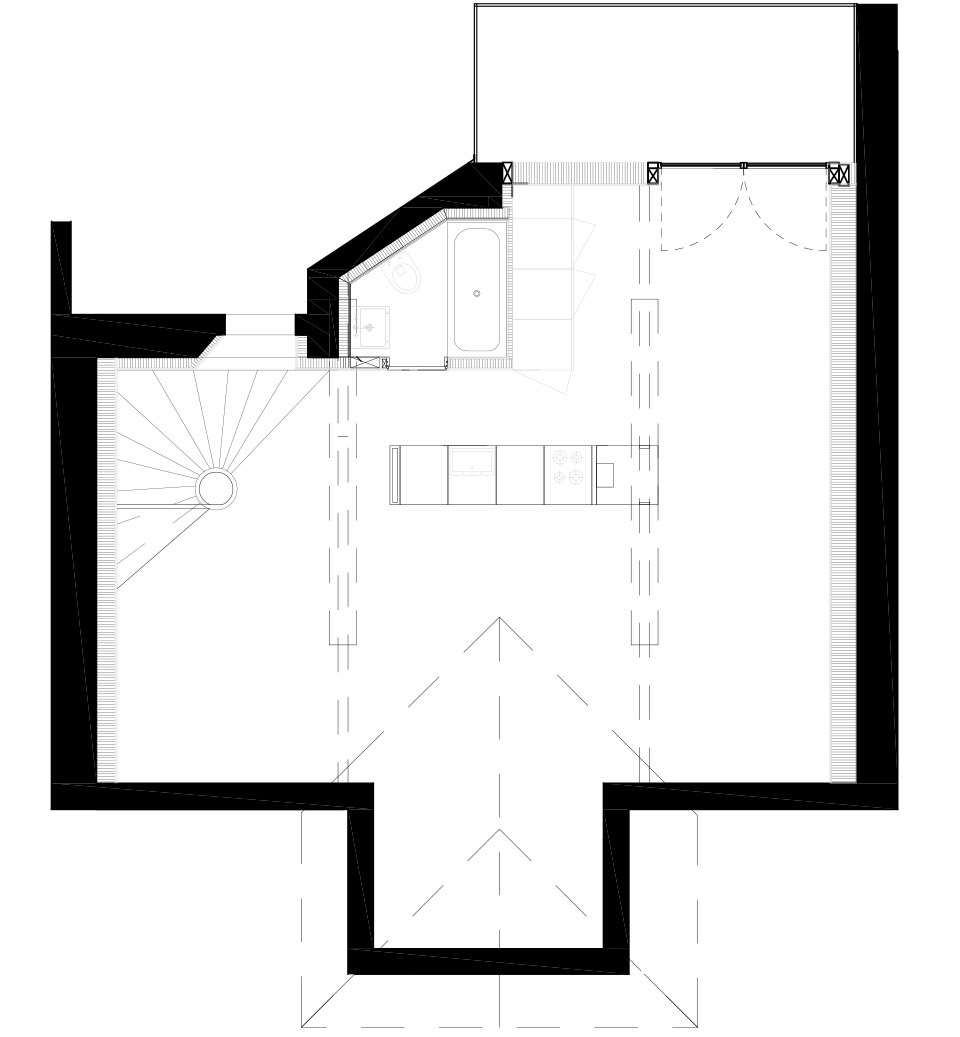

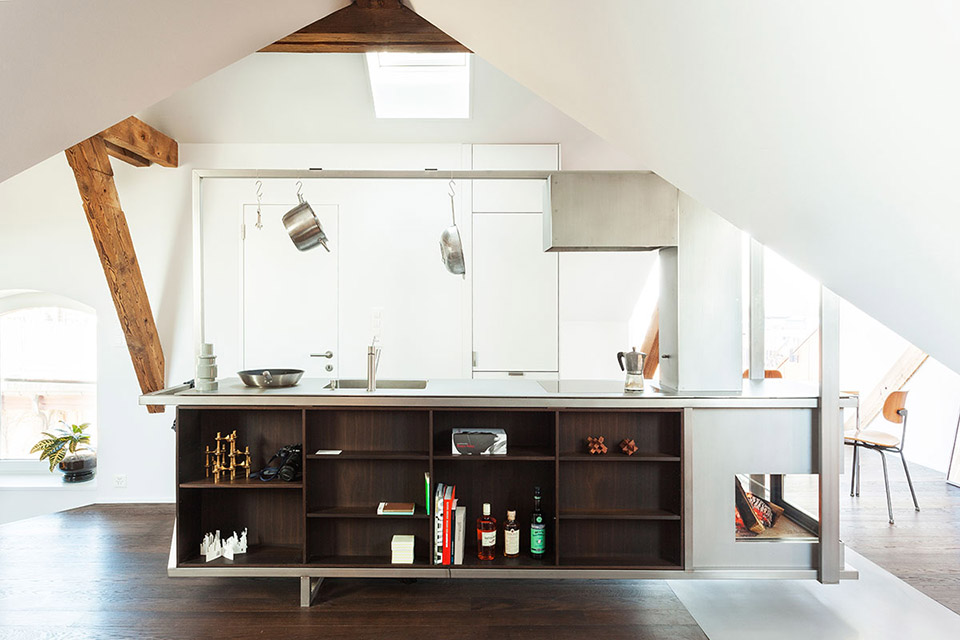

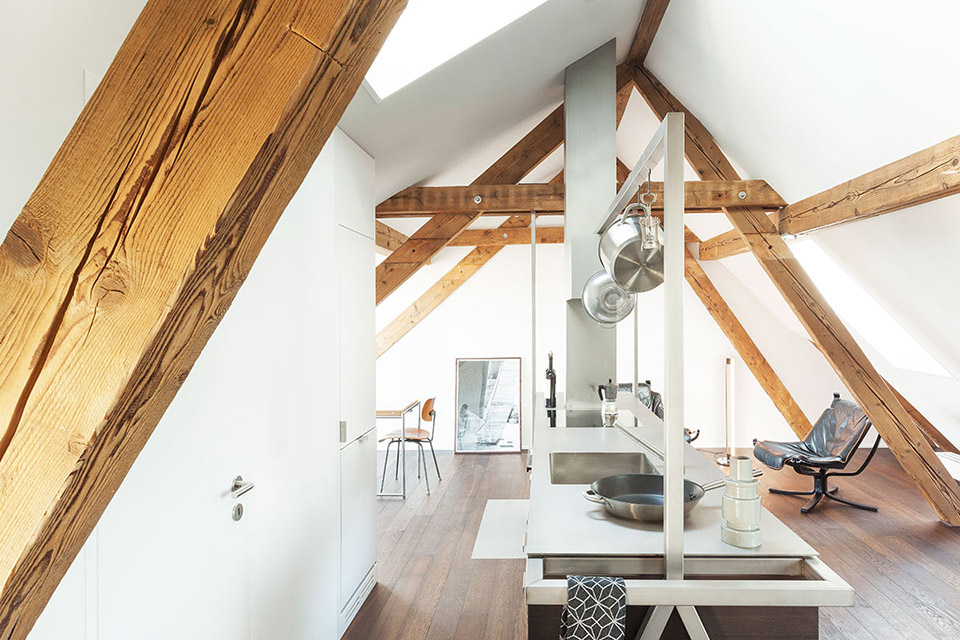

The attic extension respects the existing roof geometry with the exception of adding a new dormer window joined with a terrace in front which creates a spatial expansion. The apartment is a wide open space. It is parted in sequences based on the floor plan and the distinct geometry of the roof. The central feature is a hoovering living-room furniture, which consists of a kitchen, a bookshelf and a fireplace, all in one. It offers multiple uses in a confined space. The resident can use and equip the furniture according to his needs. For example items can be placed in the bookshelf or hung on the support bar of the kitchen.

就结构上来说，旧阁楼的基点以及中心家具由四根排成一列的静态相关的连接木梁支撑。为了创造充足的净空，四根木头横梁顶部被置于中间的檩条上。这些檩条现在的作用是承重，而不是用于悬挂。

中央客厅家具一端及内置壁炉挂在其中一根木梁上，而家具的另一端竖直放置在地面上。依照旧阁楼的现有结构，并做更进一步的改造，创造了一种富有张力的平衡。

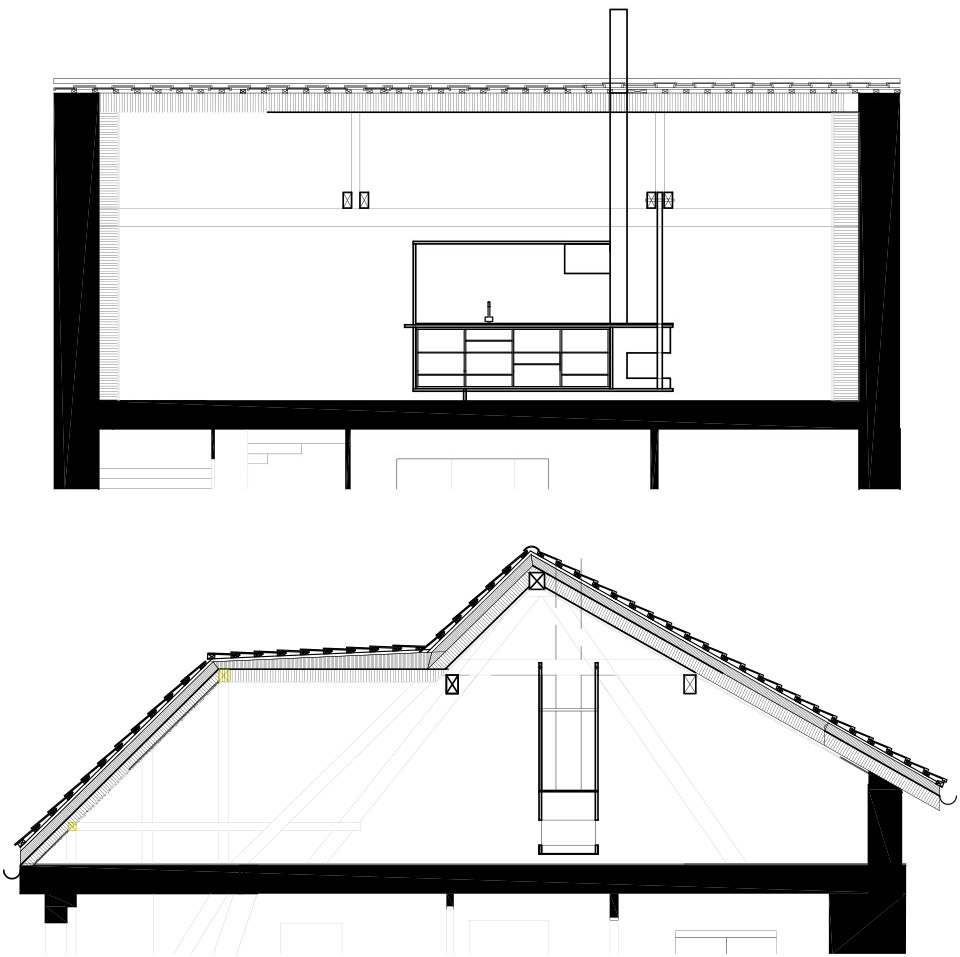

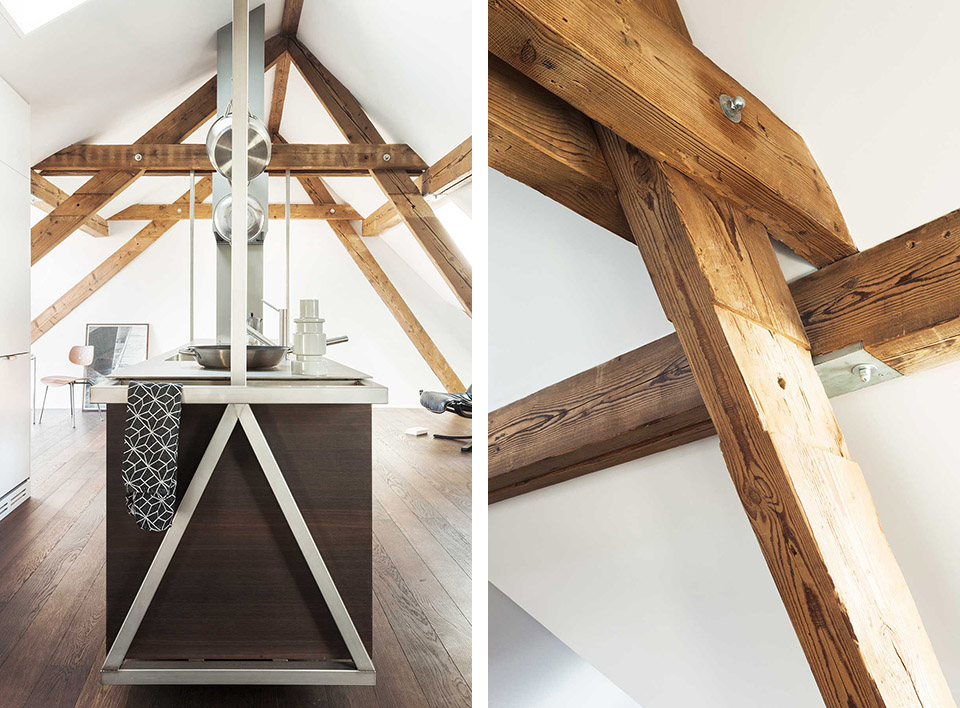

Structurally, the basis of the old attic as well as the central furniture piece rests upon four static relevant wooden connections standing in a row. In order to create sufficient clearance the four wooden ties were placed on top of the intermediate purlin. These purlins now bear instead of hang.

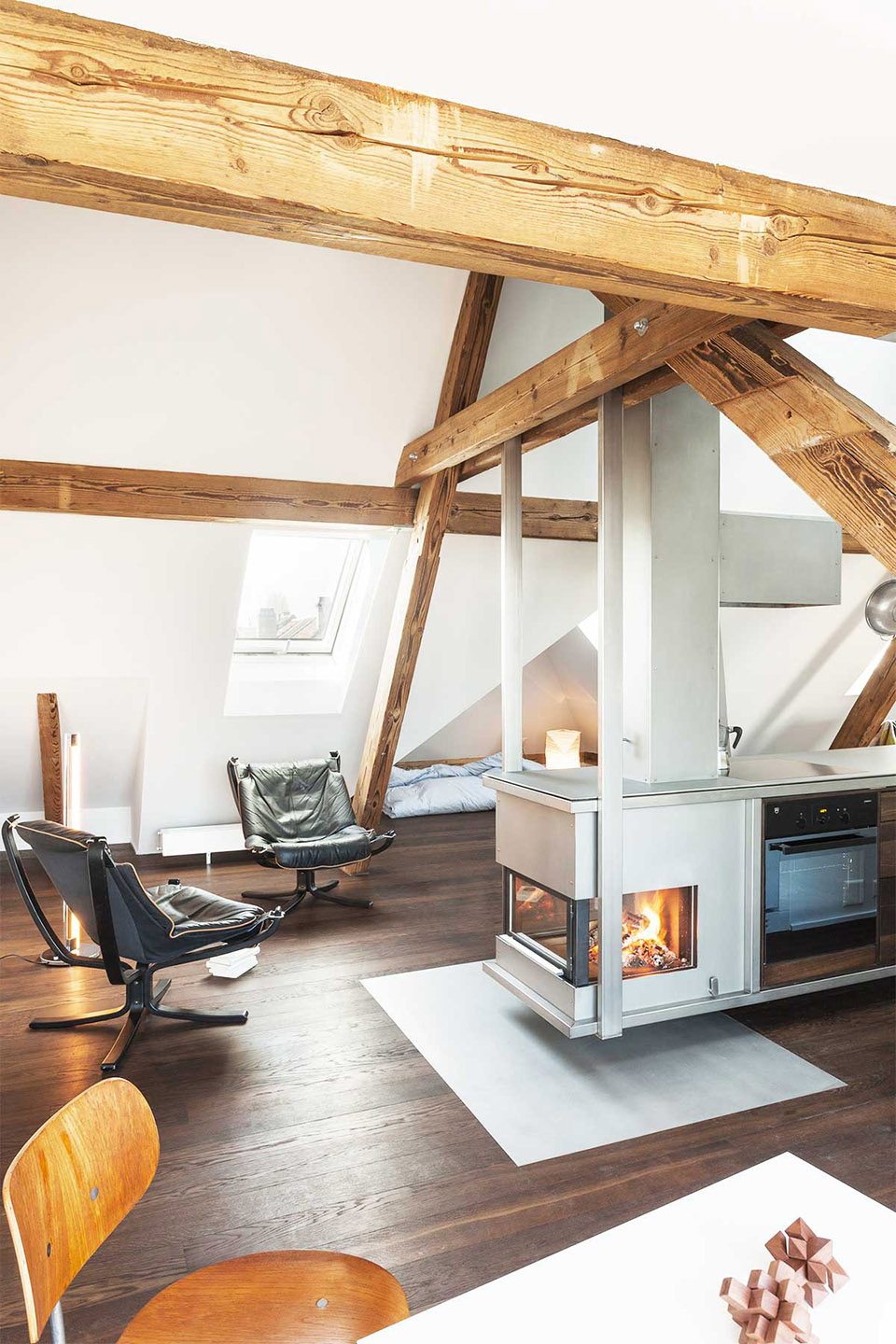

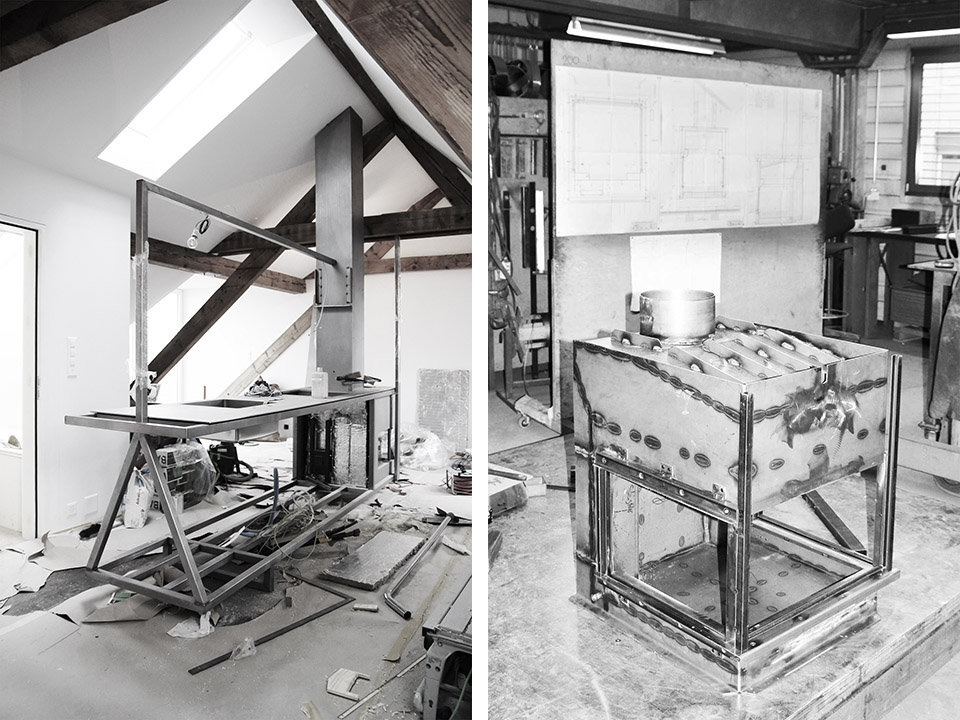

On one end the central living-room furniture hangs on one of the wooden ties with the integrated fireplace whereas on the other end it stands on the floor. A tense balancing act is created by encompassing the existing structure of the old attic and by taking it one step further.

MORE: Reuter Raeber，更多请至：Reuter Raeber on gooood
