非常感谢Saunders Architecture将项目介绍和项目图片授权gooood发行。更多请至：Saunders Architecture on gooood
Appreciation towards Saunders Architecture for providing the following description:

加拿大纽芬兰的福戈岛，这里临靠浩瀚大西洋，距离纽约不远，是得天独厚的宝地。福戈岛艺术公司自从2010开始，在这里陆续开发了6个工作室，这是其中的一个—— Tower 工作室。

它就栖息在舒展的岩石海岸线上，没有道路，一条风化木板组成的木质浮桥是穿过沼泽的唯一道路。塔体上下错开，中间以30°的斜度相连。外表黑色的云杉板与入口处以及内部空间的白色云杉板形成强烈对比。塔共三层高，入口有小厨房和堆肥厕所以及烧木材的壁炉。二层是一个工作室，有着大面的北向天窗，工作室一边有梯子，可以上到夹层。这空间丰富，消弱了建筑通常的细节以及纵，横，斜的面感觉。白，成为最大的观感。想看美丽的风景，请上到夹层，或者靠在与窗户平行的墙壁上。

月光，风声，大海的轰鸣组成磅礴的交响乐，塔就矗立在这里—–壮观的岩石地貌上。其抽象的形体在岛上的雾气之中更显得神秘，但是又与这天这地水乳交融。这个建筑被认为是这一系列工作室中最有挑战的一个。以强烈的现代感振兴原有传统文化，迎接未来的机遇和挑战。

Tower Studio

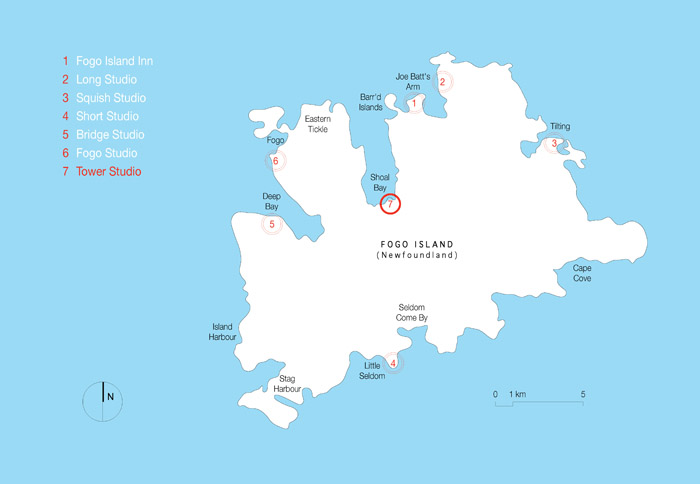

Shoal Bay, Fogo Island, Newfoundland

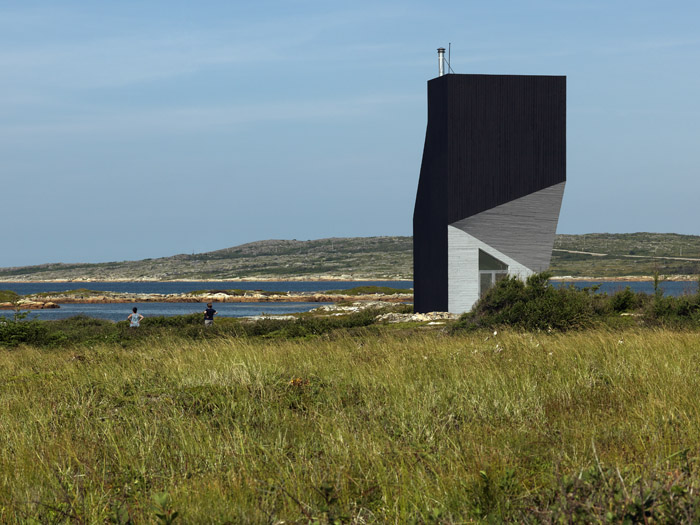

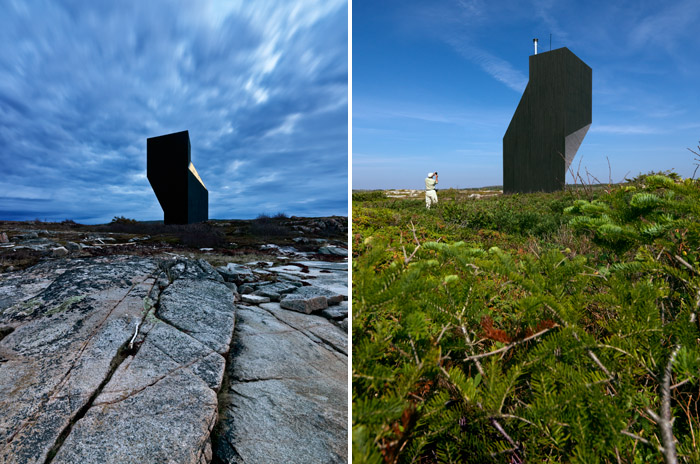

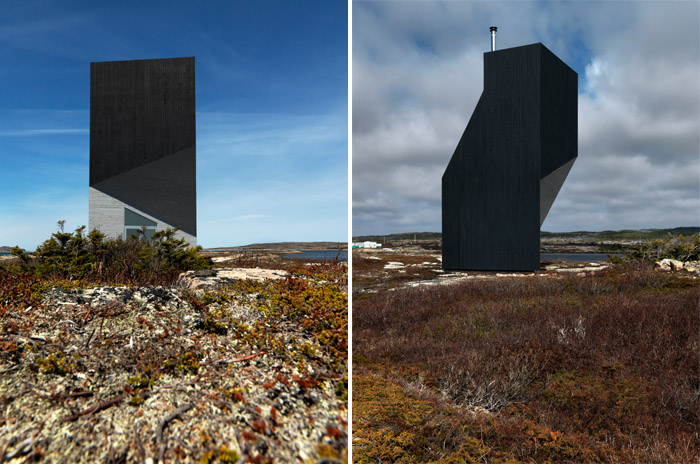

The Tower Studio is dramatically situated on a stretch of rocky coastline in Shoal Bay, Fogo Island, Newfoundland. The studio’s sculptural silhouette leans both for- ward and backward as it twists upward. For the average visitor to the island, this windowless black tower, more often than not, provokes a quizzical response and the enviable question, “What’s that?”

For the locals, they know that this structure is a project of the Fogo Island Arts Corporation – an art studio opened in June 2011. The Tower Studio’s official opening was one of the most festive and included: a roaring bonfire, flares dra- matically shot from its rooftop terrace and the recorded sounds of local whales as a background score.

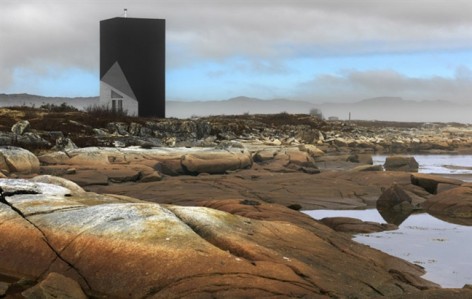

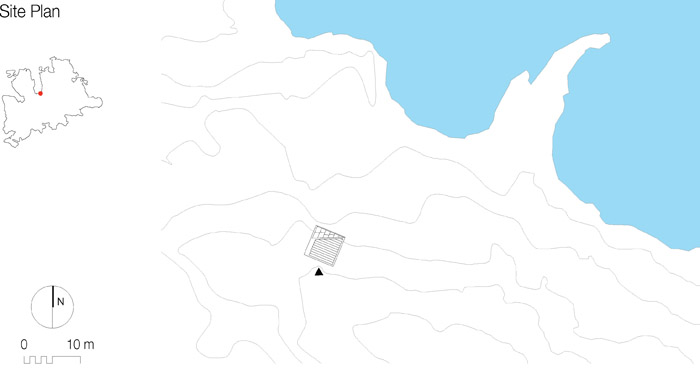

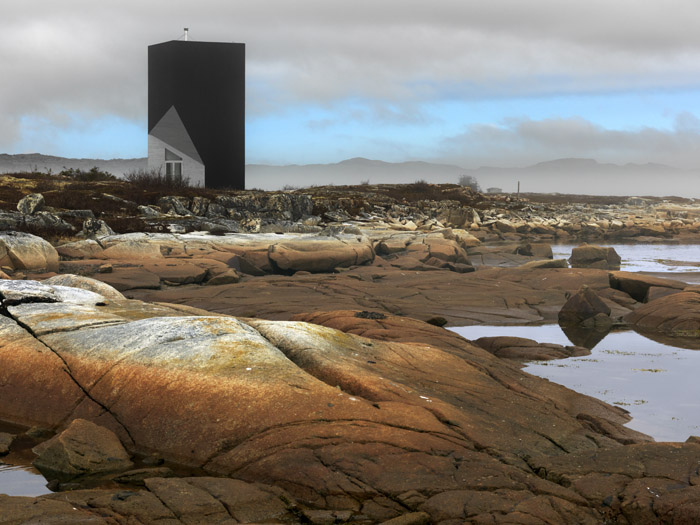

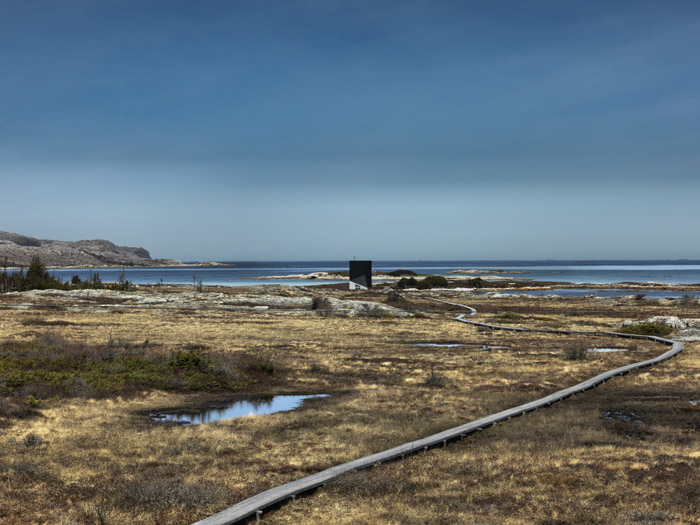

Perched on a rocky stretch of shoreline, there are no roads to the Tower Studio, it can only be reached by hiking along the shore from the adjacent community or walking on a narrow wooden boardwalk consisting of weathered planks that hover just slightly above a bog that features an abundance of cloudberries, known lo- cally as bakeapples.

From a distance the wooden boardwalk reads like a tether strap, linking the stranded Tower Studio to the lifeline of a busy stretch of road. The boardwalk, a mere twelve inches wide, is a vital component to the story of the Tower Studio, it provided an even track for wheel barrows to bring building supplies to the con- struction site without disturbing the delicate eco-system of the Newfoundland bog and the lichens that grow on outcroppings of rock.

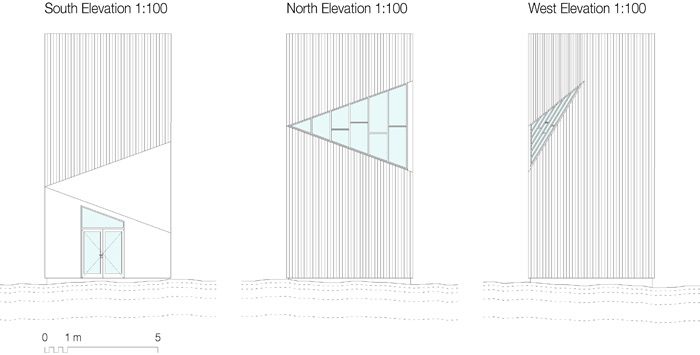

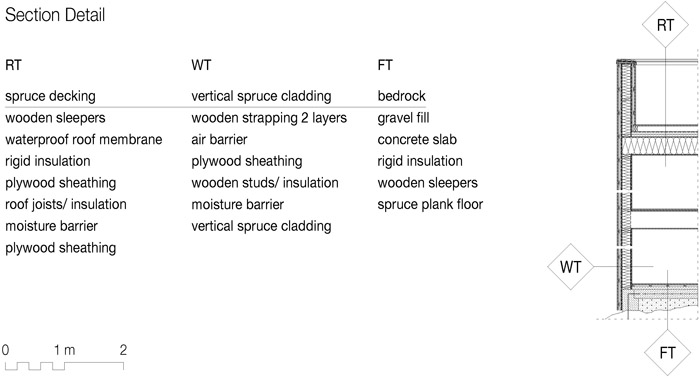

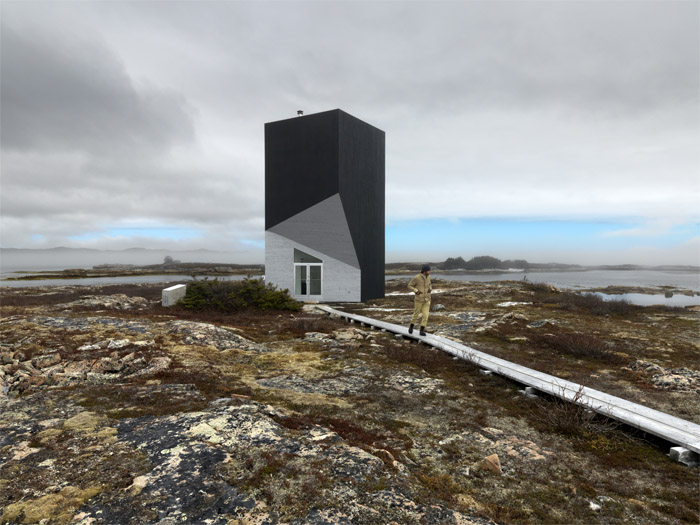

The boardwalk is a testimony to the holistic thinking that is part of the Shorefast Foundation mindset that connects the dots of economic, cultural and ecological sustainability at both the macro and the micro level. Now that its purpose has past, the boardwalk will soon disappear in order to minimize the impact on the surrounding landscape of the Tower Studio’s construction. As one approaches the studio, its south-facing entry area is angled back thirty degrees. Overhead a triangulated section of wall leans forward to shelter the double glass doors below. Both the soffit and the angled entryway, clad in hori- zontal boards of spruce are stained white in sharp contrast to remainder of the building’s windowless exterior of vertical plank siding painted slate black.

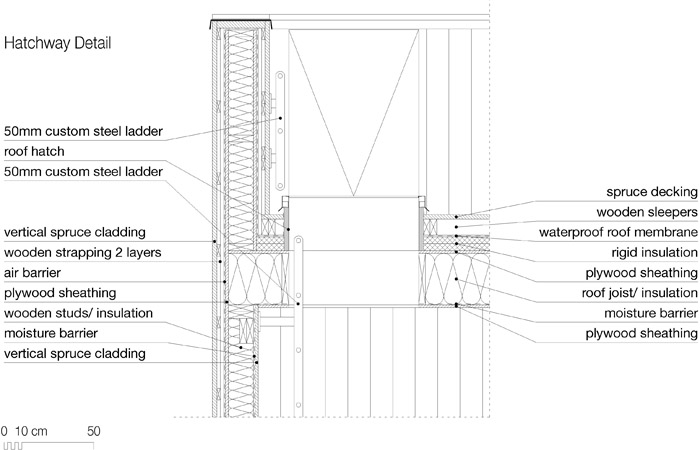

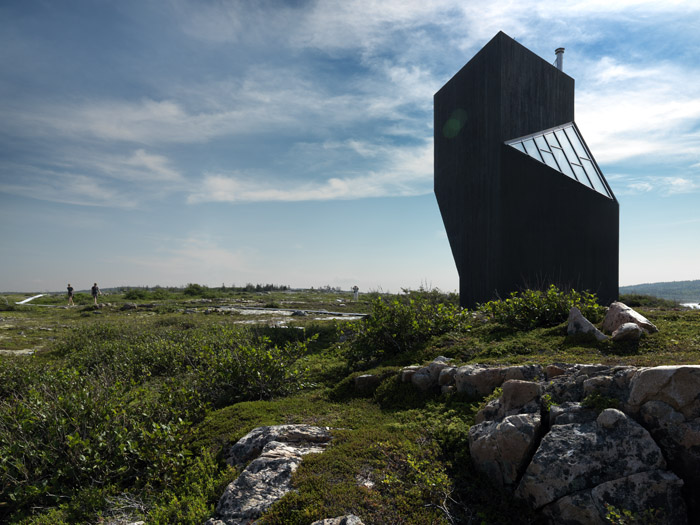

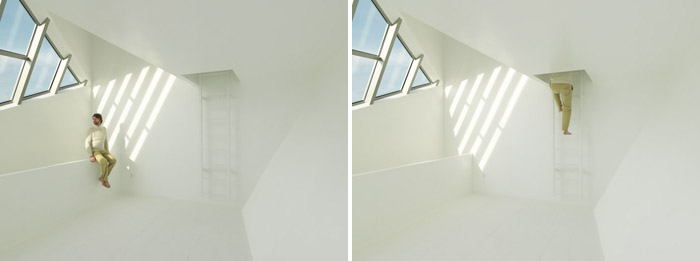

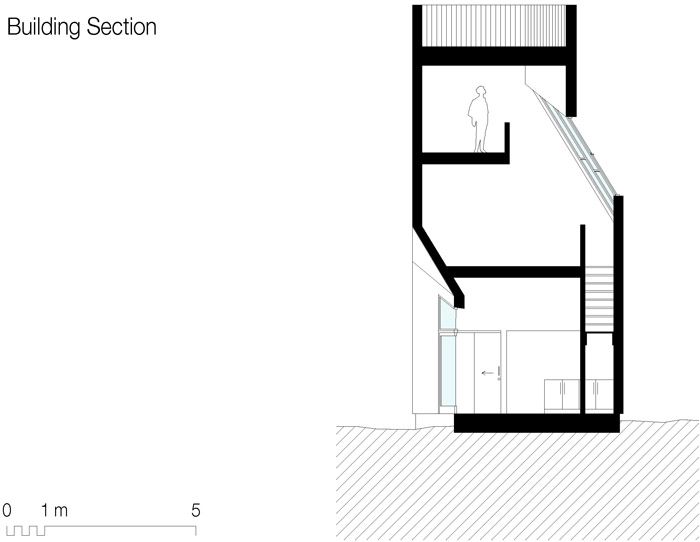

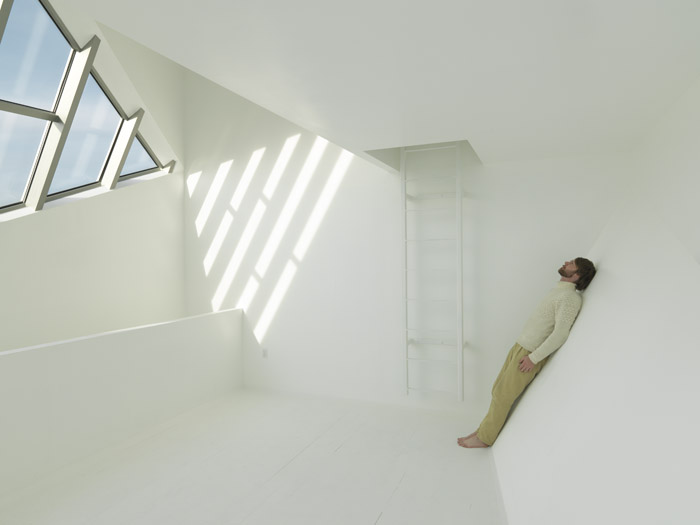

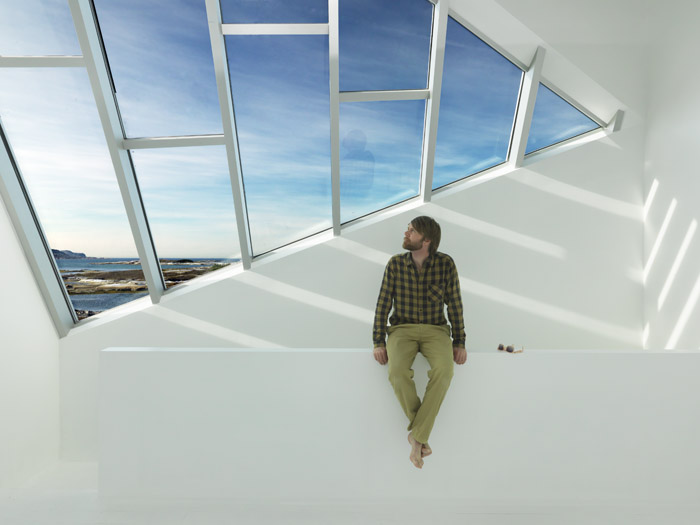

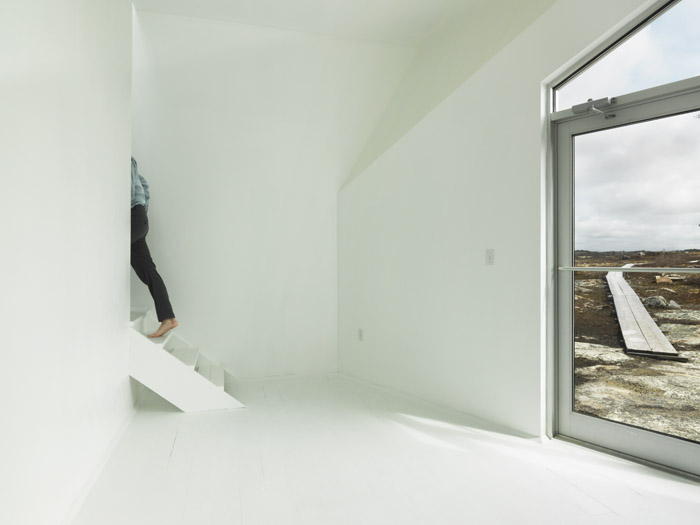

The Tower Studio is comprised of three levels with an overall height of thirty-two feet. Its entry areais equipped with a kitchenette, a compost toilet and wood- burning fireplace. Its second level is astudio, day lit by a generous skylight that faces northward. A mezzanine overhead, juts into thedouble height volume of the studio. Aside from the geometric complexity of the space, the secondfeature that adds to a sense of disorientation is the elimination of architectural detail and the factthat all vertical, horizontal and inclined surfaces, clad in smooth plywood, are painted a brilliantwhite. The only relief from the stark interior is a sliver of the exterior visible through the studio’ssole skylight. A slightly angled wall oppo- site and parallel to the skylight provides the perfectviewing surface upon which a body can recline and enjoy the view. One can imagine the magicaleffect of resting against this surface during a moonlit evening with the audible roar of the NorthAtlantic and force of the wind against the exposed surface of the tower. From the studio level, anarrow ladder (also painted white) leads past the mezza- nine level to the underside of a roofhatch. As one passes through the horizontal opening and stands on the roof- top deck, the view ofthe ocean and the rocky wind-swept terrain is spectacular. From the roster of studios recentlycompleted, it is generally agreed that the building of the Tower Studio by the local crew ofcarpenters was one of the most challenging. Although the basic premise of the Tower’s geometryis a simple one – the plan rotates one hundred and eighty de- grees to the roof plan – theconstruction of the facetted form proved to be a little more complex. In order to figure out theframing diagram, a series of wooden models were constructed. Ultimately a large-scale modelwas fabricated to mini- mize any on-site confusion.

The story of the Tower Studio is not complete without referencing two structures that support it. The first one is a ‘standalone’ array of solar panels situated about fifty feet to the west of the studio’s main entrance. Because all the studios are located on isolated sites without access to the utilities of electricity, water and sewer, they are equipped with photovoltaic panels, compost toilets and water cisterns.

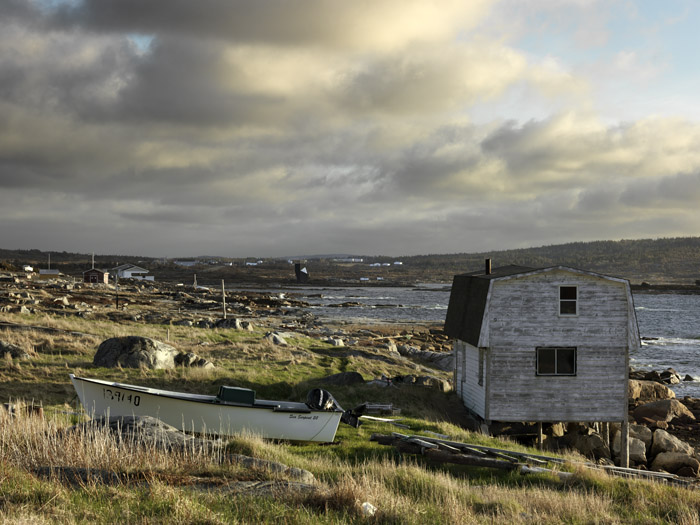

The other structure necessary for the Tower Studio’s success is its ‘fraternal twin’ – a restored traditional house in the nearby village where the artist lives while he/she is not working in the studio. All the Fogo Island studios follow the same model in which the studio is paired with a Saltbox – a traditional Newfound- land house, where the artist abides when not fixated on his/her most recent art project. The restoration of the traditional Saltbox house and the new construc- tion of the architecturally provocative studios has created an interesting dynamic that brings the local vernacular architecture face-to-face with the multi-faceted expressions of contemporary culture.

As the architect, Todd Saunders, has explained, the fact that the renovated houses were part of a vernacular way of building increased the level of architec- tural experimentation allotted to the studios. In contrast to the renovated houses, located in the middle of the villages, the studios are situated about a fifteen-min- ute walk on the villages’ periphery. The artists experience both the warm hospi- tality of their neighbours, as well as, the cool refuge of their studios. Because the studios are outside the local villages, their architectural character is both seem- ingly familiar and uncannily ‘strange’. In some sense the studios ‘fit in’, but more importantly they stand out.

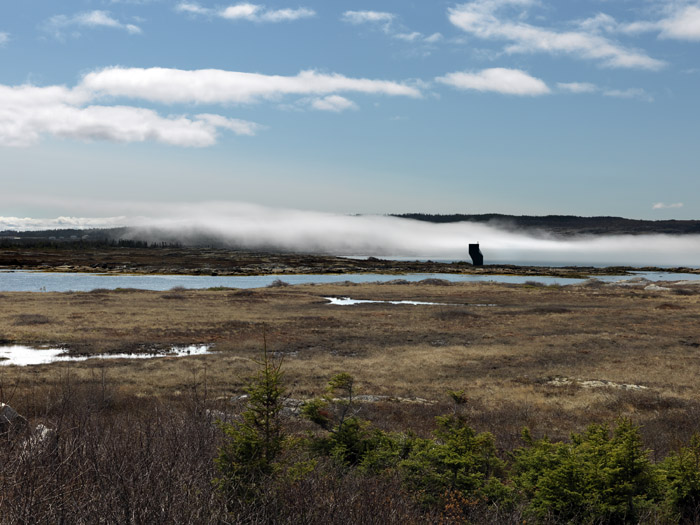

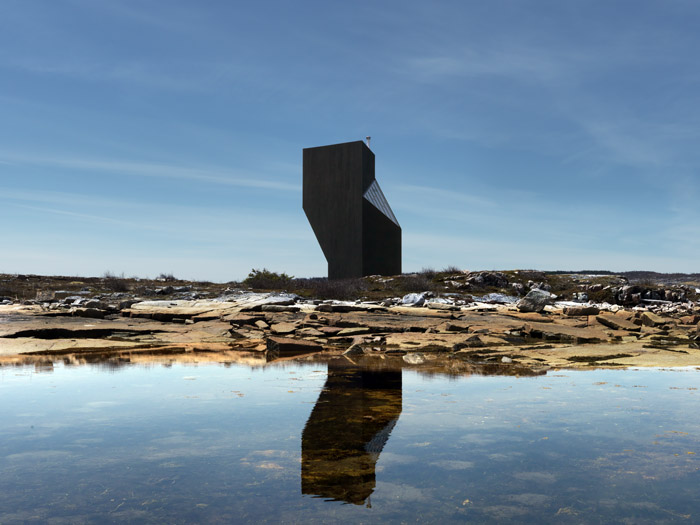

At times, the stark abstract forms of the studios painted black and/or white seem to disappear into the foggy weather, typical on Fogo Island. Disappearance may be an interesting addition to the lexicon of Saunders’s architectural production that focuses on playful geometries that generate dynamic forms that are strange- ly familiar. This series of architectural projects on Fogo Island does encompass the vernacular within the production of the new. More importantly, it forms a contemporary sensibility that is vital to reframe, re-situate and rejuvenate any traditional culture, in order for it to meet the opportunities and challenges of the twenty-first century – head on.

PROJECT CREDITS
Client:
Shorefast Foundation and the Fogo Island Arts Corporation
Architect:
Saunders Architecture – Bergen, Norway
Team architects:
Attila Béres, Ryan Jørgensen, Ken Beheim-Schwarzbach, Nick Herder, Rubén Sáez López,
Soizic Bernard, Colin Hertberger, Christina Mayer, Olivier Bourgeois, Pål Storsveen, Zdenek
Dohnalek
Associate Architect:
Sheppard Case Architects Inc. (Long Studio)
Structural Engineer:
DBA Associates (Long Studio)
Services Engineer:
Core Engineering (Long Studio)
Builder:
Shorefast Foundation
Construction Supervisor:
Dave Torraville
Builders:
Arthur Payne, Rodney Osmond, Edward Waterman, Germain Adams, John Penton, Jack Lynch,
Roy Jacobs, Clarke Reddick
Photos:
Bent René Synnevåg
Construction photos:
Nick Herder
Text:
Michael Carroll
Size:
130 m2
Location:
Fogo Island, Newfoundland, Canada
Status:
Finished 2011
