感谢 LOCAL ARCHITECTURE 对gooood的分享。更多关于他们：LOCAL ARCHITECTURE on gooood。
Appreciation towards LOCAL ARCHITECTURE for providing the following description:

该项目位于洛桑市中心城区Le Flon的西部，是一栋酒店建筑。建筑选材借鉴基地周围的工业遗址，使用硬质材料，达到了融入其中的效果，呼应了密集的网格式街区中的传统仓库，并且修整了入口处的广场。建筑四周立面均重复使用预制混凝土板单元体，不仅反映了每个客房模块，而且创造出连续的折面。首层的立体支柱逐渐内收，使得上层巨大的壳体落在精美的节点上。

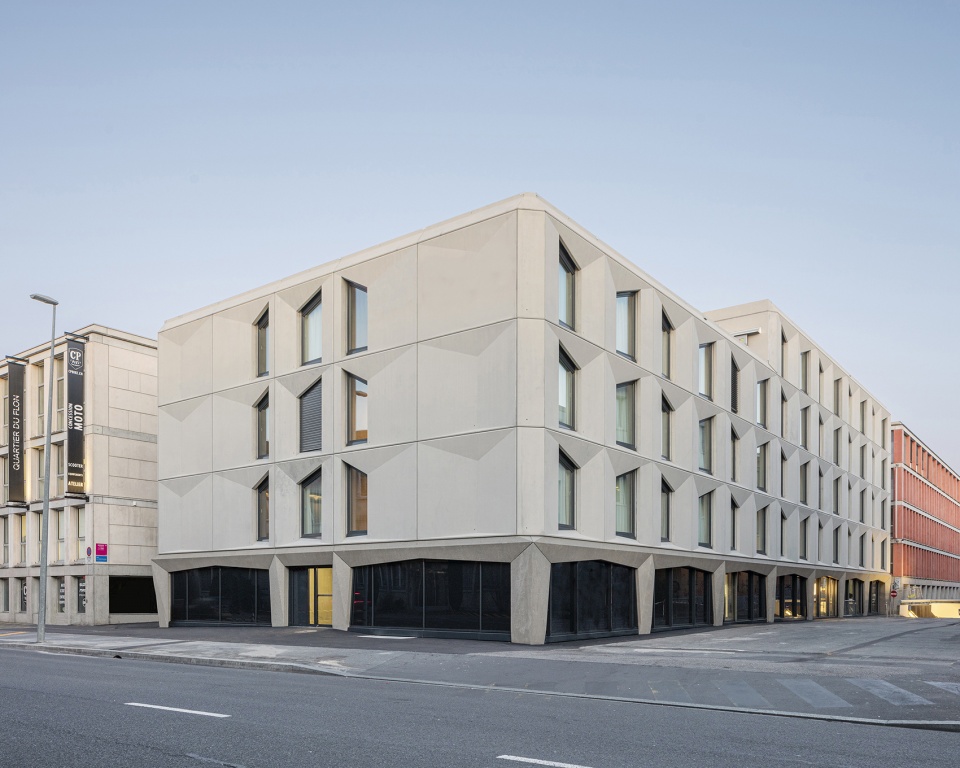

▼项目外观，与周围建筑融为一体，appearance，blending with surrounding buildings © Matthieu Gafsou

Located at the western edge of Lausanne’s central Le Flon district, this hotel building presents a monolithic mineral block that blends with the site’s industrial heritage. Utilising the template provided by the district’s street plan to optimum effect, the design echoes the dense urban grid patterns characteristic of Le Flon’s traditional warehouses and completes the square from which it is accessed. The four façades are uniform in appearance, their repeat motifs created by prefabricated concrete units. The design reflects the individual room modules, creating a continuous pattern of facets and folds across the building’s four sides. At ground level, geometric pillars tapering towards the base balance this massive carapace on more delicate points.

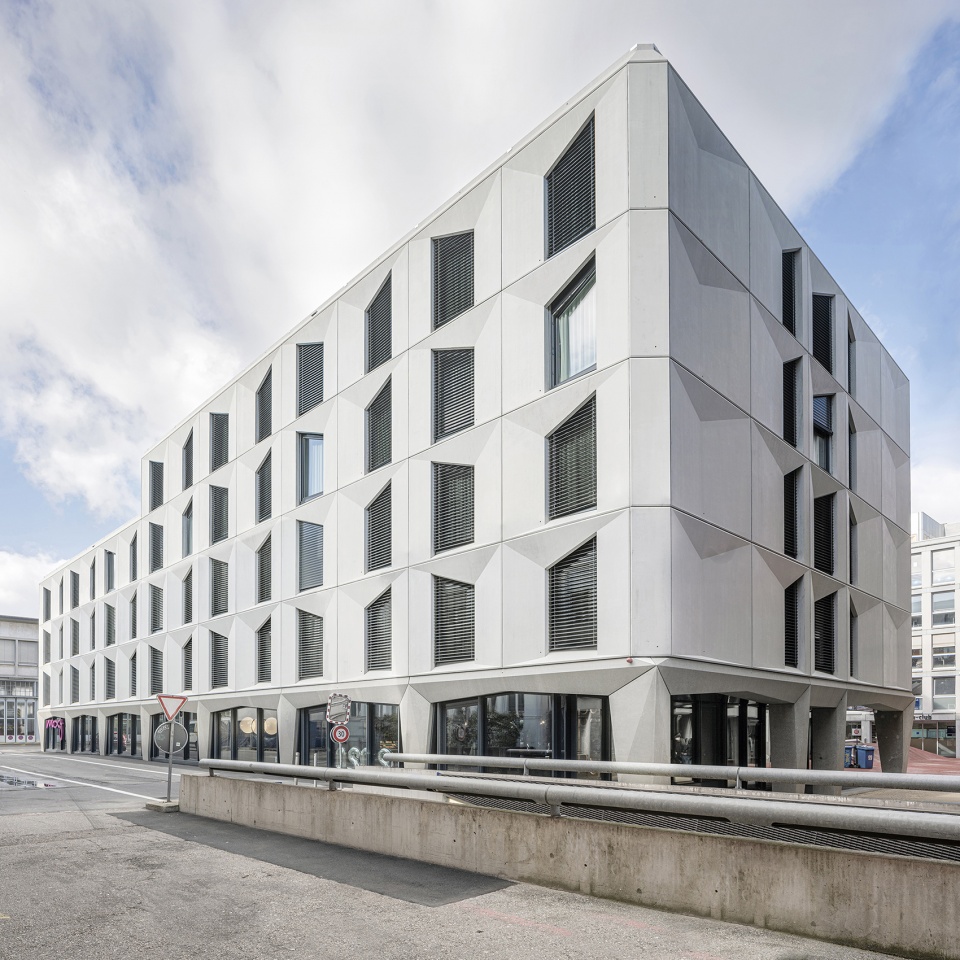

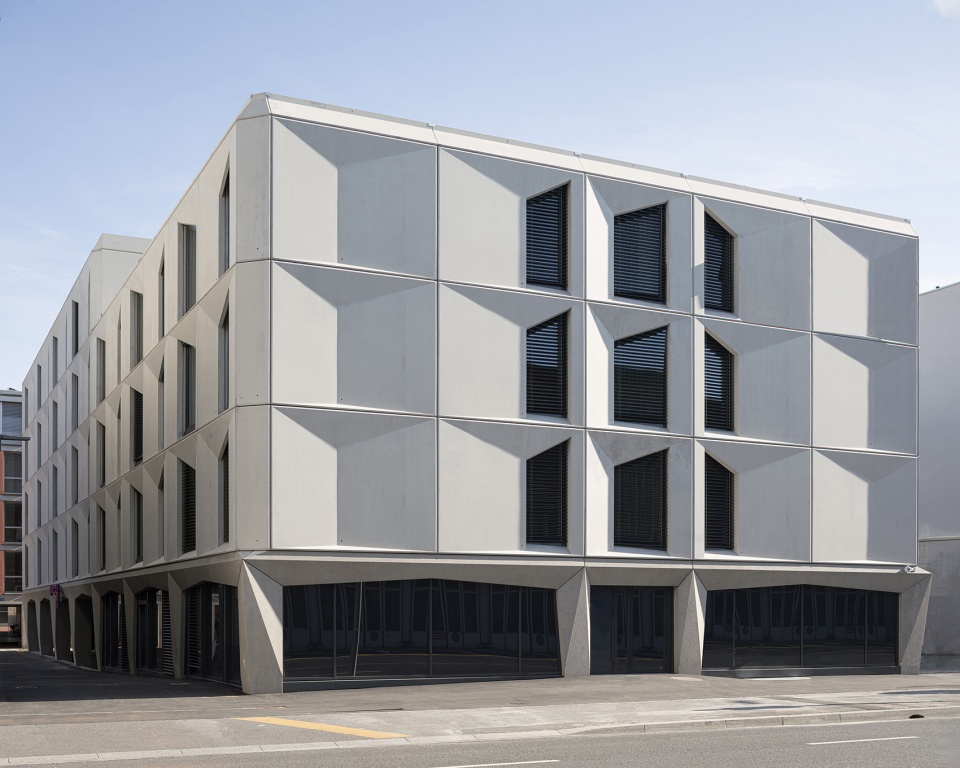

▼建筑四周连续的折面，a continuous pattern of facets and folds across the building’s four sides © Matthieu Gafsou

立面的玻璃窗向内凹进，形成了褶皱效果。异形的窗户、窗户过梁和墙体形成的角度构成了建筑的整体韵律。在外墙的设计中，水平和垂直均不占据主导地位。

On the façade side, the glazing creates a fold-like indentation in the outer wall surface. The non-rectangular outline of the window, along with the angles of the lintels and facing walls complete the motif, which is repeated uniformly across the structure – with the effect that neither horizontal nor vertical lines predominate in the building envelope design.

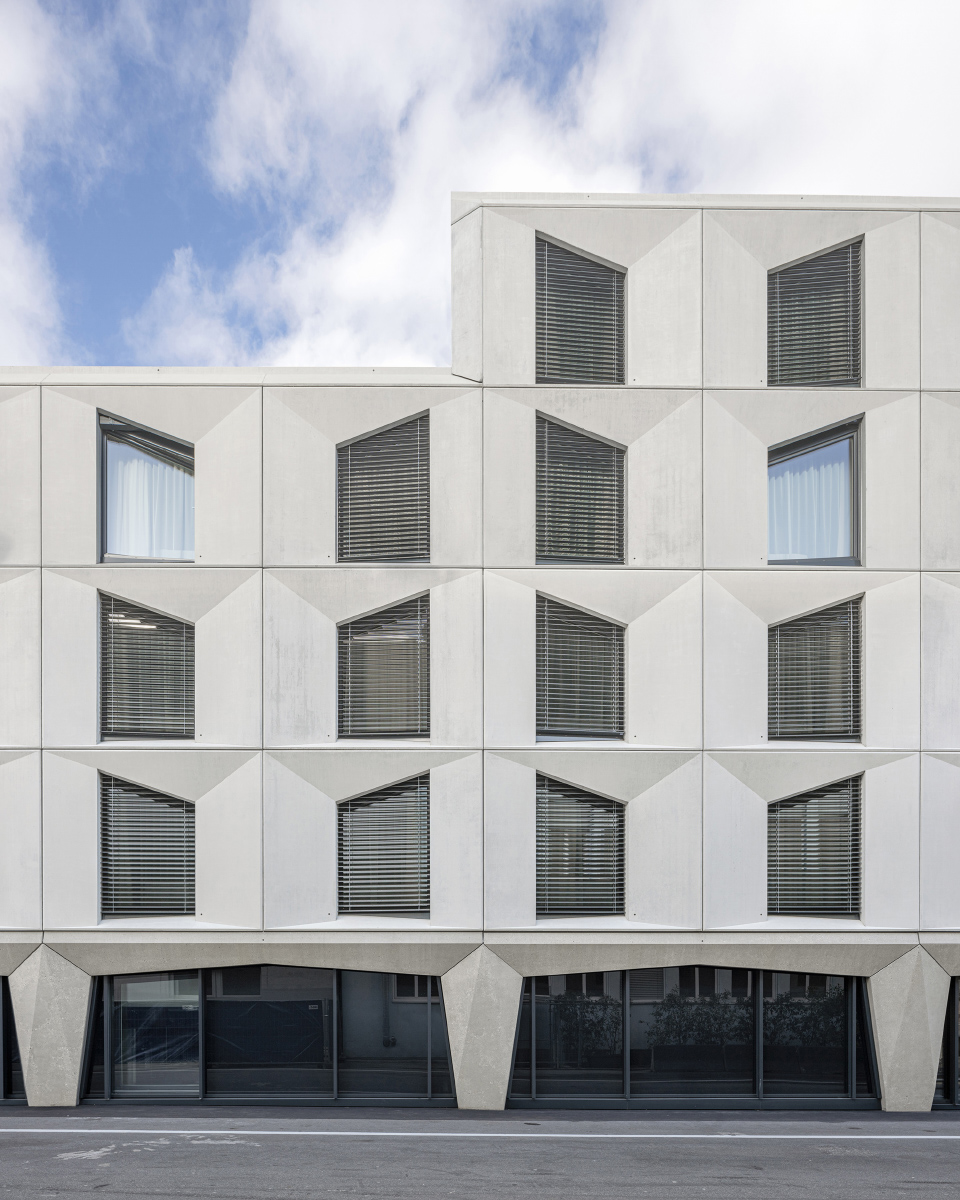

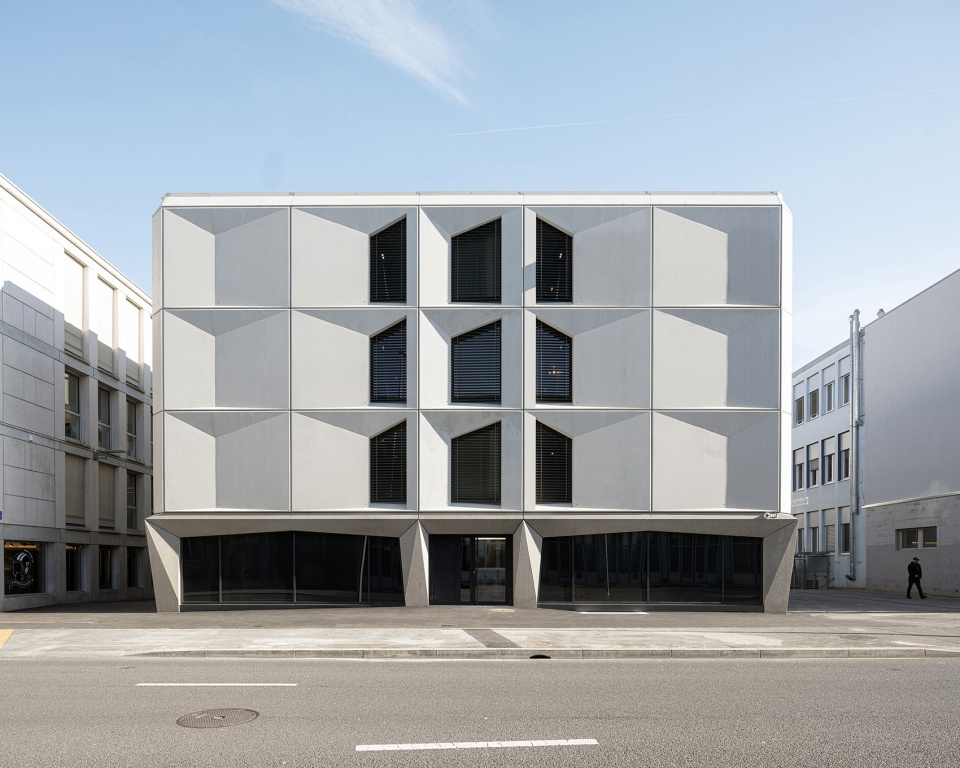

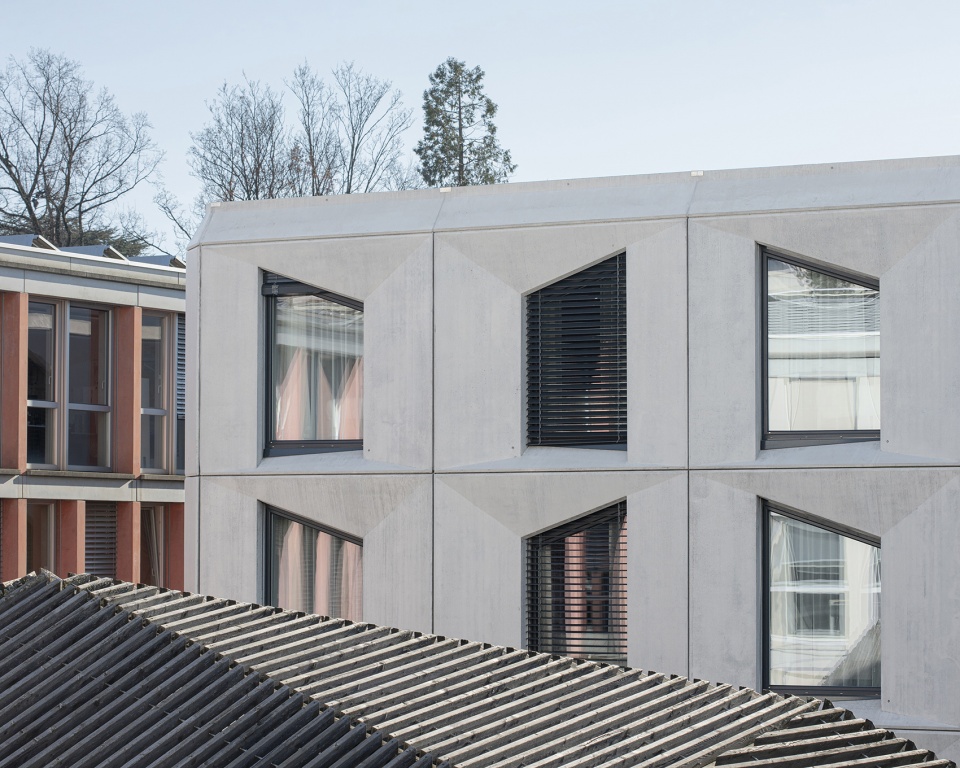

▼立面，异形的窗户产生韵律，facades, non-rectangular windows creating rhythm © Matthieu Gafsou

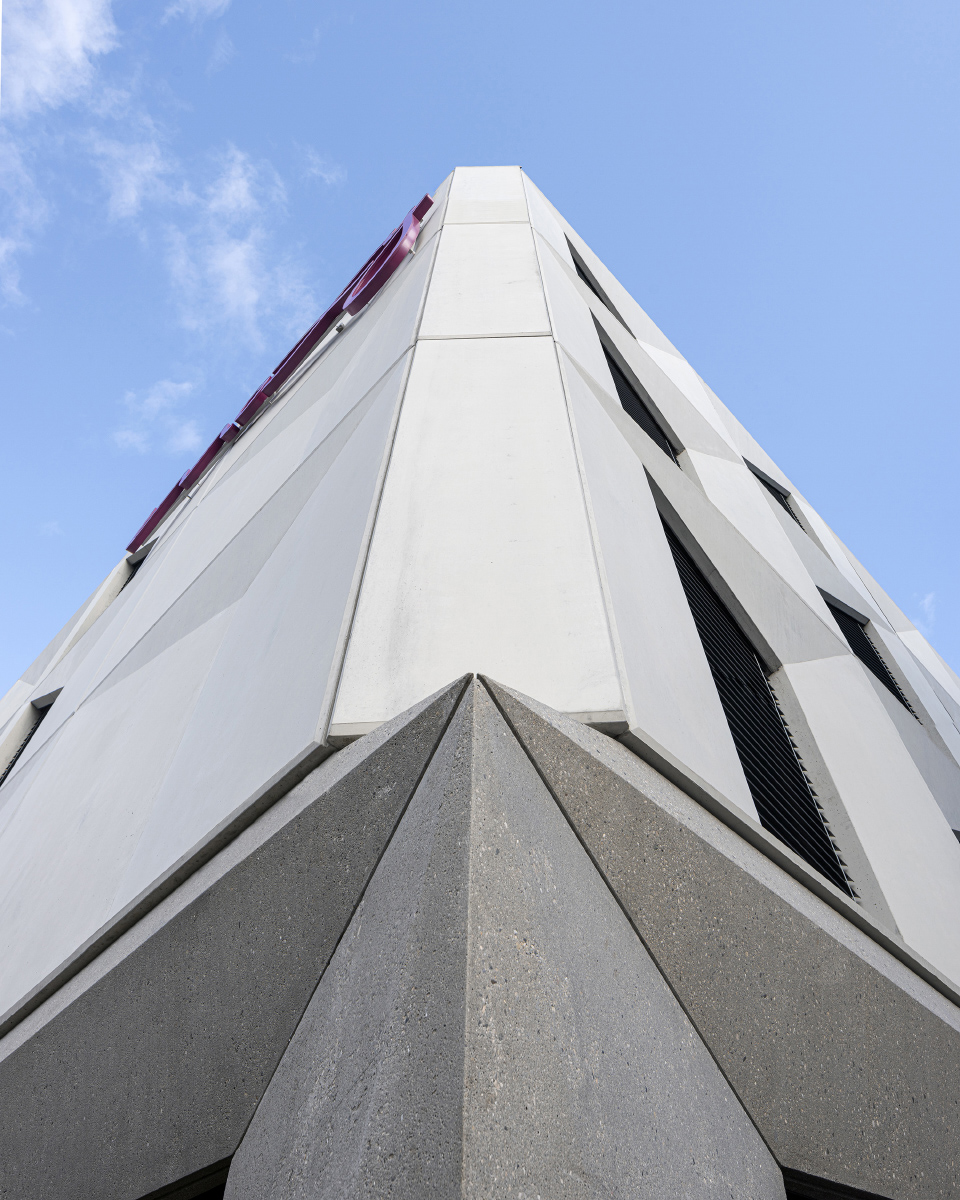

▼上层巨大的壳体落在精美的柱子上，massive carapace falling on delicate pillars © Matthieu Gafsou

该项目的整体形式与当地仓库建筑保持一致，采用重复主题和硬质材料，自然地融入网格式布局的Le Flon区域。而酒店的窗户设计和立面的几何感赋予其独特的个性。

With its monolithic form, aligned with the rectangular urban grid pattern of Le Flon’s warehouses, its repeat motifs and its mineral building envelope, this building blends naturally into Lausanne’s city centre, while the window design and the geometric patterning of the façades give the hotel its own distinctive identity.

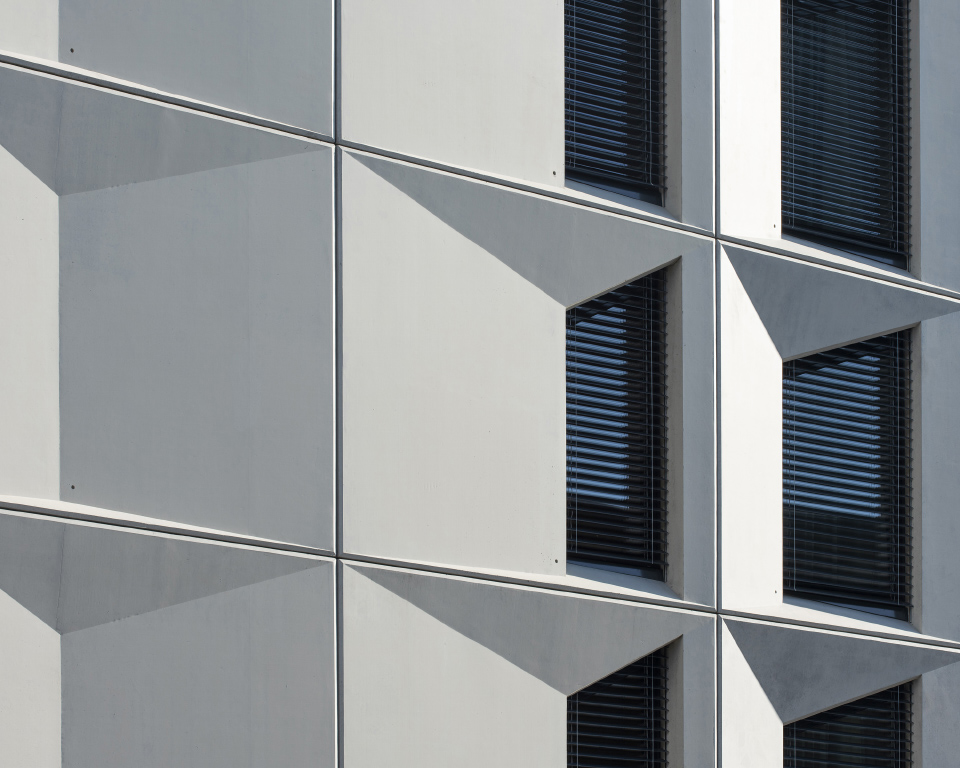

▼细节，details © Matthieu Gafsou

一层外部的拱廊呼应了周边建筑，同时将画廊空间向南延伸至Voie du Chariot大街。入口空间保留原来的地下室结构，涵盖大厅和餐厅，是一个通高的、宽敞的、有玻璃天窗的公共空间。中庭具有典型的酒店风格，设计师借鉴工业遗址，将天花上的管道和混凝土墙裸露在外，形成了氛围别具一格的公共空间。

The arcade complements the arcades of neighbouring buildings, extending the gallery toward the future development heading in the direction of Voie du Chariot to the south. The building entrance – which also serves as a lobby and restaurant – combines a pre-existing basement structure with the upper floors to create a generous, high-ceilinged and fully glazed communal space that is open to the public. The central glazed atrium, a typical hotel feature, underscores the building’s core function. Visible service ducts on the ceiling and exposed concrete walls, inspired by the site’s industrial heritage, give these public spaces their distinctive atmosphere, developed in conjunction with the project’s interior designers.

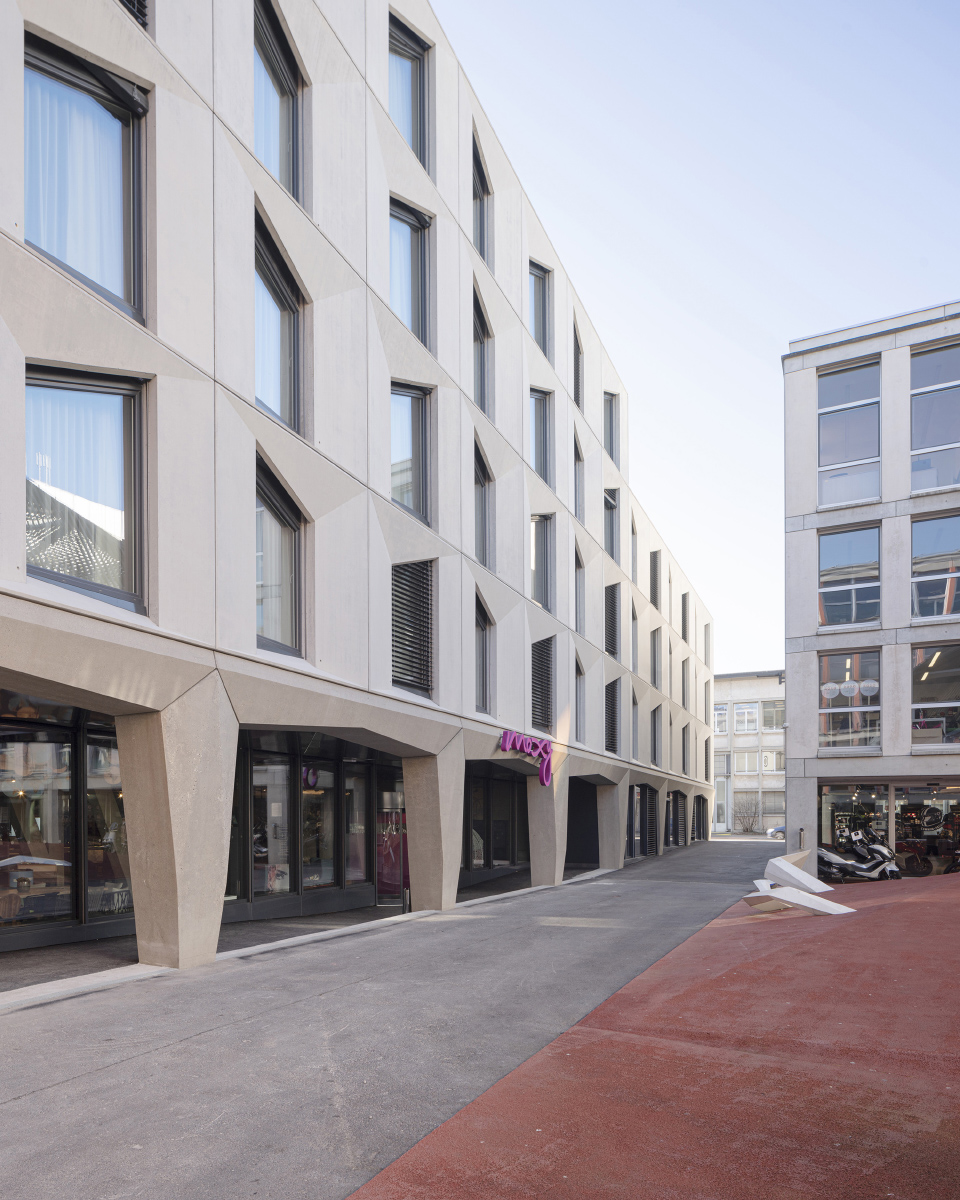

▼入口，外部采用拱廊的形式，entrance，exterior taking the form of arcades © Matthieu Gafsou

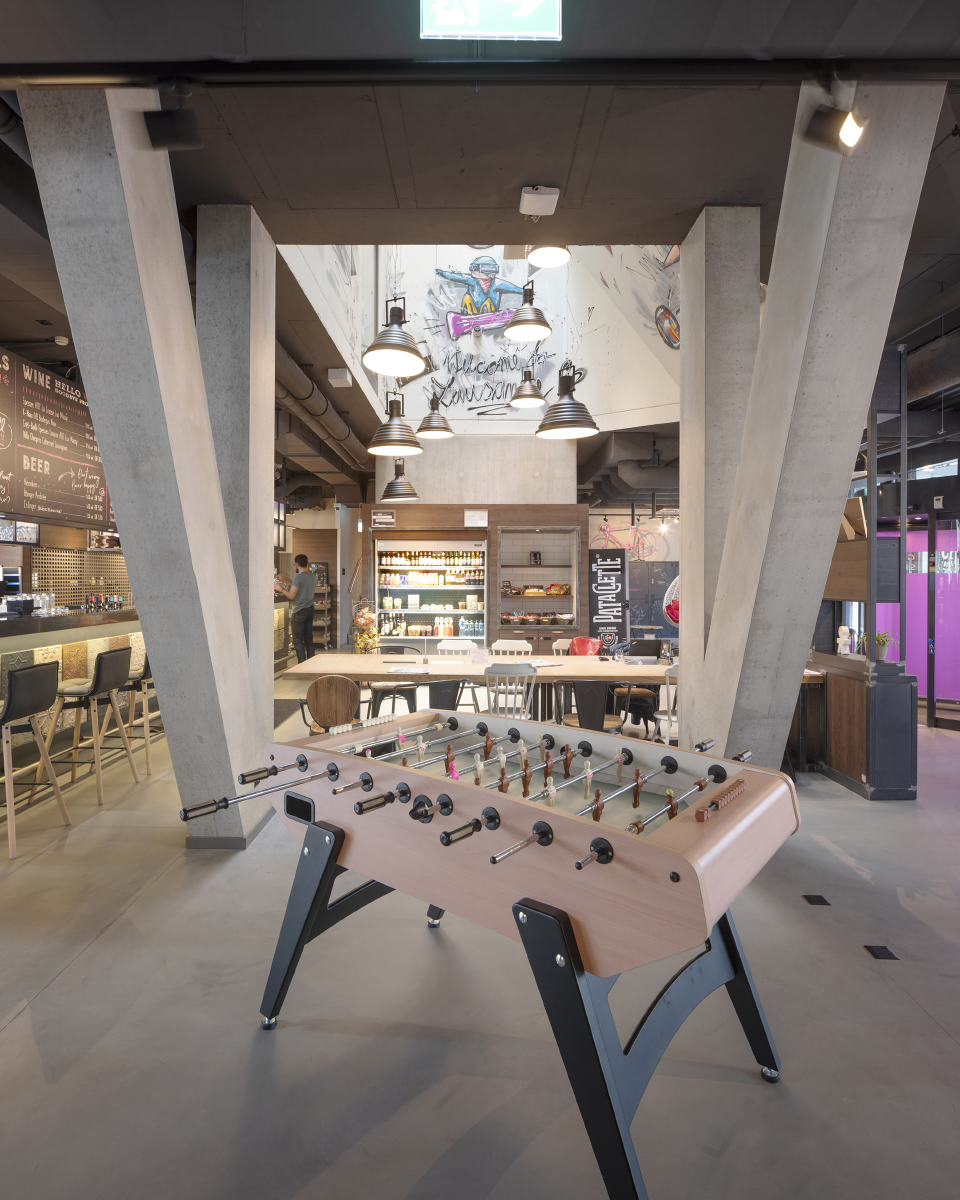

▼入口大厅，通高空间，entrance hall，height space © Matthieu Gafsou

在平面和立面重复出现的单元体块是项目的精髓，独立客房即基础单元体。围绕窗户设置预制混凝土模板，使得外墙形成实体，给客房带来私密感。窗户略有倾斜，增加了内部空间，同时为客人提供不一样的视角。

Repeated units are the essence of how this building works, both in its floorplan and in its façades. The individual room is the unit forming the basis of the hotel design. The prefabricated concrete modules are designed around the individual window, which is placed so that part of the room’s outer wall remains solid, preserving a sense of privacy at the top end of the bed; the window is set at a slight angle, increasing the interior space available while also offering an indirect view of the outside world.

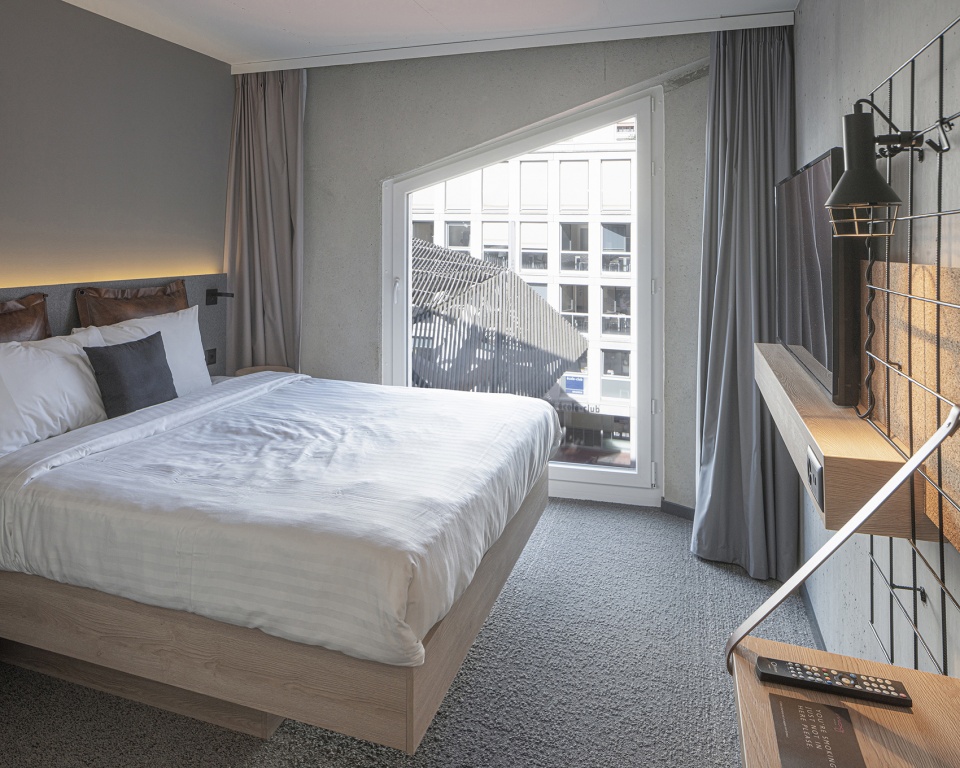

▼独立客房，通透而私密，individual room，transparent and private © Matthieu Gafsou

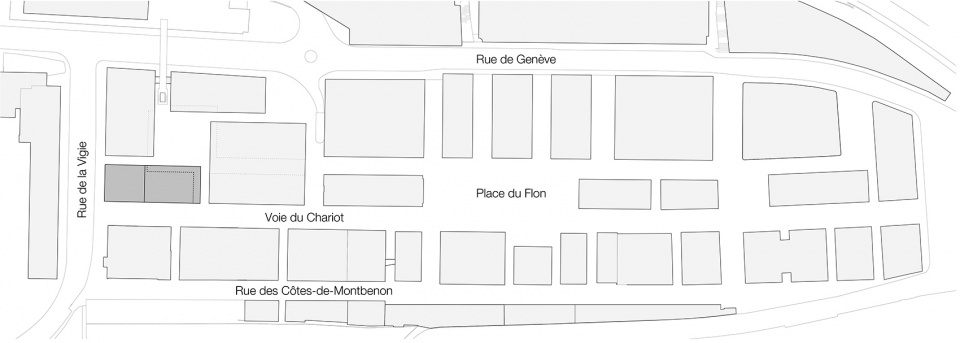

▼总平，site plan © LOCAL ARCHITECTURE

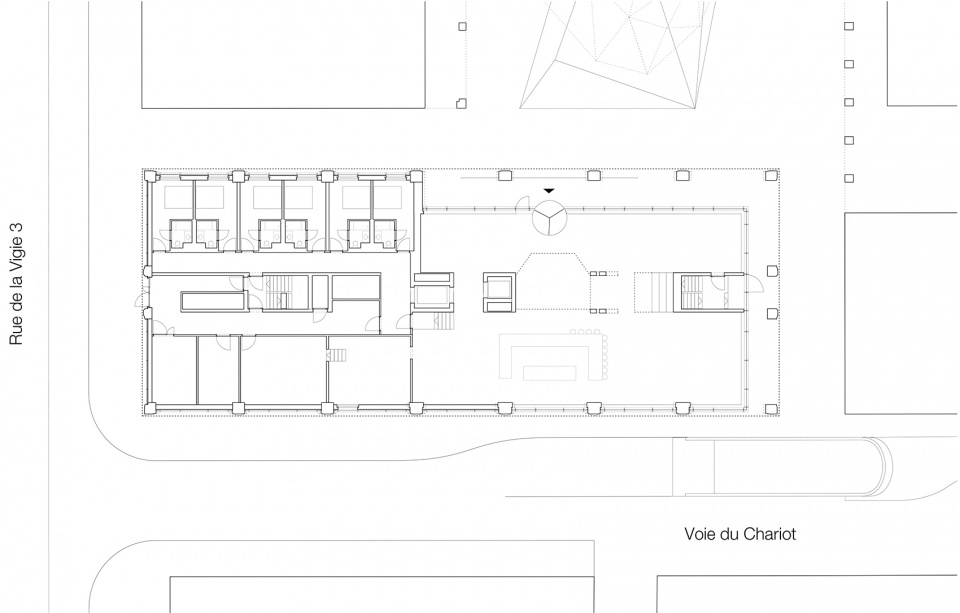

▼首层平面，ground floor plan © LOCAL ARCHITECTURE

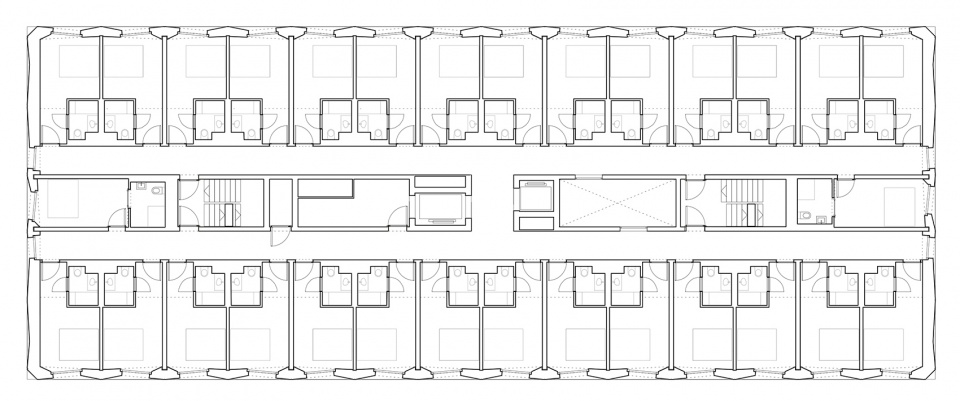

▼标准层平面，standard floor plan © LOCAL ARCHITECTURE

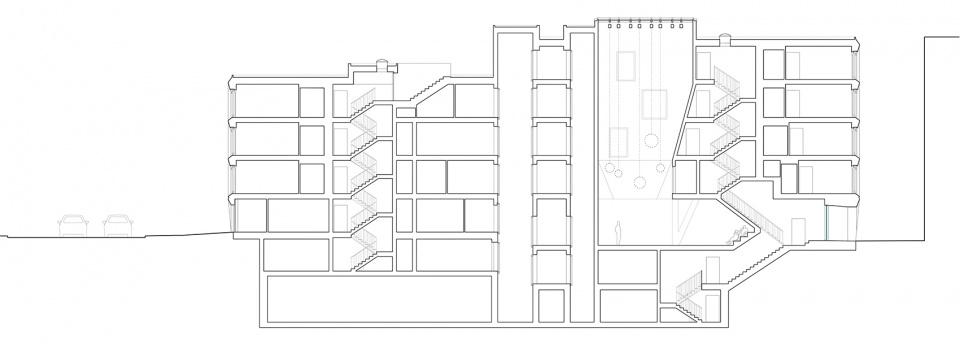

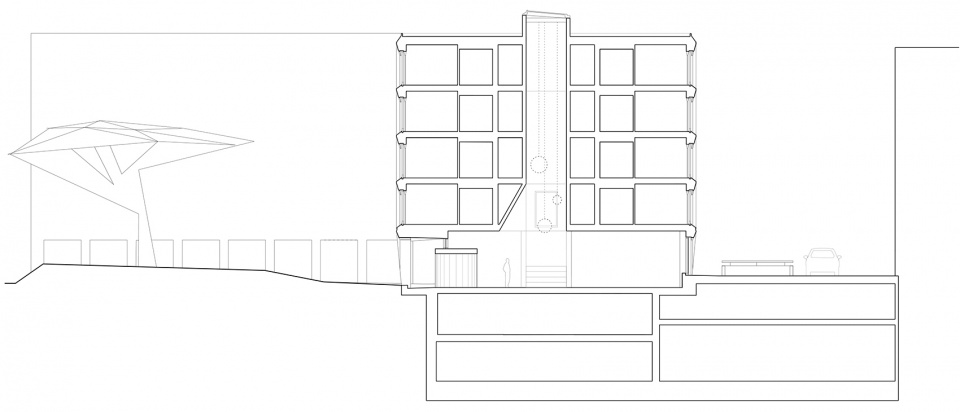

▼剖面，sections © LOCAL ARCHITECTURE

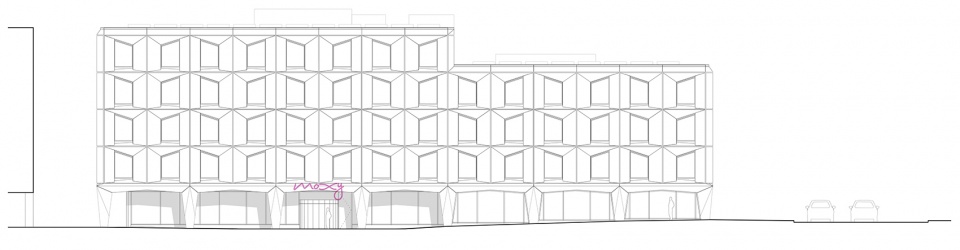

▼立面，elevation © LOCAL ARCHITECTURE

Project Architects：LOCAL ARCHITECTURE
Website：www.localarchitecture.ch
Photographer：Matthieu Gafsou
Client：Mobimo AG, Lausanne / Zurich
Structural Engineering：Thomas Jundt
Energy Engineering：CSD Ingénieurs
Location：Rue de la Vigie 3, Lausanne, Switzerland
Conception：2016–2018
Realisation：2018–2020
Caracteristics：Hotel 113 rooms
Footprint Area：5677 m²
Volume：18022 m³
