非常感谢 CATS顾问建筑师小组 对gooood的分享。更多关于：CATS on gooood
Appreciation towards CATS for providing the following description:

木作之家是一次关于如何使用木材造当代房子的思维奥德赛。我们走的很远，最终却回到三个基本的锚点。

House of Woodwork was a mental odyssey about how to use wood to create contemporary buildings. We’ve gone a long way, but we’ve come back to three basic anchors.

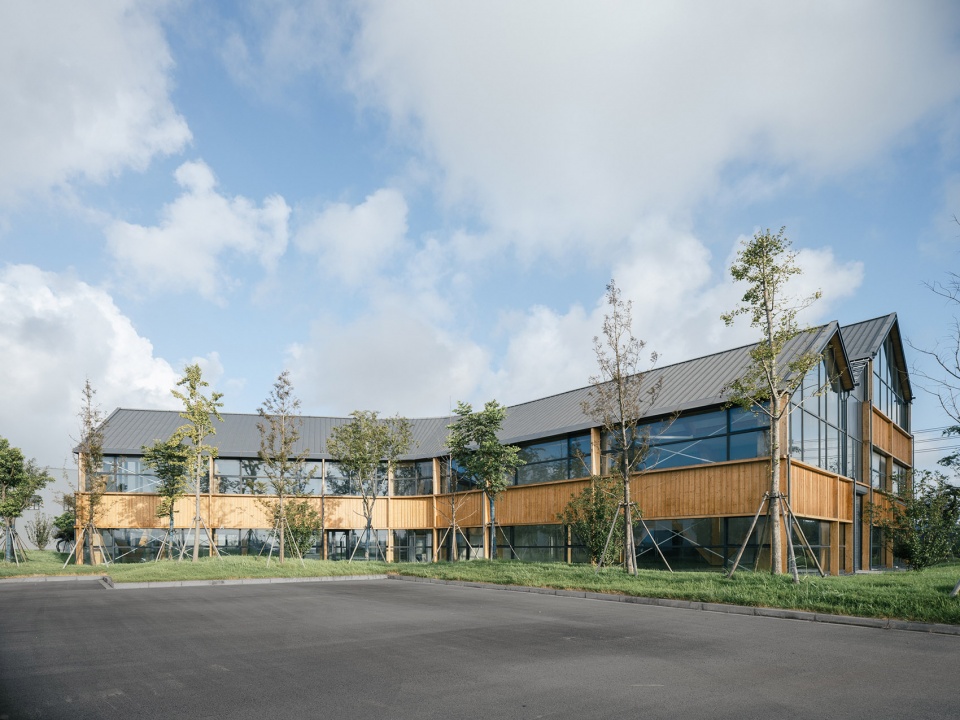

▼项目概览，Overall view © 朱润资

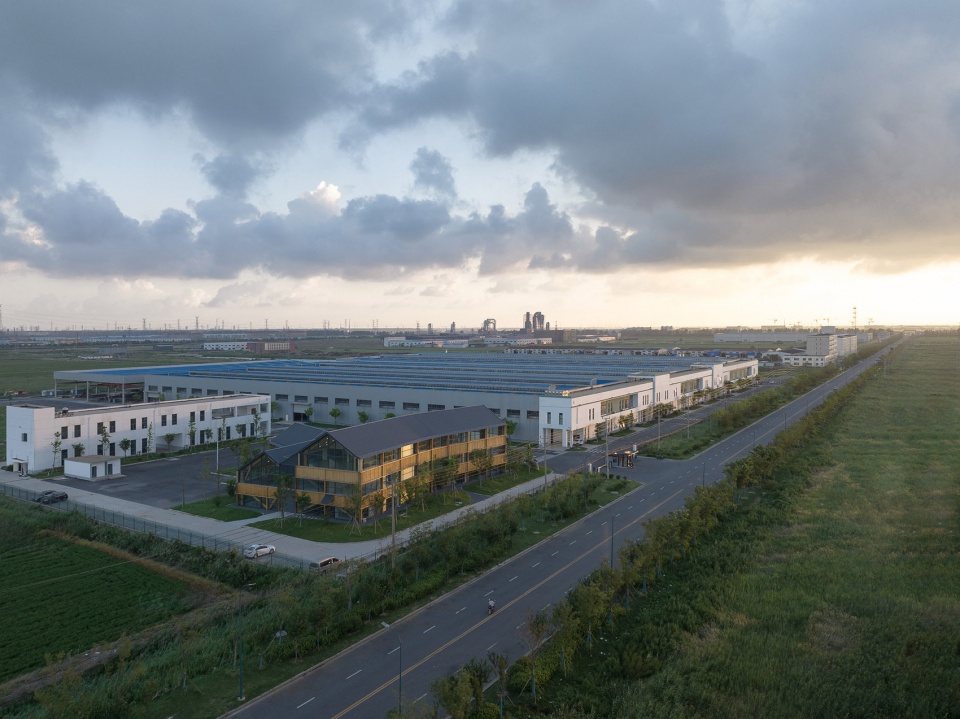

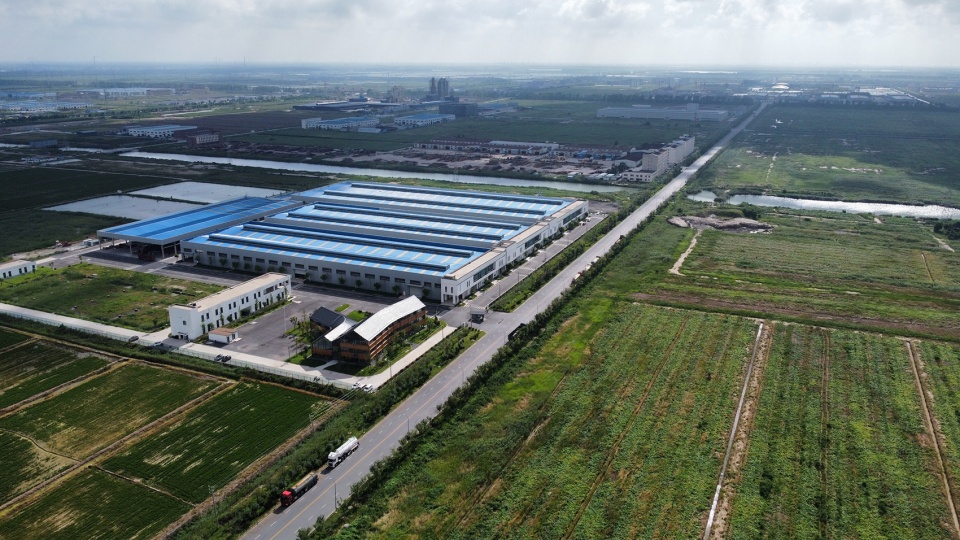

▼场地环境，Context © CATS

1. 强壮的材料，柔弱的材料
A strong and fragile material

木材是一种旧材料。把木材作为建筑材料使用的历史，大概不会比用作手持工具的历史短多少。在各种建筑工中，木工可能是最会开动脑筋的那一个。人们自古用它搭建宫殿，制造桌椅，盛放食物。在各种材料中，木材轻便，容易打磨，并且不难获得，只要是树木生长的地方就可以。木材手感温暖，颜色质朴，又有韧性。木材这么好，我们天然的要与木材做朋友。

但是，木材并没有加入到当代建造活动的主流之中。城市，是混凝土和钢铁构成的冰冷森林。钢筋混凝土太简单了，只要等待流体凝固就好。相比之下，木材则需要我们做好多种构件的搭接关系和表面维护工作。

Wood is an old material. The history of using wood as a building material is probably not much younger than that as hand tools. Among all kinds of construction workers, carpenters may be the ones who use their brains the most. People have used wood to build palaces, make tables and chairs, and contain food since ancient times. Comparing to other materials, wood is light, easy to sand, and not difficult to obtain, as long as it is where the tree grows. Wood is warm to touch, rustic in color and very resilient. Wood is so advantageous that we naturally want to be friends with it.

However, wood has not been part of the mainstream of contemporary building activities. Cities are icy forests only made out of concrete and steel. Reinforced concrete is so simple to use, just waiting for the fluid to solidify. In contrast, wood requires us to do well a demanding job in the connections and surface maintenance of various forms of components.

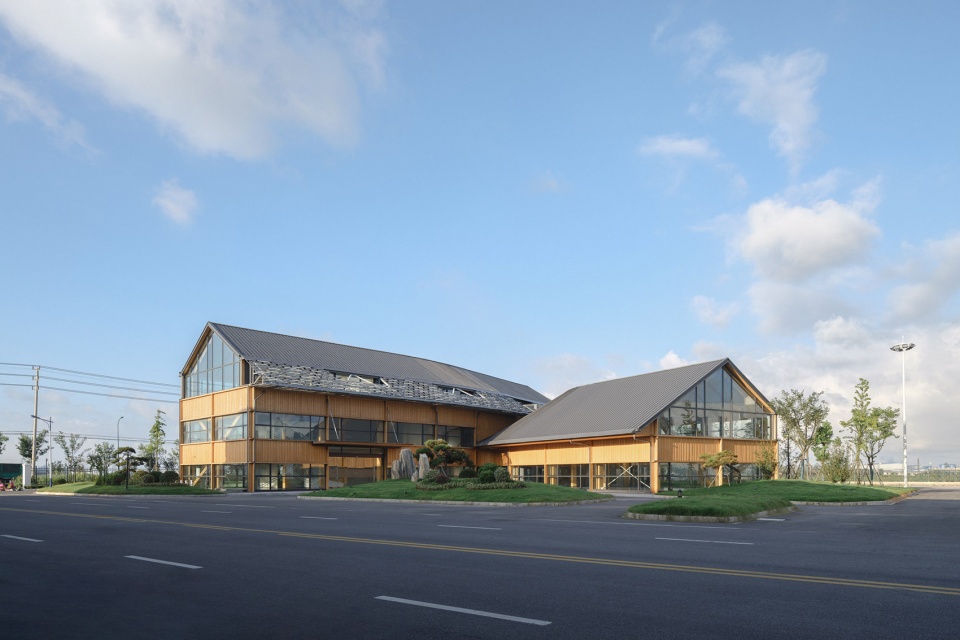

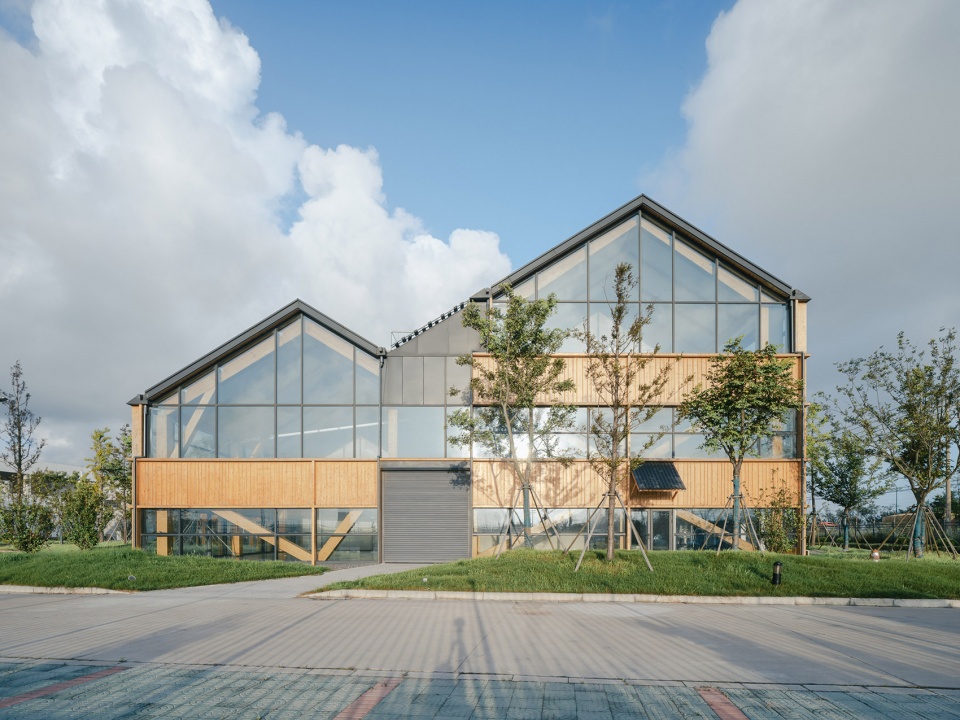

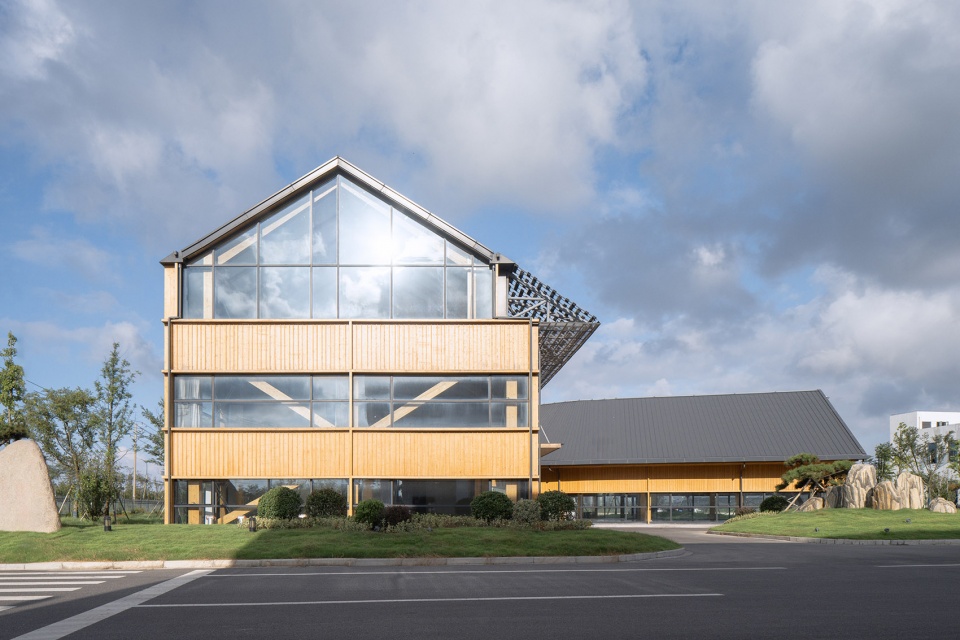

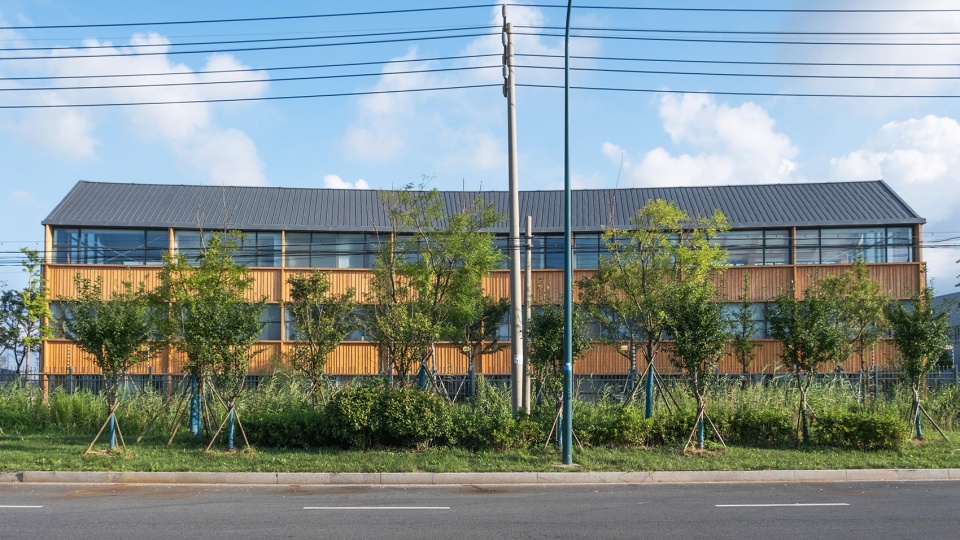

▼沿道路视角，View from the street level © 朱润资

▼立面与阳光，Facade and sunlight © 许臻Amigo

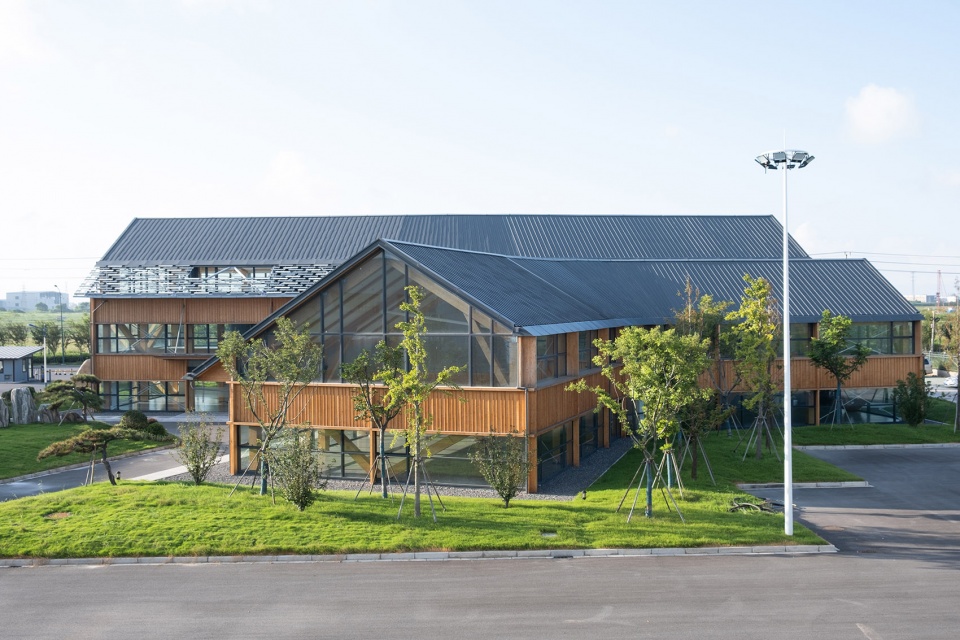

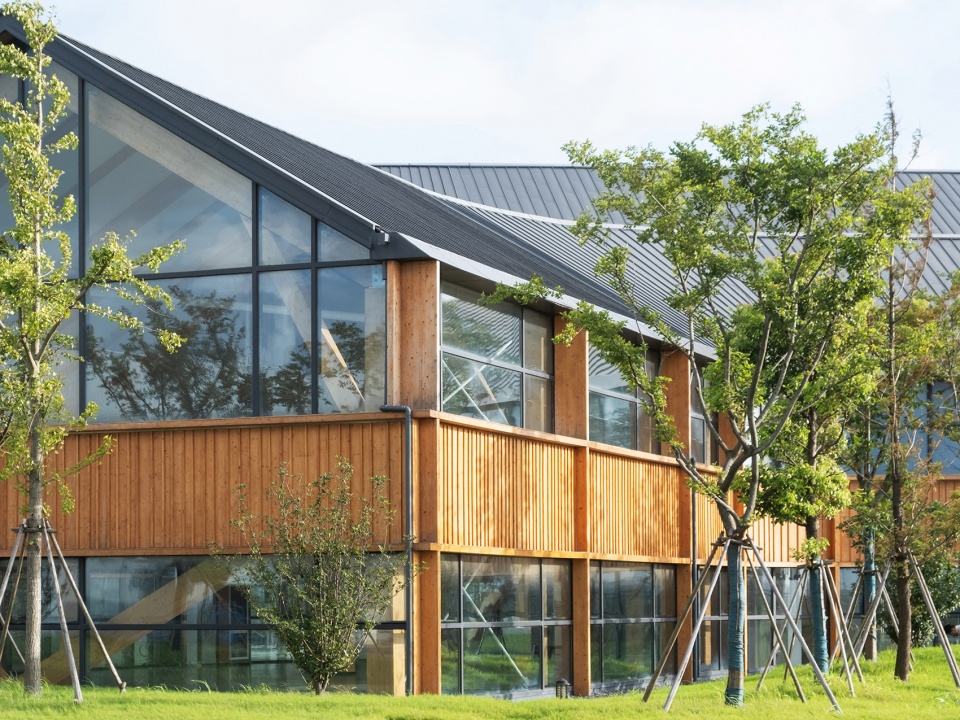

▼建筑外观，Exterior view © 朱润资

▼建筑外观，Exterior view © 朱润资

CATS拥抱木材的这分柔弱，珍惜木材所带来的思考乐趣。我们设计木结构建筑的工作经验已经超过了10年。“木作之家”项目位于盐城大丰，本是一座关于木结构建筑的研发中心，紧邻它的木构件制造工厂。在木作之家中，我们采用胶合木材和CLT作为结构和饰面。结构构件被完全围合在室内，不受气候侵蚀，而多种室外木饰面用法被“大胆”尝试，风光雨露进一步创造表面变化，房子仿佛有了时间流逝的生命感。

▼轴侧动图，Axon © CATS

CATS embraces the fragility of wood and cherishes the joy of thinking brought by wood. We have more than 10 years of experience in designing timber structures. The “House of Woodwork” project is located in Dafeng, Yancheng City. It is built to be a research and development center for timber structure buildings, and it is adjacent to its wood component manufacturing factories. In this project, we used glulam timber and CLT for structure and finishes. Structural components are completely enclosed from outdoor weathering, while a variety of wood veneer is used boldly on the façade and soffit. The wind and rain will further cause surface changes, so the building seems to have a sense of life and pass of time.

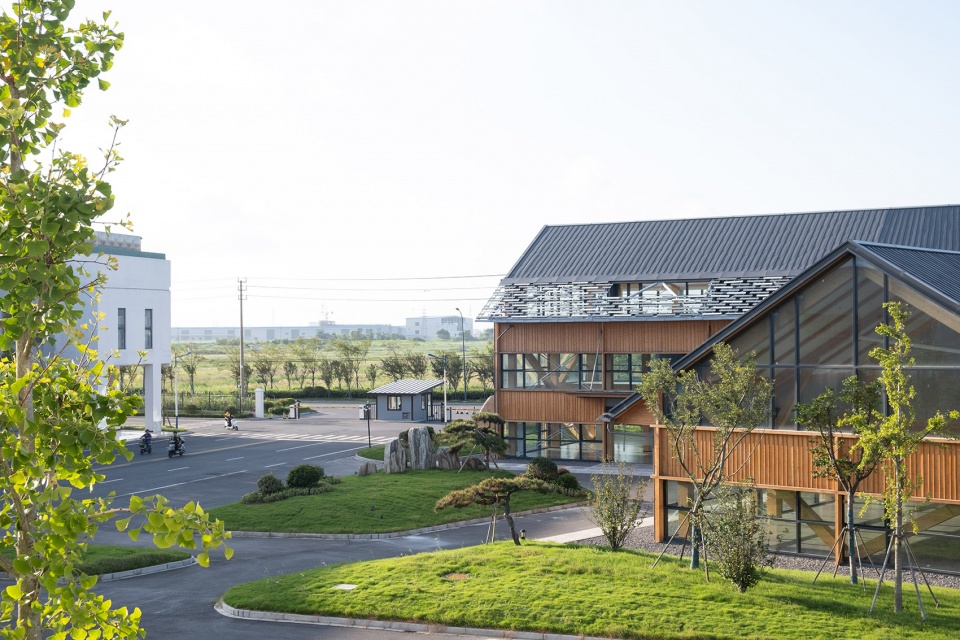

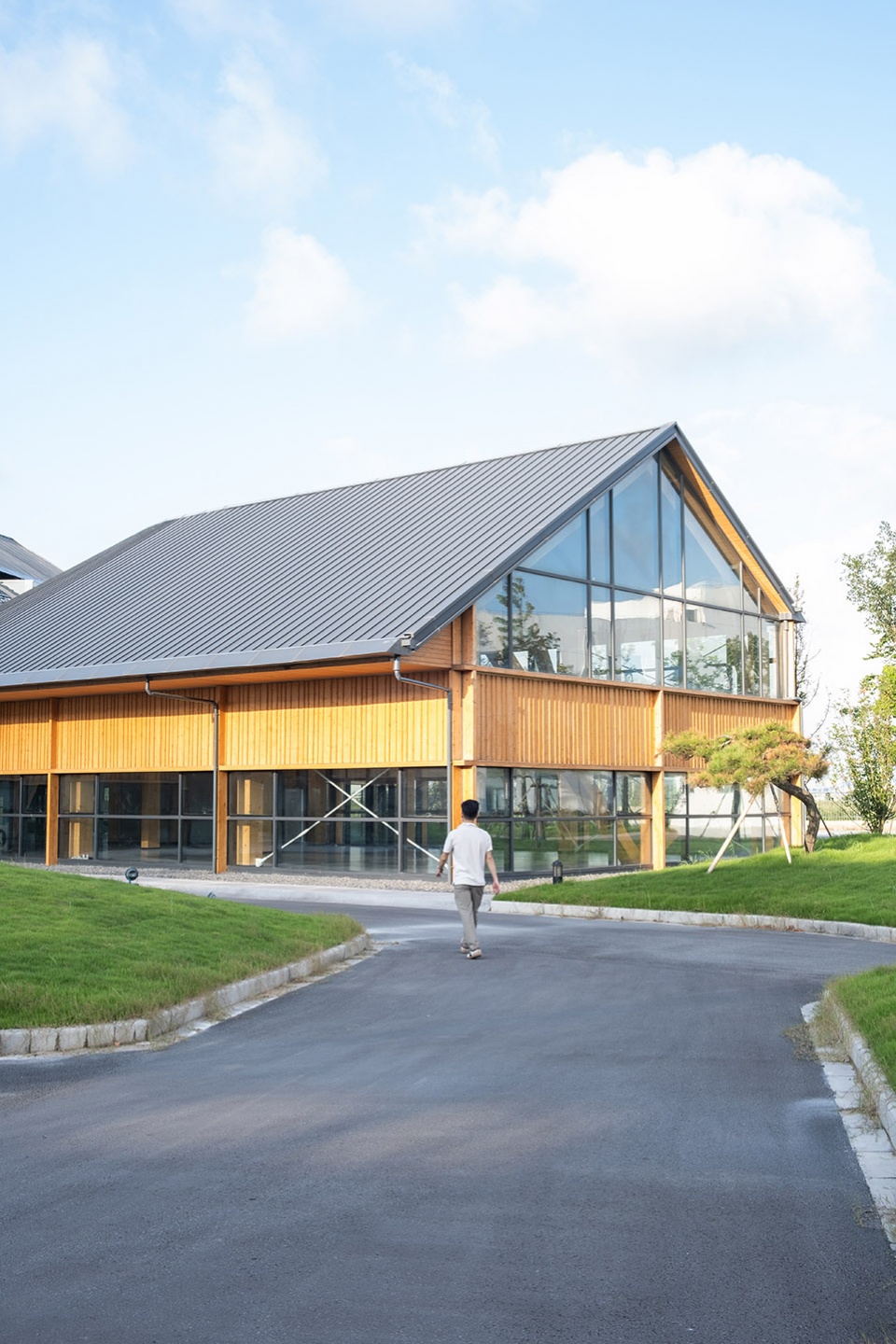

▼到达体验，Arrival © 许臻Amigo

▼结构构件被完全围合在室内，Structural components are completely enclosed from outdoor weathering © 朱润资

▼纤薄锋利的檐口，Slim sharp roof edge © 许臻Amigo

2. 精确的结构，家宅的几何
Precise structure, house geometry

结构的构思要从三个主要数据说起：13m，6m，2m。在苏北地区造房子，阳光是受欢迎的，这决定了办公建筑的进深在13m为宜——让南北两向都有足够的日光进入。木作之家就是由这样两个13m进深的体块组合而成，基于6m的典型结构跨度。

The ideation of the structure starts with three numbers: 13m, 6m, and 2m. Buildings in northern Jiangsu generally welcome sunlight, which determines the depth of an office building is appropriate at 13m, so that there is enough sunlight from both the north and south directions. The project is composed of two 13m deep blocks, based on a typical structural span of 6m.

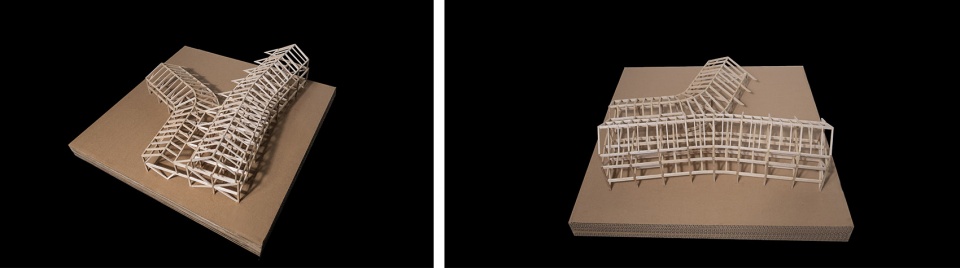

▼模型，Models © CATS

▼坡屋顶结构（施工），Roof structure © CATS

胶合木结构的技术工艺基于对相同规格大小木料的堆叠胶合，6m是贴合木原料规格的友好梁柱尺寸。最后，2m是竖向高度的基本单元，它约定了贴近楼地面的连续水平视角的高度，和与之等高的层间木饰面。研发实验需要的高大空间是2m的五倍，最高的屋脊在2m的七倍。

The technical process of the glulam structure is based on the stacking and gluing of lumber of the same size, and 6m is a friendly beam-column size that fits the specification of the lumber. Finally, 2m is the basic unit of vertical height, which stipulates the height of the continuous horizontal views close to the floors of the building, and the same height goes as the CLT cladding. Spaces such research lab require five times as high a space as 2m, and the highest roof ridge is seven times as high as 2m.

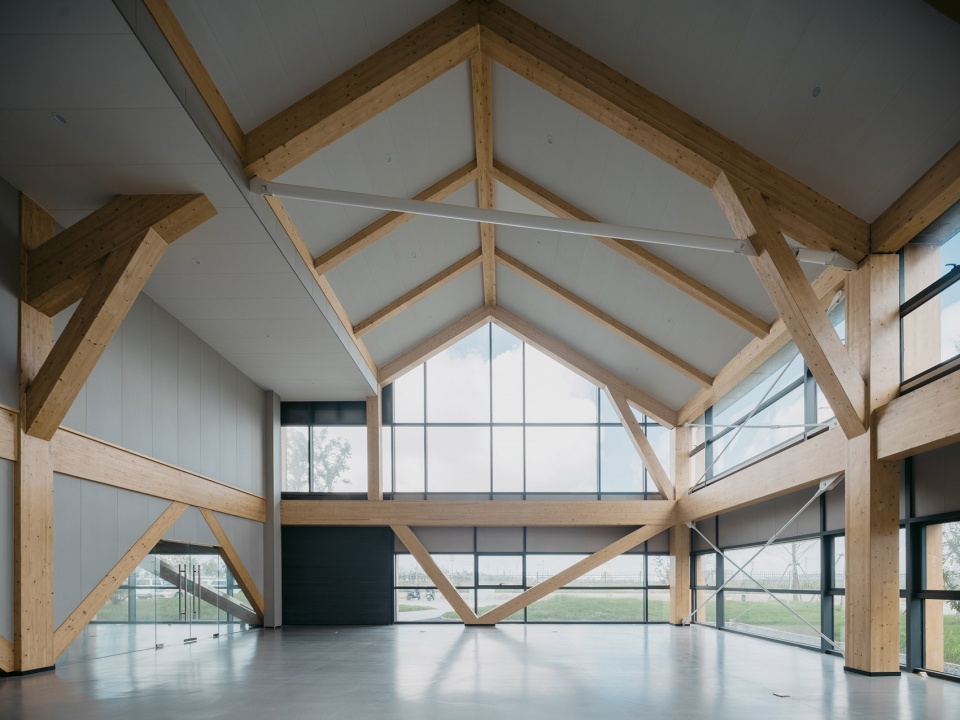

▼室内空间，Interior view © 朱润资

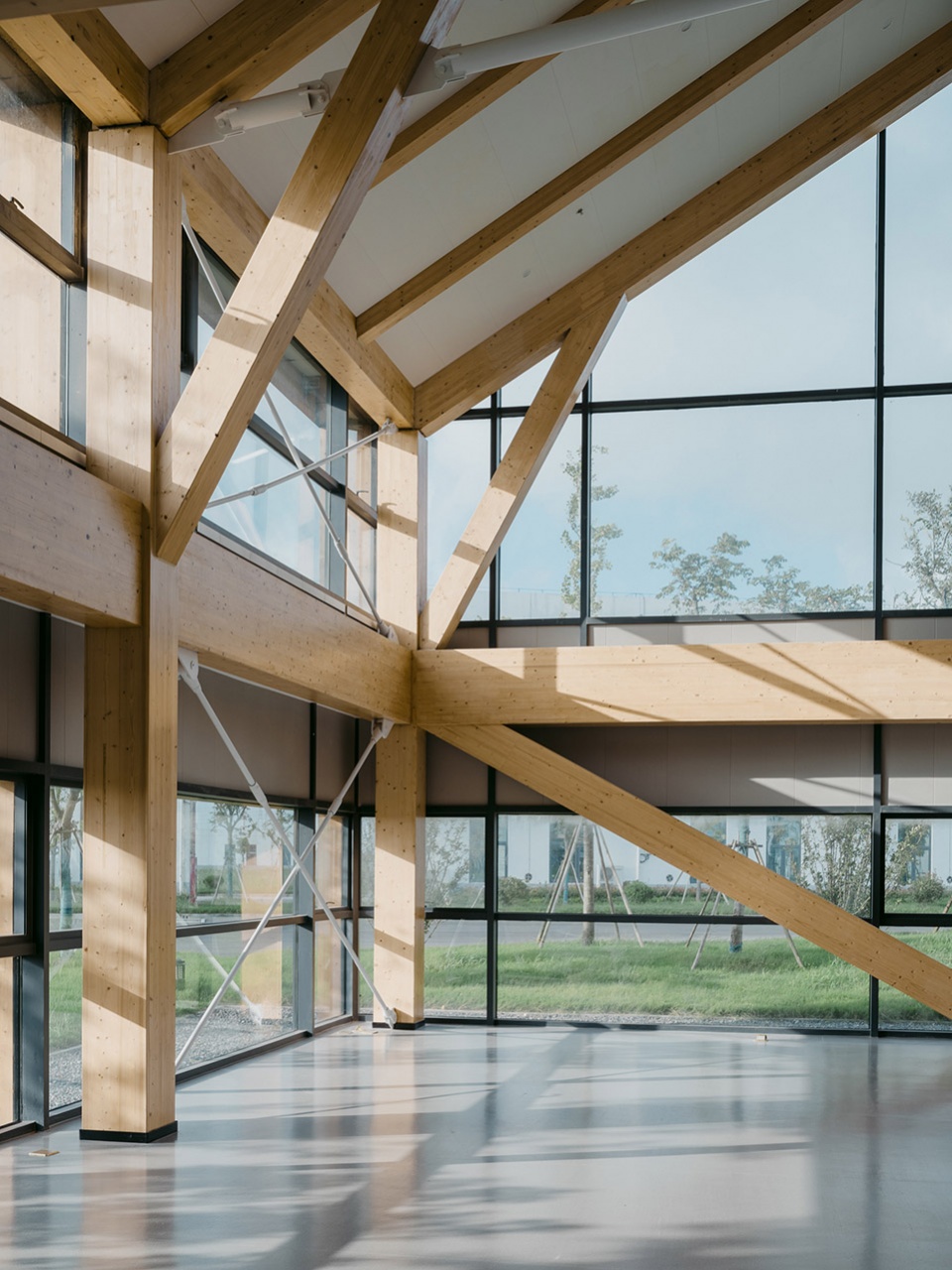

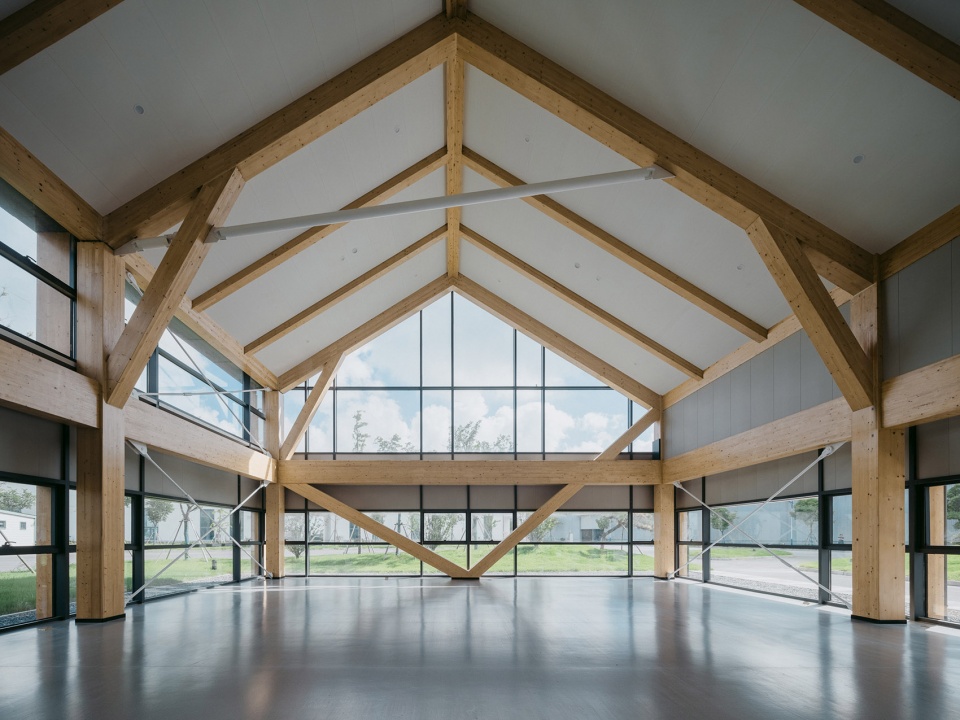

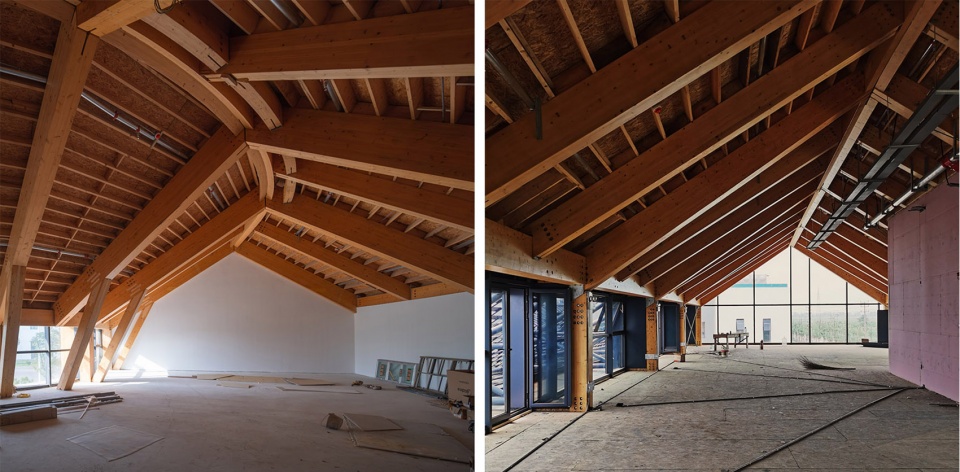

▼裸露的木结构，The exposed structure © 朱润资

除了精确的结构，我们还对坡屋顶形式的使用思考很多。许许多多的民居都是坡顶的，看到小巧尺度的坡顶很容易让人想起对家宅的记忆。它给人好的亲切感，让建筑跳脱出周边厂房的乏味。坡顶围合出的空间增加了可以使用的内部高度，并直接展现木结构构造的韵律，不同于传统的建造中坡顶仅用以造型和防水。关于家的情感难能可贵，郊远之地的工厂园区里的工作者们需要这份对于家的温馨的联想。

In addition to the precision of structure, we also thought a lot about giving the pitched roof form. Many houses have sloping roofs. Seeing the small-scale pitch roofs is an easy trigger to remind people of their memories of the house. It gives people a good sense of intimacy and makes the building detach from the boringness of the surrounding factories. The space enclosed by the roof increases the usable internal height and directly exposes the rhythm of the wooden structure, which is different from the traditional construction where the pitch roof is merely used as a kind of form and waterproofing. A sense of home is precious, and the workers of the factories in the outskirts deserve this kind of home-warm association.

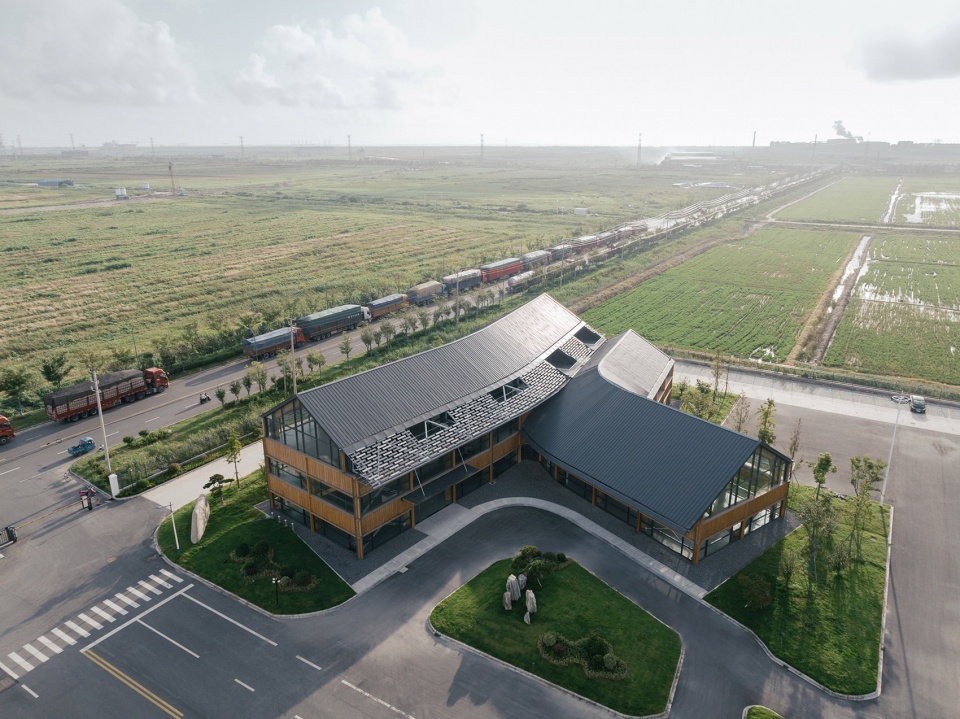

▼屋顶鸟瞰，Rooftop view © 朱润资

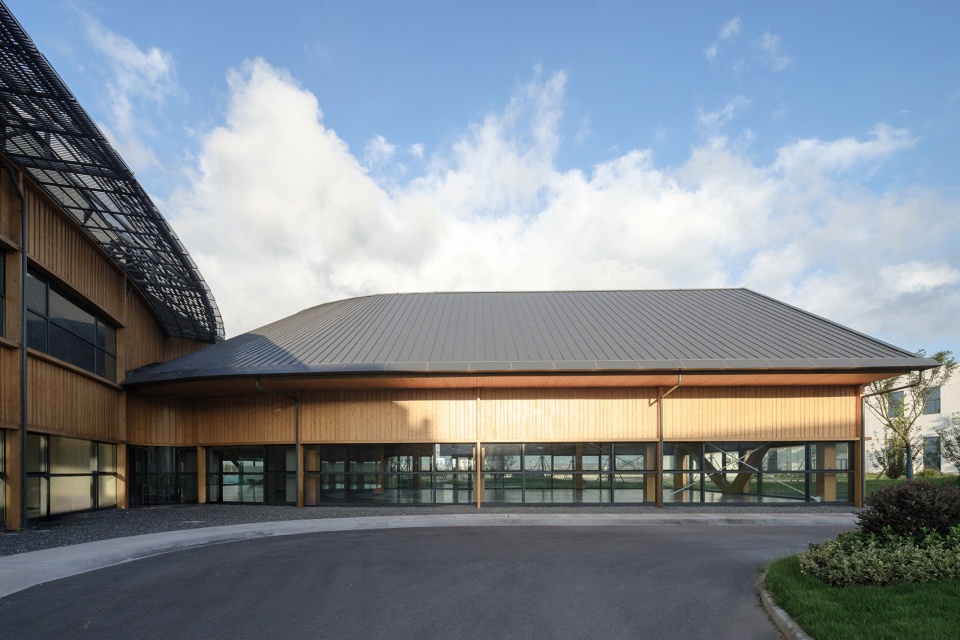

▼出挑的雨篷，The canopy © 朱润资

▼差异曲线，Miss and match © 许臻Amigo

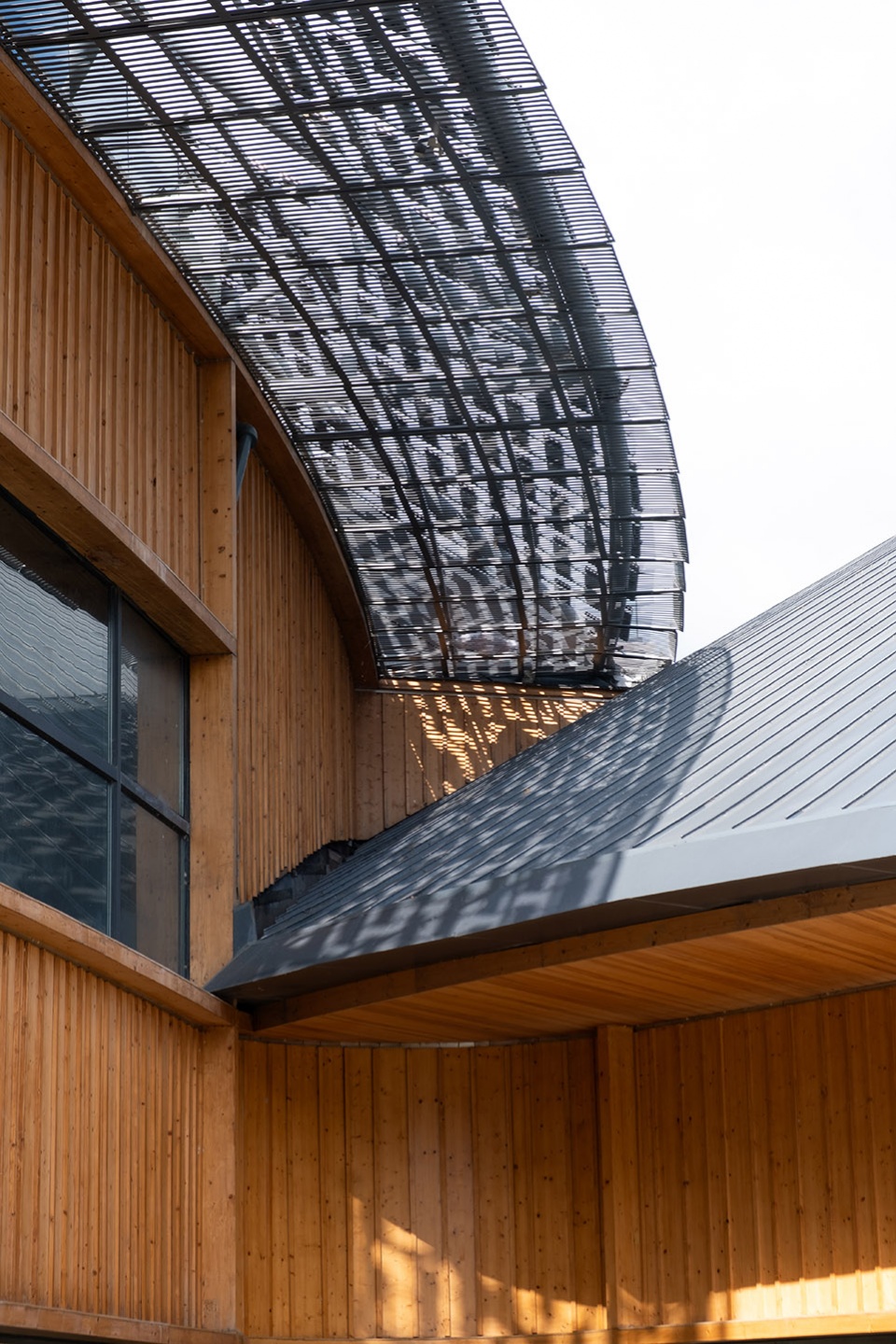

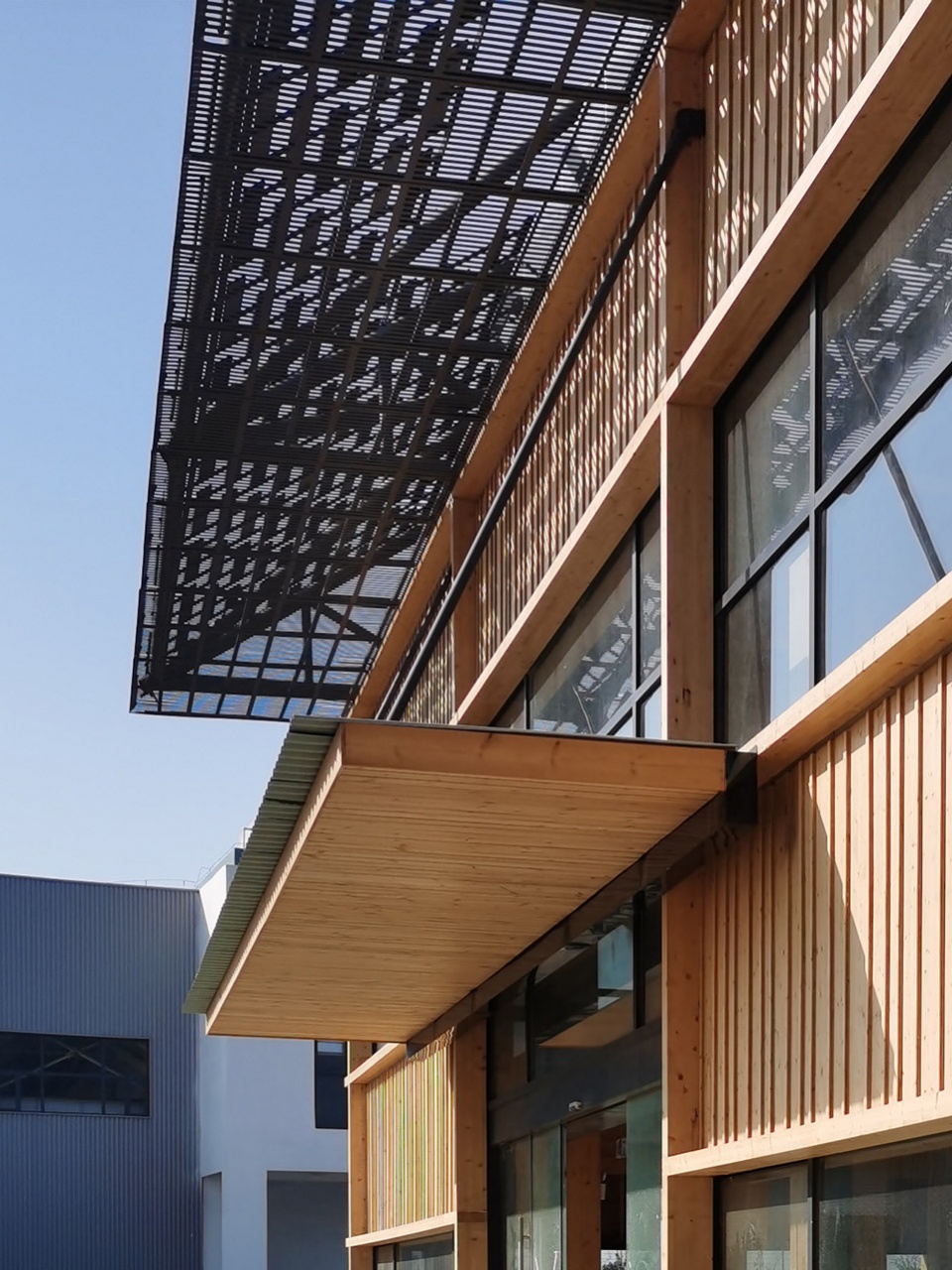

▼雨篷细节，Canopy detail © CATS

▼雨蓬结构，Canopy structure © 朱润资

3. 能量的视角
An energy perspective

在木作之家中，所有关于建筑形式的思辨最终落在了能量维度的评价。北高南低的格局下，北面相对高大的体块可以阻挡大风，并创造三层的温暖露台，而南面低矮的体块让更多的阳光有机会进入室内；所有外墙上统一采用的连续玻璃窗让通风处处易得，但玻璃的整体占比并未失控；水平向的挑板辅助必要的南向遮阳，等等。

In this project, all debates about architectural form finally fall on the evaluation from energy dimension. Under the general set-up of north high and south low, the relatively tall block in the north is set to block the strong wind and create three-story warm terraces, while the low block in the south allows more sunlight to enter the rooms; Continuous glass windows make ventilation easily available everywhere, but the overall proportion of glass is not out of control; horizontal protrusions assist the necessary south-facing sunshade work, and so on.

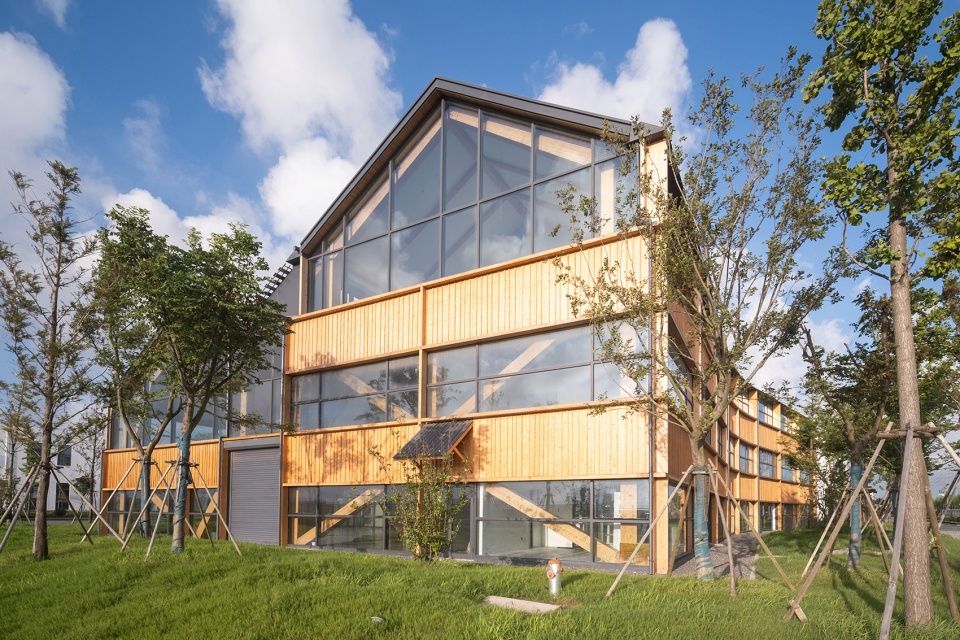

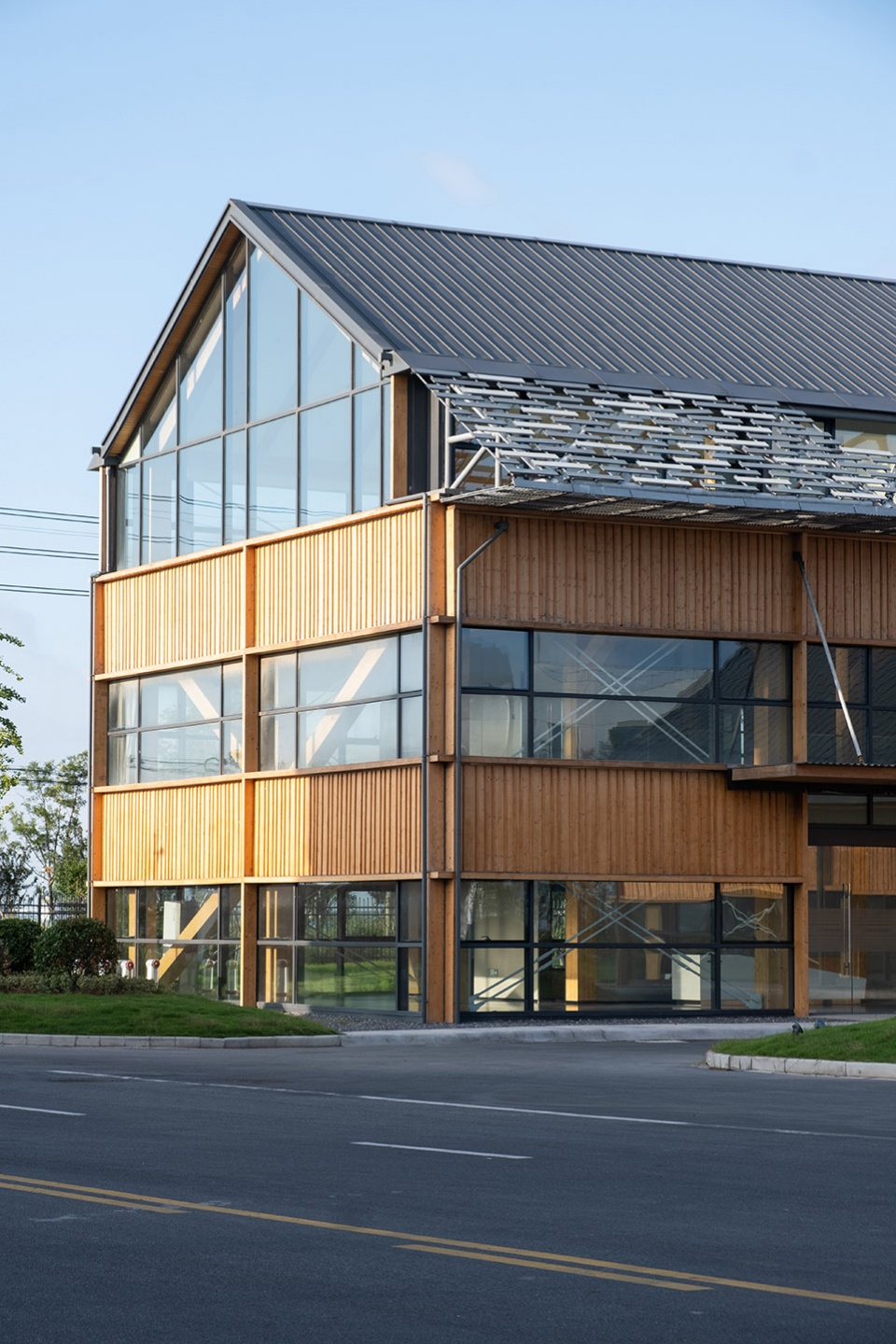

▼“高耸”的北面，Tall facade at north © 许臻Amigo

▼低矮的南面，Low facade at south © 许臻Amigo

▼外墙上统一采用连续玻璃窗，Continuous glass windows © 朱润资

▼立面与阳光，Facade and sunlight © 许臻Amigo

在当下，没有人会怀疑用更少的能量建造和使用一幢建筑的正确性，但真正为之付出实践的努力还远远不够。我们主动拓宽对于什么是一幢好房子的理解，在能量的视角下创造，并享受思考材料的乐趣。

At present, no one doubts the correctness of using less energy to build and operate a building, but real efforts to force it into practice are barely started. Quite actively, we expend our understanding on what makes a good architecture, create from an energy perspective, and enjoy thinking brought by materials.

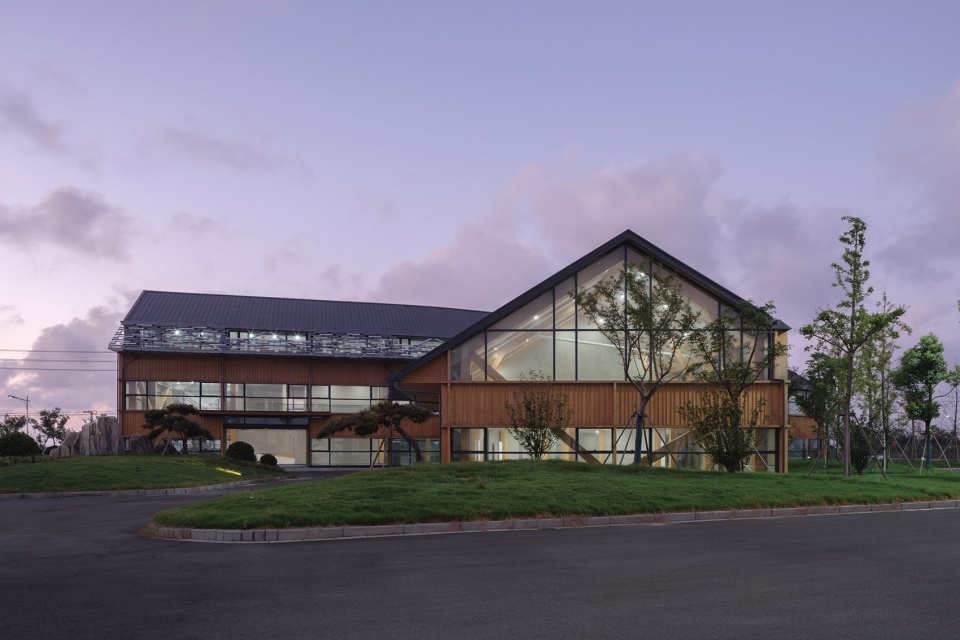

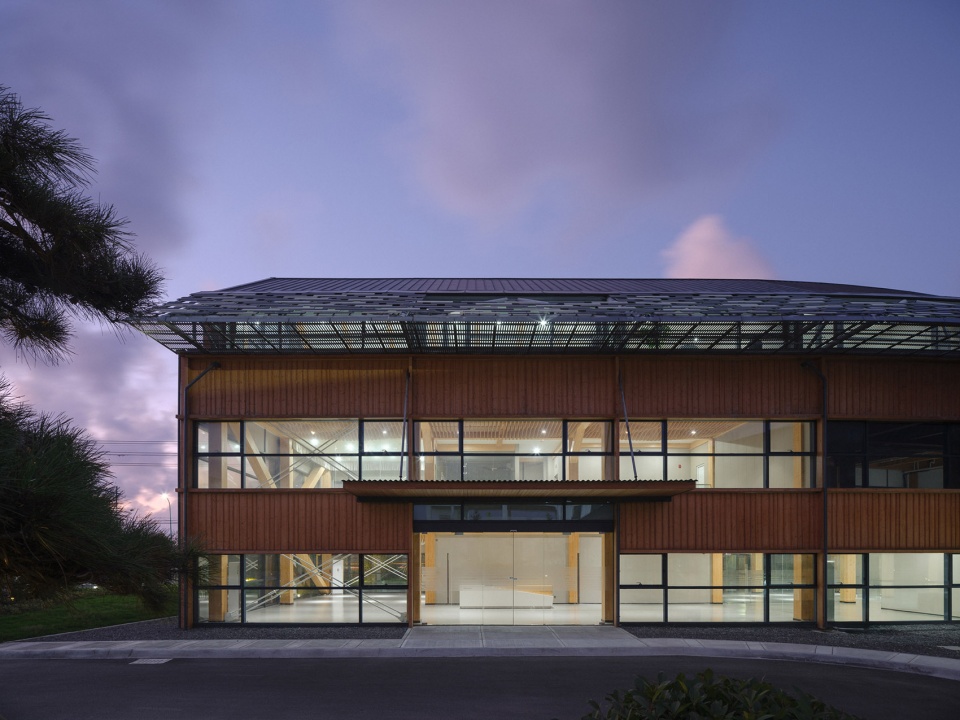

▼傍晚视角，View at dusk © 朱润资

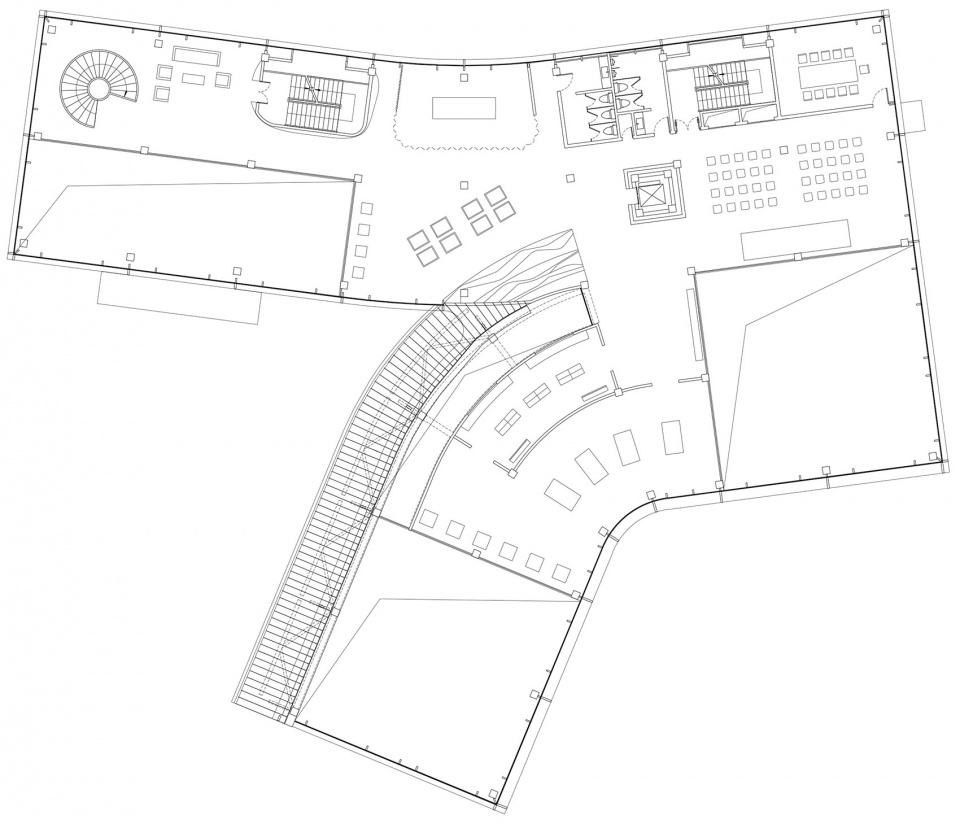

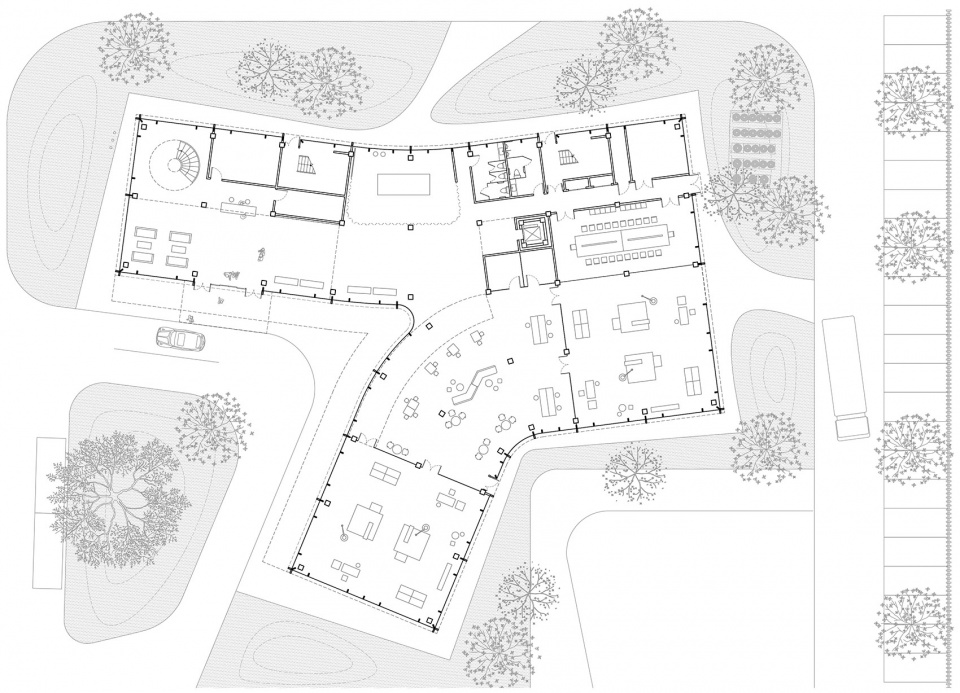

▼1层平面图，1F plan © CATS

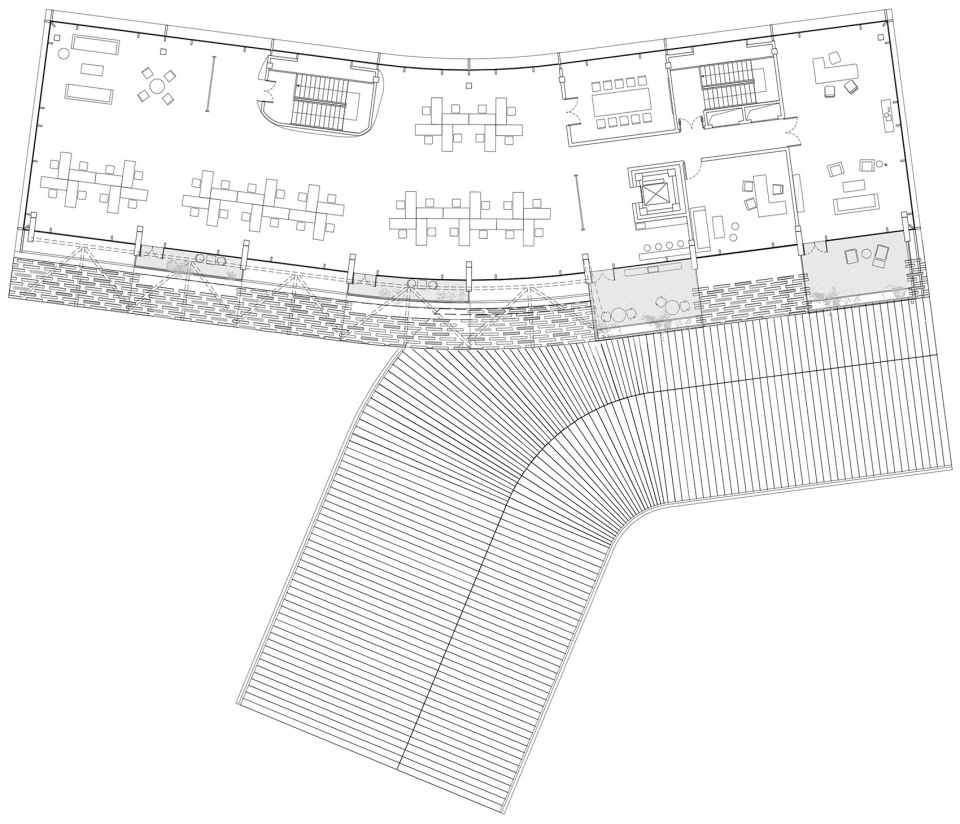

▼2层平面图，2F plan © CATS

▼3层平面图，3F plan © CATS

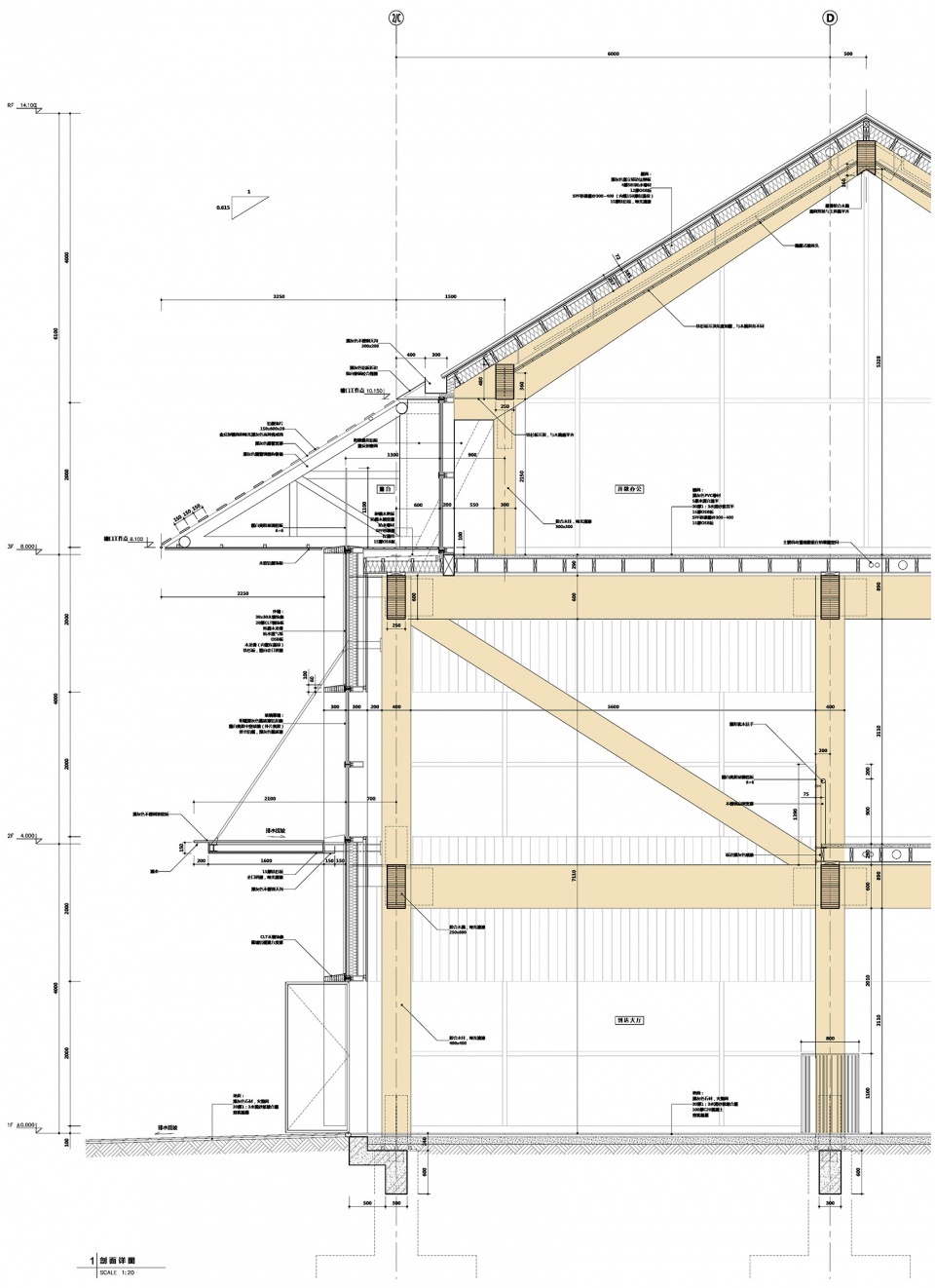

▼详图，Detail drawing © CATS

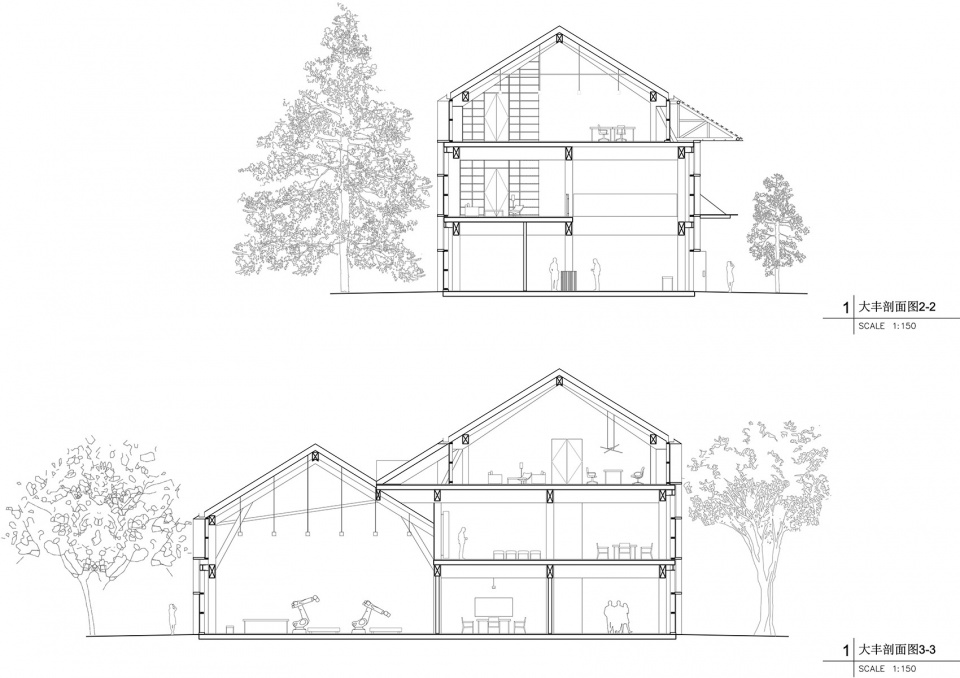

▼剖面图，Sections © CATS

项目名称: CATS 新作 · 木作之家 – 大丰木结构研发中心
建筑事务所/公司/机构/单位: CATS顾问建筑师小组
事务所/公司/机构/单位网站:www.consultingarchitects.cn
联络邮箱:info@consultingarchitects.cn
公司所在地:上海市静安区
项目完成年份:2022
建筑面积:2400平方米
项目地址: 江苏盐城市大丰区
主创建筑师: 陈胜泽，黄文心
主创建筑师邮箱: huang@consultingarchitects.cn; chen@consultingarchitects.cn
摄影师: 朱润资，许臻Amigo
项目参与者
设计团队: 陈雪丽，周聪，姚苏洋，李雪聪，罗程，施艾薇
建设单位: 昆仑绿建木结构科技股份有限公司

Project Name: House of Woodwork – Dafeng Timber Structure Research and Design Center
Architecture Firm: CATS
Website: www.consultingarchitects.cn
Contact e-mail: info@consultingarchitects.cn
Firm Location: Jing’an, Shanghai
Completion Year: 2022
Gross Built Area: 2400 m2
Project location: Yancheng, Jiangsu
Lead Architects: Shengze Chen, Wenxin Huang
Lead Architects e-mail: huang@consultingarchitects.cn; chen@consultingarchitects.cn
Photo credits: Runzi Zhu, Amigo Zhen Xu
Additional Credits
Design Team: Xueli Chen, Cong Zhou, Suyang Yao, Xuecong Li, Cheng Luo, Aiwei Shi
Clients: Crownhomes Co., Ltd
