非常感谢 Lacroix Chessex 予gooood分享以下内容。更多关于他们，请至：Lacroix Chessex on gooood。
Appreciations towards Lacroix Chessex for providing the following description:

该项目于日内瓦湖畔的Nyon，土地的划定源自于20世纪一座庄园周围重新调整的地产边界。壮丽的树木和日内瓦湖的美景启发了场地规划，该规划是与Bonnard + Woeffray事务所共同构思的。三个建筑穿插在树木之间，围绕着空地和正在形成的空旷空间布局。整个建筑群包含49套新建公寓。

The plot of land for this project, located on the shores of Lake Geneva in Nyon, is the result of property lines that were redrawn around a 20th-century manor house. The magnificent trees and view of Lake Geneva inspired the site plan, which was imagined together with the office of Bonnard + Woeffray. The three buildings glide between the trees and around the free spaces, clearings in the making. The complex is home to 49 new condominium apartments.

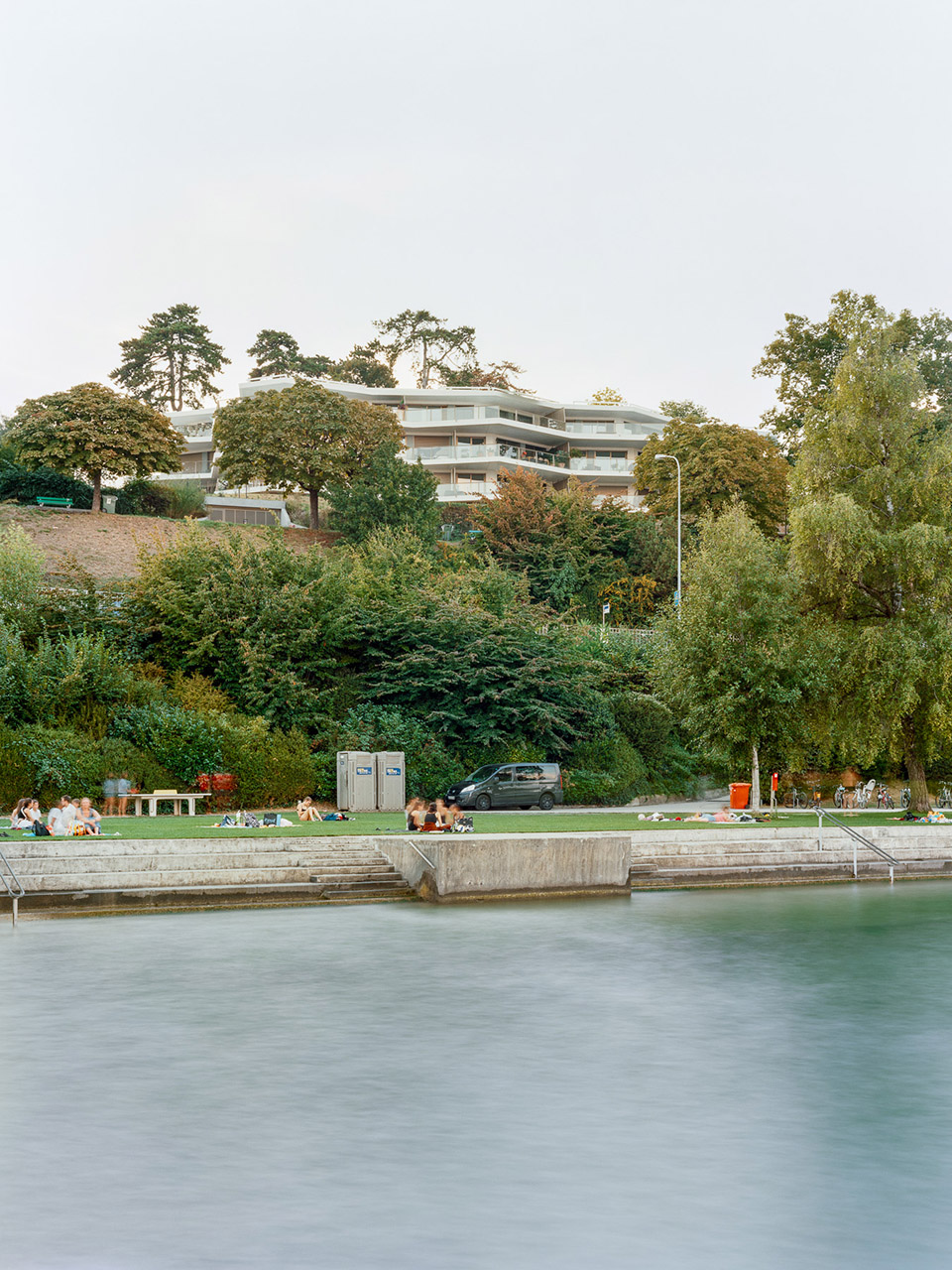

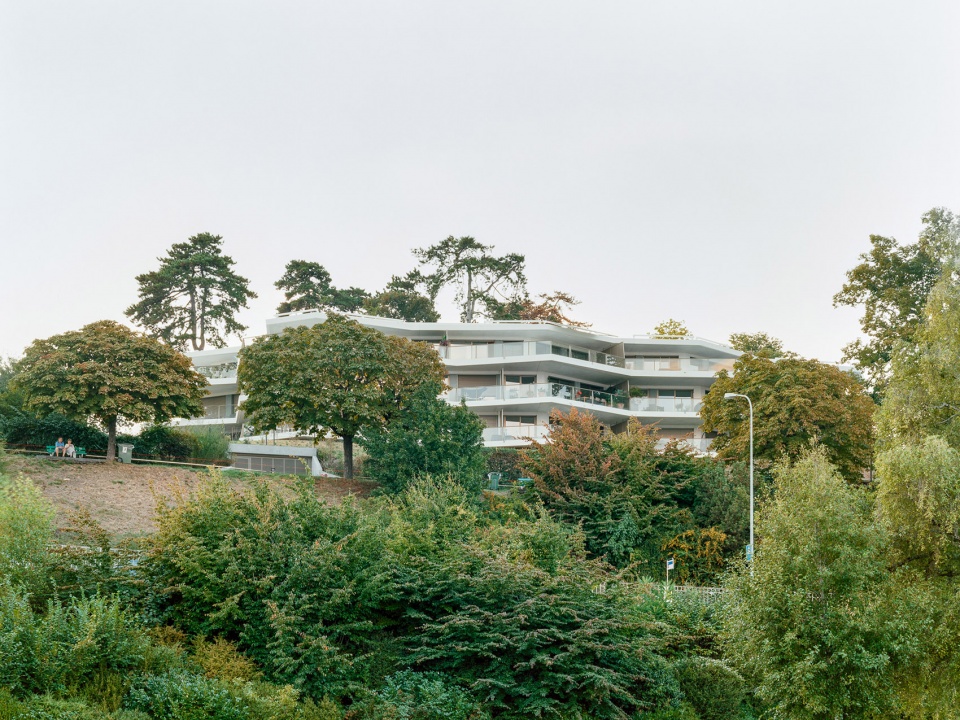

▼项目周围环境，surroundings ©Olivier di Giambattista

▼项目周围环境，surroundings ©Olivier di Giambattista

湖畔建筑的设计旨在最大限度地利用湖景。这座建筑的16套公寓每一套都能享受到直接或部分的湖景。建筑外立面的断裂线条就像一个展开的扇子或扑克牌，远比你手中掌心的线条更长。这种展开创造了一种晶体几何感的空间效果，白天区域以及大多数夜间房间依然保持矩形，但没有锋利的内角。像万花筒一样，平面布局将湖景引入公寓的每个角落。

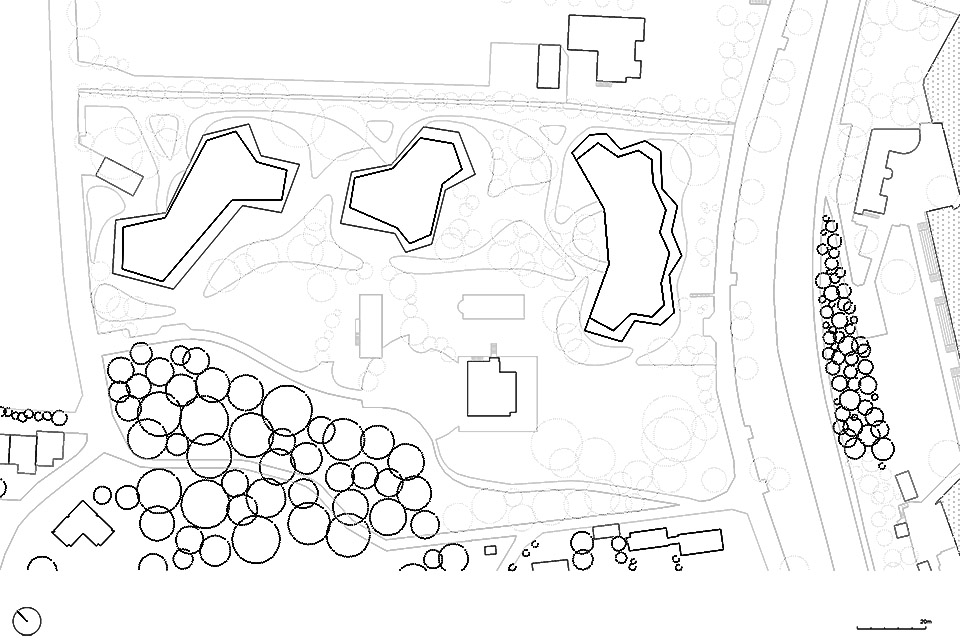

▼场地平面，site plan ©Lacroix Chessex

The lakefront building is designed to maximize lake views. The 16 apartments have a direct or partial view of this incredible landscape. Like an open fan or a deck of cards unfolding in your hand, the building’s outer broken line is much longer than the line in the palm of your hand. This unfolding creates a play of crystalline geometries, but with no sharp interior angles in the daytime areas and the majority of nighttime rooms that are still rectangular. Like a kaleidoscope, the floor plan brings the lake into the depths of the apartments.

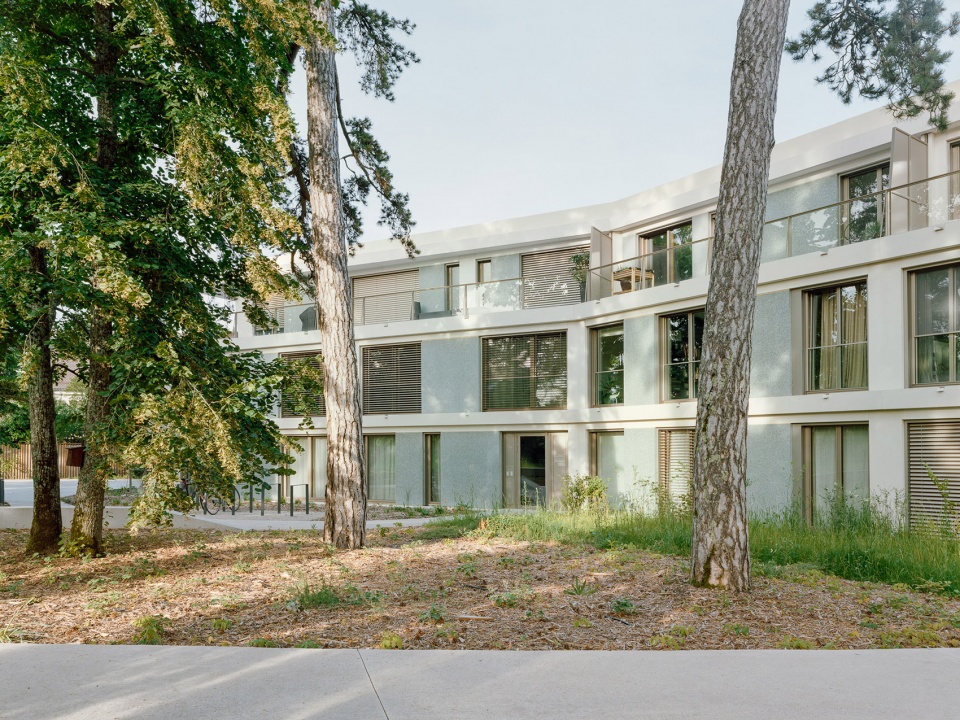

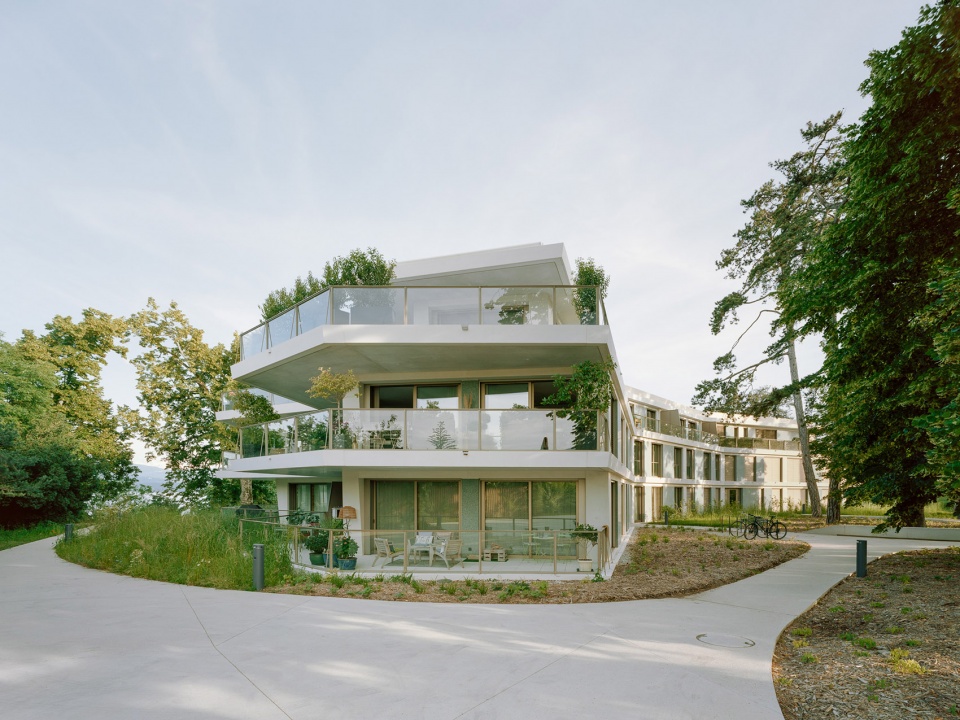

▼建筑外观，exterior of the building ©Olivier di Giambattista

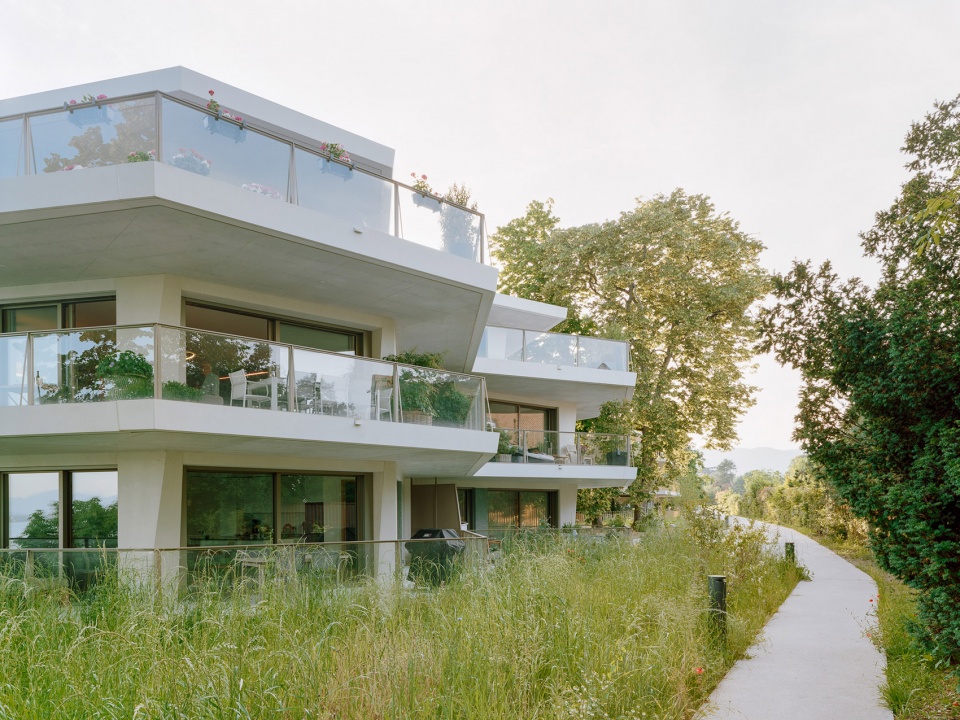

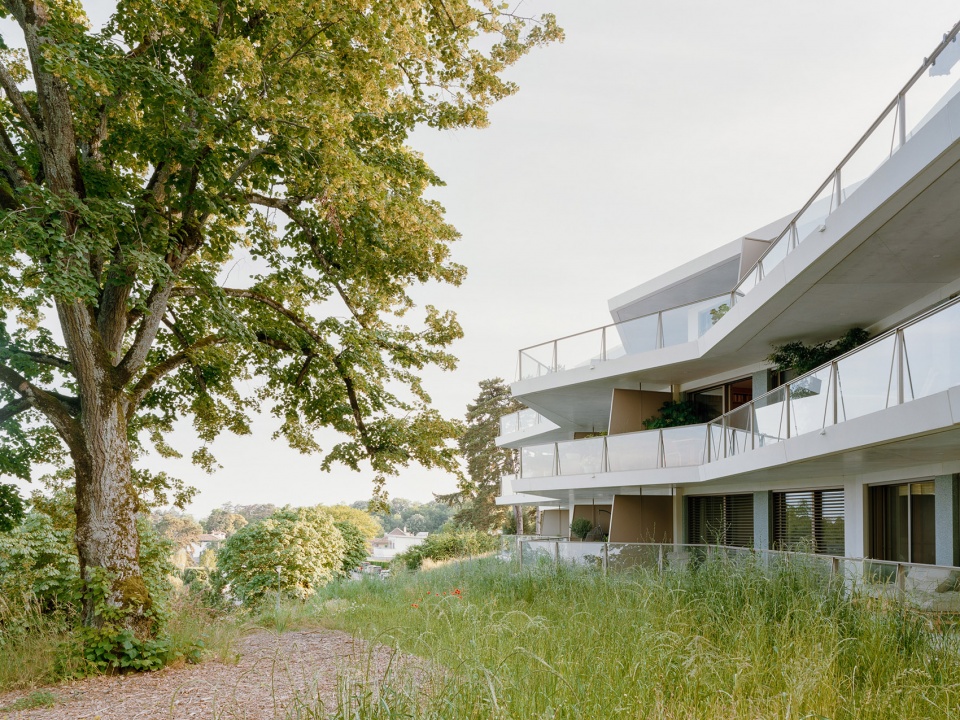

▼建筑立面如断裂的线，the building’s outer broken line ©Olivier di Giambattista

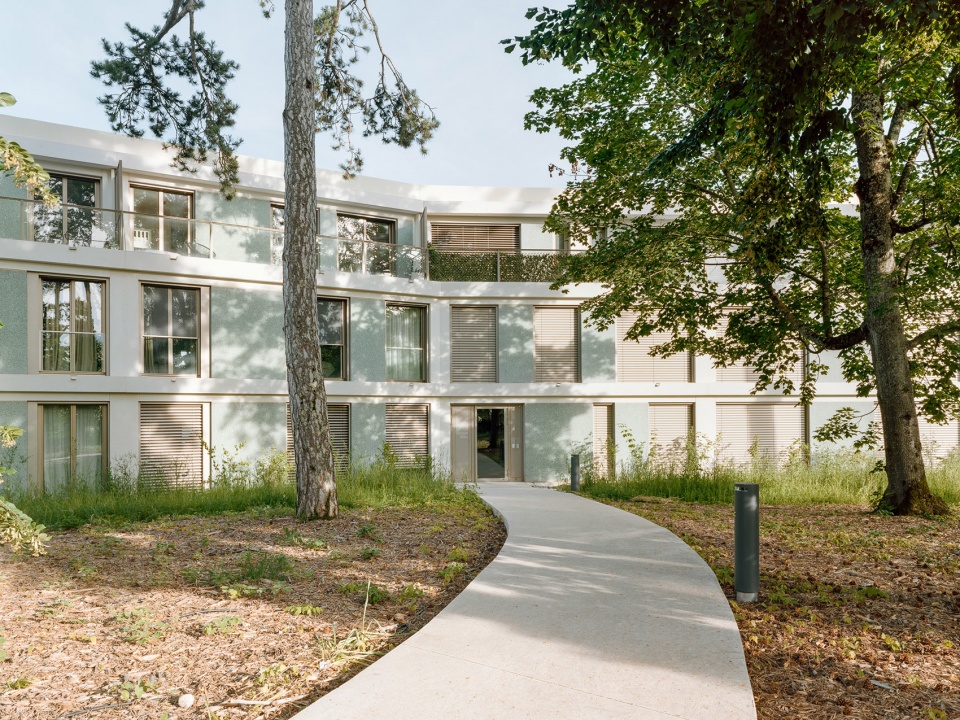

▼公寓前小径，path towards the apartment ©Olivier di Giambattista

▼公寓前小径，path towards the apartment ©Olivier di Giambattista

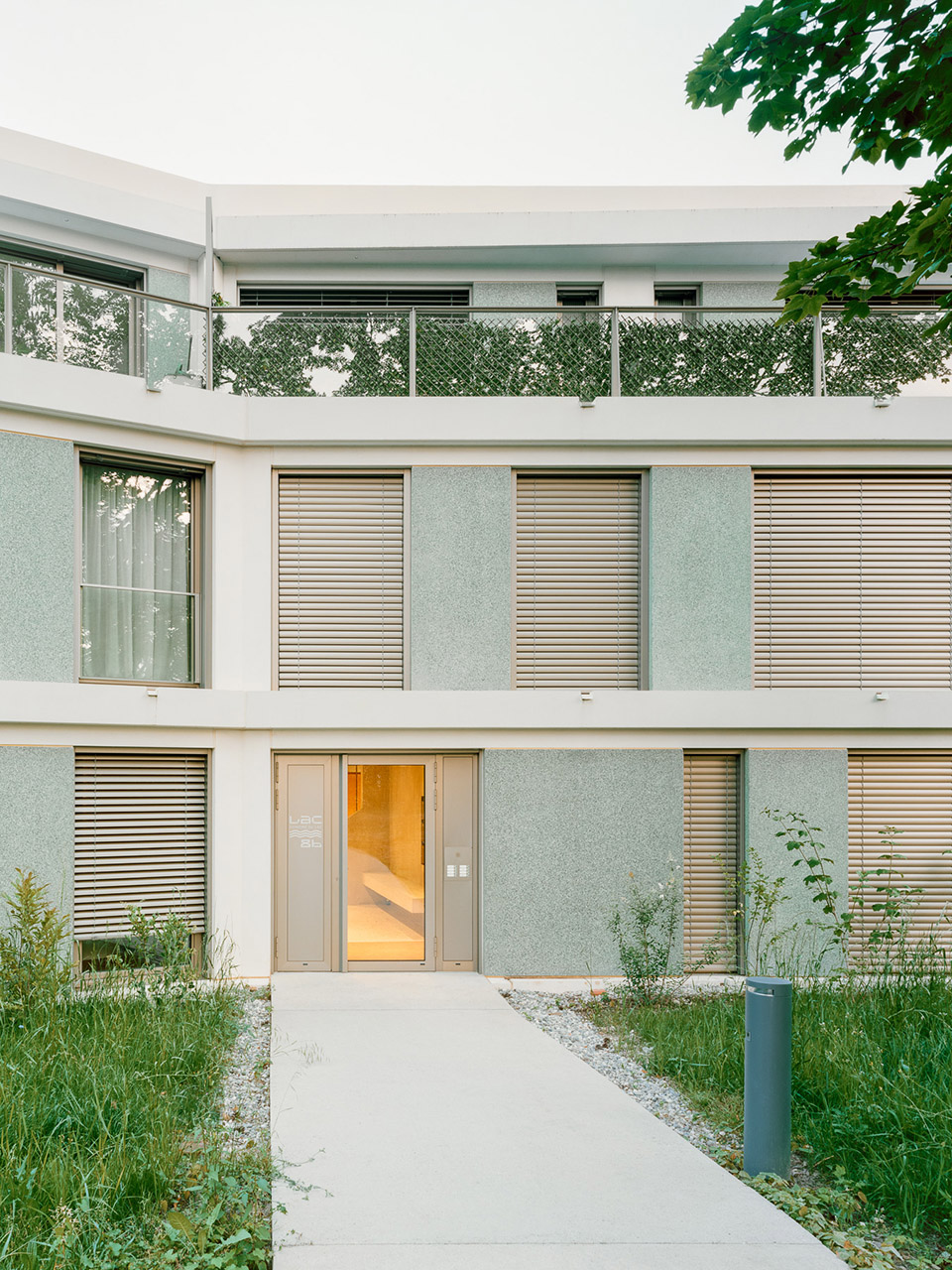

▼公寓外观，facade the apartment ©Olivier di Giambattista

室内设计中，两座菱形楼梯井分别通向每层的六套公寓。设计注重对称性，当前楼层的布局由三种主要类型的公寓组成。在每套公寓中，混凝土的入口凹室形成了通往私人空间的过渡门槛。在第一种公寓类型中，入口位于夜区与开阔的公园区域的交界，几乎形成一个完美的五边形，与宽敞的日区相连。第二种公寓的布局则是其中一个卧室位于厨房后方，日区形成了一个六边形的圆形大厅，面向湖泊。第三种公寓位于平面图的中心，属于双面公寓，基于两条X形对角线的构建，甚至卧室也能享受到湖景。所有设计都力图避免将平面图限定为传统的日夜分区，而是力求解放空间的自由度。

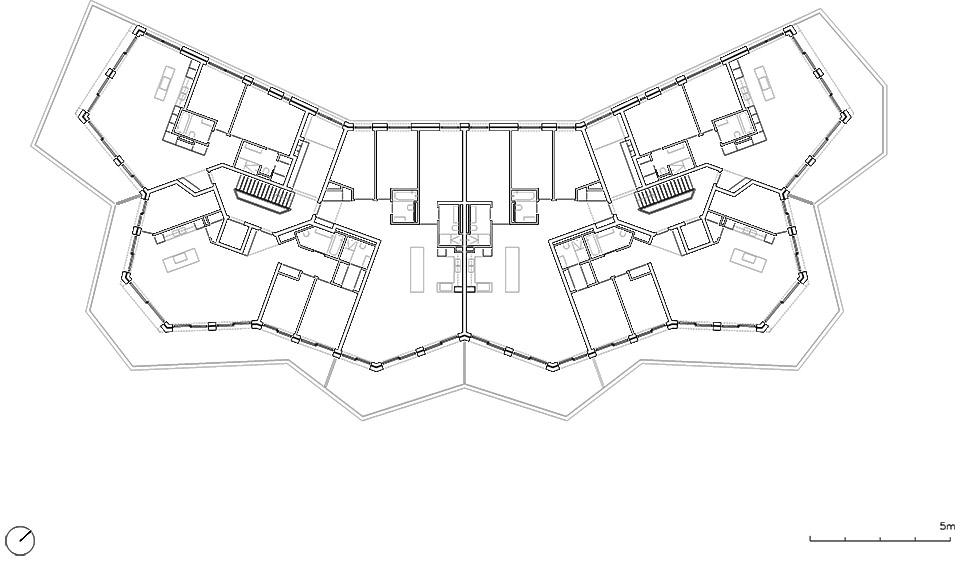

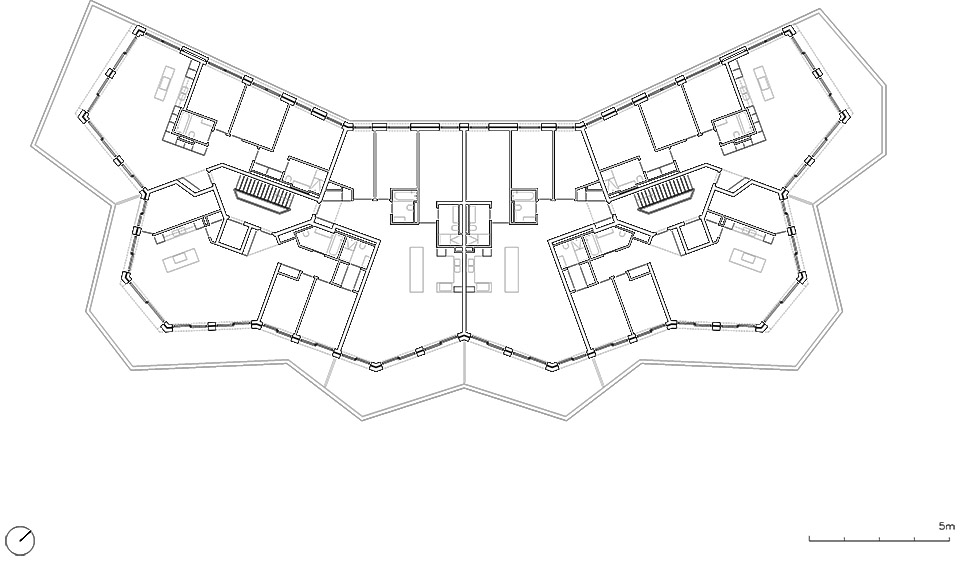

▼公寓平面，apartment plan ©Lacroix Chessex

Inside, two diamond-shaped stairwells lead to six apartments per floor. Designed with attention to symmetry, three main types of apartments form the basis of the current floor plan. In each apartment, a concrete entrance alcove creates a transitional threshold into the private space. In the first type, you enter into the juncture between the night zone, open to the park, and the large day zone in an almost perfect pentagon. In the second type of apartment, one of the bedrooms is behind the kitchen. The day zone forms a kind of hexagonal rotunda that projects onto the lake. The third type, the double aspect apartment in the center of the plan, is built on two X-shaped diagonals that allow for a lake view even from the bedrooms. Every effort was made to free the floor plan from an overly hermetic construction of day and night zones.

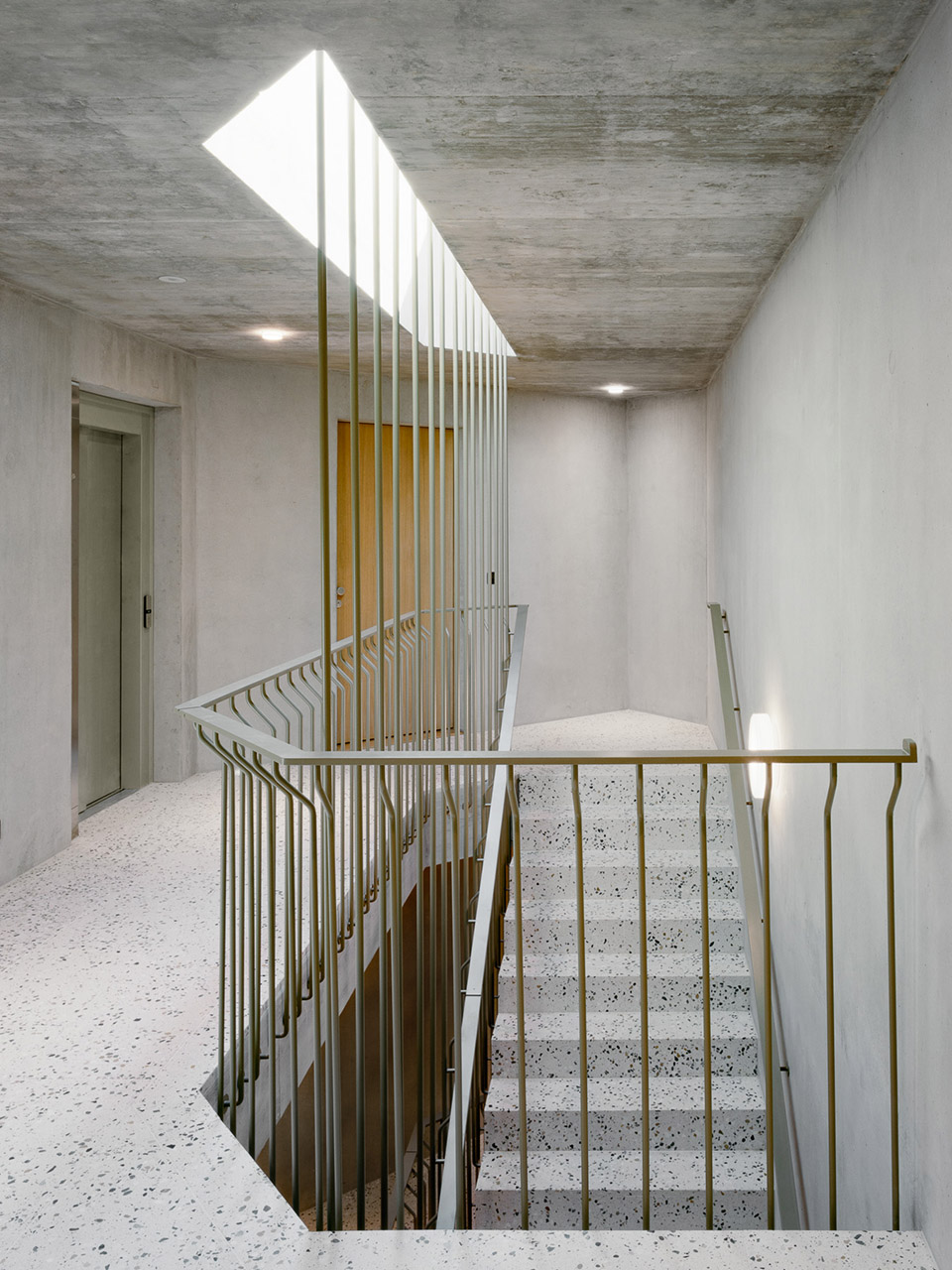

▼楼道，corridor ©Olivier di Giambattista

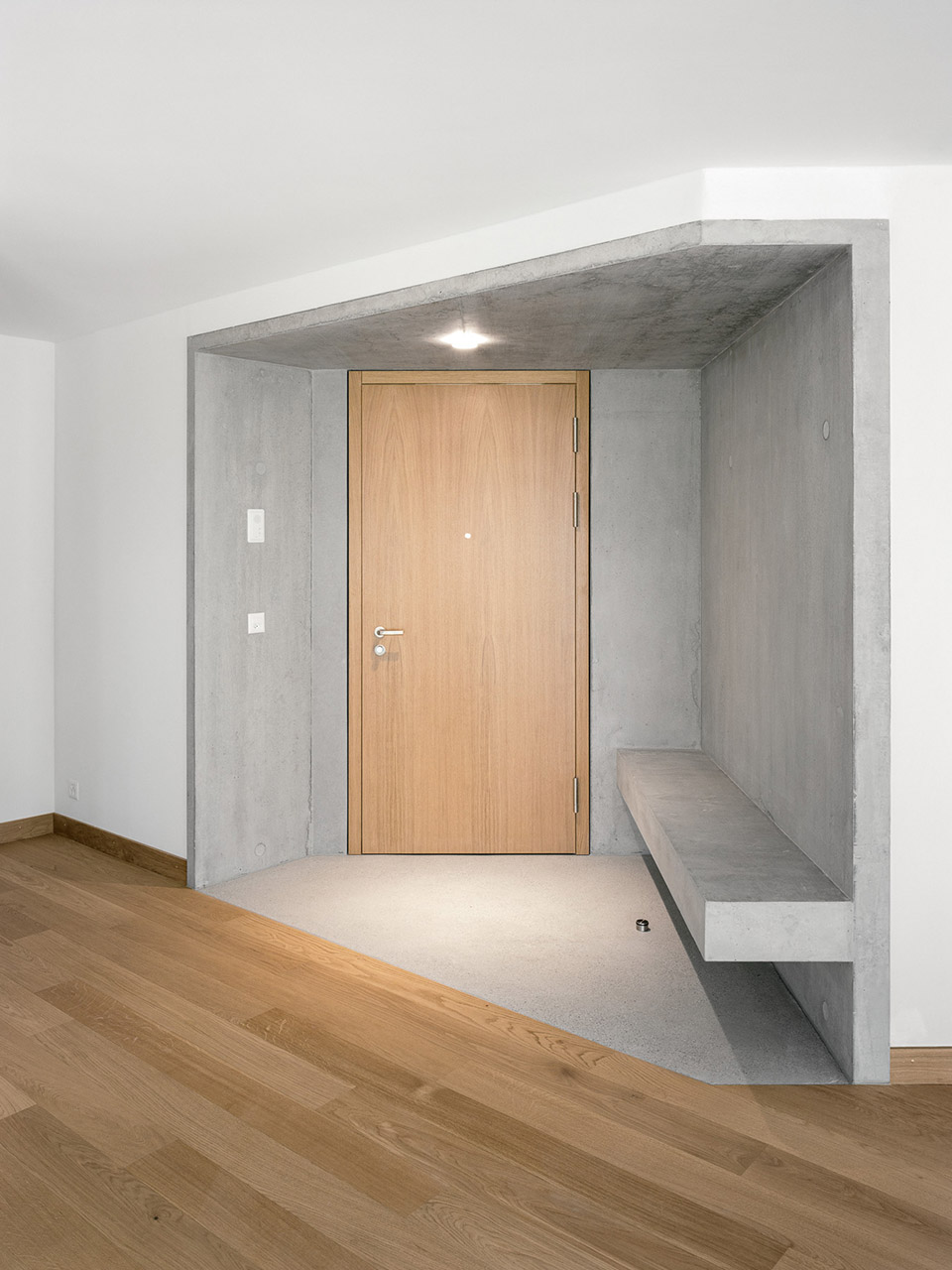

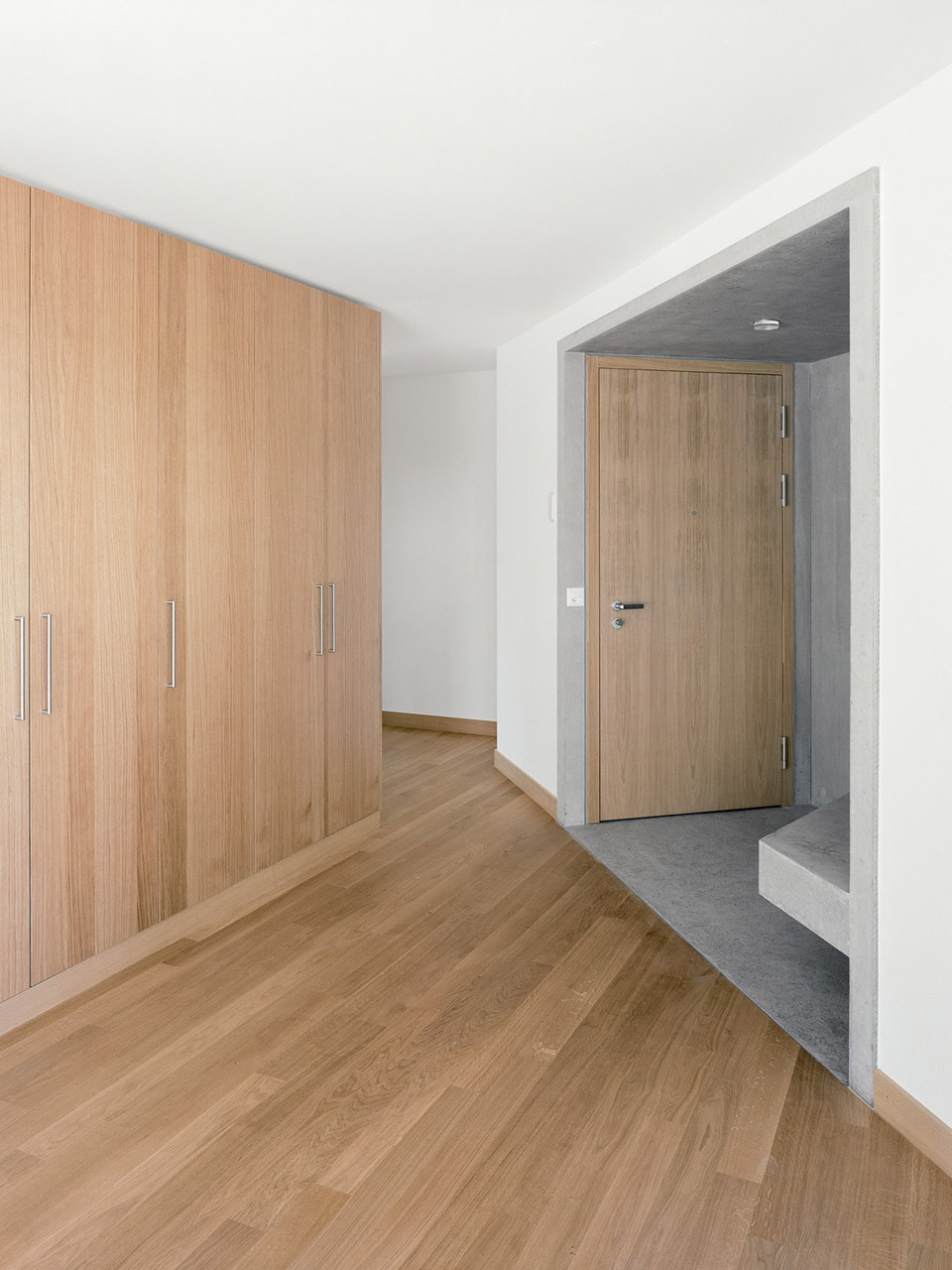

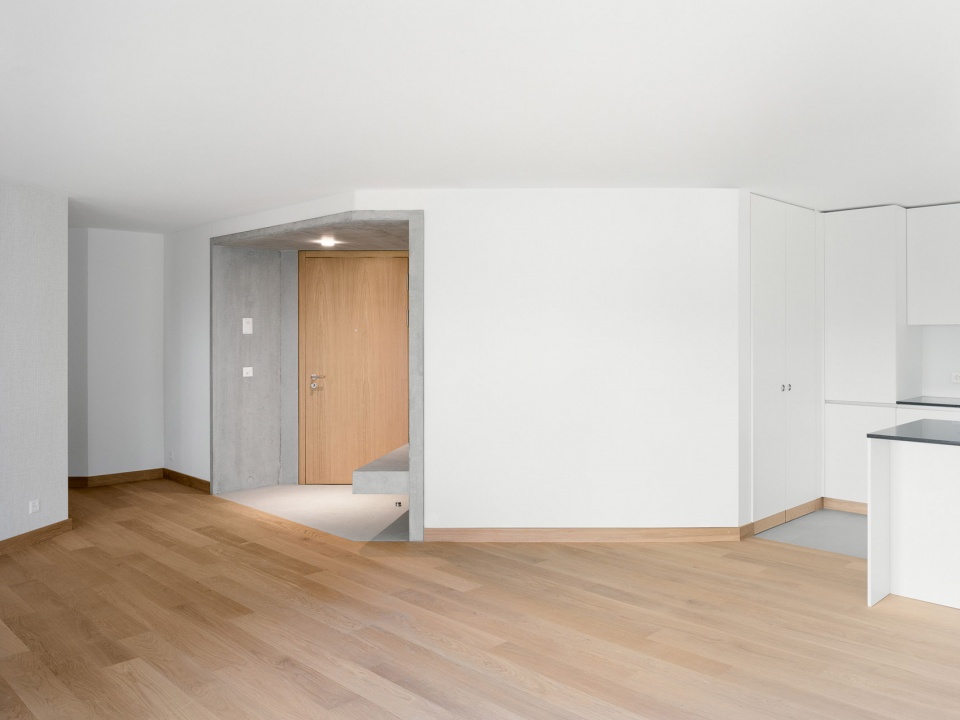

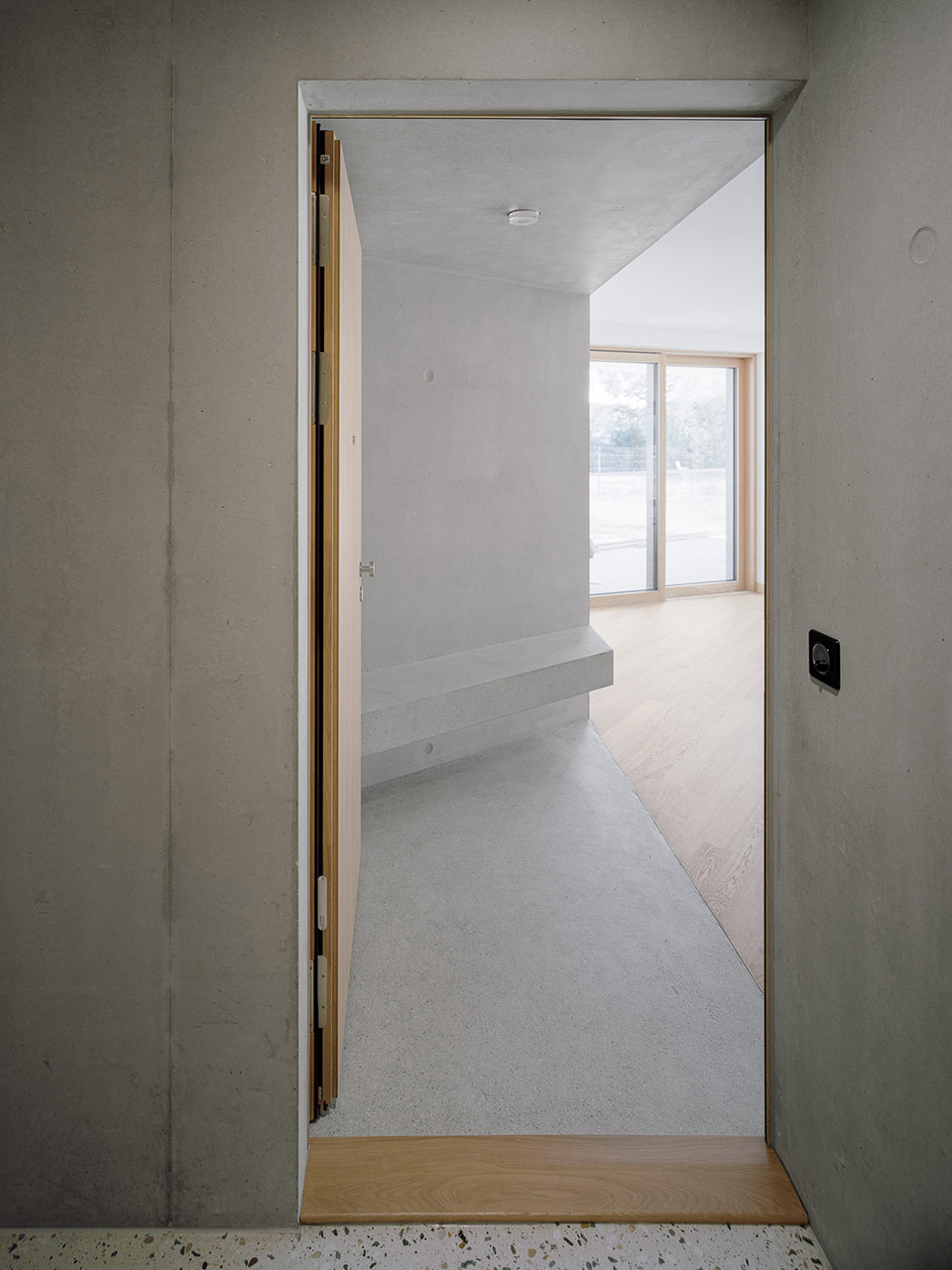

▼公寓入口，entrance of the apartment ©Olivier di Giambattista

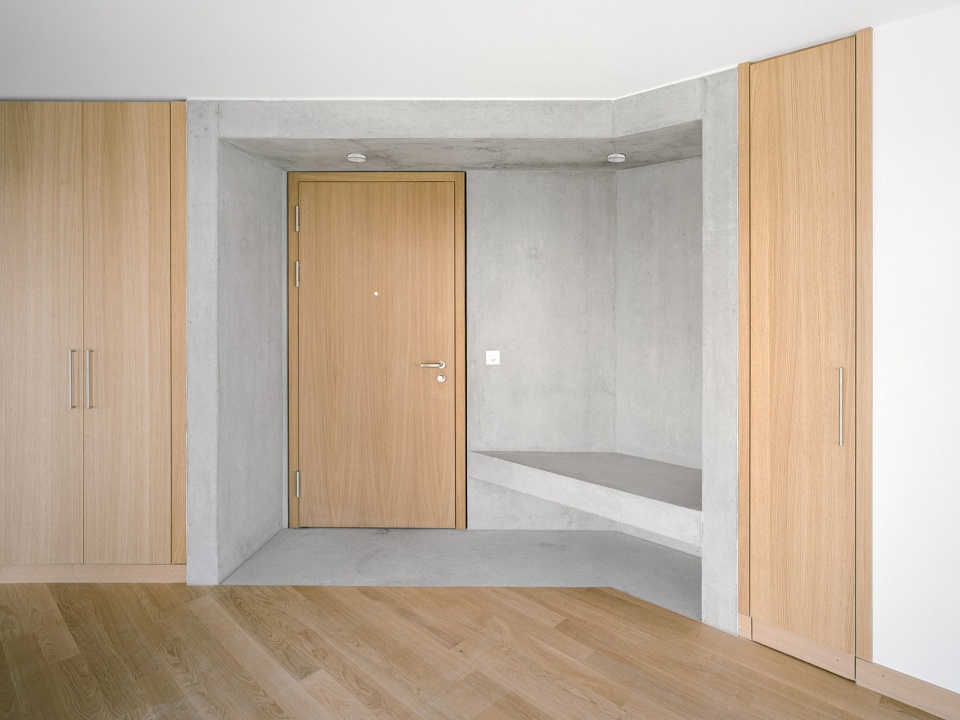

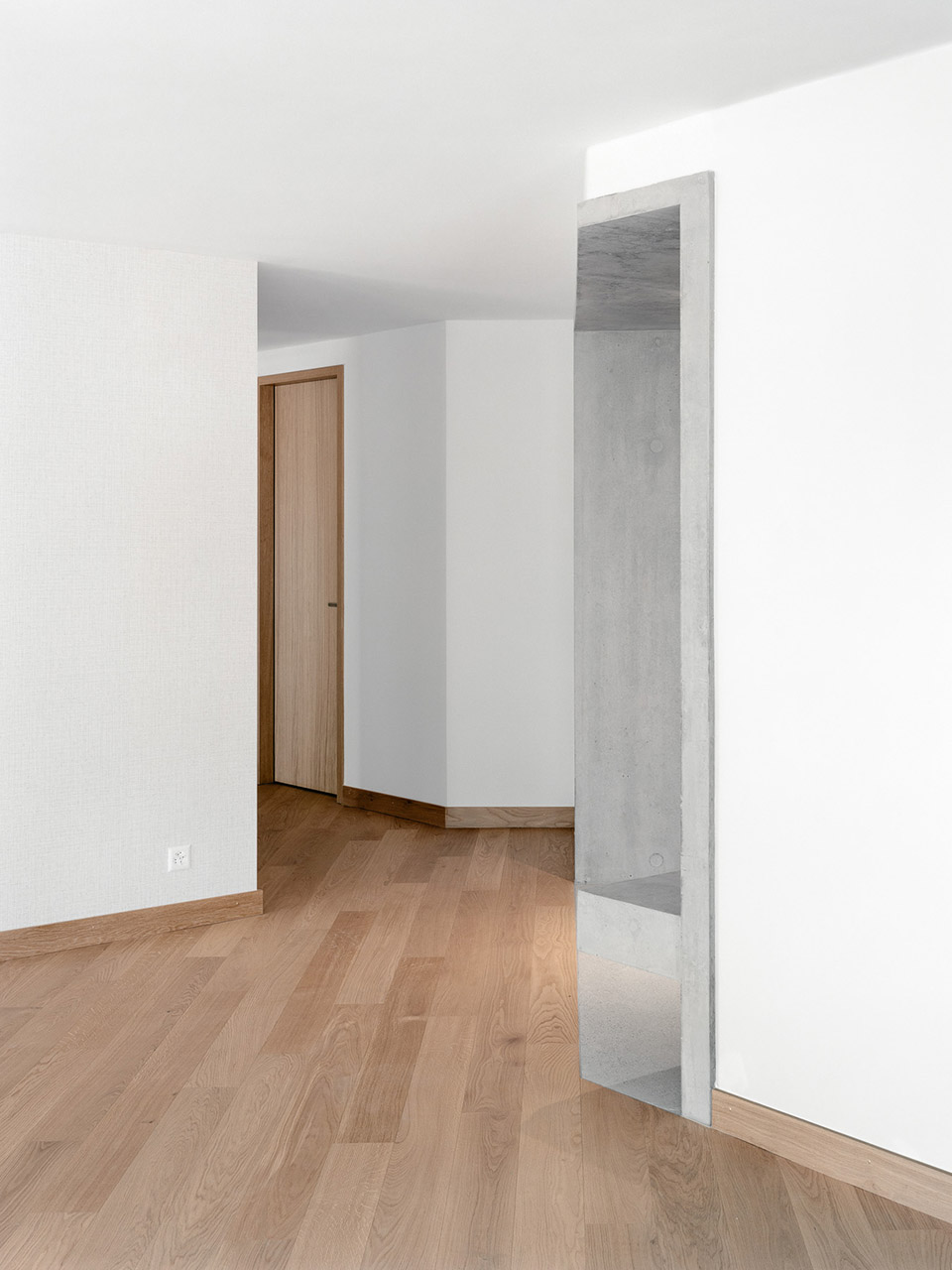

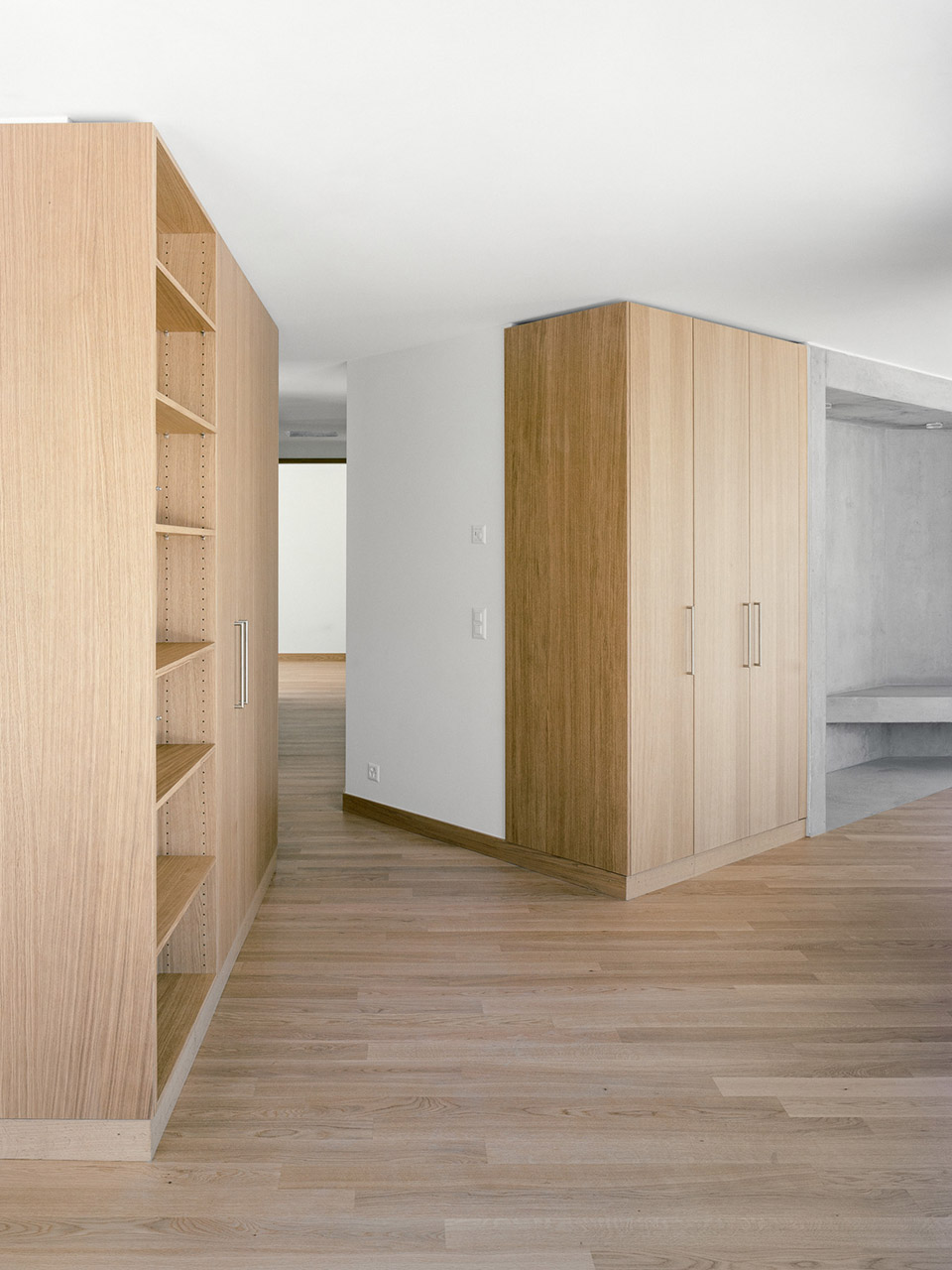

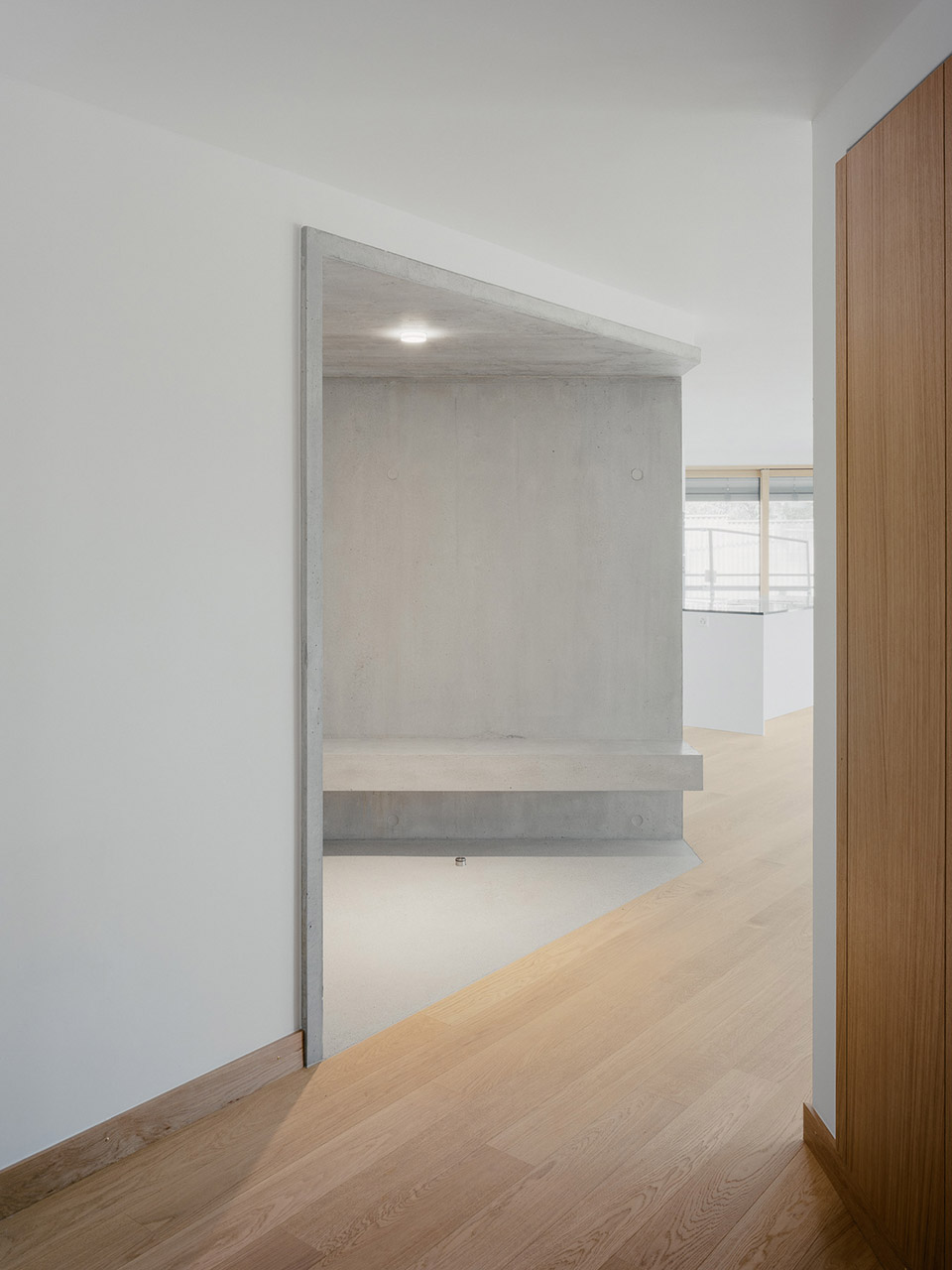

▼玄关处设计，threshold design ©Olivier di Giambattista

▼玄关处设计，threshold design ©Olivier di Giambattista

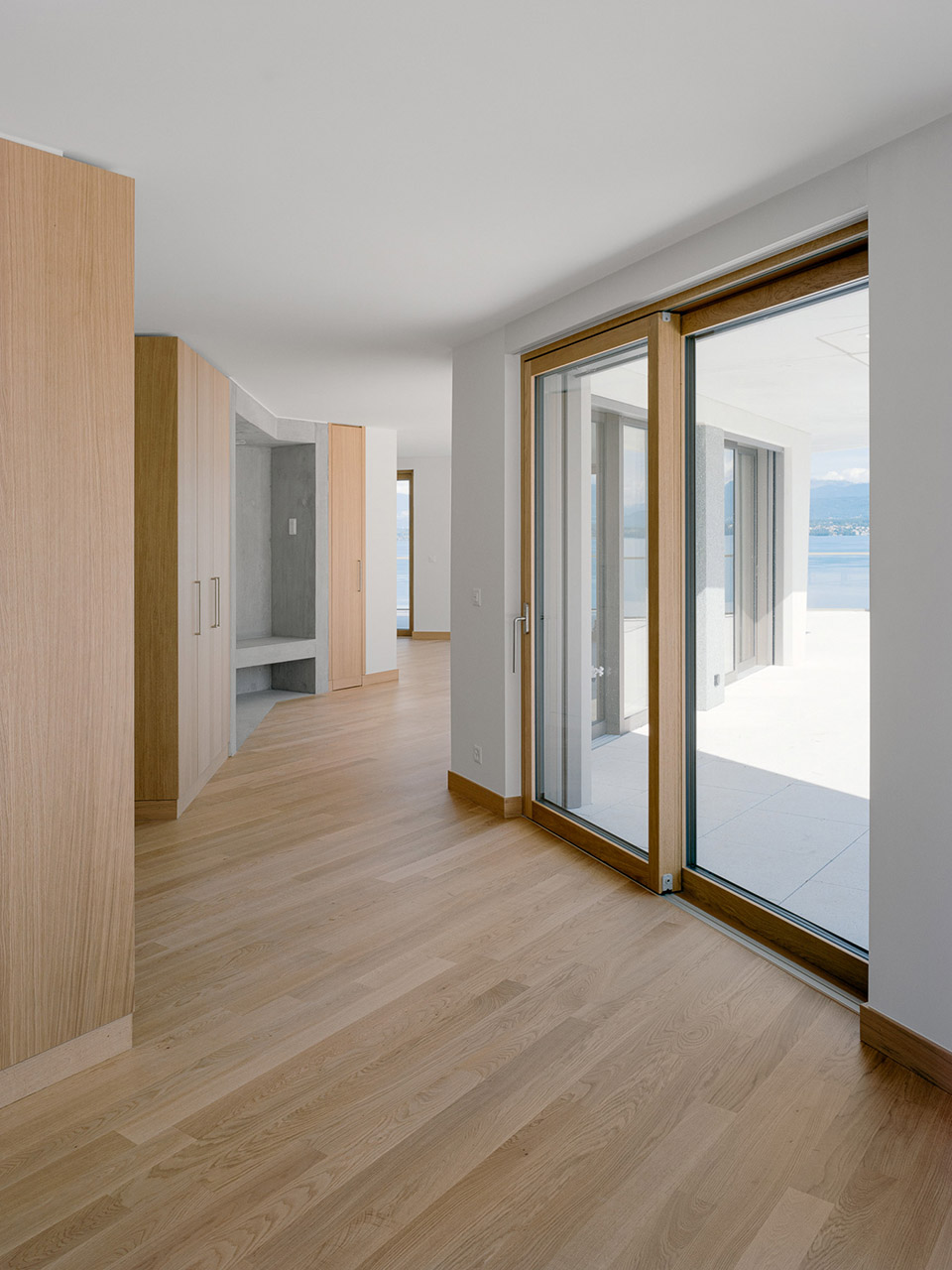

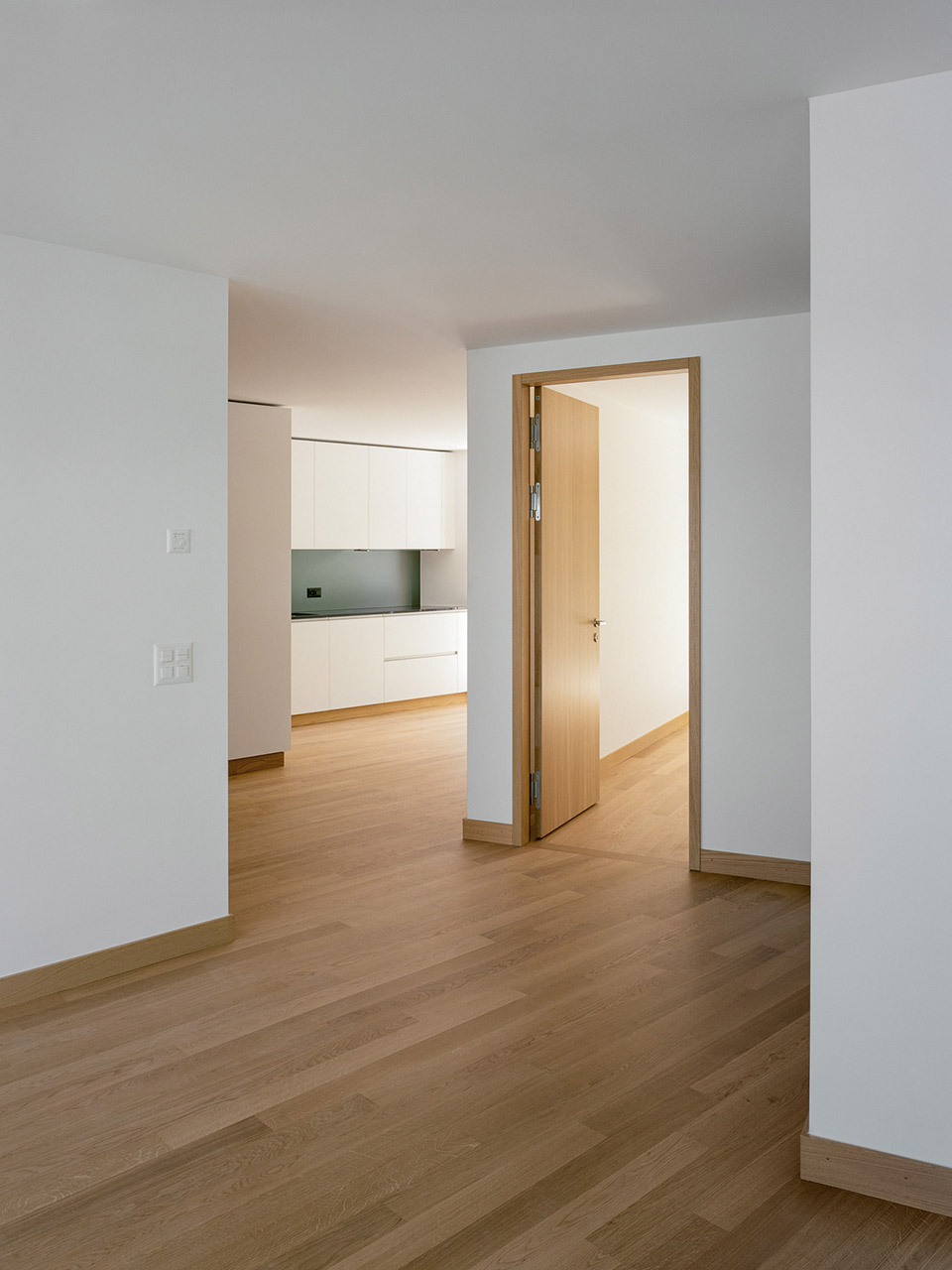

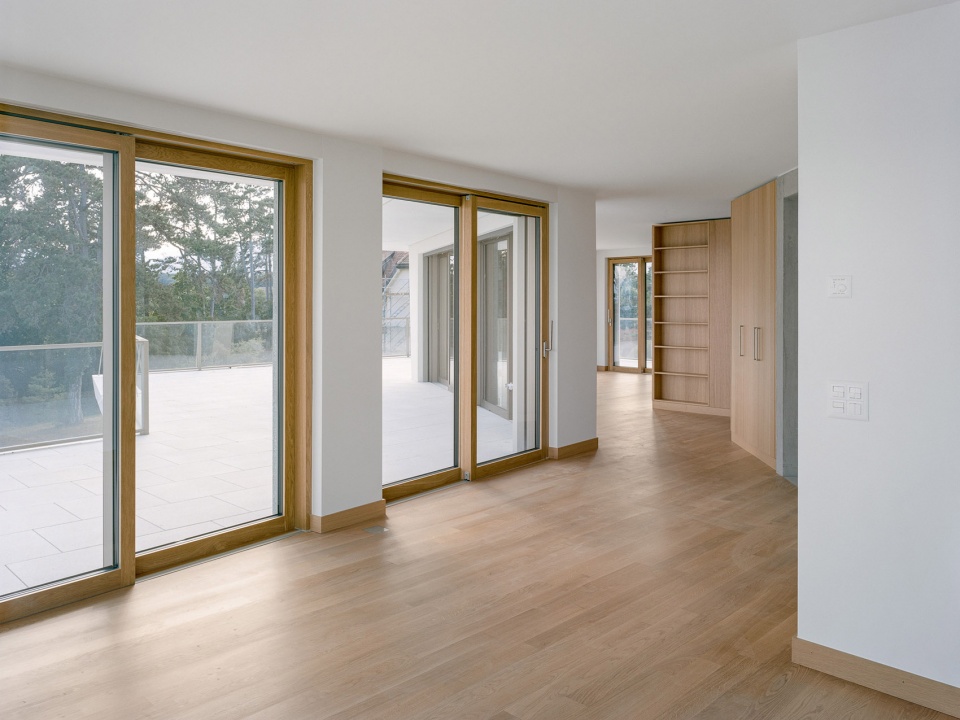

▼力求解放空间的自由度，free the floor plan ©Olivier di Giambattista

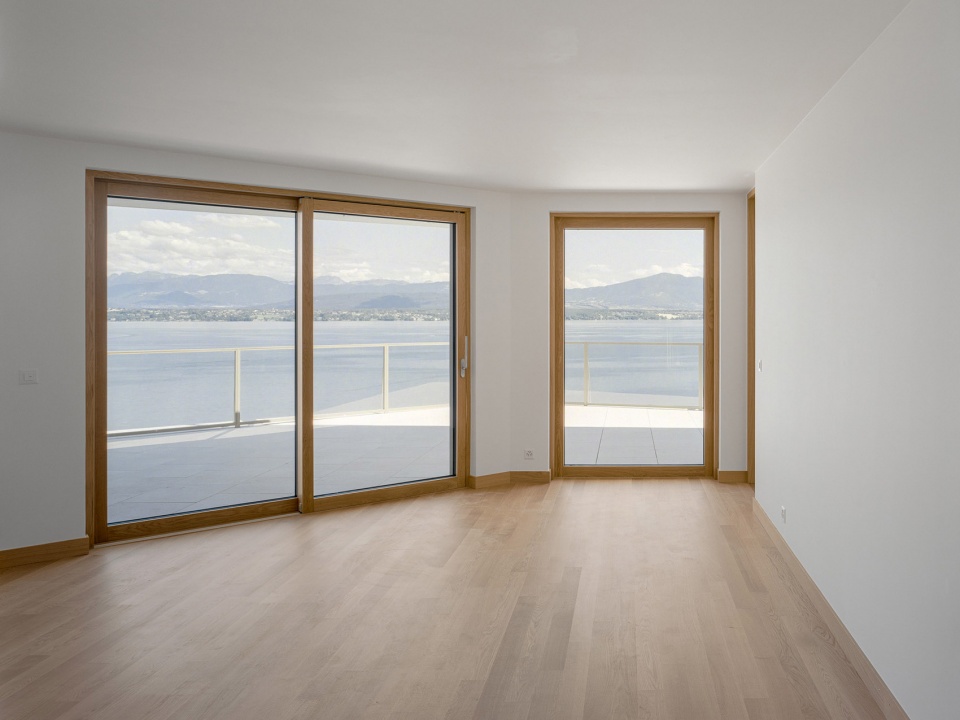

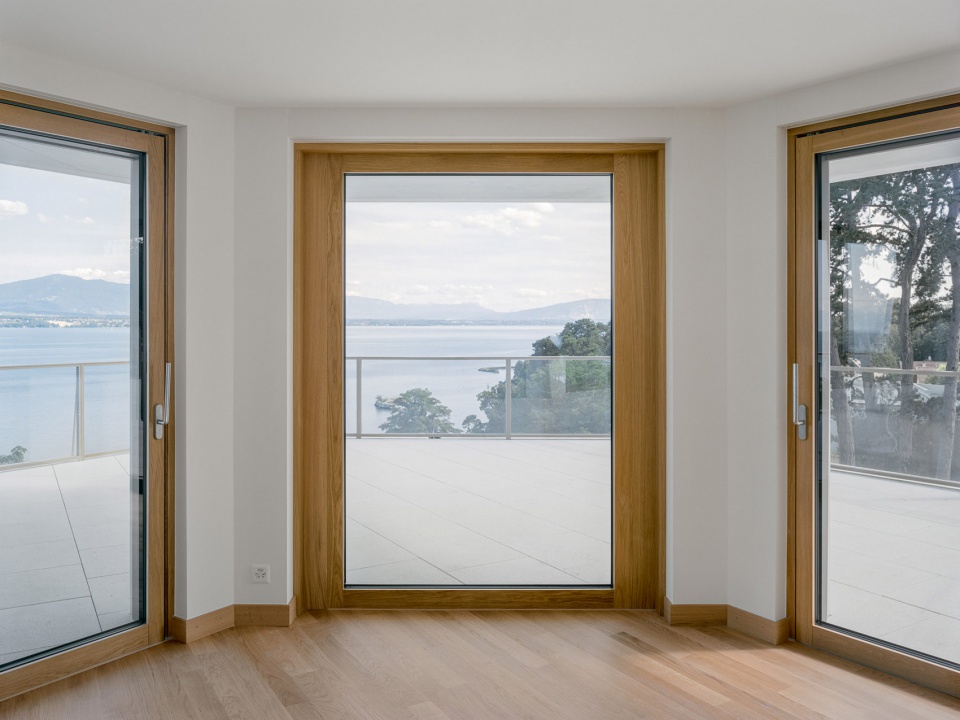

▼面向湖景的空间，facing the lake view ©Olivier di Giambattista

▼折线型空间，Folded space ©Olivier di Giambattista

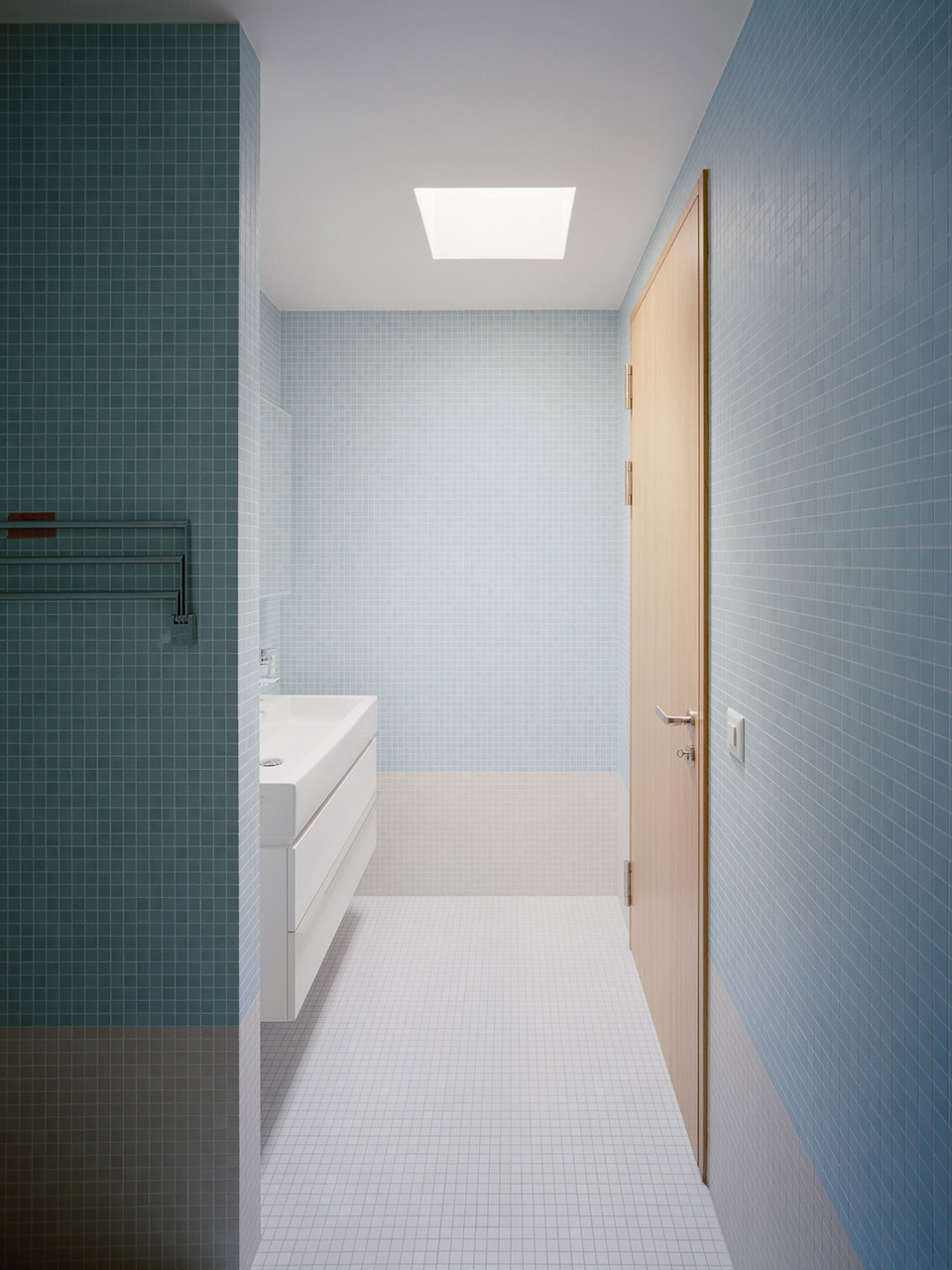

▼浴室，bathroom ©Olivier di Giambattista

在湖边，混凝土板从支撑它们的拱廊结构中延伸出来，形成宽敞的露台阳台。每个阳台面都由这一坚固的结构框架所包围。绿色预制混凝土元素进一步加强了这些拱形结构的效果，映衬着周围郁郁葱葱的自然环境。

On the lake side, concrete slabs jut out from the arcade structure that supports them, creating spacious terrace balconies. Each facet is framed by this strong structure. Green prefabricated concrete elements produce the effect of enlarging these arches and reflect the lush green environment of the area.

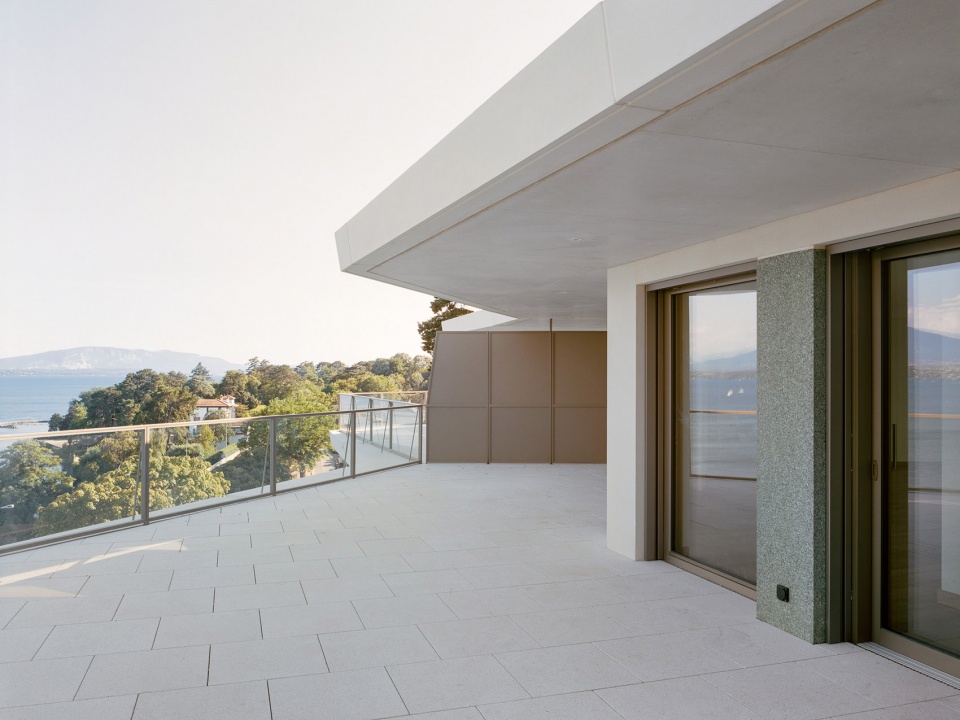

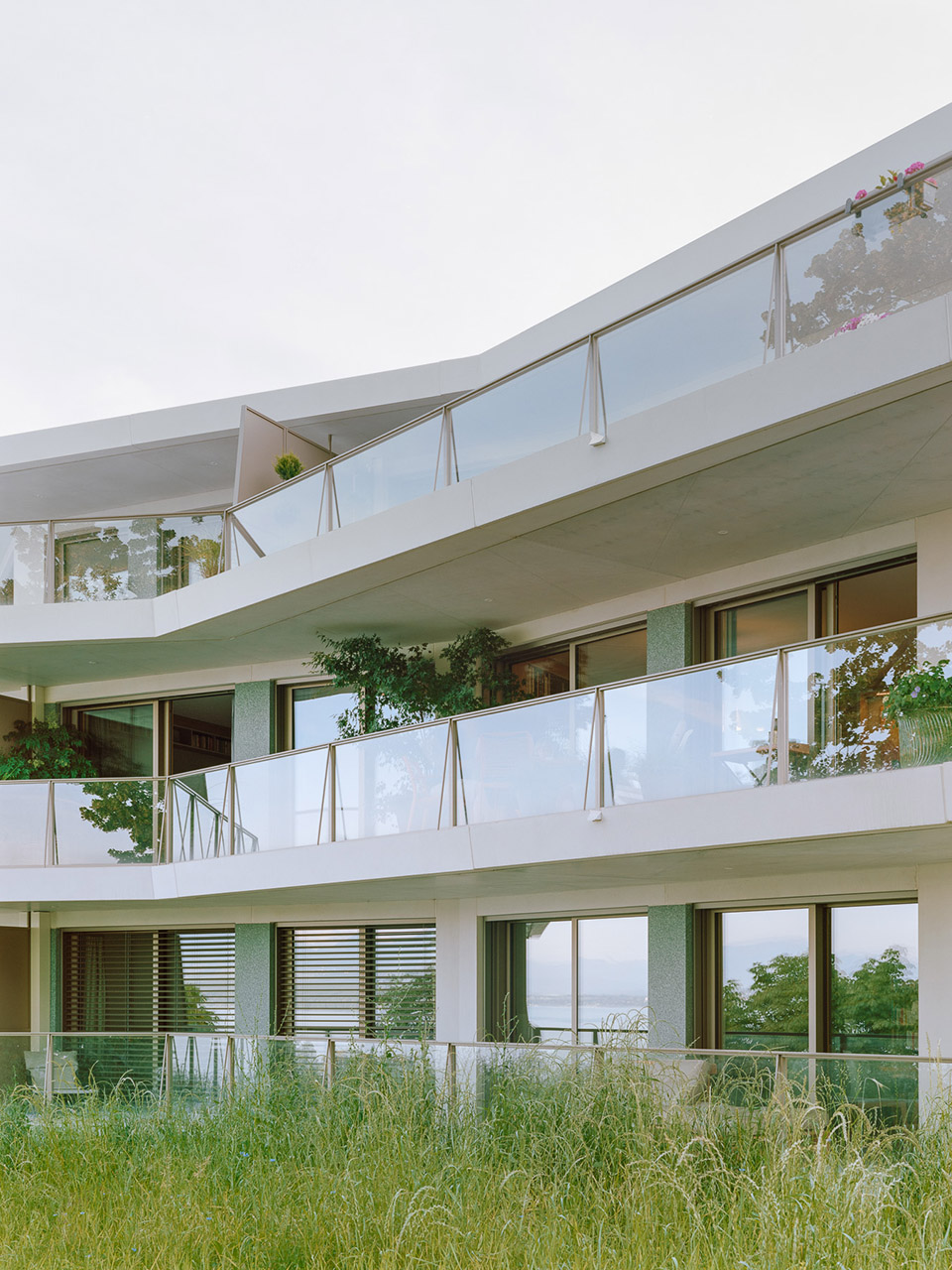

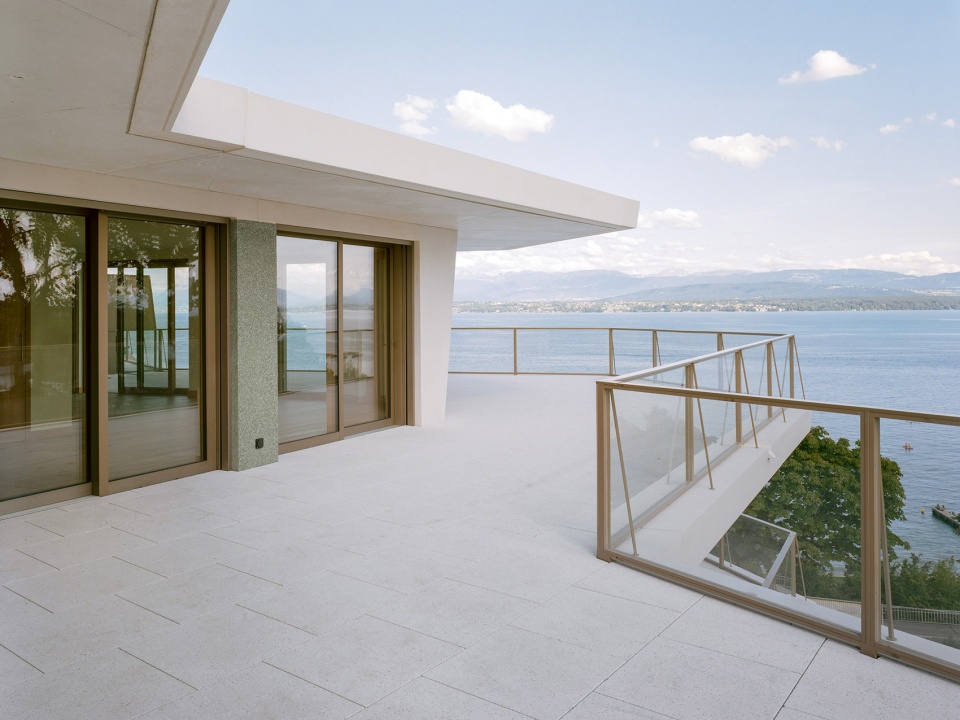

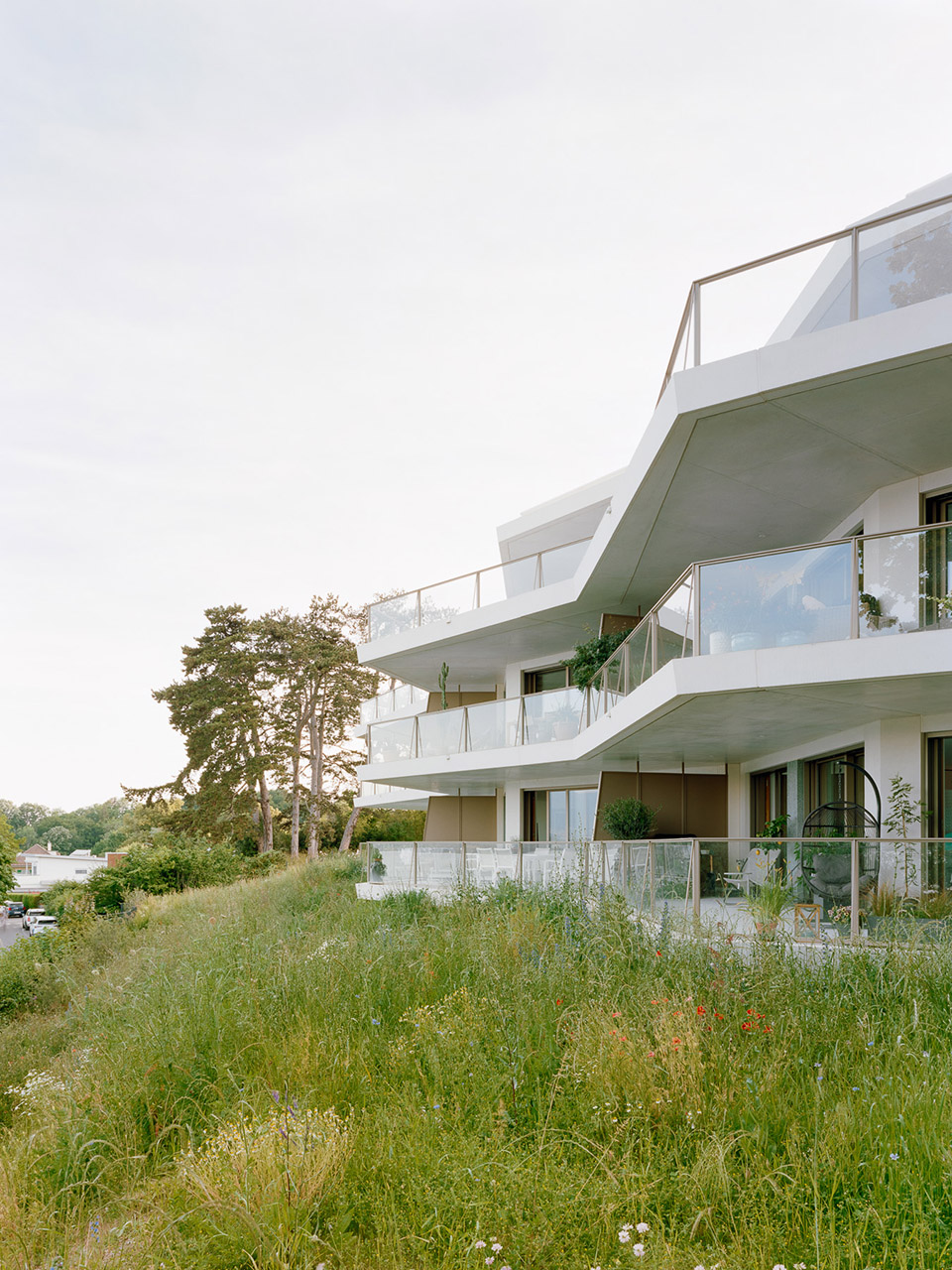

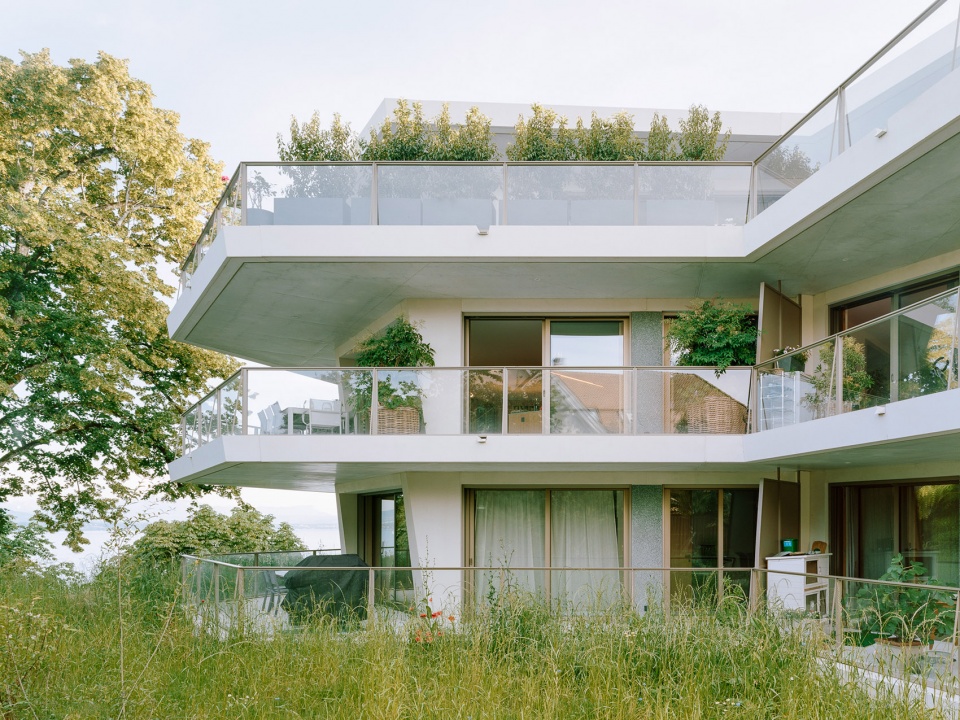

▼宽敞的露台阳台，spacious terrace balconies ©Olivier di Giambattista

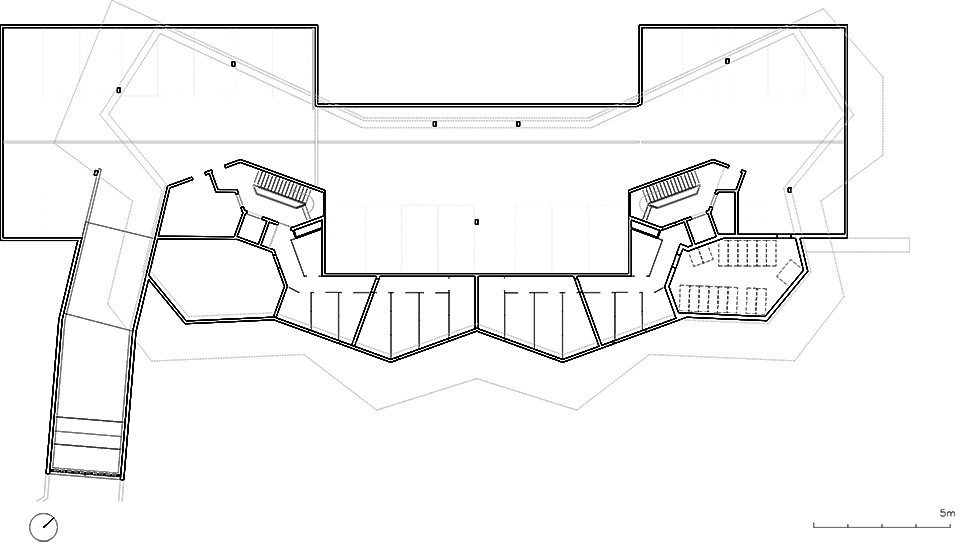

▼地下室平面，basement plan ©Lacroix Chessex

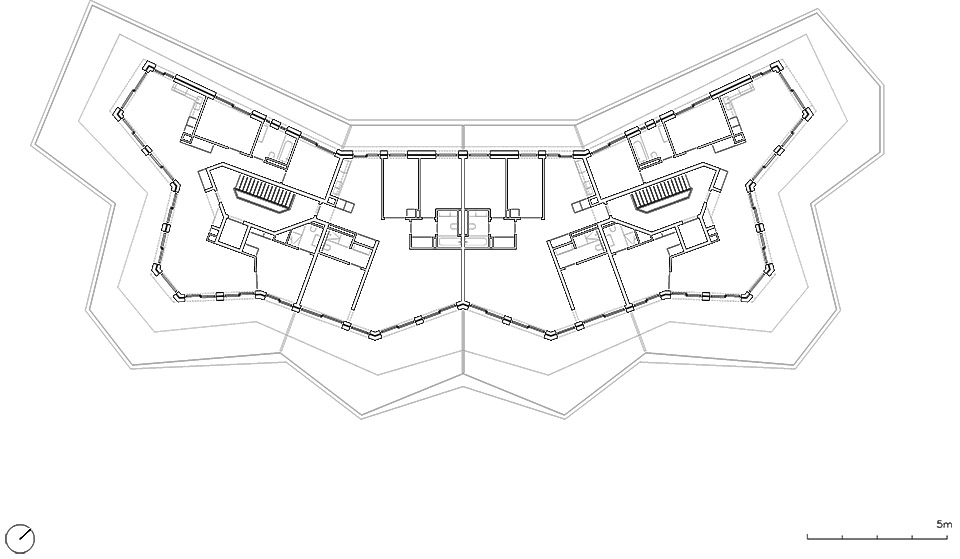

▼公寓平面2，apartment plan 2 ©Lacroix Chessex

▼公寓平面3，apartment plan 3 ©Lacroix Chessex

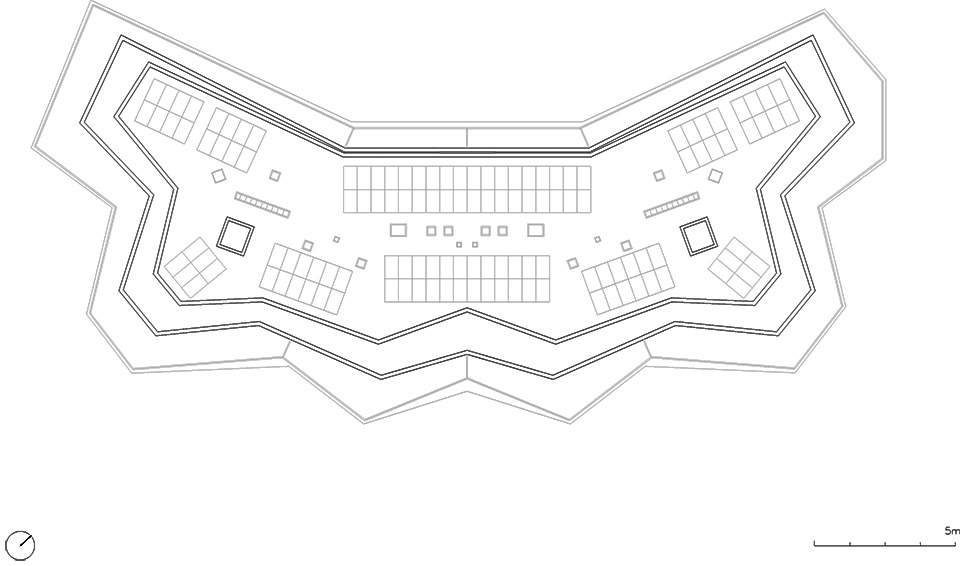

▼屋顶平面，roof plan ©Lacroix Chessex

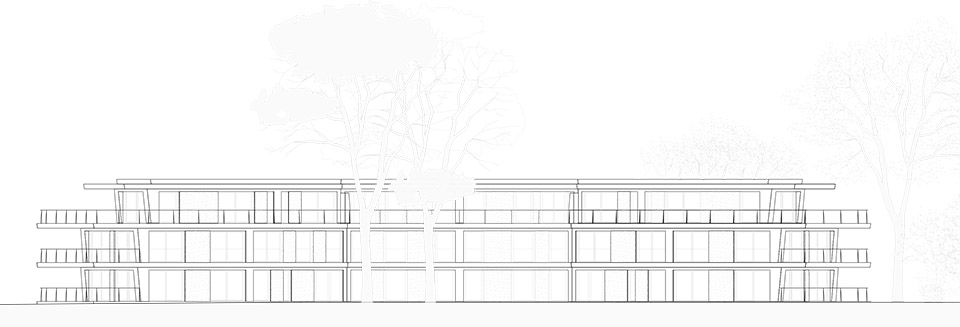

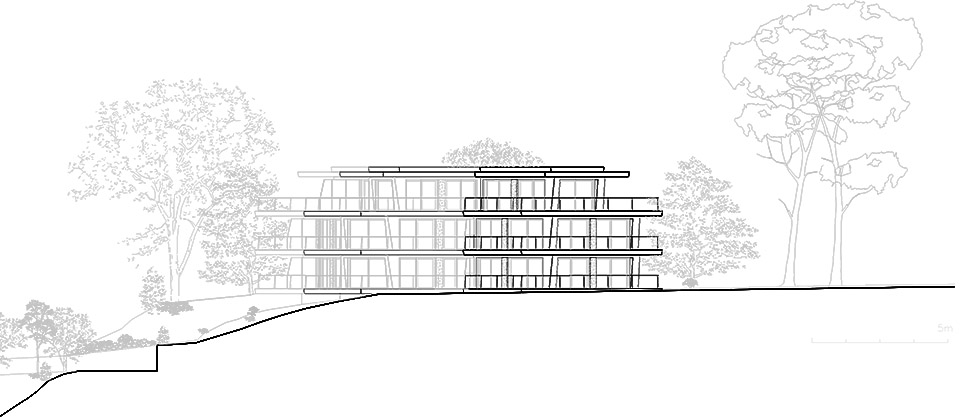

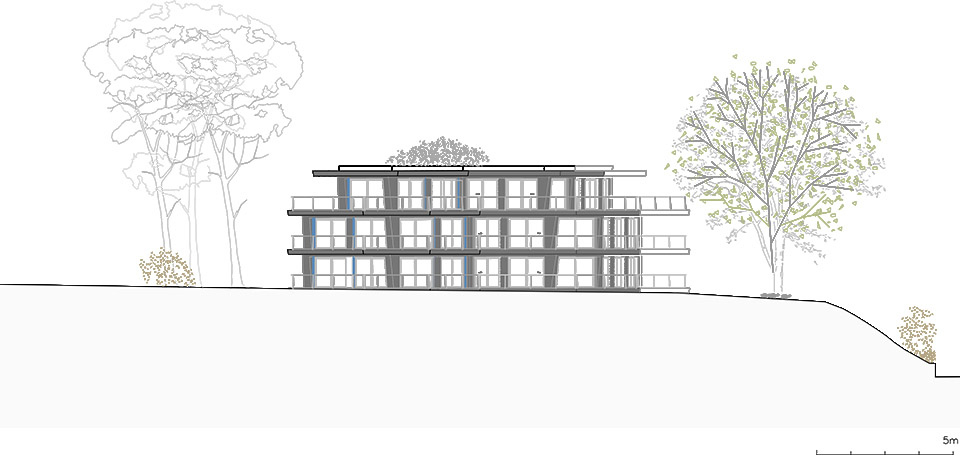

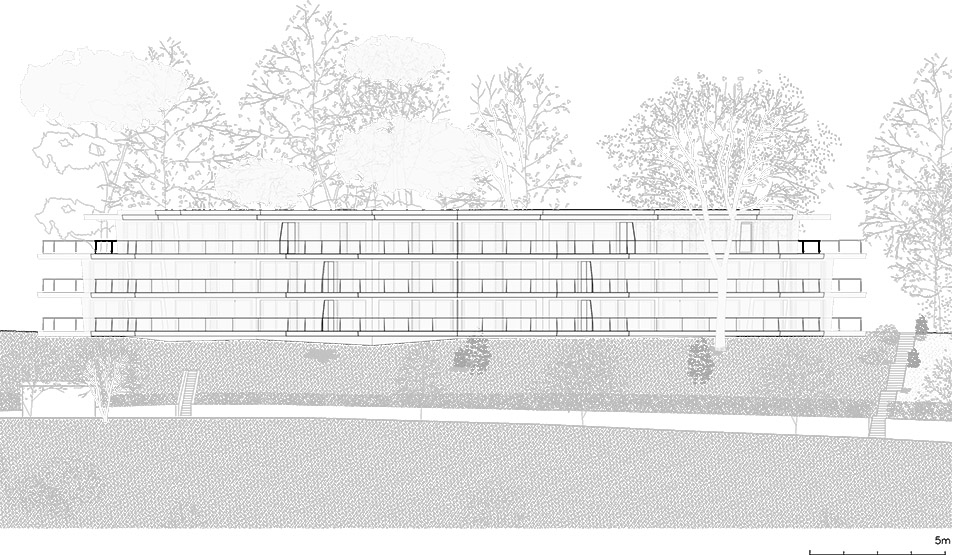

▼立面，elevation ©Lacroix Chessex

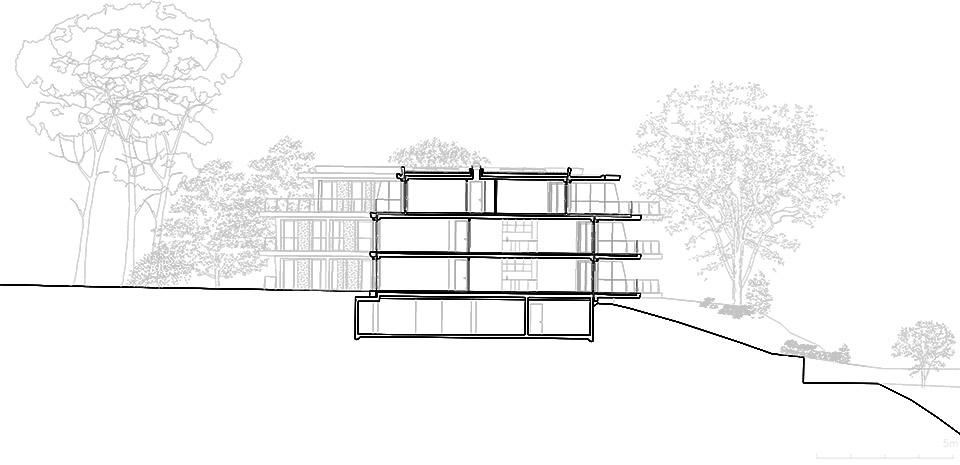

▼剖面，section ©Lacroix Chessex

Location: Chemin de la Croisette 8, 1260 Nyon
Date: 2018 – 2023
Type: Mandat direct
Client: Halter SA
Collaborators: Dan Relecom, Grégoire Martin

More: Lacroix Chessex，更多关于：Lacroix Chessex on gooood
