来自PERIPHERIQUES Architectes对gooood的分享。更多关于他们：PERIPHERIQUES Architectes on gooood。
Appreciation towards PERIPHERIQUES Architectes for providing the following description:

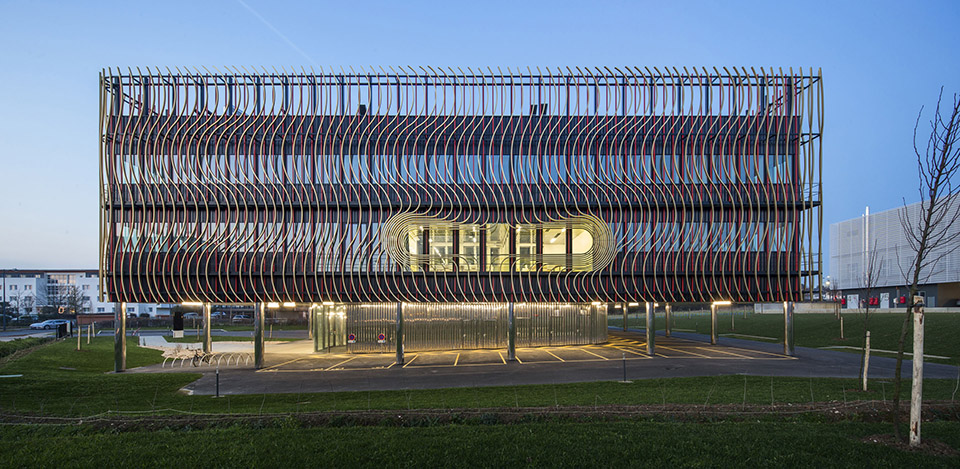

这是一个中心有大四边形天井，周身包裹金属竖条外表皮的生物科技企业孵化器。
建筑师给外表皮竖向条纹赋予了动感波动，局部区域还有明显变化，最终整个表皮拥有了俏皮而有机的风格，同时这也意喻着生物DNA与纳米技术等有机技术的奥妙无穷。

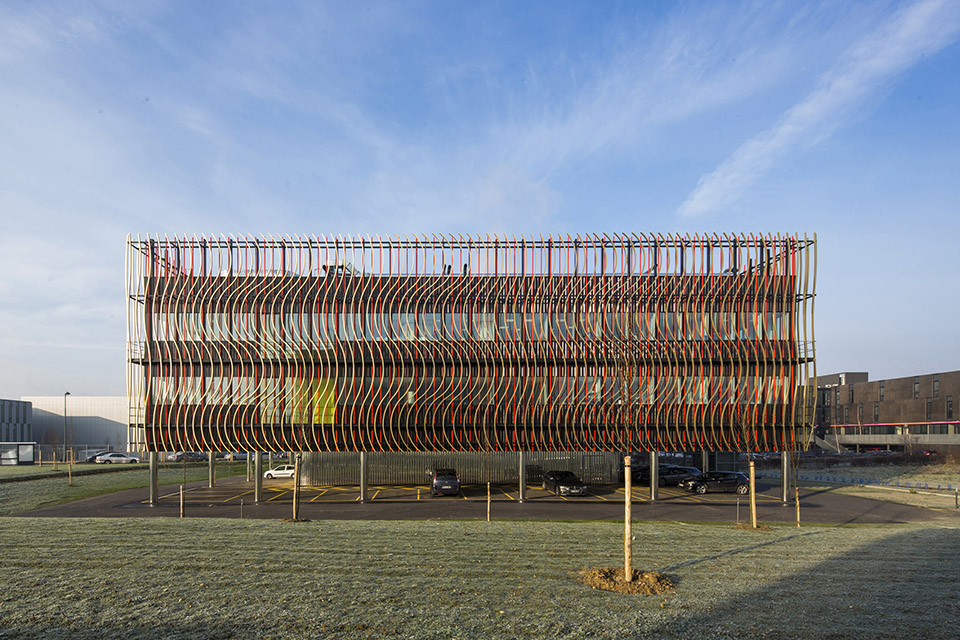

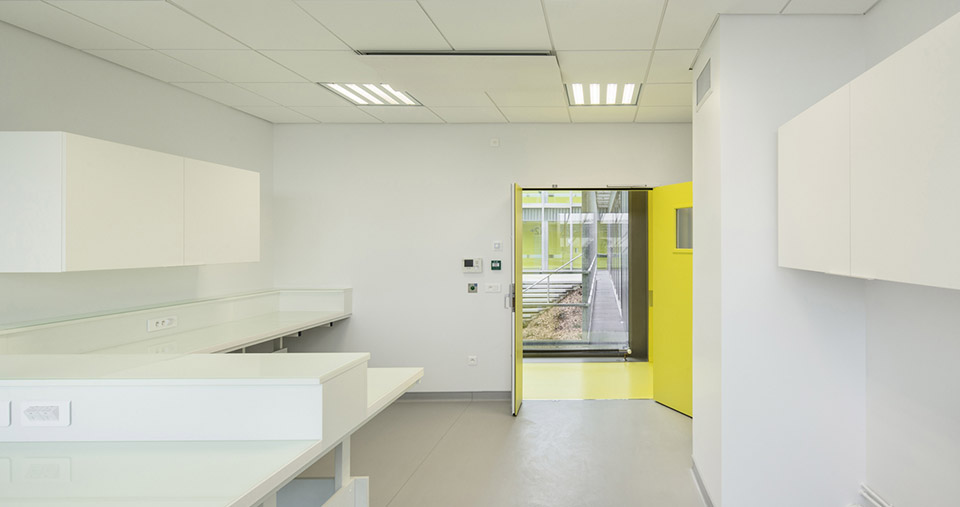

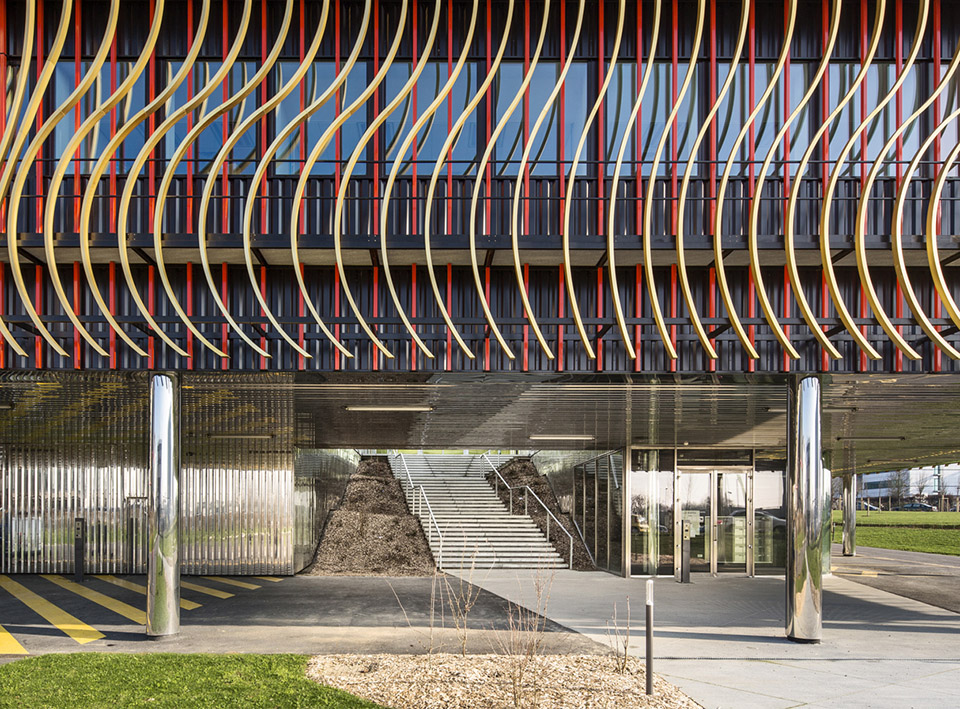

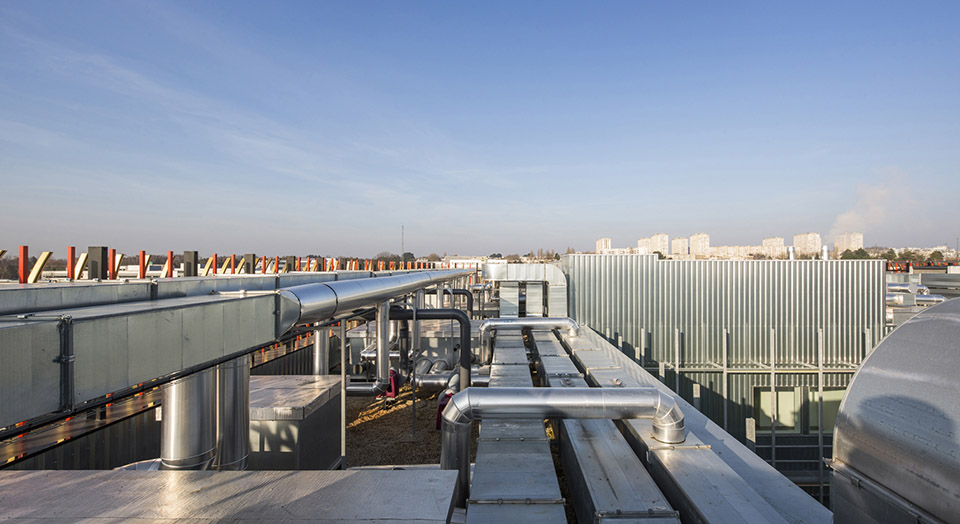

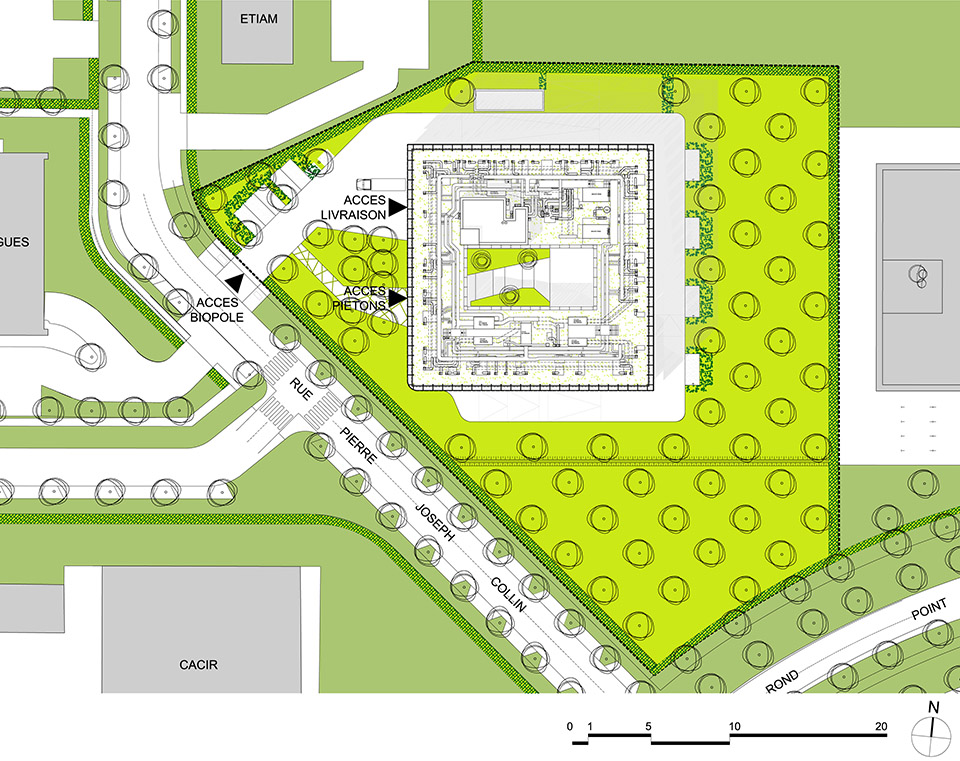

建筑底部周圈被挑空，作为停车用地，而周边的场地用来种植更多地绿化，人们从底层灰空间上楼梯到达位于二层的天井庭院。建筑内与外的绿化关系由此串联。精心设定的柱网结构间距支持灵活的室内装修。因行业的特殊情况，增设实验室功能，并有高标准的通风设备。建筑各专业设备管线屋顶暴露交集。

The side that we have taken in the urban implantation as well as in the architectural expression consists in an large quadrangle around an atrium-patio. The ambivalent need to create a program preserving the confidentiality of the companies and in the same time providing a good façade isolation leads to a sort of a « fortified » architecture which is being quite the opposite of the desired convivial working space.

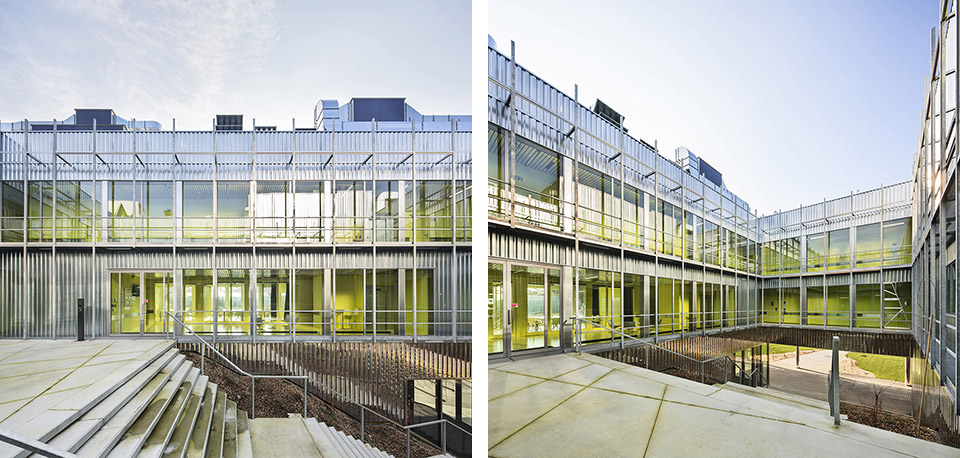

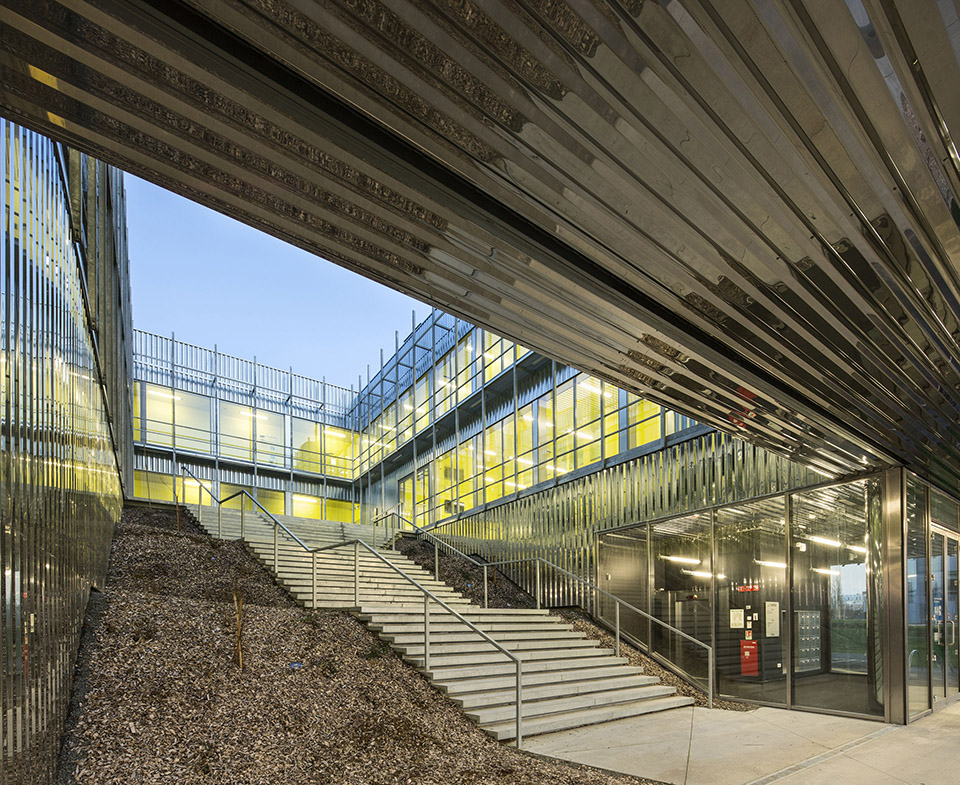

We have got around this obstacle by proposing an organisation around a partially planted atrium situated on the first floor. Given the good orientation, this space would be at the same time an access, a space to relax and an opening to the reception. A large staircase partially planted links it to the ground floor plan and to the parking. This patio is the reference space of our project.On the exterior, the façade is covered by a protection and filtering architectural envelope . The sinusoidal stiles forme a sensitive, thick skin that is also a canopy. The gap created in superposition of the sinusoidal timber frame with the vertical stiles of the passageways produces a dynamic watering effect.

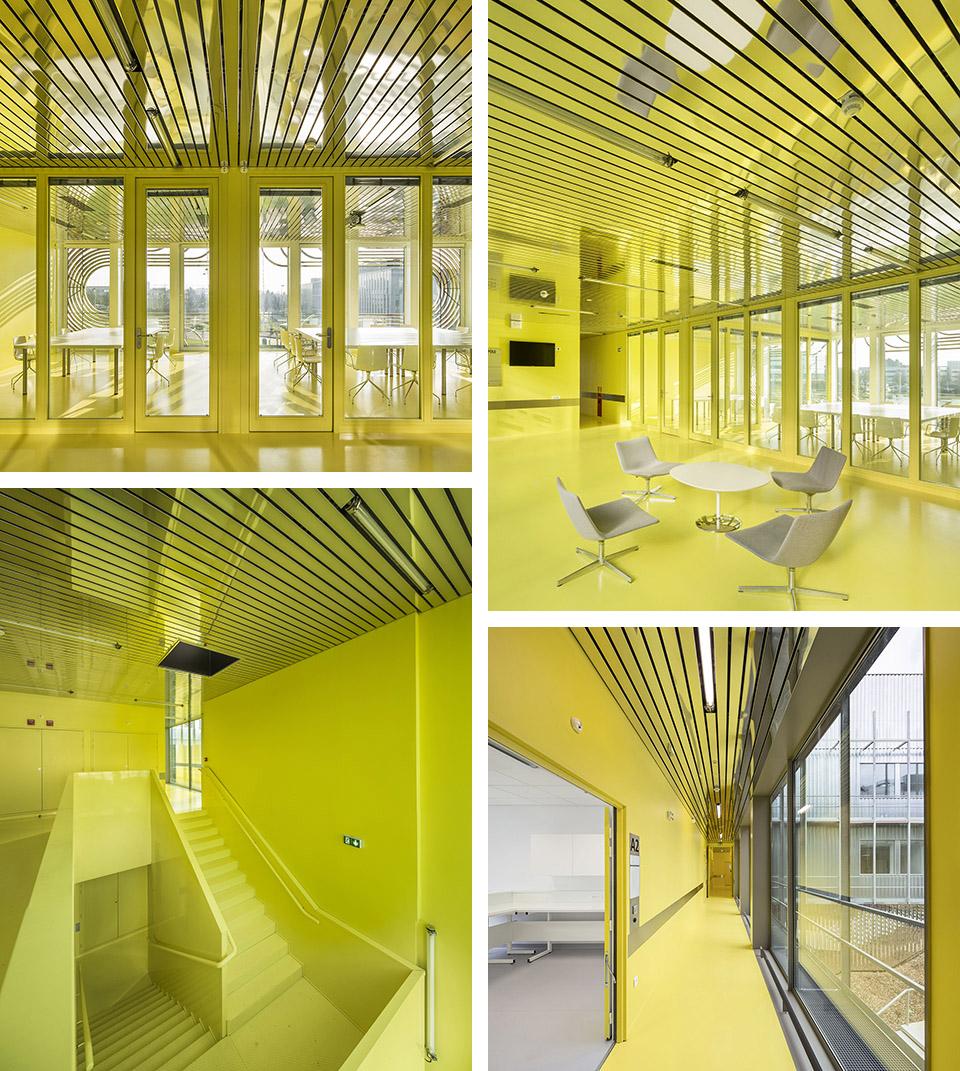

The Biopôle consists in two noble levels and a technical terrasse based in retreat, organised around the central lanscape atium.The interior fitting that we propose is totally fexible and rational. The building is based on a frame of 1m55 of spacing which determines the structure implantation, the façades, the subdivisions, etc… The project owes to be perfectly rational. Allied to the frame, the perfect square plan is controled in an annual disposition. This organisation allows a total flexibility in the interior fitting in the service of the young companies in creation phase.

FACADES – MATERIALITIES

The ordering of the facades is in repetitive frame corresponding to a constructive rationality applied to the whole operation.

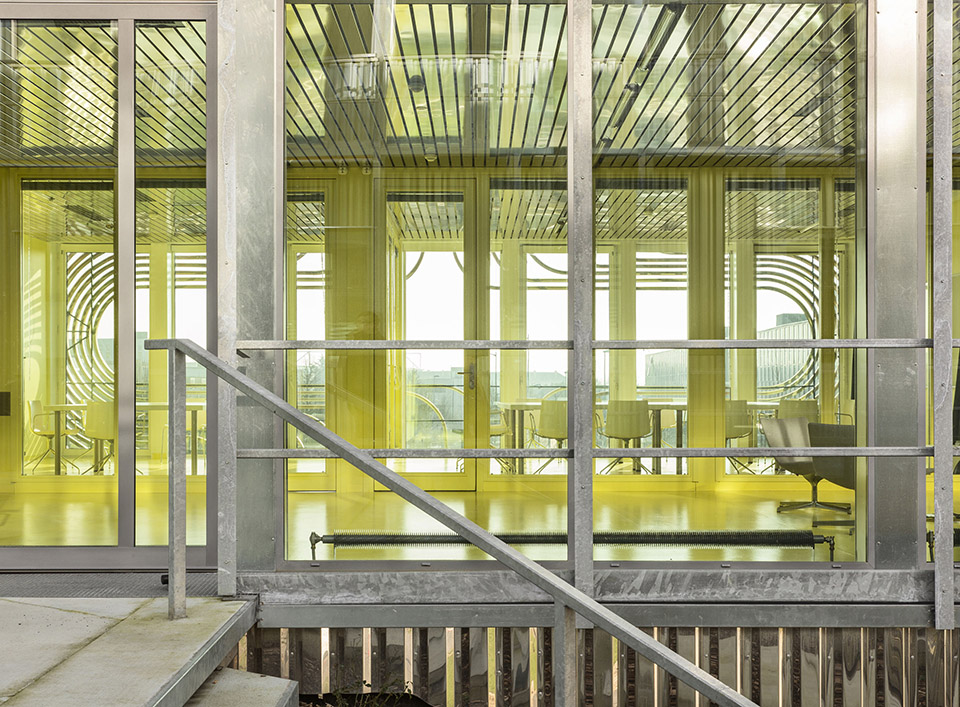

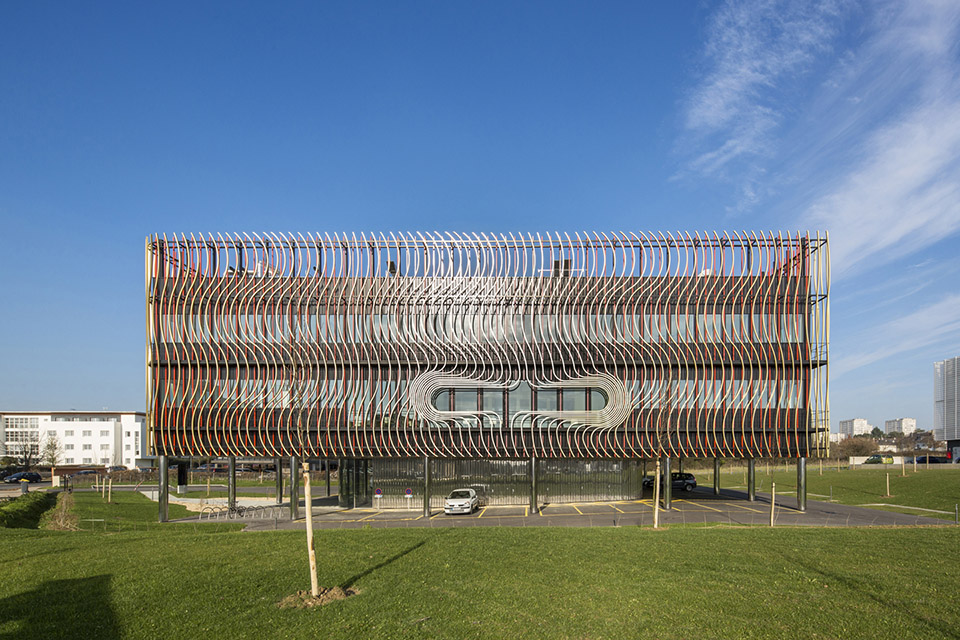

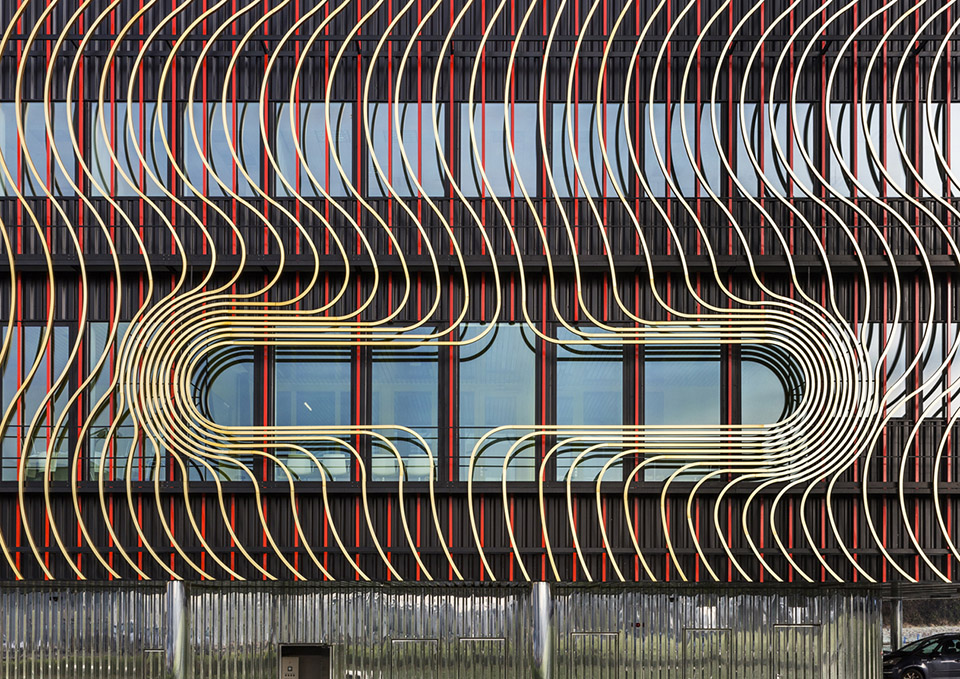

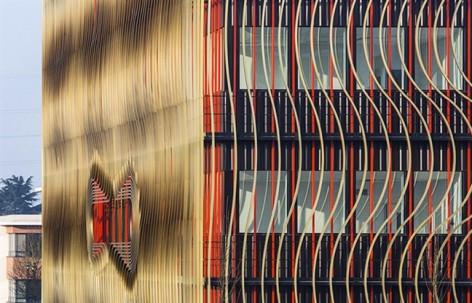

On the exterior, the façade is covered by a protection and filtering architectural envelope. The sinusoidal stiles create a sensitive, thick skin that is also a canopy. These sinusoidal stiles are supported on a maintenance passageway (1,20m width) positioned in front of a glass facade.

These tight passageways between the compartments of the diverse companies are at the same time a system of sun protection and the place of maintenance of facades.

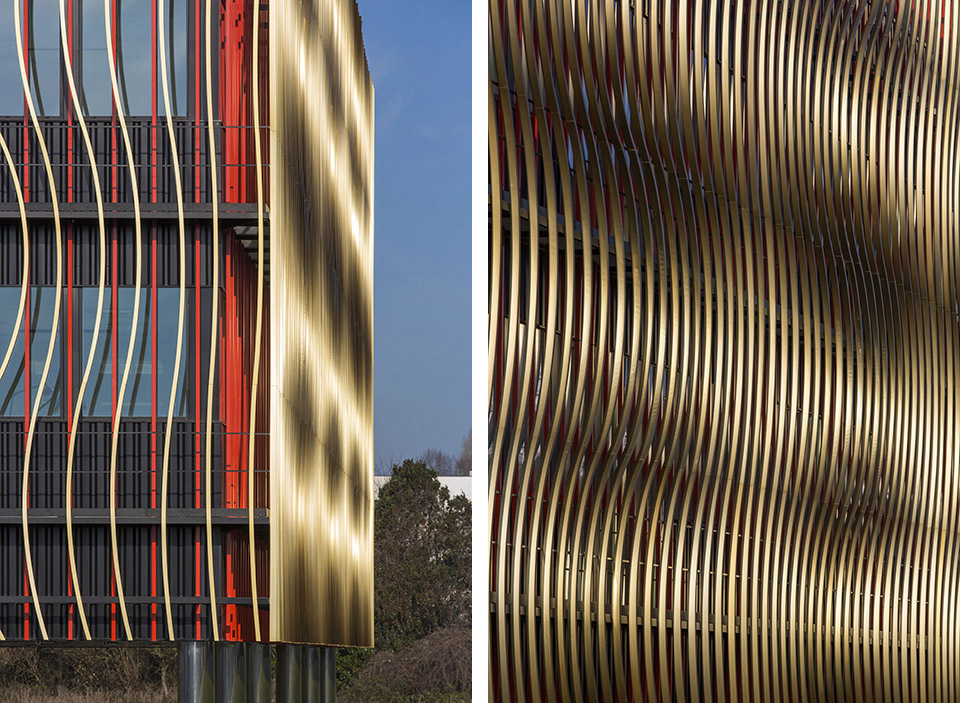

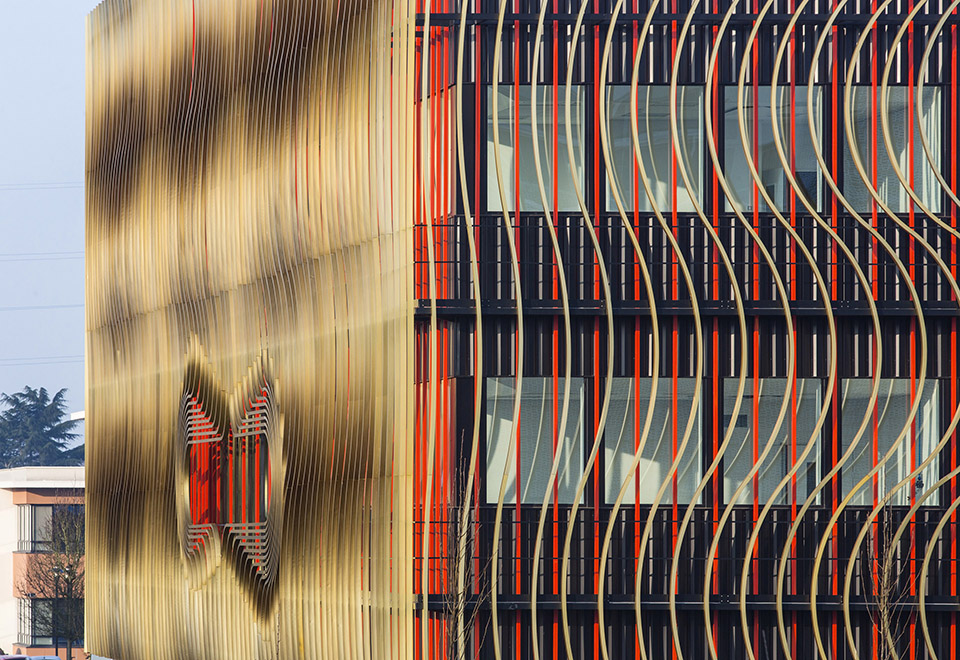

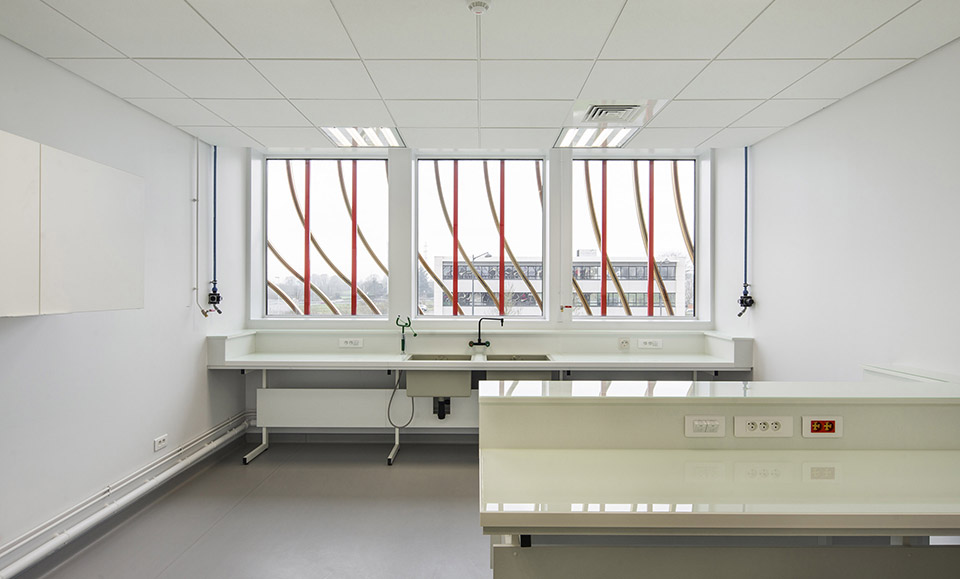

The gap created in superposition of the sinusoidal timber frame with the vertical stiles of the passageways produces a dynamic watering effect. . This spatial interference of these two regular frames associated with the treatment colored facades contribute to the particular and playful charecter of the project. From inside the laboratories, rhythms of vertical stiles was designed so as not to obstruct the view of users.

This mixture of organic curve and the rigor of the constructive frame evokes for us as much the mysteries of the representation of the DNA and the nanotechnology research or the organic surfaces of the biological bodies.

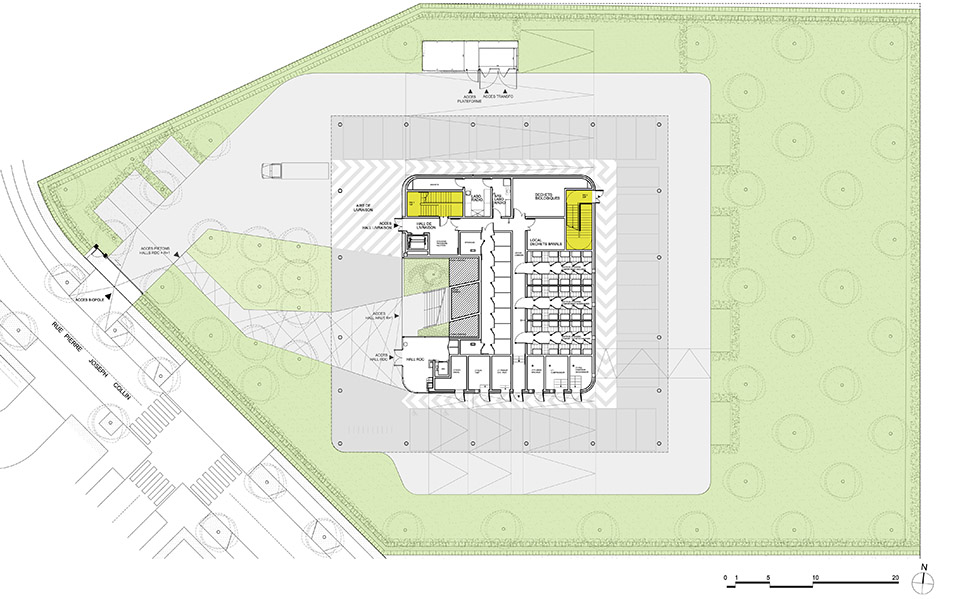

▼0-F

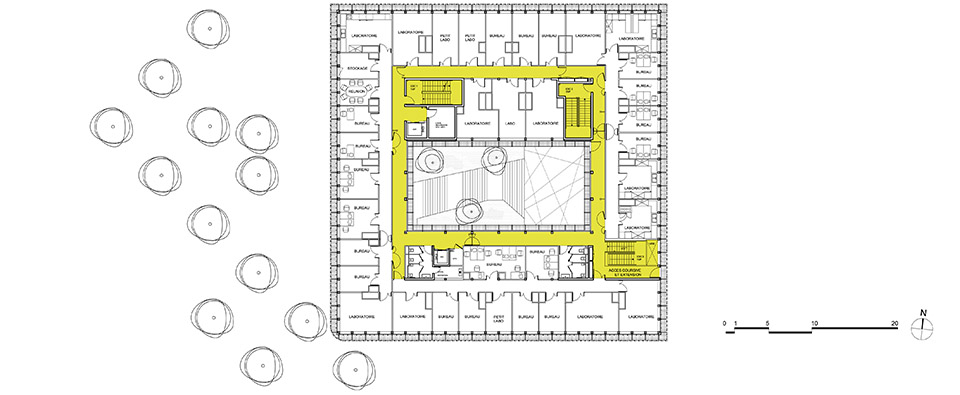

▼1-F

▼2-F

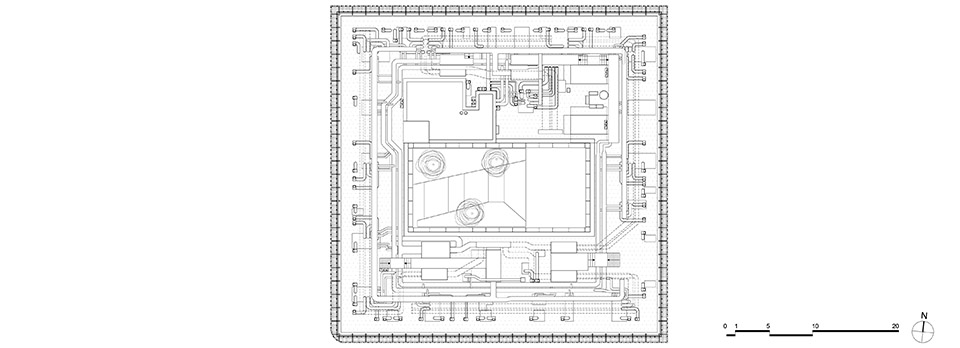

▼R-F

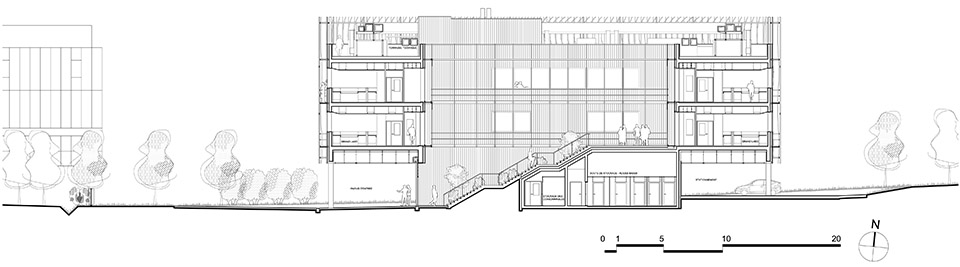

▼SECTION

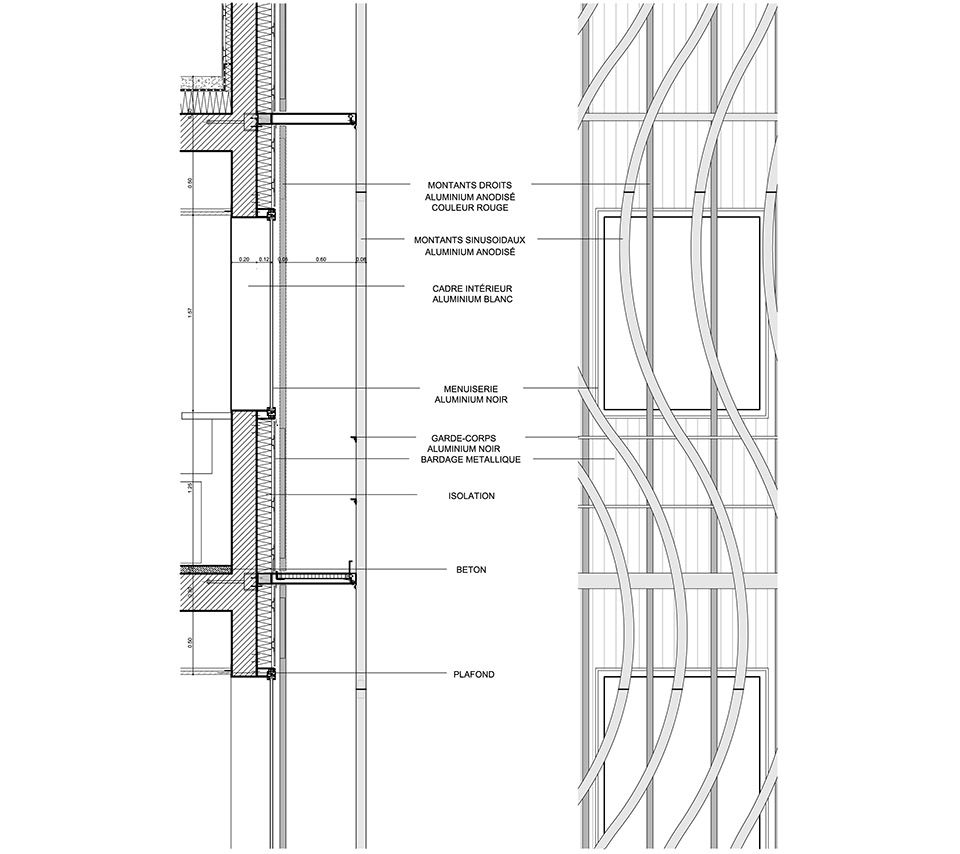

▼DETAILS ELEVATION

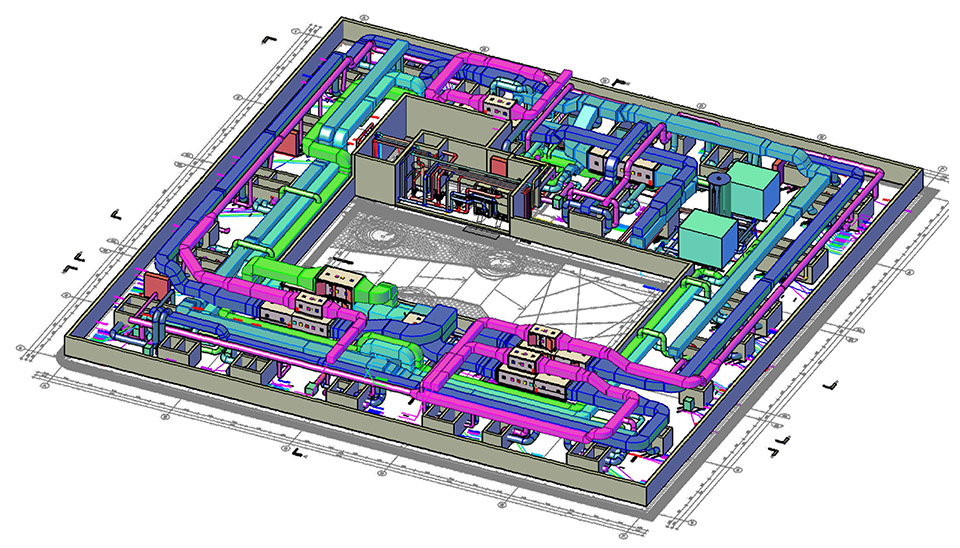

▼AXO ROOF

Area :               2730 m² SHON (net floor area)
Cost:   6M € not including VAT (value of 09/ 2014)
Calendar :  competition: October 2010
hand over:   October 2014
Adress : Site Atalante Champeaux
City : Rennes
County : 35
Architect: ERIPHERIQUES Architectes
Anne-Françoise Jumeau + Emmanuelle Marin + David Trottin
Project manager : Julie-Laure Anthonioz, Claire Gaudin et Stéphane Raza,
Site supervision : Antoine Roy ( mi+ro )
BET TCE, HQE: Egis Centre Ouest, agence Rennes
BET acoustique: Peutz et Associés
Images de synthèse concours: Autre Image
Photos : Luc Boegly
Client: Territoires & Développement, representative acting on behalf of Rennes Métropole
Program: Business incubator hosting biotechnological activities comprising laboratories and private offices with laboratories, logistic rooms and common tertiary sectors
