非常感谢 帕姆建筑（联系邮箱：miqiangqiang@pamdesignoffice.com）予gooood分享以下内容。更多关于他们：PaM Design Office on gooood
Appreciations towards PaM Design Office (contact: miqiangqiang@pamdesignoffice.com) for providing the following description:

项目背景
Background

“醍时”是一家涵盖了烧鸟、精酿与私宴的综合性餐厅，位于北京安定门大街239号。老旧的四合院与新生的店铺形成一个杂乱且包容的商业环境。

T TIME is a comprehensive restaurant with Yakitori, craft beer, and private dinning. It is located at 239 Andingmen Avenue in Beijing. The combination of the old courtyard and the new shops creates a chaotic yet inclusive commercial environment.

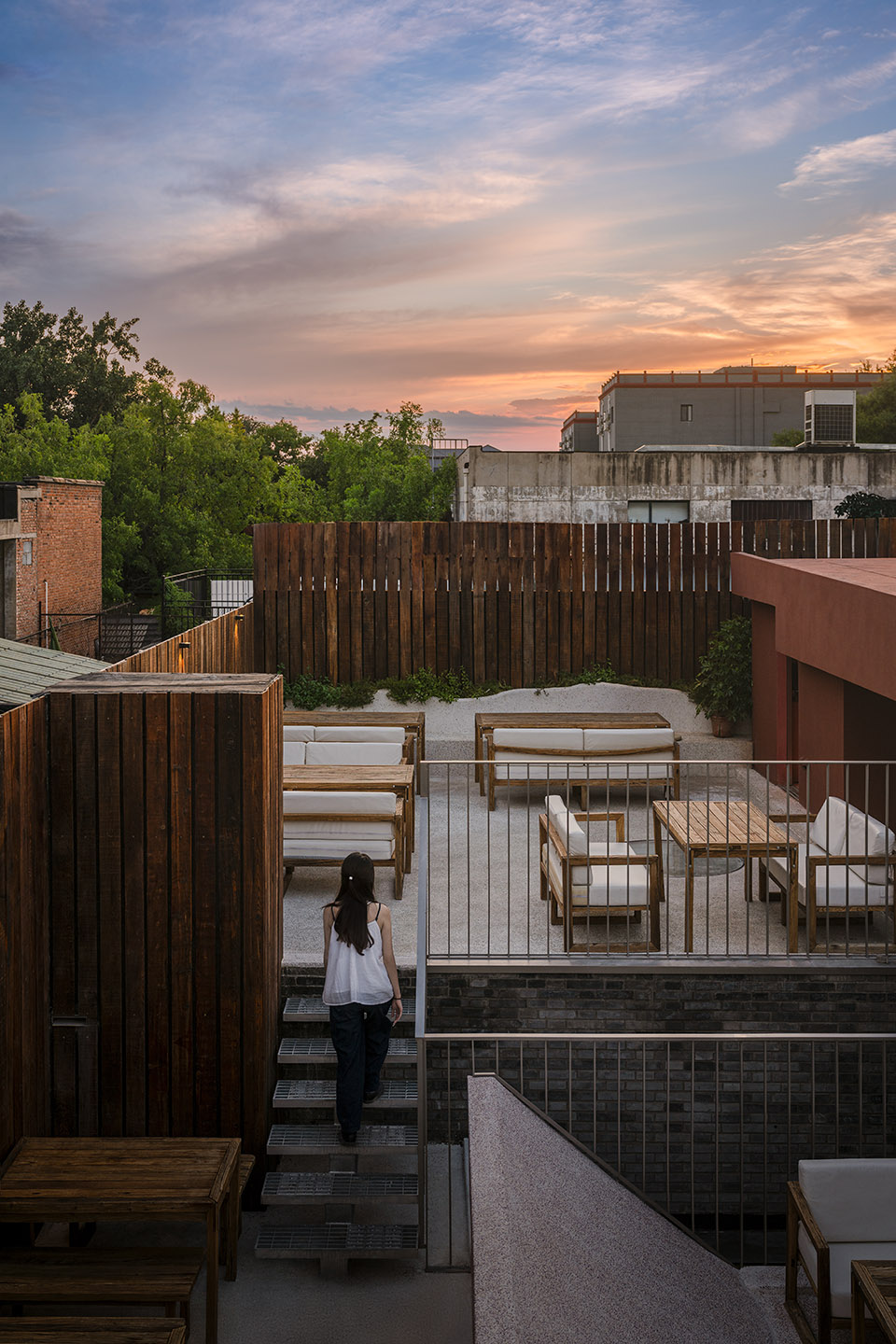

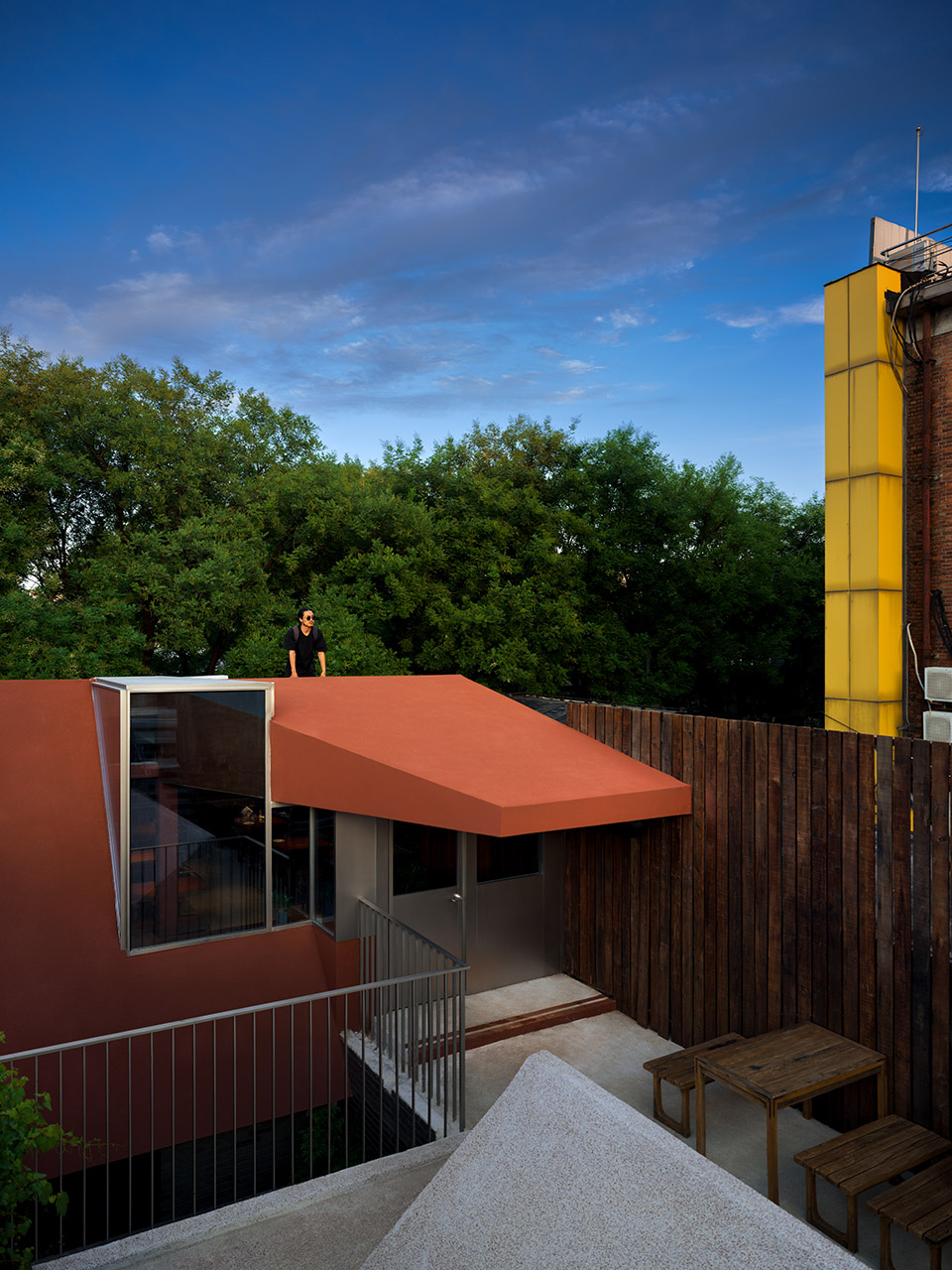

▼屋顶露台，Terrace on the second floor ©王宁

项目挑战
Challenges

客户在他已经把旧房子拆了一半新的坡屋顶之上加了一个大平顶之后，突然不知道怎么办了兜兜转转找到我们，提出了三大基本要求：满足餐位，一周之内方案确定，半个月之后开工。整体项目涉及新建，改造，室内以及露台。

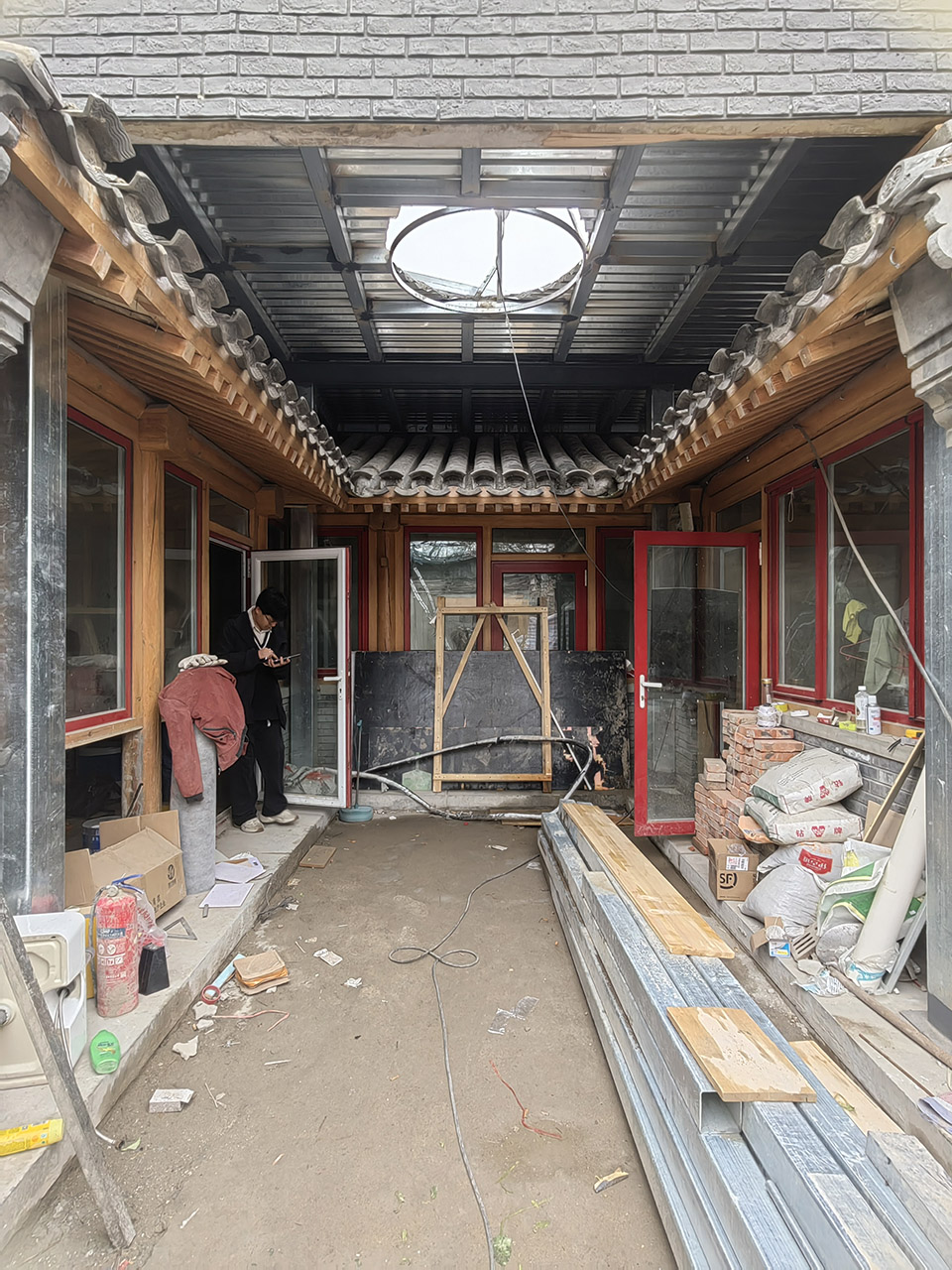

▼场地西侧已经被加盖大顶的四合院，
The courtyard (on the western side of the site)which has been added a large flat roof ©帕姆建筑

After the client had demolished half of the old house and added a large flat roof on top of the new sloping roof, they suddenly didn’t know what to do next. After some searching, they approached us with three basic requirements: seating capacity, a finalized plan within a week, and commencement of construction within two weeks. The overall project involves new construction, renovation, interior design and terrace design.

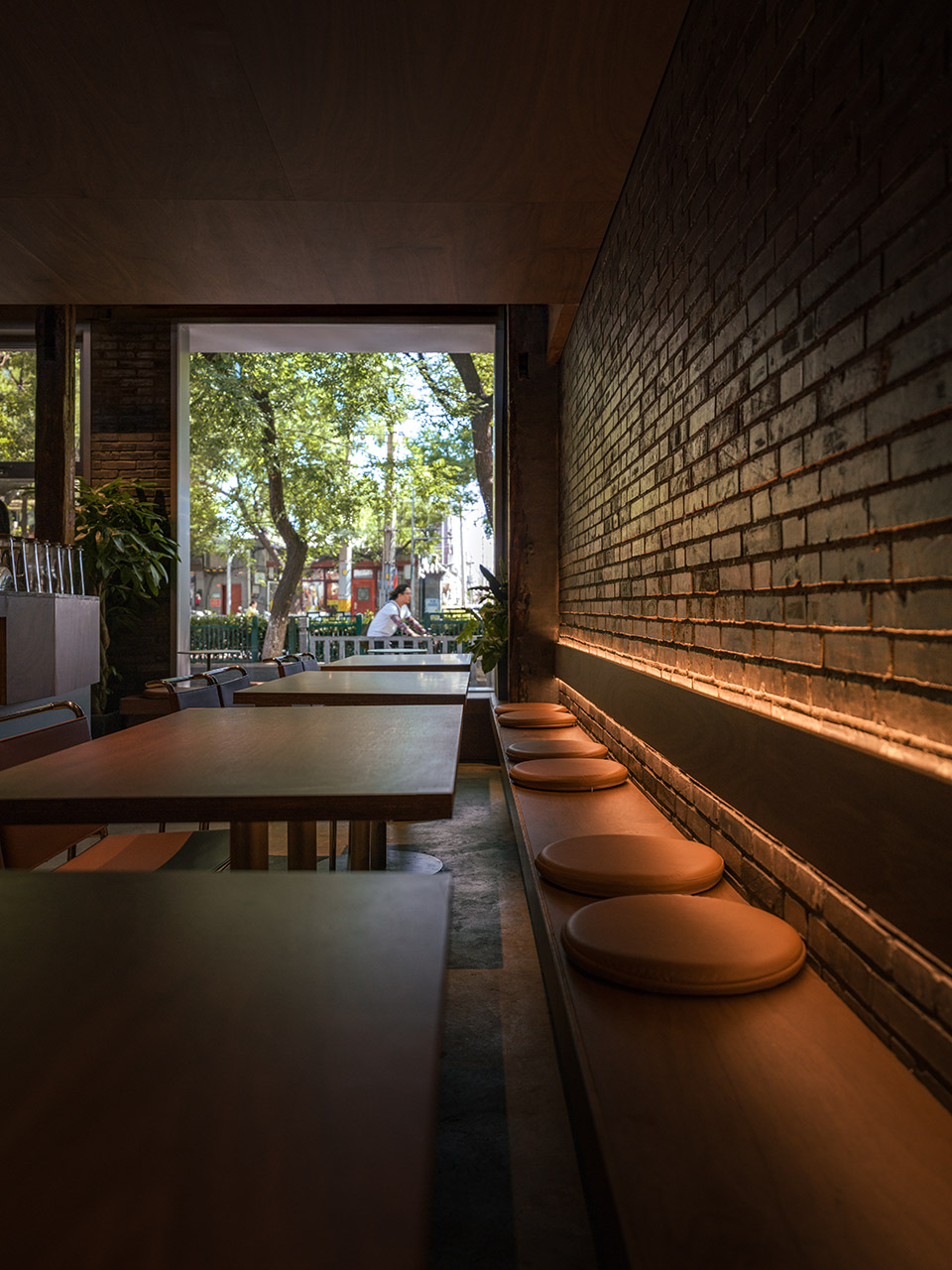

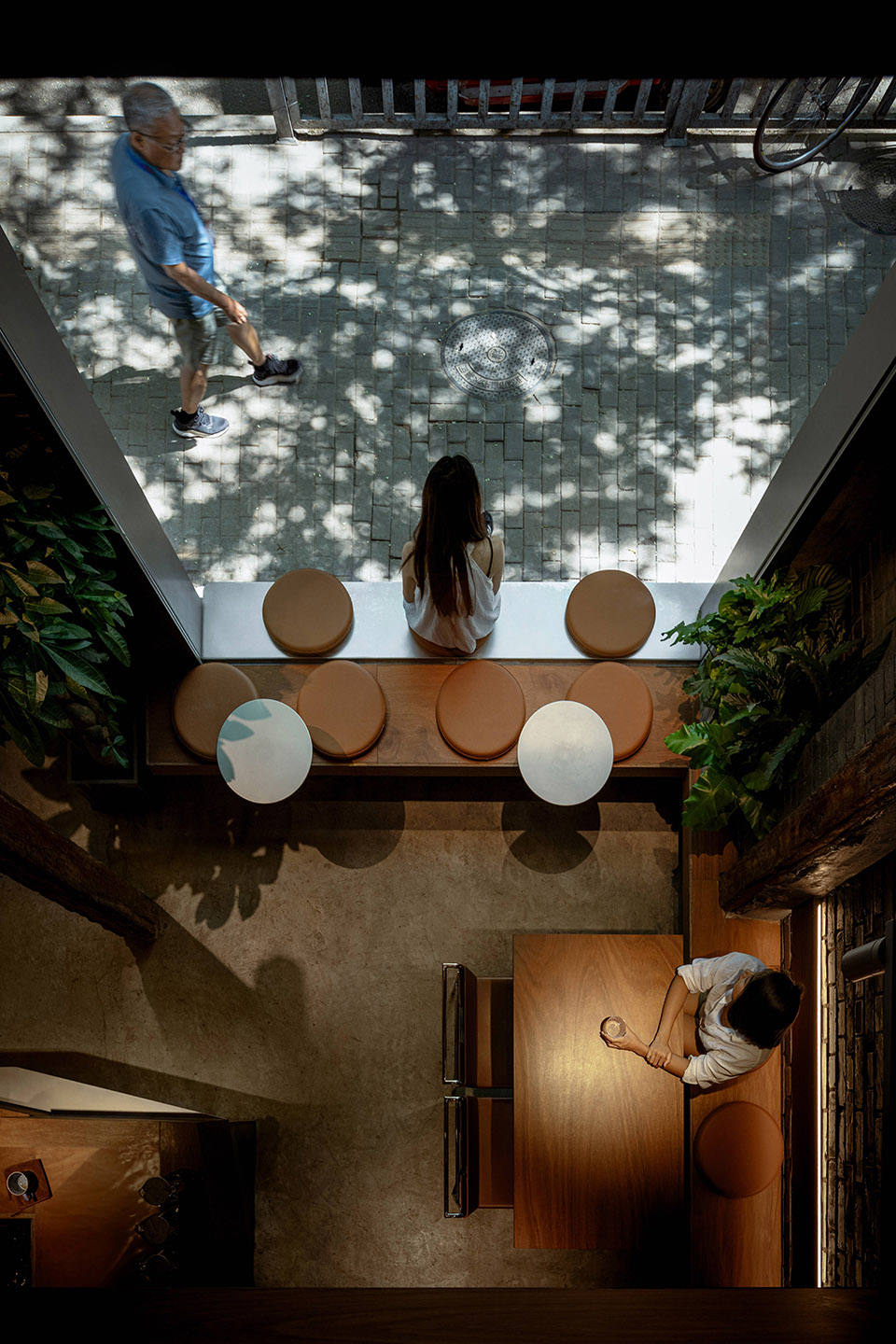

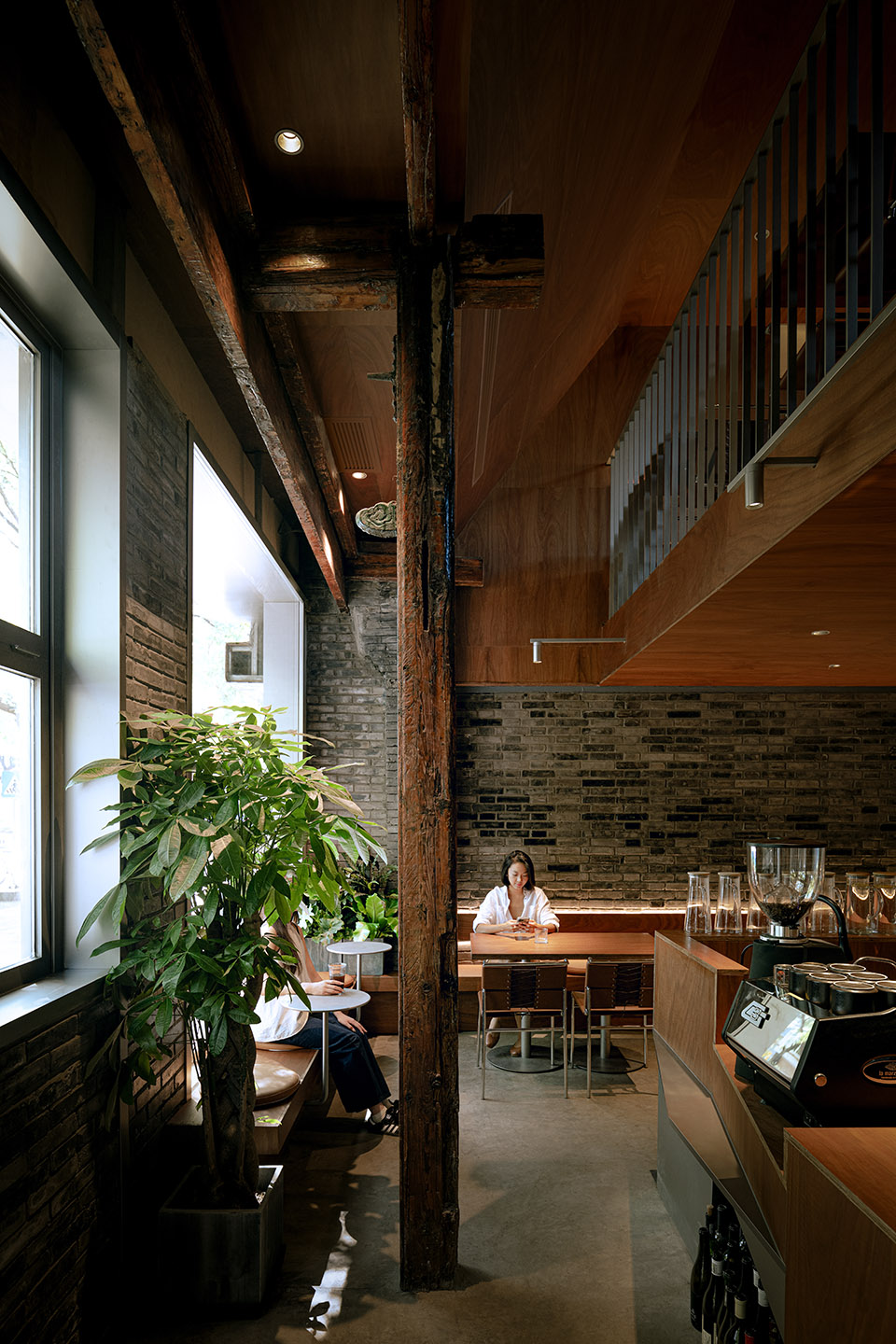

▼一楼用餐区， Dinning area on the first floor ©王宁

项目概览
Project Overview

二环的老四合院，拆除之后总会给人很多的意外，残垣断壁上的屋角痕迹，地下民国时期的排水管道以及狭窄的施工条件。

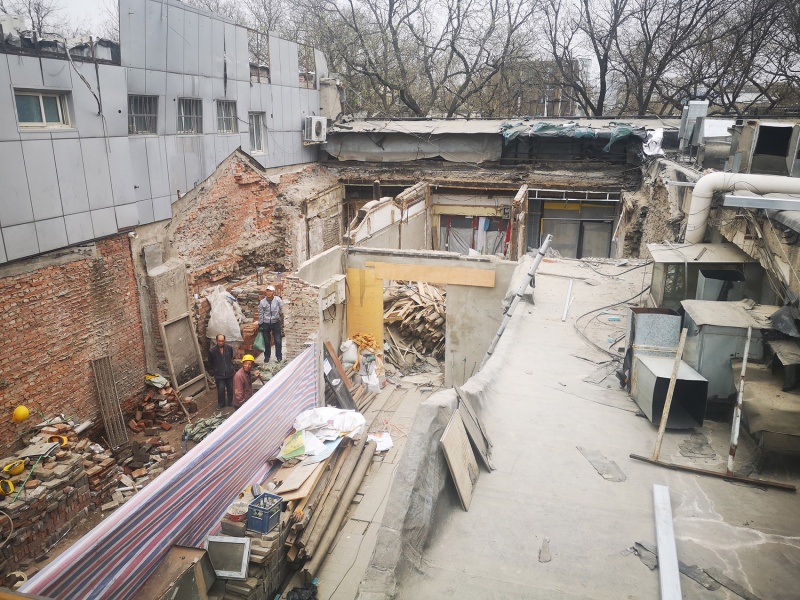

▼周围建筑留下的原始屋檐痕迹，Original eaves traces left ©帕姆建筑

The old courtyard within the second ring road always brings many “surprises” after demolition, including traces of eaves on the ruins, drainage pipes from the Republican era underground, and narrow construction conditions.

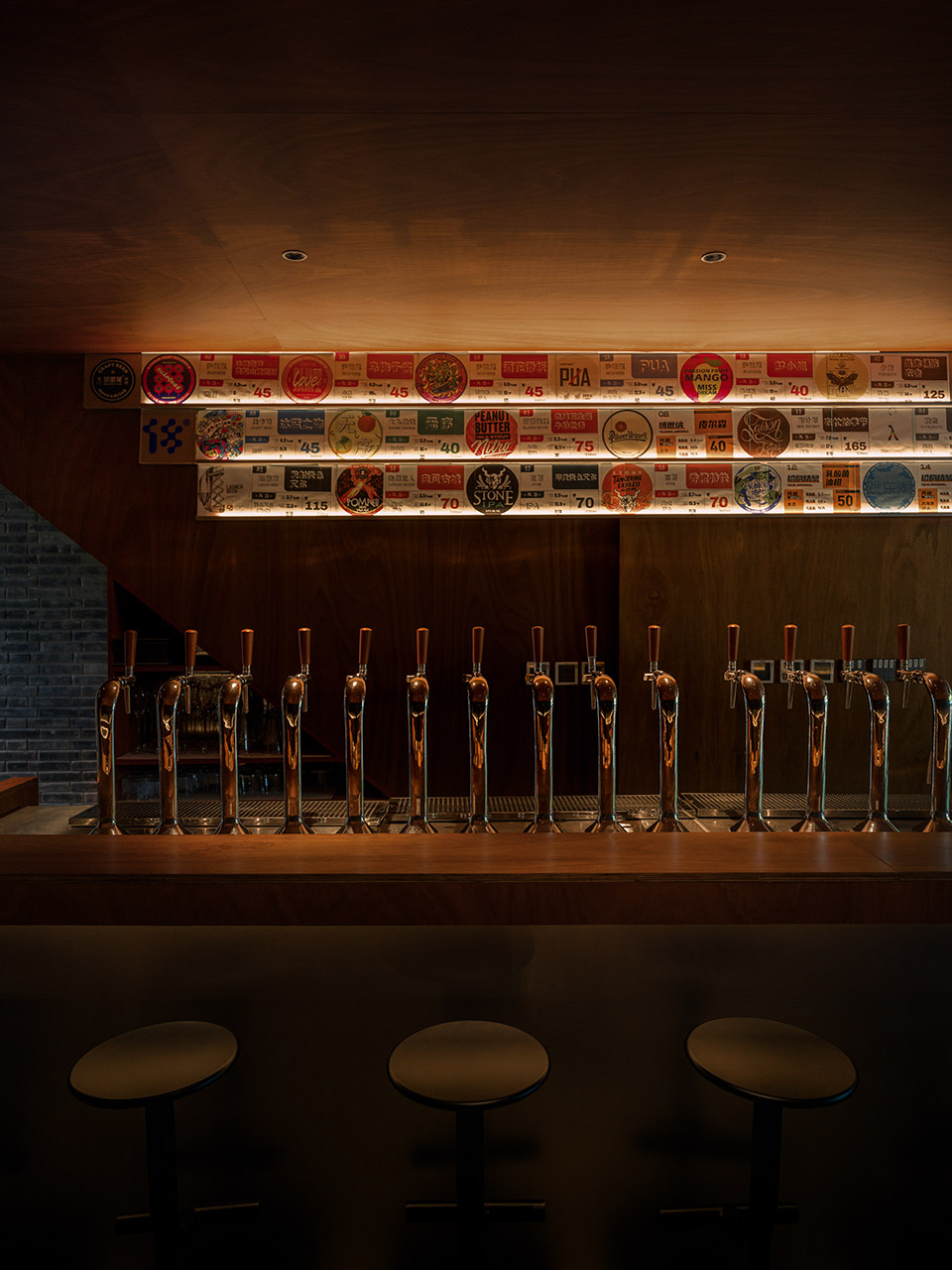

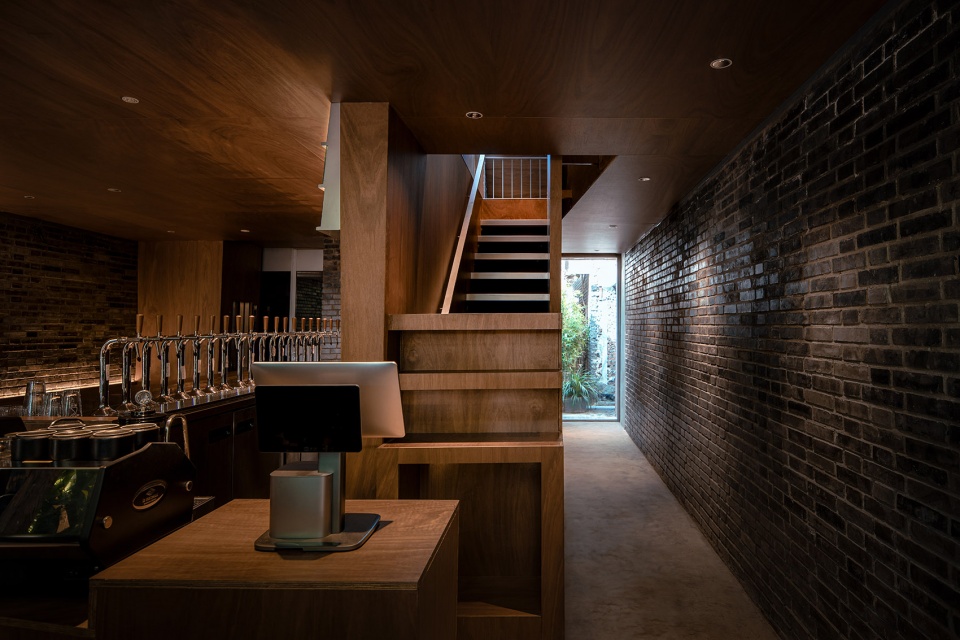

▼入口吧台，Bar at the entrance © 王宁

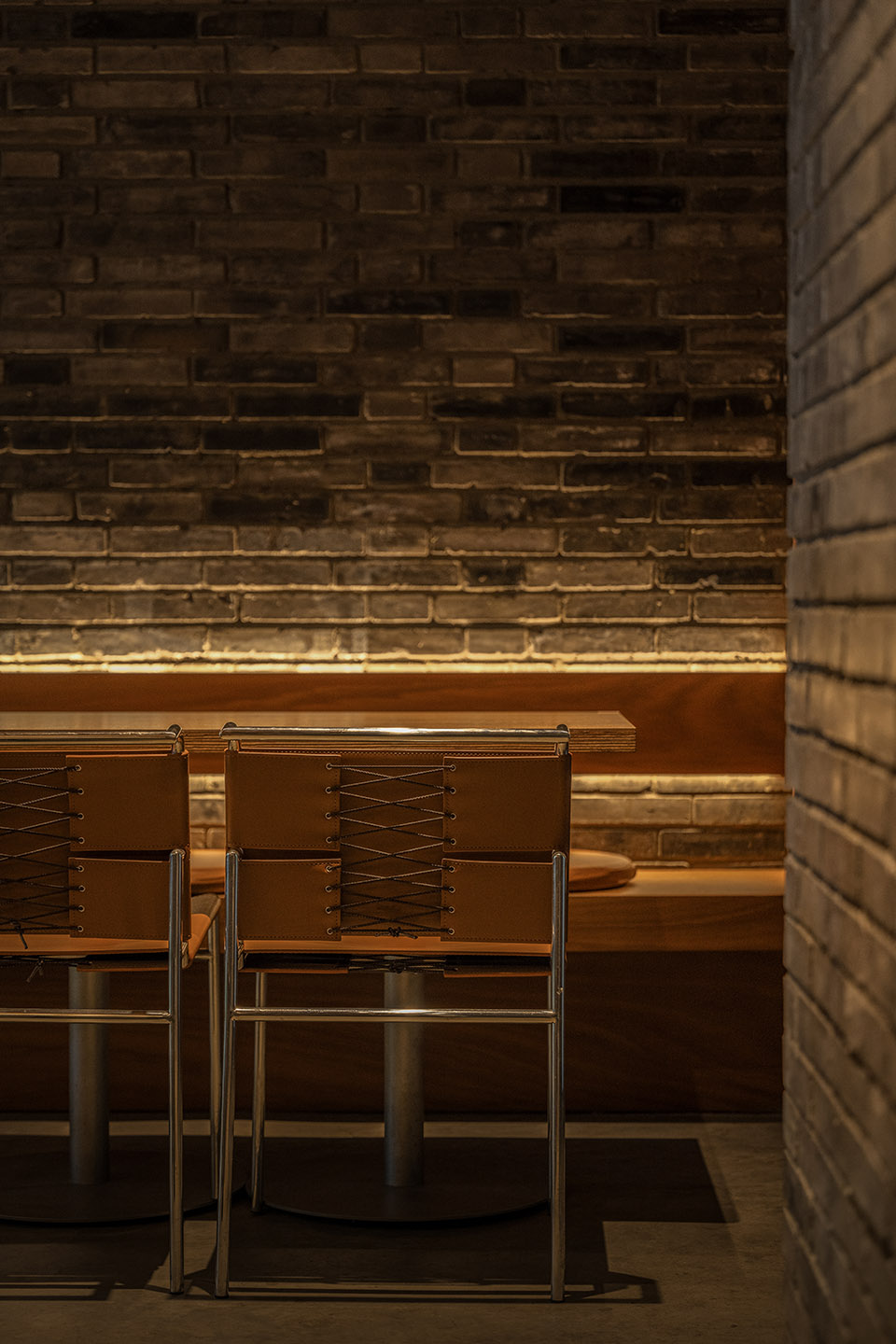

▼一楼用餐区细节，Details of the dinning area © 王宁

旧房子屋檐留下的痕迹决定了新建筑的屋顶走势，一层的小院子与二层的露台将新建筑的屋顶在起坡的时候上一分为二，朝下的坡成为一层院子的屋檐，向上掀起的檐成为通向二层露的过渡。屋檐裂开的部分也为二层的餐饮空间提供了不同的采光体验。

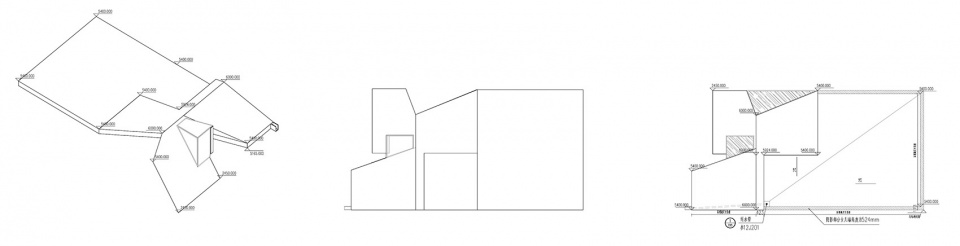

▼屋顶演变过程，Evolution of The Roof Design ©帕姆建筑

▼双折坡屋顶，Double-pitched Roof ©帕姆建筑

The traces left by the eaves of the old house determine the roof design of the new building. The small courtyard on the ground floor and the terrace on the second floor divide the roof of the new building into two parts when it slopes upwards. Besides, the downward slope becomes the eaves of the ground floor courtyard, while the raised eaves serve as a transition to the second-floor terrace. The cracked portion of the eaves also provides unique lighting experiences for the dining space on the second floor.

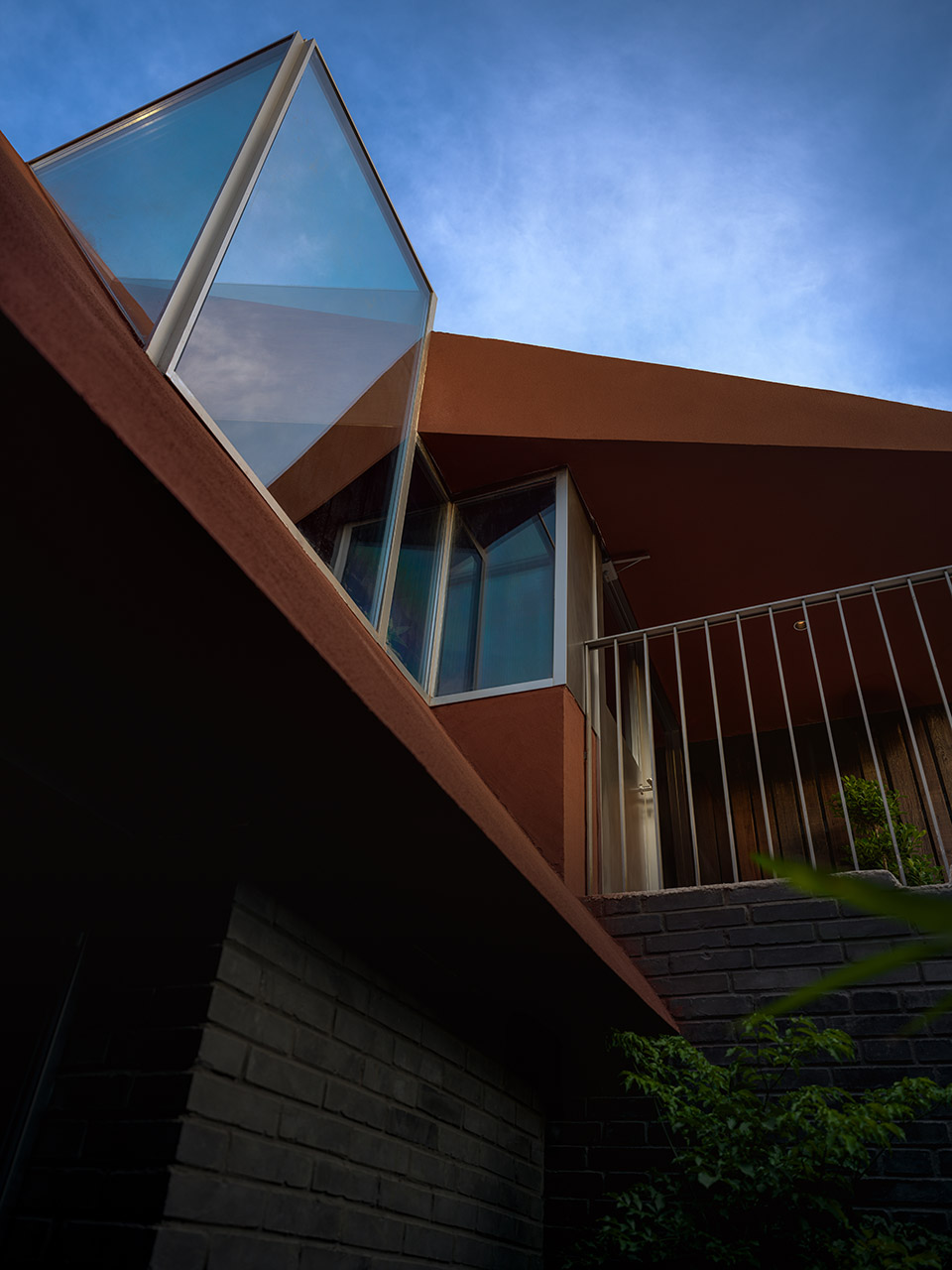

▼屋顶外观，Roof Appearance ©王宁

为了躲避地下粗壮的管道以及同时兼顾用餐体验，错动了结构柱的位置，将完整的空间尽可能留给有限的就餐区域，屋顶也呼应着两根不同的柱子。

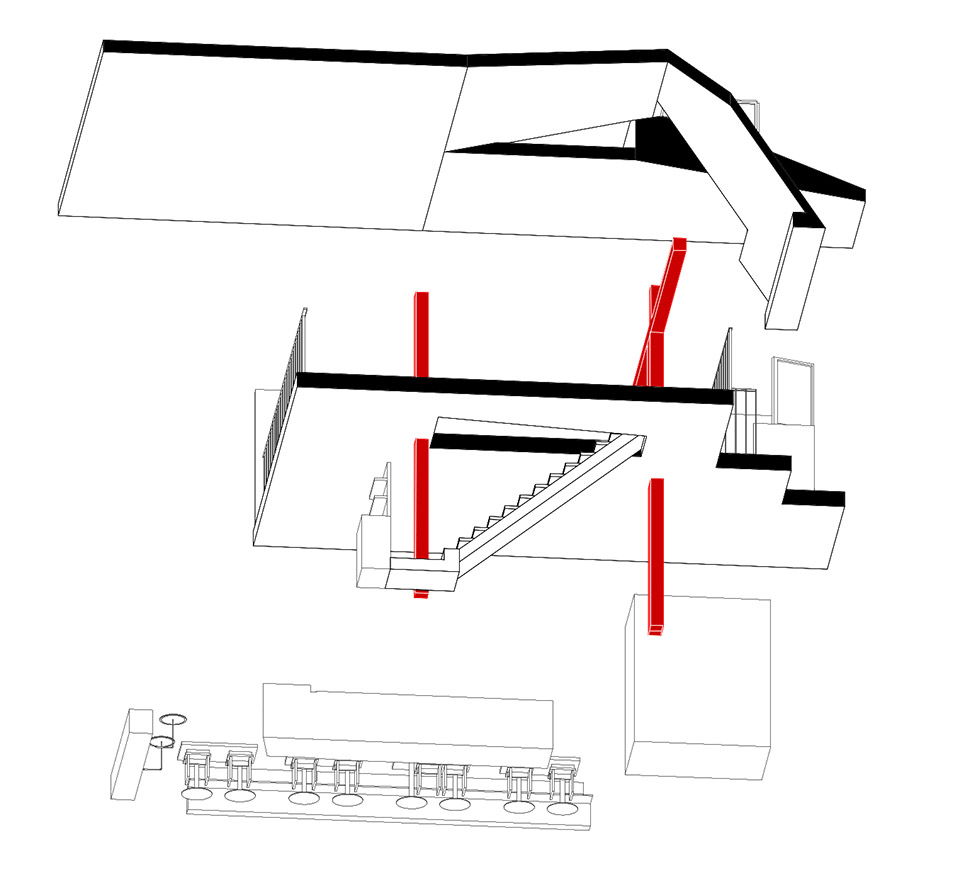

▼烧鸟&精酿新建区域柱子与楼板和屋面，
Columns, floors and roof of the newly constructed Yakitori & Craft Beer area ©帕姆建筑

In order to avoid the large underground pipes and also accommodate dining experience, the position of the structural columns was shifted, leaving as much space as possible for the limited dining area, with the roof echoing two different columns.

▼挑空，Double-height space ©王宁

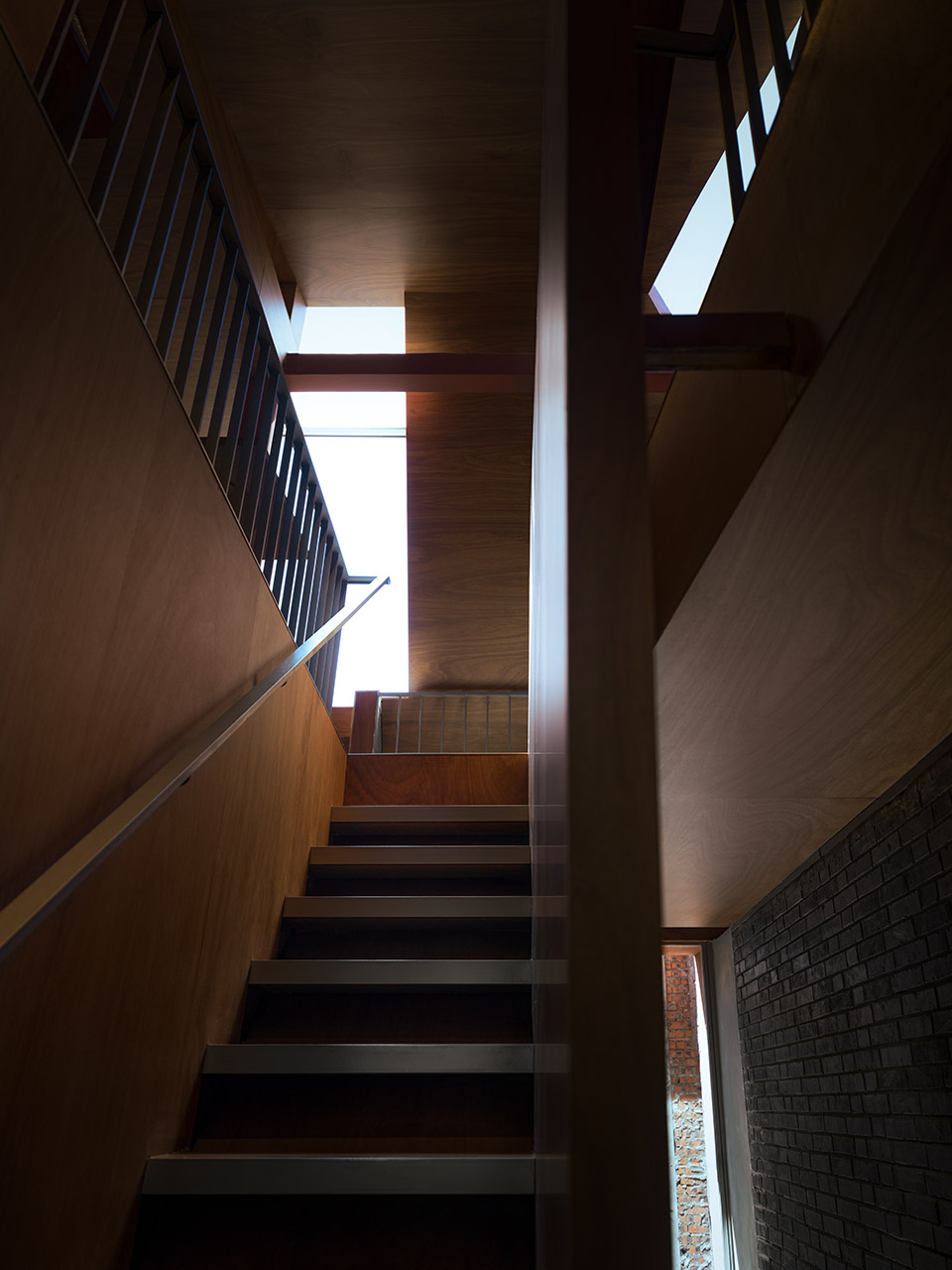

▼通往新建二层，Stairs to the new second floor ©王宁

入口处老门头的木质屋架被保留，其他新建区域，胡同老建筑的木质与灰砖被新的材料所取代，虽然材料本身有了变化，但依然尽可能遵循老材料的本质。

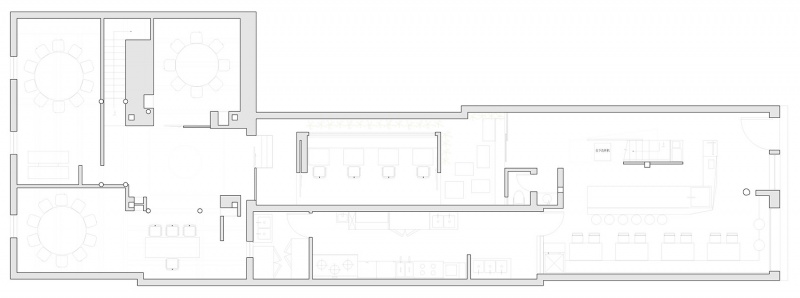

▼首层平面，ground floor plan ©帕姆建筑

The wooden structure of the old door frame at the entrance is preserved, while in other newly constructed areas, the wooden elements and gray bricks of the traditional alley buildings are replaced with new materials. Although the materials have changed, the design team still strive to respect the essence of the original materials as much as possible.

▼木制屋架保留，
after the preserved wooden frame ©王宁

计划成为私宴区域的原有四合院坡屋顶区域，被业主私自添加了大屋盖，已经没有时间拆掉重来，故将此部分作为室内改造来解决。屋盖上圆形的洞口保留，作为内部私宴区域的采光重点，且将之强化，通过放射状曲面光井与屋内空间产生联系。原有的内部屋顶以及木质梁柱均做保留，之前用来撑起大屋盖的四根钢柱子被包裹，作为私宴区域的功能构件，强调新的白色部分与老的木质的融合与冲突。

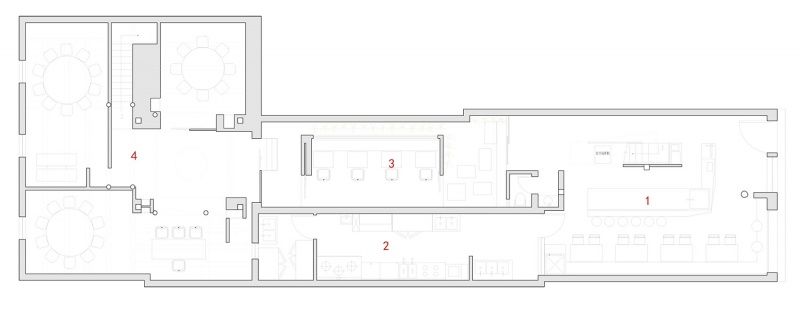

▼平面分区，Area division floor plan ©帕姆建筑

The existing sloping roof area of the courtyard, originally planned to be a private dining area, has been modified by the owner with the addition of a large roof. As there is no time to start over and rebuild, this section will be addressed through interior renovations. The circular opening on the roof will be preserved as a focal point for natural lighting in the private dining area, and it will be enhanced by creating a radial curved skylight that connects with the indoor space. The original interior roof and wooden beams and columns will be preserved, while the four steel columns previously used to support the large roof will be enclosed and transformed into functional components for the private dining area, emphasizing the fusion and contrast between the new white elements and the old wooden ones.

▼私宴区，Private dining area ©王宁

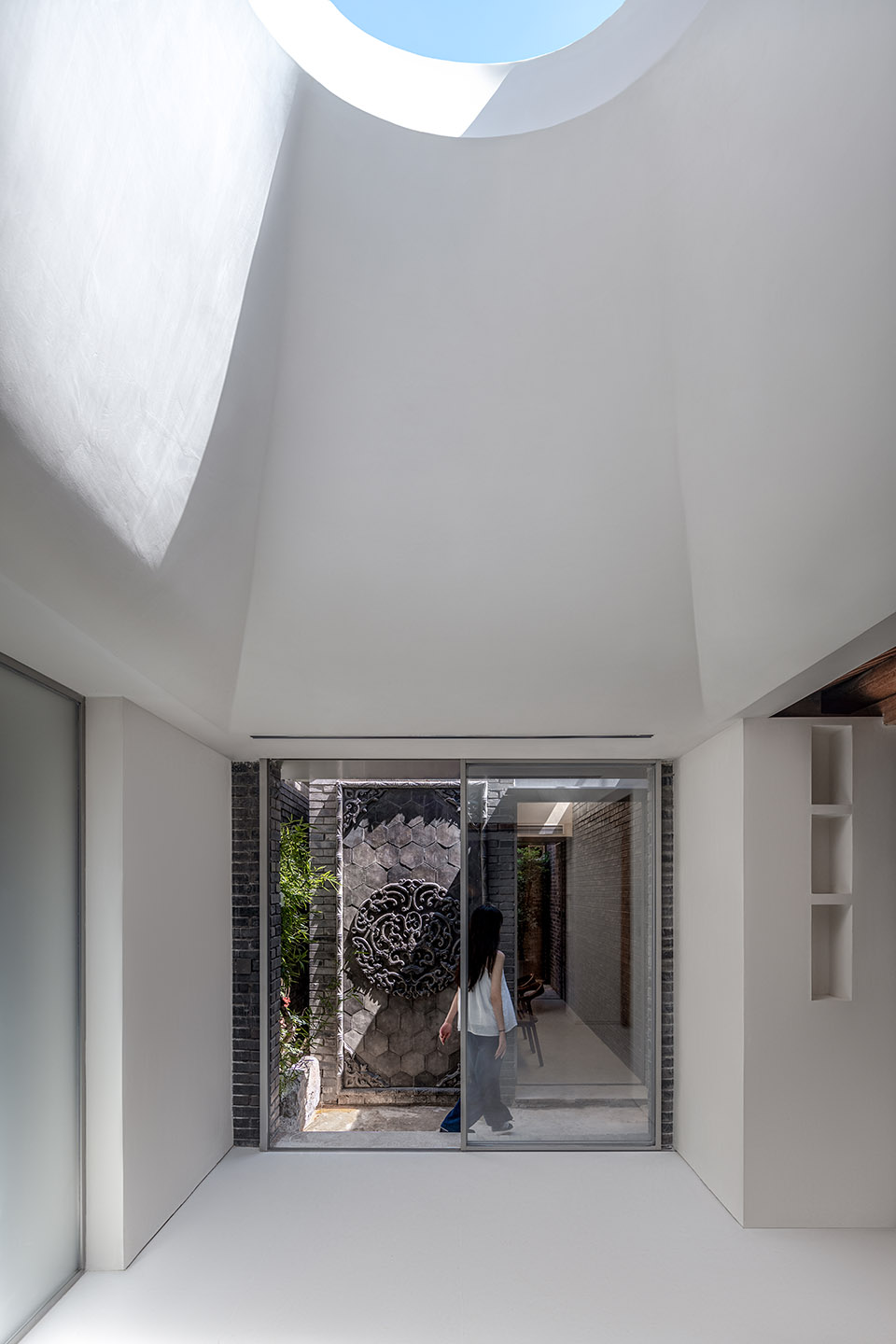

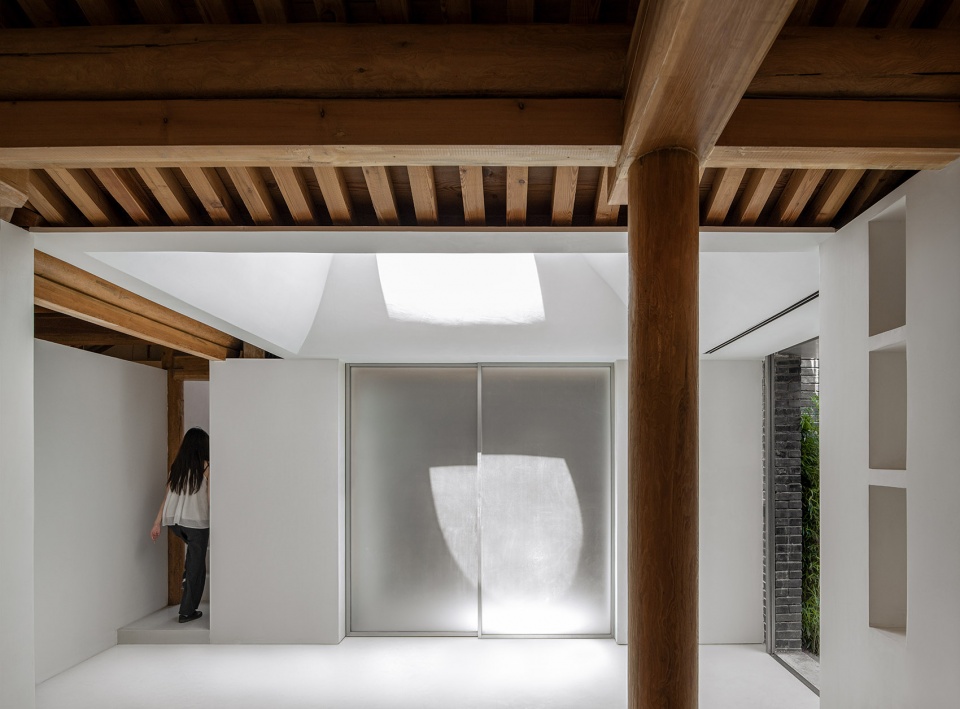

▼私宴区圆形洞口改造后，after reconstruction of the circular opening of the private dining area ©王宁

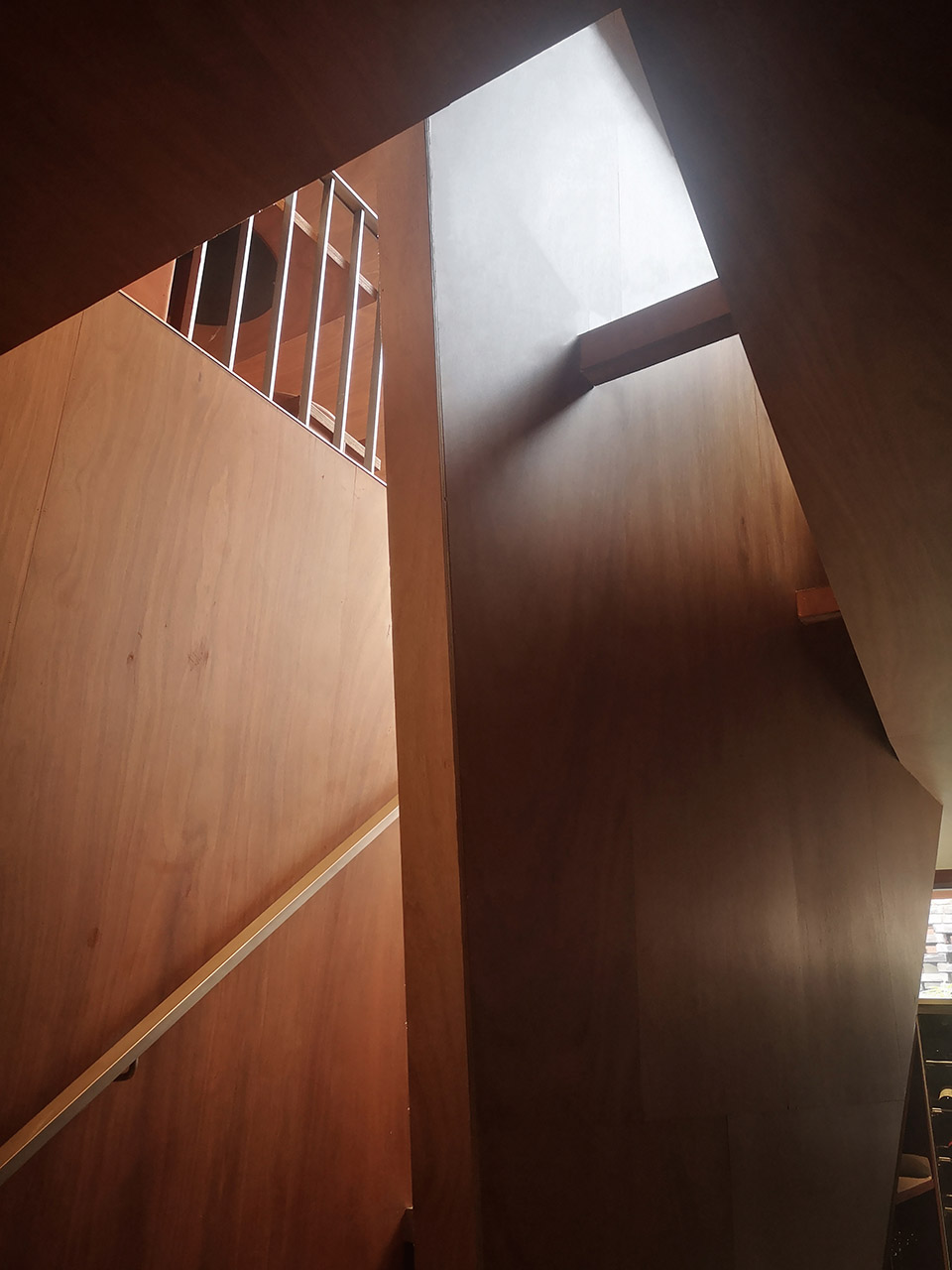

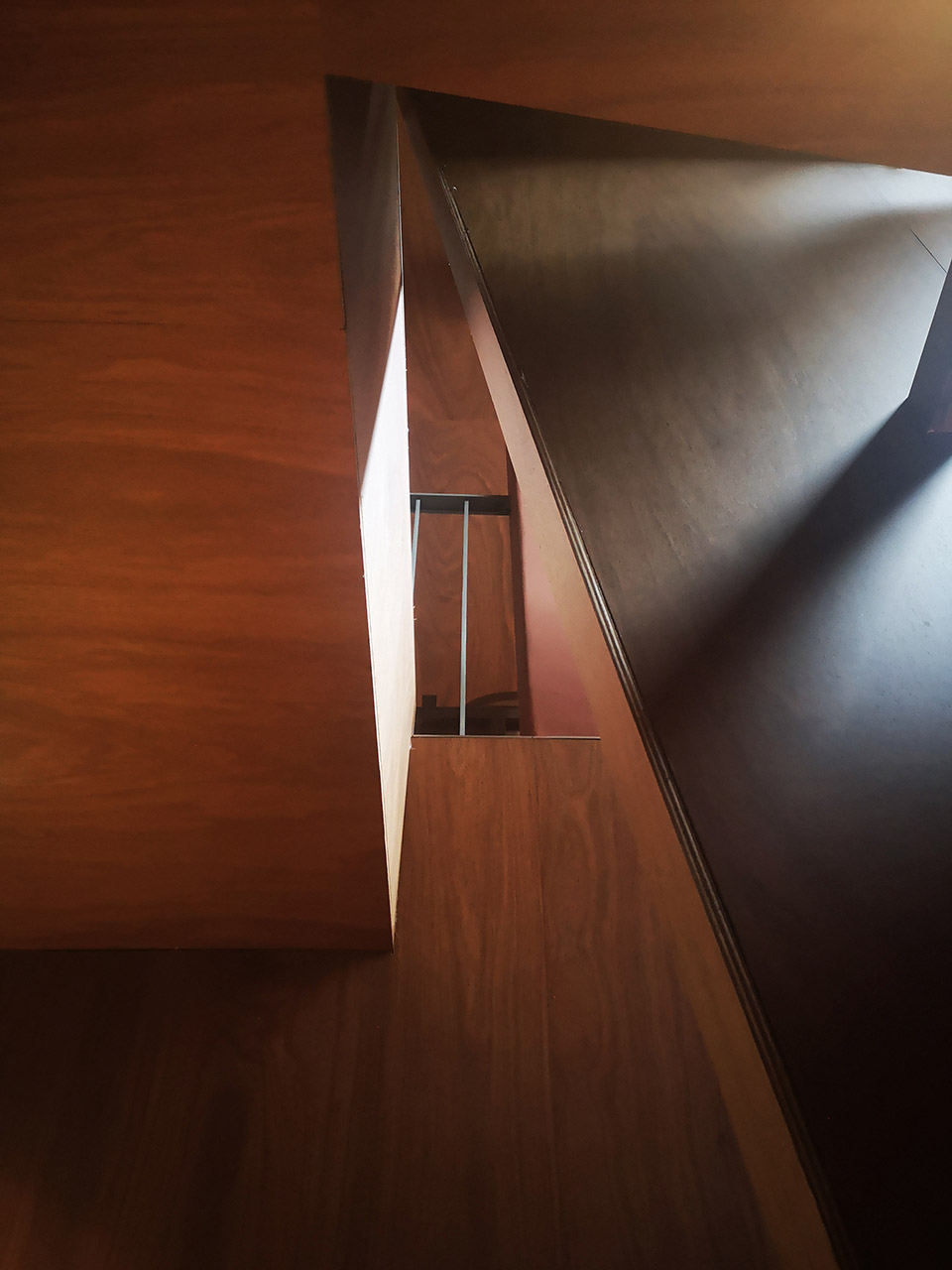

▼楼梯细节，Staircase details ©王宁

▼屋顶外观，Roof Appearance ©王宁

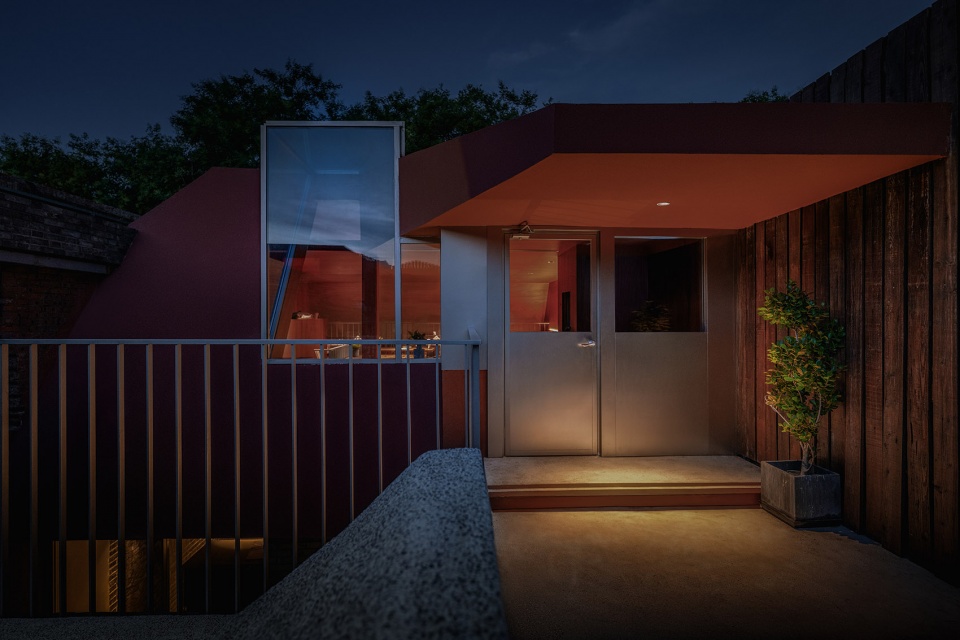

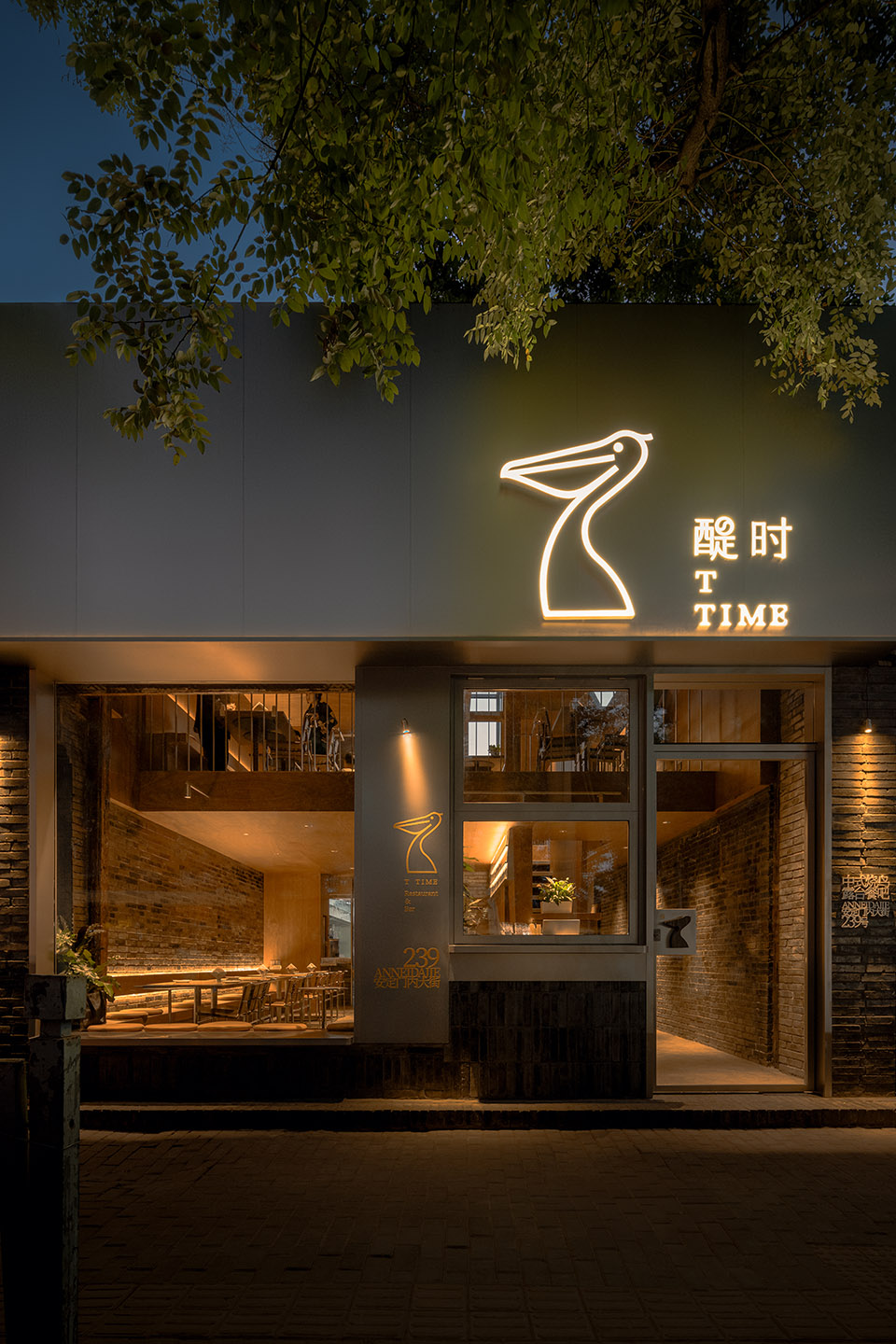

▼夜景，night view ©王宁

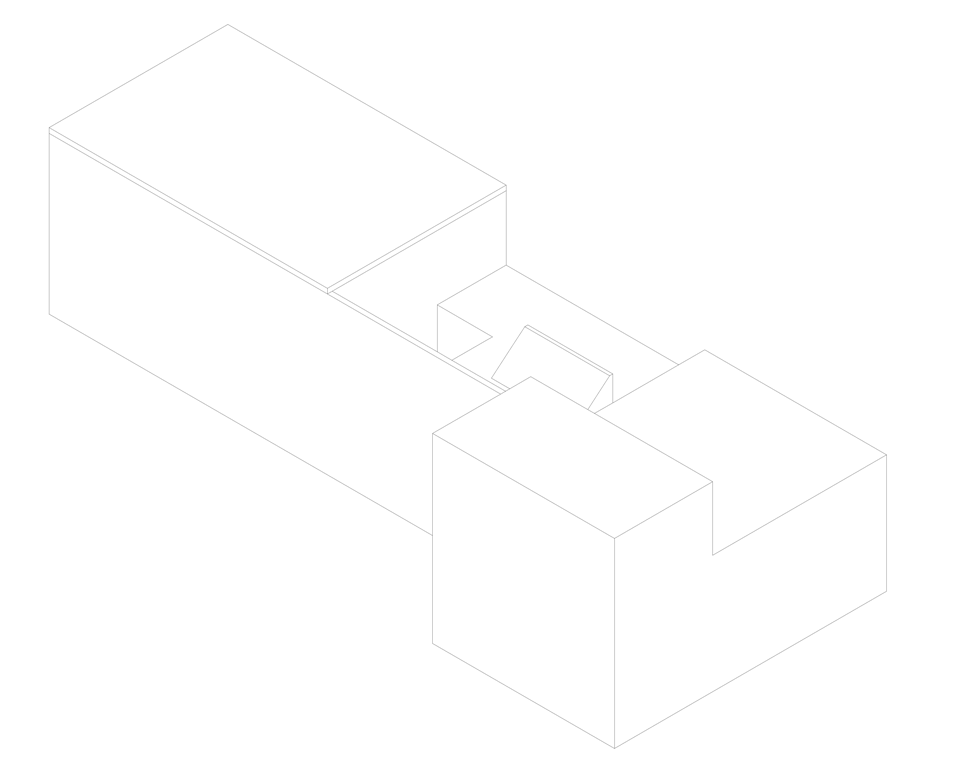

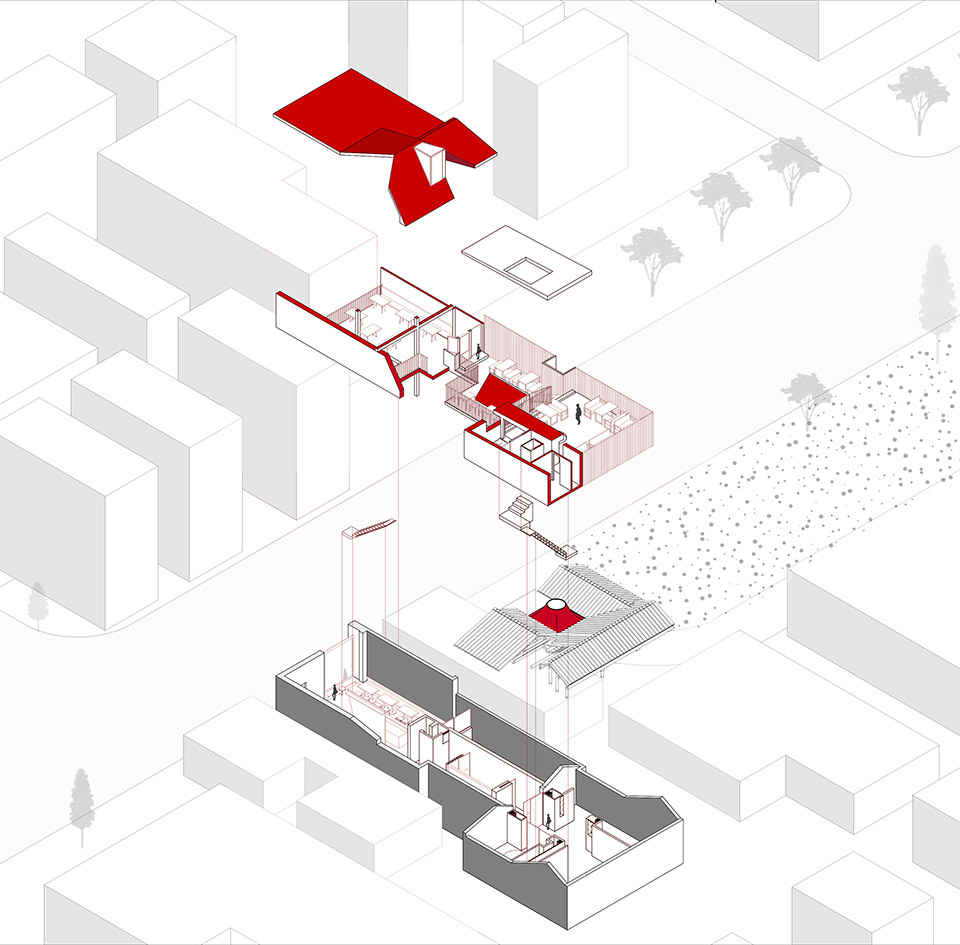

▼空间轴测，Spatial axonometric ©帕姆建筑

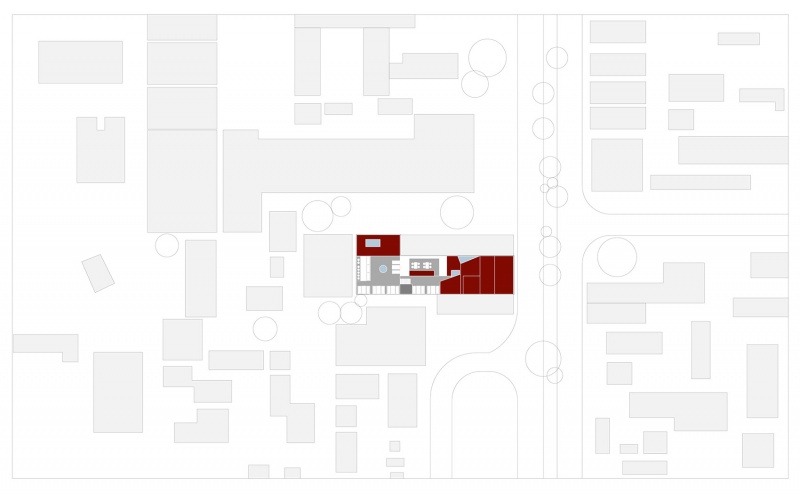

▼项目总平面，Master plan ©帕姆建筑

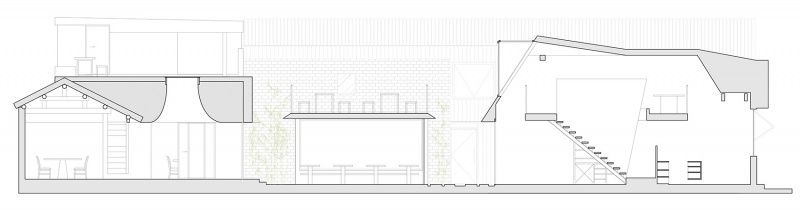

▼剖面，section ©帕姆建筑

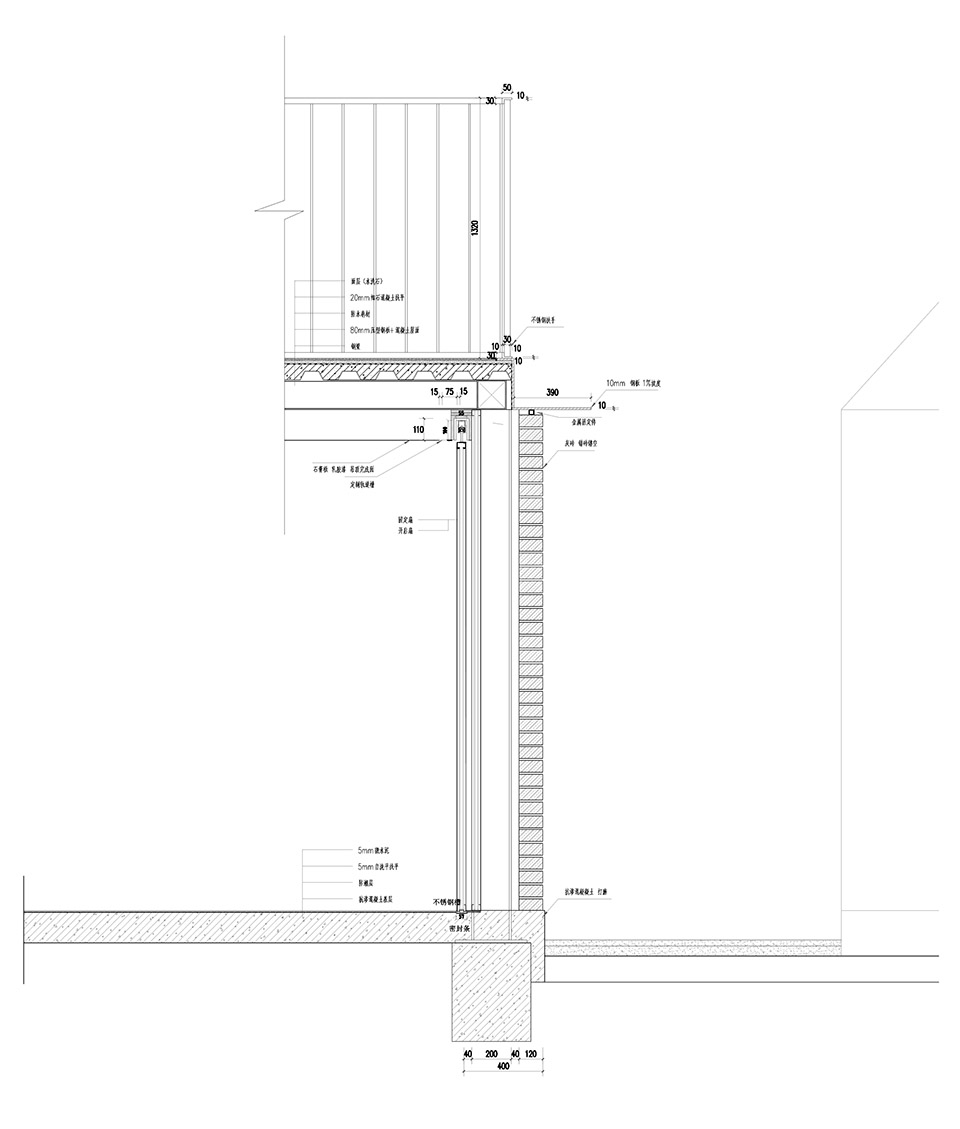

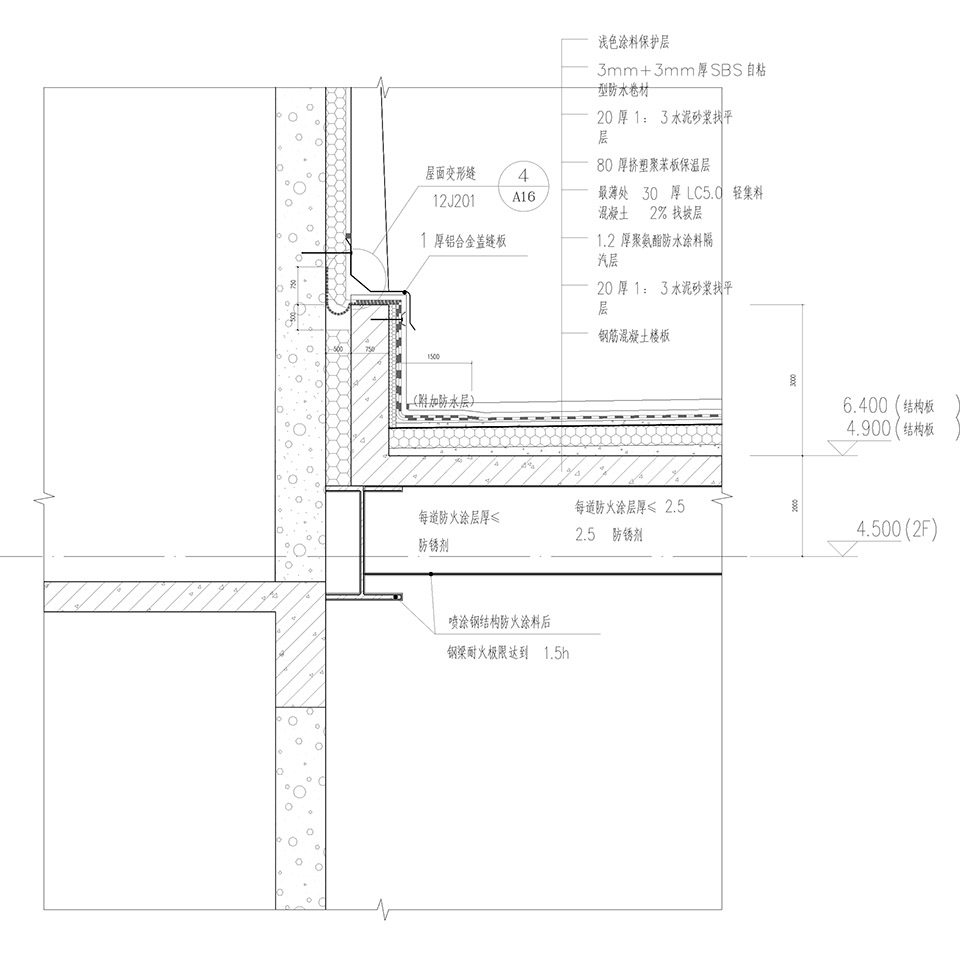

▼细部，detail ©帕姆建筑

项目名称：醍时T TIME 烧鸟餐吧&精酿&私宴
项目类型：建筑改造室内
设计方：帕姆建筑
联系邮箱： miqiangqiang@pamdesignoffice.com
完成年份：2023 06
设计团队：米麒光吴晓民余东燕
现场指导：吴晓民
项目地址：北京安定门大街239号
建筑面积：300㎡
摄影：王宁
版权：王宁
施工：买壮壮
合作供应商：水维周（整体不锈钢），王涛（臻藏古木），QUZU全舟照明
特别鸣谢：大鹅

Project Name: T TIME —— Yakitori&Craft Beer & Private dinning
Project Type: New Construction, Renovation, Interior Design
Design Firm: PaM Design Office
Contact Email: miqiangqiang@pamdesignoffice.com
Completion Time: June, 2023
Design Team: Mi Qiangqiang, Wu Xiaomin, Yu Dongyan
Supervise: Wu Xiaomin
Address: No.239, Andingmen Street, Beijing, China
Building Area: 300 sqm
Photography: Wang Ning
Copyright: Wang Ning
Construction: Mai Zhuangzhuang
Collaborating Suppliers: Shui Wei Zhou (Overall Stainless Steel), Wang Tao (Vintage Timber), QUZU (Lighting)
Special Thanks: Da E
