这是一座集艺术展览和文化产业为一体的文化综合体。

This is a cultural complex integrating art exhibitions and cultural industries.

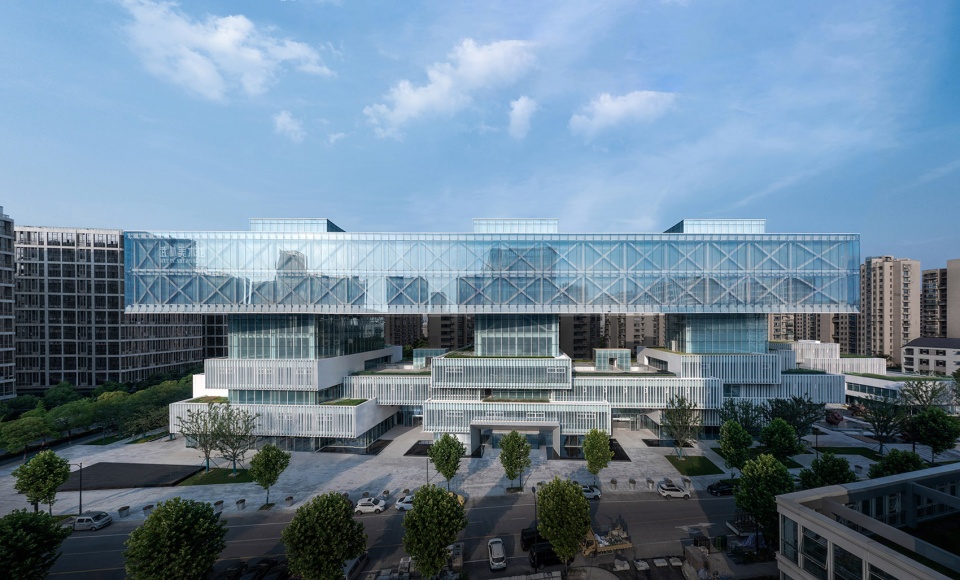

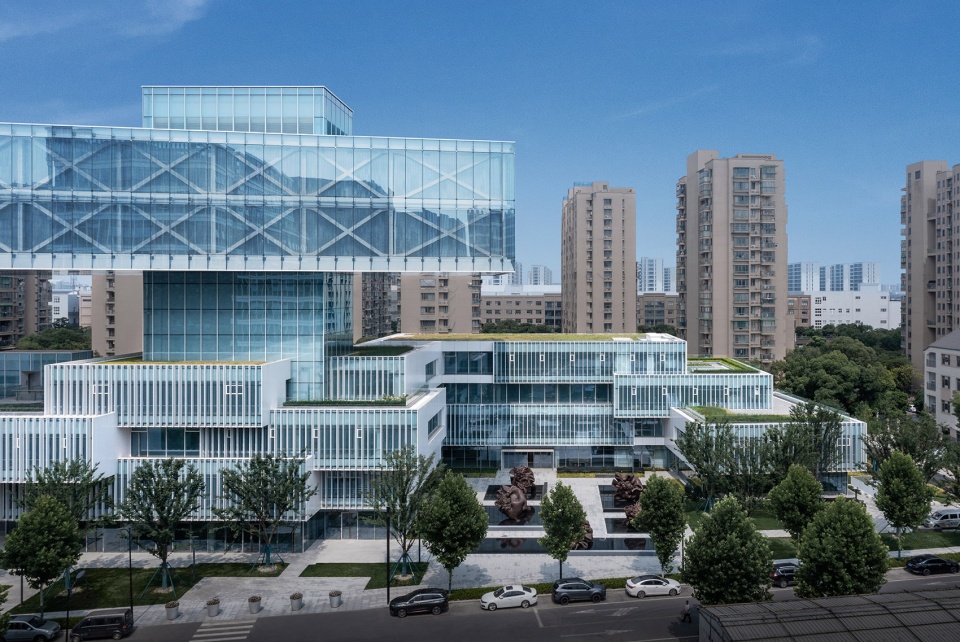

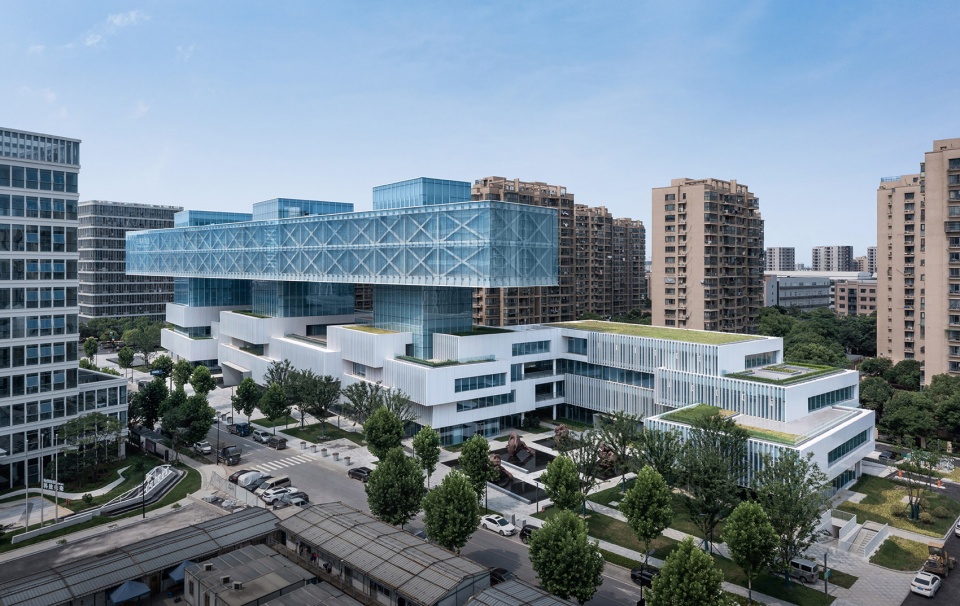

▼项目概览，project overview ©文沛

项目基地位于杭州市拱墅区新天地综合体南部，周边建筑较为密集，多为办公、商业和住宅，功能多样。在这样一处与城市生活紧密关联的场地中，设计期望新建建筑与周边环境间形成友好的对话和互动关系，进而创造一座生发着城市活力的美术馆。

The project is located in the southern part of Xintiandi Complex in Gongshu District, Hangzhou City. The surrounding buildings are relatively dense, mainly consisting of offices, commercial establishments, and residences, with diverse functions. In such a site closely linked to urban life, the design aims to establish a friendly dialogue and interactive relationship between the new building and the surrounding environment, thereby creating an art museum brimming with urban vitality.

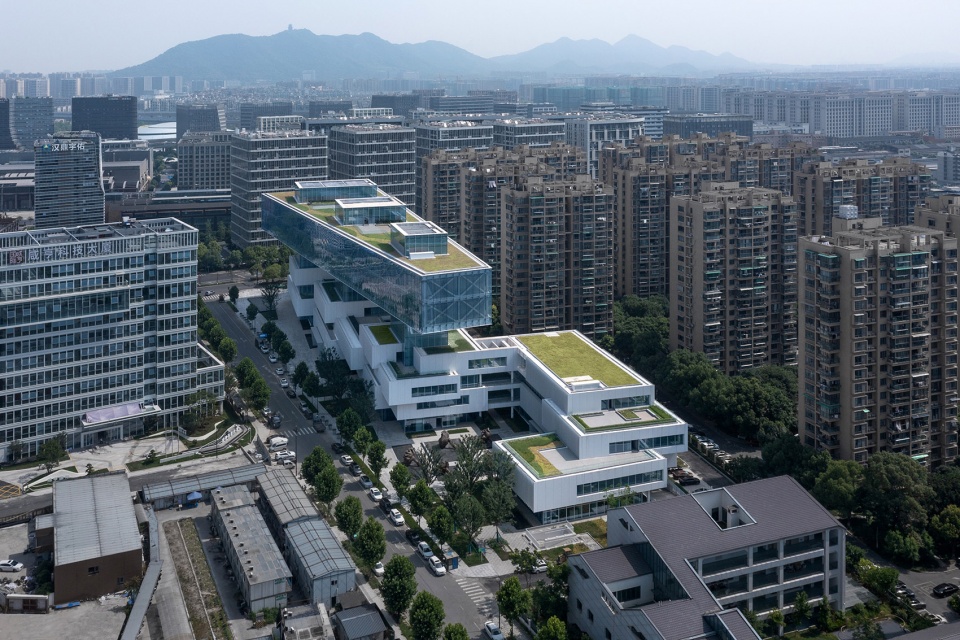

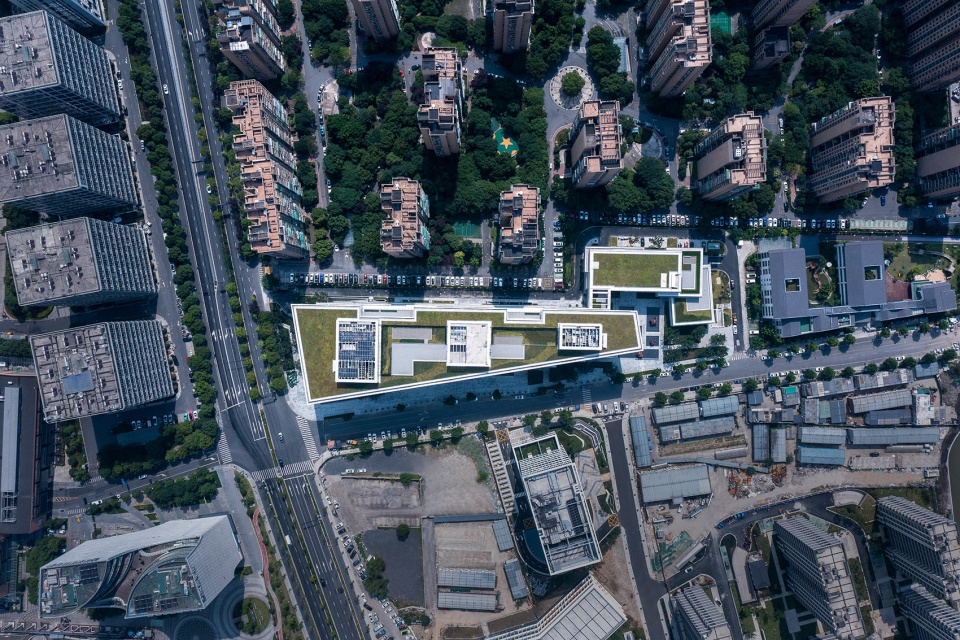

▼周边环境，surroundings ©文沛

生发于环境的布局
Layout Inspired by the Environment

场地呈不规则狭长形，东西宽约60米，南北长约240米，其西、北两侧均为高层办公建筑，南端为幼儿园，西南角规划为城市公园，为此，设计考虑将大体量的建筑主体靠北侧布置，以与周边的高层建筑组群形成空间上的照应；同时于南部降低建筑高度，减弱其体量，结合开放式的街边庭院布局和社区服务中心的功能，营造出一处尺度宜人，与南端幼儿园及一旁城市公园有良好对话的街边日常活动场所。

The site is irregularly elongated, with a width of about 60 meters from east to west and a length of about 240 meters from north to south. High-rise office buildings flank its west and north sides, while a kindergarten occupies the south end. The southwest corner is designated as a city park. Considering this, the design proposes positioning the main bulk of the building towards the northern side to create spatial coherence with the surrounding clusters of high-rise buildings. Simultaneously, the building height is reduced towards the south to diminish its volume. Combined with an open courtyard layout along the street and the functions of a community service center, a street-side daily activity space is created with a pleasant scale, fostering good interaction with the kindergarten at the south end and the adjacent city park.

▼不规则的狭长形场地，irregularly elongated site ©文沛

▼大体量的建筑主体靠北侧布置，the main body is placed against the north side ©文沛

公共性和日常性
Publicness and Everydayness

美术馆的艺术空间，占地上建筑面积的三分之一，是建筑中最重要的主体，也是最吸引人的空间场所。但是受展览频次、开放时间、布展等因素的限制，艺术空间使用频率较低，与城市日常的交互频度也相对较低，互动较弱。相反，占有地上建筑面积三分之二的文化产业空间和社区服务等功能，关联着日常通勤、服务和交往，与城市日常交互频度相对较高，互动较强。

The art space of the art museum, occupying one-third of the total building area, is the most important component of the architecture and the most attractive space. However, due to factors such as exhibition frequency, opening hours, and exhibition layout, the utilization frequency of the art space is relatively low, leading to weaker interaction with the daily life of the city. Conversely, the cultural industry space and community services occupying two-thirds of the building area are closely related to daily commuting, services, and interactions, resulting in a relatively higher frequency of interaction with urban daily life and stronger interaction.

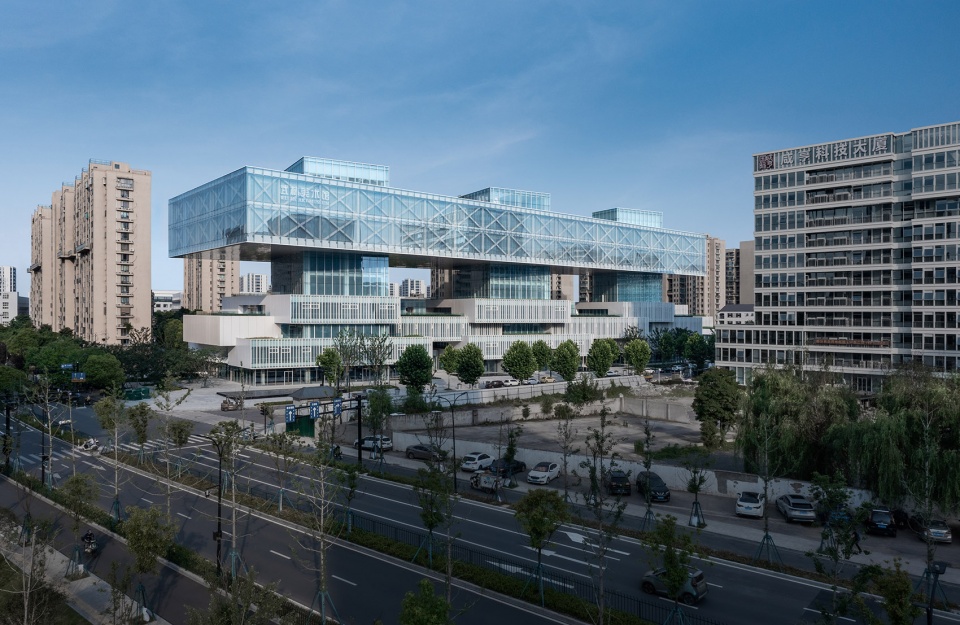

▼将艺术空间置于建筑的高区，position the art space in the high zone of the building ©文沛

基于此，我们将艺术空间置于建筑的高区，悬浮于城市之上，相对独立。观展人流可通过底层入口大厅，经垂直电梯便捷地上至高区展览空间。这样的布局，既切合目的性较强的参观人群的行为特点，又凸显了美术馆的主体。文化产业、社区服务这些与城市交互频度较高的场所置于建筑低区，贴近街道布置，并于底层融入部分商业。这些空间组织自由、构成灵活，可适应未来多种变化。而在高、低区之间，则是联系两区间的空中庭园，设置有文创、餐厅等配套功能，便于使用者的交往。此外，该区域自由开放，公众可通过南端独立的电梯厅直达于此，为激发美术馆的城市活力带来更多的可能。

Based on this, we position the art space in the high zone of the building, suspended above the city and relatively independent. Visitors can access the exhibition space in the high zone conveniently through the ground-level entrance hall and vertical elevators. This layout not only caters to the behavior characteristics of visitors with a strong purpose, but also highlights the core function of the art museum. Cultural industries and community services, which interact more frequently with the city, are located in the low zone of the building, closer to the street, and incorporate some commercial spaces on the ground level. These spaces are organized freely and flexibly to adapt to various changes in the future. Between the high and low zones, there are sky gardens connecting the two areas, equipped with supporting facilities such as cultural and creative spaces and restaurants, facilitating interactions among users. Additionally, this area is freely accessible to the public via a separate elevator hall at the south end, bringing more possibilities to stimulate the urban vitality of the art museum.

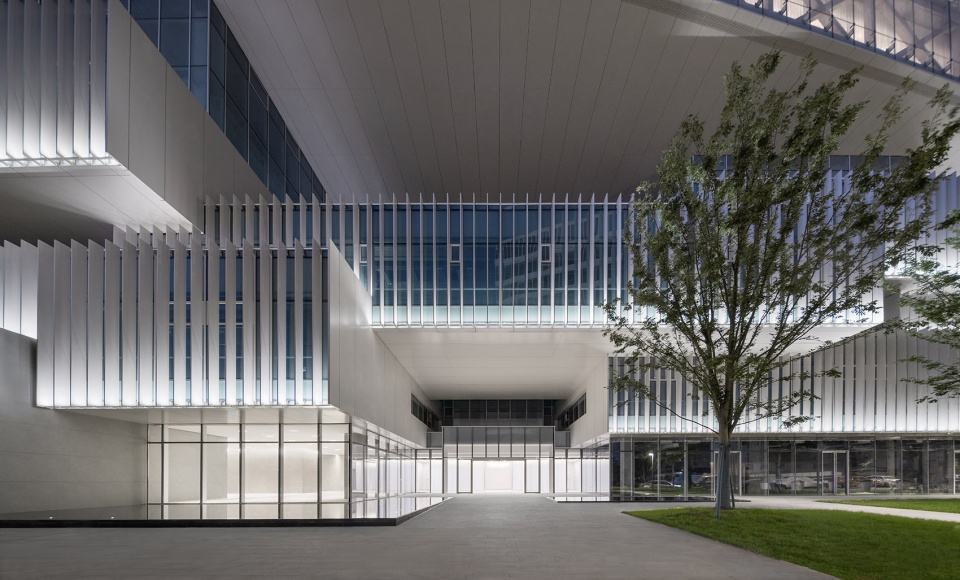

▼自由开放的文化产业、社区服务， open and welcoming Cultural industries and community services area ©文沛

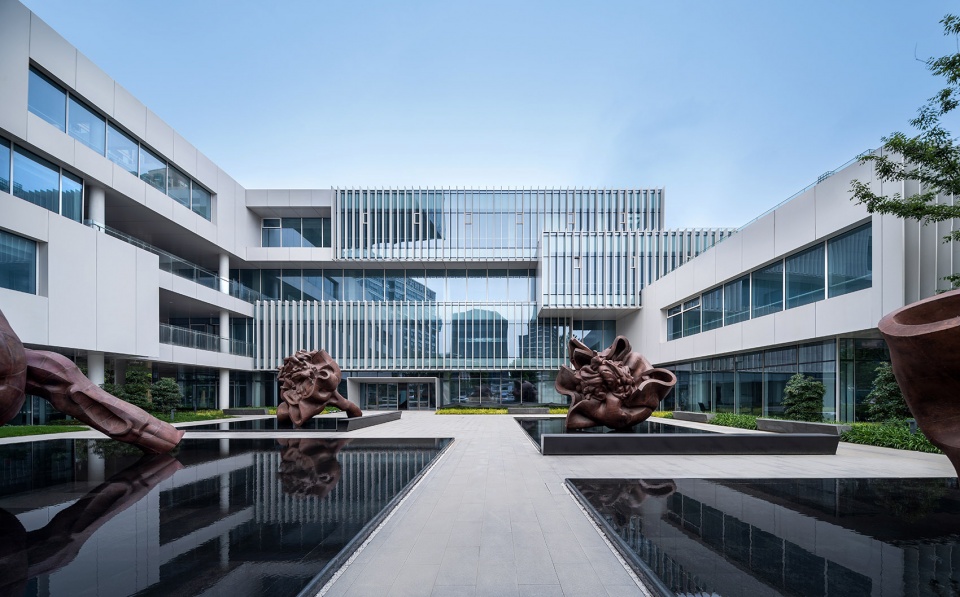

▼内院光影，courtyard light and shadow ©文沛

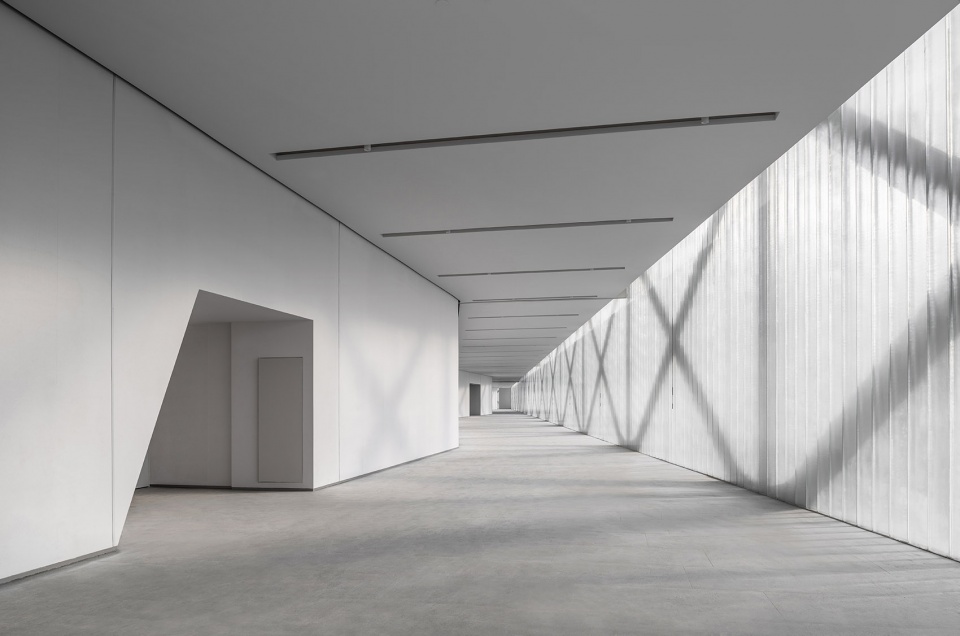

▼西侧展廊光影，west gallery light and shadow ©文沛

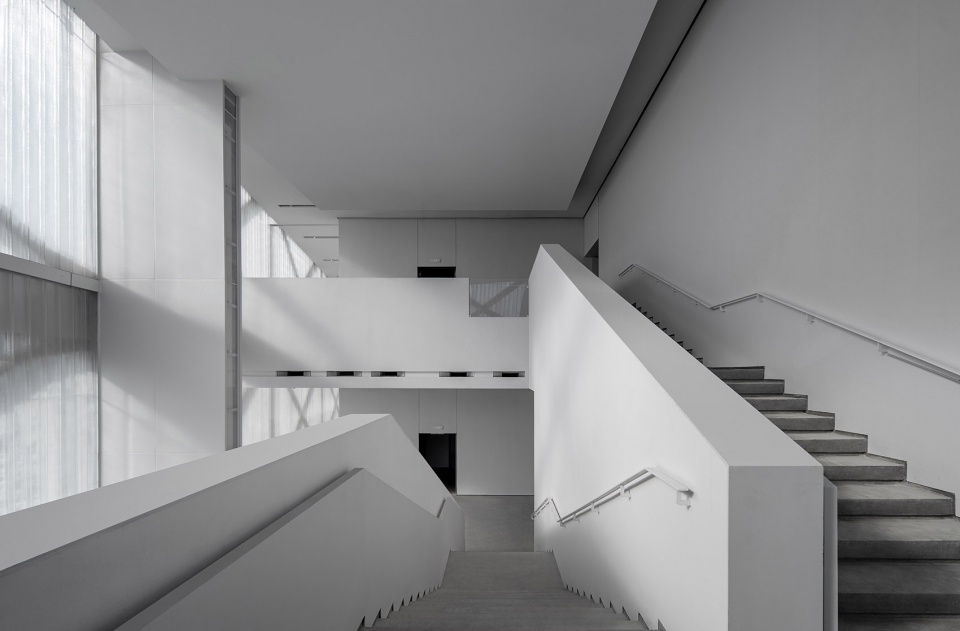

▼展廊端部侧厅，staircase ©文沛

环境友好
Environmentally Friendly

无论是面对城市街道还是住区，营造建筑宜人友好的场所环境也是设计的重要面向。建筑贴近城市主要街道，其界面虚实有序、尺度宜人。设计结合街道场所，沿西侧设置了宜人的沿街景观步行空间，并于其两端结合城市街角环境、社区活动及幼儿园接送场所，设置了小型的街角公园，供人们停留与交往。

Creating a pleasant and friendly environment, whether facing urban streets or residential areas, is an important aspect of the design. The building is situated close to the main city streets, with well-organized interfaces and a pleasant scale. In conjunction with the street environment, the design incorporates pleasant pedestrian walkways along the west side, integrating small-scale street corner parks at both ends with the urban street corners, community activities, and kindergarten drop-off points, providing spaces for people to linger and interact.

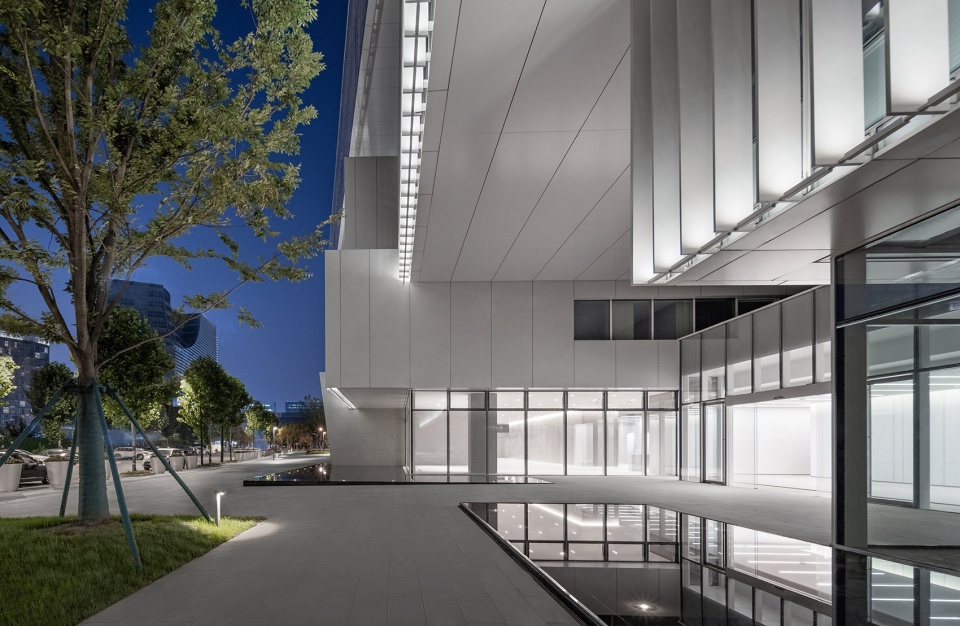

▼结合街道的场所设计，incorporating street placemaking ©文沛

此外，设计通过分解建筑的大尺度体量，以虚实相间的小尺度体块构成和空透的空中庭园贴近街道和住区。空中庭园在为人们提供交往场所的同时，也以其通透开放，有效降低了美术馆主体对东侧居住区的压迫感，为相邻的居住区和街道带去了清风、绿意和畅朗的感受。

Additionally, by breaking down the large-scale volume of the building, the design utilizes small-scale blocks with alternating solid and void spaces, as well as open sky gardens, to integrate with the streets and residential areas. While the sky gardens provide spaces for social interaction, their transparent and open design effectively reduces the sense of oppression from the main body of the art museum on the eastern residential areas, bringing a refreshing, green, and airy atmosphere to the adjacent residential areas and streets.

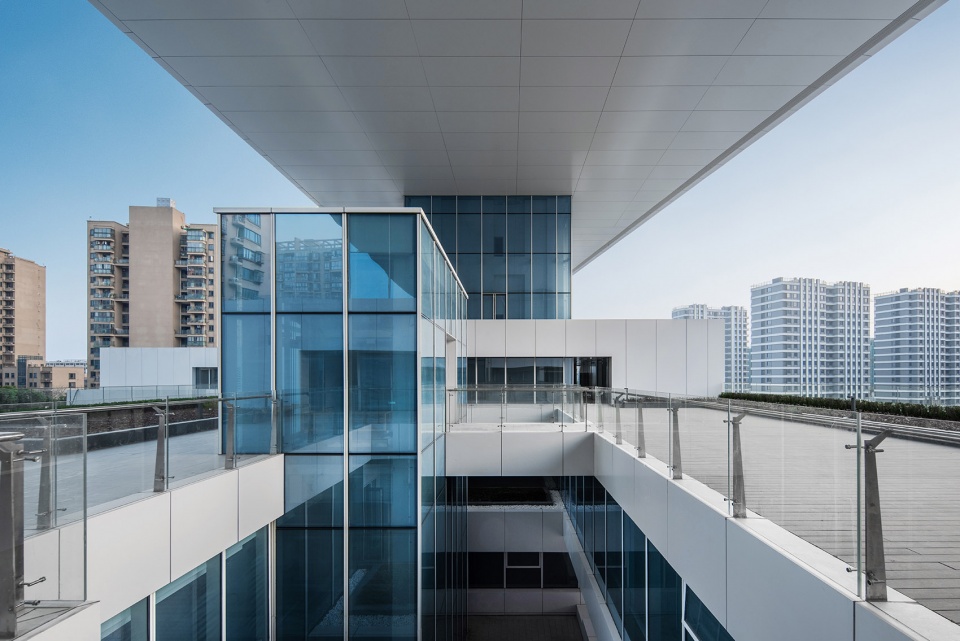

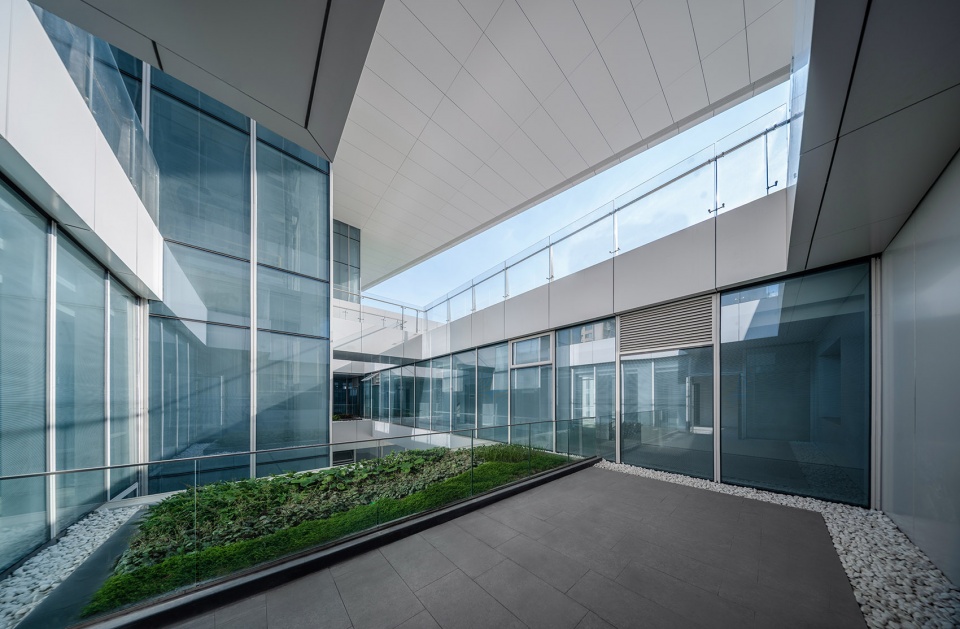

▼空中庭院，sky garden ©文沛

绿色节能
Green and Energy Efficient

建筑受场地限制，呈东西向布局，因此，在满足室内空间光环境的同时，也充分考虑了西晒面的节能需求。设计结合建筑竖向分区采取以下策略：低区错叠悬挑的小尺度体块，一方面因其产生的阴影本身具有较好的遮阳效果，另一方面，其外覆以竖向格栅和彩釉low-e玻璃，有效遮挡阳光的直射；高区展览空间采取双层呼吸式幕墙，外层采用彩釉low-e玻璃，内层采用U型玻璃，两层玻璃间为1200mm宽的通风空腔，空腔内热空气通过顶部通风格栅带走大量热量，即使在炎热的夏季，室内U玻表面远低于室外温度，有效降低了空调负荷。另外，层层叠叠的绿化屋面在建筑节能和助益海绵城市方面也有较好的效果。

Due to site constraints, the building is oriented in an east-west direction. Therefore, while meeting the requirements for indoor lighting conditions, energy efficiency needs for west-facing sun exposure are also considered. The design employs the following strategies in conjunction with vertical zoning of the building:

For the lower zone, staggered cantilevered small-scale blocks are utilized. These not only cast shadows that provide effective sun shading but also feature vertical grilles and glazed low-emissivity (low-e) glass exteriors, effectively blocking direct sunlight.

The exhibition spaces in the higher zone feature double-layer breathing curtain walls. The outer layer consists of glazed low-e glass while the inner layer uses U-shaped glass. Between the two layers, there is a 1200mm-wide ventilation cavity. Hot air within the cavity is expelled through top ventilation grilles, dissipating a significant amount of heat. Even during hot summers, the temperature on the inner surface of the U-shaped glass remains much lower than the outdoor temperature, effectively reducing the load on air conditioning.

Additionally, the layered green roofs contribute significantly to the building’s energy efficiency and aid in sponge city initiatives, providing effective thermal insulation and mitigating urban heat island effects.

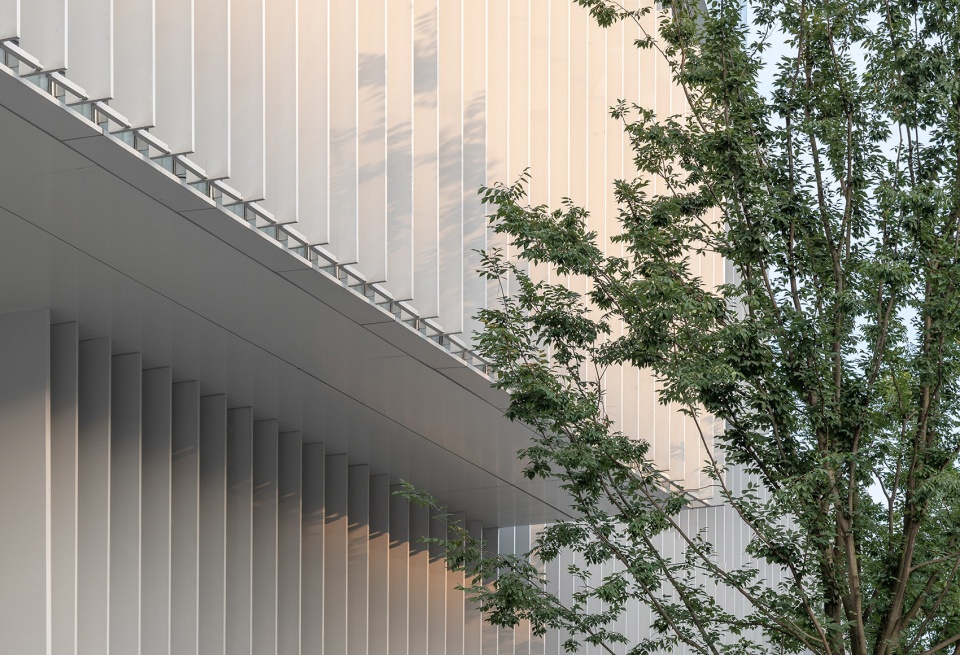

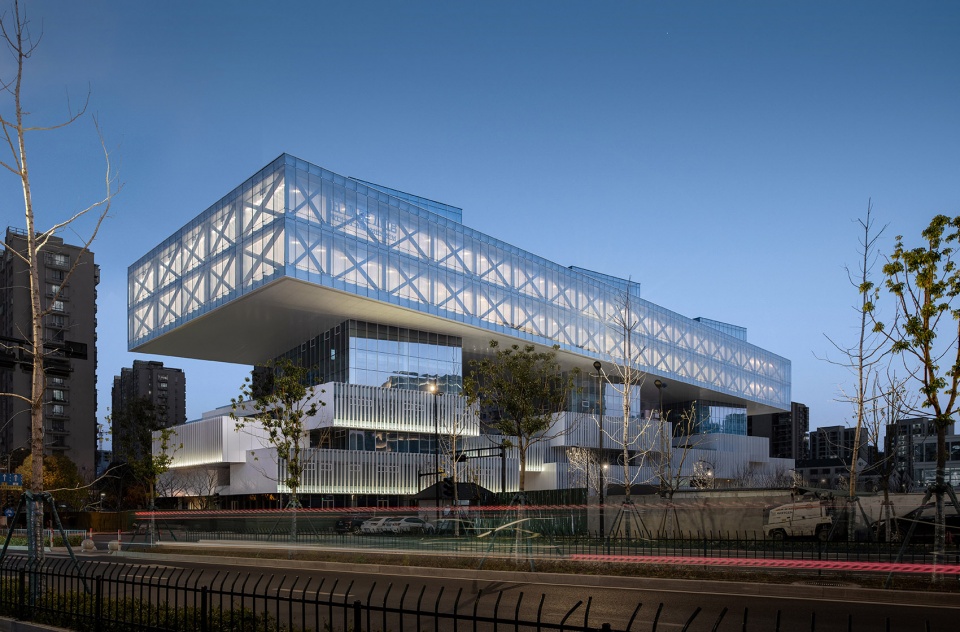

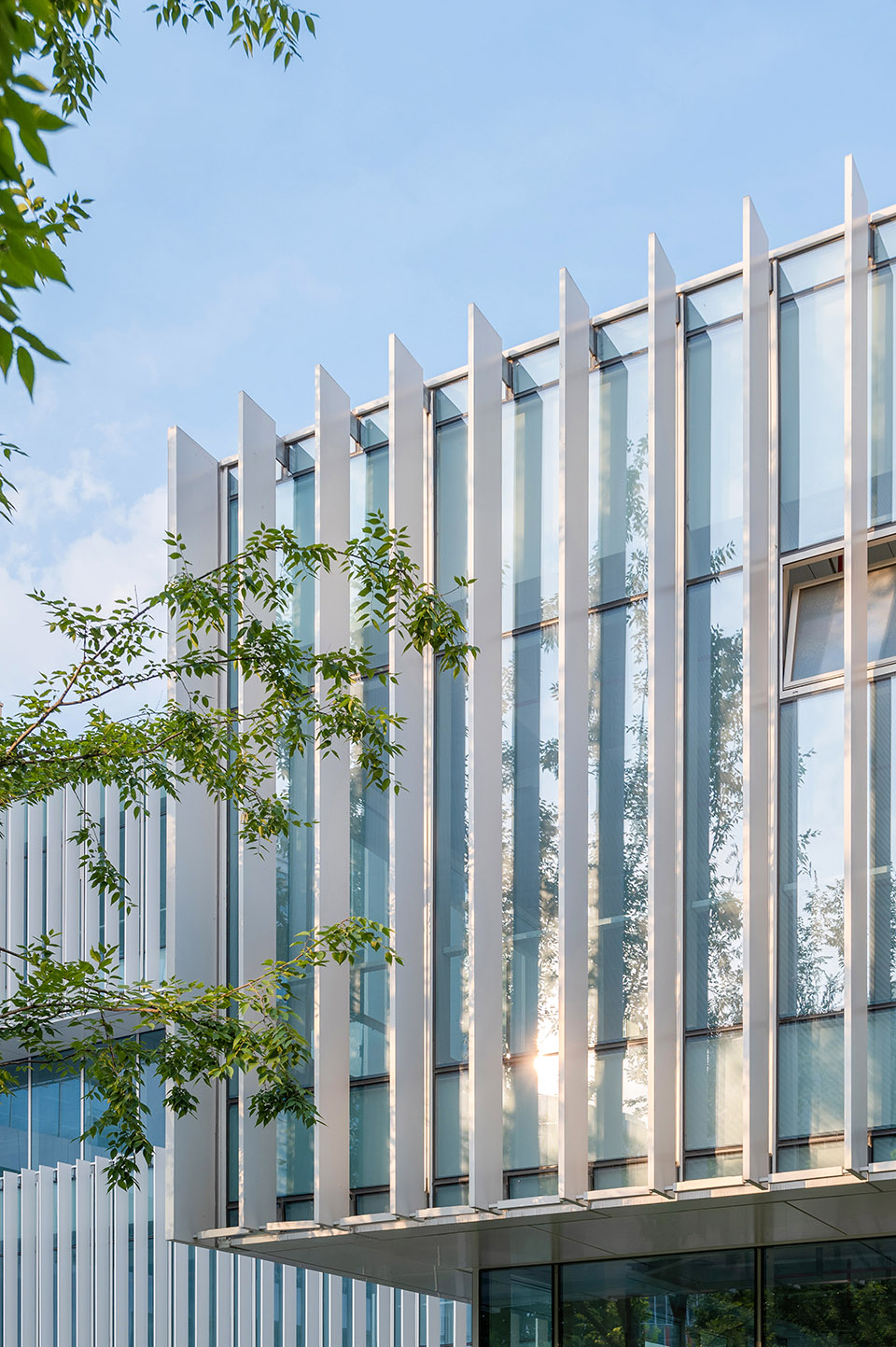

▼立面细部，facade detail ©文沛

▼立面细部，facade detail ©文沛

呈现风景
Presenting the Landscape

美术馆独特的空间架构，清晰明确地表达了建筑的不同功能空间与城市的相互关系，相应地呈现出上部单纯宁静、下部丰富活跃、中部通透友好的场所样态。这些场所与城市中的各色人群、各样活动相互交织，呈现出日常公共生活中丰富多样的人文风景。

The unique spatial structure of the art museum clearly and distinctly expresses the interrelationship between the different functional spaces of the building and the city, presenting a corresponding portrayal of serene tranquility in the upper parts, vibrant activity in the lower parts, and friendly openness in the middle. These spaces intertwine with diverse crowds and activities in the city, showcasing a rich and varied human landscape in everyday public life.

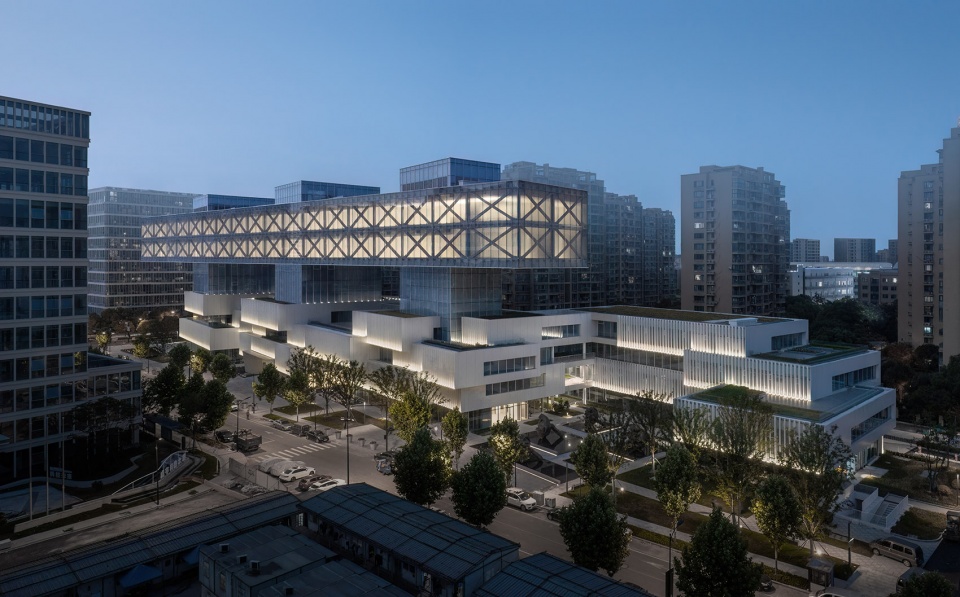

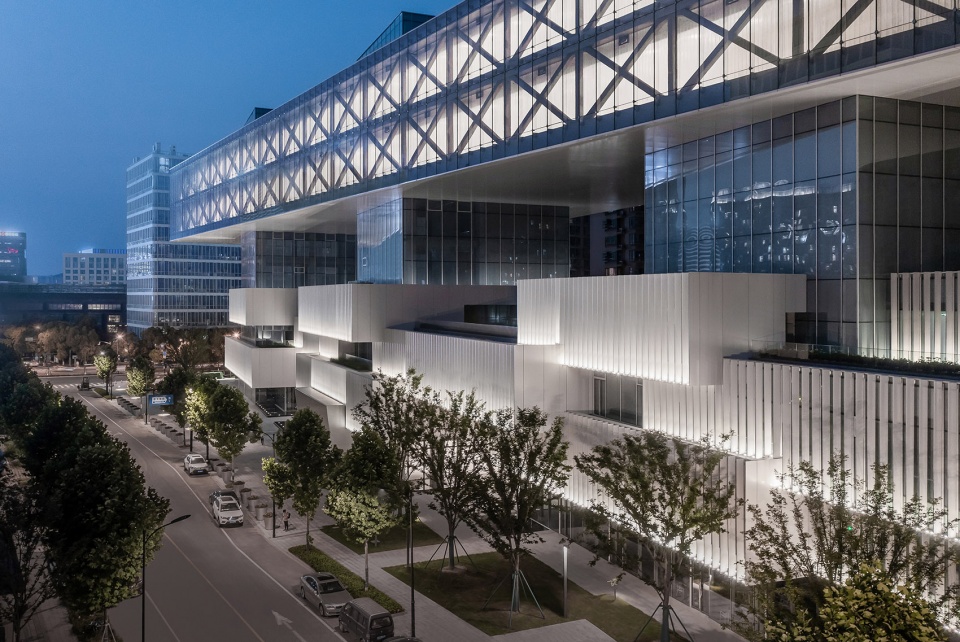

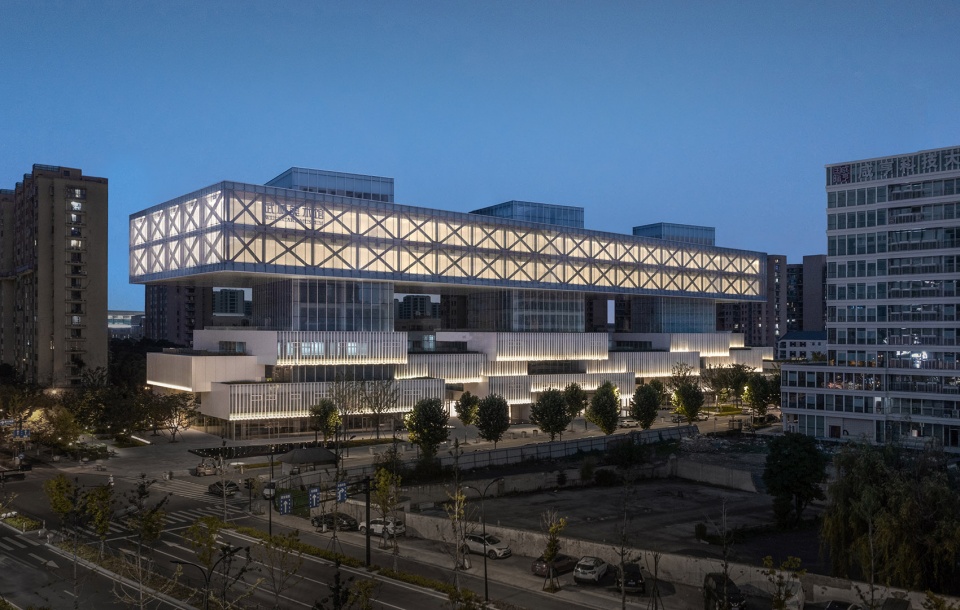

▼夜景，night view ©文沛

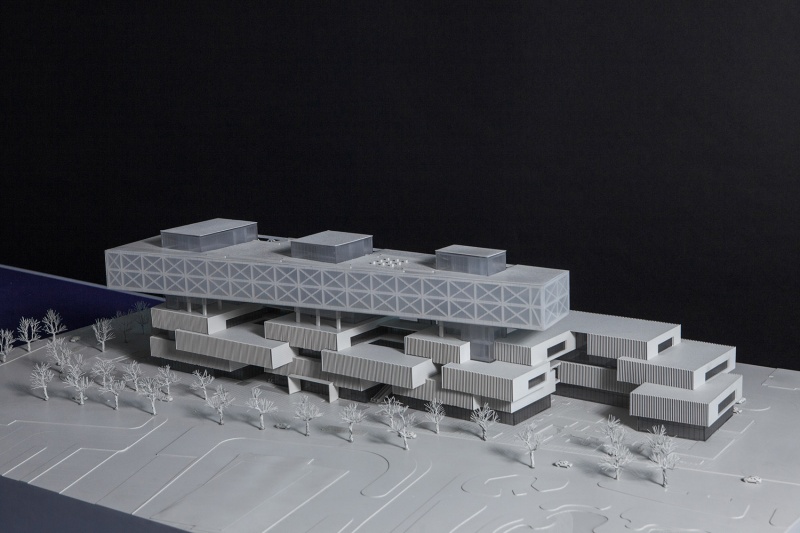

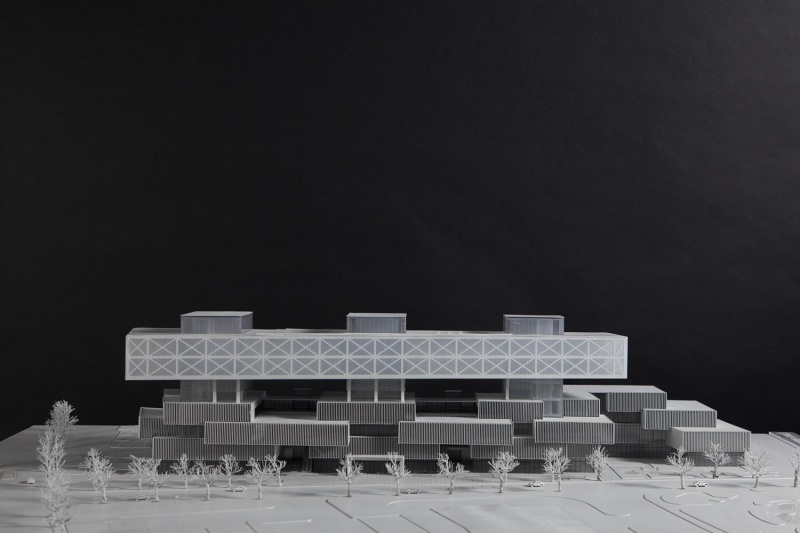

▼模型，model ©筑境设计

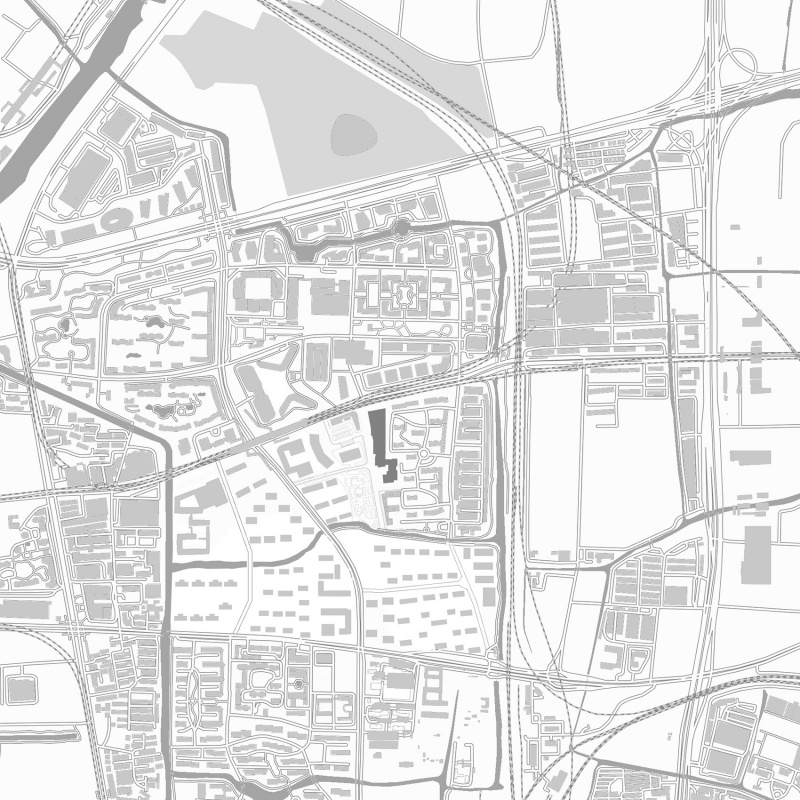

▼场地区位，site map ©筑境设计

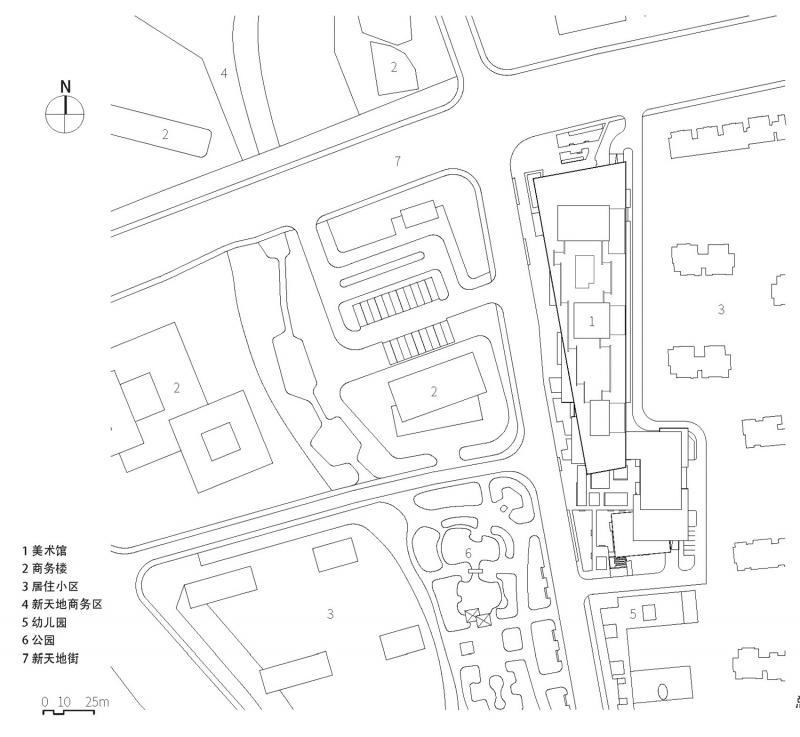

▼场地平面，site plan ©筑境设计

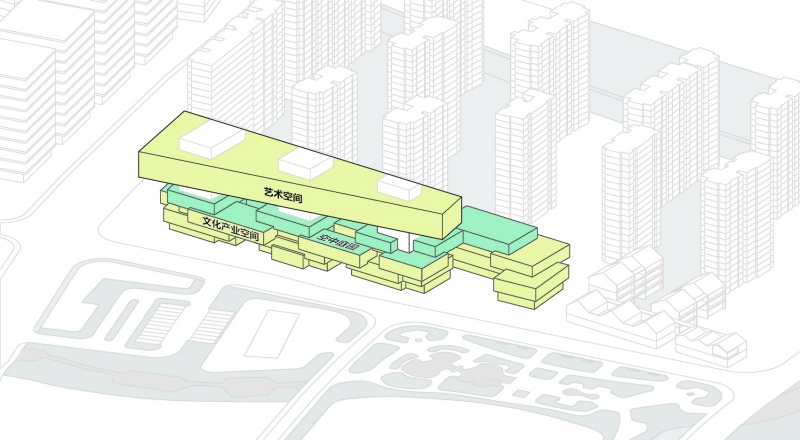

▼设计构思，concept ©筑境设计

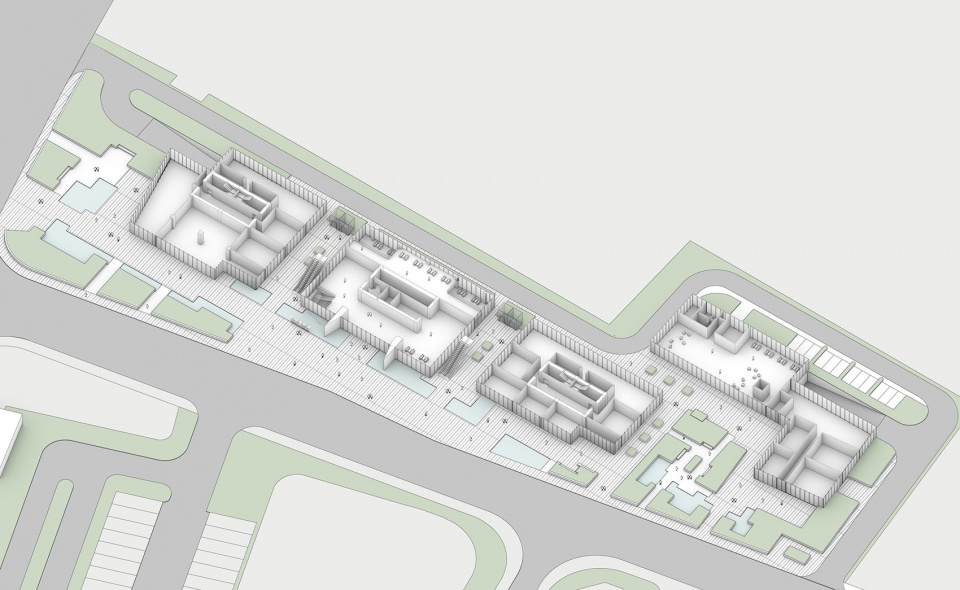

▼低区轴测，lower zone axon ©筑境设计

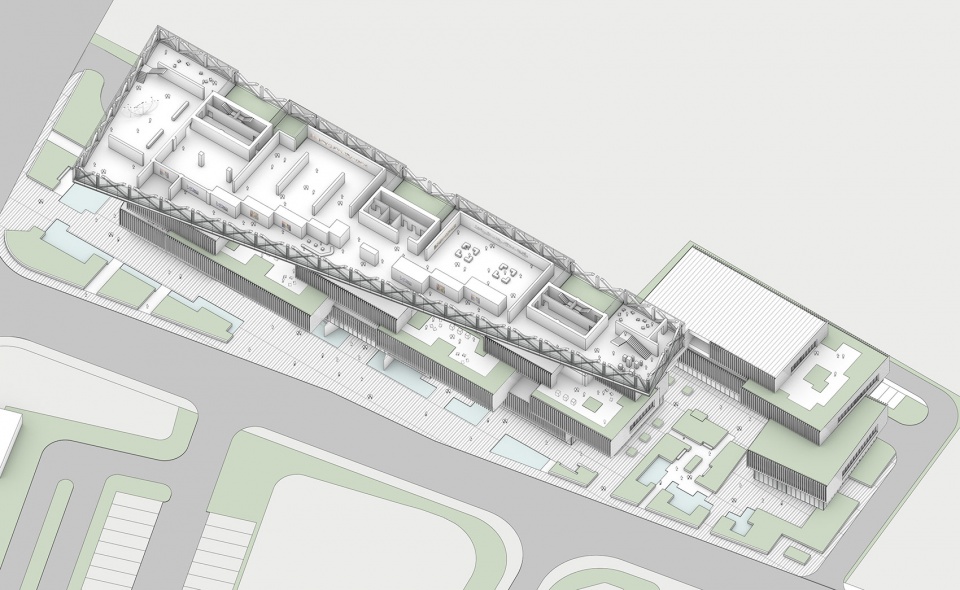

▼高区轴测，upper zone axon ©筑境设计

▼空中庭院轴测，sky garden axon ©筑境设计

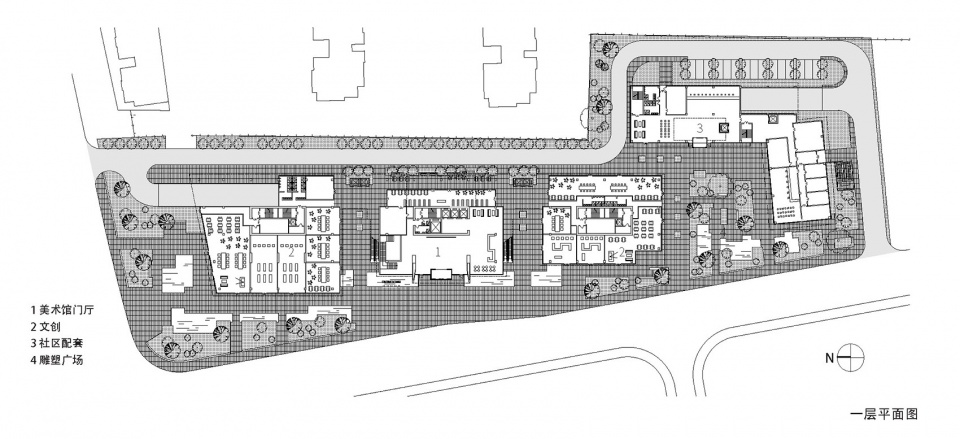

▼一层平面，ground floor plan ©筑境设计

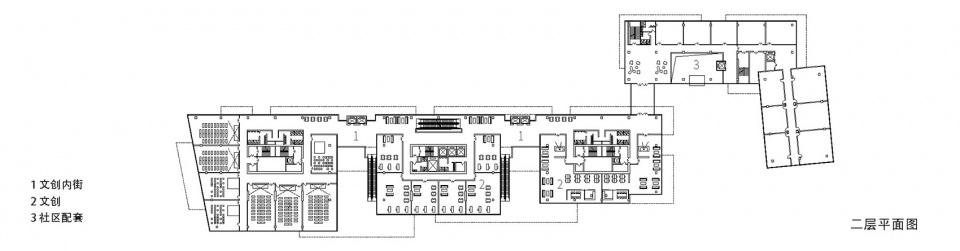

▼二层平面，first floor plan ©筑境设计

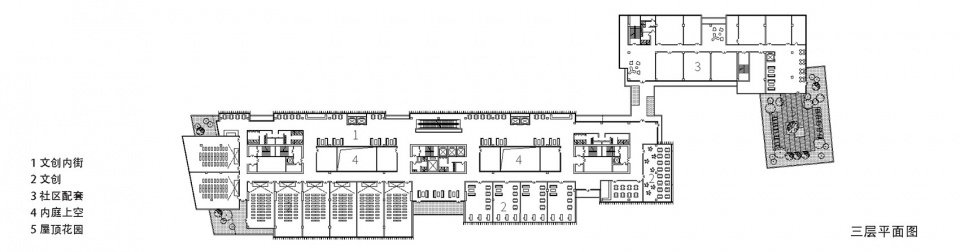

▼三层平面，second floor plan ©筑境设计

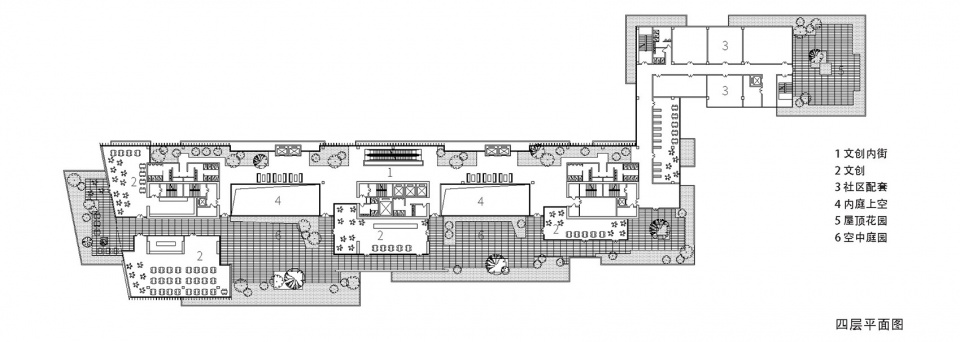

▼四层平面，third floor plan ©筑境设计

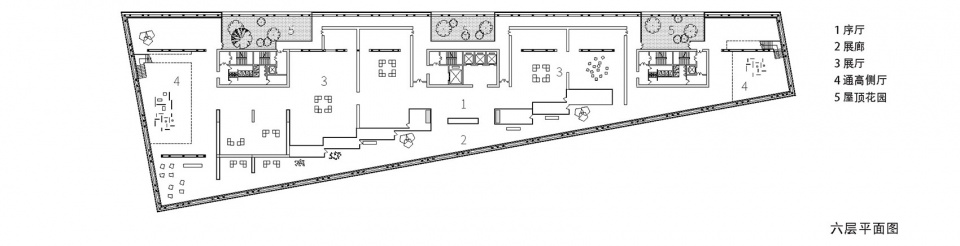

▼六层平面，fifth floor plan ©筑境设计

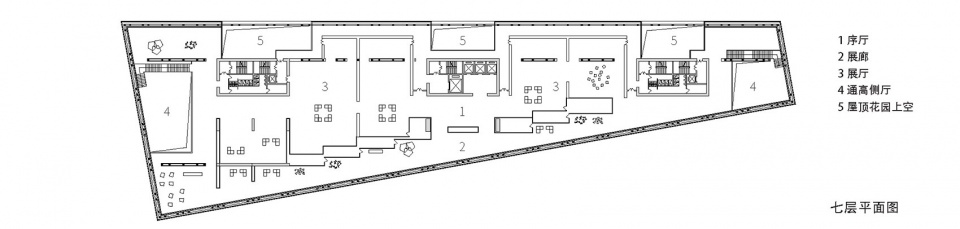

▼七层平面，sixth floor plan ©筑境设计

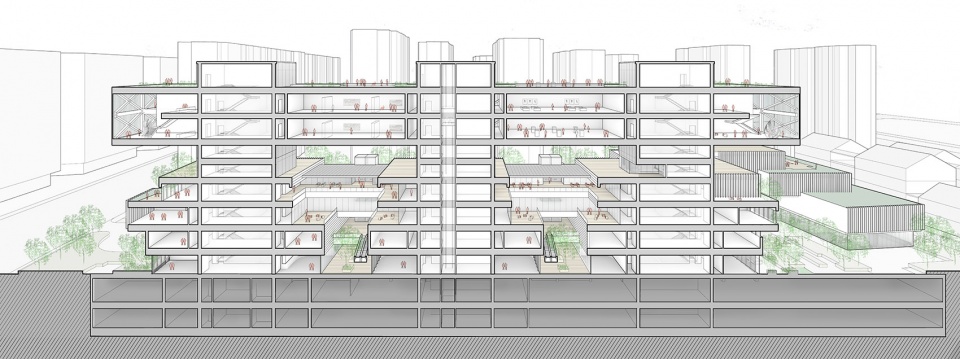

▼剖面，section ©筑境设计

项目名称：杭州武林美术馆
设计方：筑境设计
公司网站：http://www.acctn.com
联系邮箱：cctn@acctn.com
项目设计 & 完成年份：2018&2023
主创及设计团队：主创建筑师：王幼芬
建筑设计：王幼芬、祝狄烽、孙铭、胡泊、陈立国、李嘉蓉、骆晓怡、纪圣霖、江丽华、宋子雨、岳凯、王菁蔓
暖通设计：何佩峰、潘军、王瑞兵
电气设计：李鹏展、王潇、杨桦
给排水设计：沈丹群、杨迎春、纪殿格、卢旦
结构设计：杨旭晨、朱伟、张新英、丁汉杰、吕岩、赵友清
项目地址：浙江杭州拱墅区
建筑面积：489054㎡
摄影版权：文沛
合作方：幕墙：汉嘉幕墙
景观：TOPOS 拓柏景观
内装：杭州典尚建筑装饰设计有限公司
照明：上海麦索照明设计咨询有限公司
标识：北京飞瑞
客户：杭州市拱墅区城市建设集团有限公司、浙江跨贸小镇建设投资发展有限公司
品牌：长青艾德利：蜂窝板筑匠：仿清水合金板祥捷：U型玻璃

Project name： Hangzhou Wulin Art Museum
Design：CCTN Design
Website：http://www.acctn.com
Contact e-mail：cctn@acctn.com
Design year & Completion Year： 2021 & 2023
Leader designer & Team：
Lead Architects: Wang Youfen
Architectural Design: Wang Youfen, Zhu Difeng, Sun Ming, Hu Bo, Chen Liguo, Li Jiarong, Luo Xiaoyi, Ji Shenglin, Jiang Lihua, Song Ziyu, Yue Kai, Wang Jingman
HVAC design: He Peifeng, Pan Jun, Wang Ruibing
Electrical Design: Li Pengzhan, Wang Xiao, Yang Hua
Water supply and drainage design: Shen Danqun, Yang Yingchun, Ji Diange, Lu Dan
Structural design: Yang Xuchen, Zhu Wei, Zhang Xinying, Ding Hanjie, Lv Yan, Zhao Youqing
Project location：Gongshu District, Hangzhou City,Zhejiang
Gross Built Area (square meters)：489054㎡
Photo credits (needs to credit each)：Wen Pei
Partners：Curtain Wall Design: Hanjia Curtain Wall
Landscape Design: TOPOS Landscape Architecture
Interior Design: Hangzhou Dianshang Architectural Decoration Design Co., Ltd.
Lighting Design: Shanghai Maisho Lighting Design Consulting Co., Ltd.
Signage Design: Beijing Feirui
Clients：Gongshu Urban Construction Group Co., Ltd., Hangzhou, Zhejiang
Zhejiang Kuamao Town Construction Investment Development Co., Ltd.
Brands / Products used in the project：EVERGREEN TECHNOLOGY:Honeycomb panels
Hangzhou Zhujiang New Material Technology Co.. Ltd.:Imitation clear water alloy plate
Hangzhou Xiangjie Glass Co., Ltd.: U-shaped glass

More：CCTN Design，更多关于他们：CCTN Design on gooood
