非常感谢 Birdseye Design 予gooood分享以下内容。更多请至：Birdseye Design on gooood
Appreciations towards Birdseye Design for providing the following description:

Woodshed 是一个住宅项目，坐落在佛蒙特州 Pomfret 的绿山山麓。Woodshed 位于一个树木繁茂的陡峭斜坡上，既是酒店，也是附近居住区的娱乐场所。

Woodshed is a residential project nestled in the foothills of the Green Mountains in Pomfret, Vermont. Sited in a clearing on a steeply sloping and heavily wooded site, Woodshed is both a guest house and entertainment space for a nearby residence.

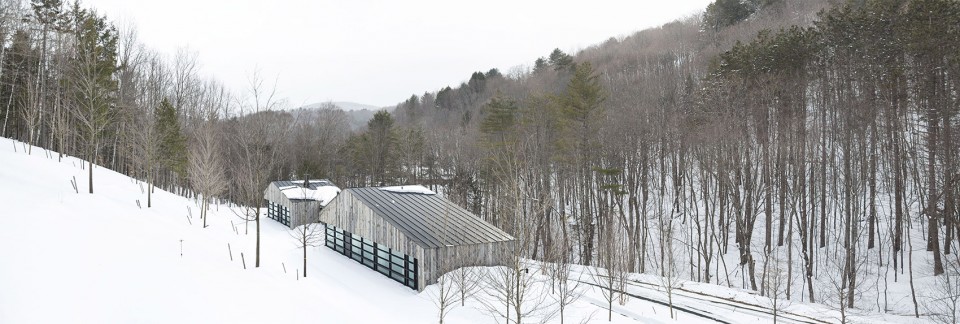

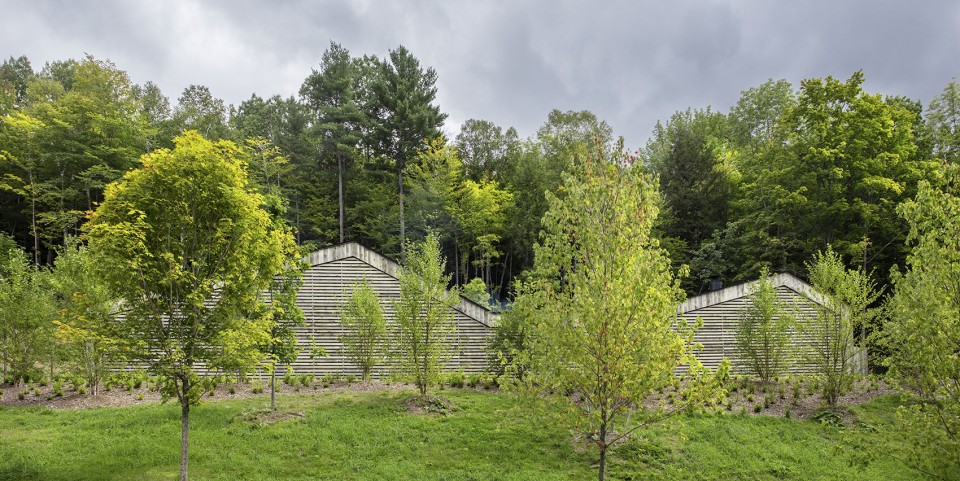

▼ 冬季标志性的风景，located in a typical wooded site

该项目的概念灵感来源于本土的森林，是佛蒙特州风景中标志性的元素。Woodshed 由两个不对称的山墙屋顶形式组成，并通过中央入口连接。

The project is conceptually inspired by the vernacular woodshed, a familiar and iconic element in the Vermont landscape. The Woodshed is composed of two asymmetric gable roof forms, akin to the traditional woodshed, and connected by a central entryway. The project is visually bookended by an auxiliary garage.

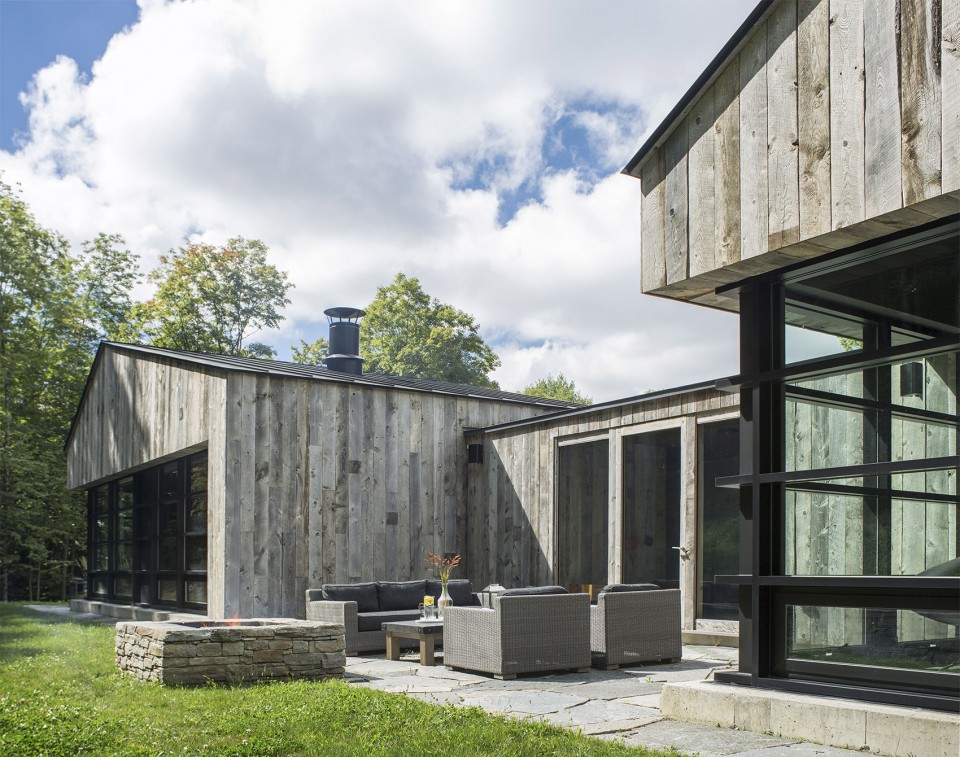

▼ 两个连接的山墙形式由中央入口连接，two timber-clad gabled forms are connected by the entry hall

该项目旨在最小程度的影响到公共空间，用最小的高程以免破坏树林景观，同时向业主提供一个引人入胜的居所。西侧的立面使用了连续的镂空幕墙，传统木板的表现性出慵懒的效果。东面的玻璃墙向景观打开，将风景带入室内。

The project purposefully projects a minimal elevation to the public street side and an engaging, contemporary open elevation to the private hillside. The western, public elevation presents the continuous wood wall that evokes the expressive scrim wall of a traditional woodshed. The eastern side opens up to the views with glass walls that invite the landscape, exterior retaining walls and terrace spaces into the structure.

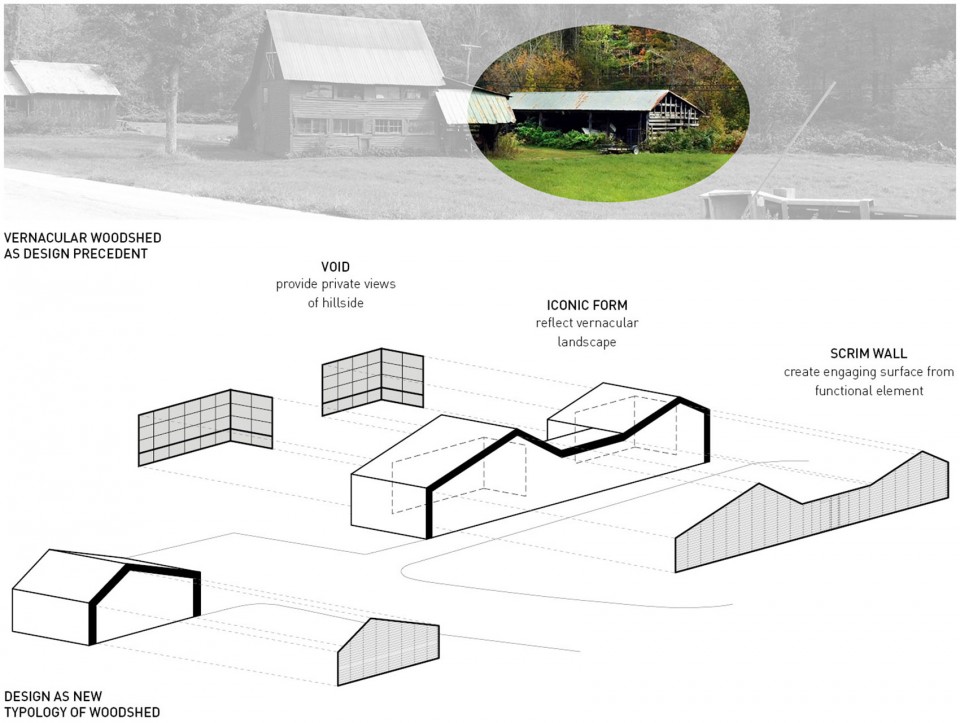

▼ 项目概念分解，the exploded axonnmetric

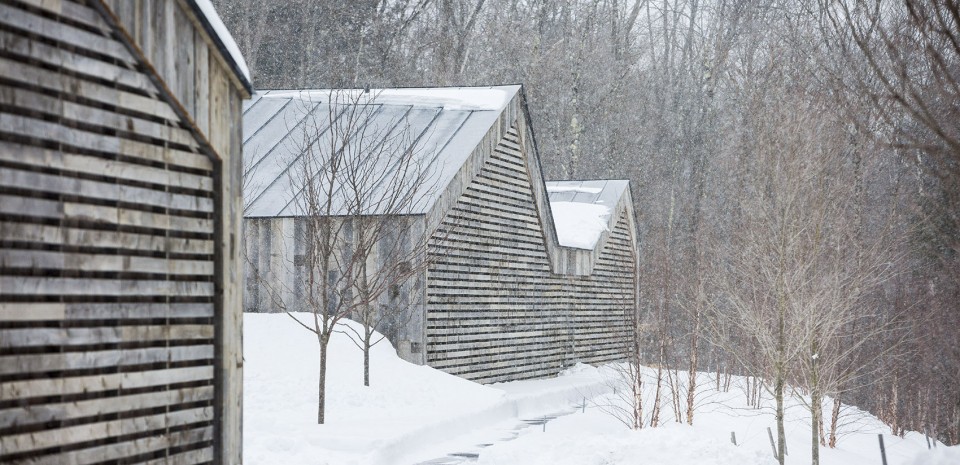

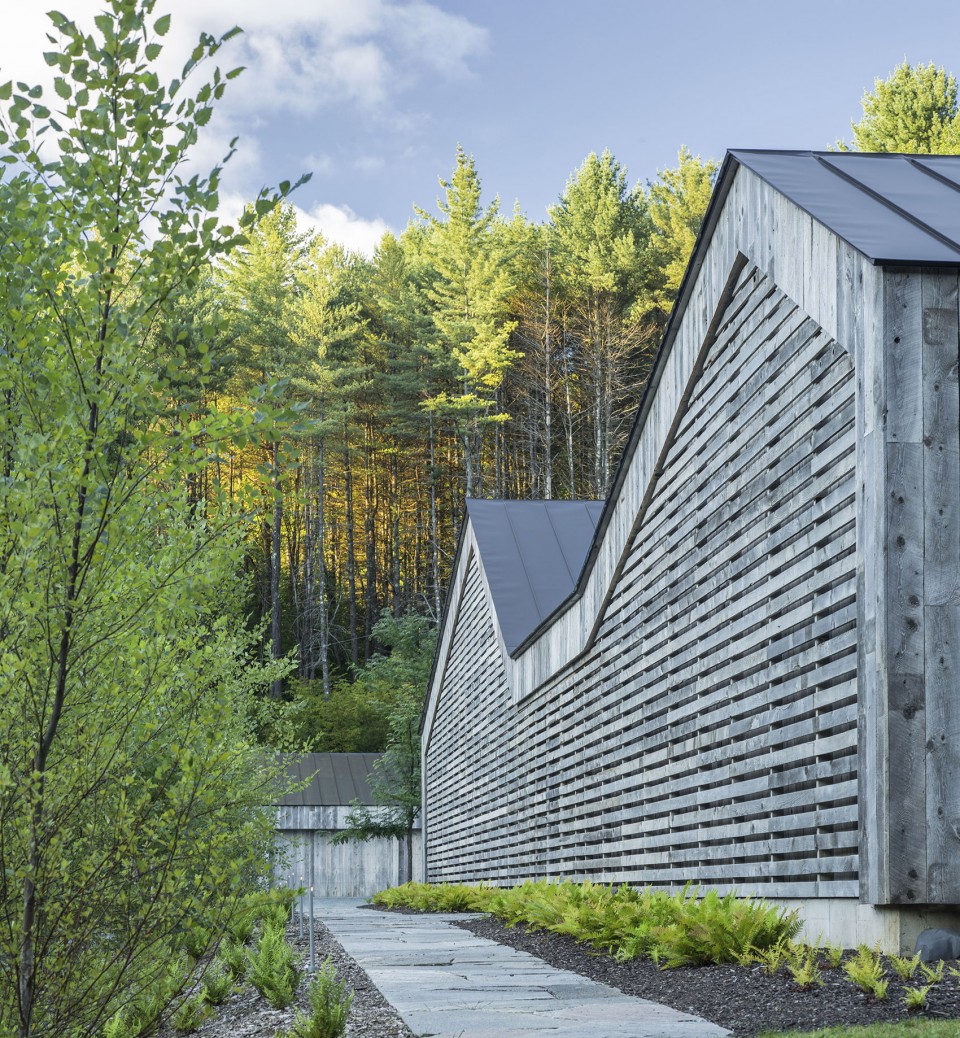

▼ 西侧的镂空幕墙，continuous wood wall that evokes the expressive scrim wall of a traditional woodshed

墙壁由重新制作的防雪围栏组成。设计师尽量减少了细节的数量，简单地表达风化板的自然之美。防雪围栏主要由标准尺寸的木板组成，被切割到一定的长度。镂空幕墙更复杂，由几层雪橇板组成，从下面的道路可以看见难得的光影纹理。镂空木墙的制作细节丰富，以便在玻璃门前面创建一个帷幕，使围观者的可见性降到最低。

The siding is composed of repurposed snow fencing. Great effort was made to minimize the amount of detailing and simply express the natural beauty of the weathered boards. The snow fencing is primarily composed of standard dimension boards and were only cut to reach desired lengths. The scrim wall is more complex and is composed of several layers of snow fencing to create light and shadow textures visible from the road below. The horizontals of the scrim wall are detailed to create a screen in front of the glass entry vestibule and minimize visibility for onlookers.

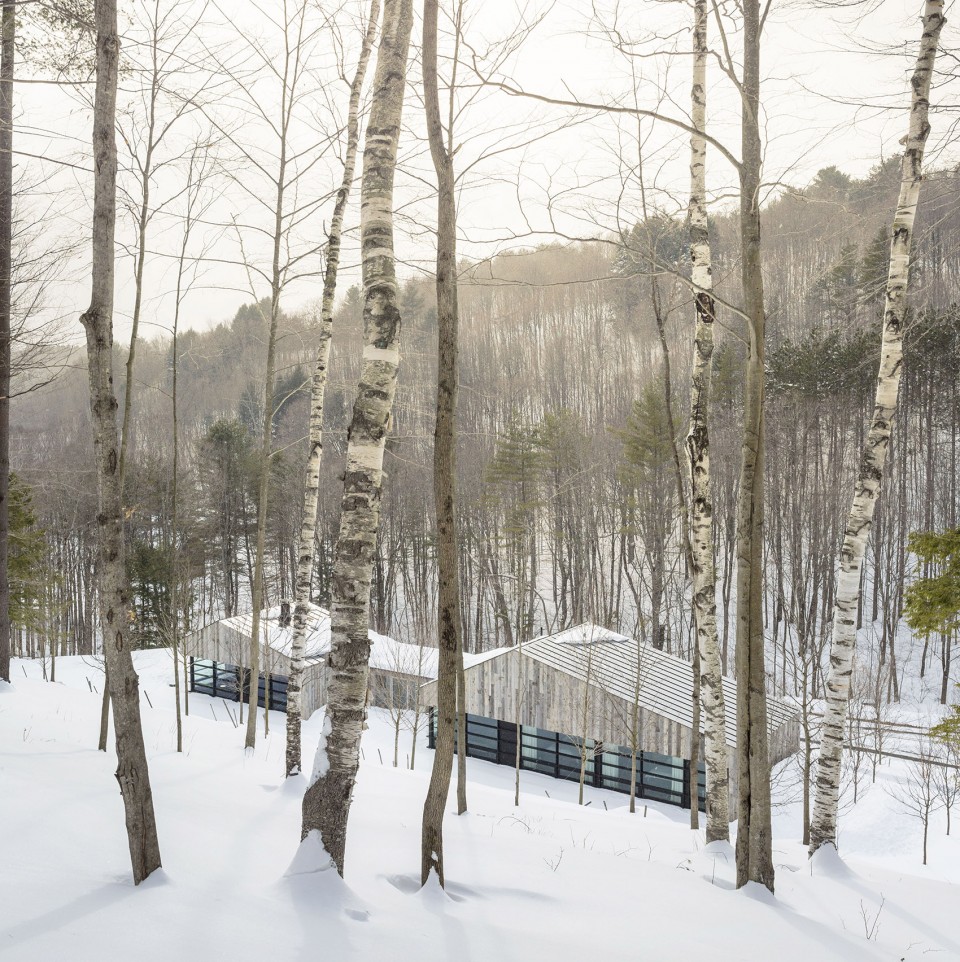

▼ 冬季的景观，view in winter

入口前庭延续了室外的外墙效果，由平整的雪围栏板制成的长椅。进入的人可以直接看到外面，看到与陡峭倾斜的树林和相邻的石头露台。房子分为两翼：南翼是宾馆，北翼是娱乐空间。宾馆包括三间卧室，厨房和起居空间。北侧包括游戏室，休息室，酒吧和双面壁炉。两侧的建筑都设最大限度地暴露东部山坡上，大的玻璃墙横跨每个房间的角落。

The entry vestibule continues the exterior siding to the interior and includes benches made of planed and finished snow fencing. Visitors in the entry can look directly through to the exterior and see the stone terrace abutting the steeply sloping woods. From this point the house splits into two wings: the southern wing is a guest house and the northern wing is an entertainment space. The guest house includes three bedrooms, kitchen and living space. The northern wing includes a game room, lounge space, bar, and double-sided fireplace. Each wing is designed to maximize exposure to the eastern hillside of the house, with large glass walls spanning each room and wrapping around corners.

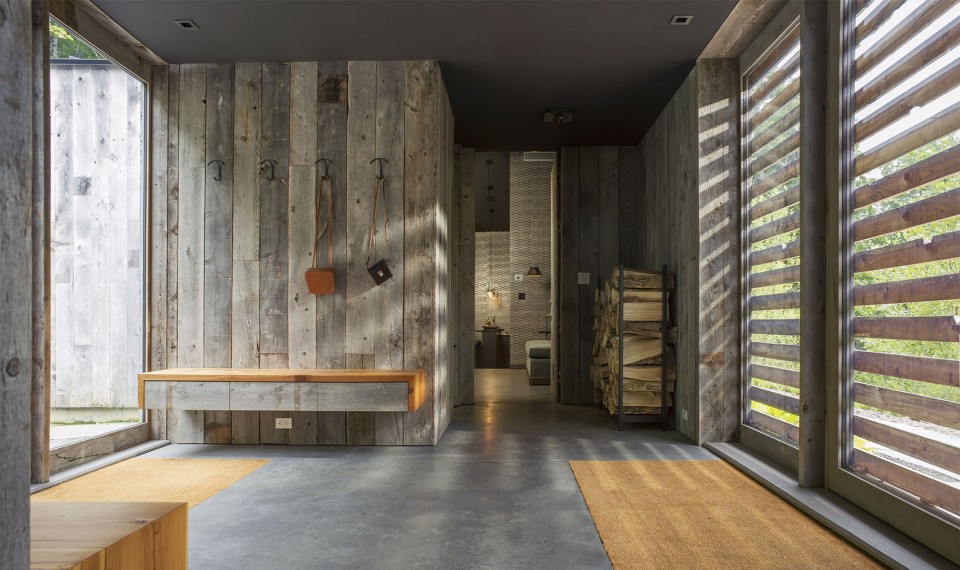

▼ 玄关，the entryway

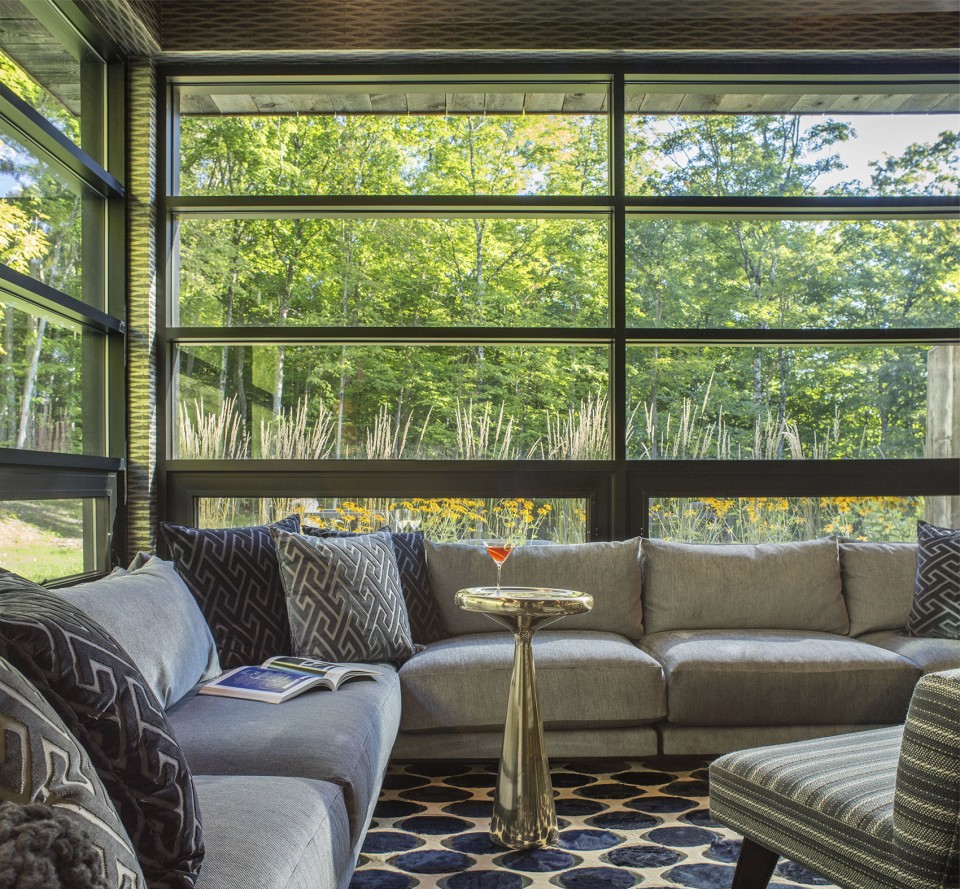

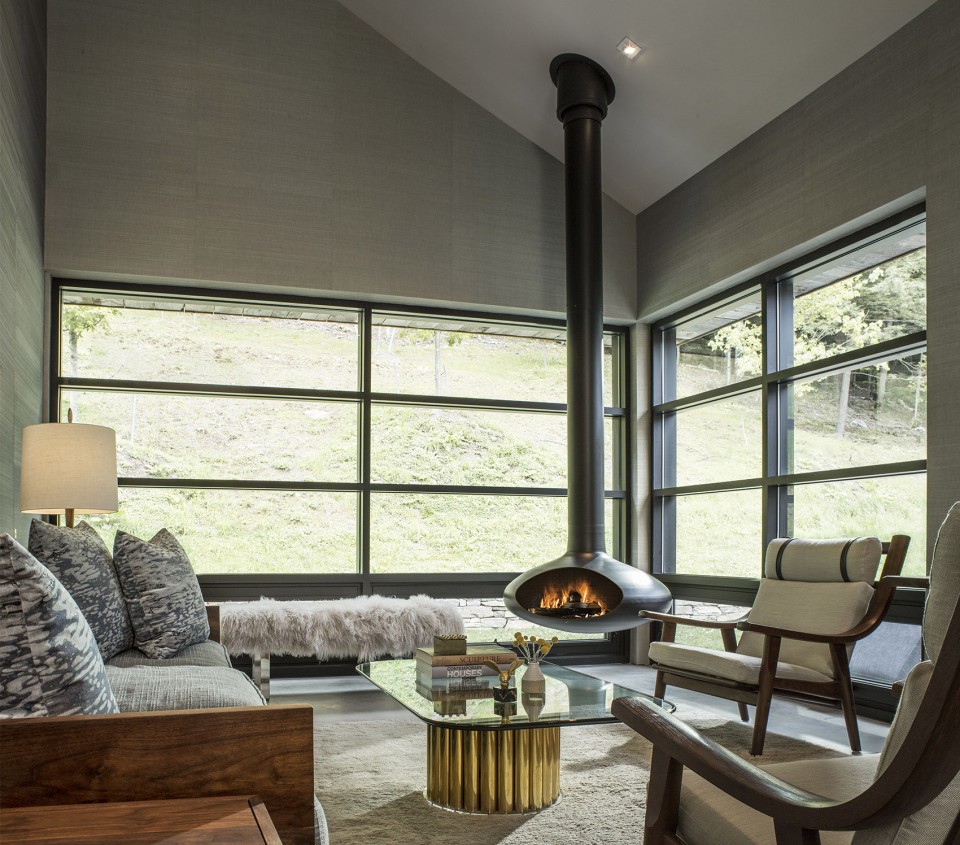

▼ 客厅空间，living room

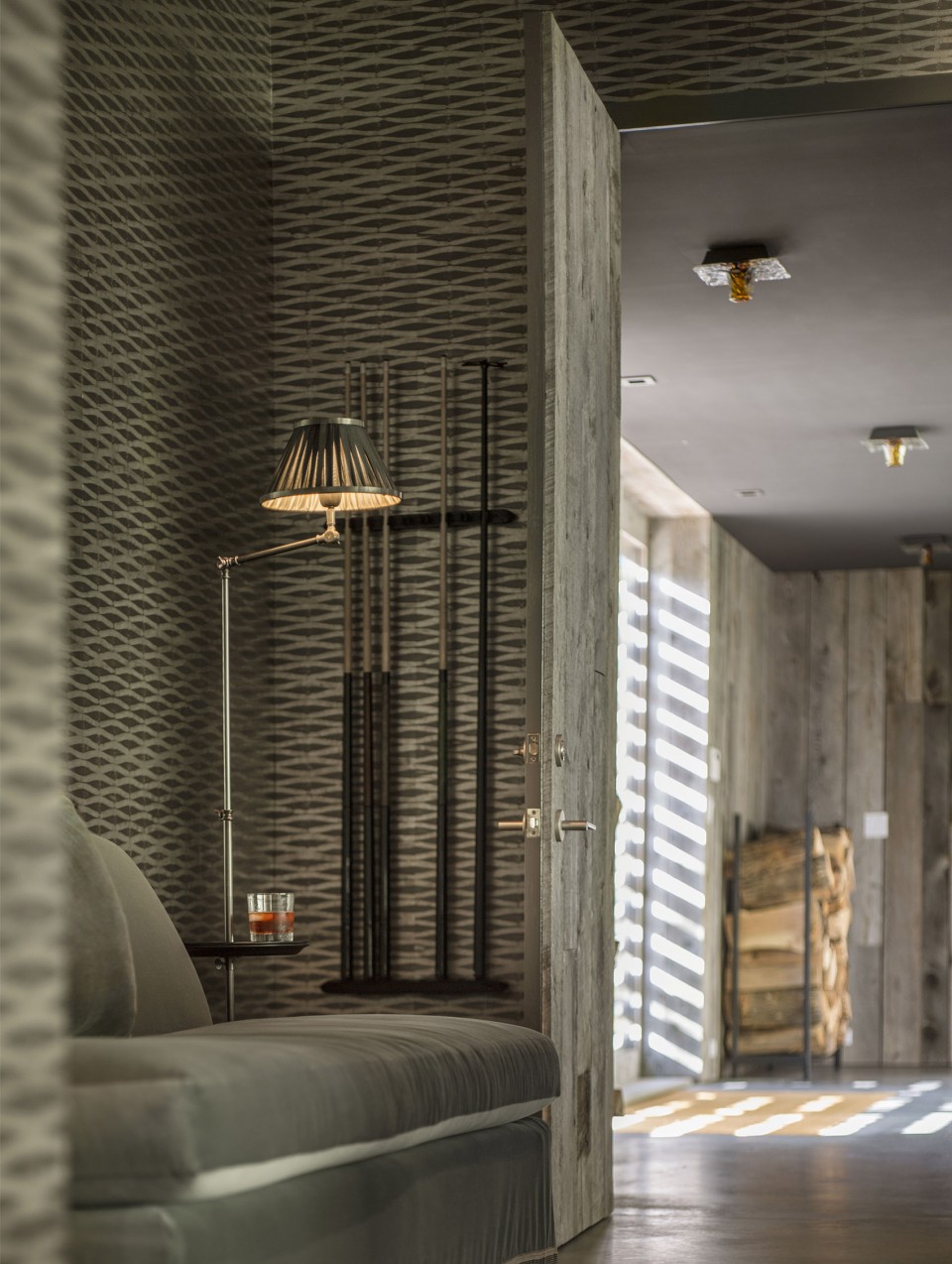

▼ 空间的细部，the detail of the space

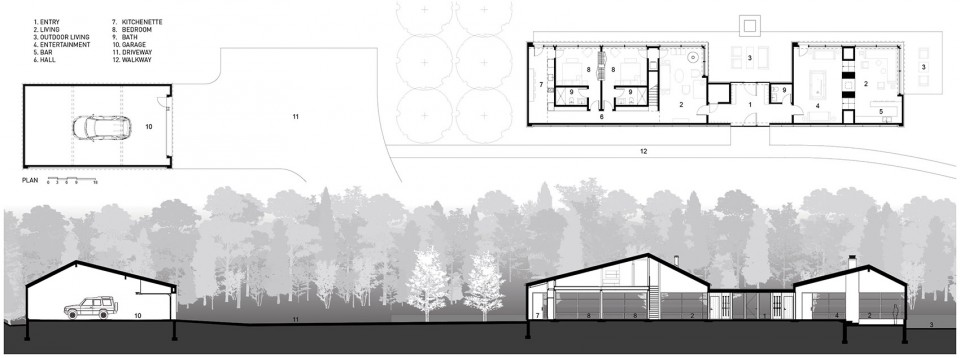

▼ 图纸，drawings

Project Name: Woodshed
Location: Pomfret, VT
Firm: Birdseye Design
Architect: Brian Mac, AIA
Structural: Engineering Ventures
Landscape: Wagner Hodgson Landscape Architects
Interior Designer: William Christopher Design
Builder: Colby & Tobiason
Photographer: Jim Westphalen
