Appreciation towards Ramboll Studio Dreiseitl for providing the following description:

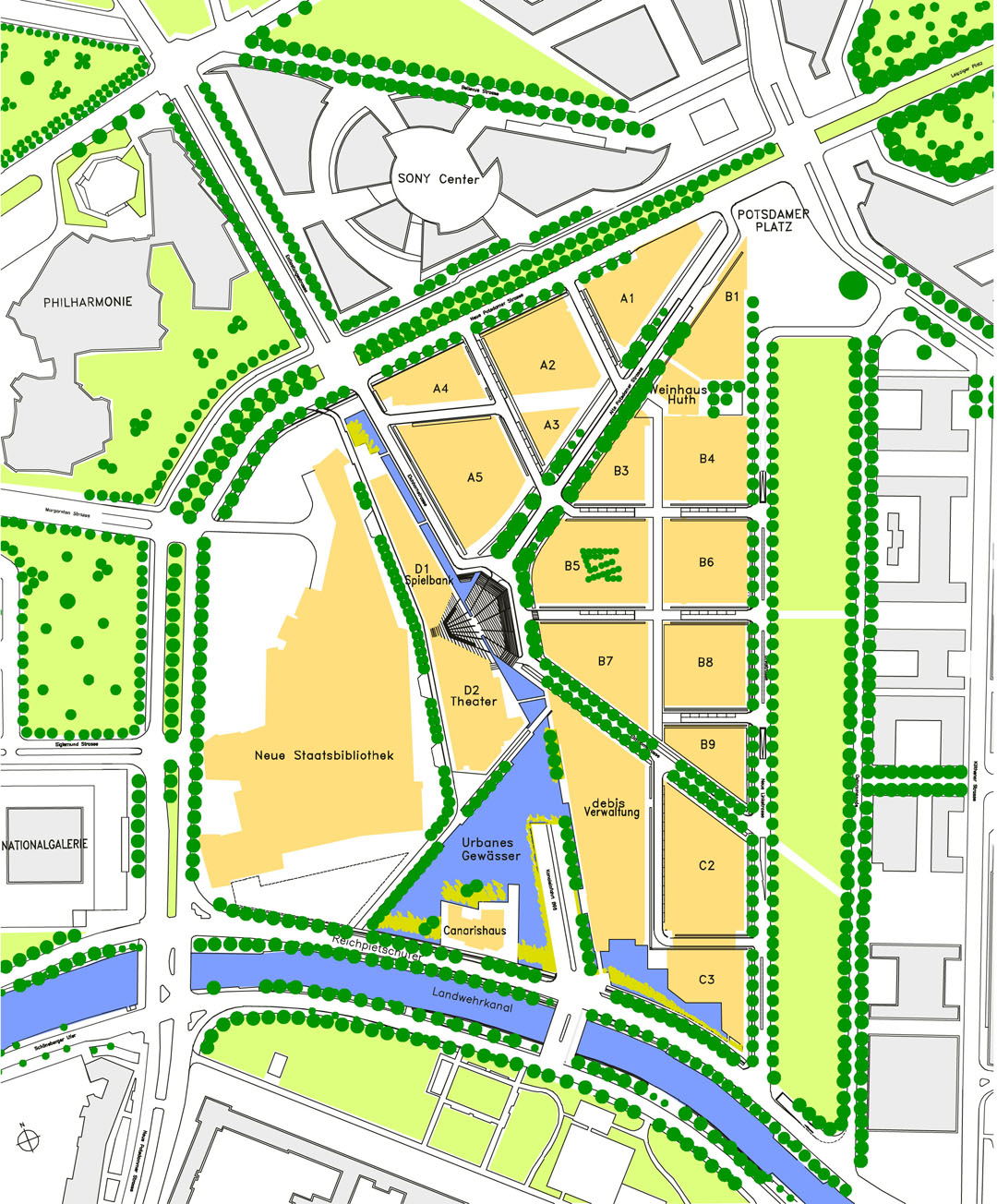

Water System Potsdamer Plaza, Berlin, Germany
德国柏林波茨坦广场水系设计
Location: Berlin
项目地址：德国柏林
Client: City of Berlin, Daimler Chrysler Immobilien
项目委托：柏林市政府，戴姆勒克莱斯勒公司
Area: 1,3 ha
项目面积：1.3公顷
Completion: 1998
建成时间：1998年
Award: 2011 DGNB Silver Sustainable urban district
所获奖项：2011年DGNB可持续城市区域设计银奖

标志性的波茨坦广场承载着东、西柏林分裂而遗留的历史创伤。如薄沙般浅浅的流动台阶在微风拂动下，形成波光粼粼的韵律表面，为人们提供更多的亲水、戏水乐趣。此城市水景设计使得波茨坦广场成为柏林著名的游览场所之一。

这一城市水景设计之中蕴含的理念即为，雨水在降落之地即应被就地使用。在波茨坦广场，绿化屋顶和非绿化屋顶的结合设计可以获取全年降雨量。雨水从建筑屋顶流下，作为冲厕、灌溉和消防用水。过量的雨水则可以流入户外水景的水池和水渠之中，为城市生活增色添彩。植被净化群落融入到整个景观设计之中用以过滤和循环流经街道和步道的水质、水体，而无任何化学净水制剂的使用。湖水水质很好，为动植物创造了一个自然的栖息场所。同时，由于净化雨水的再利用，也使得建筑内部净水使用量得以减少。自1998年建成之后，波茨坦广场已经成为一个开放空间重获生机的成功案例。在这里，城市生活、杰出的建筑创作和魅力的水景实现了和谐统一。

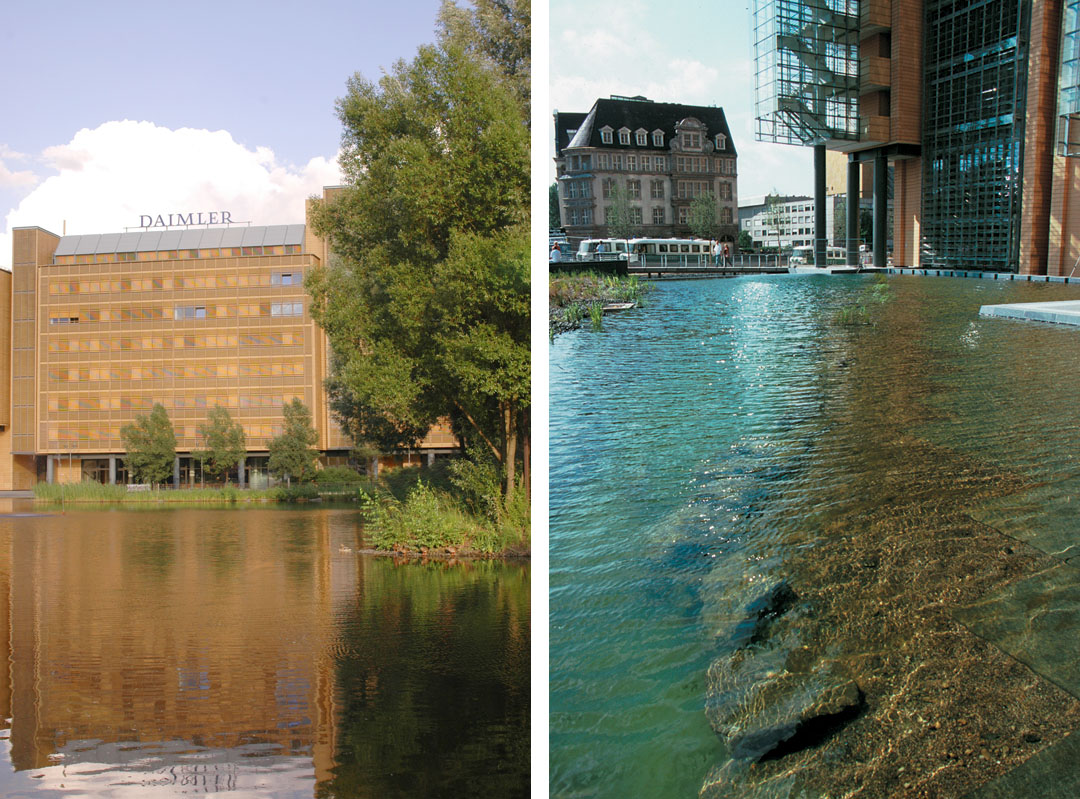

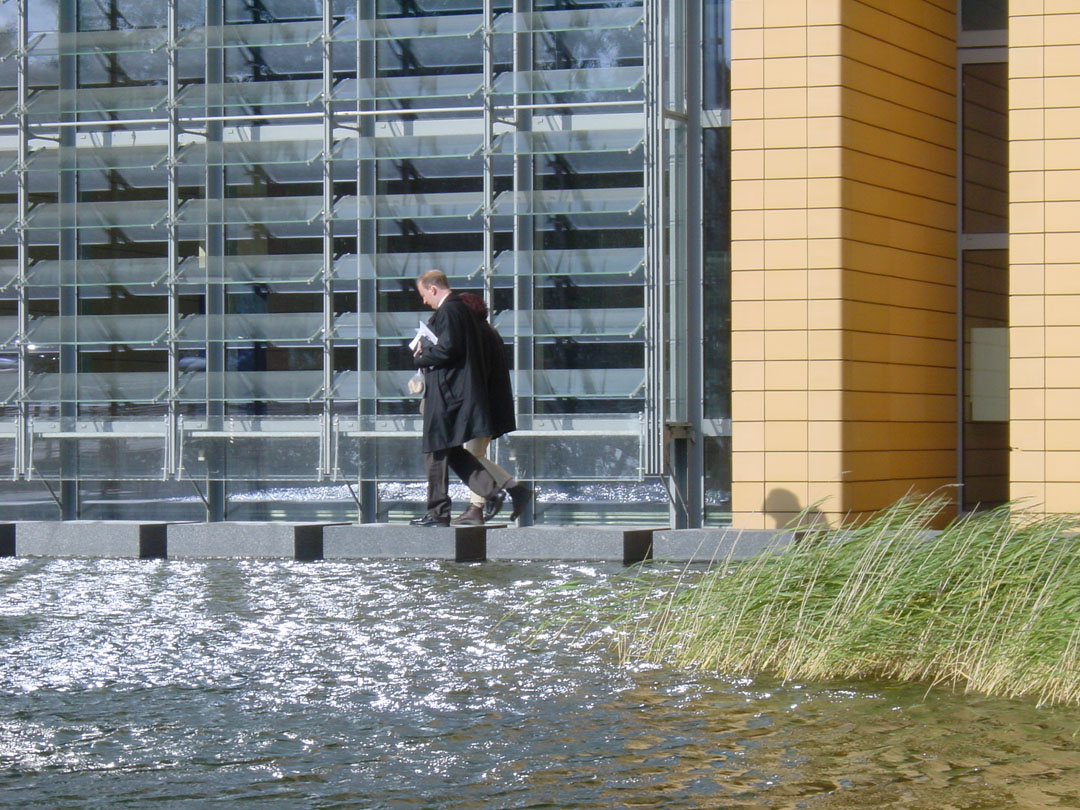

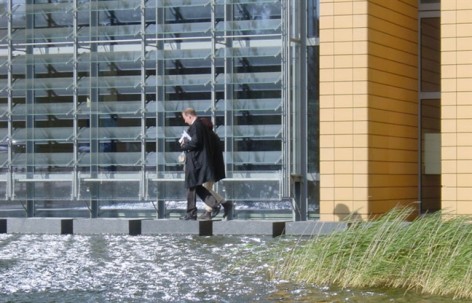

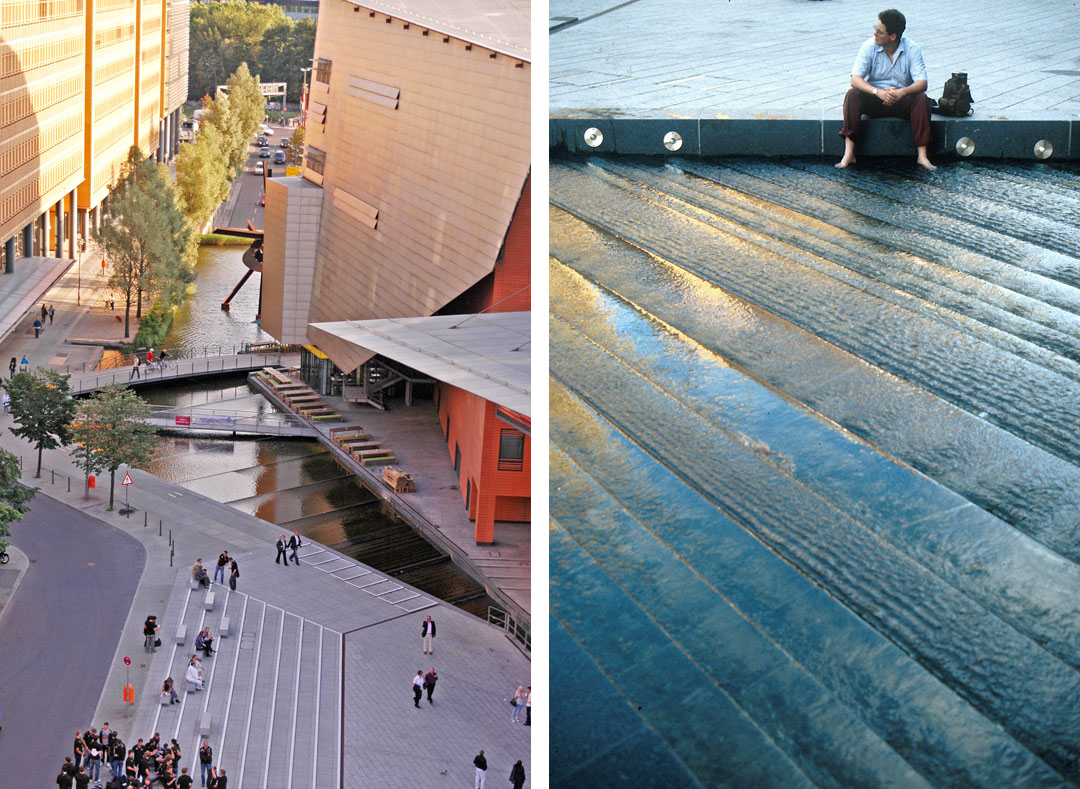

The iconic Potsdamer Plaza bridges the scar left by the wall between East and West Berlin. A veil of shallow flow-steps create a rhythmic surface of shimmering waves, providing multiple opportunities for people to cross and interact with the water. This urban waterscape has contributed to make Potsdamer Plaza one of the most visited places in Berlin.

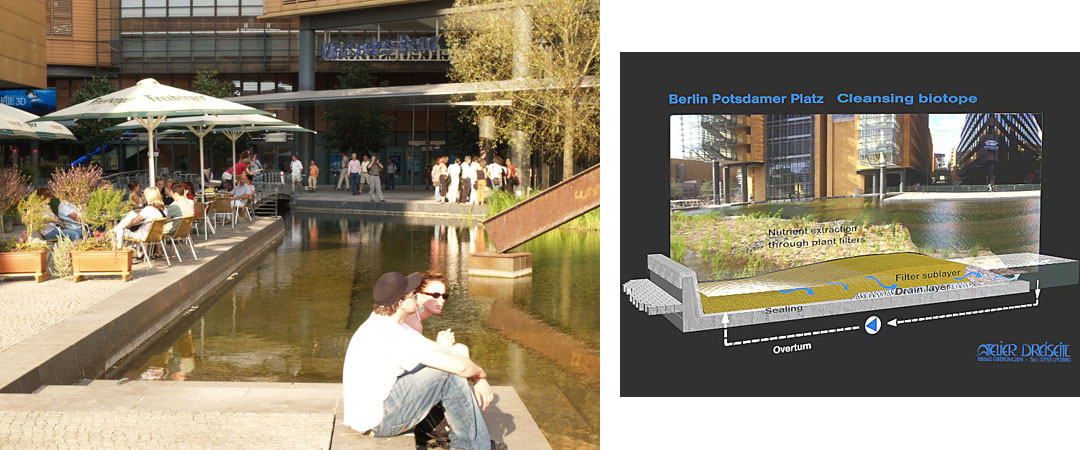

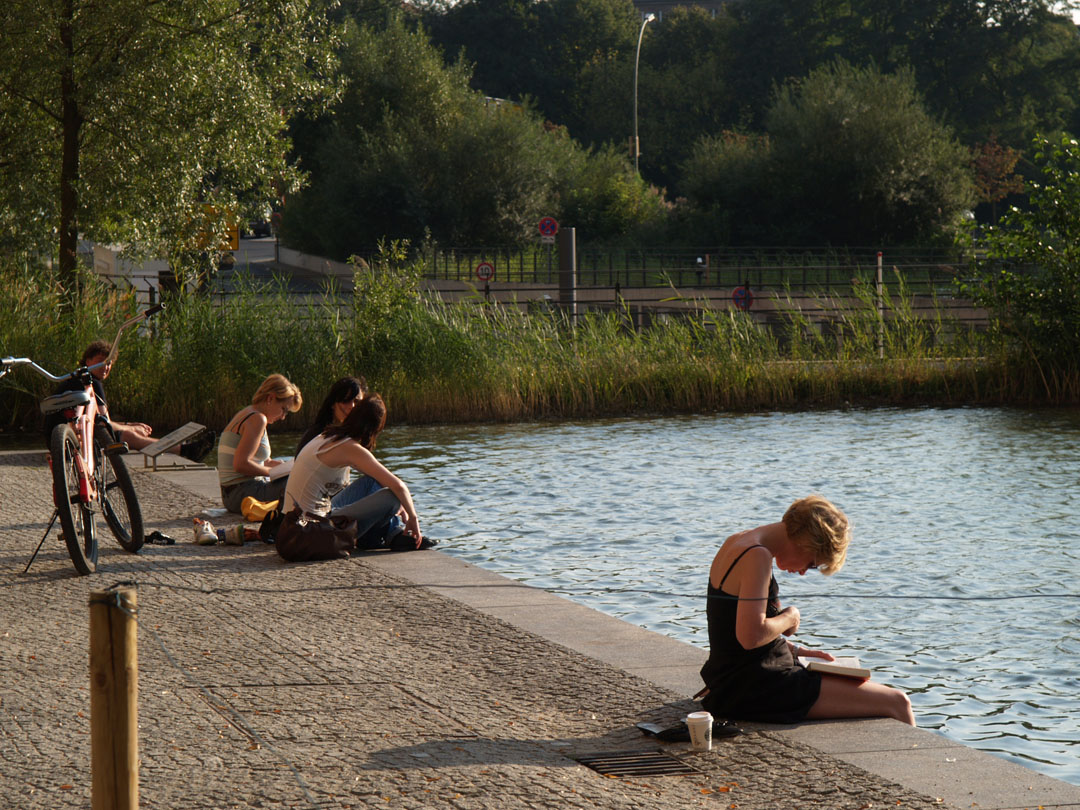

The idea behind this important urban waterscape is that the rainwater should be used where it falls. At Potsdamer Plaza, a combination of green and non-green roofs harvest the annual rainfall. Rainwater then flows through the site’s buildings and is used for toilet flushing, irrigation, and fire systems. Excess water flows into the pools and canals of the outdoor waterscape creating an oasis for urban life. Vegetated biotopes are integrated into the overland landscape and serve to filter and circulate the water that runs along streets and walkways, all without the use of chemicals. The lake’s water quality is excellent forming a natural habitat and fresh water usage in the buildings has been reduced. Since 1998, Potsdamer Plaza stands as a successful example of a revitalized open space where city life, prestigious architecture, and the beauty of water are in harmony.
