来自OOA对gooood的分享。更多关于：OOA on gooood.
Appreciation towards OOA for providing the following description.

该住宅位于比利时海边不远处的60年代早期平房住宅区地段，被层叠的沙丘环绕。建筑师的设计受到了当地平房建筑的启发。建筑要与周边建筑和环境保持一致，并且遵守相应的建筑法规，乍看之下，建筑就像一个单层的住宅。

The house is situated in a residential allotment with “bungalow” houses from the early sixties, surrounded by dunes, not far from the Belgian seaside. To bring the house into accordance with the surrounding houses and the enviroment and to answer to the building regulations, the design of the house was inspired by the bungalow typology. At first glance it looks like a single storey house.

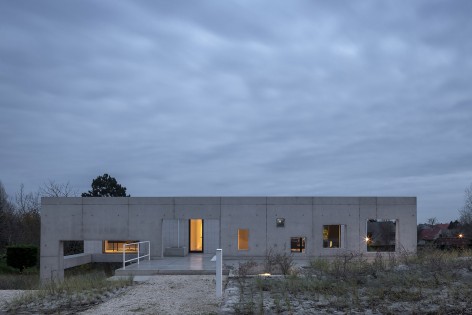

▼ 住宅正面， Front View of the House

不仅建筑法规对住宅进行了严格的限制，居民也对住宅有着特殊的要求。他们想要住宅与街道处于同一层，但不希望路人打扰到自己的生活。居民希望他们的住宅既能方便的邀请客人来做客，又希望保持自己生活的隐私。

Next to the strict building regulations the residents had very specific demands; they wanted to live on the same level as the street, but they did not want passersby to be able to look inside. On the other hand they also wanted the possibility of inviting people, giving them all comfort, without loosing their own privacy.

▼ 住宅正面夜景，Night View

整个住宅建造在一个水平混凝土的平台上，悬臂梁和混凝土锥形墙支撑着平台。在地下，墙壁的另一面，两个自带平台隐藏起来的房间为混凝土平台提供了支撑平衡力。这种设计手法回应了具体而矛盾的要求。平房整体位于新的平台上，隐藏于直立的混凝土墙后面。住宅可以在平台上发展延伸。住宅面对着平房区域的一侧完全开放，但是又远离了平房的区域，完全独立。

The concept of the residence starts from a horizontal concrete plateau that cantilevers against a concrete conical wall. Underground, on the other side of the wall, two hidden rooms with patios provide a counterweight to the horizontal plateau. This conceptual approach answers the specific and seemingly contradictory demands. The bungalow is situated on the new concrete plateau hidden behind the concrete wall. It is carried by the platform, and can thus extend beyond that of the neighbors. It has a completely open view over the allotment behind the house and seems to release itself from the latter.

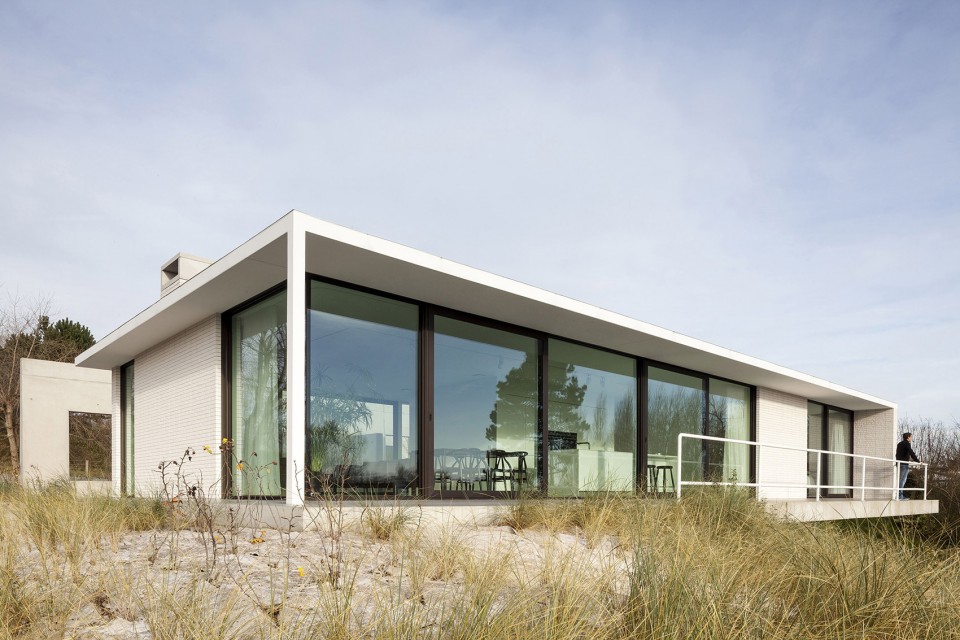

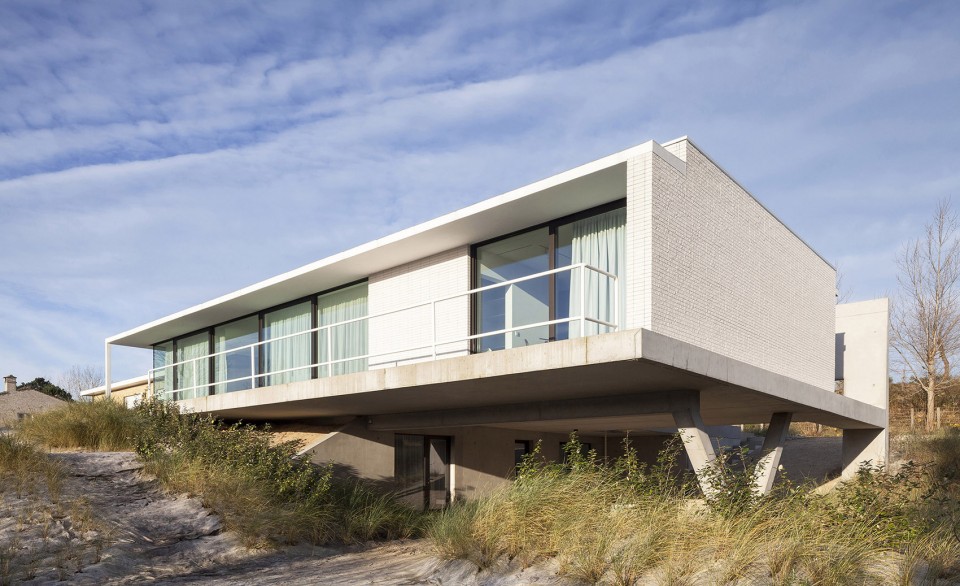

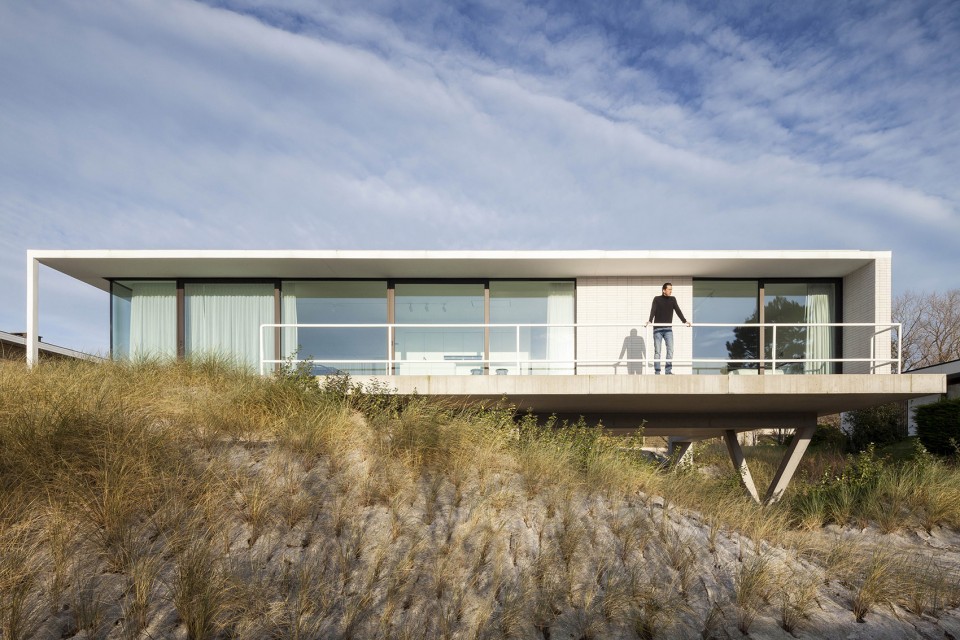

▼ 住宅背面，Back View of the House

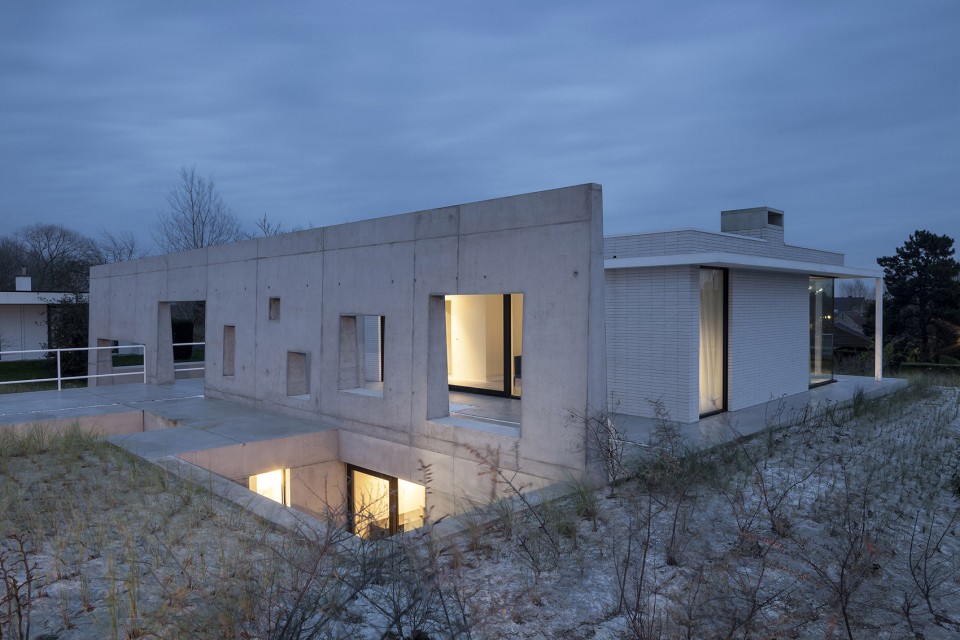

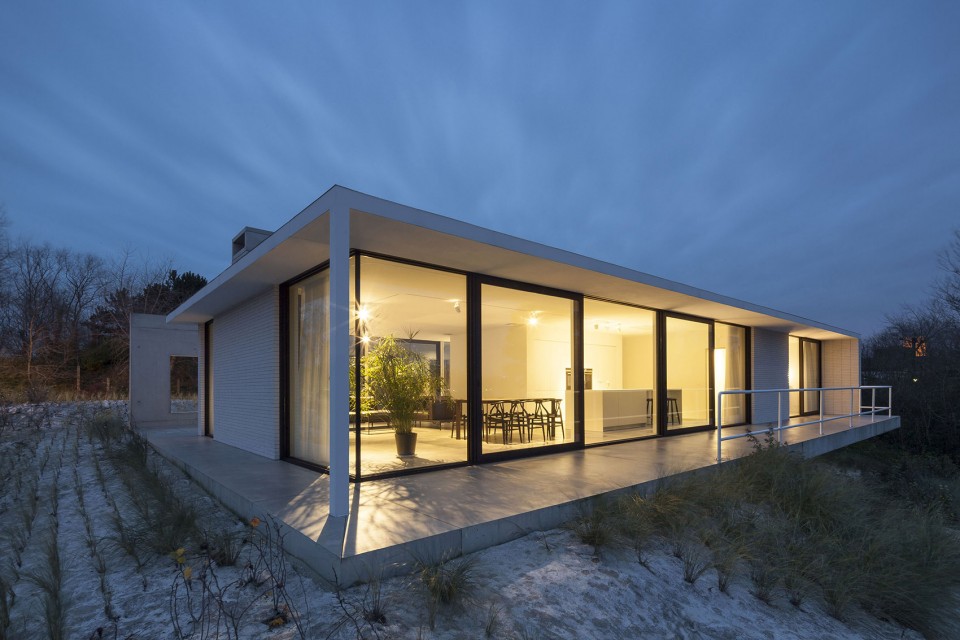

▼ 住宅背面夜景，Night View

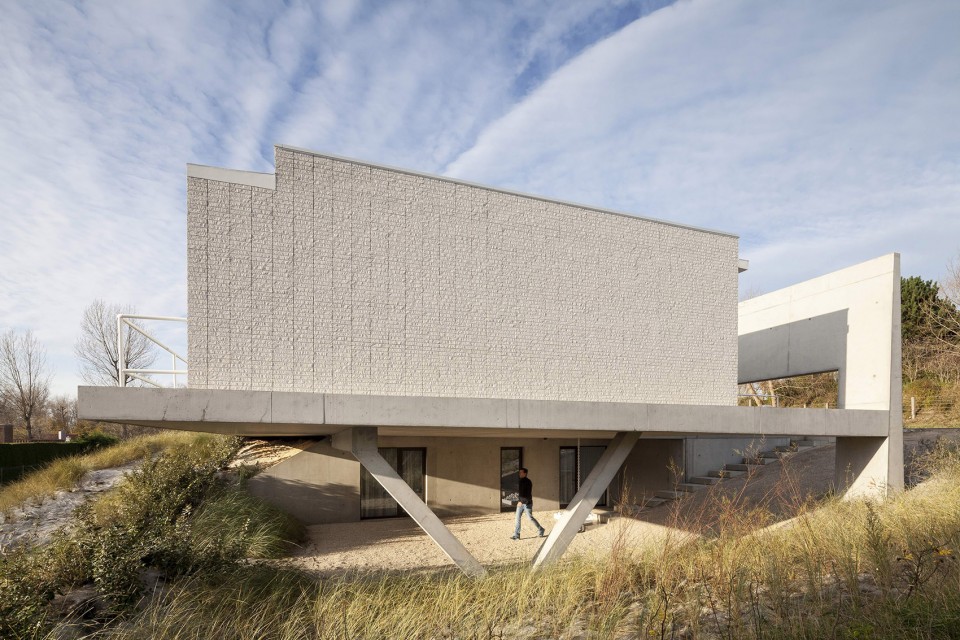

▼ 悬臂梁，cantilevers

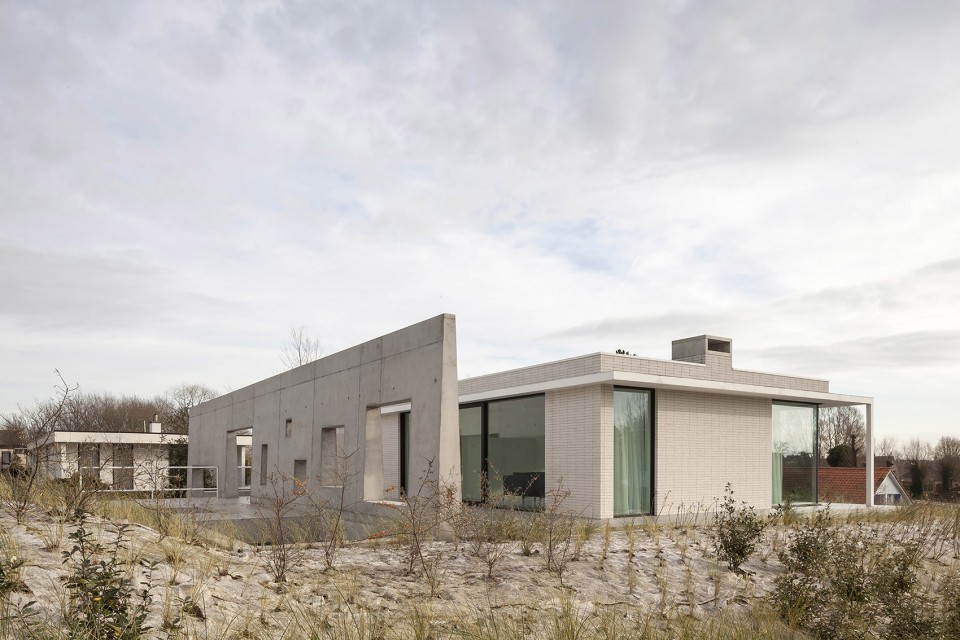

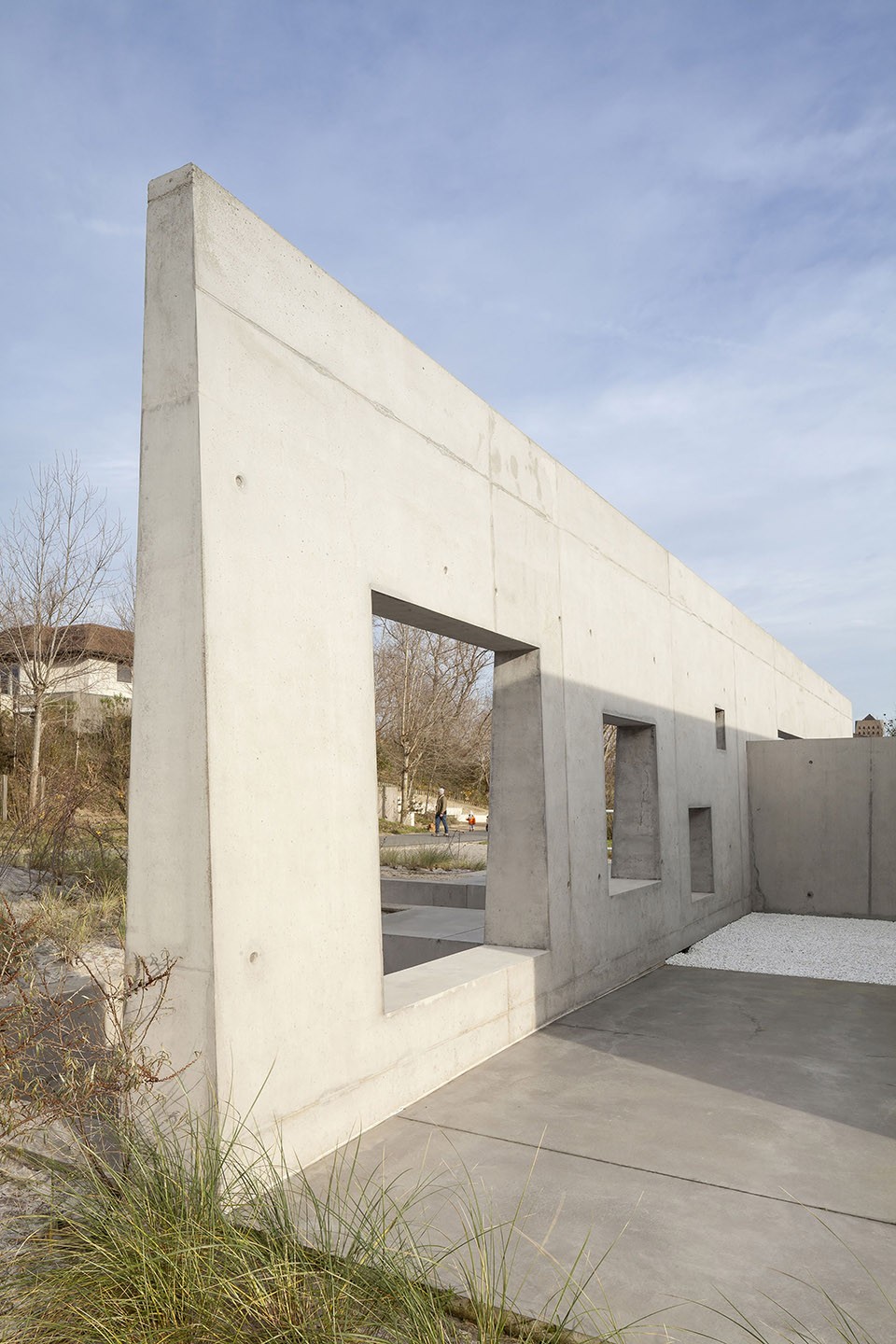

▼ 混凝土锥形墙，a concrete conical wall

原始基地的斜坡与花园相比倾斜了一整层的高度。平台，台地的设计手法，保留了周边环境梯田的原始状态。主要的生活区看起来悬浮在整个景观之上。但是从建筑的另一面看去，建筑与花园景观融为了一体并与街道水平连接。

The original site slopes down a full level compared to the rear of the garden.The platform, a table/land, allows the surrounding terrain to remain naturally rough (another building restriction). The main living areas seem to float over the landscape. On the other side, they are embedded in the gardenscape and connected to the street level.

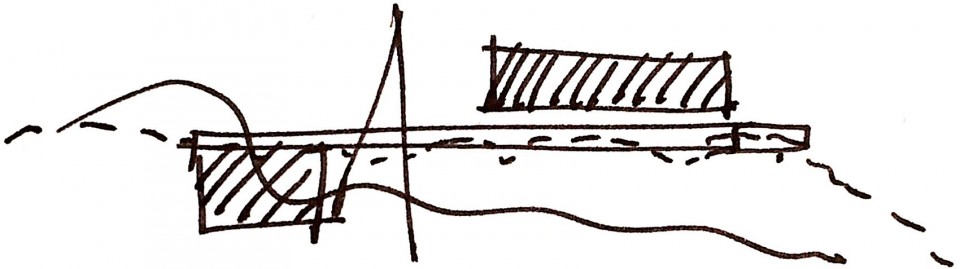

▼ 概念手绘图，Conceptual Sketch

由于建筑位于平台之上，建筑前后的大露台为居民提供了晚间的活动场所。露台遮掩于锥形墙的后面，墙上面设计了一些洞口使居民可以享受到充足的光照，秀美的景色和优雅的步道，在保留了私密性的同时，又能看到精心挑选过的街道沙丘景观。

The positioning of the bungalow on the plateau creates large terraces for the residence (in the back as well as in the front) which can be used as an evening streetside terrace. The terrace is shielded by the conical wall, which is provided with a composition of cutouts devised to provide the residence with ample light, optimal view and elegant passage. This wall ensures the privacy of the residents while guaranteeing well-choosen views towards the street and the dunes.

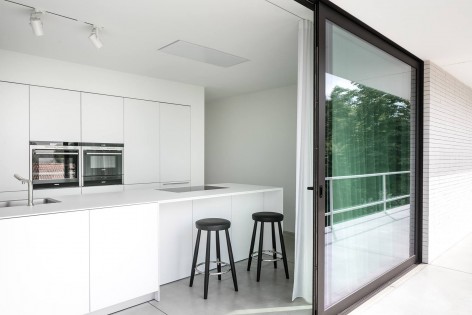

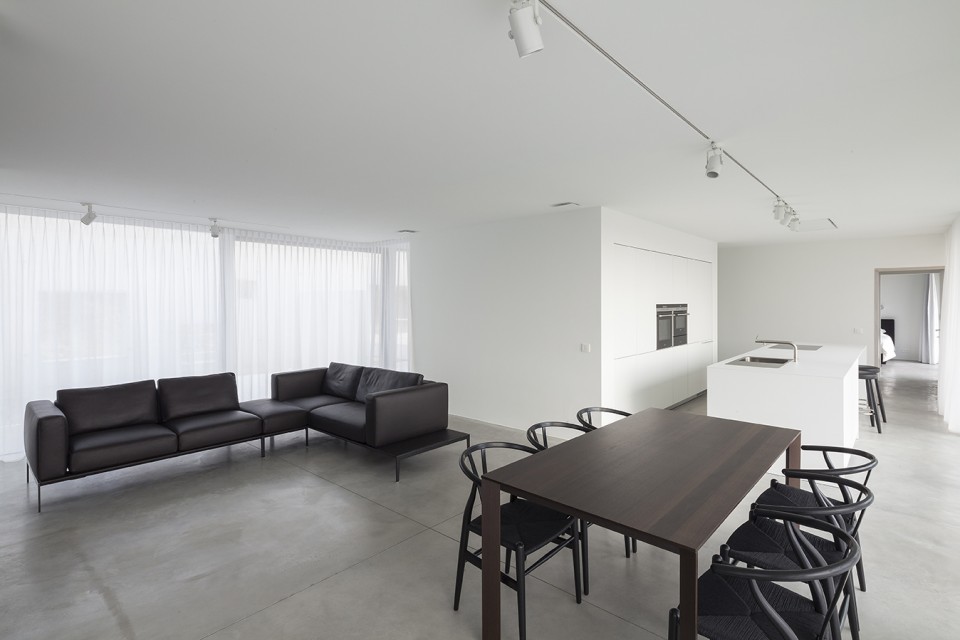

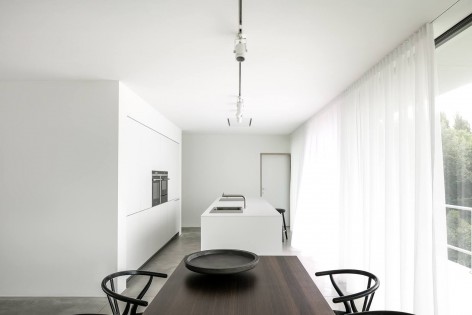

▼ 客厅，Living Room

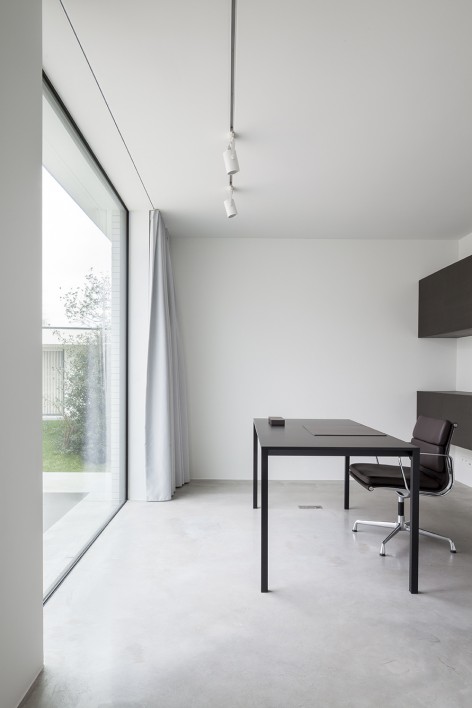

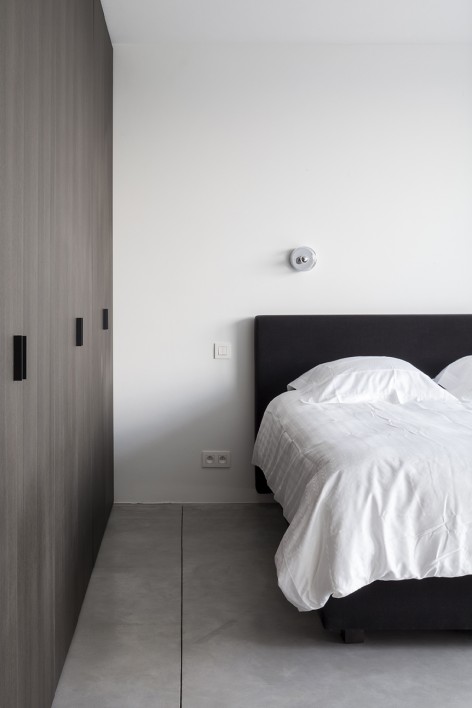

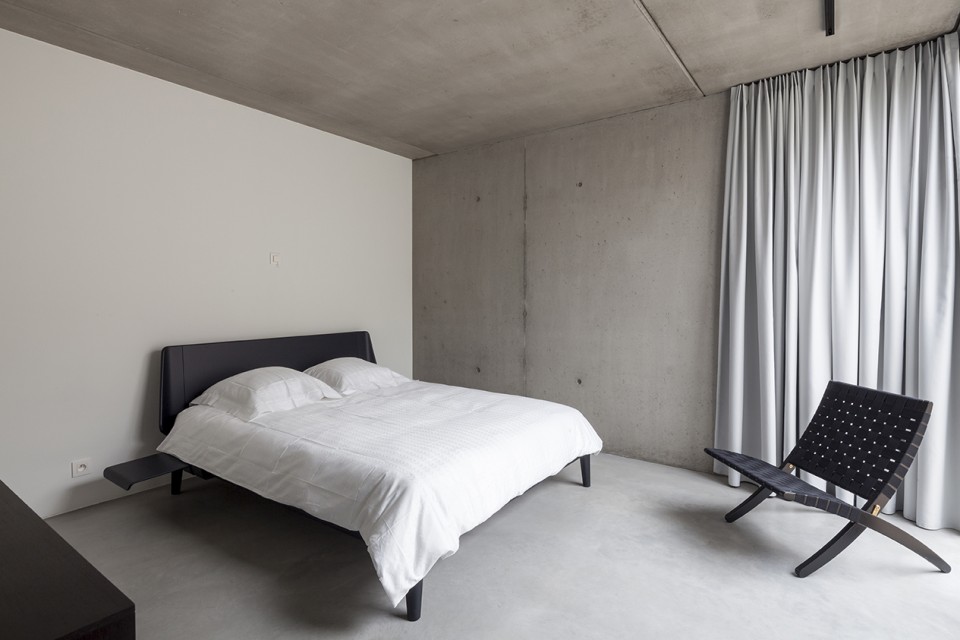

▼套房，Studio

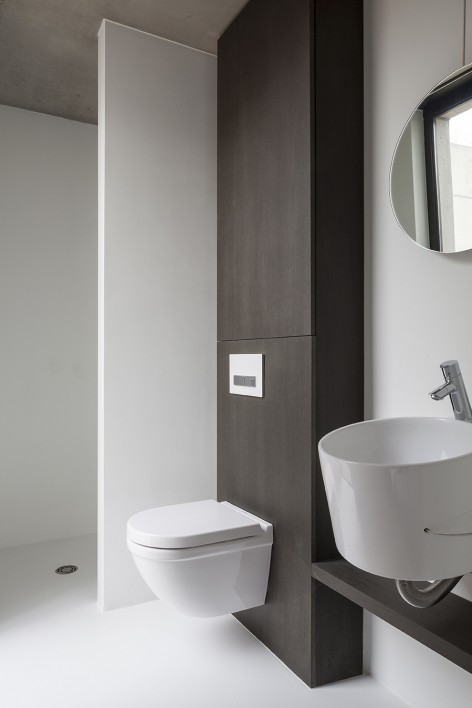

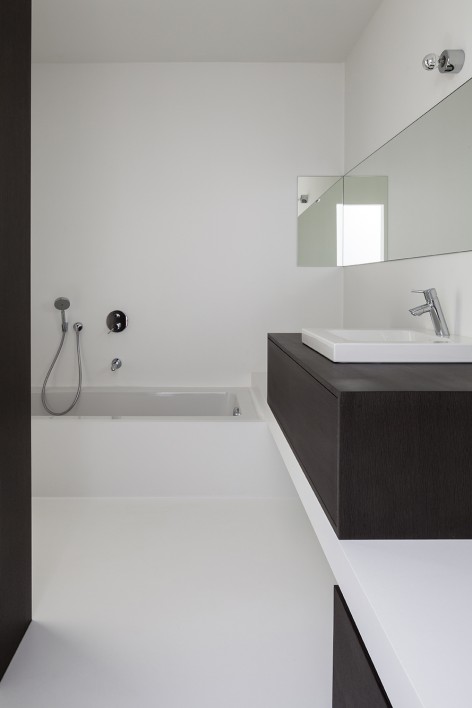

▼卫生间，Restroom

平台遮盖住了位于地下层的车库。带有混凝土台阶的坡道紧挨着工作室和车库入口的斜坡。为了保持住宅的私密性，带有浴室厨房的工作室位于锥形墙的前面。为了保证这些房间的光照和通风，建筑师在平台上面开了一些洞口并设计了庭院。这样一来，所有工作室不仅有了能欣赏景观的大窗户，还保持了一定的私密和亲密性。

The plateau covers a carport situated on the lower basement level. The ramp with concrete staircase next to the slope leads to the entrance of 2 studios and the carport. For reasons of privacy, the studios with bathroom and kitchen are situated in front of the conical wall. A cutout in the horizontal surface has been made for these rooms that each have a courtyard providing air and light. This way, both studios can have big windows while preserving a sense of privacy and intimacy.

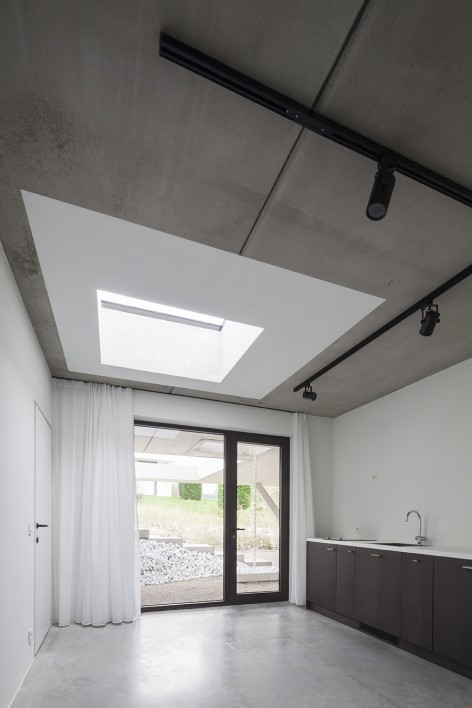

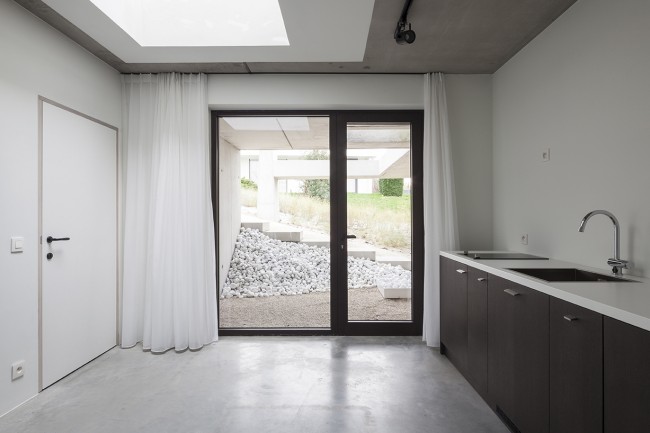

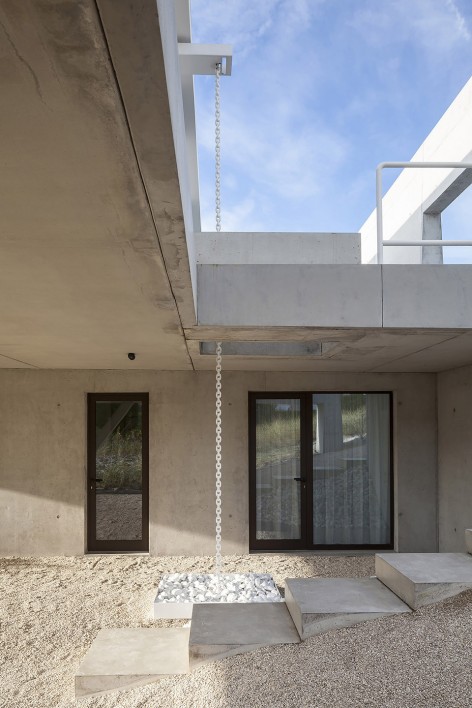

▼ 套房室外和室内，Inside and Outside of Studio

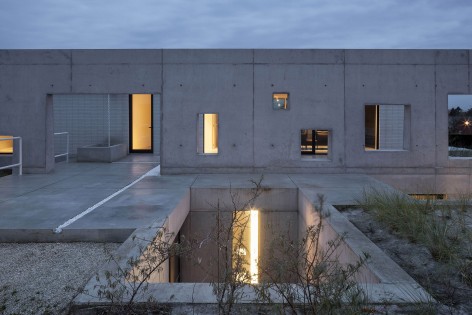

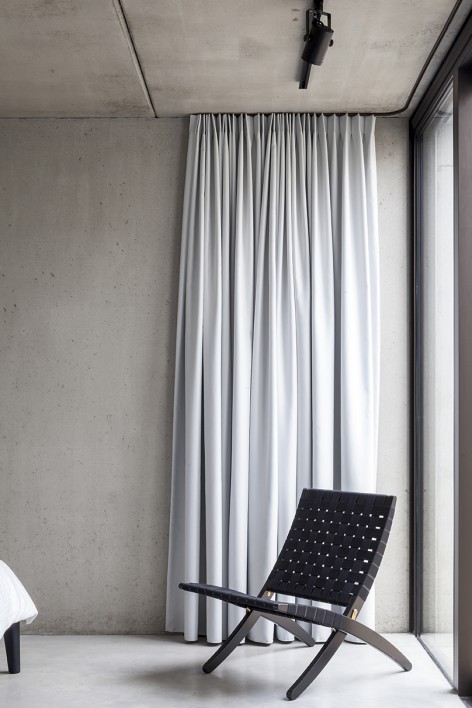

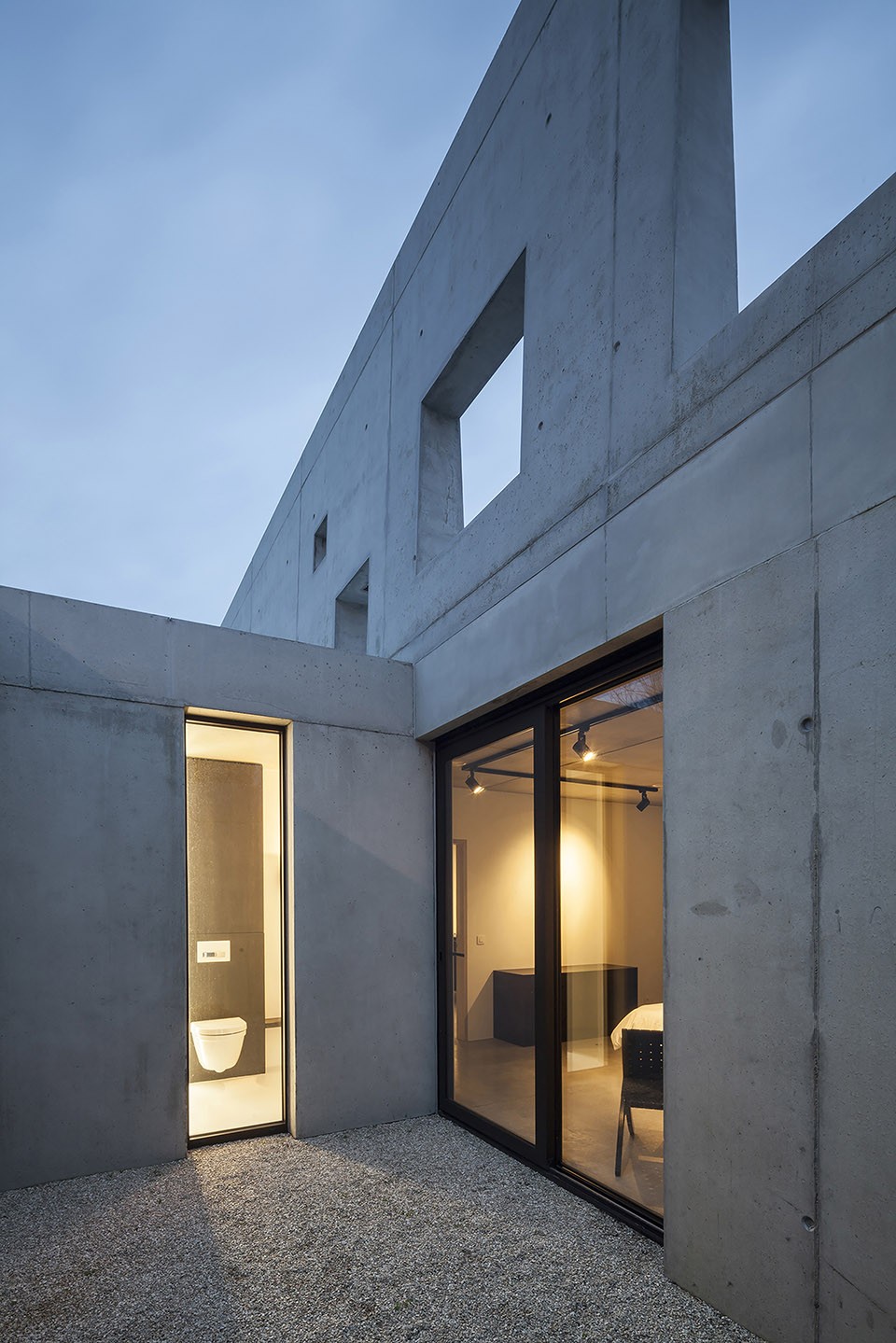

▼套房夜景，Bedroom Night View

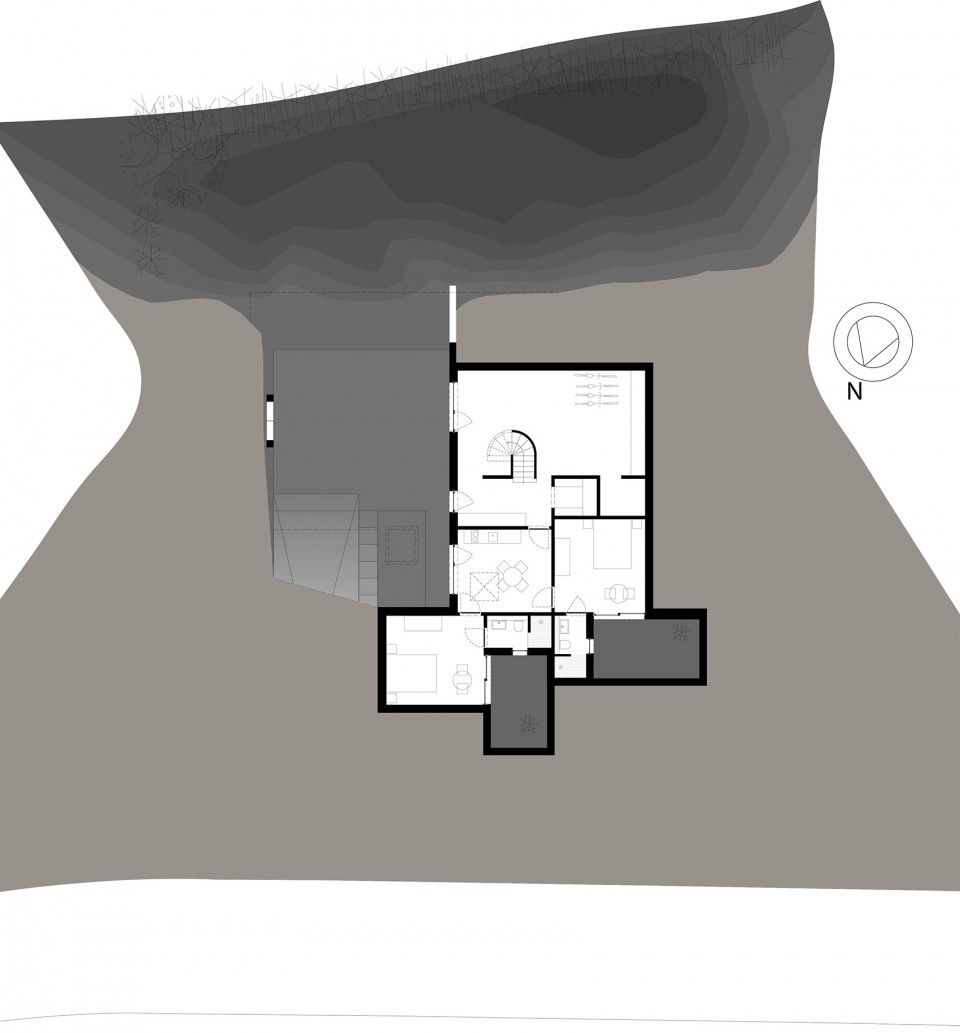

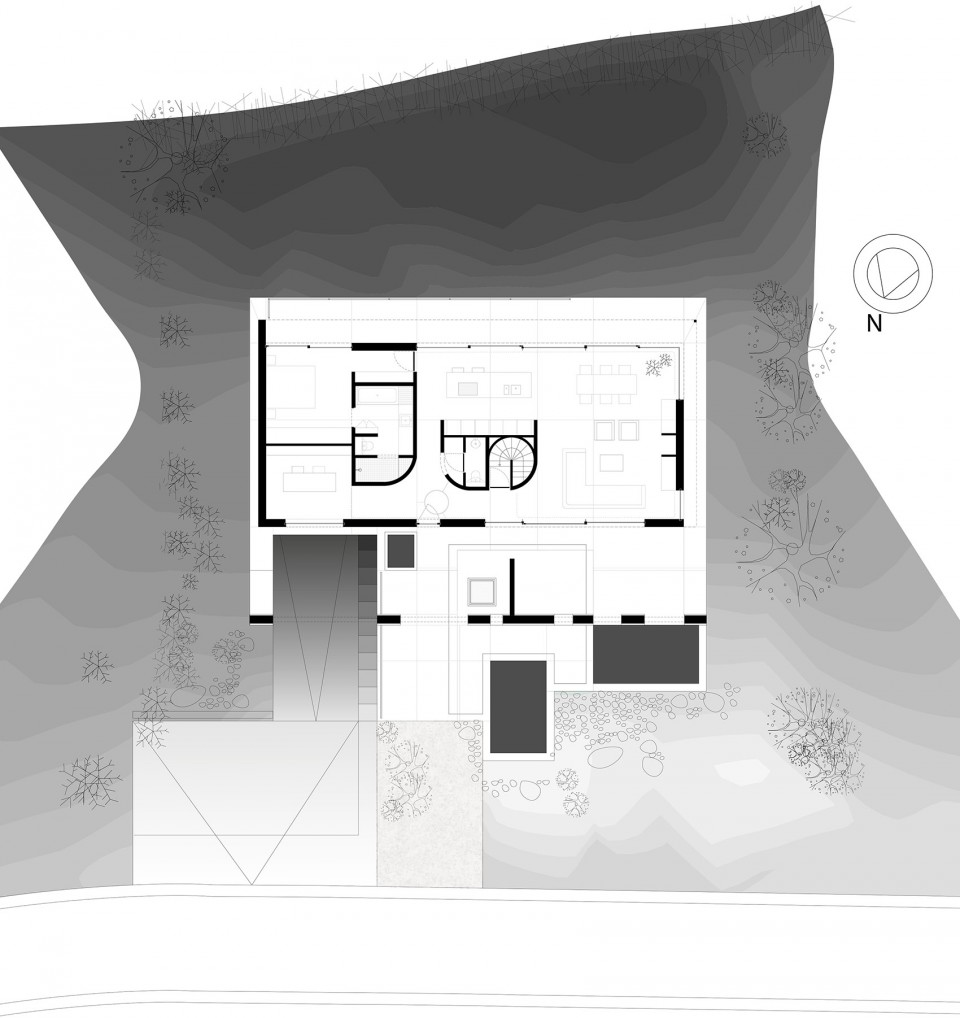

▼平面图，Floor Plans

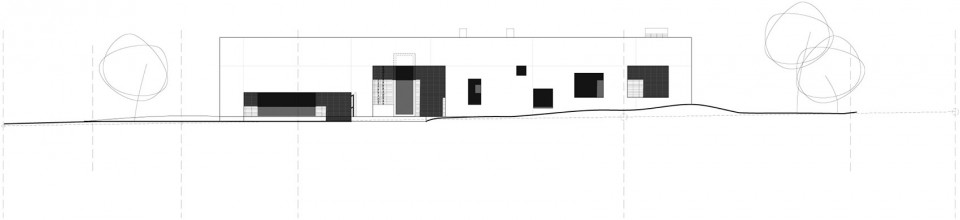

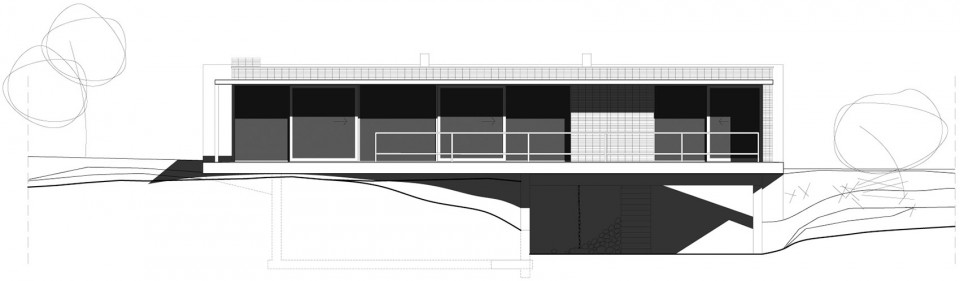

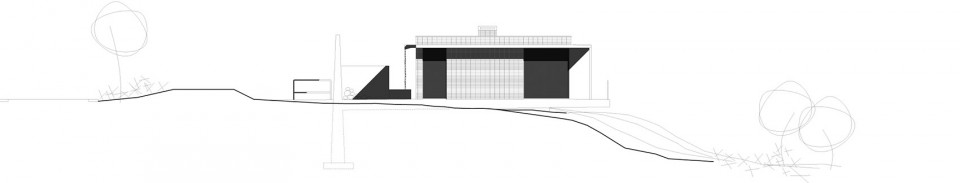

▼立面图，Elevation

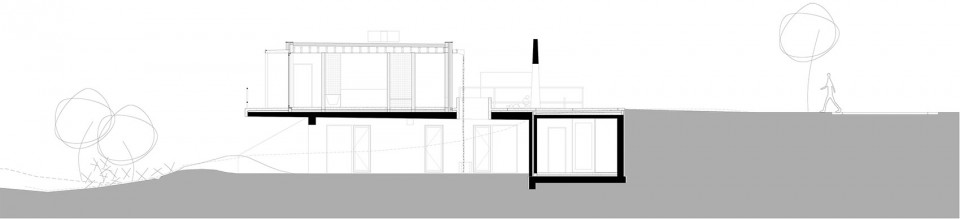

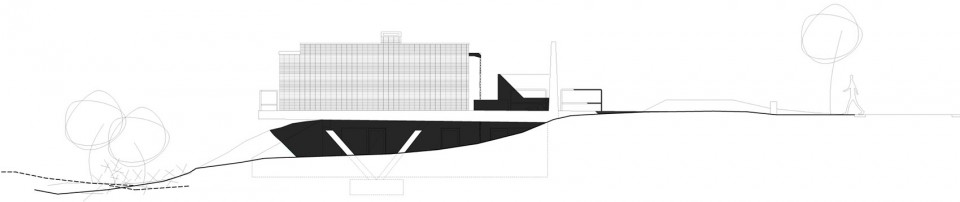

▼剖面图，Section

Factsheet
Architects: OOA | Office O architects www.ooa.works
Head designer: Magalie Munters
Project architect: Hugo Crombez
Project title: Villa CD -Tableland
Location: Oostduinkerke, Belgium
Project period: 2011-2015
Use: Single family house
Photographs exterior & interior: Tim Van de Velde
