非常感谢 Shma 将以下内容授权gooood发行。更多请至：Shma on gooood
Appreciation towards Shma for providing the following description:

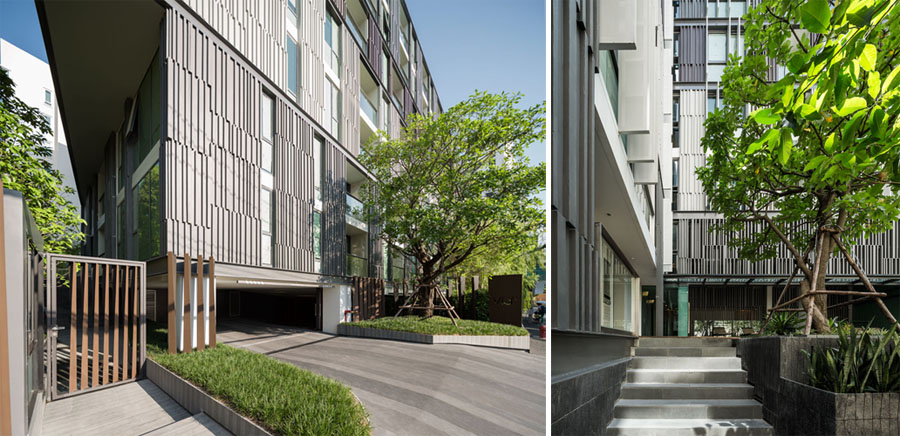

要在很小的面积内创造出公寓底层公共景观是这个项目的主要挑战。

To create such a unique space out of the small area has been one of the main challenges for this project.

如此狭小的场地不能用常规的处理手法，景观建筑师给这个公共景观设计了一个有趣的边界，这个边界不仅是分界线，更是项目的艺术组成部分。

One of the strategies is to give the new definition and artistic approach to ordinary landscape elements. One of that is the boundary wall. The boundary wall here is perceived not only as the demarcation line but also an art form which wrapping around the project.

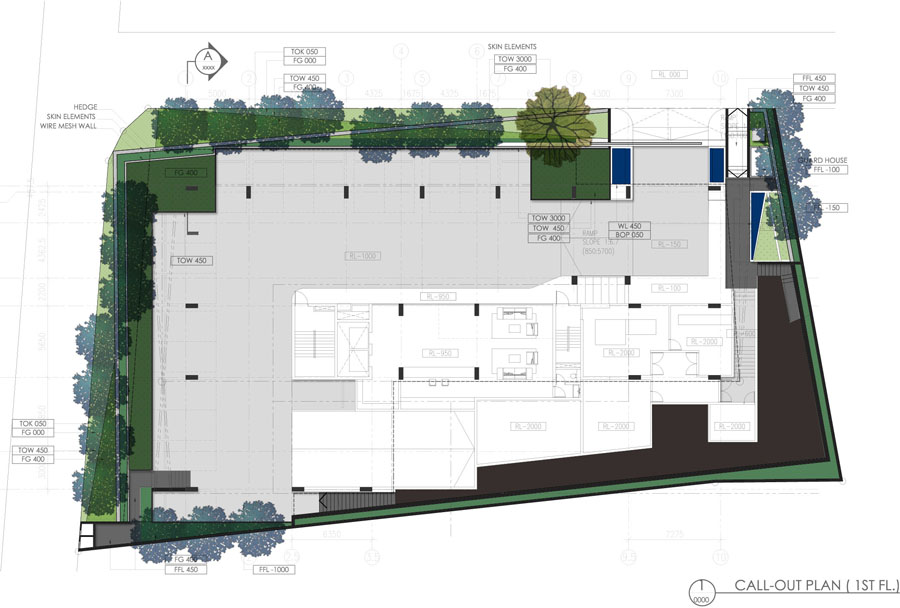

被建筑占用后剩下的边角用地多是不规则的楔形和锐角三角形，设计的形与这些形状保持一致，比如泳池由两个楔形部分组成，一个是19.5 * 5.7米的泳池，一个是按摩池。绿植景观填充在其它空白的地方，形成统一而整体的茂密绿化氛围。

Wedge form and sharp angle of the site has been well articulated as part of the project design language which reflecting not only in architectural massing but also in the landscape space.

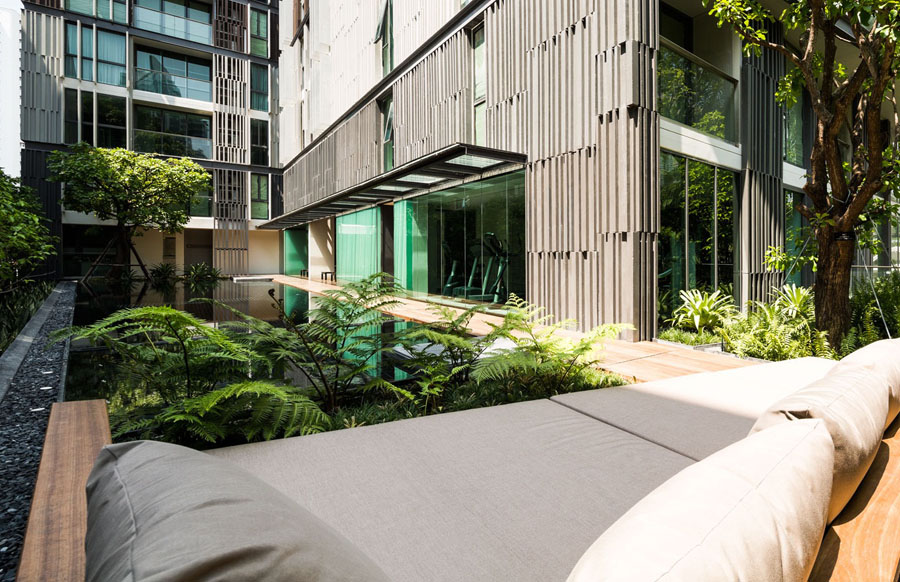

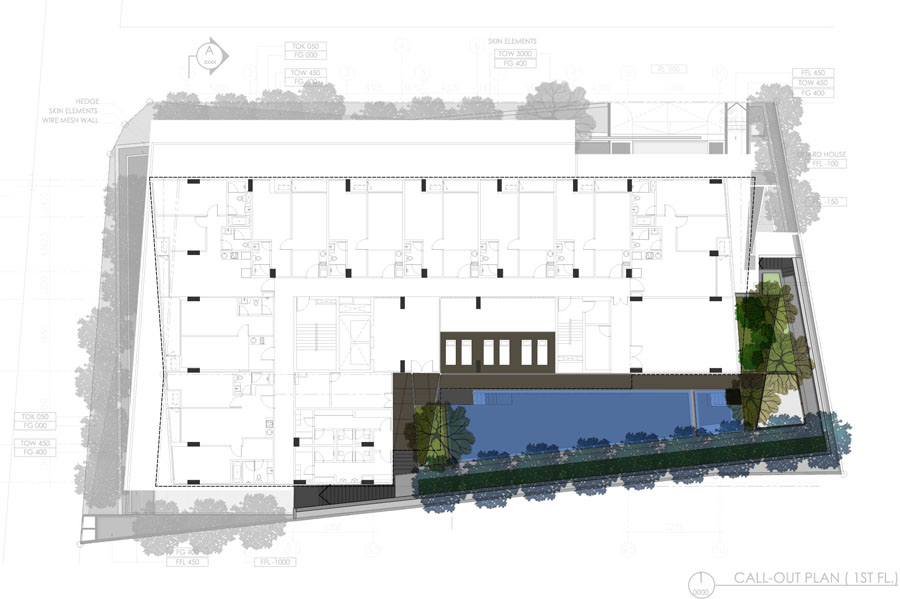

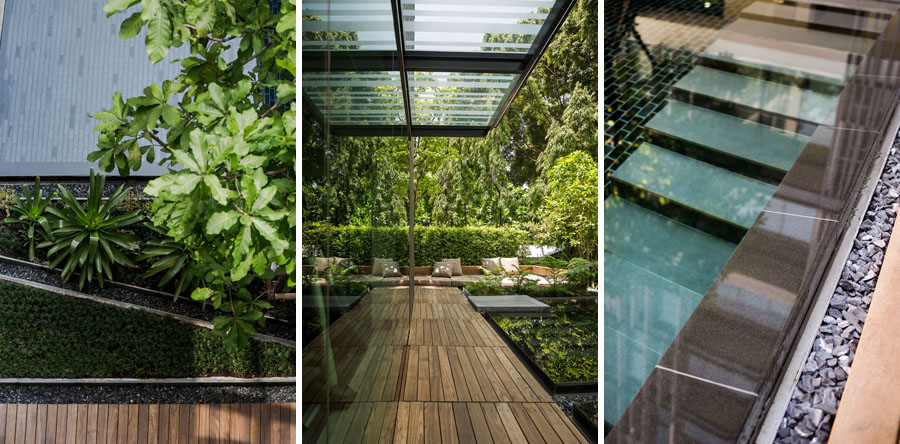

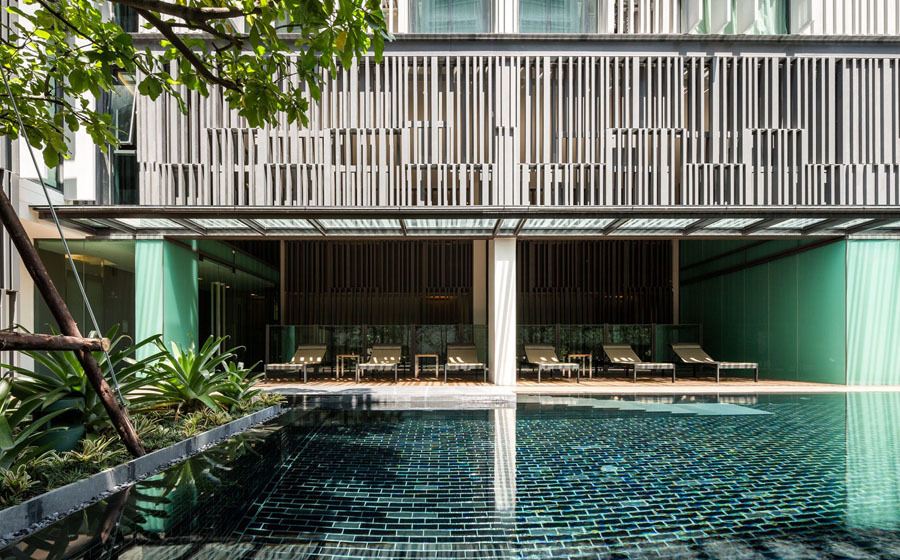

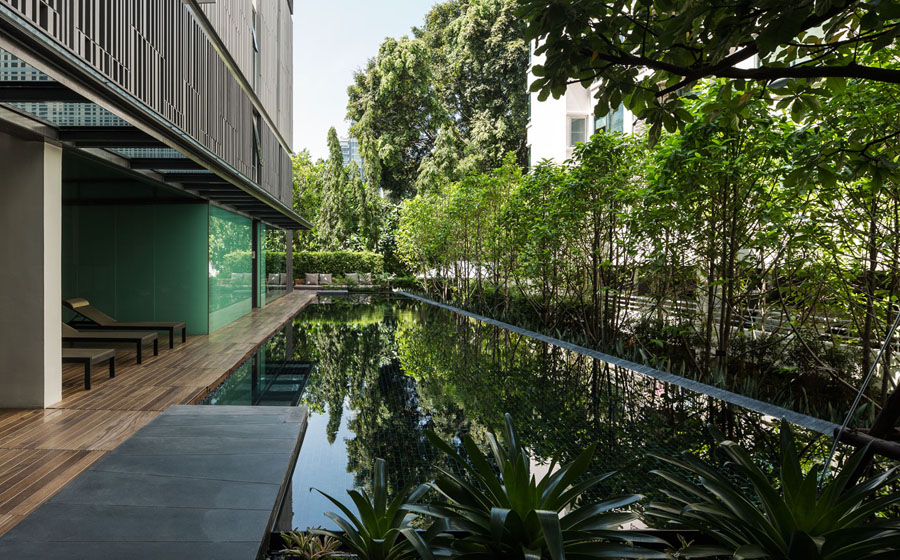

There are several 150 *150 mm deep cutting lines running across the swimming pool area .The swimming pool seems to be a water sculpture which been cut in two wedge shapes, one is for 19.5*5.7 meter lap pool while another one is for Jacuzzi pool. These cutting lines also create the wedge form of a cabana and planters which seamlessly integrated with the overall landscape space

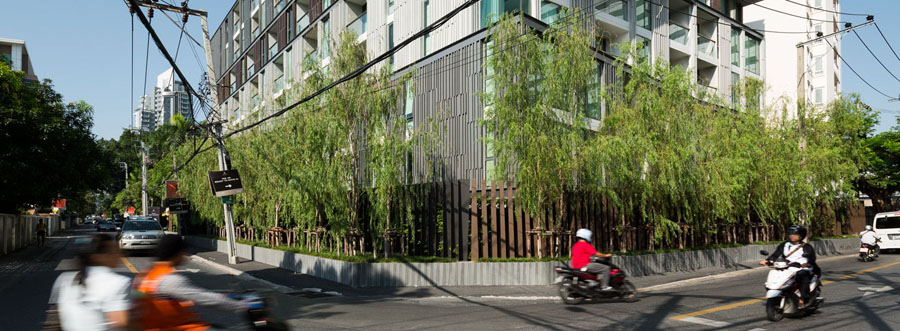

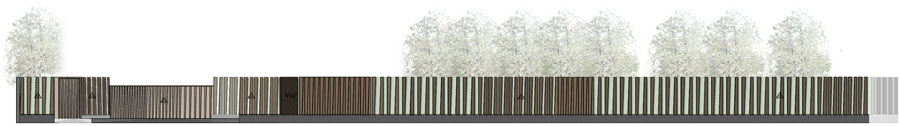

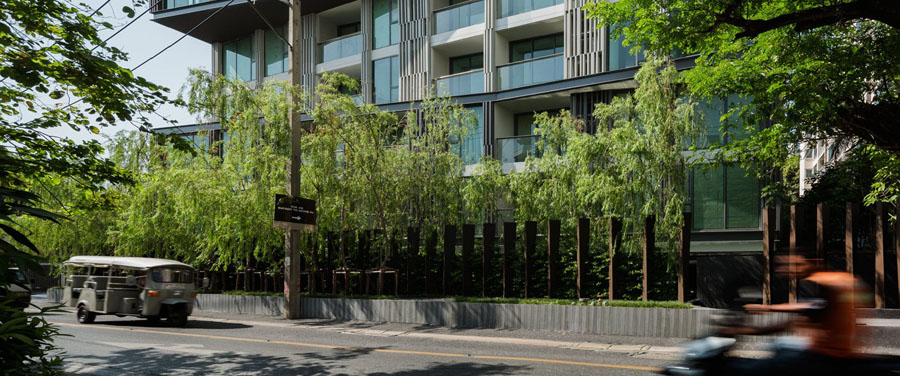

边界栅栏是项目的外皮，与平直的建筑相比，它是倾斜而扭转的3米高片墙阵列。这些小片墙之间的角度和间隔距离被细心的安排，成为一个让人印象深刻流动开放边界

Due to it‘ s prominent location which this building is located, this art wall would play an important role in expressing project image together with the building design. The wall line is tilted as it interacts with the tiled building tectonic and as it is part of the building mass which slowly sliced away.

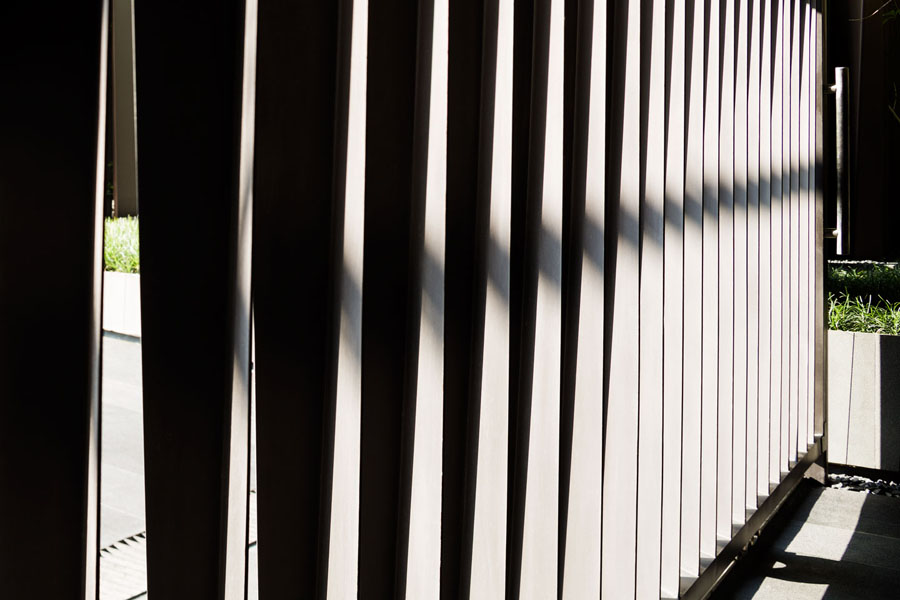

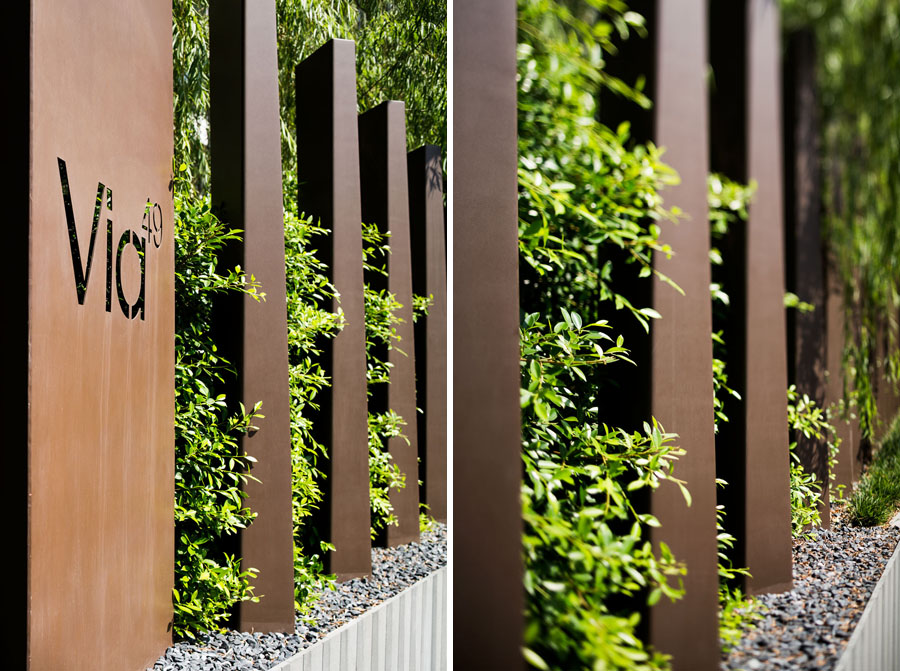

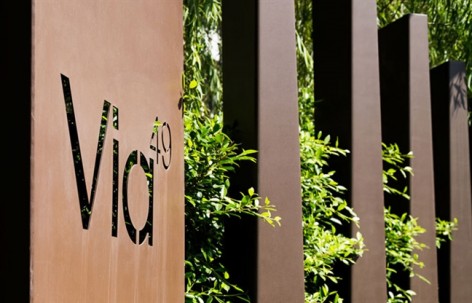

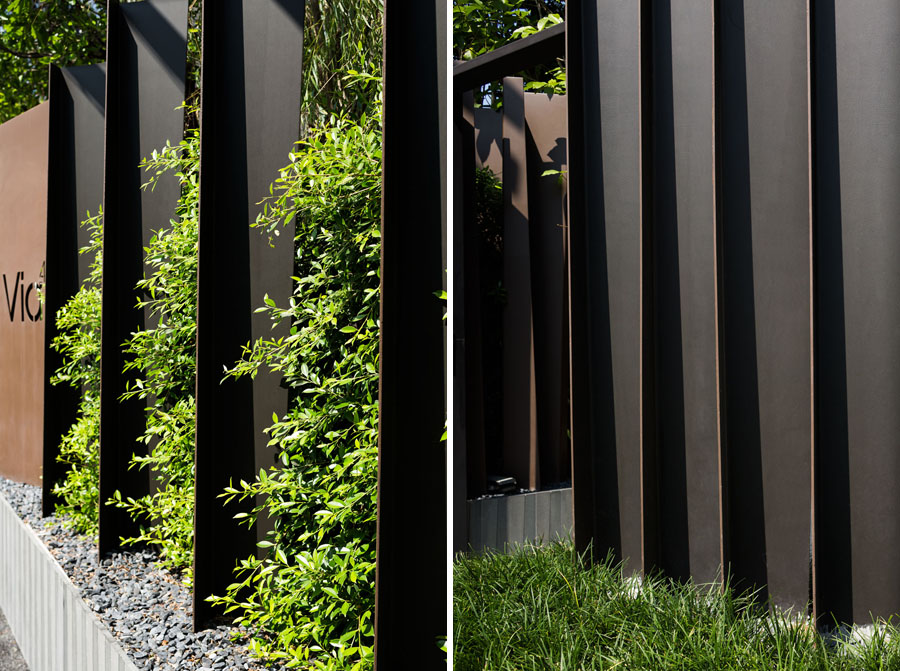

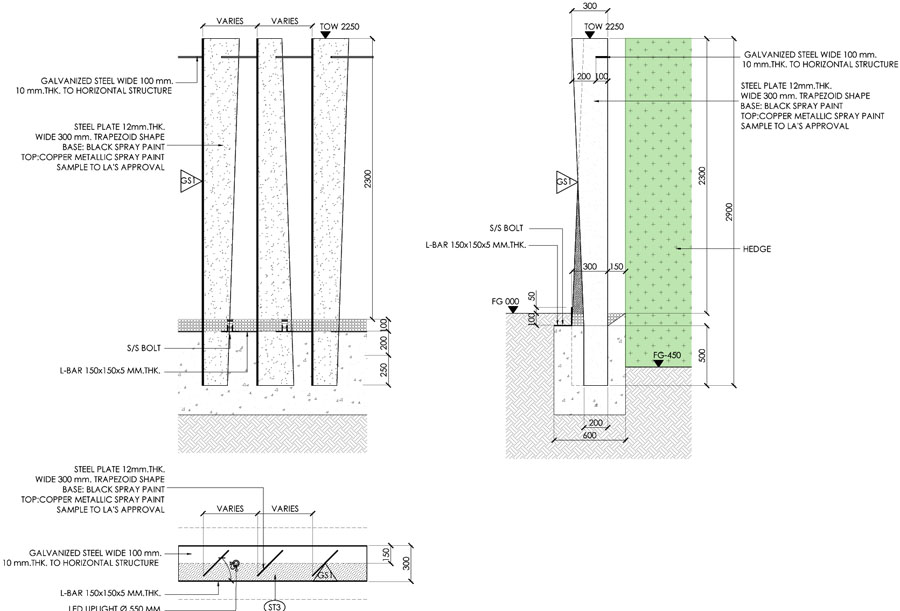

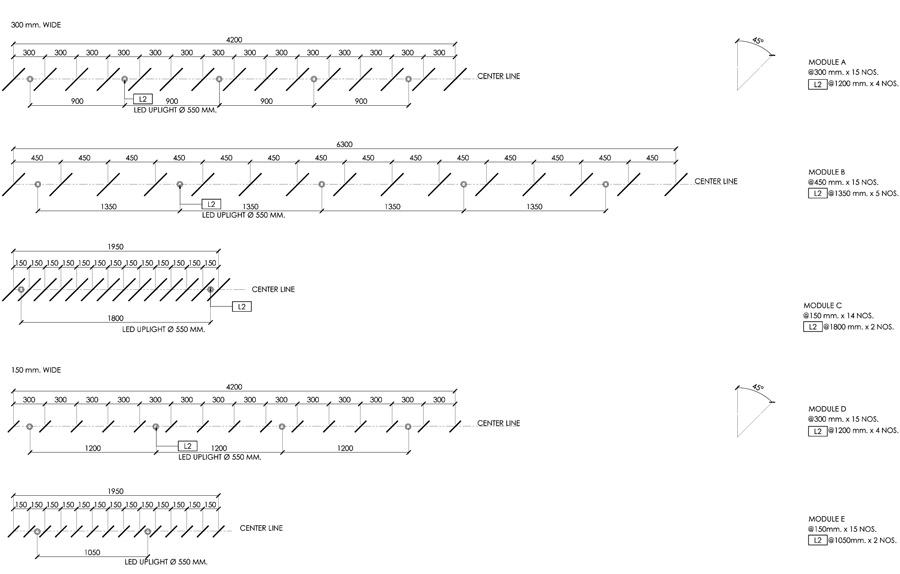

This art wall is made of 3000 mm height steel plate in wedge shape .They are carefully placed in difference angle and interval so that it can impressively interact with people movement which vibrantly flows around project’s parameter.

该项目证明了在城市公寓下的狭小公共空间中，也能有独特而美丽的艺术景观空间。

The design of this project has proven the possibility in creating such a unique and artistic space which people can live and be inspired within the limitation of the small but rather beautiful urban nest.

Project Team:
Design Director – Mr. Yossapon Boonsom
Landscape Architect – Ms. Nitiporn Sawad
Client& Developer: Sansiri PCL.
Photograph Credit: Mr. Wison Tungthanya
Location: Bangkok, Thailand
Use: Condominium Garden
Site Area: 1,788 sq.m.
Building Scale: 8th Storey Building
Structural System :Post and beam
Design Year : 2010
Period of Construction:2010-2012.

MORE: Shma，更多请至：Shma on gooood
