非常感谢 度向建筑 予gooood分享以下内容。更多关于他们请至：MONOARCHI on gooood
Appreciations towards MONOARCHI for providing the following description:

项目概况|Overview

项目位于浙江余姚四明山麓的一个人迹罕至的山村之中，村子正处于原始次生林的边缘，一条小河由北至南缓缓流过村庄，把村子一分为二，树屋就位于小河下游的西岸。基地的东西两面双峰夹峙，漫山漫野的青翠竹子，生活氛围静谧祥和。

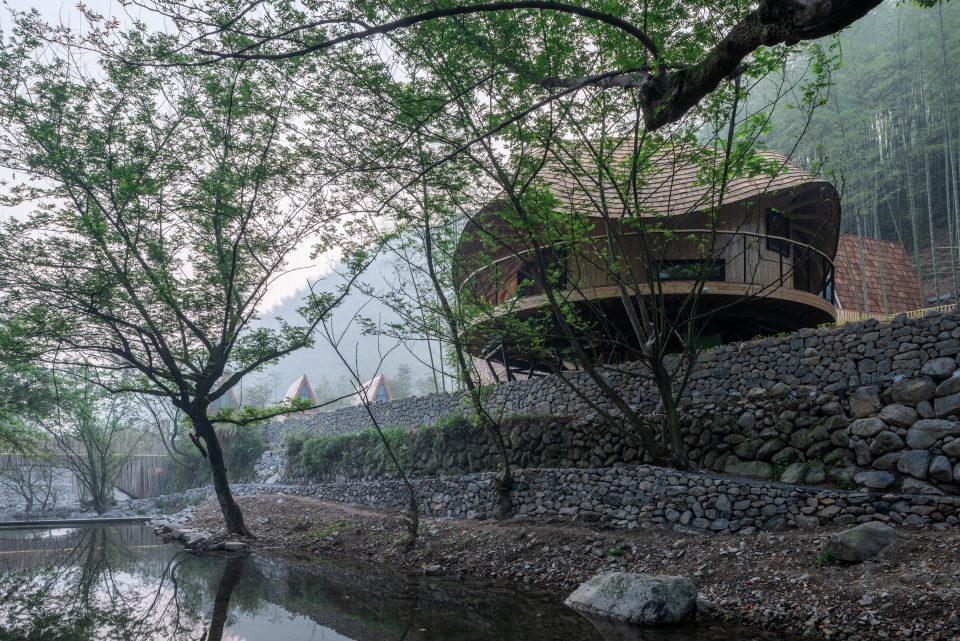

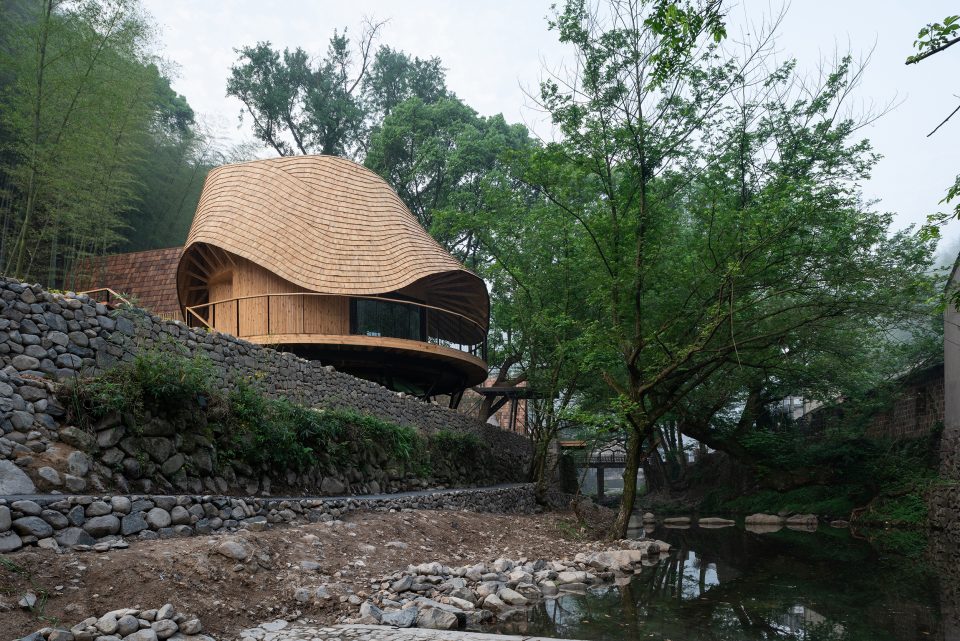

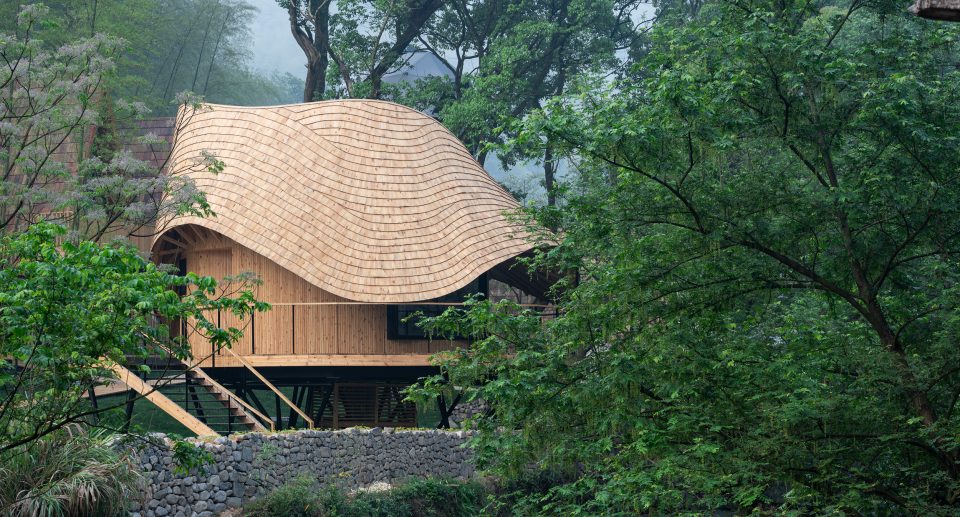

▼建筑外观，exterior view

木屋总高约10米，大致与一棵成年毛竹等高，树屋分为上下两部分，下部为钢结构承托柱，上部为木结构主体。树屋位于小溪堤坝一侧，周围环抱古树竹林，隔岸与旧茶厂相望，部分露台悬挑与溪水之上，实现了漂浮感，而且因为钢柱收拢为几个点落在土地上，尽量的减少对周边环境的影响，也获得了较为自由的地面活动空间。

The tree house is 8-meter high, roughly equal to the height of an adult bamboo. It is divided into upper and lower parts. The lower part is composed of steel supporting columns; while the upper part is mainly wood structure. The tree house is located on one side of the dyke where is surrounded by ancient bamboo forests while facing the old tea factory across the creek. Part of the terrace is hanging over the streams, creating a sense of floating. Moreover, since the steel columns are huddled to several points on the land to minimize the impact on the environment, larger free space for ground activities is produced.

▼三个非同心圆构成的屋顶，Roof constructed by three non-concentric circle

平面布局|Plane layout

木屋部分分别为三个非同心圆构成: 悬挑在溪边的露台，两层客房部分，以及起伏的屋顶与顶层露台。平面形态则是一个简单的螺旋线，外墙环绕一圈融入室内，将盥洗室与步入夹层的楼梯从起居空间中剥离出来。每扇窗户都有一份特殊的室外景观，但最美妙的是爬到屋顶之巅享受山涧的自然气息。

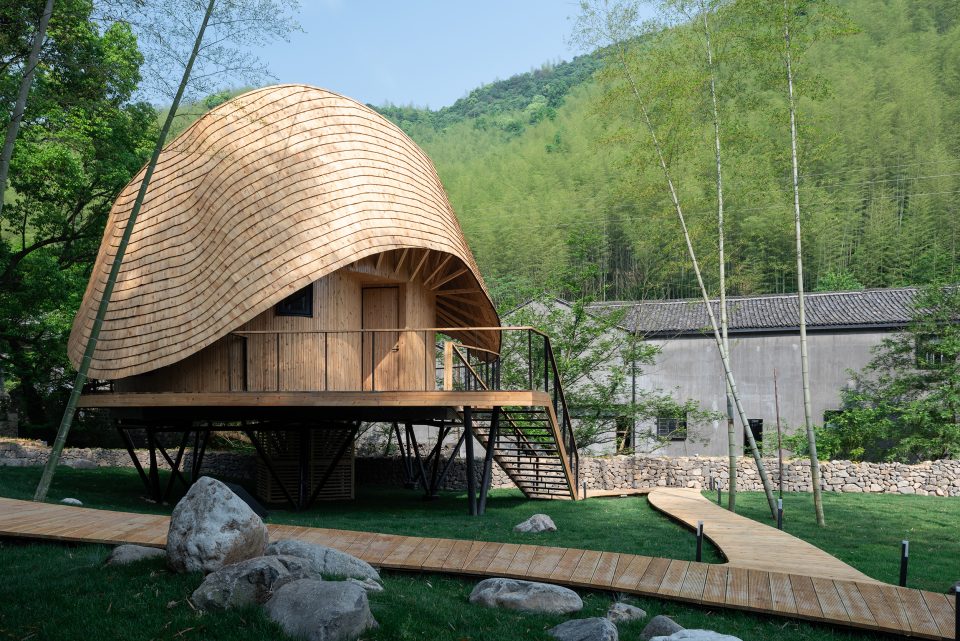

▼入口处上扬的屋檐，Rising eaves at entrance

结构特点|Structural characteristics

57根渐变的巨大屋架支撑起了屋顶与墙体，看似柔软的屋顶勾勒出飘逸的天际线，更多的是利用变化的屋檐将景观由窗框引入房内，同时也保持了敏感空间的私密性。

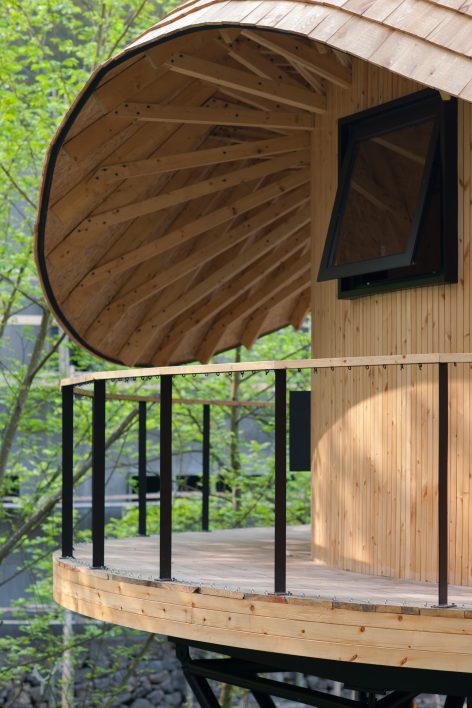

▼渐变屋架支撑起的扭曲屋顶，Twisted roof held by gradient roof truss

屋顶功能|Roof function

传统村落民居的粗方式施工工艺有别于标准化的工业化精细生产，飘逸的屋顶并非是建筑师任性的狂想曲，非线性的屋檐具有极高的容错率，可视为乡村建构对自然规律的尊重与服从。在设计与施工的过程中，反复与当地工匠沟通，达到设计形态与当地施工技艺的平衡。

The crude hand construction of traditional dwellings is different from fine production under standardization and industrialization. The fluctuating roof is not an arbitrary fantasy of the architect. The non-linear eave has extremely high error-tolerant rate, which can be considered as a respect of rural construction to natural laws. During the design and construction process, the architect remained close communications with local craftsmen to achieve a balance between the design form and local construction skills.

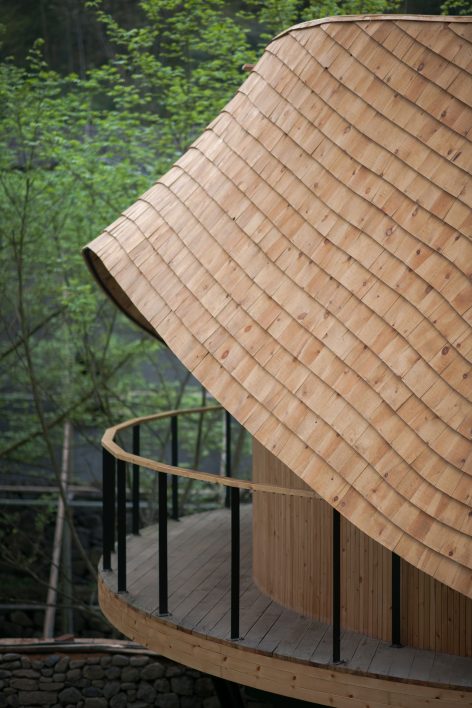

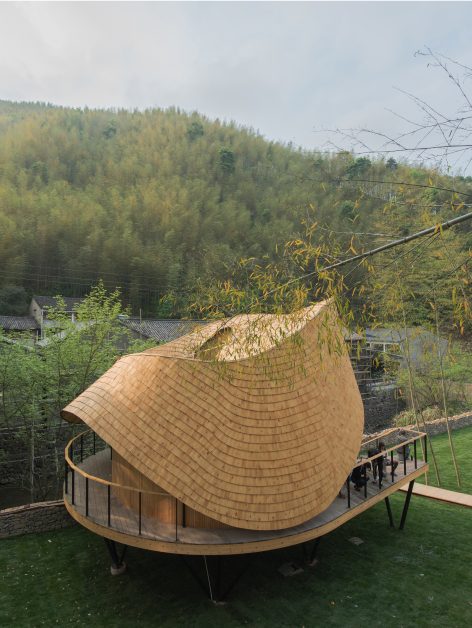

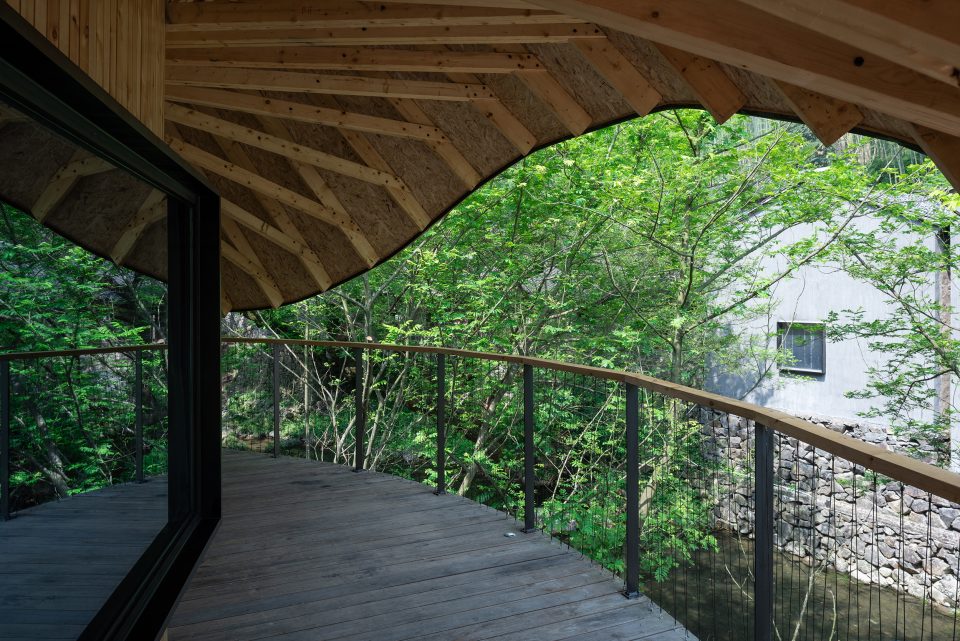

▼扭曲的屋顶界定了露台的范围，Twisted roof

屋顶的变化定义了室内外的视觉交流方式以及私密空间-公共空间的连续渐变图谱，当客人踏入首层露台开始，屋檐围绕露台的空间对应室内的功能展开360°的循环序列: 客厅-巨窗-大进深露台-掀开的屋顶为享受小溪和对面竹山风景的起点；卧室-长条低窗-下压的屋顶提供了保持睡姿的观景模式；开放式浴缸-侧面高窗保持了对外的私密性且满足对景观的向往；盥洗室的入口竖窗完全被屋顶所遮盖，在不影响自然通风的情况下保证了绝对的私密性；沿着旋转楼梯步入二层空间围坐在露台前，通过起伏的屋顶看到的是二百年的古树；这场居住体验的终点是由屋顶围合出的二层景观露台，喝茶静坐享受群山环抱。

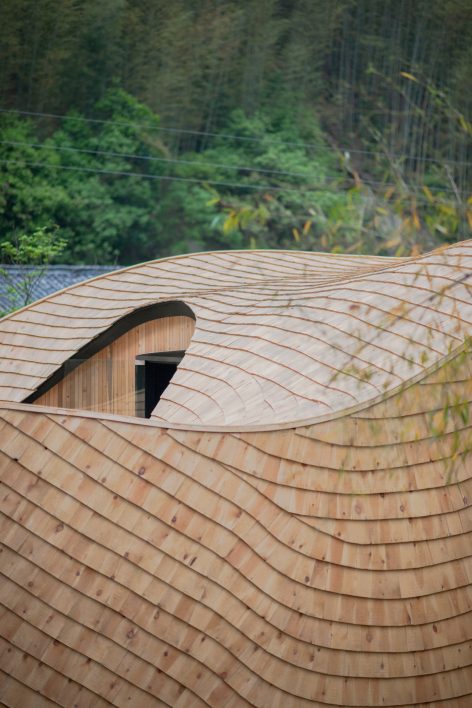

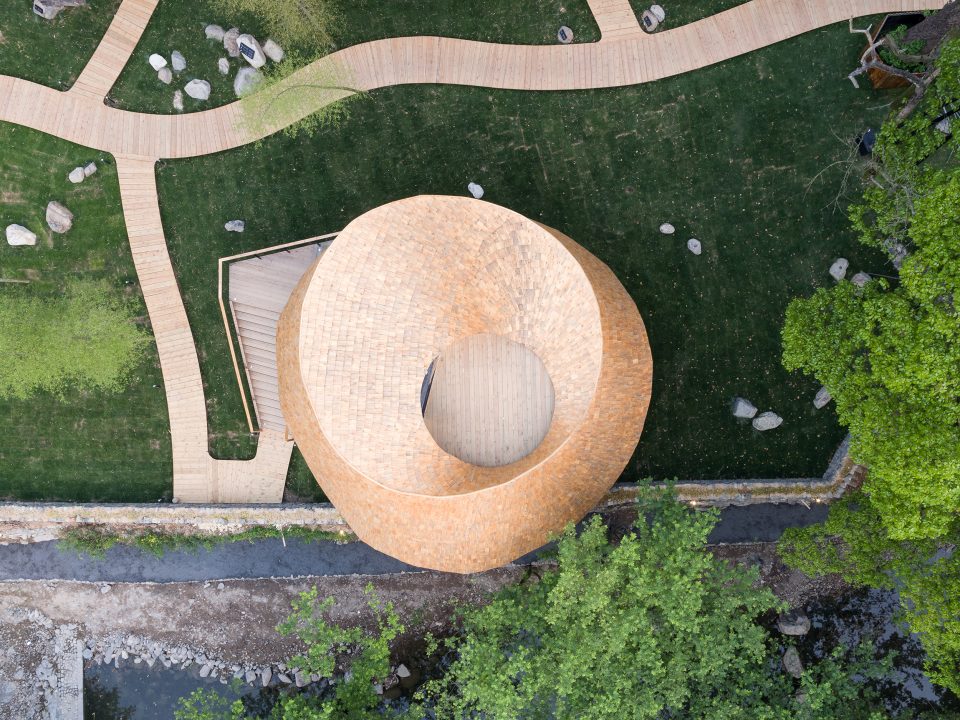

▼俯视屋顶，屋顶营造了私密领域，Roof top view

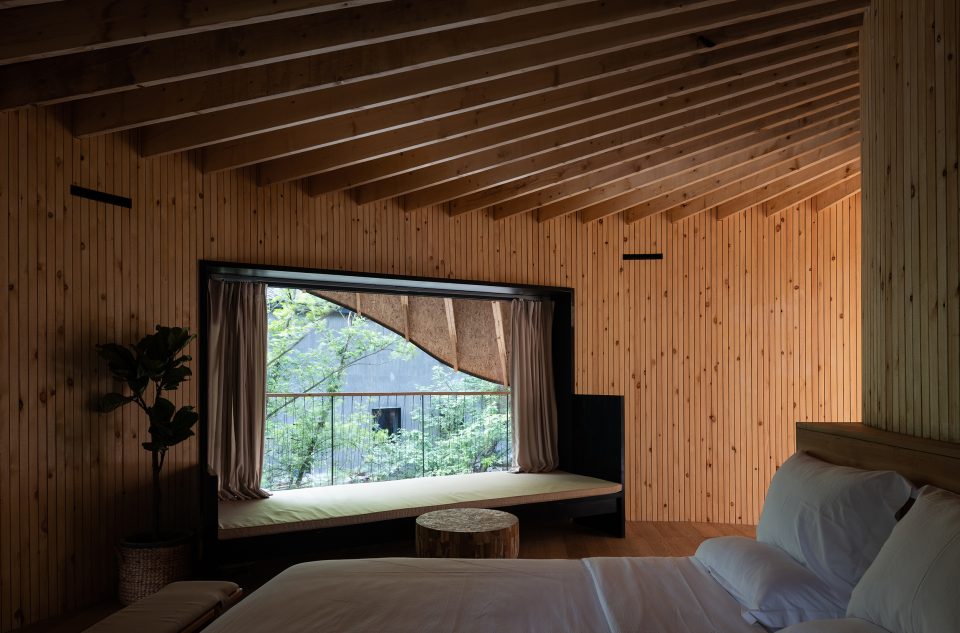

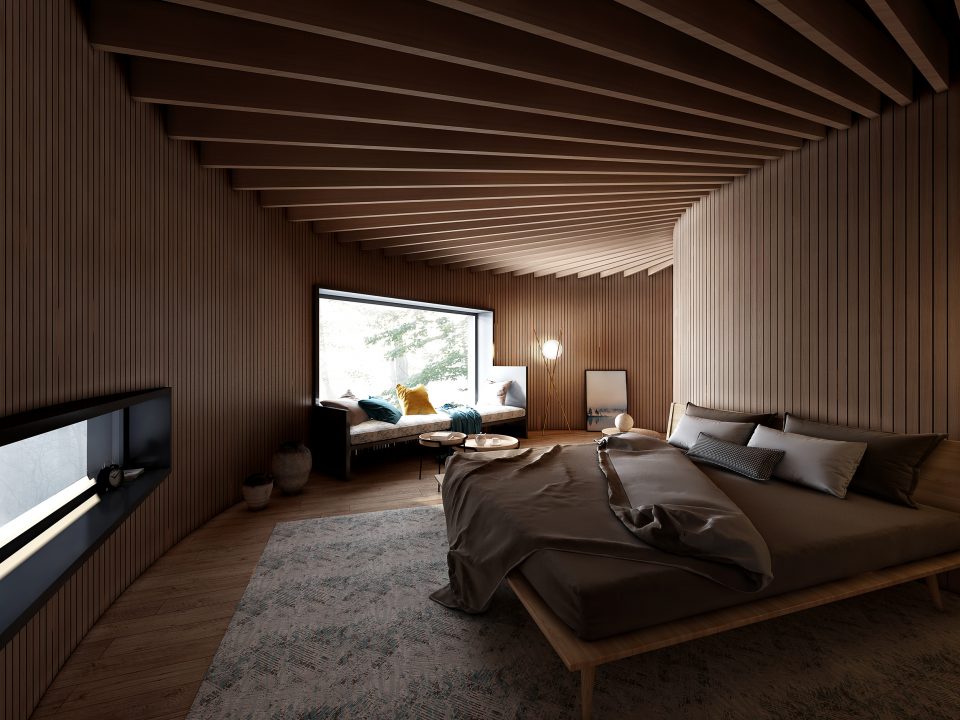

▼室内概览，interior view

▼将景观引入室内，透过大窗与对岸的老茶厂的对视，Introduce the landscape into the interior

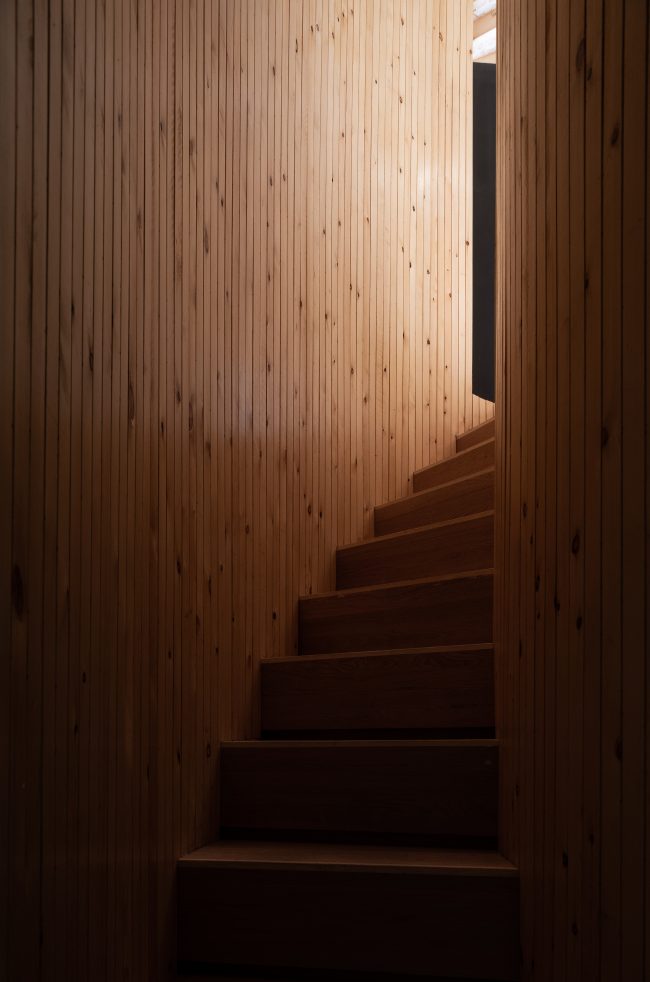

▼通往二层的楼梯，stairs to 2F

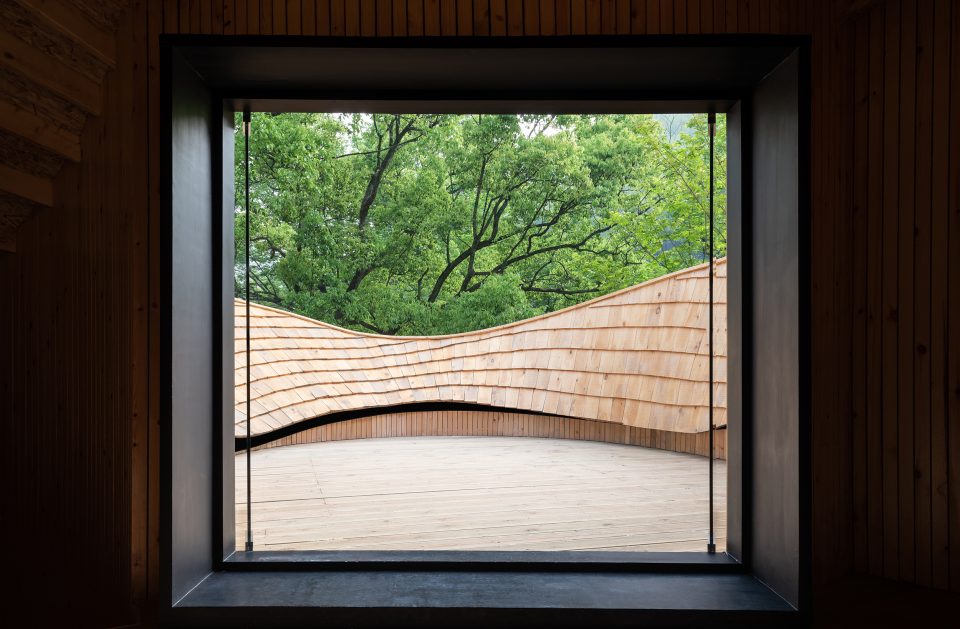

▼二层面对古树的茶室与露台，the old trees facing tea room and terrace

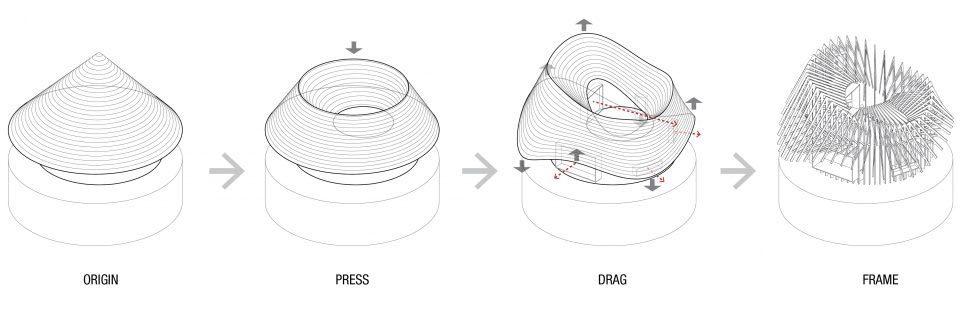

▼设计过程，design process ©Monoarchi度向建筑

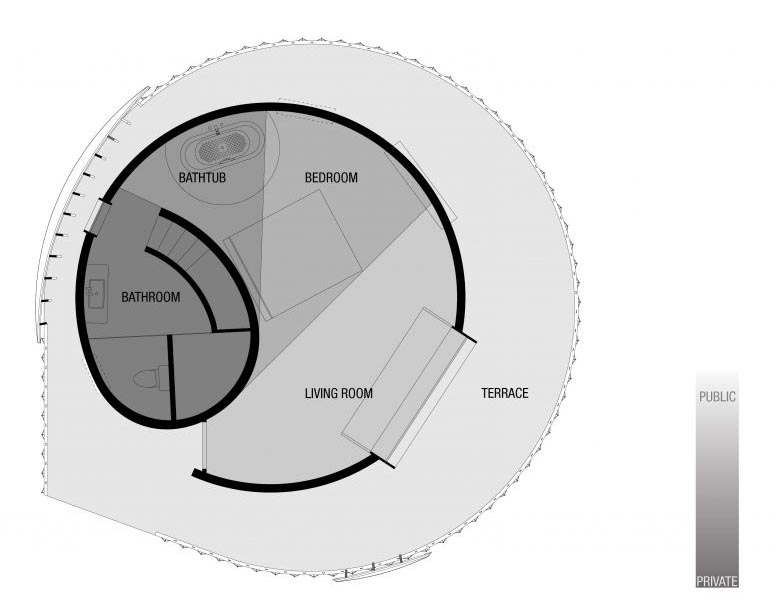

▼空间性质渐变，space gradient©Monoarchi度向建筑

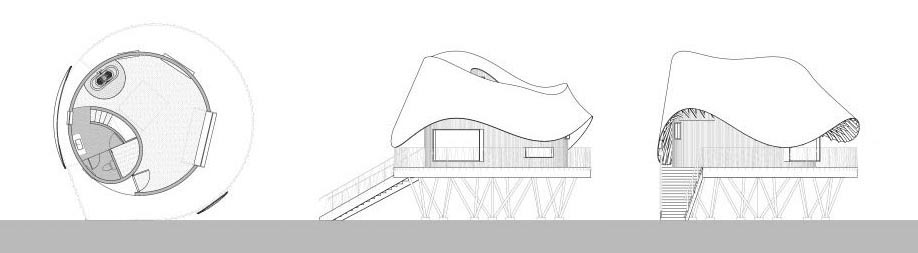

▼平面&立面，plan&elevation ©Monoarchi度向建筑

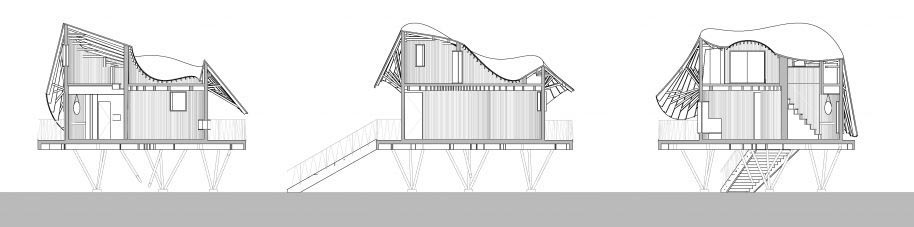

▼剖面图，sections ©Monoarchi度向建筑

项目名称：乡伴余姚树蛙部落
地点：浙江省余姚市鹿亭乡中村
建筑面积：80sqm
设计时间：2017.03 – 2017.08
竣工时间：2018.04
设计公司：Monoarchi度向建筑
设计负责人：宋小超，王克明
设计团队: 付丛伟杨超关伟娜罗林先高星宇孙凡雅婧章凌凌
业主单位：乡伴文旅
结构顾问：谢亿民工程科技
施工团队：德清武康荣顺装饰服务部
主要材料：SPF，OSB，木瓦，橡木，菠萝格，水磨石，双层中空玻璃
建筑摄影师：陈颢，宋肖澹

Project: Yuyao Treewow Tribe
Location: Zhongcun, Luting, Yuyao, Zhejiang Province
Area: 80sqm
Design PeriodL Mar, 2017- Aug, 2017
Completion: Apl, 2018
Architect’s firm: MONOARCHI
Lead architects: Xiaochao Song, Keming Wang
Design team: Congwei Fu, Chao Yang, Weina Guan, Linxian Luo, Xingyu Gao, Fan Sun, Jing Ya, Lingling Zhang
Client firm: Xbandclub Yuyao Treewow Hotel Management Company
Structure Consultant：XIE Technologies
Construction Company：Deqing Wukang Rongshun Department of Decoration Service
Material: SPF, OSB, wooden tile, oak, kwila, terrazzo，double glazing glass
Photographer: Hao Chen, Xiaodan Song
