非常感谢SUGAWARADAISUKE将以下内容授权gooood发行。更多请至：SUGAWARADAISUKE on gooood
Appreciation towards SUGAWARADAISUKE for providing the following description:

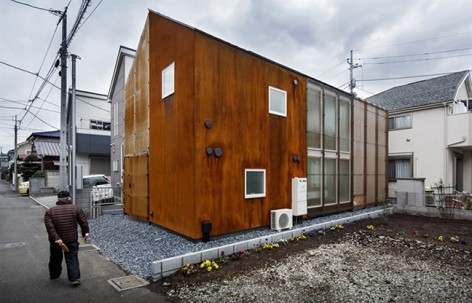

这座采用锈蚀钢板为表皮的东京小住宅对场所四个条件进行了积极响应。
1，.场地小–因此延生对空间的感官
2，多样化的生活–设置灵活度高的空间
3，不断发生变化的城市面貌–提供多样化的外表皮接触外部环境
4，人工主导环境–提供多种备选方案

建筑从内到外响应场所，并具备可以灵活适应市民生活方式变化的居住空间，以丰富和可持续的全新理念面世。

Built in the residential area of Tokyo, ‘ Transustainable House ‘ aims to respond to the 4 features of urban housing.
1) ‘Small building site’ – Extension of perceptional spaces beyond the limit
2) ‘Diverse style of living’ – Composition of spaces that allow arrangements
3) ‘Endlessly updating townscape’ – Surface that engraves the microclimate
4) ‘Artificial thermal environment’ – Diverse thermal environment that offer choices
These procedures make interior and exterior durable to different contexts of the site. The interior responds to transitions of residents’ lifestyles, while the exterior responds to the transitions surrounding the site. This house is not brought to perfection in the moments of the completion, buttargets to enrich the quality of the environment by being intimate with the long lapse of time. This project shows a new solution for sustainable architecture that metamorphoses its existence over the time.

1，.场地小–因此延生对空间的感官。
在东京，房屋场所小是普遍现象。建筑师将有限的居住空间最大化发掘，将居住的空间切成小块呈对角安排，让之间与场地形成的空间成为半室内的居住空间，并赋予其半透明表皮，给人以延伸的空间感。

1) ‘Small building site’ – Extension of perceptional spaces beyond the limit

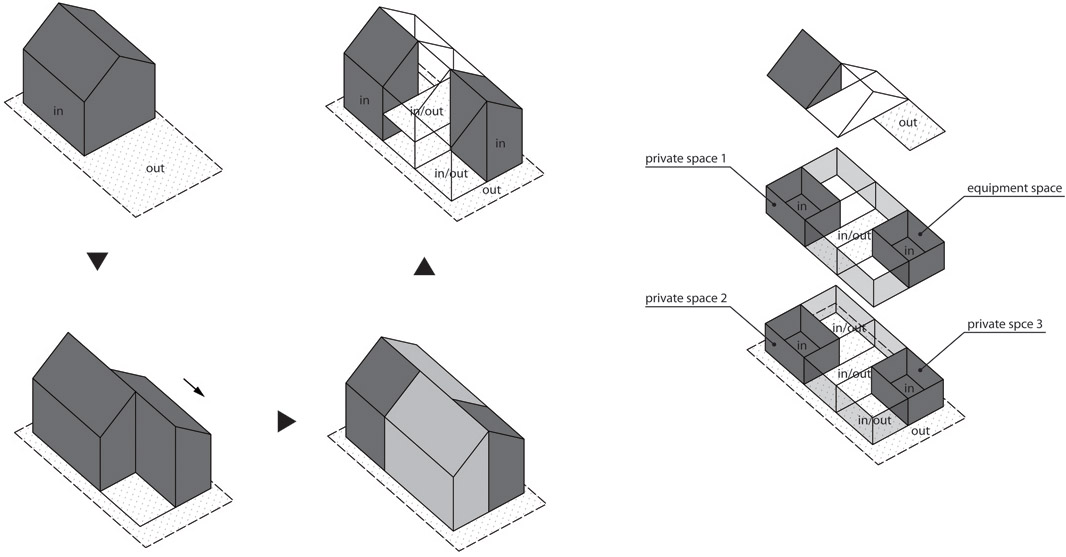

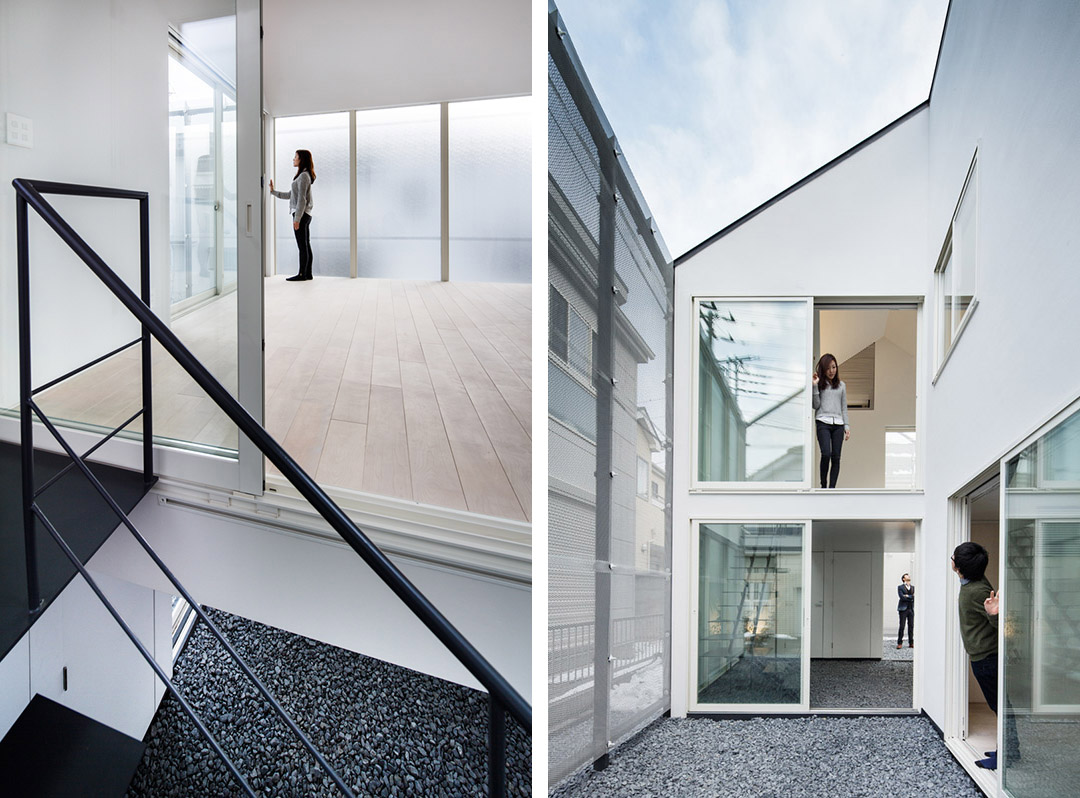

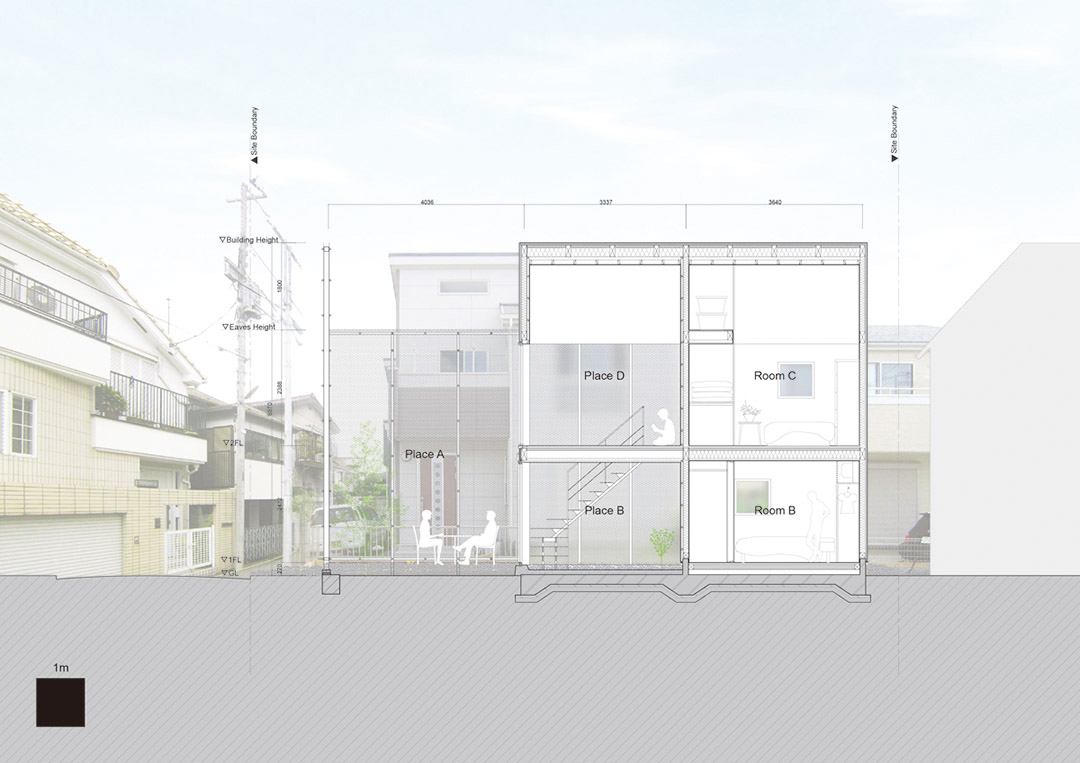

In Tokyo, it is quite typical for a house to be built on a very small site. Therefore, in order to maximize the limited dwelling space, this house expands the dwelling space both inside and outside, and converts the entire site into a group of spaces with different qualities. Private rooms are placed diagonally in the site, while common areas are created between them, transforming the rest of the site into ‘semi-indoor’ residential area. The ‘semi-indoor’ areas extend the resident’s spatial perception beyond the site boundary over the enclosed semi-transparent walls.

2，多样化的生活–设置灵活度高的空间
如今，城市市民的生活不再固定，迁移成为常态。为此这所房子可以适用3种家庭生活的状态。如果将这些理念推广，日本很多民宅的潜力将大为提高。

3，不断发生变化的城市面貌–提供多样化的外表皮接触外部环境
建筑都存在于环境中，也会反作用于环境，为此建筑师探索了建筑外观与环境的关联。小住宅上面的锈蚀钢板和穿孔金属网会随着时间的推移，风雨的侵蚀而显现出斑驳与岁月留痕。建筑的外观，由建筑师设计一半，另一半，交给了自然。

4，人工主导环境–提供多种备选方案
都市中的人们惯用空调和冷气来调节室温。而这所房屋提供了4个人与自然接触的梯度场景：全控制室内，中控制室内，中控制室外，不能控制的室外。有利于居民感知四季变迁。

2) ‘Diverse style of living’ – Composition of spaces that allow arrangements
Today, city citizens migrate between cites constantly. These nomadic style leads to the diversification of family structure and the relationship between family members/housemates.
The group of private rooms and common areas in this residence responds to this issue as well, by allowing free arrangement of spaces. The following diagram shows how residential areas in this house could be managed according to 3 families’ life circles.

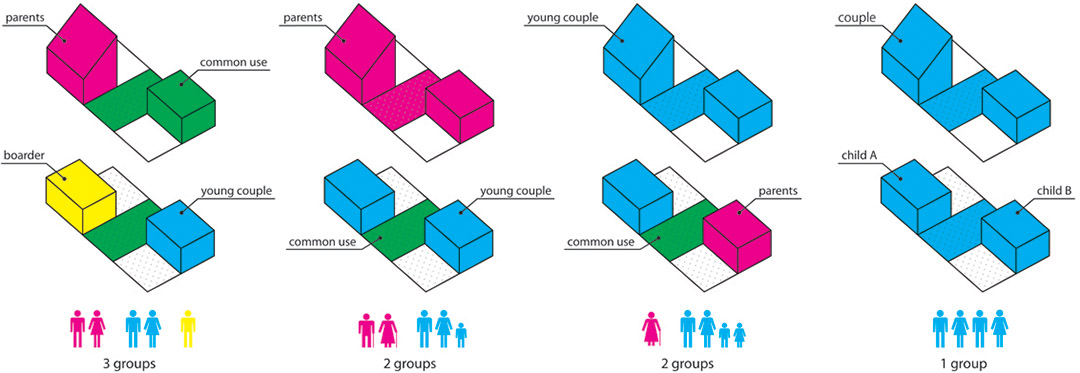

▼Arrangement of spaces responding to the transition of family structure (e.g. 3 groups/2 groups/2 groups/1 group)

Currently, there are 50,000 individual houses in Japan. If this method is applied to all of them, parts of those private houses can be opened to not only urban nomadic residents but also to the community. This method is potential to play a major role in the society as a stock of closed private dwelling spaces

3) ‘Endlessly updating townscape’ – Surface that engraves the microclimate

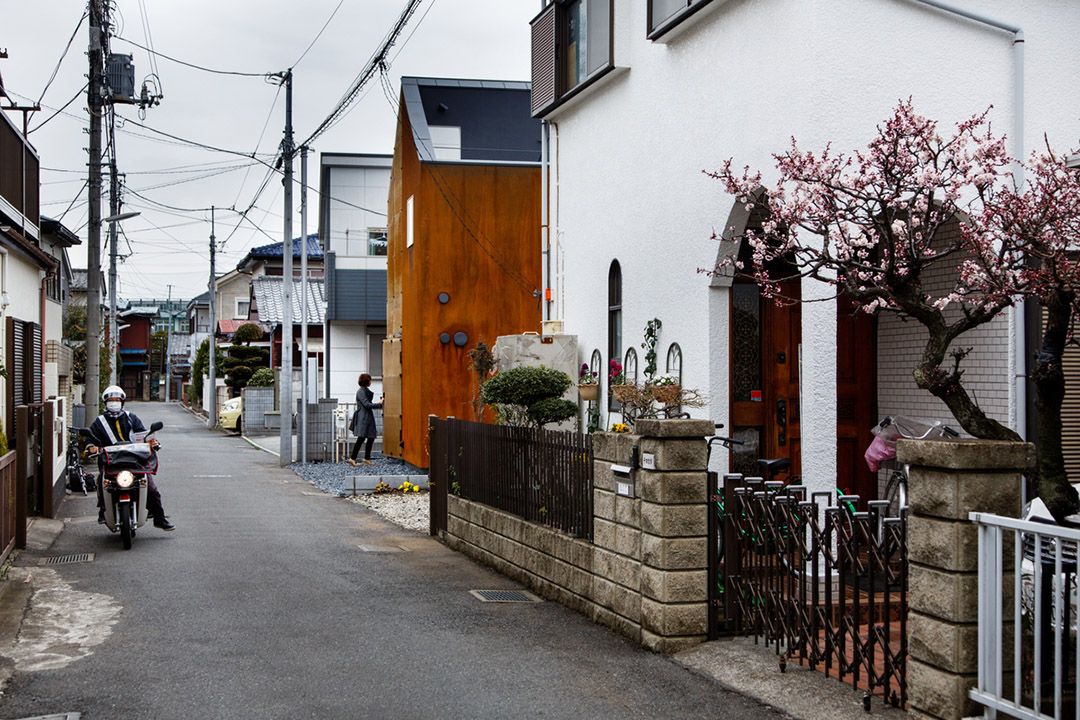

Architecture cannot exist without giving any influence to the surrounding context. This project explores the possibility to have a unique appearance by having a strong relationship with the context.

If this is subjected to the neighborhood residences, the relation keeps collapsing every few years because of the scrap-and-build townscape of Tokyo. Therefore, this house relies on the site-specific micro-climate.

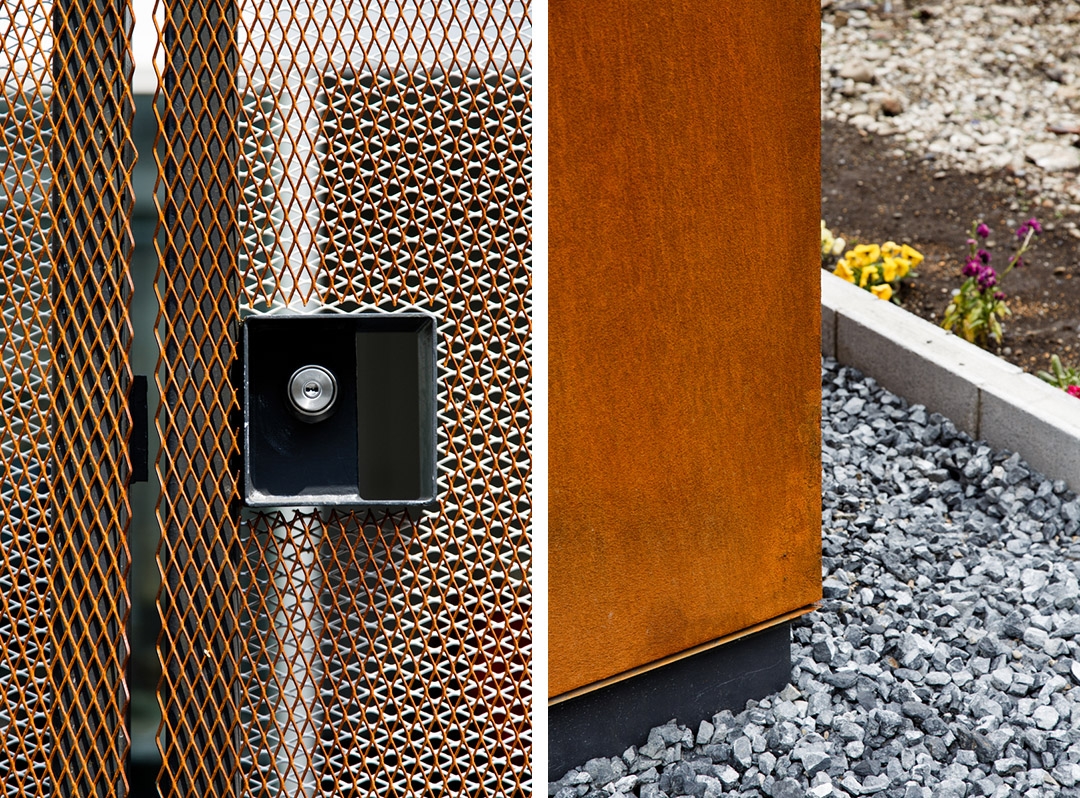

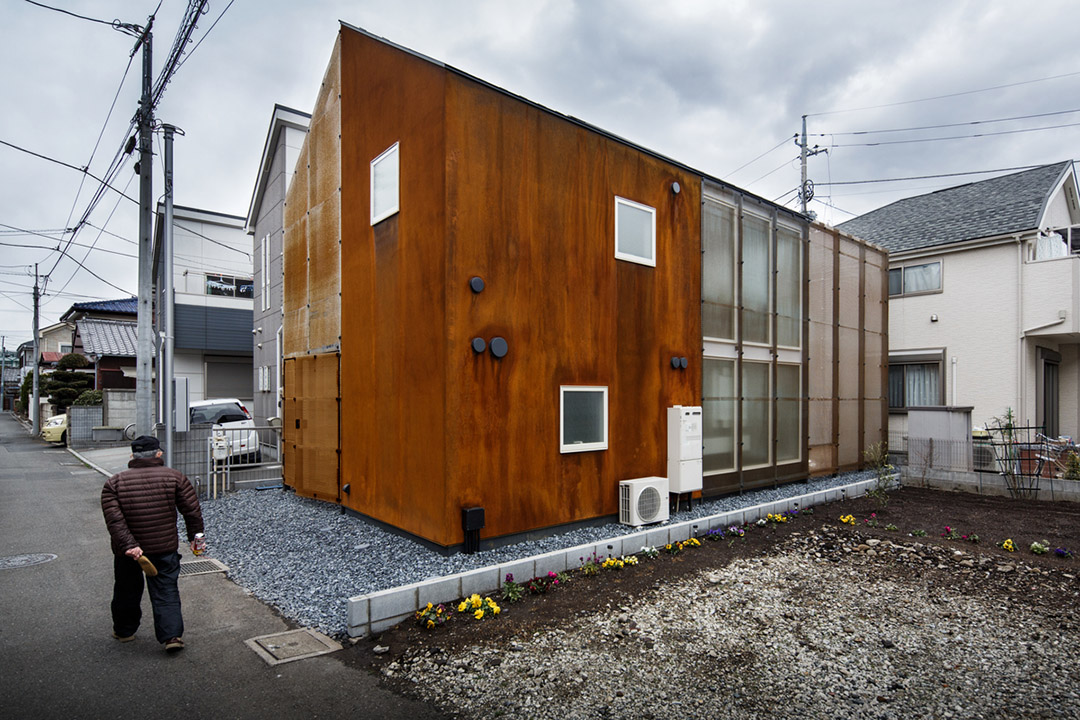

This aim is realized by the exterior surfaces with unique iron-powder-mixed-plaster and the expanded metal.

Exposed to the rain, wind, and sunlight, the weathering of the surface proceed dappled rust on the surface, memorizing the vernacular micro-climate over the time. The architectural appearance is not designed by an architect, but is defined by the actual behavior of the natural phenomena.

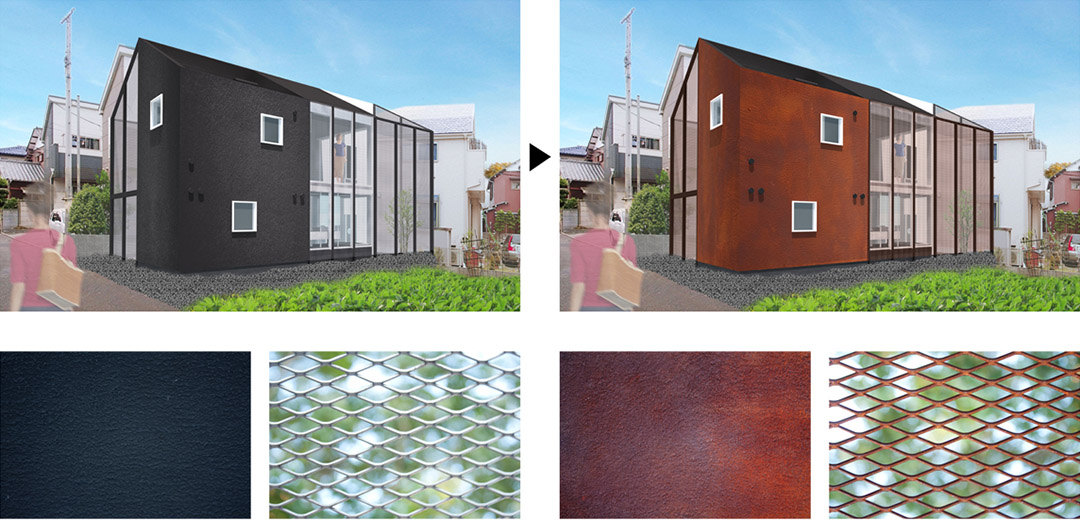

▼Iron-powder-mixed-plaster and expanded metal before and after weathering

4) ‘Artificial thermal environment’ – Diverse thermal environment that offer choices
Thermal environment in urban areas tend to be a simple choice between the artificially controlled indoor, and the rest of the uncontrolled outdoor.

In this house, the artificial and the natural are blended in gradient, which produce diverse choices to be made by the thermal perception of the residents.

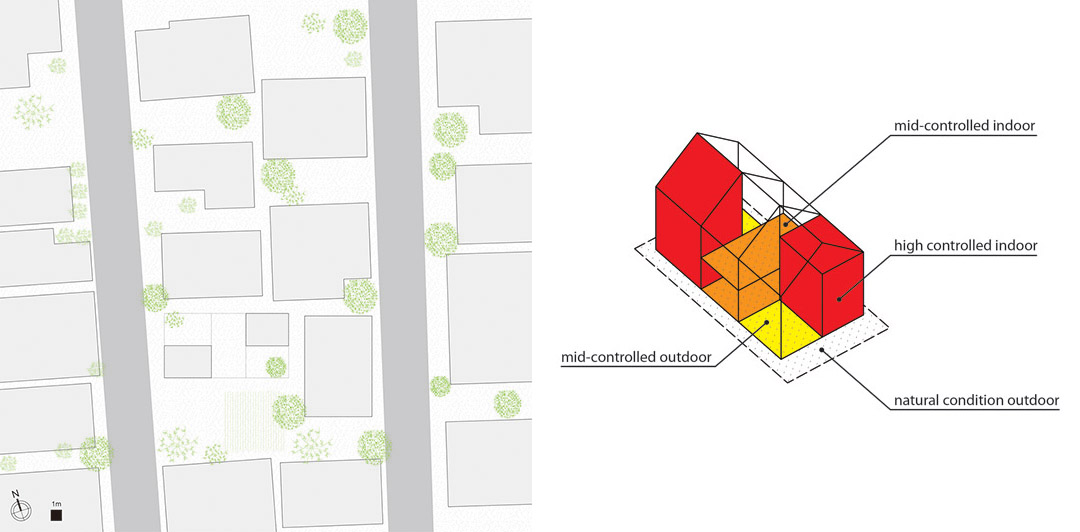

This house offers 4 types of approach to the air condition – high controlled indoor, mid-controlled indoor, mid-controlled outdoor and natural condition outdoor. Those 4 approaches create countless thermal condition in between, not only because of the changes of season but also by the use of mechanical air conditioning and windows/doors, and stimulate the residents to search perceptively for the adequate places each time.

Project name: Transustainable House
Location: Chofu, Tokyo
Concept Design: SUGAWARADAISUKE (Daisuke Sugawara, Noriyuki Ueakasaka, Hiroshi Narahara)
Schematic Design: SUGAWARADAISUKE (Daisuke Sugawara, Noriyuki Ueakasaka, Hiroshi Narahara)
Design Development: SUGAWARADAISUKE (Daisuke Sugawara, Noriyuki Ueakasaka, Hiroshi Narahara)
Design Corporation for DD drawings: Yuko Hiura, Chihiro Kotaka, Masayuki Harada
Structural Design: RGB Structure (Masayuki Takada)
Lighting Design: TOH design (Aki Hayakawa)
Plantation Design: GA Yamazaki
Plaster Work: Nurikan
Construction: Sou Kenchiku Co.,Ltd.
Structure: Wood
Site area: 100.08 sqm
Building area: 38.62 sqm
Gross Floor area: 76.30 sqm
Height: 6.87m
Number of stories: 2
Design Period: Apr. 2012 – Apr. 2013
Construction Period: May 2013 – Feb 2014
Photographer Photos: JéRéMIE SOUTEYRAT
