MVRDV与天津城市城市规划设计研究院合作完成了天津滨海图书馆项目。该项目占地33,700平方米，除多媒体阅览室外，该空间可容纳图书超120万册。一颗巨大的发光球体成为空间的视觉中心，环绕空四周的书架如瀑布般从屋顶倾斜而下。这些空间内部波浪般的结构纹理，是图书馆的主要功能空间，它们既是陈列书架，又是台阶，也是来访者的阅读空间。它柔美律动的曲线不仅塑造了空间的整体效果，也成就了立面的层次感。应天津市政府要求，天津滨海博物馆历时三年，打破了设计师的设计及施工时限记录。

MVRDV in collaboration with local architects TUPDI has completed the Tianjin Binhai Library, a 33,700m2 cultural centre featuring a luminous spherical auditorium around which floor-to-ceiling bookcases cascade. The undulating bookshelf is the building’s main spatial device, and is used both to frame the space and to create stairs, seating, the layered ceiling and even louvres on the façade. Tianjin Binhai Library was designed and built in a record-breaking time of only three years due to a tight schedule imposed by the local municipality. Next to many media rooms it offers space for 1,2 million books.

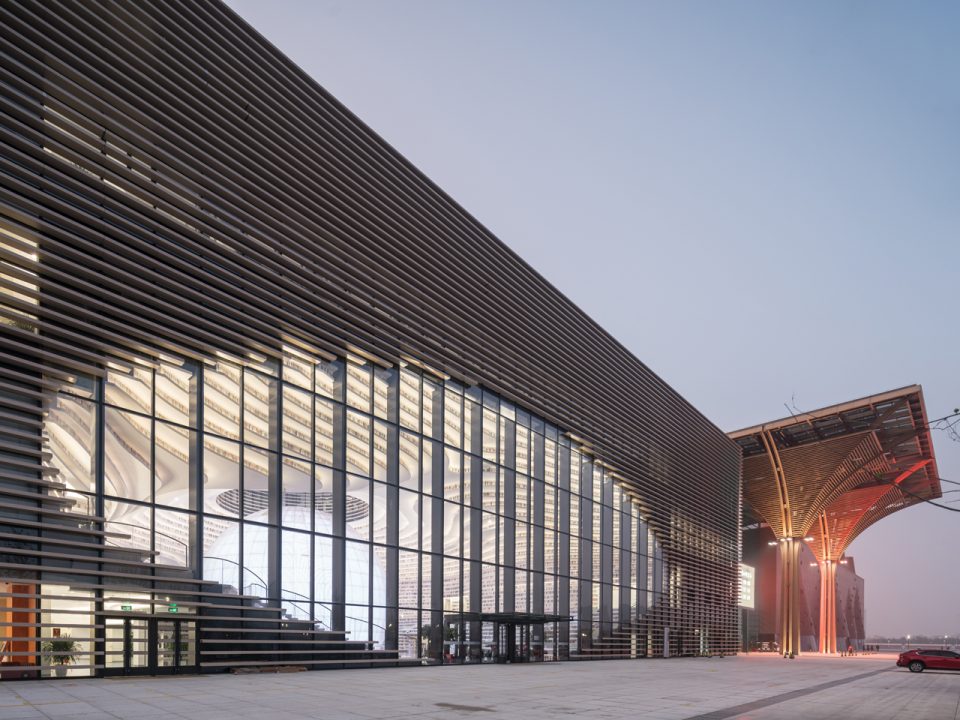

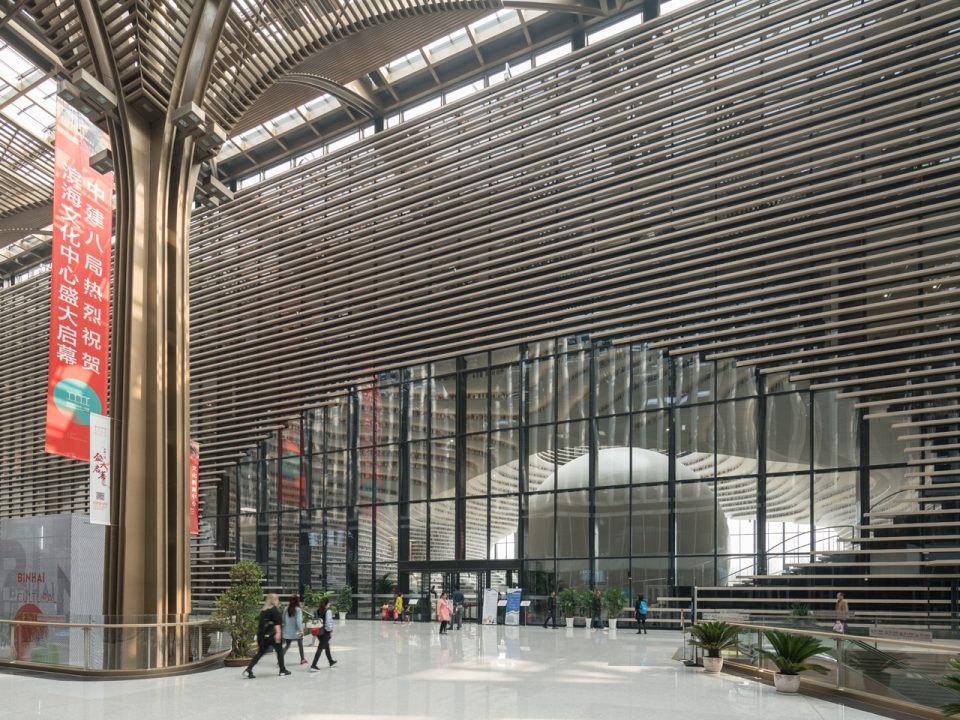

▼建筑外立面，the surface

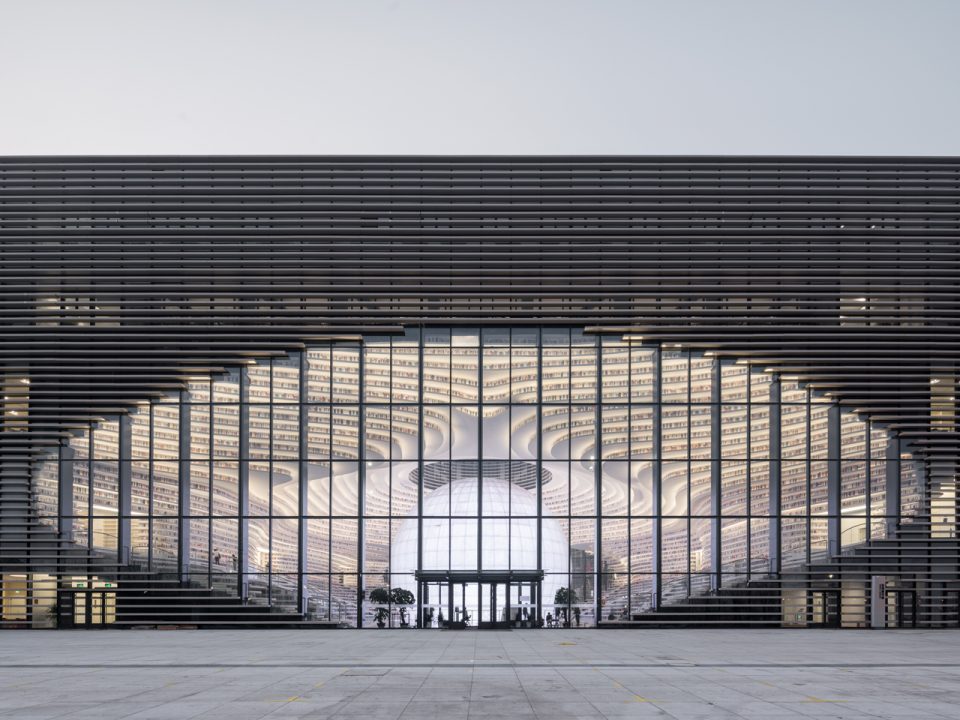

▼如同眼睛一般与城市对视，like an eye facing to the front

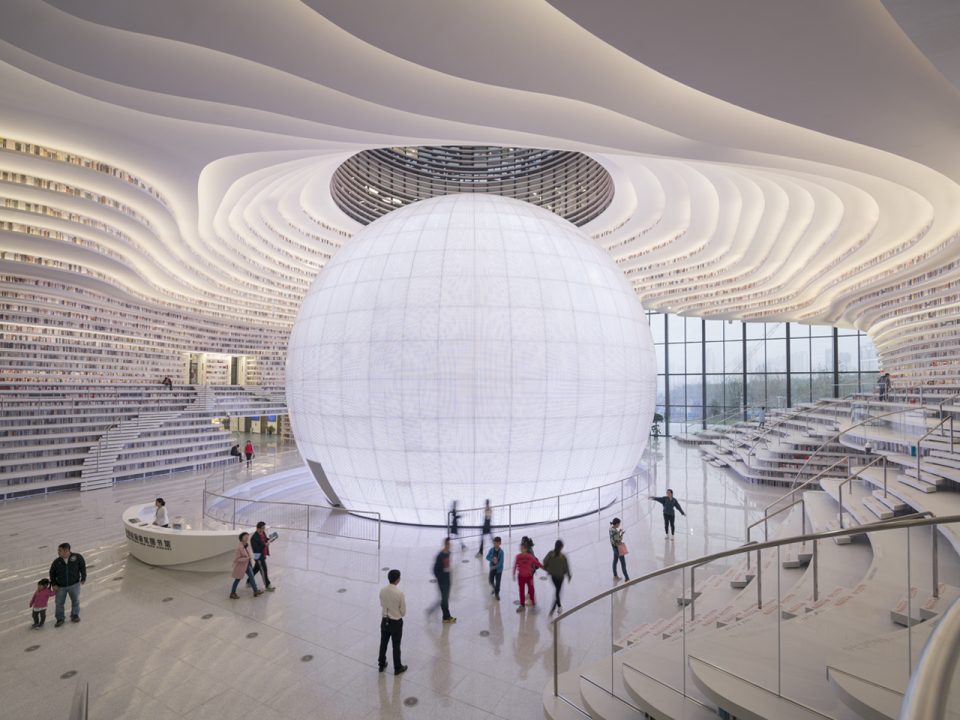

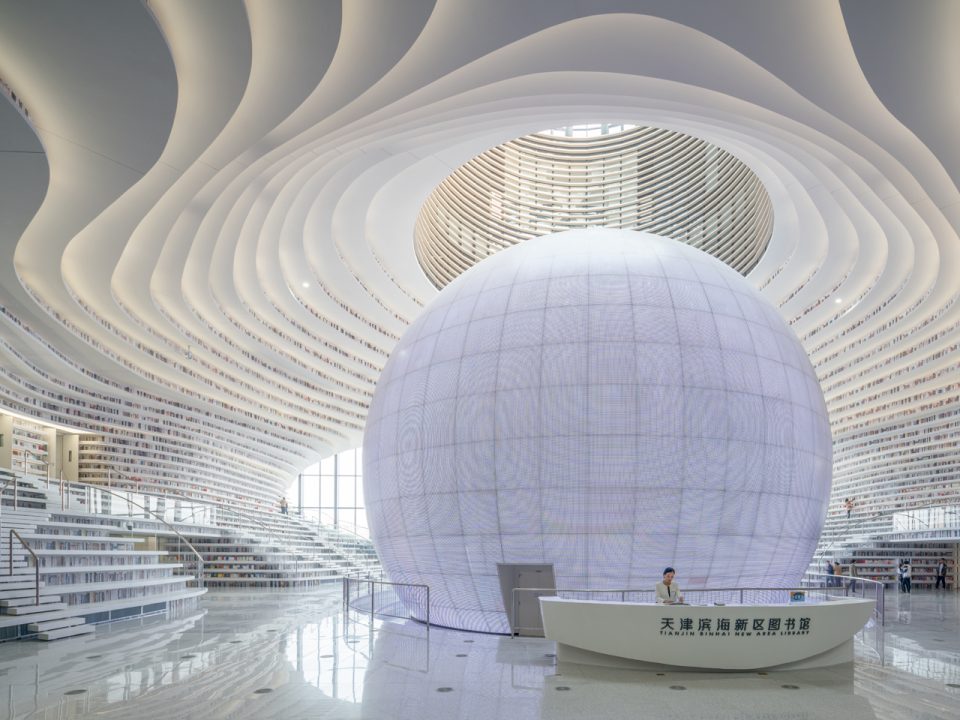

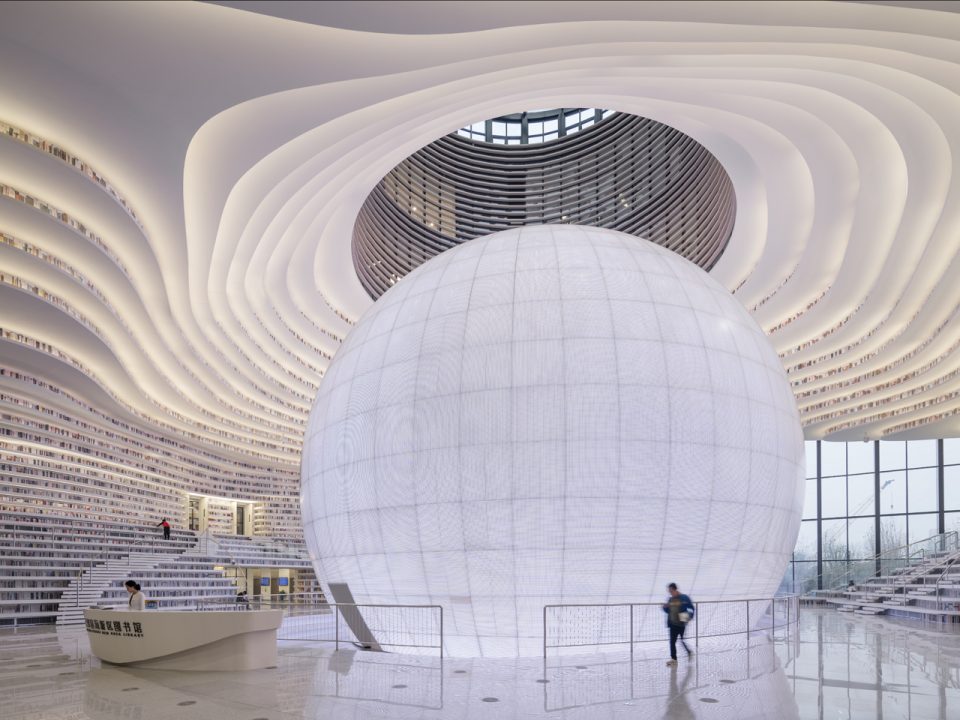

▼圆形报告厅占据空间中心，a ball-like auditorium sites at the centre of the library

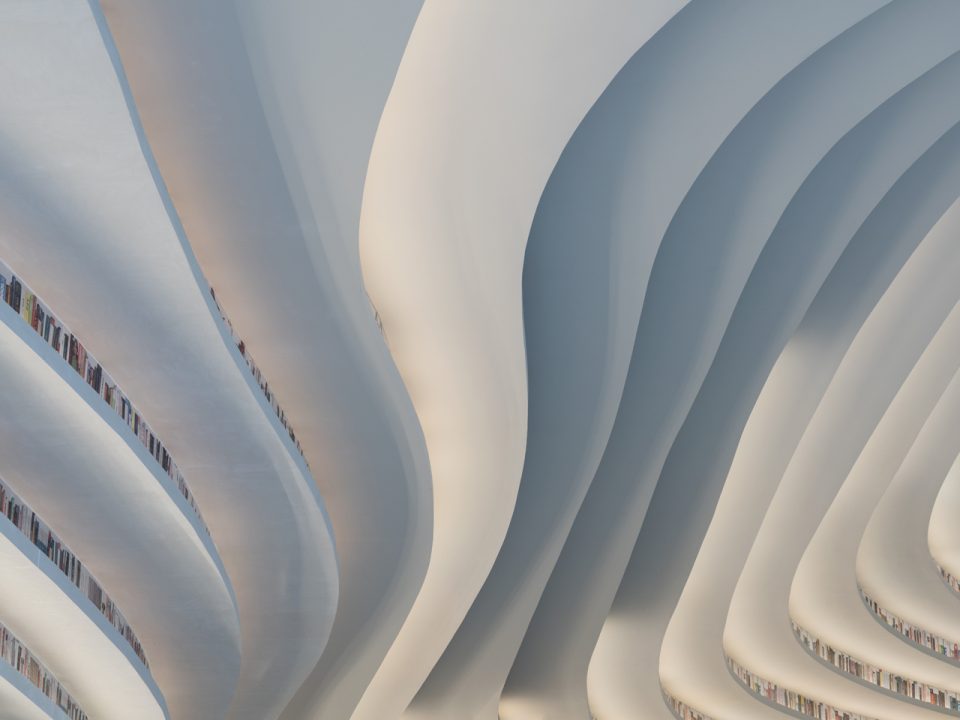

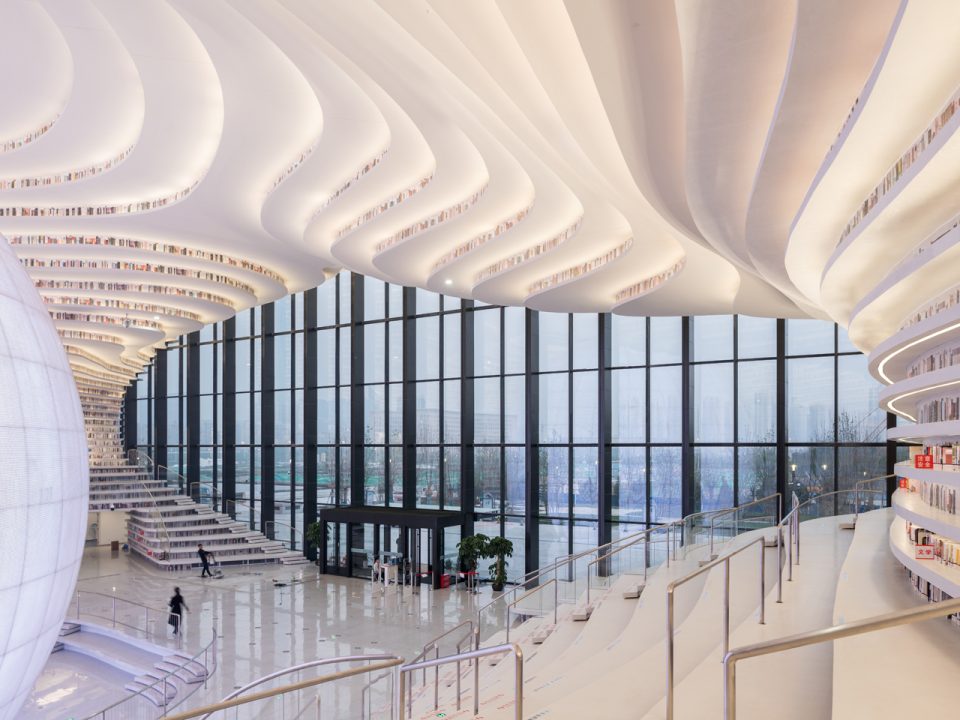

▼波动的天花板，the waving ceiling

天津滨海图书馆受天津市滨海区政府委托，是一项坐落于天津市滨海新区文化中心的项目。该项目毗邻城市公园，是天津市五个重大建设项目之一，这些项目分别由Bernard Tschumi Architects，Bing Thom Architects，HH Design和MVRDV事务所分别主持设计。在gmp的整体规划下，这五个项目经过一条玻璃天棚覆盖的文化长廊相连。在整体规划的严格限制下，MVRDV对项目空间进行了集中控制。

The library was commissioned by Tianjin Binhai Municipality and is located in the cultural centre of Binhai district in Tianjin, a coastal metropolis outside Beijing, China. The library, located adjacent to a park, is one of a cluster of five cultural buildings designed by an international cadre of architects including Bernard Tschumi Architects, Bing Thom Architects, HH Design and MVRDV. All buildings are connected by a public corridor underneath a glass canopy designed by GMP. Within the GMP masterplan MVRDV was given a strict volume within which all design was concentrated.

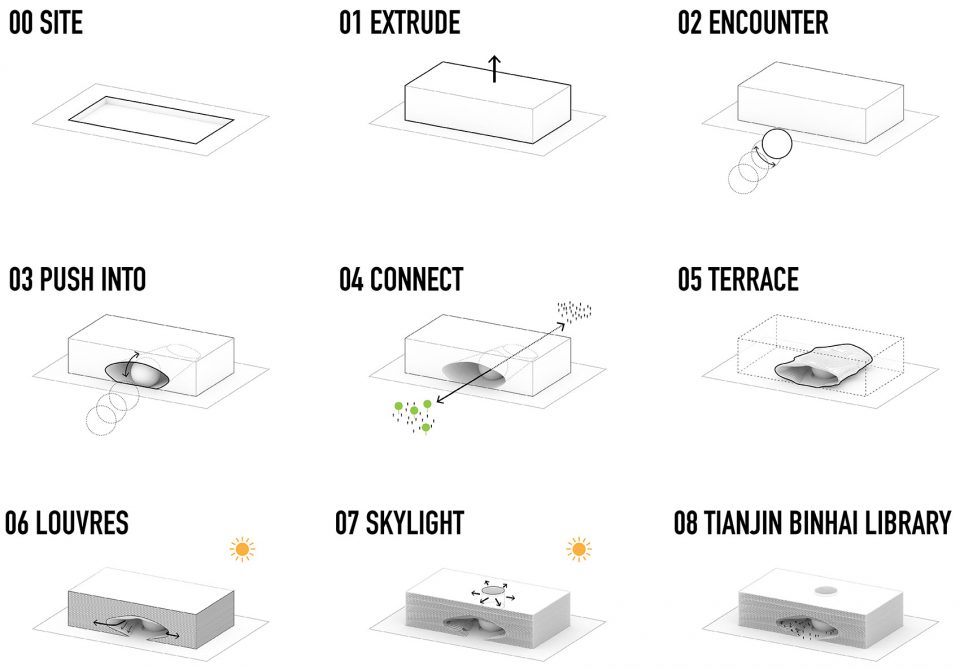

▼概念，concept

空间内部一个巨大的球型礼堂，仿佛将天花板高高顶起。环绕于空间四周的书架，从地板开始一层层向上形成台阶和坐席，并蔓延至天花板，形成发光的等高线。层次分明的等高线沿建筑巨大的玻璃立面形成百叶，在保护室内光亮充足的前提下，又过滤了过强的直射光线。而其波动的曲线，也与建筑之外的城市花园遥相呼应。

The building’s mass extrudes upwards from the site and is ‘punctured’ by a spherical auditorium in the centre. Bookshelves are arrayed on either side of the sphere and act as everything from stairs to seating, even continuing along the ceiling to create an illuminated topography. These contours also continue along the two full glass facades that connect the library to the park outside and the public corridor inside, serving as louvres to protect the interior against excessive sunlight whilst also creating a bright and evenly lit interior.

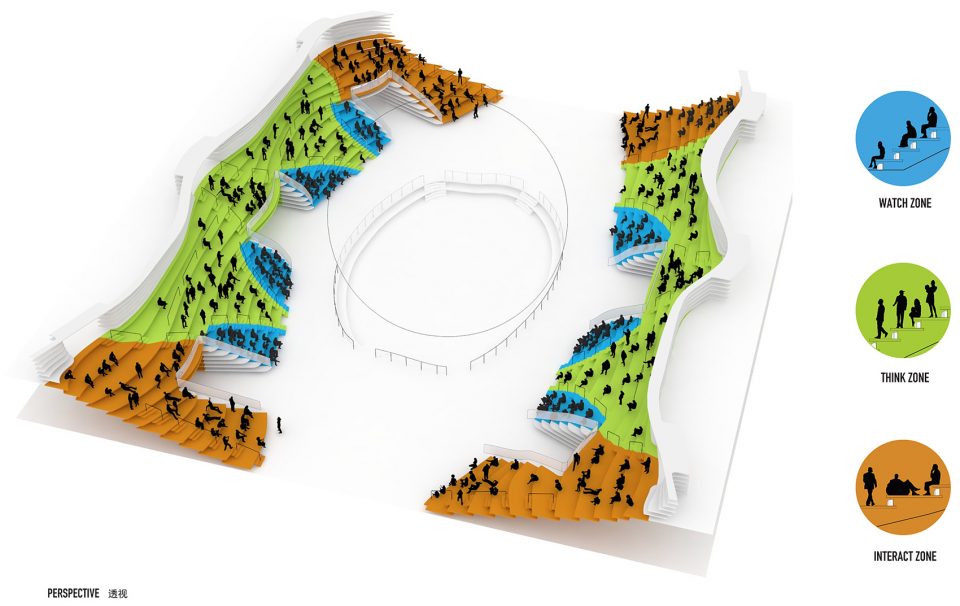

▼主空间透视，perspective

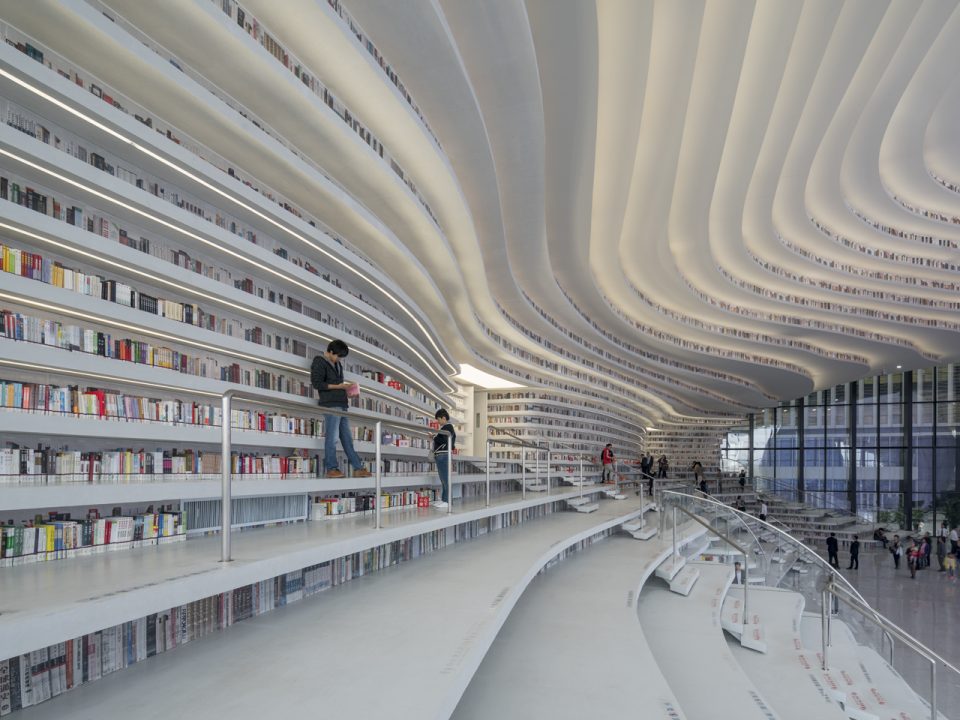

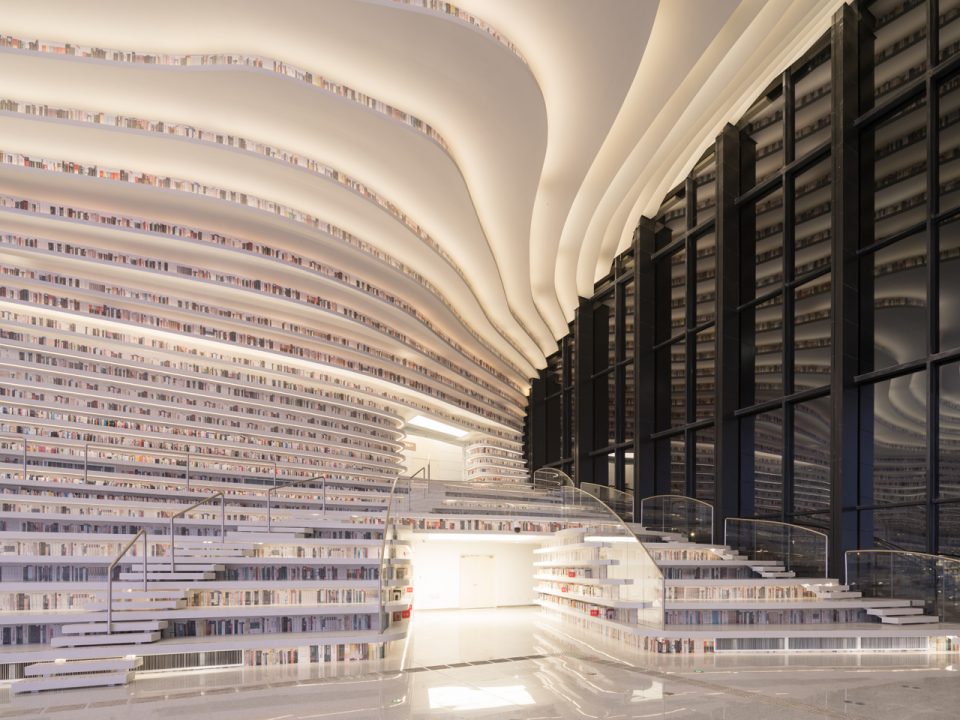

▼主空间内部，the main space

“天津滨海博物馆的室内书架设计如同洞穴一般。我们借用坐落其中的圆形礼堂作为空间支点，其巨大的体量，如同突破天际一般带来视觉上的震撼之感，又仿佛环绕在知识的海洋里。”MVRDV的联合创始人Winy Maas解释道。“空间在中心展开一个巨大的建筑体量，来访者通过空间四壁的层层书架穿越在各层之间，并在所到之处随时坐下，开启阅读之旅。这种空间层次和弯曲而成的角度，令来访者享受多种空间体验，他们或漫步其中，或驻足观赏，抑或与人会面探讨，挖掘无限乐趣。而这层层曲线在天花板处形成巨大的孔洞，如同眼睛一般，与天空对视。”

“The Tianjin Binhai Library interior is almost cave-like, a continuous bookshelf. Not being able to touch the building’s volume we ‘rolled’ the ball shaped auditorium demanded by the brief into the building and the building simply made space for it, as a ‘hug’ between media and knowledge” says Winy Maas, co-founder of MVRDV. “We opened the building by creating a beautiful public space inside; a new urban living room is its centre. The bookshelves are great spaces to sit and at the same time allow for access to the upper floors. The angles and curves are meant to stimulate different uses of the space, such as reading, walking, meeting and discussing. Together they form the ‘eye’ of the building: to see and be seen.”

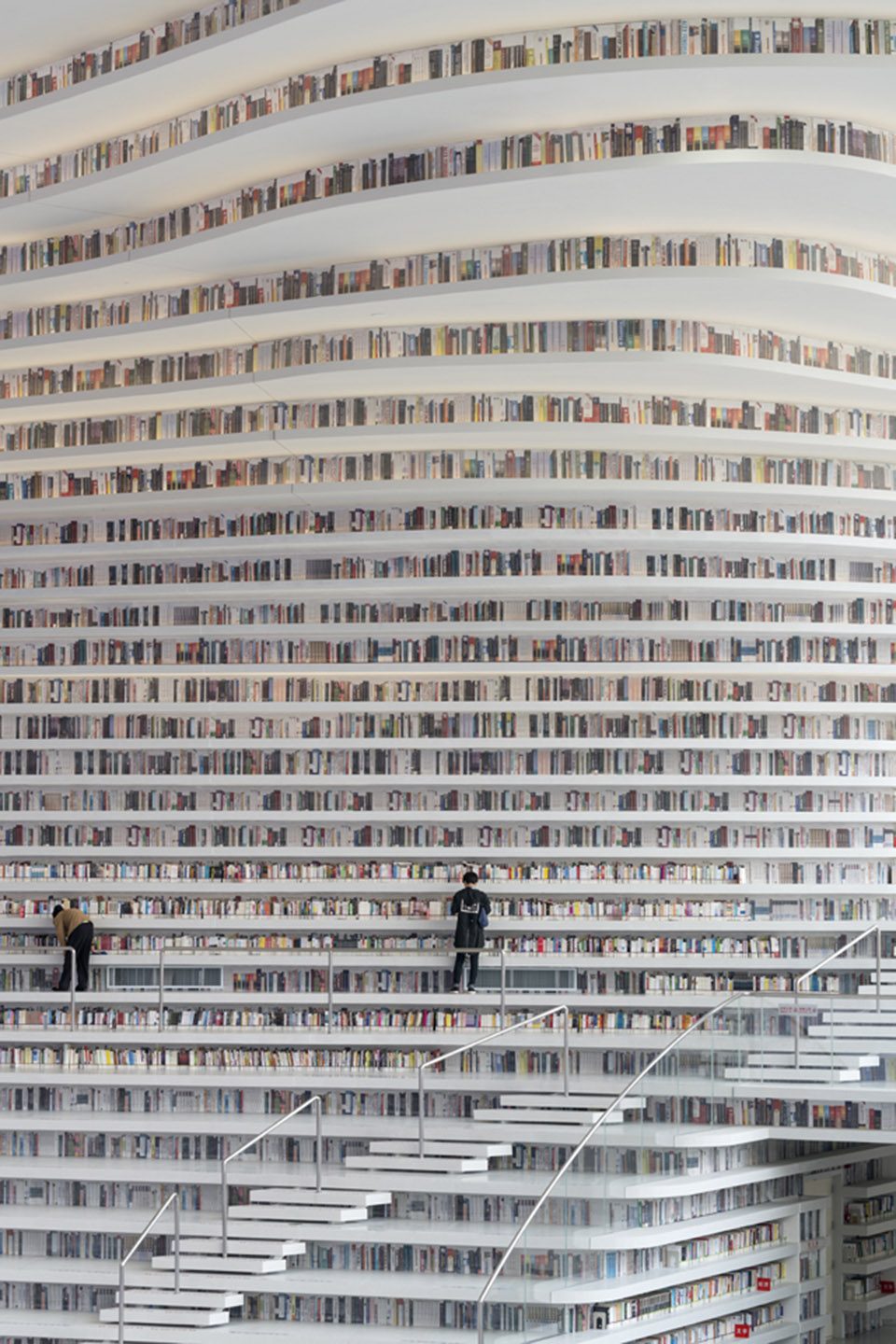

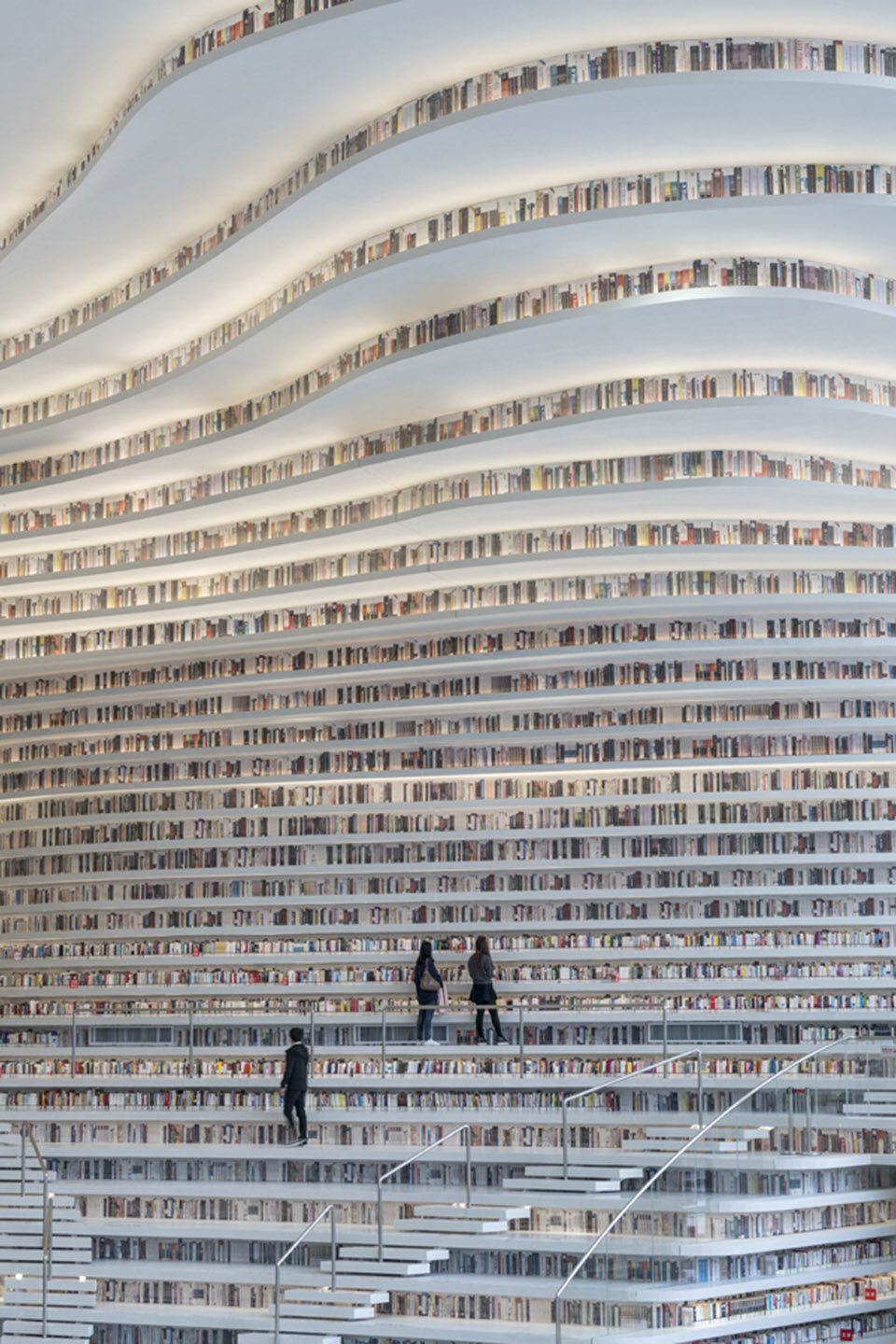

▼律动的空间，the space is in layers

除了主要阅读空间之外，该图书馆还包括其他教育空间。它们沿主要公共空间四周而设，并于此地相连。图书管理设施及档案室安排在地下层。通过建筑主入口到达底层公共空间，这里与儿童和老年人阅读区，礼堂及各种文化服务设施相连。一层和二层为主要阅读空间和休息室。此外，上层空间还包括会议室，办公室，电子阅览室，声音阅览室和屋顶露台。

The five level building also contains extensive educational facilities, arrayed along the edges of the interior and accessible through the main atrium space. Public program is supported by subterranean service spaces, book storage, and a large archive. From the ground floor visitors can easily access reading areas for children and the elderly, the auditorium, the main entrance, terraced access to the floors above and connection to the cultural complex. The first and second floors consist primarily of reading rooms, books and lounge areas whilst the upper floors also include meeting rooms, offices, computer and audio rooms and two roof top patios.

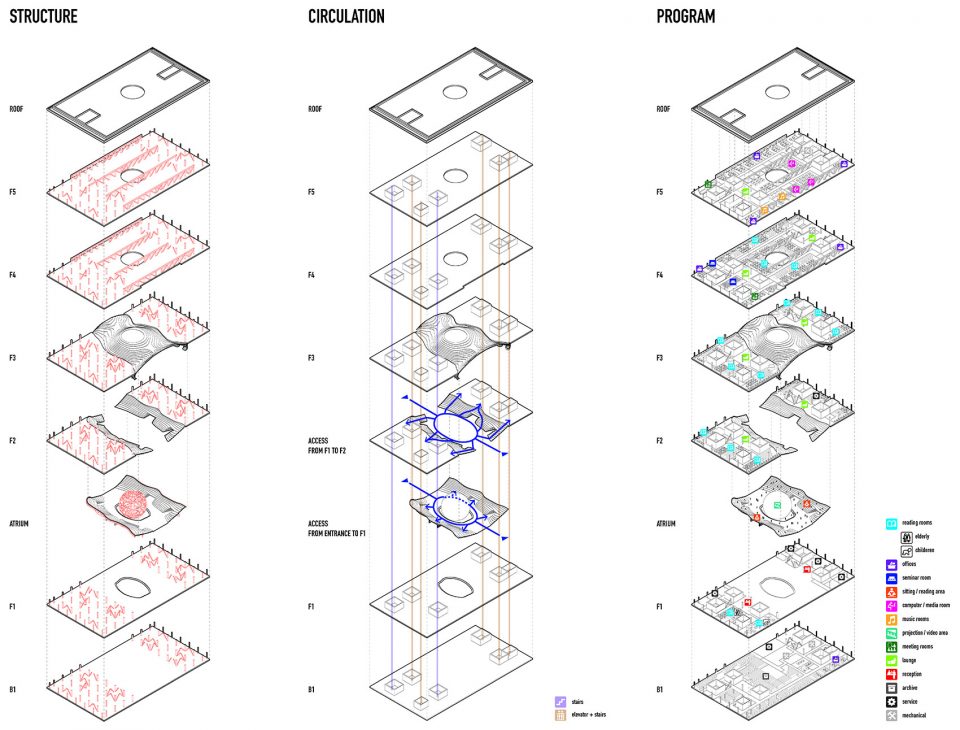

▼结构、交通及功能分析，structure, circulation and program

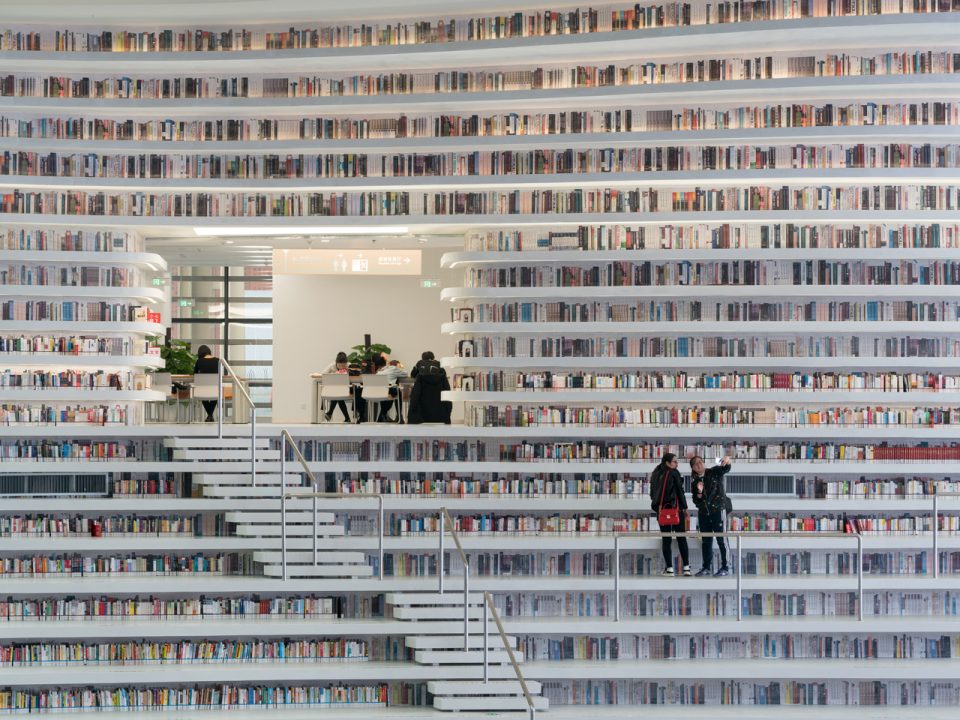

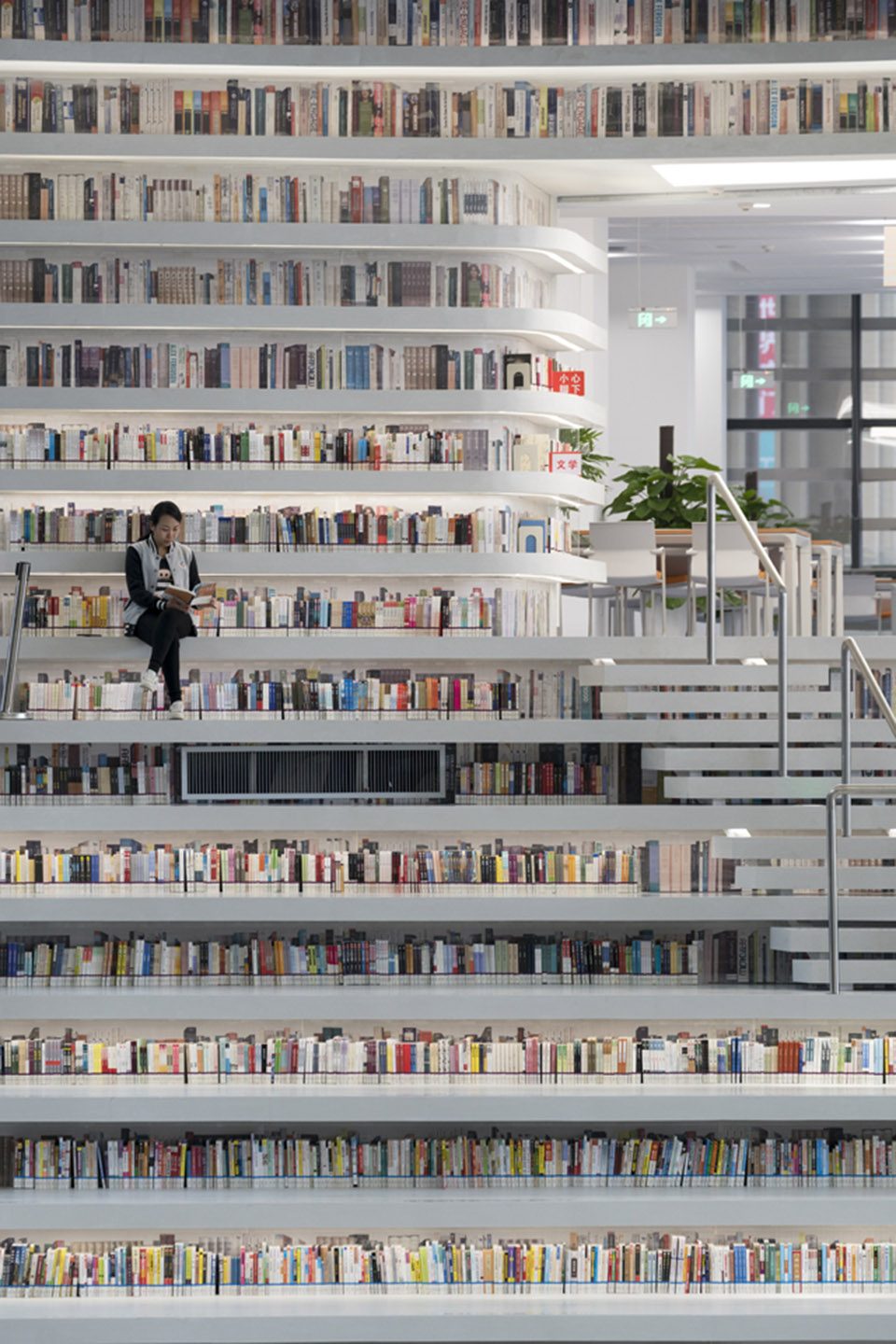

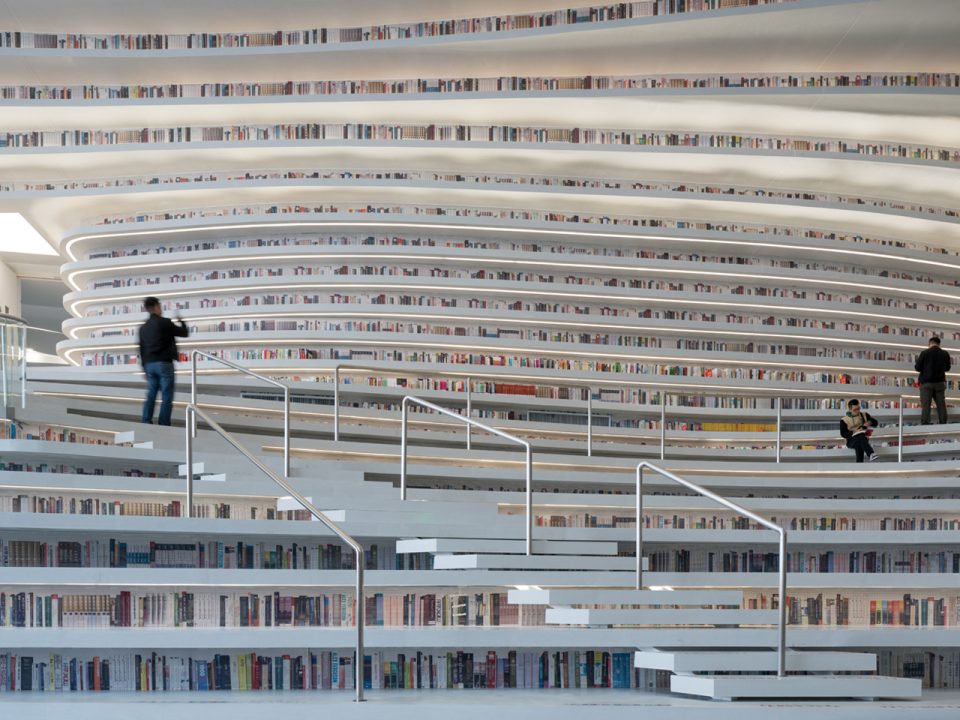

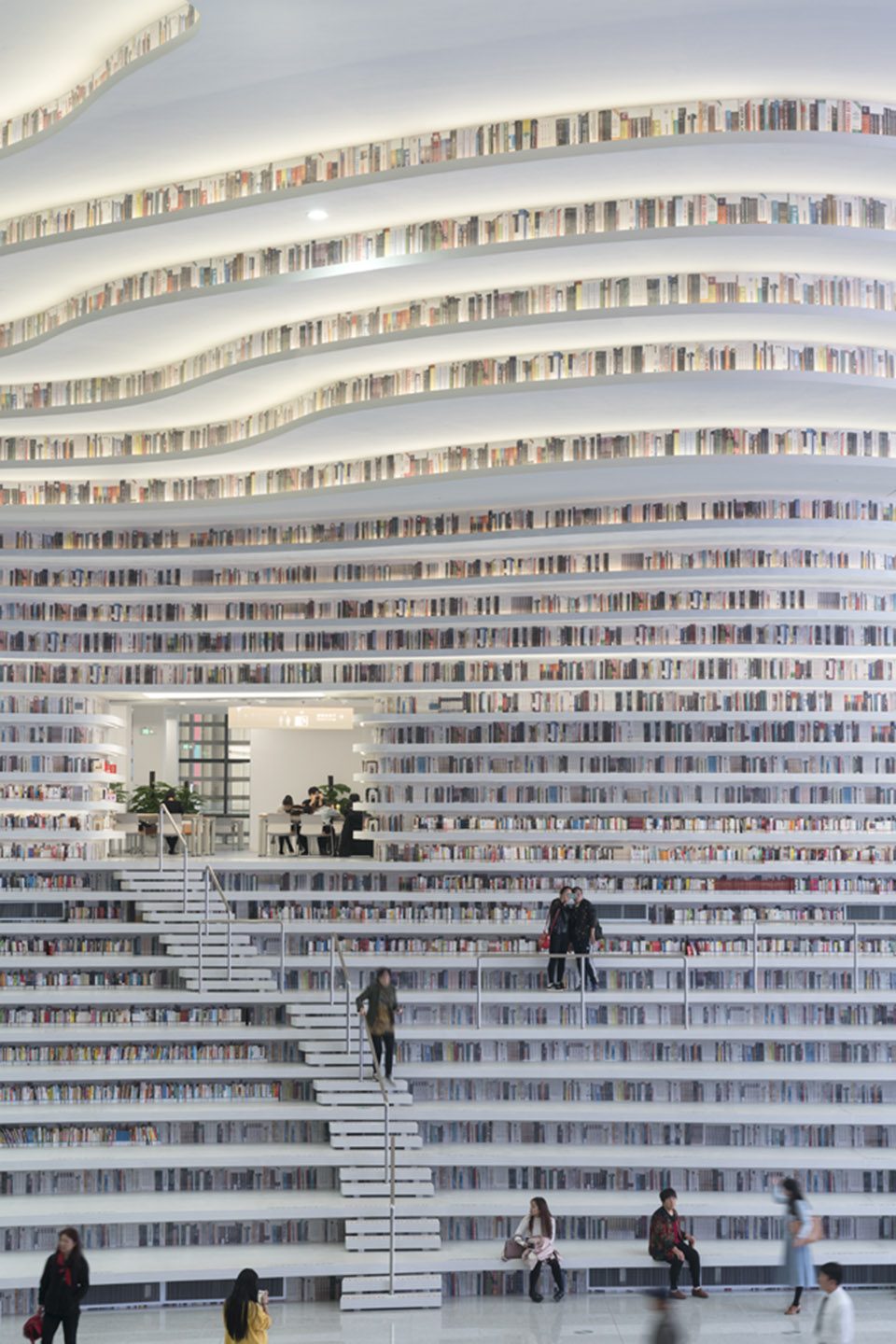

▼主空间内书架亦是台阶和坐席，the shelves also act as stairs and seatings

该图书馆是MVRDV有史以来设计周期最短的项目，从设计初期到建成开放仅用时三年。由于时间有限，施工阶段紧随设计阶段开始。如此紧张的设计施工使得MVRDV不得不放弃一项非常必要的设计，即从中庭后面的房间进入上层书架。这一设计概念依照当地要求改变，背离了MVRDV最初的理念，使来访者无法从这些房间进入上层书架。与此同时，位于建筑上层的书架也无法真正陈列书籍，而是使用打印的图片来表达陈列效果。而日常的清理工作也需要辅助脚手架和爬绳进行。

The library is MVRDV’s most rapid fast track project to date. It took just three years from the first sketch to the opening. Due to the given completion date site excavation immediately followed the design phase. The tight construction schedule forced one essential part of the concept to be dropped: access to the upper bookshelves from rooms placed behind the atrium. This change was made locally and against MVRDV’s advice and rendered access to the upper shelves currently impossible. The full vision for the library may be realised in the future, but until then perforated aluminium plates printed to represent books on the upper shelves. Cleaning is done via ropes and movable scaffolding.

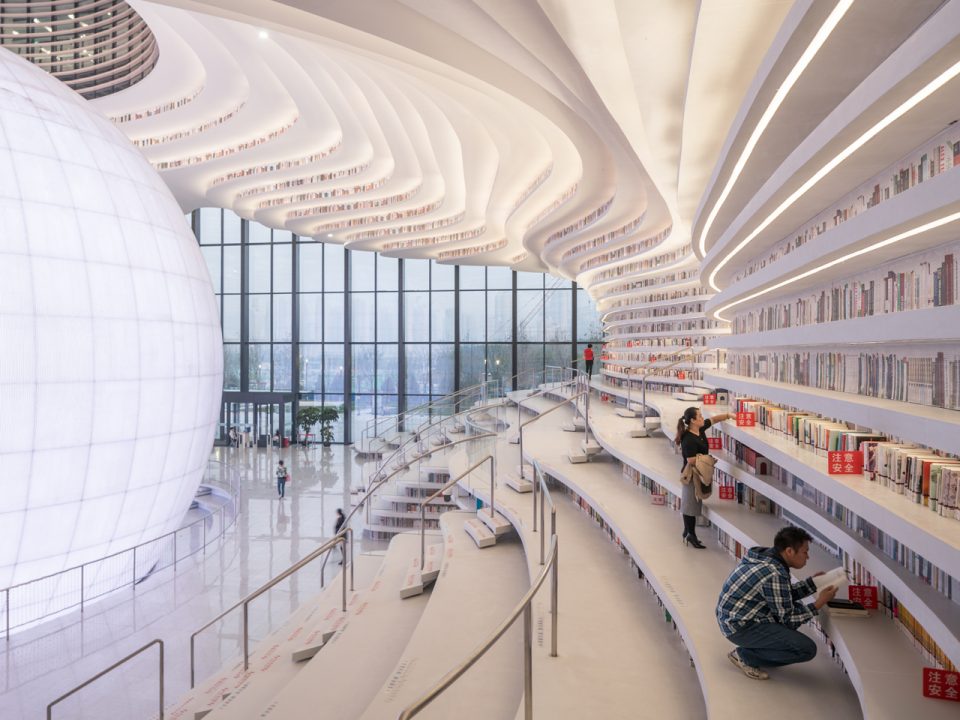

▼空间内部，interior view

该图书馆自十月一日向公众开放以来，中国媒体便争相报道。并被中央电视台形容为“书之海洋”，而外滩画报则形容其为“中国最美丽图书馆”。其他媒体则称之为“知识的海洋”，“超现实”，“城市之眼”等。事实证明，该建筑已经密切融入天津市民的生活之中，实现了其最初的设计愿景。天津滨海图书馆获得“中国绿色之星”两星评级。该项目除MVRDV外，合作方包括天津规划设计院，三江钢结构设计有限公司，天津市建筑设计院，华谊建源照明设计有限公司。该项目是MVRDV自2009年在天津经济技术开发区完成的第二个项目。

Since its opening on 1 October the building has been a great hit in Chinese media and social media; reviews describe it as an ‘Ocean of Books’ (CCTV) and the ‘Most beautiful library of China’ (The Bund). Comments on social media call the building a ‘sea of knowledge’, ‘Super Sci-Fi’ or simply ‘The Eye.’ Most importantly, it is clear that the people of Tianjin have embraced the new space – and that it has become the urban living room it was intended to be. Tianjin Binhai Library was built according to the Chinese Green Star energy efficiency label and has achieved two star status. MVRDV collaborated with Tianjin Urban Planning and Design Institute (TUPDI), structural engineers Sanjiang Steel Structure Design, TADI interior architects and Huayi Jianyuan lighting design. It is the second realised MVRDV project in Tianjin following TEDA Urban Fabric, completed in 2009.

▼市民与图书馆里的阅读生活，life within the library
