非常感谢 RSAA/庄子玉工作室 将以下内容授权gooood发行。更多关于：RSAA on gooood
Appreciation towards RSAA/Büro Ziyu Zhuang for providing the following description:

西安，中国十三朝之古都，其中唐长安为中国传统规划及建筑形制集大成者。项目虽然是一个室内设计，但作为当代西安市最高建筑（绿地中心）的顶层营业空间，项目对整个城市以及远处的骊山山脉呈俯瞰之姿；在视线可达的关系之中，这历朝历代的城市之变迁，空间之意向，文脉之传承，同时呈现出空间的当代精神以及新型的业态需求，既是我们面对项目的挑战也是设计的命题与契机。项目故名“云顶57”。

Xi’an, the capital of thirteen dynasties in ancient China, while Chang’an (today’s Xian), the capital of the Tang Dynasty, represents the quintessence of Chinese traditional city planning and architecture. Though an interior design, this project gives a breathtaking twist to the restaurant, bar and events space at the top floor of the highest building (Greenland Center) in Xi’an, by overlooking the whole city and Lishan Mountains far away. Presenting from the widest possible view the transformation of the city over the dynasties, the planning of space and the heritage of culture, as well as giving the space a contemporary feel for new types of business are both challenges, propositions and opportunities for our design. The project is thus named “The Top of Cloud”.

▼餐厅航拍实景，aerial view ©如你所见

我们将整层回转的功能性平面作为一种开放公共空间，通过一系列与传统空间意向相关的抽象功能化“装置”落位于环形的空间体验序列之中。

We use the revolving plane of the whole floor as an open public space. A series of abstract “installations” related to the traditional planning of space are incorporated into the circular spatial experience sequence.

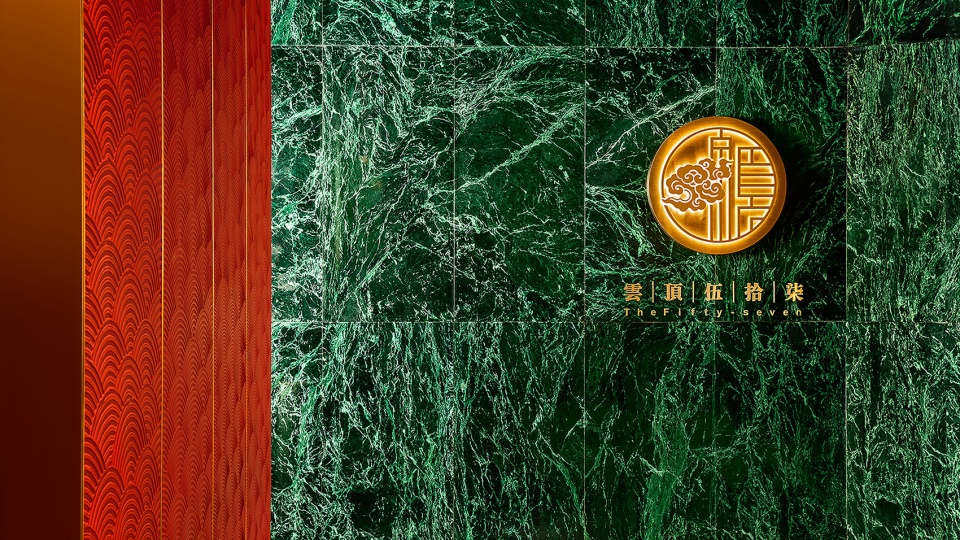

▼入口区域细部，entrance area detailed view ©如你所见

这其中涵盖了：1. 回应陕西文脉的入口处的皮影灯笼；2.回应云顶之名的开放就餐区的云层光斑吊顶；3. 作为长安城墙意向的超长吧台；4. 回应中国传统城市街道网格的幕帘吊顶；5. 作为汉唐高台宫殿基座意向的酒吧高位卡座区域；6.作为传统屏风意向的开放就餐区分隔；7. 回应宫灯意向的超大包间圆桌；这些空间体量跟随到访者的使用流线随回型的平面依次展开，试图通过实体空间原型转译而非平面符号化的方式去呈现一幅具有当代西安气象与风貌的连续空间长卷。

This includes: 1. shadow puppets lanterns at the entrance in response to Shaanxi culture; 2. Bright ceiling at the open dining area in response to the name The Top of the Cloud; 3. Super-long bar corresponding to city wall of Chang’an City; 4. Curtain ceiling in response to traditional urban street grid in China; 5. high-seat setting at the bar intended as the pedestal of palaces in the Han and Tang dynasties; 6. Partitions of open dining area intended as the traditional screens; 7. King-sized round table in response to the palace lanterns. These spatial objects greet and guide visitors on their way to wine and dine at the restaurant, in an attempt to present a continuous spatial scroll with contemporary Xi’an atmosphere and style through the translation of the physical space rather than flat symbols.

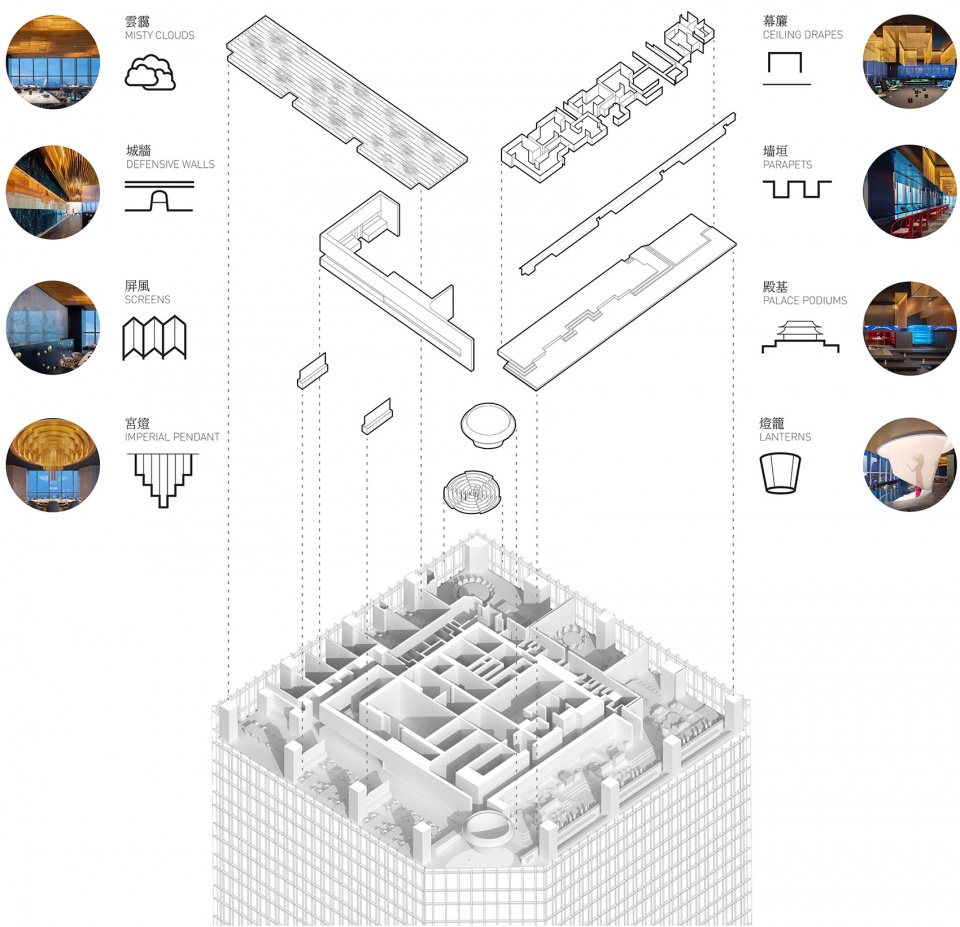

▼元素分析图，conceptual diagram ©RSAA/庄子玉工作室

千年前，太白诗曰“举杯邀明月，对影成三人”；而今独上高楼的当代人穿过这入口红绿相间的汉唐隧道；寻过这透映举杯之影的漂浮灯筒，俯瞰这座十三朝古都，抑或是自己“起舞弄影”，变成这幕上的皮影之戏。“张灯作戏调翻新，顾囊徘徊知逼真”，装置的入口通过传统色彩和意向的叠合，以及圆形倒锥体形态的介入，提供了一种探索式的空间带入感；同时也对开放就餐区，酒吧区，入口观景区进行了访客分流。而这个角部，也成为这个城市最好的“观景台”。

Li Bai, the greatest Chinese poet a millennium ago, wrote a poem: “I raise my cup to invite the moon who blends her light with my shadow and we’re three friends.” Nowadays, contemporary people pass through the red and green Han and Tang tunnel at the entrance; trying to seek the floating lights that mirror the shadow of the cup, overlooking the ancient capital of the thirteen dynasties, or “dance with my own shadow” as if in the shadow puppets. “The maid as if real dancing under the moonlight in her concubine garment.” The installation at the entrance, in the shape of inverted cone, provides an inviting space through the superimposition of traditional color and setting. Visitors are separately ushered to open dining area, bar, and the viewing area. This corner becomes the best “viewing platform” in the city.

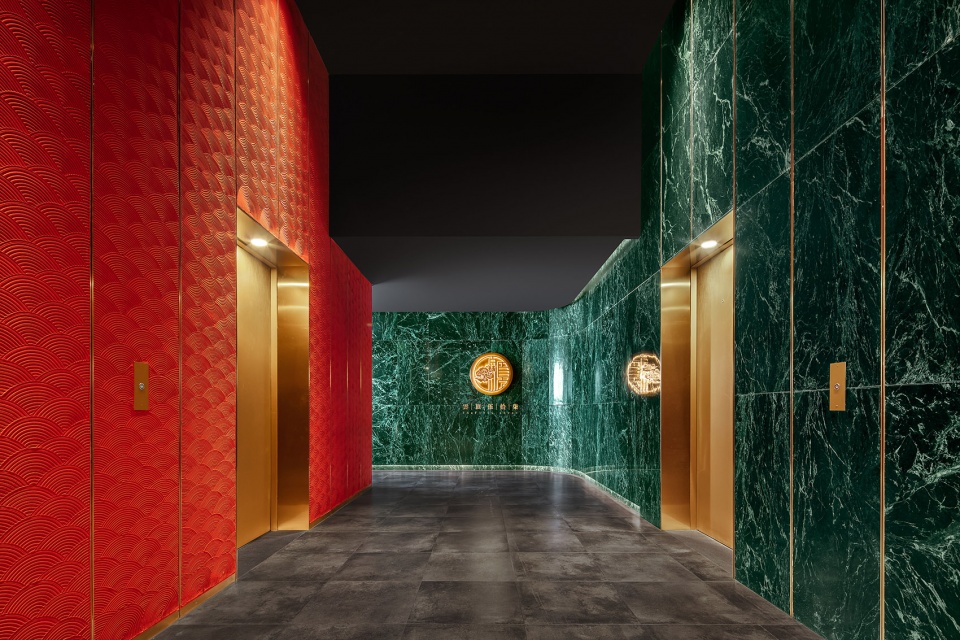

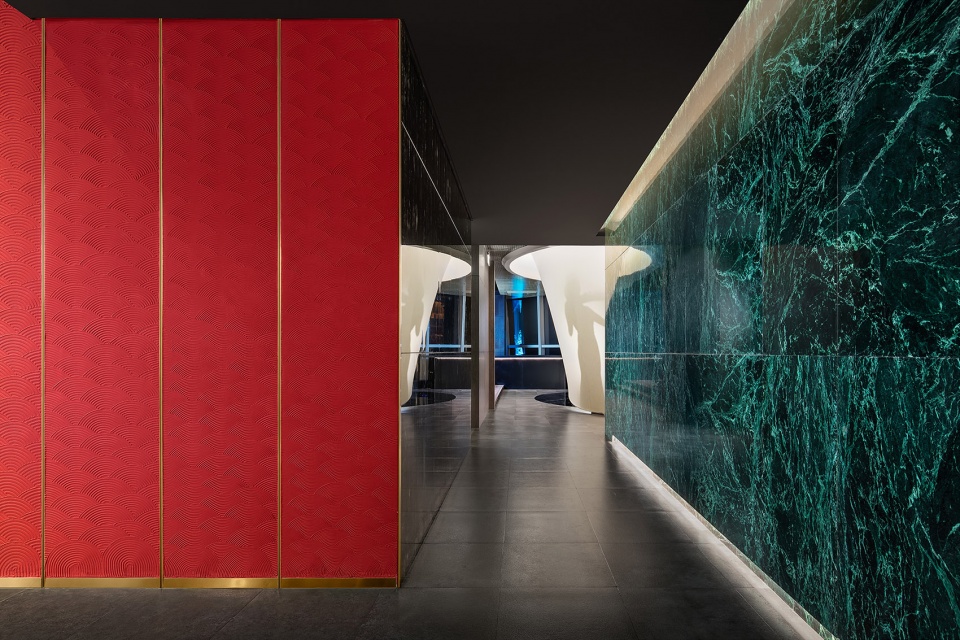

▼入口走廊，entry way ©如你所见

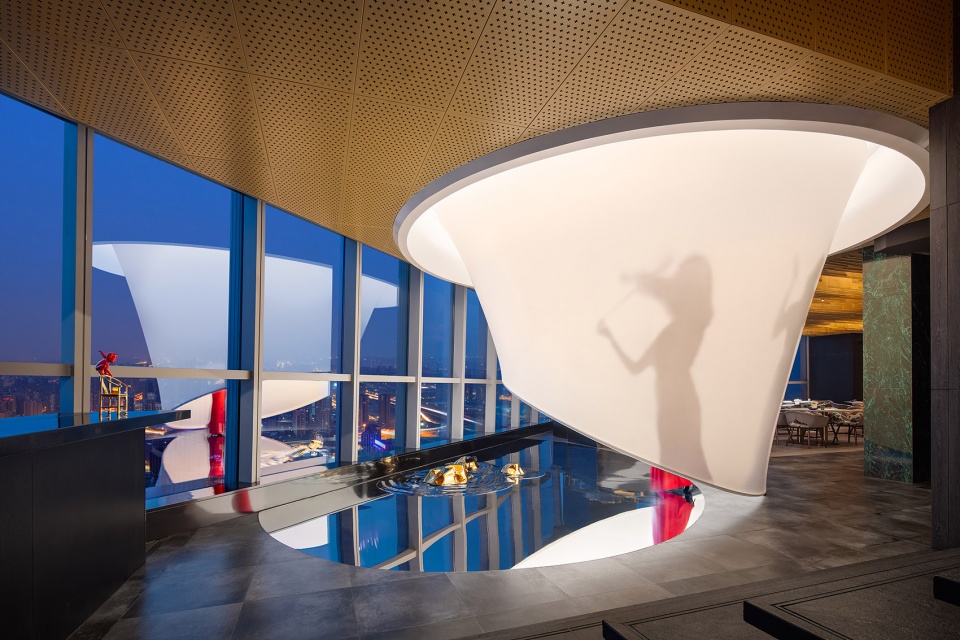

▼从入口处望向回应陕西文脉的皮影灯笼装置， shadow puppets lanterns at the entrance in response to Shaanxi culture ©如你所见

▼装置近景， lantern installation ©如你所见

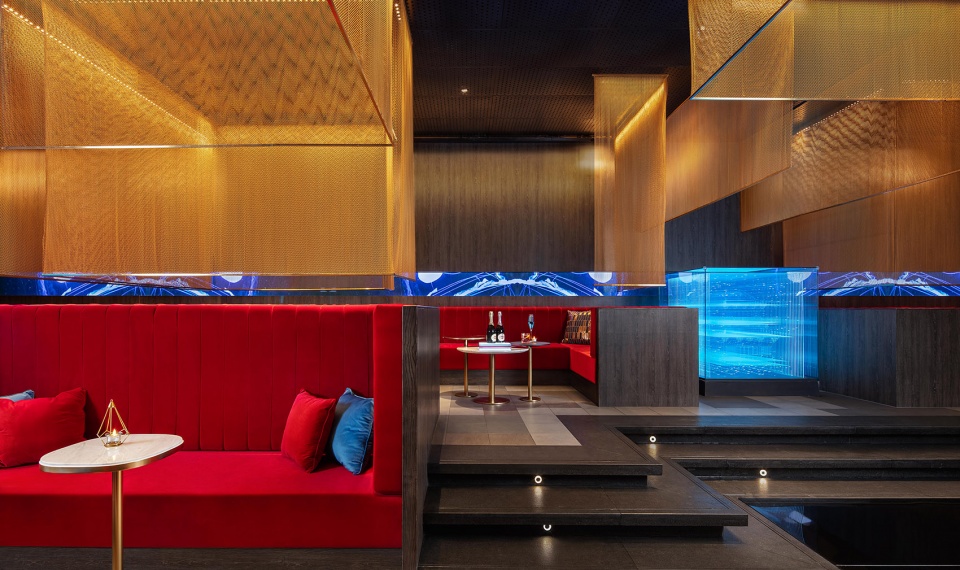

唐人喜登楼抒怀，甚至汉唐殿宇也尽筑高台托之，以呈山峦之姿，这是纵向；如酒吧卡座区域层叠抬升，从而越过这四十米长的亚洲第一吧台，将横向展开的全城景色尽收眼底，这是横向。这四十余米横向展开的界面和整座城市的夜空以及俯瞰状态融为一体，让访者即使在这方寸室内，也能想象彼时站在大明宫含元殿上，视线越过绵延的城墙，骊山渭水，气象万千。

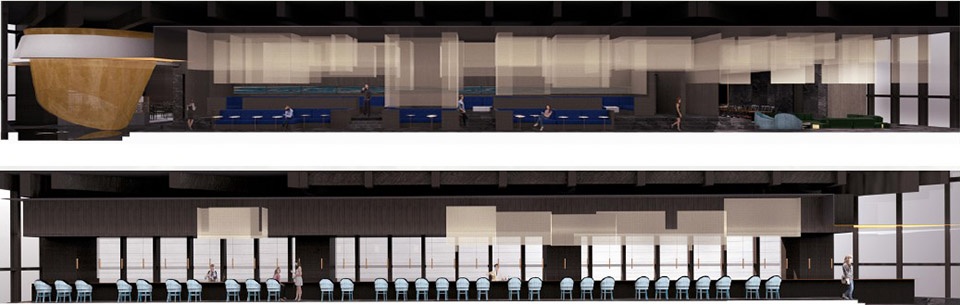

▼吧台区立面图，bar elevation ©RSAA/庄子玉工作室

In the Tang Dynasty, people liked to go to high places to express their emotions. The palaces in Han and Tang dynasties had high pedestals, presenting the shape of vertical mountains. The booths in the bar are stacked and elevated, passing through the 40-meter-long No. 1 bar in Asia to allow visitors to have a bird’s eye view of the city. This horizontal interface spreading over more than 40 meters envelops the night sky with the entire Xi’an, so that visitors can imagine looking at the vast city walls and the magnificent Lishan Mountain and Weihe River, as if standing at Hanyuan Hall in the Daming Palace, even standing in this small area.

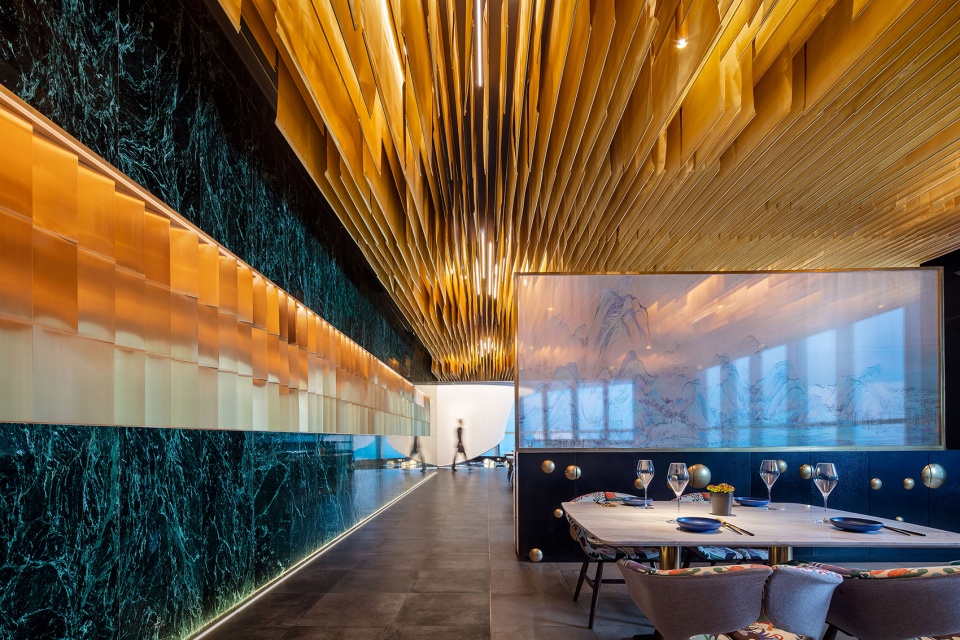

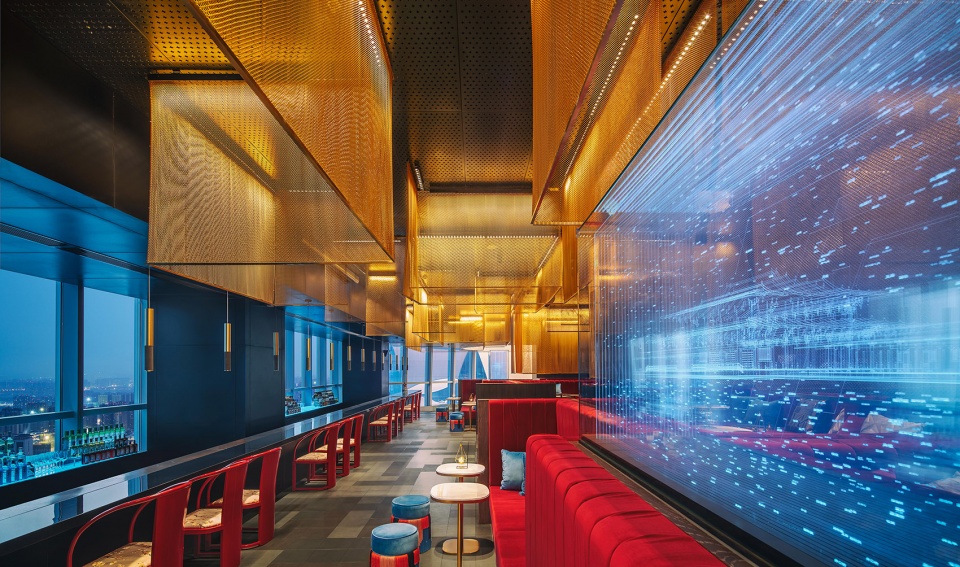

▼超长吧台呼应了长安城墙的意向，Super-long bar corresponding to city wall of Chang’an City ©如你所见

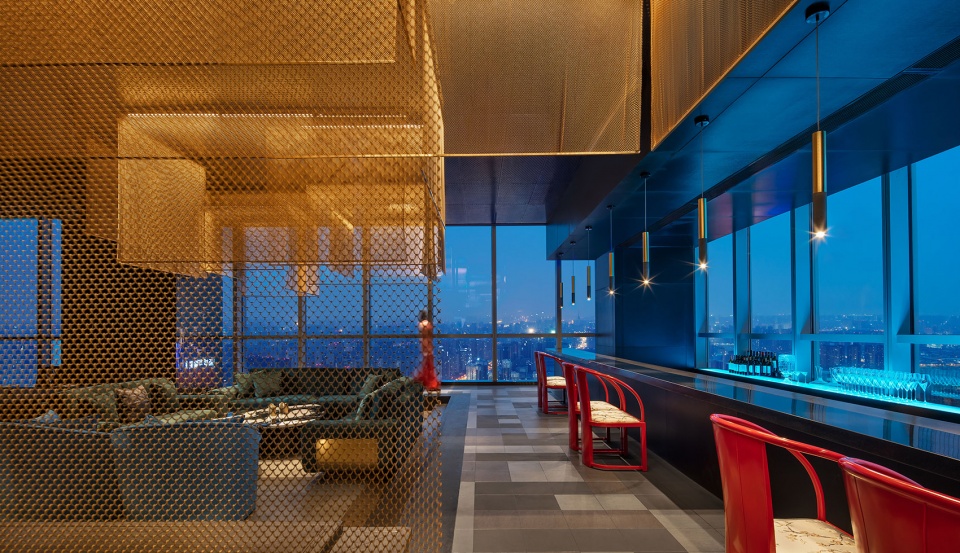

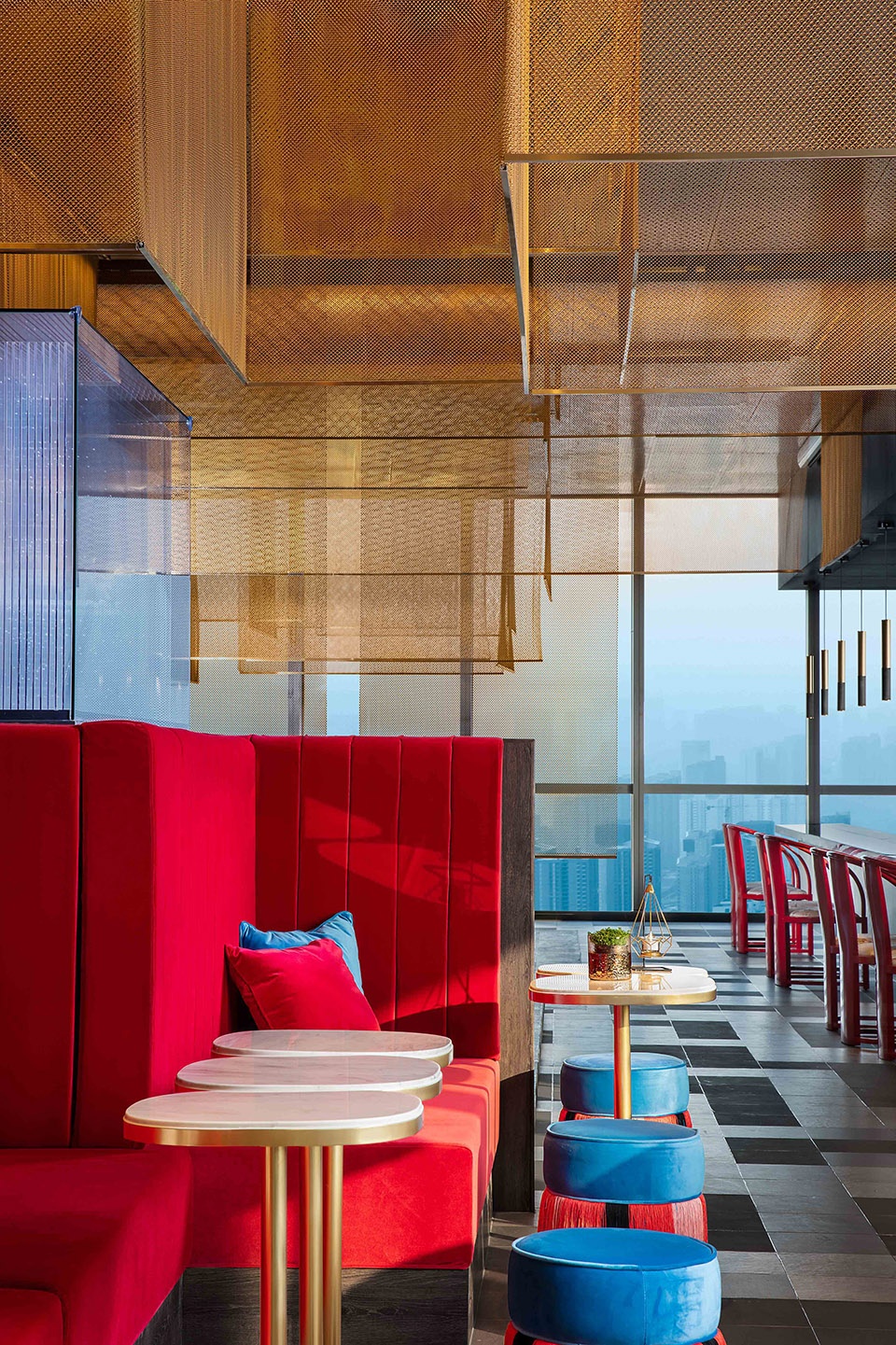

▼吧台座位区，seating area along the bar ©如你所见

大明宫若干殿宇，以切片灯箱装置的形式，漂浮于卡座区域之上 – 透过层叠的透射与光影，将壮丽凝固，将岁月凝固，将时光穿梭。而这顶上纵横交错的金属幕帘所建构的城市网格，层层叠叠；如这古城映射的周礼考工记，如“九经九纬，经涂九轨”般绵延千年，自卡座区延至端头整合酒吧及包间功能的复合型开放活动区。挑高的空间，延伸的吧台，独立的长桌，完整的沙发休息区，与入口的角部对应，这里成为这个城市最重要的“Party Room”。

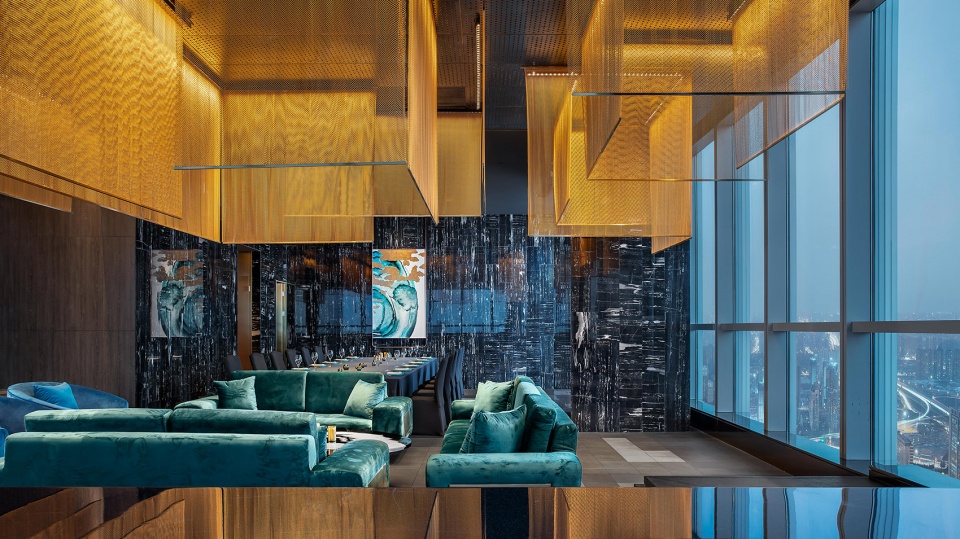

Daming Palace’s halls float above the booth area in the form of sliced light boxes. The staggered transmission, light and shadow solidify what is magnificent and the time. The urban grid constructed by crisscrossing metal curtains above is superimposed; like this ancient city reflects the Records of Artisans in Rites of Zhou “nine vertical and horizontal roads allowing nine carriages to pass abreast” over a thousand years, the area from the booths to the end is an open space for events that integrates bar and booth functions. The space with a high ceiling, the extended bar, independent long table, and complete sofa area correspond to the corners of the entrance, making it the most important “Party Room” in the city.

▼切片灯箱装置漂浮于卡座区域之上，呼应大明宫殿宇的形态，Daming Palace’s halls float above the booth area in the form of sliced light boxes ©如你所见

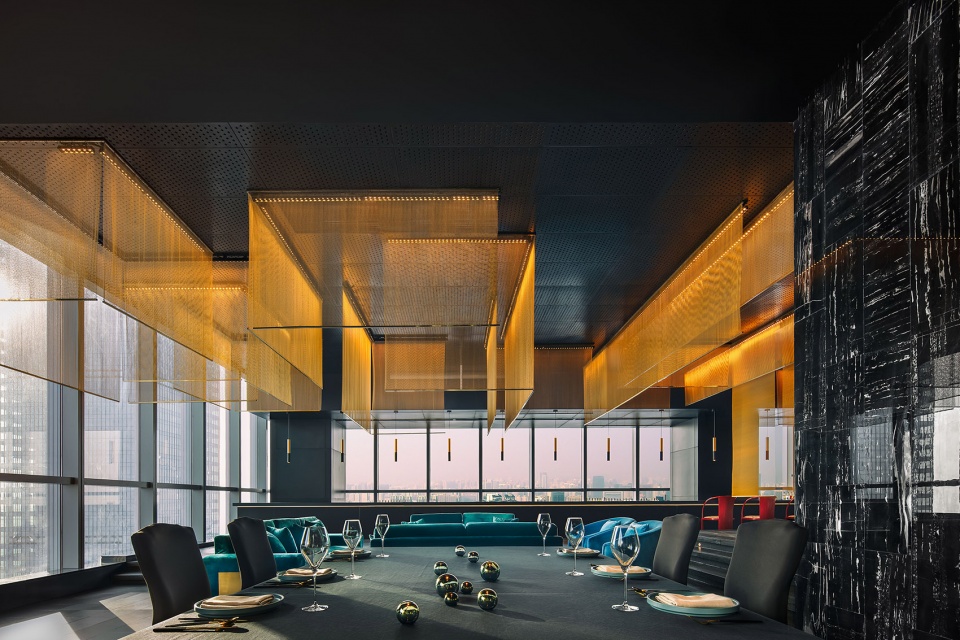

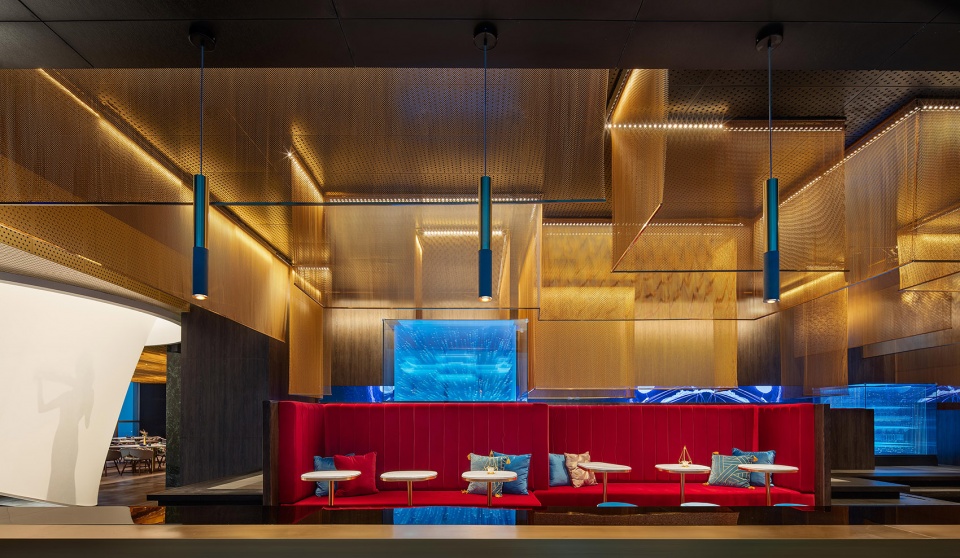

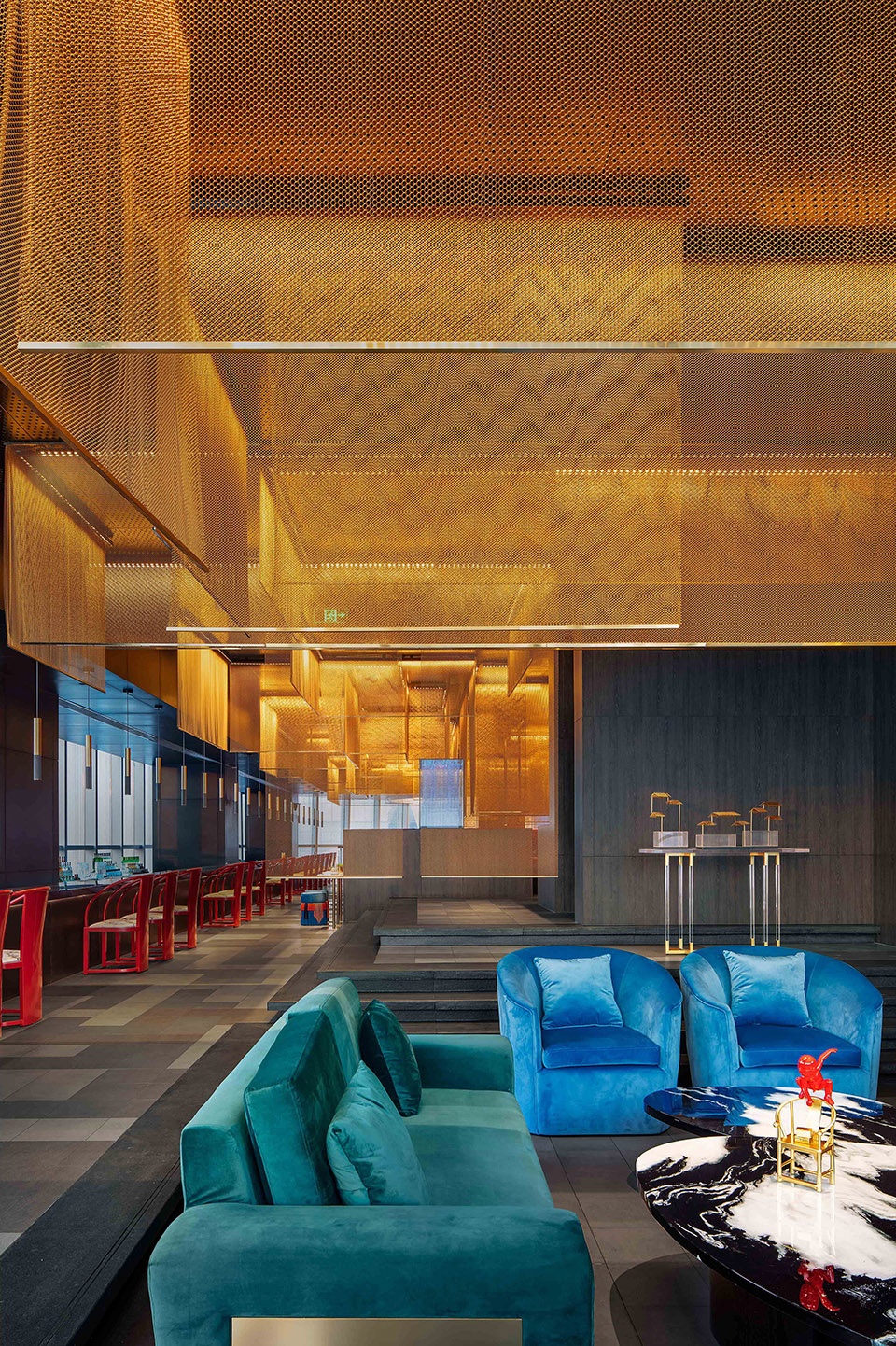

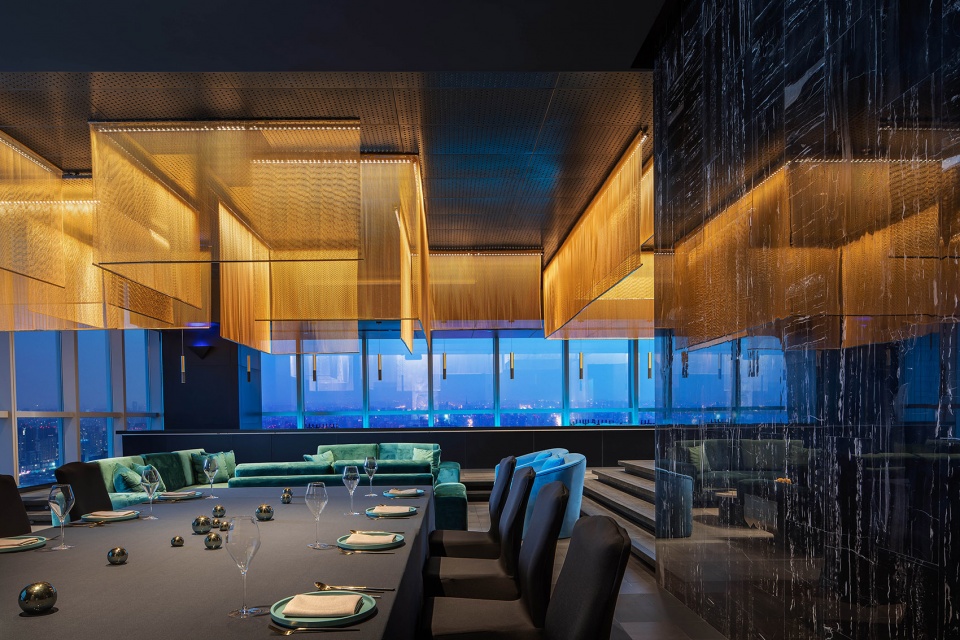

▼纵横交错的金属幕帘回应中国传统城市街道网格，the urban grid constructed by crisscrossing metal curtains above is superimposed ©如你所见

“浮云游子意，落日故人情”，黄昏时分，天光从云层间析出，如开放就餐区顶层流动的光斑，撒向横向展开的一个个“岛”。当年唐人登楼远眺，茱萸插遍；而今人则坐看云霄，把盏观城。在这样的画面里，我们已不论古今，只见这横向展开的幕墙看去的“云顶”，和它呈现的飘渺流动捉摸不定的东方意象与哲思。

“A floating cloud is what you want to be like, the setting sun how your old friend feels”. At dusk, the skylight shines from the clouds, as if the flowing light on top of the open dining area scattering over the “islands” horizontally. In the Tang Dynasty, people stepped to high places for a sweeping view, and worn cornel on their bodies. Nowadays, people sit down, looking heavenwards and over the city, with drinks in hand. In such a scenario, we no longer talk about the past or present, we only see “top of the cloud” unfolded by the curtain wall horizontally and the ethereal Oriental image and philosophy.

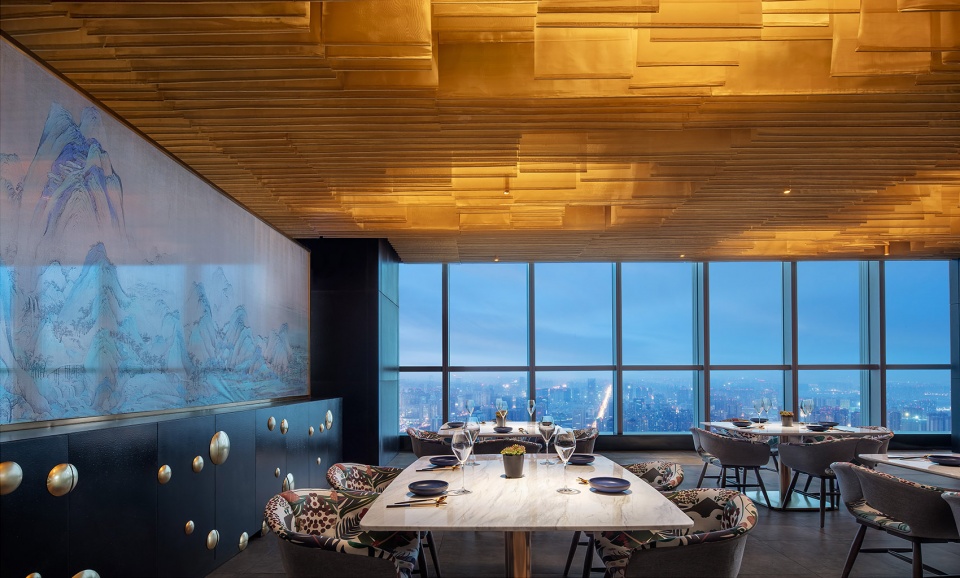

▼开放就餐区，open dining area ©如你所见

▼天光从“云层”间析出， the skylight shines from the “clouds” ©如你所见

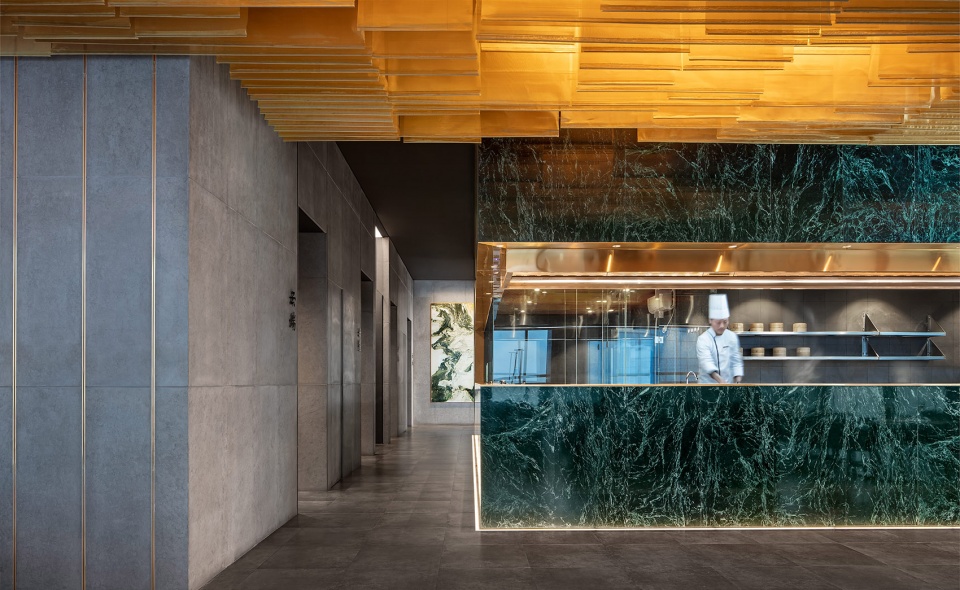

▼厨房区域，kitchen area ©如你所见

素色的长廊，外延转折，为求曲径通幽柳暗花明之意；与穿插其间的当代艺术品形成一系列的对景与借景联系；同时串联起九个大小不一的独立包间。最大一间20人包，内置兼具会议功能的沙发区以及套内烹饪的餐台；主位的轴线关系，从城市的顶空向外延伸，一圈圈幕帘构建的大吊灯如宫灯，如坛城，如窗外云顶，聚散有时，“宴”随之起。与另外两个角部对应，这个角部也成为了这个城市最重要的“Private Room”。

The plain corridor zigzags to create a quiet place with trees and flowers; together with contemporary art interspersed in between forms a series of opposite scenery and borrowed views; at the same time, nine independent booths of different sizes are connected. The largest booth has a 20-person capacity, containing a sofa area for conference function and a dining table set; the axial pattern extends outwards from the city’s skyline, and the large chandeliers formed from circles of curtains look like palace lanterns, mandala, or cloud top outside the window. This is a time for gathering and farewell, a time for a “Feast”. Parallel to the other two corners, this corner also becomes the most important “Private Room” in the city.

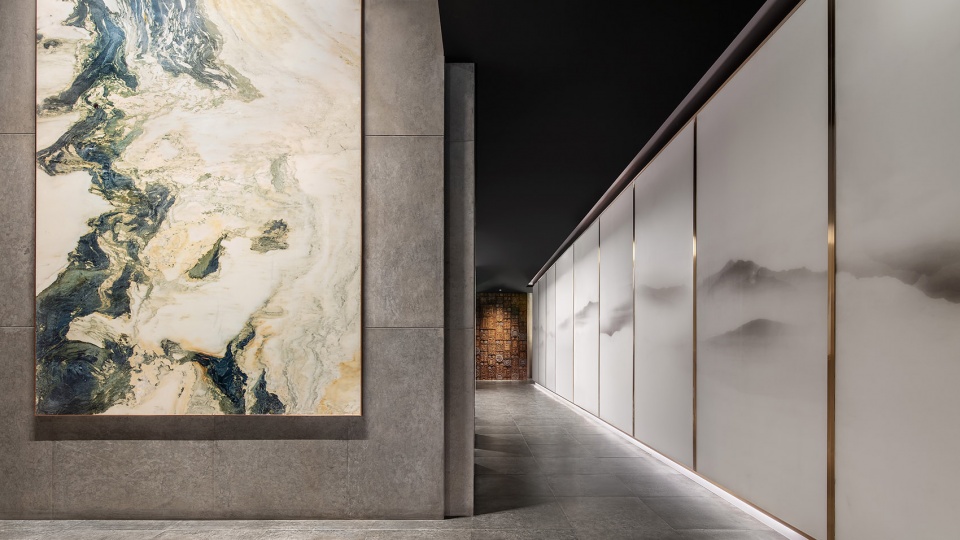

▼素色的长廊，the plain corridor ©如你所见

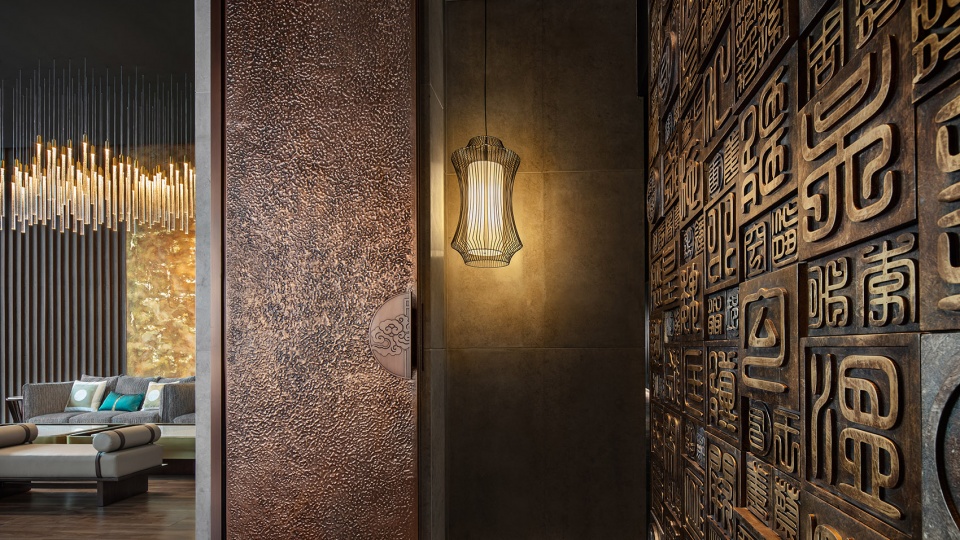

▼走廊墙面装饰细部，decoration detail of the corridor wall ©如你所见

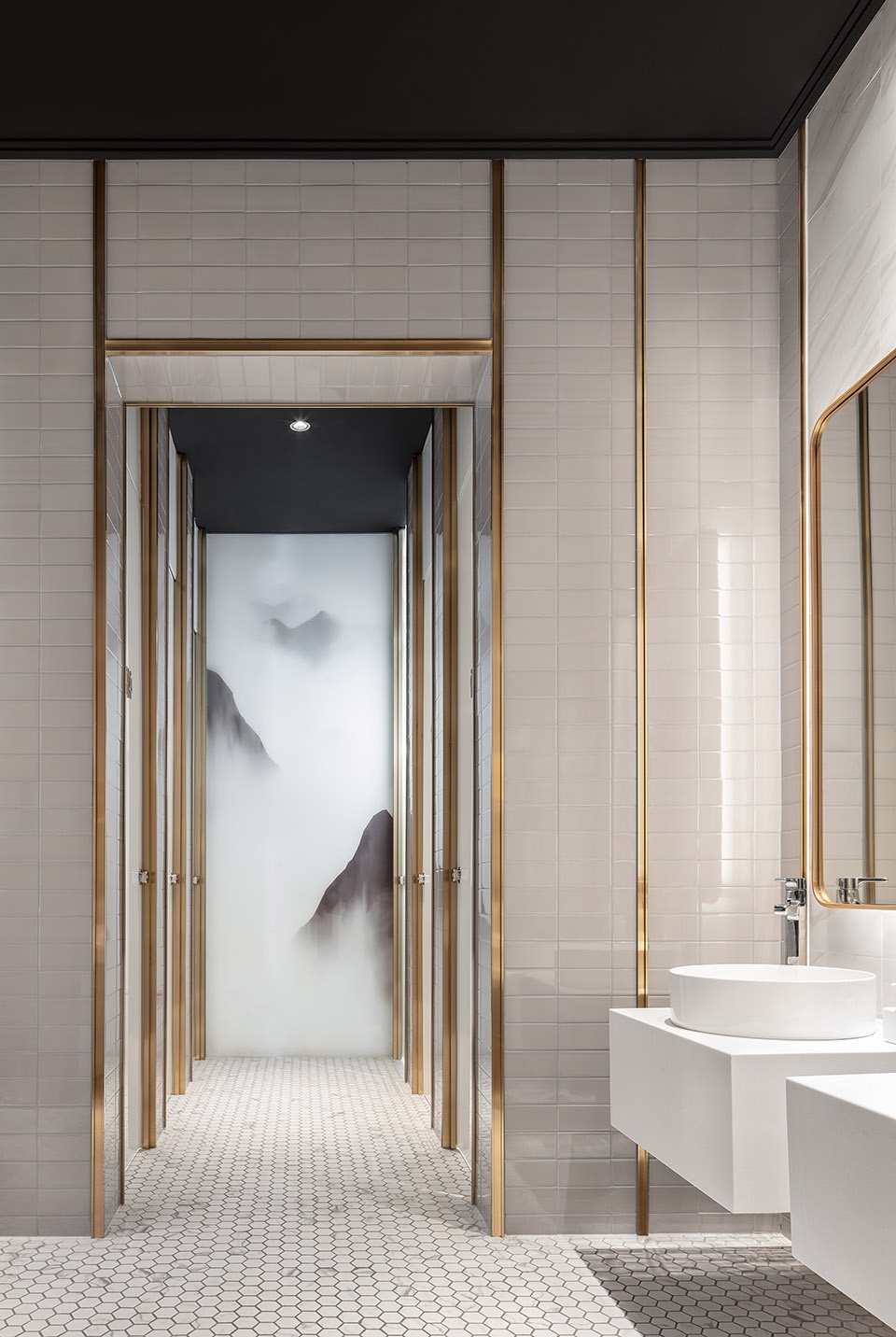

▼洗手间，rest room ©如你所见

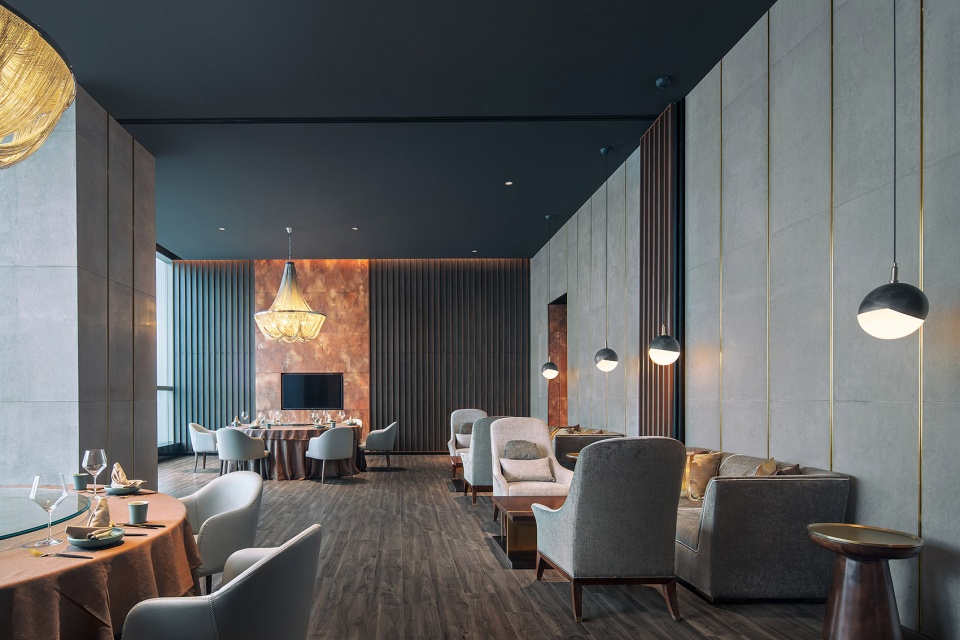

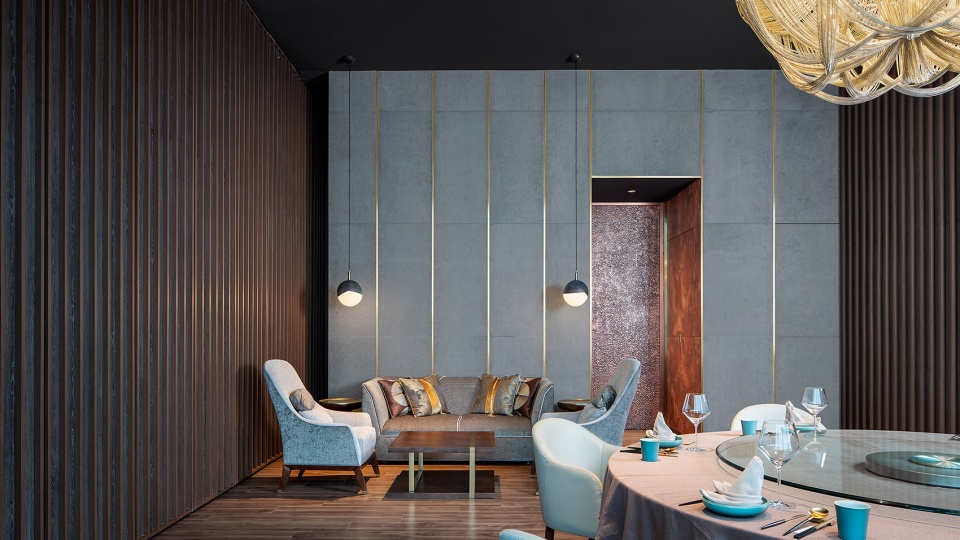

▼独立包间，dining booth ©如你所见

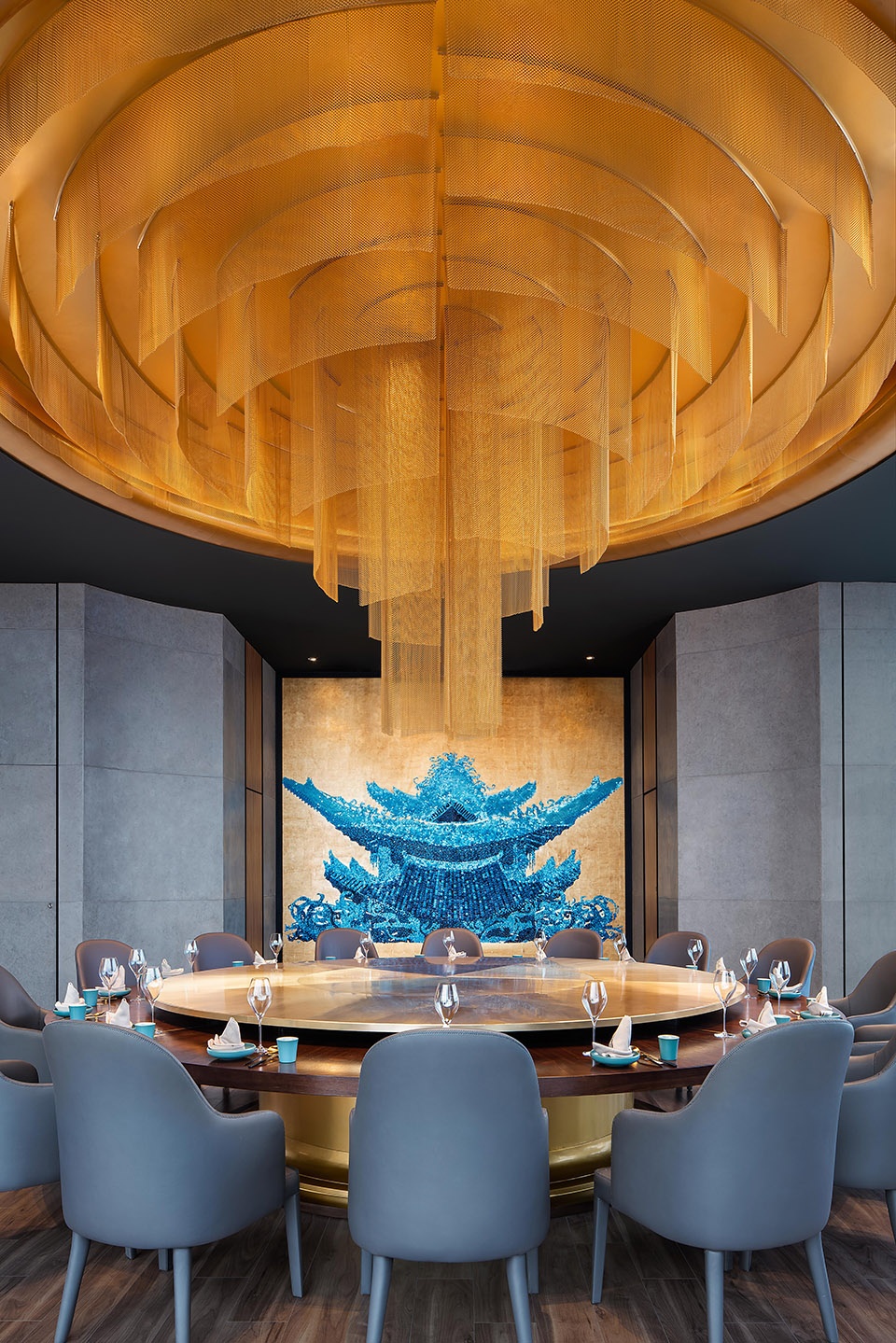

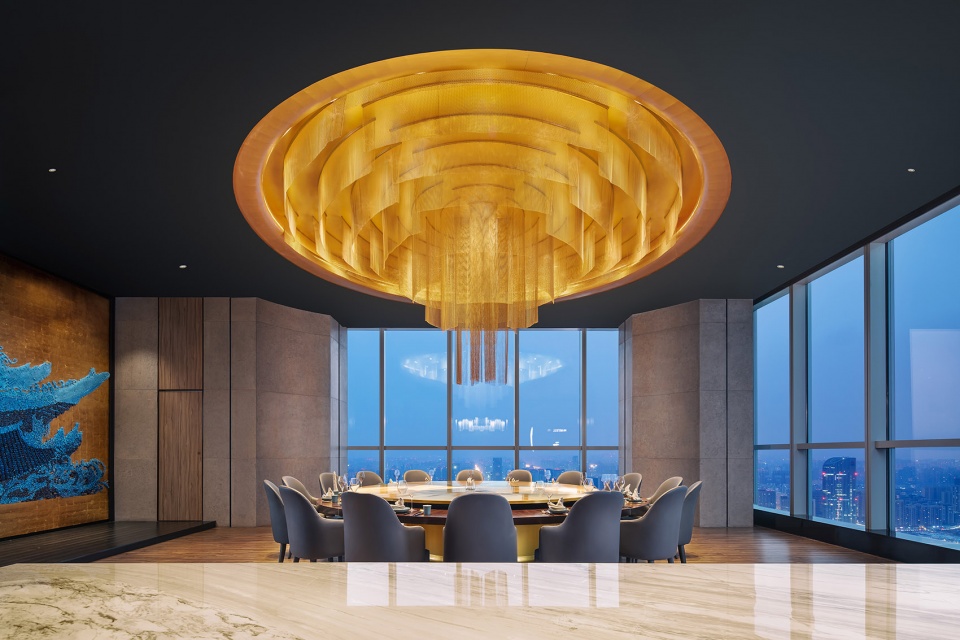

▼回应宫灯意向的超大包间圆桌，King-sized round table in response to the palace lanterns ©如你所见

▼吊灯细节，chandelier ©如你所见

当代西安正处于千年来最重要的历史交汇点，从第一古都到第一网红城市，历史和当代在这⾥激烈的碰撞，飞快的融合。在汉唐，东方和西方曾在这里成功的对话，而这种对话在一种当代的语境下还会继续延续下去。作为这个城市的制高点，“云顶”的空间自然不应该是传统符号的拼接和堆砌，而应该是这个城市空间体验的融合体，承传统与当代并行之姿，承少年西安的胸怀、气魄和活力。

Contemporary Xi’an is at the most important historical juncture in a millennium. From being the first ancient capital to the most popular city among netizens, history and contemporary collide and integrate at a fast clip. In the Han and Tang dynasties, the East and the West made successful dialogue here, and this dialogue will continue in the contemporary context. As the commanding height of this city, the project represents traditional symbols, a fusion of experience “at the top of the cloud” rather than a stacking space for traditional symbols. It nurtures the coexistence of the tradition and the contemporary, and carries the broad-mindedness, gusto and vitality of young Xi’an.

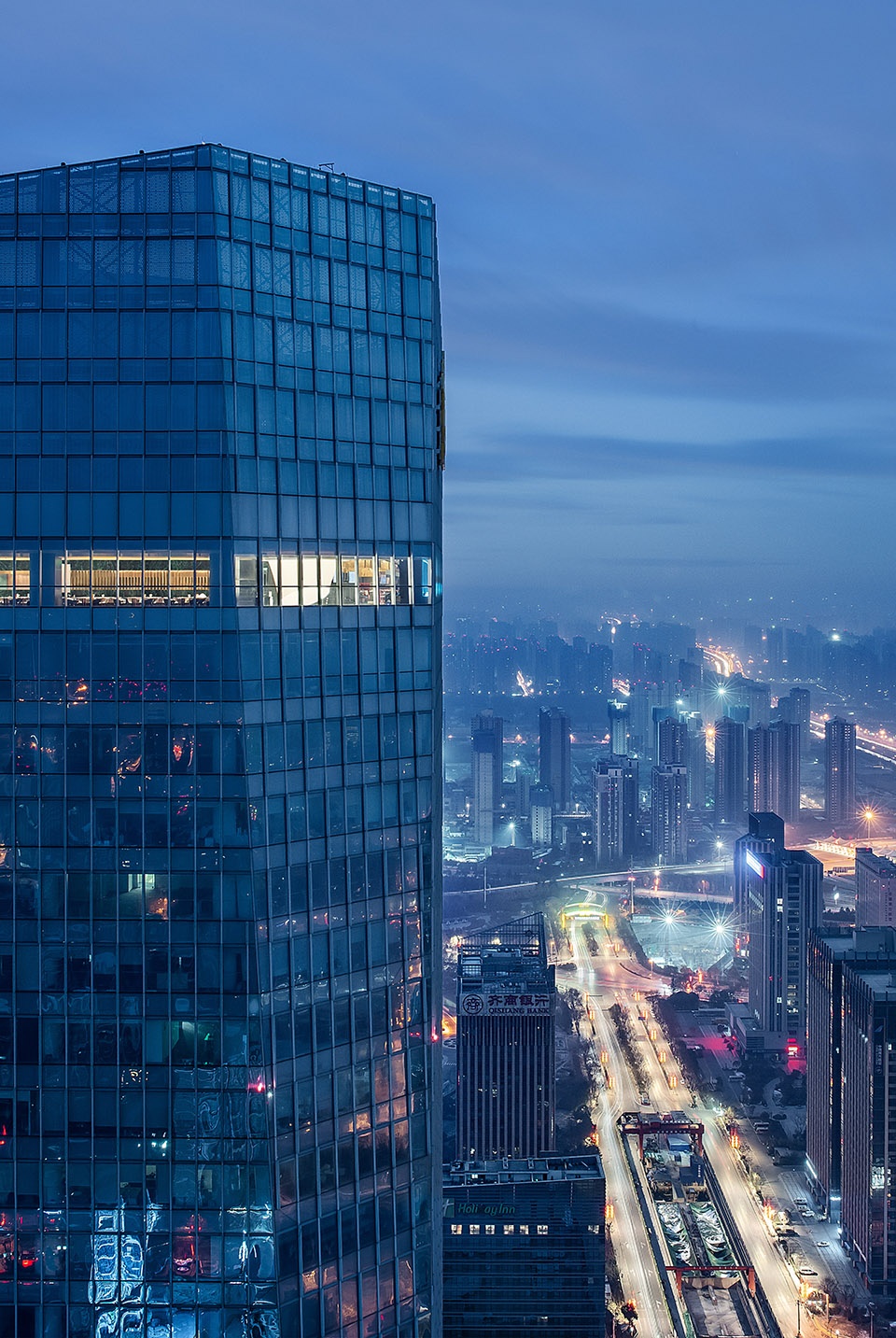

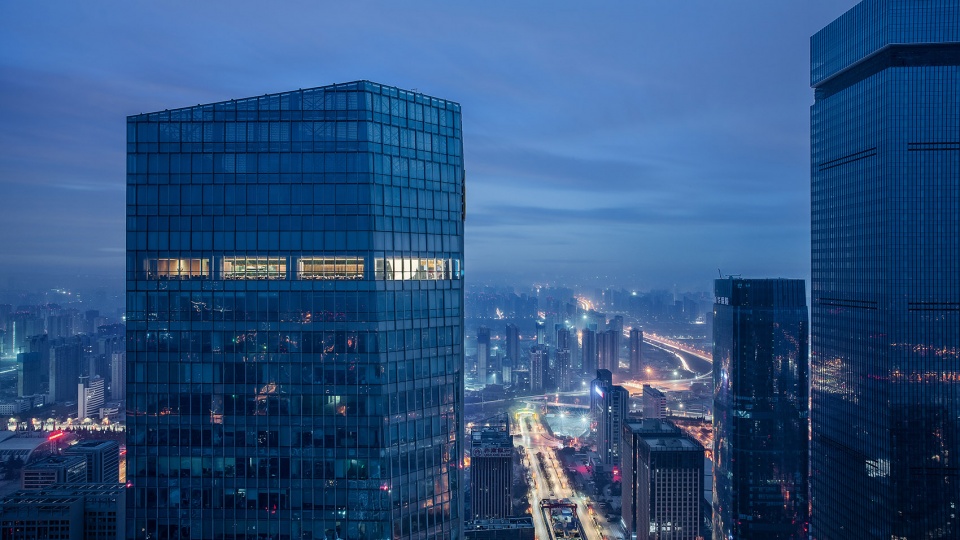

▼城市的制高点，the commanding height of this city ©如你所见

▼项目插画，illustration ©韩锐

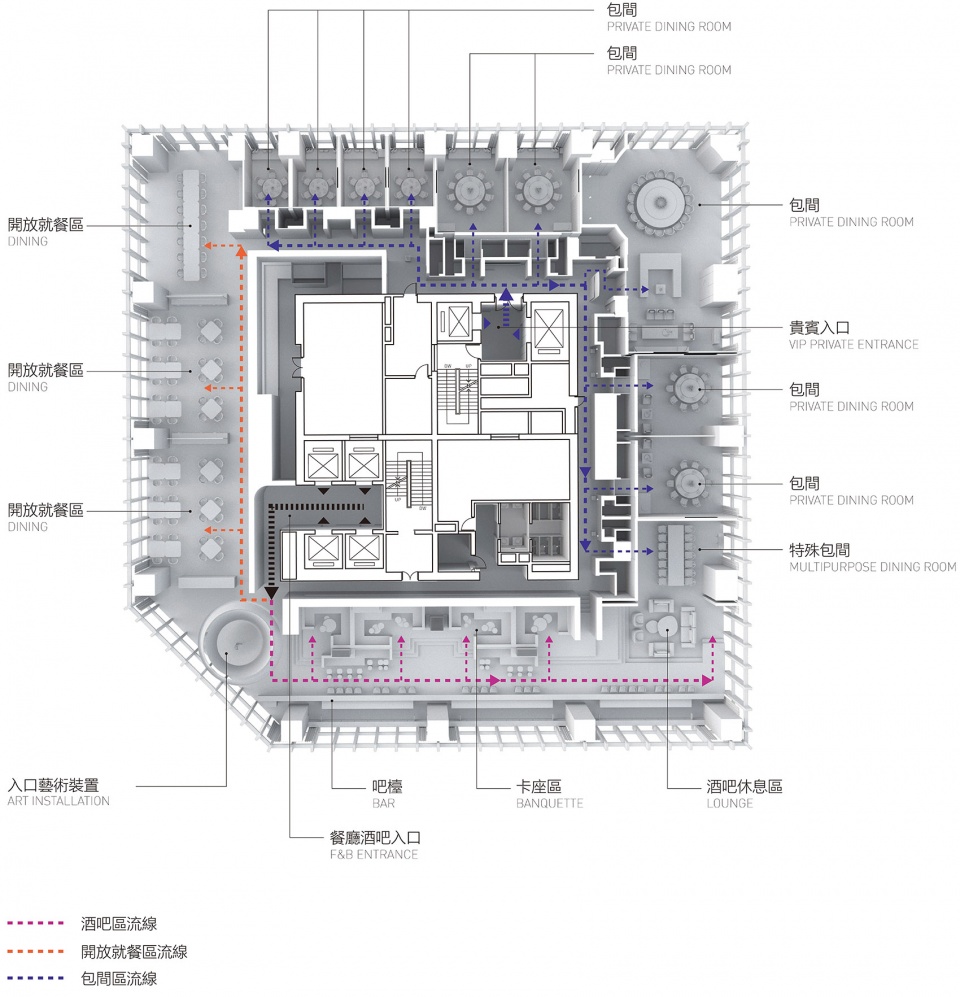

▼平面图，plan ©RSAA/庄子玉工作室

▼交通流线示意，circulation diagram ©RSAA/庄子玉工作室

项目地点：陕西省西安市
项目类型：室内设计
设计面积：1536平方米
设计时间：2018年
业主单位：陕西云顶伍拾柒餐饮管理有限公司
室内设计主创团队：德国RSAA建筑事务所/庄子玉工作室
设计主创：庄子玉，李娜
设计团队：赵欣，郭镇荣，Milos Bojinovic，夏渤洋，朱坤宇
室内施工图配合团队：北京大木佰禾建筑设计咨询有限公司
团队成员：林海，张梦微，王利静，关卫华
软装顾问：徐嘉瞳
照明顾问：上海格锐照明设计有限公司
艺术品顾问：徐嘉瞳
施工及配合团队：陕西多维建筑装饰工程有限责任公司
摄影：如你所见-王厅

Location: Xi’an City, Shaanxi Province
Project type: Interior design
Area: 1,536 square meters
Design date: 2018
Owner: Shaanxi Cloud 57 Food & Beverage Management Corporation
Interior design team: RSAA/ Büro Ziyu Zhuang
Principal Designers: Ziyu Zhuang, Na Li
Design Team: Xin Zhao, Zhenrong Guo, Milos Bojinovic, Boyang Xia, Kunyu Zhu
Partner of interior construction drawings: DAMU Design Corp.
Team members: Hai Lin, Mengwei Zhang, Lijing Wang, Weihua Guan
Home furnishing consultant: Jiatong Xu
Lighting consultant: Shanghai Gradient Lighting Design Co., Ltd.
Art consultant: Jiatong Xu
Construction and coordination team: Shaanxi Duowei Decoration Co., Ltd.
Photography: Ting Wang
