这间艺术工作室是在一栋现代建筑的基础上增建的部分，面积为1400平方英尺，它为既有的沙漠庭院提供了背景和围墙，同时为场地提供了一个以火坑为中心的户外休闲空间。

The Little Art Studio is a 1400SF addition to an existing contemporary stucco and glass residence. The addition of this project to the site provided a backdrop and bookend to an existing desert courtyard and a gathering area surrounding a fire pit.

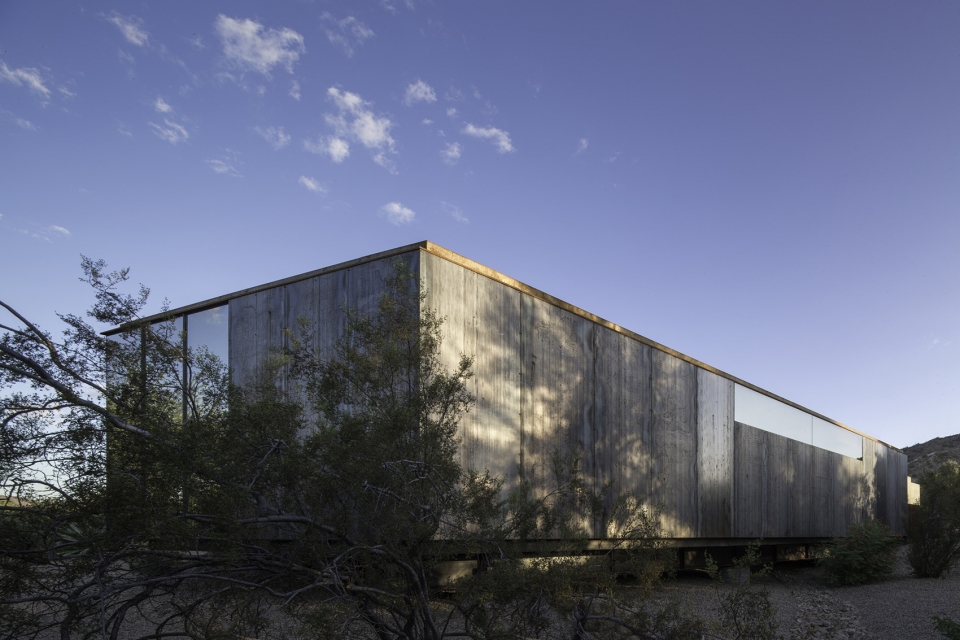

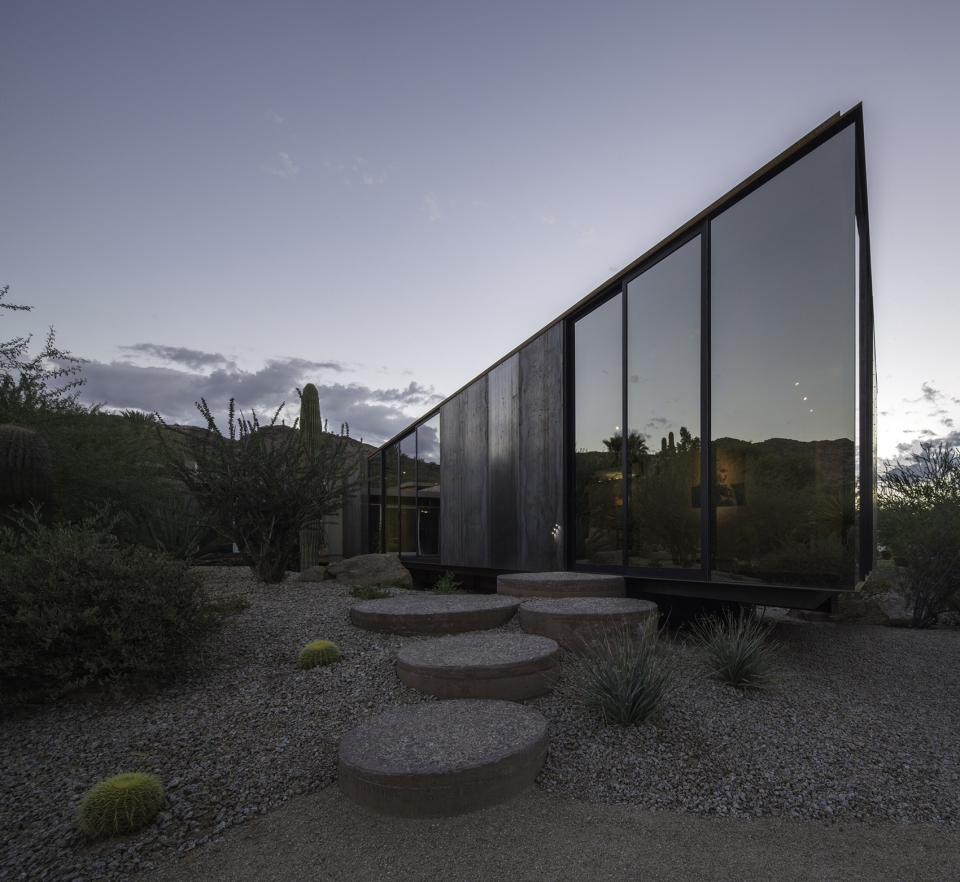

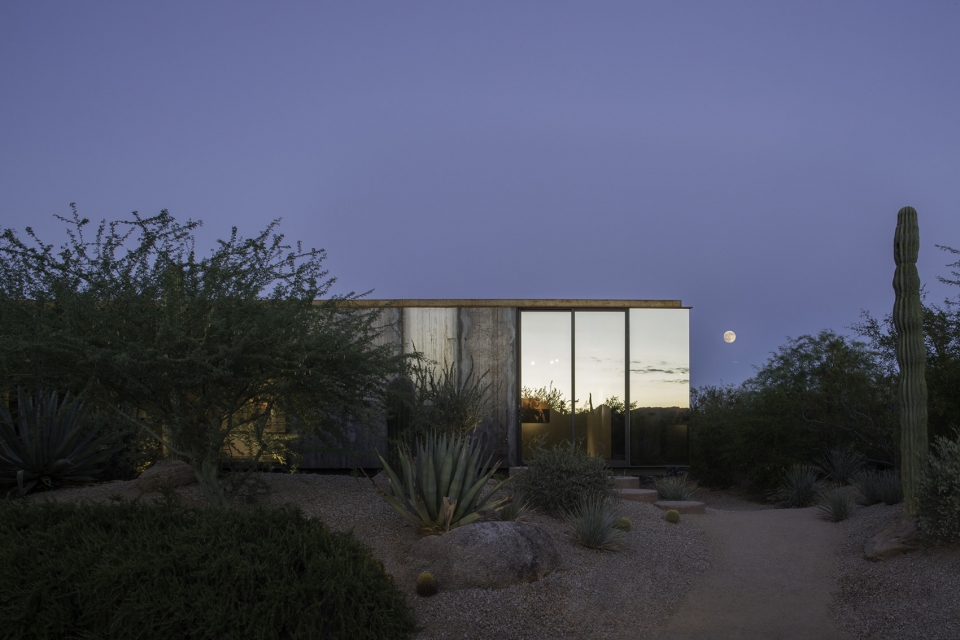

▼建筑外观，exterior view

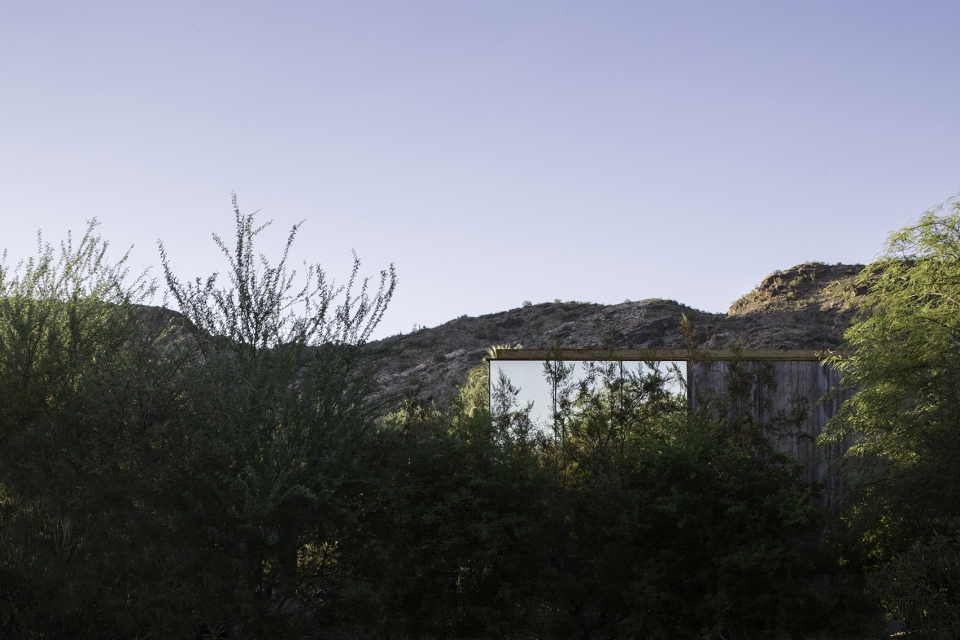

▼建筑为既有的沙漠庭院提供了背景和围墙，the addition of this project to the site provided a backdrop and bookend to an existing desert courtyard

为了使工作室区别于既有的住宅建筑，设计师为其赋予了专属的身份特征。新的体量以尽可能轻的方式与地面形成连接，为的是减少对沙漠景观的干扰。钢梁结构和复合混凝土地板被支撑在6个直径为36英寸的混凝土基座上，使工作室如同漂浮在场地之中。此外，新增的体量还使用了与既有建筑完全不同的材料，从而在外观上形成明显的对比。

In order to distinguish the studio from the existing residence, the design allowed the studio to establish its own identity. The manner in which the addition meets the ground plane was executed in a way that minimizes the disturbance to the existing desert landscape. The steel beam floor structure and composite concrete deck, is supported by six 36” diameter concrete caissons allowing the studio to “float” over an existing wash by touching the ground in only these six locations. By spanning over the wash, the design further distinguishes this new addition in contrast to the conventional slab on grade construction of the existing main residence.

▼新的体量被支撑在6个直径为36英寸的混凝土基座上，the new volume is supported by six 36” diameter concrete caissons

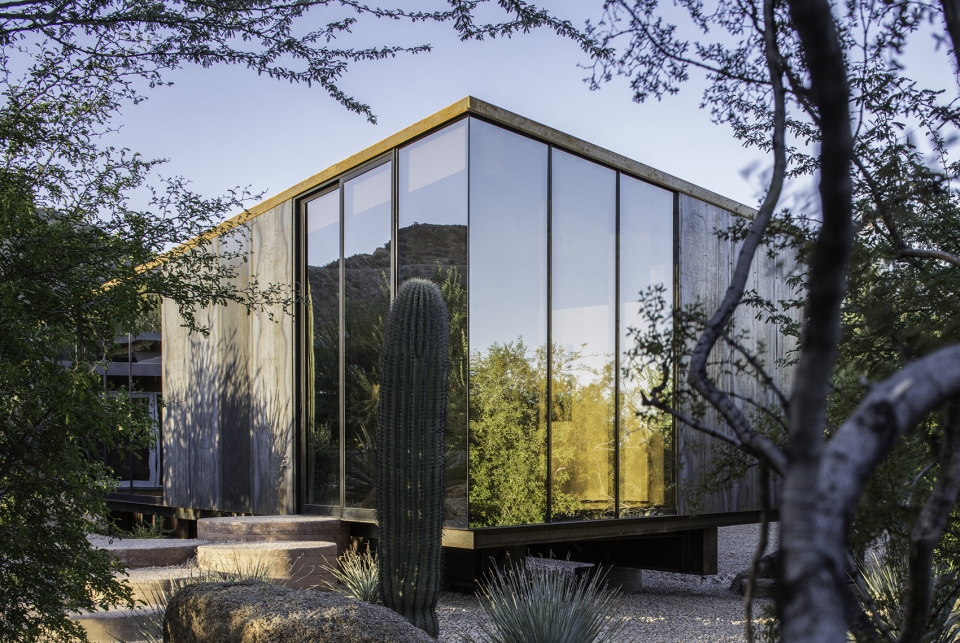

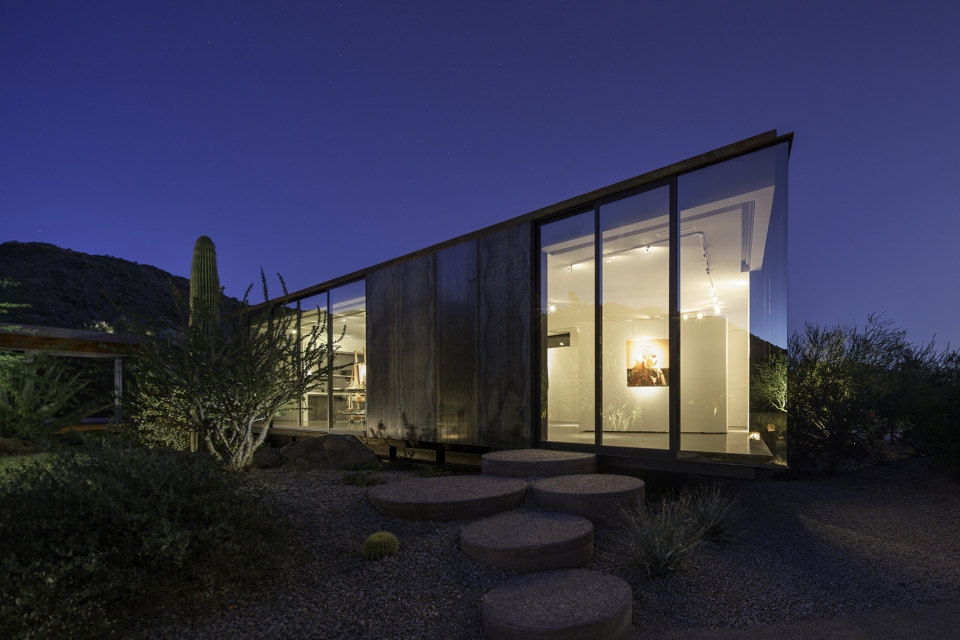

▼“漂浮”的体量，a “floating” studio

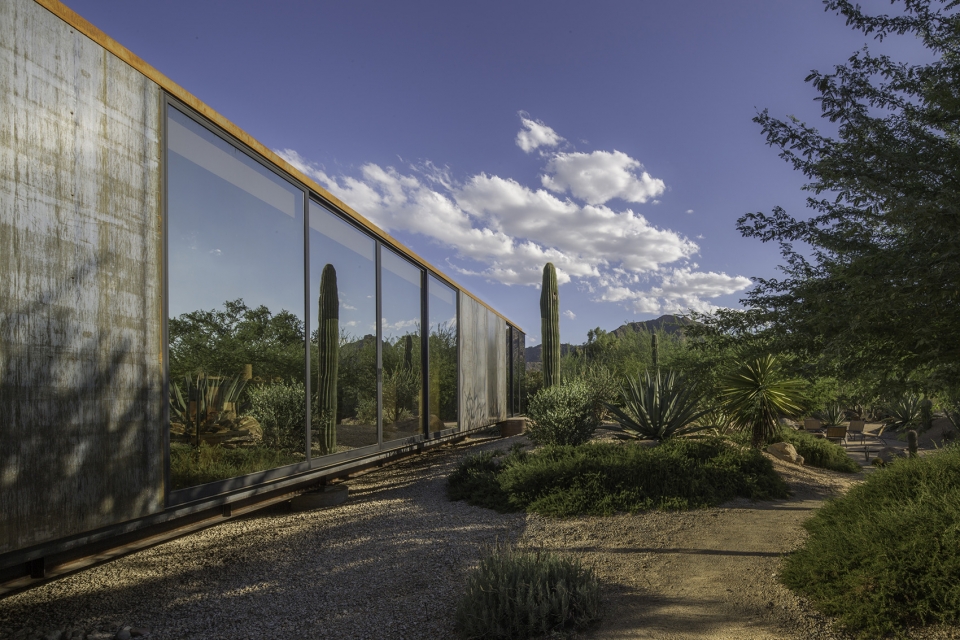

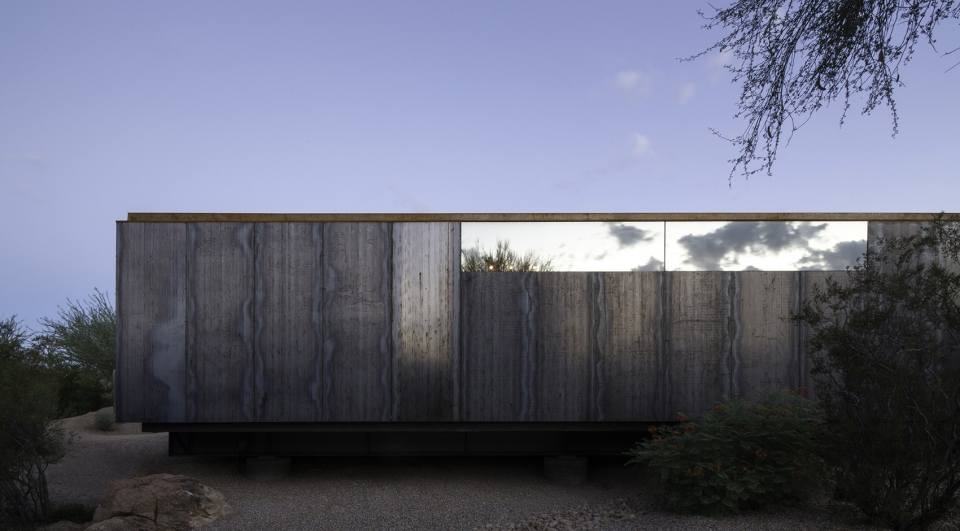

▼耐候钢板和玻璃的组合能够补充、吸收和反映既有住宅的景观，the combination of weathering steel panels and glazing for the cladding is intended to complement, absorb and reflect the existing residence’s landscape

画室的外墙铺设以4×12英尺的标准型A606耐候钢板。模块化的钢板使准备和装配时间得以缩至最短。高性能的反光玻璃被用于所有的幕墙立面中，能够在实现最大热量排放的同时保证最高的反射率。这两种材料的组合能够补充、吸收和反映既有住宅的景观，其色彩搭配还能够将其与既有住宅区别开来。

The cladding of the studio is largely comprised of standard 10 gage 4’ X 12’ tall A606 weathering steel panels. Using the standard module for the steel panels allowed for minimal preparation and fabrication time. High thermal performing reflective insulated glazing is used at all glazing locations for the project. The insulated glazing is configured with the reflective surface on surface 1 which allows for maximum heat rejection while offering the most reflection. The combination of these two materials for the cladding is intended to complement, absorb and reflect the existing residence’s landscape. Furthermore, the material palette distinguishes the addition from the existing material palette.

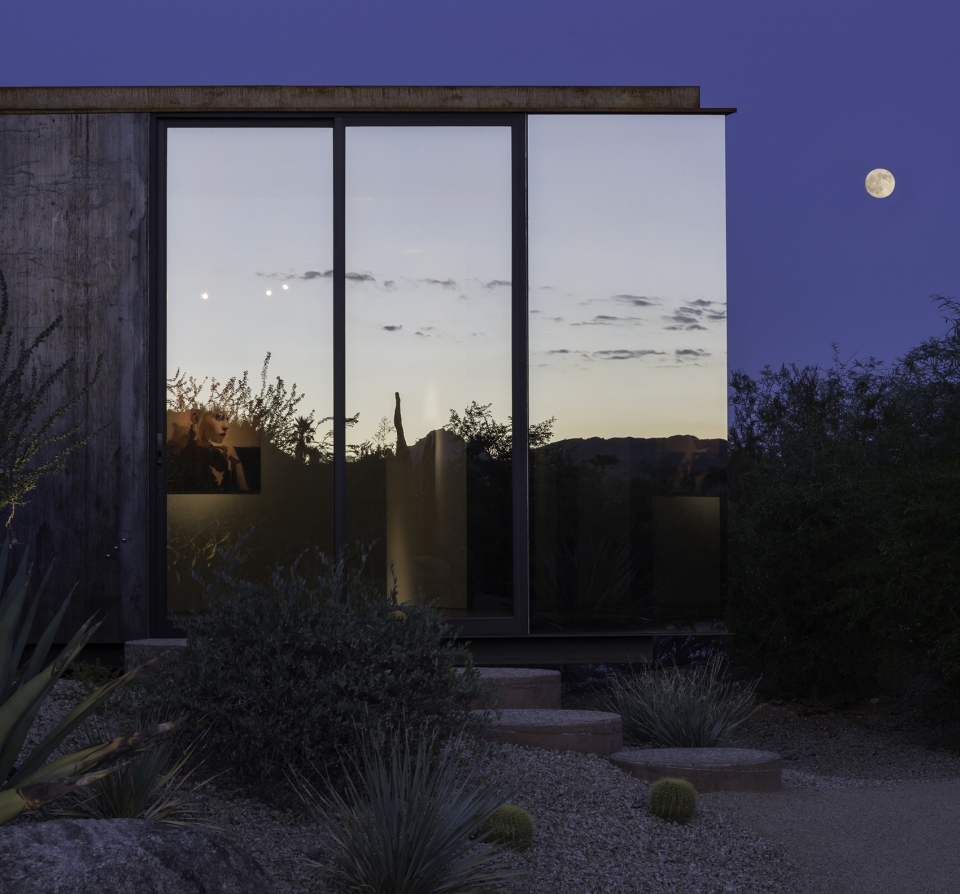

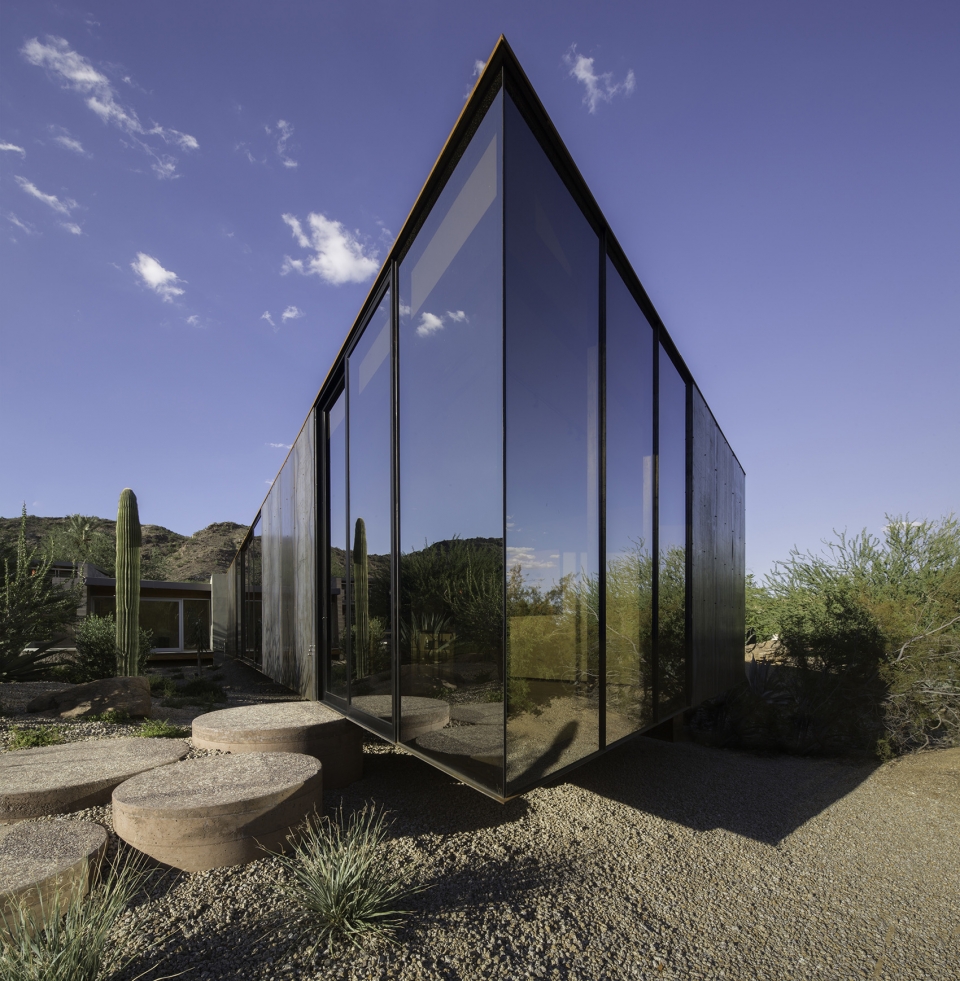

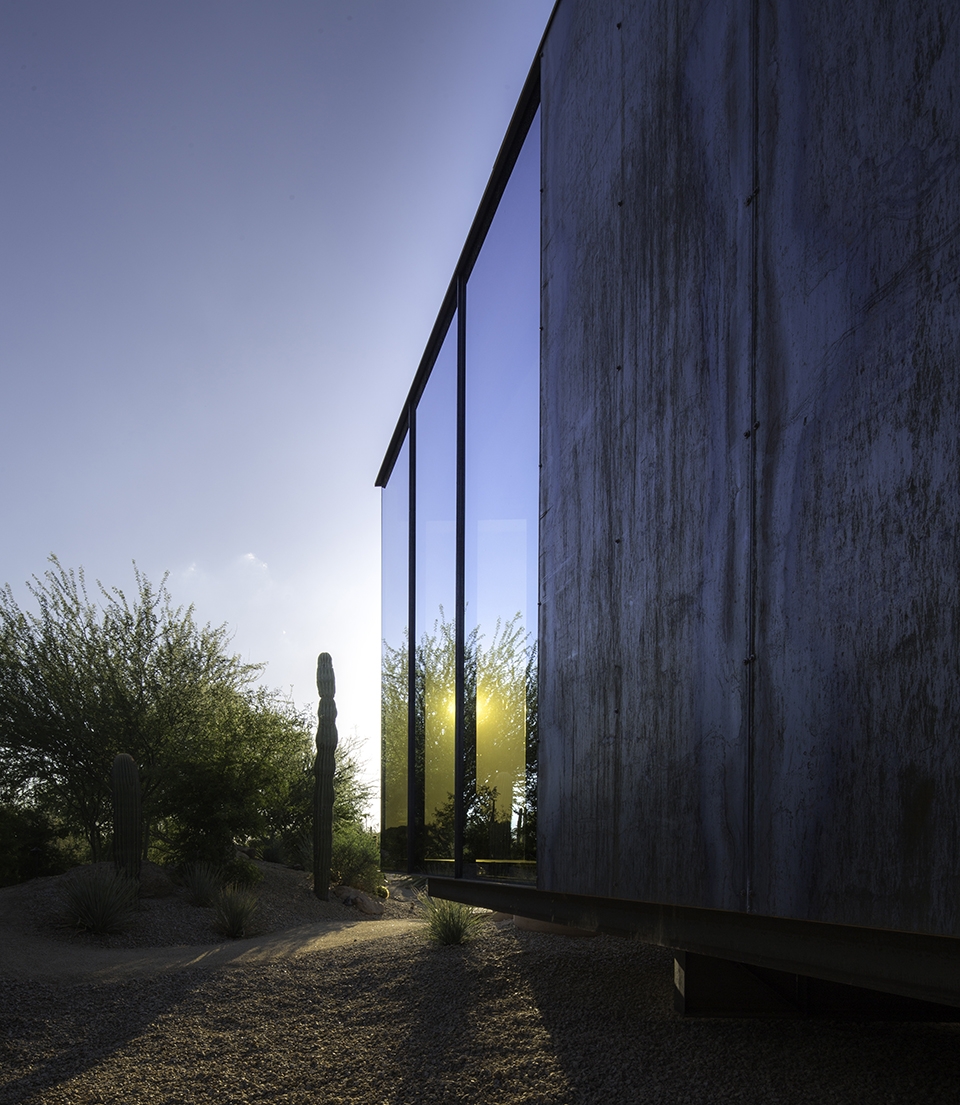

▼立面中使用了高性能的反光玻璃，the insulated glazing is configured with the reflective surface which offers the most reflection

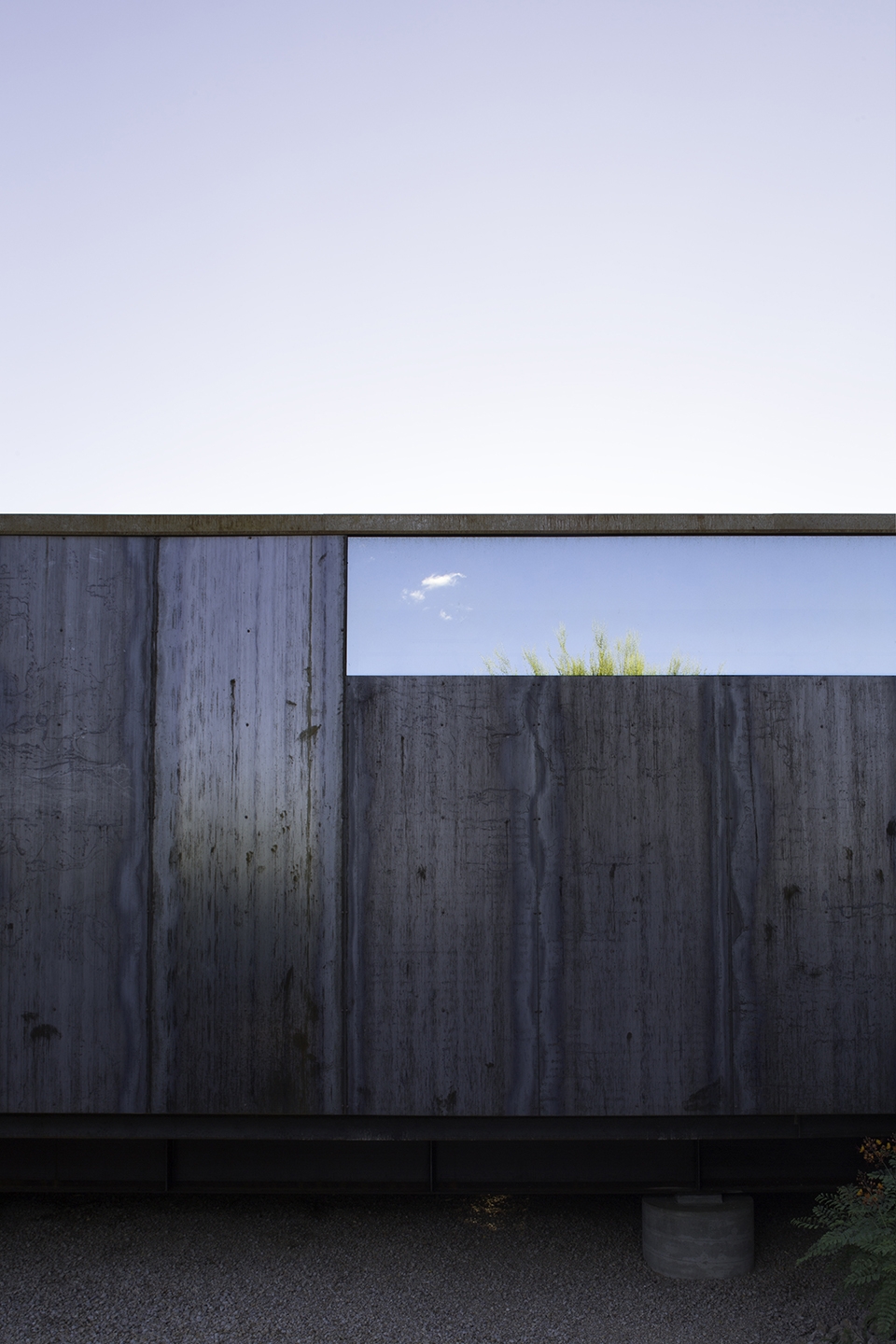

▼立面细部，facade detail

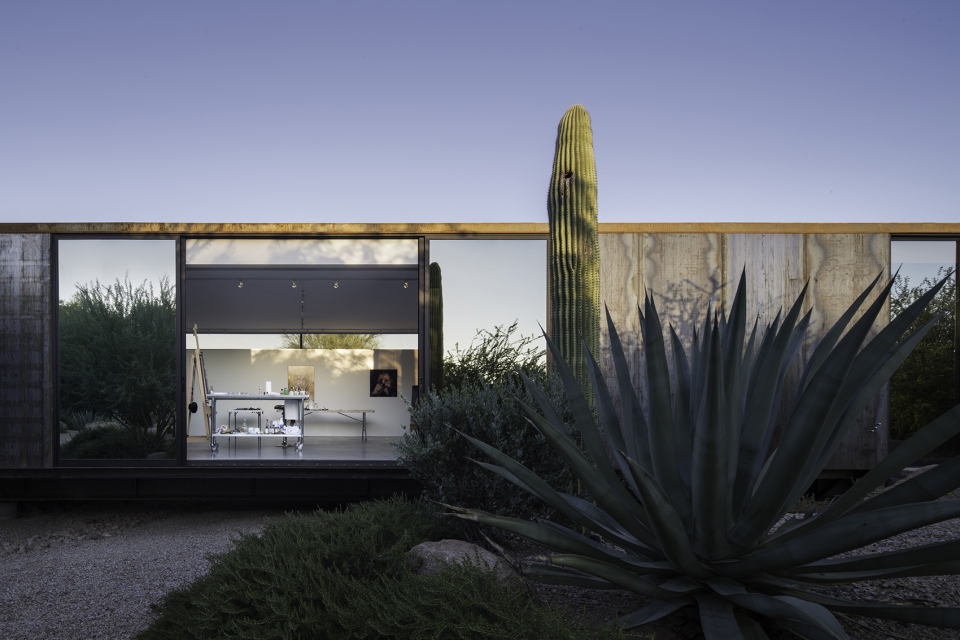

▼玻璃滑动门凸显出沙漠景观在每个时段的特殊美感，bi-parting sliding glass doors celebrate a specific moment in the desert landscape

▼从庭院望向室内，courtyard view towards the studio

室内空间拥有开放式的平面，能够满足艺术家的日常工作需求或展览需要。三面大型的可移动隔墙能够以不同的形式划分空间，或作为展示作品的背景墙使用。悬挂系统被融合进石膏板墙的内部，用于探讨和展示平时的作品。双扇的玻璃滑动门直接凌驾在场地之上，凸显出沙漠景观在每个时段的特殊美感。窗户的位置还为室内引入了既有庭院和驼背山的景色。

The interior space is configured as an open plan to allow the freedom of the studio to be used as a working artist’s studio or gallery space. Three large movable partitions can be configured in any manner to allow for spatial diversity and increased surface area for hanging the artist’s work. An integrated artwork hanging system is embedded and detailed with the drywall to establish a datum in the space for the constant hanging of artwork for review and display. Bi-parting sliding glass doors are located directly over the wash in order to celebrate a specific moment in the desert landscape. The configuration of the windows allows views of the existing courtyard and Camelback Mountain.

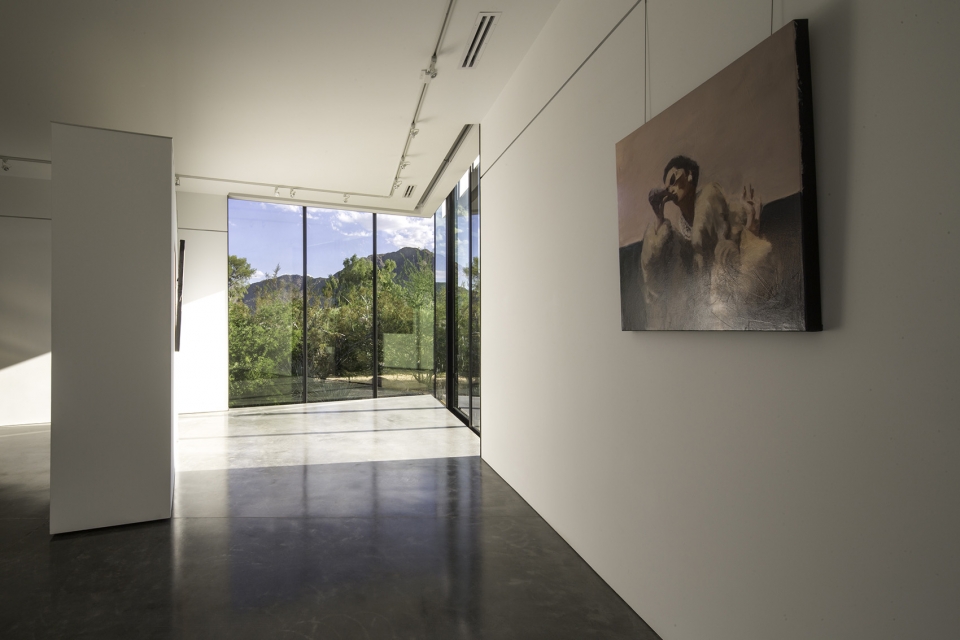

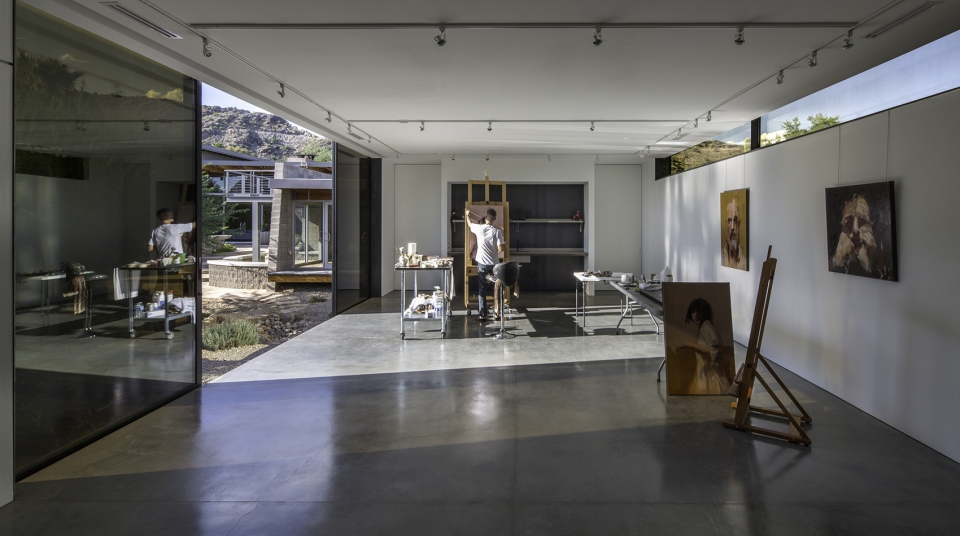

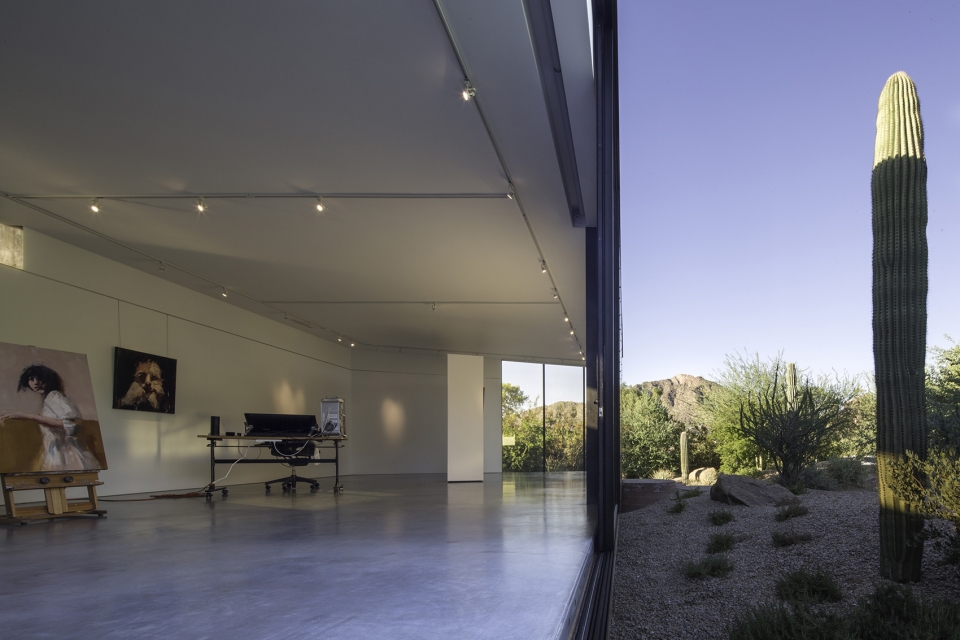

▼室内空间拥有开放式的平面，the interior space is configured as an open plan

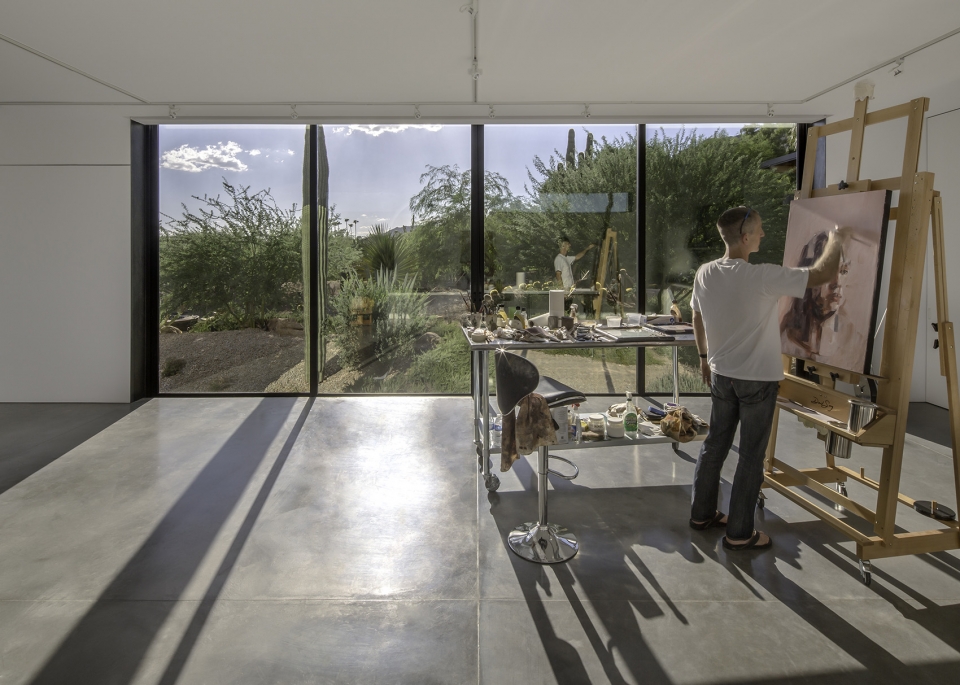

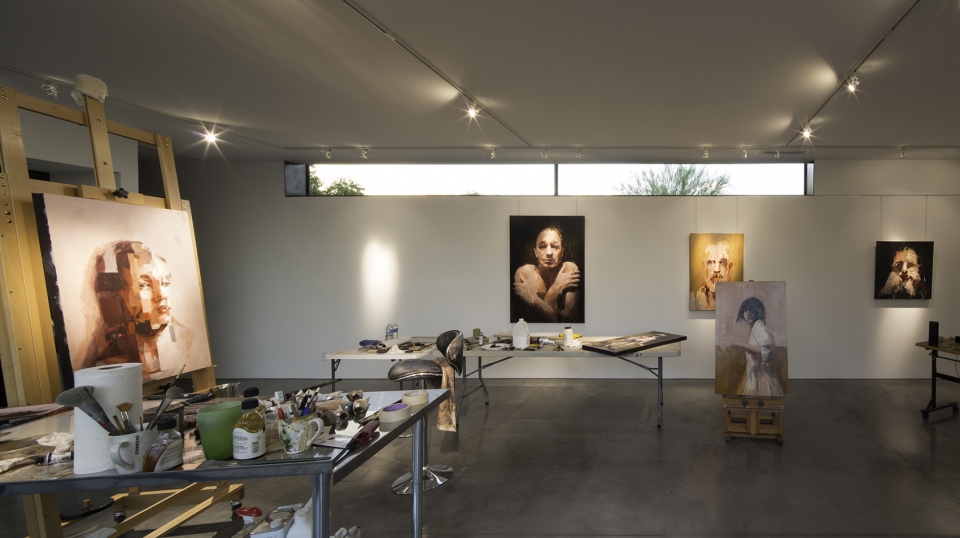

▼艺术家的工作空间，working space for the artist

▼悬挂系统被融合进石膏板墙的内部，an integrated artwork hanging system is embedded and detailed with the drywall

▼展示墙，displaying wall

这间小画室通过与既有住宅截然不同的建筑语言与场地的环境形成了互动，同时以最大程度保持了对沙漠景观的尊重。

The Little Art Studio engages the circumstances of the site by deliberately establishing its own language that is at once a clear departure from the language of the existing main residence while maintaining respect for the site’s desert landscape.

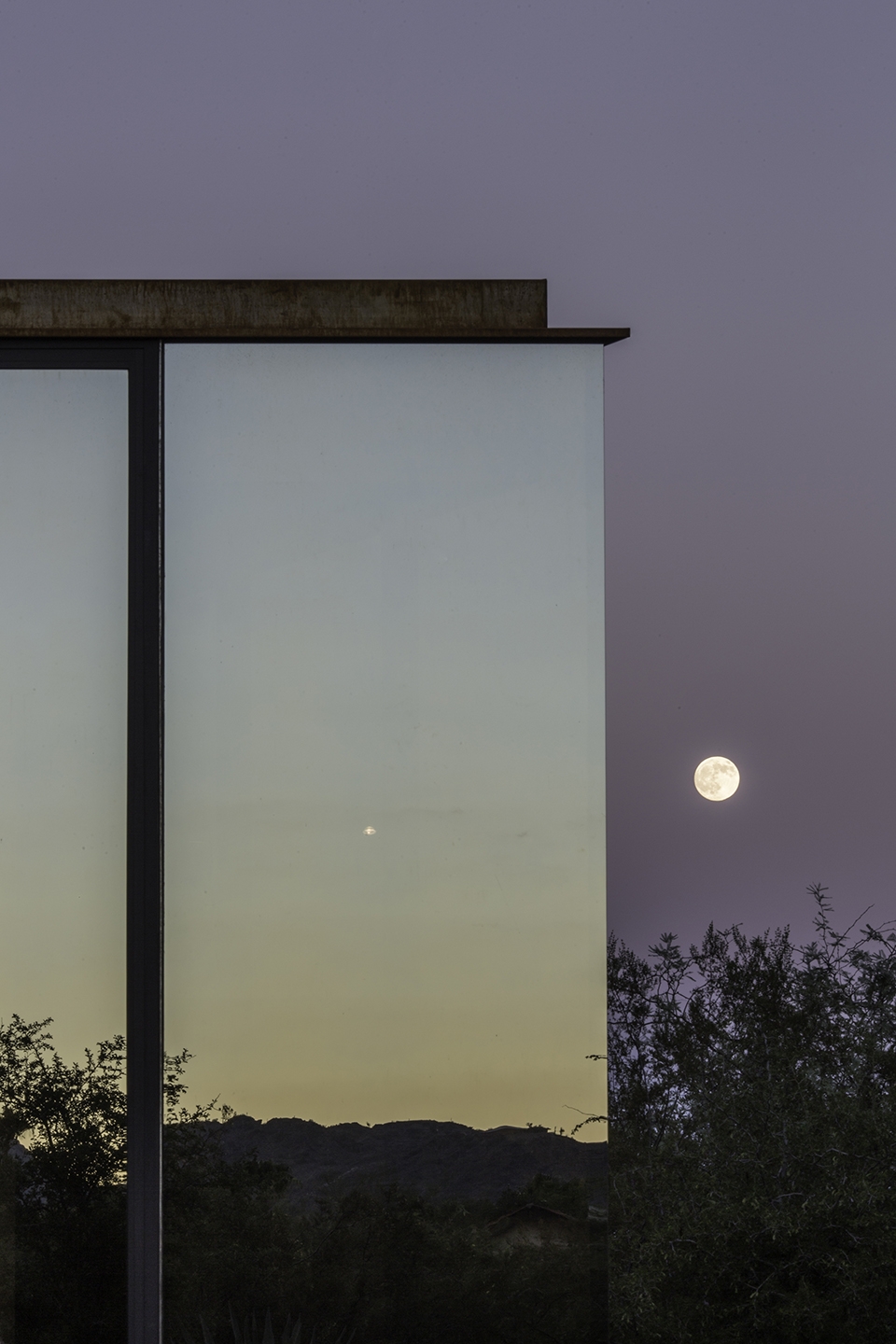

▼立面细部，detailed view

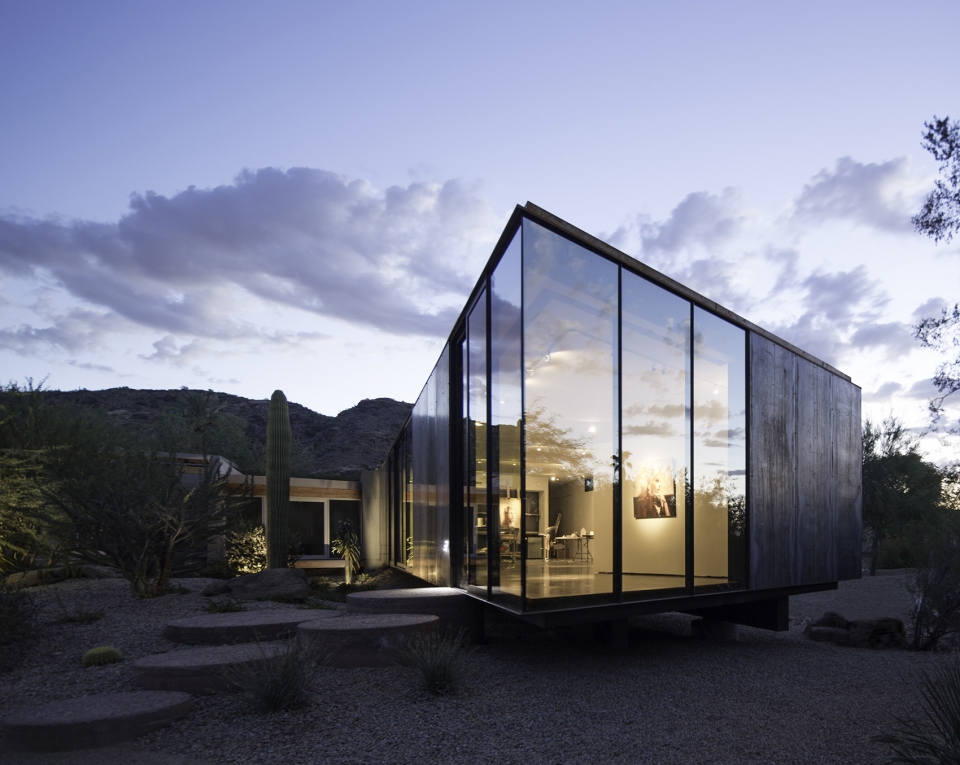

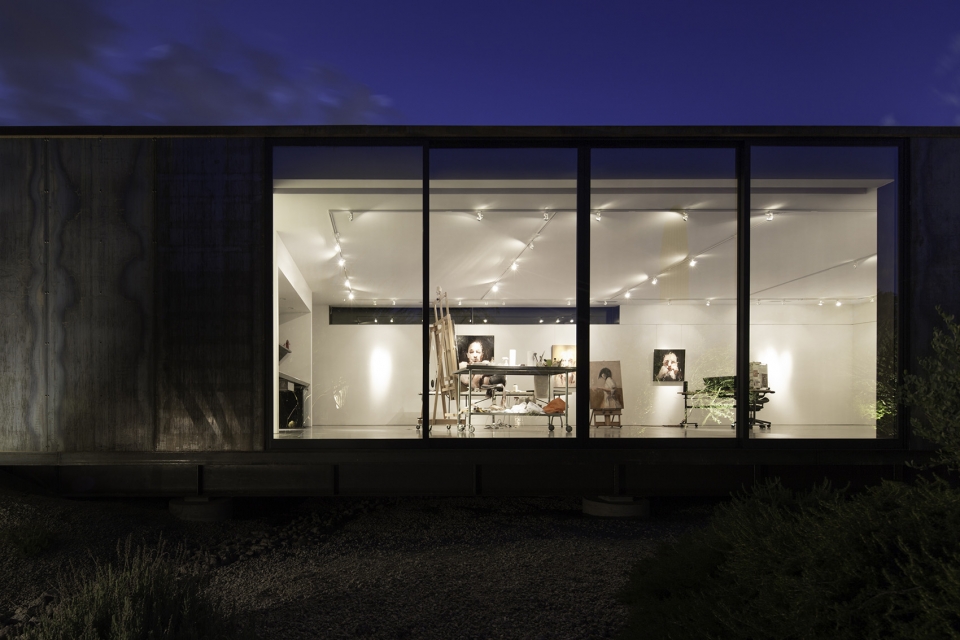

▼夜景，night view

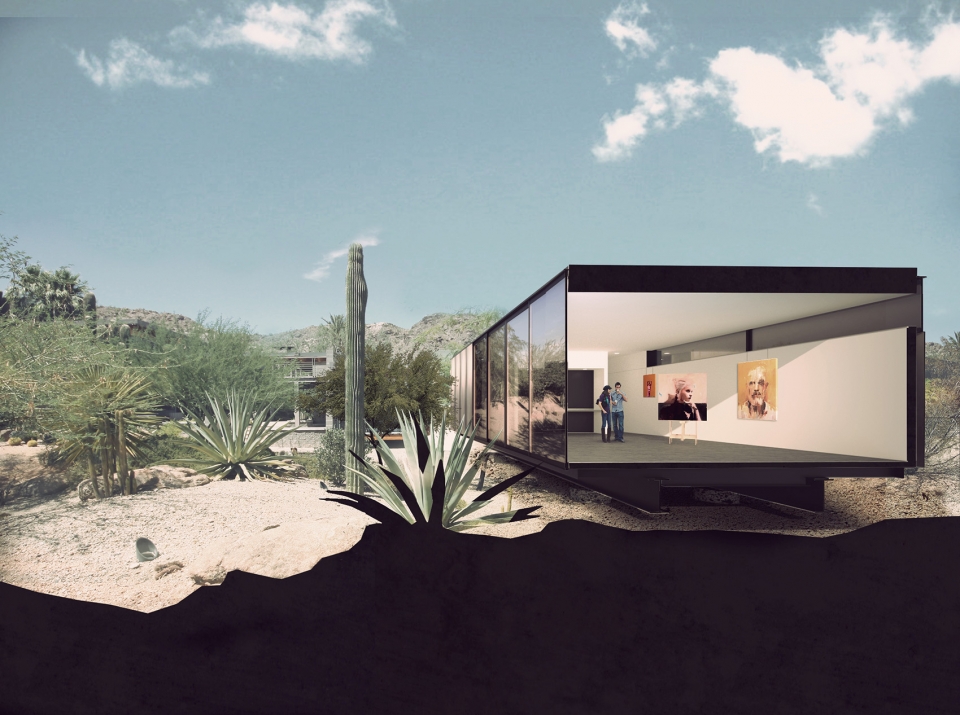

▼效果图，rendering

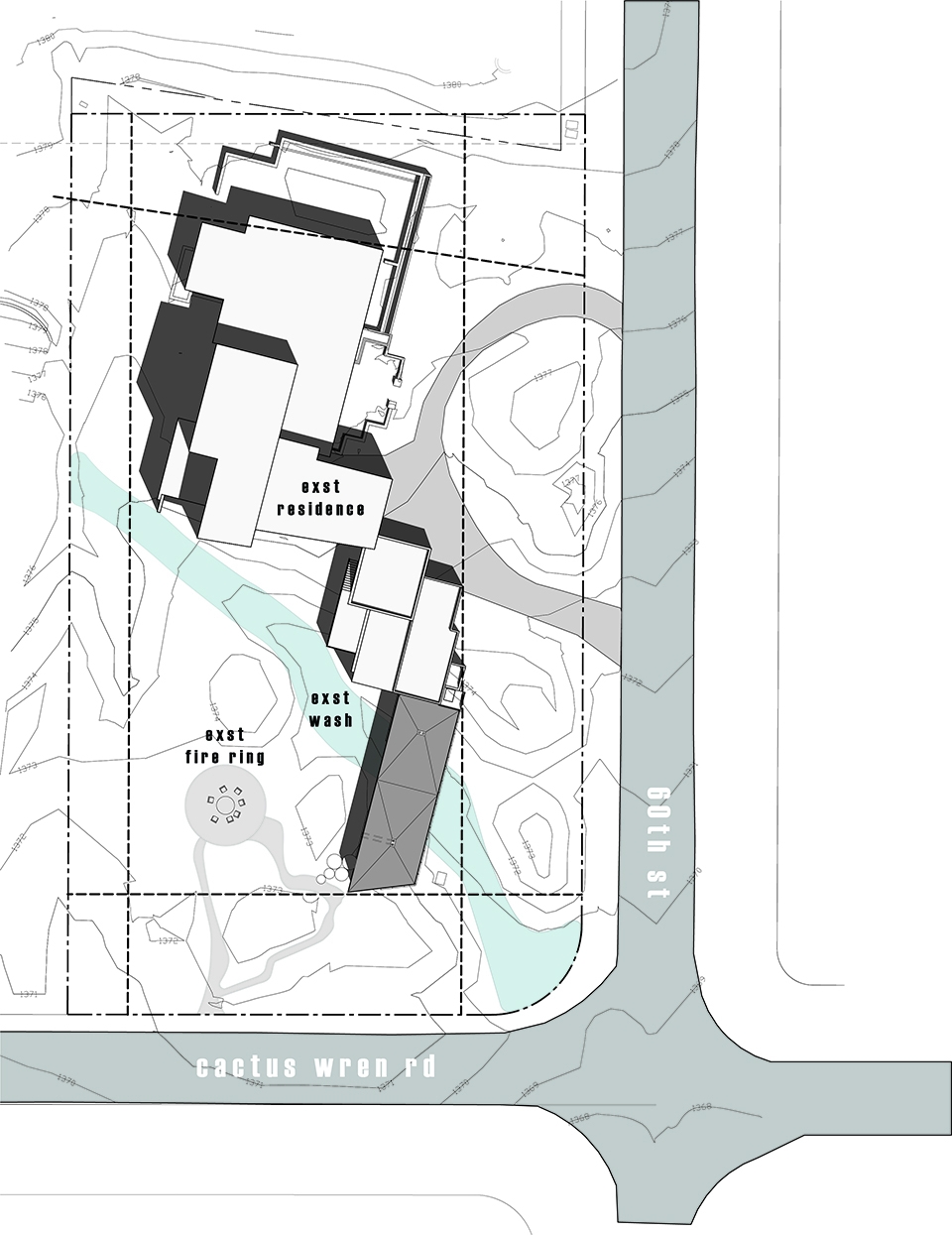

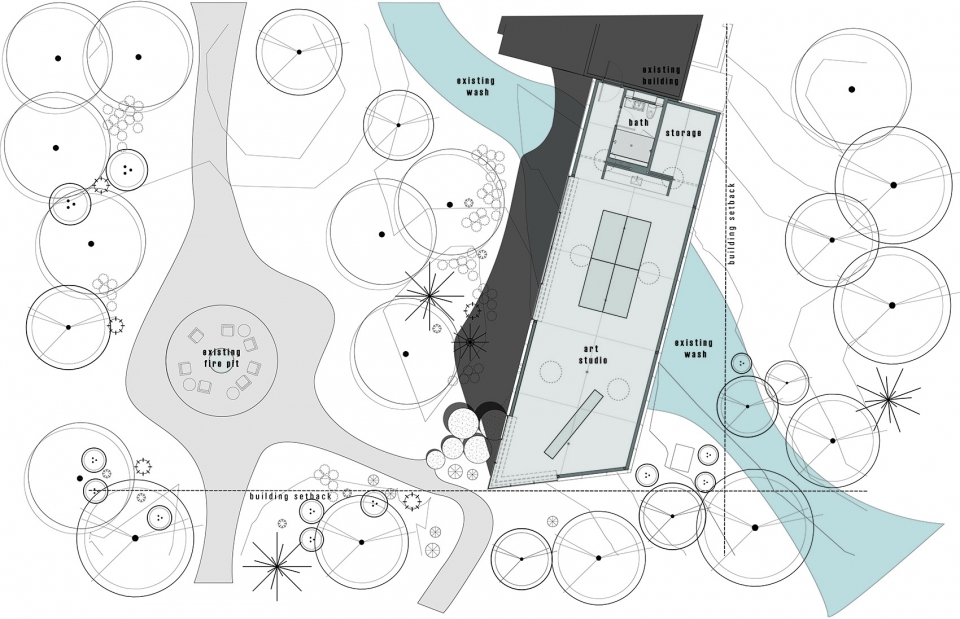

▼场地平面图，site plan

▼平面图，plan

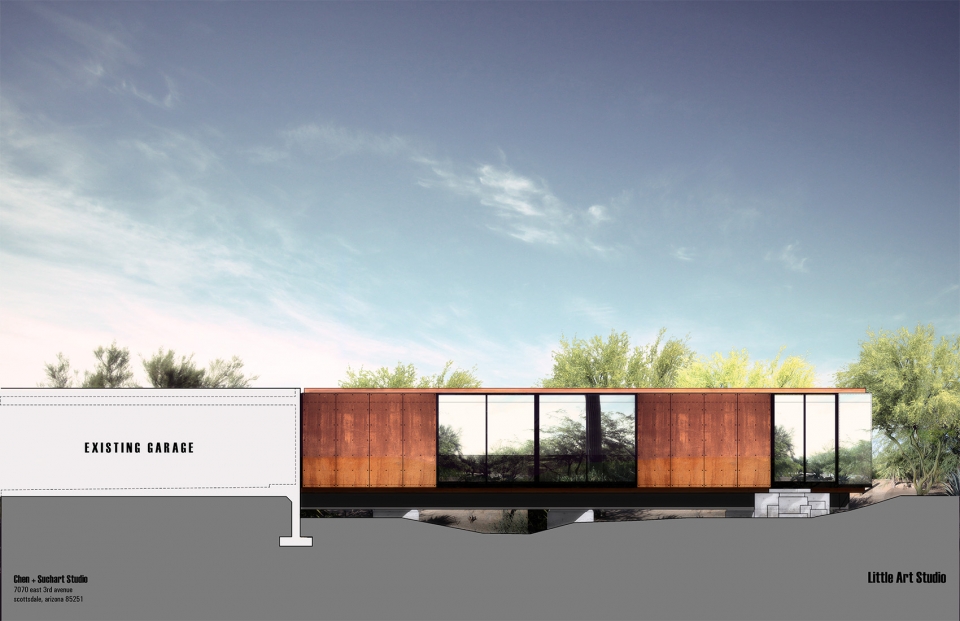

▼西立面图，west elevation

PROJECT NAME: The Little Art Studio
TYPE: Addition to an existing residence
PROJECT COMPLETION: July 2017
LOCATION: Paradise Valley, Arizona
SIZE: 16,823 GSF – (8) Townhomes
COST: Withheld at the Owner’s request
ARCHITECTS: Chen + Suchart Studio, LLC
Szu-Ping Patricia Chen Suchart and Thamarit Suchart, AIA, (Principals)
Aaron Bass, (Project Team)
STRUCTURAL ENGINEERING: BDA Design, J. Greg Brickey, SE
BUILDER: Verge Design:Build, Joby Dutton, Mike Alexander
PHOTOGRAPHY: WINQUIST PHOTOGRAPHY, Matt Winquist
GRAPHICS & DRAWINGS: Chen + Suchart Studio, LLC
PRIMARY MATERIALS: 6” diameter concrete caissons, (2) W24 X 68’s, composite concrete deck, conventional 2X framing (walls and roof), level 5 plaster, 4’ x 12’ x 11 ga A606 weathering steel panels, 1” insulated glazing (Solarcool Bronze with mirror finish on surface 1 and Solarban 70XL on surface 2, 50 mil single ply membrane roof, custom 11ga stainless steel countertop @ work sink
