感谢 浙江大学 予 gooood 分享以下内容。
Appreciation towards Zhejiang University for providing the following description:

“喫茶廊”构想以竹建筑营造一方隐匿于自然的禅意空间，启发人们在原生材料与原生环境中寻觅都市生活以外的平淡与质朴。竹建筑虽小而精，传统的竹工艺与简约的设计在此得到完美的诠释，使得人们在初次走近时便感叹其原生态般的自然与和谐。

The idea is to create a Zen space hidden in nature by bamboo architecture, which inspires people to seek the plainness and simplicity beyond urban life in the original materials and environment. Although it is small and refined, the traditional bamboo technology and design are perfectly interpreted here, which makes people inspired by the original ecological nature and harmony when they come there for the first time.

▼茶廊鸟瞰图，bird-eye’s view of the tea lounge ©凌霄阳

“赵州问僧 / 曾到此间么
僧答 / 曾到
赵州曰 / 吃茶去
又问一僧，僧答 / 不曾到
赵州曰 / 吃茶去 ”
——五灯会元

借用茶艺中“喫茶去”这一富有深意的典故，“喫茶廊”不仅是简单的停息空间，更是乡野生活的真实反映。

According to the profound allusion of “go and drink tea” in tea history, “tea lounge” is not only a simple resting space, but also a real reflection of rural life.

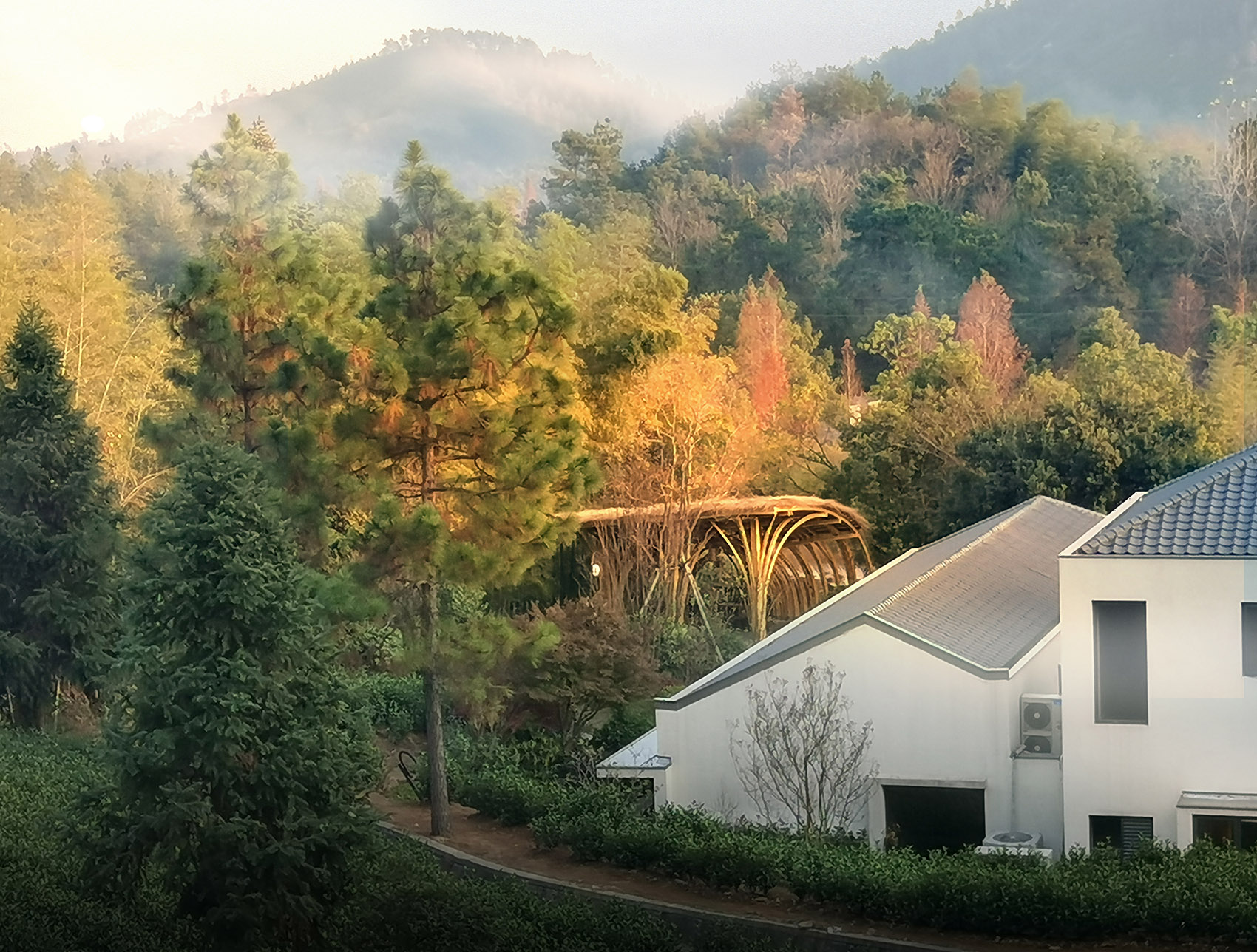

▼茶廊远景，distant view of the tea lounge ©孙源

本项目位于安吉龙山源的人文纪念园内、两幢接待中心之间的竹林中。甲方希望我们在此开辟一个可与自然亲密接触的空间，作为游客接待和后勤中心的补充。场地中密栽竹子与茶树，如何尽可能地保护原有的生态成为了我们设计的难题。

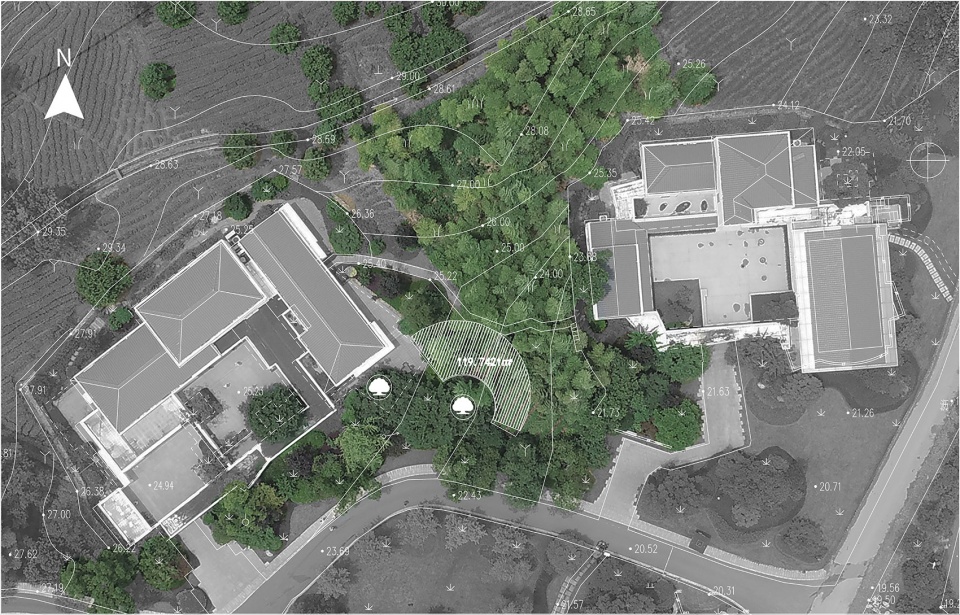

▼区位，location ©陈健胜

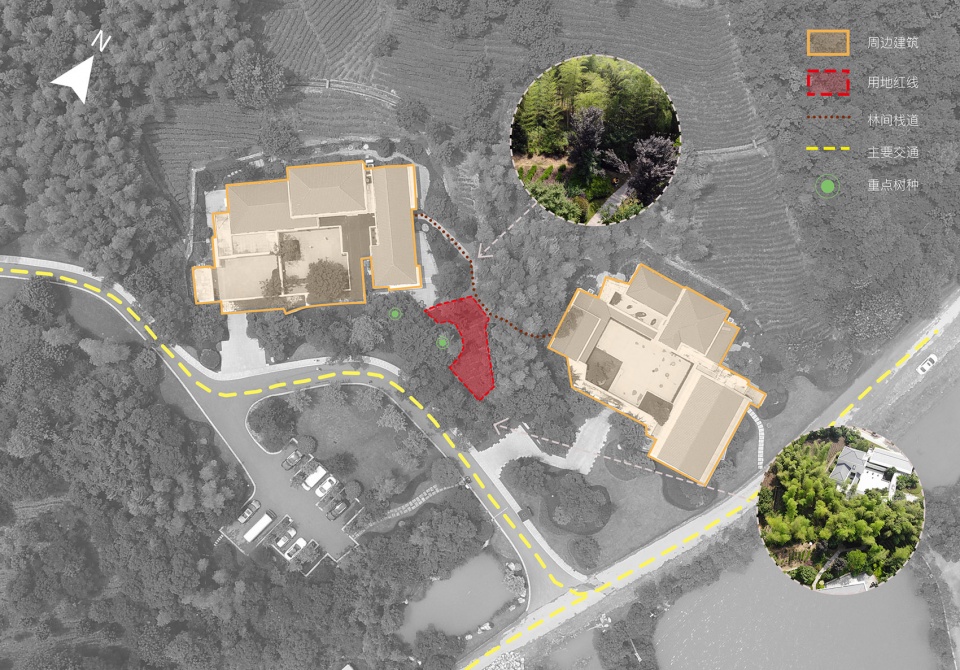

▼场地现状，site condition ©周安宇

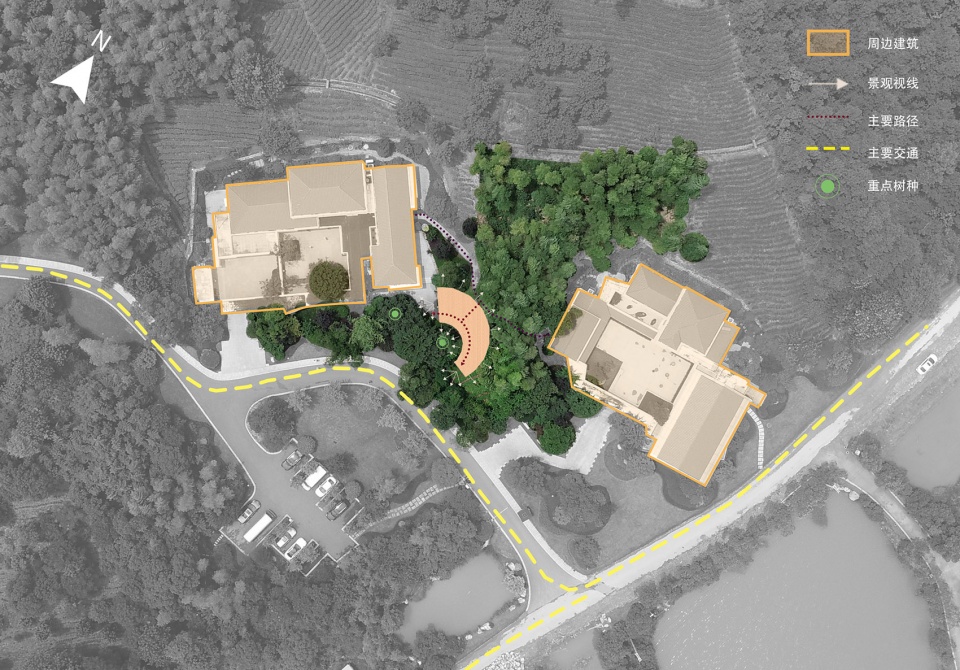

▼景观条件，landscape condition ©周安宇

This project is located in the cultural Memorial Park of Longyuan, Anji and in the bamboo forest between the two reception centers. We are required to create a space close to nature here as a supplement to the tourist reception and logistics center. How to protect the original ecology as much as possible has become a problem in our design.

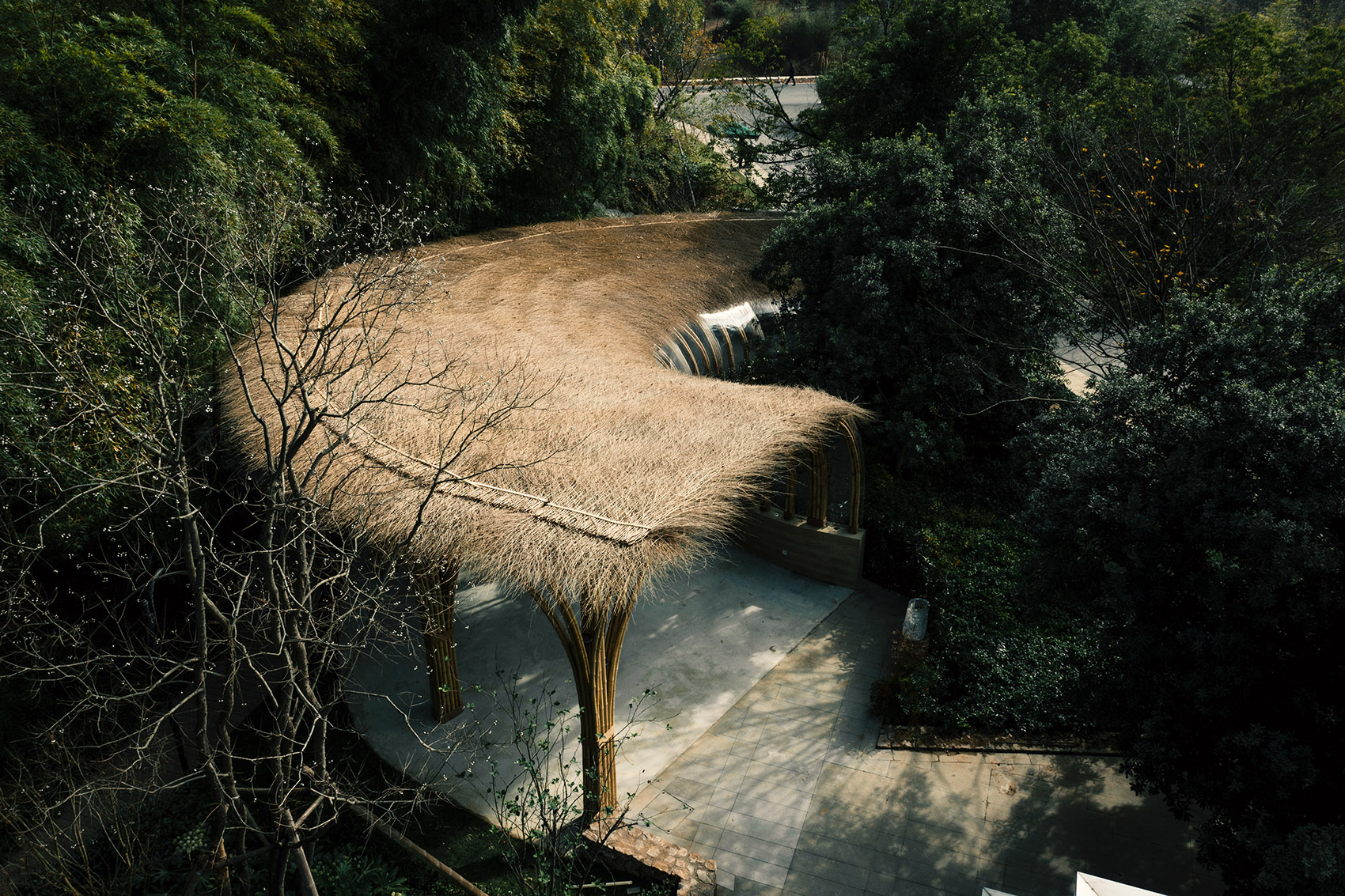

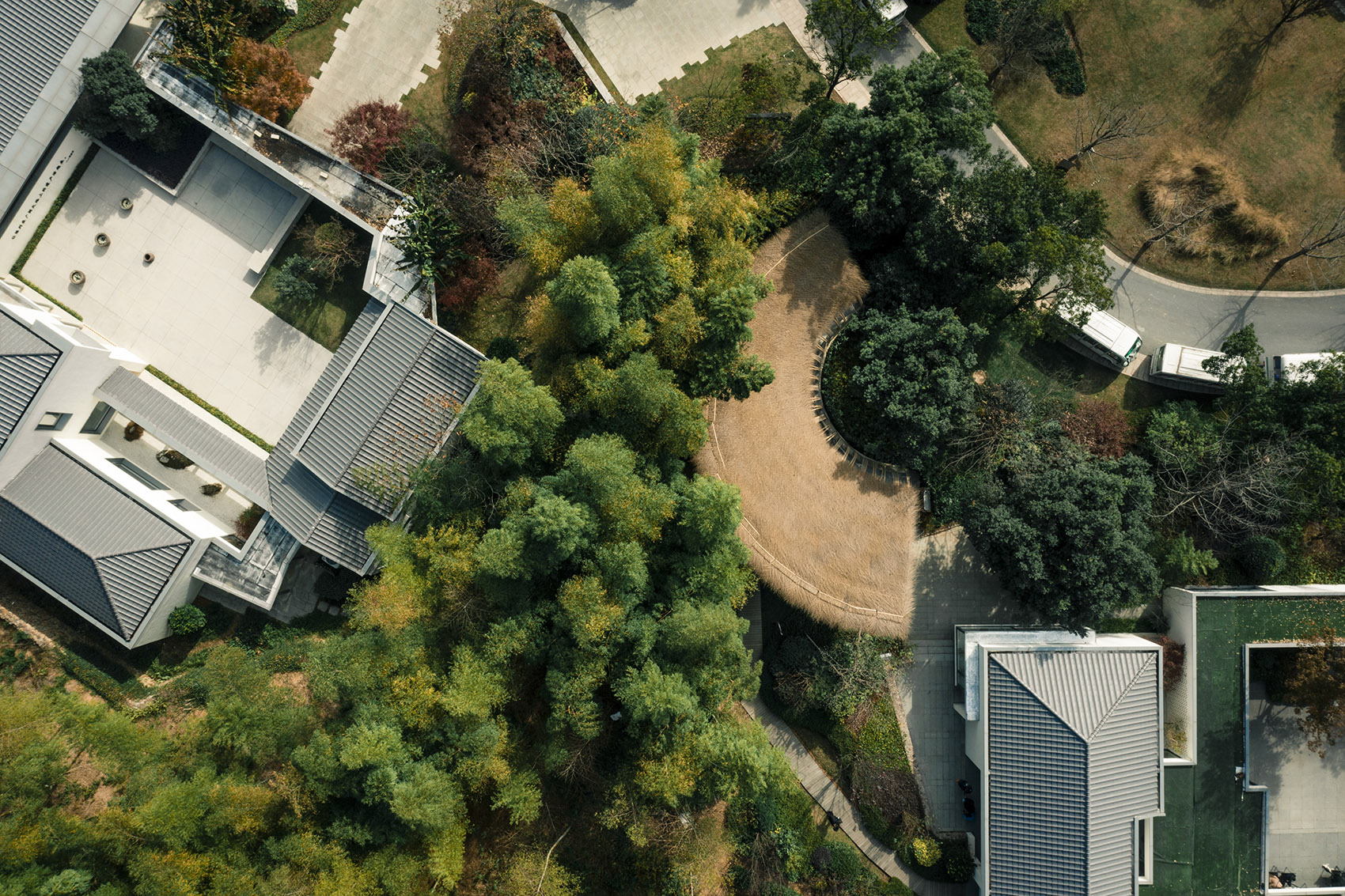

▼茶廊俯视图远景，项目位于竹林中，distant aerial view of the tea lounge that is located in the bamboo forest ©凌霄阳

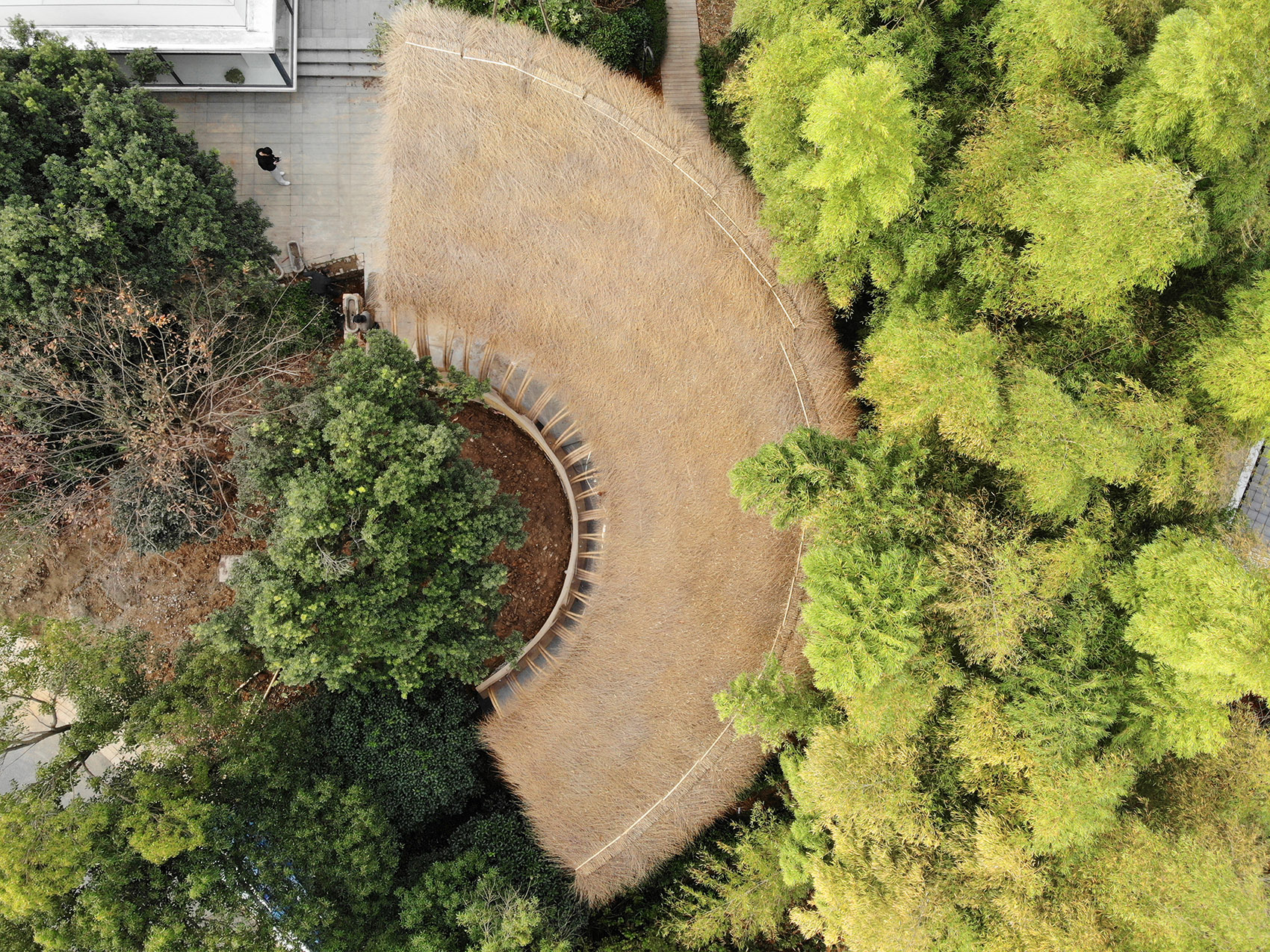

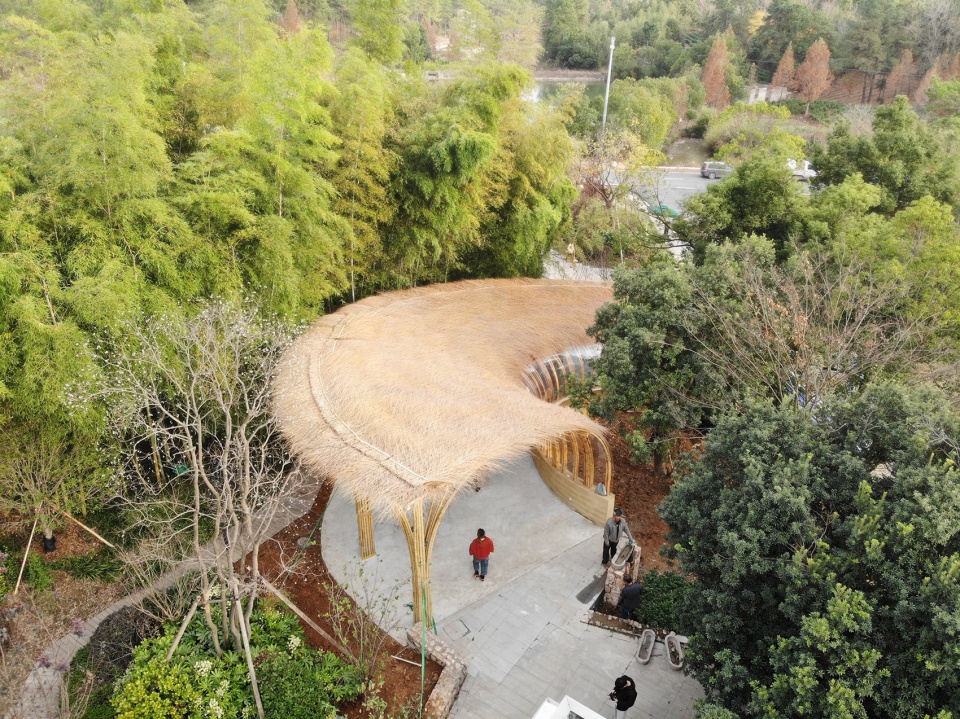

▼茶廊俯视图近景，close aerial view of the tea lounge ©叶子超

保留原有场地中的杨梅树，同时开垦竹林中植被较为稀疏的一片区域，我们从木栈道中开辟入口，用八榀竹屋架撑起弧形的屋顶，以此为村民和游客提供了一弯休憩、赏景、品茶的悠闲茶廊。

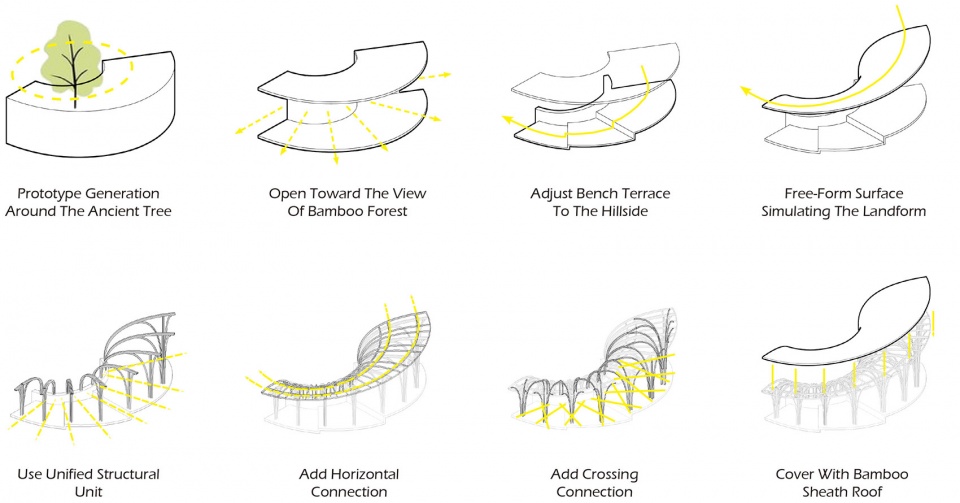

▼形体生成，form generation ©陈健胜

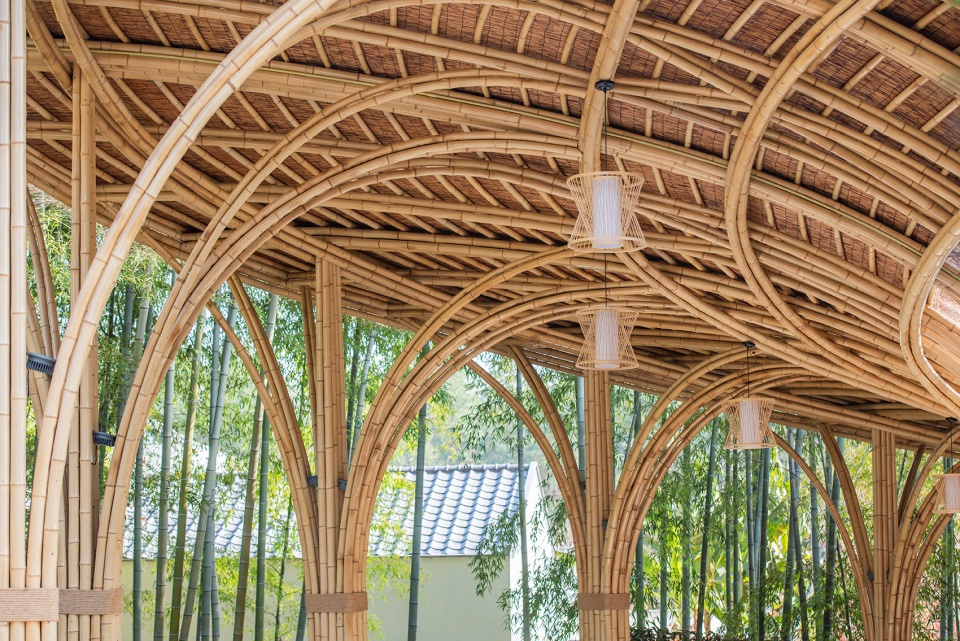

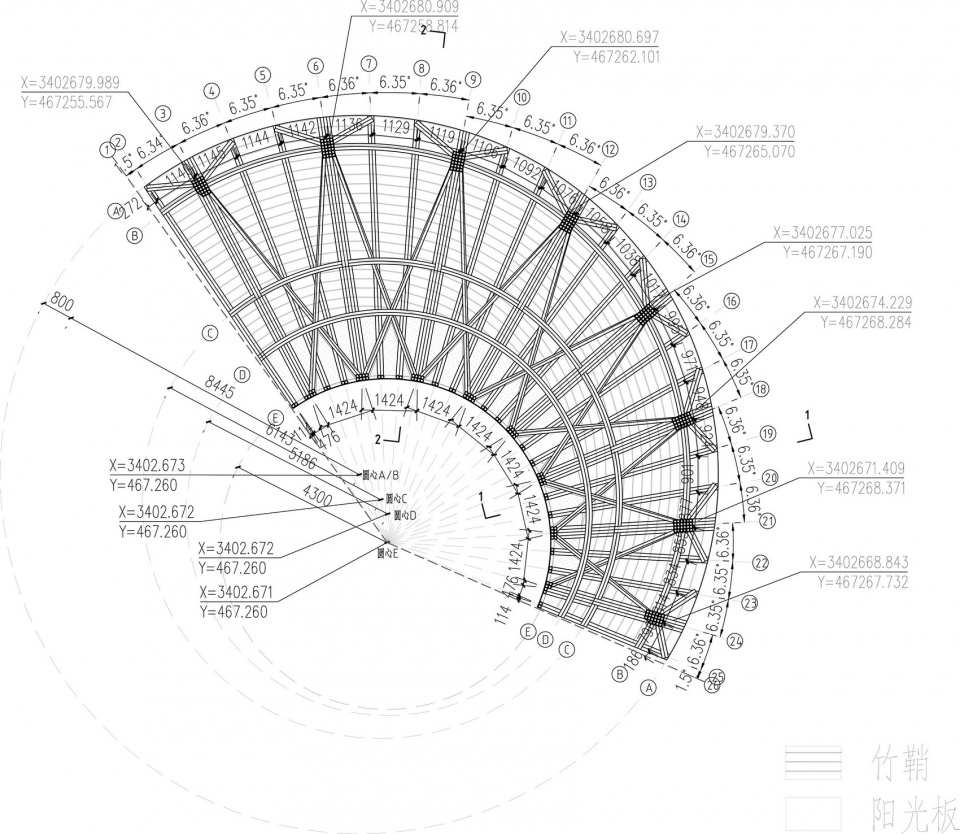

▼屋架仰视，look up at the roof ©陈健胜

The bayberry trees in the original site will be preserved, and a relatively sparse area of vegetation in the bamboo forest will be reclaimed. We open an entrance from the wooden plank road, and use eight bamboo roof trusses to support the arc-shaped roof, so as to provide a leisure playground for villagers and tourists to have a rest, enjoy the scenery and taste tea.

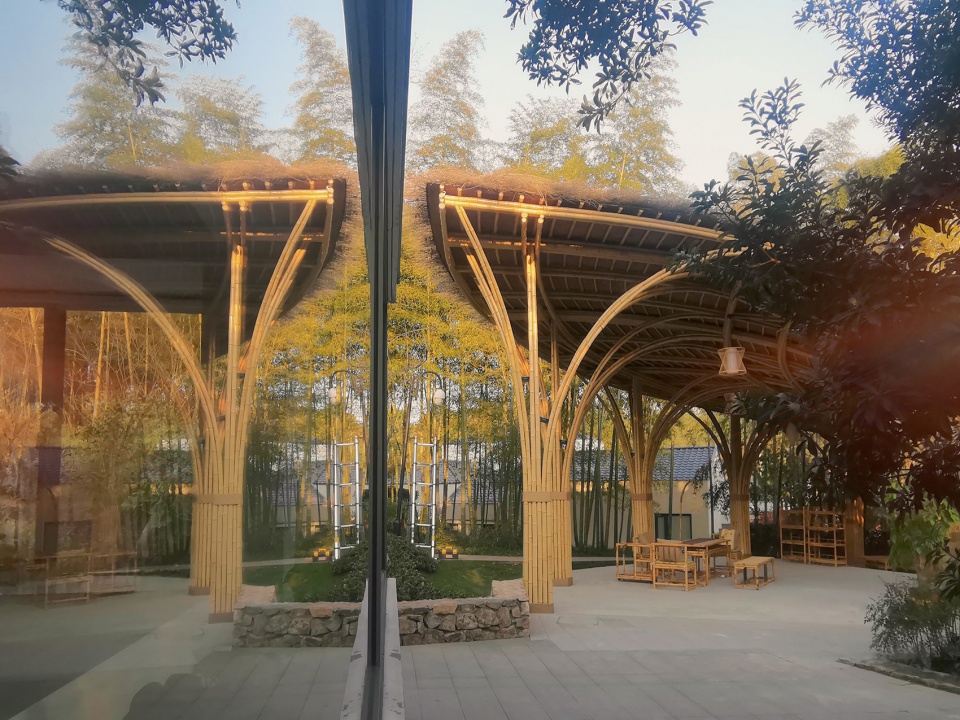

▼茶廊外观，从木栈道中开辟入口，用八榀竹屋架撑起弧形的屋顶，exterior view of the tea lounge, opening an entrance from the wooden plank road, and using eight bamboo roof trusses to support the arc-shaped roof ©叶子超

场地狭长，仅逾百平，在近2m的地形高差下，我们顺应地势采用台地拾级而上，同时以台地区隔不同的功能，弧形屋顶也随之微微上扬。

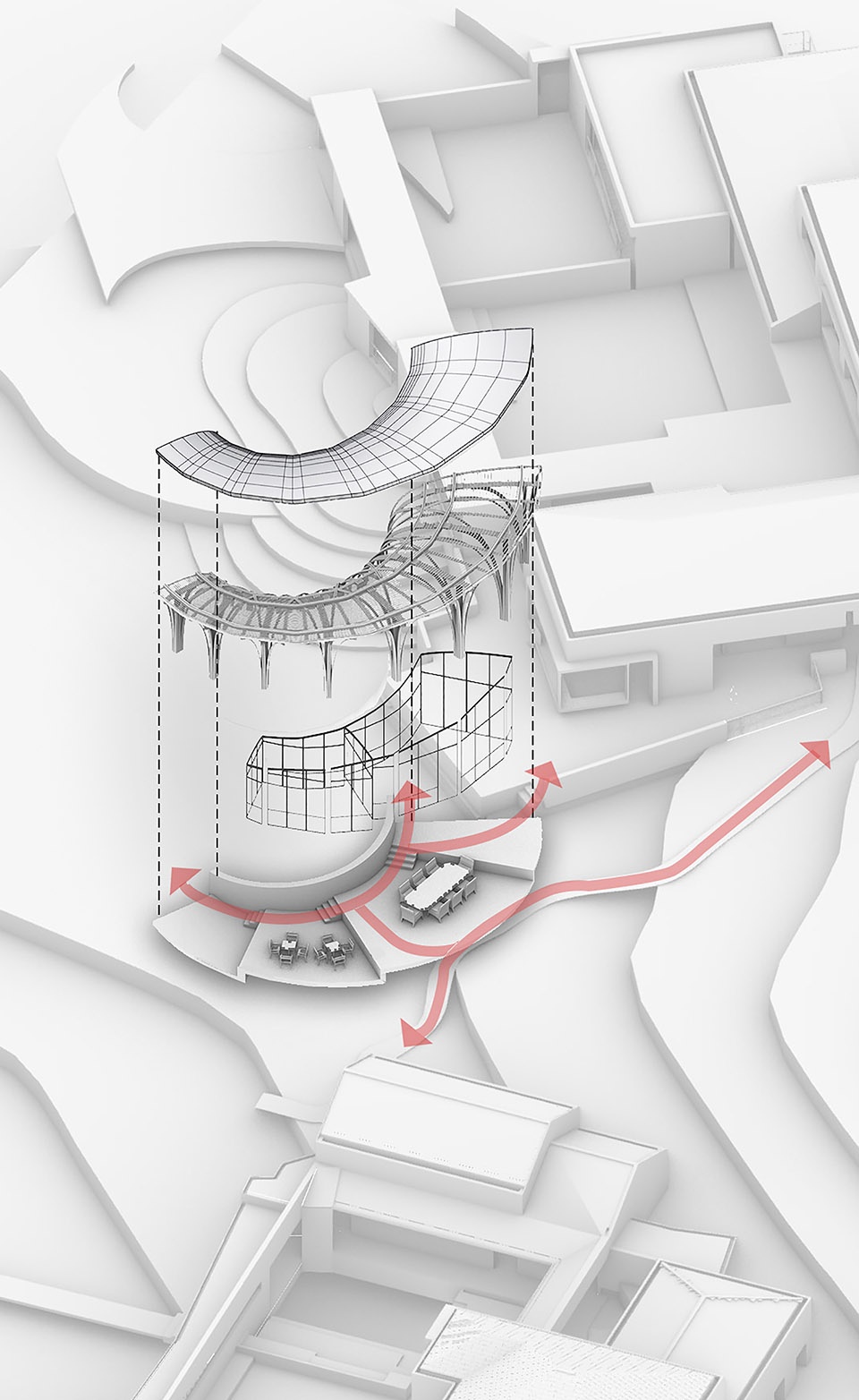

▼爆炸轴测图及人流动线分析，exploded axon with streamline analysis ©王小艺

The site is narrow and long, only more than 100 square meters. We adopt platform to go up according to the terrain. At the same time, with the platform area separated by different functions, the arc roof also rises slightly.

▼茶廊与原有栈道的衔接，adapting to the wooden road ©孙源

三个平台，八榀竹屋架，一顶弧形屋顶，建构出一处乡民与游客可共享的竹廊。竹屋架的南端由毛石矮墙固定，北侧为伞状束柱立于地基上，竹伞挑檐界定出浅浅的檐下空间。三个标高各异的休闲平台，宽窄各殊，松紧有致，辅以台阶联通，构成有颇有节奏与层次变化的使用空间。屋顶随台地而升，天光透过疏密有致的屋顶结构，留下隐隐绰绰的光影。

Three platforms, eight bamboo roof trusses and one arc roof construct a bamboo corridor that can be shared by villagers and tourists. The south end of the bamboo roof truss is fixed by the rubble low wall, and the north side is the umbrella shaped beam column standing on the foundation. The bamboo umbrella cornice defines the shallow space under the cornice. Three leisure platforms with different elevations, different width and width, tight and tight, supplemented by step connection, constitute a space with quiet rhythm and level change. The roof rises with the terrace, and the sky light through the dense roof structure leaves a faint and graceful light and shadow.

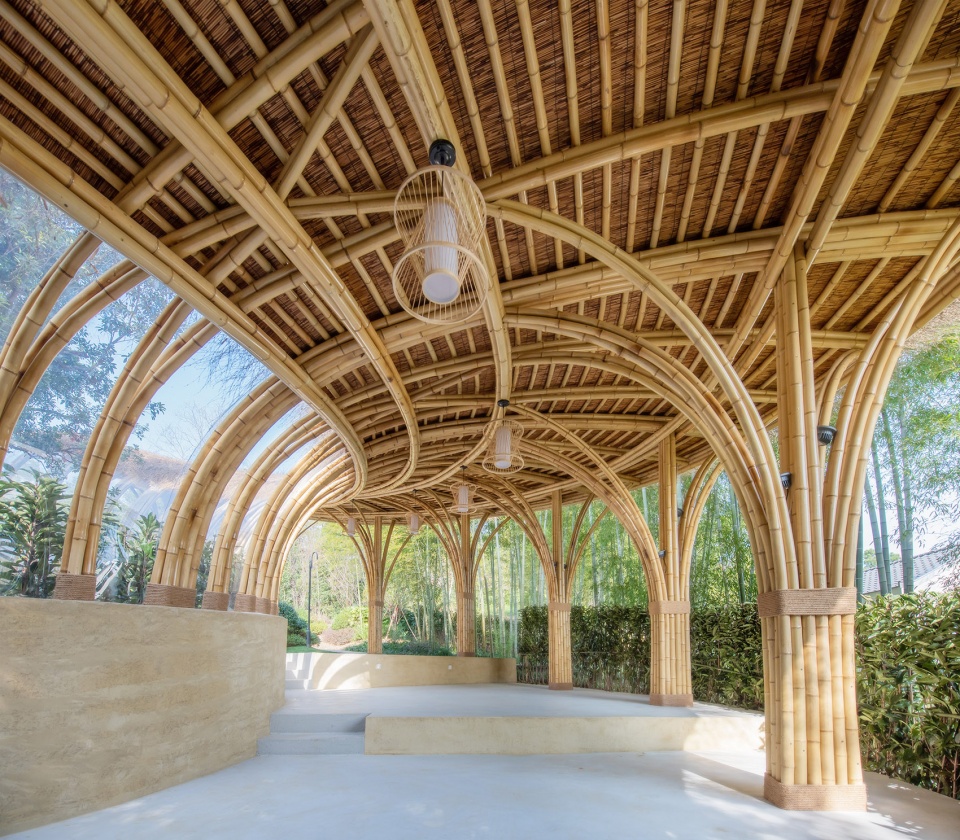

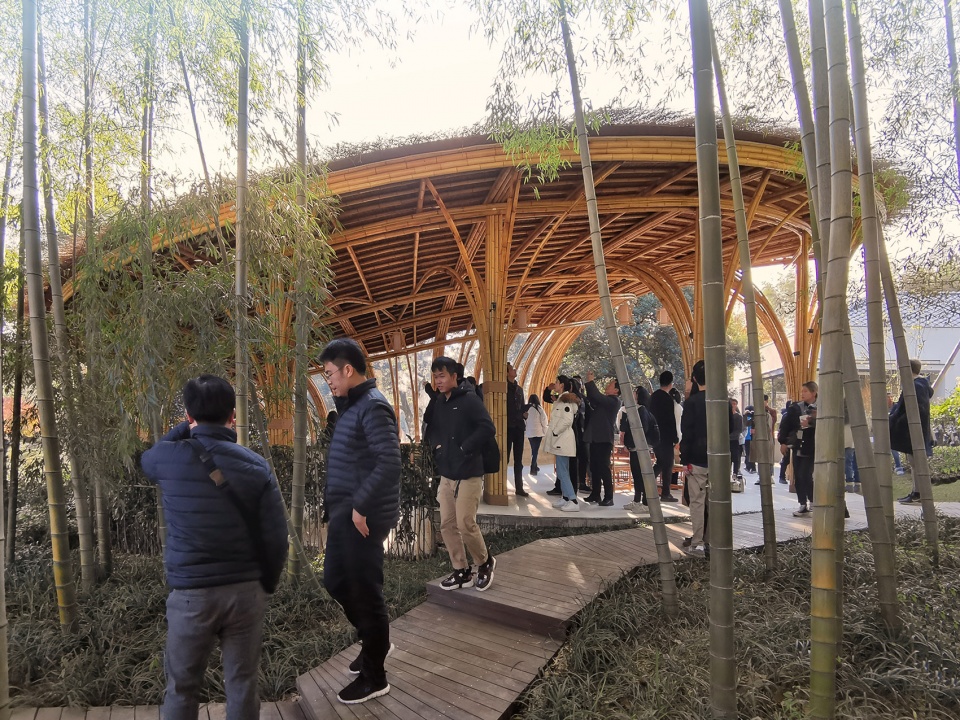

▼茶廊内部视角，三个标高各异的休闲平台以台阶联通，interior view, three leisure platforms with different elevations are supplemented by step connection ©叶子超

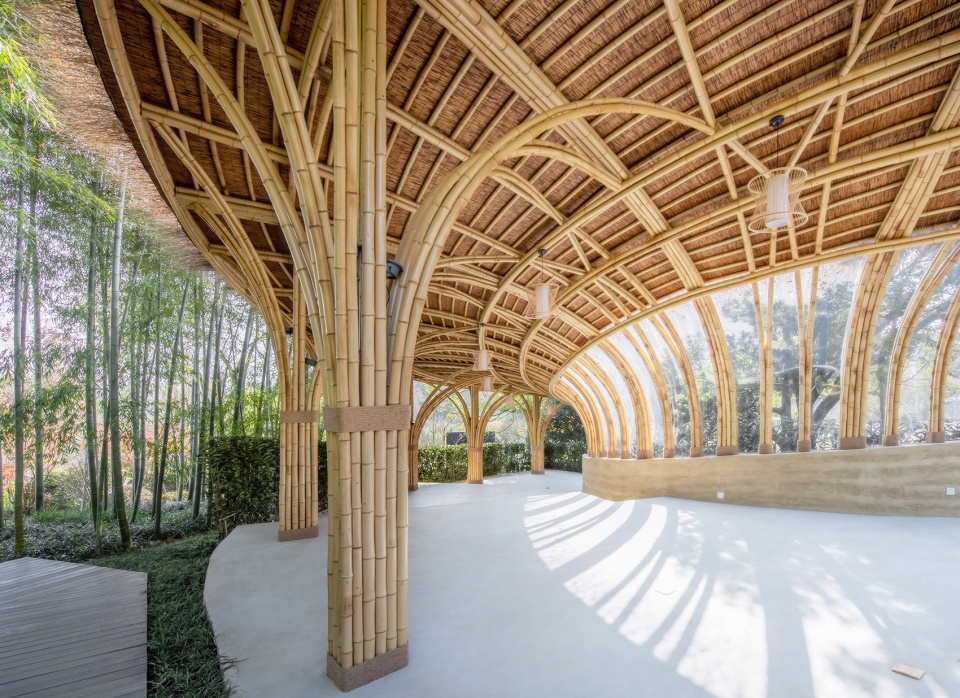

▼茶廊内部视角，竹屋架的南端由毛石矮墙固定，北侧为伞状束柱立于地基上，interior view, the south end of the bamboo roof truss is fixed by the rubble low wall, and the north side is the umbrella shaped beam column standing on the foundation ©叶子超

▼竹伞挑檐界定出浅浅的檐下空间，the bamboo umbrella cornice defines the shallow space under the cornice ©凌霄阳

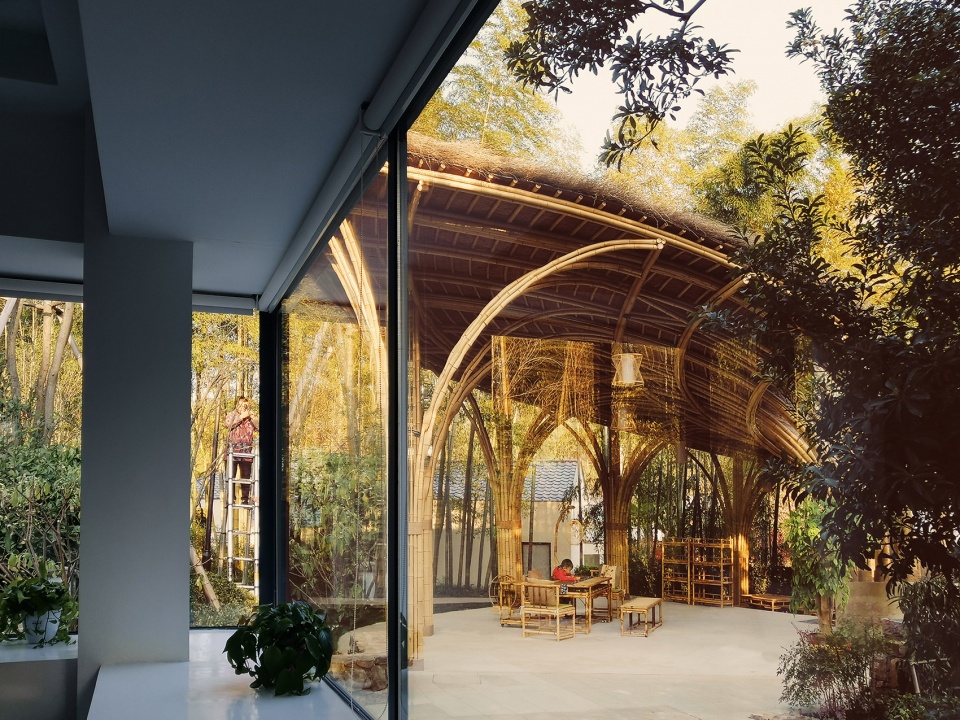

▼茶廊面向建筑打开，the tea lounge opens to the original building ©孙源

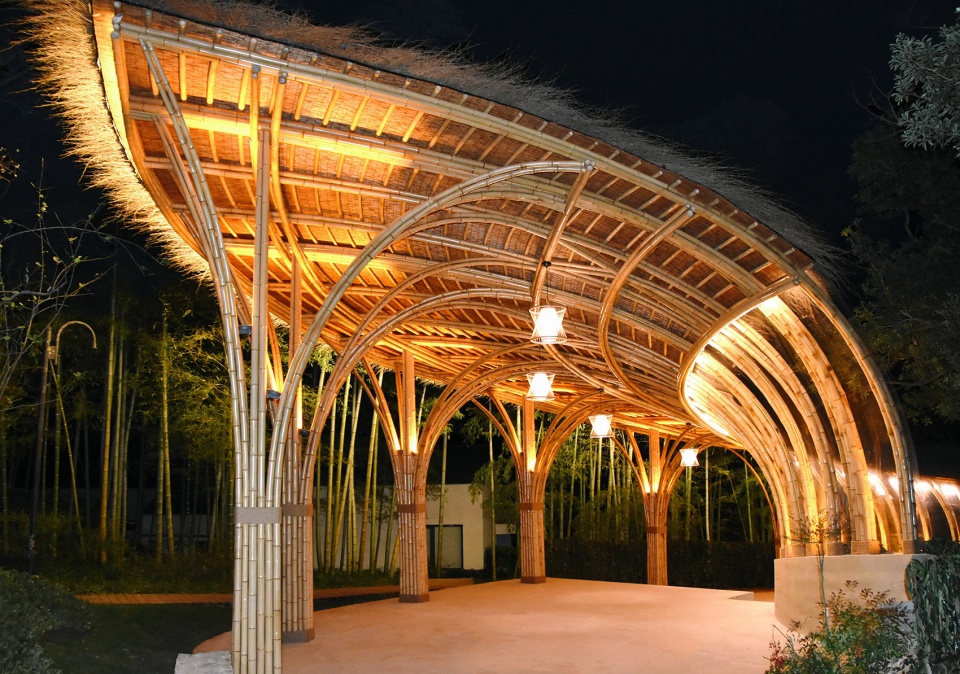

▼茶廊夜景，night view of the tea lounge ©孙源

项目名称：喫茶廊
设计方：浙江大学
项目设计&完成年份：2019.12.20
指导老师：李文驹、孙炜玮
小组成员：孙源、陈健胜、苏亮、叶子超、许筱婉、陈佳楣、周安宇、王小艺、朱义迪、陈方圆
占地面积：100平方米
摄影版权：浙江大学
合作方：浙江竹境文化旅游发展有限公司
客户：浙江绿郡恒业实业发展有限公司
材料：直径6厘米竹

More: Zhejiang University
