感谢 卓汉建筑事务所 予gooood分享以下内容。更多关于他们：JSPA Design on gooood.
Appreciation towards JSPA Design for providing the following description:

一个受限的场地
A constrained site

该项目位于太原市小店区，是一个标准商住楼裙楼的商铺翻修改造，将原有的三家店面合并改造为太原首家威士忌收藏级酒吧，酒吧主入口面向城市主干道晋阳街，同时也在酒吧后方暗藏一个隐蔽的通道可以通往商业步行街。

Located in Taiyuan Xiaodian district, the project consisted of the refurbishment of two floors of a commercial podium, part of a standard real-estate housing complex. The scope of the intervention extended on the area of three existing shops and aimed to unify them into a single Whisky and cocktail bar. The space, mainly facing Jinyang street also had a discreet access from the back to pedestrian commercial street.

▼项目概览，overview © 言隅-刘星昊

由于商铺与高层住宅连成一体，空间受到了建筑结构上的严重限制，承重墙将空间切割成小的单元，各种管道和管井也从不同方位穿过空间。

Due to the presence of the apartment building on the top, the space was heavily constrained by the structure which loadbearing walls was slicing up the space into small entities but also by various pipes and shafts crossing the space from side to side.

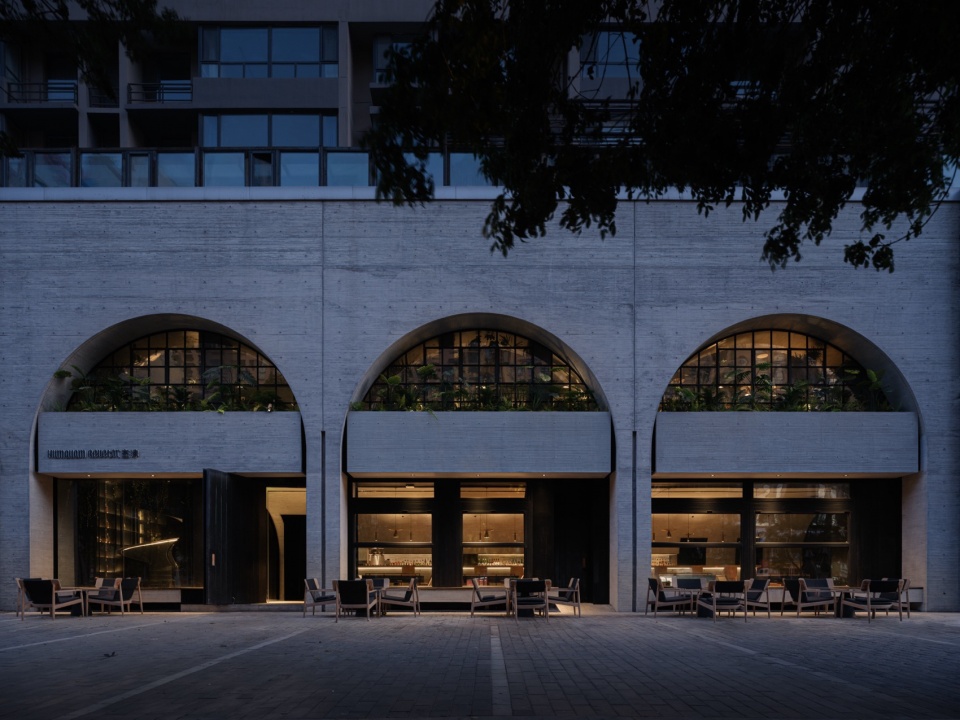

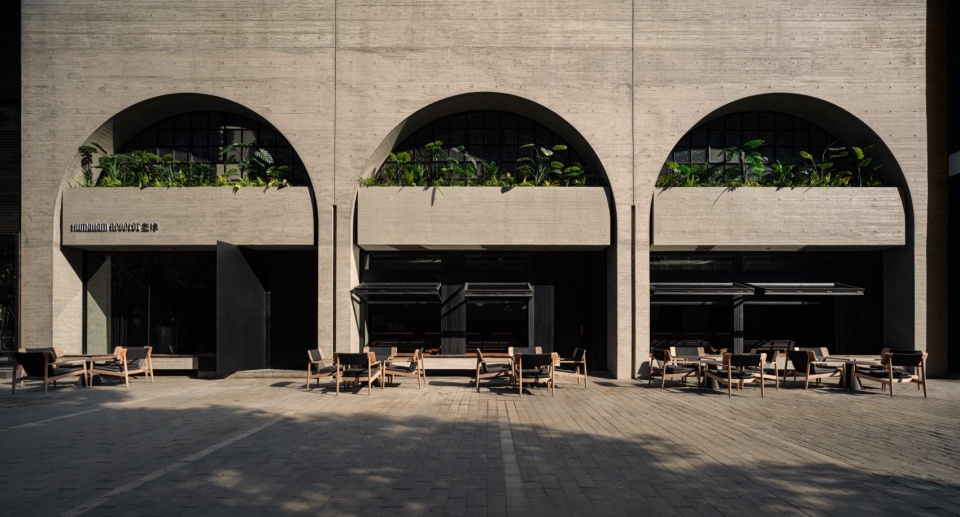

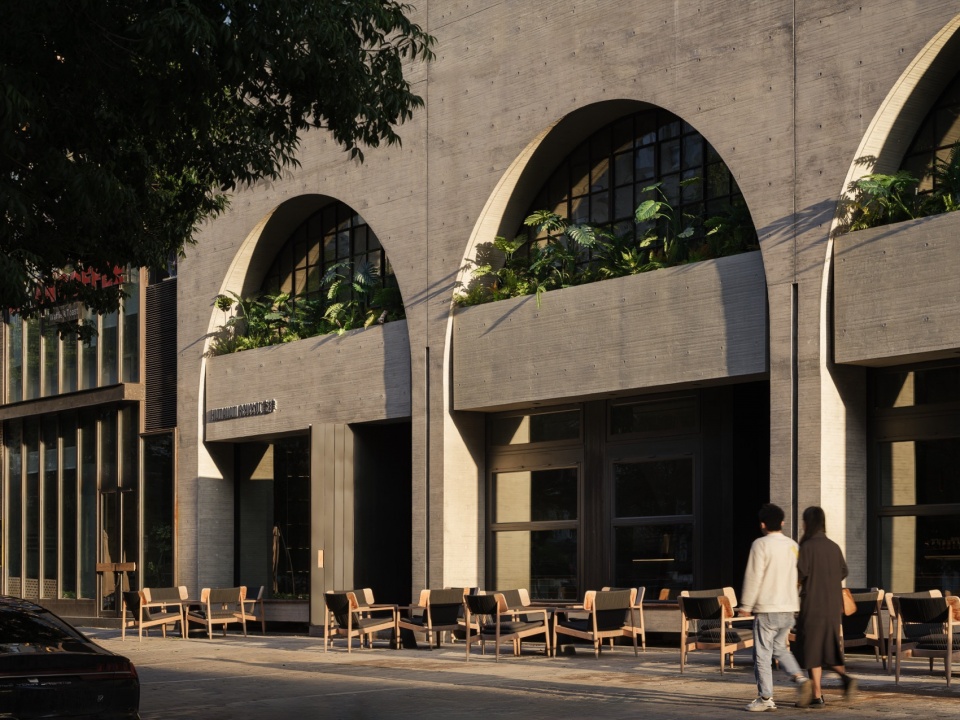

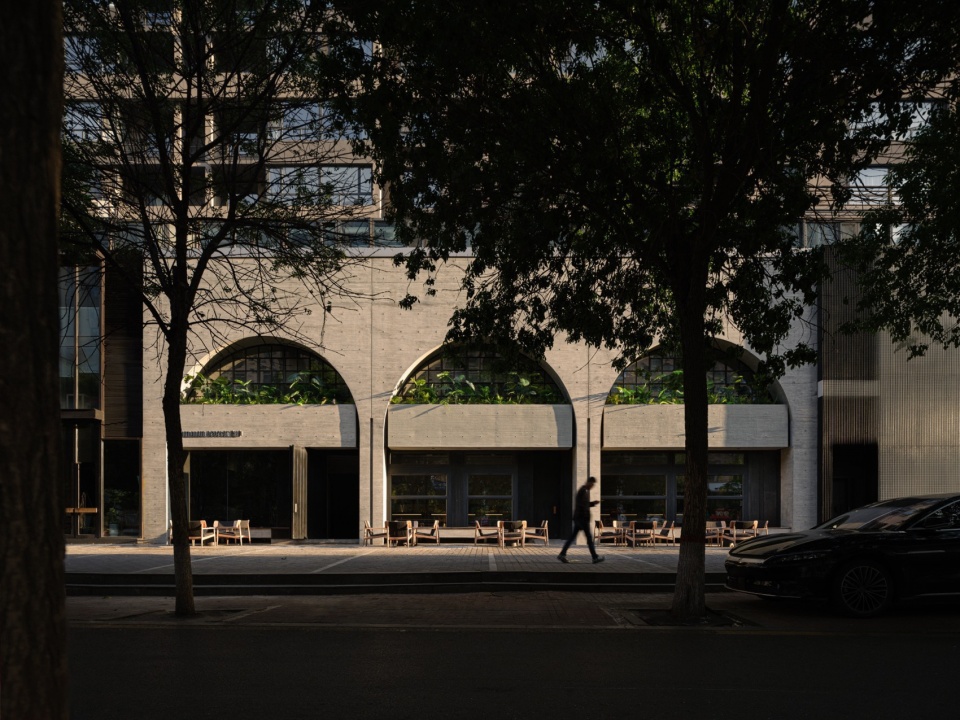

▼外立面及入口，Facade and entrance © 言隅-刘星昊

赋予外墙一个全新的材料
A new material for the facade

商铺的现状及周边环境的无序，使外立面对于让新项目以怎样的形式存在于城市景观之中显得尤为重要。我们选择了拆除所有现有的外墙饰面，重建一个与商业通常使用的轻型装饰面完全不同的外墙形式：设计一个现浇混凝土的外墙。通过混凝土本身浑厚的物质性来体现其在环境中的存在，使我们能够创造一个完全整体的外立面，为城市景观带来新质感的同时，也为现有的建筑提供一个持久的覆层。
外立面采用三个巨大的混凝土拱形结构，延伸覆盖建筑物的两层经营空间，宣示了项目的身份，并在其环境背景中吸引人们的注意力。混凝土拱门结构随后被重复使用，并以不同方式展现，成为构成本项目特征的专有图形。

Facing the heterogeneity of the existing situation and surroundings, the work on the façade was essential to allow the new project to exist in the cityscape. We choose to remove all existing facade claddings and to recreate a new facade that would oppose the usual light cladding of commercial facades. We worked on a cast-in-place concrete facade that will assert its presence in the context by its materiality. The concrete as a material allowed us to create a monolithic facade that brings a new texture in the city and also provides a long-lasting cover for the existing building.
The main facade of the building was composed with three concrete arches extending on the two floors of the building, asserting the project’s identity and catching attention within its context. The Concrete Arch was then repeated and transformed in various ways to become a figure that would constitute the identity of the project.

▼巨大的混凝土拱形结构，three concrete arches © 言隅-刘星昊

开放式酒吧
Open bar

项目开发的目的是为城市创造一个酒吧，一个向周围环境友好开放的聚会场所。为了突出酒吧与街道的朝向关系，一层的主要活动区域由一个巨大的混凝土弧形天花板覆盖，采用就地浇筑的悬挂形式，同时可从有限的建筑结构中分离和遮挡后方服务空间及所有设备机器和管道。

The project development aimed at the creation of a bar for the city, a gathering place opened to its surroundings. To emphasis the orientation of the space towards the street, the bar area was covered with a concrete arch ceiling, a curved suspended slab, cast in place, that also allowed to dissimulate the service spaces in the back and all the machinery and pipes from the existing building.

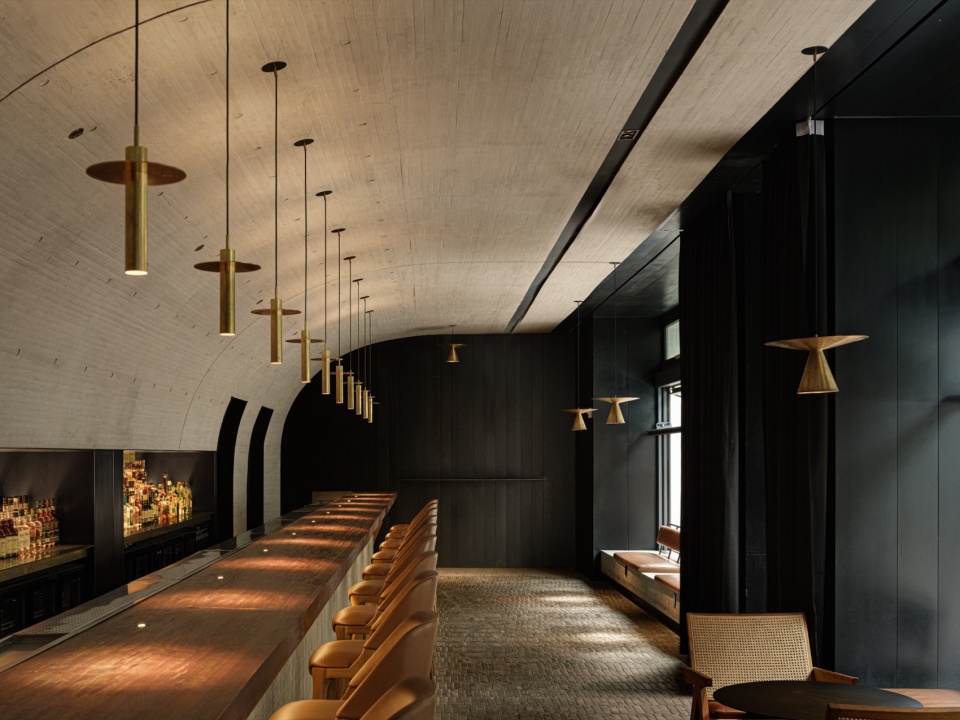

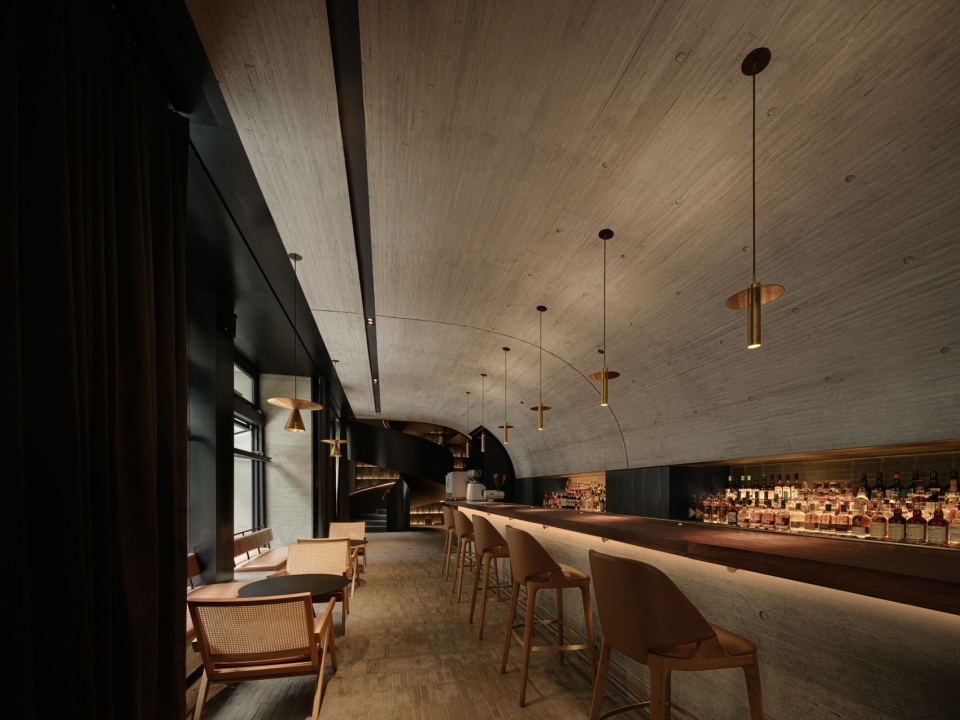

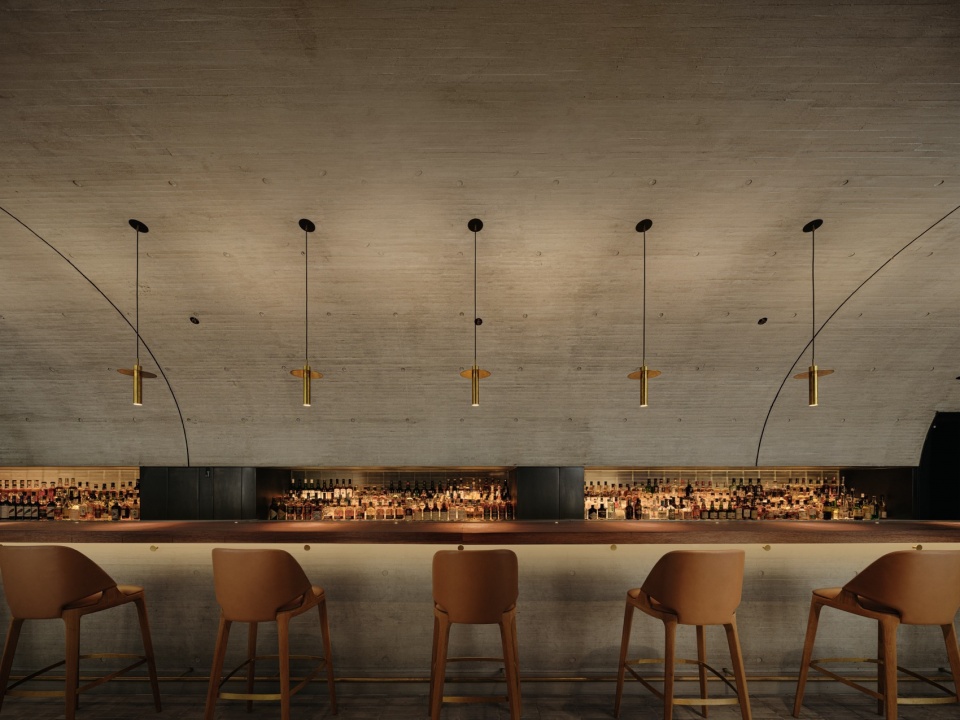

▼混凝土弧形天花板覆盖的吧台，concrete-covered bar © 言隅-刘星昊

为了在项目和城市之间建立起强有力的对话，酒吧的首层设计了超长的混凝土坐椅，可以在室内外两侧使用，并通过上折叠窗消除酒吧与街道的物理障碍。

Focusing on a strong dialogue between the project and the city, the ground floor of the bar was conceived with a long concrete bench along the facade usable on both sides and a set of folding windows that would allow to remove physical barriers with the street.

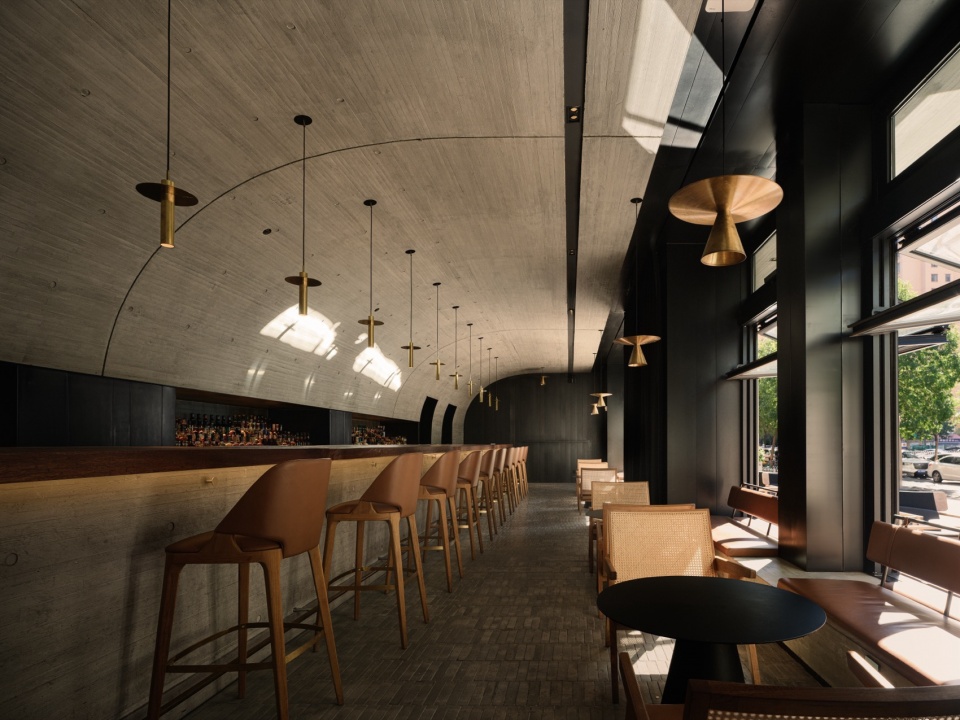

▼一层概览，ground floor overview © 言隅-刘星昊

亲密关系的渐变
Intimacy gradation

离开热闹的一楼和它的城市氛围，通过一个艺术雕塑般的螺旋形钢制楼梯走向二楼，在这里展开为一个更亲密的空间氛围。为本项目特制开发的钢架展示系统，不仅创造了空间不同单元之间的微妙分隔，同时也为品类繁多的威士忌提供充分的展示空间。

Leaving the bustling first floor with its urban atmosphere, a sculptural helicoidal steel staircase leads to the second floor where the project developed into a more intimate ambiance. A system of steel shelves was developed to create subtle separations between spaces and generate intimate alcoves while offering a showcase space for whisky bottles.

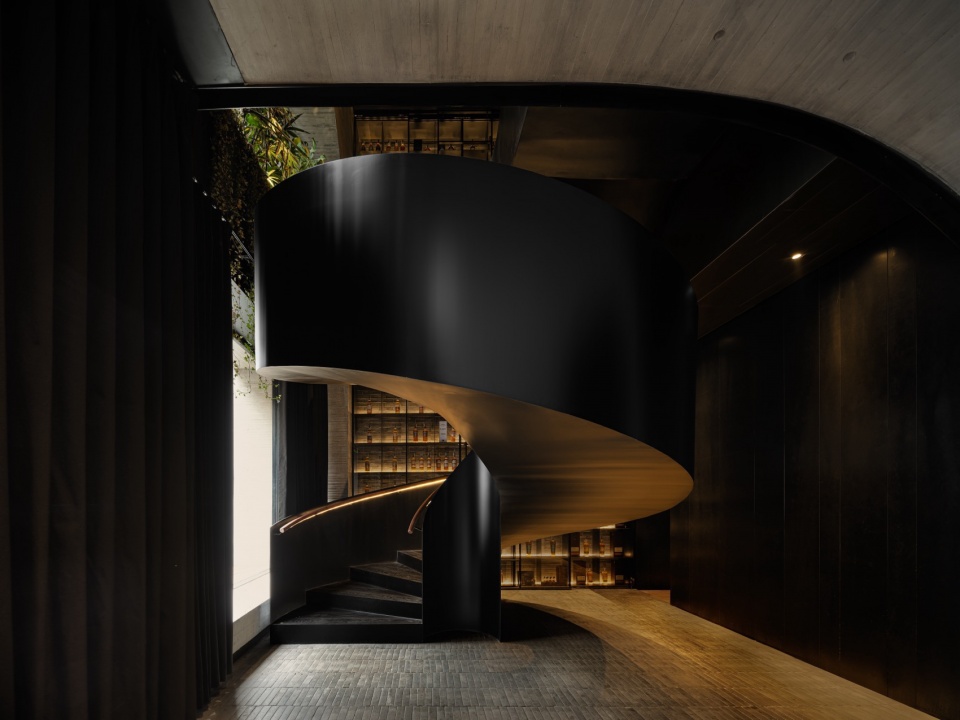

▼雕塑效果螺旋楼梯，Helicoidal Stair with Sculptural Effect © 言隅-刘星昊

酒架由一个相同元素的模块无限重复制成，创造出一个有趣的构成模式，成为本项目第二个强有力的识别元素。

Made from the boundless repetition of a single identical element, the showcase shelf created an interesting pattern that became the second strong identity element of the project.

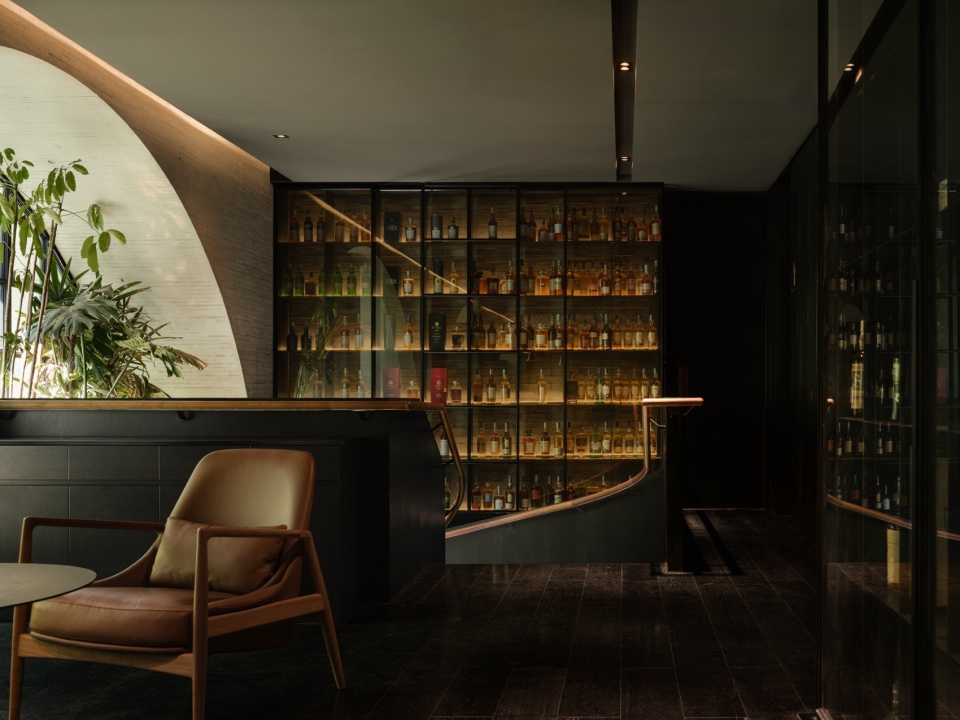

▼威士忌酒架及二层楼梯通道，Whisky Cabinet and 2F Stair Access © 言隅-刘星昊

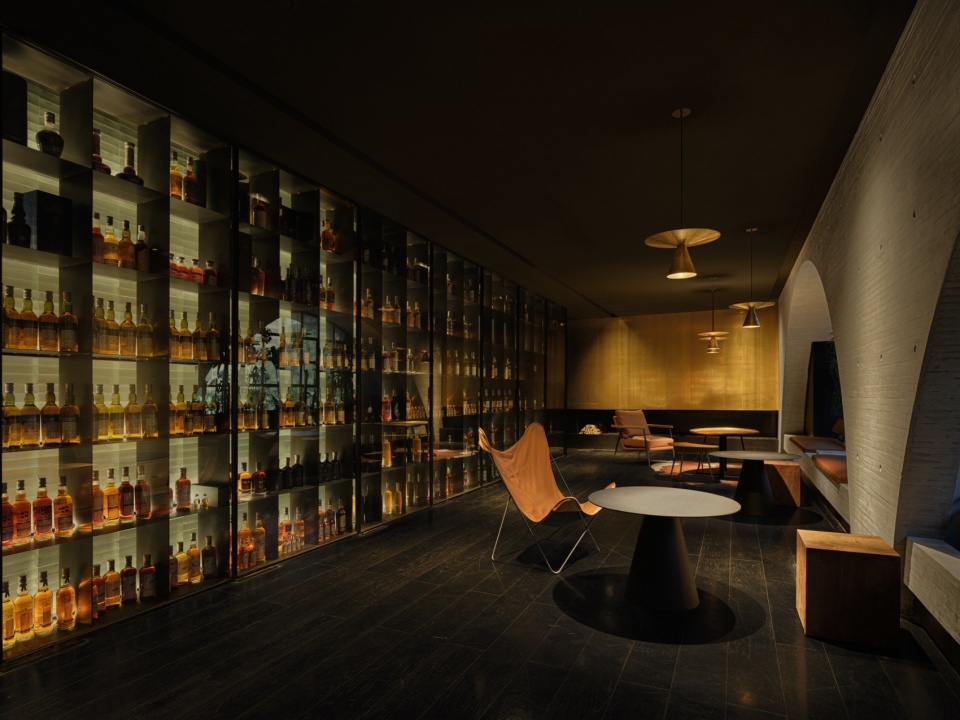

▼威士忌酒架及壁炉，Whisky Cabinet and Fireplace © 言隅-刘星昊

为了突出舒适紧凑的包容感，其中三个独立的空间从墙壁到天花均被混凝土的拱形结构覆盖，同时浇筑了混凝土的长椅并预埋真火壁炉。

To accentuate the alcove feeling, three of the independent spaces were covered by a concrete arch wrapping the space from wall to ceiling and allowing the cast-in design of benches and fireplaces.

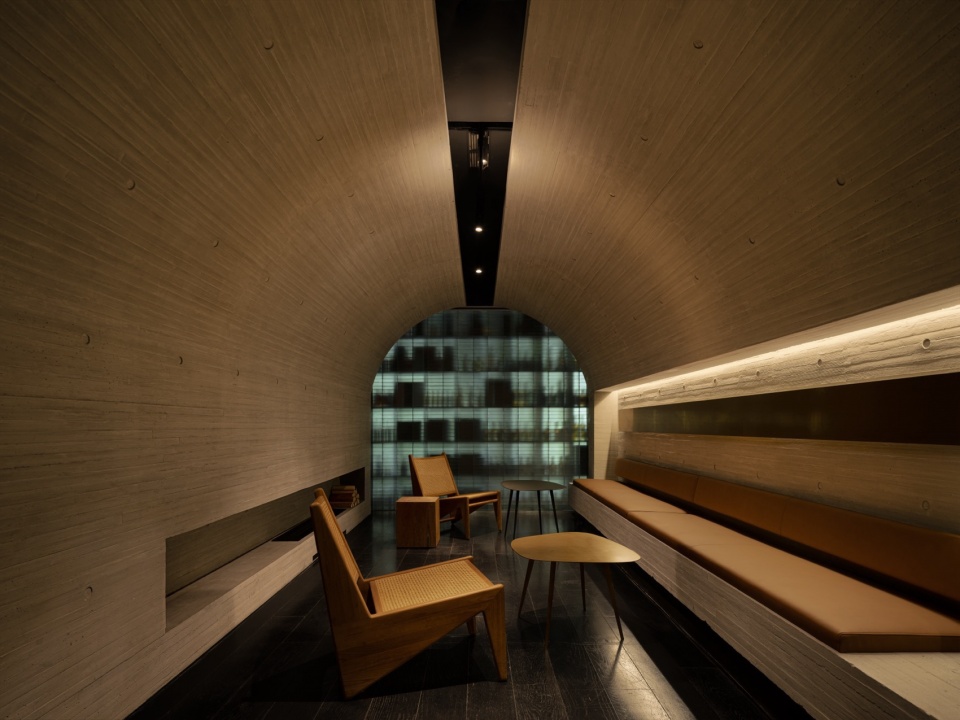

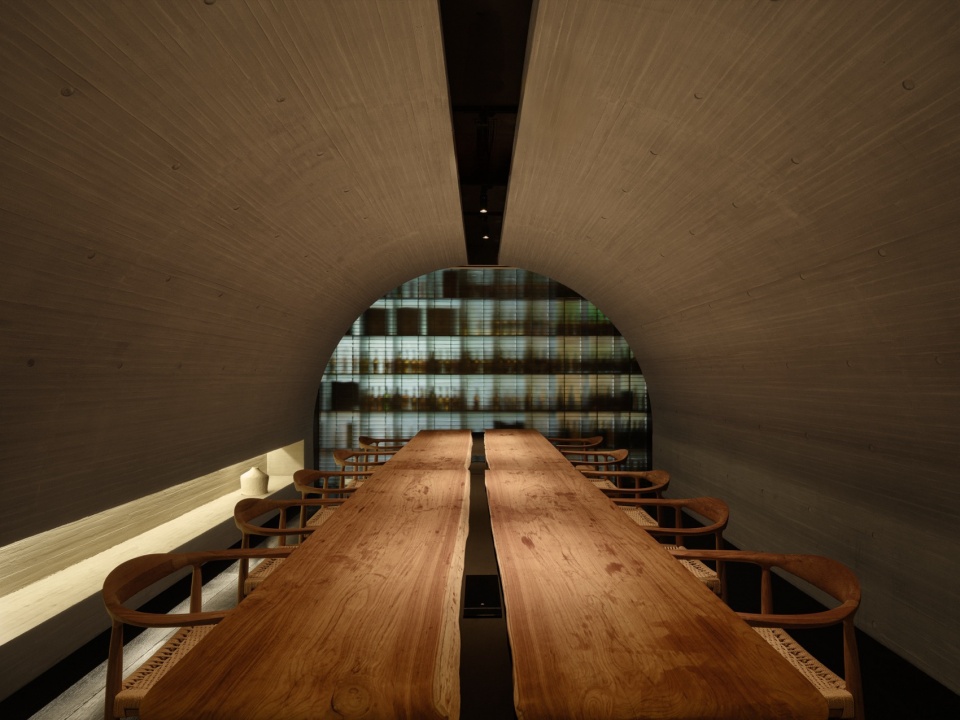

▼二层雅座区，2F Lounge © 言隅-刘星昊

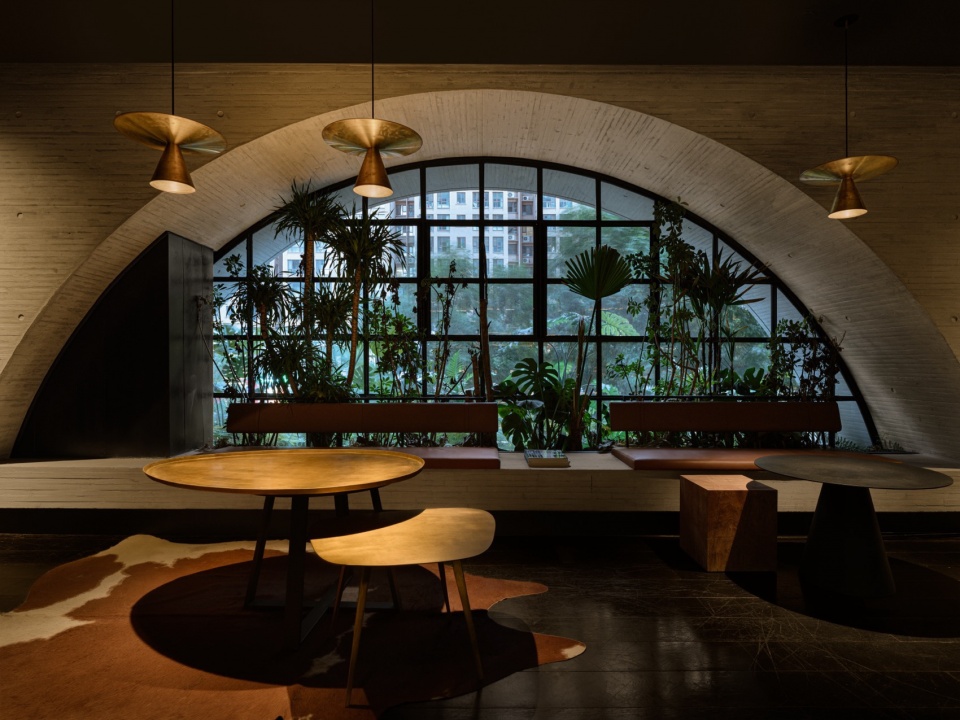

▼二层公共空间，2F Public Area © 言隅-刘星昊

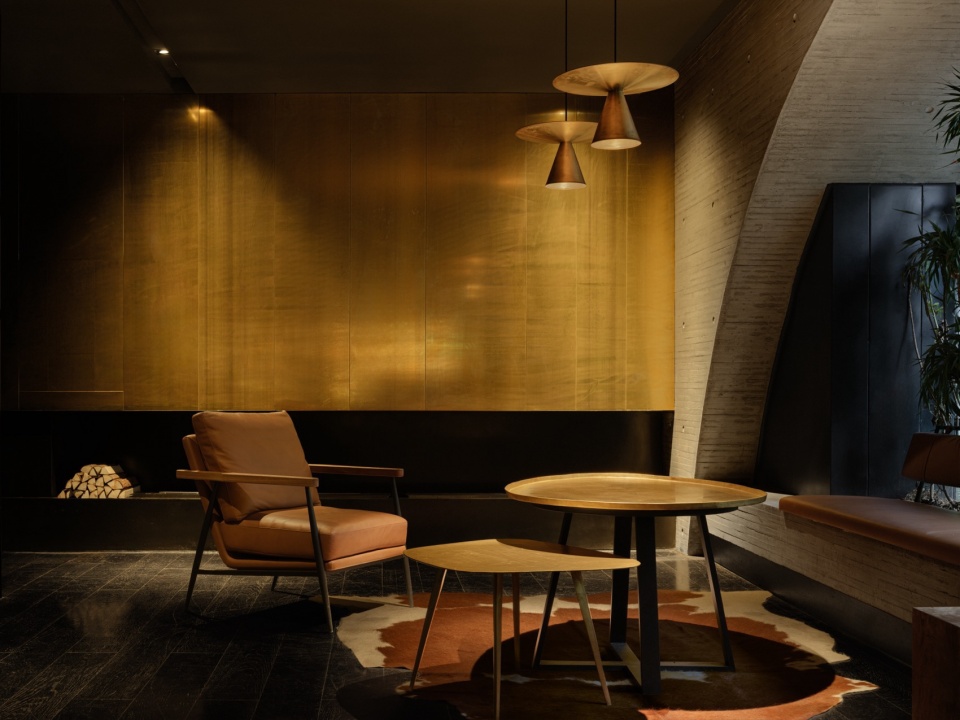

▼黄铜壁炉，Yellow Brass Fireplace © 言隅-刘星昊

原始的物质性
Original materiality

混凝土的选择是自然而然的，它是一种恒久的材料，随时间的流逝而变得愈加优雅。在一楼，混凝土与灰色的青砖地面结合在一起，砖的色调和纹理与墙壁天花的木纹混凝土相互呼应匹配。青砖也使我们联想和感受到更多的公共空间氛围感，缩小了酒吧和城市之间的距离。与强硬的混凝土相反，我们在所有需要与皮肤接触到的区域均使用了温暖柔和的材料来制作，例如在吧台的接触面使用了橡木实木，用柔软的皮革包裹混凝土长椅的坐区等，希望人们在空间里能体验到更多的愉悦与亲切。

The choice of the concrete came naturally from the idea of a long-lasting material that would age gracefully. On the first floor it was combined with a gray brick flooring which the tint and pattern would match with the wooden cast concrete of walls and ceiling. The brick floor also reminds us of public space and narrows distance between the bar and the city. On the contrary all the elements requiring skin contact where made of warm materials: the bar surface made of oakwood, the bench seats covered with leather etc. to improving users’ sensorial experience.

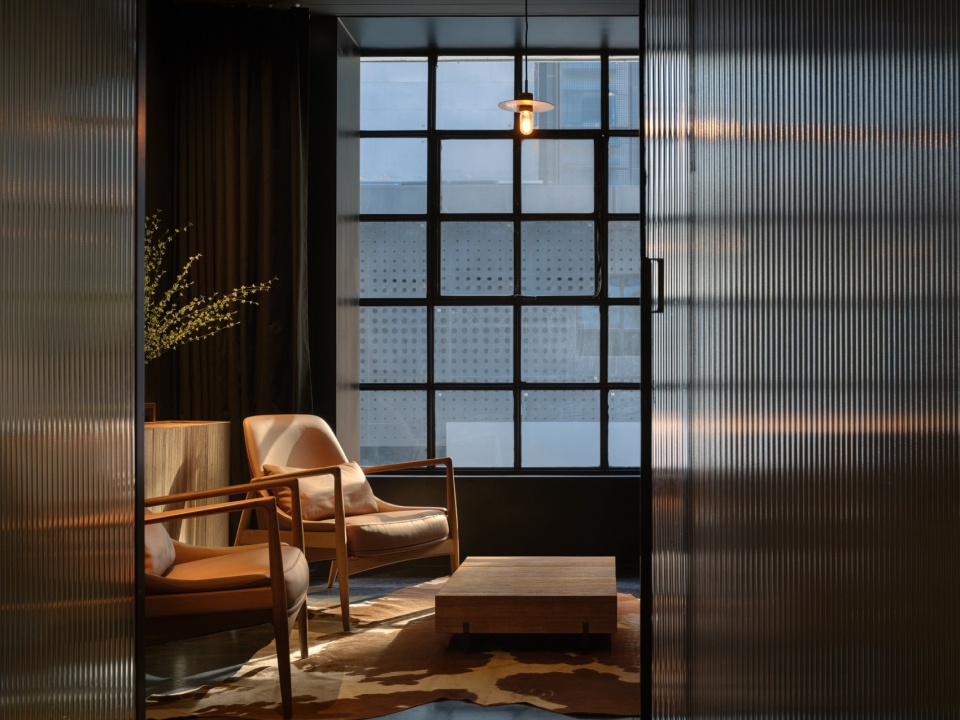

▼二层私人包厢，2F Private Room © 言隅-刘星昊

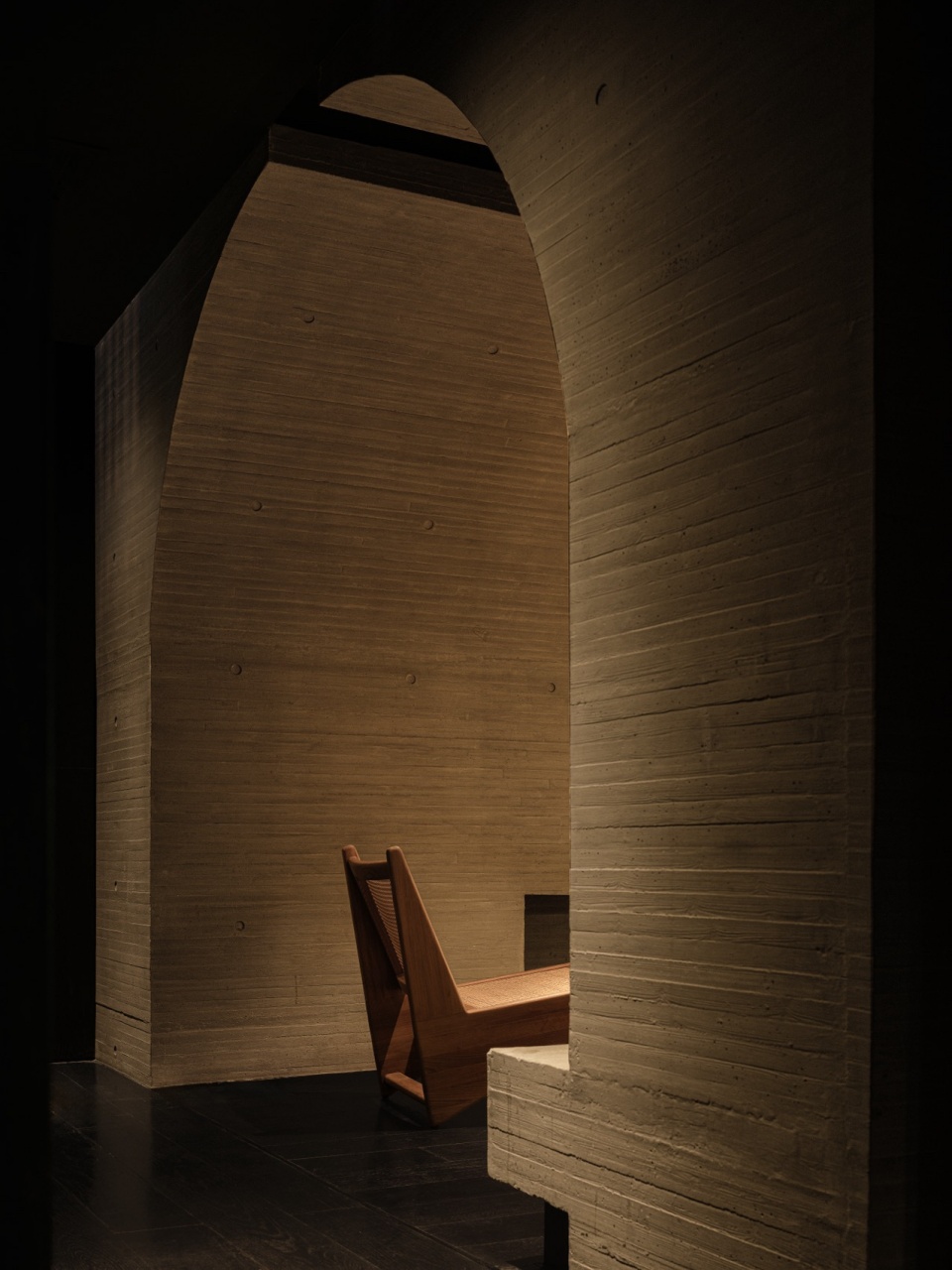

▼雅座区入口，Lounge Entrance © 言隅-刘星昊

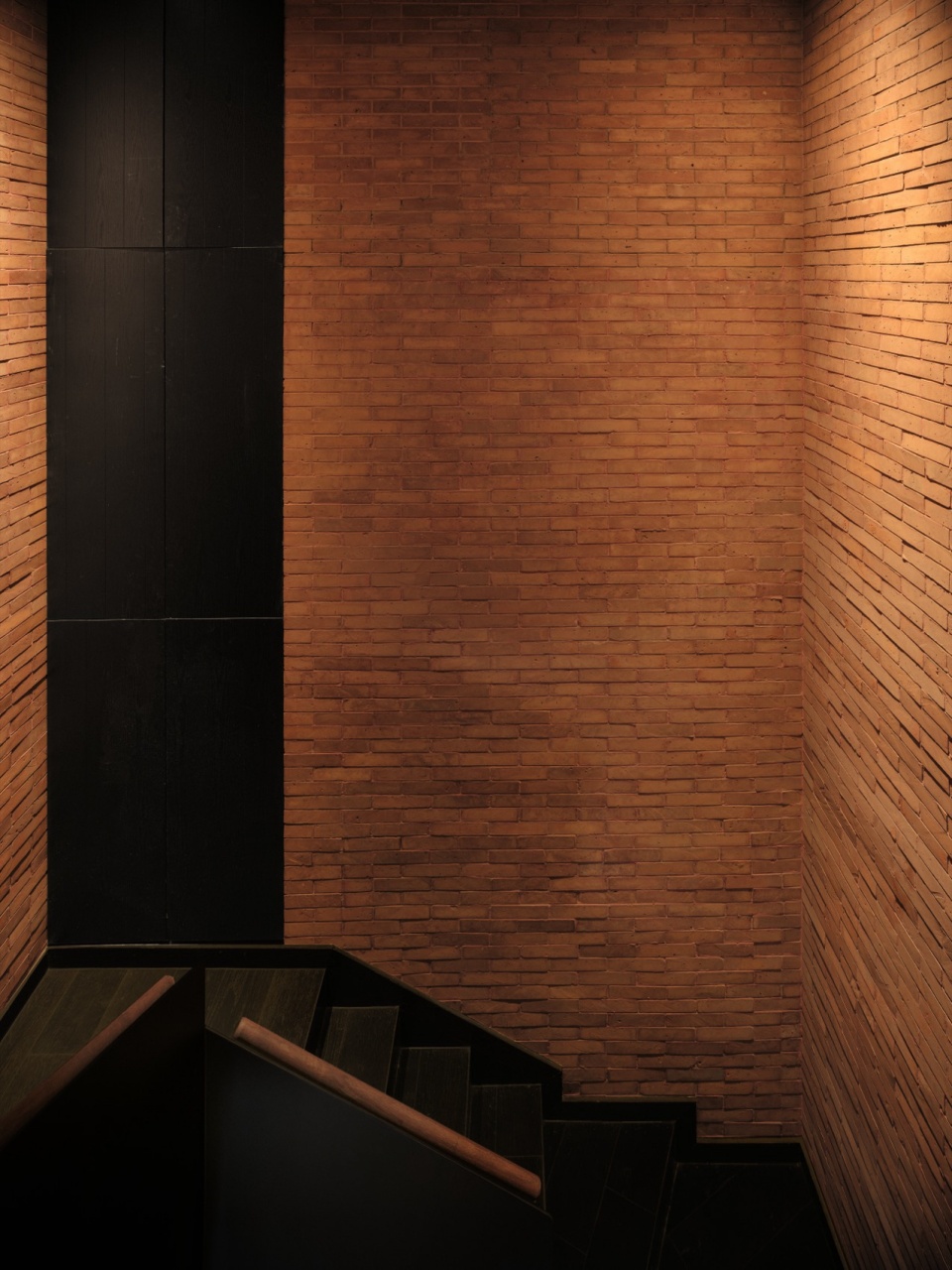

▼红砖楼梯间，Brick Staircase © 言隅-刘星昊

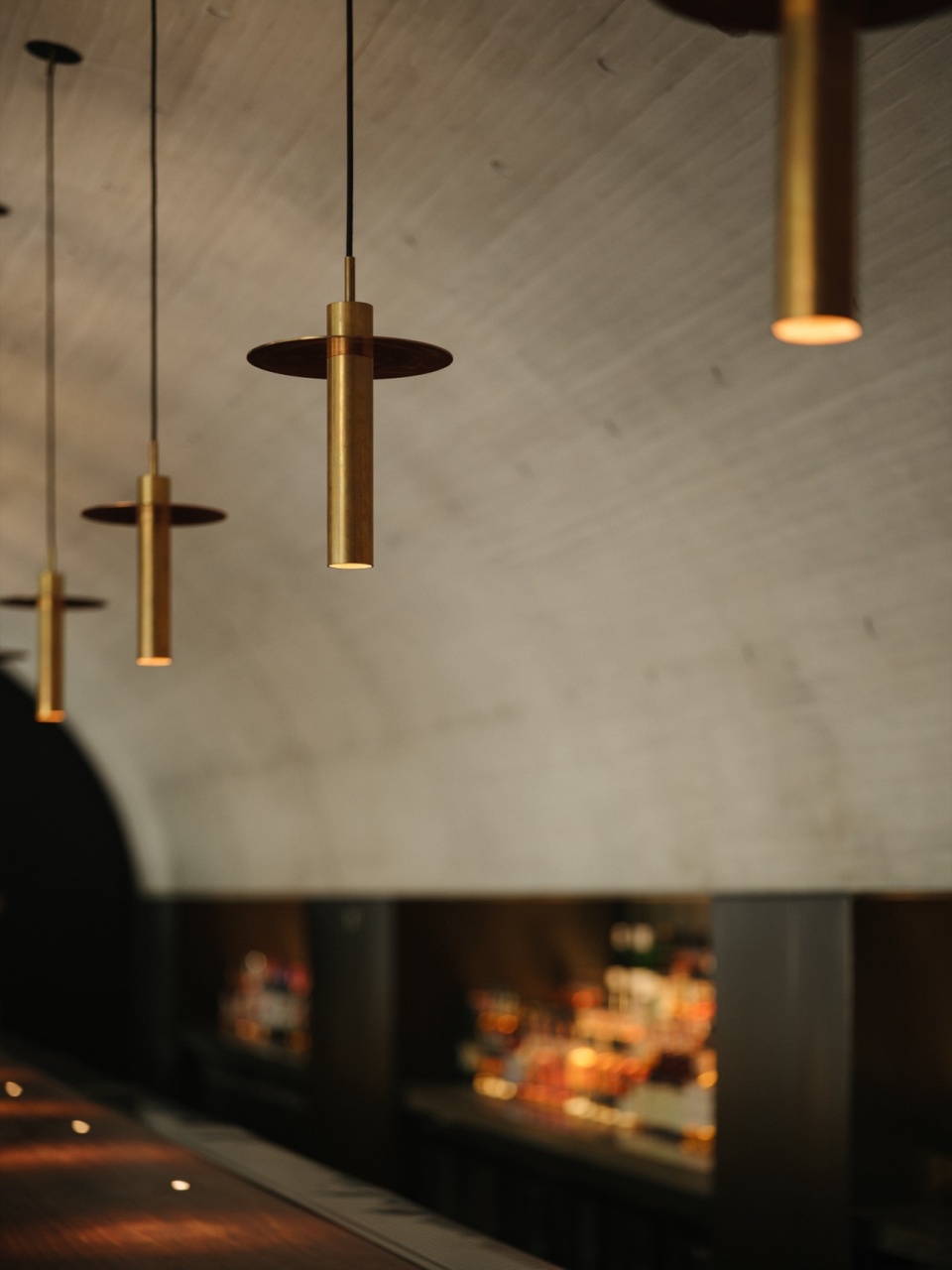

▼经典黄铜灯具，Timeless Brass Lighting © 言隅-刘星昊

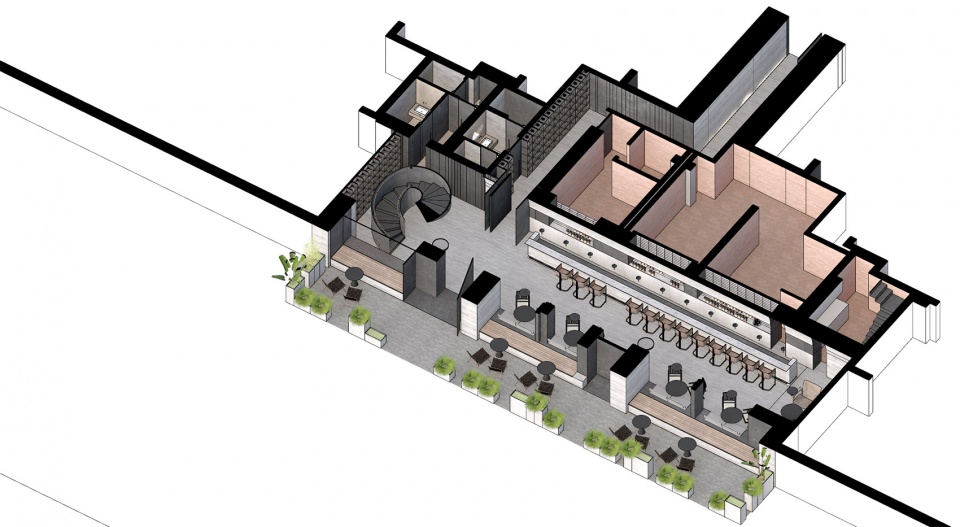

▼一层轴测，1F axon © JSPA Design

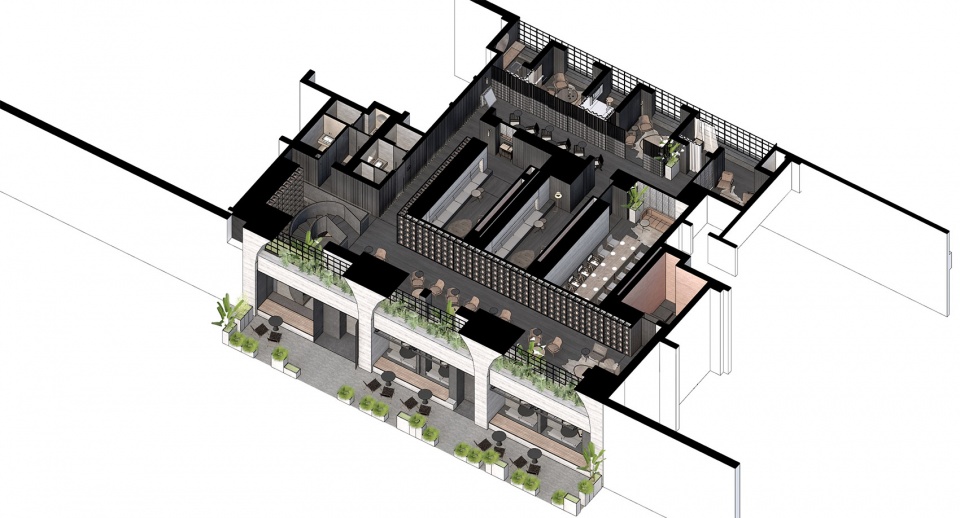

▼二层轴测，2F axon © JSPA Design

▼三层轴测，3F axon © JSPA Design

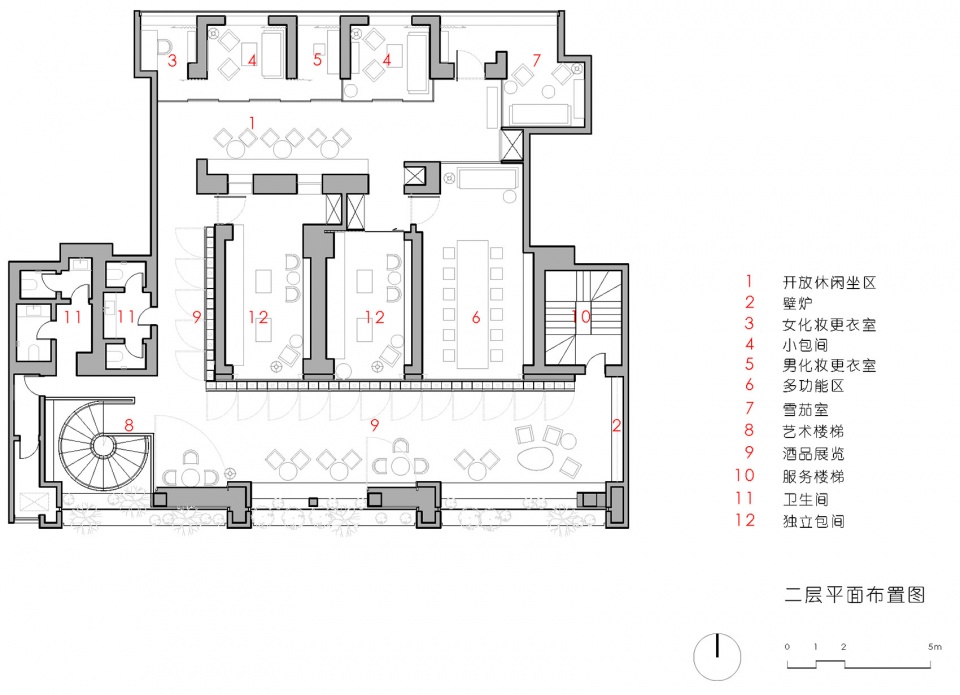

▼二层平面图，2F plan © JSPA Design

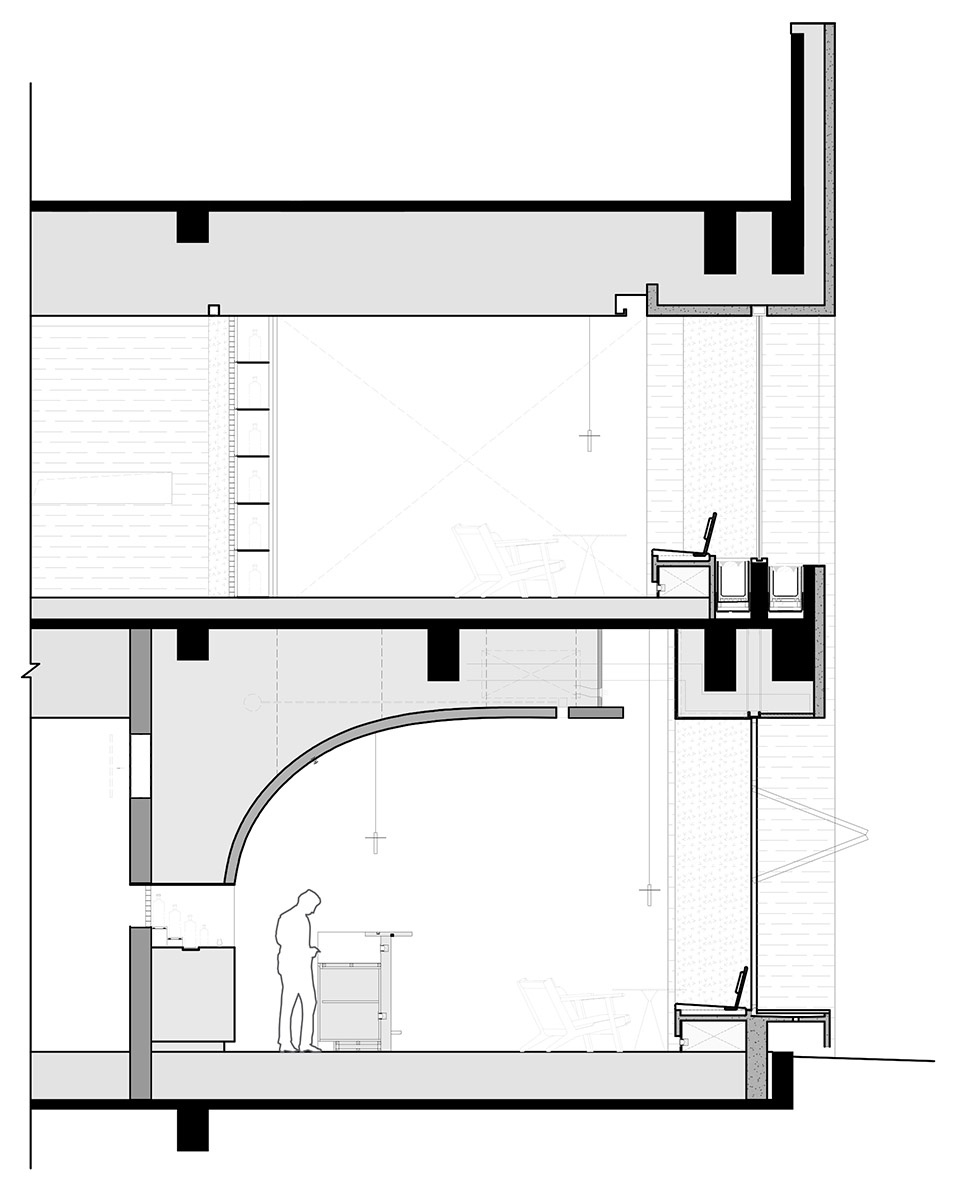

▼剖图，section © JSPA Design

项目名称：威士忌酒吧——太原壶津威士忌酒吧
项目地点：中国，山西省，太原市
项目类型：建筑（外立面）设计/ 室内设计
设计团队：JSPA Design卓汉建筑设计
主持设计师 : Johan Sarvan
结构：蒋杰团队
摄影：言隅-刘星昊
视频制作：WM Studio
总面积：664 ㎡
一层室内面积：295 ㎡
二层室内面积：369 ㎡
材料商：SARVAN-家具、照明

Project Name: The Whisky Bar ——Taiyuan NUMQUAM REVETOR Whisky Bar
Location: Taiyuan City, Shanxi Province, China
Project type: Architectural（Façade）Design / Interior Design
Design Team：JSPA Design
Principle Designer: Johan Sarvan
Structure：Jiang Jie’s Team
Photographer：Liu Xinghao
Videographer：WM Studio
Total area：664 ㎡
1F Indoor area：295 ㎡
2F Indoor area：369 ㎡
Materials brand：SARVAN- Furniture, Lighting

More: 卓汉建筑事务所 更多关于他们：JSPA Design on gooood
