非常感谢a-Lab将项目介绍和项目图片授权gooood发行。更多请至：a-Lab on gooood
Appreciation towards a-Lab for providing the following description:

a-Lab在2008年赢得的挪威国家石油公司地区与国际总部大厦在经过20个月的建设后，已经竣工，这栋大楼将在未来为2500名人提供办公场所。场地在一个占地5公顷的公园内，立足于以前老机场的多层停车场之上。新建筑力求做到最少对公园景色的破坏，创建一个灵活有趣的工作场所，引入周边的美景，增设艺术品展示和公共中庭。

After 20 months of construction, the Statoil regional and international offices at Fornebu outside Oslo, Norway is now complete. A-lab received the commission after winning first prize in an open competition in 2008. Statoil is a Norwegian energy producer, the 57th largest company in the world by revenue, with about 30 000 employees in 37 countries. From October 15th, 2500 of these employees will work in the new building – including Statoil’s international department.

建筑由5个类似的办公模块组成，这些模块每个高三层，长140米，宽23米，他们彼此交错堆叠，形成中庭和各种灰空间。因为建设周期十分短暂，因此上面部分的建筑钢混结构，外墙和表皮是在场外预置建成，后在现场极快且准确的安装。上层建筑模块的悬挑多达30米，因此启用了北欧最大的移动式起重机进行钢衍架的组装。

这个开放的，灵活的标准式预置建筑成功的战胜了建设时间的挑战，满足了各种不同的办公和合作方式。通过多种方法节能，使得能源减少损耗85%。优雅的白色预置外表皮是铝涂层，为了减少声音混响时间，面朝中庭的表面用的是穿孔板。办公室长模块的端头面为黑色，是由黑色和灰色的夹片玻璃组成的黑色遮阳格栅造型。从不同的方向看，通透感也完全不一样。

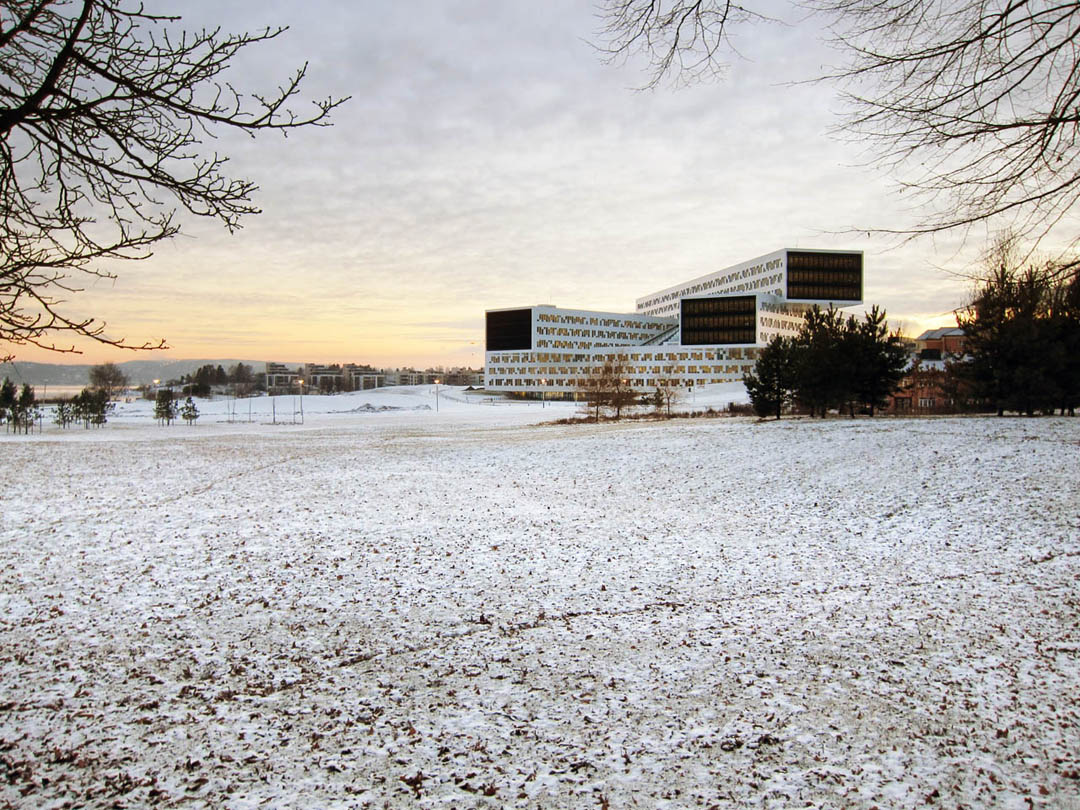

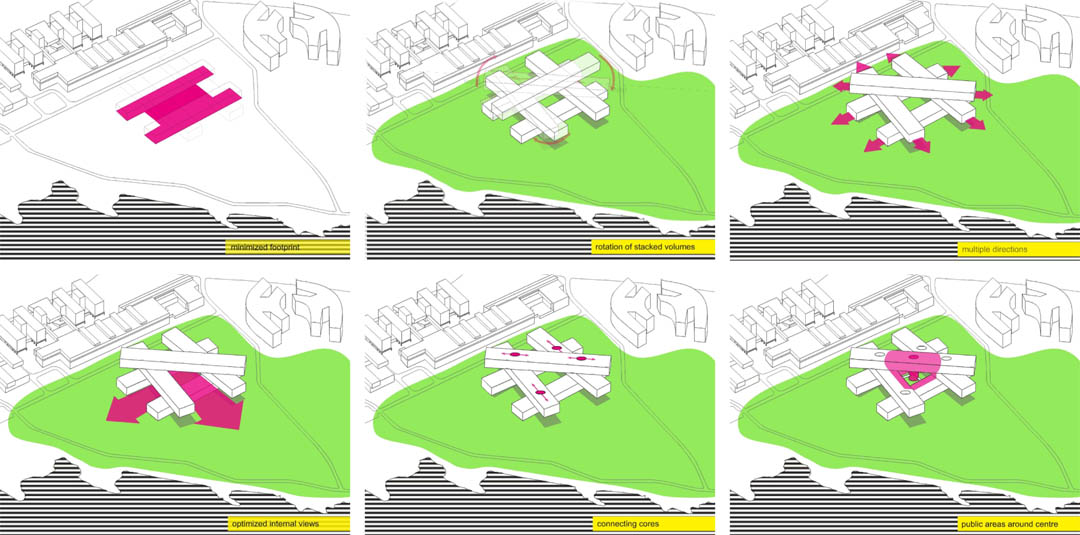

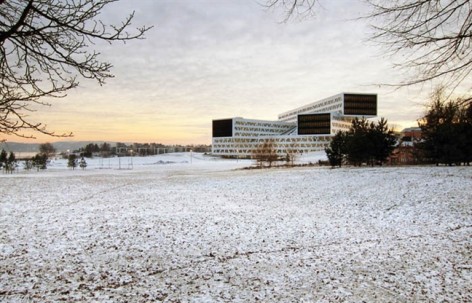

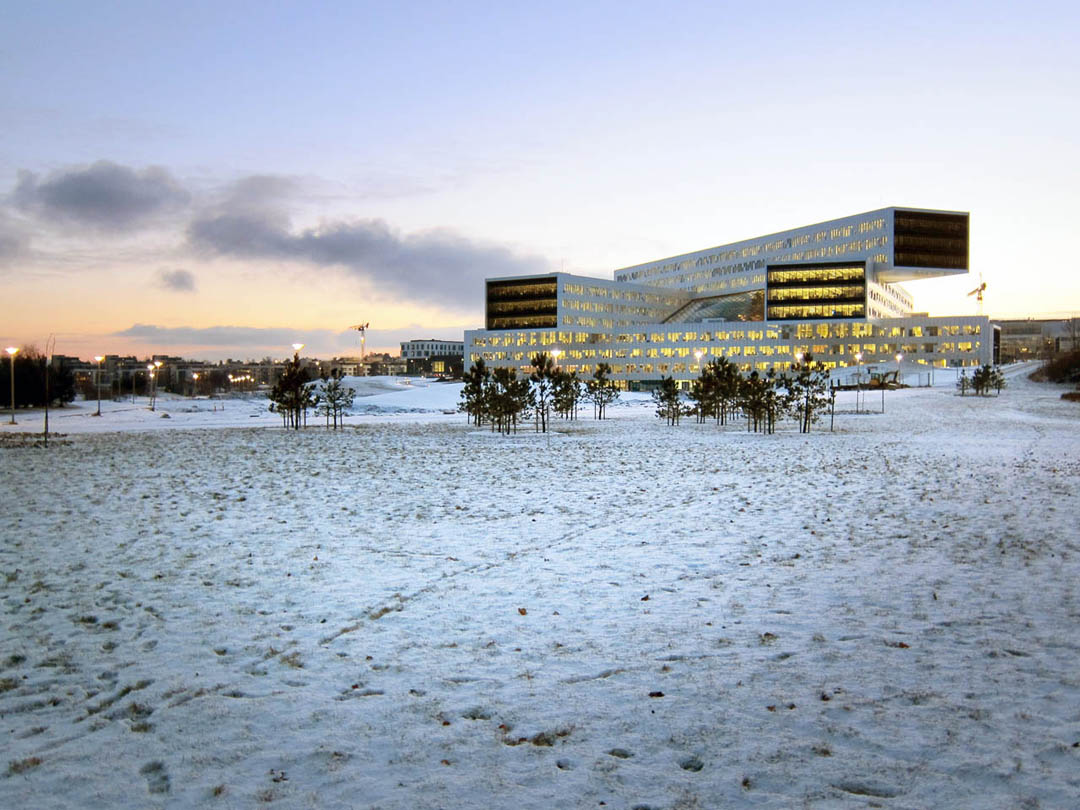

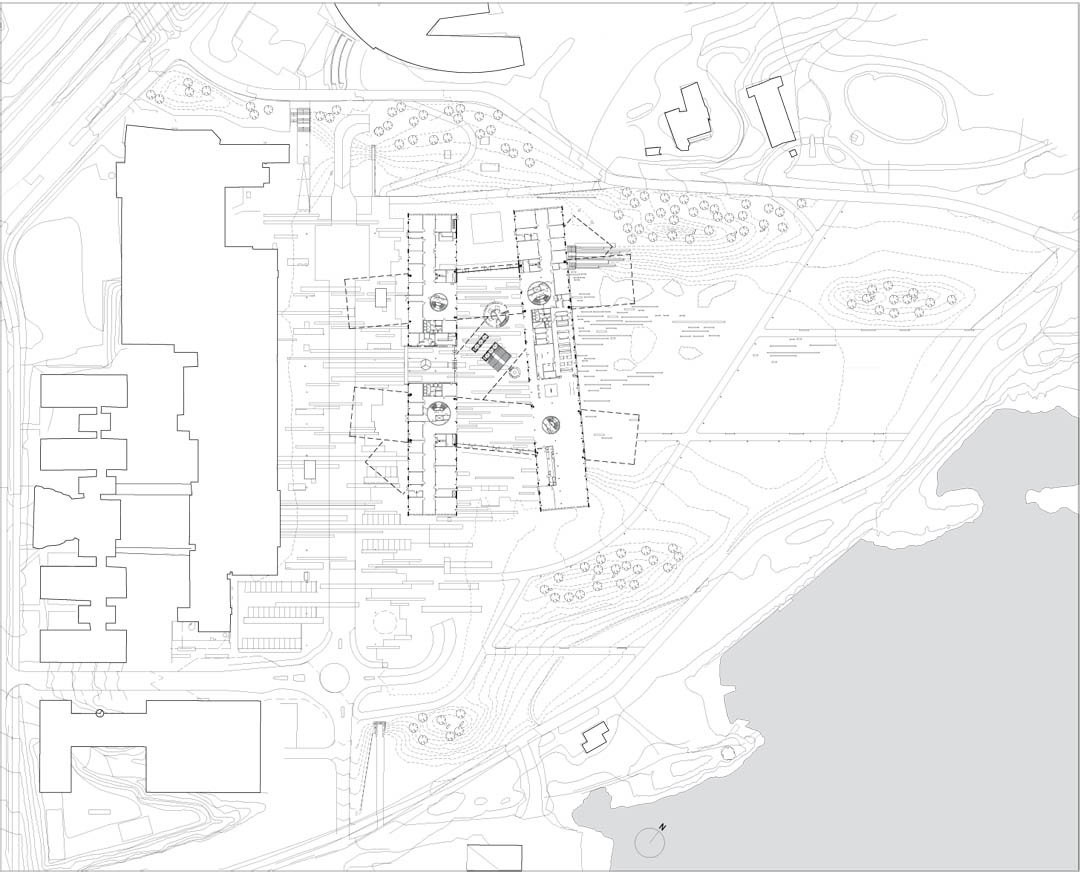

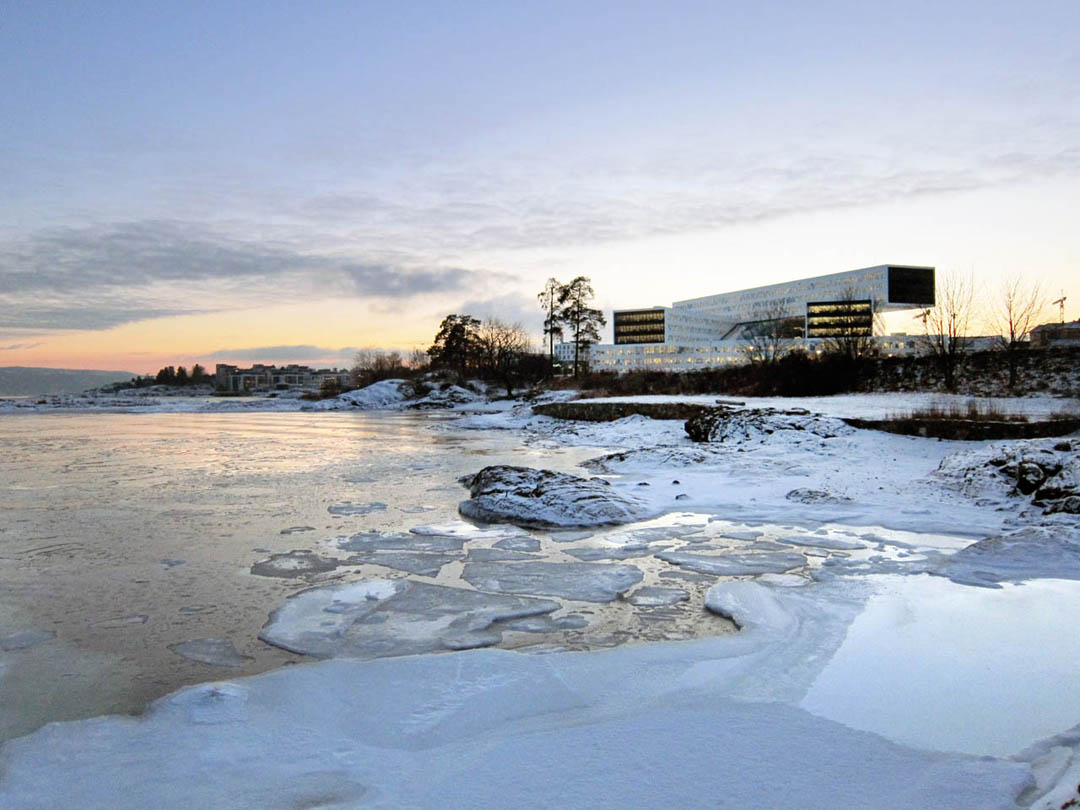

The new office building stands on the site of the old airport’s multi-storey car park, most of the site being given over to the development of a new 5 hectare public park. One of the main goals of the Mikado inspired design has been to minimize the footprint of the building in the park, whilst creating a flexible and stimulating workspace- offering views over the fjord from most parts of the building and a spectacular view of the park, artworks and the fjord from the communal atrium space..

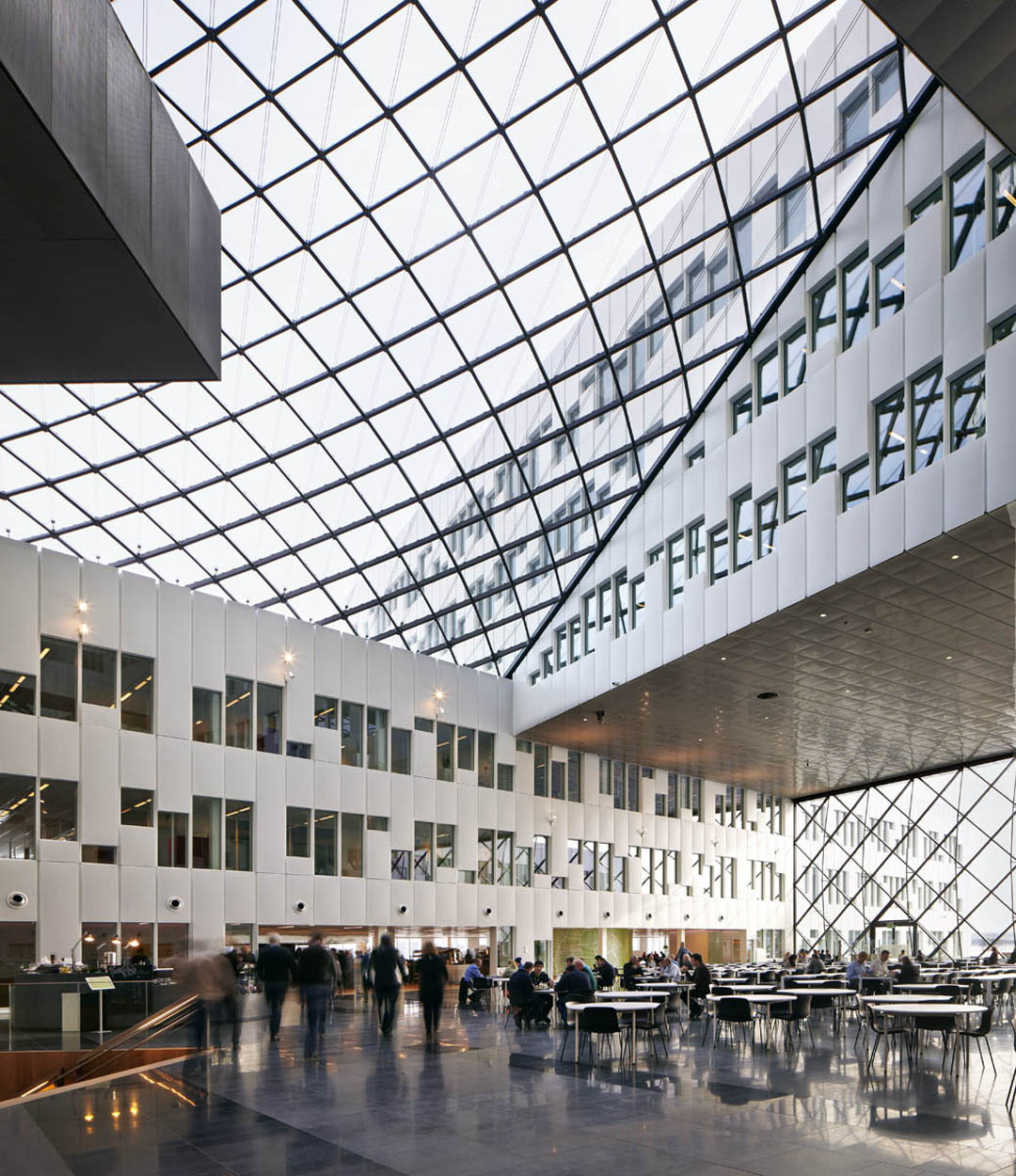

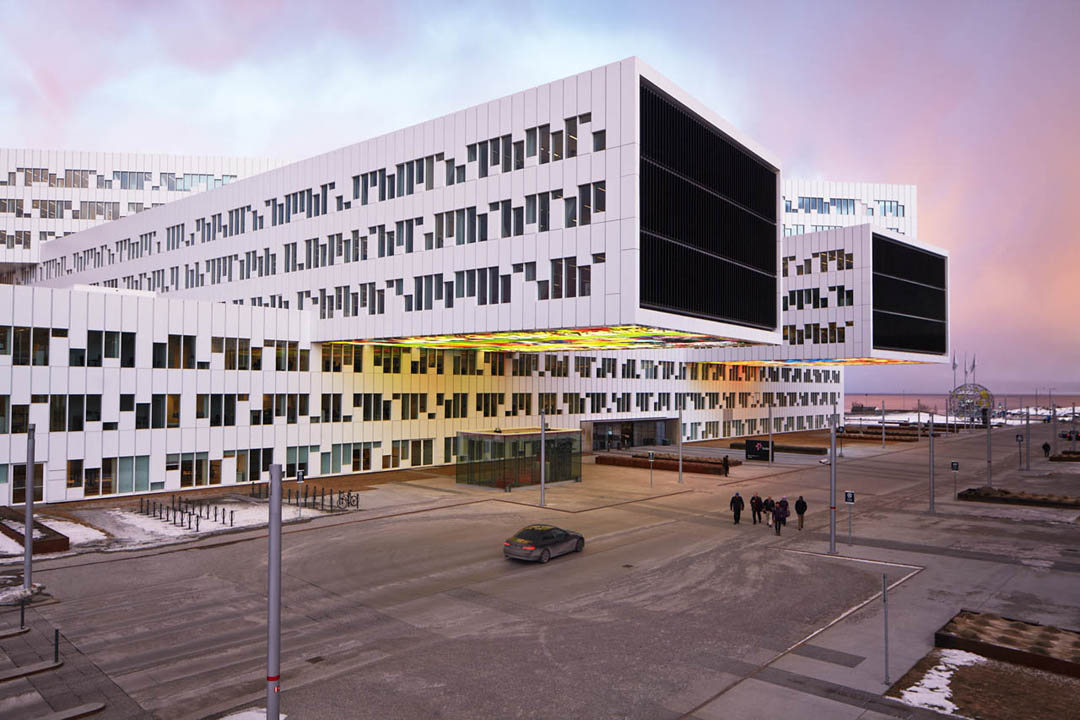

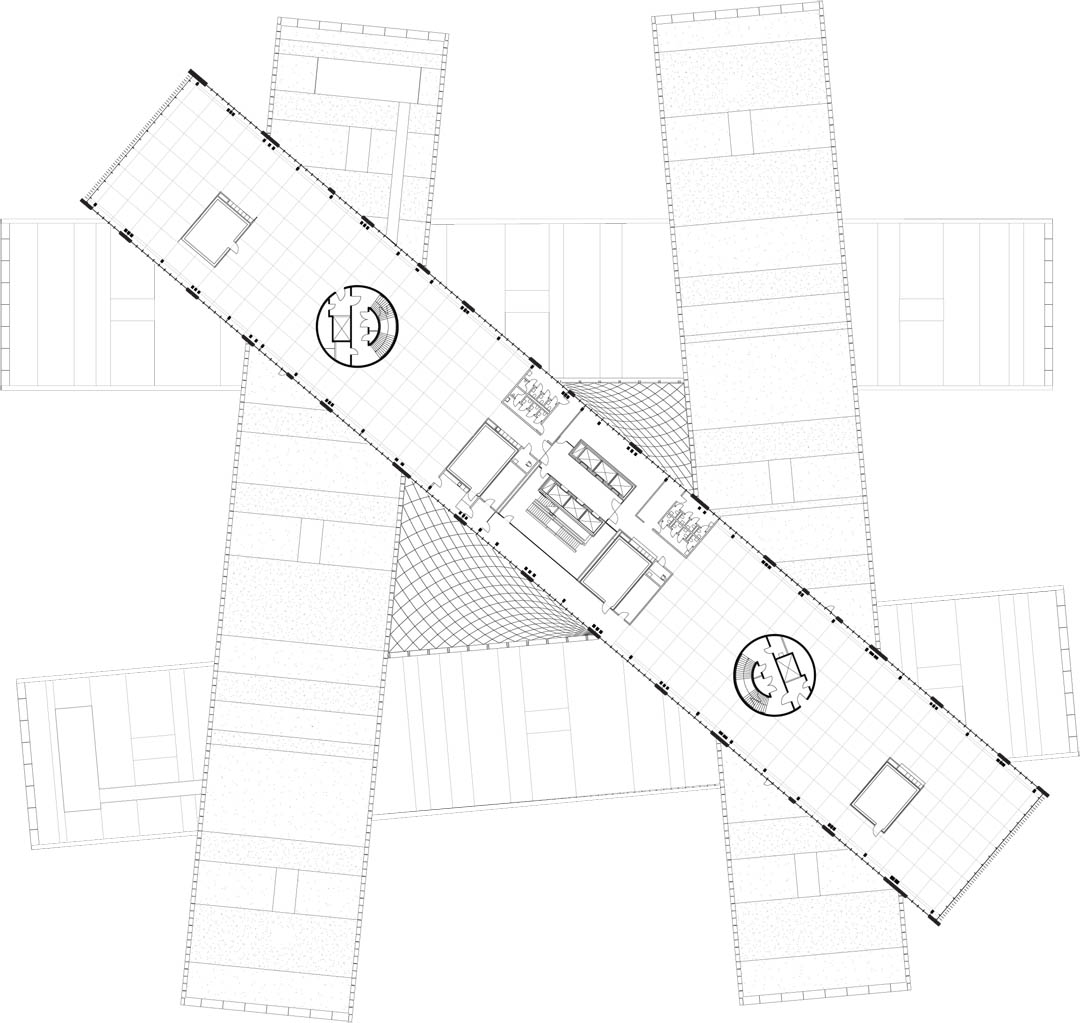

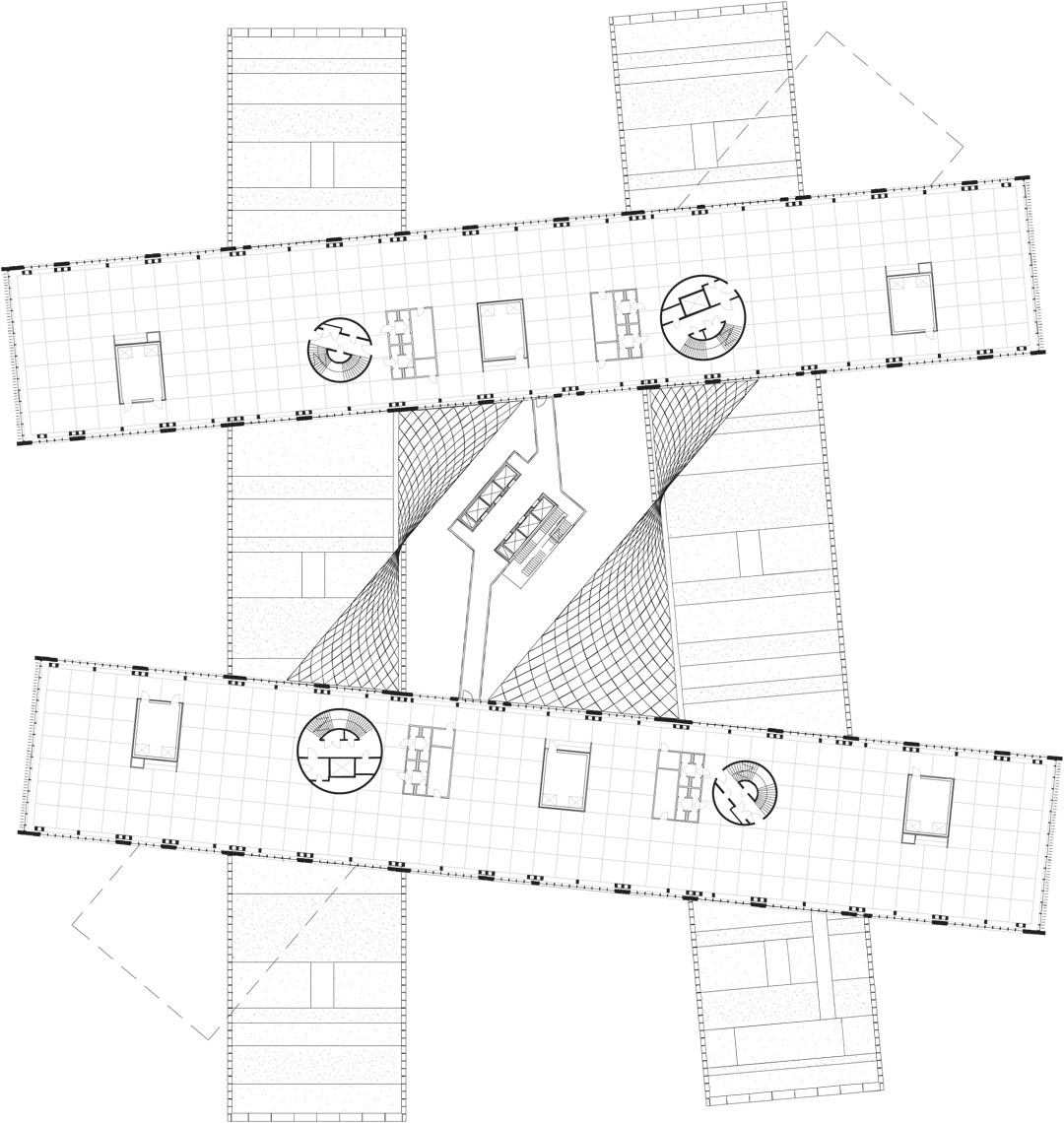

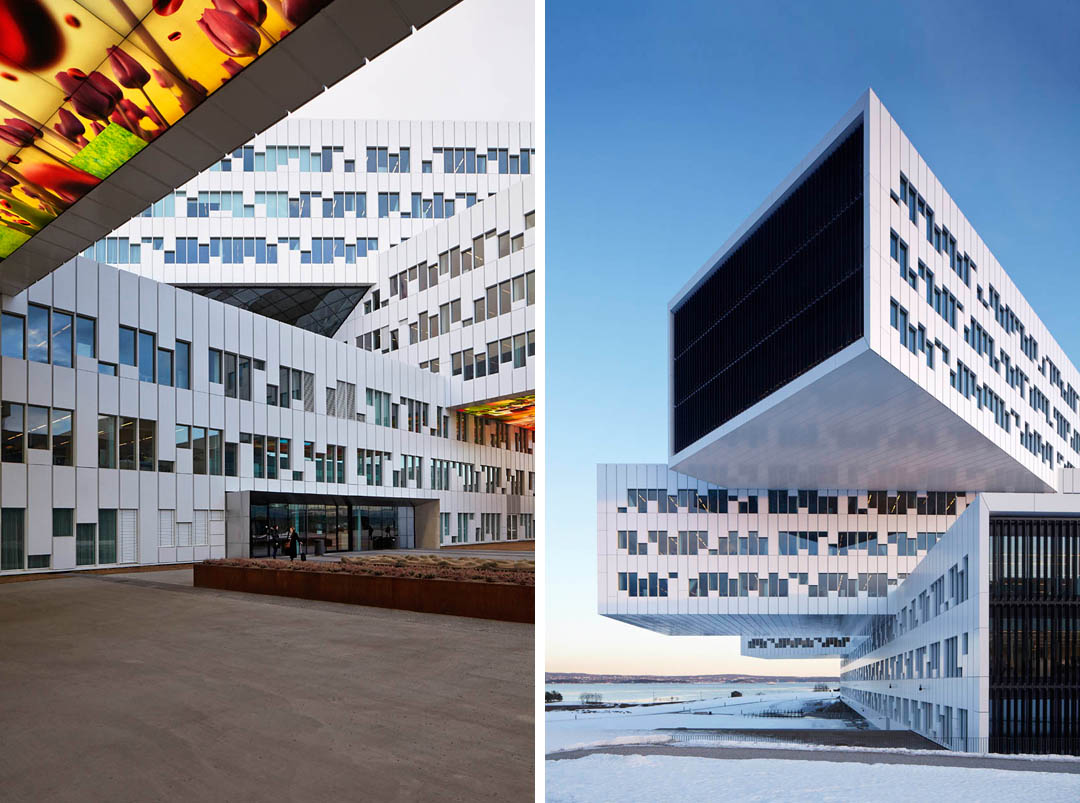

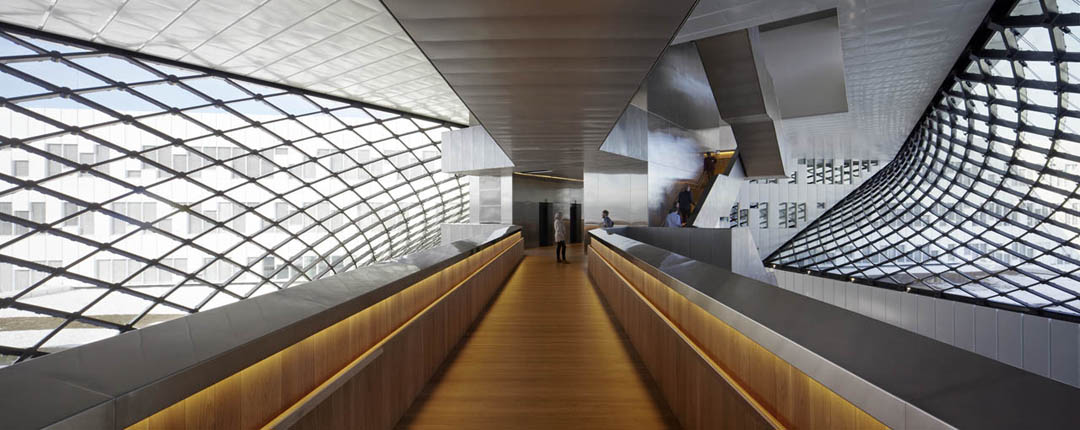

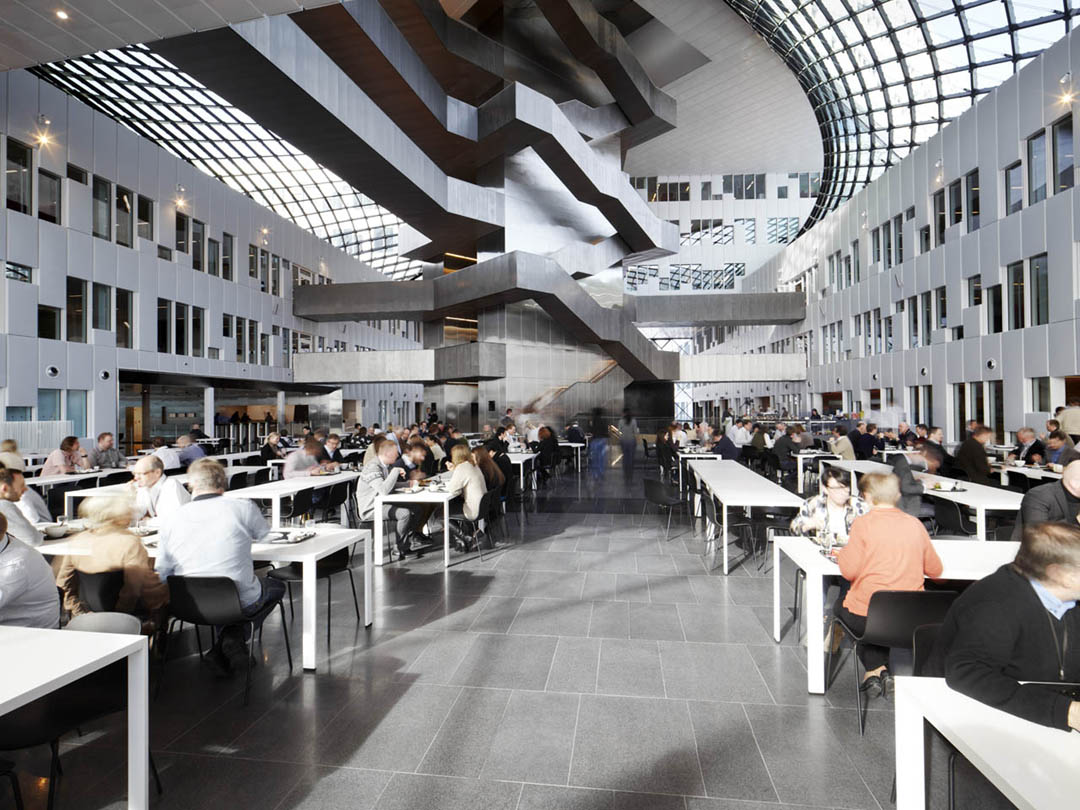

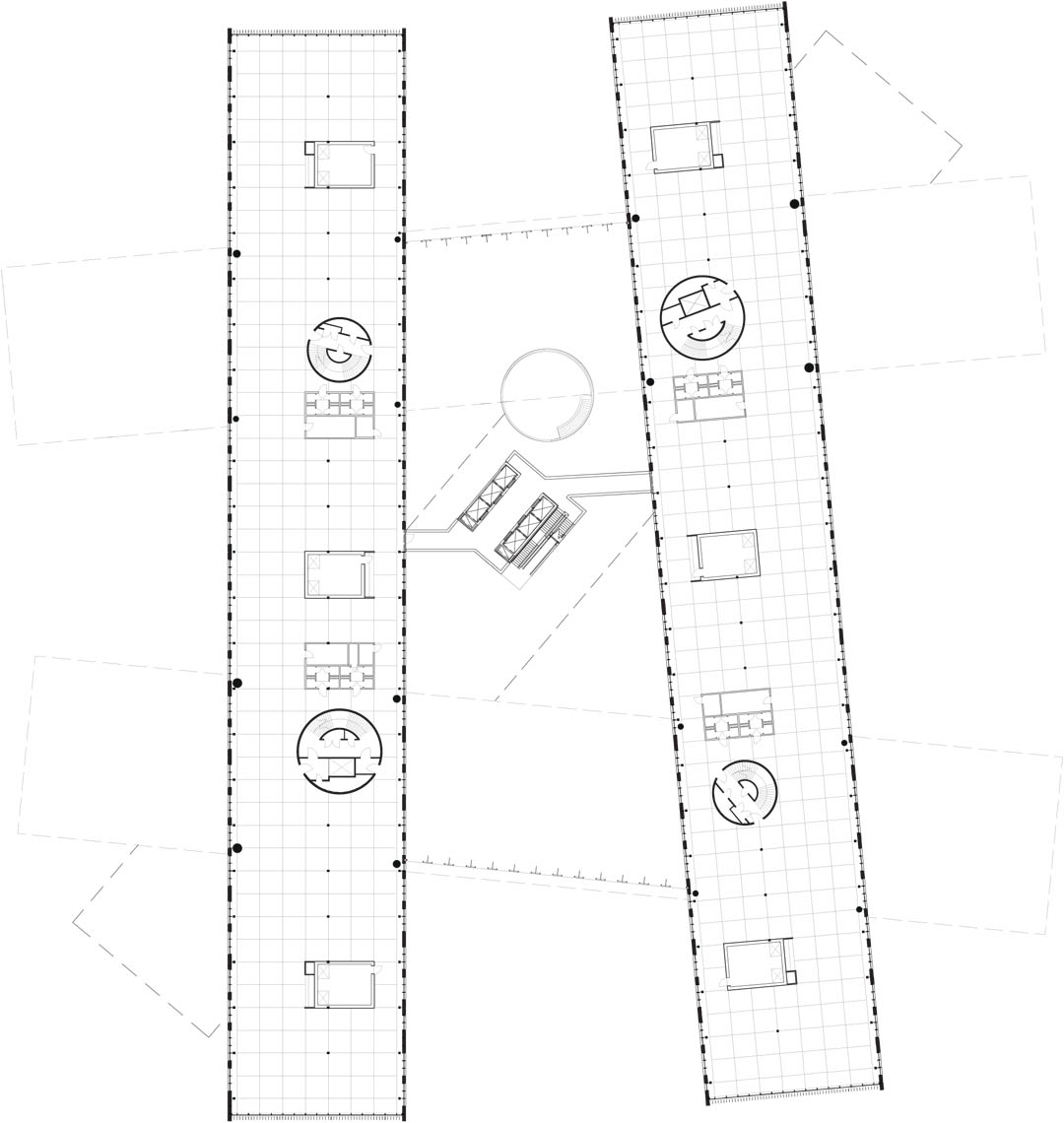

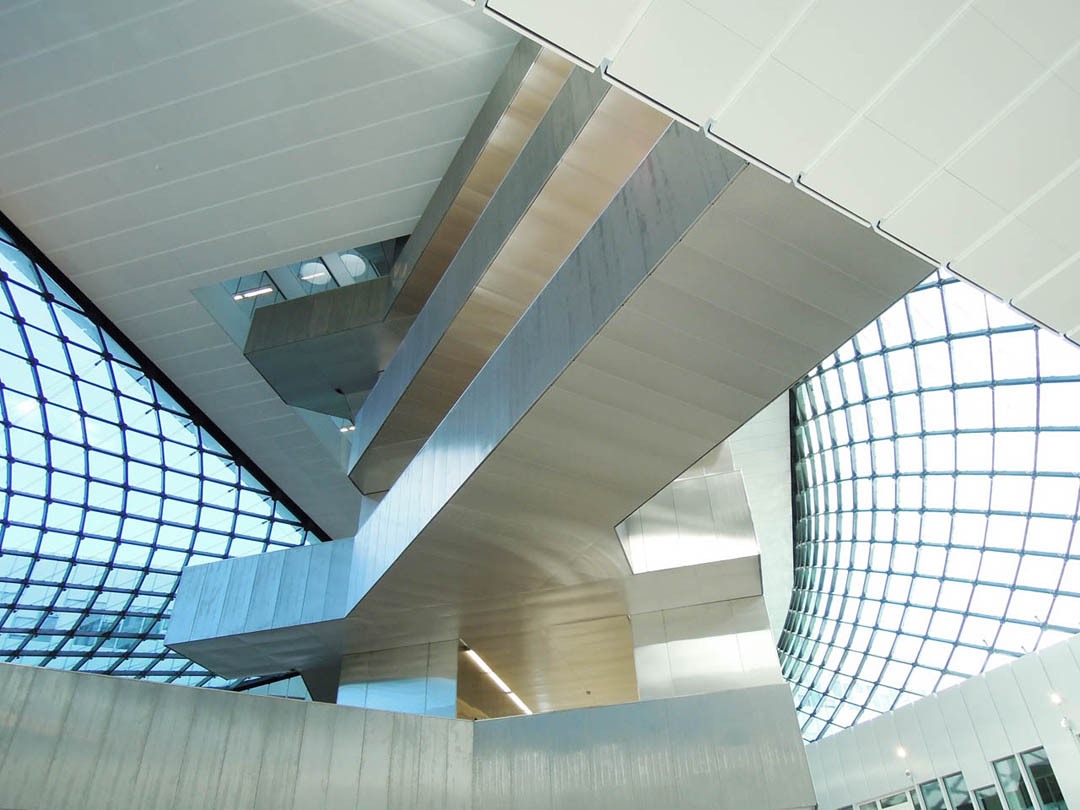

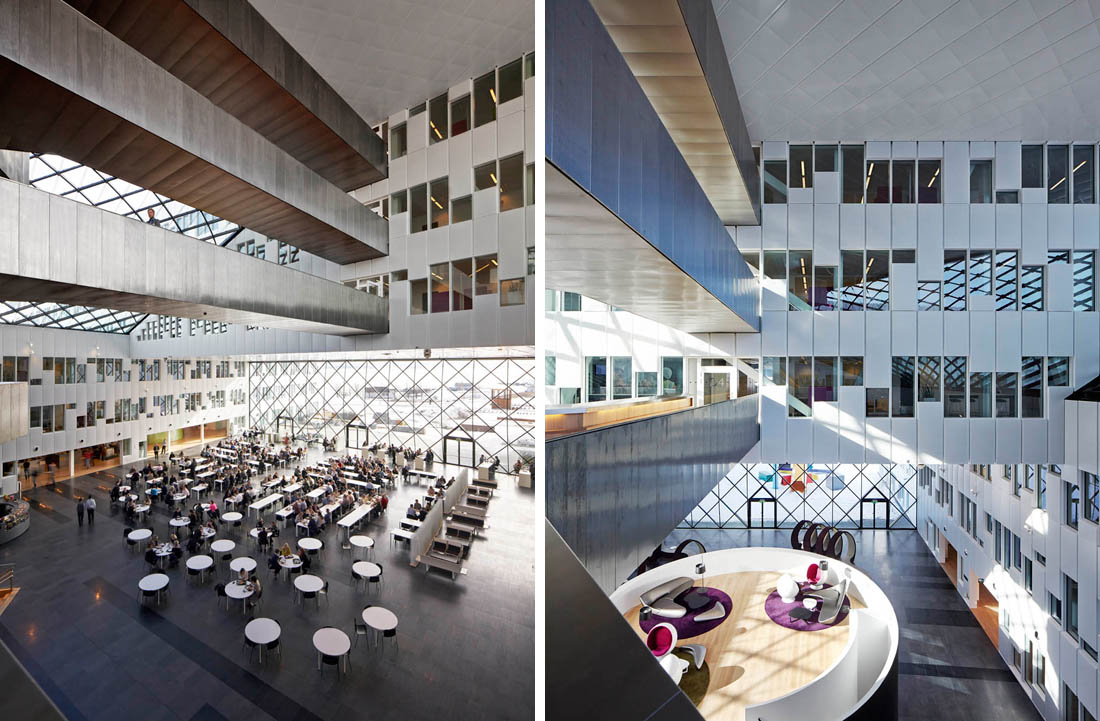

The project consists of five similar office modules, each 3 stories high, approx 140 meters long and 23 meters wide. Stacked on top of each other they form a climatized atrium and a multipurpose space on the ground floor. Due to the very short construction period, most of the building, including steel and concrete superstructure, facades and glazed structures, was prefabricated off-site. This lead to a high degree of precision despite the extremely fast on-site production. The steel superstructure enables the different office modules tocantilever up to 30 meters. Northern Europe’s biggest mobile crane was used for the assembly of the steel trusses.

KEY CHALLENGES

Time!

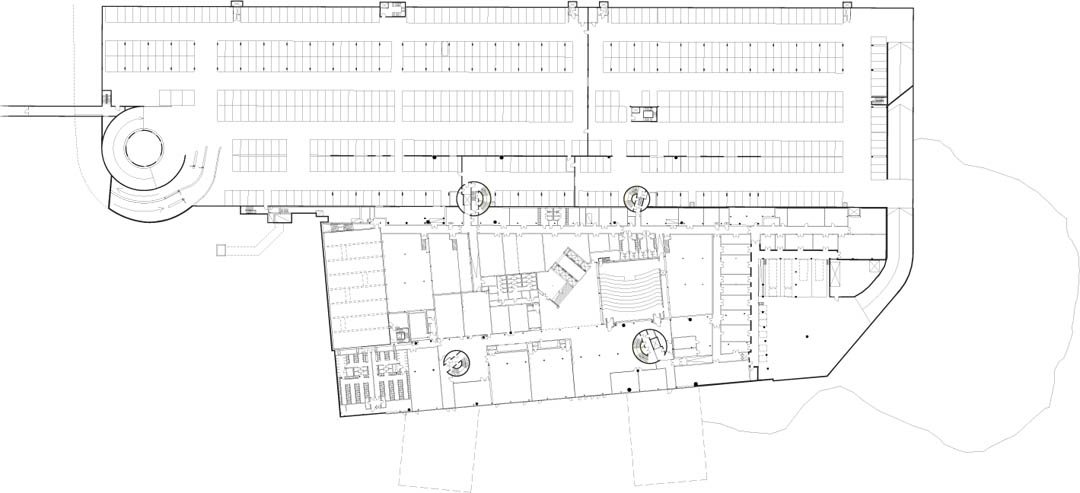

A-lab won the commission in March 2009 for the 65 500m2 office building and the 55 000m2 underground parking and technical areas. Demolition of the existing multistorey car park started immediately, whilst the design of the underground works was fast-tracked and started on site in early 2010. All major decisions regarding the foundation and construction of the office building had to be taken before the preliminary design was finished. Whilst perhaps not unusual in today’s construction market, this is extremely unusual for a “signal” building of this nature.

DESIGN CRITERIA

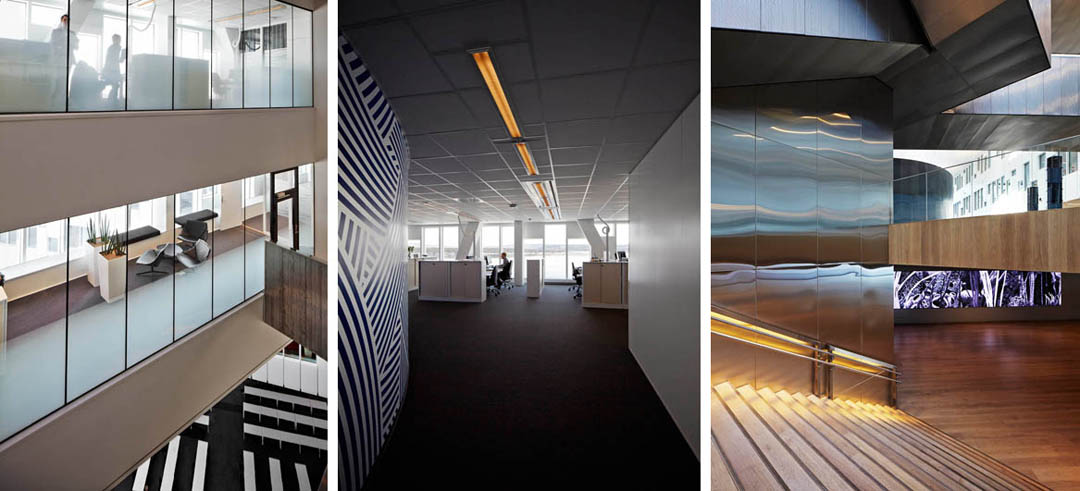

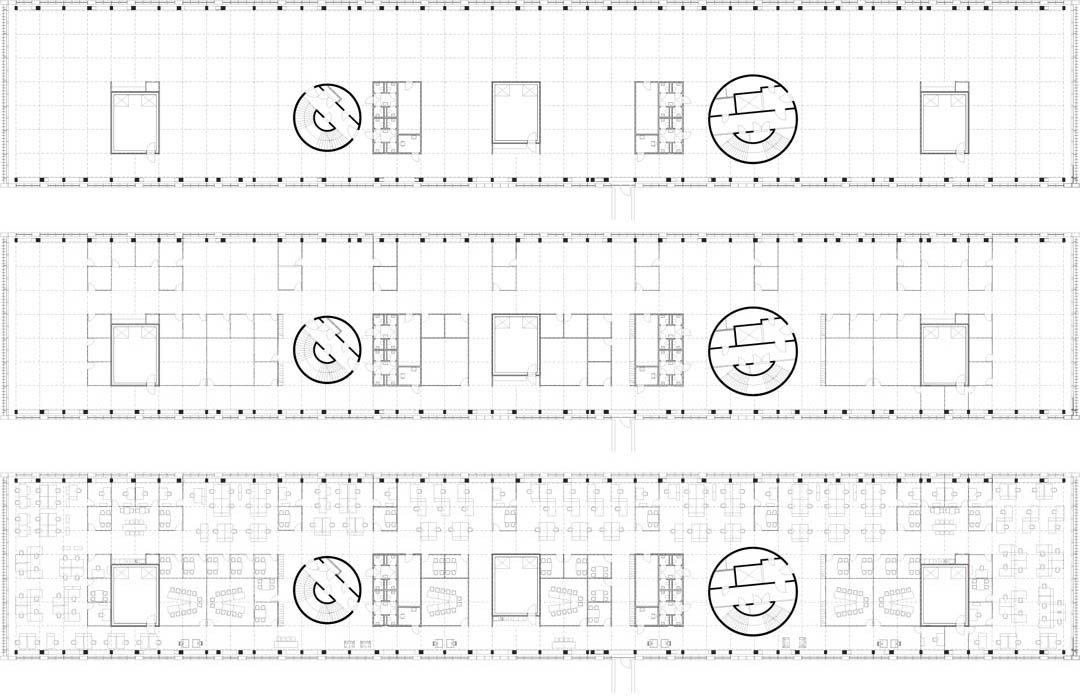

The building matches a list of criteria, the most important being that the building should be flexible, environmentally friendly, and modern and answer to Statoils core values: courageous, open, hands on and caring. The office’s interior is designed to facilitate flexible functions with rooms that can adapt from large meeting centers to multi-person offices. It can also adapt to different forms of cooperation, and it offers possibilities for increasing or reducing the number of office workstations.

ENERGY CONCEPT

General
Statoil required that the new office building satisfy energy class B. The building has a calculated energy use of just 103 kWh/m2. This is achieved through several methods, including using heat from the remote centralised heat source, 85% energy recycling and of course a well insulated and airtight skin.

Facades
The buildings skin is integral to the building’s energy efficiency. The Façade has low U-values: 0,18 W/m2K for the solid panels (including profiles) and 0,6 W/m2K for the triple-glazed panels (excluding profiles). In combination with the exterior mounted solar shading from Vental this creates an extremely energy efficient skin. Window area is kept to an optimal net 65% glass area, towards the interior, thus ensuring an optimal balance between the daylight levels in the interior and potential solar-gain and the higher U-values associated with glass. G-values in the glazed panels varies within the interval 0,24-0,36, depending on theposition in the building. Despite being a prefabricated facade composed of many separate elements the facade is extremely airtight, with a diffusion of (n50): ≤1,0h-1. The facade also allows for a very low normalised cold-bridge value of 0,02 W/m2K.

TECHNICAL FEATURES

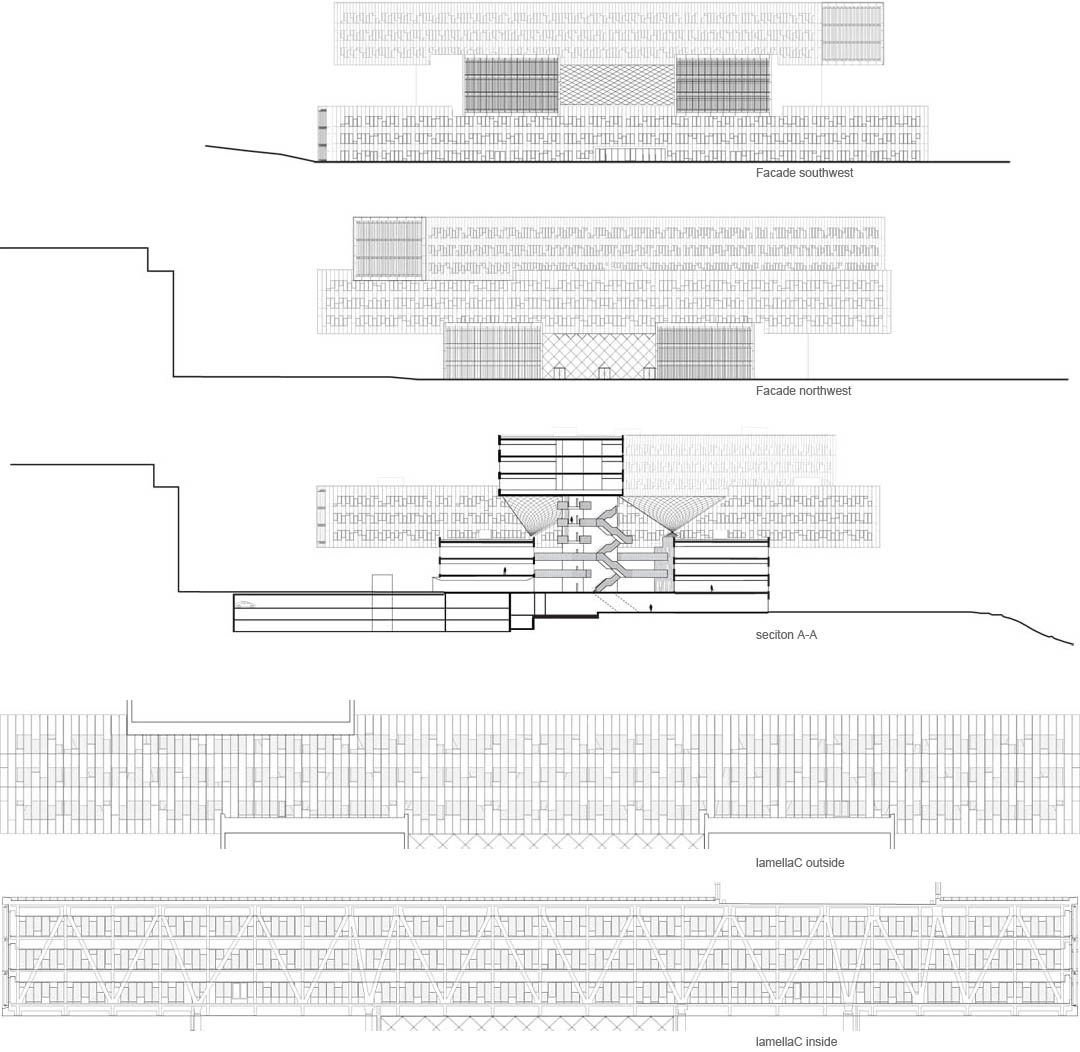

White long facades:

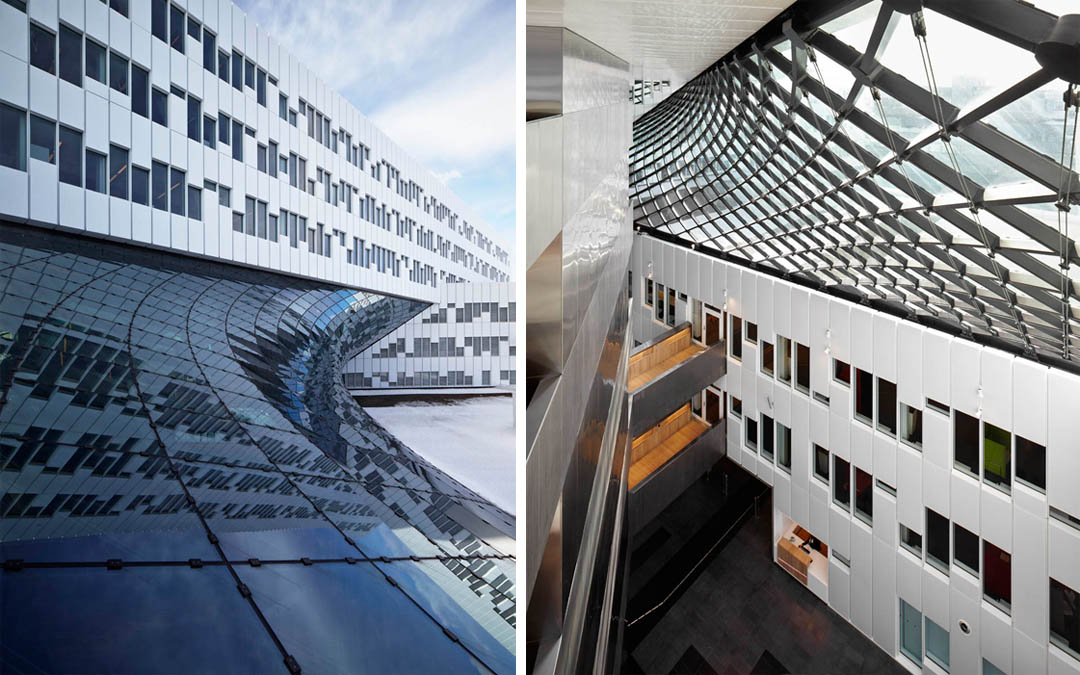

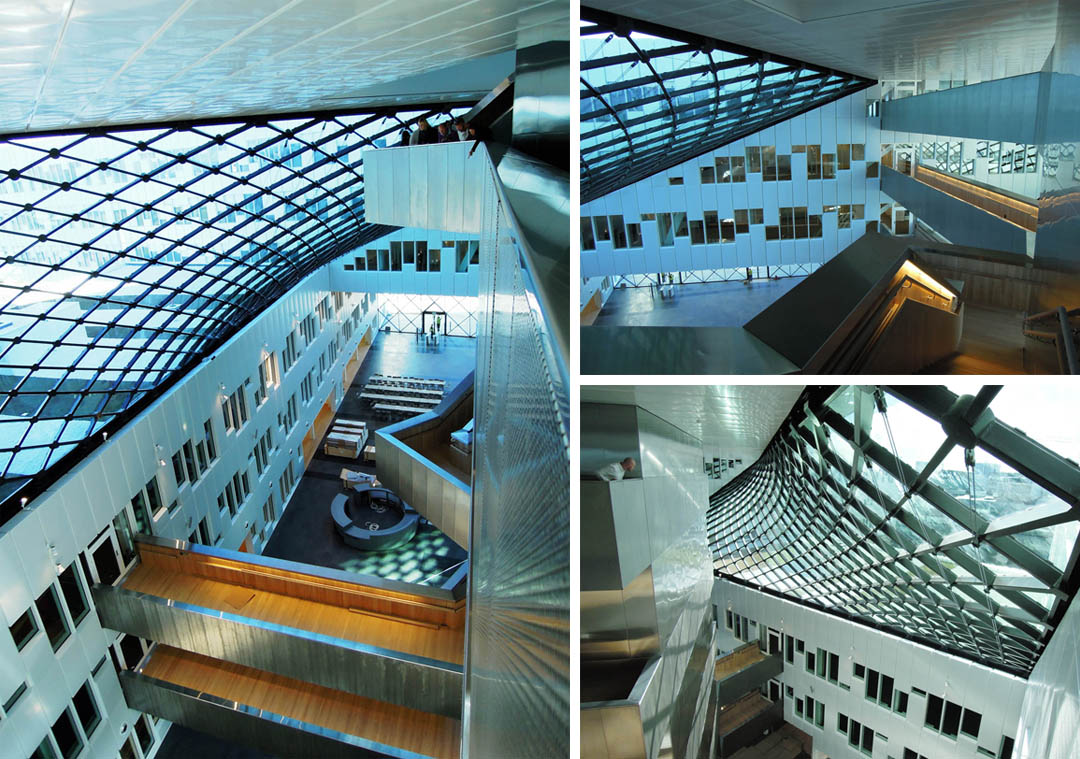

The external profile that was developed especially for the project is the key to the elegant and seamless facade expression. This complex design and technical device also allows the achievement of the architects goal : no visible fixings in the entire prefabricated facade. This profile includes the track for the external solar shading, in the form of “traditional” blinds, as well as providing fixing for the rain-screen cladding cassettes. These are made of powder coated aluminium sandwich panels folded to create 220mm deep cassettes giving the facades a deep relief and also shedding precipitation effectively. The same prefabricated façade system is used on the interior where the office lamellas overlook the acclimatized atrium. The same construction principles apply to the facade cassettes of the interior with the only difference being that they are finely perforated (Ø5mm, 25 %) in order to deal with the acoustic challenges of the interior atrium space: ensuring a low reverberation time in the atrium, despite the hard flooring.

Black gable ends:

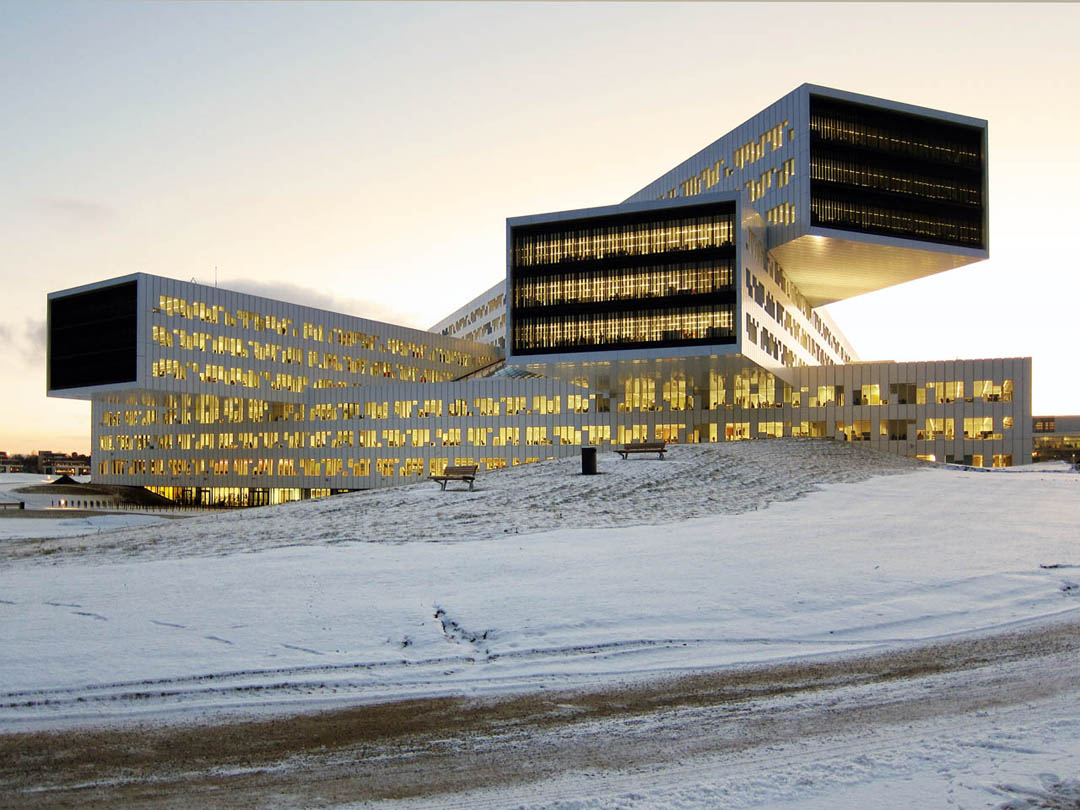

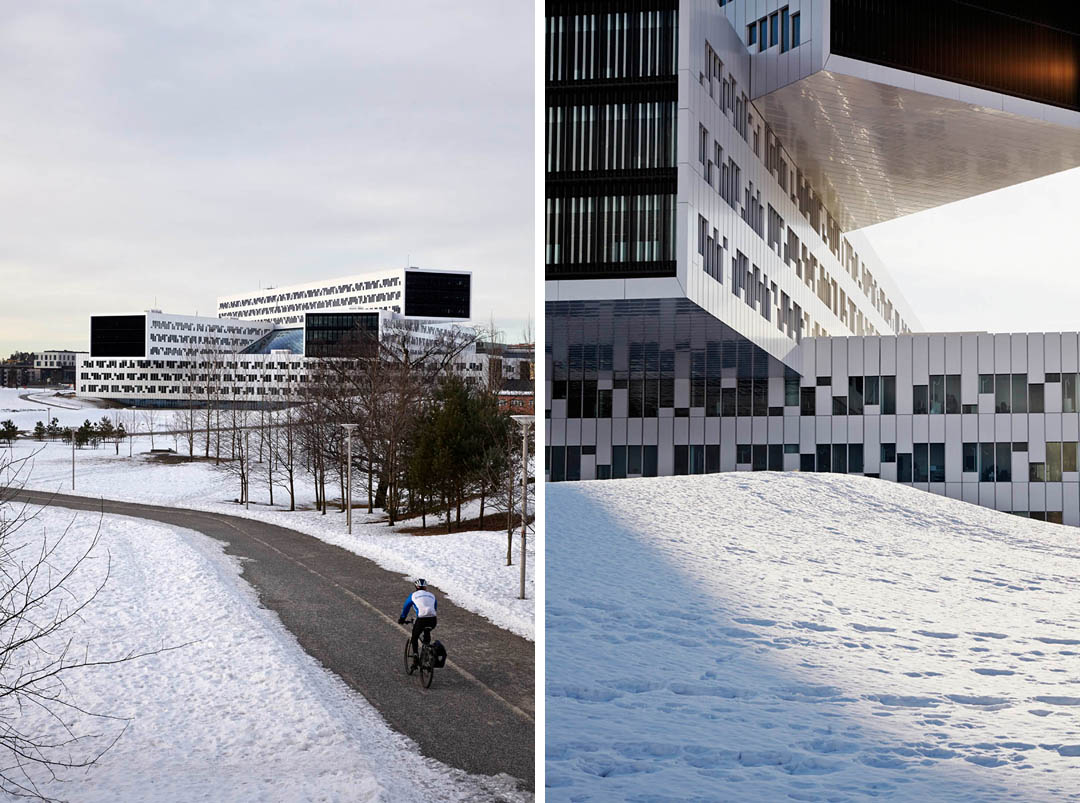

The solar shading in the gables was also developed specifically for the project, based on a previous system by Flex Fasader. Each gable facade is composed of 180 4,2m high and 400mm wide laminated glass lamellas which overlap slightly. Each lamella consists of two sheets of 10mm Parsol Grey glass laminated together with a dark laminate core, thus giving a the appearance of solid black. Whilst the solar shading in the long facades is fitted with manual override switches within the office space, the black glass fins in each gable all move together on a pre-programmed pattern angled individually to the orientation of each gable.. The solar shading is surprisingly “invisible” when seen for the office interior, which is fully glazed in the gables.

AWARDS
• A-lab received the World Architecture Festival Award in 2009, competing with 272
projects from 67 different countries within the category “Future Commercial Project of
the Year”.
• Winner of World Architecture Festival (WAN) Award 2012, for best office building
(“Commercial Sector”). Jury complements user flexibility, iconic legibility and intelligent
placement and distribution of the volumes on the site.
• Nominated for the international MIPIM Awards 2013, (for best office building)
• Nominated for the Norwegian CITY-award 2013

FACTS

Location:   Fornebu, Bærum, Norway
Brief:         Offices
Completion:    Autumn 2012
Construction:    20 months
Building cost:   1,500 mill NOK / 200 mill. EUR
Total floor area:            117 000 m2
Footprint:   65 500 m2
Levels:    9
Structure:   Steel and concrete (prefab)
Cladding:    Glass and aluminium composite panels
Completion:   1. of September 2012
Client:    IT-Fornebu Eiendom
Architect:   a-lab
Interior design:   a-lab & Momentum Arkitekter (NO)
Landscape architect:  Østengen og Bergo (NO) -concept & Rambøll Norge (NO) -detail
Consultant structure:  Norconsult
Ventilation:    Norconsult
Electro consultant:   Føyn
Number of employees:  2500
Lamellae dimensions:  23m x 140m
Concrete core dimensions: Ø9m and Ø12m
Energy:   85% recycled heat energy
Average R-values (insulation): windows (including frames) 0.8 W/m2K
façades 0.18 W/m2K
roof 0.15 W/m2K
Energy consumption, est.: 103 kWh/m2/Year
Energy mark class B (104 kWh/m2/year)
WAN Awards 2012; Winner, Commercial Sector
WAF Awards 2009; awarded 1.st prize out of 272 contestants from 67 different countries.

Youtube:
http://www.youtube.com/watch?v=OZrInutXTmw (pre-construction)
http://www.youtube.com/watch?v=6xk0cyGUR68 (concept diagrams)
http://www.youtube.com/watch?v=6PhOeZ8hsr0&feature=share (construction)
http://www.youtube.com/watch?v=EqAPj9dL4KQ (construction, in Norwegian)
http://www.youtube.com/watch?v=sqstJD9Jmi0 (post completion)

About a-lab
a-lab is a young international architecture office involved in a variety of innovative and experimental projects with a global character.a-lab was founded in 2000 and has two partners, Geir Haaversen and Odd Klev. The office consists of 42 architects with diverse backgrounds and experience, and a project administrator and a marketing coordinator.All a-lab projects currently under construction are results of won competitions. a-lab is working on a wide spectrum of projects of various scales and with different programs. Our projects range from museums, housing projects and office buildings, to master plans and urban projects with complex programs. With designers that have different skill sets and experiences we are able to operate in all phases of the design process.
Moreover, we invest a lot of energy in the sustainability aspects of each of our projects.
