感谢 其实建筑事务所 予gooood分享以下内容。更多关于他们：ALL Studio on gooood
Appreciation towards ALL Studio for providing the following description:

项目缘起
Project Origin

2019年初，“其实建筑”受华腾牧业邀请，设计其位于石门镇（位于乌镇南侧的古镇）的一处以农业及养殖为主题的农旅园区中的“石湾猪舍里”展厅。在前期规划设计中，整个园区最大限度保留了原生的自然感受，由园区西南角进入场地，即可见到园区中由竹制栅栏围合的李子林、开阔草地，因此展厅建筑的设计考量也从开始就定义为：自然中的一种质朴、粗砺的气质。

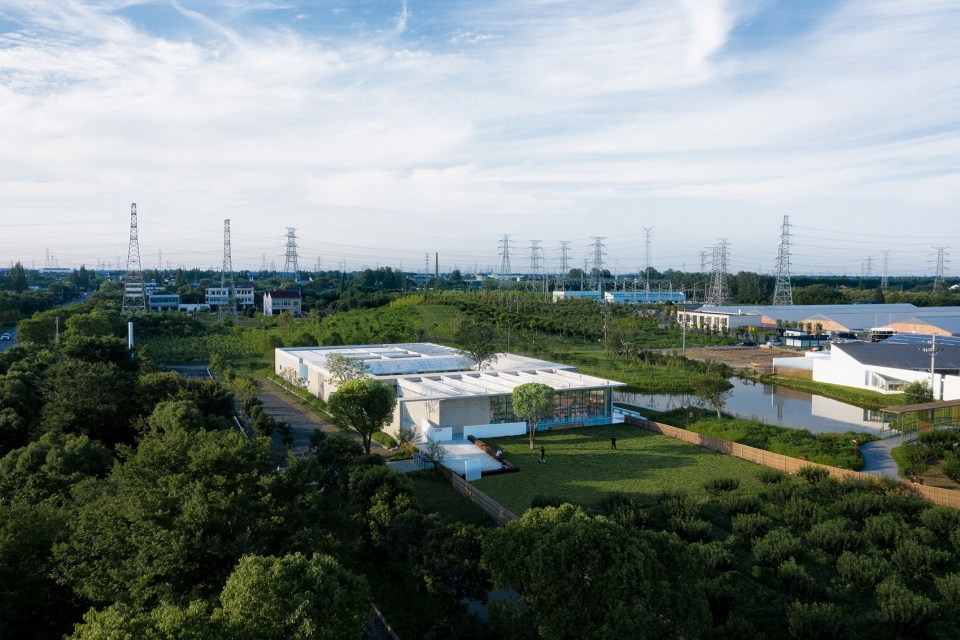

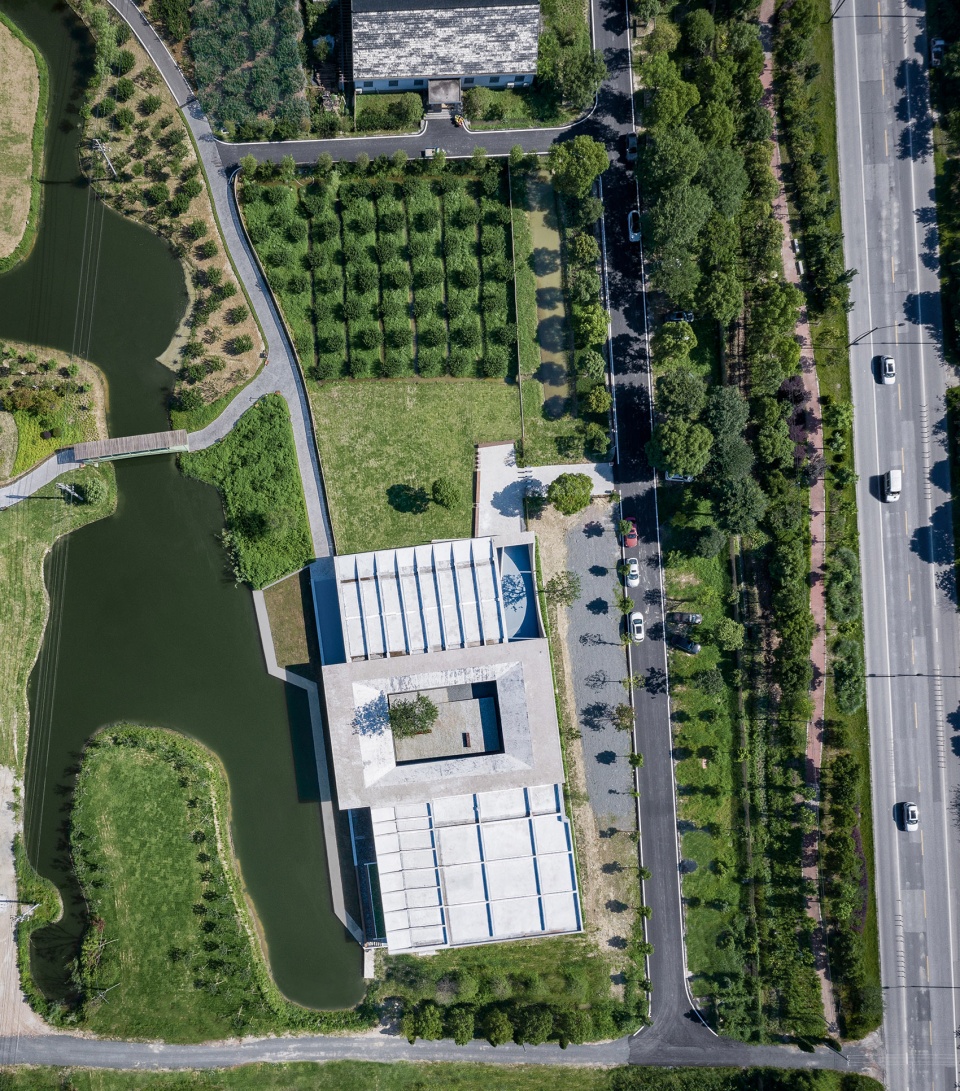

▼场地鸟瞰图，Site aerial view © 吴清山

In early 2019, ALL Studio was asked by HUATENG Co.,Ltd. to design the exhibition hall of Shiwan town (an ancient town in the south of Wuzhen town) in an agricultural tourism park. In the planning design, the whole park retains the original natural feeling to the greatest extent. When people enter the site from the southwest corner of the park, they can see the plum forest and open grassland surrounded by bamboo fences in the park. Therefore, the design consideration of the exhibition hall building is also defined as a simple and rough temperament in nature from the beginning of the design.

▼建筑南侧鸟瞰图，Site aerial view from south © 吴清山

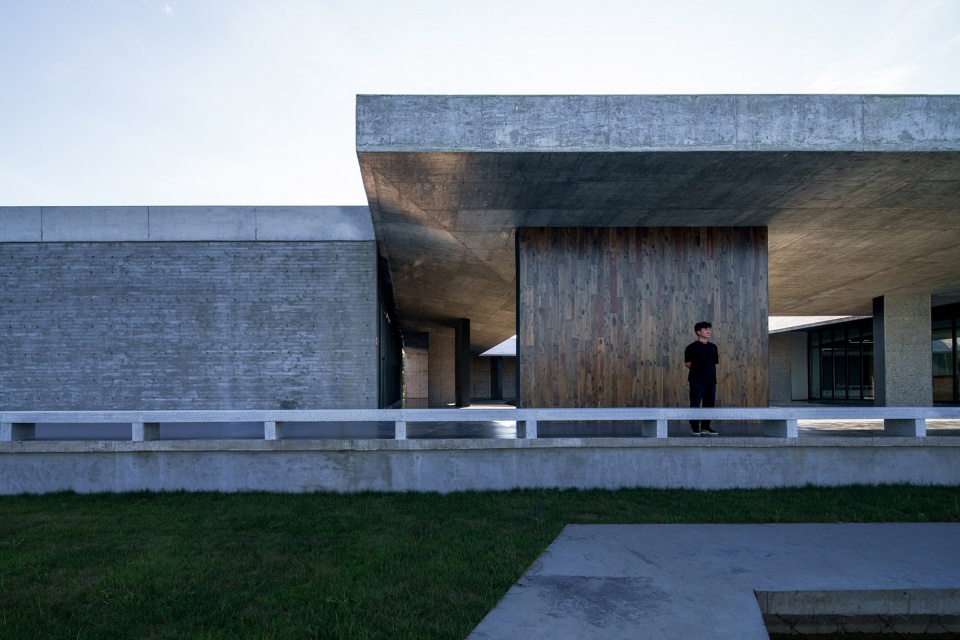

▼建筑南立面及草地，South facade © 吴清山

在区位上，展厅位于整体园区的西侧，毗邻园区主入口，西靠市政道路，东侧则是园区内部的景观与水系，和有机餐厅隔湖对望。建筑整体形态由两房一院构成，从南至北层层进入，依次为纪念品商店、庭院、展厅。整个园区的自然景观与建筑内含有的功能性空间、几个院落之间的视觉与感受的微妙联系也从一开始即被关注。

The exhibition hall is located at the west part of the park, adjacent to the main entrance of the park, close to the municipal road in the west, and the landscape and water system in the East of the park, facing to the organic restaurant across the lake. The form of the building is composed of two physical space and one courtyard, from south to north, followed by souvenir shop, courtyard and exhibition space. The subtle connection between the natural landscape of the whole park and the functional space contained in the buildings, at the same time, the vision and feeling of several courtyards has also been concerned from the beginning.

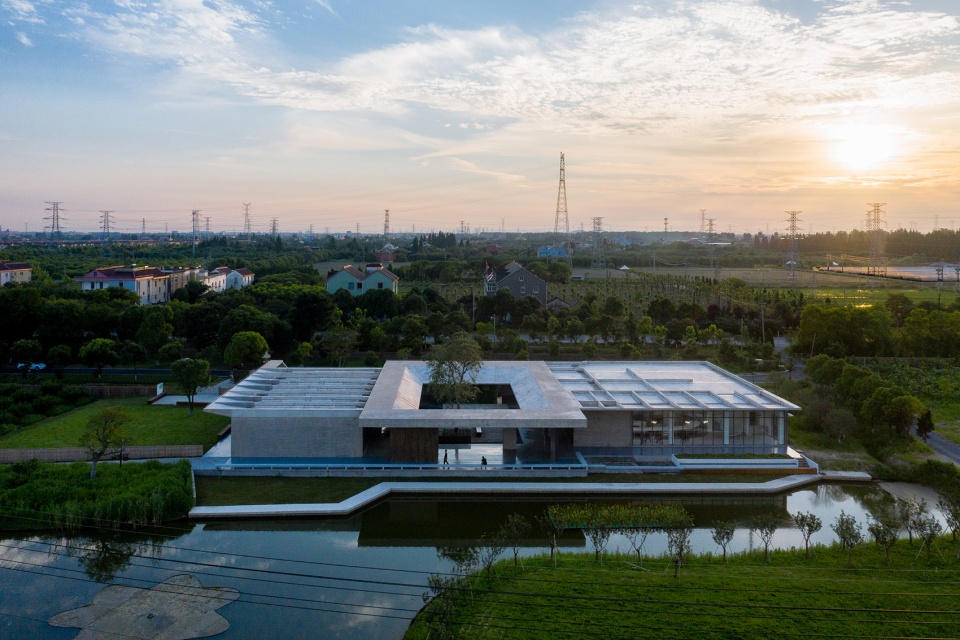

▼建筑东侧鸟瞰图，Aerial view of the east side of the building © 吴清山

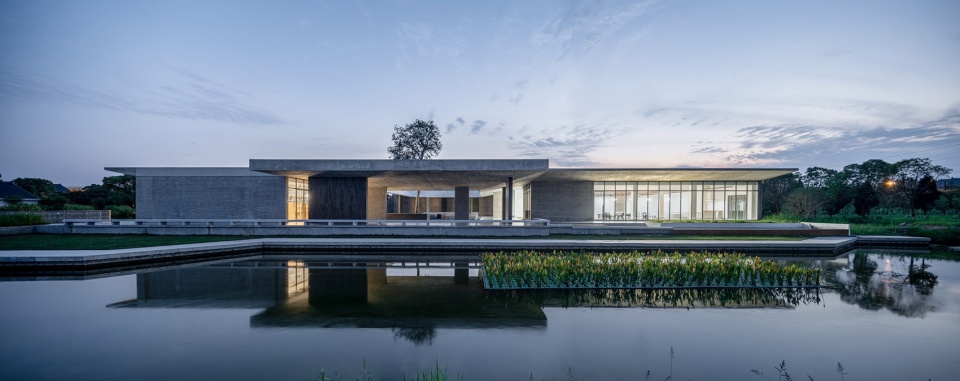

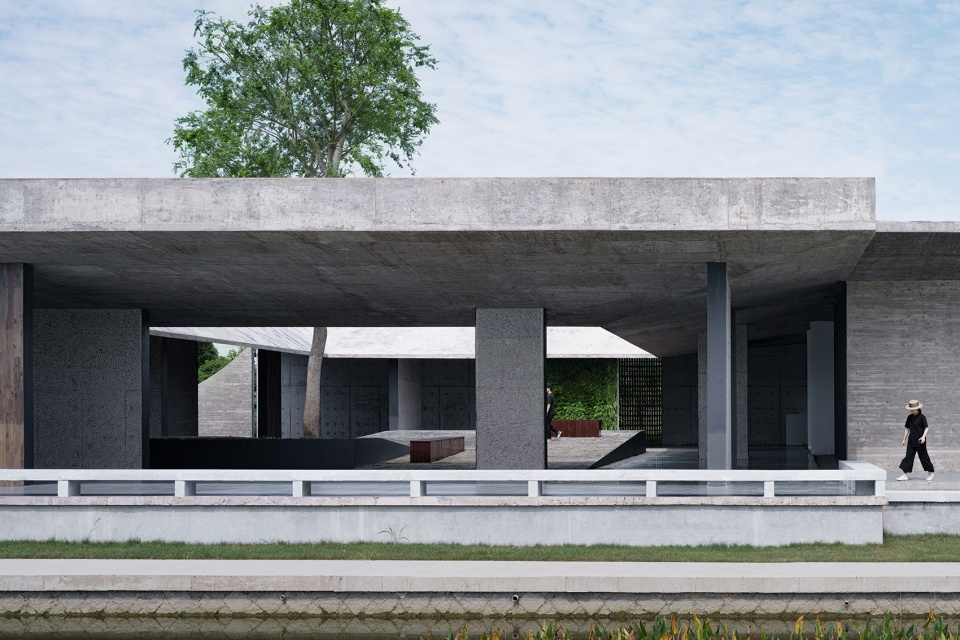

▼与湖岸对语，Facade to the lake © 吴清山

第一进：“月亮墙”
The first – Moon wall

在主体建筑入口处我们设置了一处“强调的空间”，即：一段弧形的“月亮侧墙”，这是一个巨大的豁口，从外部园区停车场人群的视角可窥见人流鱼贯而入，这是一种预示。在人走入其中时，月墙的设置将天空纳入了人的视线，作为一个转换空间，自然也被纳入建筑与体验之中。

At the entrance of the main building, we set up an “Emphasized Space”, that is, an arc-shaped “moon wall”. From the parking space, we can see the flow of people from the huge gap, as a hint. When people walk into it, the moon wall brings the sky into people’s sight. As a conversion space, nature is also incorporated into architecture and experience.

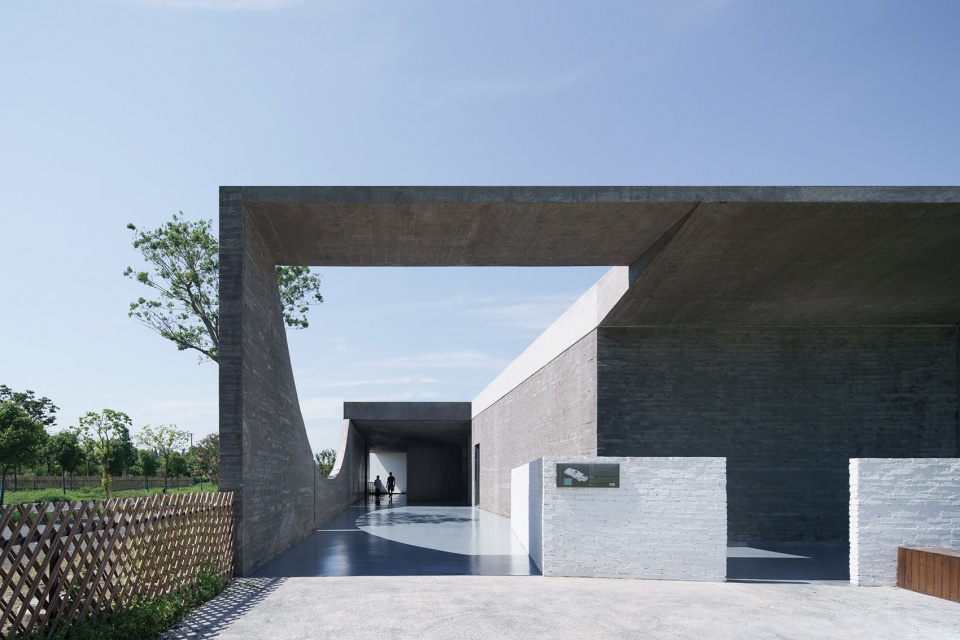

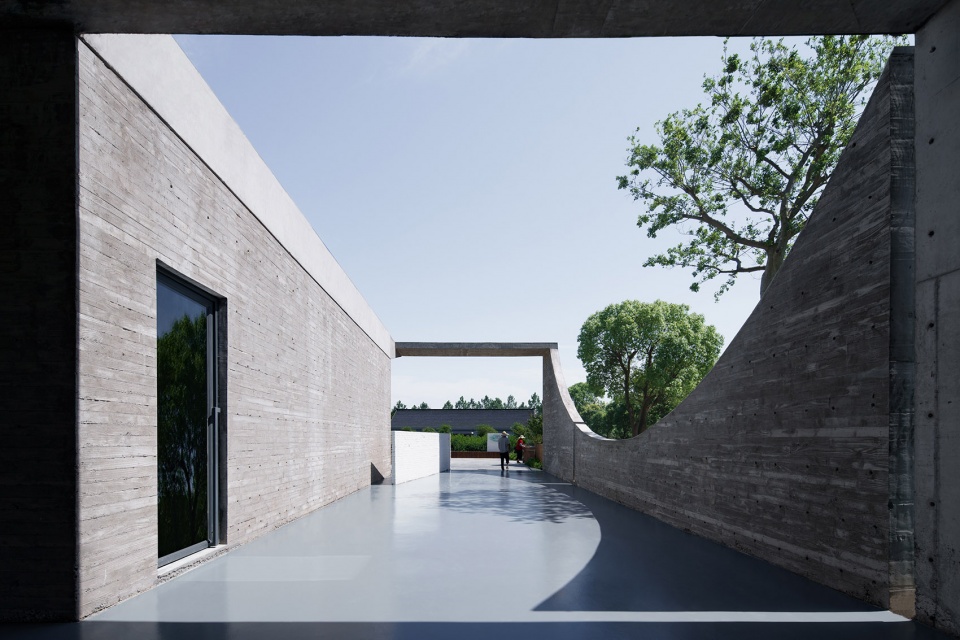

▼建筑入口空间，The main entrance of building © 吴清山

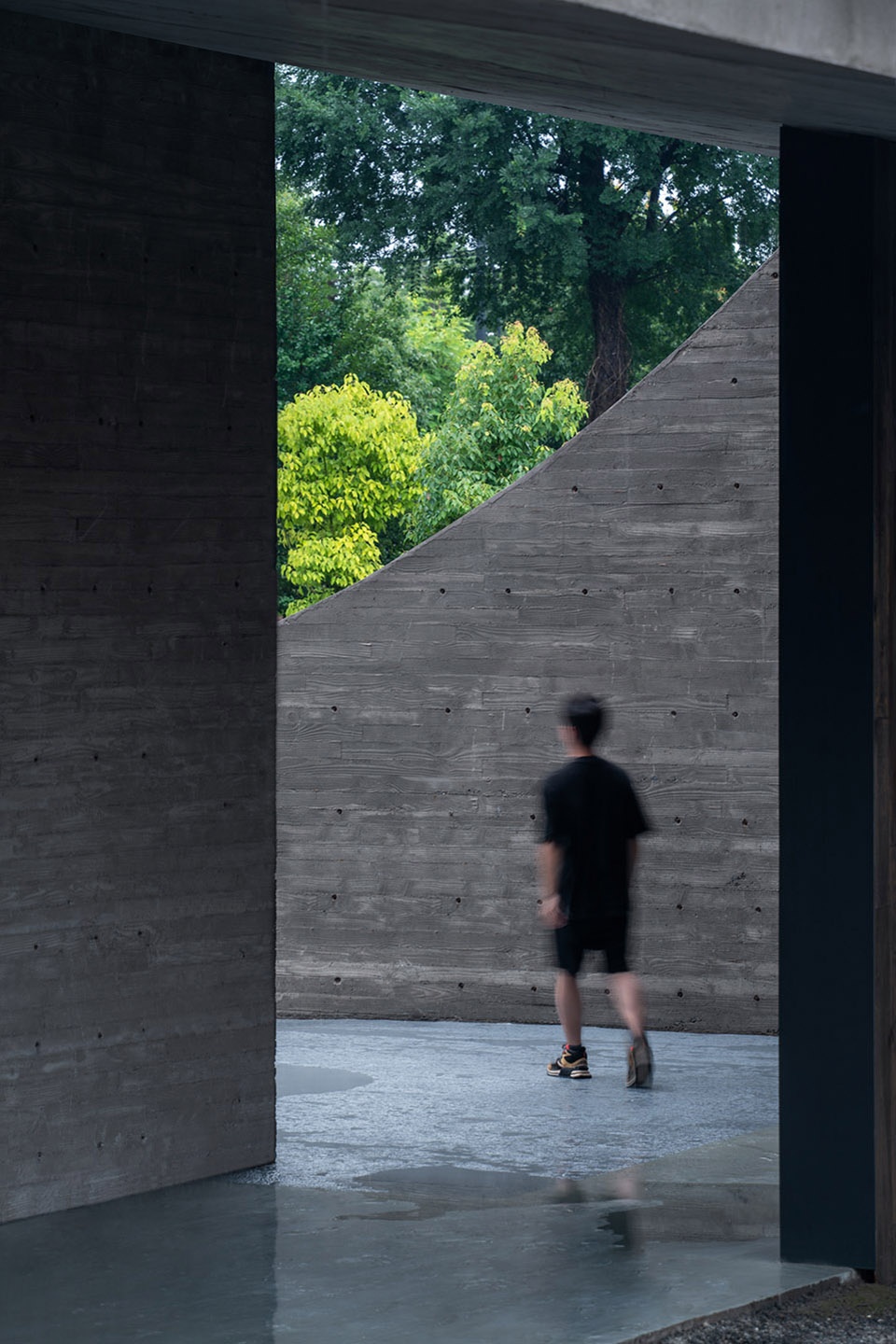

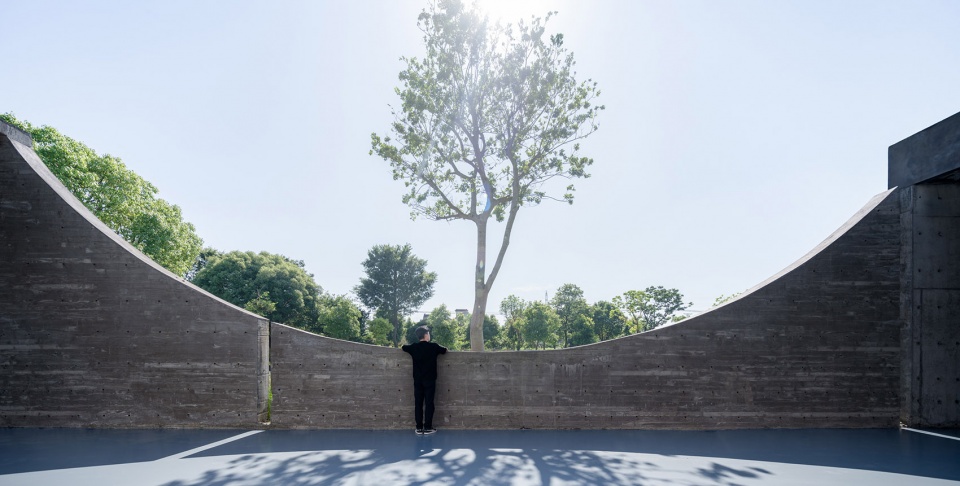

▼豁口-“月亮墙”回望，The moon wall © 吴清山

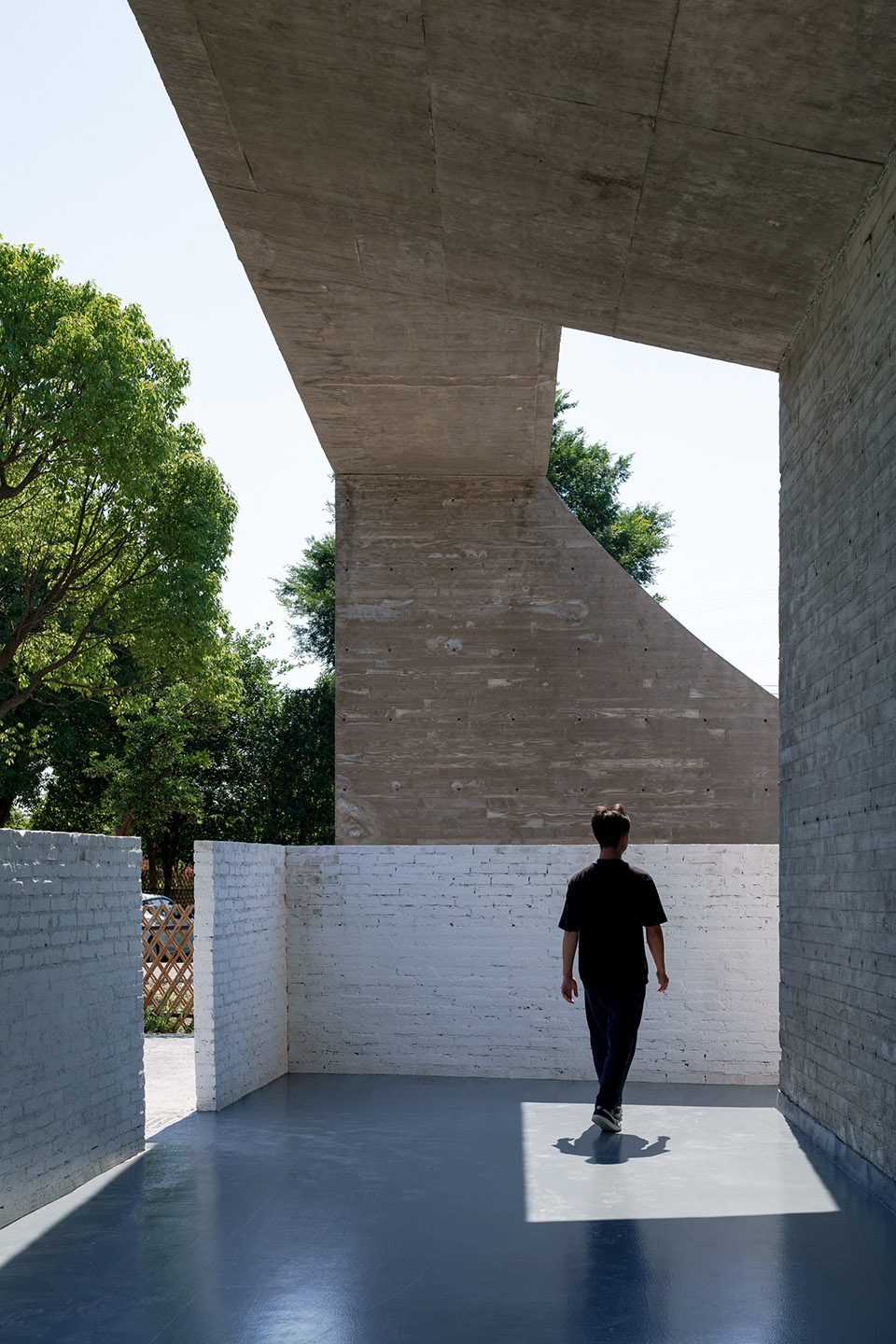

▼入口豁口局部，The details of the main entrance space © 吴清山

▼豁口-“月亮墙”，The moon wall © 吴清山

第二进：“榆树庭”
The second – Elm courtyard

建筑的中心庭院，由纪念品商店与展厅空间夹合而成，即南北两个实体建筑（商店与展厅）与西侧的墙面所围合的“四水归堂”空间。这是一个以中间的“大榆树”为中心的庭院，榆树为前期从园区所植的树林中挑选而来。庭院东侧向湖面敞开，承重的片墙将湖岸景色框取进来，宛如长卷，空间在视觉上也被向东拉长，形成廊-院-廊-湖的层层延伸。

The central courtyard of the building is sandwiched by the souvenir store and the exhibition hall. This is a courtyard centered by the “Big Elm” in the middle which is selected from the trees planted in the park. The east side of the courtyard is open to the lake in the park. The load-bearing wall frames the scenery of the lake bank, like a long roll painting. The space is also visually elongated to the East, forming a layer by layer extension of “Corridor – Courtyard – Corridor – Lake”.

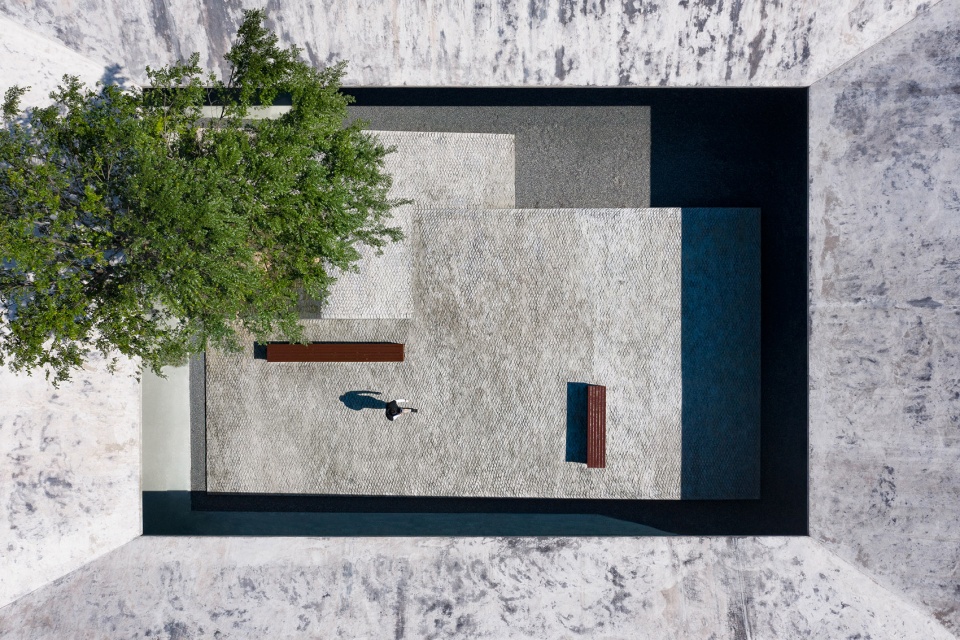

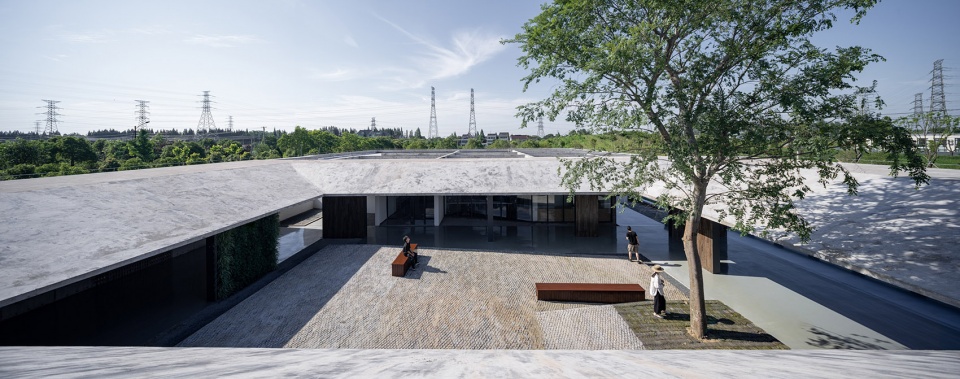

▼“榆树庭”俯瞰，Elm courtyard © 吴清山

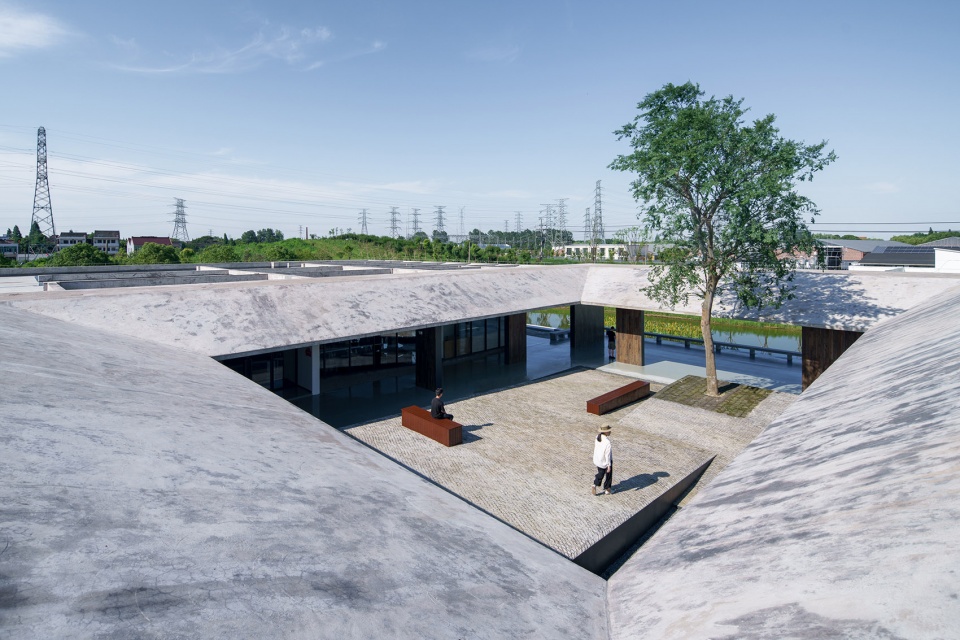

▼“榆树庭”鸟瞰图，Elm courtyard © 吴清山

庭院四坡的屋面向中间压低聚拢，屋顶采用双层中空腔体混凝土结构由外圈的80cm厚度逐渐向中间变薄为10cm，周围的檐下空间也随之幽暗深邃，周边的风、光、雨水都被聚拢在院内，成为一方宁静的天地。院内地面——两组立瓦堆砌，各自向两侧逐步起坡交错，与榆树粘连的上升的景观台地与往下的天井的呼应，将天、地、人、建筑聚在一起，成为榆树庭院的精神奥义，建筑以一种超然的姿态存在于自然，同时也被自然洗礼。

The roof of the four slopes is pressed down and gathered in the center, the roof adopts a double-layer hollow cavity concrete structure, which the thickness gradually becomes from 80cm to 10cm from the outer to the middle, and the surrounding space under the eaves is dark and deep. The surrounding wind, light and rain are gathered in the yard, becoming a quiet little world. Ground in the courtyard is composed of two stacked groups of vertical tiles, each gradually rising and staggered to two directions. The rising landscape platform bonded with elm trees echoes with the lower patio, bringing together Sky, Earth, People and Architecture, which has become the spiritual meaning of “Elm courtyard”. The buildings exist in nature with a detached attitude, on the other hand, it is also baptized by nature at the same time.

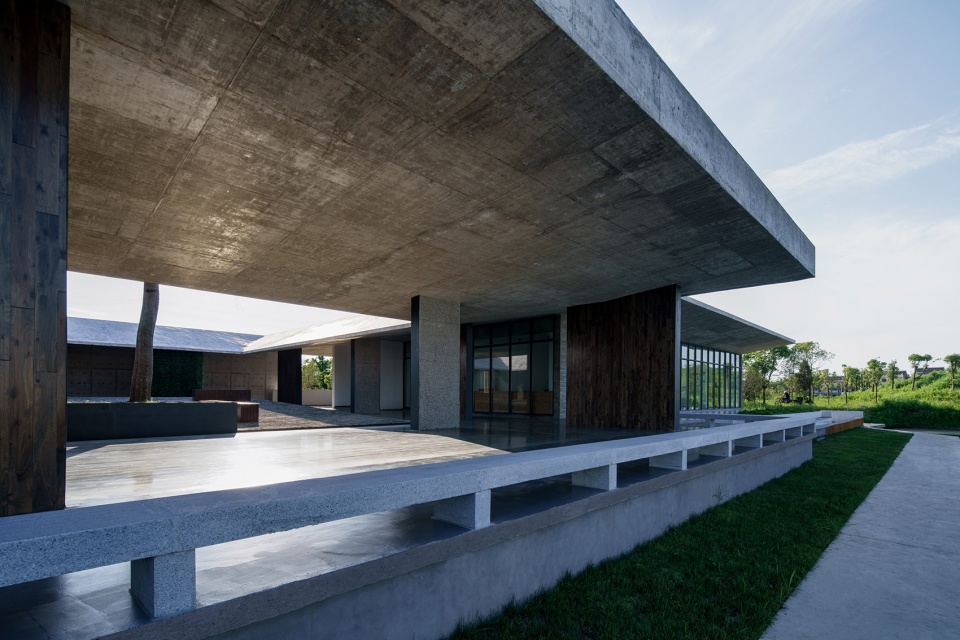

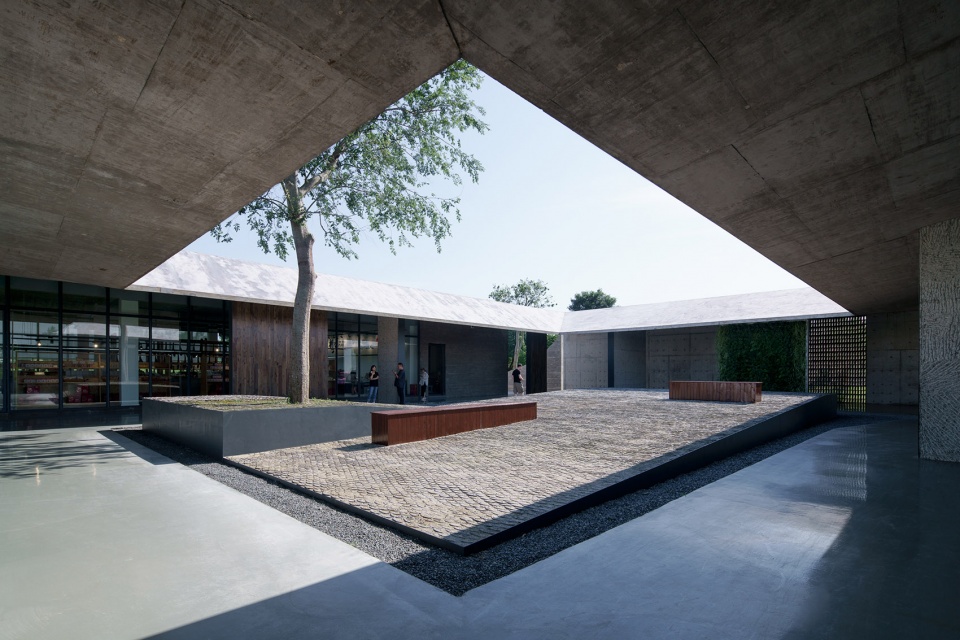

▼幽暗深邃的檐下空间，The eaves of courtyard © 吴清山

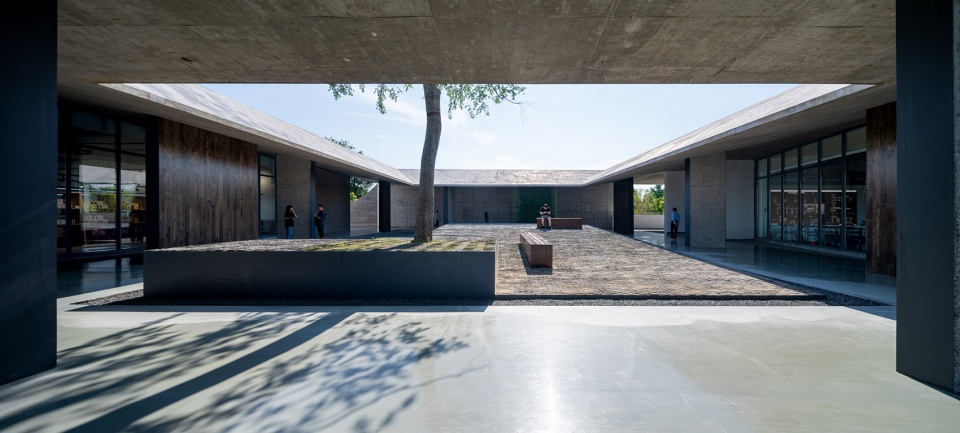

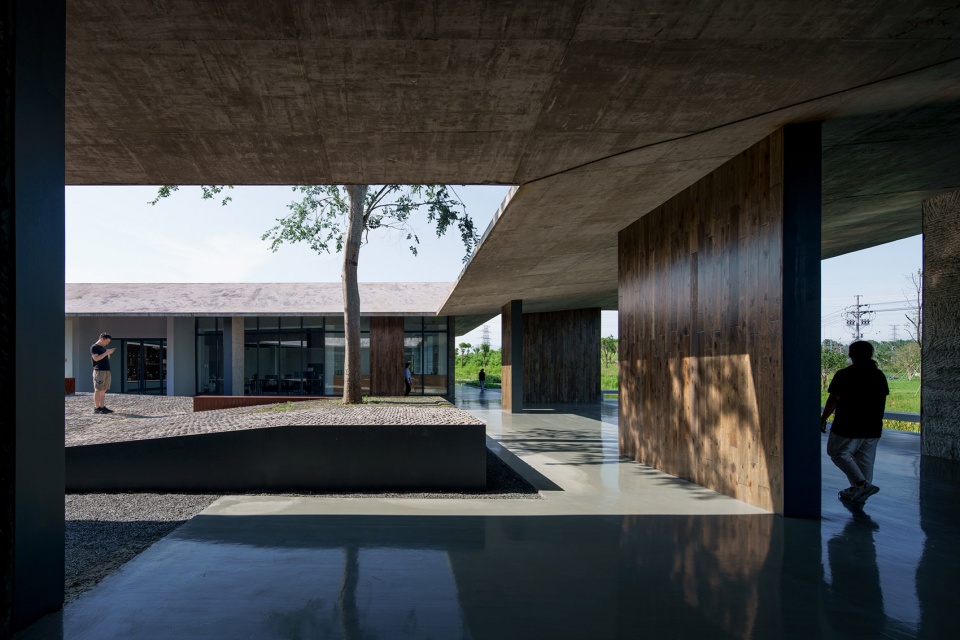

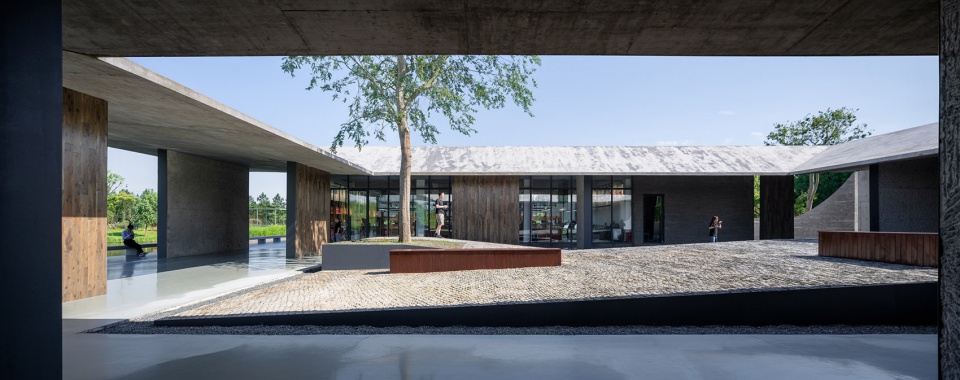

▼湖-廊-院-廊，Lake – Corridor – Courtyard – Corridor © 吴清山

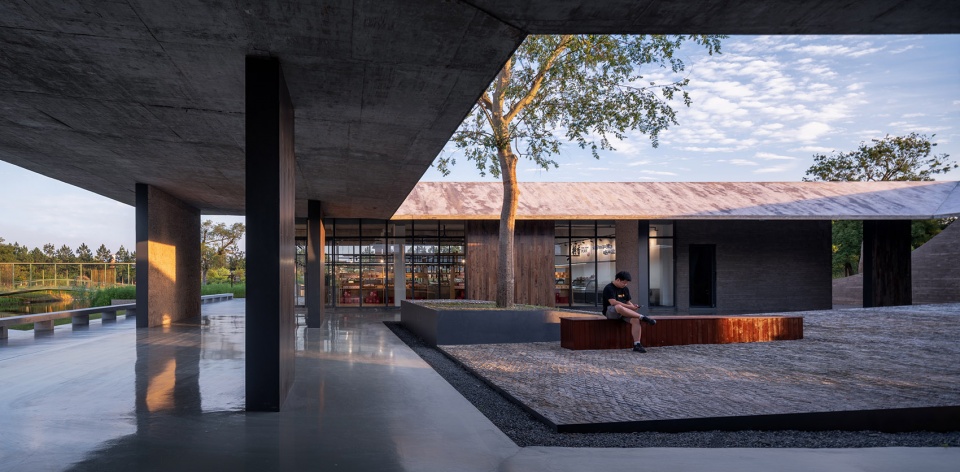

▼“榆树庭”长卷，Elm courtyard © 吴清山

▼天井内交错上升的景观台，Landscape in courtyard © 吴清山

第三进：“湖岸边”
The third – Lakeside

建筑北部为展厅空间，其东南两面透明幕墙朝向榆树庭院及场地东侧的湖面打开，内部家具为定制的弧形长桌椅。展厅东侧紧挨着一组灰空间与河埠头。作为建筑的最后一站，河埠头被设置为一处与水面最为亲近的高度，一个下沉的平台空间，材料的改变——青砖铺砌的叠台将建筑与其的高差消解，同时明示了此处空间性质的变化；从埠头上“长出”的背靠花坛的木制长凳提供驻留小憩，与对岸对语。

The north part of the building is the exhibition hall space, and the transparent curtain walls on the south and east sides open towards the “Elm courtyard” and the lake which is on the east side of the site. The internal furniture is customized arc -shaped tables and chairs. The east side of the exhibition hall is next to a group of grey spaces and river quay. As the last stop of the building, the river Quay is set to a close height to the water surface. It is a sinking space, and the change of materials which are used indicates the change of spatial properties here; The wooden bench “growing” from the quay with its back which offers flowers home provides a resting place for people to talk and rest here.

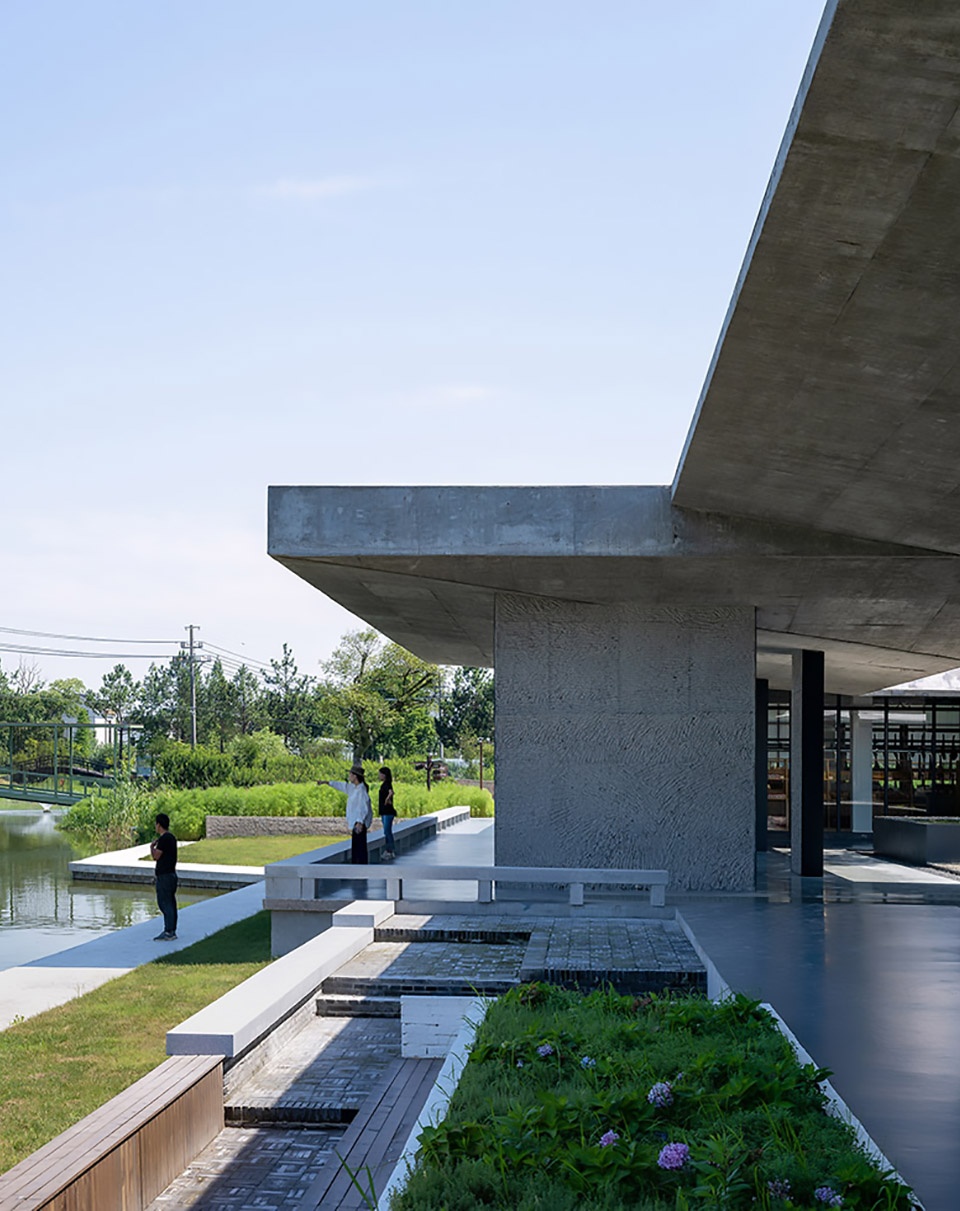

▼“湖岸边”，Lakeside 吴清山

▼屋面的压低聚拢，the concrete eaves © 吴清山

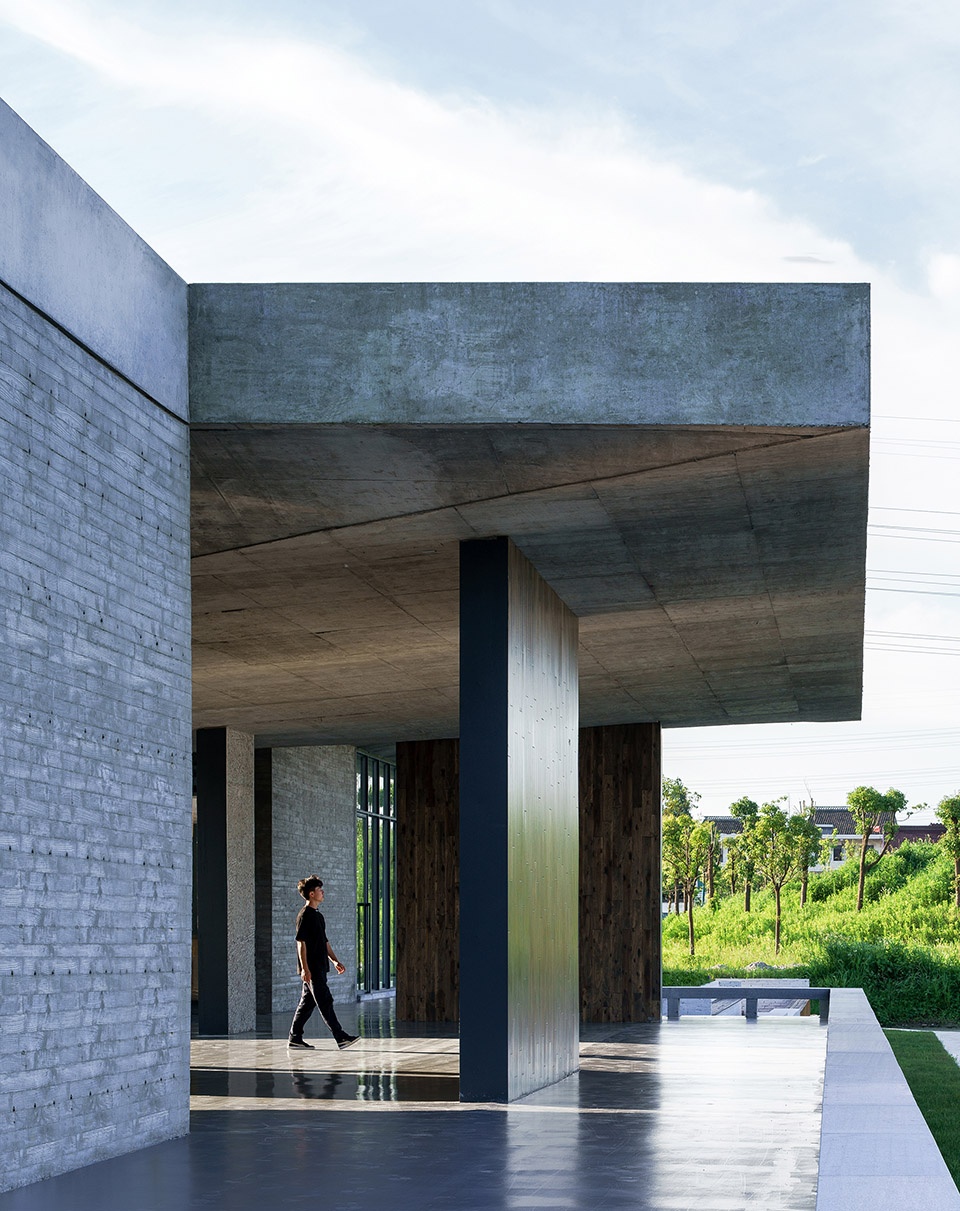

▼80cm厚外挑现浇混凝土屋檐，Cantilevered concrete eaves © 吴清山

结尾
Ending

空间在人流进入后历经开放、遮掩、进入、压缩、停顿、转折、粘连、疏离、再开放的变化过程。在渐进的叙事中，身体感官被充分调动，与建筑及外部景观发生了丰富的连接；亦使得建筑本体通过各空间片段和外部世界紧密结合在一起。

After people enter the space, the changes of experience come：opening, masking, entering, compressive, pause, turning, adhesive and release. In the gradual narration, the body senses are fully mobilized and connected with the architecture and external landscape; It also shows the architectural noumenon closely combined with the external world through various space segments.

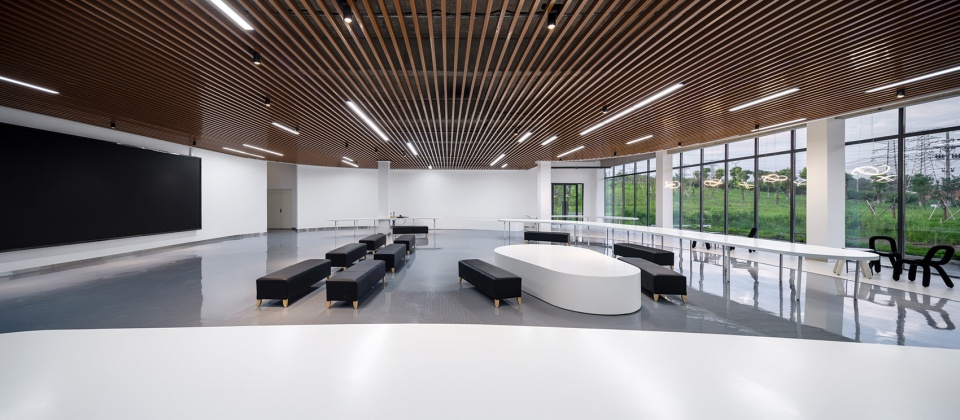

▼展厅室内，Showroom interior © 吴清山

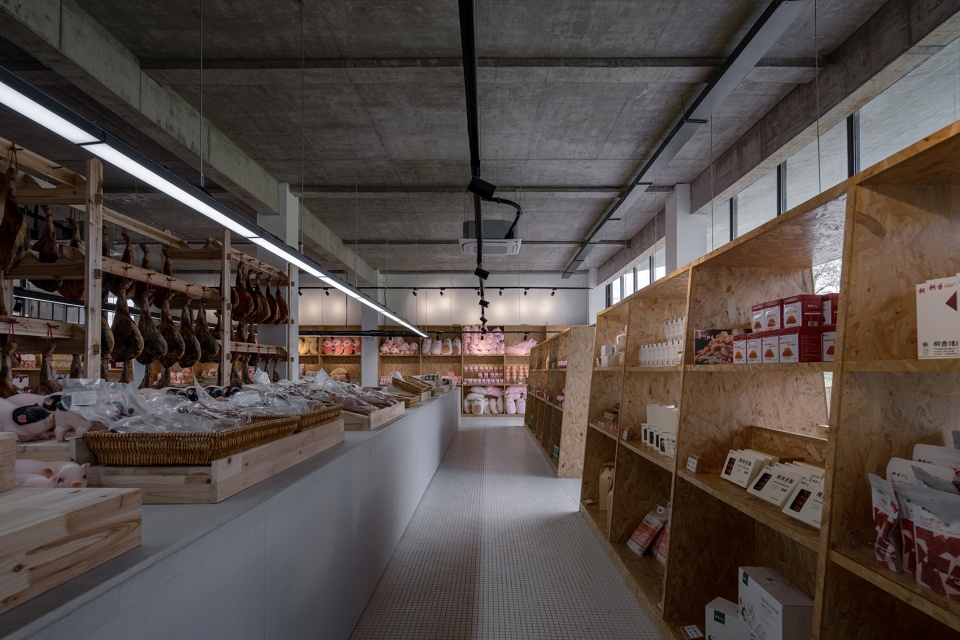

▼纪念品商店室内，Souvenir shop interior © 吴清山

从总体看，展厅建筑为实体与虚体的结合，与拓碑的关系相似，两块建筑实体与中心庭院相互借景，与三进的灰空间相互依存，分而又合。在材料上，运用钢筋混凝土、钢材、玻璃、瓦、青砖、木材等普通建筑材料，在空间体验与材料造价上取得了一定的平衡。

The exhibition hall building is a combination of entity and virtual body, which is similar to the relationship of rubbings. The two building entities borrow scenery from each other with the central courtyard, which are interdependent, separated and combined with the three entry gray spaces. In the selection of materials, same as other projects of ALL Studio, the common building materials used in the project such as reinforced concrete, steel, glass, tile, old brick and wood has achieved a certain balance between space experience and material cost.

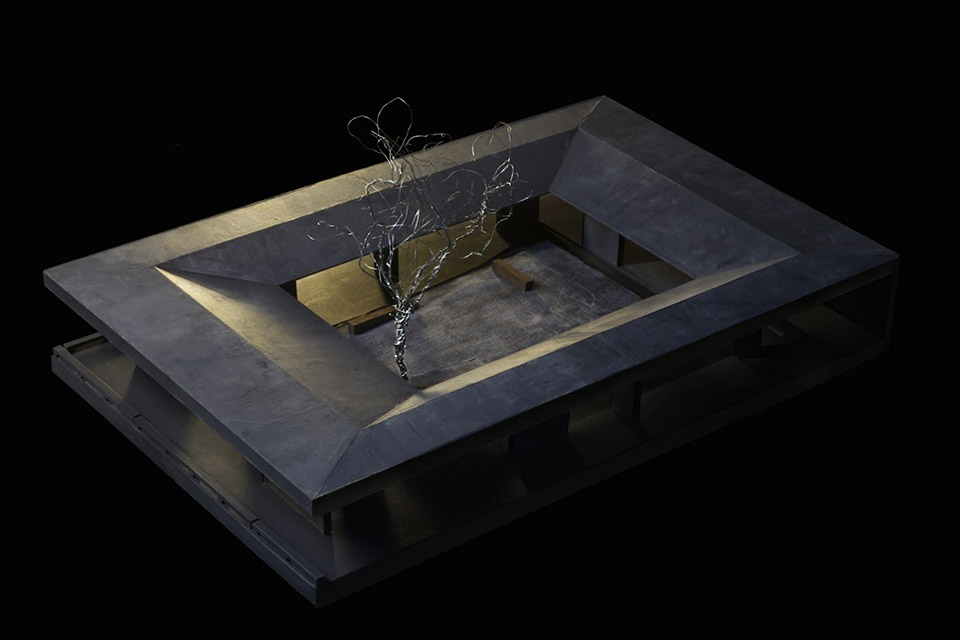

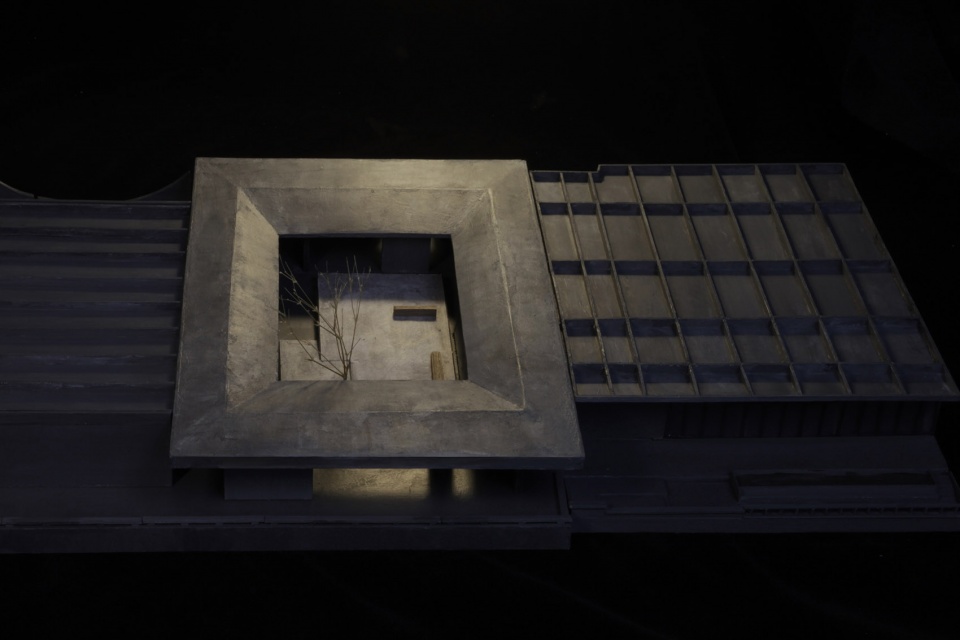

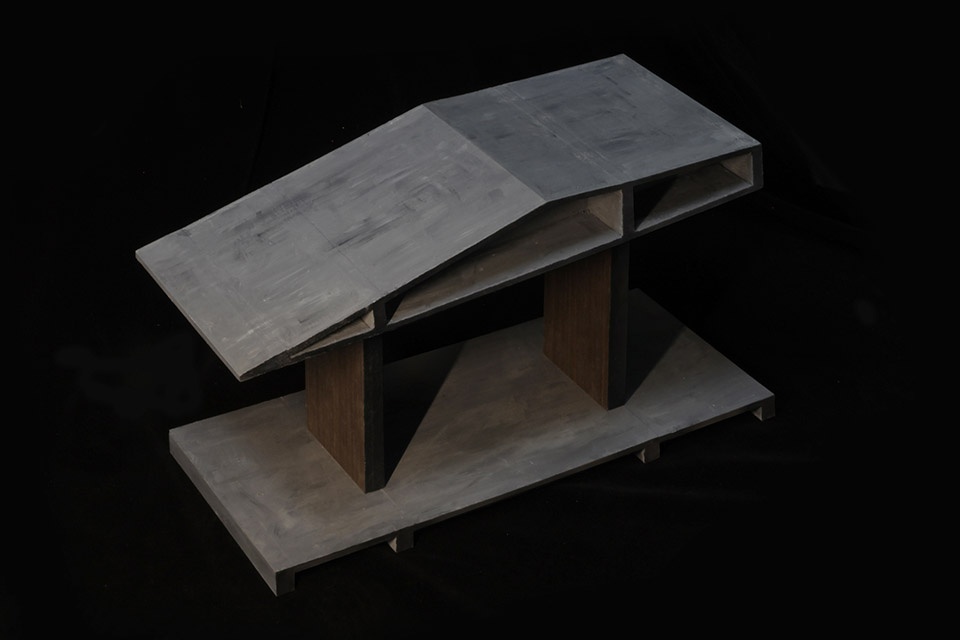

▼模型，model ©其实建筑事务所

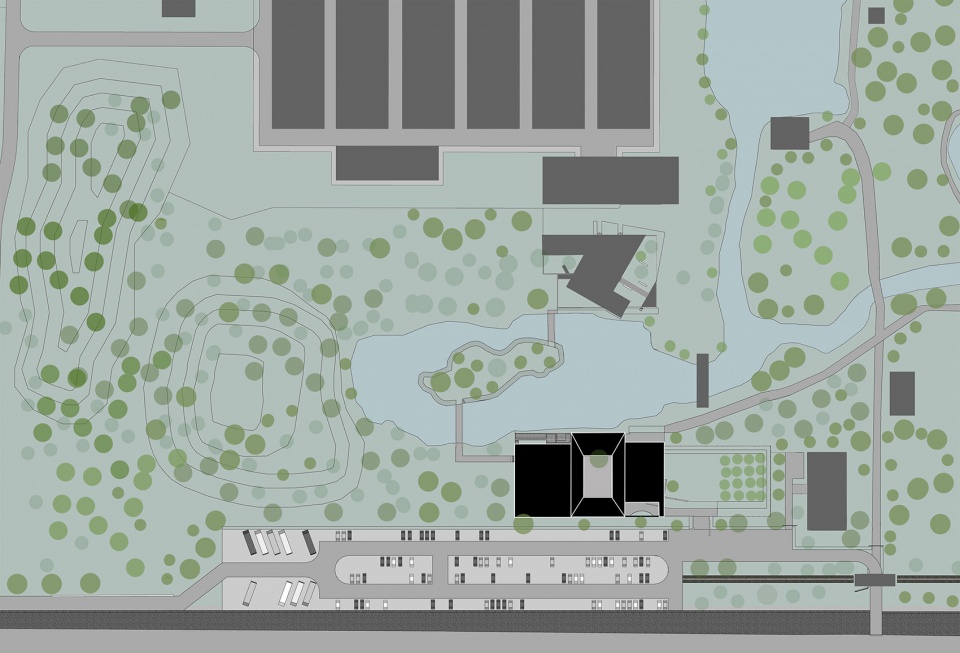

▼总平面图，Masterplan ©其实建筑事务所

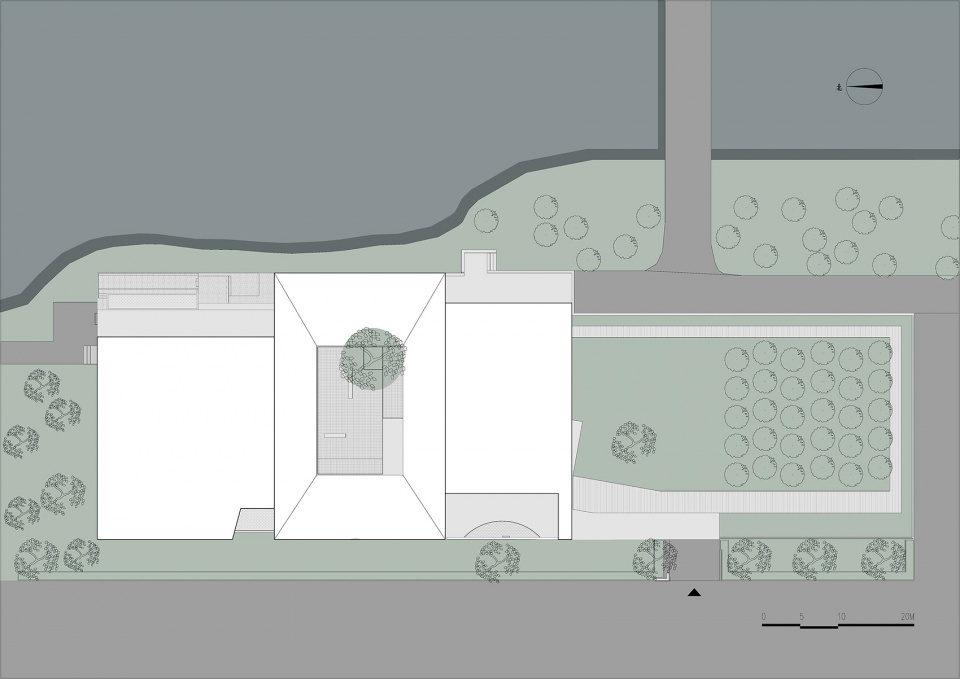

▼屋顶平面图，Roof Plan ©其实建筑事务所

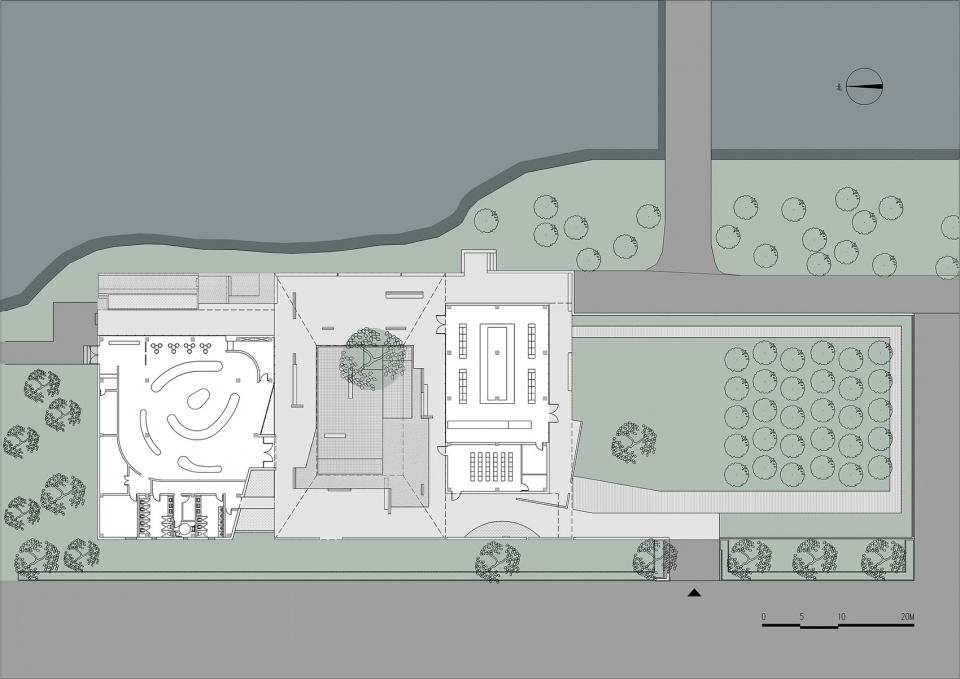

▼一层平面图，1F Plan ©其实建筑事务所

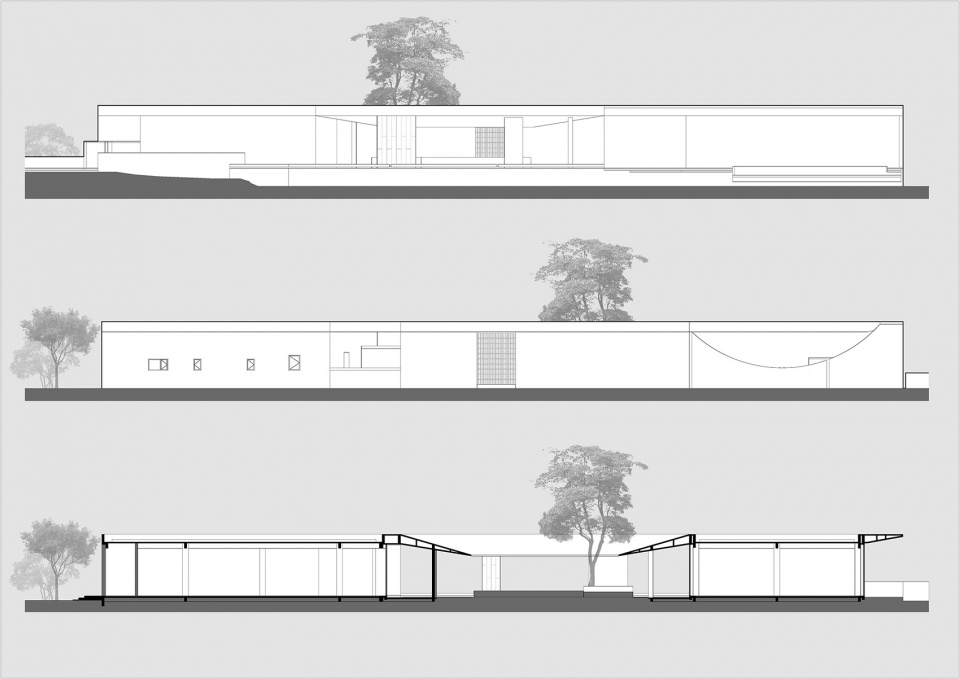

▼立面图及剖面图，Elevations and Section ©其实建筑事务所

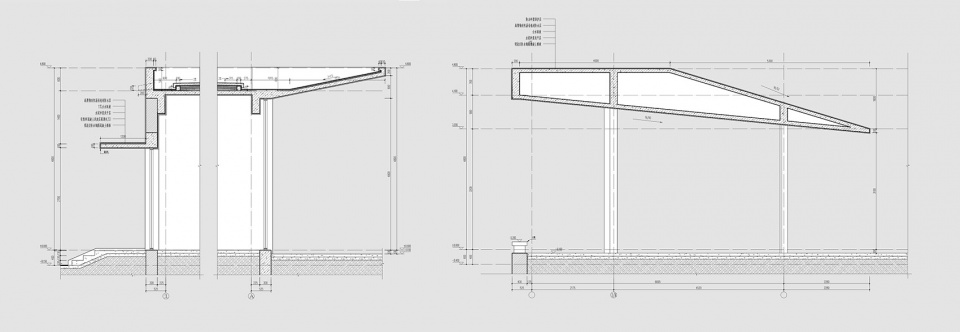

▼墙身节点图，Wall Body Node ©其实建筑事务所

项目名称：石湾猪舍里展厅
设计方：其实建筑事务所
公司网站：http://www.qishiarchi.com/
联系邮箱：all_studio@yeah.net
项目设计 & 完成年份：2020-2021
主创及设计团队：李诗琪、金镭、艾梦江、蓝旭、谭惠（实习）、徐皓钰（实习）、马梓恒（实习）
项目地址：浙江省桐乡市石门镇墅丰村
建筑面积：1200平方米
摄影版权：吴清山
建筑/室内/景观设计：其实建筑事务所
施工方：浙江圆周建设有限公司
客户：浙江华腾牧业集团

Project name：Shiwan Zhusheli Exhibition Hall
Design：ALL Studio
Website：http://www.qishiarchi.com/
Contact e-mail：all_studio@yeah.net
Design year & Completion Year：2020 – 2021
Leader designer & Team：Shiqi Li, Lei Jin, Mengjiang Ai,Xu Lan,Hui Tan(Intership),Haoyu Xu(Intership),Ziheng Ma(Intership)
Project location：Shimen Town, Tongxiang, Zhejiang
Gross Built Area：1200㎡
Photo credits：Qingshan Wu
Architecture/Interior/Landscape Design：ALL Studio
construction：YUANZHOU Achitecture Group
Clients：HUATENG Co.,Ltd.
