感谢来自 Fuksas 对gooood的分享。更多关于他们：Fuksas on gooood。
Appreciation towards Fuksas for providing the following description:

深圳兆鑫汇金广场坐落于深南大道与建设路的黄金十字路口，面朝罗湖区的重要地标建筑地王大厦与KK100。在这个特殊的地理位置，设计有必要创造出一个独特且强烈的形象，使之能从周边塔楼中脱颖而出。

Shenzhen Zhaoxin Huijin Plaza is located at the prime intersection of Shennan Avenue and Jianshe Road, facing prominent landmarks such as Diwang Tower and KK100 in Luohu. It was essential to create a distinctive and impactful image to stand out among the surrounding structures.

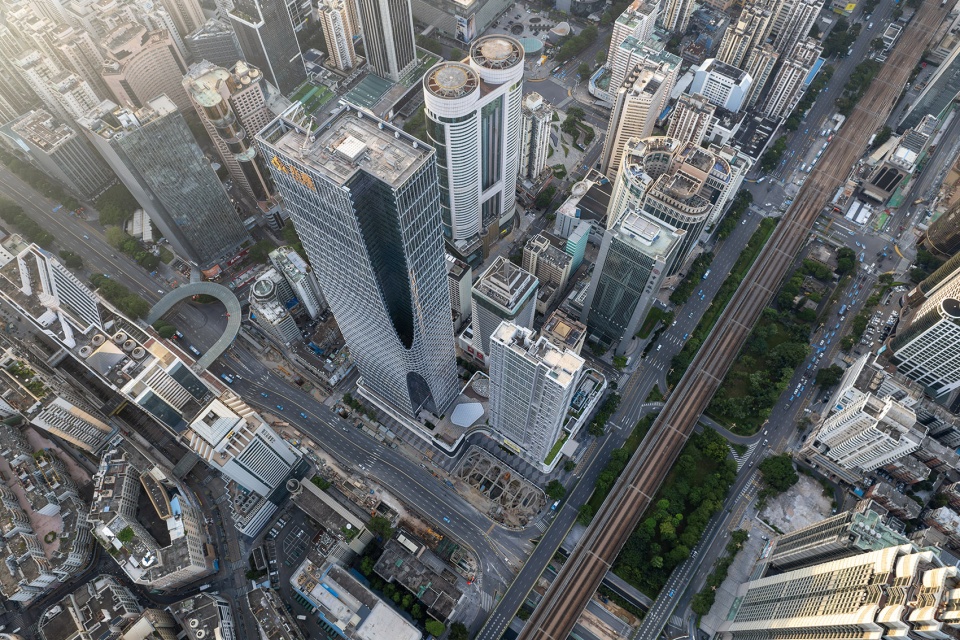

▼项目鸟瞰，Ariel view of the project ©曾天培

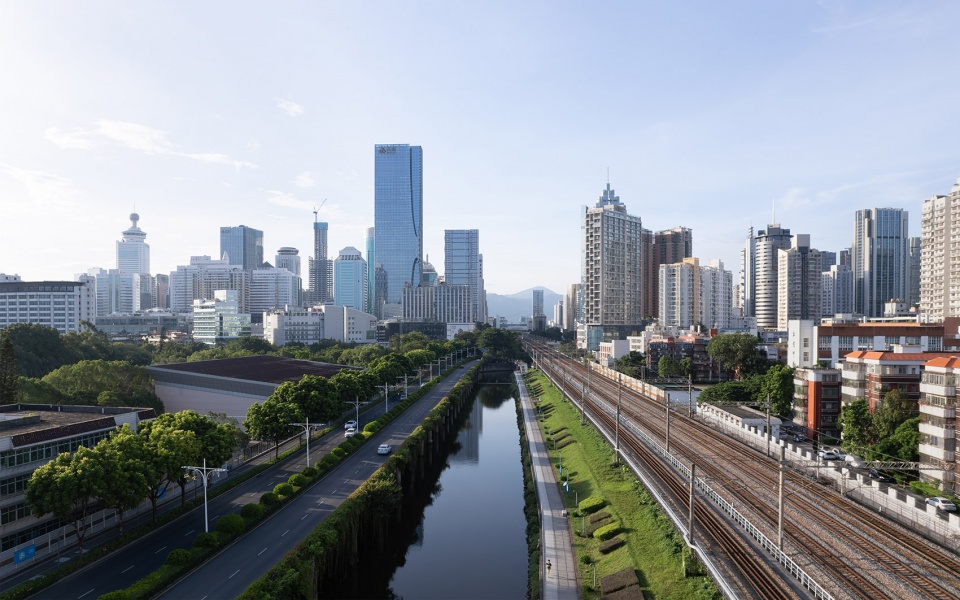

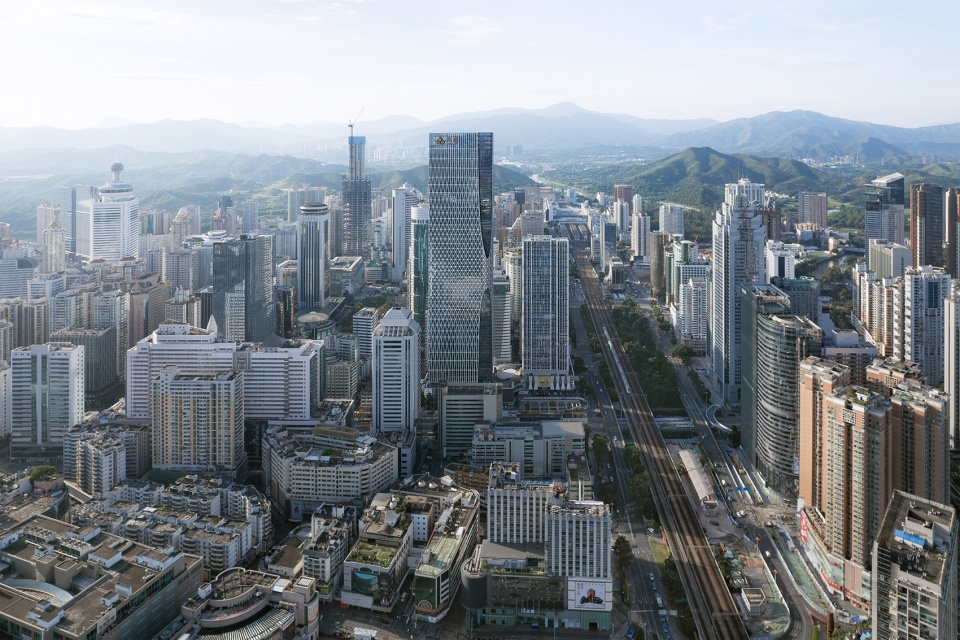

▼项目远景，distant view of the project ©曾天培

兆鑫汇金广场由A塔，B塔和裙楼三部分组成。A塔高约261米，是一座办公和高端公寓混合功能的地标塔楼；B塔则为一座标准设计的高层住宅楼；裙楼连接两塔，为商业用途。

The Plaza comprises Tower A, Tower B, and a commercial podium connecting the two towers. Tower A, the centerpiece, is a landmark tower rising approximately 261 meters, comprising office and high-end apartment programs. While Tower B is a high-rise residential building. The podium serves as a unifying element, providing commercial spaces that link the two towers.

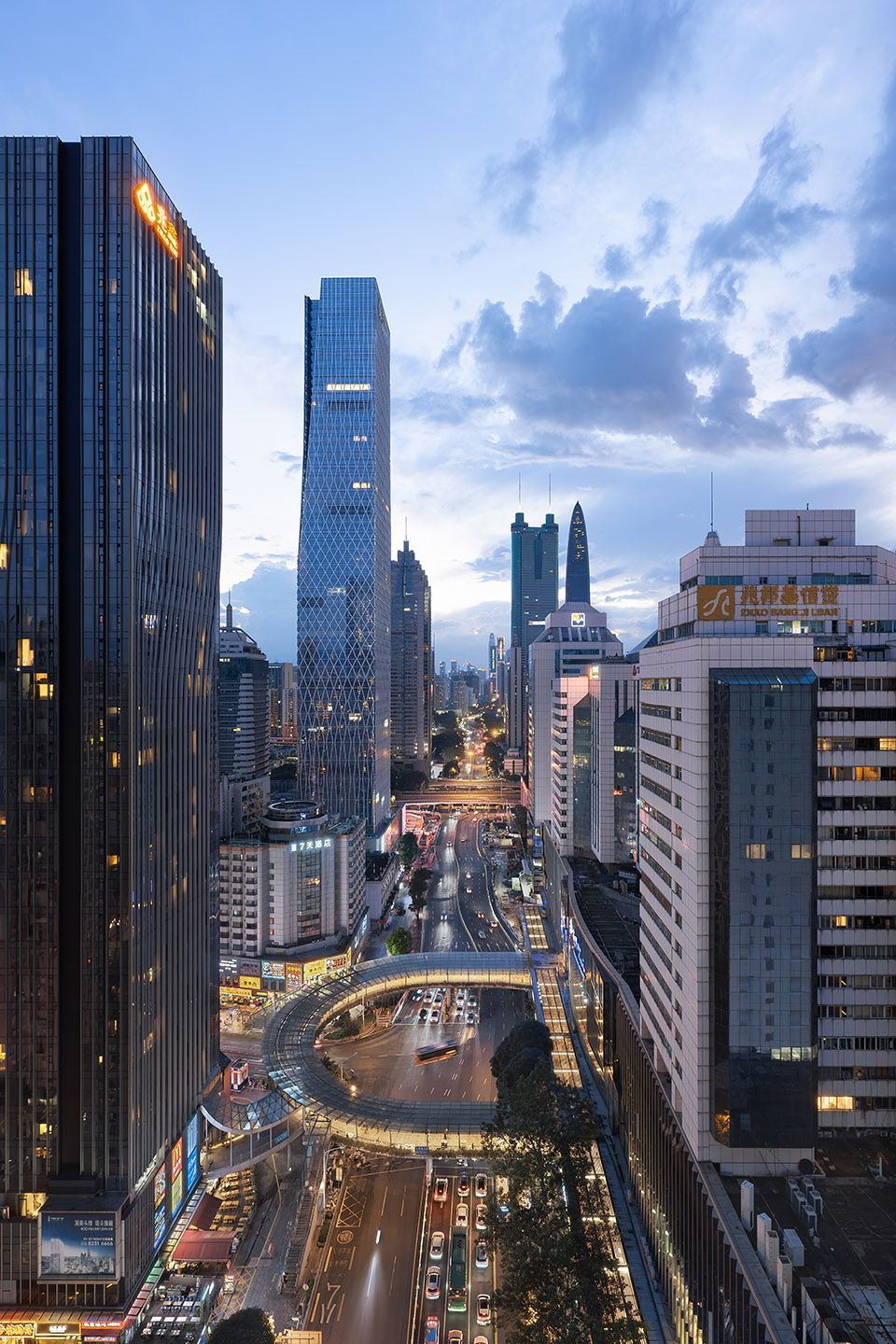

▼项目街景，street view of the project ©曾天培

A塔 – 地标建筑
Tower A, the Landmark

A塔作为地标建筑，通过两个设计语言，塑造了引人注目的建筑形象。

其一是位于建筑西北角与东南角的椭圆形切割，它将外立面切断，得到两个大尺度的椭圆形切面。这一手法为A塔在深南大道上带来了极强的辨识度——深南大道是深圳最重要的道路之一，同时也是通往场地的主干道。设计希望通过椭圆形这一有机且平滑的形体来隐藏A塔本身体量的不平整，以及几个退台所带来的不连续性。其最终呈现的效果 – 由两条柔和的椭圆曲线切开的断面– 分别指向黄金十字路口，和塔楼中段的空中大厅，在不同的视角创造了独特且令人难忘的建筑形象。

The landmark Tower A has a striking and recognizable design. Its two main design elements give it a distinct and powerful presence.

The first design feature is the elliptical cuts at the northwest and southeast corners of the building, creating two large-scale elliptical openings in the façade. This approach makes Tower A highly recognizable along Shennan Avenue, one of Shenzhen’s most important roads and the main thoroughfare leading to the venue’s entrance. The design aims to conceal the unevenness of Tower A’s massing and the discontinuities caused by several setbacks using an organic, smooth elliptical form. The final result—two soft elliptical curves cutting through the building’s section and pointing toward the golden crossroads or the Sky Lobby at the tower’s midpoint—creates a unique and memorable architectural identity.

▼A塔外立面，Tower A facade ©曾天培

其二是包裹整个塔身的装饰性纹理。灵感源于深圳随处可见的，生机勃勃的热带自然风光。这些风光不仅存在于公园，还存在于城市道路两旁，甚至是建筑里。这使建筑与景观之间产生了有趣的交集。

The second key design element of the landmark tower is the decorative texture that envelops the entire structure. This texture is inspired by the vibrant tropical nature that defines Shenzhen. This natural vibrancy is present not only in the city’s parks but also along its roads and even within its buildings, creating a fascinating intersection between architecture and landscape.

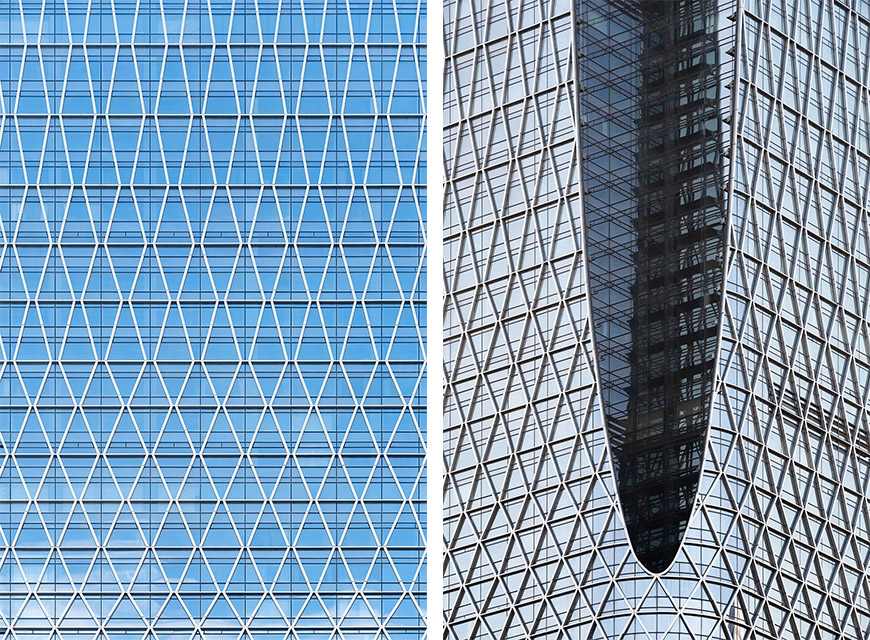

▼A塔外立面细节，Tower A facade detail ©曾天培

受阳光洒落在红树枝上这一灵感启发，设计提取并重现了红树树枝纷繁交错但同时自有规律的特点。该纹理并不是从建筑底部至顶部的重复排列，而是由底部稀疏的正交格网逐渐过渡至塔楼中段密集的钻石型纹理，再由中段至顶部，逐渐回归为正交的格网。动态的连接方式呼应着塔的形体，使建上下段的标准层，与平面轮廓最大的中段得以自然衔接，最终形成设计语汇连贯一致的整体。同时阳光通过丰富的立面纹理投射进来，于室内创造多种光影效果。

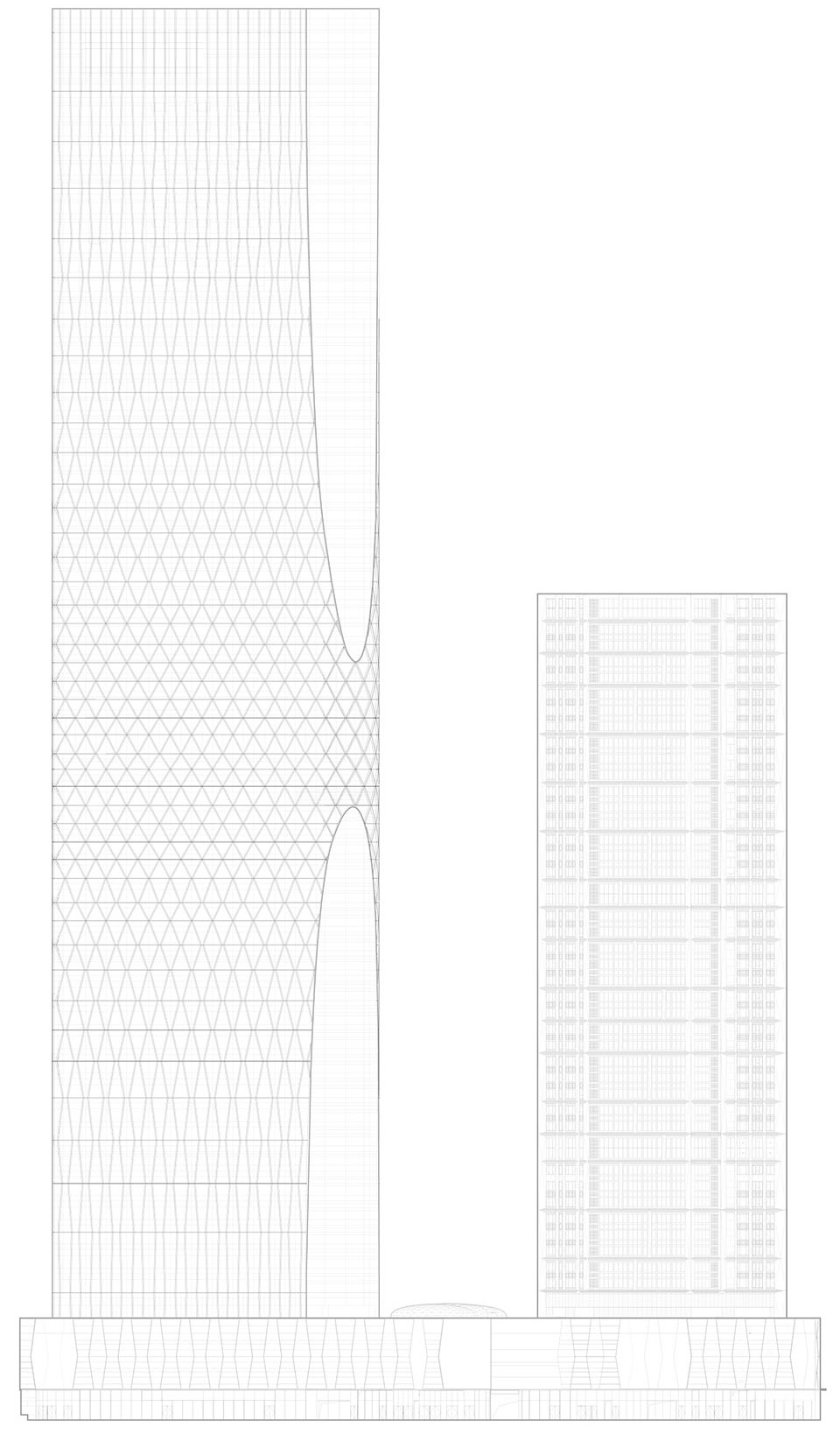

▼外立面，facade ©Studio Fuksas

Inspired by sunlight filtering through the branches of a mangrove tree, the façade’s texture captures and reproduces the interplay of intertwining patterns and natural regularity. The texture transitions dynamically from the base to the top of the building, avoiding repetition. At the bottom, it begins as a sparse, orthogonal grid, gradually transforming into a dense, diamond-shaped texture at the Sky Lobby in the middle of the tower. From there, it shifts back to an orthogonal grid as it ascends toward the top. This gradual progression creates a dynamic connection that reflects the tower’s form, seamlessly linking the lower standard floors, the central Sky Lobby (with the largest planimetric profile), and the upper floors. The façade ultimately achieves a coherent design vocabulary while allowing sunlight to interact with its rich texture, casting a variety of captivating light and shadow effects inside the building throughout the day.

▼兆鑫汇金广场，Zhaoxin Huijin Plaza ©曾天培

B塔
Tower B

B塔被设想为一座庄严、优雅、设计精美的住宅建筑。直线线条系统的运用，使得其立面更加连贯与规律。B塔设计的关键要素，是与A塔和裙楼相同的，带有光泽的反光金属装饰板。通过使用这些具有不同倾斜度、大小不一切割而得的三角形金属面板，B塔的外立面得以产生如同一颗颗闪亮钻石般的反射效果。

Tower B was envisioned as a stately, elegant, and beautifully designed residential building, achieved through the use of a system of straight lines. While the existing layout creates a slightly fragmented south elevation, the linear nature of this unique design system ensures a more coherent and regular overall appearance. A key element in the design of Tower B, both in terms of visual impact and final presentation, is the glossy, reflective metal decorative panels, identical to those used on Tower A and the podium. These triangular metal panels, cut in varying sizes and set at different angles, create a shimmering effect on Tower B’s façade, resembling a sparkling diamond.

▼B塔及商业裙楼，Tower B and podium ©曾天培

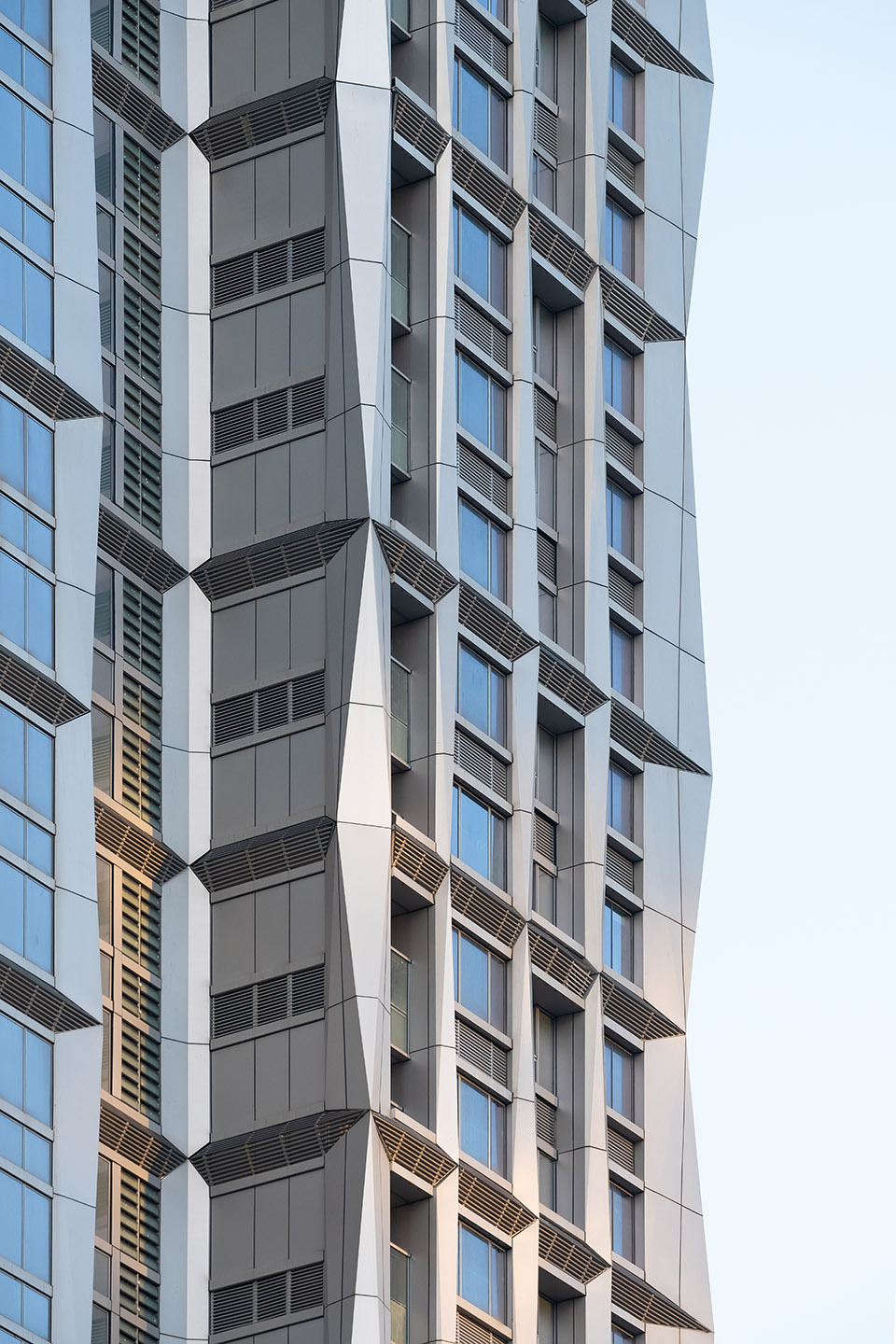

▼B塔立面细节，Tower B facade detail ©曾天培

裙楼
Podium

裙楼在连接起两幢塔楼建筑的同时，也统一了整个综合体。它使用了与两幢塔楼相同的设计语汇，菱格型纹理是对A塔红树枝肌理及B塔钻石型立面的呼应，相同的语言模块在立面上被重复运用。渐变的模块厚度，玻璃与高反射的阳极氧化铝板的有序交替，无不在加强这一区域的商业氛围。

The podium not only connects the two towers but also serves as a unifying element for the entire complex, employing the same design vocabulary as the towers. Its diamond lattice texture reflects the red twig texture of Tower A and complements the diamond-shaped façade of Tower B. The podium acts as the foundation for the two towers in the complex. The same architectural modules are repeated on the façade, while the varying module thicknesses and the orderly alternation of glass and highly reflective anodized aluminum panels enhance the commercial character of the space.

▼塔楼及裙楼，Tower and podium ©曾天培

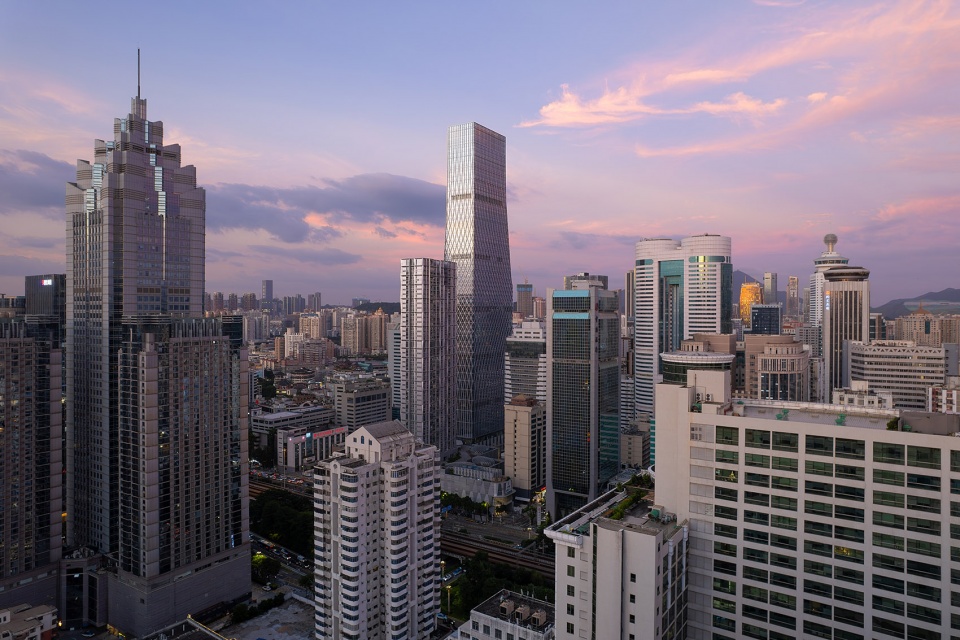

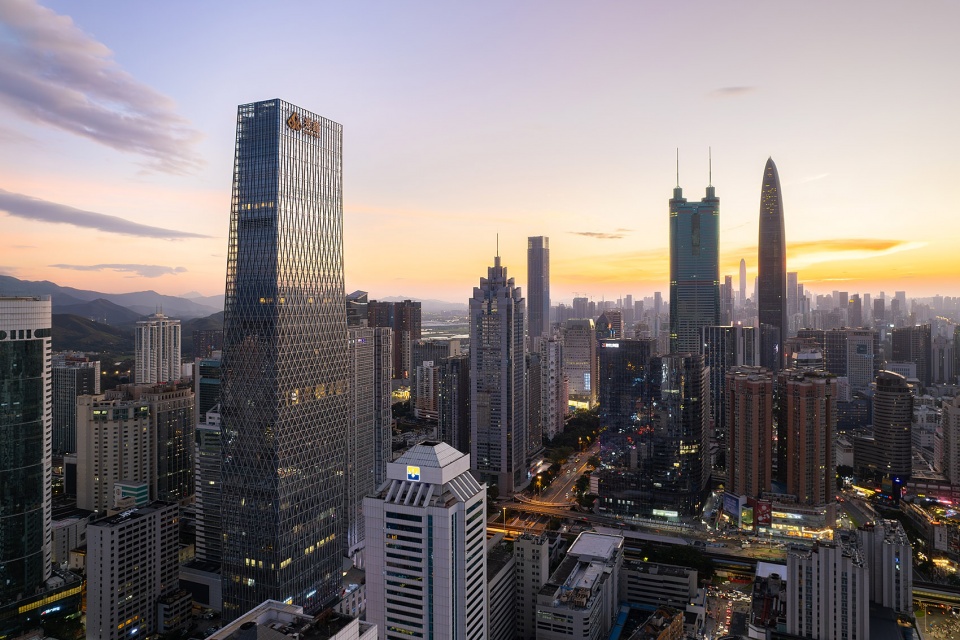

▼夕阳下的塔楼，Tower at dusk ©曾天培

▼塔楼夜景，Tower at night ©曾天培

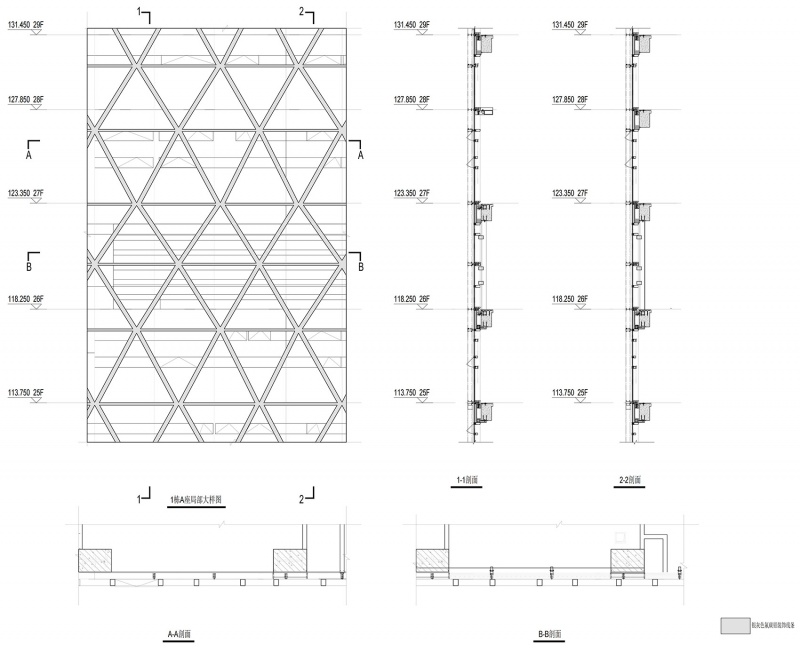

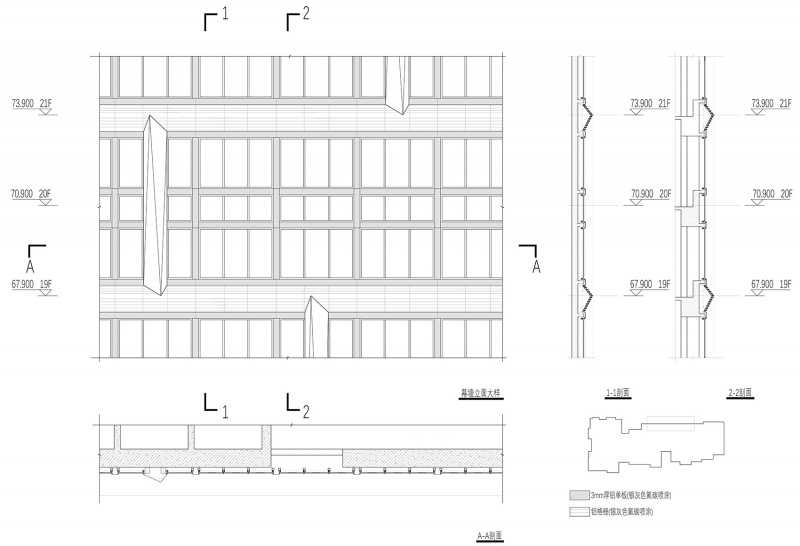

▼塔楼立面细部，facade detail ©Studio Fuksas

项目名称：深圳兆鑫汇金广场
项目类型: 建筑
项目地点：中国，深圳
建成状态：建成
项目功能：办公、公寓住宅、商业裙房、地下停车等
设计时间：2019-2020
建设时间：2019-2024
用地面积：12,671.59 平米
建筑面积：140,593 平米
主创建筑师：Massimiliano and Doriana Fuksas
立面设计：Studio Fuksas
建筑施工图：深圳和华国际工程与设计有限公司
幕墙：深圳市中筑科技幕墙设计咨询有限公司
景观：源点设计有限公司

Project Name: Shenzhen Zhao Xin Huijin Plaza
Project Type: Architecture
Project Location: Shenzhen, China
Project Status: Built
Project Program: Office, Apartment, Retail Podium, Underground Parking, etc.
Project Design Time: 2019-2020
Project Construction Time: 2019-2024
Land-use: 12,671.59 sqm
Construction Area: 140,593 sqm
Chief Architect：Massimiliano and Doriana Fuksas
Façade Design: Studio Fuksas
Construction Drawing: WOWA
Curtain Wall Consultant: CBS
Landscape Architect: LOCUS ASSOCIATES
