感谢来自DP Architects对gooood的分享。更多请至：DP Architects on gooood
Appreciation towards DP Architects for providing the following description:

SAFRA蔡厝港俱乐部被评委会评选为2024年Architizer A+奖 “可持续运动与休闲建筑 ”类别的获奖作品。SAFRA蔡厝港俱乐部是新加坡的一个休闲俱乐部，由DP建筑师事务所与其专业团队DP工程师（结构）、DP绿色设计和DP可持续设计合作设计。

SAFRA Choa Chu Kang Clubhouse has been selected by the jury as the 2024 Architizer A+ Awards winner in the Sustainable Sports and Recreation Building category. SAFRA Choa Chu Kang (CCK) is a recreational clubhouse in Singapore designed by DP Architects, in collaboration with its specialist arms DP Engineers (Structure), DP Green, and DP Sustainable Design.

▼项目概览，overview of the project ©DP Architects

SAFRA蔡厝港俱乐部为本国的军人及其家庭提供一系列健康和保健活动。这是首个位于公共公园的此类设施，这也是设计团队将俱乐部概念化为 “健身绿洲 ”的原因——“自然、健身和社区”，优先考虑用户和环境的健康和福利。

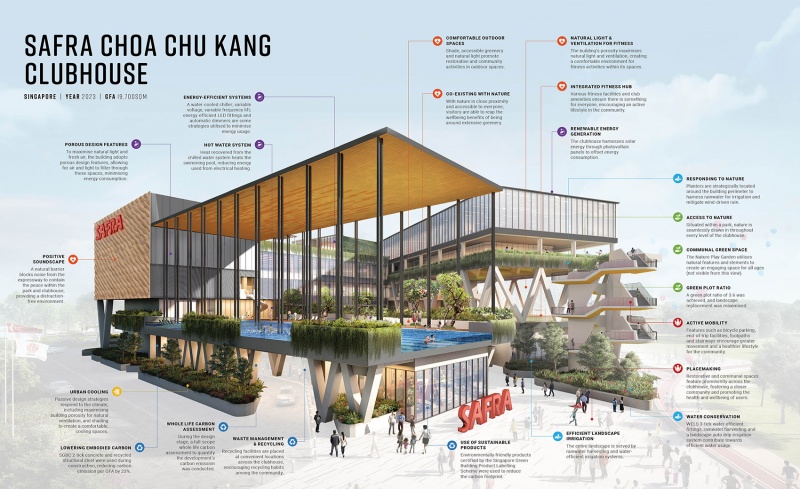

▼分析图，analysis ©DP Architects

SAFRA Choa Chu Kang Clubhouse offers a suite of health and wellness activities for National Servicemen and their families. It is the first such facility to be sited within a public park, which formed the impetus – Nature, Fitness, and Community – for how the design team conceptualized the clubhouse as a ‘Fitness Oasis’ that prioritizes the health and wellbeing of both its end-users and the environment.

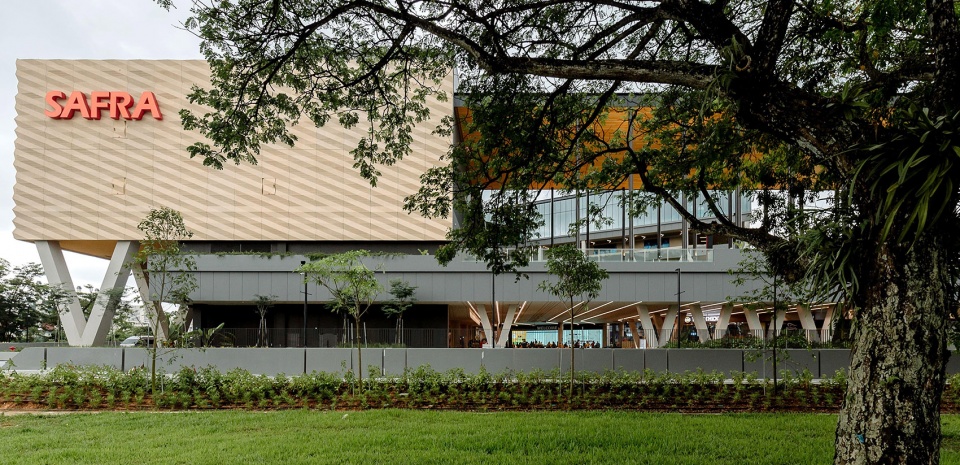

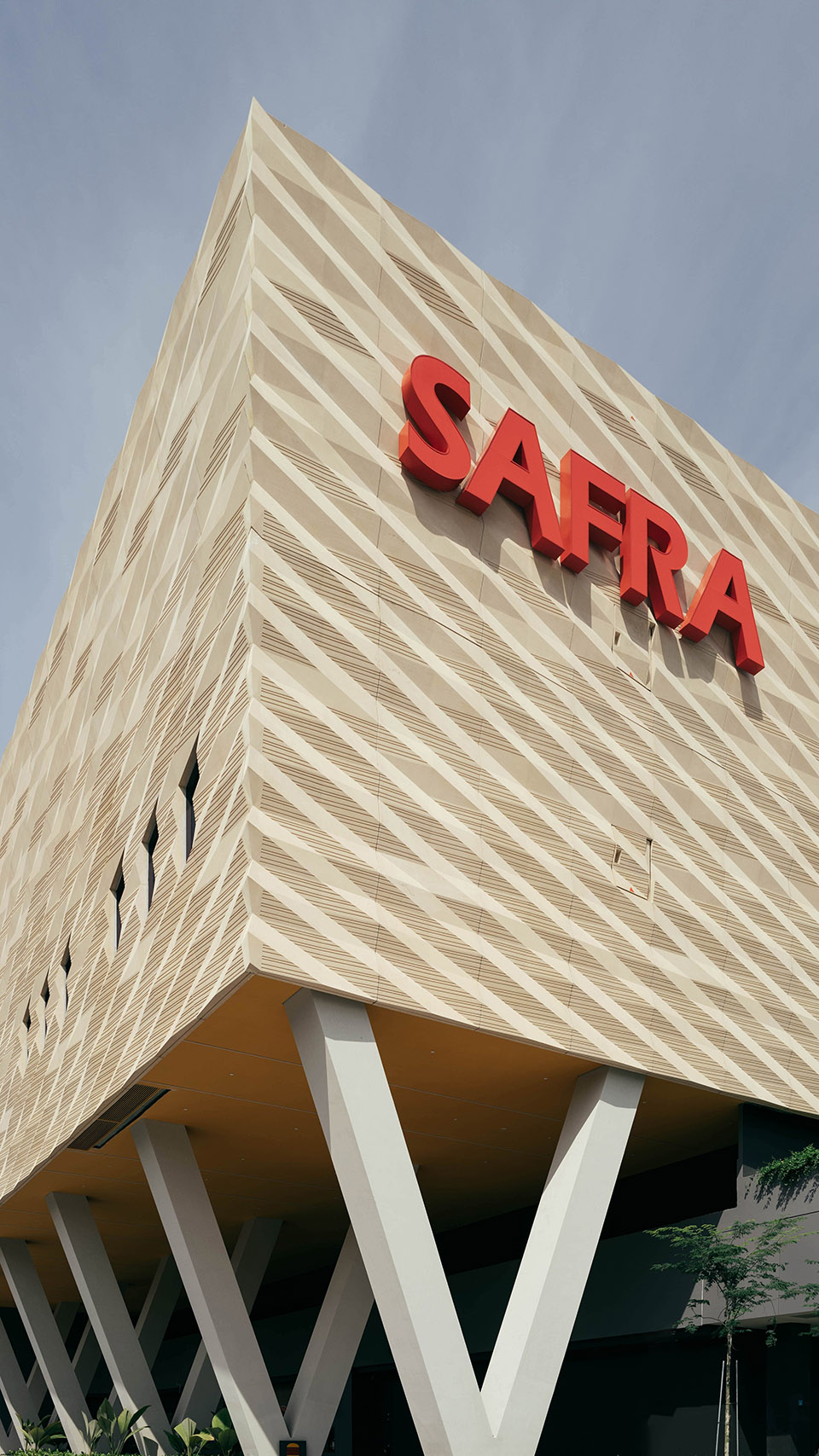

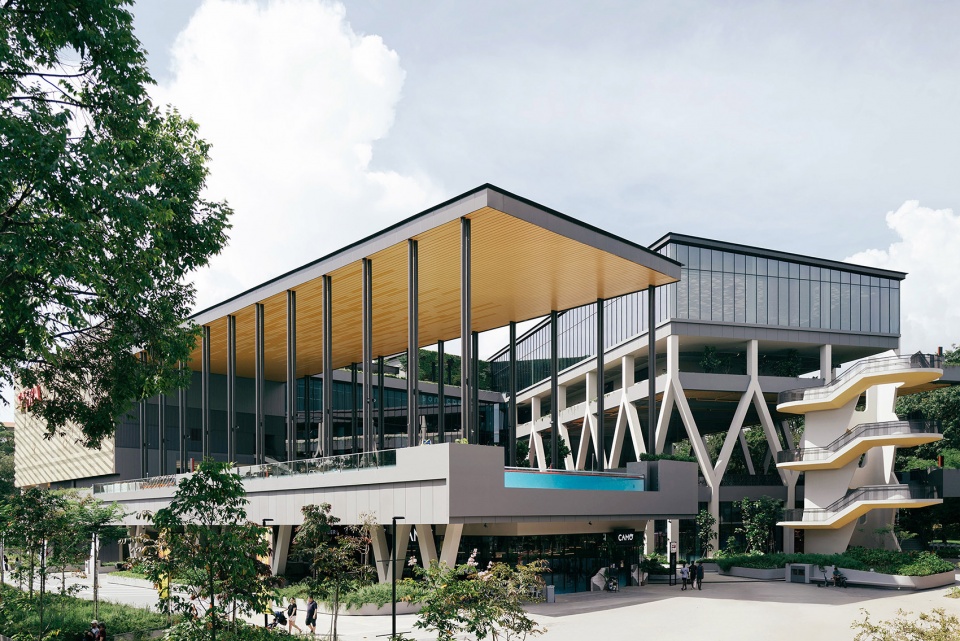

▼项目外观，exterior of the project ©DP Architects

▼项目外观，exterior of the project ©DP Architects

建筑体现也呼应了其周围的公园环境。围绕自然元素，采取了很多创新的设计特色来创造一个可持续的发展环境，同时也提升了促进健身和支持社区健康的主要愿景。

The design reflects and responds to its park surroundings. Innovative design features were applied to work around the natural elements so as to deliver a sustainable development that also elevates the primary vision of promoting fitness and supporting community wellbeing.

▼建筑呼应了其周围的公园环境，the design reflects and responds to its park surroundings ©DP Architects

这首先体现在建筑的体量上，建筑围绕景观中庭，沿着公园的轴线分布。中央的景观轴最大限度地增加了的自然采光和通风，减少了人工照明和机械制冷的使用。它还将俱乐部与公园完美的融为一体。

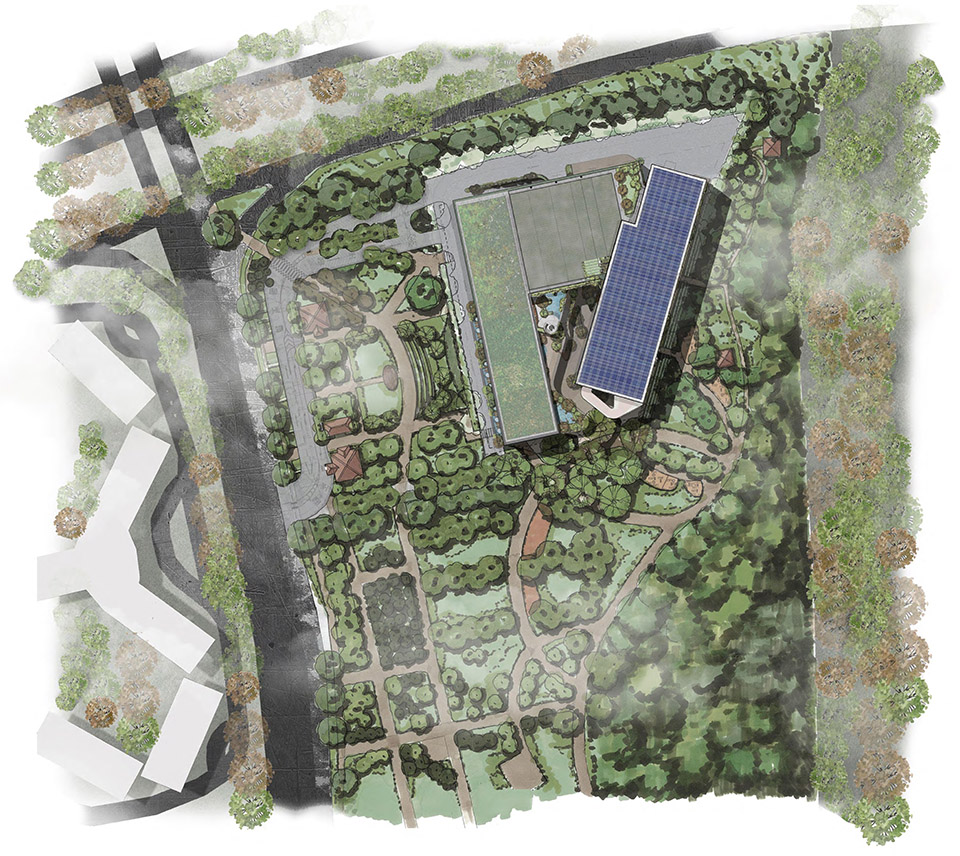

▼场地区位，site map ©DP Architects

This is first articulated in the building’s massing, which is oriented to the park’s axis and anchored by a green courtyard. This central green spine maximizes the natural light and ventilation filtering into the clubhouse, reducing the use of artificial lighting and mechanical cooling. It also seamlessly integrates the clubhouse with the park.

▼建筑与公园融为一体，building combines with the park ©DP Architects

不仅如此，植被景观策略性的种植在建筑周边，通过计算流体动力学推导出的雨水收集系统，可同时缓解开放通道导致的降雨，并利用雨水进行灌溉，从而最大限度的减少耗水量。植被组合也有利于减轻城市的热岛效应。

Secondly, planters strategically located along the building perimeter, derived through computational fluid dynamics, simultaneously mitigate wind-driven rain along the weather-exposed pathways and harness rainwater for irrigation to minimize water consumption. The incorporation of greenery also alleviates the urban heat island effect.

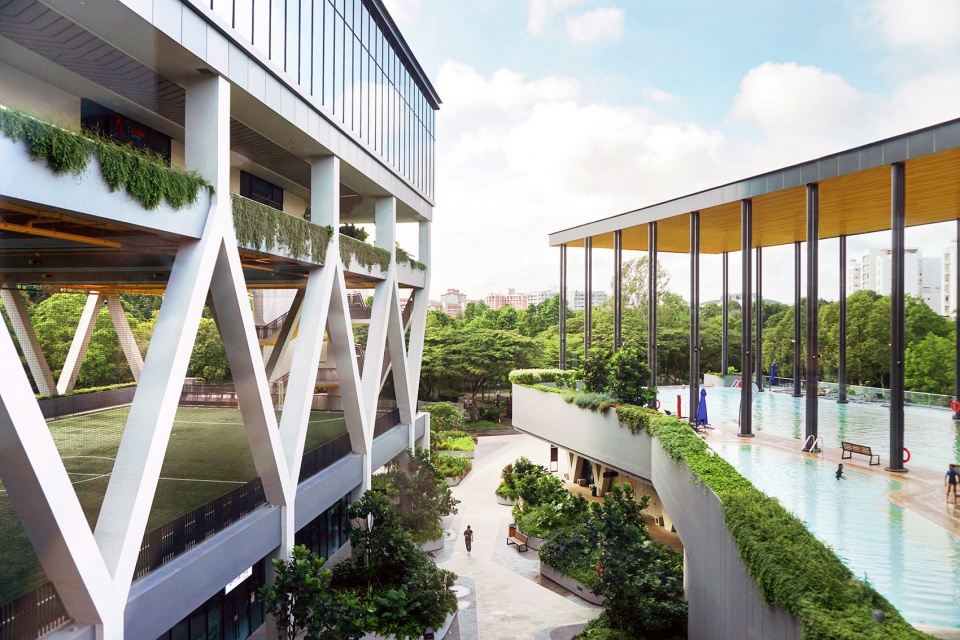

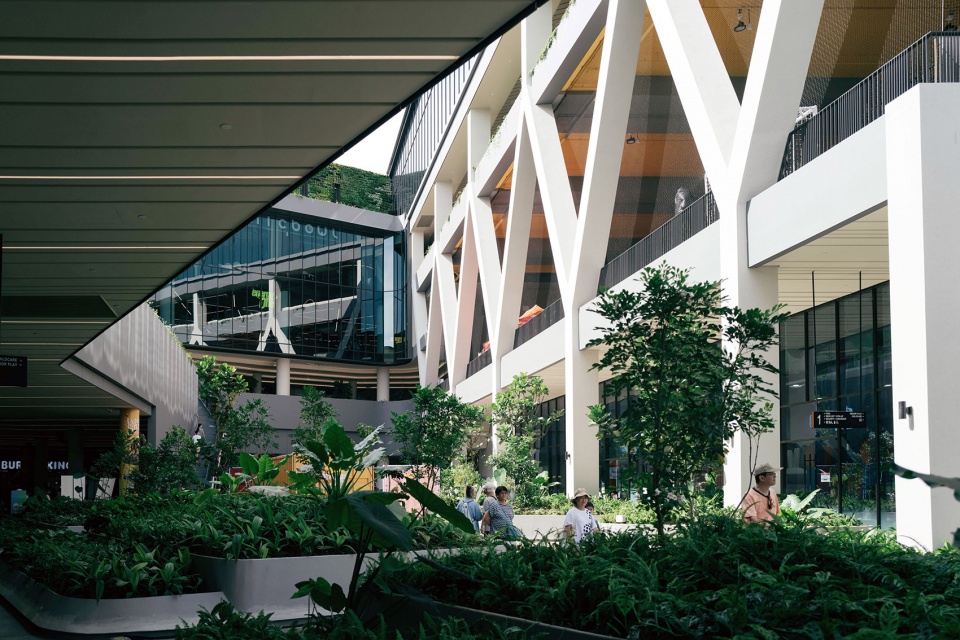

▼中庭的植被景观，landscape inside the courtyard ©DP Architects

整个SAFRA蔡厝港充满了浓郁的热带植物氛围，营造出一种都市环境中不多见的亲近自然的氛围。它们与会所的综合配套设施、休闲空间和公共花园创造性地交织在一起，发挥协同作用，将人们聚集在一起，培养强烈的社区意识，同时促进人们的身心健康。这一自然，社区，生活方式的融合，通过在整个开发项目中融入生物景观和步行网络而得到进一步提升。

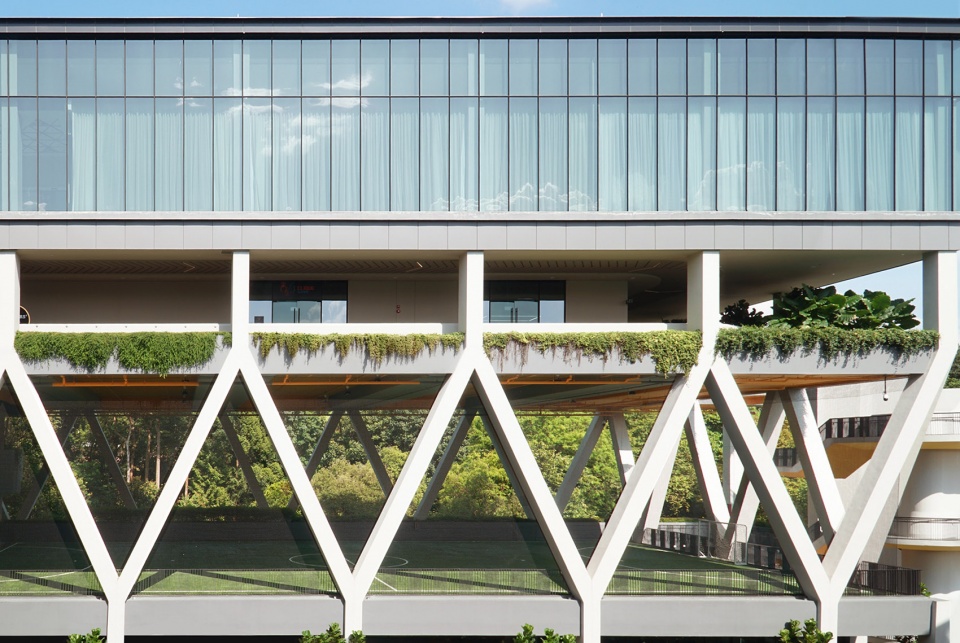

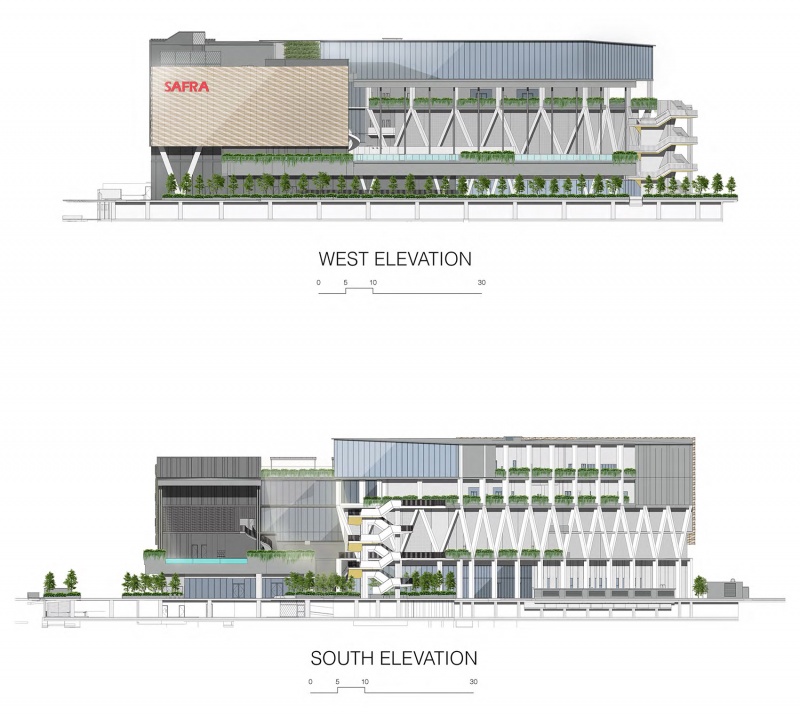

▼立面，elevation ©DP Architects

The rich biophilia found throughout SAFRA Choa Chu Kang created proximity to nature that is not often found in urban settings. Creatively interwoven with the clubhouse’s comprehensive suite of amenities, recreational spaces, and communal gardens, they work in synergy to bring people together and foster a strong sense of community, while promoting physical and mental wellbeing. This confluence of nature, community, and lifestyle is further elevated through the integration of biophilia and pedestrianized networks throughout the development.

▼自然，社区，生活方式的融合，confluence of nature, community, and lifestyle ©DP Architects

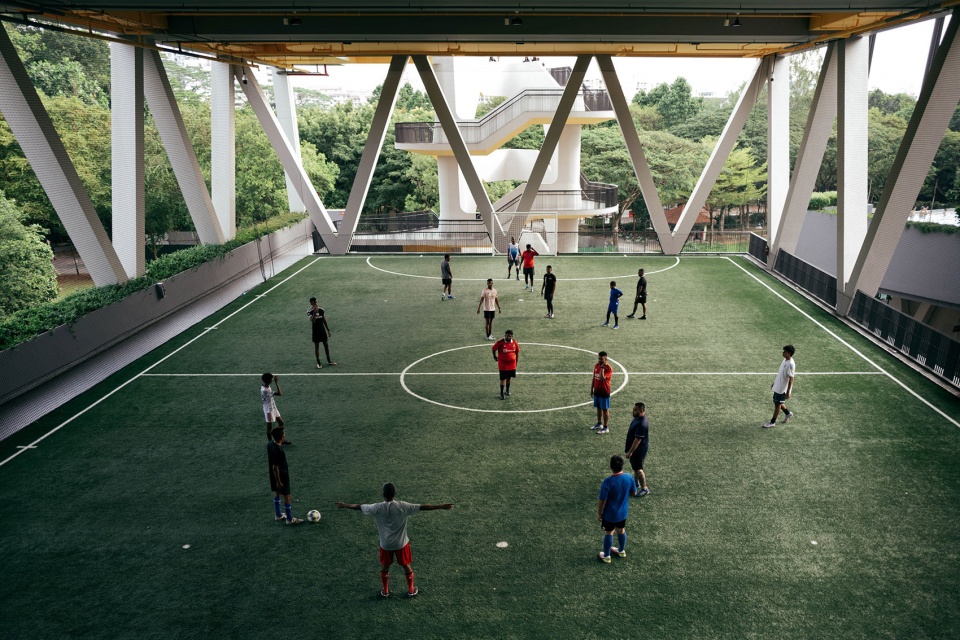

▼促进人们的身心健康，promoting physical and mental wellbeing ©DP Architects

为了更好的解决运营碳的问题，采取了积极的设计策略。其中包括使用高能效的LED灯光设计，例如分区自动调光器，可重复利用冷水机组的热水的热回收系统，减少用于电加热的能源；以及光伏电池板。结合以上策略，SAFRA蔡厝港俱乐部得以生产可循环能源并且最大化的提升能效，降低了42%的能耗。

To further tackle operational carbon, active design strategies were employed. These include the use of energy-efficient LED lighting design, such as automatic zonal dimmers; a heat recovery system that reuses hot water from chiller plants, reducing the energy used for electrical heating; and photovoltaic panels. Employed in combination, SAFRA Choa Chu Kang Clubhouse is able to generate renewable energy and maximize energy efficiency, enabling 42% in energy savings.

▼积极的设计策略，active design strategies were employed ©DP Architects

在早期设计阶段进行的全范围、全生命周期碳排放评估就强调了这一点。这对于了解项目的内含碳排放量和确定可持续材料的使用情况至关重要。SAFRA蔡厝港俱乐部的建造使用了环保混凝土和可回收钢材，将单位建筑面积的内含碳排放量减少了 23%。

Underscoring this is a full-scope, whole life carbon assessment conducted at the early design stage. This was crucial in informing the embodied carbon emissions of the project and ascertaining the use of sustainable materials. SAFRA Choa Chu Kang was constructed using green concrete and recycled steel, which reduced embodied carbon emissions per gross floor area by 23%.

▼流线设计，circulation hub design ©DP Architects

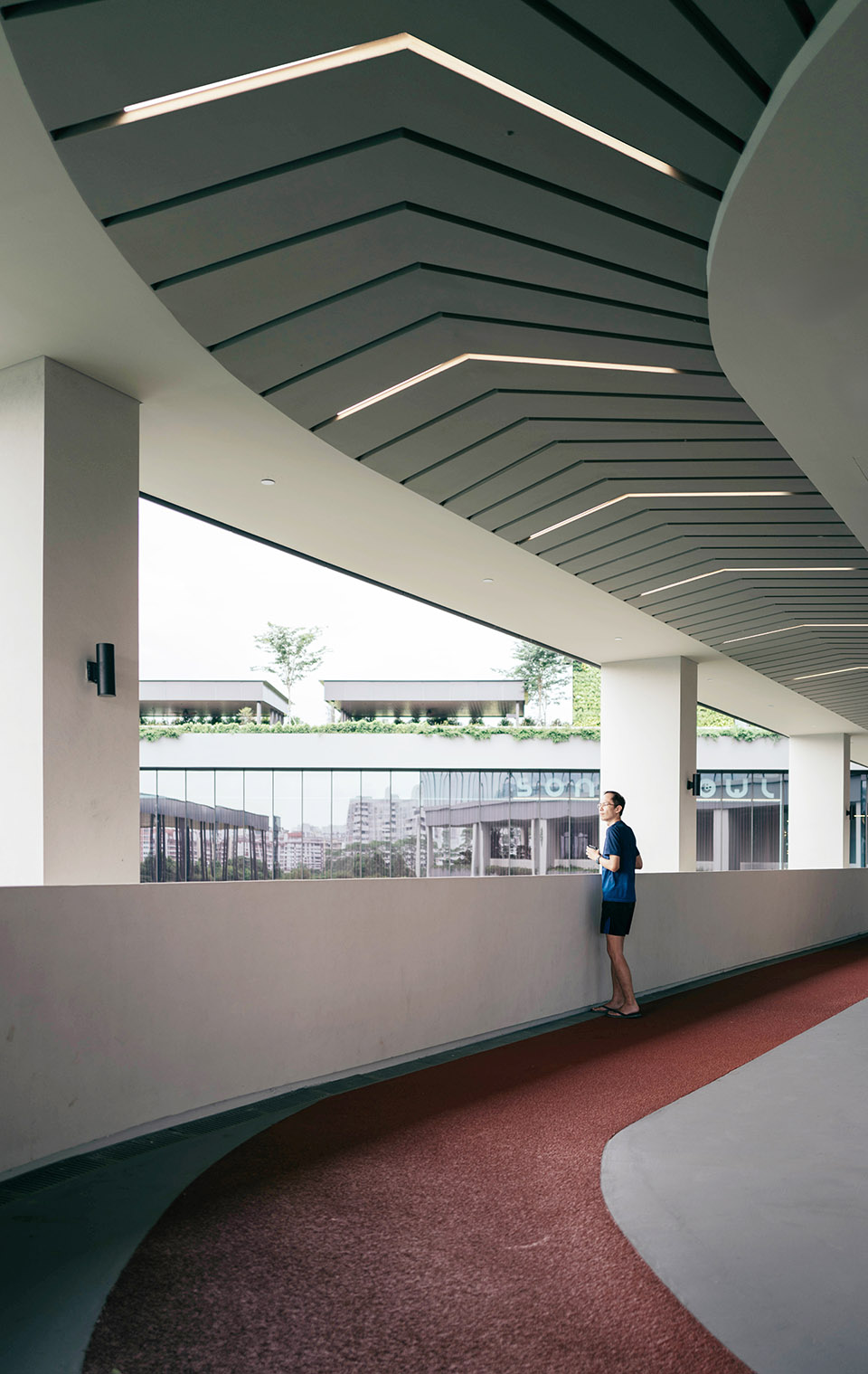

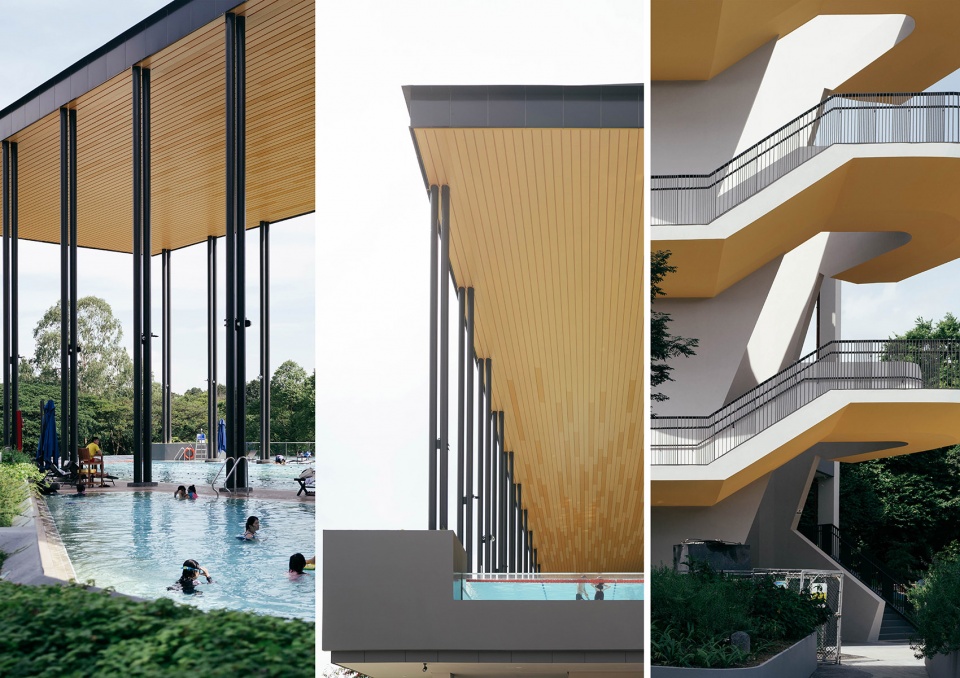

▼檐下空间，space under the eave ©DP Architects

“在了解 SAFRA 对其蔡厝港俱乐部的愿景后，我们开发了一种建筑风格，不仅能满足其作为国家军人运动和休闲场所的主要用途，我们希望可以挑战这一类型建筑的刻板印象，通过渗透与自然无缝融合的策略，实现有意义的建筑，取得真正的可持续发展成果，同时促进了社区的团结和健康。”

—— Ar. Ng San So，DP事务所负责人，主持建筑师

“In understanding the vision that SAFRA had for its Choa Chu Kang clubhouse, we developed an architecture that not only serves its primary purpose as a sports and recreation destination for National Servicemen, we sought to challenge the parameters of this typology and, through strategies for porosity and seamless integration with nature, realized meaningful architecture that achieved authentic sustainable outcomes while promoting community togetherness and wellbeing.”

——shared Ar. Ng San Son, Director at DP Architects and Design Lead for the project.

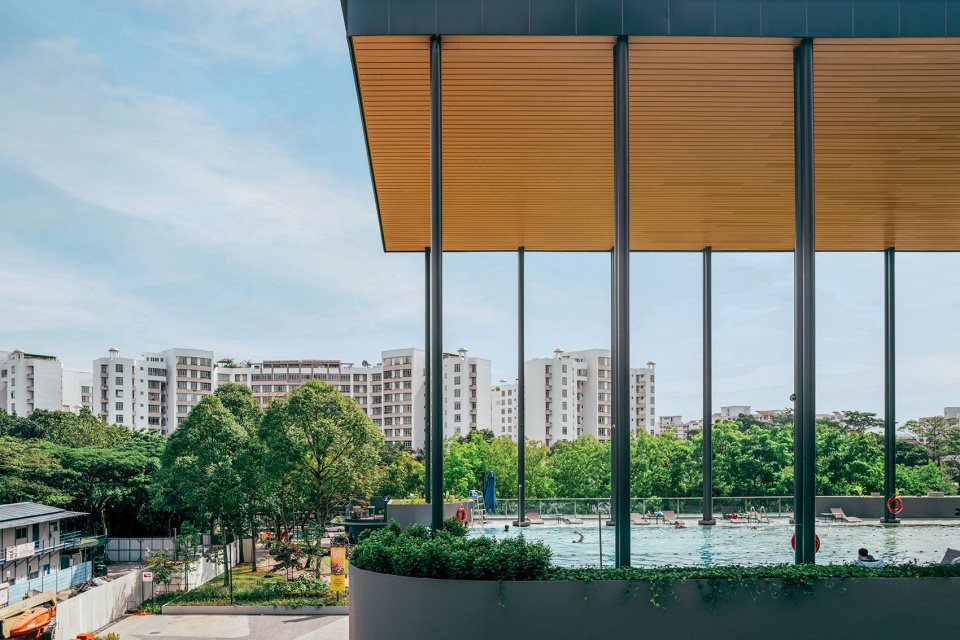

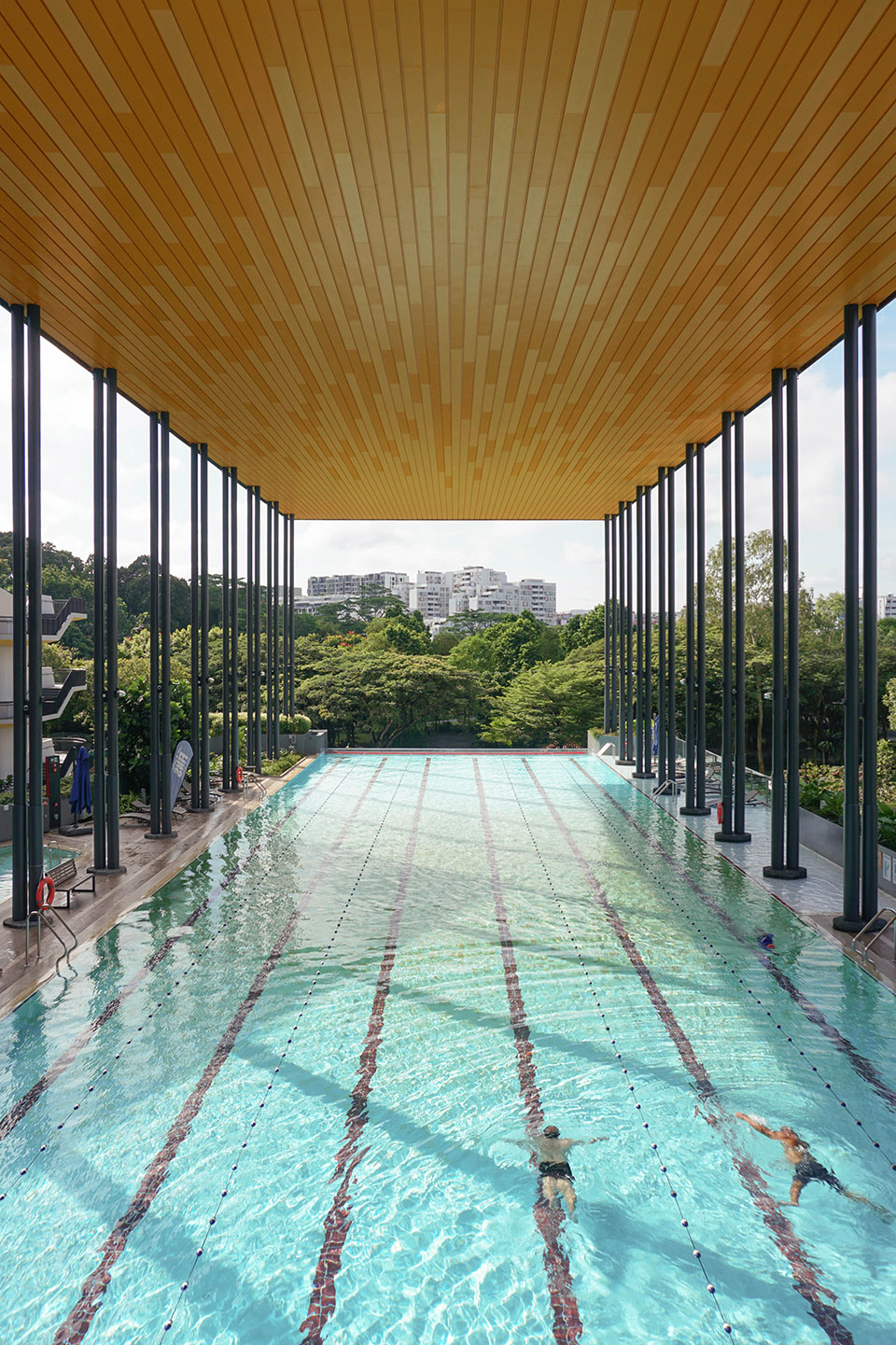

▼檐下泳池，pool under the eave ©DP Architects

这座俱乐部同样也获得了新加坡建筑与管理局颁发的 “绿色标志白金级——超低能耗 ”认证，并因在 “全生命周期碳排放 ”和 “健康与福利 ”两个领域的出色表现而获得了可持续发展徽章。

The clubhouse is also a recipient of the Singapore Building Construction and Authority Green Mark Platinum – Super Low Energy certification, with sustainability badges for outstanding performance in the two areas of Whole Life Carbon and Health & Wellbeing.

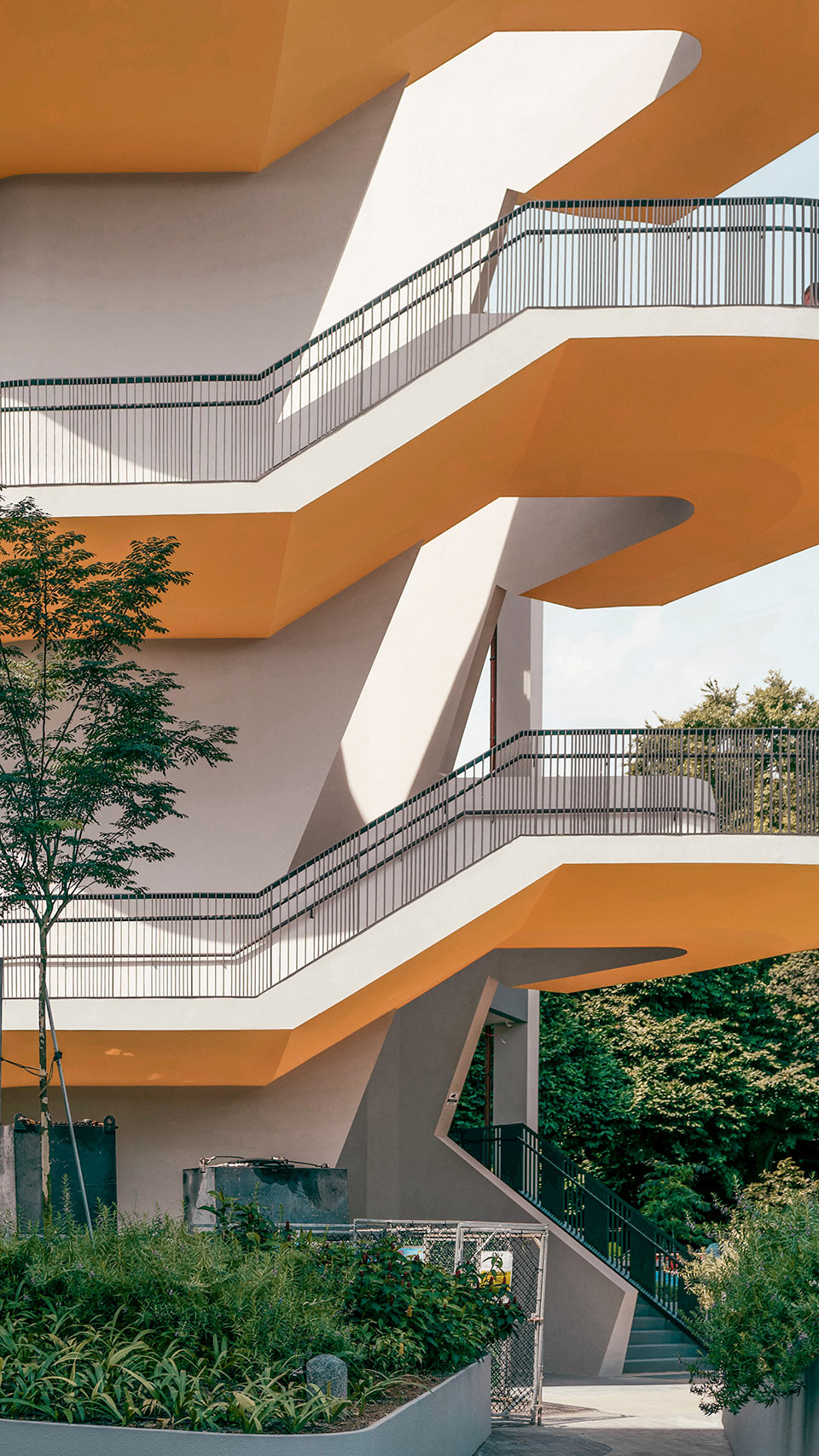

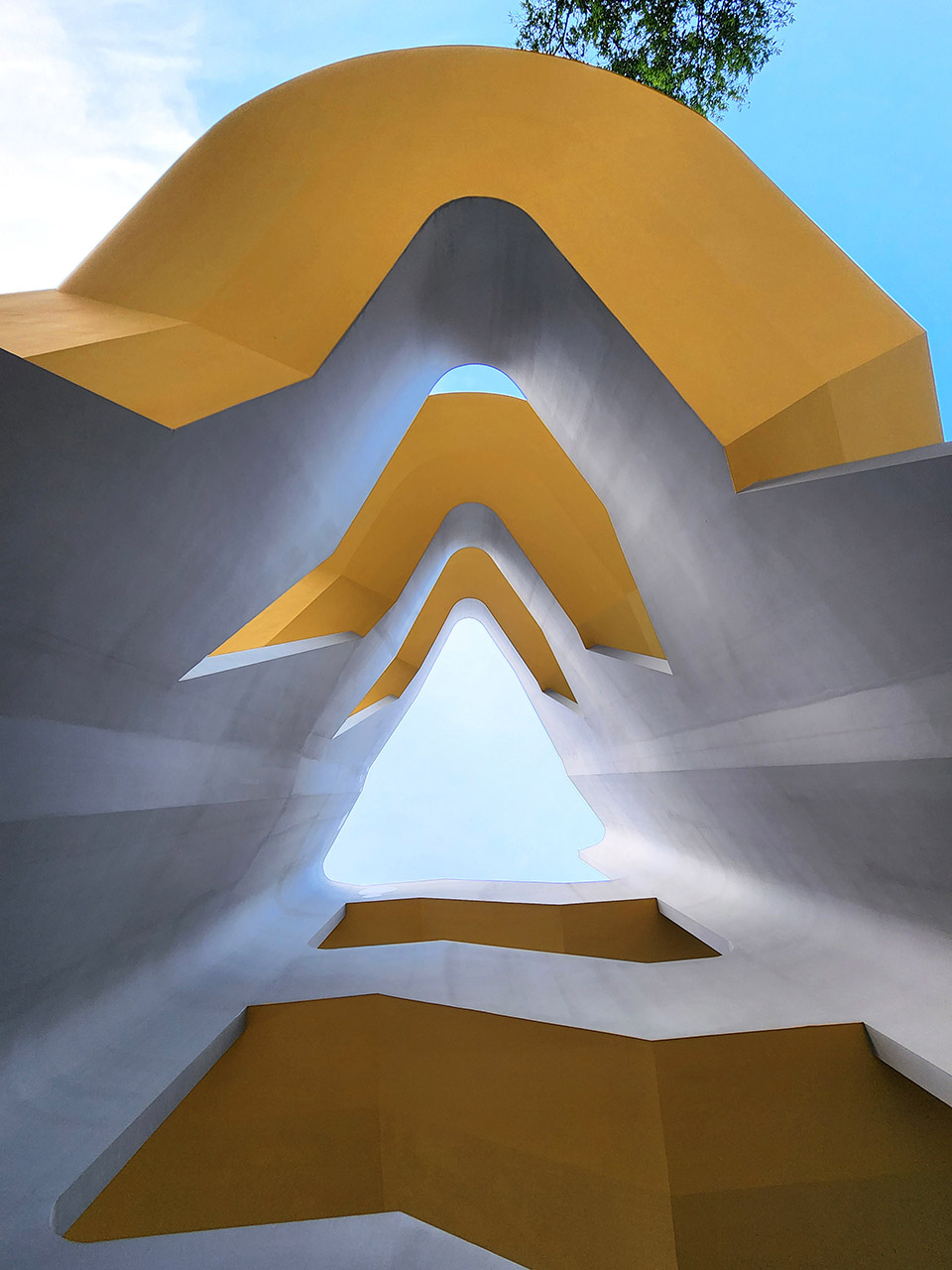

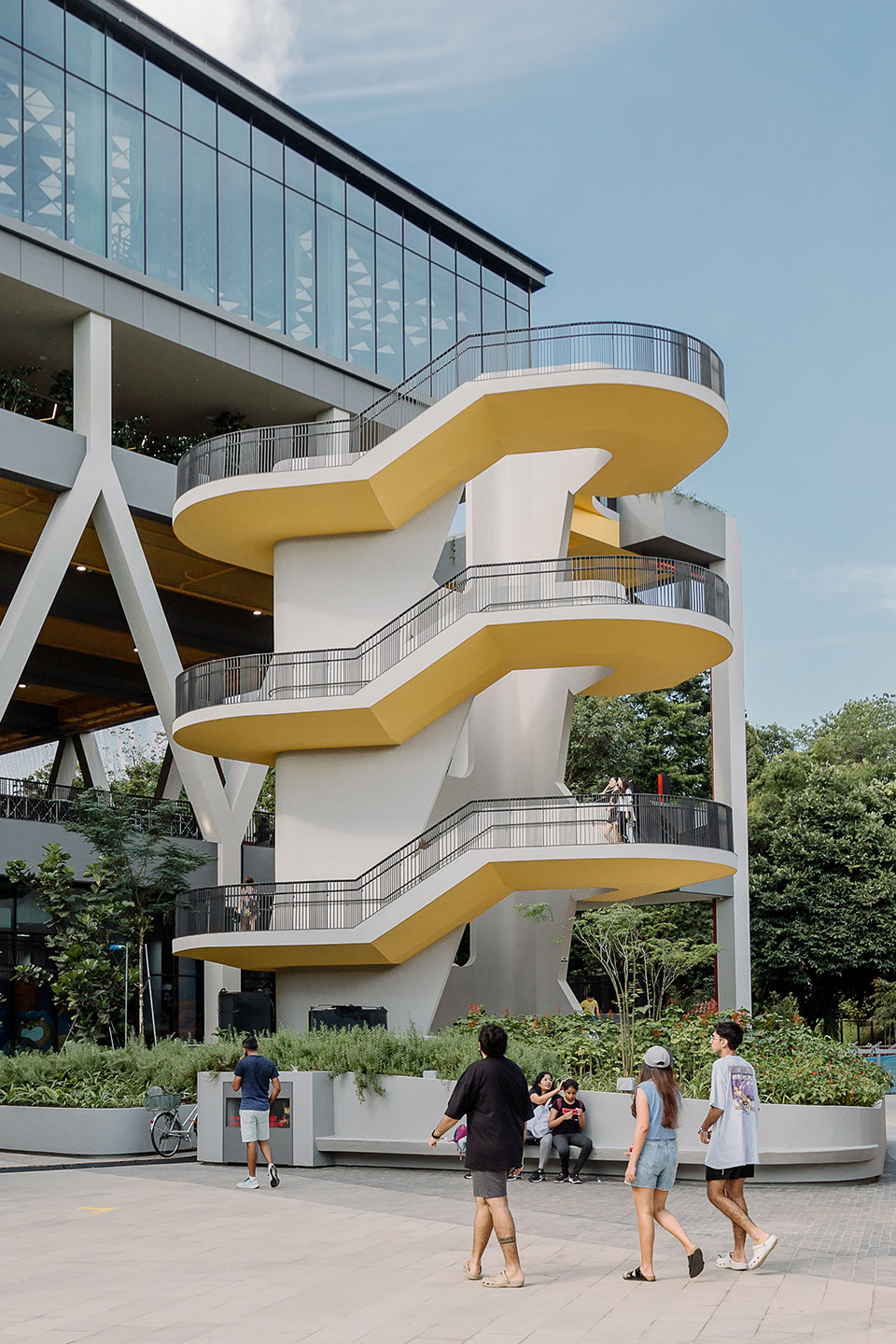

▼仰视楼梯，looking up the staircase ©DP Architects

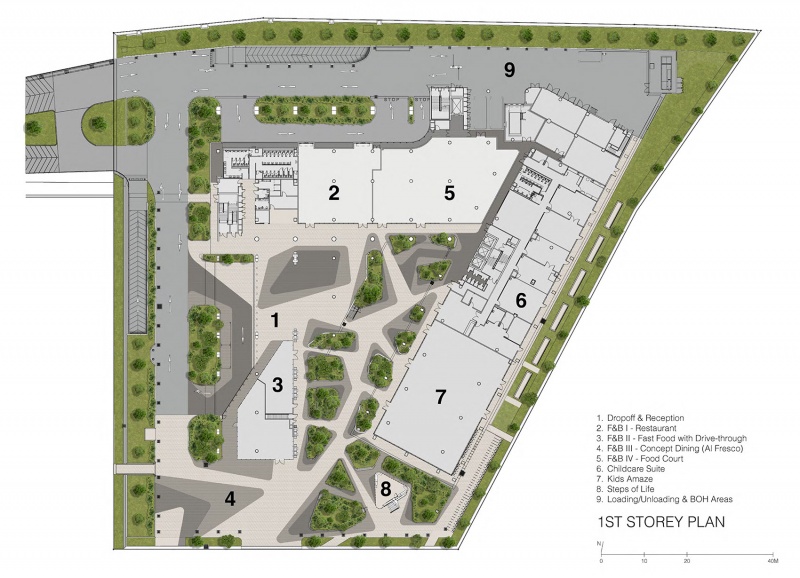

▼一层平面，ground floor plan ©DP Architects

▼二层平面，first floor plan ©DP Architects

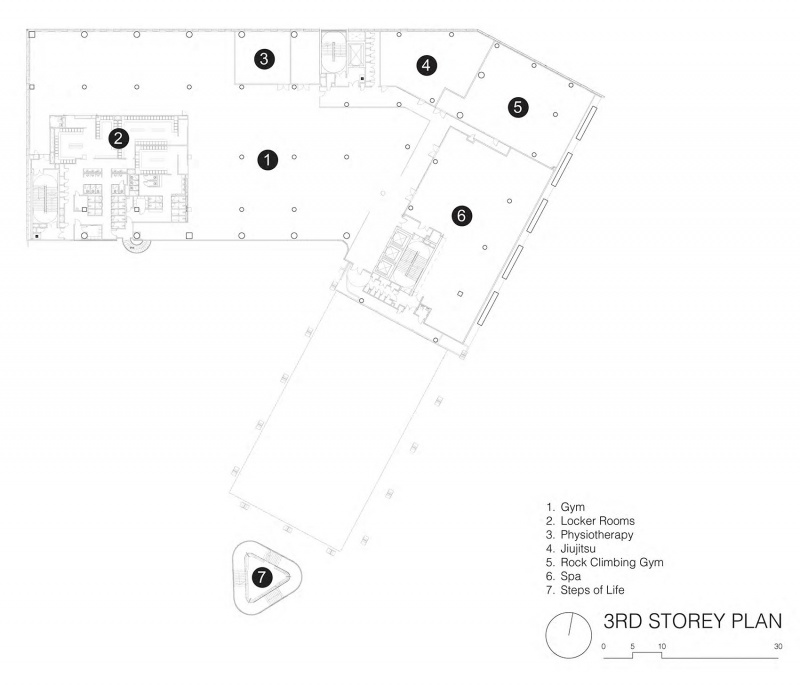

▼三层平面，third floor plan ©DP Architects

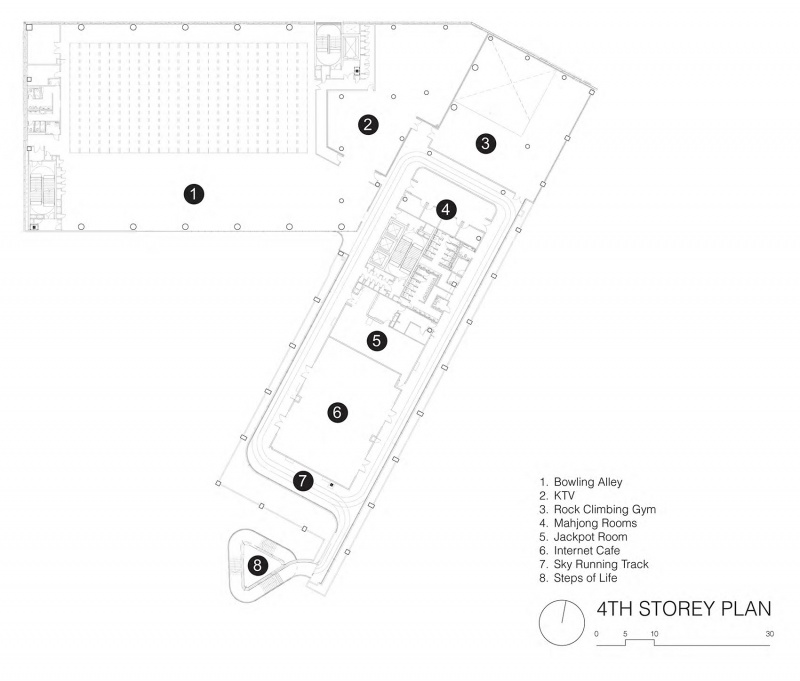

▼四层平面，forth floor plan ©DP Architects

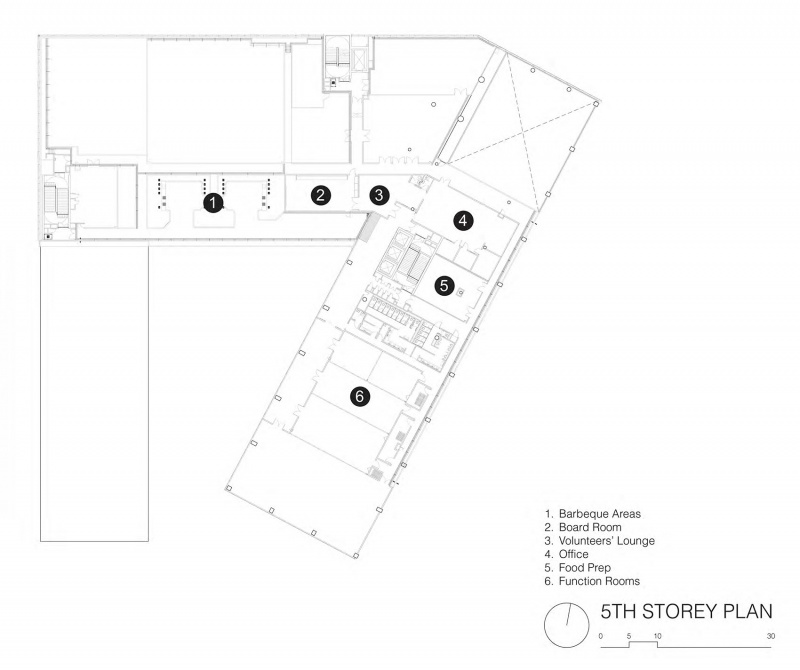

▼五层平面，fifth floor plan ©DP Architects

Location: Singapore
Client: SAFRA National Service Association
Lead Architect: Ng San Son
Design Team: Ng San Son, Tan Kok Ming, Jireh Lee, Nigel Chew
C&S Engineer: DP Engineers
ESD Consultant: DP Sustainable Design
Landscape Consultant: DP Green
Main Contractor: Hytech Builders Pte Ltd
M&E Engineer: WSP Consultancy Pte Ltd
Quantity Surveyor: Northcroft Lim Consultants Pte Ltd
Project Completion: 2023
Total Floor Area: 19,700sqm
Photography: DP Architects
