非常感谢NAMELESS Architecture以下内容授权gooood发行。更多请至：NAMELESS Architecture on gooood
Appreciation towards NAMELESS Architecture for providing the following description:

首尔新区建立起一座新教堂，这座浑然一体的混凝土教堂以它简洁的体量与微妙的符号化显示出外部纯粹的气场与内部内敛的张力。

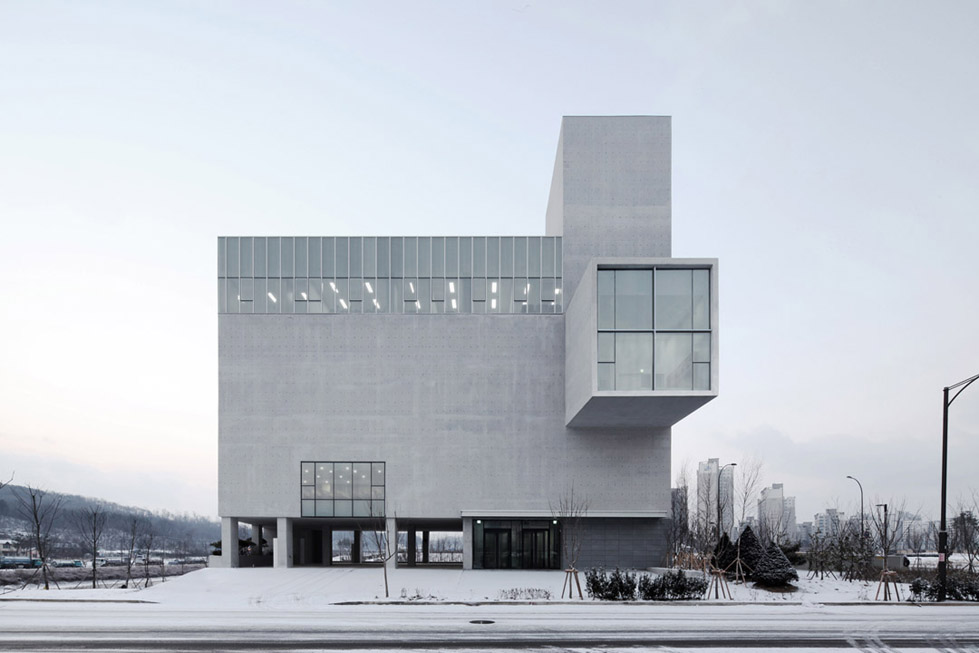

△ 体量简洁的教堂主要材料为混凝土。三层向外悬挑部分达到6.9米。

RW混凝土教堂位于韩国首尔东北部新开发的Byeollae区域，定位是自然与人工间的新景观，或是创造与消亡间的构筑。这里将是基于网格规划城市的一部分，建筑师仅用混凝土这个单一的材料便创造出一个浑然一体很是纯粹的教堂。其重力性与坚固性昭示着新时代的新宗教观。抽象的体量，微妙的符号化彰显出空间自身内在的张力。

RW Concrete Church is located in Byeollae, a newly developed district near northeast Seoul, Korea. It evokes a feeling, not of a city already completed, but a building on a new landscape somewhere between nature and artificiality, or between creation and extinction. The church, which will be a part of the new urban fabric, is concretized through a flow of consecutive spaces based on simple shape, single physical properties and programs.

The use of simple volumes and a single material adapted to the site collects a range of desires created in the newly developed district. Concrete, which is a structure as well as a basic finishing material for the building, indicates a property that penetrates the entire church, and at the same time, a firm substance that grasps the gravity of the ground it stands on, which is contrary in concept from abstraction. Concrete reveals its solidity as a metaphor for religious values which are not easily changed in an era of unpredictability. Moreover, the cross as a religious symbol substitutes for an enormous bell tower and is integrated with the physical property of the building through the empty space at the upper part of the staircase. The minimized symbol implies the internal tension of the space.

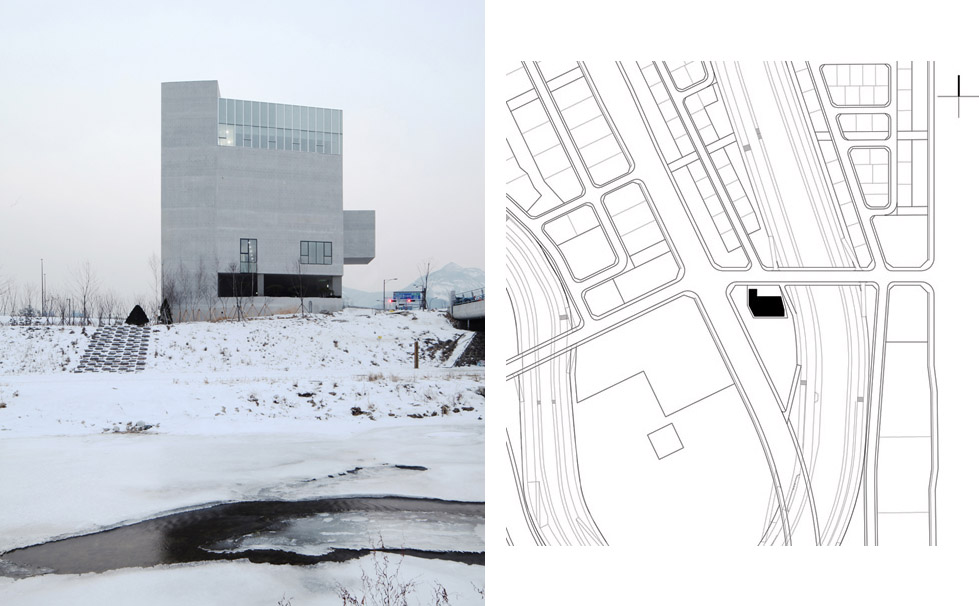

△ 自然与人工间的新景观，创造与消亡间的恒构筑

建筑一层是一个开放层，人们能在挑空的四周无遮挡的这个空间中进行社区互动。若要到礼拜堂，那么经过黑暗的封闭楼梯上到三层，经过狭小的黑暗空间和艰苦的爬行后，最终进入一个光明的空间，这个空间挑出建筑6.9米，一面通高通宽的玻璃墙面向外面景观。这个悬挑空间是一个日常生活与精神生活的过渡空间。最后，人们进入一个坐席坡度较缓，光从侧面狭窄窗户渗入的静谧礼拜堂。

The first thing encountered upon entering the building is the empty concrete yard on the ground floor. This is a flexible space that acts as a venue for interaction with the community while also accommodating varying religious programs. By the time you become accustomed to the dark as you walk past this empty yard, and climb the three stories of closed stairs, you come face to face with a space full of light. This interior space has a cantilever structure protruding 6.9m, and you must pass through this hall before entering the chapel. This cantilevered space is a physical as well as spiritual transition that connects daily life with religion. The chapel creates a sense of peace with a single space, using a slope that is not so steep, evoking the feeling of attending a worship service on a low hill. The subdued light gleaming through the long and narrow clerestory embraces the entire chapel and lends vigor to the static space.

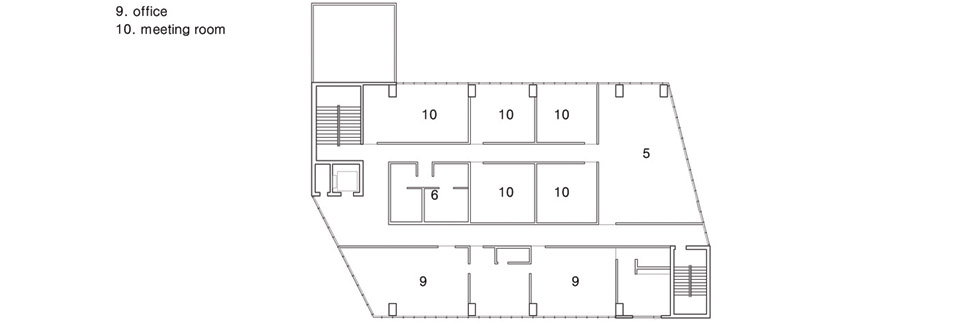

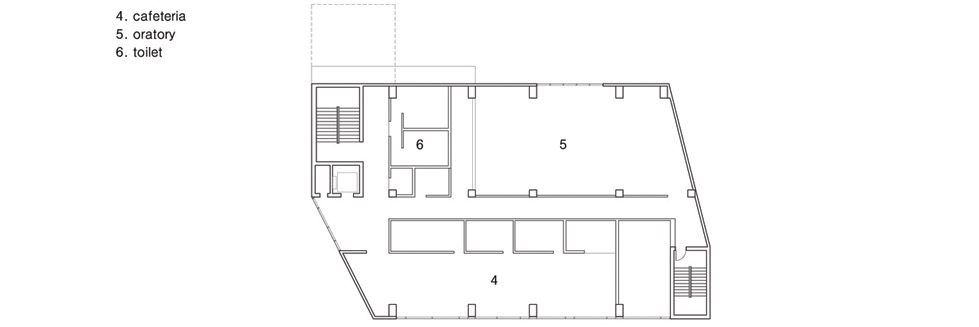

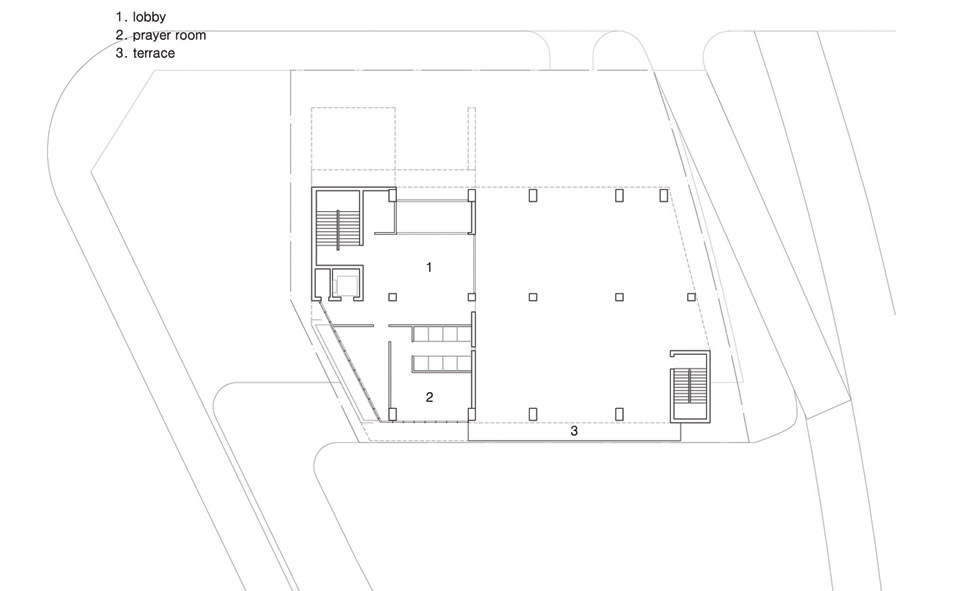

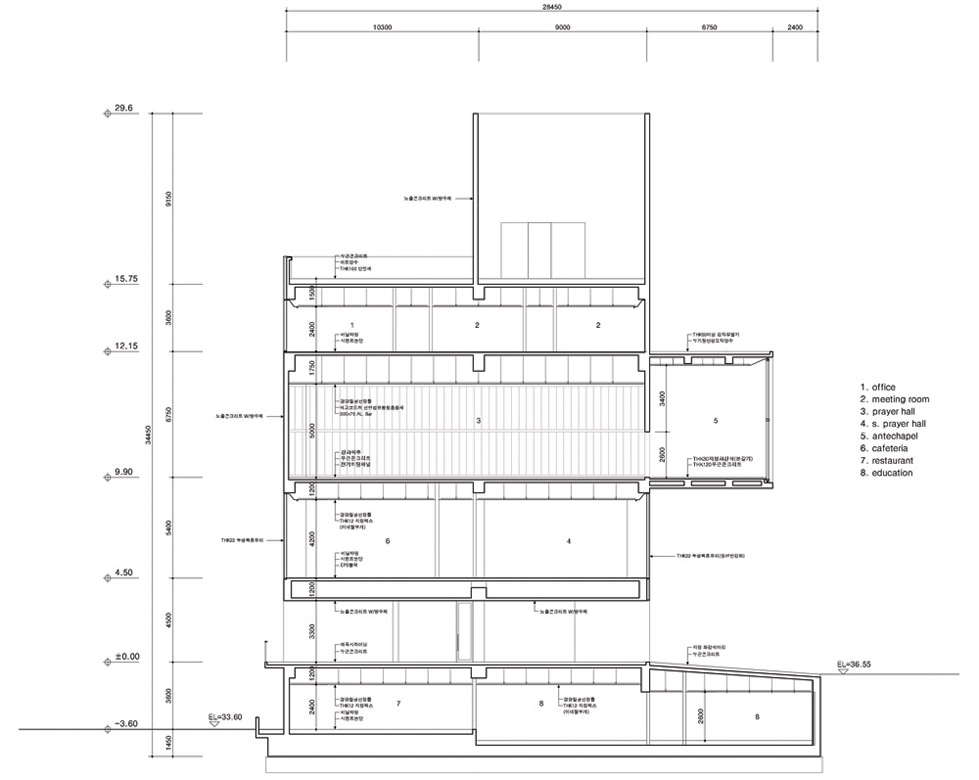

△ 一层是一个开放层，三层是礼拜堂，顶层是办公空间

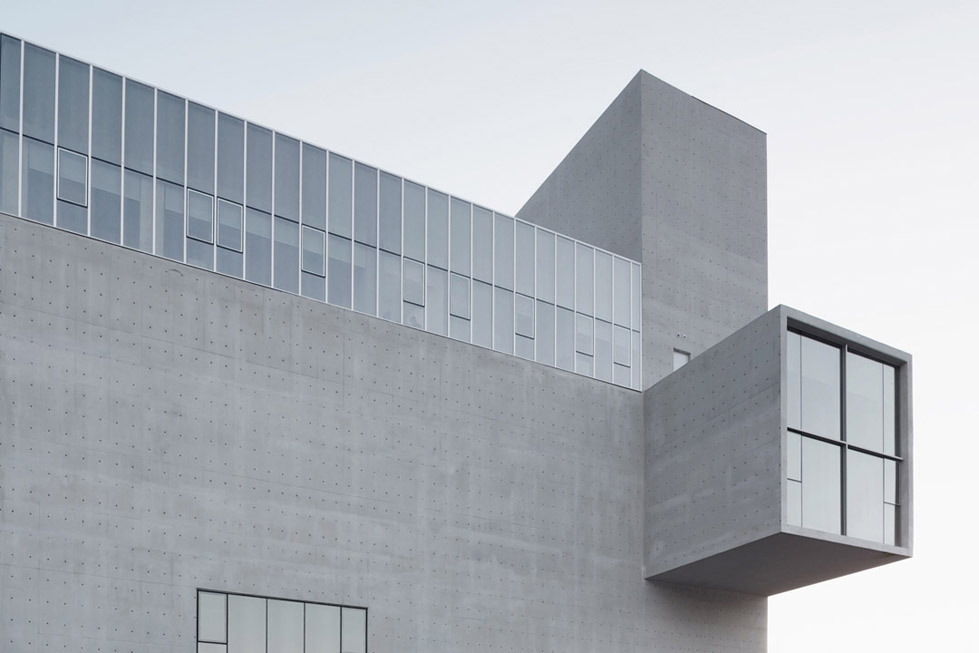

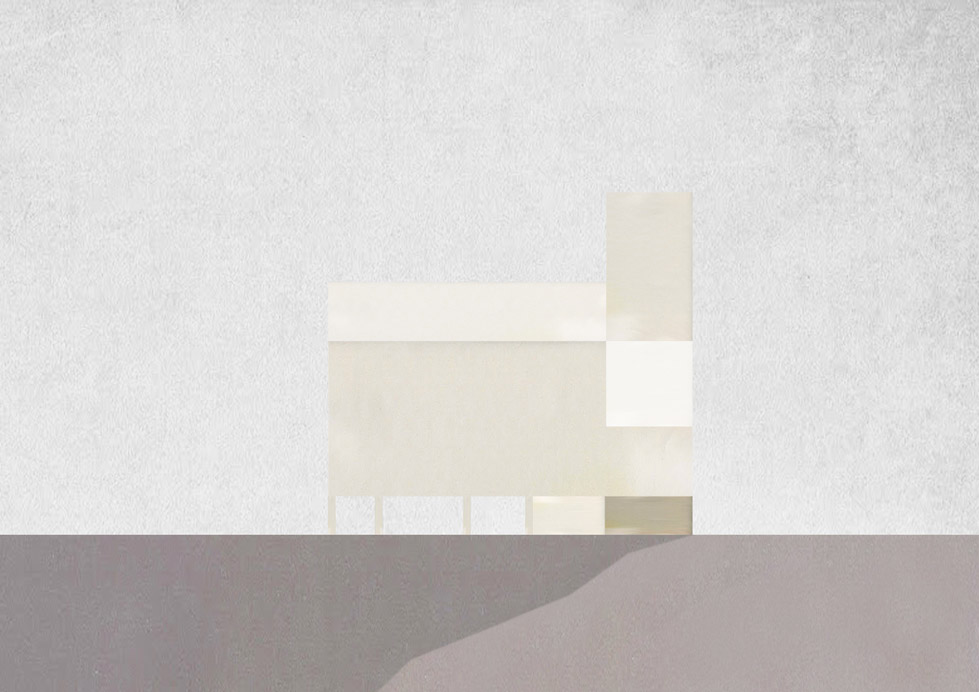

△ 简练而有张力的体量

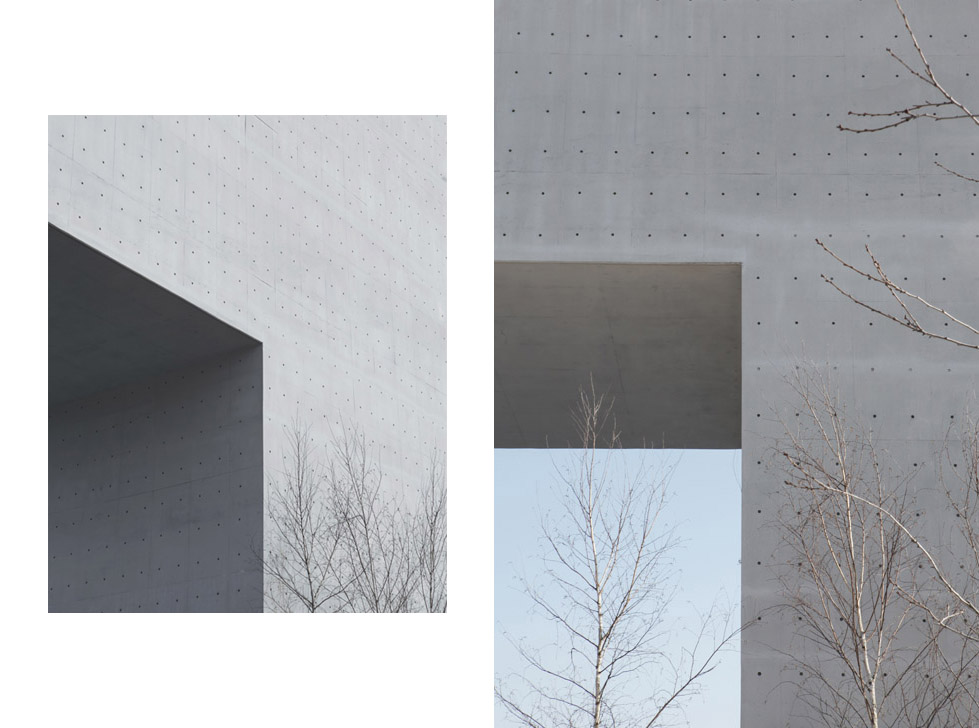

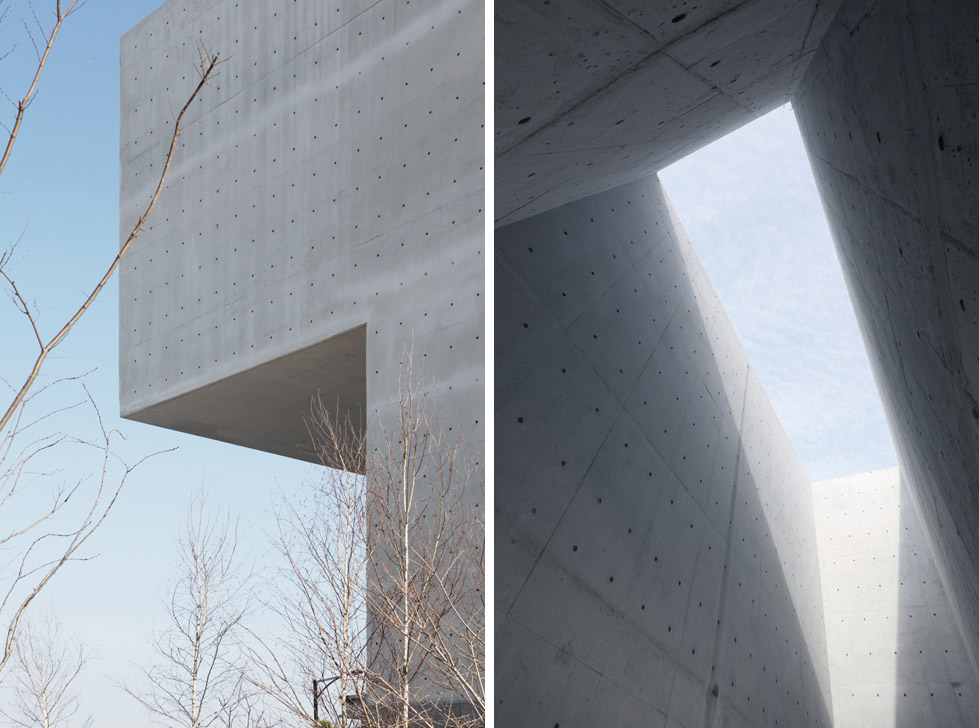

△ 微妙的符号化彰显出新时代宗教观

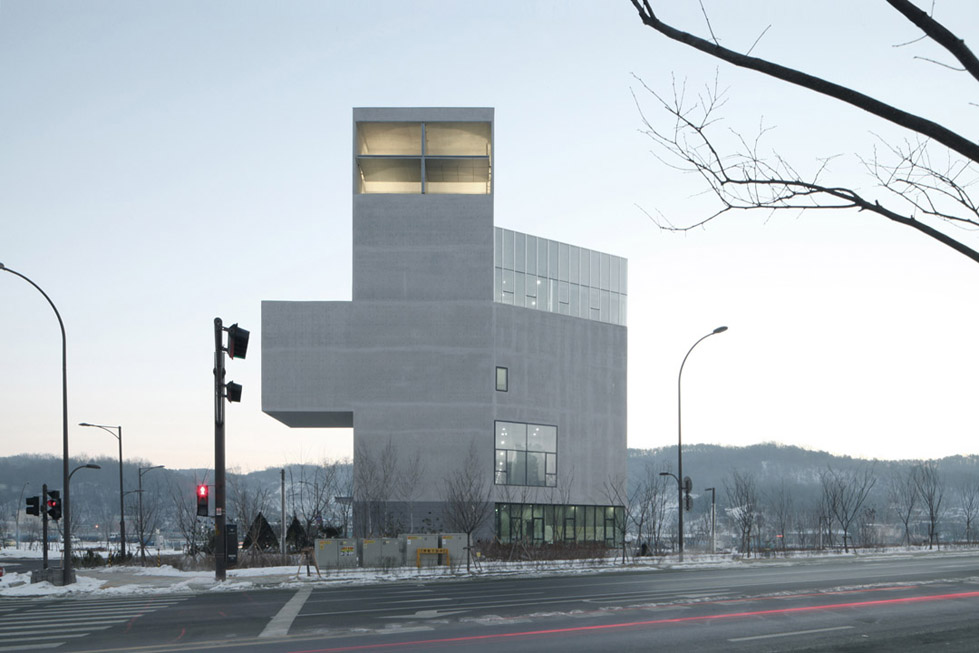

△ “钟楼”灯亮

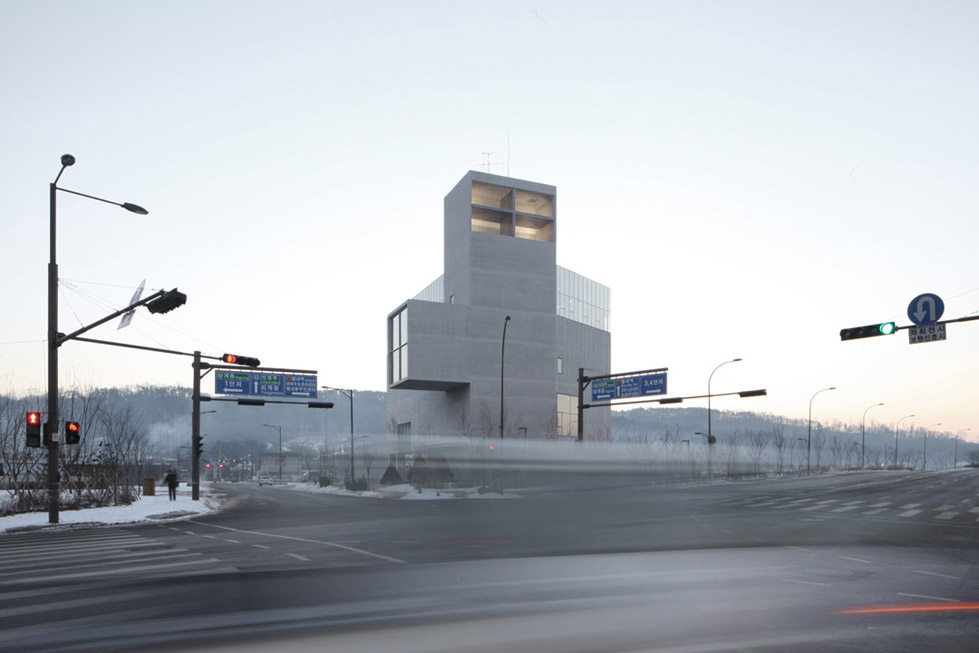

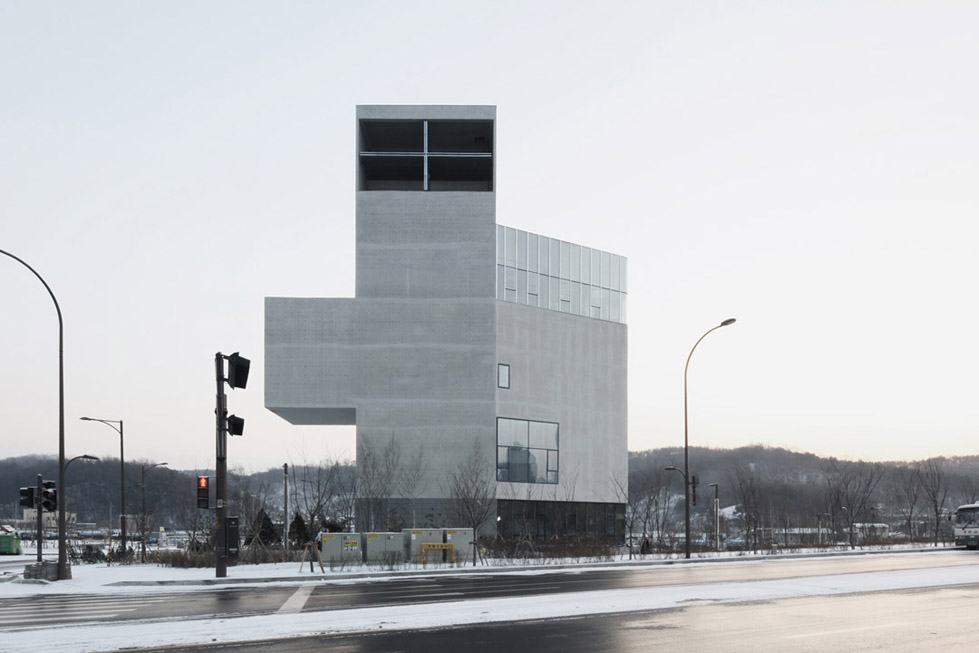

△ 从对面路口看教堂

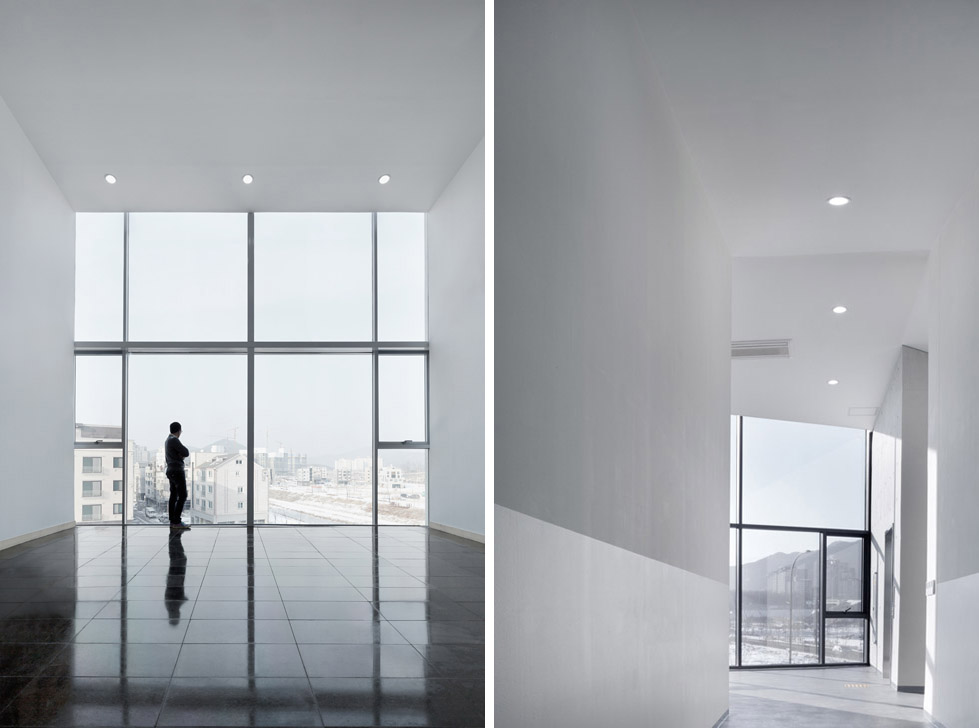

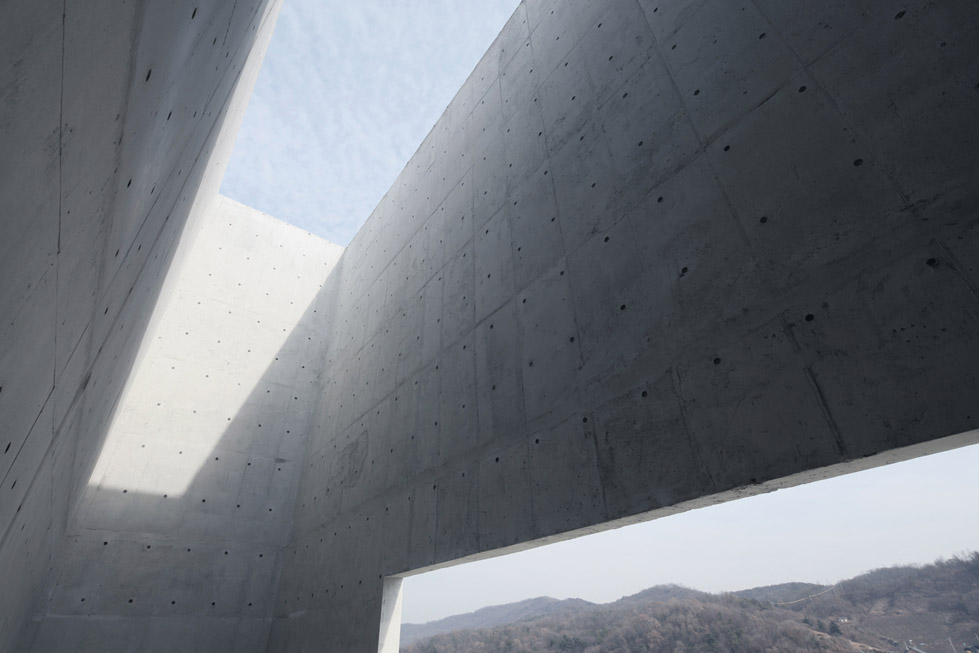

△ 三层悬挑空间，这个联系礼拜堂的空间需要经过狭窄黑暗的楼梯间而到达。其光明与洁净预示着这是一个世俗世界与精神世界的过渡空间。

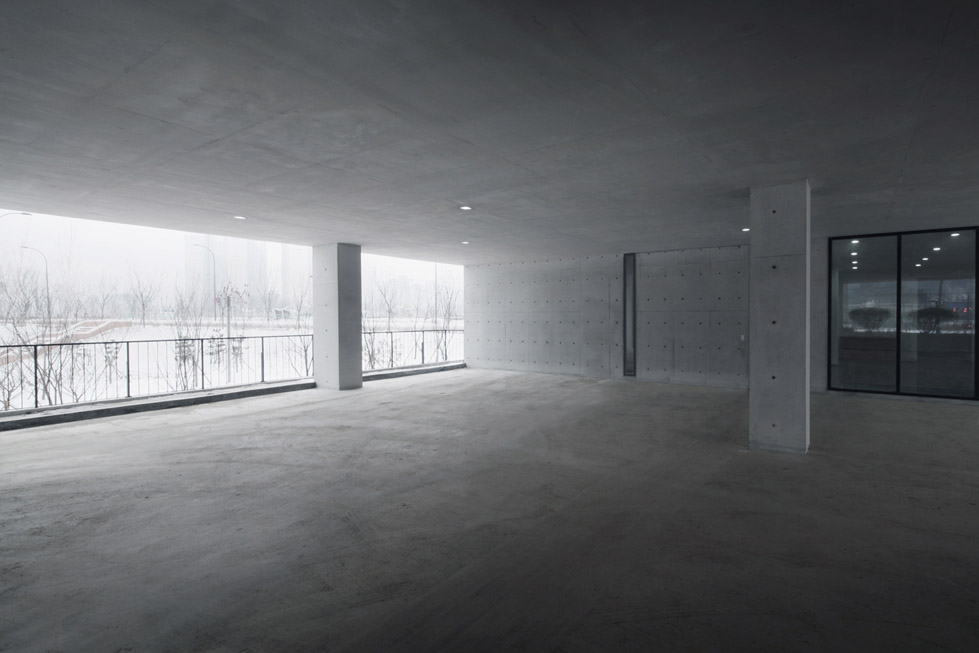

△ 一层开放空间

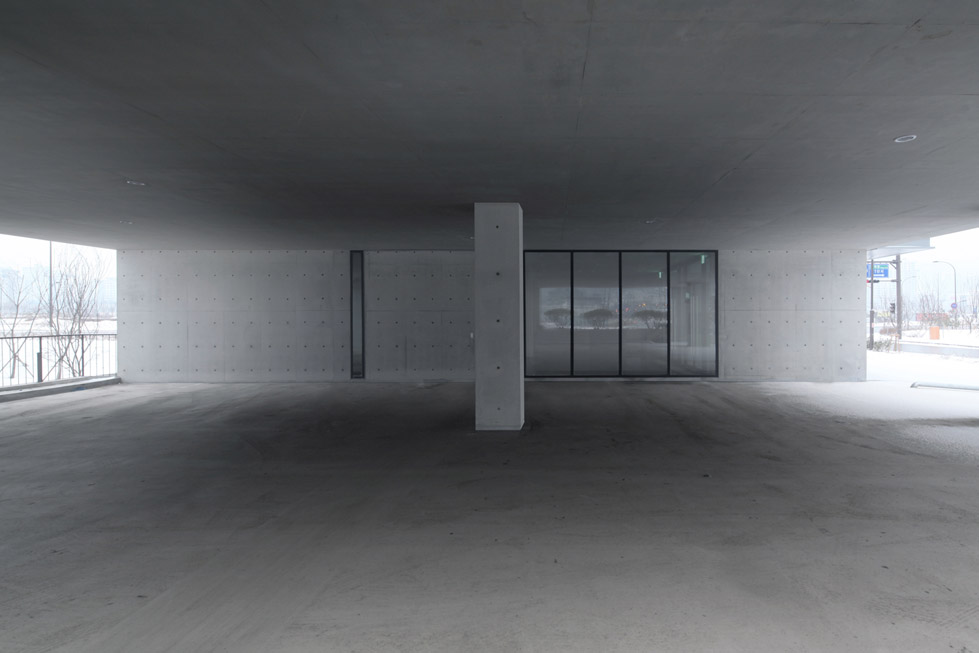

△ 一层开放空间

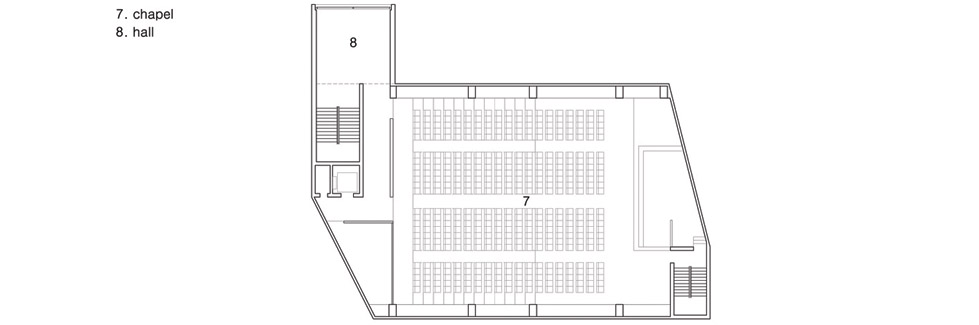

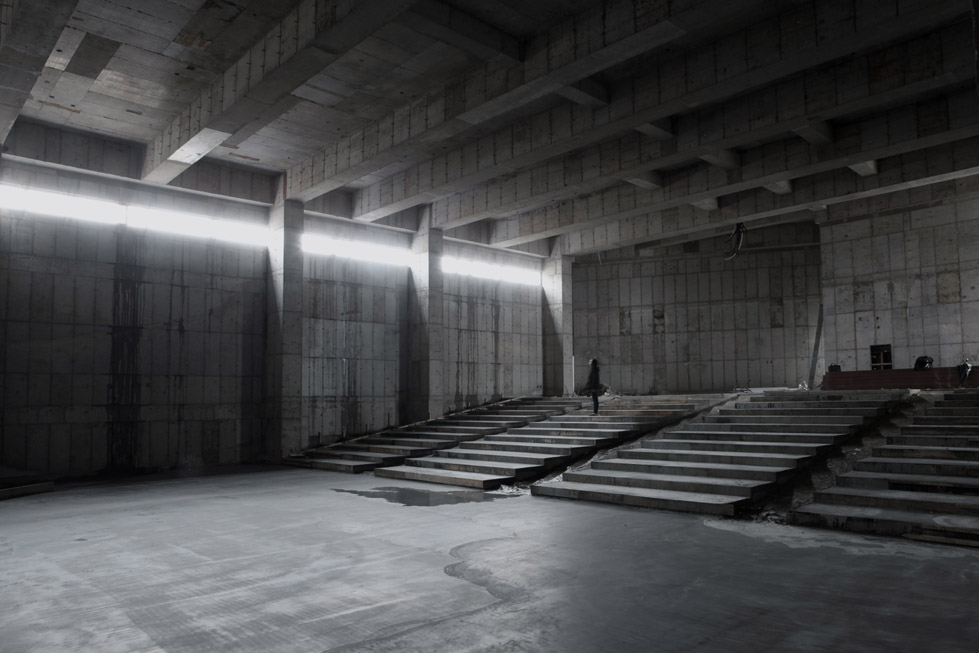

△ 三层礼拜堂，坐席坡度较缓，光从侧面狭窄窗户渗入。

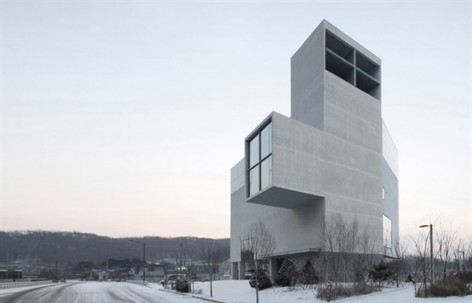

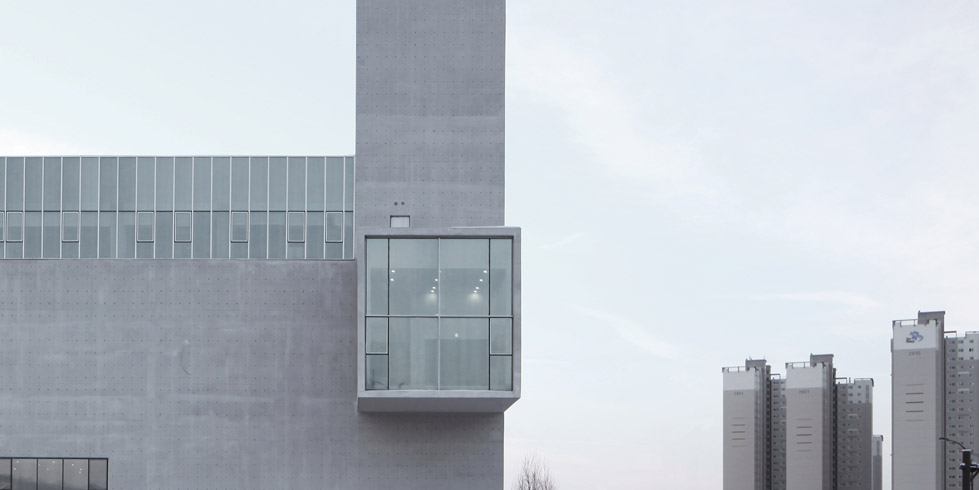

△ 悬挑

△ 挑与开，简练

△ 开

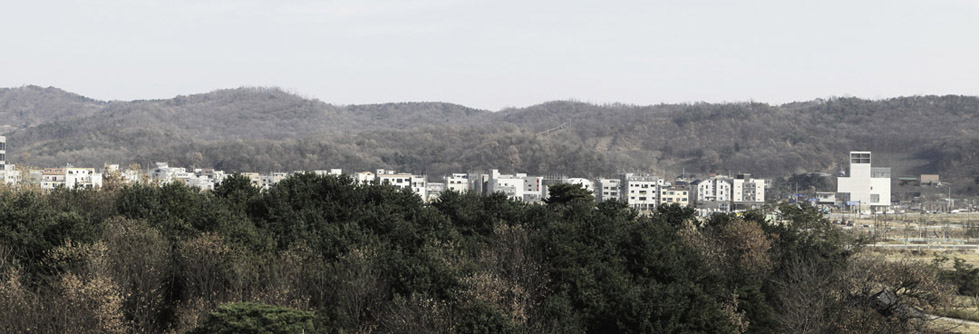

△ 介于自然与人工，创造与消亡之间

Credit and Information
Project: RW Concrete Church
Architect: NAMELESS Architecture
Architects In Charge: Unchung Na, Sorae Yoo
Location: Byeollae, South Korea
Area: 3,095.5 sqm / 33,319.7sqft
Photography: © Rohspace / NAMELESS
Collaborating Architect: Jplus (Jungtaek Lim, Hwataek Jung)
Structural consultant: Mido Structural Consultants
Mechanical consultant: One Engineering
Client: RockWon Church
Design: 2011-2012
Completion: 2013

Video Link (vimeo)
Video © Rohspace http://vimeo.com/62764472
