来自 superkül 对gooood的分享。更多请至：superkül on gooood
Appreciation towards superkül for providing the following description:

山脊住宅坐落于一片田野与森林边缘之间，顺应场地温和的坡度展开，通过对地形的深度回应，将建筑“消隐”于自然之中。项目充分利用地势变化，在保障私密性的同时精准引导视线，而其最具标识性的雕塑性坡屋顶，则如同地貌的延伸，顺势伏于大地之上。

Tucked between a field and the forest’s edge, Ridge House straddles a gentle gradient, offering a deeply contextual response to topography that sublimates the architecture to the land. We leveraged landform to optimize privacy and orient views while the sculptural roof — the home’s most defining and deferential feature — behaves like an extension of the terrain.

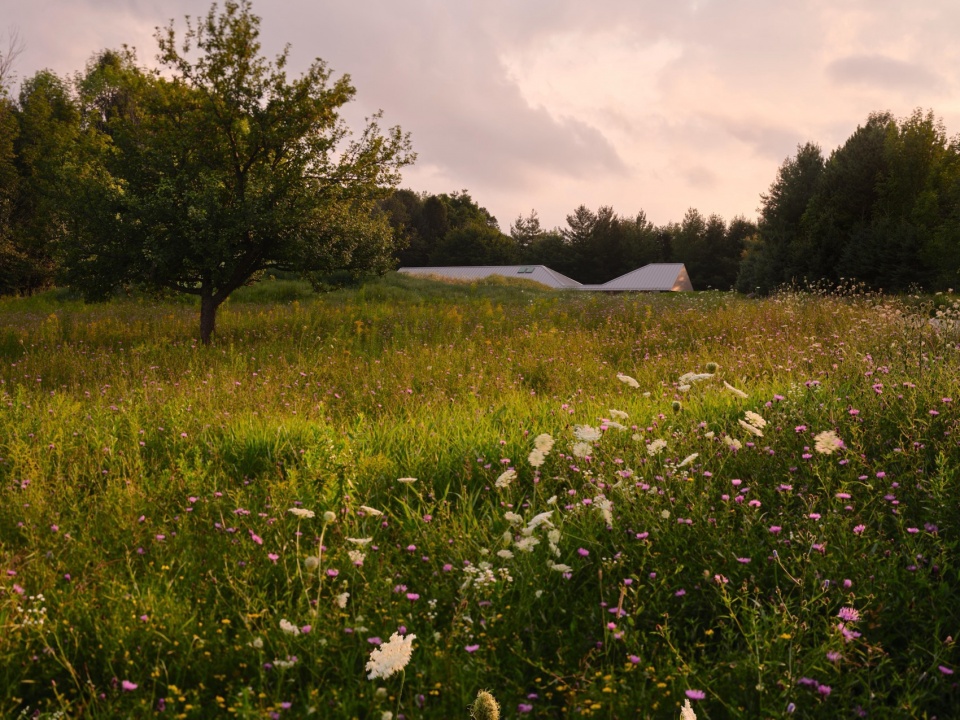

▼远景，viewing the project at distance © doublespace photography

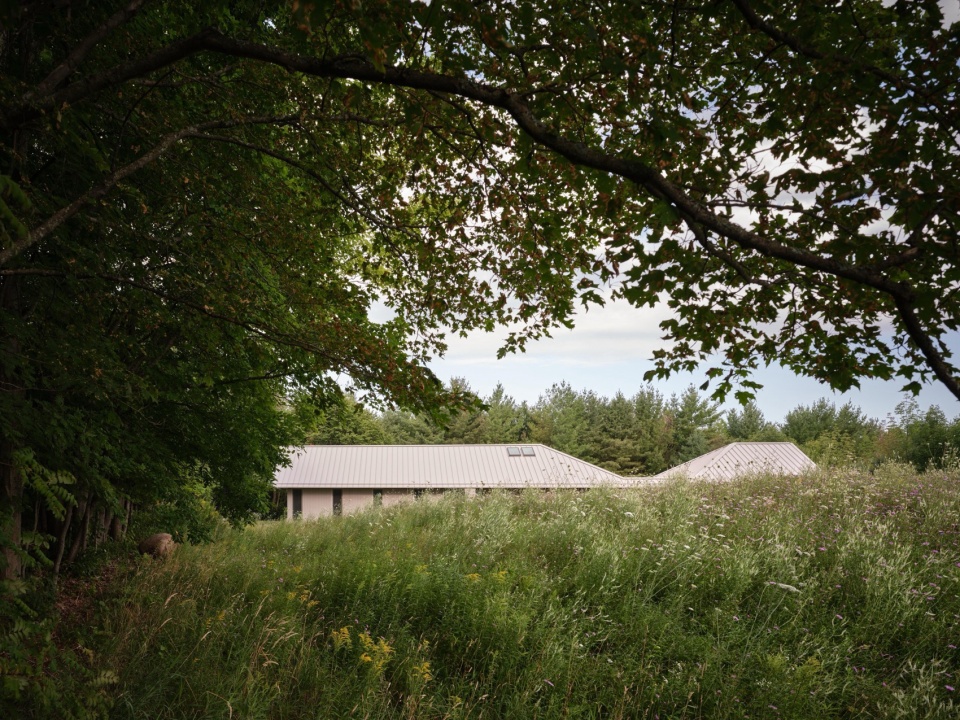

▼建筑与环境，architecture and nature © doublespace photography

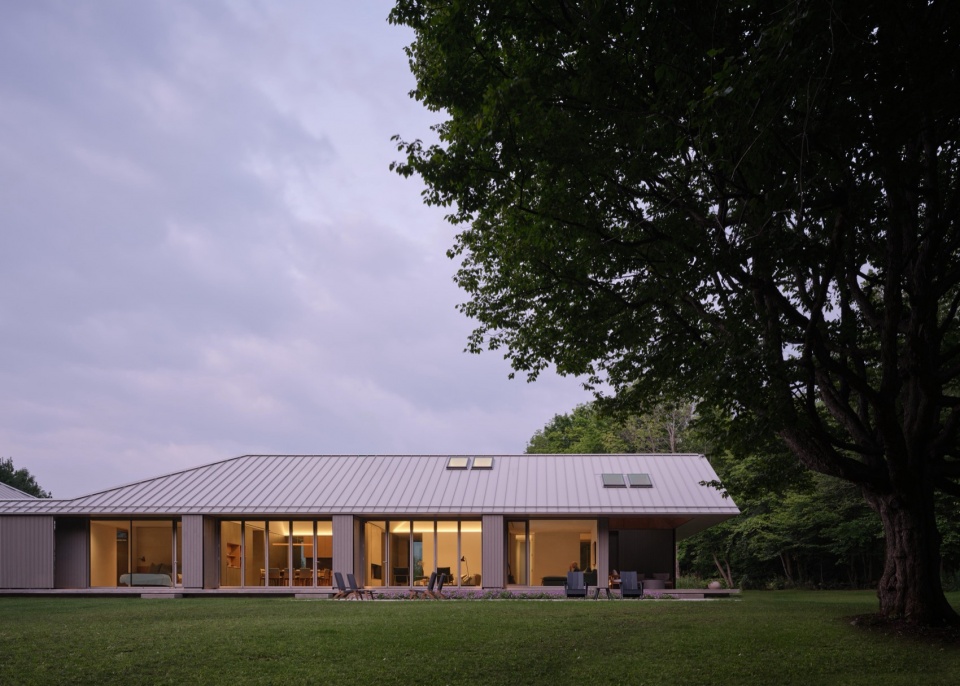

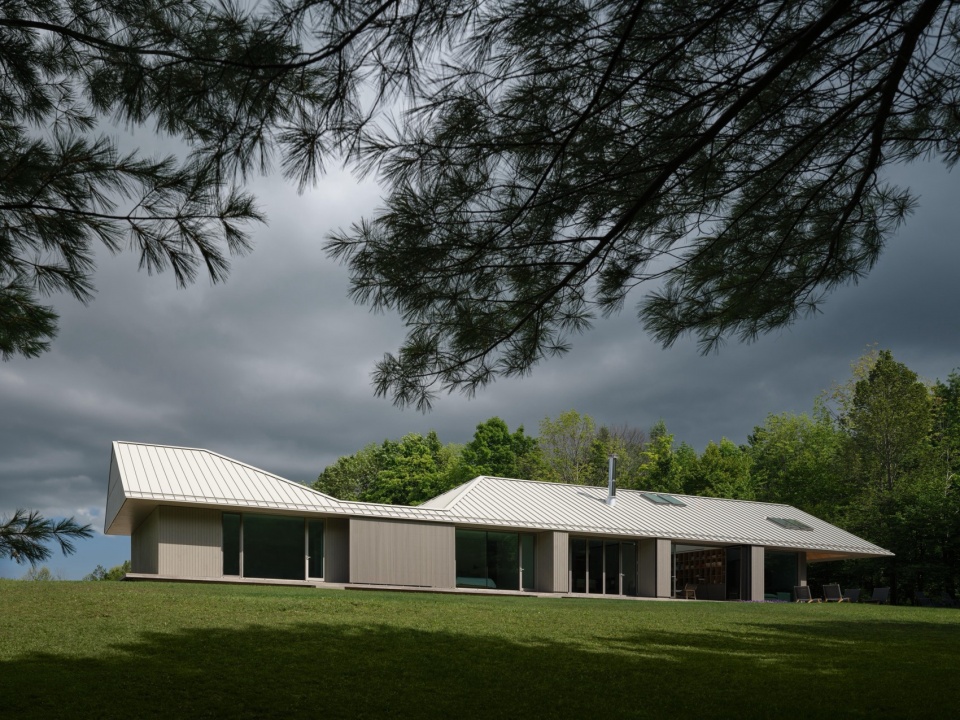

▼建筑外景，exterior of the building © doublespace photography

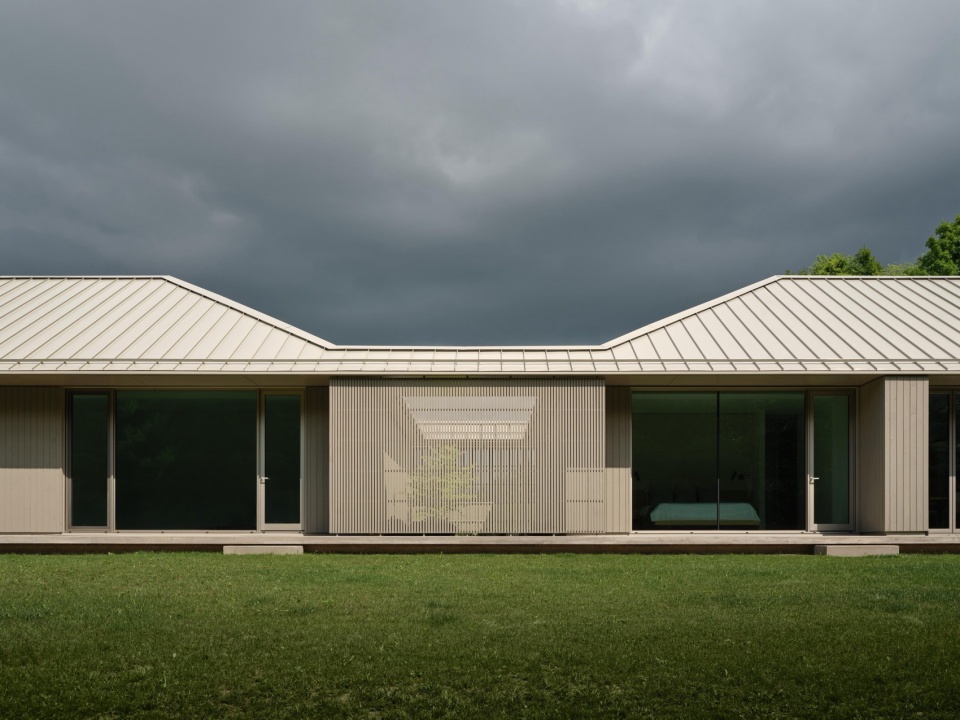

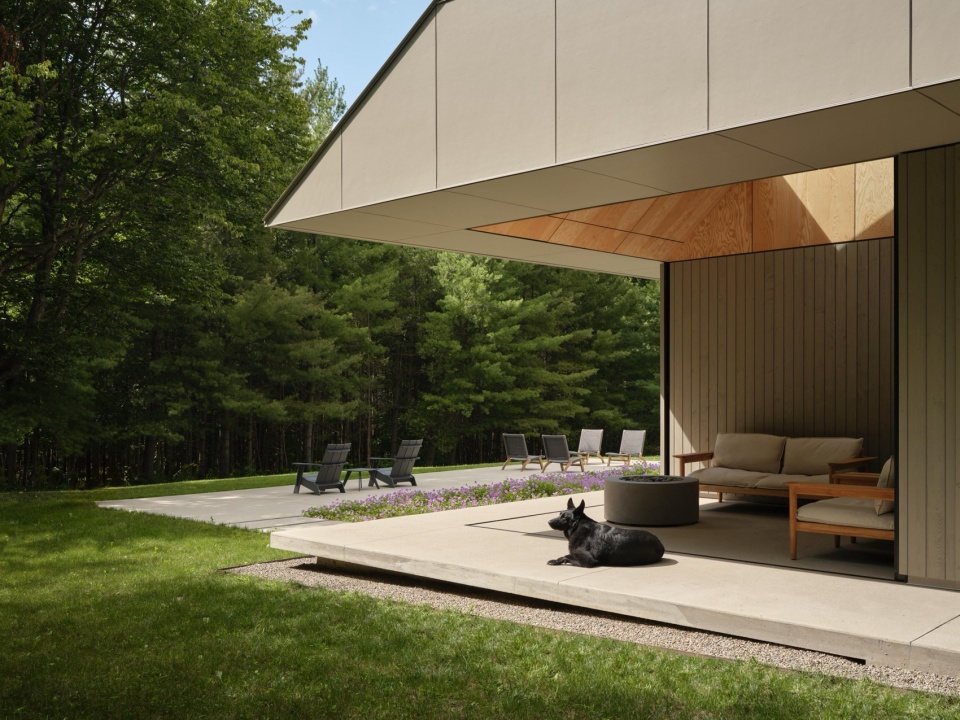

▼立面近景，closer view of the facade © doublespace photography

设计以业主对于标志性斜屋顶以及四季亲近自然的生活方式为核心诉求。建筑既向环境敞开，又因选址策略而获得必要的庇护。团队以“以地形为先”的方式回应场地限制——自然形成的下坡地势、较高的地下水位，以及一棵显著的铁木树——将住宅嵌入环境之中，并最大化与林地边缘铁木与松树林的视觉与物理联系。大尺度坡屋顶漂浮于田野地平线上，而临路一侧的立面则被有意隐藏，降低建筑对外部环境的干扰。

Designed to prioritize our clients’ desire for a signature sloping roof and four-season intimacy with nature, Ridge House is both open to and protected from the elements by virtue of its siting. We devised a siting strategy that leads with the land and works with the property’s constraints — a naturally occurring downslope, a high water table, and a prominent ironwood tree — to embed the house in its surroundings while optimizing visual and physical connections to the ironwood and pine forest at the edge of the clearing. The large sloping roof floats above the field’s horizon while the front façade remains concealed from the main road.

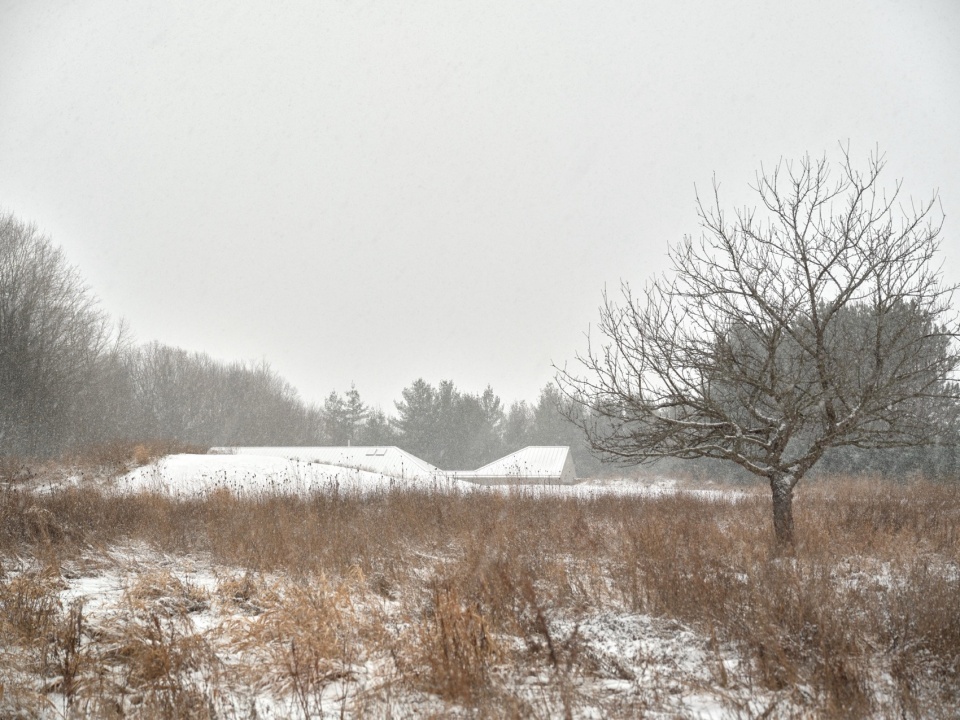

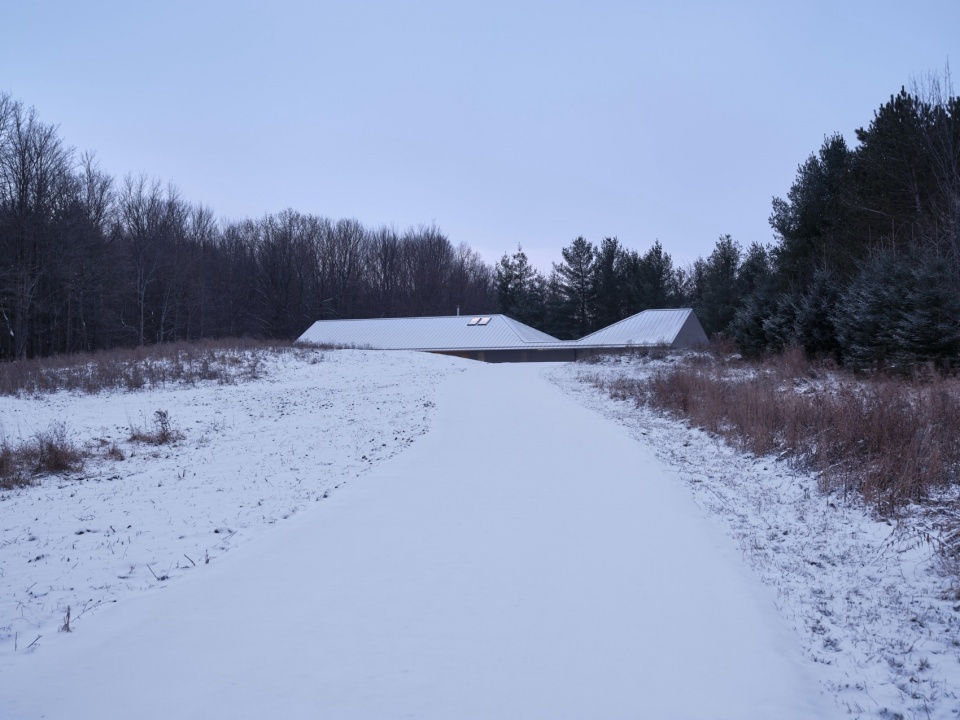

▼雪天远景，viewing the project at distance on snow day © doublespace photography

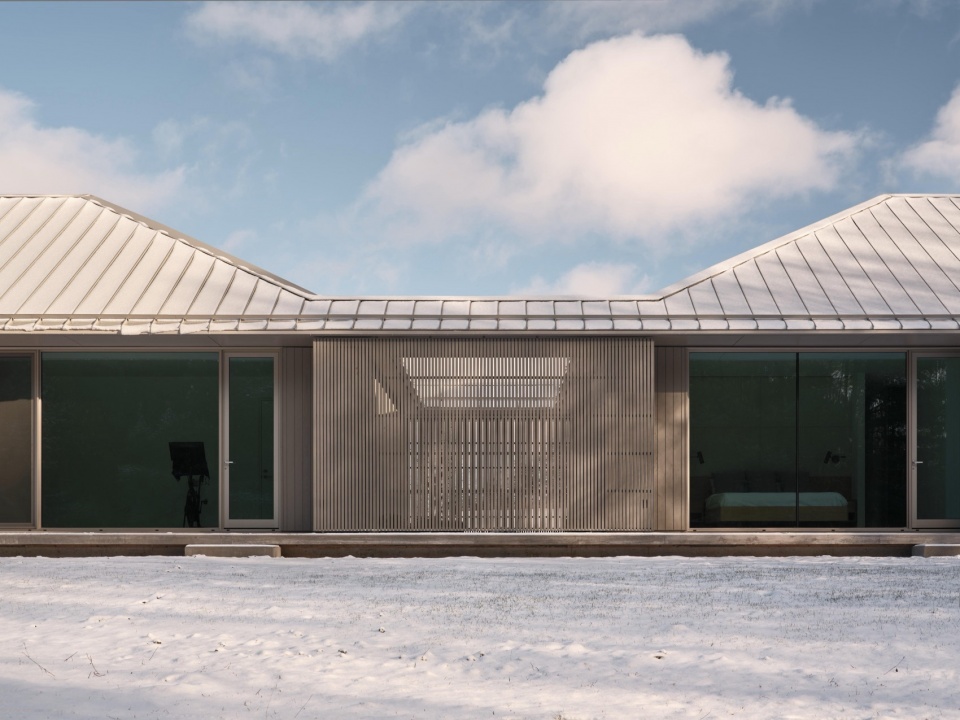

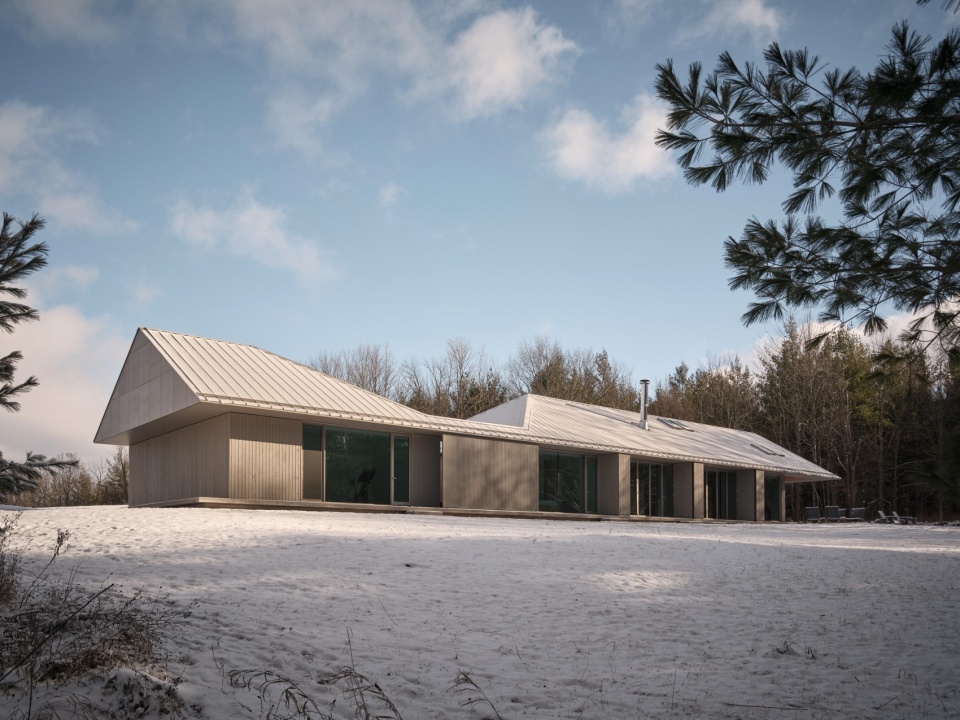

▼建筑雪天外景，exterior view of the building on snow day © doublespace photography

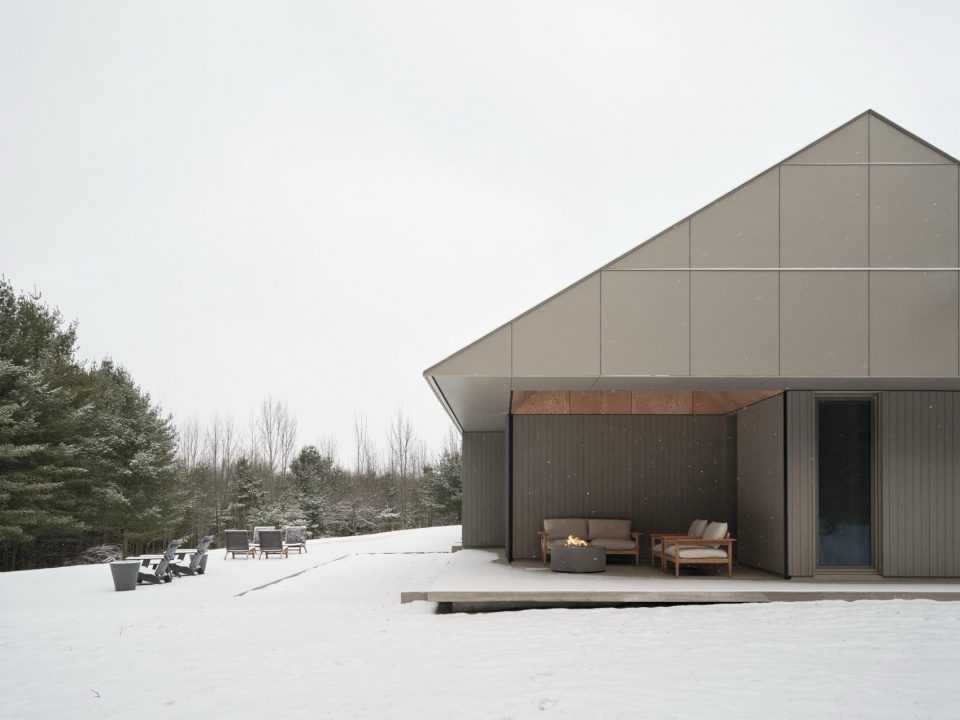

▼侧立面，side facade © doublespace photography

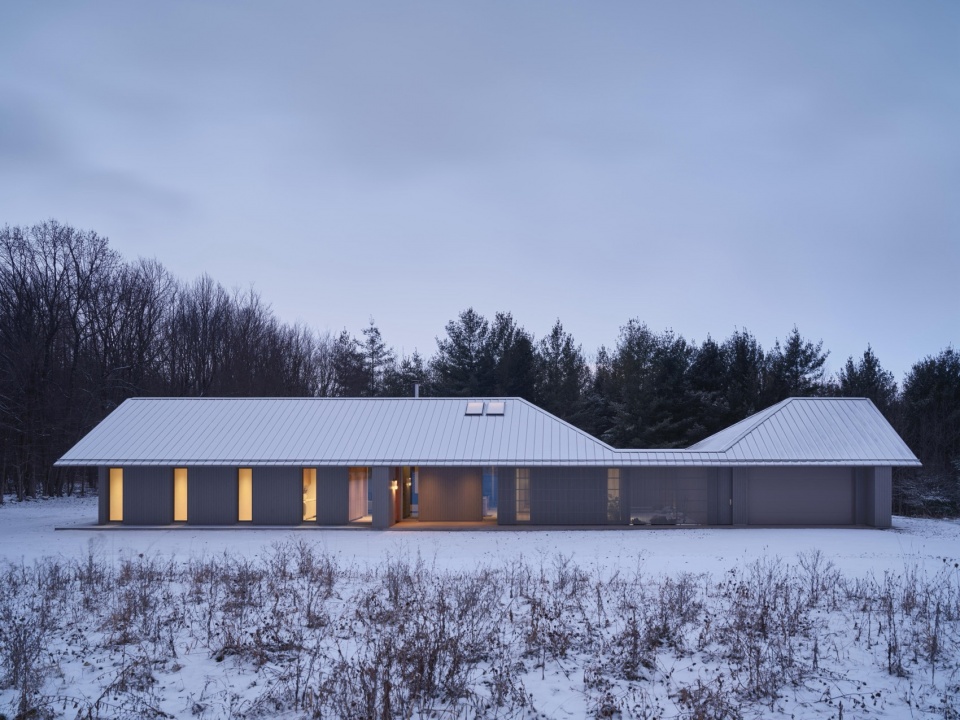

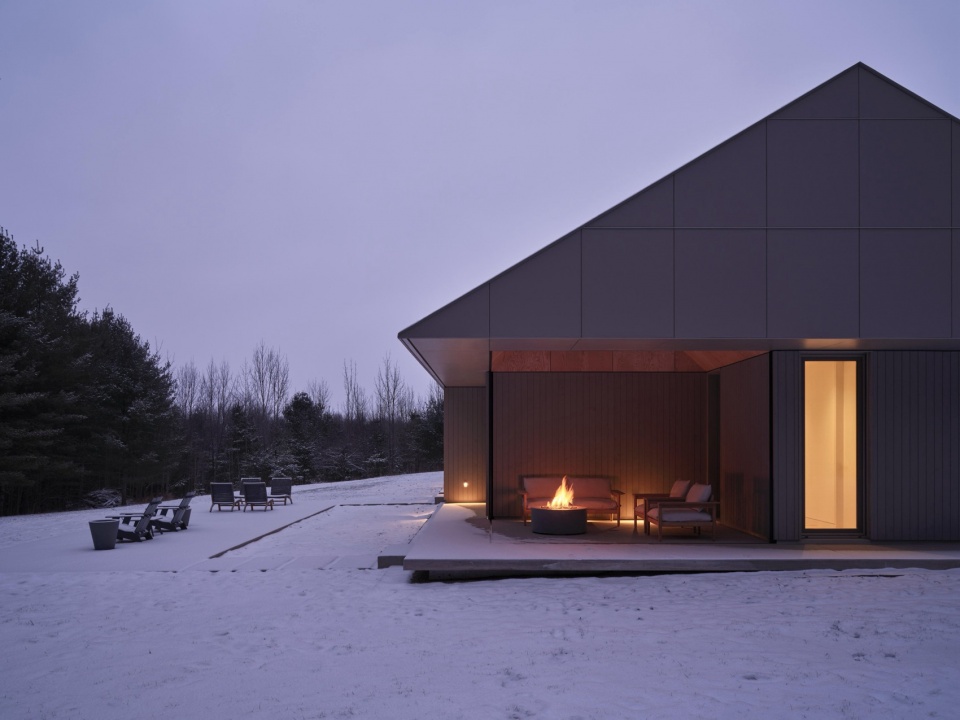

▼雪天夜景，night view on snow day © doublespace photography

山脊住宅以被动式设计为先导，并结合高性能材料与系统。深挑檐遮蔽了东西向立面的通高三层中空玻璃，在夏季有效减少太阳辐射热增益，同时允许冬季低角度阳光深入室内。西侧立面的折叠玻璃门与可收纳纱网协同使用，形成受保护的半室外空间，即使在蚊虫活跃的季节也能舒适地亲近自然。完全可开启的门扇不仅增强了自然通风，大幅降低夏季对空调的依赖，也通向一条悬挑步道，进一步强调场地柔和的坡度特征。住宅嵌于地势低洼处，同时获得对强风的遮挡，并更接近森林带来的自然降温效果。鉴于较高的地下水位，设计取消了地下室，从而降低了整体对混凝土的使用。

Ridge House privileges passive -first strategies as well as high -performance materials and systems. Deep -set overhangs shield the floor -to-ceiling triple glazing on the east and west elevations, mitigating solar gain in the warmer months and letting the low er winter sun’s rays penetrate the home during the colder ones. Glass accordion doors on the west façade work in concert with retractable insect screens to create protected mid -door spaces from which to enjoy the outdoors comfortably, even during bug season. These fully operable doors, which enable powerful passive ventilation and significantly reduce the need for air conditioning in the summer, open out to a cantilevered walkway that was designed to emphasize the property’s soft pitch. Nestling the house within the declivity also helps provide shelter from strong winds and brings it closer to the cooling effects of the woods. We eliminated a basement from the design in light of the high water table, which also decreased the project’s overall reliance on concrete.

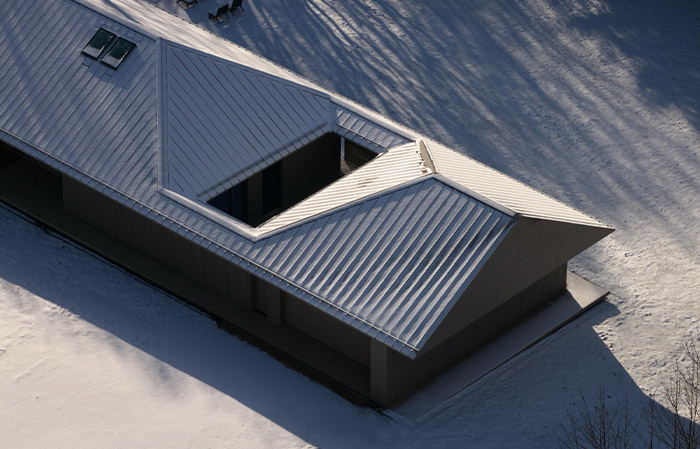

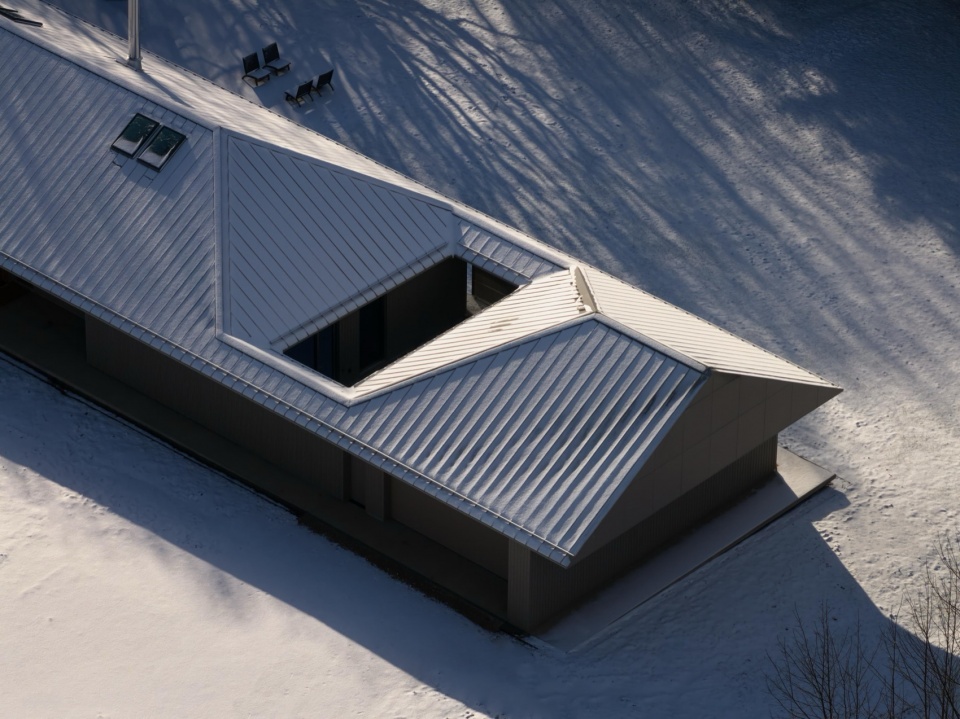

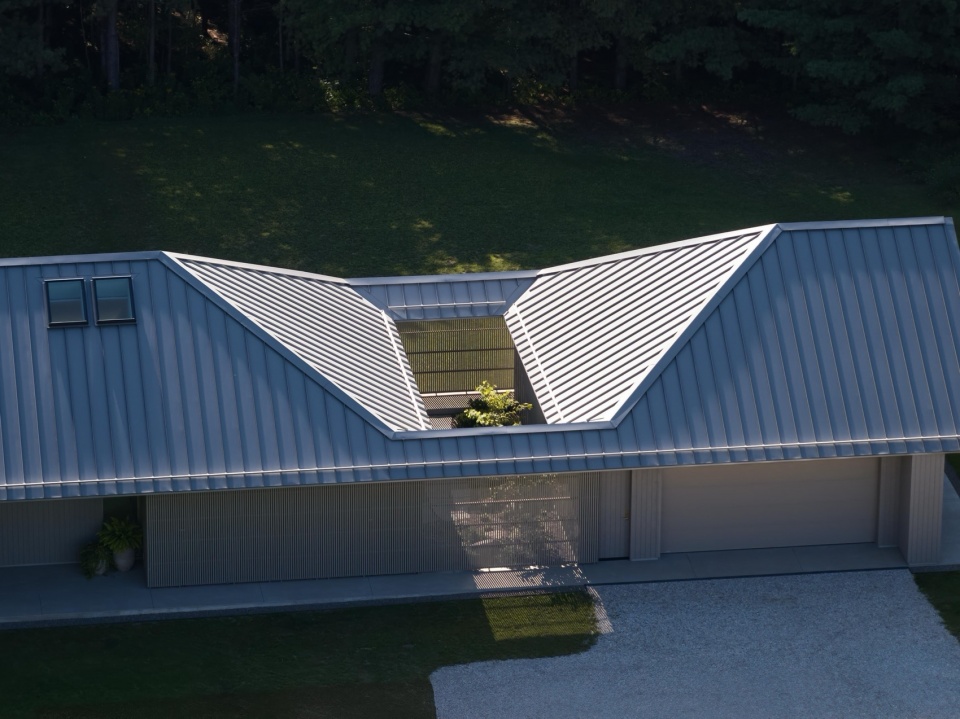

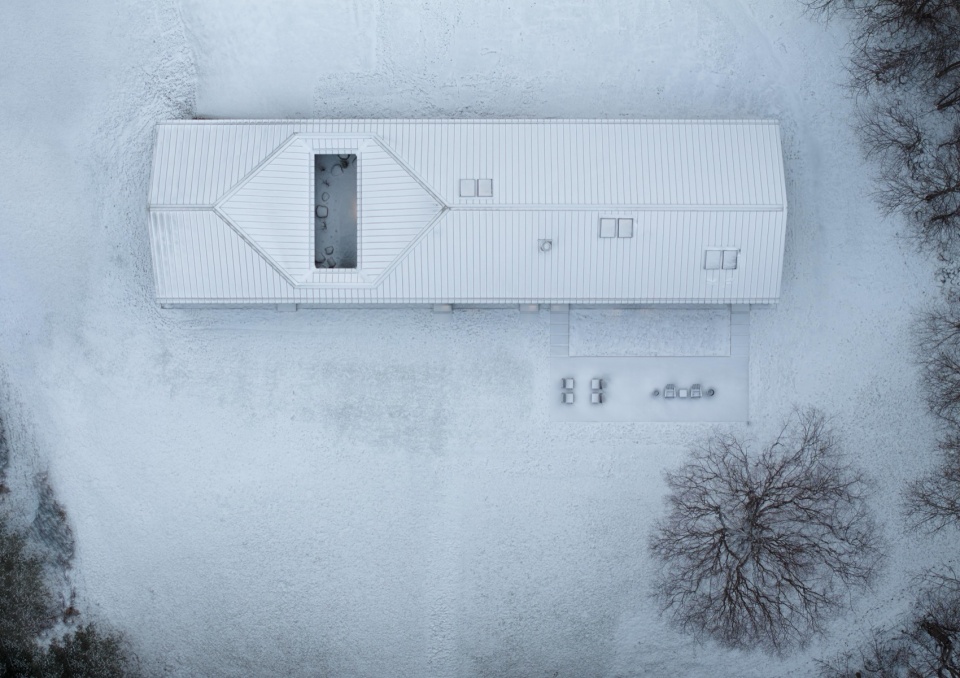

▼屋顶鸟瞰，aerial view of the roof © doublespace photography

▼模糊的室内外界限，blurred exterior and interior boundaries © doublespace photography

▼由室内看庭院，viewing the garden from interior © doublespace photography

在空间体验上，业主希望住宅呈现宁静的氛围，并模糊室内与室外的界限，偏好单色调、哑光质感与天然材料。设计不仅顺应自然环境，也将自然的节律引入室内。主卫生间面向一处被围合的花园空间——这一“开放的秘密”构成了住宅的核心。花园位于屋顶结构中的矩形开口之下，在向天空敞开的同时，由木格栅围合，投射出富有变化的光影。内部庭院形成的“负空间”使自然光以倾斜角度渗入相邻功能空间。错落布置的天窗将日光反射至起拱的天花与墙面，在起居与餐厅内形成柔和而均匀的漫射光。住宅西南角的火坑位于胶合板拱顶之下，而厨房中柔和的灰色调则呼应了外部支撑柱的灰色立面，将室外气质引入室内。

Our clients desired a tranquil home that blurs inside and outside, with an explicit preference for monochromatism, matte finishes, and natural materials. Not only did we design with the land, we also found imaginative ways to bring nature and its rhythms into the interior experience. The principal bathroom looks out to an enclosed garden space — the open secret that sits at the heart of the home. Located beneath a rectangular opening in the roof structure, the garden reaches skyward while remaining protected by wood screens that cast playful shadows on the ground. The negative space created by this internal courtyard enables additional light to filter obliquely into the adjacent components of the program. Strategically staggered skylights bounce daylight off the vaulted ceilings and adjacent walls in the living and dining rooms to cast diffuse illumination across the home. A fire-pit on the home’s southwest corner sits under a vaulted plywood ceiling while the soft grey of the kitchen extends the grey exterior cladding on the piers, bringing the outside in.

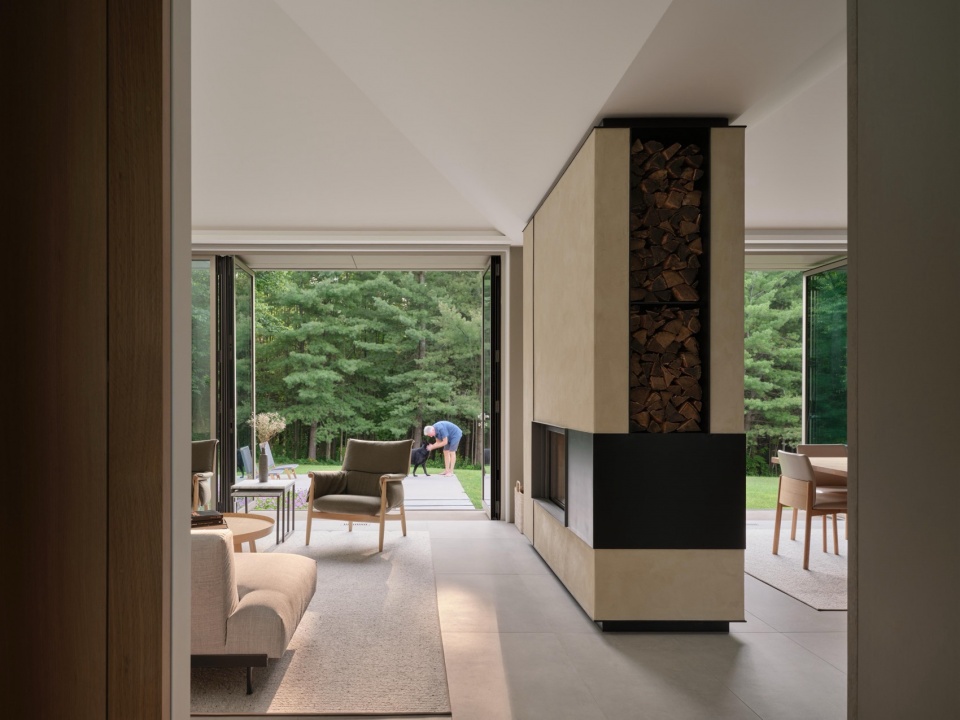

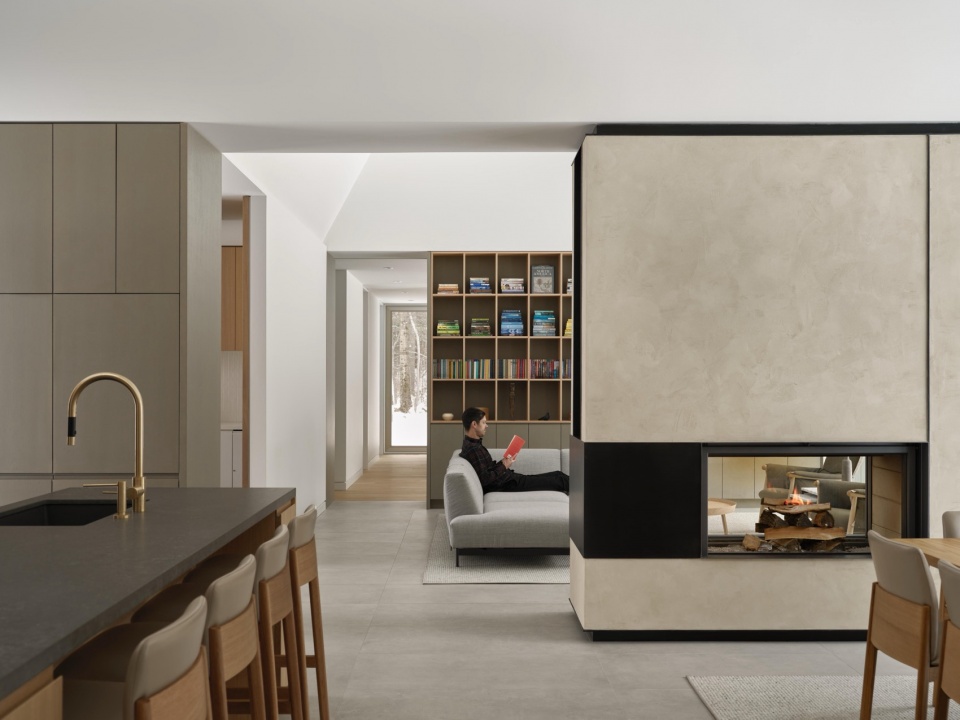

▼客厅，living room © doublespace photography

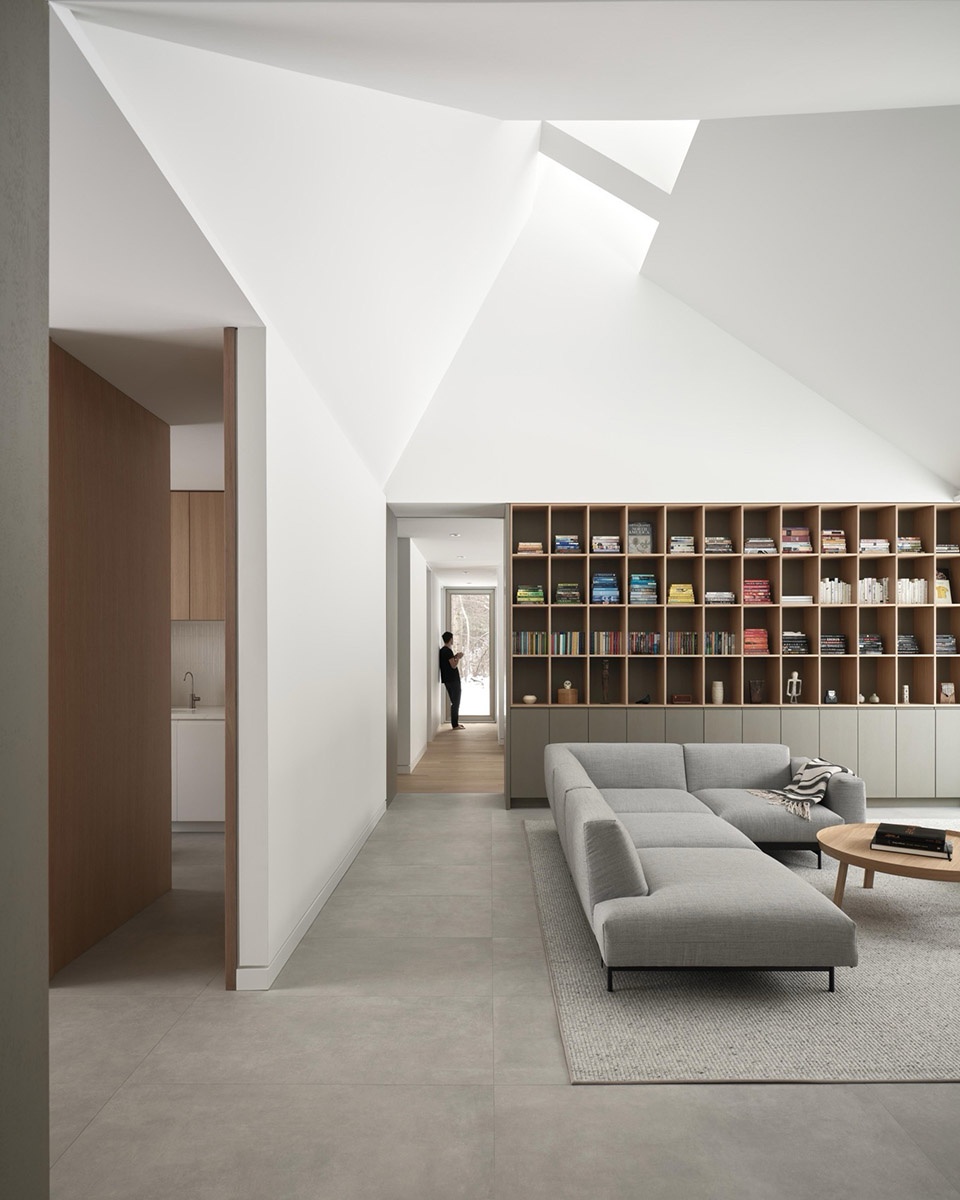

▼客厅与天窗，living room and skylight © doublespace photography

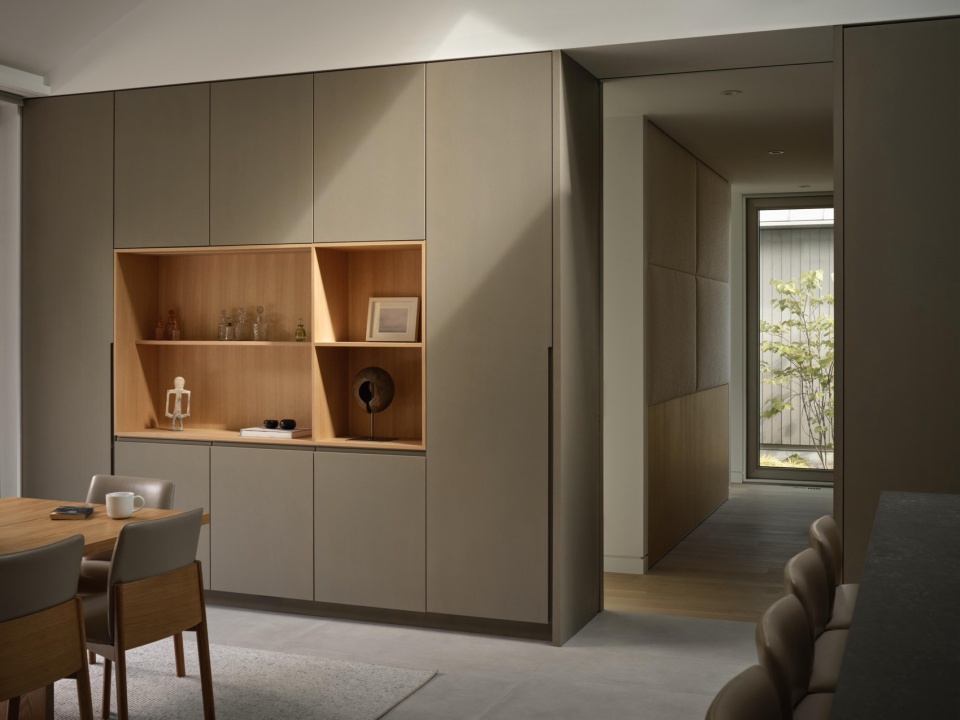

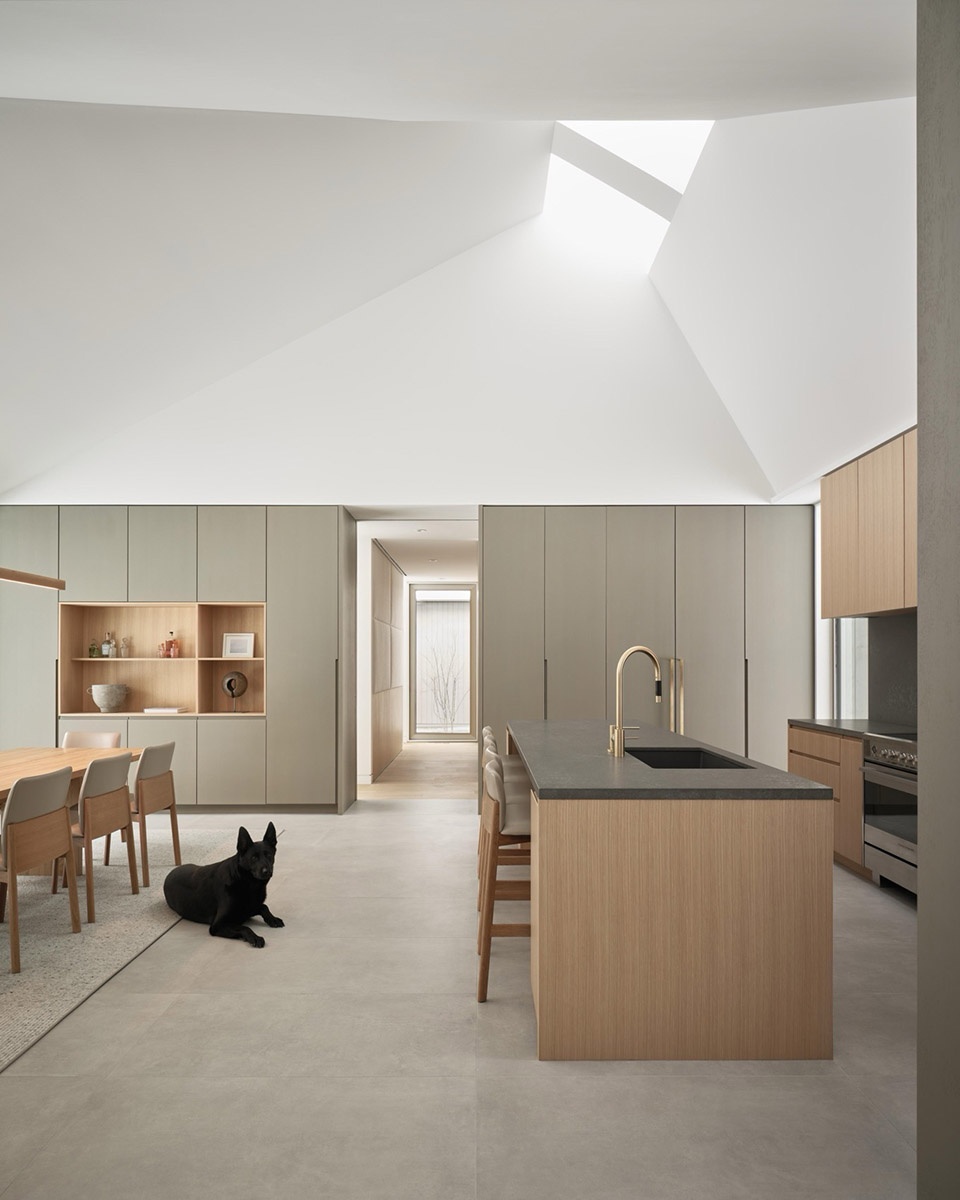

▼厨房，kitchen © doublespace photography

▼室内一角，corner of interior © doublespace photography

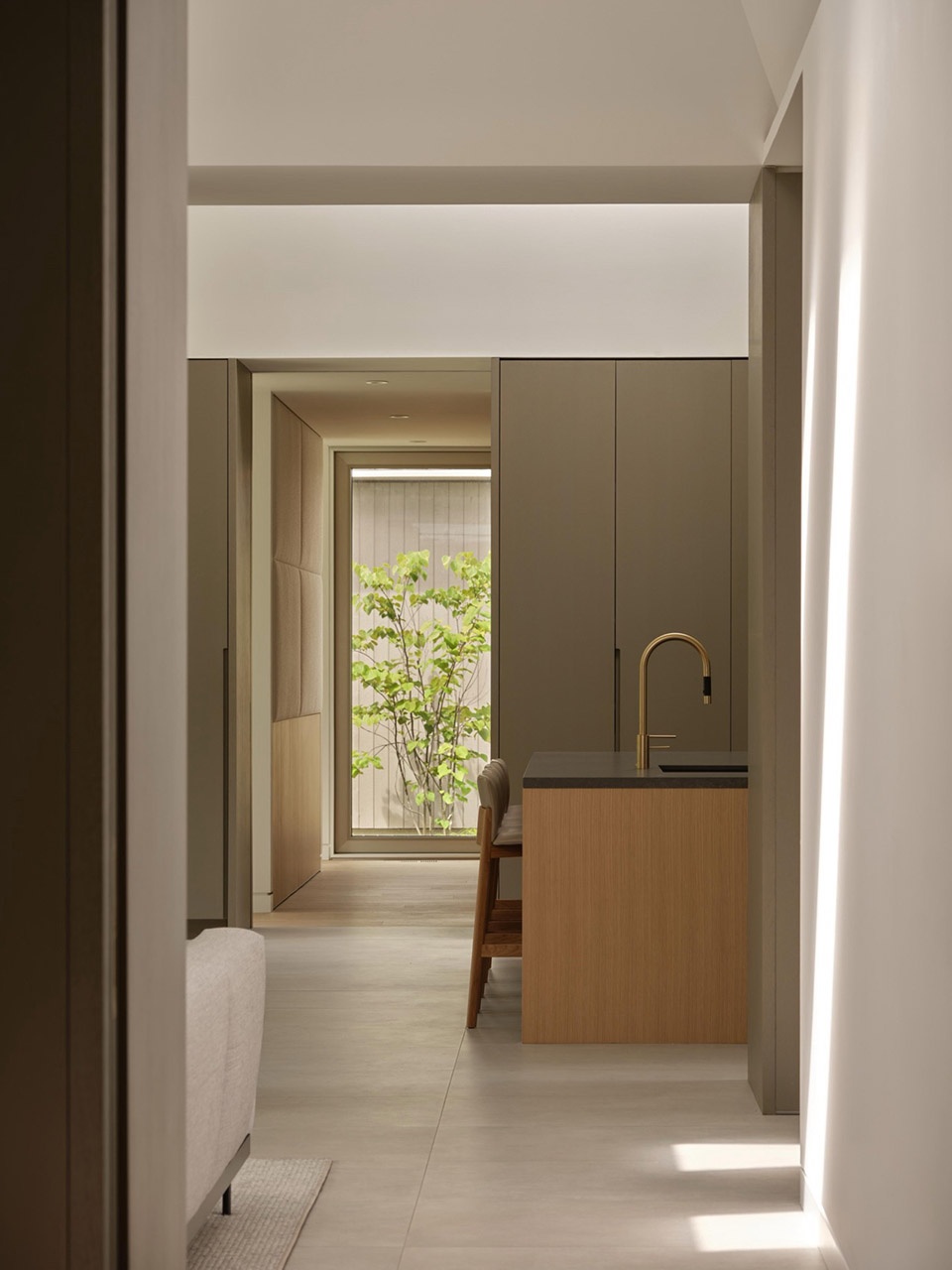

▼视线的通廊，the corridor of vision © doublespace photography

作为一座需应对安大略乡村气候的住宅，山脊住宅将耐久性作为首要设计原则。从直立锁边金属屋顶与外墙系统，到船用级胶合板与预制木作，所有构件均采用低 VOC、水性涂层处理，兼顾耐磨、防霉、防污与长期使用性能。分区控制的高效地暖系统实现精准温控，寒冷气候适用的热泵结合安大略清洁能源电网，有效降低供暖与制冷的碳排放。热回收新风系统在引入新鲜空气的同时提升热舒适性，确保室内环境质量的长期稳定。

Built to withstand the rural Ontario elements, Ridge House was designed with durability as a chief priority. From the standing seam roof and exterior siding to the marine -grade plywood and prefabricated millwork stained with a low -VOC, water -based coating that absorbs light and protects against scratches, mould, and stains, the home is a robust, low-maintenance architectural structure that was built to last — and perform — for the long -term. High -efficiency zoned in -floor radiant heating provides targeted temperature control while the cold -climate heat pump, combined with Ontario’s clean energy grid, minimizes carbon consumption for heating and cooling. The Energy Recovery Ventilator mechanical system optimizes air quality by bringing in fresh air while simultaneously enhancing thermal comfort.

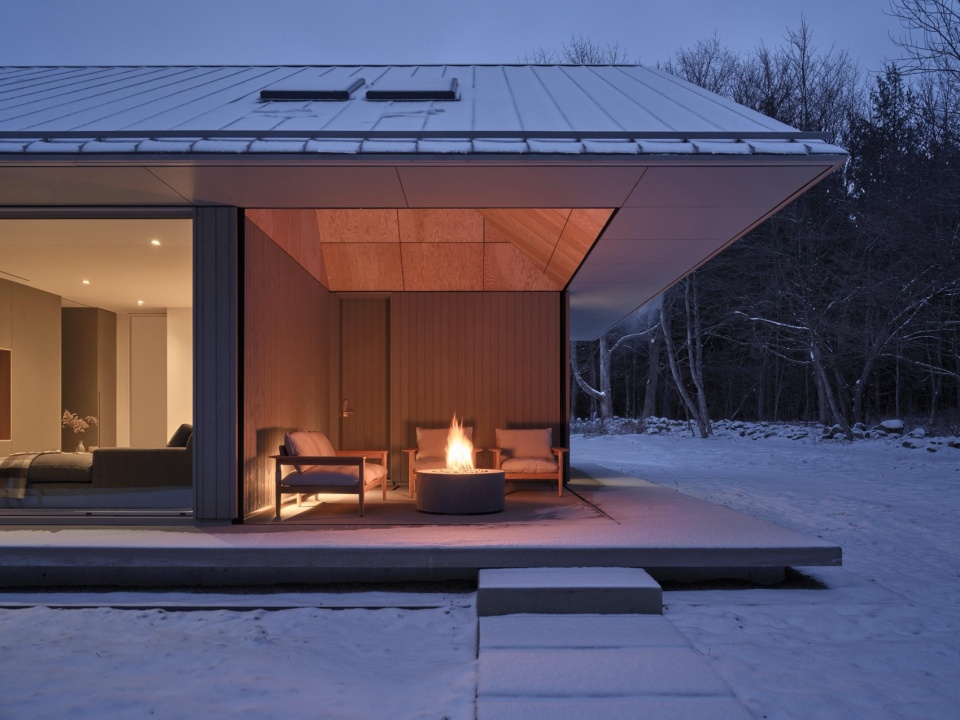

▼建筑外景夜览，night view of the house © doublespace photography

▼夜景，night views © doublespace photography

Location : Grey County, Ontario, Canada
Size : 3,175 sf
Completed : 2024
Photography : doublespace photography
Team
Architect: Superkül
Structural Engineer: Kieffer Structural Engineering
Mechanical: Fire House HVAC Designs Inc.
Contractor: J.W. Gordon Custom Builders Inc.
Landscape: Saraga Taylor Landscape Architects
Geot echnical : Terraprobe
Millwork: Coates Creek Cabinetry
Lighting: Dark Tools
