来自CAAU Coldefy & Associés Architectes Urbanistes对gooood的分享。更多精彩：CAAU on gooood
Appreciation towards CAAU Coldefy & Associés Architectes Urbanistes for providing the following description:

这一项目位于Dunkirk城市入口处铁路沿线一侧的旧工业园区内。这座建于1928年的建筑曾经是一家棉纺厂的厂房，在被废弃多年之后，经过建筑师的改造成为一座功能丰富的社区建筑。

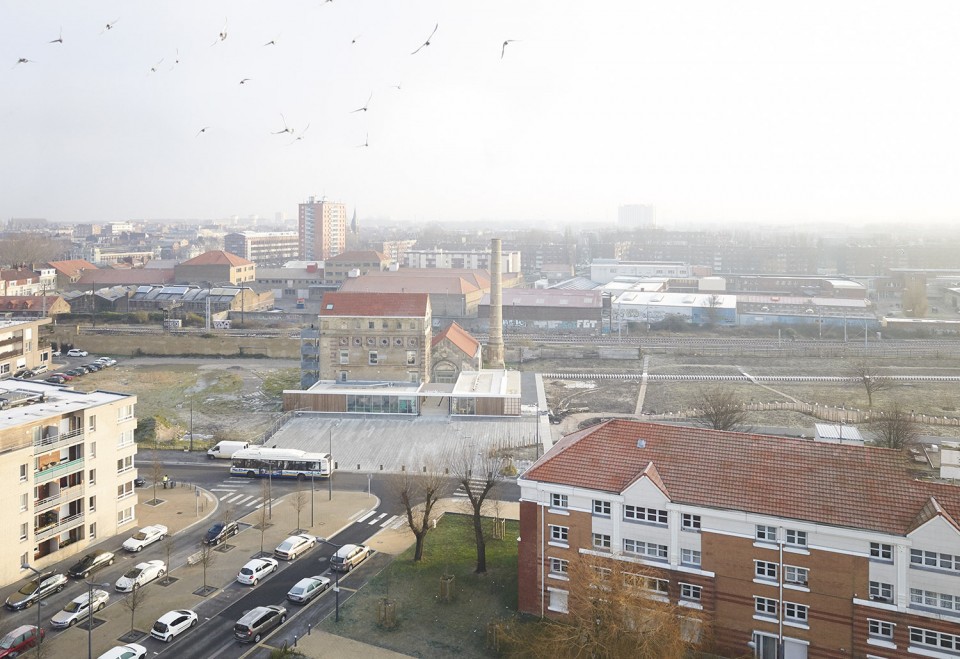

The project is to be found in an old industrial park along the railroad tracks at the entrance of the city of Dunkirk, in fact just a stone’s-throw away from the main railway station. The area is thereby really well situated and is developing fast. The building itself had been abandoned and empty for years and was originally a cotton mill, founded back in 1928.

翻新的建筑内容纳着4种不同的功能空间：工作室、会议室、小型的幼儿园和餐厅。这4个空间独立运作，同时共用一个出入口。设计的主导原则是保留原建筑的高品质，将新的功能填充到空间中来，与此同时，不能对前广场作为邻近社区的社交中心的地位造成影响。另外，从餐厅的窗口可以看到毗邻的花园，这对设计也产生了一定作用。

The building has been renovated to house a contemporary co-working environment replete with workrooms, a conference space, a micro-nursery and a cafeteria. The four functions can operate independently but enjoy a common entrance. A main principal of the project was to preserve the great architectural qualities the building possessed and to transform this space to fulfill new functions whilst respecting the fact that the square opposite is a social hub for the neighborhood. The adjoining water-garden also had an impact on the design project for the same reason, and because it is part of the visible panorama viewed from the bay windows of the cafeteria.

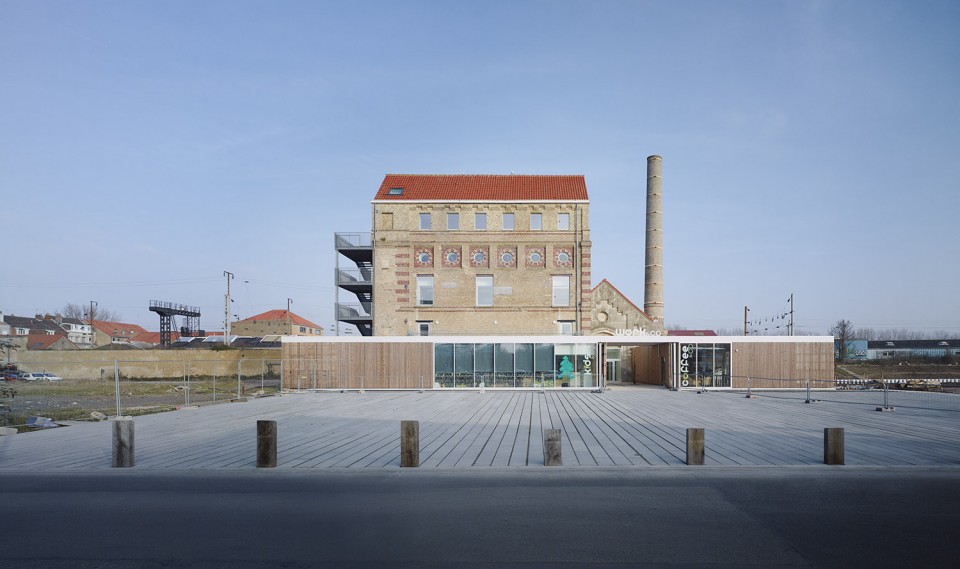

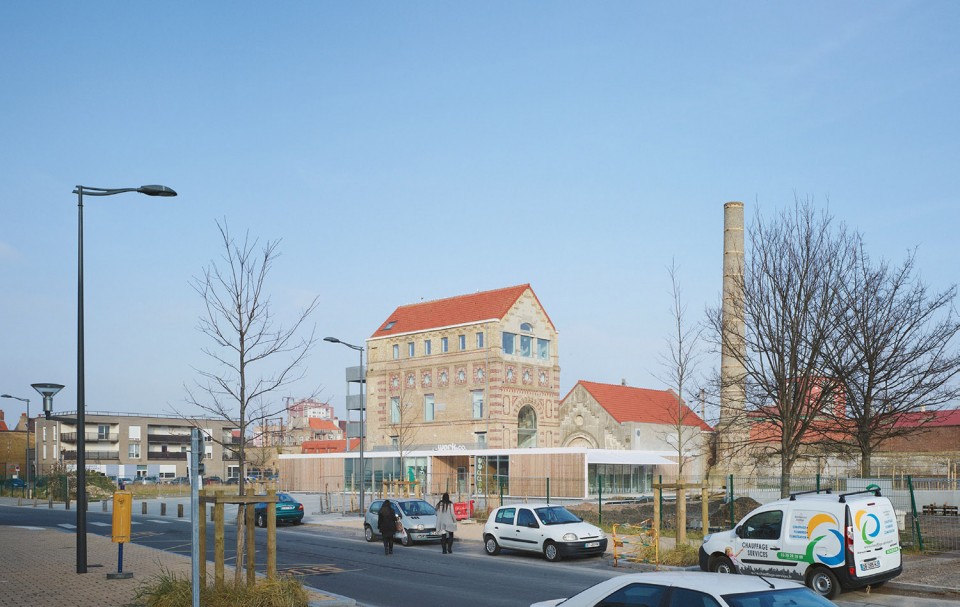

▽ 从街道看建筑，view from the street to the building

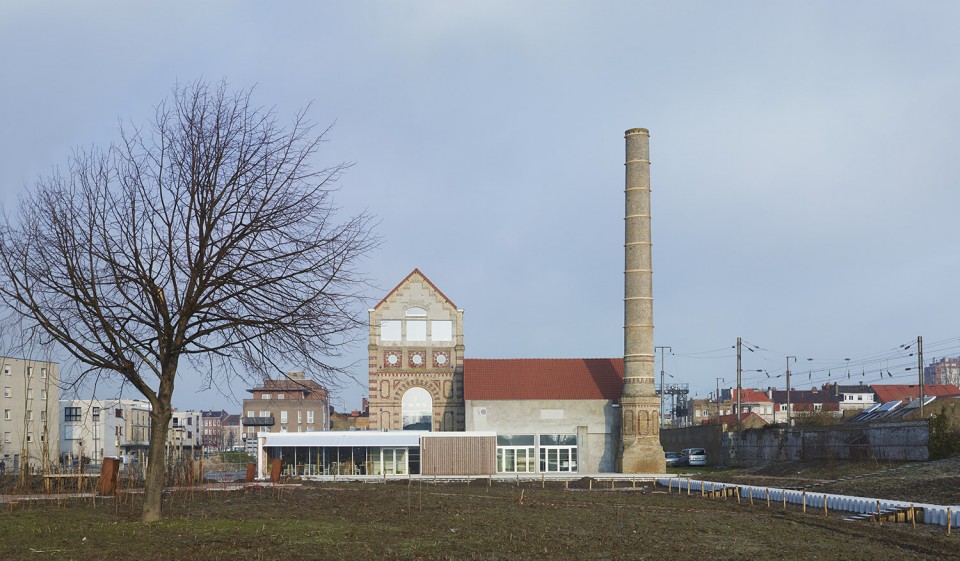

▽ 越过花园看建筑，view from the garden to the building

建筑师完整保留这座标志性极强的原厂房建筑，同时在基部进行了两处扩建，分别作为餐厅和幼儿园。扩建部分前面的广场和长长的玻璃立面使得建筑与城市的关系更加紧密，成为新的城市绿色空间的一部分。低矮的造型不仅不会掩盖高耸的老建筑，反而更加凸显了它的存在。扩建部分使用的材料新颖而精致，同老建筑粗犷的外立面形成鲜明的对照。老建筑的轮廓线被完整地保留下来，一切还保持着旧时生产的样子：原先的楼梯被保留下来；原先的工业电梯被载客电梯所取代。为了适应新的功能，建筑师在老建筑中新建了两层混凝土楼板，构成了建筑的1层和3层。外墙上新开设的窗口依旧保持原有的规律和尺度，于此同时，外置的金属楼梯凸出了立面的造型感。

To give this symbolic building back its strength, the project fully preserves the existing as it was and installs at its foot two new ground floor extensions that house the cafeteria and the nursery.

The extensions open the building up to the town beyond it via the sweeping bay windows and the mineral square, which itself looks on to a new urban green space. These low constructions do not conceal the old mill overlooking them, but actually contribute to highlight the original structure.

In the existing building, the contrast between the raw original materials and the new ones, which are fresher and more refined, creates rather a striking contrast. The original outlines have been entirely preserved in order to obtain the same surface on the plateau as it was in the olden times of its manufacturing days : the elevator has taken over the place once occupied by an industrial lift and the straicase has been conserved. To accommodate the entire program, two additional concrete slabs have been created and just slip between the existing one, forming level 1 and level 3. New openings in the thick brick walls take place within an existing regularity while the outside metal staircase brings out the singular facades.

▽ 西南立面，south west façade

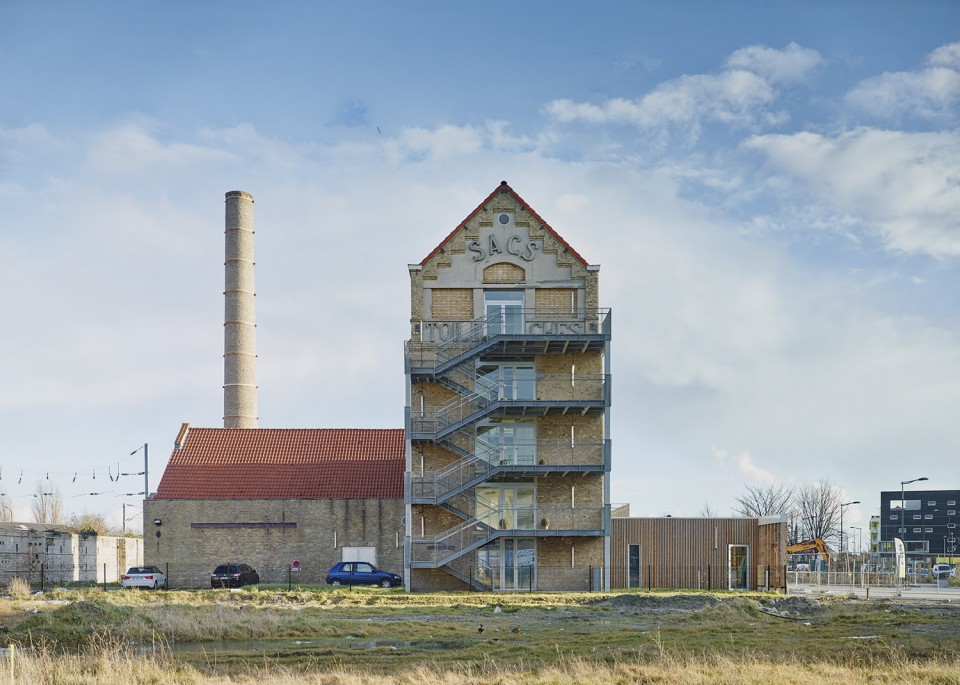

▽ 西北立面，north west façade

在选择项目使用的材料时，建筑师非常慎重，并最终实现了玻璃和金属同原有红砖结构的完美结合。支撑扩建部分的木结构的色彩，柔和而清新，营造出平静、安宁的氛围。

室内的家具都是精心设计和定制而成：办公的桌子、接待台以及餐厅吧台使用的材料就来自施工现场；有些家具的表面覆盖上黄麻，体现了设计理念的连续性。

所有的办公室和会议室都位于四层高的翻新的建筑体量内。原有窗户均被保留，为室内提供优美的景观。大会议室独占一层，同时享有室外的露台和公园。

扩建的两处建筑，层高跟建筑的一层相当，且风格一致。其中布置着的餐厅和幼儿园都各自拥有自己独立的室外空间。

A certain discretion is achieved by the choice of materials used in the building’s conversion as the glass and metal blend perfectly with the original red brick. A calming, peaceful ambiance has been created thanks to the clear tint of wood with which the extensions were built.

The furniture is designed and tailored: office tables, the reception desk and the cafeteria bar are made from materials from the construction site and several pieces of furniture have been covered with jute thus placing the continuity of this idea of renewal and heritage preservation.

All offices and meeting rooms are located in the renovated building that develops on four floors. The existing windows have been preserved and feature surprising views and perspectives.

In the existing hall, a seminar room takes place on one level, enjoying a big opening on the terrace and park.

At the foot of the existing building, two new constructions are implanted, presenting the same height and architectural style. These two extensions house the cafeteria and micro-nursery, each enjoying their own outdoor space.

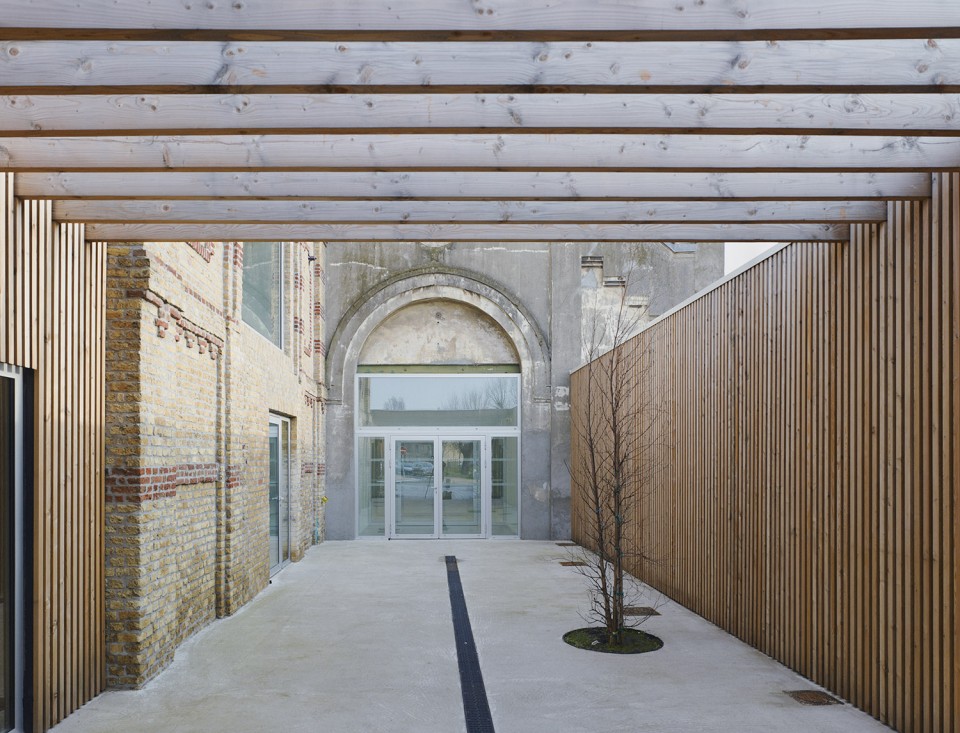

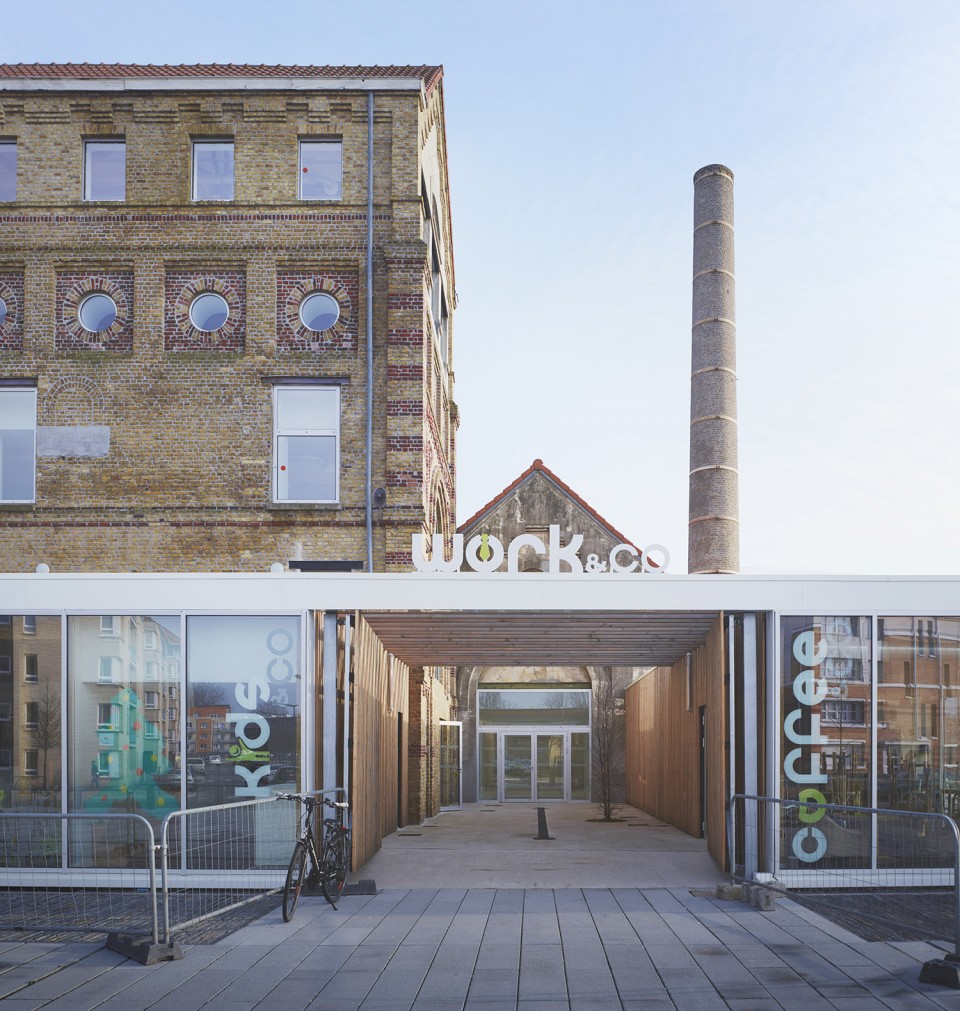

▽ 入口，the entrance

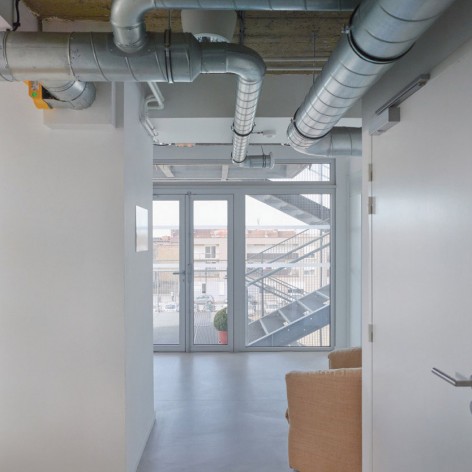

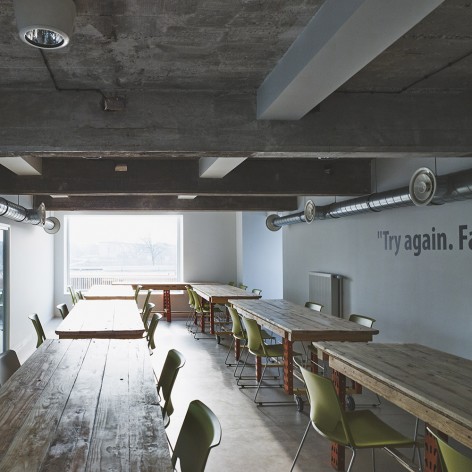

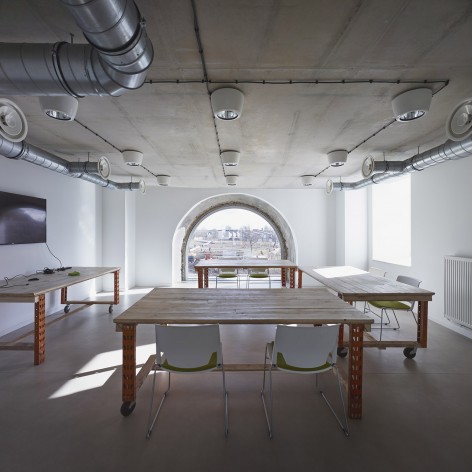

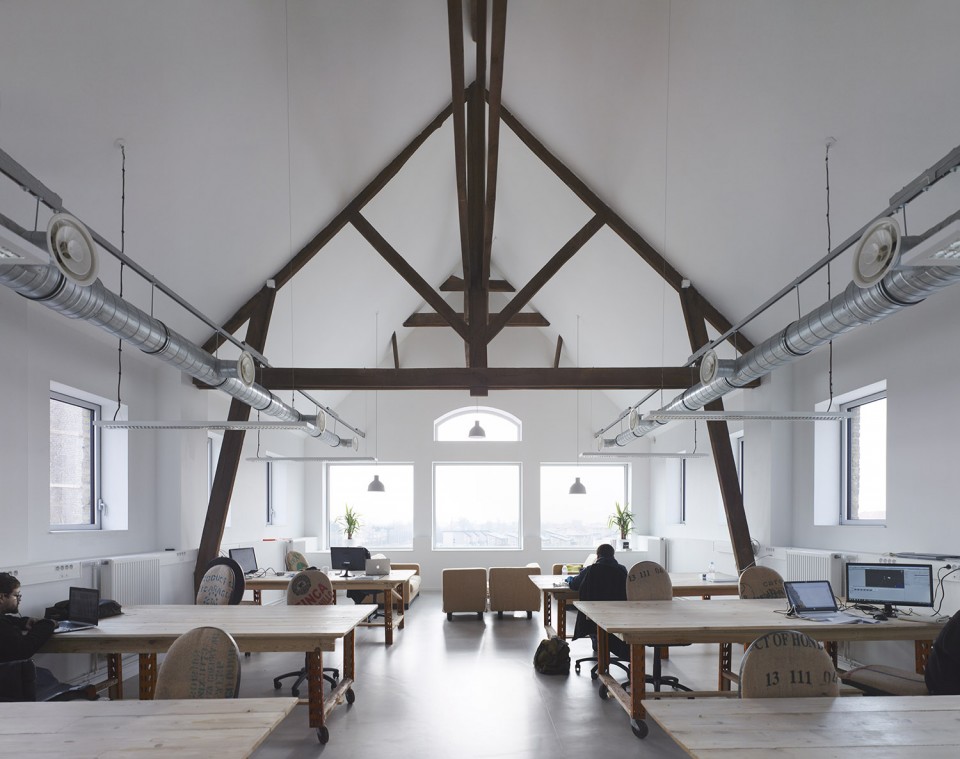

▽ 办公室和会议室，office and meeting rooms

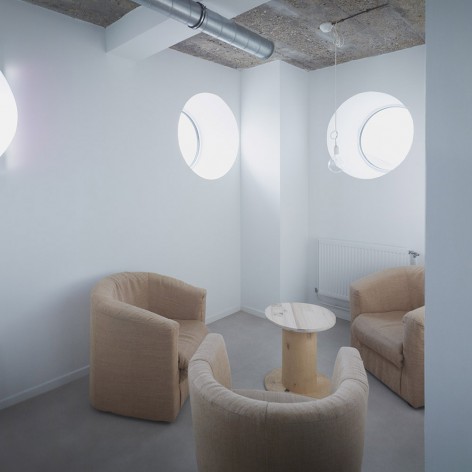

▽ 休息室，the rest room

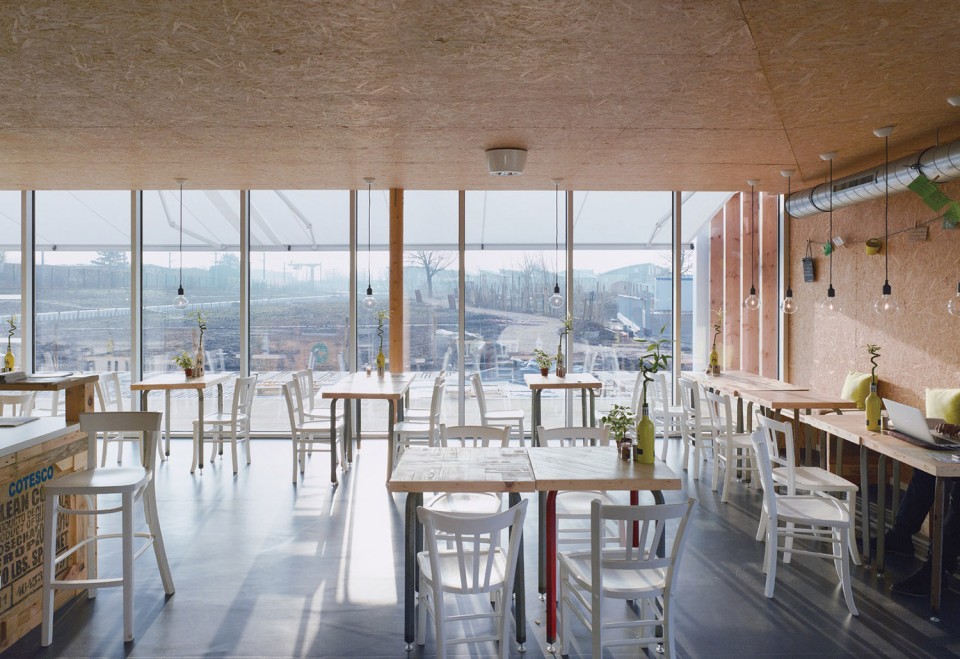

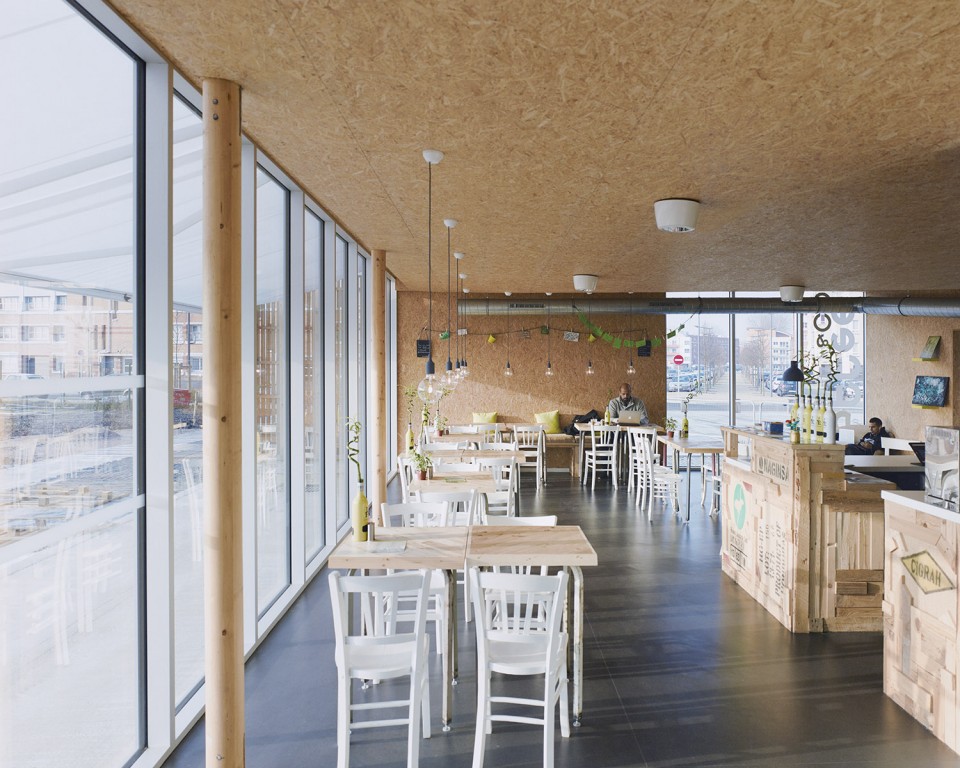

▽ 餐厅，cafeteria

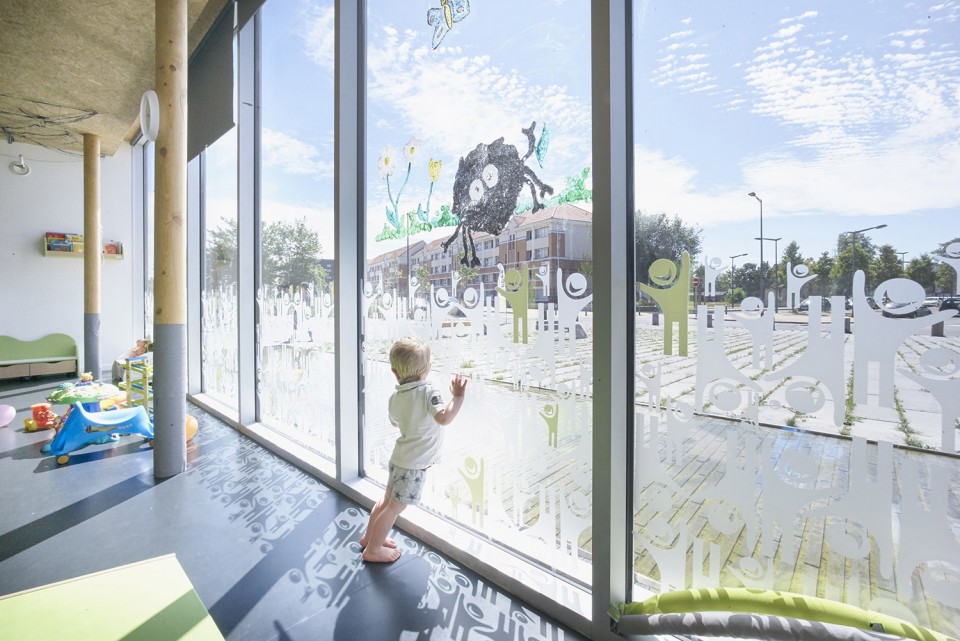

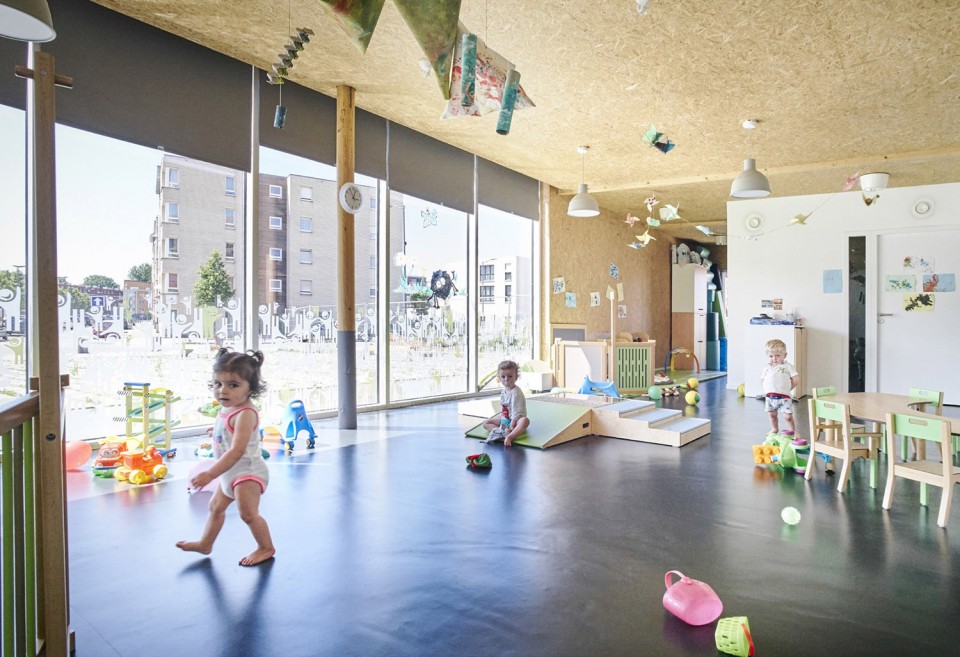

▽ 幼儿园，micro-nursery

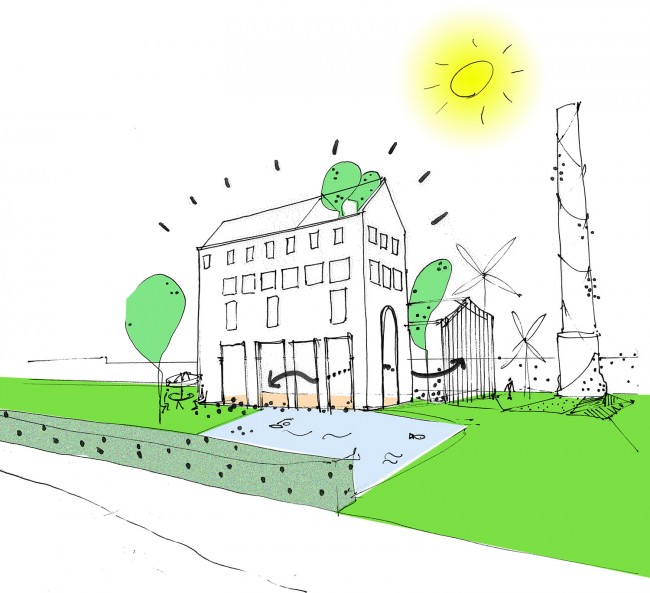

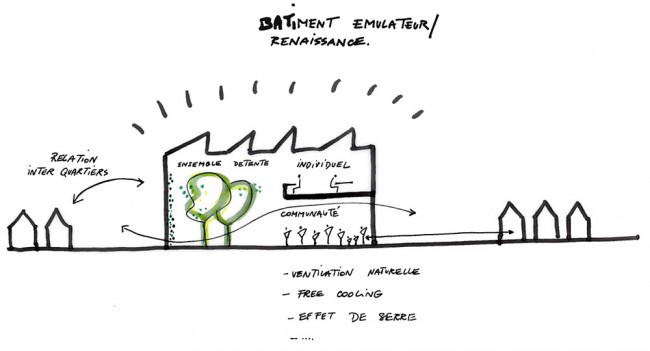

▽ 草图，sketches

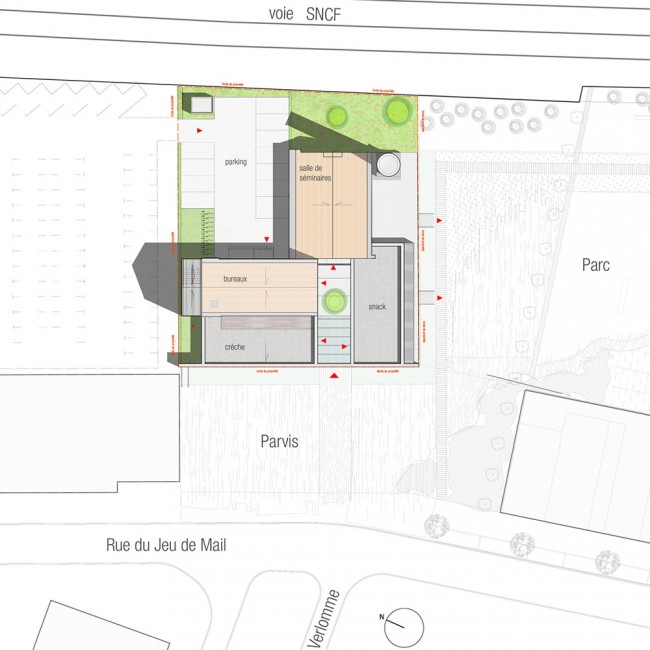

▽ 总平面图，site

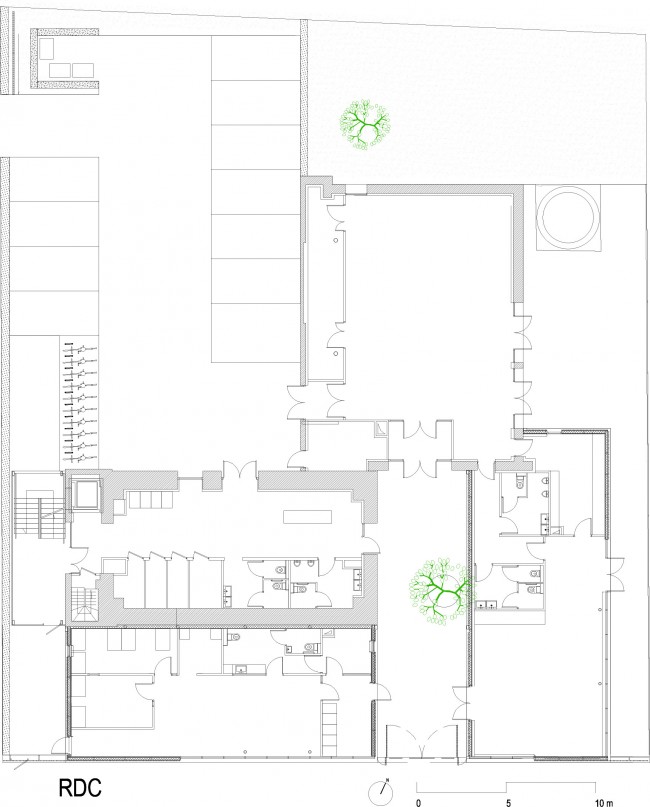

▽ 入口层平面图，the ground floor plan

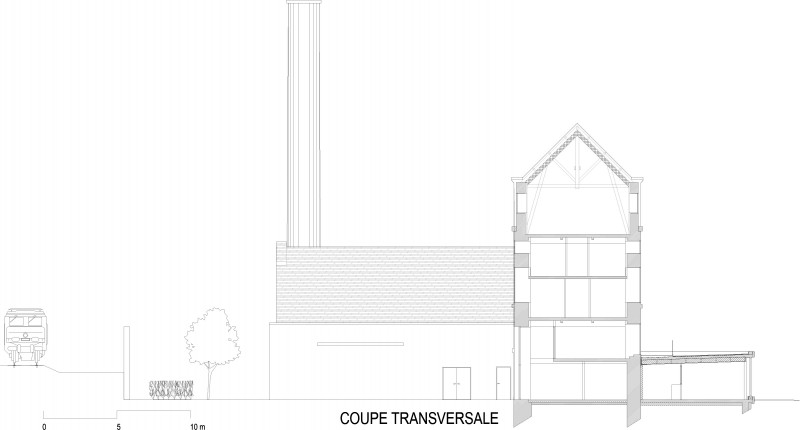

▽ 剖面图，section

Location:15 rue du Jeu de MailDunkirk, France
Client:Work & Co, Piet Colruyt (via SCI Social Square)
Architects:Coldefy & Associés Architectes Urbanistes
Environmental consultants:Symoe
Construction company: Norlit
Surface: 876 sqm.
Cost: 2,000,000 € before tax
Delivery: Novembre 2014

English Text: Coldefy & Associés Architectes Urbanistes
Chinese Text:gooood

More: Coldefy & Associates ，更多关于他们: Coldefy & Associates on gooood。
