来自 一树建筑工作室 对gooood的分享。更多关于他们，请至：ATELIER XI on gooood
Appreciation towards ATELIER XI for providing the following description:

侨城北公园游客中心坐落于深圳市中心一处被高强度建筑开发所包围的原生态树林山丘。

Qiaochengbei Park Visitor Center is situated on a hillside covered with pristine forest, surrounded by high-density urban development in the central area of Shenzhen.

▼视频，Video

如何在这座原生态的山林之中置入基础性的公共服务设施，同时保护原生自然环境，是建筑师所面对的挑战。

The forest’s untouched nature presents a challenge for the architects: how to incorporate essential public-service facilities into the park while preserving the original natural environment?

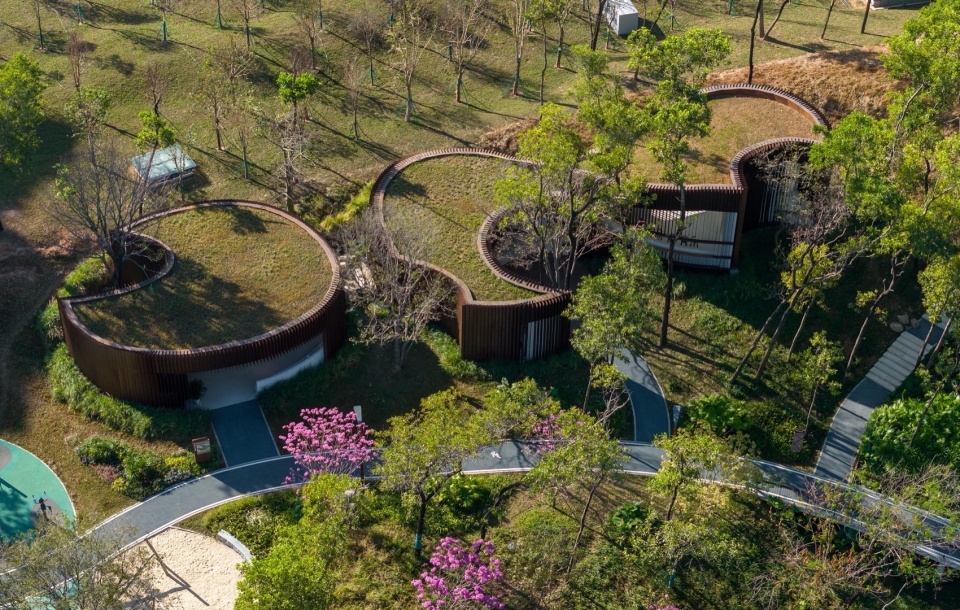

▼游客中心鸟瞰，Aerial view of the tourist center © 张超

▼西侧公共卫生间鸟瞰，Aerial view of the west public toilets © 张超

建筑师提出完整保留所有原生树木，将相距200米的两座服务建筑，分别以弧形与方形的不同姿态，小心穿插在树木之间，以最小介入的方式完成了对场地的重塑：东侧建筑被以树木为圆心的无形圆弧切割而成，使其蜿蜒身姿得以迂回流转于树木之间；西侧建筑由一系列梯形方体组成，这些结构悬挑、嵌入或置于地面上，它们构成一组“金属阵列”锚定方位，并与森林的自然节奏相呼应。

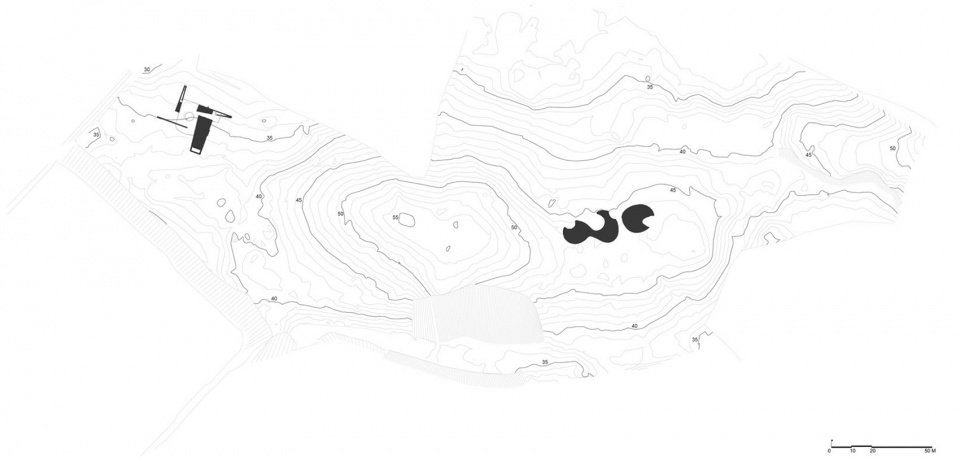

▼地形图，Site topography © ATELIER XI

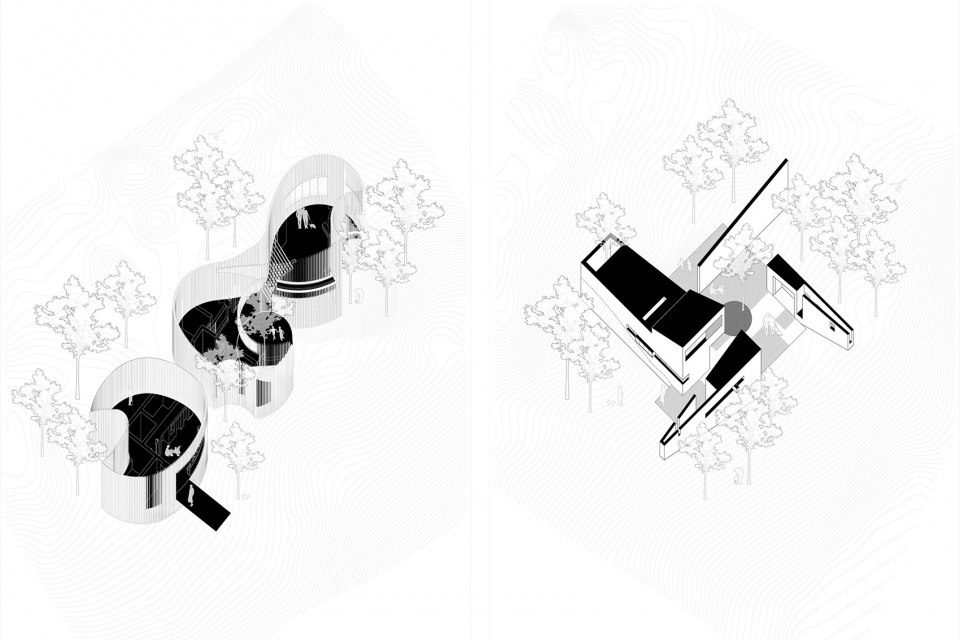

▼轴测分析图，Axonometric diagrams © ATELIER XI

The architects proposed preserving all native trees by strategically interweaving two service buildings among them with minimal disturbance to the site. The curvilinear east building is shaped by invisible arcs centered on the trees, allowing its winding form to elegantly meander among the trunks and bushes. The west building features a series of trapezoidal structures that are either cantilevered, embedded, or placed on the ground. These structures act as “metal henges” that anchor directionality and resonate with the natural rhythm of the forest.

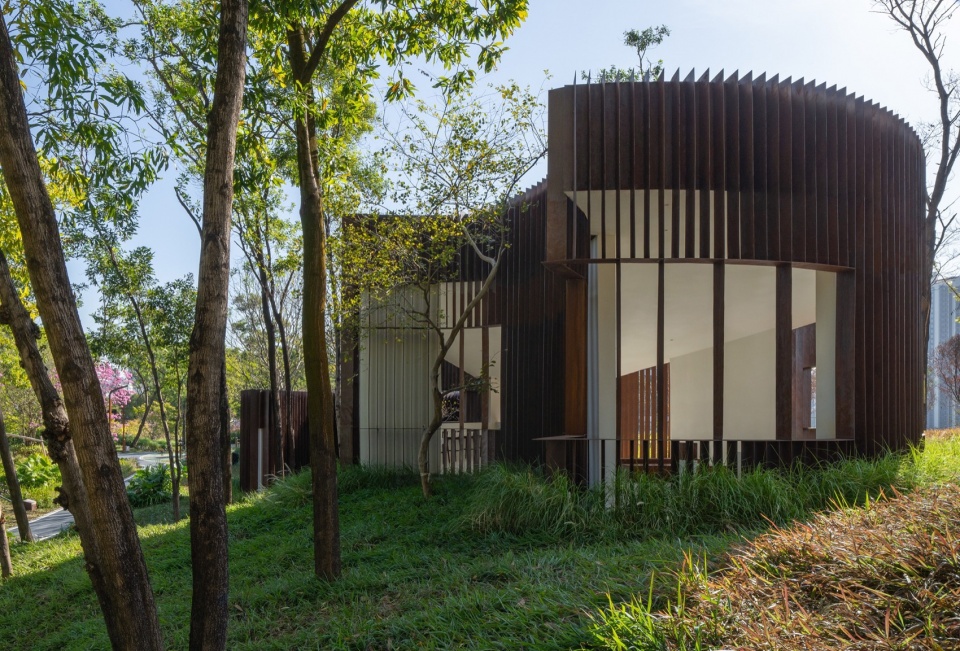

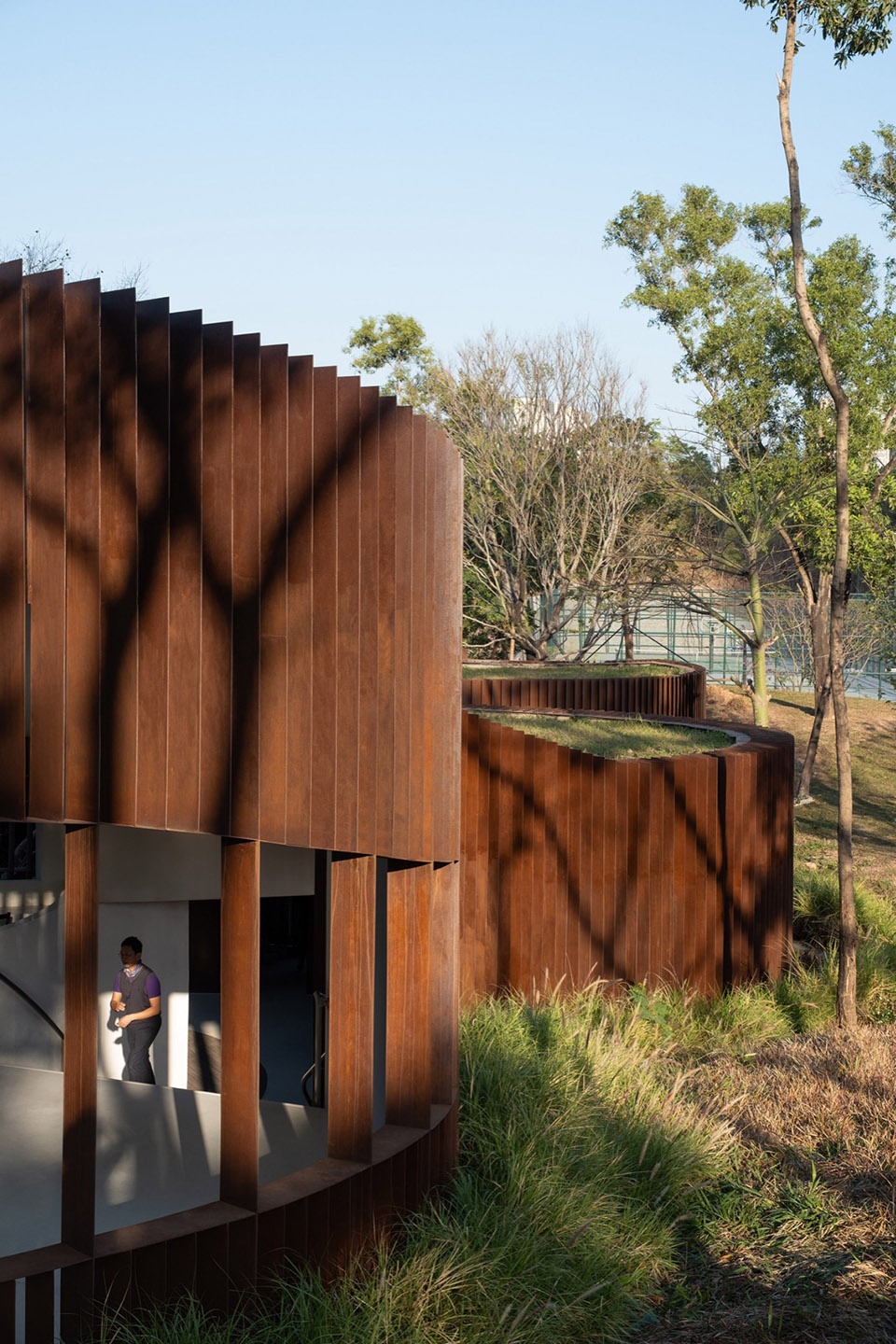

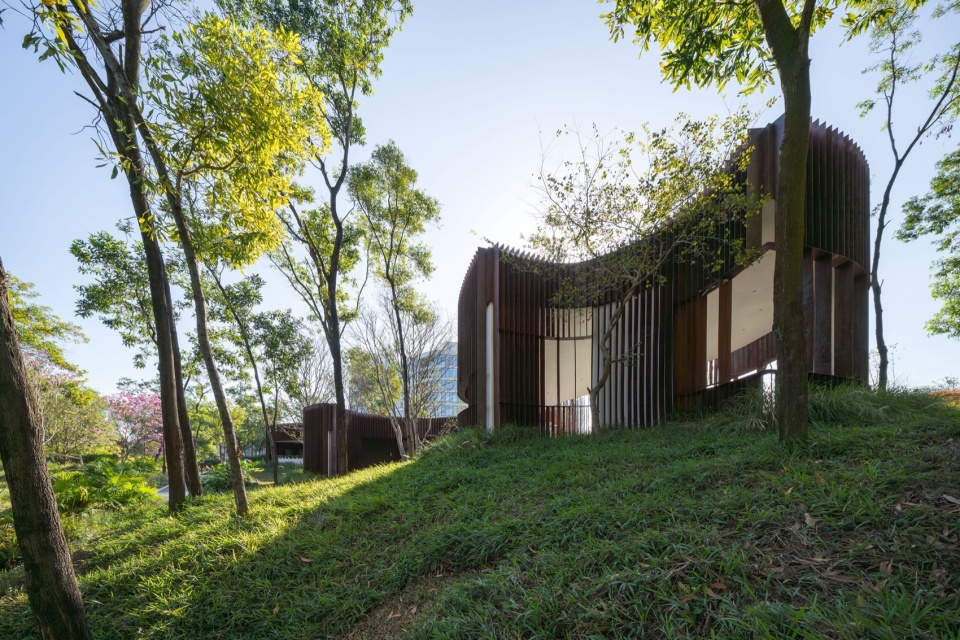

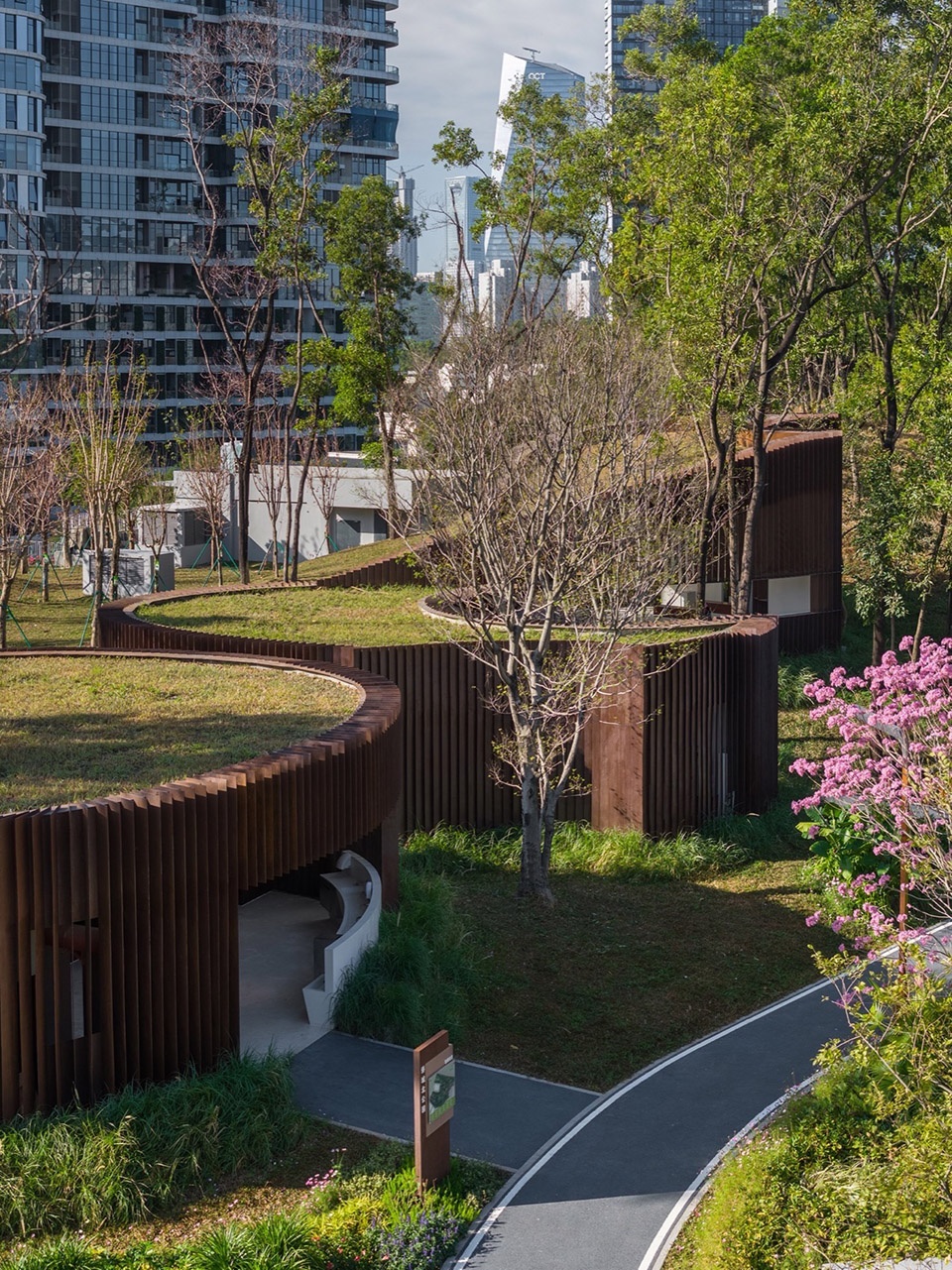

▼东侧游客中心外观，Exterior view of the east tourist center © 张超

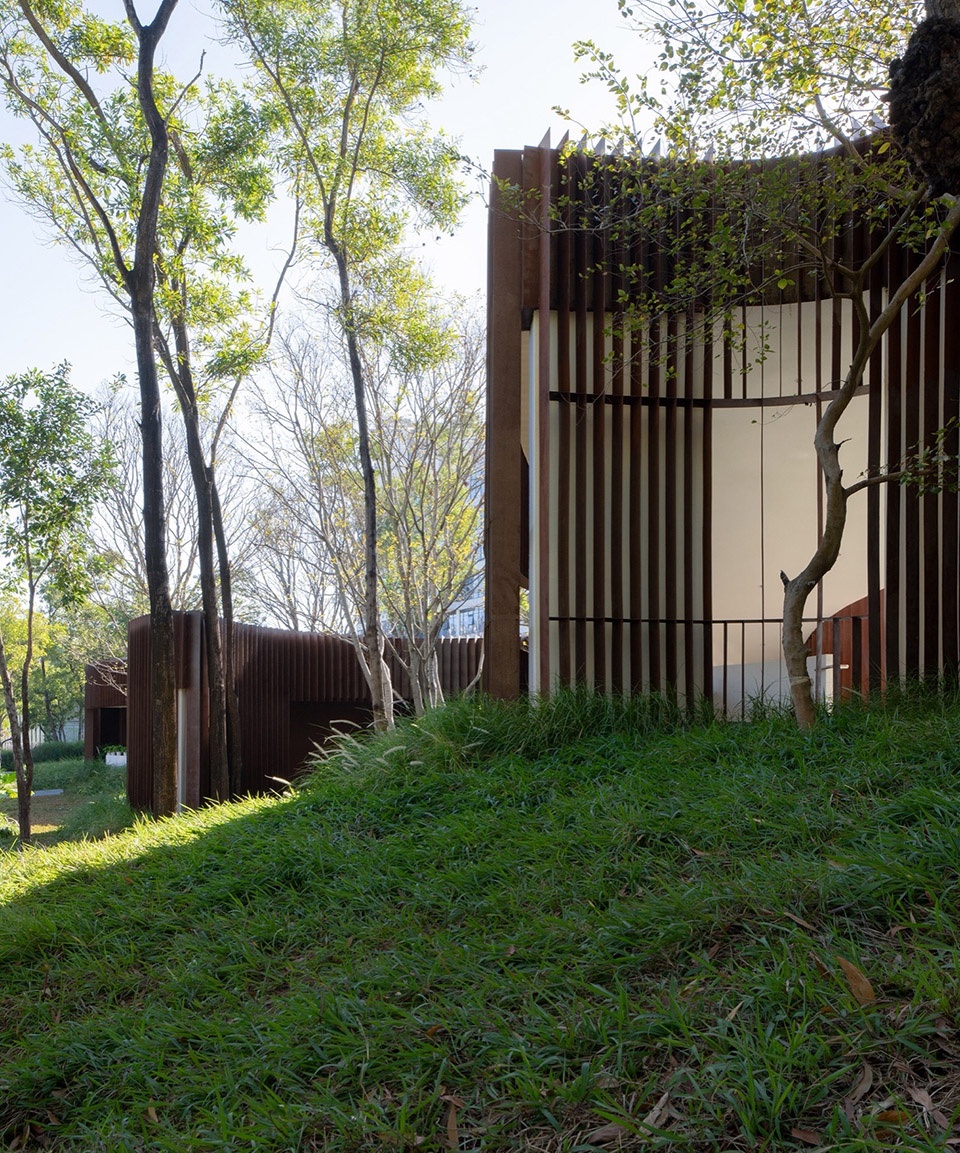

▼东侧游客中心近景，Closer view of the tourist center © 张超

▼东侧游客中心外观细部，Exterior details of the tourist center © 张超

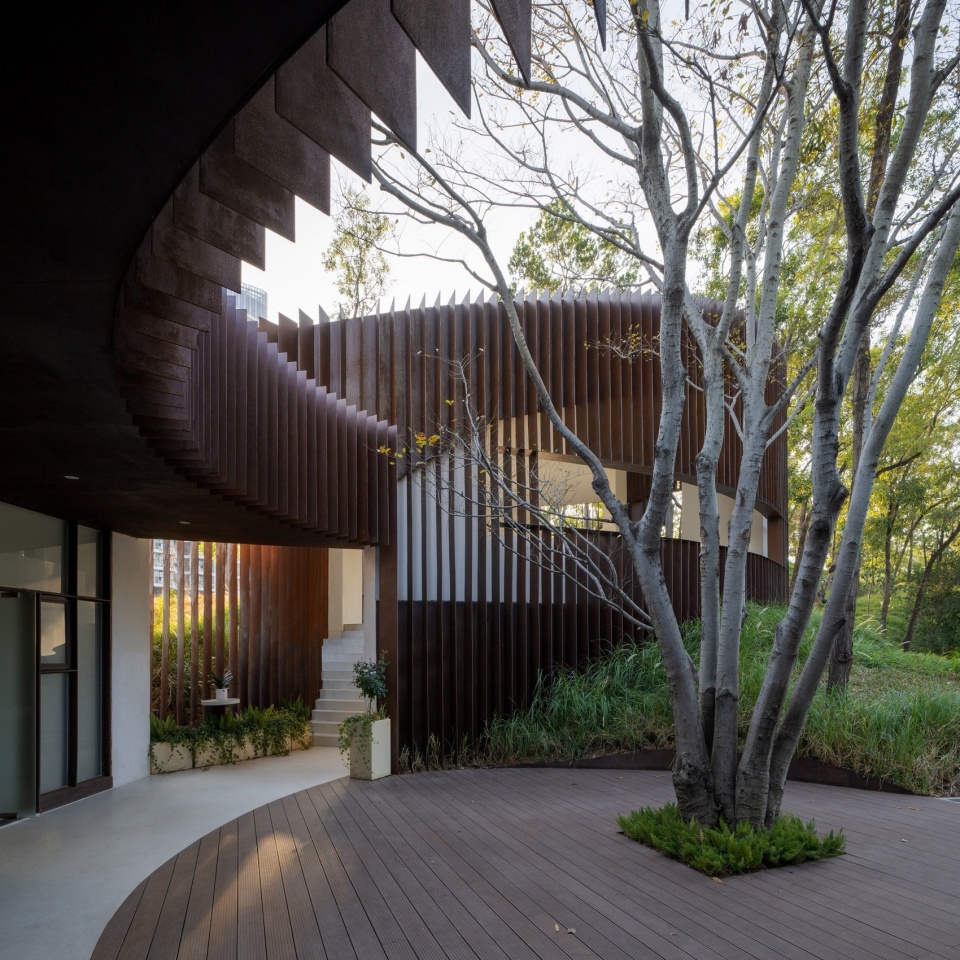

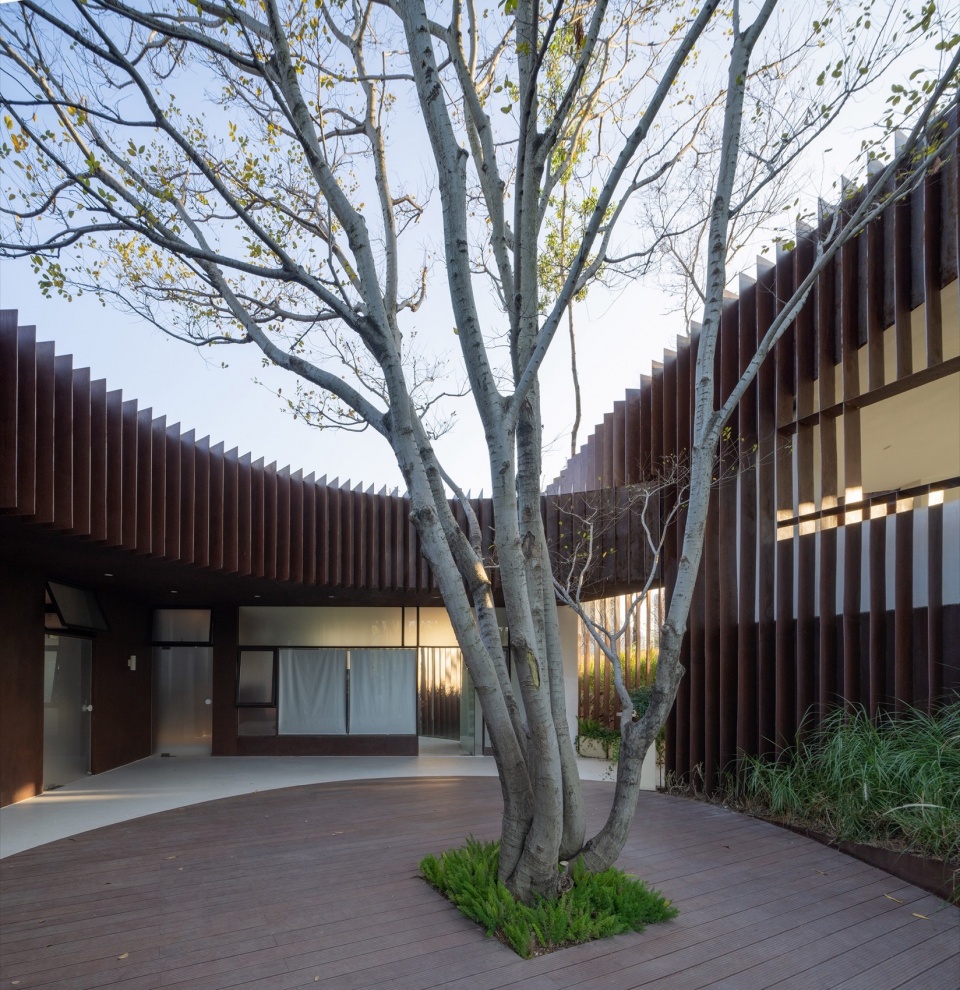

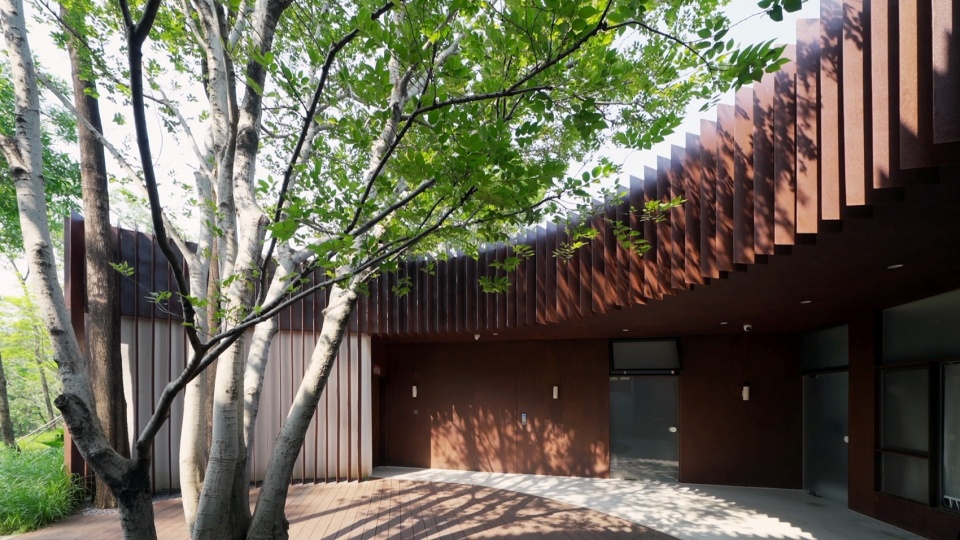

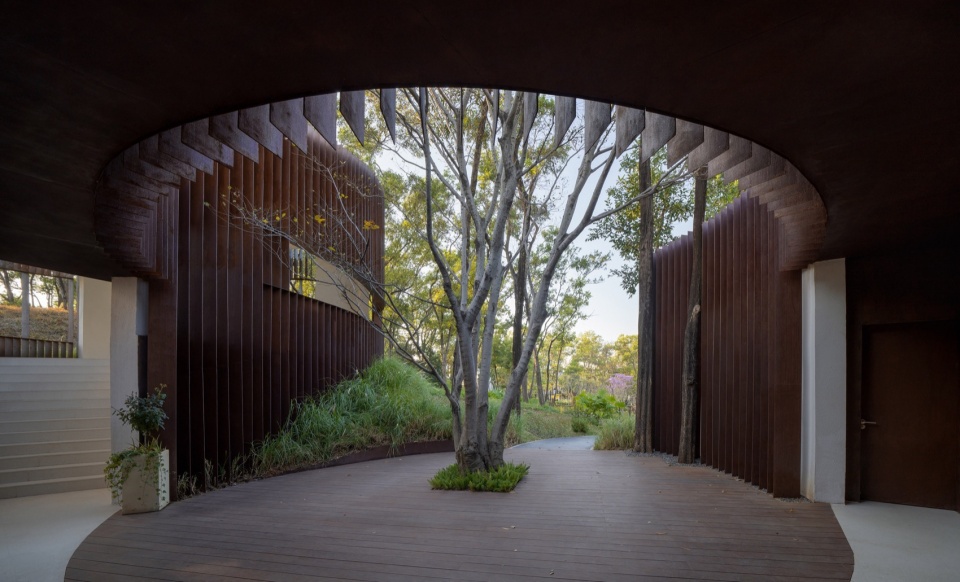

▼绕过原有树木的弧形庭院，Curved courtyards that bypass existing trees © 张超

▼庭院近景，Closer views of the courtyard © 张超

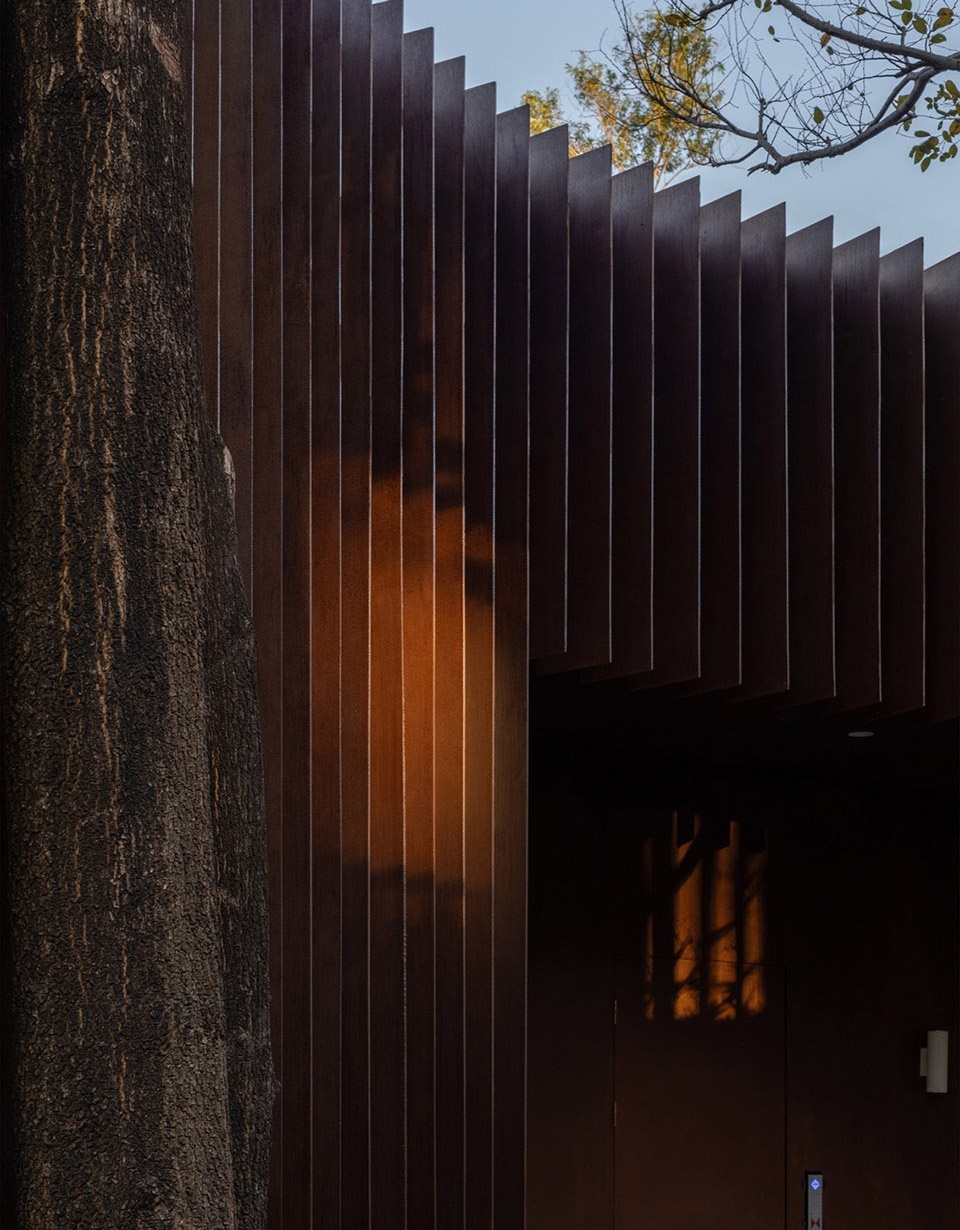

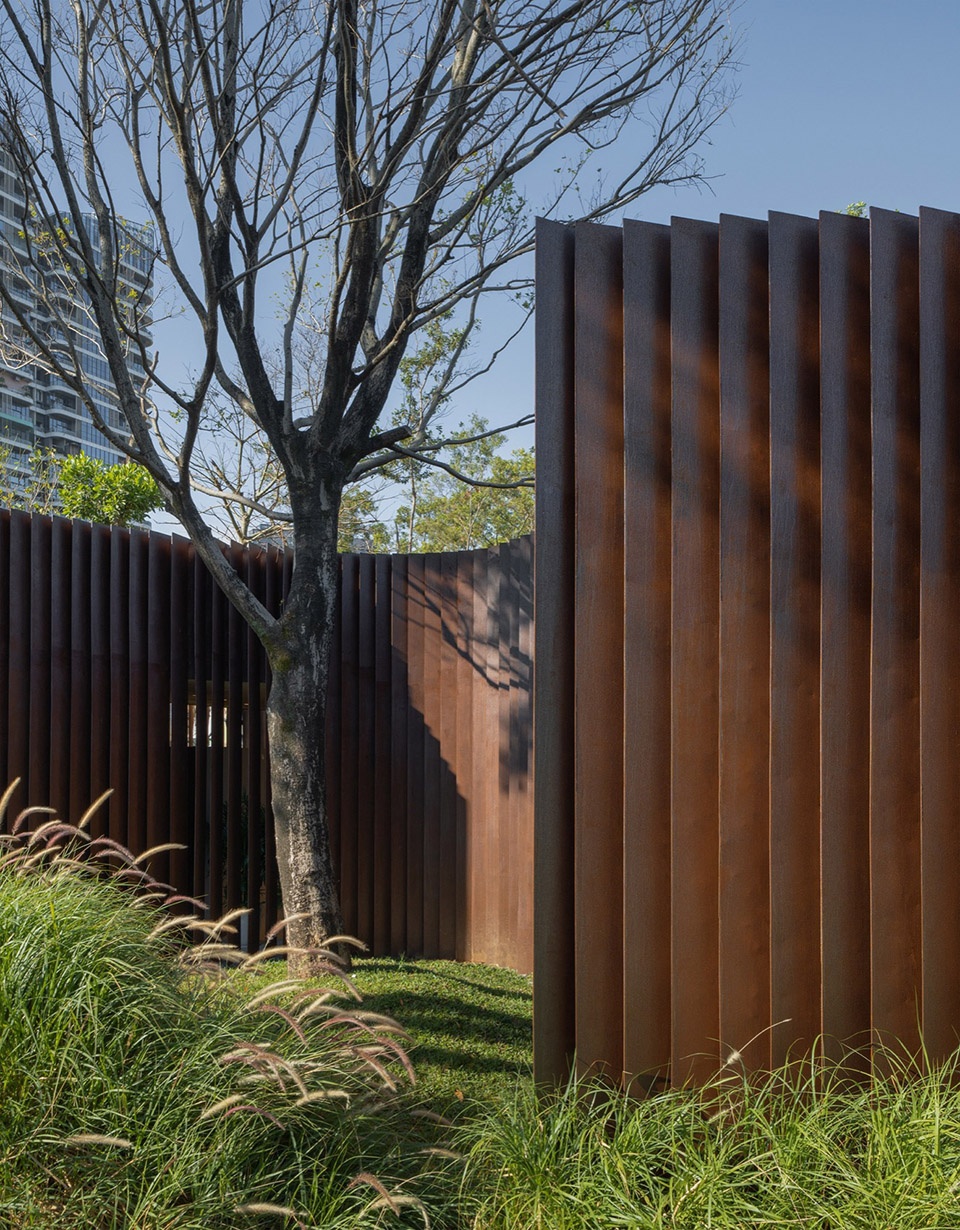

▼耐候钢格栅外立面， Weathering steel grille facade © 张超

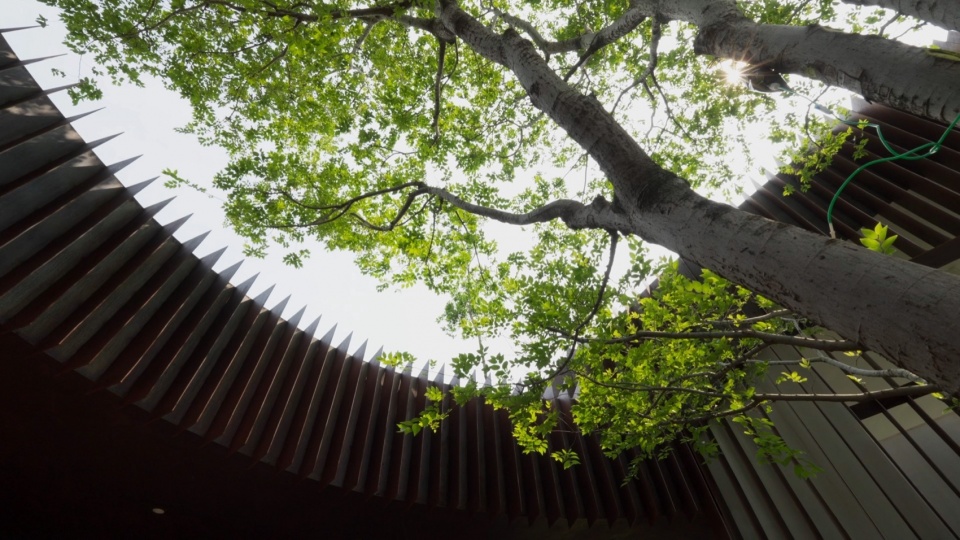

▼庭院仰视，Looking up to the sky from the courtyard © 张超

为促成新建物与自然环境之间的和谐对话，建筑材料选用可随时间优雅老去的耐候钢，初始状态接近林中原生树木树干的颜色，随着时间颜色不断变化，并逐渐产生保护性锈层以减少日后维护。

To facilitate a harmonious dialogue between the new structures and the natural environment, weathering steel, known for its graceful aging aesthetics, was chosen as the building material. Initially resembling the color of the native tree trunks in the forest, this steel will gradually change color over the years, developing a protective layer of rust that reduces future maintenance needs for the facade.

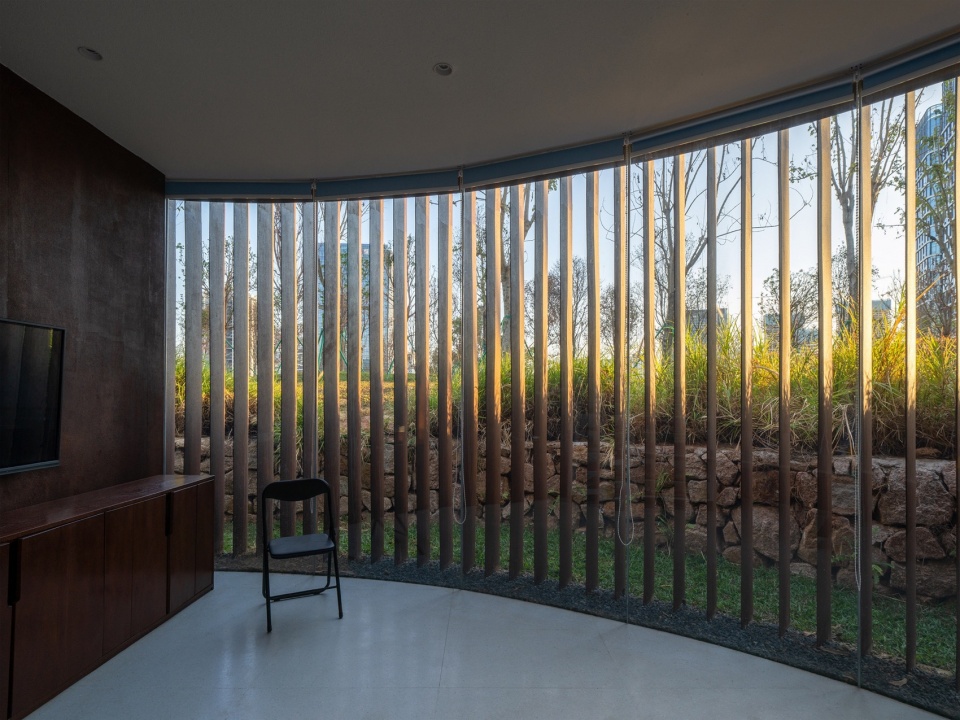

▼由室内透过格栅看室外，Viewing outside through the grille © 张超

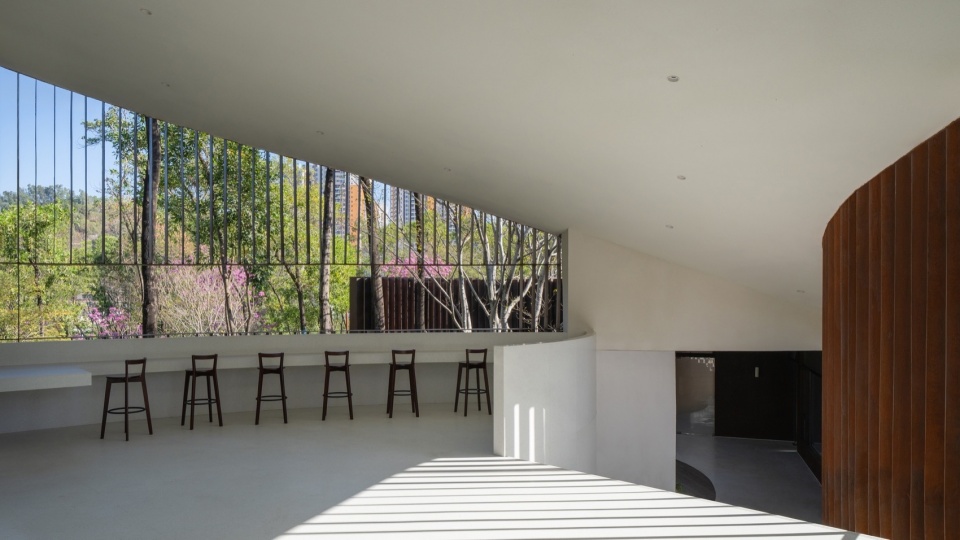

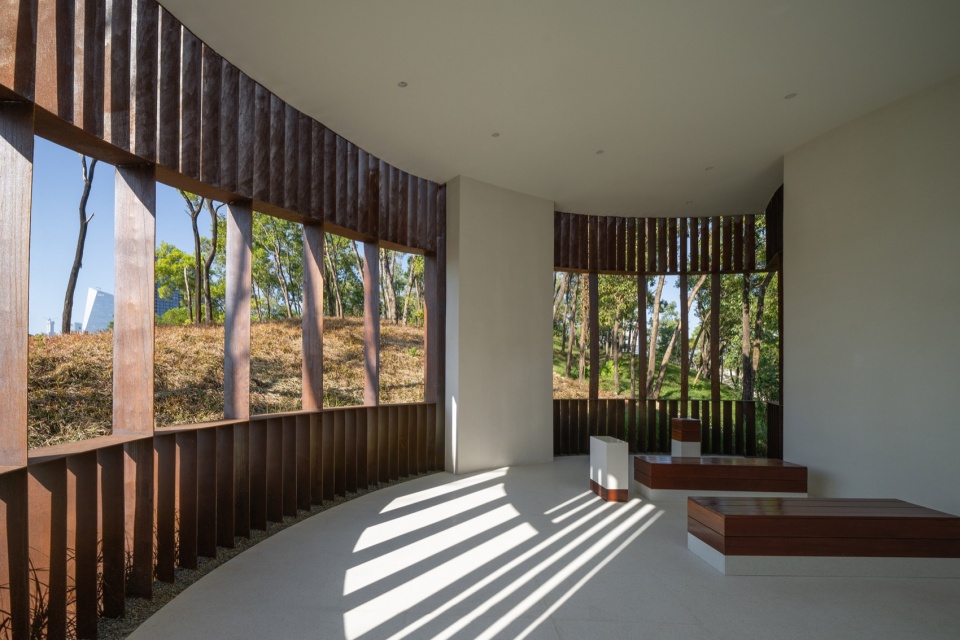

▼东侧游客中心公共空间，Public platform of the tourist center © 张超

▼东侧游客中心一角，Corner of the tourist center © 张超

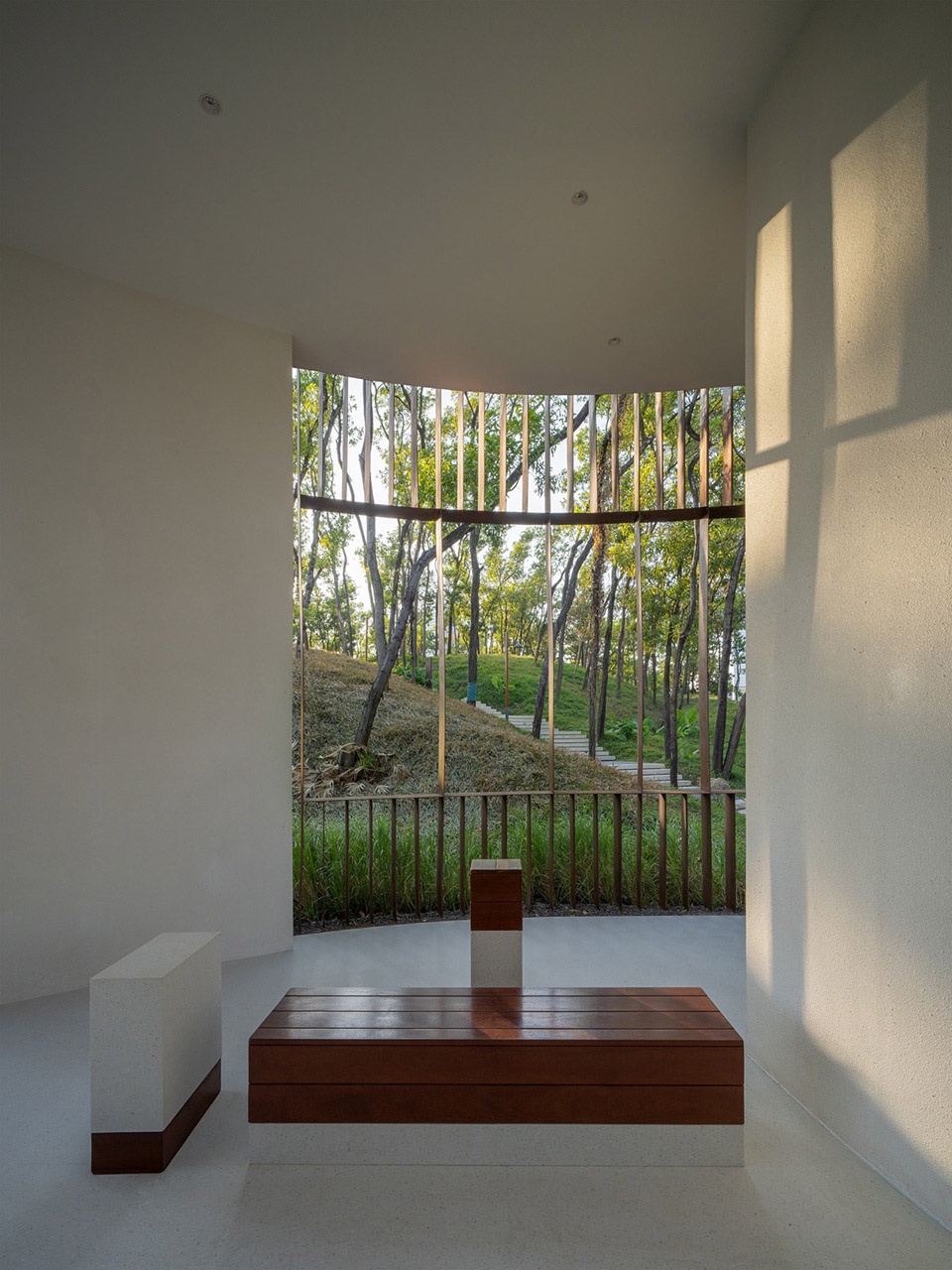

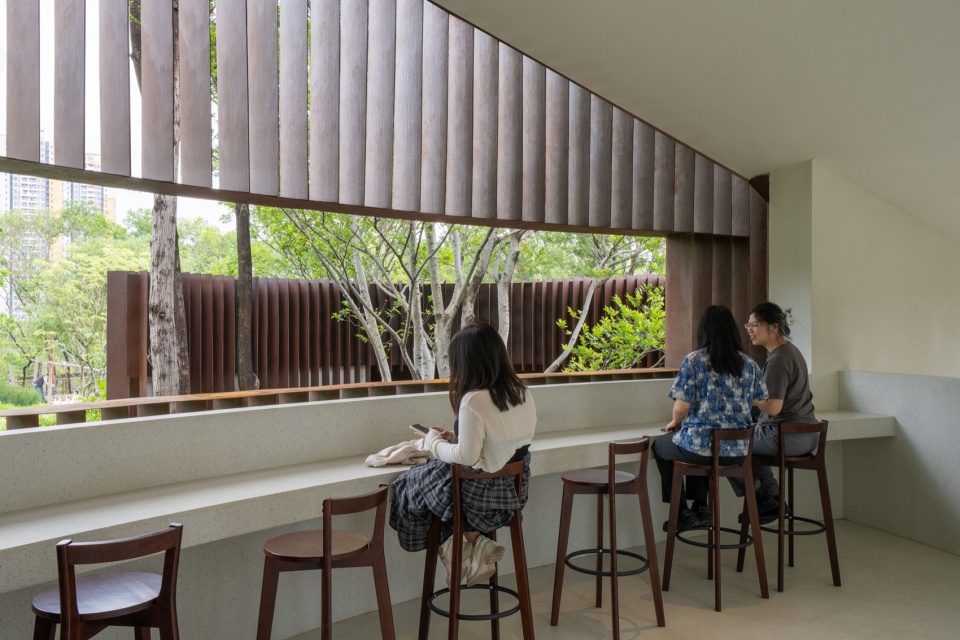

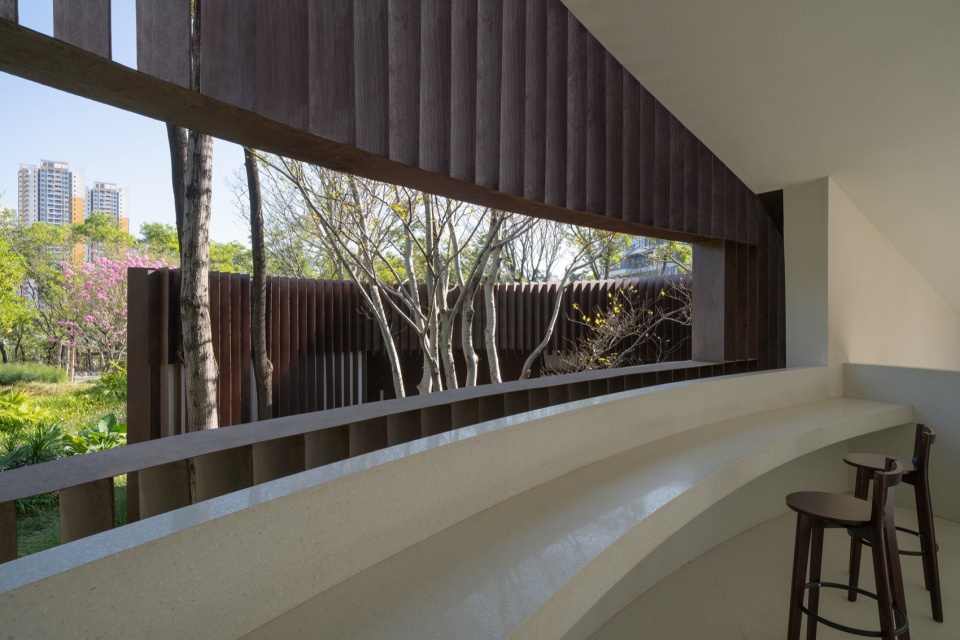

▼窗口与长桌，Frame view and long table © 张超

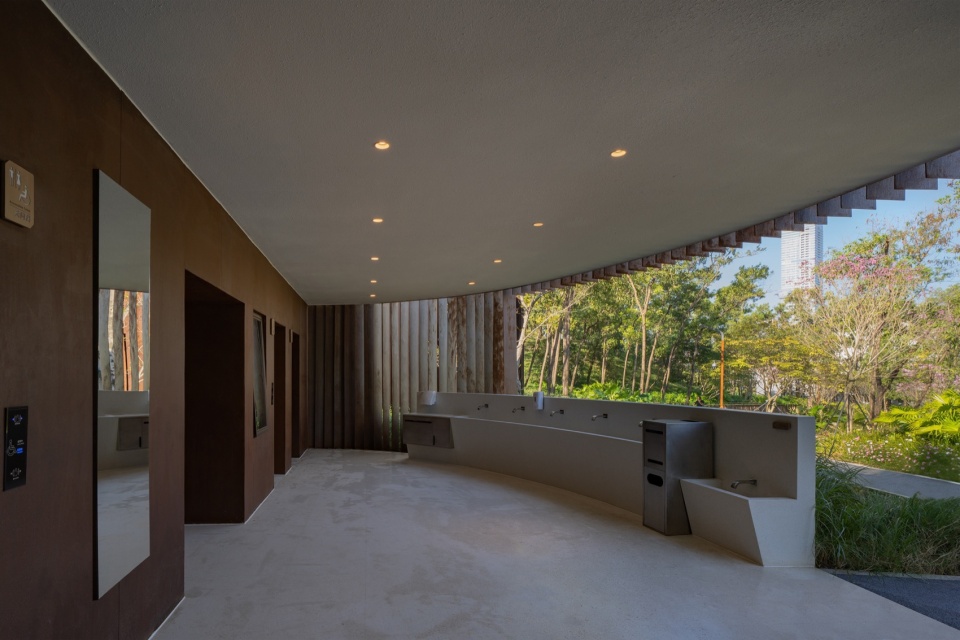

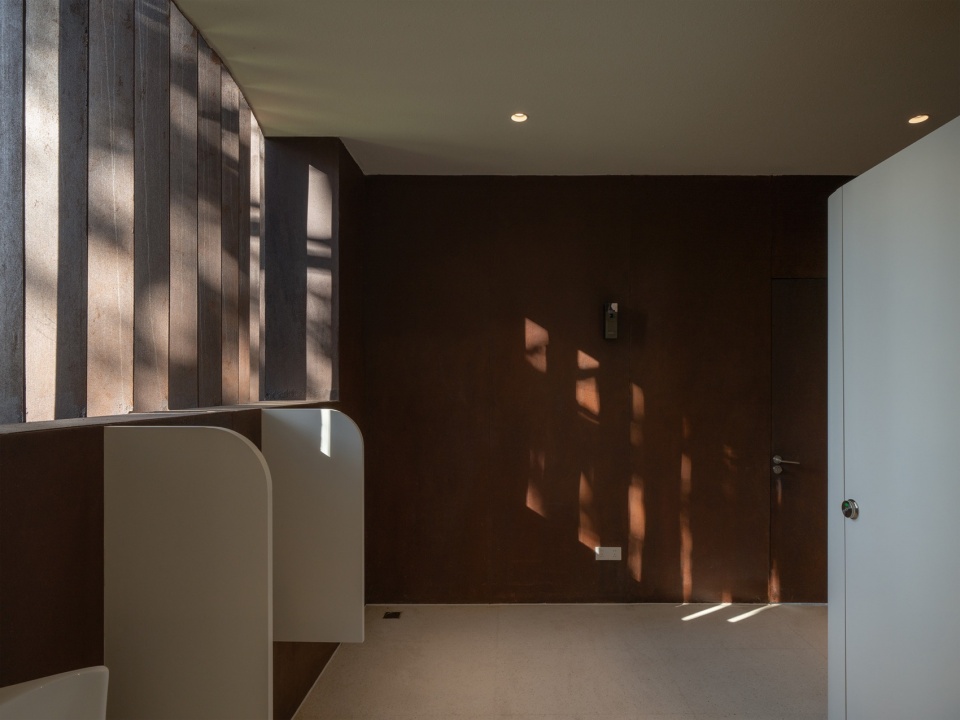

▼东侧游客中心卫生间，Toilets of the tourist center © 张超

地处亚热带炎热湿润的气候，建筑设计中以架空平台、竖向格栅及穿孔立面等方式提供充足遮阳及通风，减少对空调的依赖。最终除了三间办公室和两间母婴室配备了空调设备外，其他公共空间都采用自然通风，并辅以除臭系统以确保卫生间的清洁和清新。

Given the hot and humid climate, the architectural design integrates vertical louvers and perforated metal into the facade to provide ample shade and ventilation. This promotes a passive environmental design strategy that relies less on air conditioning. Eventually, except three offices and two nursing rooms that are equipped with air conditioning, all other public spaces utilize natural ventilation, complemented by a deodorizing system to ensure cleanliness and freshness of the restrooms.

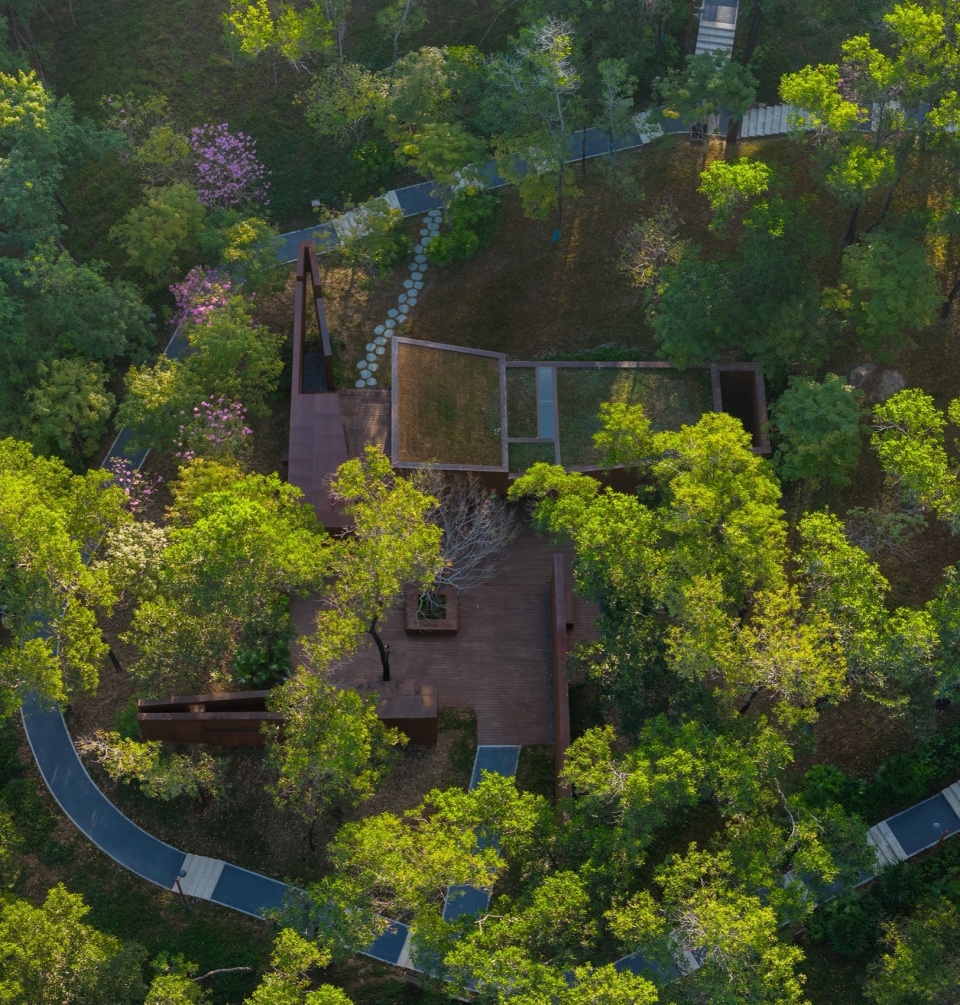

▼西侧公共卫生间顶视图，Top view of the west public toilets © 张超

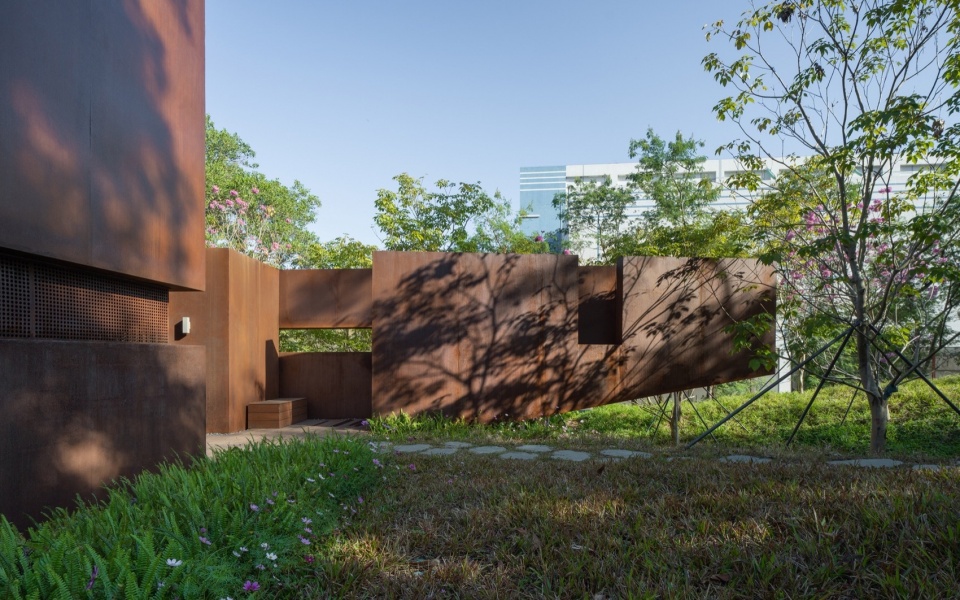

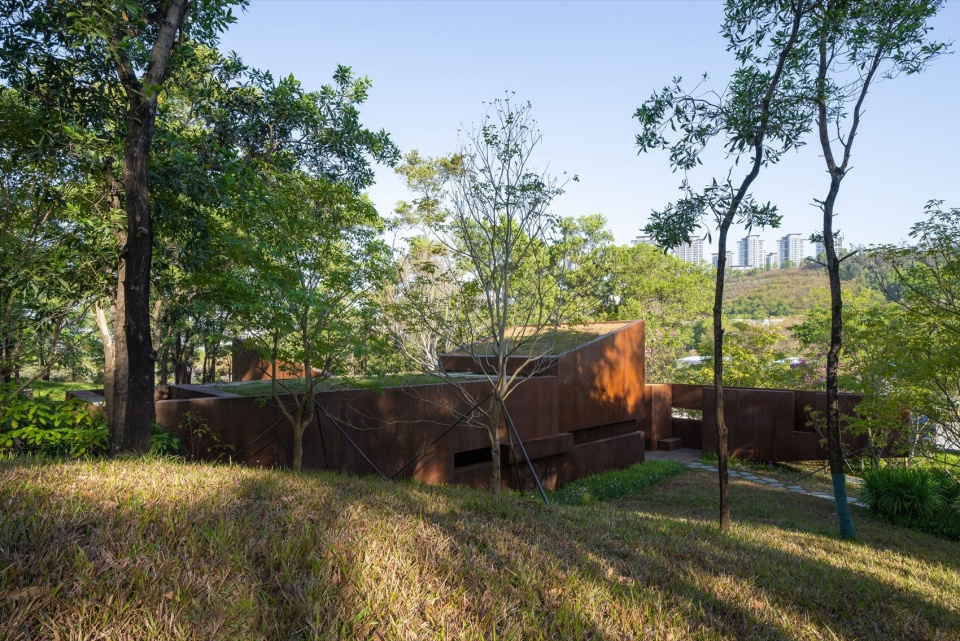

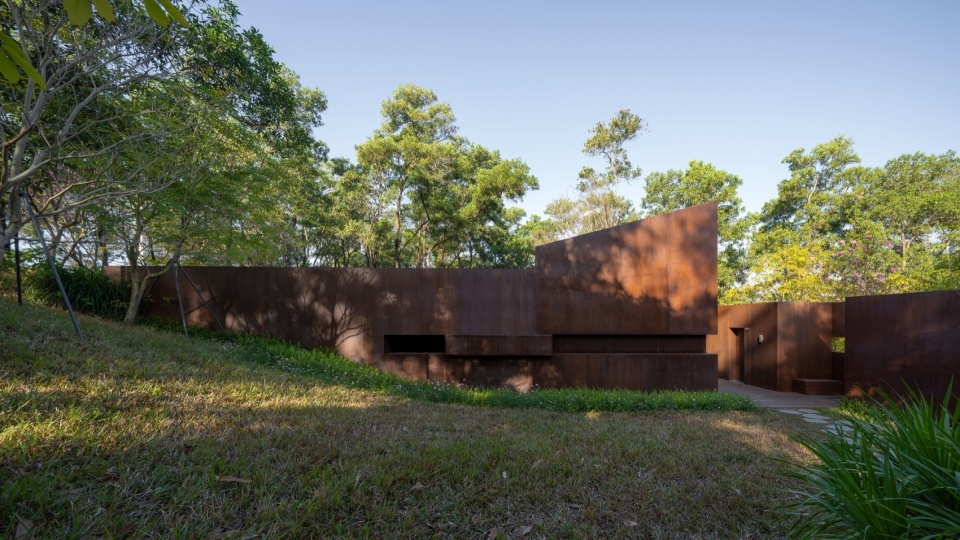

▼西侧公共卫生间外观，Exterior view of the public toilets © 张超

▼西侧公共卫生间半鸟瞰，Half aerial view of the public toilets © 张超

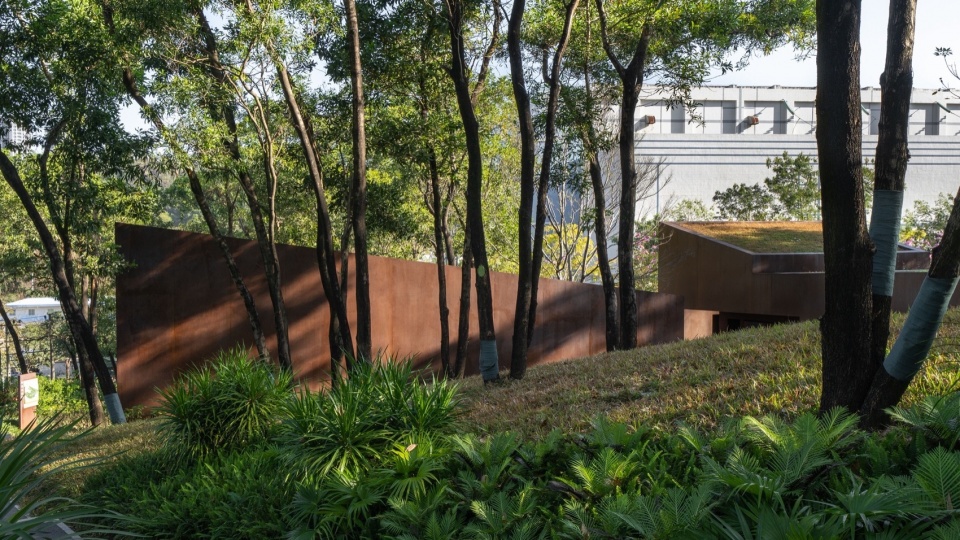

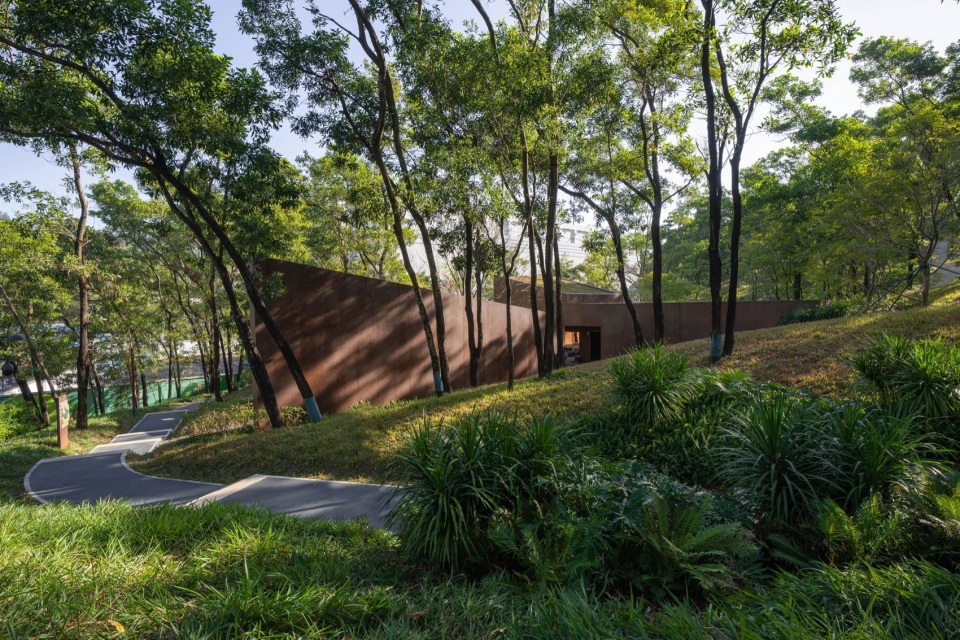

▼建筑隐匿于景观中，The building is hidden in the landscape © 张超

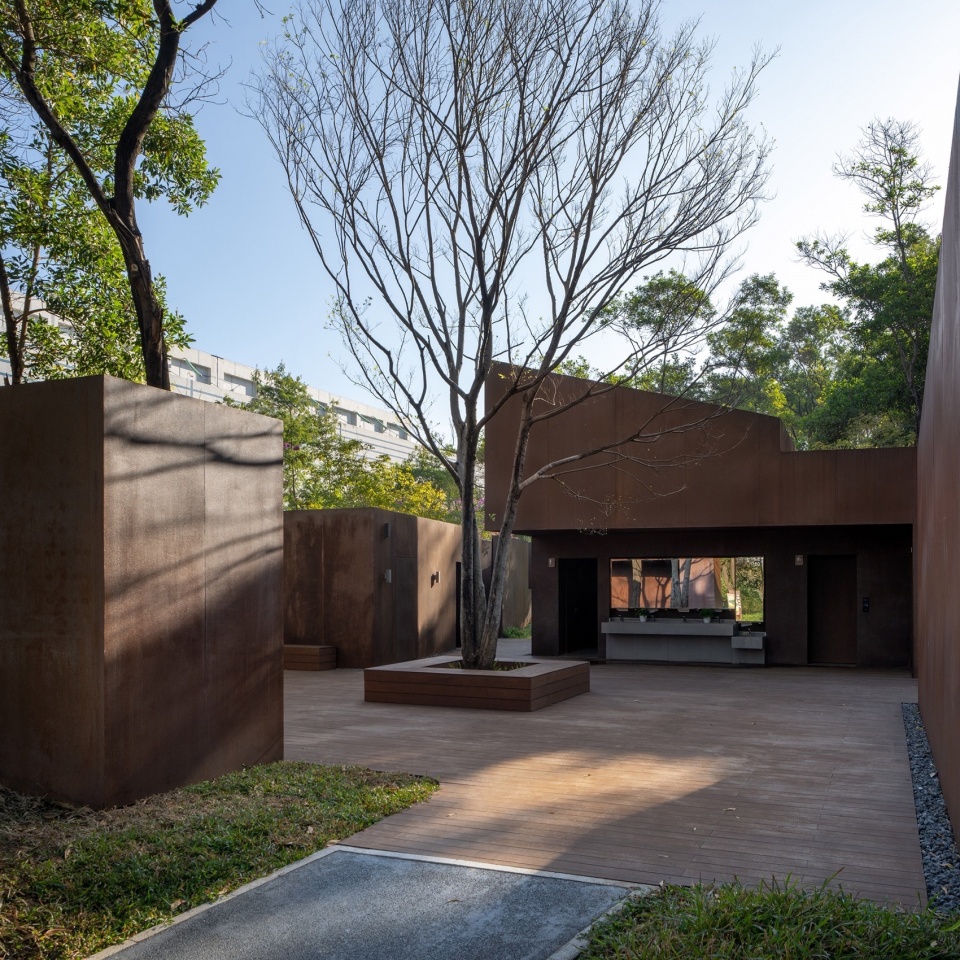

▼西侧公共卫生间，West public toilets © 张超

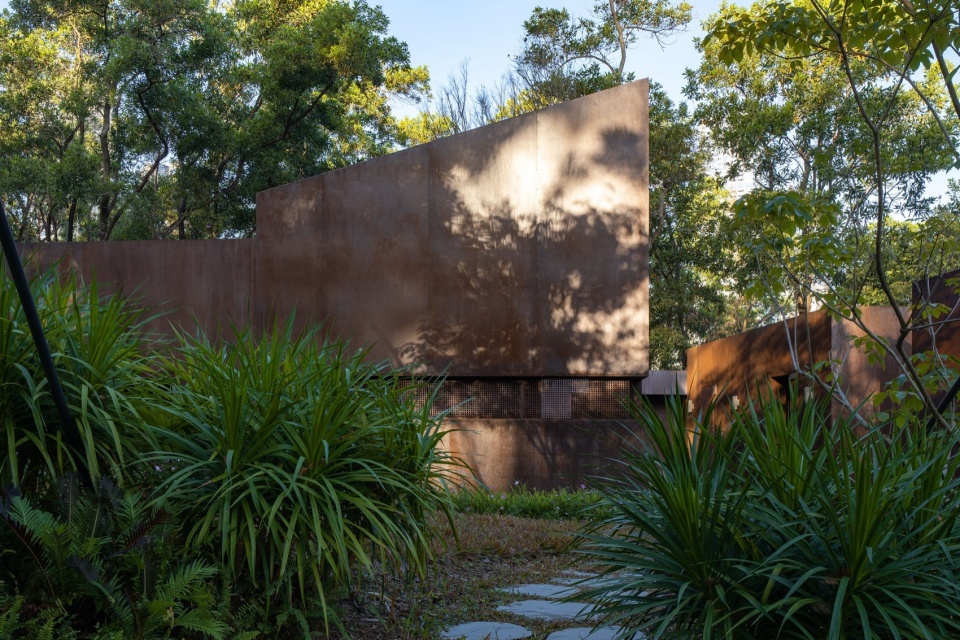

▼西侧公共卫生间的耐候钢墙体，Weathering steel wall of the public toilets © 张超

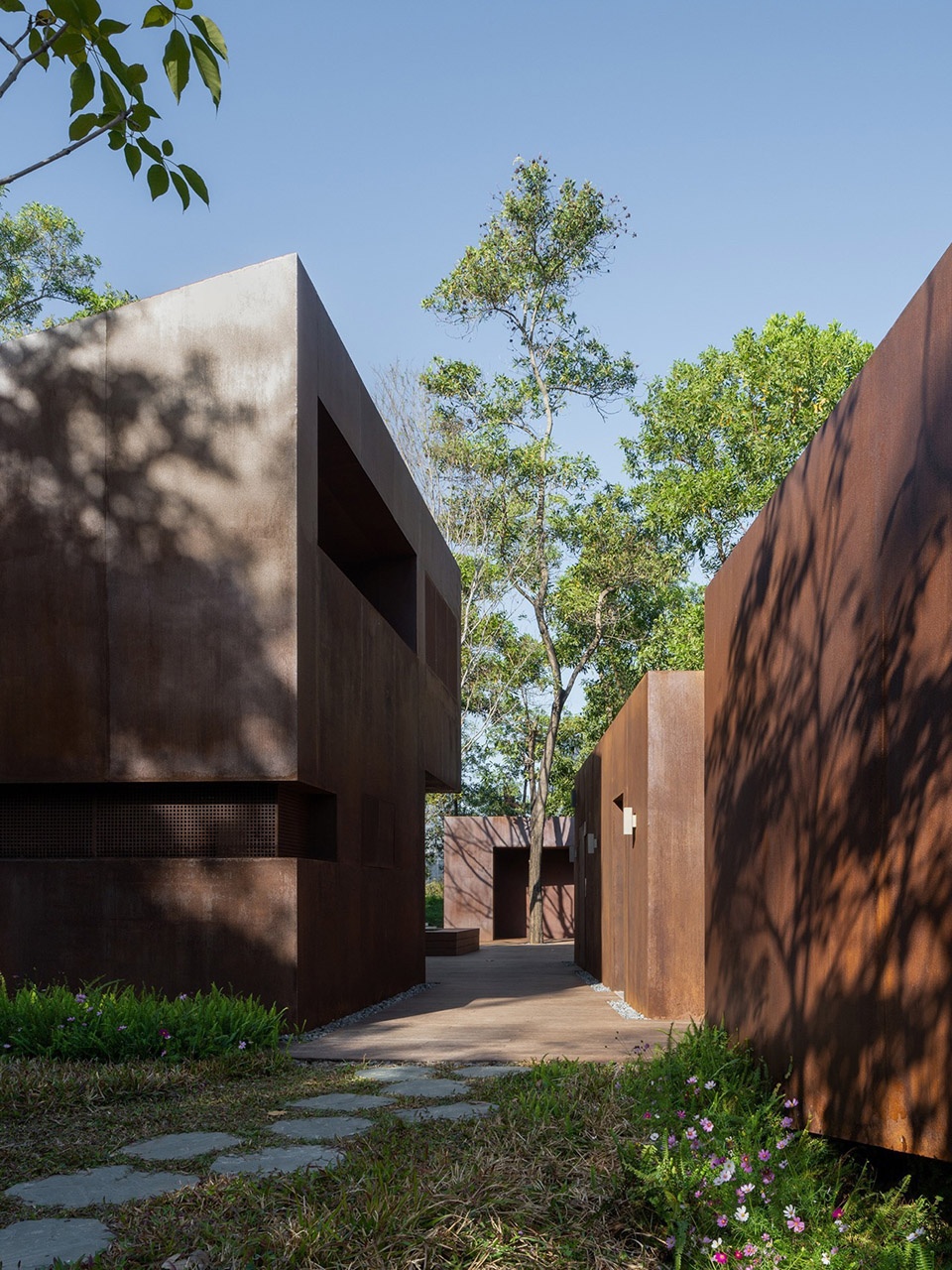

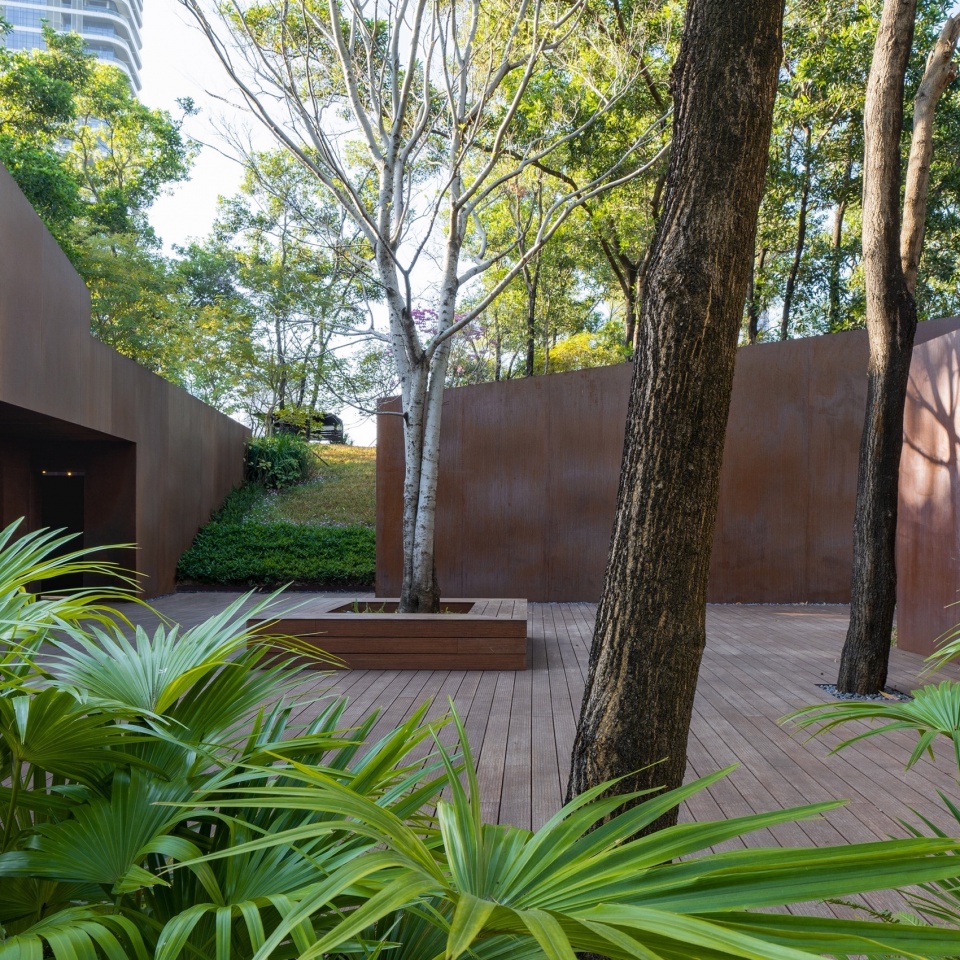

▼西侧公共卫生间，West public toilets © 张超

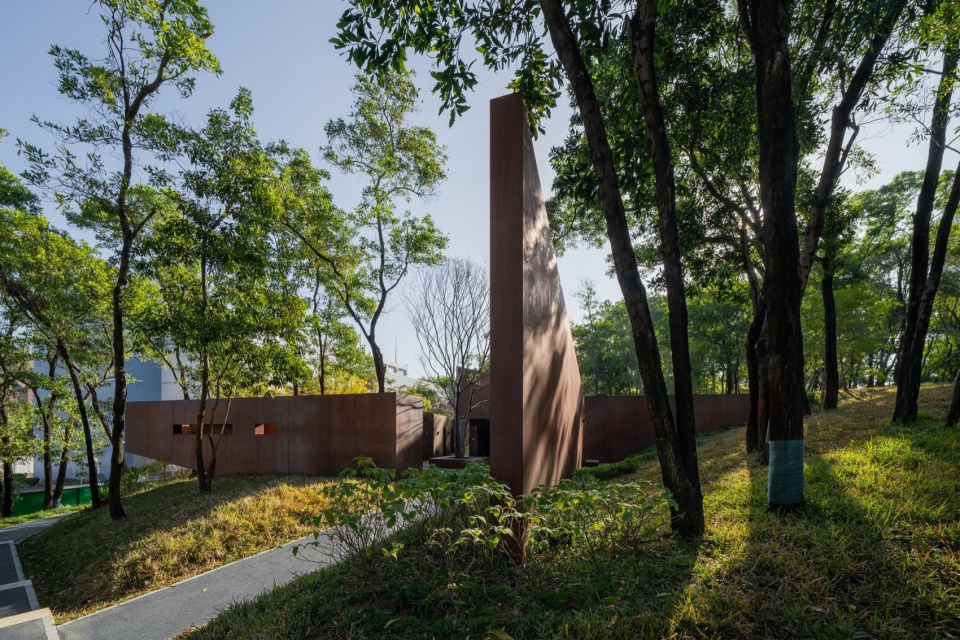

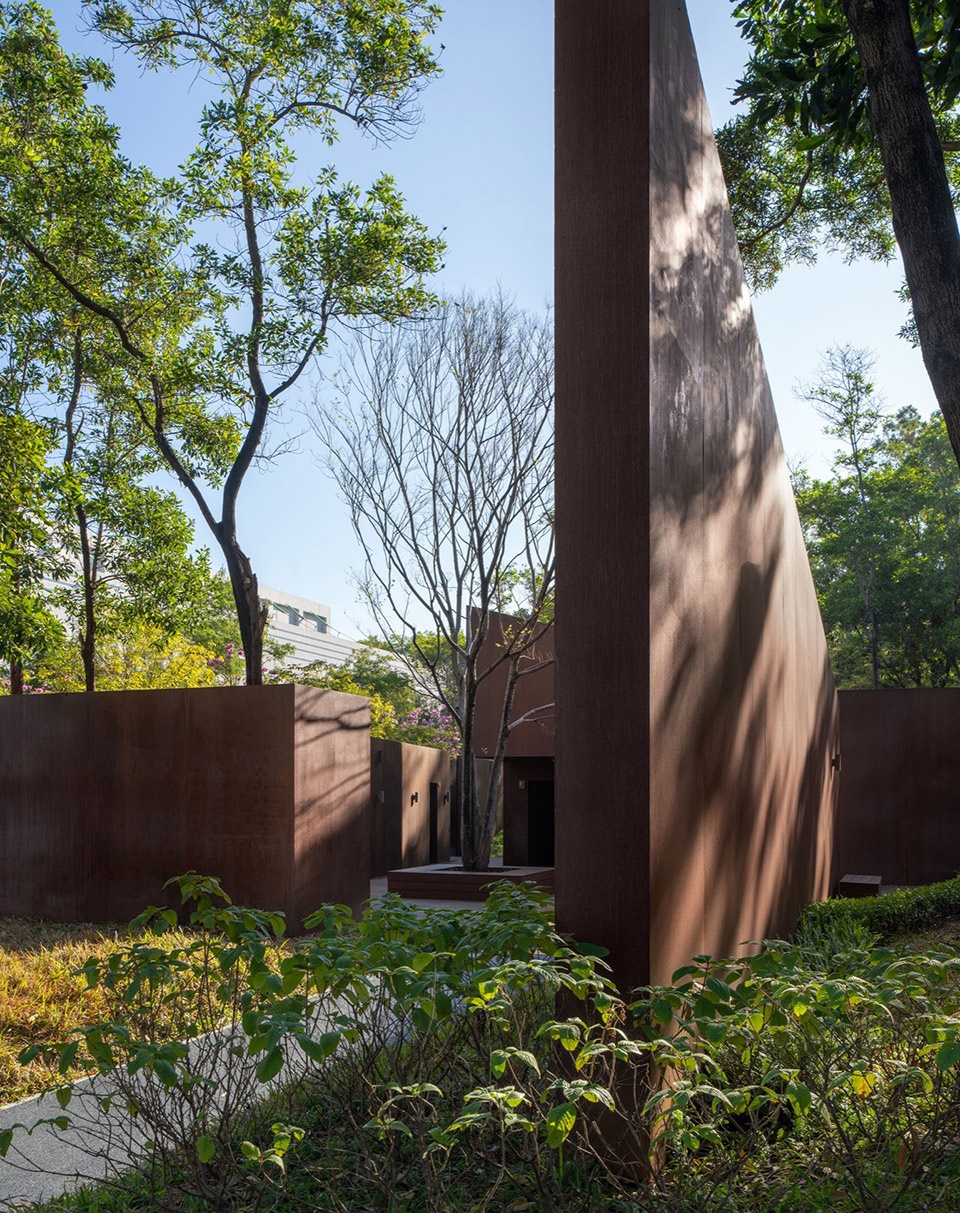

▼“金属阵列”锚定方位，The “metal array” anchors the bearing © 张超

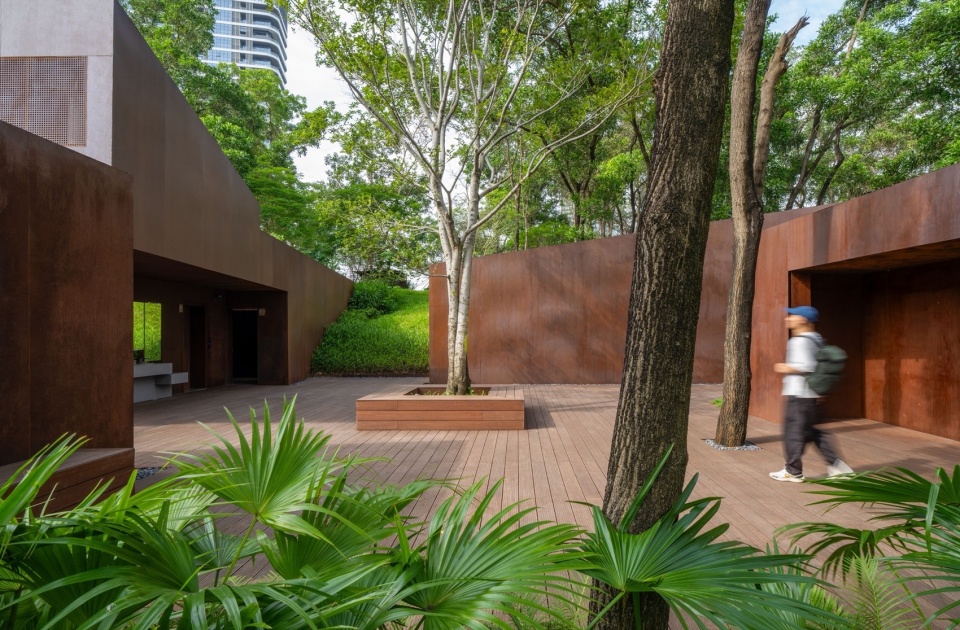

▼西侧公共卫生间近景，Closer view of the public toilets © 张超

▼西侧公共卫生间入口，Entrance of the public toilets © 张超

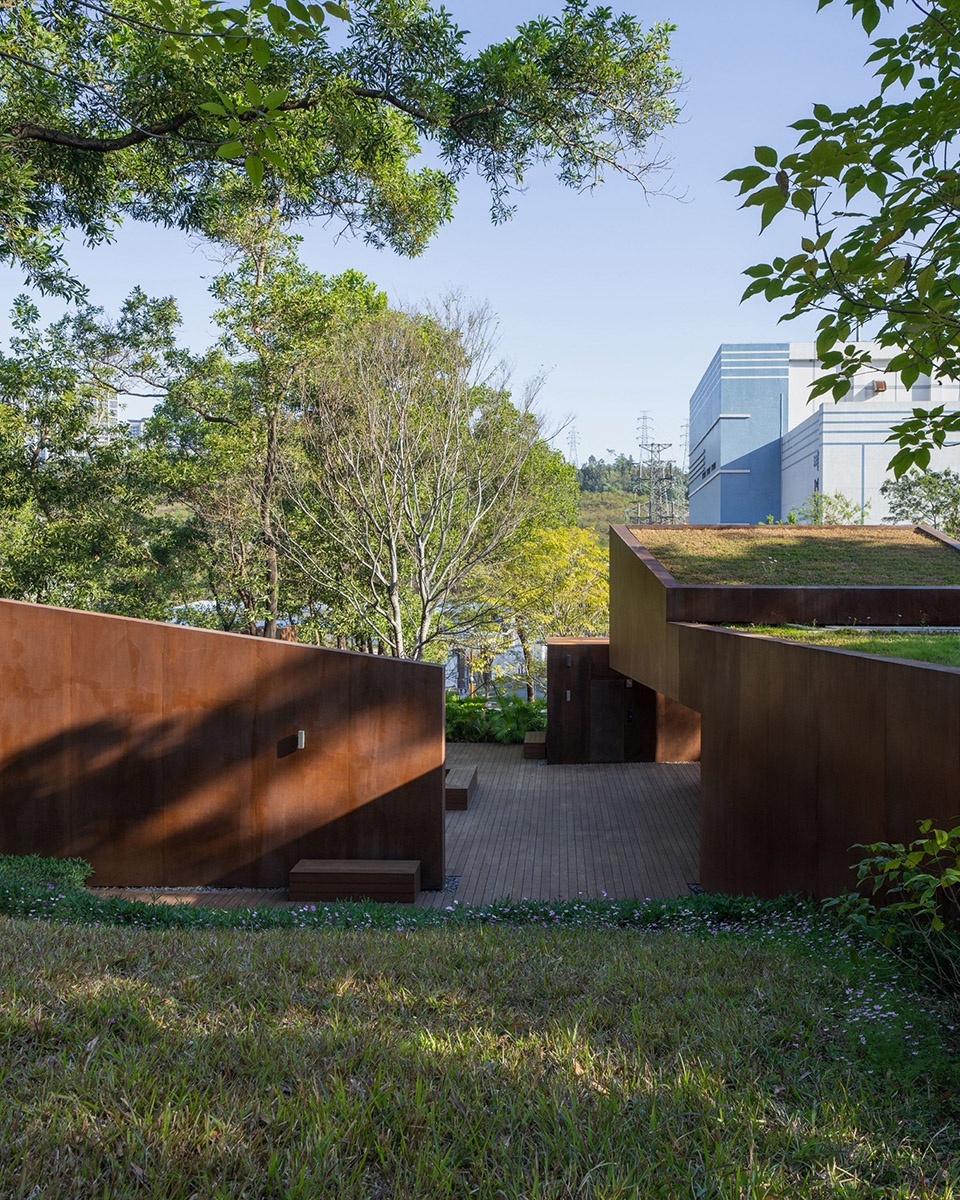

▼公共户外平台，Outdoor public platform © 张超

▼公共户外平台细部，Details of the outdoor public platform © 张超

两座建筑都位于缓坡上，因此设计策略中尽量减少挖掘并将建筑体部分嵌入土中，利用覆土层的保温作用提高节能效率。此外建筑的种植屋顶柔化了几何边缘，降低了径流系数，并减少了夏季制冷负荷。

Both structures, situated on gentle slopes, are tactically oriented to minimize excavation. Partially embedded in the earth, they leverage earth sheltering for enhanced energy efficiency. Additionally, green roofs on both buildings soften the geometric edges, thereby reducing runoff coefficients and summer cooling loads.

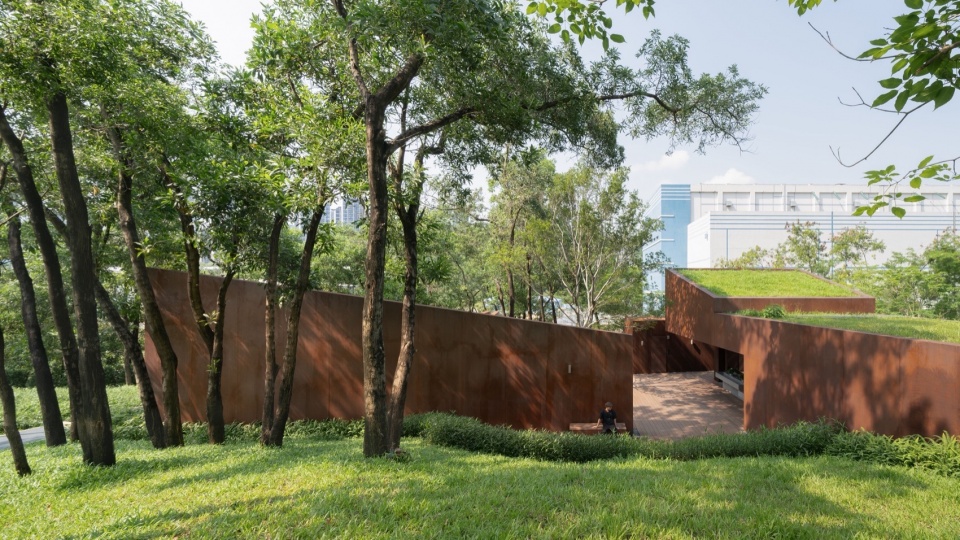

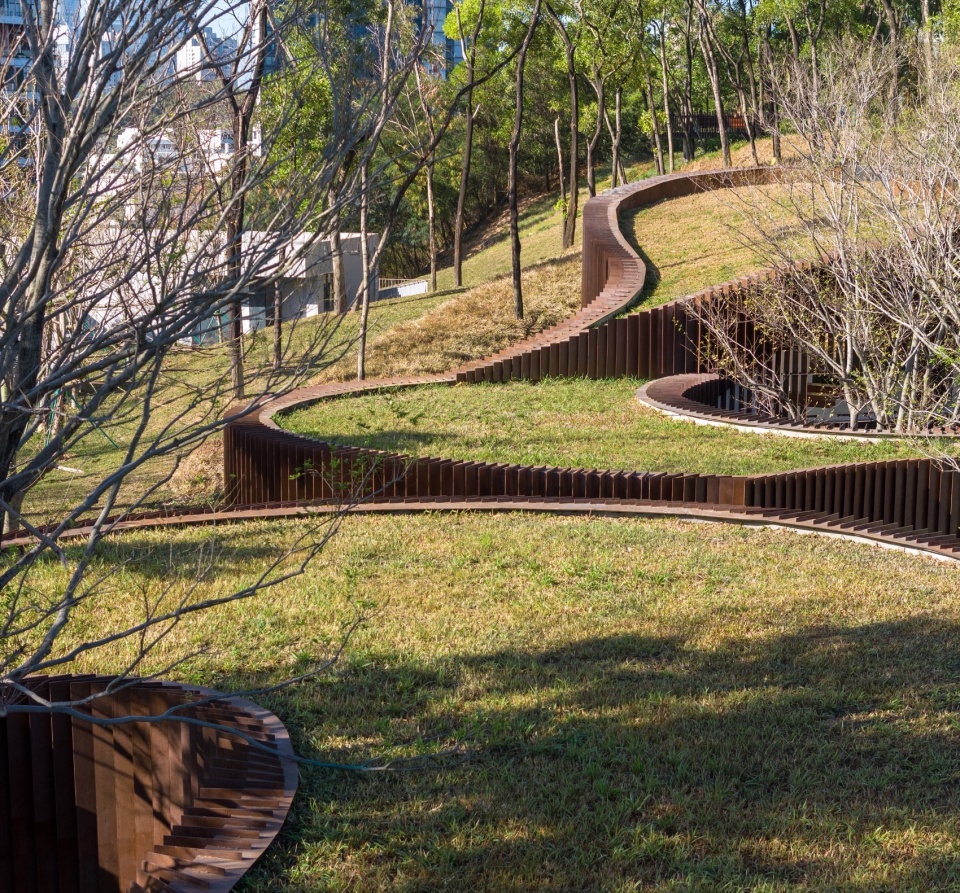

▼东侧游客中心种植屋顶，Green roofs of the tourist center © 张超

▼东侧游客中心，East tourist center © 张超

▼西侧公共卫生间，Green roofs of the public toilets © 张超

总体而言，男女卫生间、自动售卖、直饮水、母婴室、清洁工休息间等传统意义上的服务性功能被塑造为围合公共场所的重要组成要素，让公园游客服务设施及卫生间形成一个穿插于林间的微缩村庄，成为与自然共生的服务及休闲场所。

Overall, traditionally defined “service spaces”, such as restrooms, vending machines, drinking water stations, nursing rooms, and rest areas for cleaners, are integrated as vital components of the enclosed public space. This conceptualization transforms the park’s visitor facilities and public toilets into a miniature village, serving as both an amenity and a leisure area that coexists pleasantly with nature.

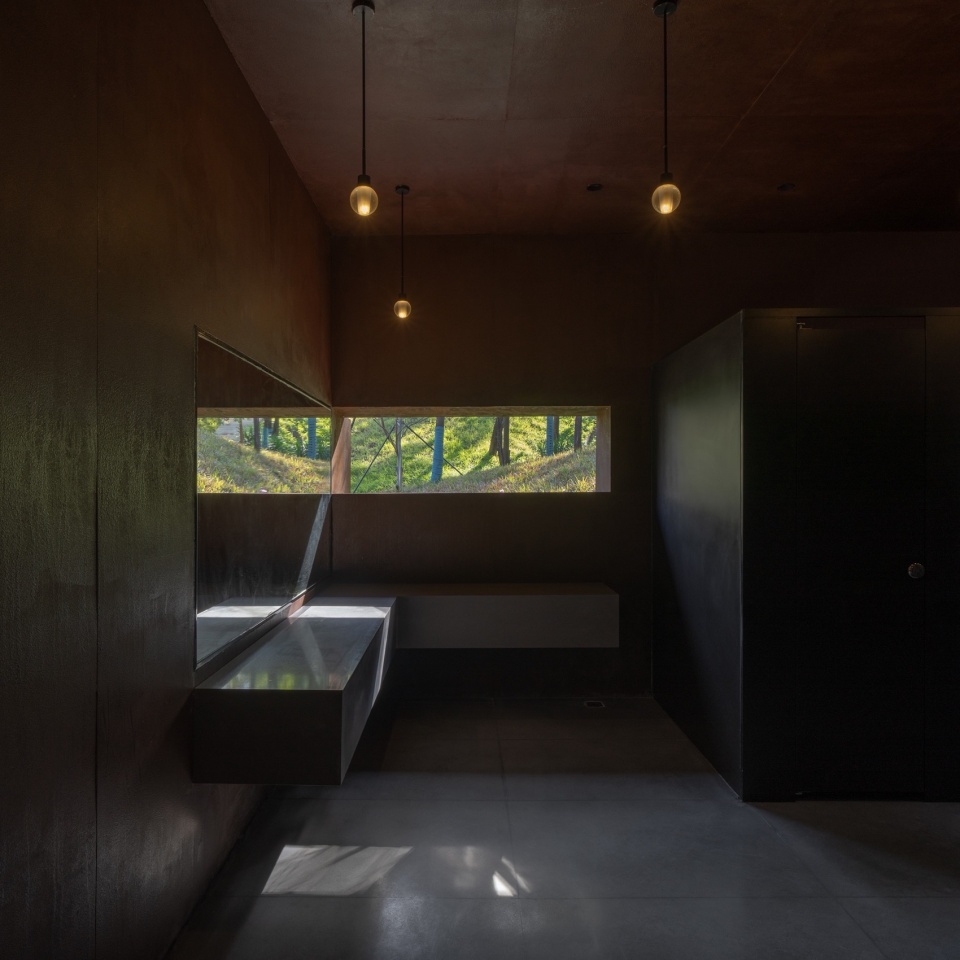

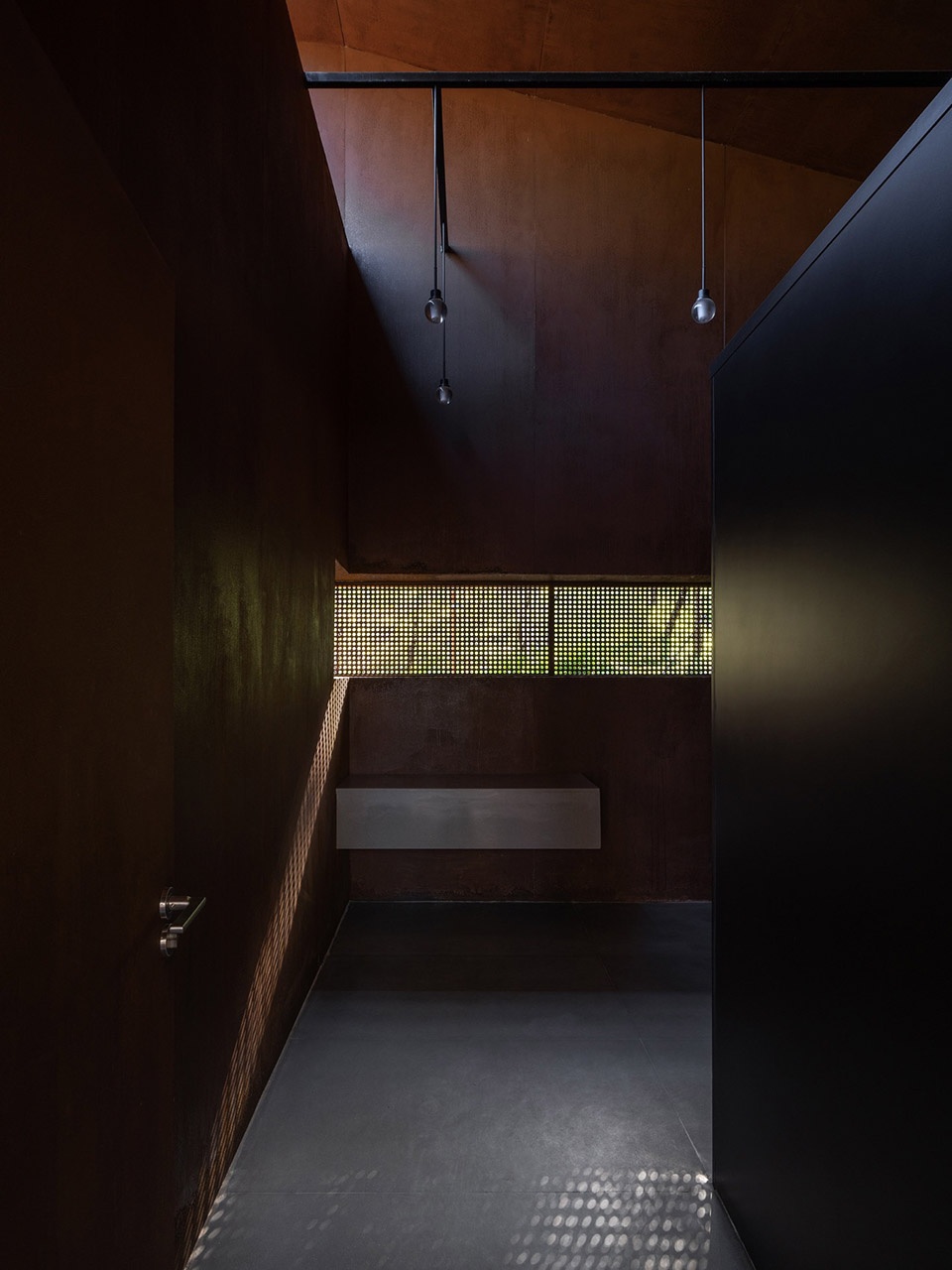

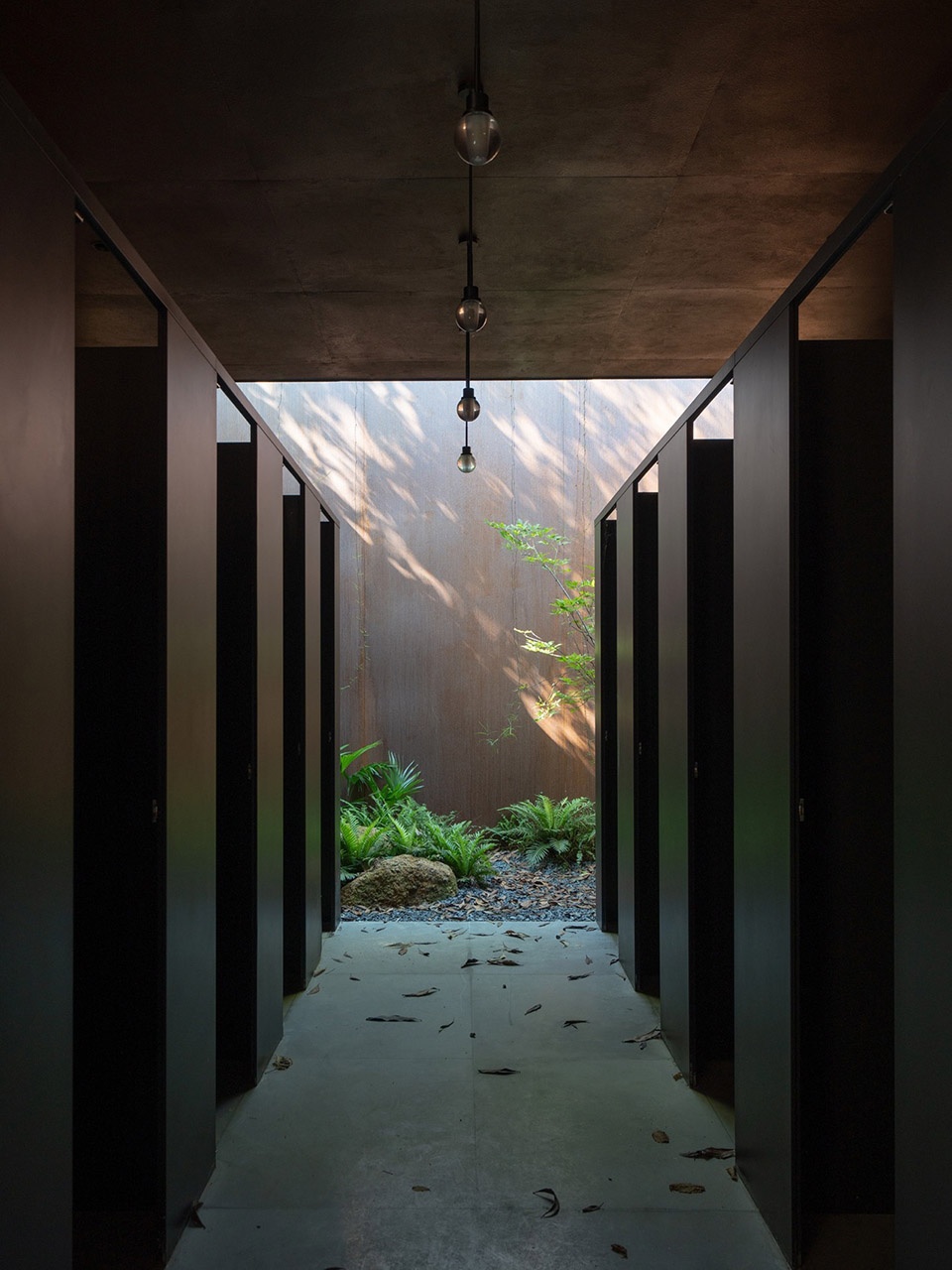

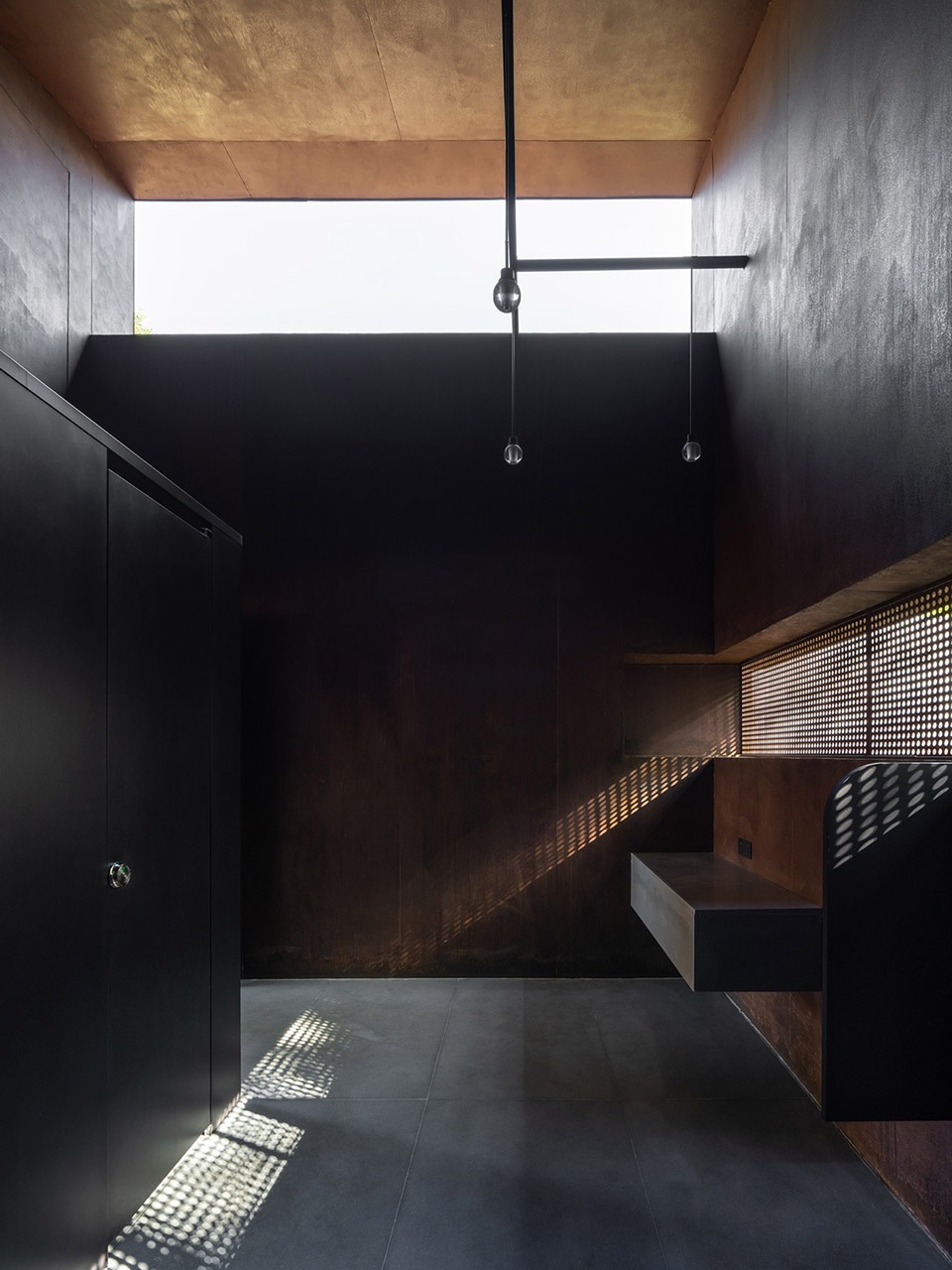

▼西侧公共卫生间内部，Interior of the public toilets © 张超

▼西侧公共卫生间室内细部，Interior details of the public toilets © 张超

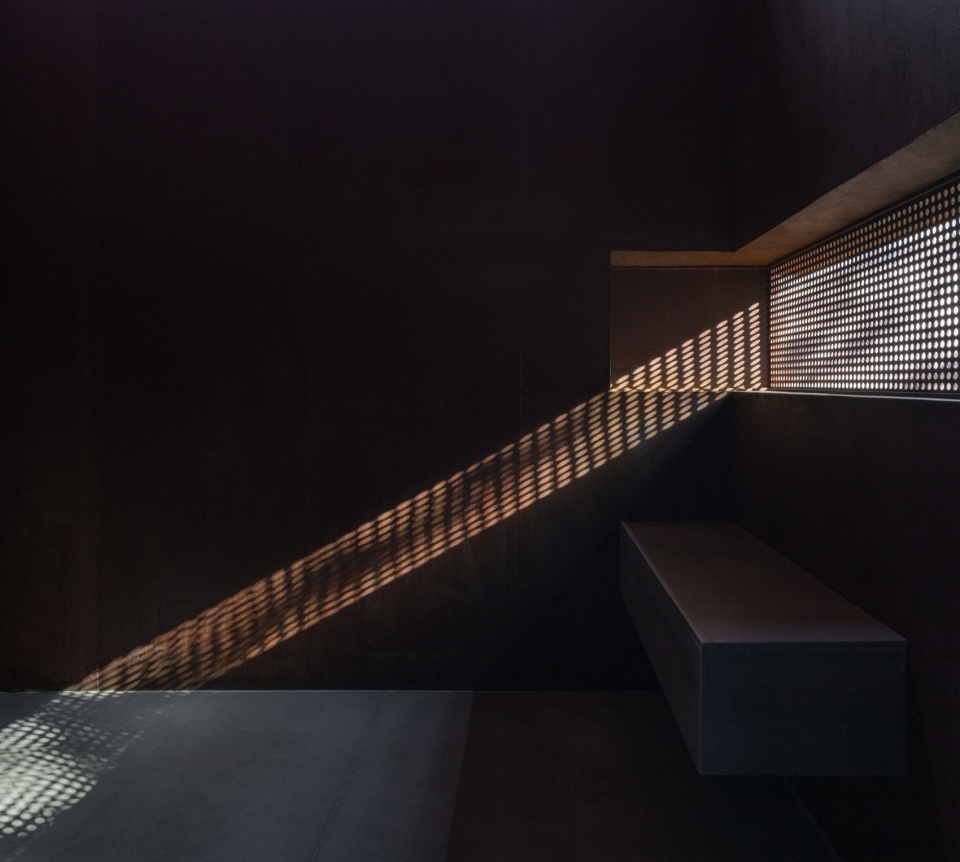

▼光影，Light and shadow © 张超

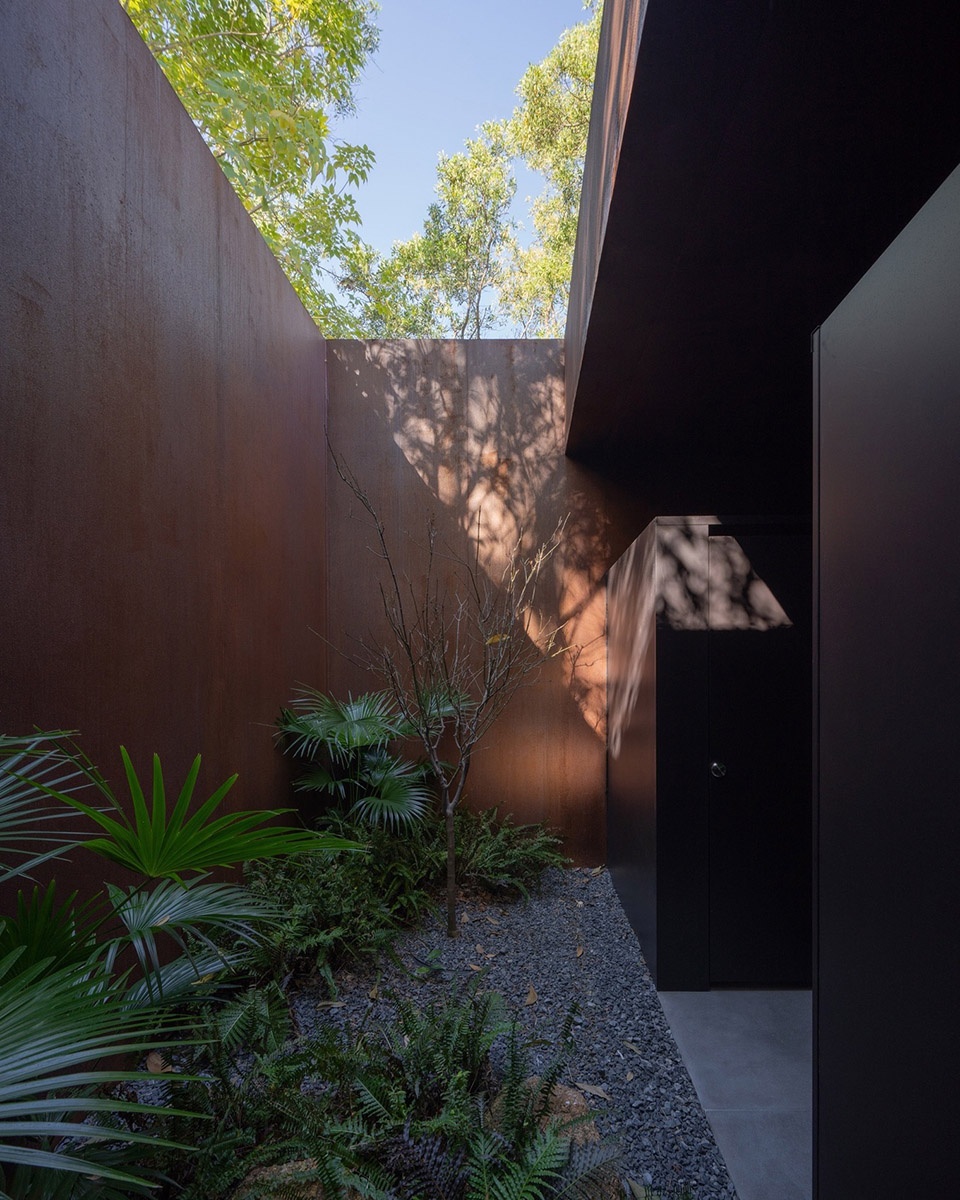

▼天井庭院，Patio © 张超

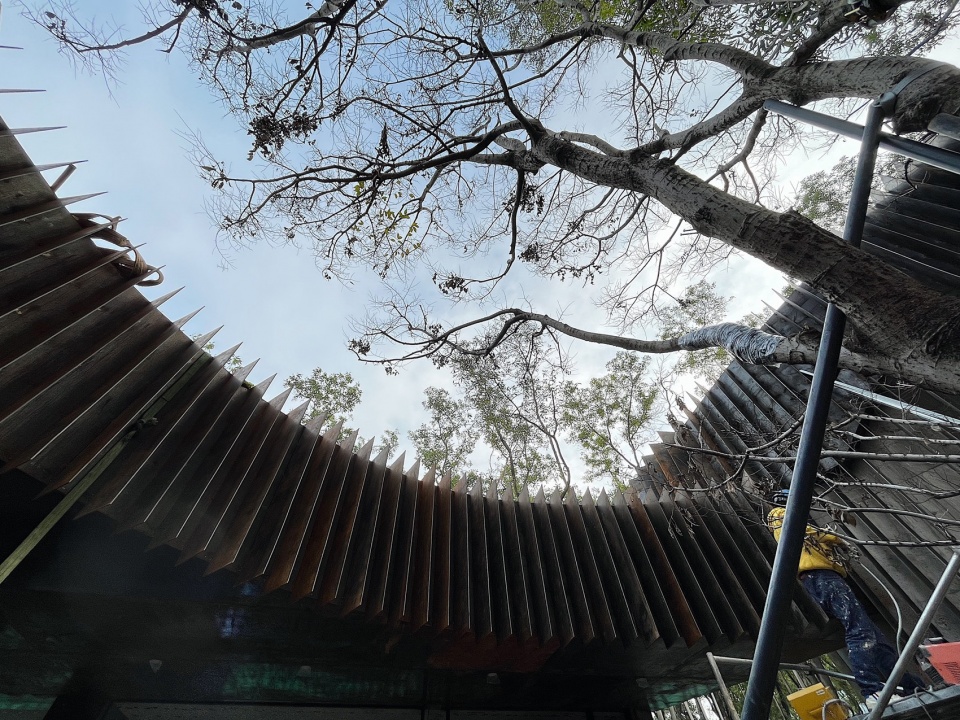

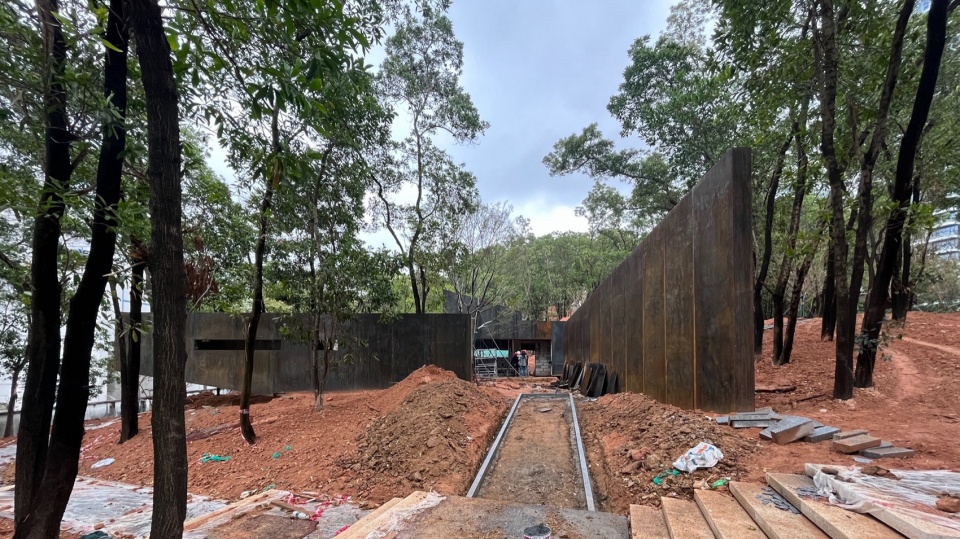

▼施工过程，Construction Photos © ATELIER XI

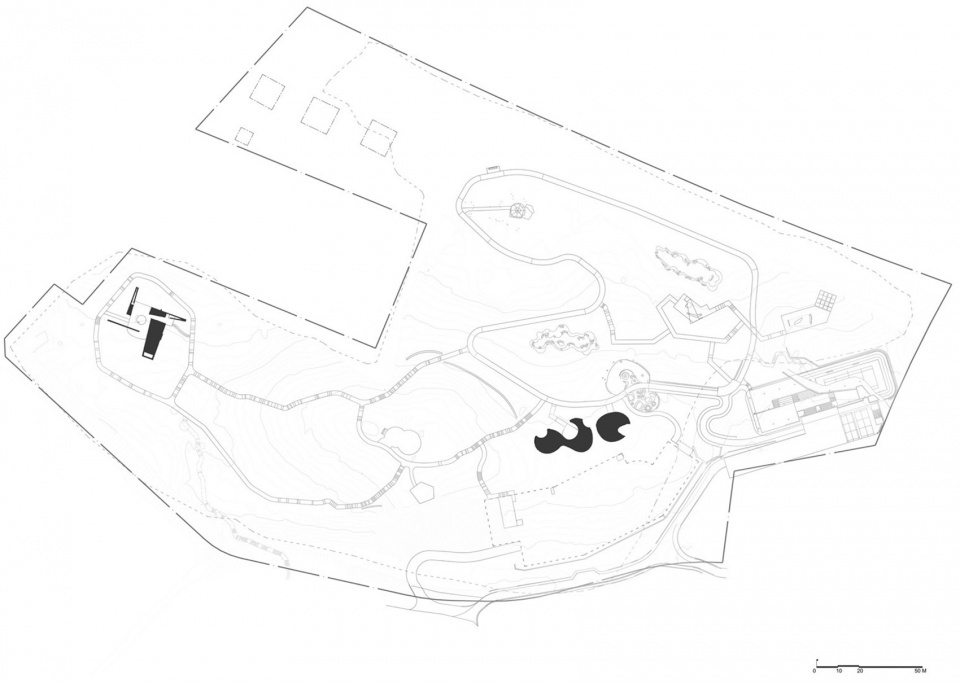

▼总平面图，Site plan © ATELIER XI

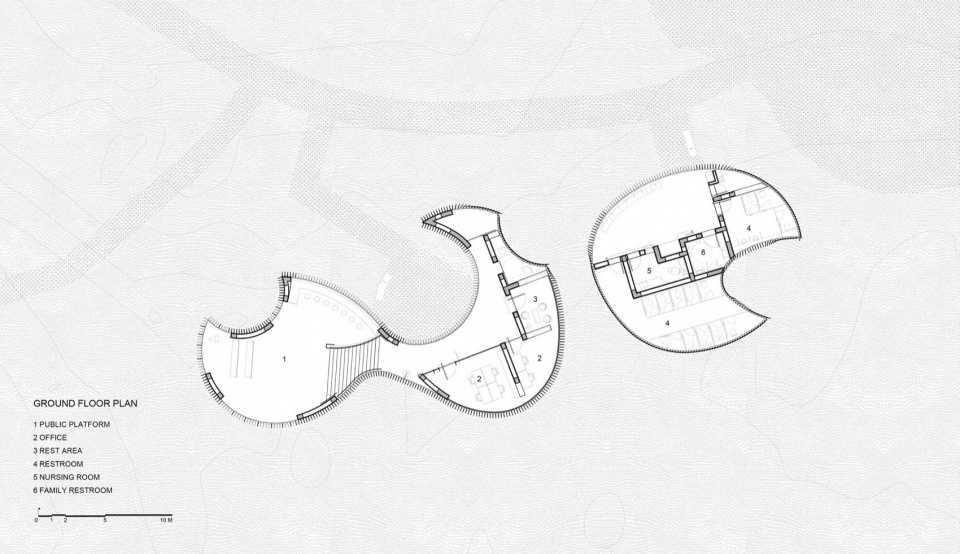

▼游客中心一层平面图，Ground floor plan of the tourist center © ATELIER XI

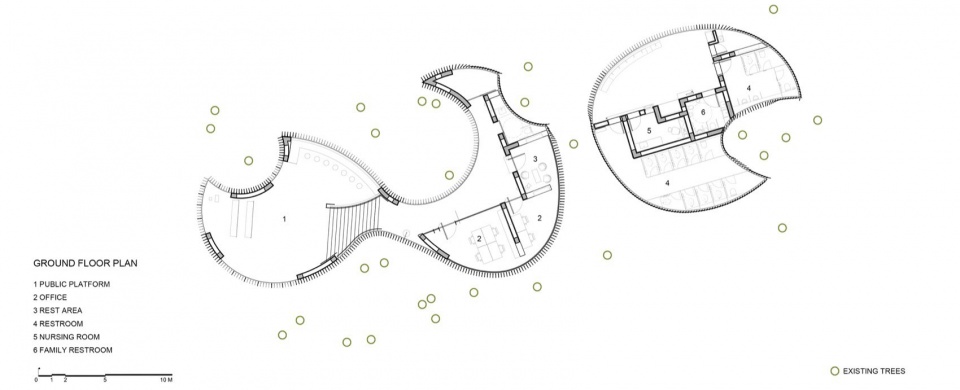

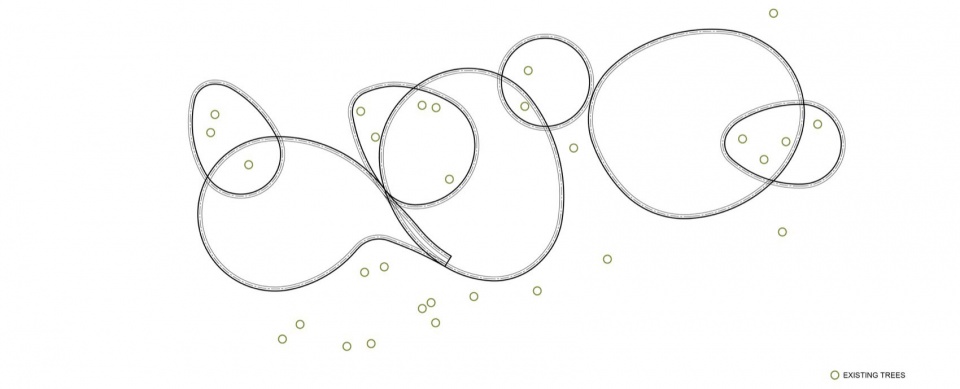

▼游客中心现有树木平面，Existing trees plan of the tourist center © ATELIER XI

▼游客中心现有树木平面，Existing trees plan of the tourist center © ATELIER XI

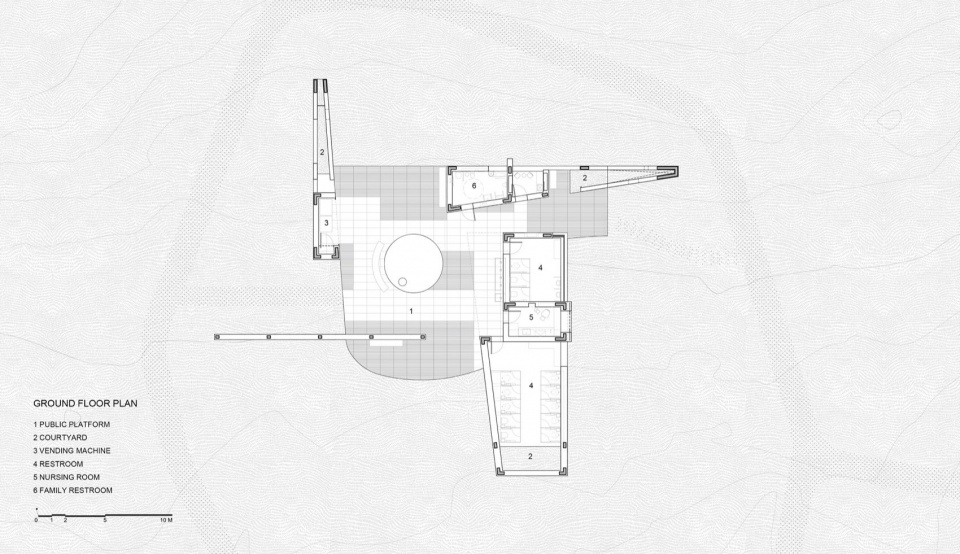

▼公共卫生间平面图，Ground floor plan of the public toilets © ATELIER XI

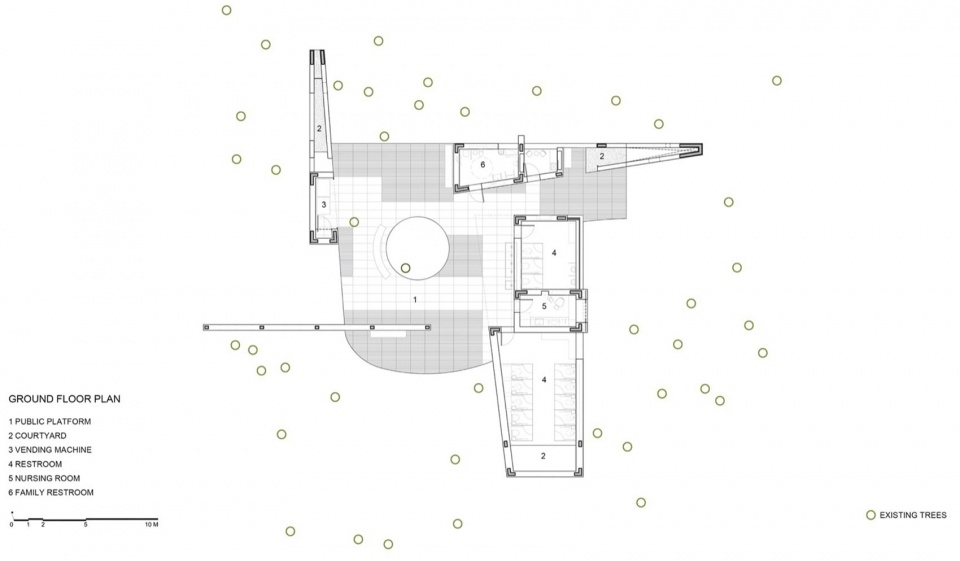

▼公共卫生间现有树木平面，Existing trees plan of the public toilets © ATELIER XI

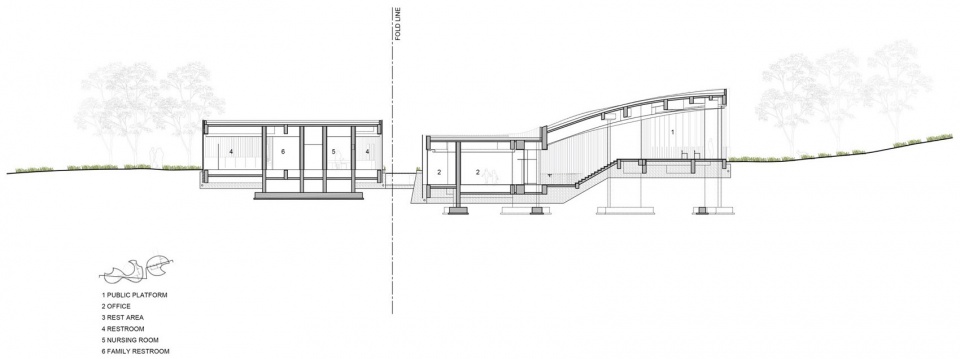

▼游客中心剖面，Section of the tourist center © ATELIER XI

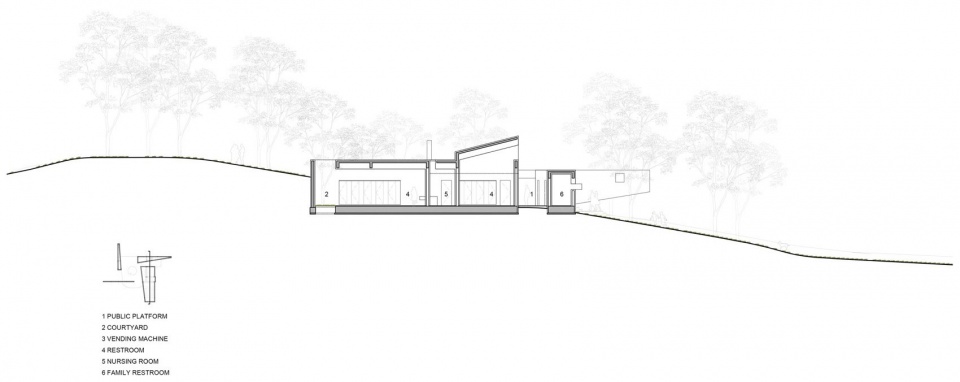

▼公共卫生间剖面，Section of the public toilets © ATELIER XI

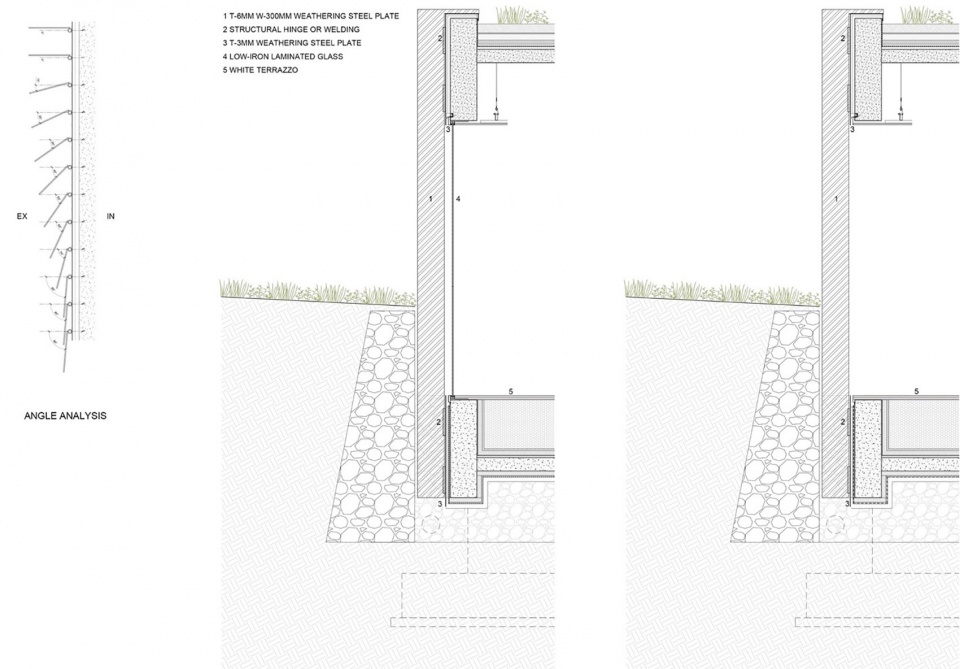

▼墙体大样，Construction details of the wall © ATELIER XI

项目名称：侨城北公园游客中心
建成时间：2023
建筑面积：东侧建筑 311平米，西侧建筑156平米
项目地址：广东省深圳市南山区
建设单位：深圳市南山区城市管理和综合执法局
代建单位：华润置地深圳大区城市建设事业部
建筑及室内方案设计：一树建筑工作室
网址：https://www.atelierxi.com/
联系邮箱: cx@atelierxi.com
Instagram: https://www.instagram.com/atelier_xi/
公司所在地：中国深圳
主持建筑师：陈曦
设计团队：朱珠、叶方南、黄圳锋、翁策楷、陈述、何孟凝、张景翔
施工图设计：内蒙古北方时代设计研究院
公园设计总包&景观设计：深圳文科园林股份有限公司
施工单位：深圳市方森园林花卉有限公司
摄影师：张超
摄影师网站：https://cargocollective.com/ZCSTUDIO

Project Name: Qiaochengbei Park Visitor Center
Completion Year: 2023
Gross Floor Area: 311 m2 (East Building) and 156 m2 (West Building)
Project location: Shenzhen, Guangdong Province, China
Clients: Shenzhen Nanshan District Urban Management Bureau
Construction Administration: China Resources (Shenzhen) Urban Construction and Operation
Architecture & Interior Design: ATELIER XI
Website: https://www.atelierxi.com/
Contact e-mail: cx@atelierxi.com
Instagram: https://www.instagram.com/atelier_xi/
Firm Location: Shenzhen, China
Lead Architect: Chen Xi
Design Team: Zhu Zhu, Ye Fangnan, Huang Zhenfeng, Weng Cekai, Chen Shu, He Mengning, Zhang Jingxiang
Construction Documents: Inner Mongolia Northern Era Design Institute
General Design Contractor: Shenzhen Wenke Landscape Co., Ltd. Park Landscape Design: Shenzhen Wenke Landscape Co., Ltd.
Construction Company: Shenzhen Fangsen Garden Flower Co., Ltd.
Photo credits: Zhang Chao
Photographer’s website:https://cargocollective.com/ZCSTUDIO
Photographer’s e-mail:Chaos_Zhang@foxmail.com
