感谢 KCAP 予 gooood 分享以下内容。更多请至：KCAP on gooood
Appreciation towards KCAP for providing the following description:

荷兰迪门——Punt Sniep将迪门中心的一处半岛转变为一个充满活力的无车社区，由202套高度定制化的住宅构成。项目位于两条水道——Muidertrekvaart与Weespertrekvaart之间，在通往阿姆斯特丹的路径上形成了独特的空间特征。一系列经过精心布置的建筑界定出四个不同的公共空间：滨水广场、港湾、绿色庭院以及入口区域。这些开放空间在功能与视觉上与建筑相互连接，鼓励居民相遇与互动。高密度居住与充裕的绿地及滨水空间实现和谐共存。私密与公共领域之间精心设计的界面支持社区的形成，这是这一处位于城市骑行可达范围内新社区的核心目标之一。

Diemen, The Netherlands – Punt Sniep transforms a central Diemen peninsula into a vibrant, car-free community of 202 very specific homes. The development is between two waterways, the Muidertrekvaart and Weespertrekvaart, giving it distinctive character along the route to Amsterdam. A strategically placed sequence of buildings defines four distinct public spaces: a waterfront square, harbor, green courtyard, and entrance zone. These open spaces connect programmatically and visually to the buildings, encouraging residents to meet and interact. High-density living harmonizes with generous greenery and waterfront areas. Carefully designed interfaces between private and public realms support community building, one of the key ambitions in this new neighborhood within cycling distance of the city.

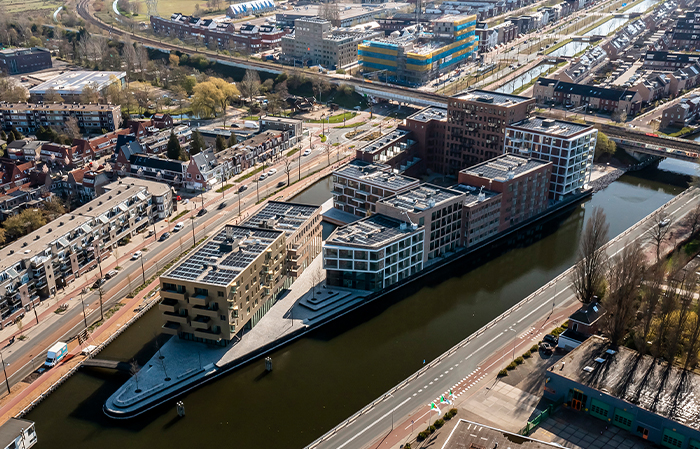

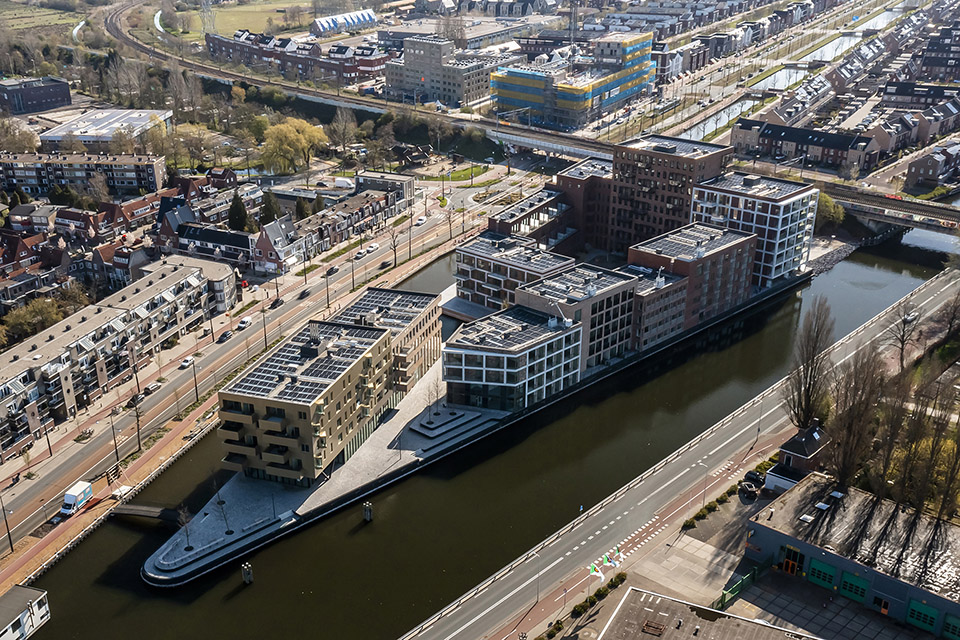

▼位于两条运河之间的半岛整体鸟瞰，Peninsula development between two waterways © KCAP

项目亮点
Project Highlights

四个各具特色的公共空间（入口广场、树木园式绿色庭院、滨水港湾与滨水广场）构成无车半岛社区的社交骨架创新的景观设计通过起伏地形与专门的树池结构，使成熟乔木得以在地下车库之上生长半岛位于Weespertrekvaart水道之上，既可直接通航至阿姆斯特丹，也赋予项目鲜明的“岛屿”特质

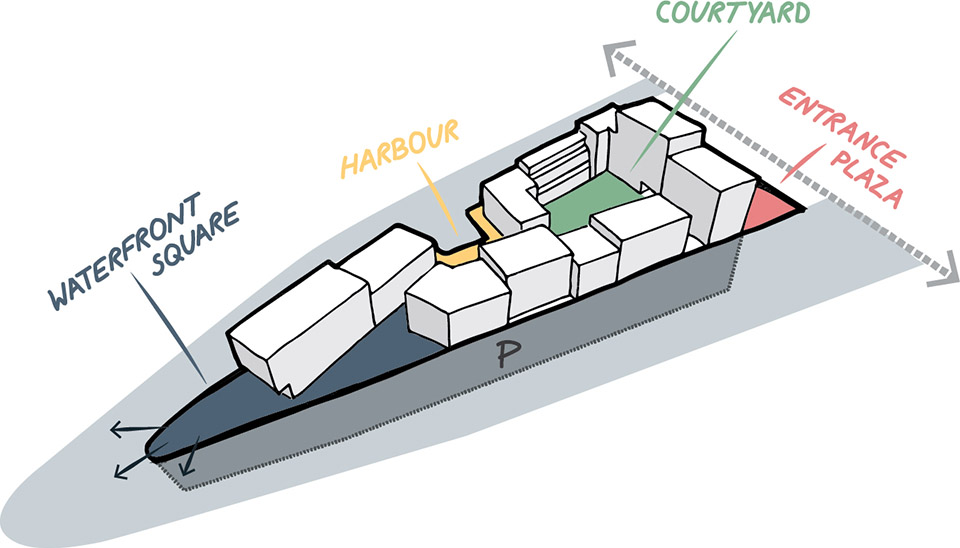

▼概念生成，Concept generation © KCAP_Diemen Sniep

Four distinct public spaces (entrance plaza, green arboretum courtyard, maritime harbor, and waterfront square) form the social backbone of the car-free peninsula community. Innovative landscape design enables mature trees to thrive above the parking garage through undulating topography and specialized tree bunkers. The peninsula’s waterfront location on the Weespertrekvaart creates direct sailing access to Amsterdam while giving the development its distinctive island character

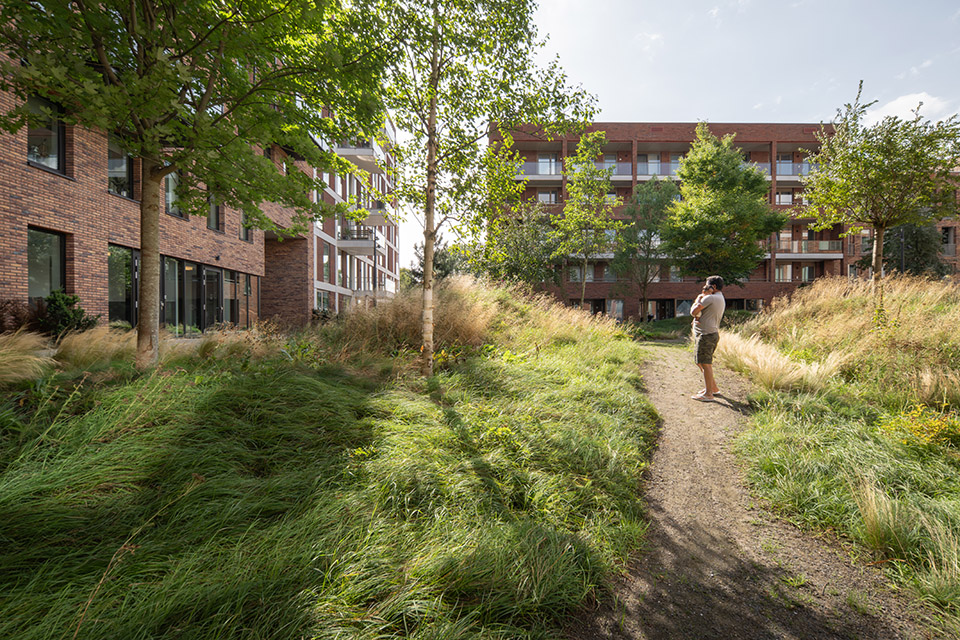

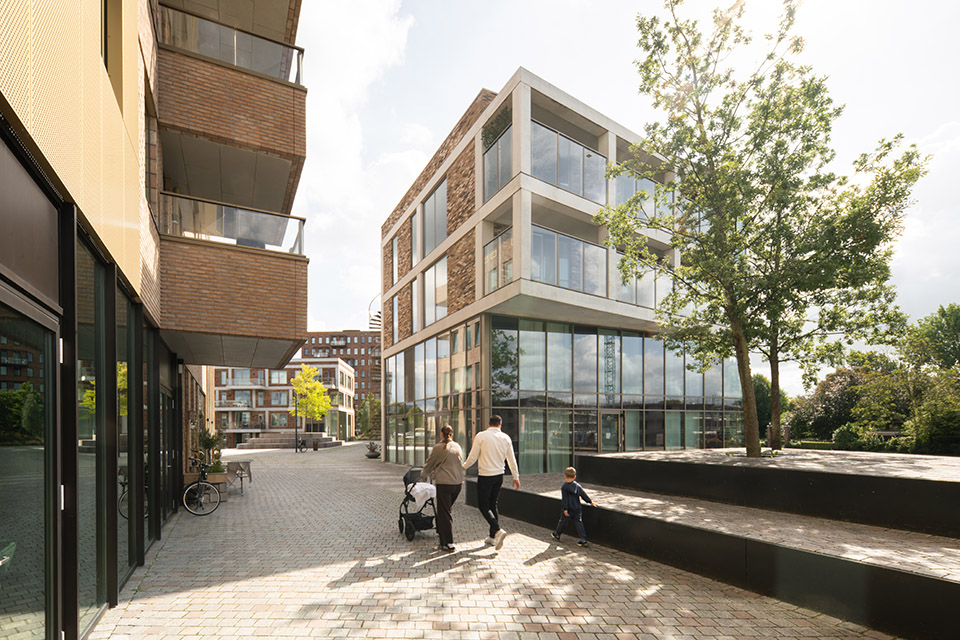

▼在岛上悠闲散步的人们，People strolling on the island © Aiste Rakauskaite

四个分区，一个相互连接的社区
Four Zones, One Connected Community

入口广场将半岛向访客开放。访客停车区最大限度地融入绿化之中，采用草嵌混凝土铺装，使停车空间与景观自然融合。繁茂的种植将步行区域与停车区分隔开来，形成一层绿意盎然的缓冲带。入口处设置的共享大厅为居民提供了开展集体活动的场所，促进交流与聚集。绿色庭院位于社区核心，对所有人开放。庭院被设计为一处树木园，种植多种树种与草地，为鸟类、蝴蝶、蜜蜂及其他昆虫提供食物与栖息空间。一座定制温室使居民能够共同参与城市园艺活动。庭院中央可容纳多种活动，从日常休闲到邻里烧烤均可在此展开。

The entrance plaza opens the peninsula to visitors. The visitors’ car park is maximally embedded in green, with grass concrete paving that blends parking into the landscape. Lush planting divides pedestrian zones from the car park, creating a buffer of abundant greenery. A communal lobby at the entrance brings residents together for shared activities. The green courtyard sits at the heart of the development accessible to all. Designed as an arboretum with various tree species and grassland it provides food and nesting opportunities for birds, butterflies, bees, and insects. A custom-built greenhouse allows residents to practice urban gardening together. The courtyard’s center accommodates various activities from informal play to neighborhood barbecues.

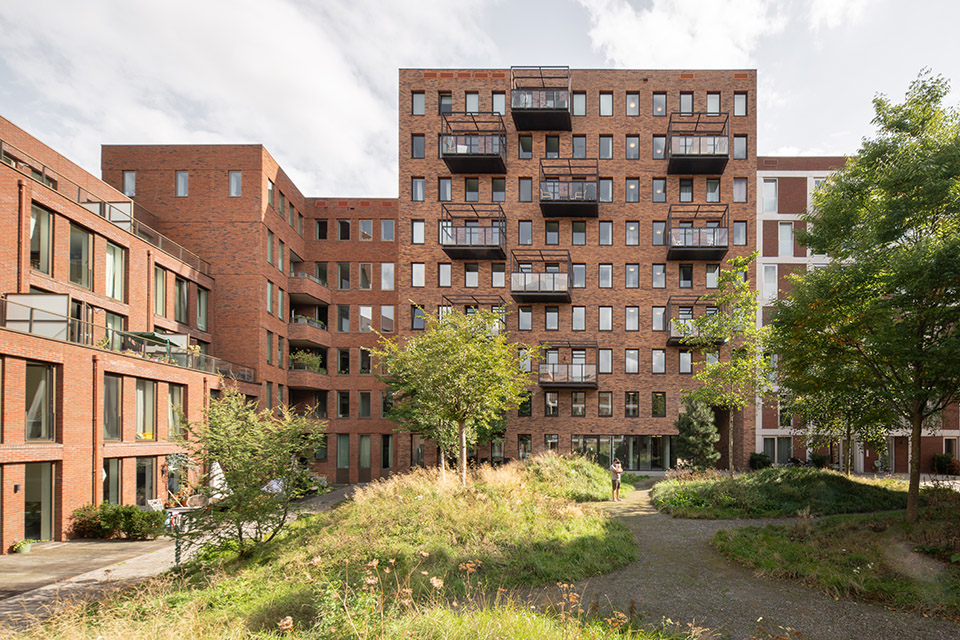

▼中央树木园庭院提供共享活动场所，Central arboretum courtyard for communal activities © Aiste Rakauskaite

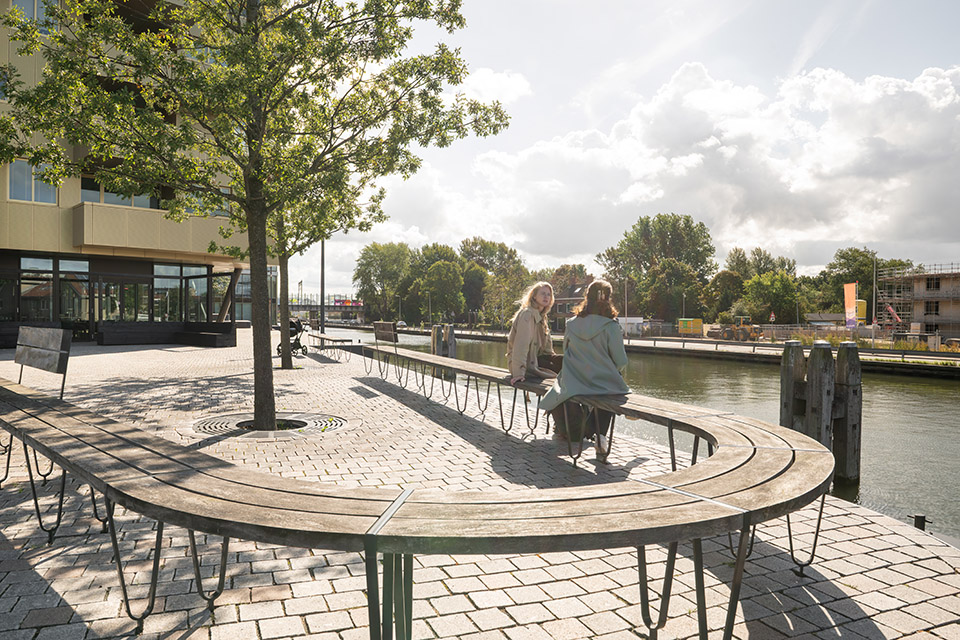

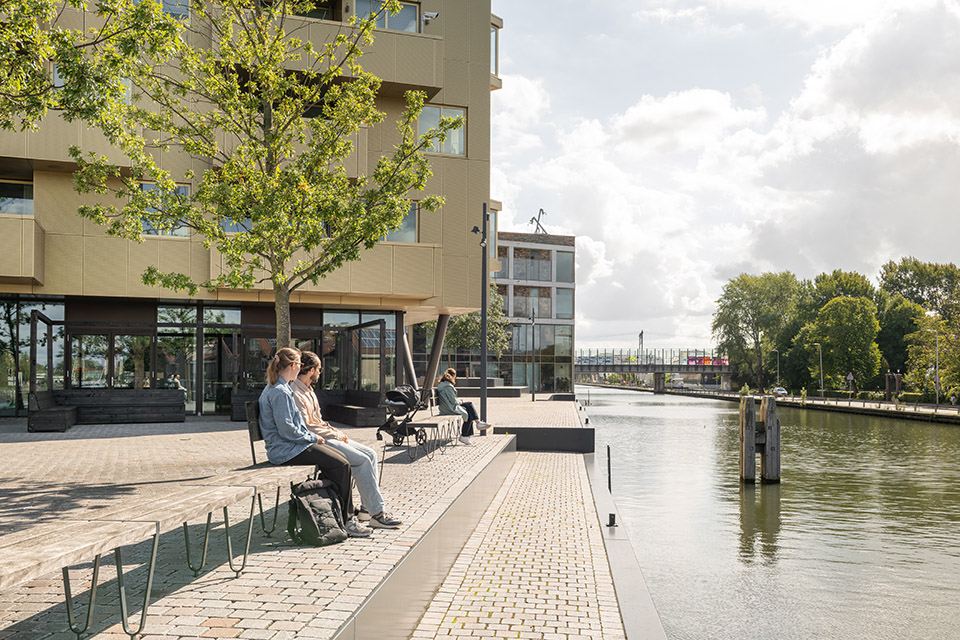

▼半岛尽端的滨水广场作为社区核心，Waterfront square at the peninsula tip as a social hub © Aiste Rakauskaite

港湾空间邀请人们参与水上活动，并强调与水体之间的直接联系。Muidertrekvaart水道使居民可乘船通往阿姆斯特丹。一座木质看台为聚会、休憩及日光下的活动提供场所。抬高的座席区俯瞰水面，同时容纳一株种植于车库上方的重要景观树。位于半岛尽端的滨水广场是Punt Sniep的主要聚集节点。其具有雕塑感的城市地形凸显出场地被水环绕的特质。广场面向南与西，朝向开阔。首层布置有活跃的商业与餐饮功能，成为激发社区活力的重要催化剂。一座步行桥将该项目与迪门历史城区相连，并以含蓄的方式呼应区域的航海文化传统。

The harbor invites maritime recreation and celebrates the direct relationship with water. The Muidertrekvaart connects residents by boat to Amsterdam. A wooden tribune provides space for meeting, relaxing, and playing in the sun. An elevated seating area overlooks the water while accommodating a monumental tree planted above the parking garage. The waterfront square at the peninsula’s tip acts as Punt Sniep’s meeting point. Its urban topography has a sculptural quality that highlights the water surrounding the site. The striking square faces south and west. A lively ground-floor program includes gastronomy functions that serve as a catalyst for social life. A pedestrian bridge connects the development to Diemen’s historic city center, subtly referencing the area’s nautical heritage.

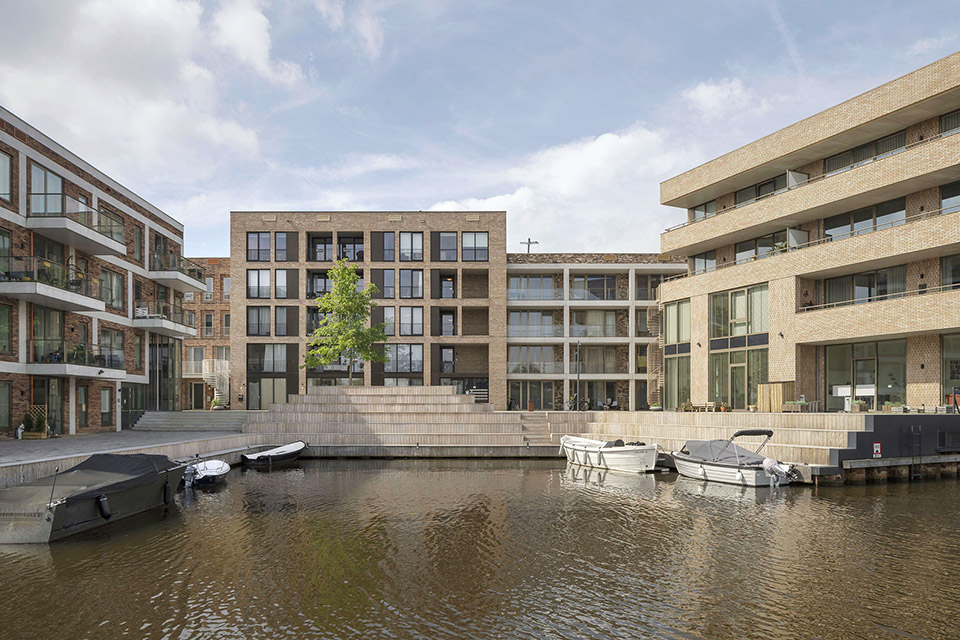

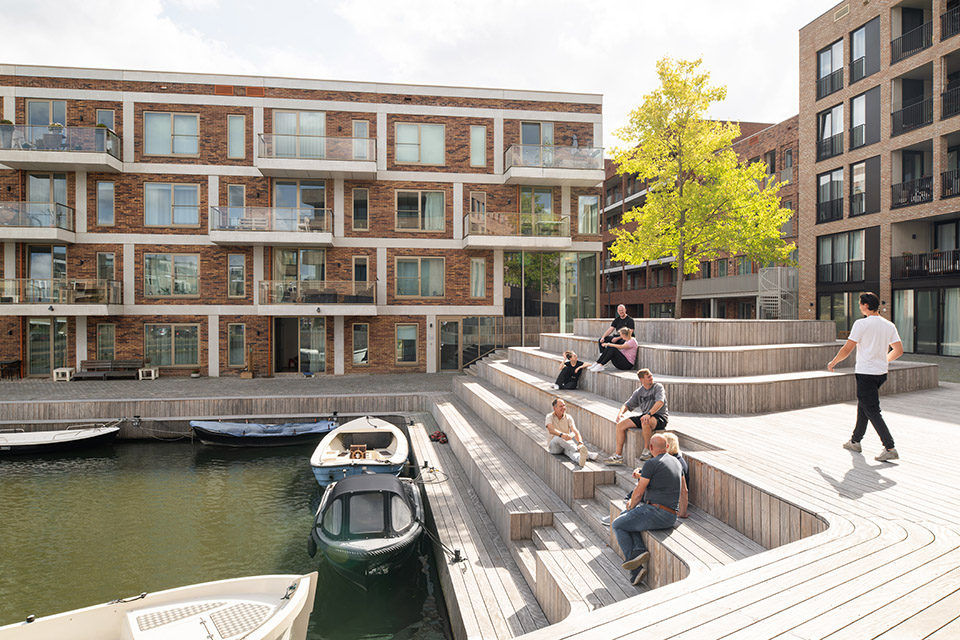

▼滨水港湾空间连接日常与水上活动，Harbor space connecting daily life with water © jan bitter

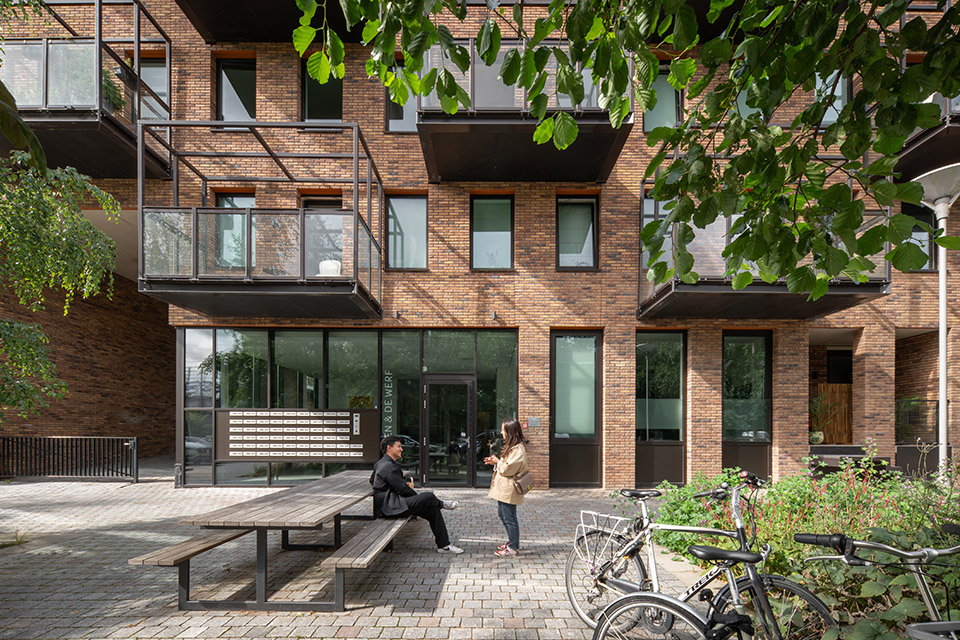

▼休息闲聊的人们，People taking a break and chatting © Aiste Rakauskaite

▼抬升地形上的观景与休憩空，Elevated landscape for viewing and resting © Aiste Rakauskaite

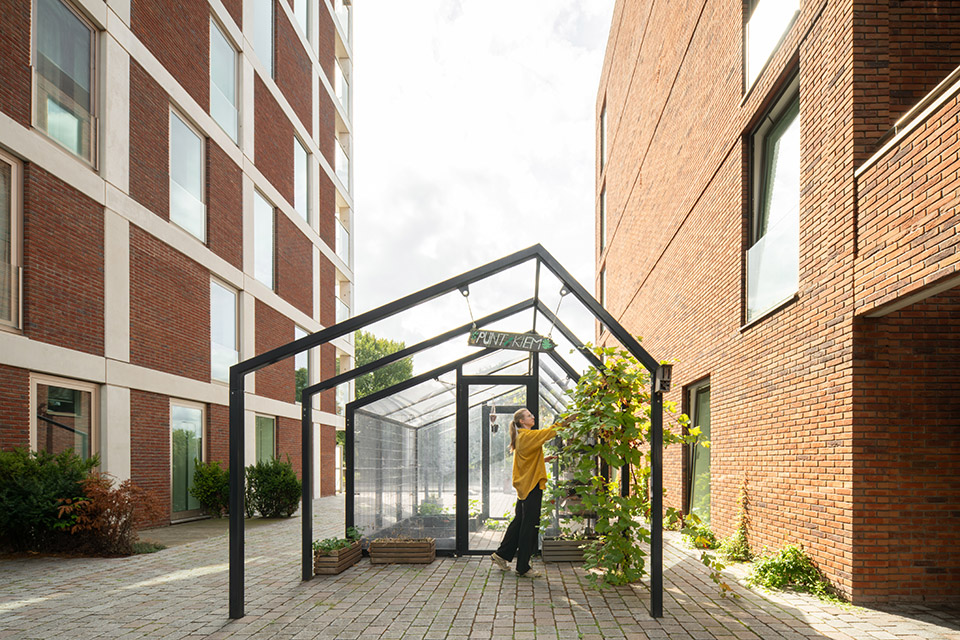

▼温室作为社区共同园艺空间，Greenhouse for shared urban gardening © Aiste Rakauskaite

上层为绿，下层为用
Greenery Above, Function Below

Punt Sniep的独特之处在于将高密度住宅开发与成熟乔木相结合。停车结构隐藏于起伏且富有趣味的景观之下，这种地形使得在182个地下车位之上种植大型树木成为可能。在三个关键节点，地面抬升以为成熟树木创造生长空间。在滨水广场处，树木甚至种植于车库内部专门设计的树池中。耐久且重复使用的材料——包括混凝土、钢与木材——共同呼应场地深厚的航海历史，并形成统一的视觉语言。一条贯穿整个半岛的天然石材铺装如同连续的地毯，将各区域连接起来，同时界定无车空间并强化整体性。

What makes Punt Sniep distinctive is its combination of high-density residential development with mature trees. The parking structure hides beneath an undulating, playful landscape. This topography enables the planting of large trees above the 182 underground parking. At three strategic points, the ground level rises to create space for mature trees. At the waterfront square, trees grow in specially designed bunkers within the garage itself. Durable and reoccurring materials including concrete, steel, and wood celebrate the site’s rich maritime history, creating visual unity. There’s a continuous carpet of natural stone along the entire peninsula that connects all areas, marks the car-free zone, and unifies the project.

“该景观设计旨在促进社会互动，并营造一个具有韧性的社区。”

——景观建筑师 Pieter Theuws

“The landscape is designed to encourage social interaction and create a resilient neighborhood.”

– Pieter Theuws, Landscape Architect

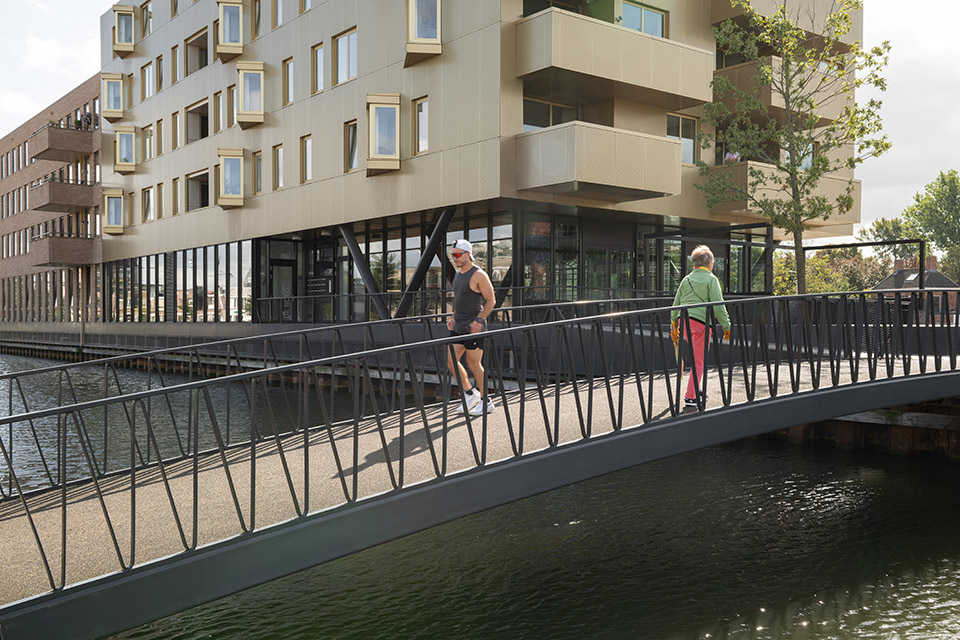

▼两岸相连的步行桥，A bridge connecting the two banks © Aiste Rakauskaite

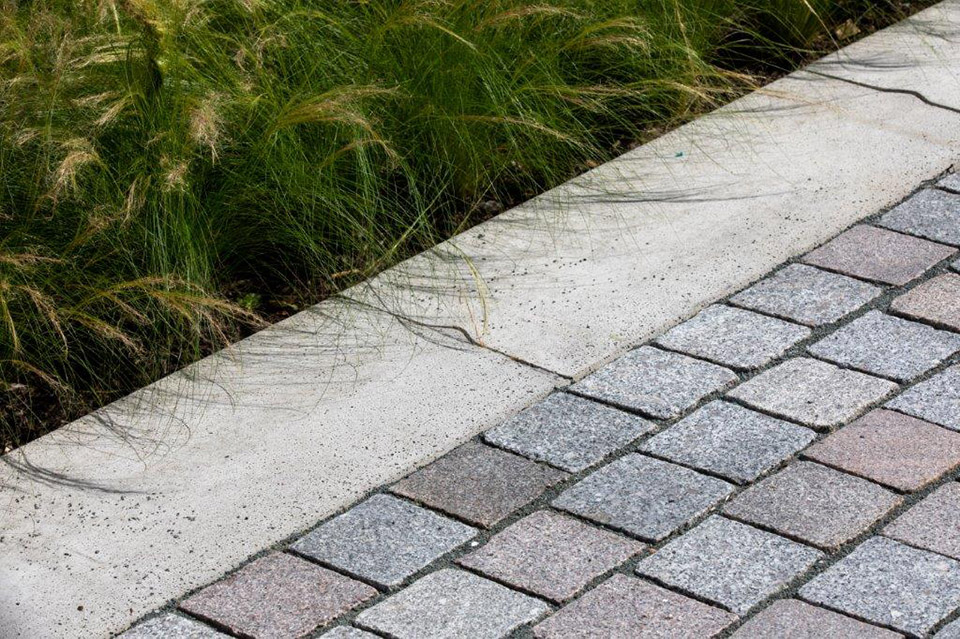

▼连续石材铺地贯穿整个半岛空间，Continuous natural stone paving across the peninsula © KCAP_Diemen Sniep

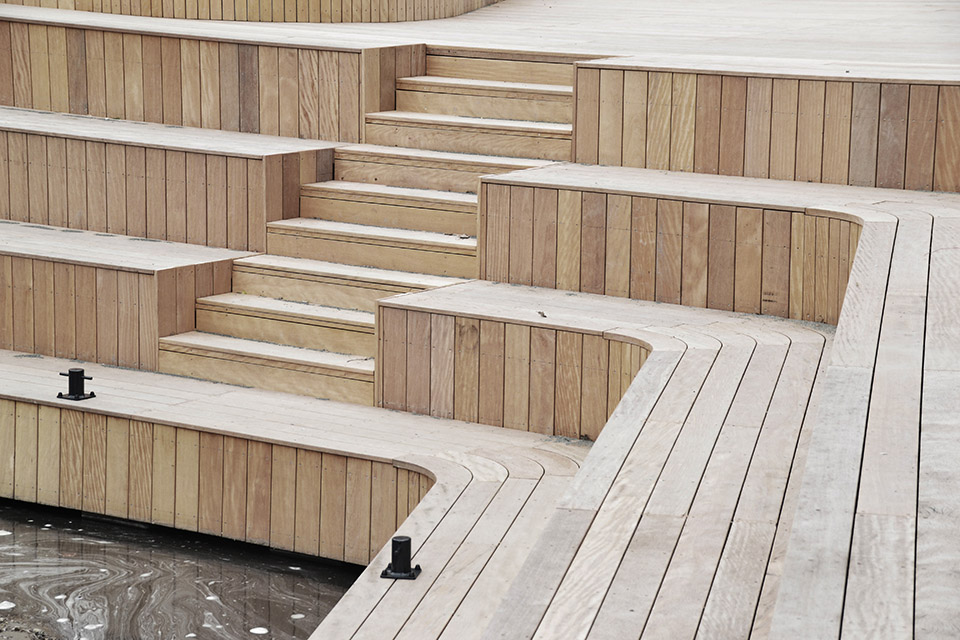

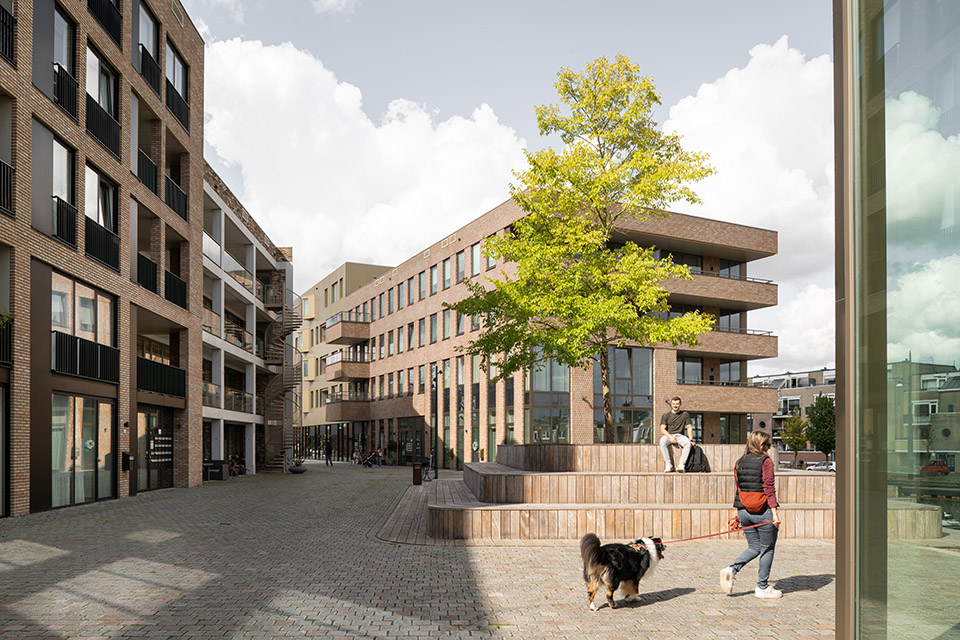

▼木质看台面，Wooden tribune © KCAP_Diemen Sniep

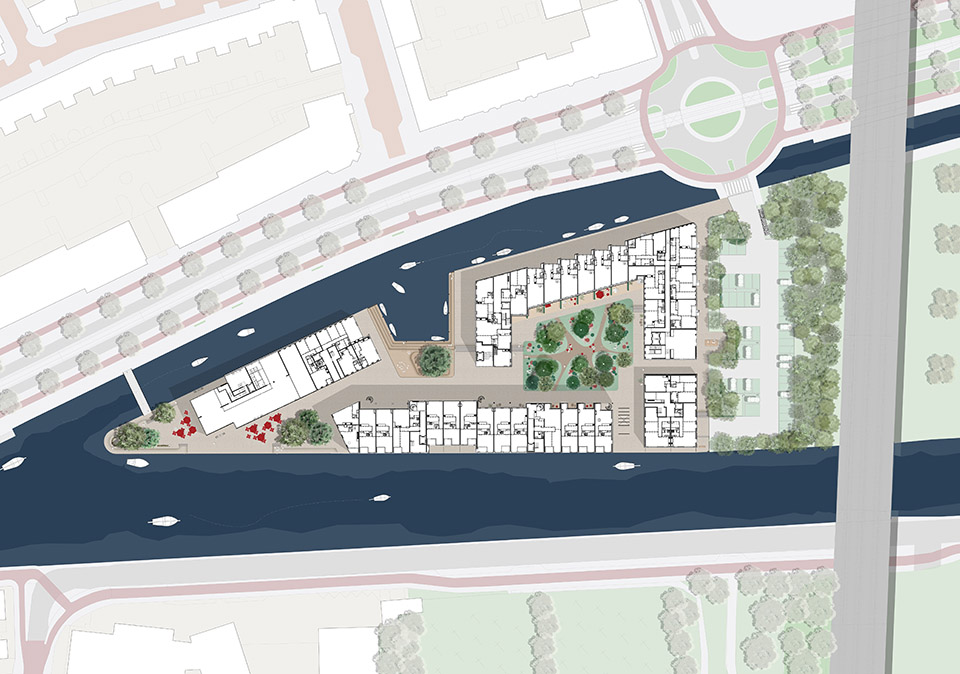

▼项目区位图，Site plan © KCAP_Diemen Sniep

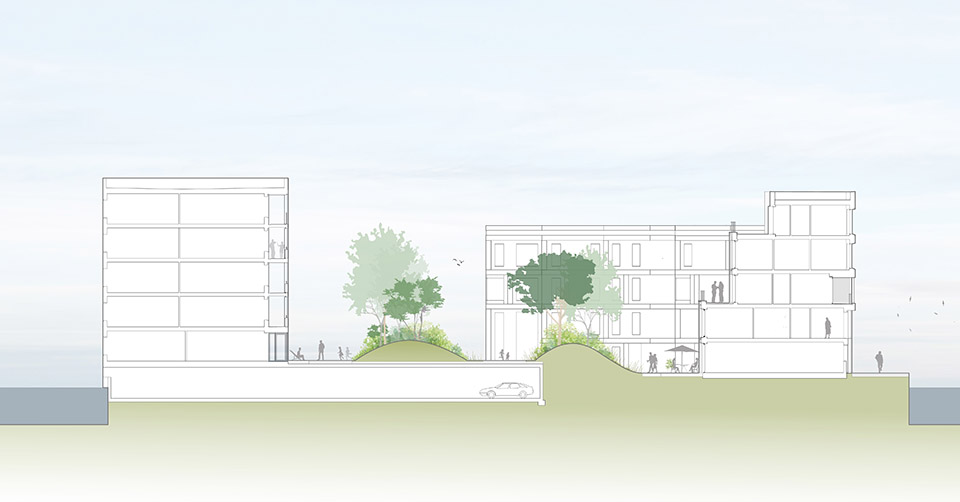

▼剖面图，Section © KCAP_Diemen Sniep

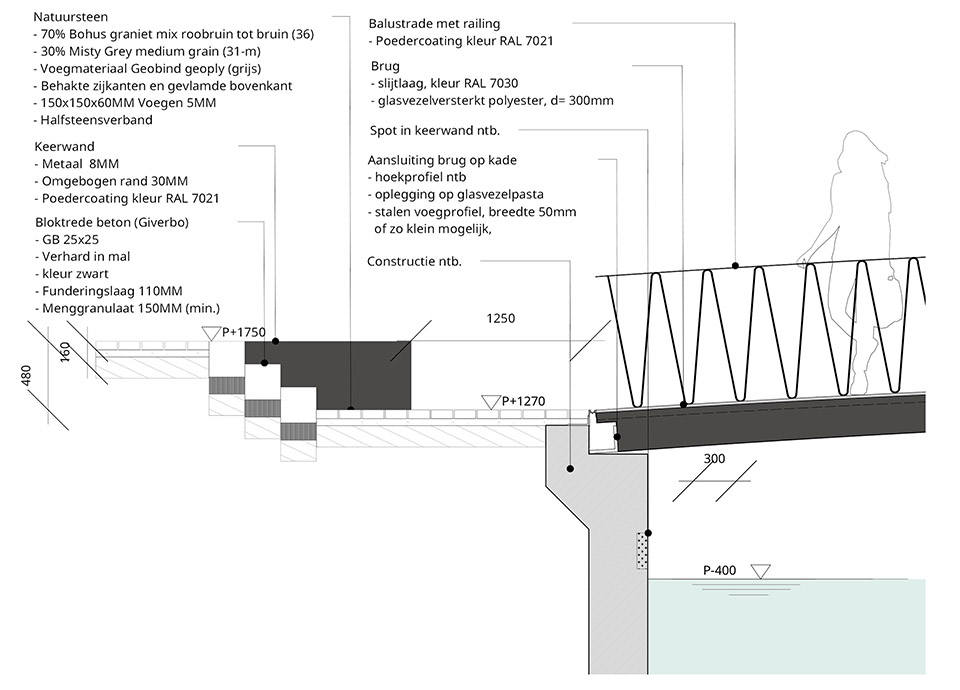

▼细部，Detail © KCAP_Diemen Sniep

Project Team
Design: KCAP
Client: ABC Planontwikkeling + Nedreim (original commission); Vesteda (turnkey acquisition/owner)
Developer: ABC Planontwikkeling + Nedreim
Contractor: Heddes Bouw & Ontwikkeling B.V. and Kleywegen
Advisors: ABC Nova (project management), MoBius Consult (sustainability), J. van Toorenburg BV (installations), van Rossum (construction)
Collaborators: Gemeente Diemen
Photography: Aiste Rakauskaite, Jan Bitter & Fred Tigelaar
