该项目对唱片公司 Radar 和厄瓜多尔乐队 Verde 70 的办公室进行改造，旨在创造一个可开展各种活动的灵活空间。在 40 平方米的有限面积内，设计必须整合接待区、媒体区、行政区和排练室，同时还能作为鼓励思想交流的协同工作空间。

▼视频，video

The remodeling of the office of the record label Radar and the Ecuadorian band Verde 70 seeks to create a flexible space that allows various activities. With a limited surface area of 40 m², the design must integrate reception and press areas, administration and a rehearsal room, as well as functioning as a co-working space that encourages the exchange of ideas.

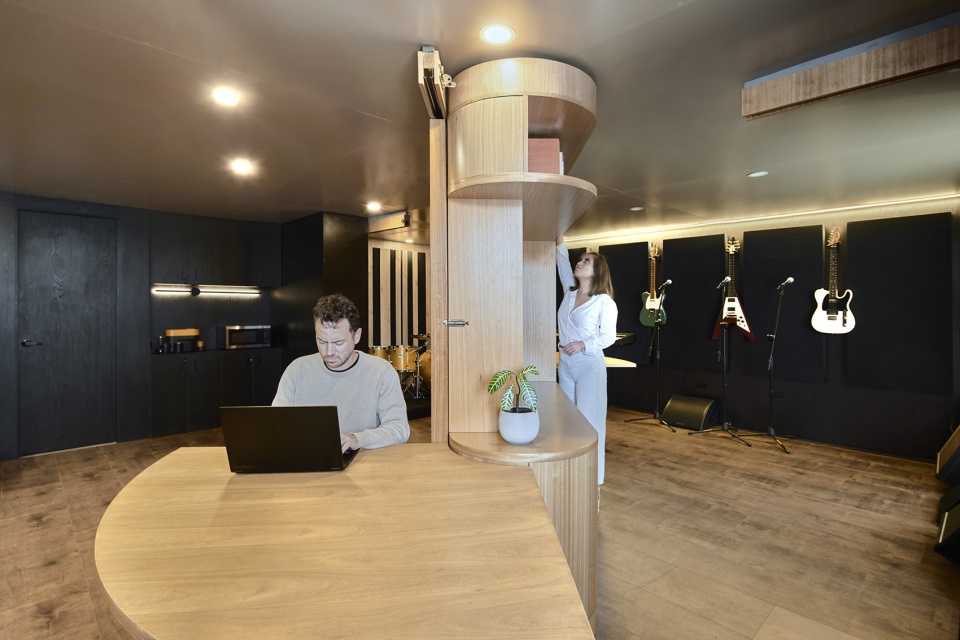

▼PIVOT的多种使用场景，PIVOT support various functions ©Paolo Caicedo

主提案包括要解放室内空间并且展现多功能的中央元素——PIVOT，通过紧凑的建筑设计最大化的利用空间。这一元素作为一件岛屿般的家具将空间分隔，同时又维系了不同区域之间的动线流通，每一侧都可以提供服务。

The main proposal consists of freeing up the perimeter of the room and presenting a multifunctional central element, PIVOT, which optimizes the use of space through compact architecture. This artifact acts as an island-like piece of furniture that divides the space while maintaining a circular connection between the different areas, providing service on both sides.

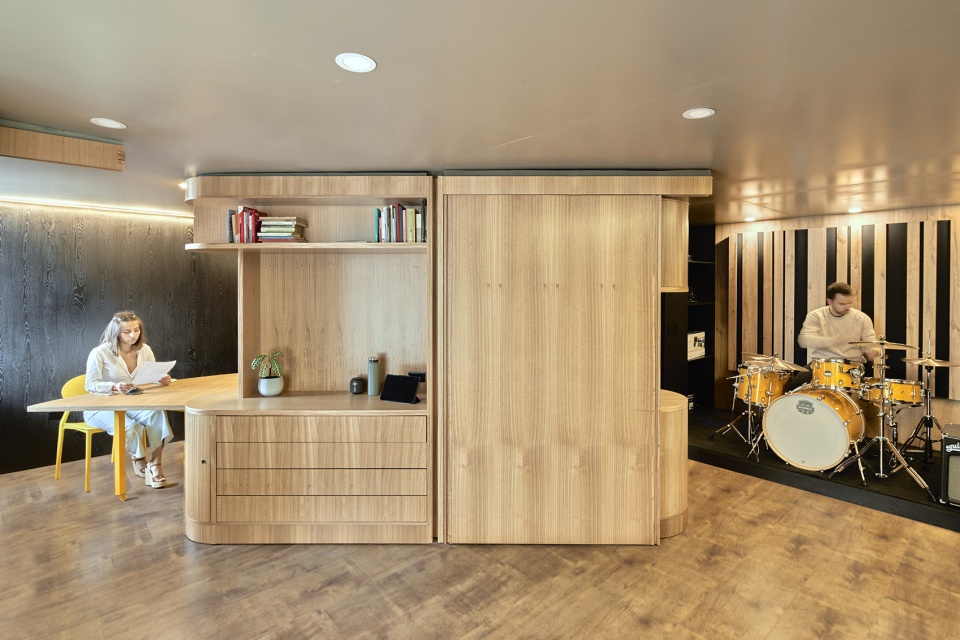

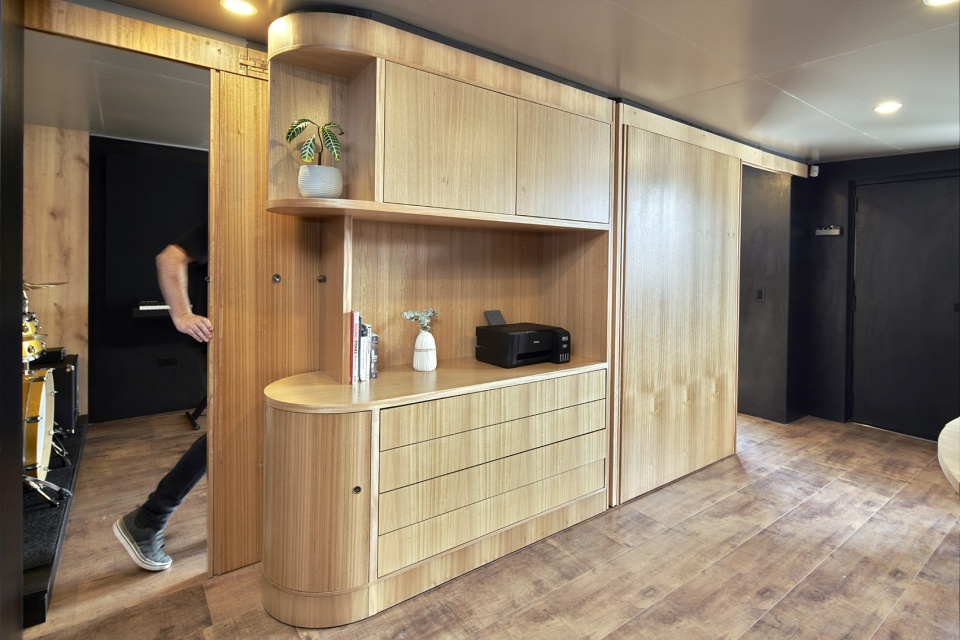

▼将空间分隔，divides the space ©Paolo Caicedo

这一在枢轴上旋转的作品可以旋转360°，使其可以支持空间中多种活动所需要的多样设置。当其被放置在与墙面垂直的位置时，它可以形成配备有多种灯光，声学和私密条件的方形空间。当其呈对角线位置时就具有更多的可能性，这样就可以创造出非方形空间，便于大型乐队排练，并通过打破墙壁的平行状态来改善音响效果。

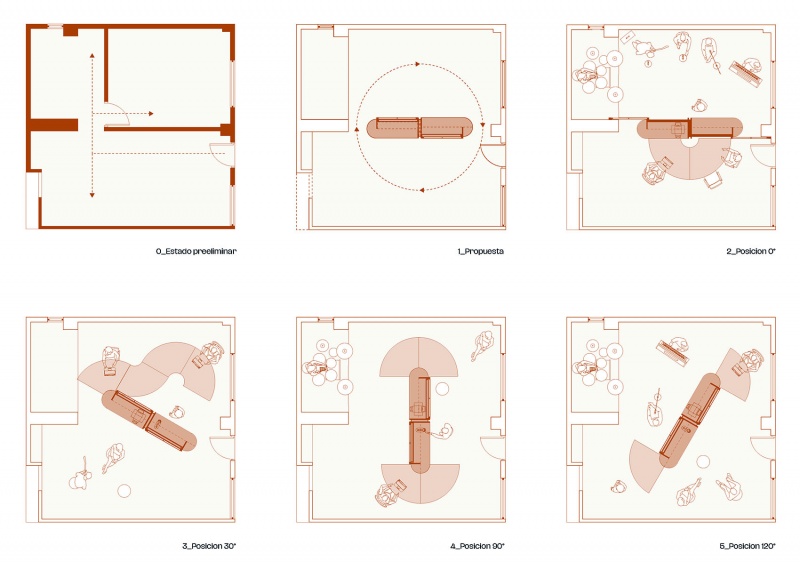

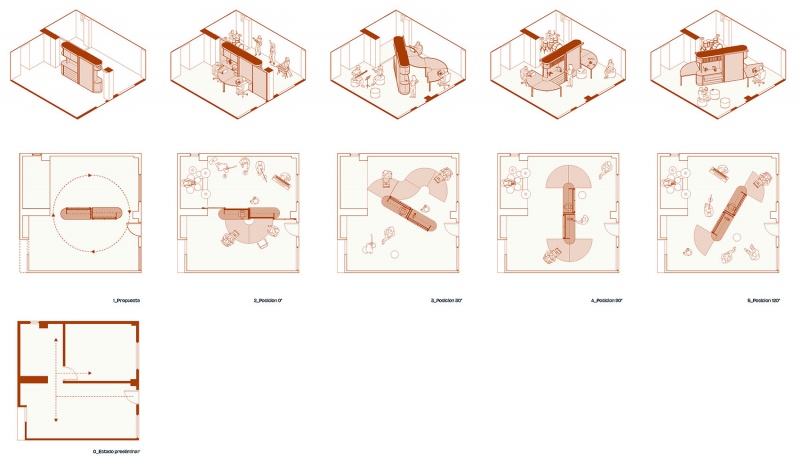

▼分析图，diagram © IWI Studio + Tec Taller EC

This pivoting artifact, which can rotate 360°, allows the creation of multiple configurations suitable for the various activities of the space. When placed perpendicular to the wall, it generates rectangular areas with varied lighting, acoustic and privacy conditions. In its diagonal position, the possibilities are expanded, allowing the creation of non-rectangular spaces that facilitate rehearsals with larger bands and improve acoustics by breaking the parallelism of the walls.

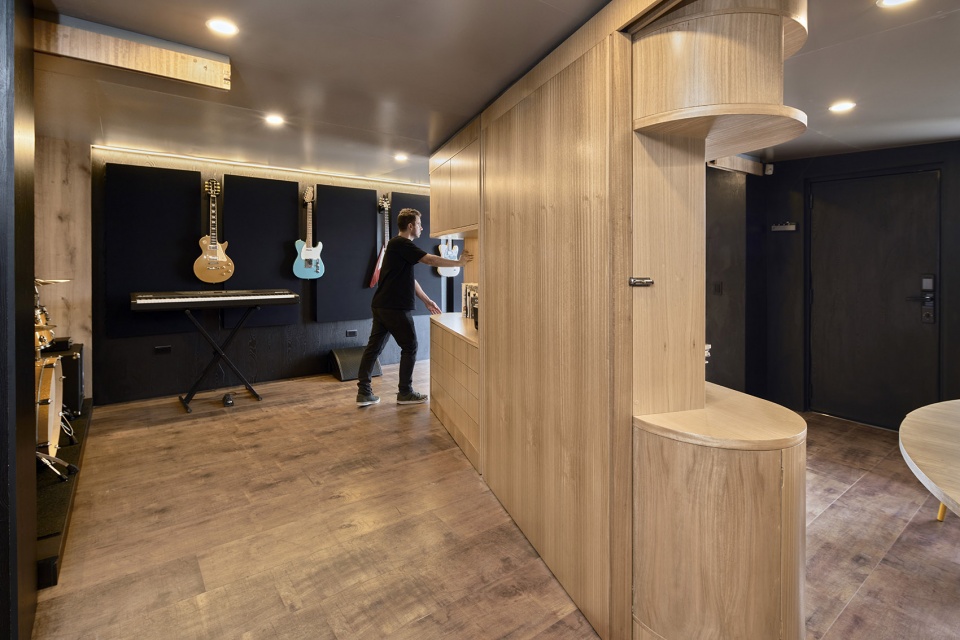

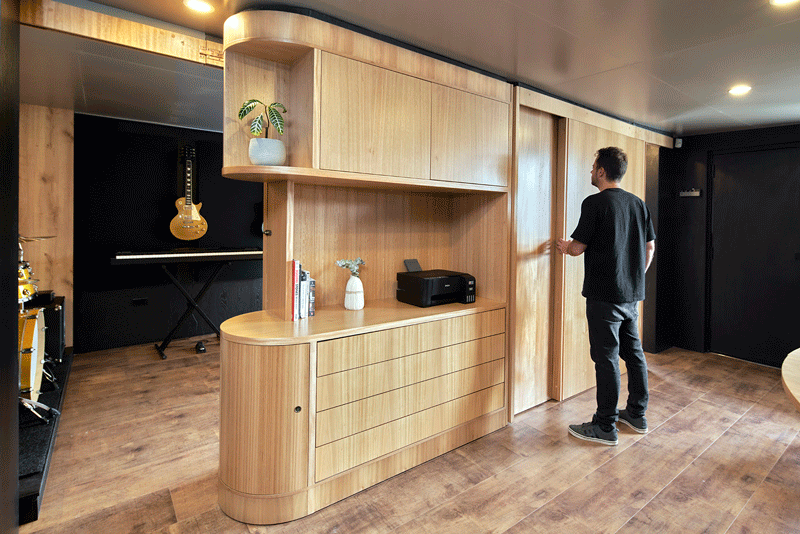

▼可绕轴旋转360°，this pivoting artifact can rotate 360°©Paolo Caicedo

PIVOT与半圆形的可移动桌相辅相成，该桌也可安装在家具上，为不同的活动提供多种配置。

PIVOT is complemented by semicircular mobile tables, which can be attached to the furniture, allowing the generation of various configurations for the different programmed activities.

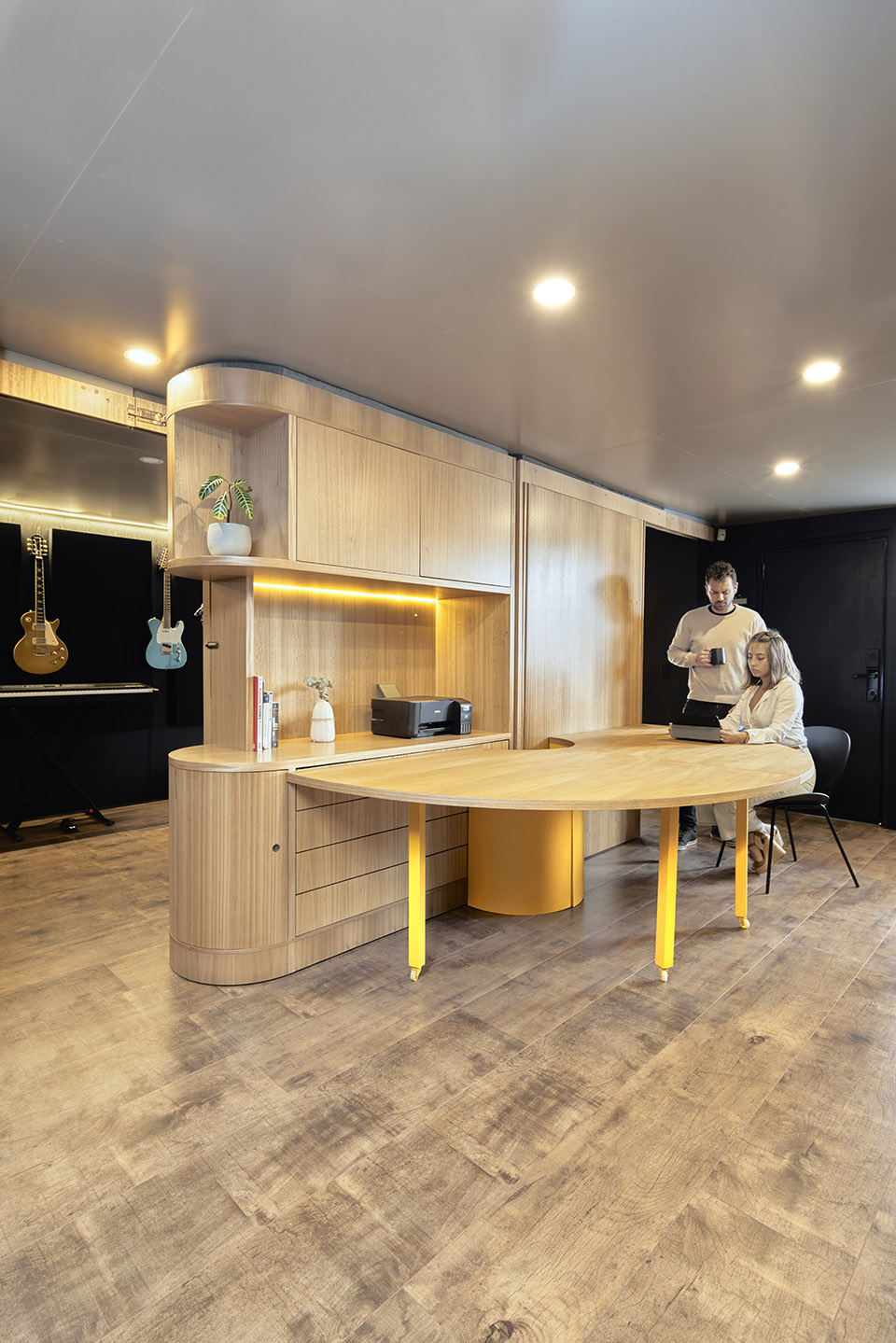

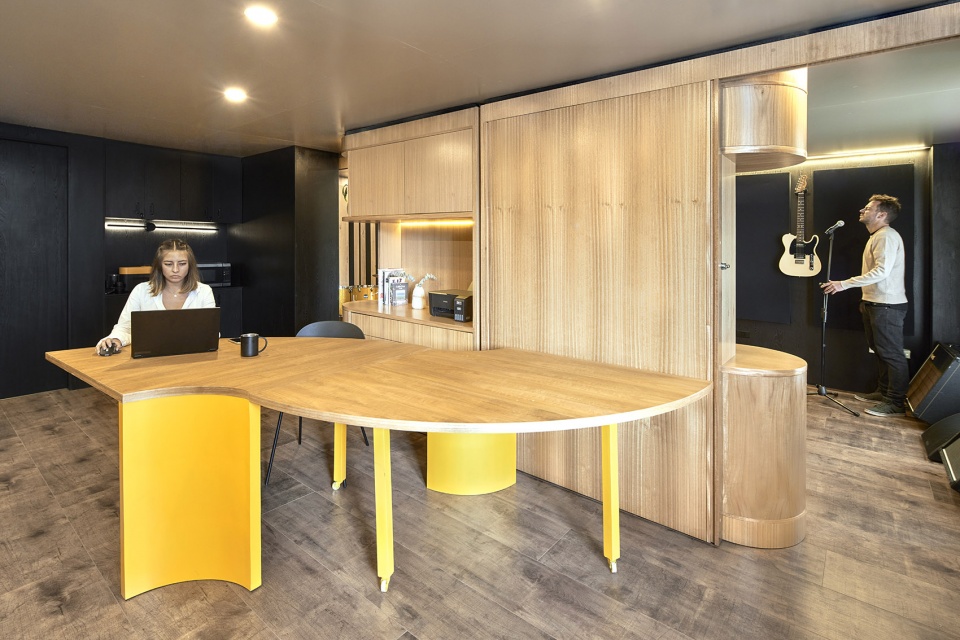

▼与半圆形的可移动桌相辅相成，complemented by semicircular mobile tables ©Paolo Caicedo

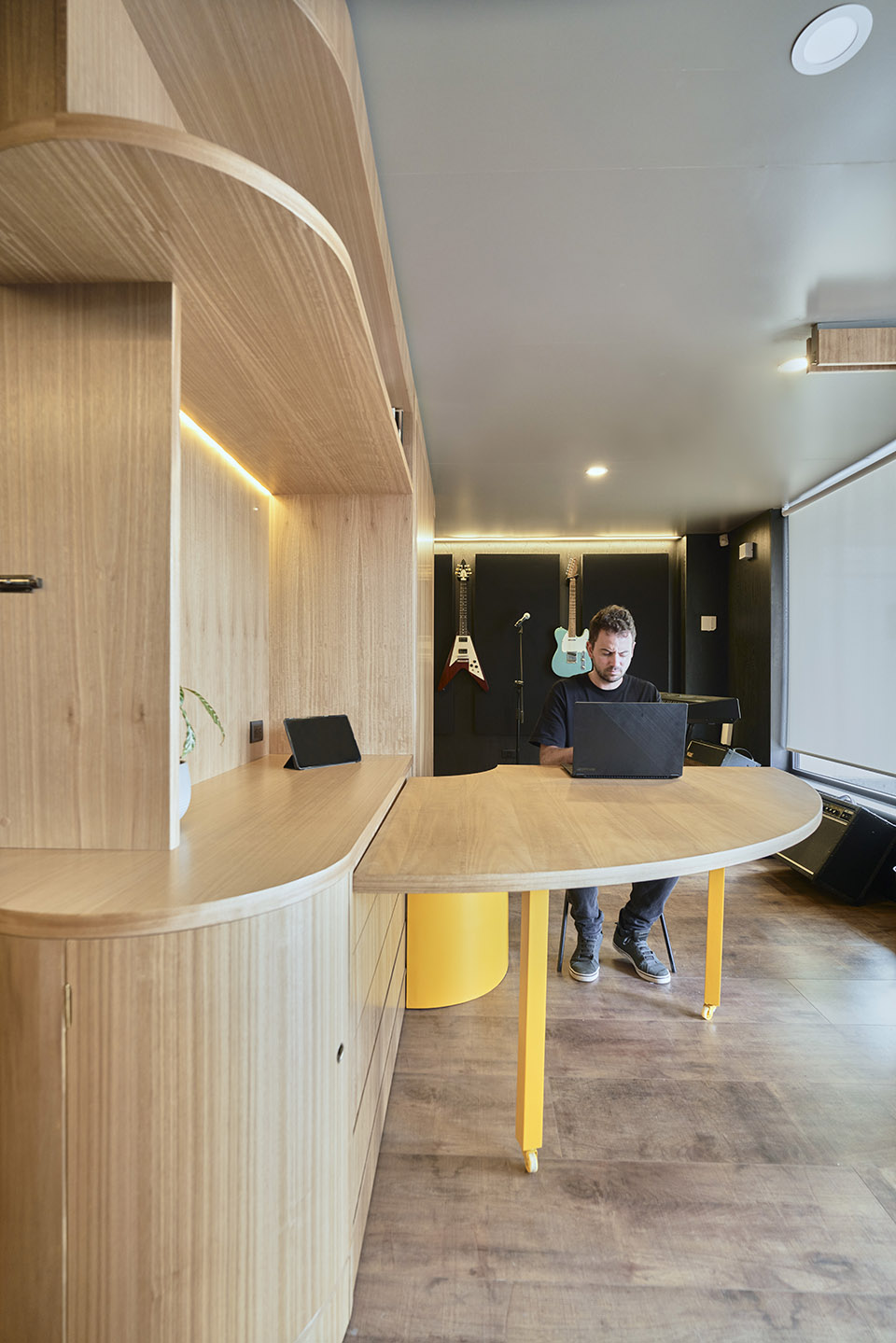

▼半圆形的可移动桌，semicircular mobile tables ©Paolo Caicedo

不仅仅可以储存乐器，这一位于房间中央的设施还可以隐藏有两扇滑动门，可作为隔音墙使用，同时完整的分隔空间。分隔开的两个独立区域可以用于同时进行乐队排练及其他活动，使空间的利用最大化。

In addition to its function as a furniture for storing instruments, the central device also acts as an acoustic wall that hides two sliding doors, which allows the total division of the space. This allows rehearsals and other activities to be carried out simultaneously in two independent areas, optimizing the use of space.

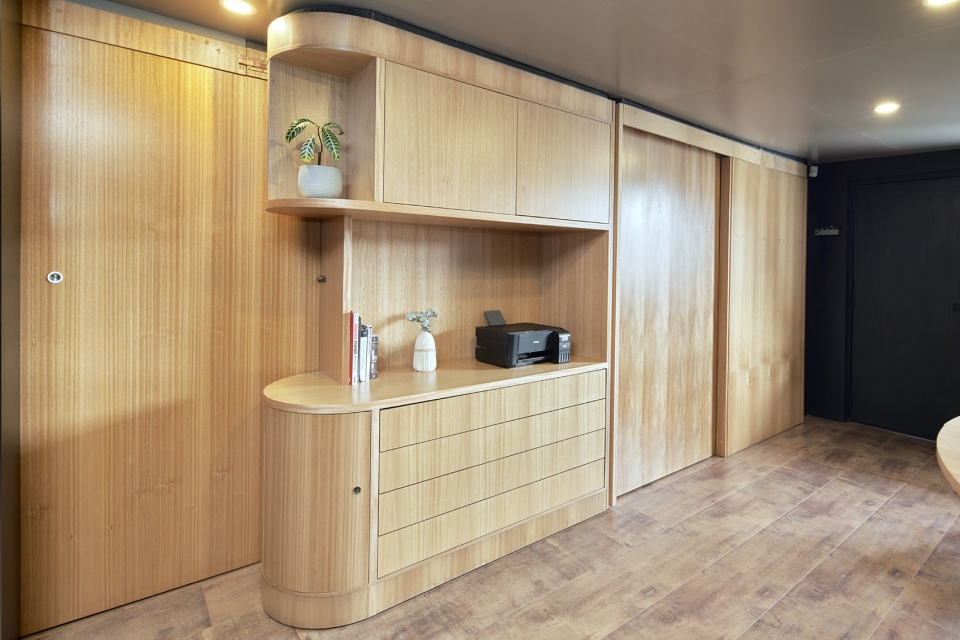

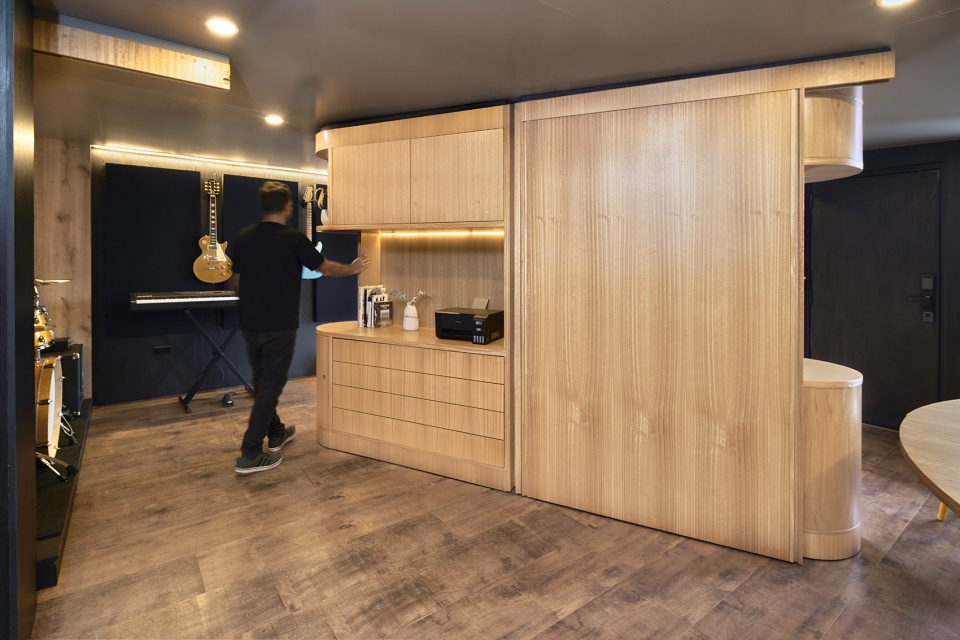

▼两扇滑动门可作为隔音墙使用，an acoustic wall that hides two sliding doors ©Paolo Caicedo

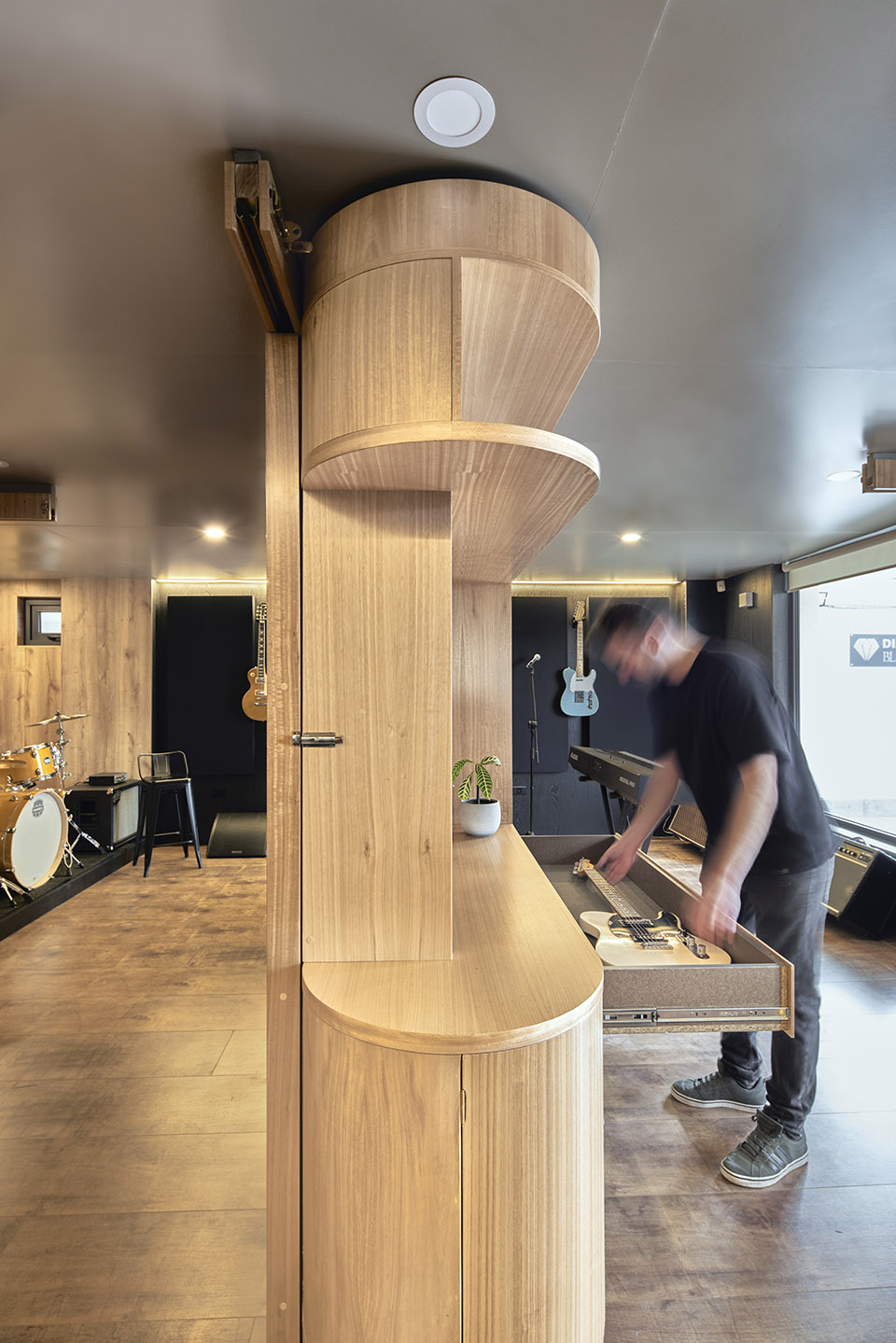

▼还可储存乐器，function as a furniture for storing instruments ©Paolo Caicedo

PIVOT设备的机械设计使其可以在一天内完成安装。该室内安装有木板和隔音层，同时还安装有吸音板来保证声学上的舒适度。精心选择的色调突出了空间的宽敞开阔，使人的注意力集中在中央。

The digital design of the PIVOT device parts allows its installation in a single day. The room was soundproofed using wooden panels and acoustic insulation, complemented by absorbent panels to guarantee optimal acoustic comfort. The chosen color palette highlights the spaciousness of the space, directing attention to the central element.

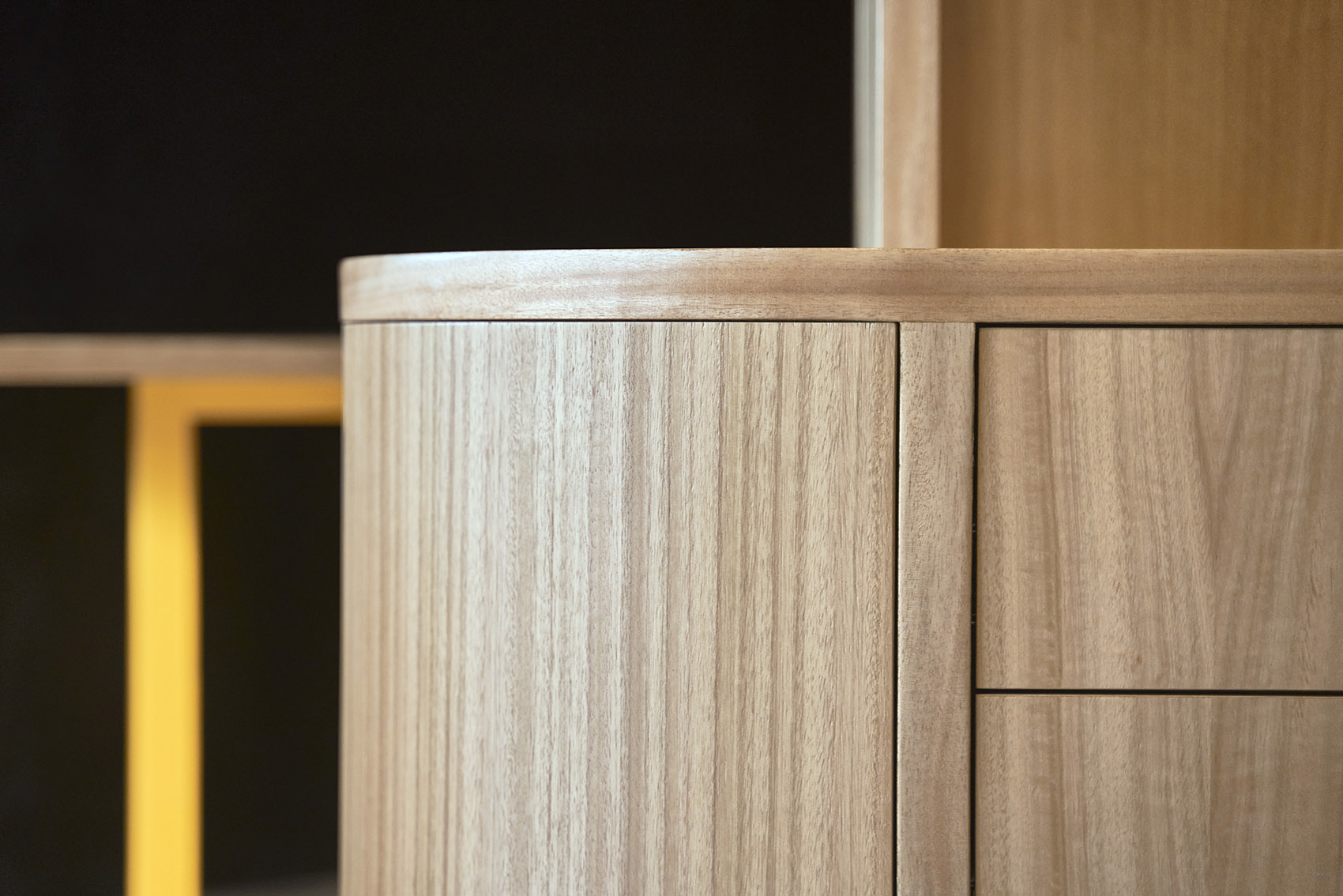

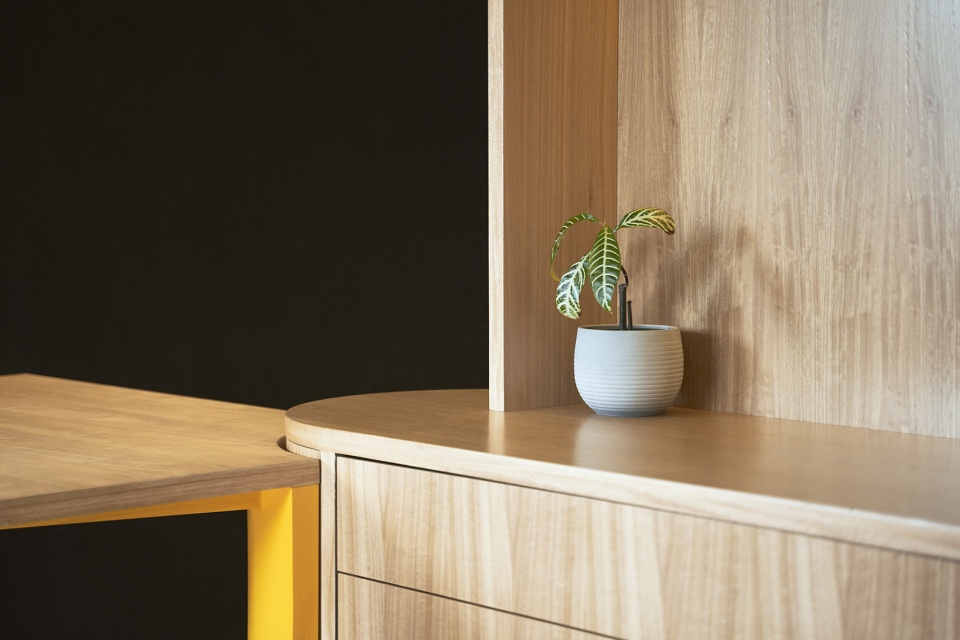

▼细部，detail ©Paolo Caicedo

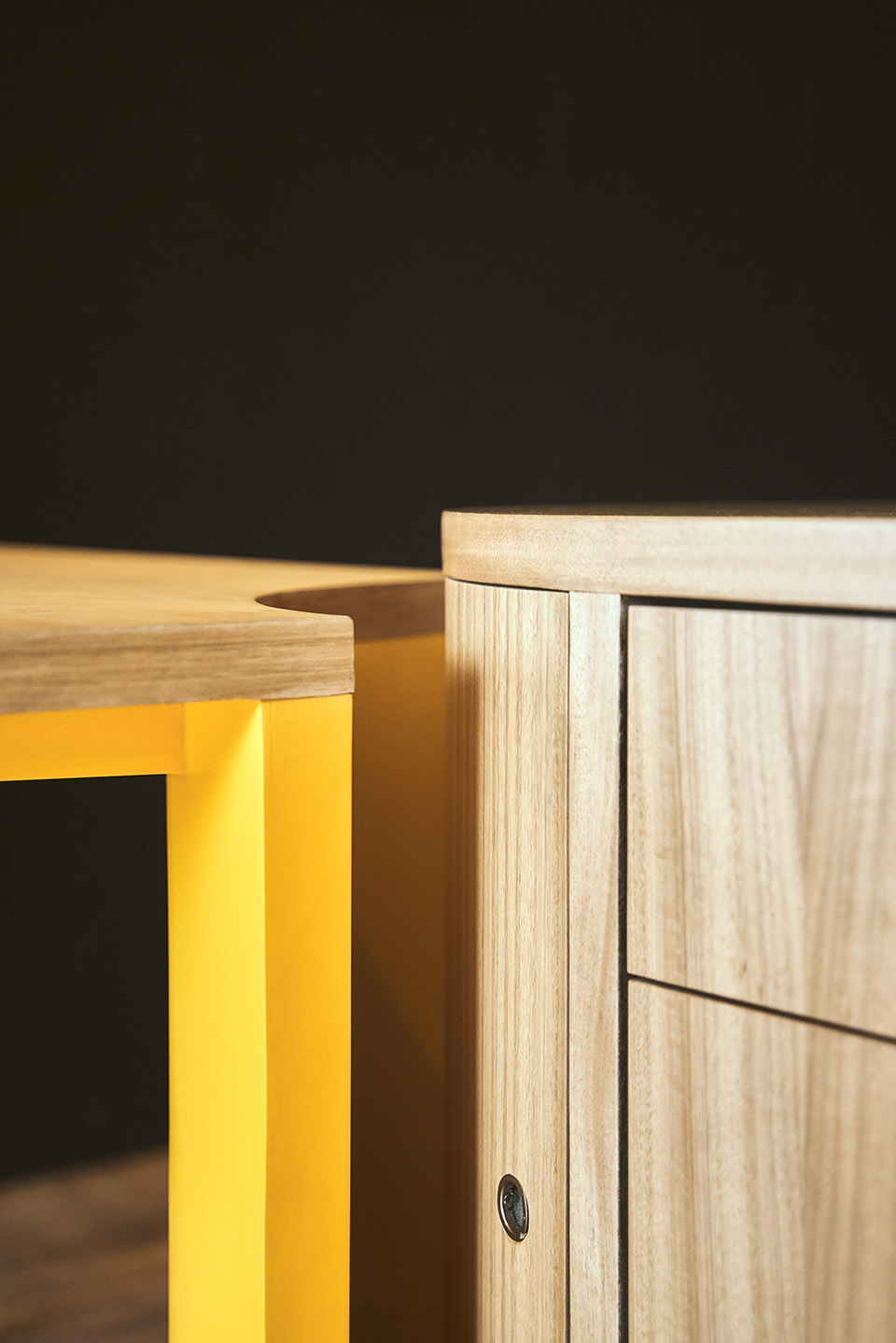

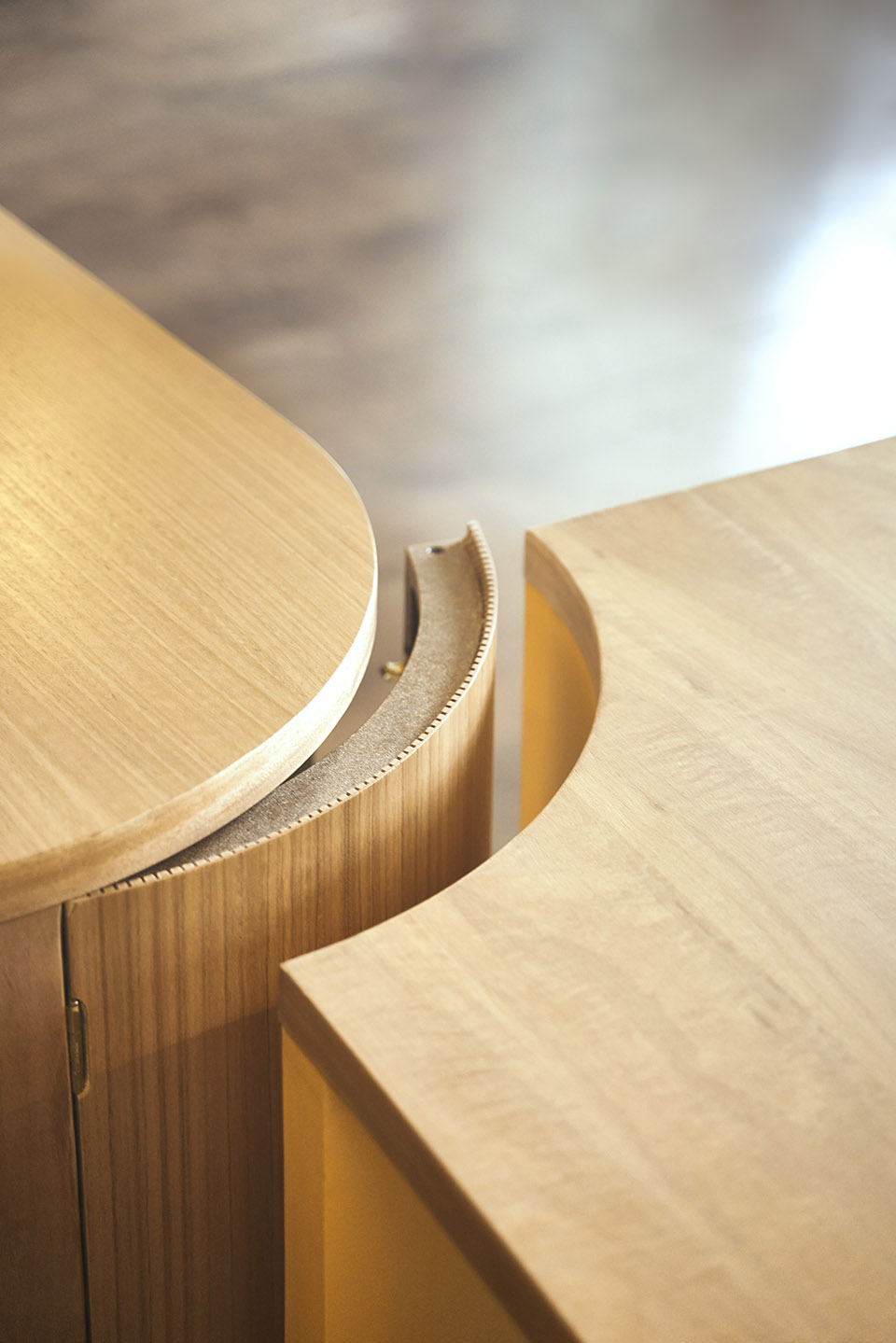

▼弧形细部，curviliar detail ©Paolo Caicedo

这一完整紧凑的设计手法不仅仅满足了办公室的功能性需求，也提供了一个充满灵感与活力的环境，有助于提高创造力与协同合作。

This comprehensive and compact approach seeks not only to meet the functional needs of the office, but also to provide an inspiring and dynamic environment, conducive to creativity and collaboration.

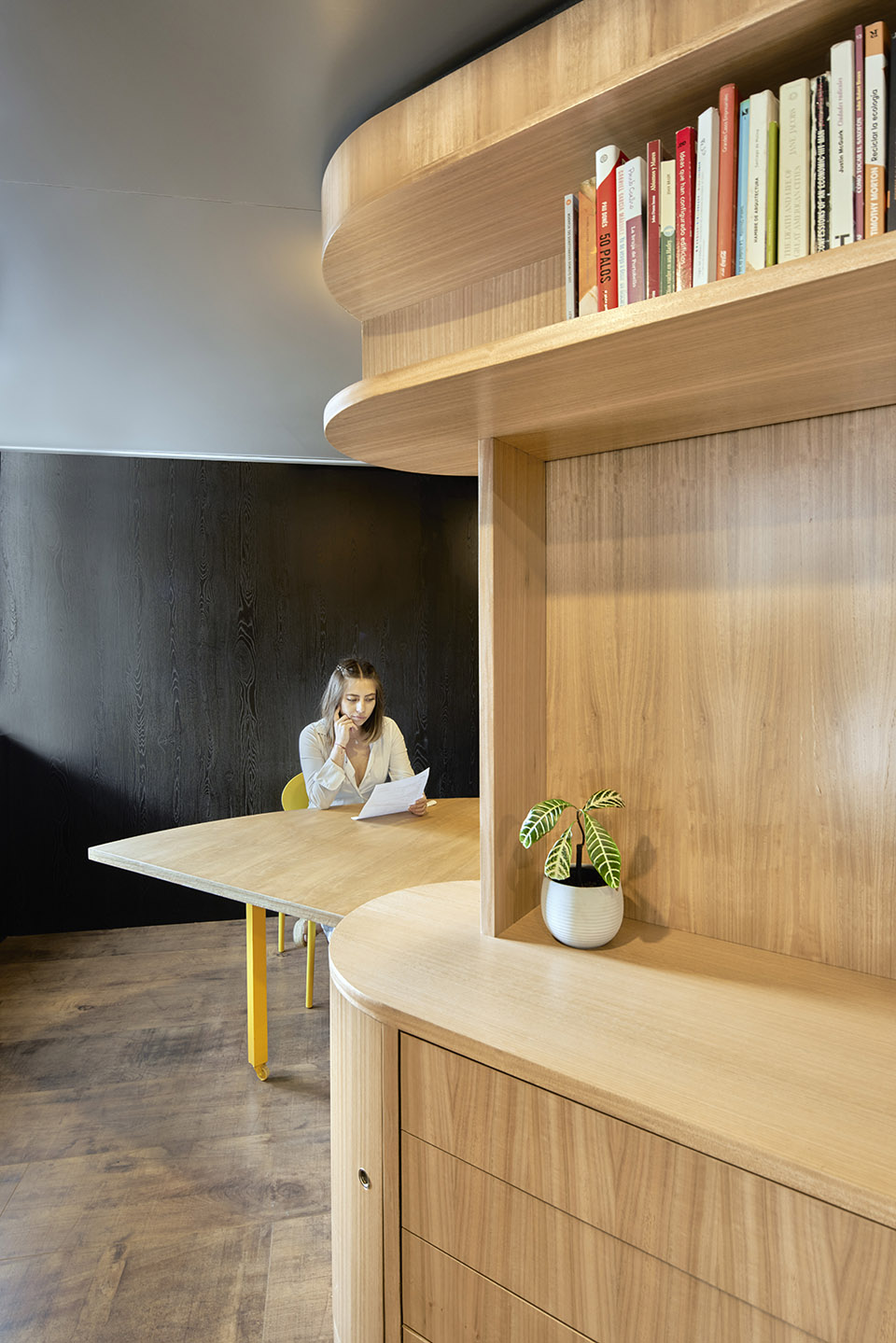

▼弧形细部，curviliar detail ©Paolo Caicedo

Status: Built
Area: 42 sqm
Client: RADAR- VERDE 70
Architects: TEC Taller EC, IWI Studio
Colaboration: Proyecto Designin, Haiku Taller, Masmusica, Pelikano Ec, A10Ecuador, Flandoli_studio, Verde 70
Team: Pablo Castro Guijarro – Roberto Morales Guijarro, Juan Ruiz – Amelia Tapia, Cynthia Quintero, Paolo Caicedo, Daniela Veintimilla, Maria Emilia Arellano, Daniela Ramos, Nicolás Guijarro.
Construction: TEC Taller EC – IWI Studio – Proyecto Designin
Photography: Paolo Caicedo
