非常感谢设计方Note Design Studio将项目介绍和项目图片授权gooood发行。更多请至：Note Design Studio on gooood
Appreciation towards Note Design Studio for providing the following description:

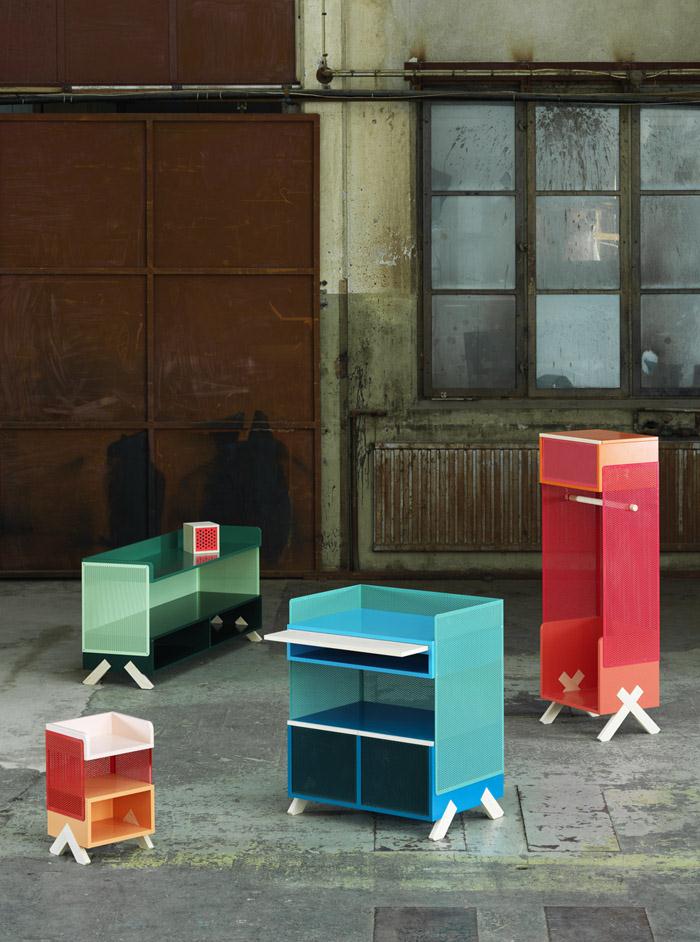

/wp-content/uploads/2012/02/4943a5834b8822f08110fa58f1c4540a.jpg

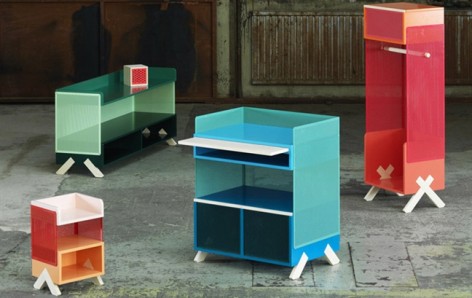

这是Note Design Studio新推出的存储单元系列Peep.一个轻盈，可以允许光线和声音穿透的穿透金属网格透明型家具系列。适用于办公环境。

设计师试验了许多不同材料，样式，开孔密度的穿孔金属板。选择的铝板非常轻，会颤动，但是组装后又出人意料的牢固。腿部支撑的设计俏皮活泼。这系列储存单元可以方便的移动。背面的板子可以移动，方便使用电源线和手机充电器。

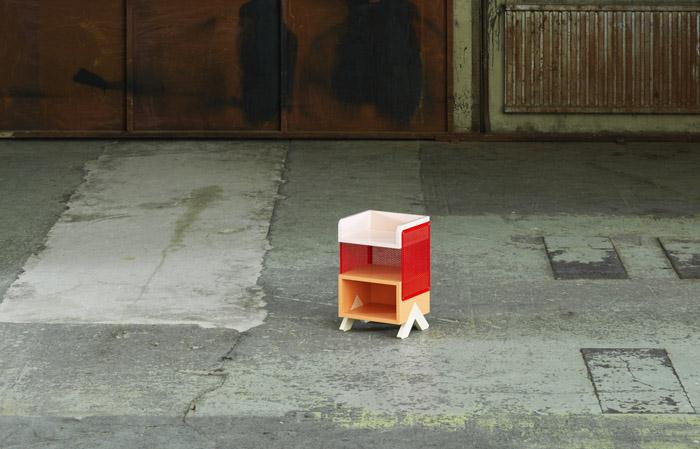

/wp-content/uploads/2012/02/54c3bf6ff9ac4736f3d2727369167a04.jpg

PEEP STORAGE UNITS – A project by Note in collaboration with Lerch Träinredningar When working with offices and workplace environments the light from the windows are seldom sufficient and furnishings including desks and acoustic screens are effective barriers of light traveling through the room.

We have sought to remedy this by looking for products that allow light to pass through. There were none. During our annual experimenting within the Marginal Notes concept, we picked up the light issue again and found some early rough sketches of ideas regarding the matter. Marginal Notes is a forum we have created for ourselves where we have the space and opportu- nity to realize ideas that might not work or do not necessarily comply with industry production requirements. PEEP was such an idea.

We had an idea for a transparent “collar” in mesh or perforated metal. The collar would then be fixated with some kind of boxes or shelves at any height, like a Tetris game within the collar. The product would also be a spacious and visually exciting furniture that was not specifically linked to the office environment.

We had earlier discussed an idea about how to create a product like that, but in live projects there is little room for failures. In this case we doubted whether it would be stable enough or whether the weight would be a factor. Now that we together with Lerch Träinredningar had a possibility within the Marginal Notes concept to test the idea, we went as far as we could experimenting with different sizes of collars, different perforation density of the metal and different materials. We developed the perforated collars with RMIG. When the collars arrived it was far from obvious that the project would succeed. The aluminium collars were very light but also very wobbly. Until the boxes were fixed the project was very uncertain. However, when assembled the cabinets were stable way beyond our expectation and stood firmly without swaying.

Another idea that we wanted to try out was a series of legs whose design would fixate the material that it was intended to support. We tried several different leg positions in the PEEP series that were all customized to the respective PEEP cabinet that they would support. All the legs are (mounted?) flush into the drawers side piece and can be dismounted.

In addition to PEEP we designed KEEP. As little as possible we wanted to work with fixed shelving’s and came up with the idea to work with loose boxes that can be pushed around, piled up and spun around inside the PEEP cabinets. In the KEEP series some boxes have an open front and back cover with perforated metal. Forward facing, these boxes can be a display area for things you want to expose, while rear facing, they could be hiding your mobile charger or cords. There is also a series of boxes with sliding perforated shutters.

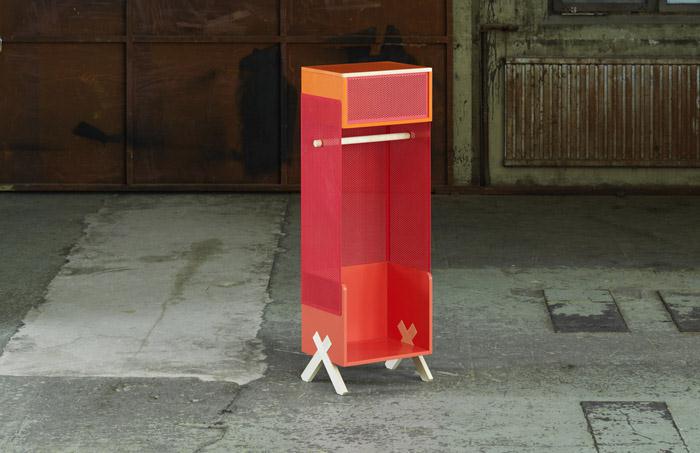

/wp-content/uploads/2012/02/48cb2bb6e7d5fa736ced9b2c9474e502.jpg

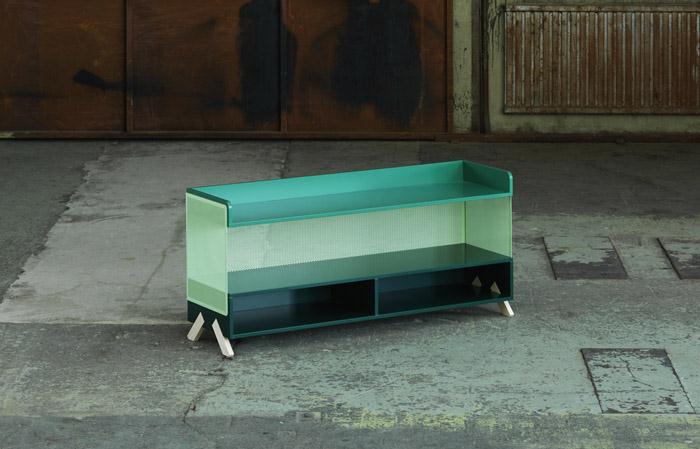

/wp-content/uploads/2012/02/2bd63c7840be0b0b9c66b333347cf421.jpg

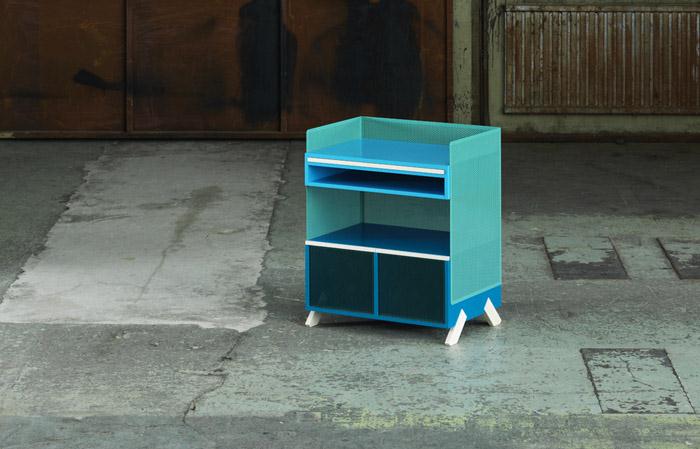

/wp-content/uploads/2012/02/550a6b8cc4540f4bbff7097cb637af50.jpg
