“我们感兴趣的是，那些在上海的街道市集与里弄市场是如何构成独特的自然景观；另外一方面，这些市集轻巧地融入在城市各个角落并提供特定居民日常所需。” ── HAS design and research

“We are interested in how the street market in Shanghai and the Lane Market do form a unique natural landscape; on the other hand, these markets are like an organic situationist space in the city, hiding in every corners and providing the daily needs of specific residents.” ─ HAS design and research

这是一个面积54 m2由明珠美术馆发起的艺术生活实验室，旨在于创造一个无边界的艺术衍生品商店，并在上海最盛大的设计周展出为期三天的实验棚子；同时明珠美术馆作为环保生活的实践者，委托HAS design and research在设计中尽量采用回收材料外，上海设计周之后需被运回美术馆继续使用。

This is an art life laboratory initiated by the Pearl Art Museum with an area of 54 m2. It aims to create a borderless art derivative store and exhibit a three-day experimental shed at the grandest design week in Shanghai. At the same time, the Pearl Art Museum as a practitioner of environmentally friendly living, HAS design and research is entrusted to use recycled materials as much as possible in the design. After Shanghai Design Week, the pavilion needs to be transported back to the museum for continuous usage.

▼明珠之丘主入口鸟瞰，bird’s eye view of the main entrance of the Pearl Art Hills © Jenchieh Hung

上海设计周每天可接纳数万参访者到来，商家为了强调展馆的自明性，常态都以高墙作为区隔并确保商业面积的最大化；然而在“明珠之丘”中，HAS采用起伏与围合的姿态，在吵杂的场地中提供另一种沉静的空间。设计最终采用近1000本回收旧书搭建成自然山丘（由业主明珠美术馆与新华书店联合提供）。其形状与场地发生微妙的融合，不仅消除两边墙板所产生的压迫感，更将现存的结构柱隐藏在丘陵中，塑造非日常的空间体验。

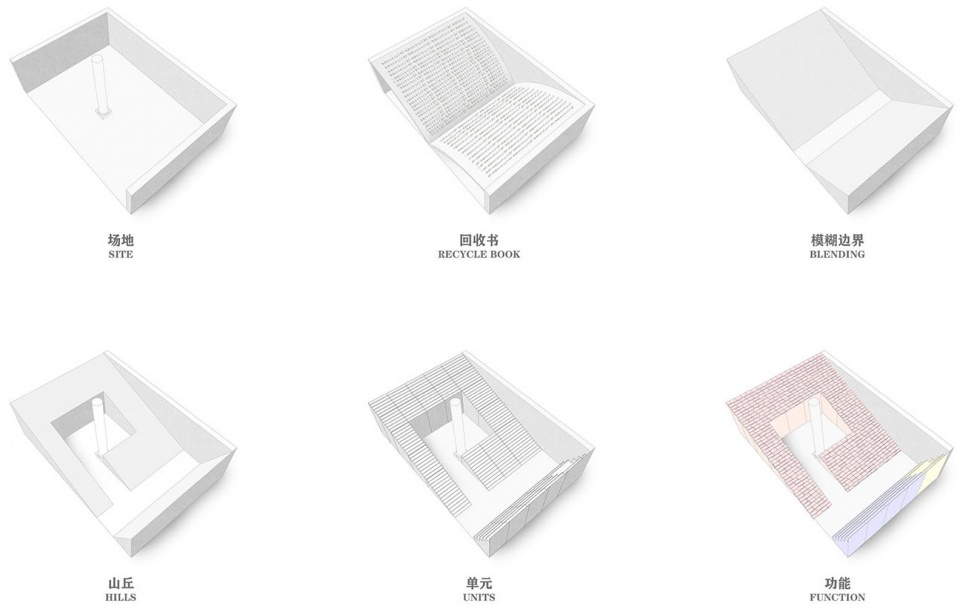

▼功能研究图，processing diagram © HAS design and research

Shanghai Design Week can accommodate tens of thousands of visitors every day. In order to emphasize the self-existence of the pavilion, the high walls divided the space to ensure the maximum commercial area. However, in the “Pearl Art Hills”, HAS created the undulating landscape with the enclosed posture, it provided a protection of noise and generated the tranquil atmosphere. The design eventually uses nearly 1,000 recycled old books to build a natural hill (provided by the owner Pearl Art Museum and Xinhua Bookstore). Regarding to the site context with one existing column in the middle of the area, the natural hill helps relaxing the constraint of the two sidewall panels and integrating the existing column into the space.

▼隐藏在山丘中的“厅” ，the hidden VIP space in the hill for privacy conversation © HAS design and research

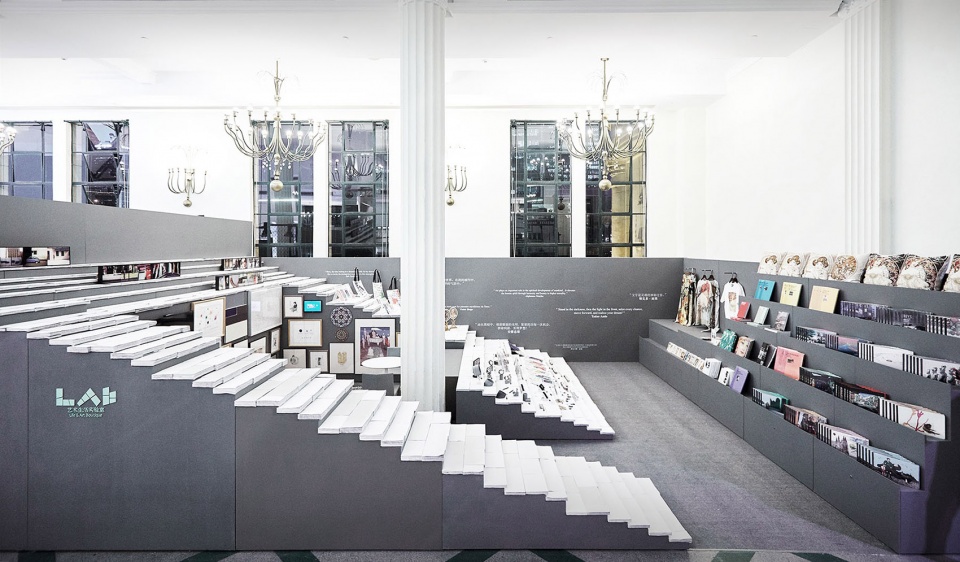

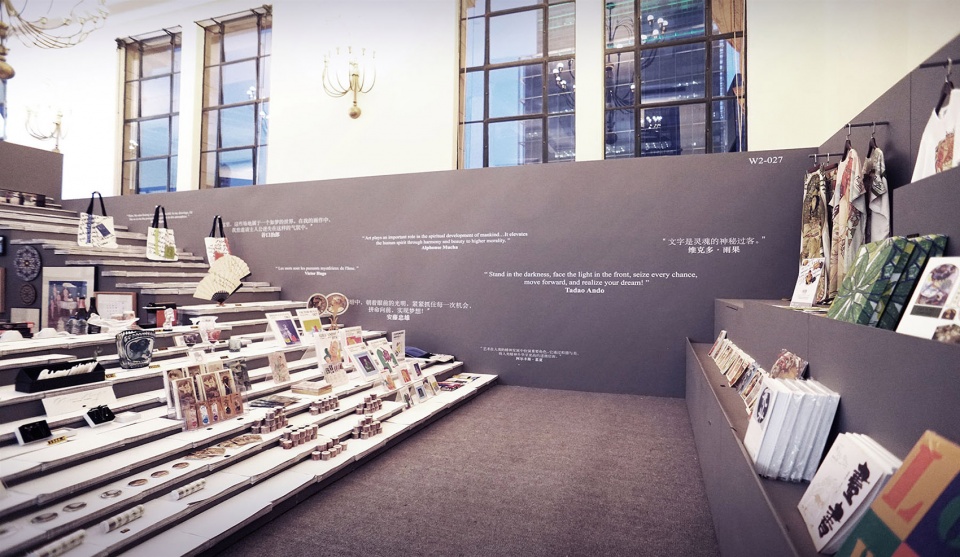

▼层叠的里弄市集提供另一种空间性，the Lane Market offers another spatial atmosphere © HAS design and research

除此之外，整个形体被切分成数十个小单元，这些单元除了符合工厂常规生产尺寸，更易于汽车搬运和人工组装；而每个单元不仅表皮肌理都略有差异，在不同的场地空间中也具备多种组合方式，提供多样化的使用可能性。

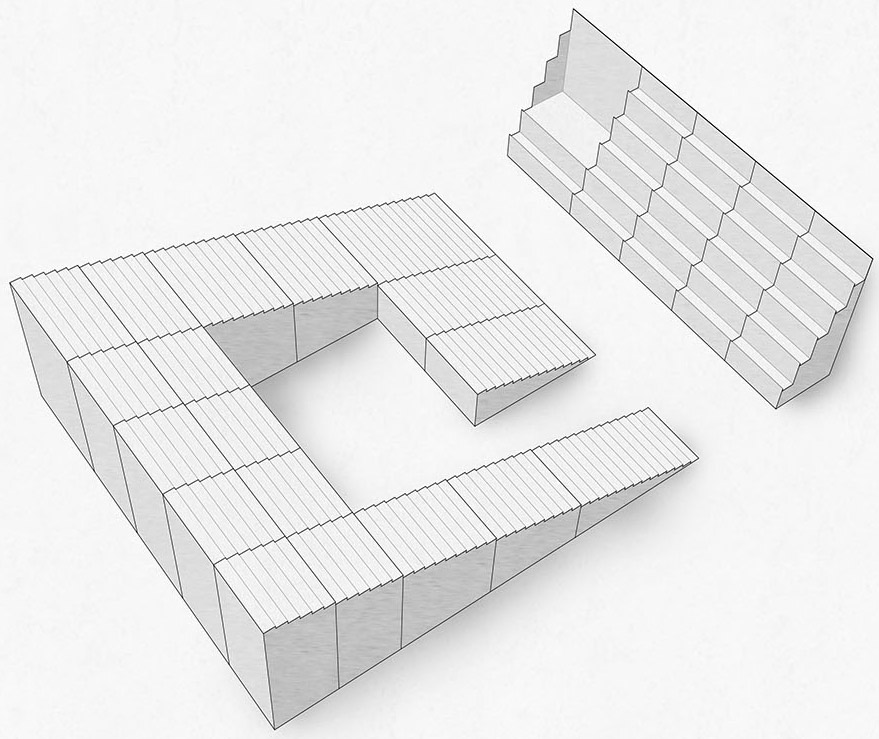

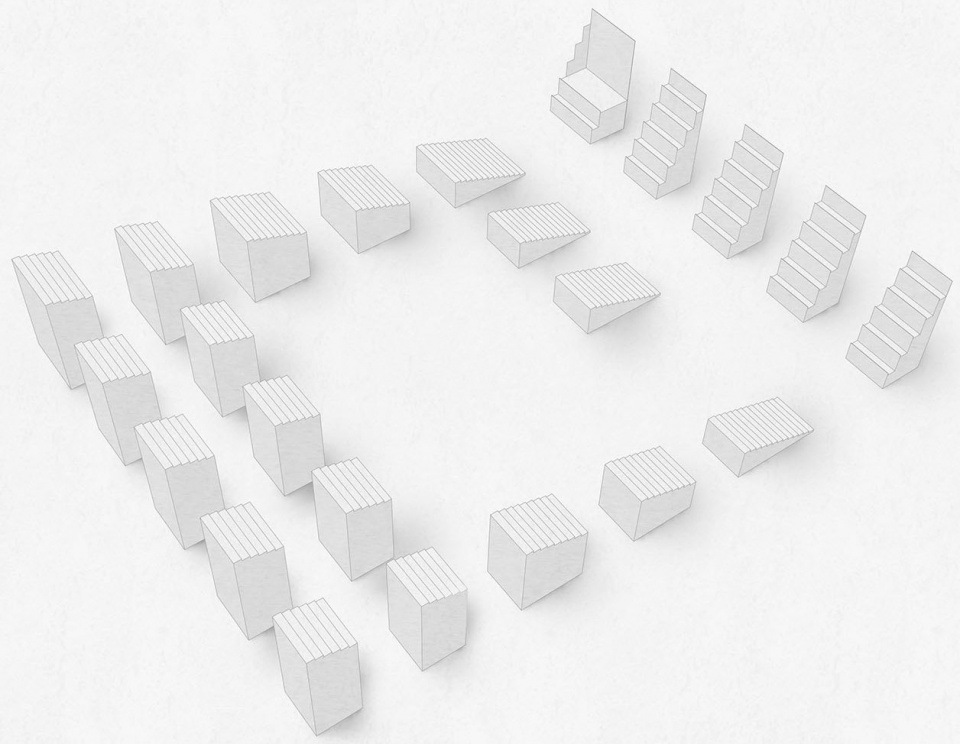

▼易拆解组装和搬运移动的单元，the assembly units are easy disassemble and handling moving © HAS design and research

In addition, the entire shape is divided into dozens of small units, which are more suitable for transportation and manual assembly in addition to the factory’s conventional production size; and each unit not only has slightly different skin textures, but also in different venue spaces. There are also a variety of combinations available to provide a variety of possibilities.

▼带轮轴可易于移动的便捷性设计，整个形体被切分成数十个小单元，convenient design with wheel axles for flexible movement, the entire shape is divided into dozens of small units © HAS design and research

另外一方面，在单元上方采用四种尺寸的旧书籍，被三种白色的亚光涂料重新覆盖。

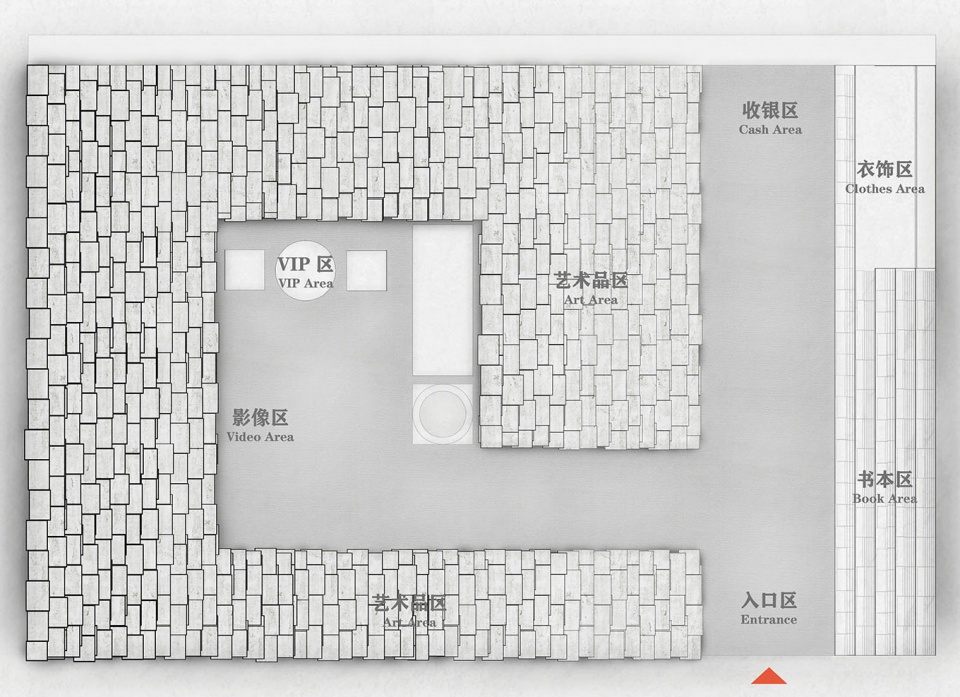

▼整体平面图，general plan © HAS design and research

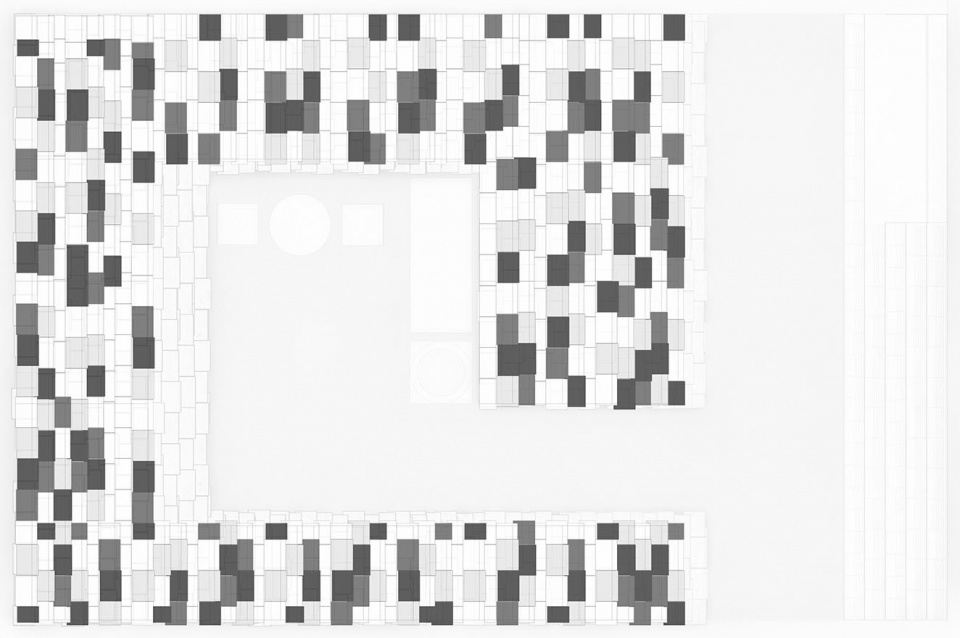

▼回收书籍安装平面图，book location plan © HAS design and research

On the other hand, the old books of four sizes are overlaid on the top of the unit, and are covered by three different white matt paints.

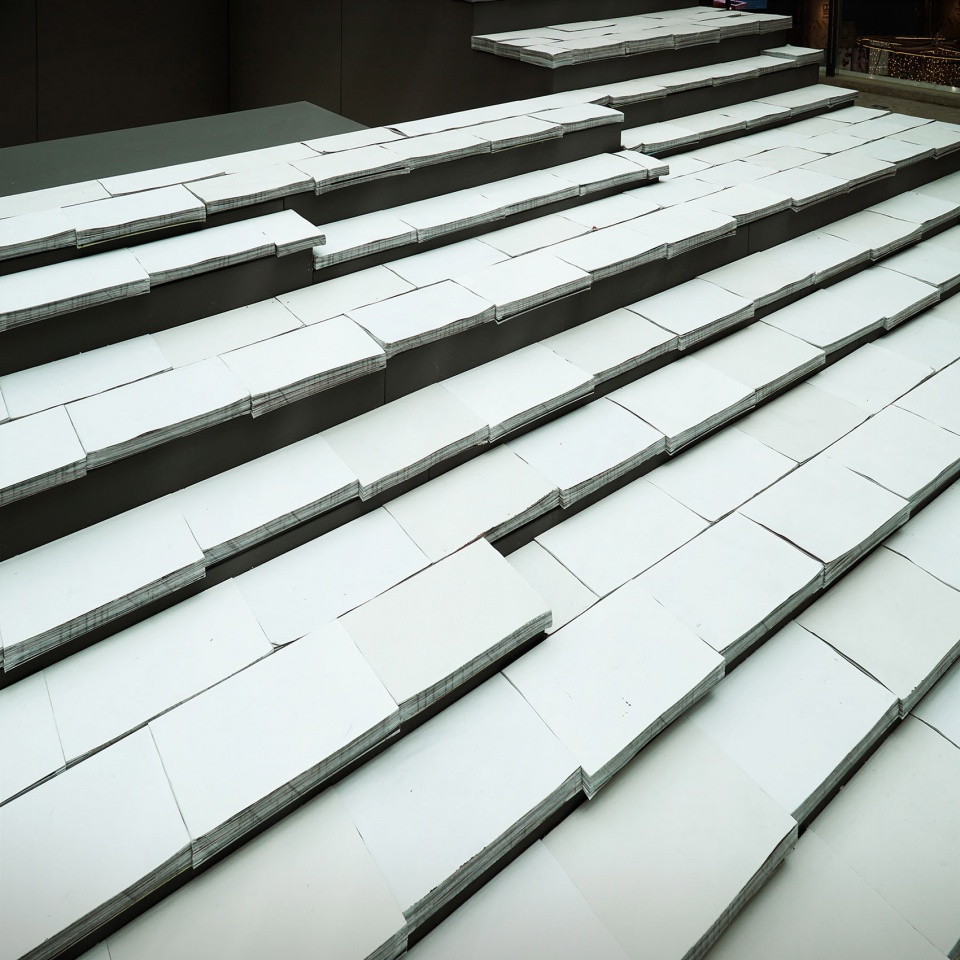

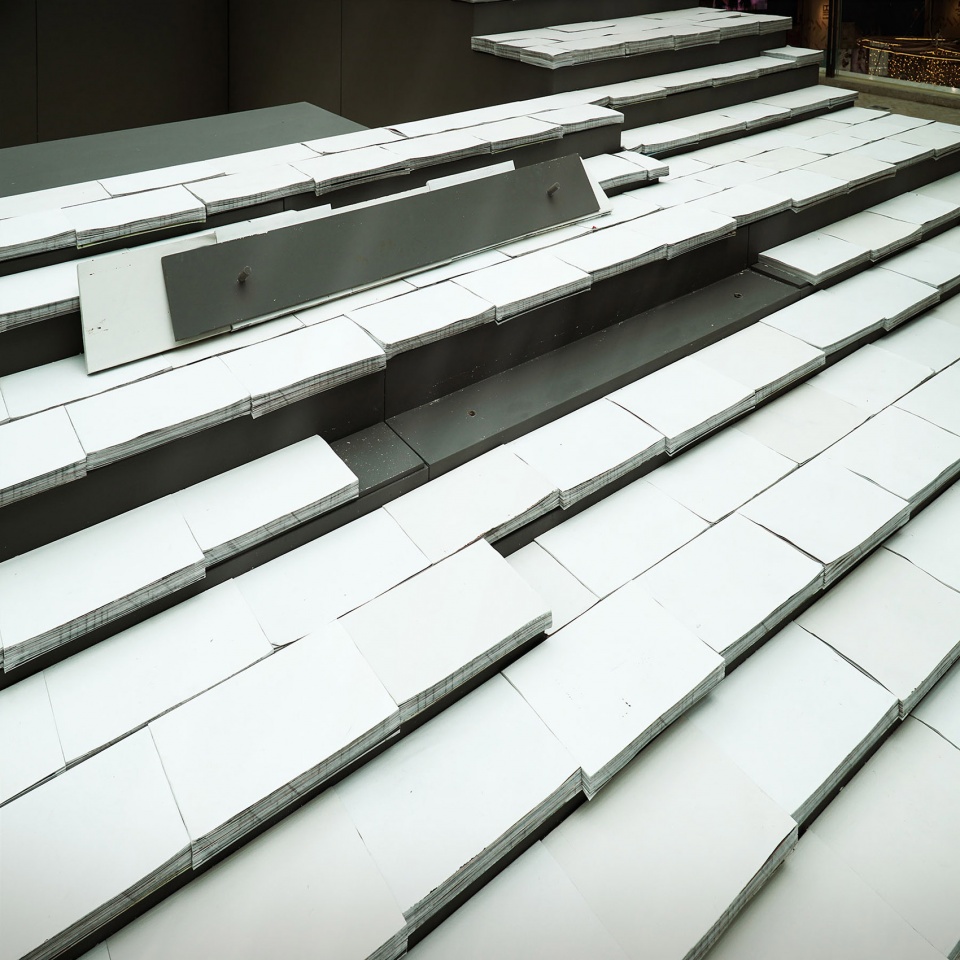

▼锯齿状与不同颜色的组合创造出多样化视觉，zigzag orientation and different colors combined created the diverse vision © Jenchieh Hung

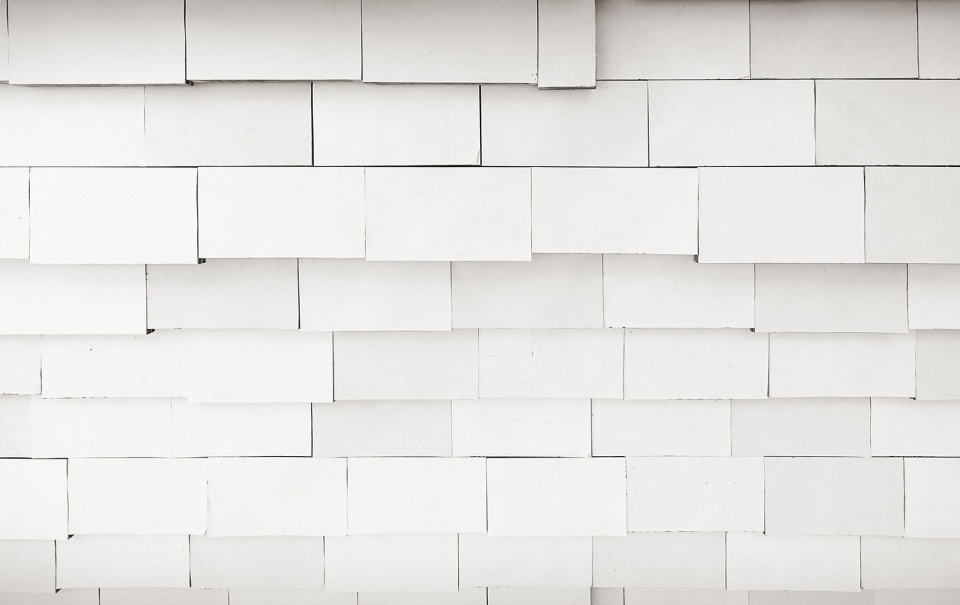

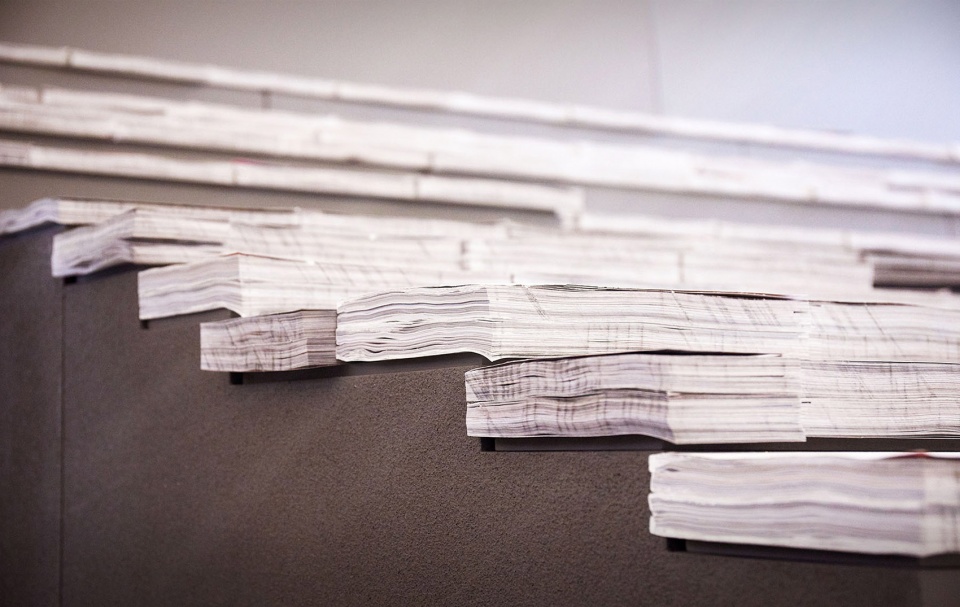

▼每本旧书的断面都有着独特质感，each old book with a unique paper texture © Pearl Art Museum

下方8mm的木板皆以卡榫方式与单元固定，因此这些旧书仍可被取下使用或替换，应对未来需求变化的灵活性设计。

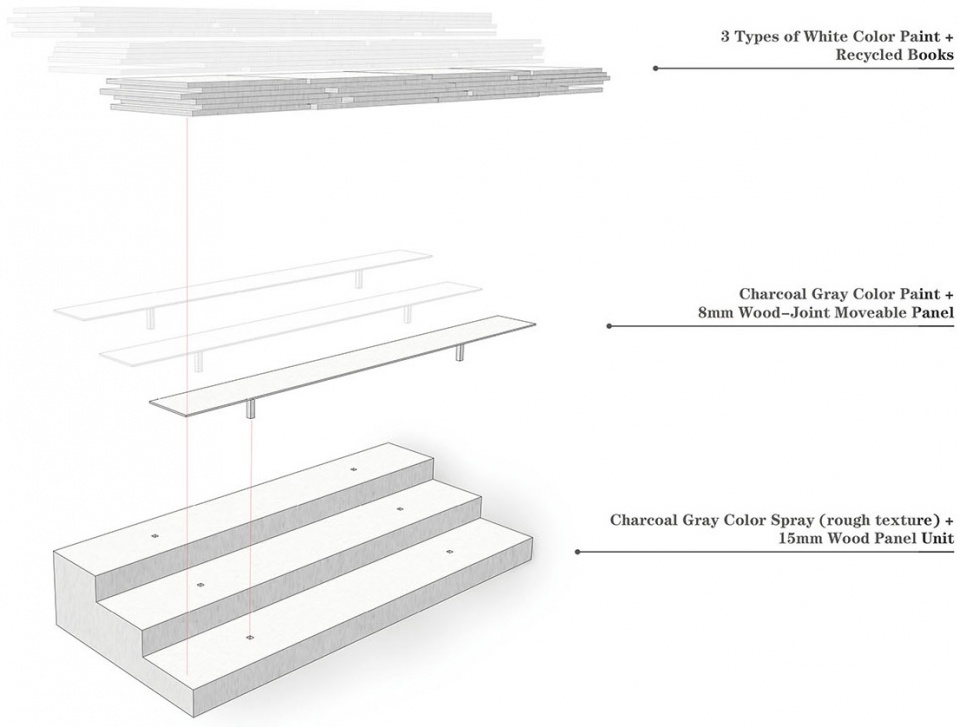

▼卡榫木板与回收旧书的细部图，detail installation of wood panel and recycling old books © HAS design and research

The 8mm wood panels below the books are fixed in the form of cassettes, so these old books can still be removed or reused. This zero waste design is allowed for replacement responding to the future changes later.

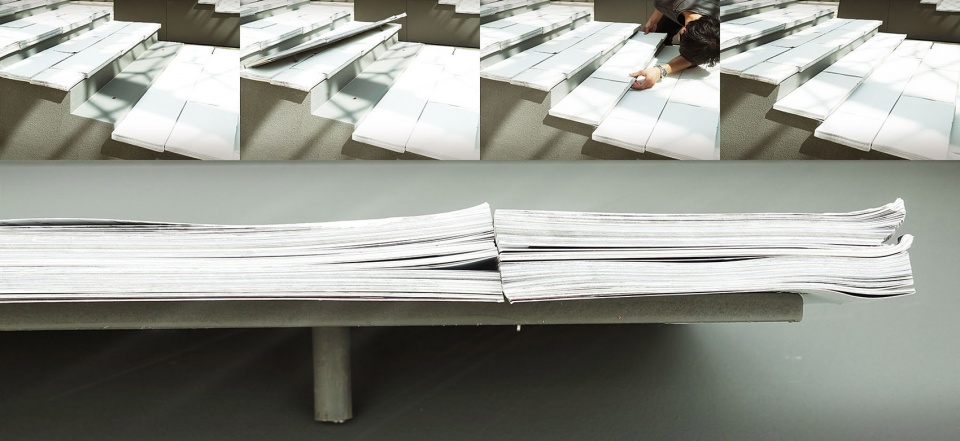

▼每个旧书都被固定在可拆卸的卡榫木板上（左），具有高灵活性可拆卸的卡榫木板（右），each old book is fixed to a detachable wood panel (left), removable wood panel with high flexibility (right) © Sam Lee

▼卡榫木板与回收旧书的拆卸组装，demolition assembly of wood panel and recycled old books © Jenchieh Hung

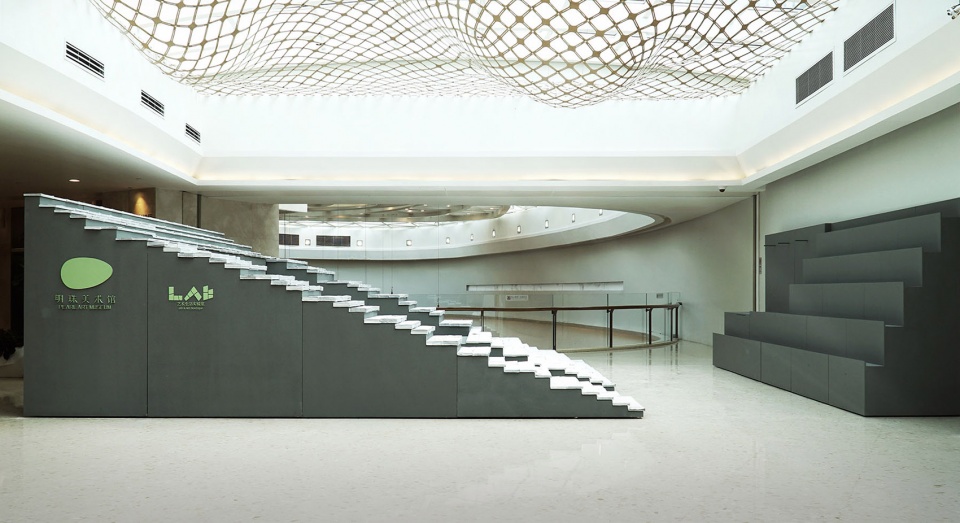

▼上海设计周结束后搬运回明珠美术馆继续使用，after the Shanghai Design Week, the pavilion moves to the Pearl Art Museum © Sam Lee

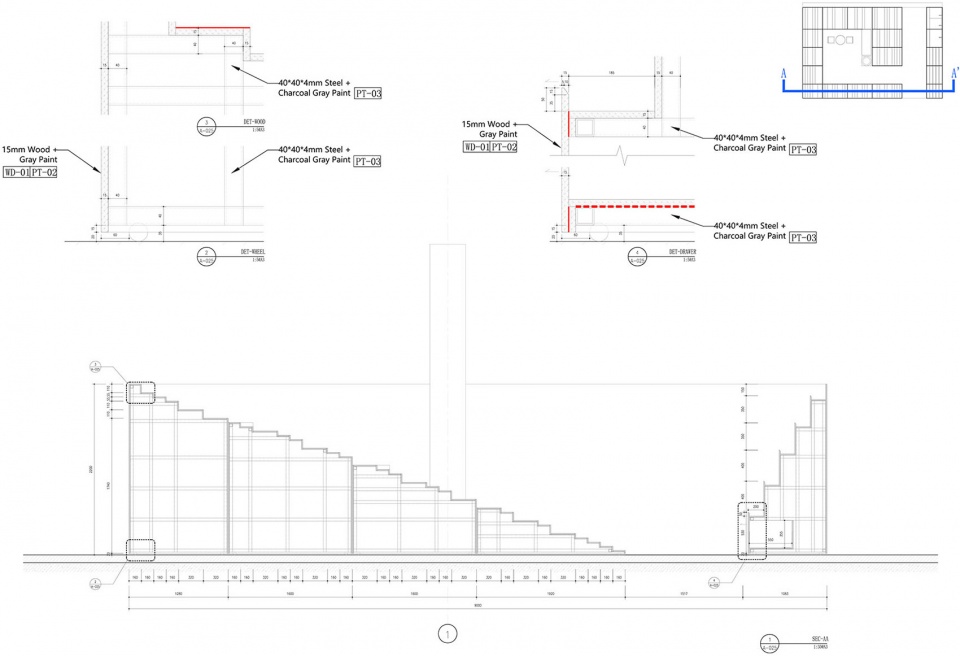

▼细部设计图，detail Drawing © HAS design and research

项目名称：移动的丘陵──明珠之丘
设计方：HAS design and research
完成年份：2019
设计团队：洪人杰、Kulthida Songkittipakdee、范紫东
项目地址：（上海展览中心）现于上海明珠美术馆
建筑面积：54平方米
业主：明珠美术馆
制作方：ART ZHOU
摄影版权：HAS design and research、Pearl Art Museum、Jenchieh Hung、Sam Lee

Project name: Pearl Art Hills
Design: HAS design and research
Completion year: 2019
Team: Jenchieh Hung, Kulthida Songkittipakdee, Zidong Fan
Project location: (Shanghai Exhibition Center) Now in Pearl Art Museum, Shanghai
Gross built area: 54 sq.m.
Client: Pearl Art Museum
Construction: ART ZHOU
Photo credits: HAS design and research, Pearl Art Museum, Jenchieh Hung, Sam Lee
