来自 Komada architects’ office 对gooood的分享。更多请至：Komada architects’ office on gooood
Appreciation towards Komada architects’ office for providing the following description:

建筑师希望能够打造一个通透而充满着空间感的建筑，以削弱建筑的体量感。高耸的三面墙体与楼板相接，打造出一个个如同隧道般的连贯空间。宽窄各不相同的楼板高低错落，创造出丰富的空间变化，而一前一后的两块狭窄楼板则被打造为两个悬浮的空中花园。空中花园的绿植既给整个建筑增添了乐趣和生机，又起到了遮挡作用。而其中从对街父母宅中移栽过来的绿植仿佛象征着生命的传承。

What we planned was to create the architecture as the void rather than the mass. Specifically, tunnel-like void spaces were created with three walls and slabs being supported by such walls. The height and width of slabs are arranged in such a way that creates different types of spaces, and the narrow slabs, one that faces on the street and the other at the back of the premises, are used as hanging gardens. These hanging gardens are not only the pleasure to have greens that are easily accessible from inside the house, but also effective for appropriately obscuring the view from the street. In addition, some of the greens from the parents’ house across the street were planted in the hanging gardens of this new house, being taken over by the new generation.

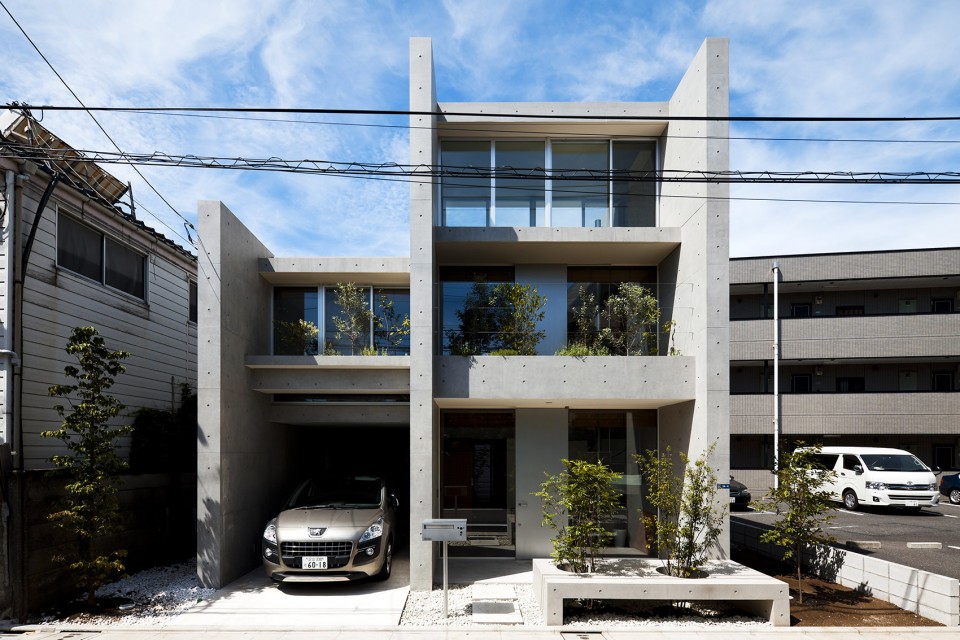

▽ 建筑正立面，street facade

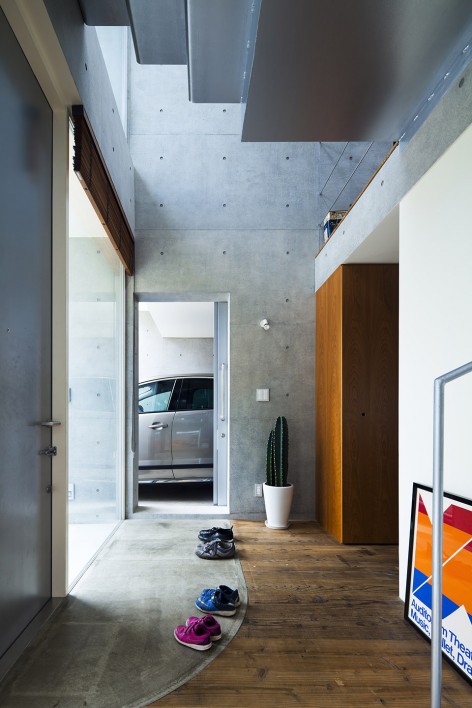

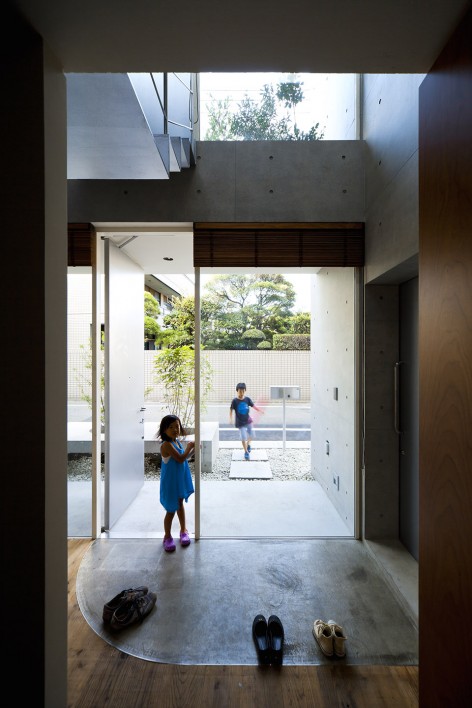

▽ 入口，entrance

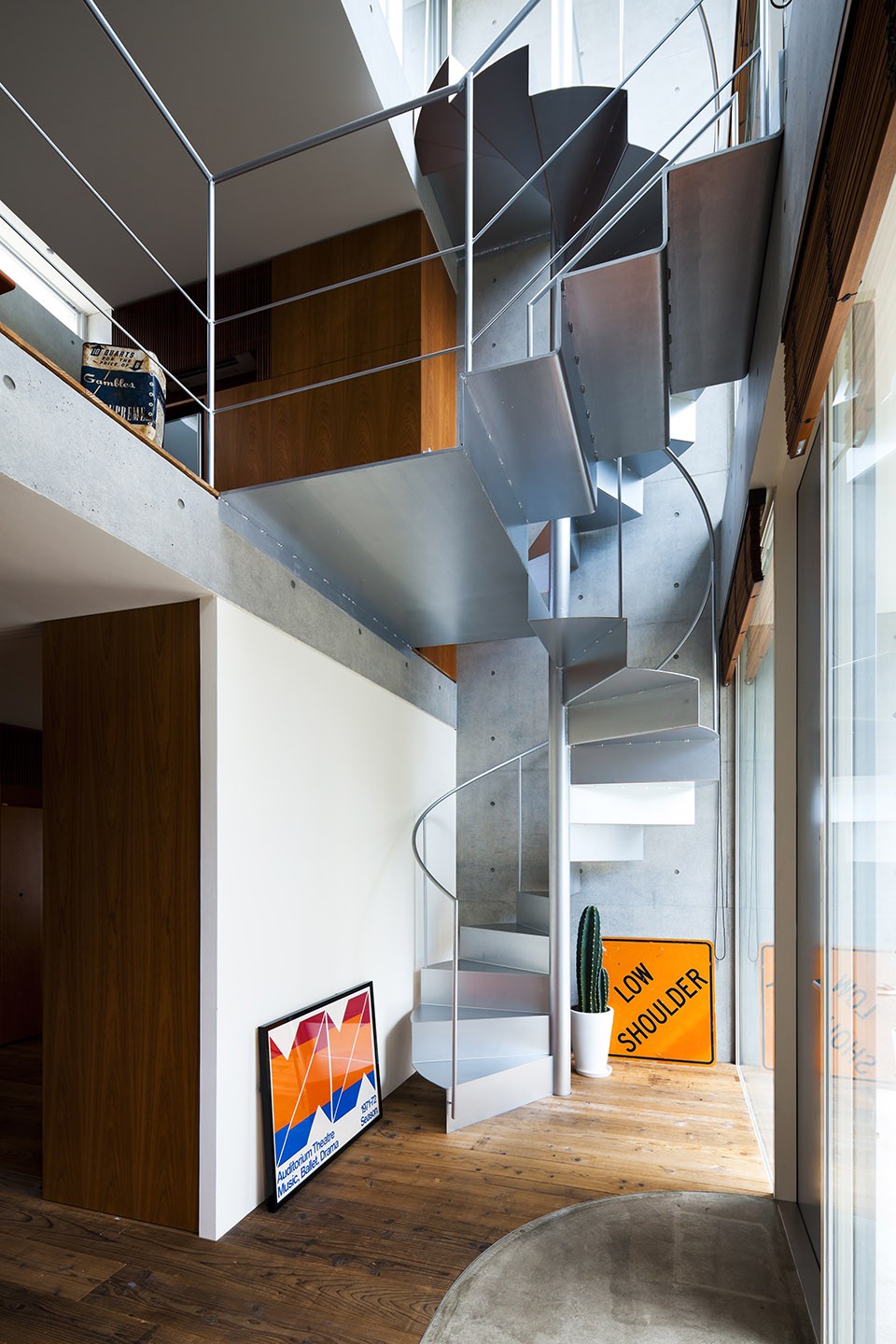

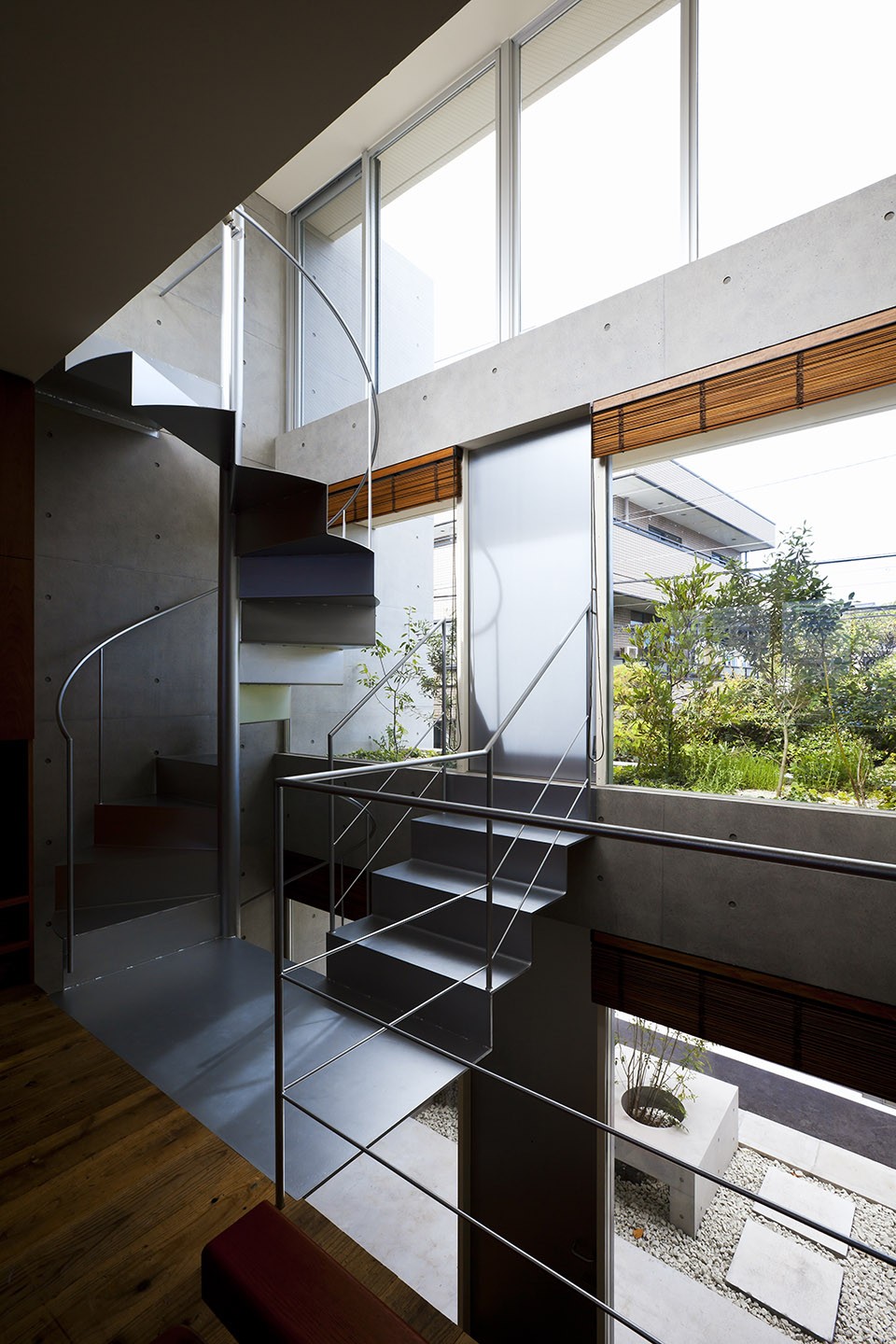

▽ 贯通上下的楼梯，staircase

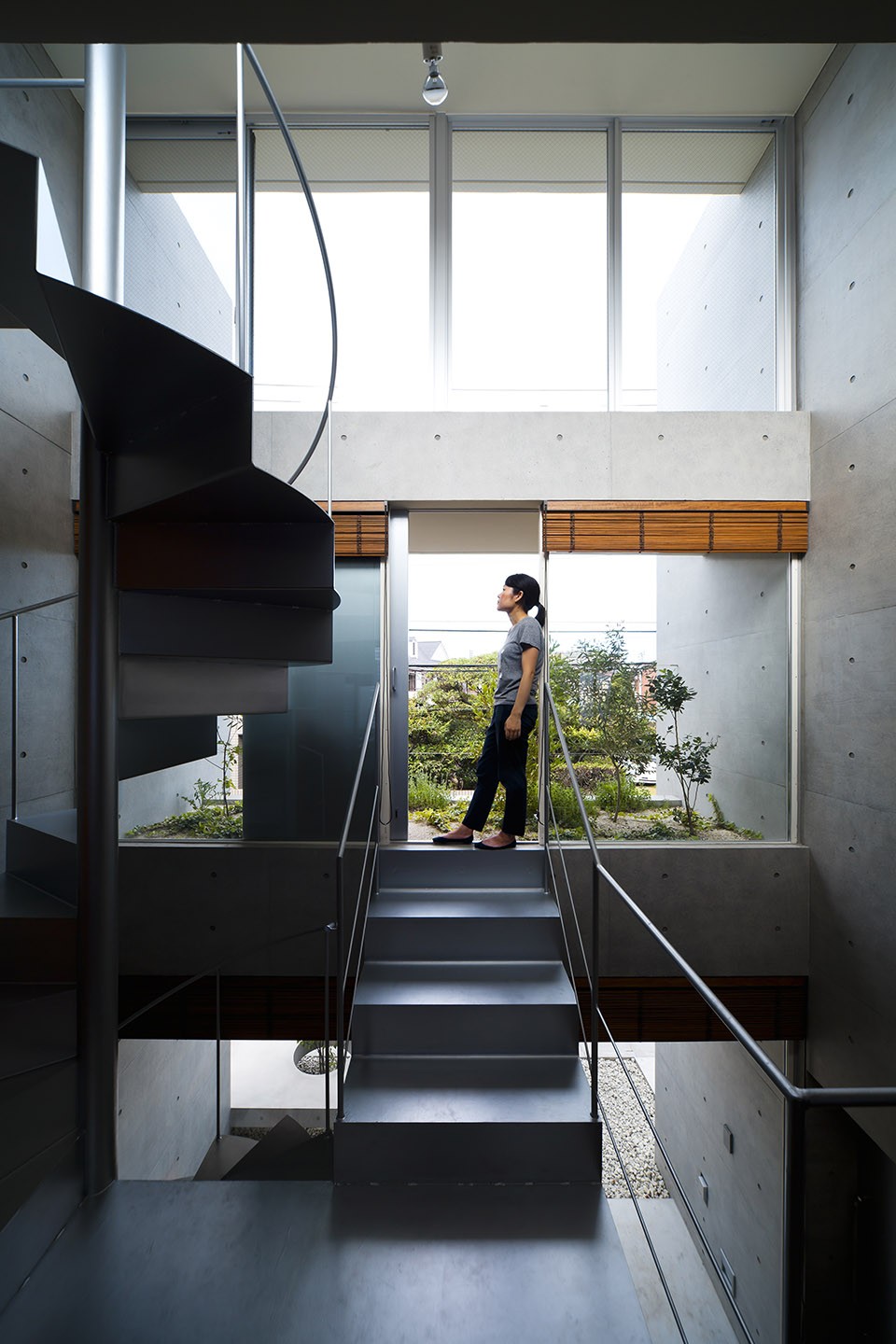

▽ 悬浮的空中花园，the hanging garden

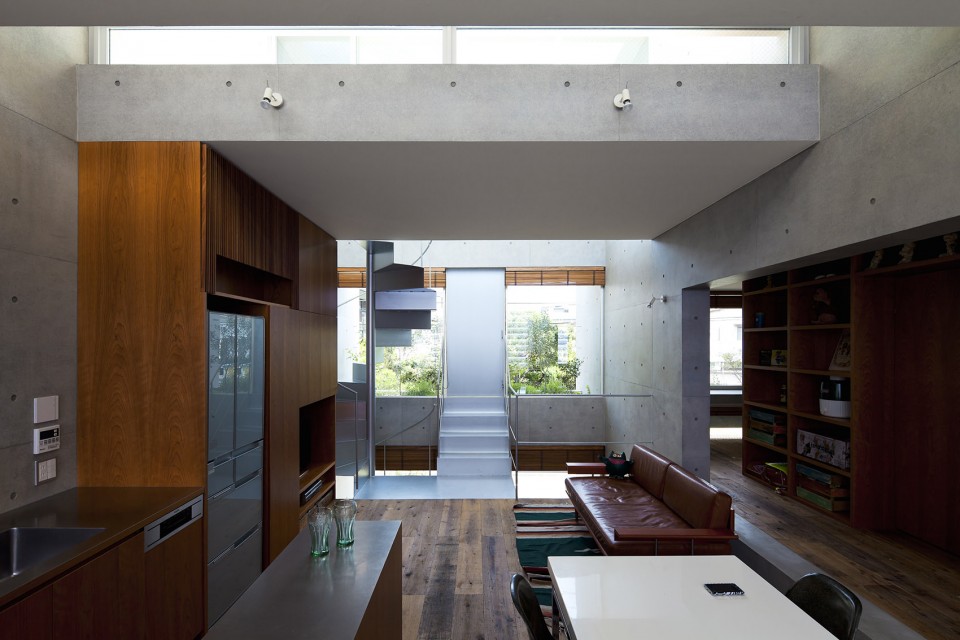

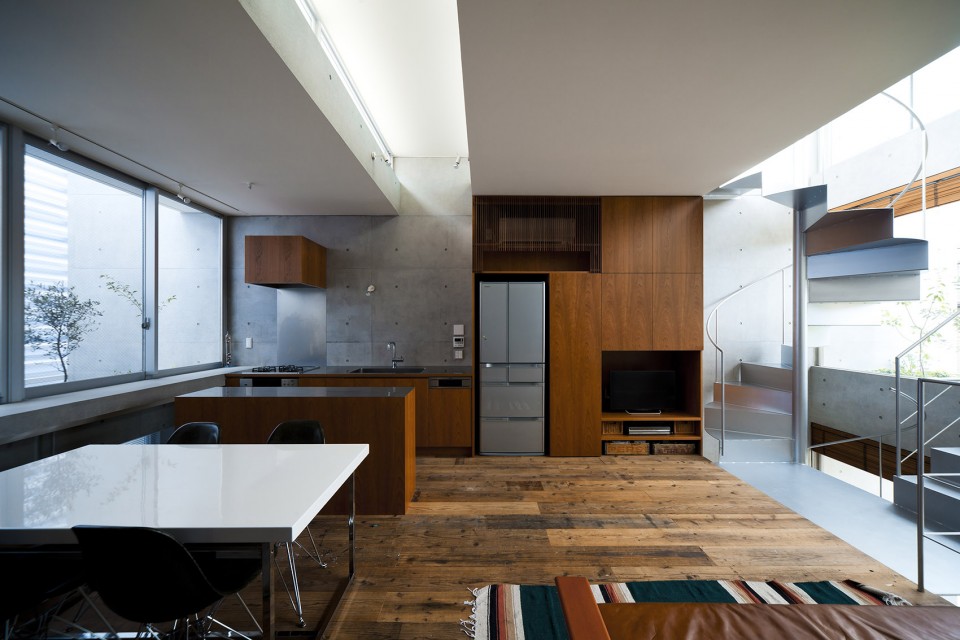

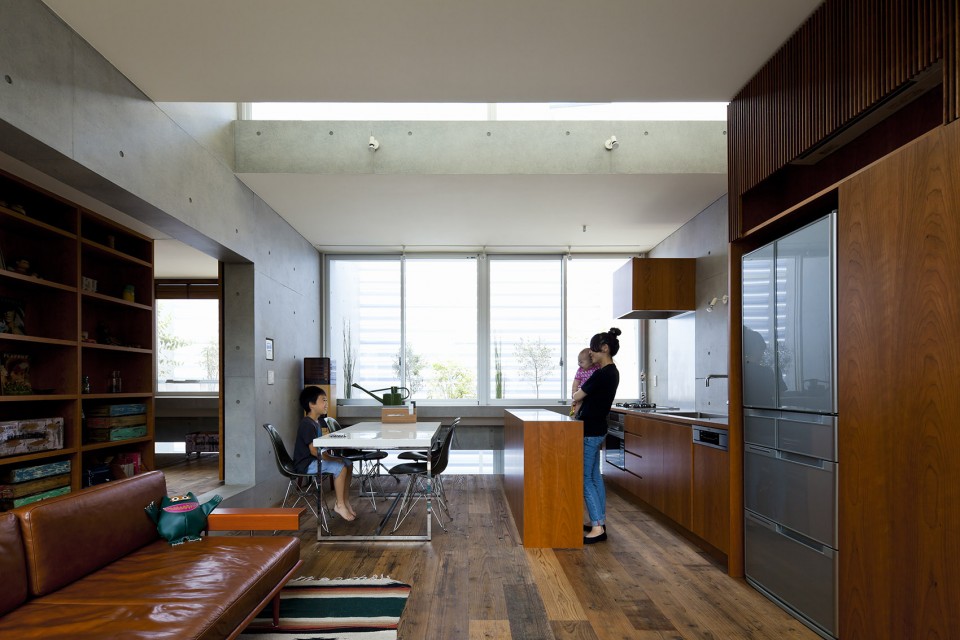

▽ 位于二层的客厅与厨房，living room and the kitchen at the second floor

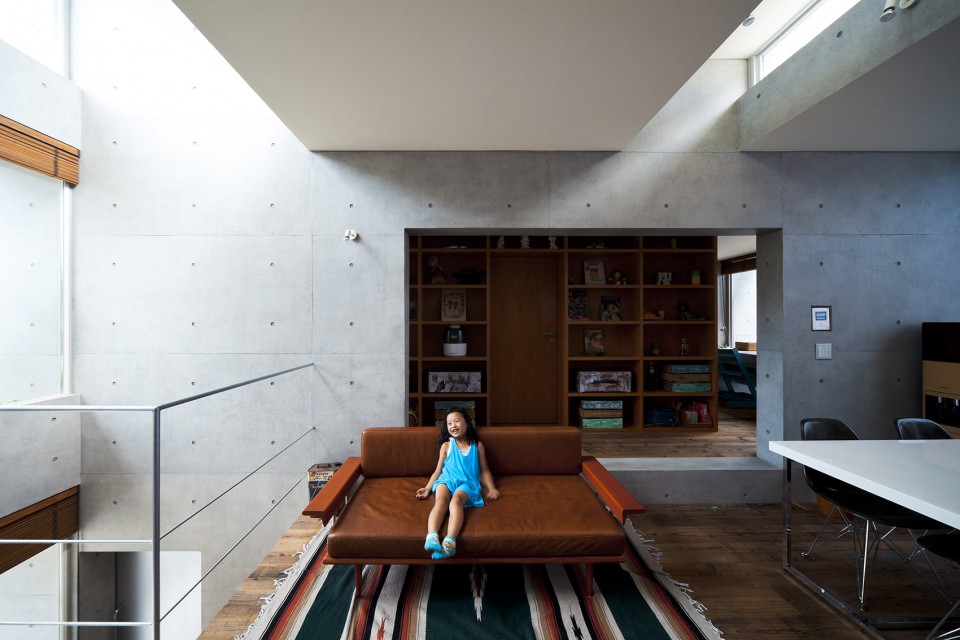

▽ 宽窄各不相同的楼板高低错落，the height and width of slabs are arranged in such a way that creates different types of spaces

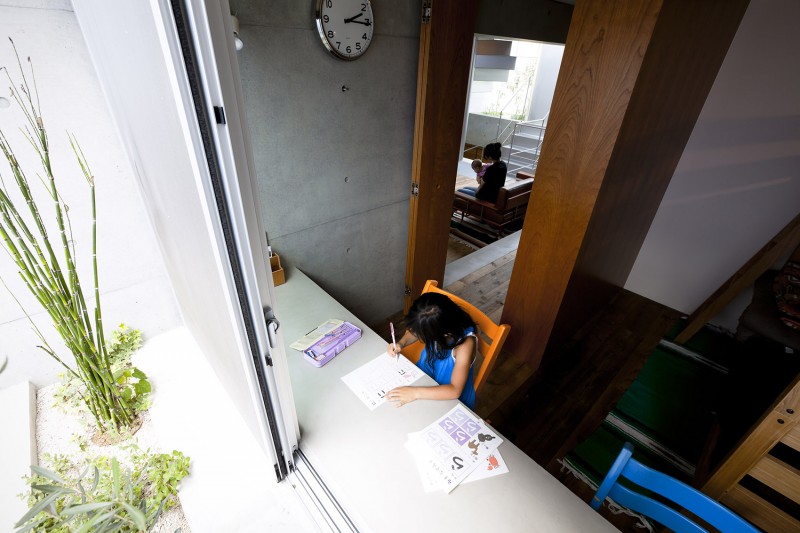

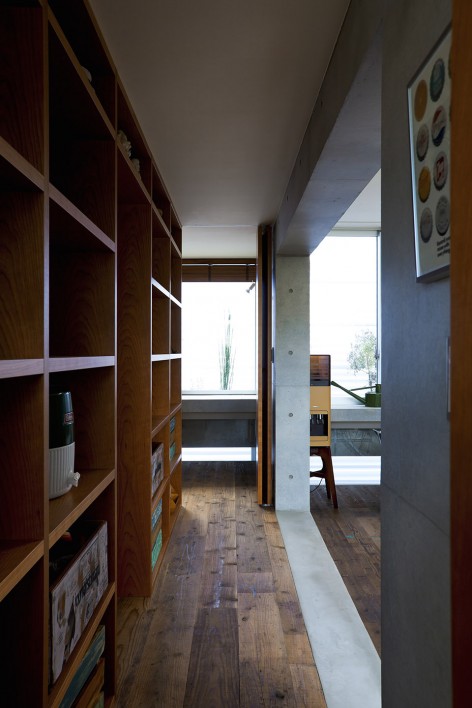

▽ 与主空间相连的儿童房，kid’s room

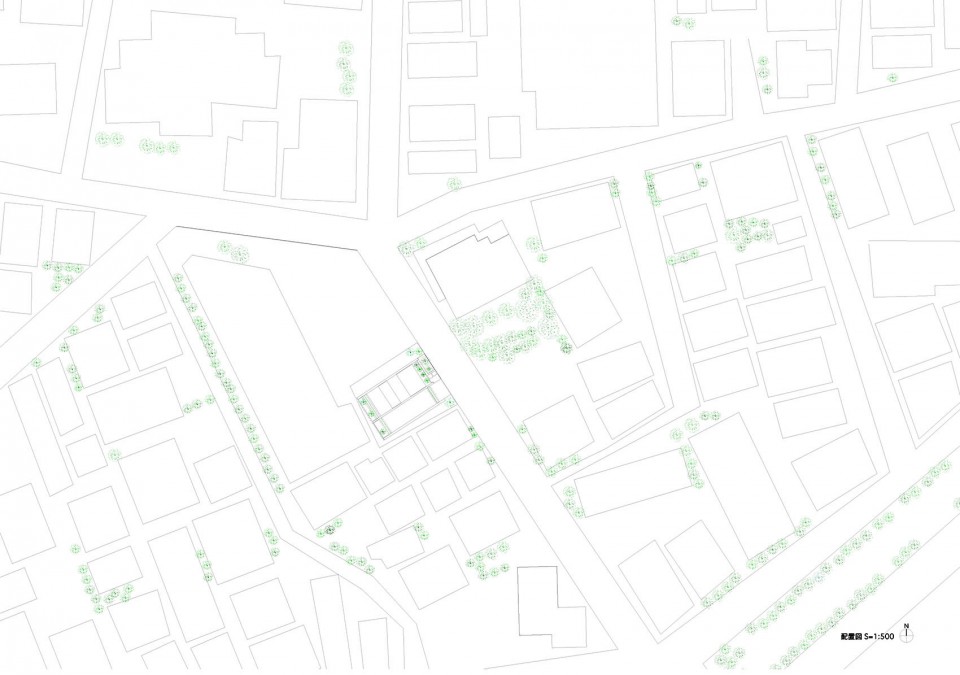

▽ 总平面图，site plan

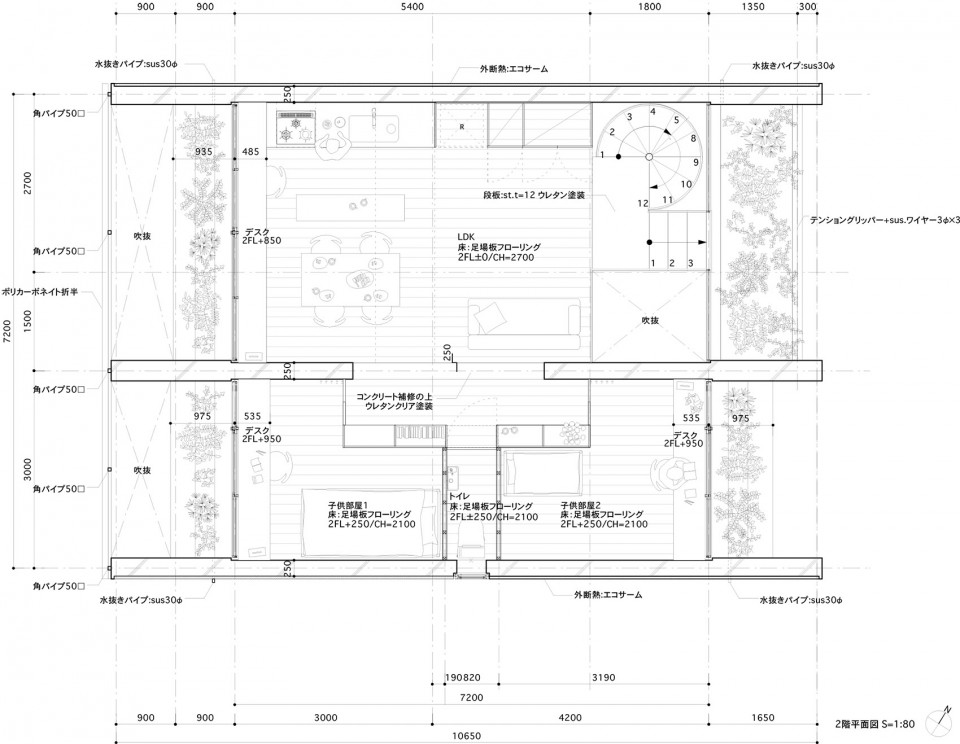

▽ 二层平面，second floor

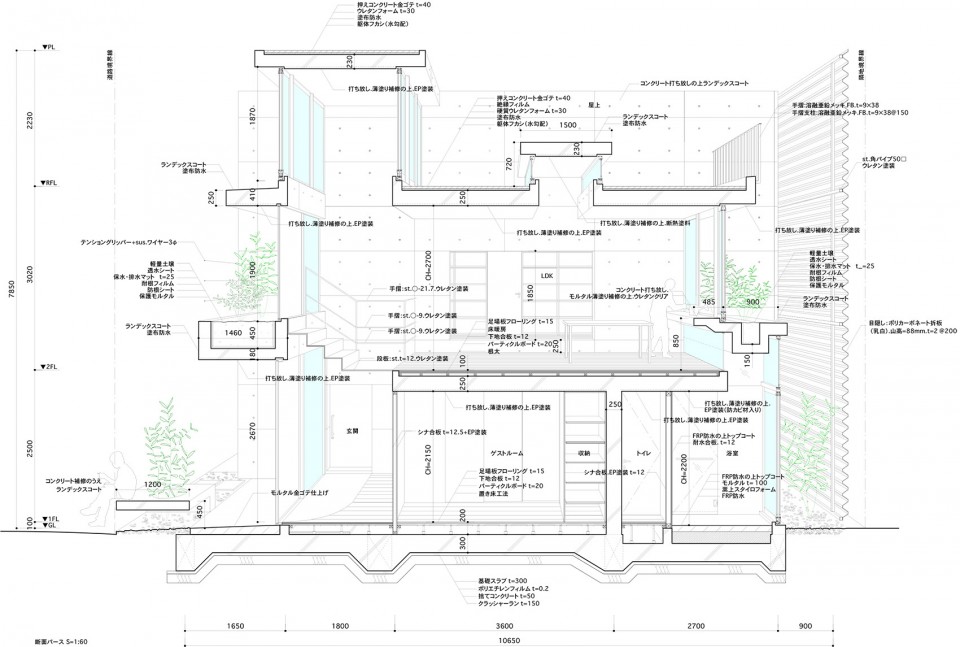

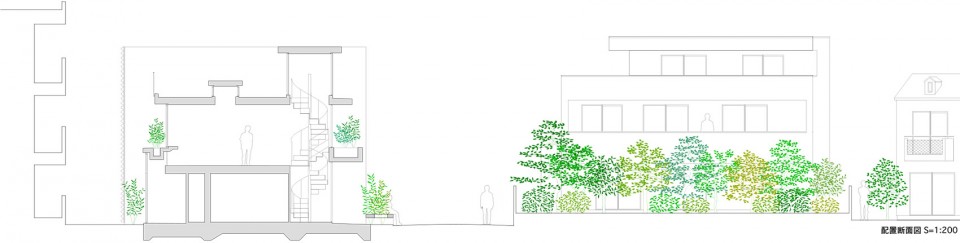

▽ 剖面图，section

[pallets] 2014
location: Ohta-ku,Tokyo
structure： RC
site area： 133.60m2
footprint area： 66.69m2
total floor area： 94.70m2
architects： Komada architects’ office 　Takeshi Komada, Yuka Komada
photo : Toshihiro Sobajima

MORE：Komada architects’ office，更多请至：Komada architects’ office on gooood
