非常感谢WOWHAUS予gooood分享以下内容。更多请至：WOWHAUS on gooood
Appreciation towards WOWHAUS for providing the following description:

项目目标
Objective

– 使涅斯库奇尼花园方向进入高尔基公园的“非官方”入口更加友好，使其像主入口那样受欢迎；
– 在莫斯科市中心的水边打造一个无障碍的休闲娱乐区。

– To mark the ‘unofficial’ entrance to Gorky Park from the direction of Neskuchny Garden, making it more friendly and just as popular as the main entrance;
– To create an accessible recreation area by the water in the center of Moscow.

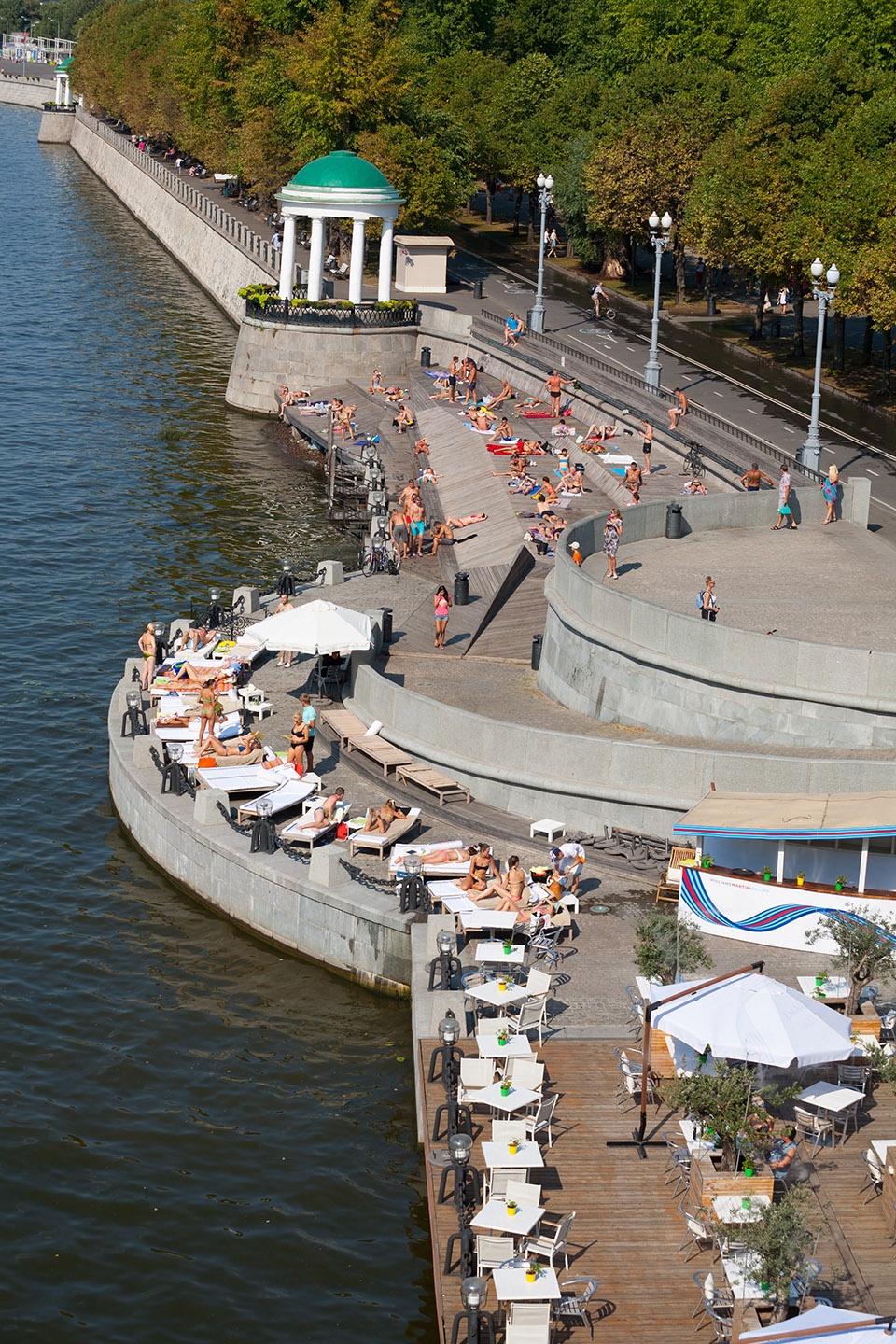

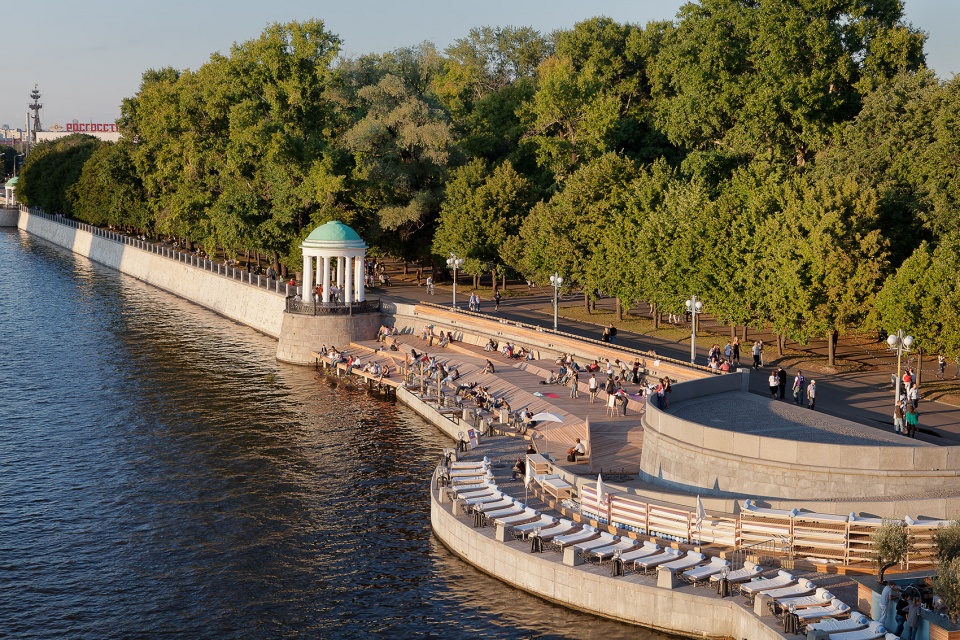

▼项目概览，Overall view © Yogastan

设计方案
Solution

设计团队设计了一个可以替代高尔基公园主入口的方案。主入口区域以花岗岩和大理石为主要材料，与普希金桥相连的“欢迎区”则以木材打造，从而与前者形成鲜明的对比。设计者在这片荒凉的莫斯科河的堤岸上打造了一个带有海滩、淋浴区和酒吧的休闲场所。木质的沙滩区成为高尔基公园全新的标志。

We came up with an idea for how to create an alternative to the main entrance to Gorky Park. By way of contrast with the granite and marble that are the dominant presence at the front entrance, we have used wood for the ‘welcome zone’ leading from Pushkin (Andreevsky) Bridge. On the desolate embankment of the River Moskva we have created a proper leisure zone with a beach, showers, and a bar. The wooden beach is a symbol of the renewed Gorky Park.

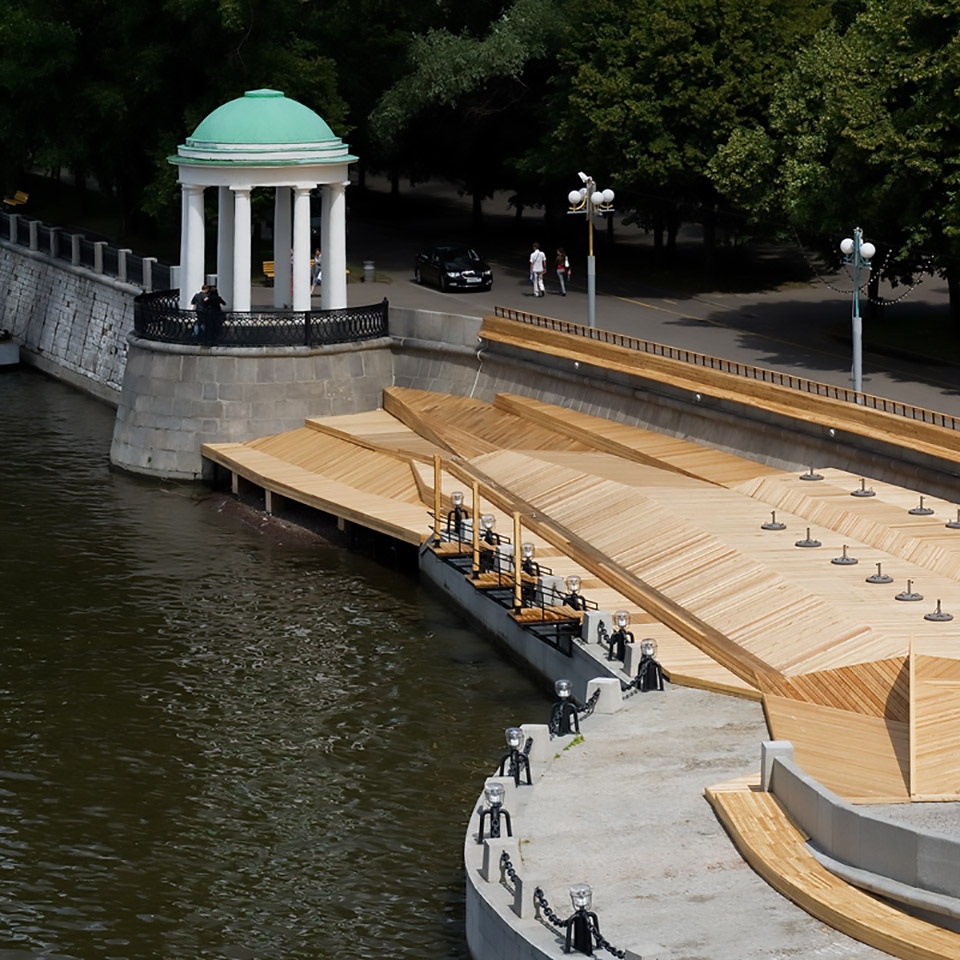

▼沙滩区成为高尔基公园全新的标志，Beach area becomes a symbol of Gorky Park © Yogastan

具有多个斜面的日光浴平台代替了户外躺椅的功能，这种设计大大节省了和河堤上的空间，并且使游客能够自由地坐在或躺在木质平台的不同角度，并逐渐向下方的水面靠近。

炎热的夏天，这个平等自由的场所受到日光浴爱好者们的追捧。很多种类型的活动和聚会都在这里举办。

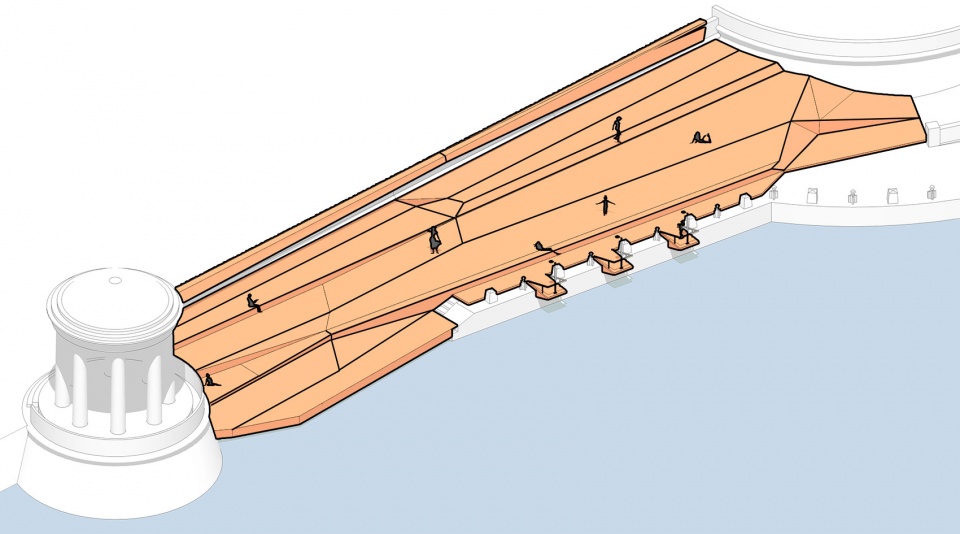

▼日光浴室分析图，solarium analysis diagram © Wowhaus

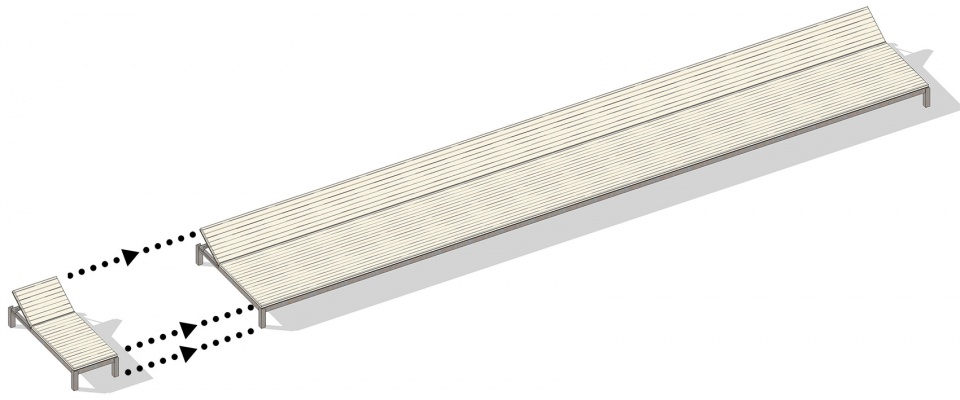

▼躺椅功能分析图，sunbed function analysis diagram © Wowhaus

The diversely angled surface of the solarium does the same job as myriad deck loungers, resulting in a great saving of space on the river embankment. The solarium has been constructed in such a way that visitors can sit or lie down on almost any of the wooden surfaces which meet each other at different angles and descend to the water’s edge.

On a hot summer’s day this democratic spot is extremely popular with sunbathers. All kinds of activities and events are held here.

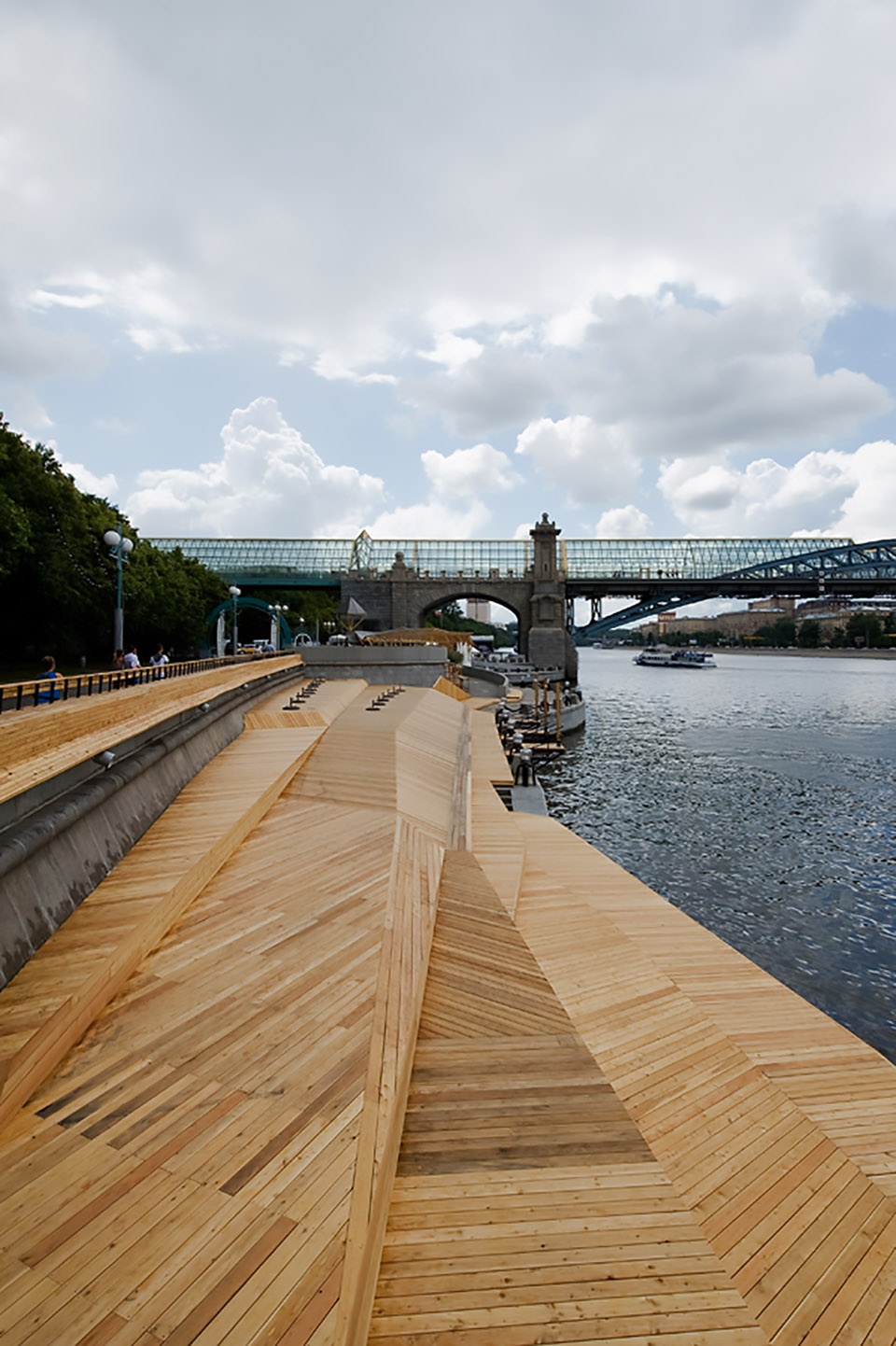

▼不同角度的木质台面，Wooden deck at different angles © Yogastan

▼木质台面细节，The details of the wooden deck © Yogastan

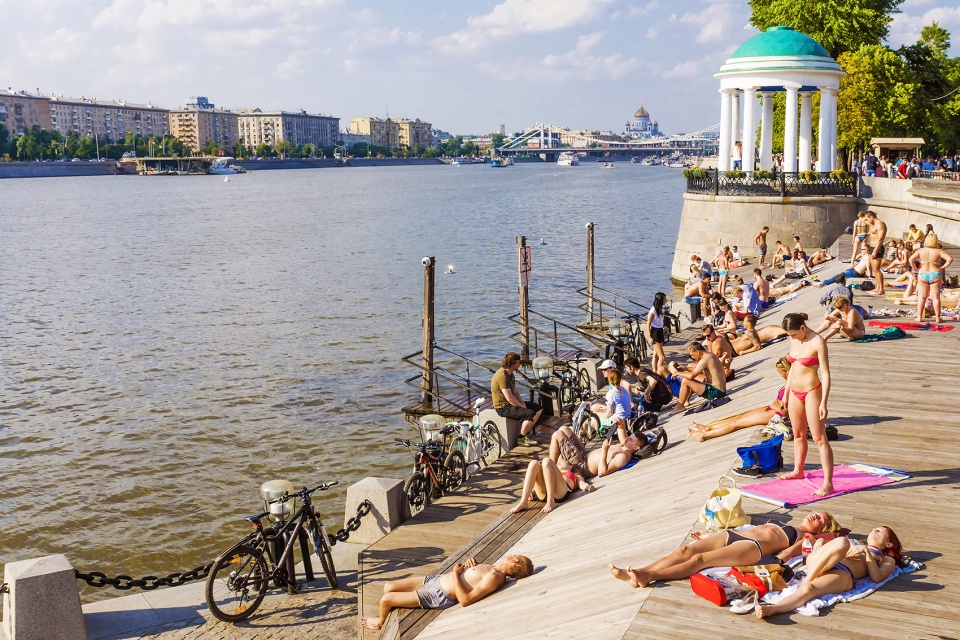

▼正在晒日光浴的人们，People sunbathing © Yogastan

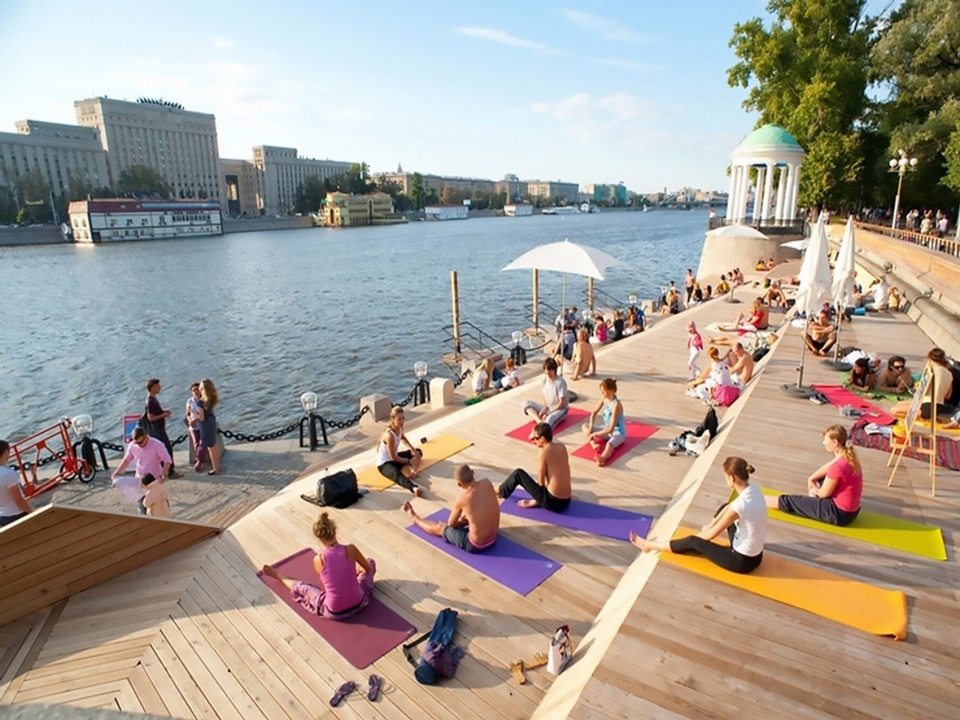

▼举办各种类型的活动，Holding various types of events © Yogastan

由于人们不能在莫斯科河中游泳，设计者们想到了为游客建造水景。淋浴台位于日光浴室区域之外，被设置在水面上。淋浴使用的水被收集在下方的托盘中，并排入下水道系统。

Since swimming in the River Moskva is not advisable, we came up with the idea of a water feature for visitors. The shower consoles stand outside the solarium area, above the surface of the river. Water from the showers collects in trays underneath and drains into the sewerage system.

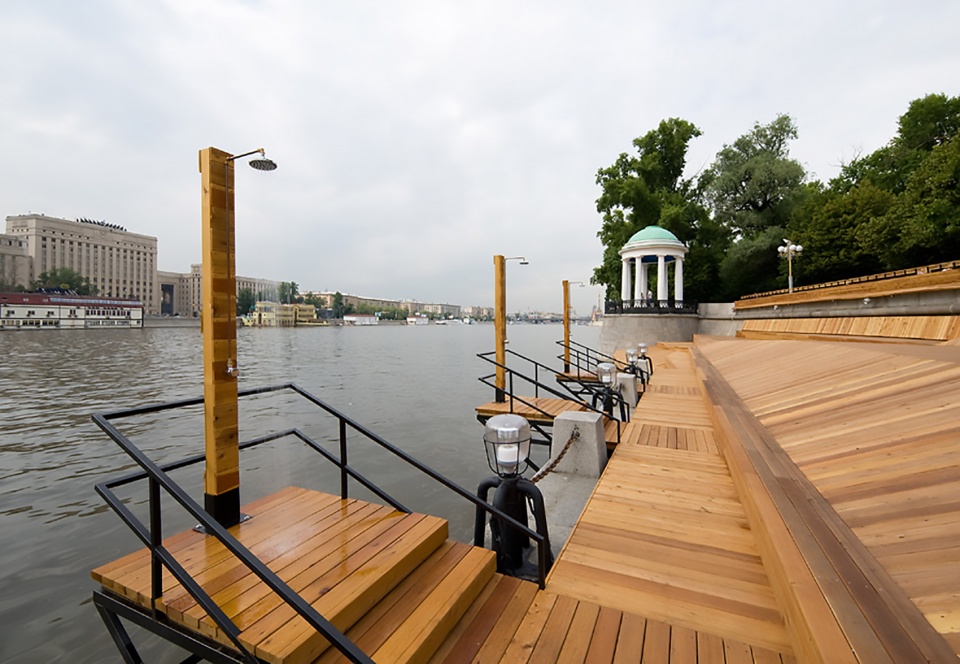

▼淋浴设施，Shower facilities © Yogastan

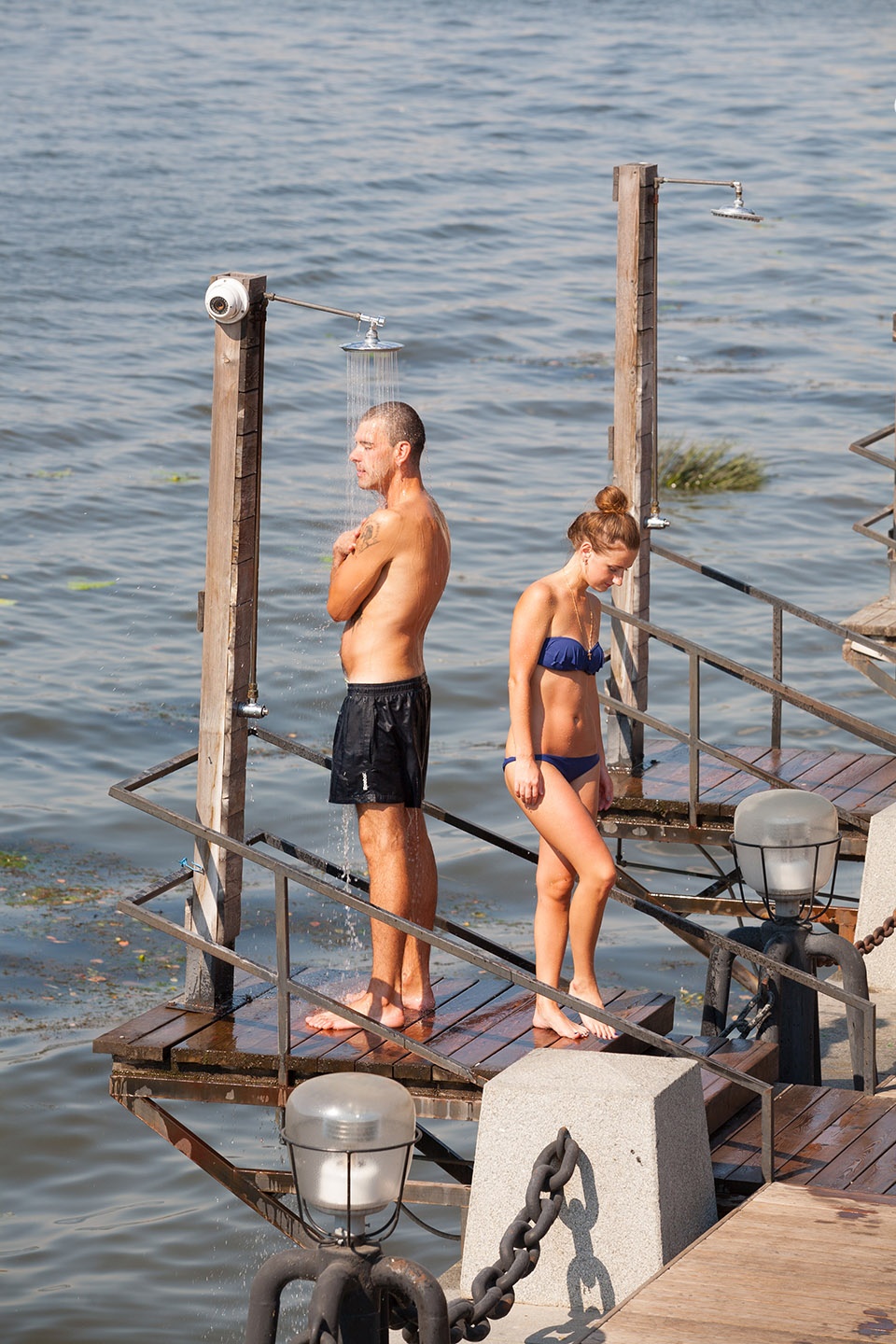

▼正在淋浴的游客，People taking shower © Yogastan

日光浴室的旁边设有另一个休闲空间——可以遮挡烈日的遮阳蓬区域。这个天棚采用了复杂的棚架形式，为DJ提供了空间。

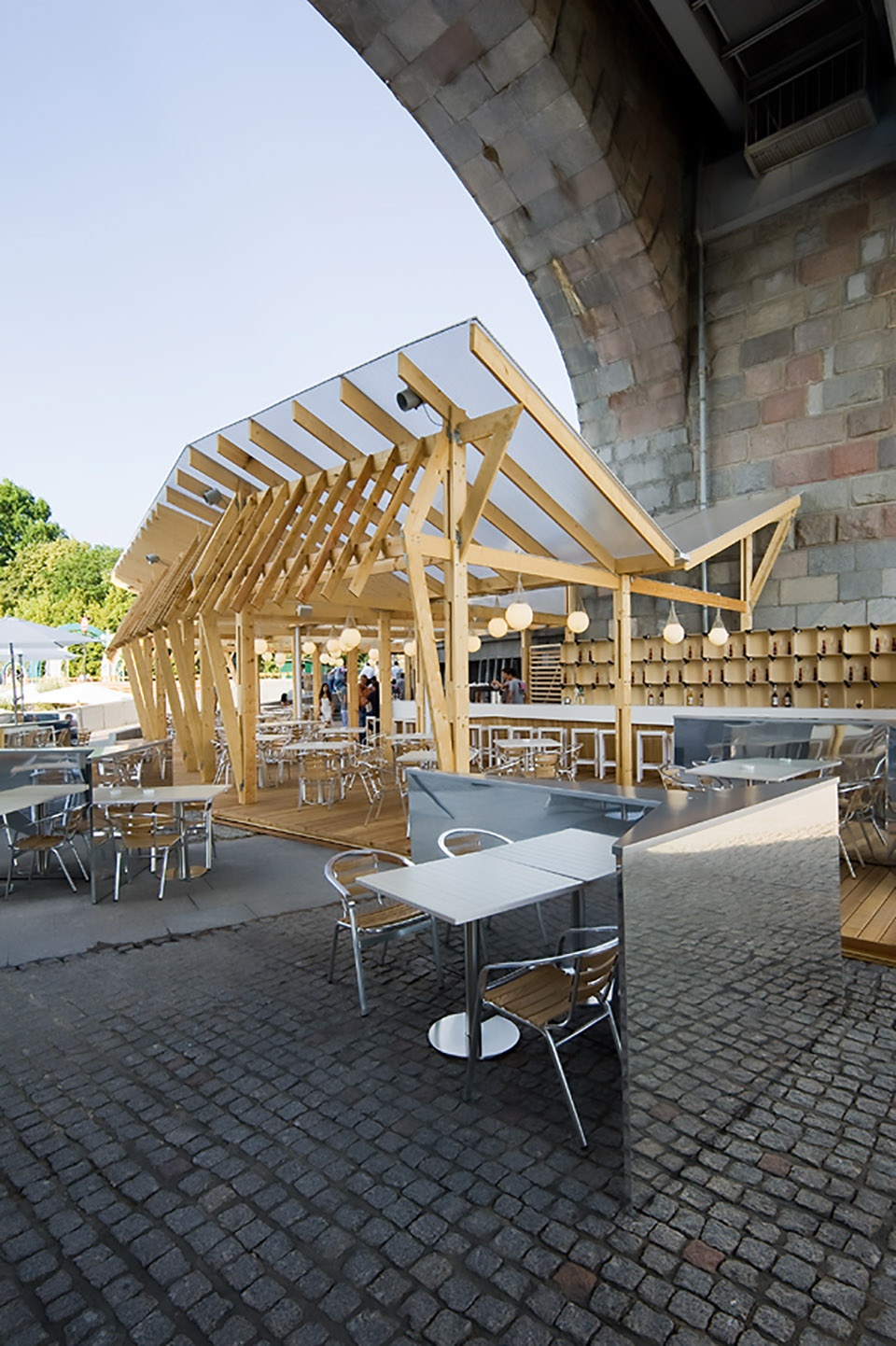

此外，桥下空间还设置了两个酒吧，带有形状独特的木质平台和顶棚。

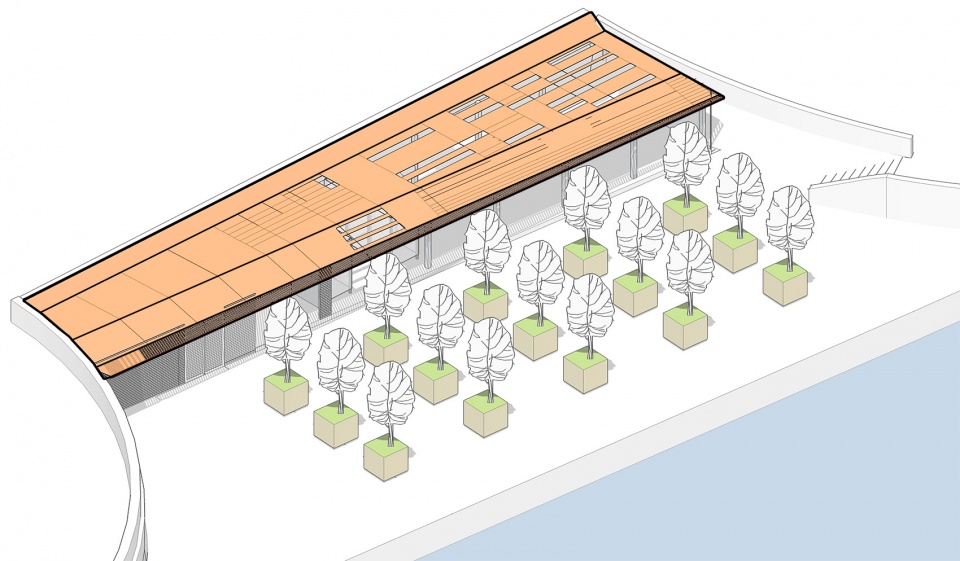

▼遮阳蓬分析图，canopy analysis diagram © Wowhaus

Next to the solarium is another universal recreational space – under a canopy which offers protection from the blazing sun. This canopy takes the form of a complex pergola and has space for a DJ.

Under the bridge we have designed two bars with wooden terraces and canopies in an original shape.

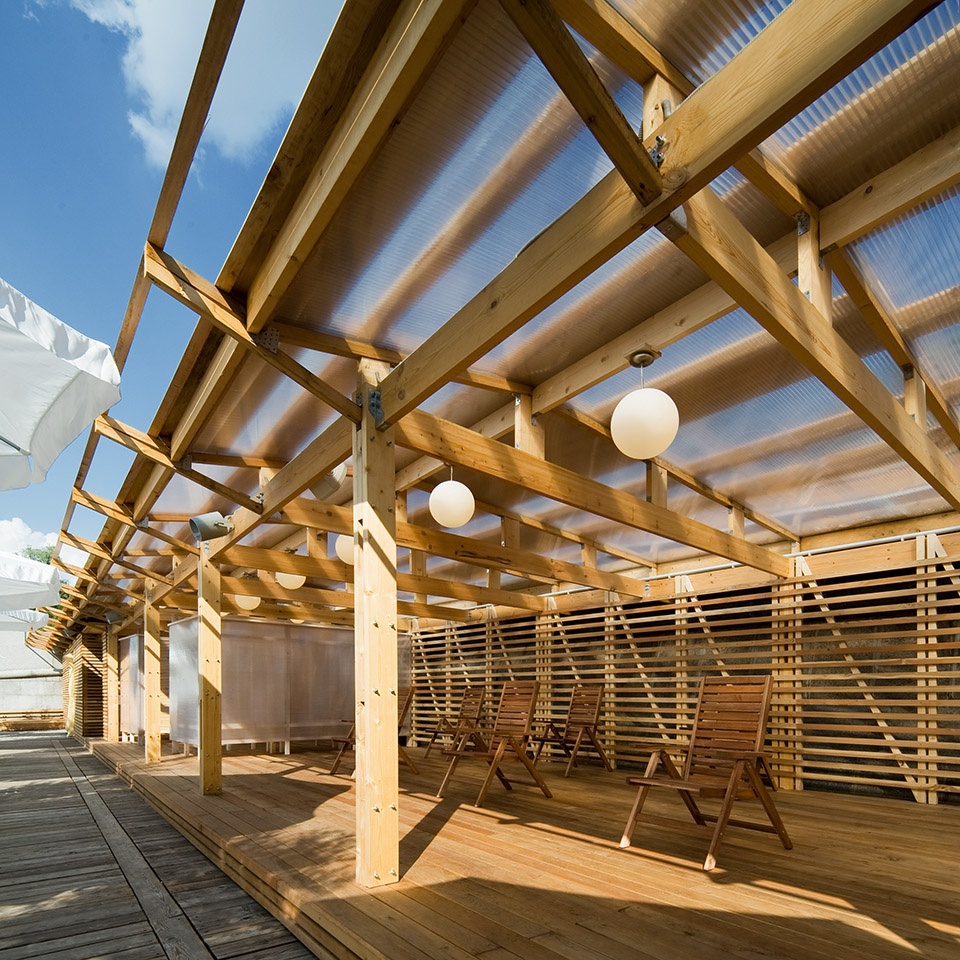

▼遮阳蓬区域，The canopy © Yogastan

▼遮阳蓬结构细部，Details of the canopy © Yogastan

▼在此聚集娱乐的人们，People who gather here for entertainment © Yogastan

Architecture firm: Wowhaus
Principal architects: Dmitry Likin, Oleg Shapiro
Project location: Gorky Park, Krymsky Val, 9, Moscow, Russia
Photography: Ilya Ivanov, Dmitry Karpov, Yogastan
Visualization: Wowhaus
Tools used: Archicad, ScetchUp
Design team:
Heads of Wowhaus: Dmitry Likin, Oleg Shapiro
Architects: Darya Listopad, Artem Ukropov
Design year: May 2011-July 2011
Completion year: July 2011
Landscape: Wowhaus
Materials: wood
Client: Gorky Park
Status: built
Typology: beach, waterfront, landscape, park renovation, city therapy
Photos: Ilya Ivanov, Dmitry Karpov, Yogastan
