感谢 如恩设计研究室 予 gooood 分享以下内容。更多关于：Neri&Hu Design and Research Office on gooood
Appreciations towards Neri&Hu Design and Research Office for providing the following description:

城中村依偎在现代化的都市中，是城市化进程的遗留。拥有近1700年历史的南头古城，位于深圳的城市中心，从昔日的富庶古都演变为如今拥挤喧闹的城中村。古城内的蜿蜒小巷、广场和胡同，错综复杂、紧密相连，吸引着无数游客的驻足好奇。当地居民、街头小贩、嬉闹孩童和流动人口亦在此栖居。如恩将位于南头古城的一栋居民住宅，改造成为设有十一间客房的精品酒店。

▼视频，Video ©朱润姿

Urban Village, or cheng-zhong-cun, is a phenomenon where the remnants of pre-industrial settlements are nestled amidst a seemingly modern metropolis. Nantou City, the site of Neri&Hu’s adaptive reuse project for an eleven-room guesthouse, is an example of such an urban village. Situated at the heart of Shenzhen, a burgeoning city with astonishing growth, Nantou City has evolved from a well-heeled ancient capital to the overcrowded inner city it is now. Visitors today are immediately immersed in the tightly knit alleys, plazas and dead-ends, where residents, street vendors, unsupervised children, nomads alike roam.

▼项目概览，General view © 陈颢

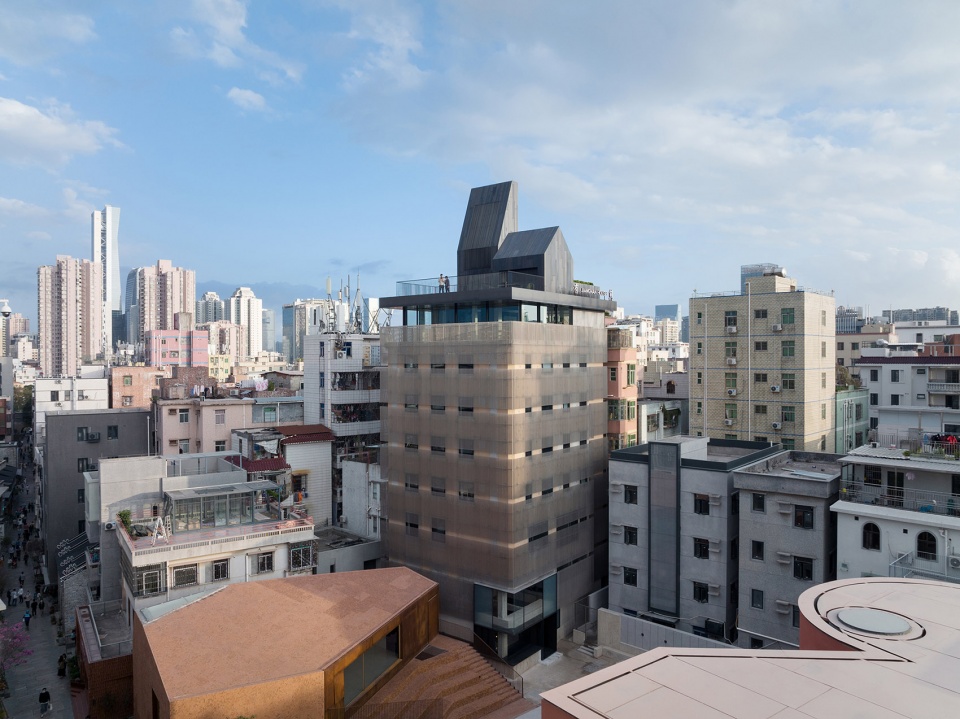

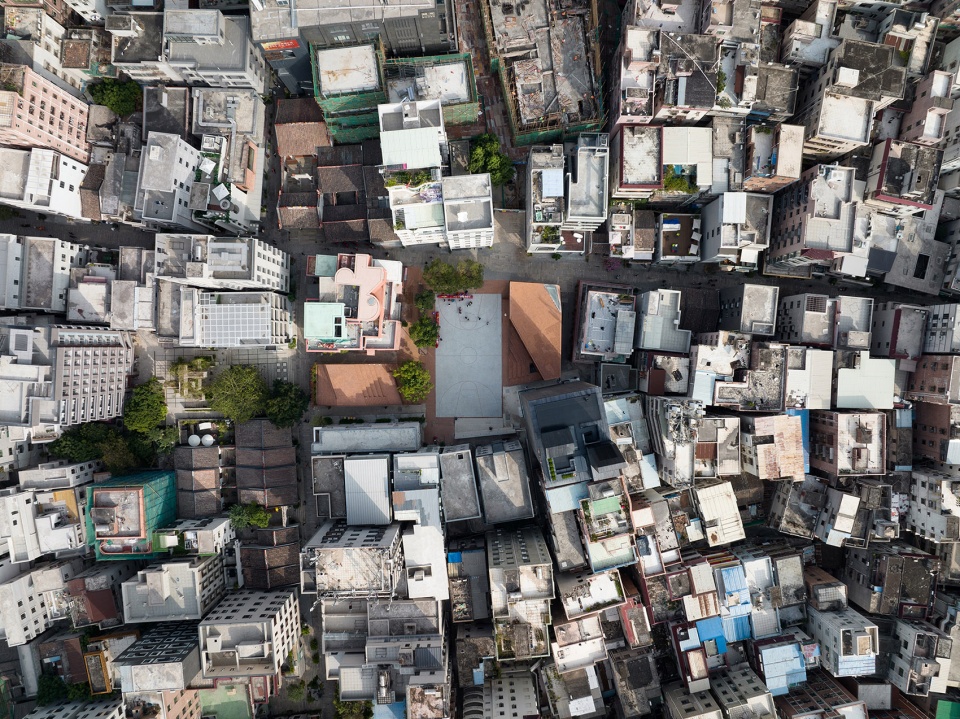

▼场地和城中村肌理鸟瞰，Aerial view to the site embedded in the urban village © 陈颢

南头古城的街头巷尾充盈着勃勃生机。如恩试图将日常生活的景象纳入设计——人、物件和他们所处的环境，都是灵感的来源。为了延续城中村的市井烟火，如恩对原建筑进行切割，将外部景象引入的同时，也在内部创造出全新的公共空间。在这一过程中，设计师如临考古现场一般，将诸多材料和建筑结构层层剥离，建立起过去与当下的对话。

Inspired by the vibrant milieu of the alleyways in Nantou City, the project seeks to reflect on the cultural heritage of the mundane. Scenes of the everyday—people, objects and their settings—are the primary source material for design. To celebrate life in the urban village, the existing structure was cut into as a massing strategy, allowing such “urban incisions” to foster a new public realm on the inside of the previously private apartment block. At the same time, the excavation revealed the many material layers and building structures as if at an archeological site, only to allow new interventions to instigate unexpected dialogues between the past and the present.

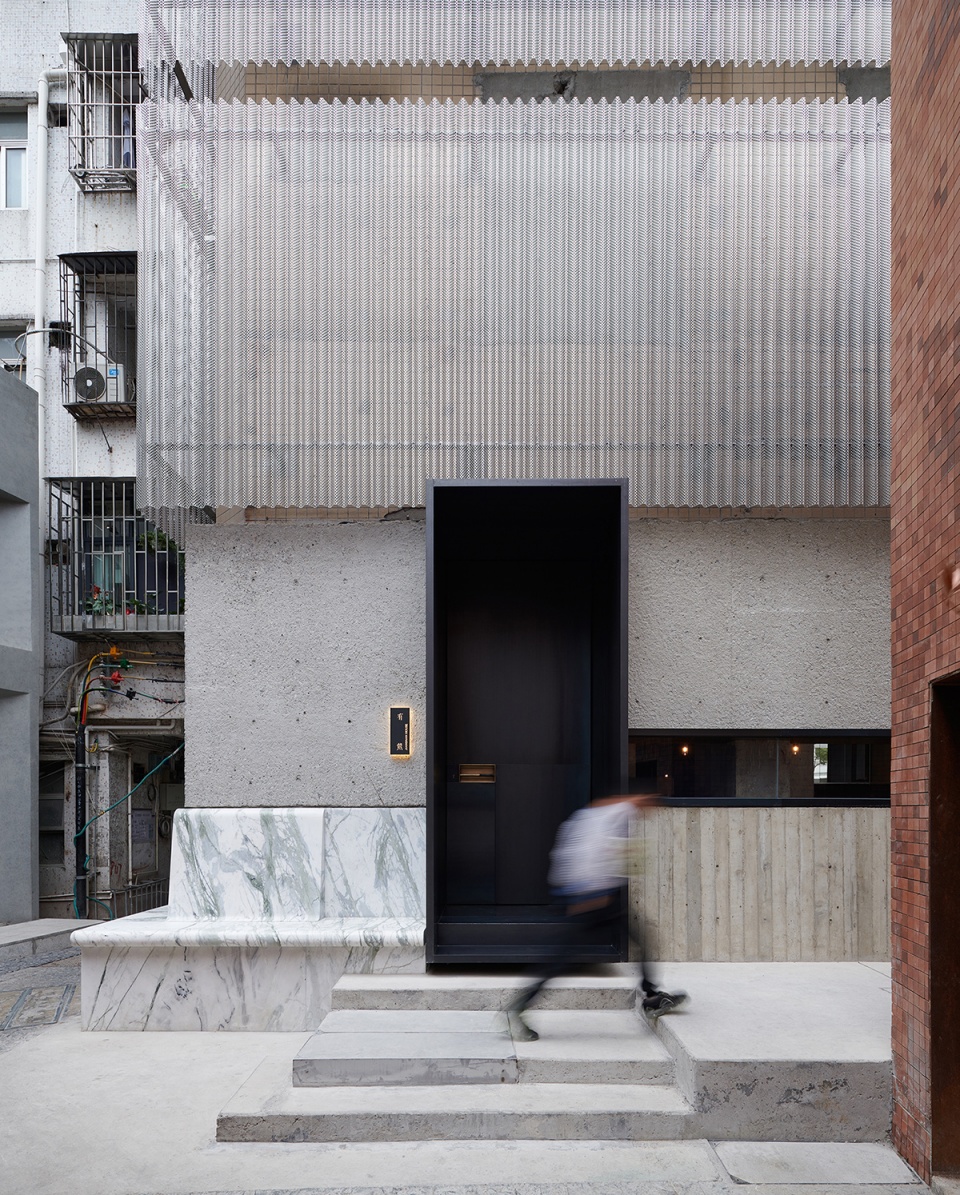

▼入口立面，Entrance facade © 陈颢

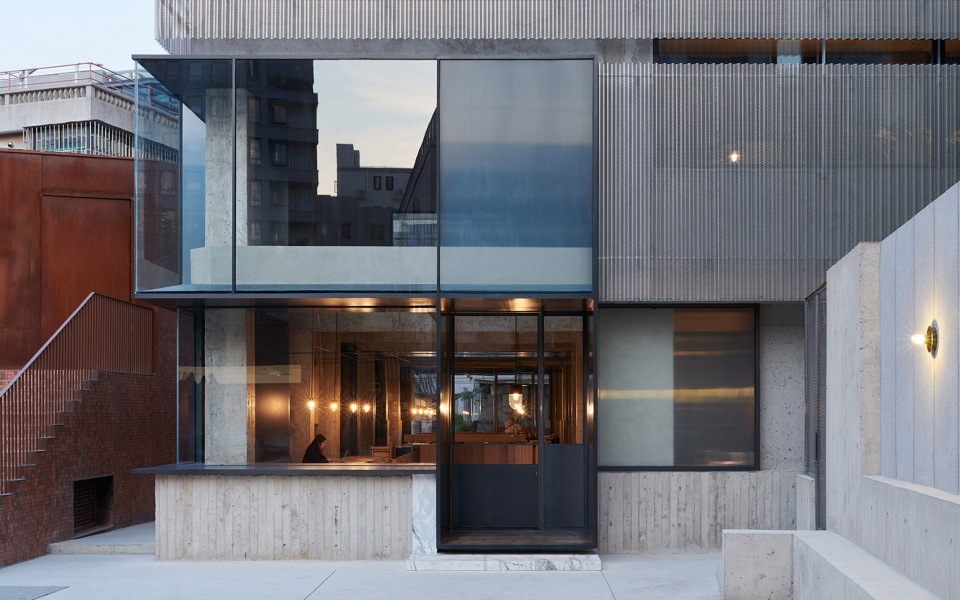

▼餐厅入口，Restaurant entrance © 陈颢

斯维特拉娜·博伊姆（Svetlana Boym）的“反思性怀旧” （reflective nostalgia）理念贯穿于项目的研究及设计过程。如恩并非简单地模仿过去事物的表象，而是试图发掘隐匿于过去的各种可能，并赋予当代文化更多的活力。如恩以两种不同的建筑语言，应对城市复杂的肌理与碎片化的形态：建筑的立面由轻盈的屏罩包裹，而顶层则以厚重、富有表现力的形式，为古城的天际留下一道别致的轮廓。

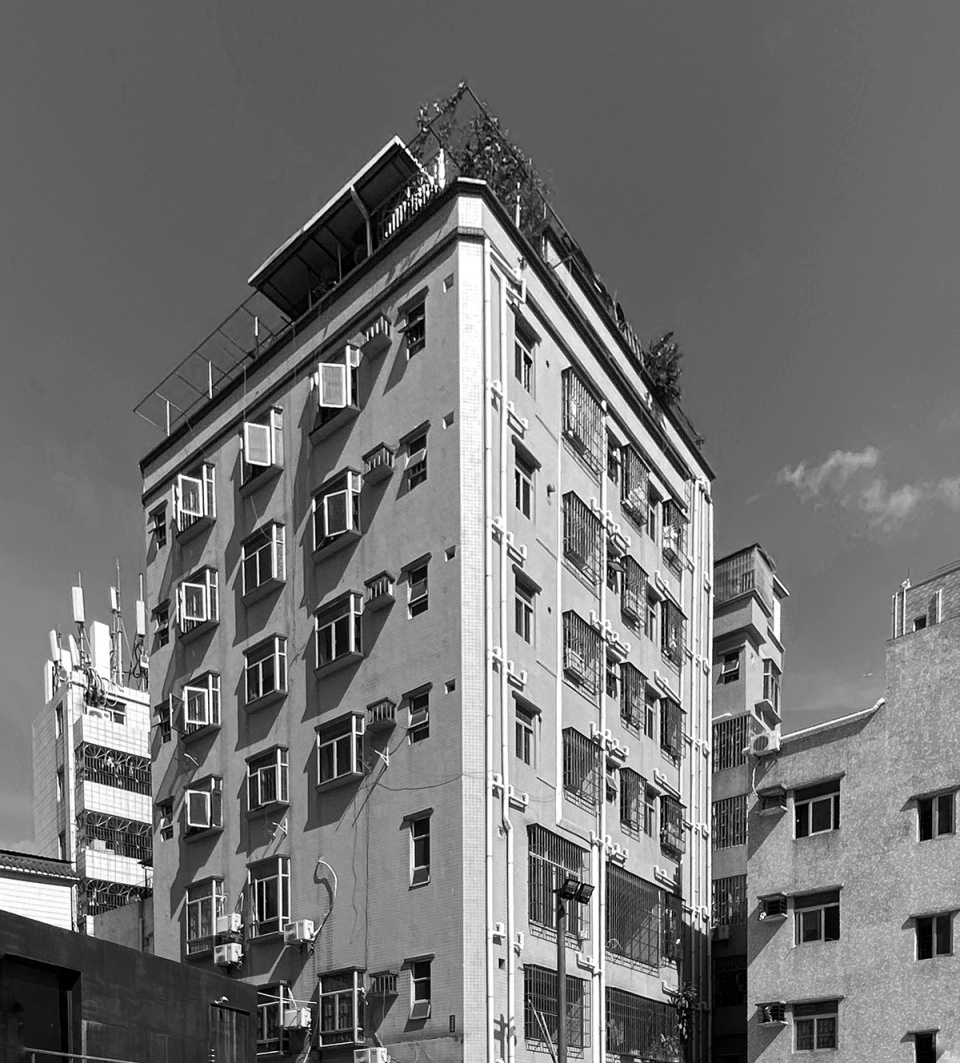

▼改造前建筑外观，Before renovation © 如恩设计研究室

Throughout the research and design process for the Nantou City Guesthouse, Svetlana Boym’s writings on the topic of reflective nostalgia have guided the thinking behind the project. Rather than simply mimicking the past for its superficial material effects, the project has sought to unearth the possibilities of certain kinds of past that could invigorate our contemporary culture. A tectonic language was developed to articulate two divergent treatments that probe the notion of urban layering and the embracing of fragments: that of a light, screen-like cladding as the major façade element, and the other a heavier, expressive assemblage to contrast as a skyline “capping” atop.

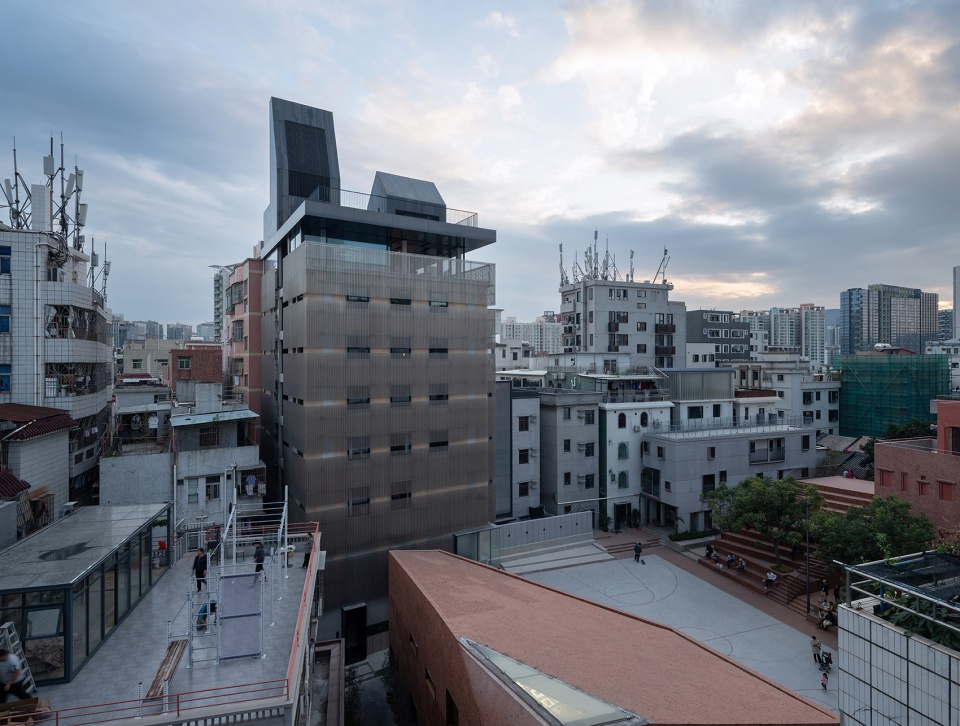

▼改造后酒店外立面，Exterior view after renovation © 陈颢

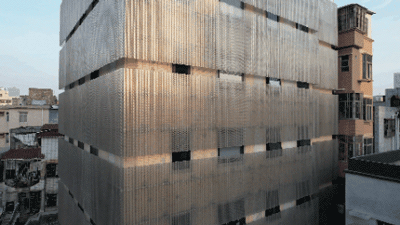

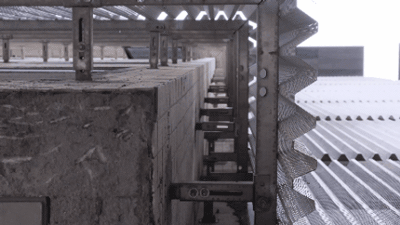

▼外立面细节， Hotel facade © 郭歆洁工作室

南头古城的风景日新月异。如同熙攘的巷道一般，古城中各栋楼房上的屋顶平台也是别有一番景象。简易搭建的小花园与蔬果园点缀其中，描绘出高低不一的景观。

Like the bustling scenes in the alleyways below, the roofscape across the Nantou urban village has a life of its own, with makeshift gardens and vegetable farms popping up along the jagged skyline.

▼酒店顶层夜间视角，View to the top floors of the hotel by night © 陈颢

如恩在顶层设计中采用了平屋顶的形式，并加盖了金属结构。对于空间局促的城中村而言，这一向上伸展的空间，将当地巷道生活的画幅延伸至屋顶，为公共空间带来了新的诠释。

To reframe views of this ever-evolving village, a flat floating roof is installed to create a dramatic panorama of the street life below, and a new public ground above. Housing public spaces and service functions, the metallic monoliths of the rooftop play on vernacular add-ons, which are much sought after by space-starved attic-level residents.

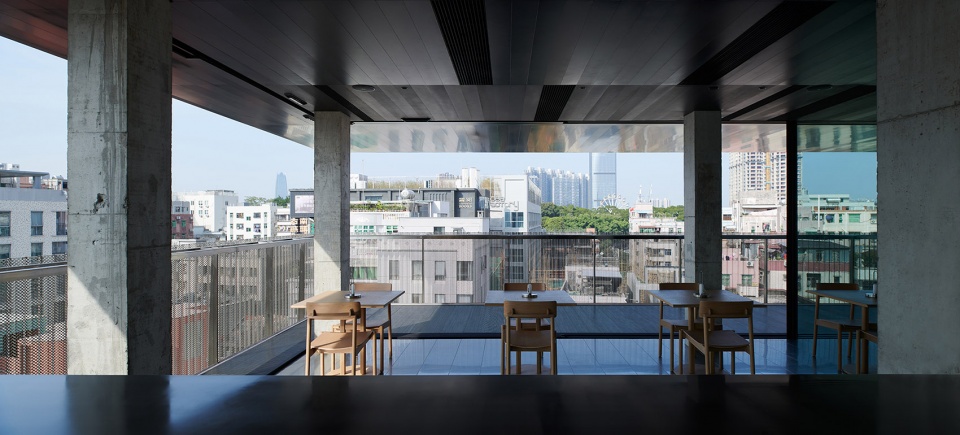

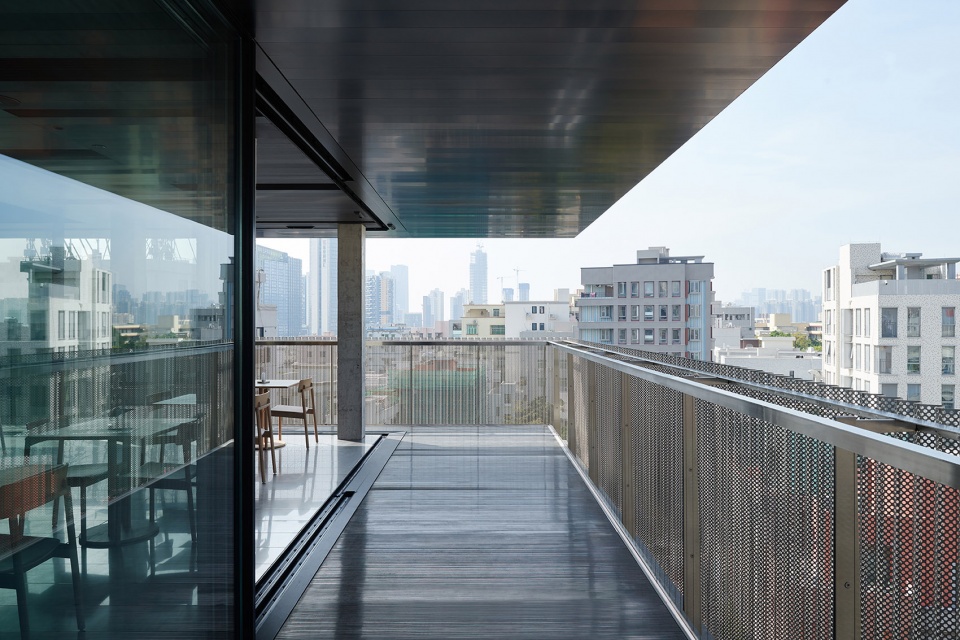

▼屋顶露台，Rooftop balcony © 陈颢

建筑入口及公共区域有意地串联并入当地的街道小巷之中，融入南头古城独特的城市肌理之中。沿着小巷可直接抵达，随后步入建筑中心，如同邀请邻里朋友来自己家中做客一般。

To engage with the uniquely organic circulation that is quintessential to Nantou’s urban fabric, the guesthouse’s access and public realms are designed to be woven back into the network of intricate alleyways found on site. The new entrance to the guesthouse is created by extending a side street directly into the heart of the building, as if to invite neighbors and friends into one’s private home.

▼入口和前台区域，Entrance and reception area © 陈颢

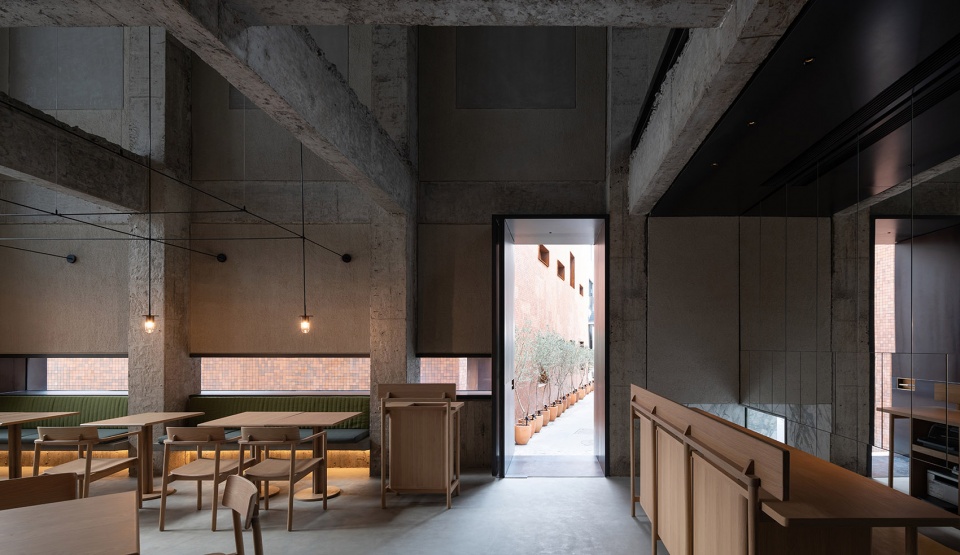

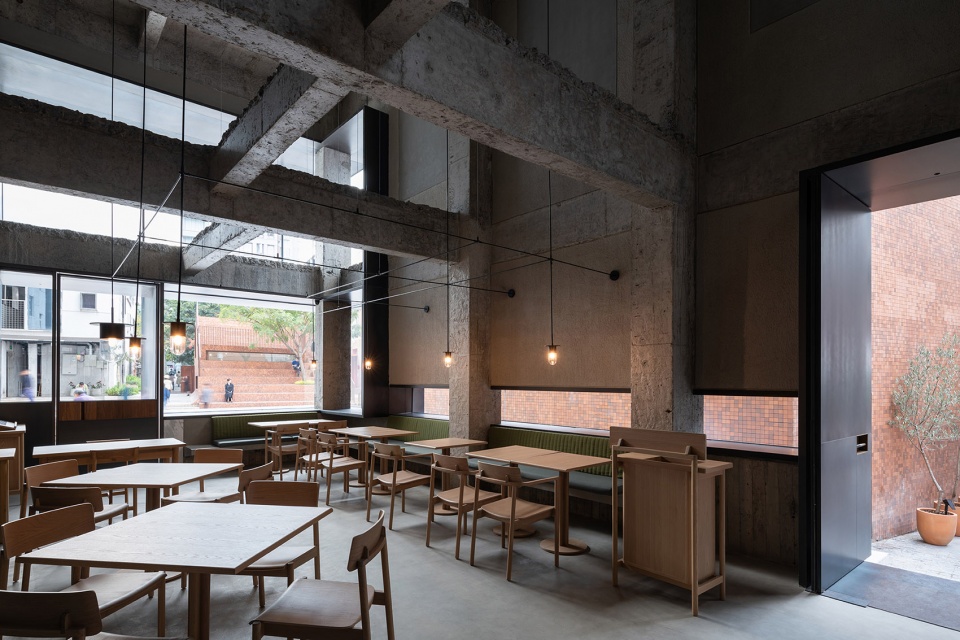

▼首层餐厅，Restaurant on the first floor © 陈颢

穿过巷道步入酒店后，访客站立于公共空间，视线随着轴线不断移至向上。原本将各楼层连接起来的楼梯井，被切割、扩宽，创造出全新的垂直庭院。切割开的建筑立面及上方的采光井，将自然光及建筑外的街景引入至建筑内部。全新的金属楼梯悬置于垂直庭院之中，访客由此到达各层客房及屋顶平台。新与旧在建筑内并存融合。

▼视频，Video © 郭歆洁工作室

Old and new are juxtaposed throughout the building to celebrate ruins. Once the visitor arrives at the building, the public gesture of opening up the building along the urban axis is turned upward. An existing stairwell that had previously connected all nine tenement floors was now cut open and expanded to create a new vertical courtyard. Natural elements are allowed to pass through from the open façades to the side and a light well above. A new metal stair suspended within the vertical courtyard takes the visitor on a journey to the guest rooms on the mid-levels, and finally to the public rooftop gardens.

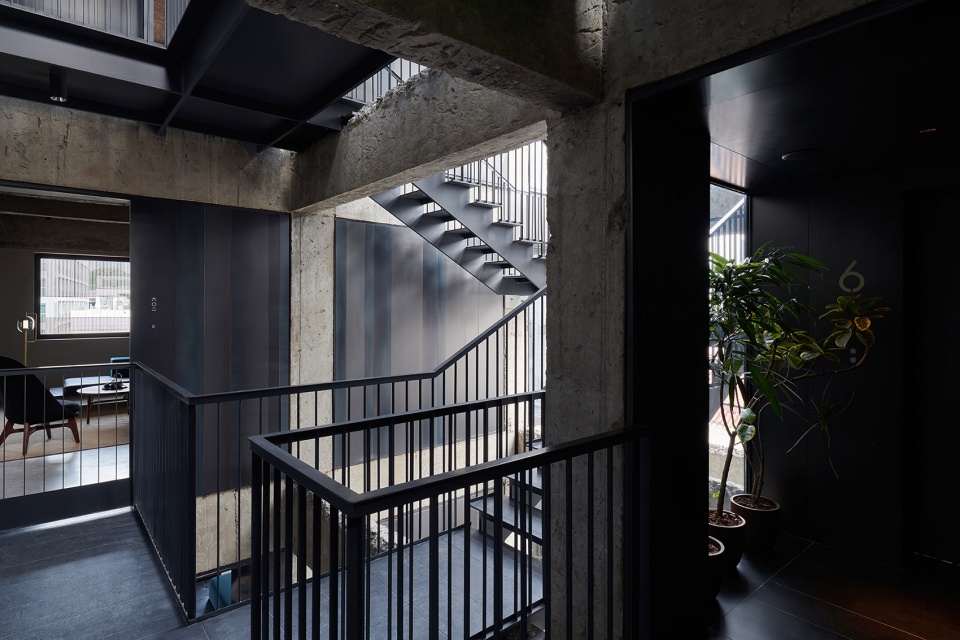

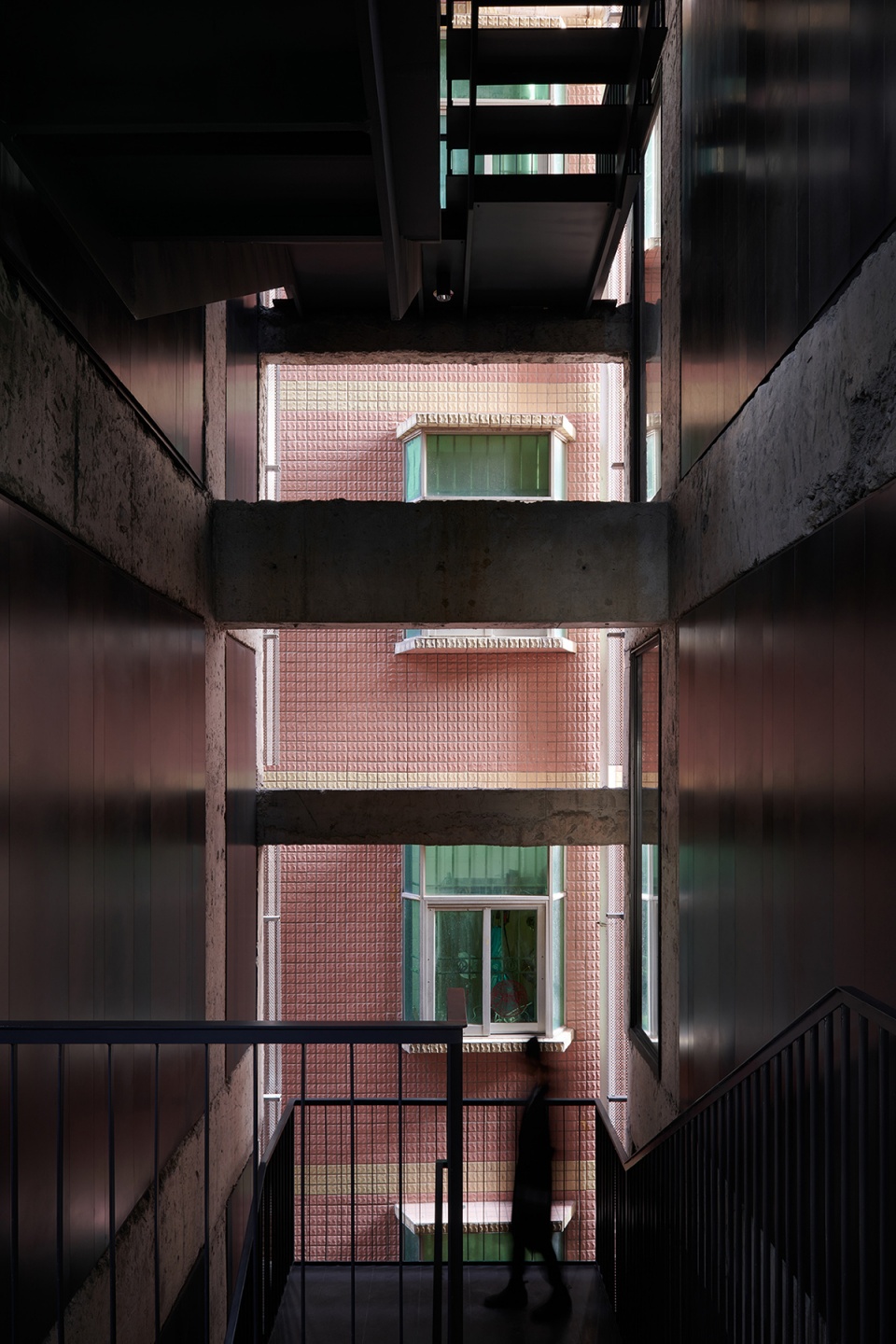

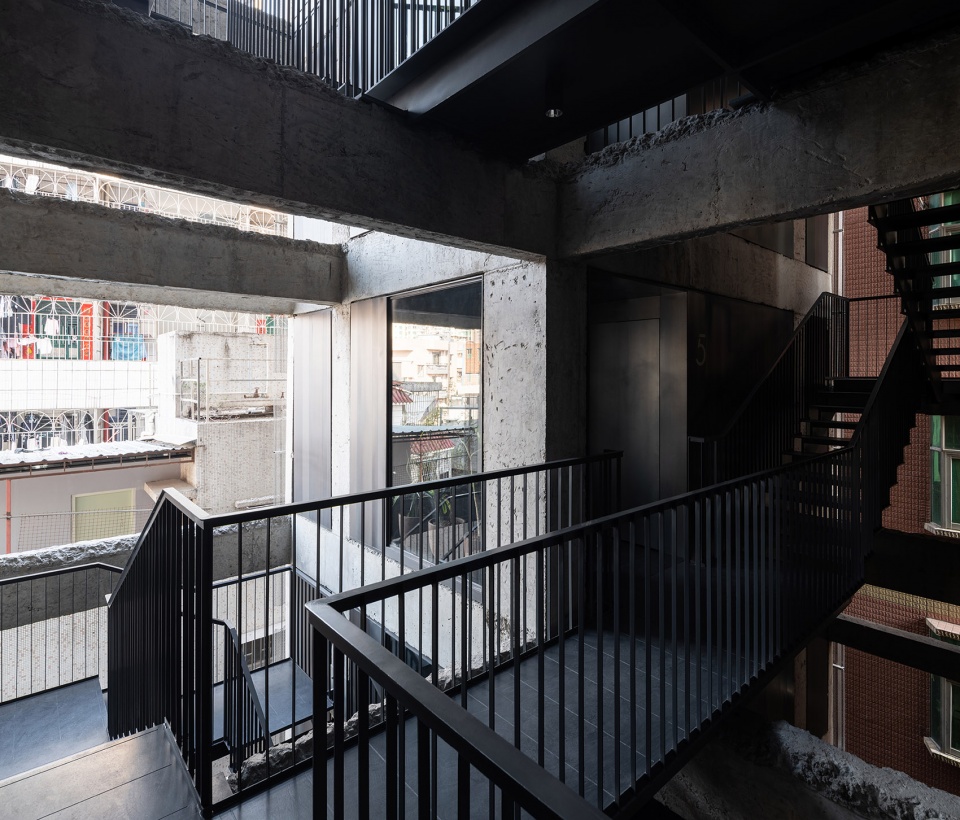

▼楼梯井，Stairwell © 陈颢

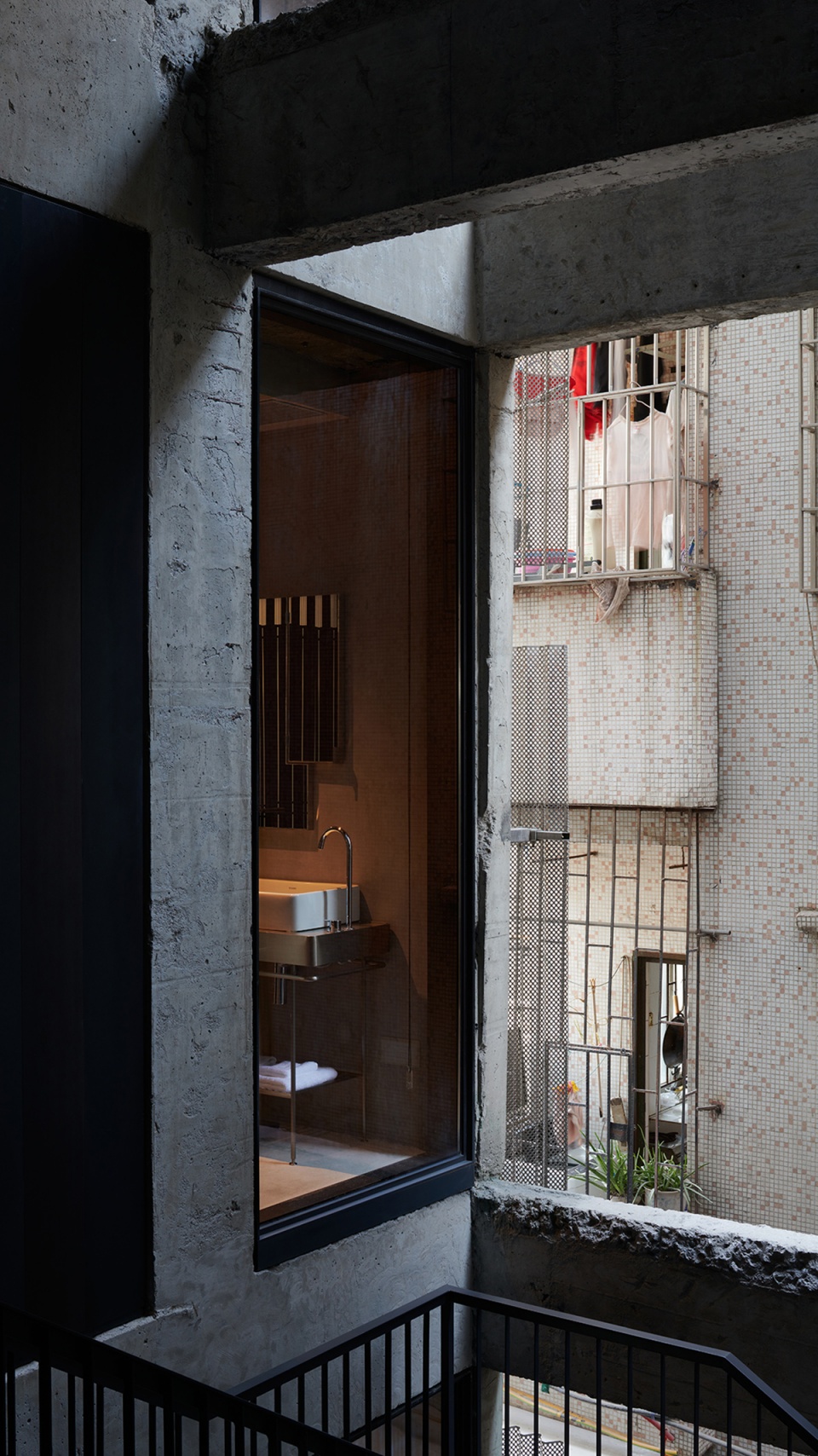

▼从楼梯望向毗邻的建筑，View to the adjacent building from the stairwell © 陈颢

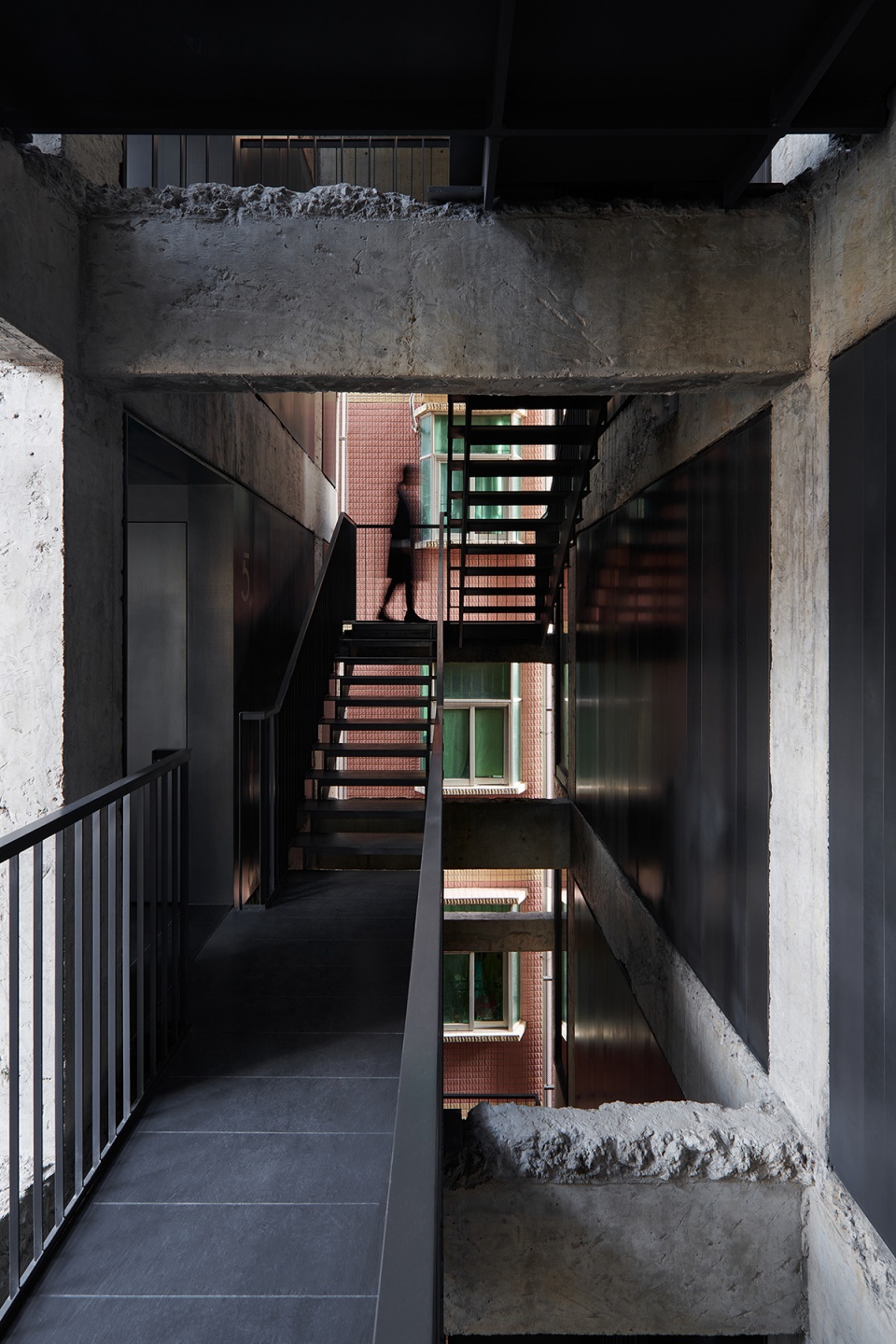

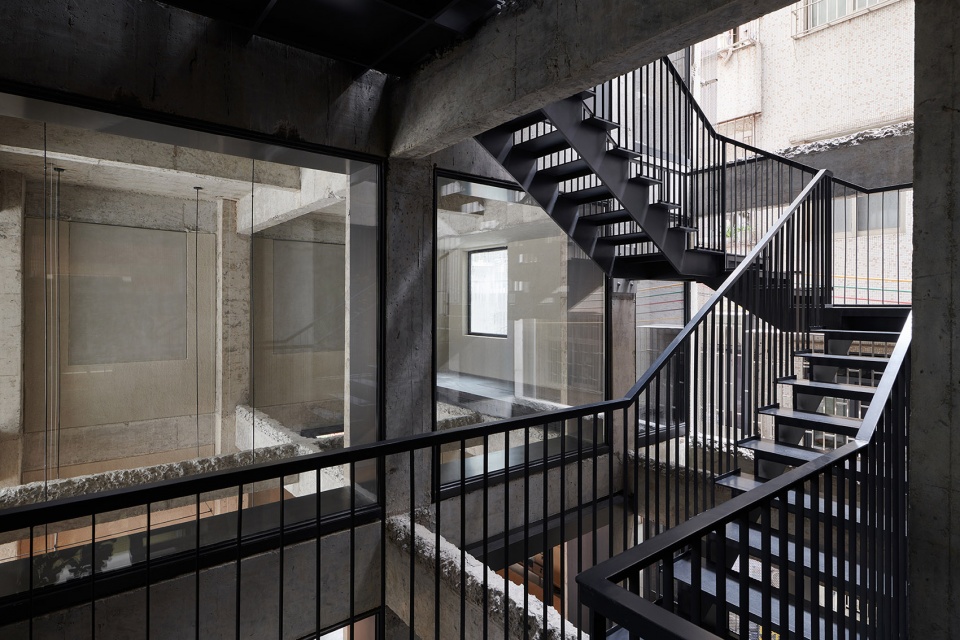

▼金属楼梯悬置于垂直庭院之中，A new metal stair suspends within the vertical courtyard © 陈颢

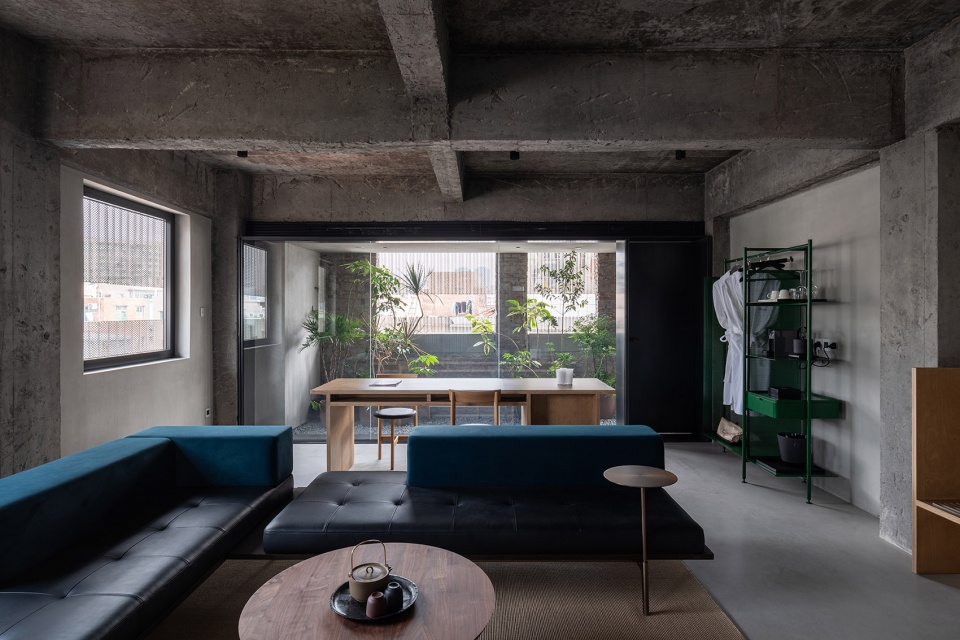

▼客房套间，Suite room © 陈颢

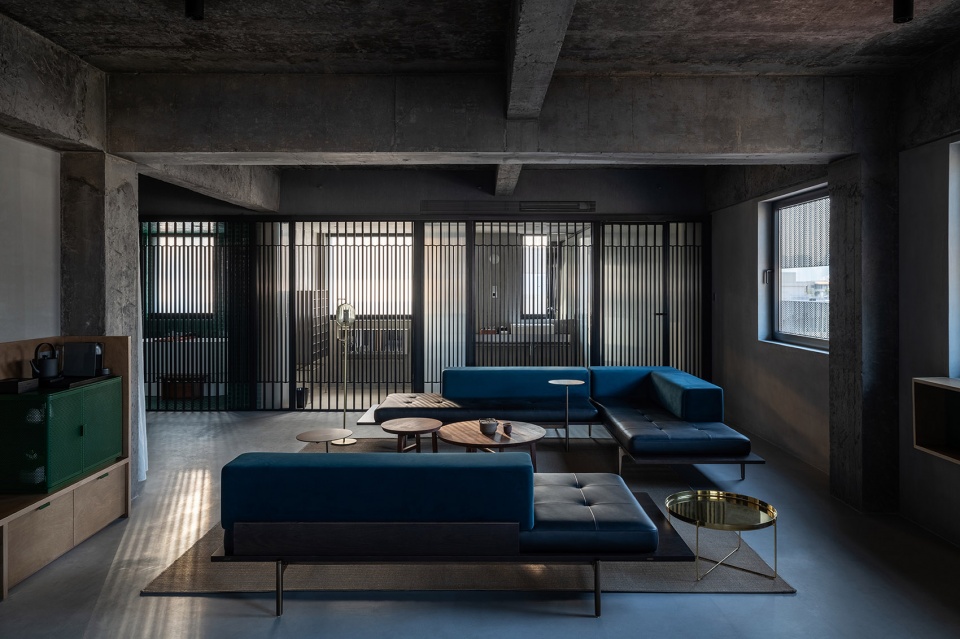

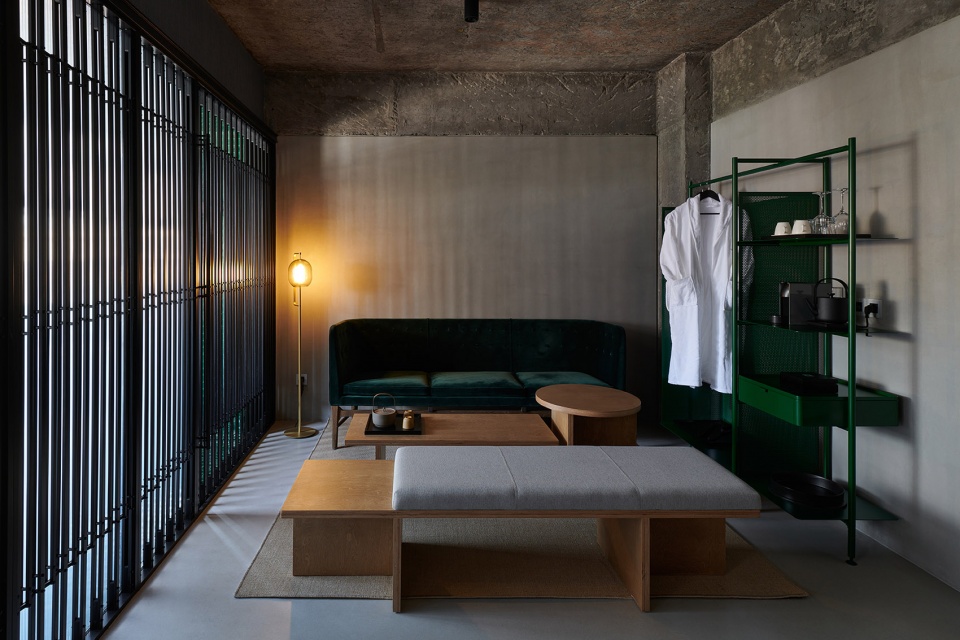

▼客房休闲区域，Guest room lounge © 陈颢

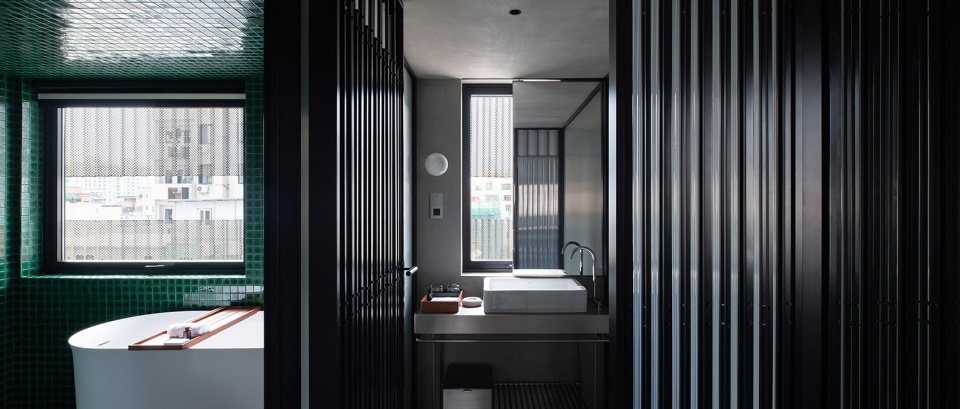

▼浴室，Bathroom © 陈颢

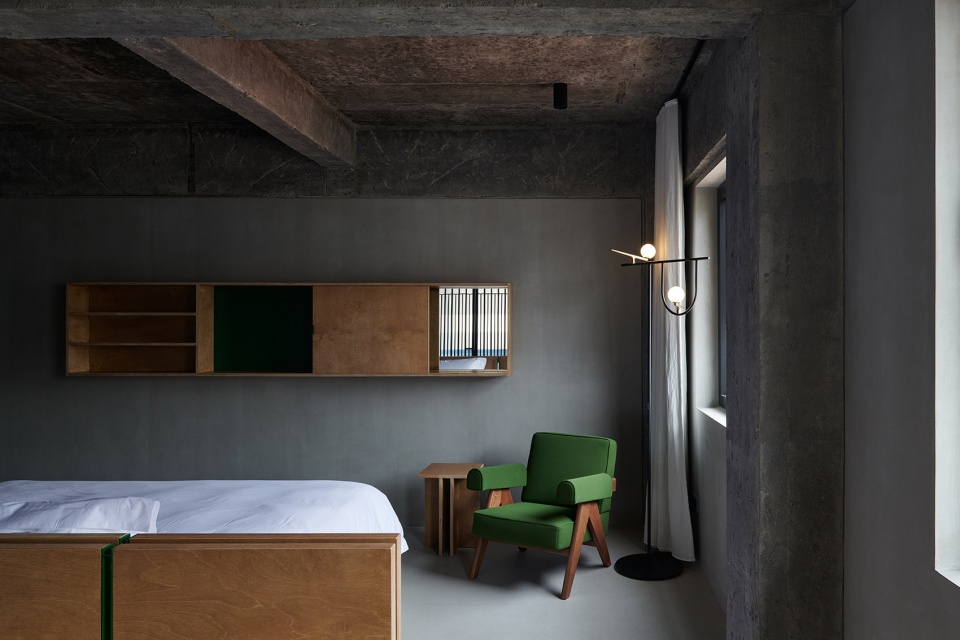

▼客房卧室，Bedroom © 陈颢

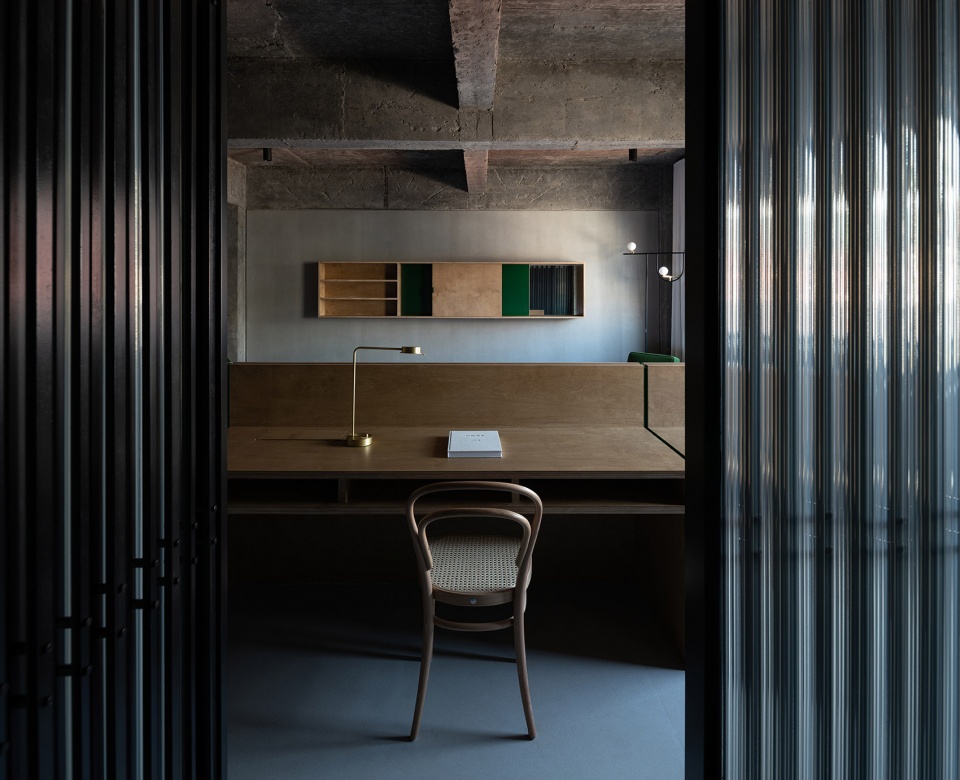

▼客房长桌，Reading desk © 陈颢

切割并非仅仅意味着破坏，它同时也是空间与意义的创造。深圳南头古城有熊酒店的设计融入了城市特征，扎根于城市的兴衰，使私人化的生活历史变得清晰可辨，追随着城市不断向前的步伐，须臾不停。不断变化的“切口”仿佛开启了一个全新的入口，可以通往过去，亦可进入平凡而奇特的当下。

To cut does not simply connote destruction, but also creation, in this case, of spaces and meanings. By absorbing the urbanity into the building, Nantou City Guesthouse in turn makes its private history legible and becomes fully ingrained in the ebb and flow of the city. In that transformation, the self-healing incision opens a new portal into as much as the past, as the mundane yet singular present.

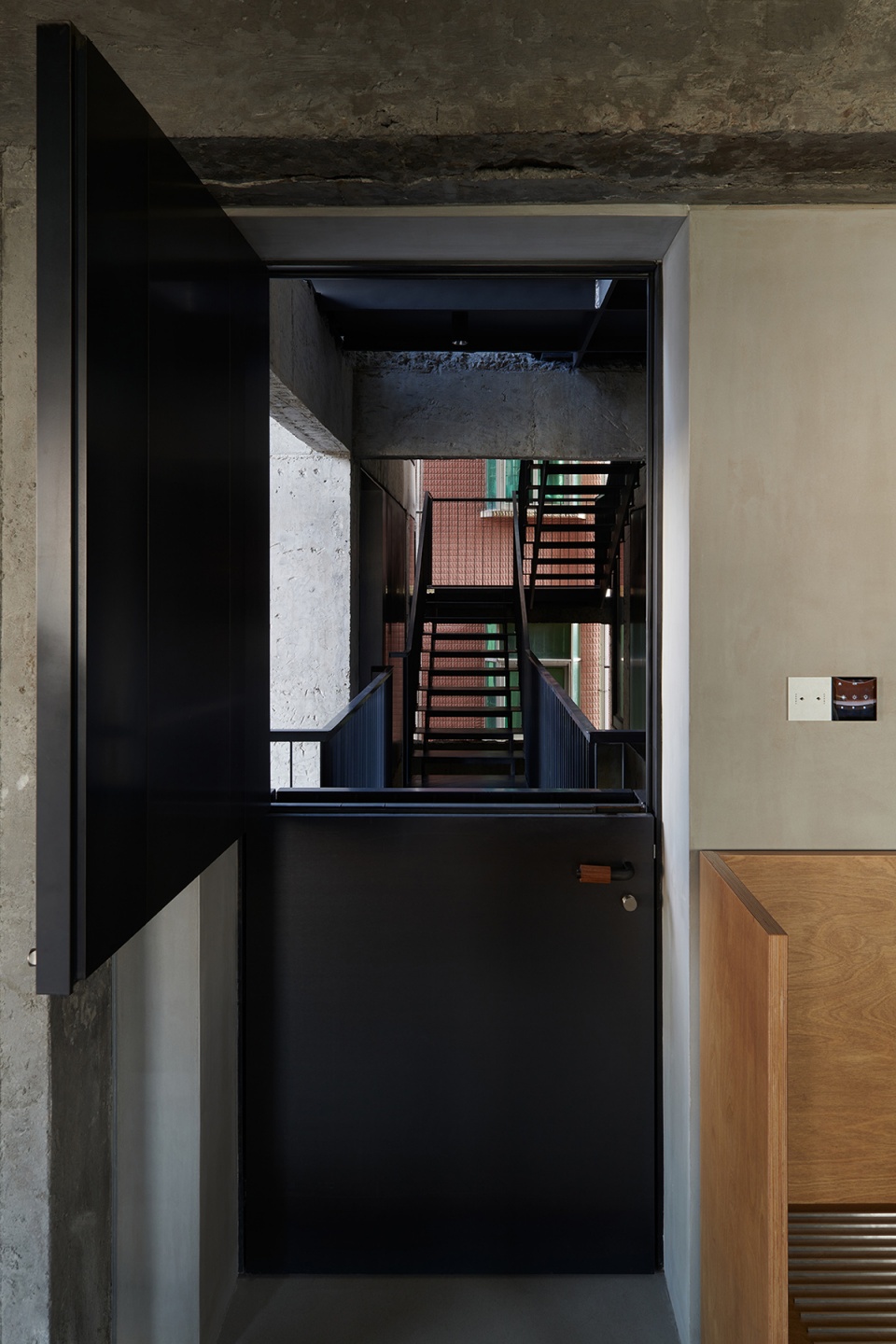

▼从客房望向楼梯，View to the stair from the guest room © 陈颢

▼新与旧在建筑内并存融合，The old and new co-exist in the building © 陈颢

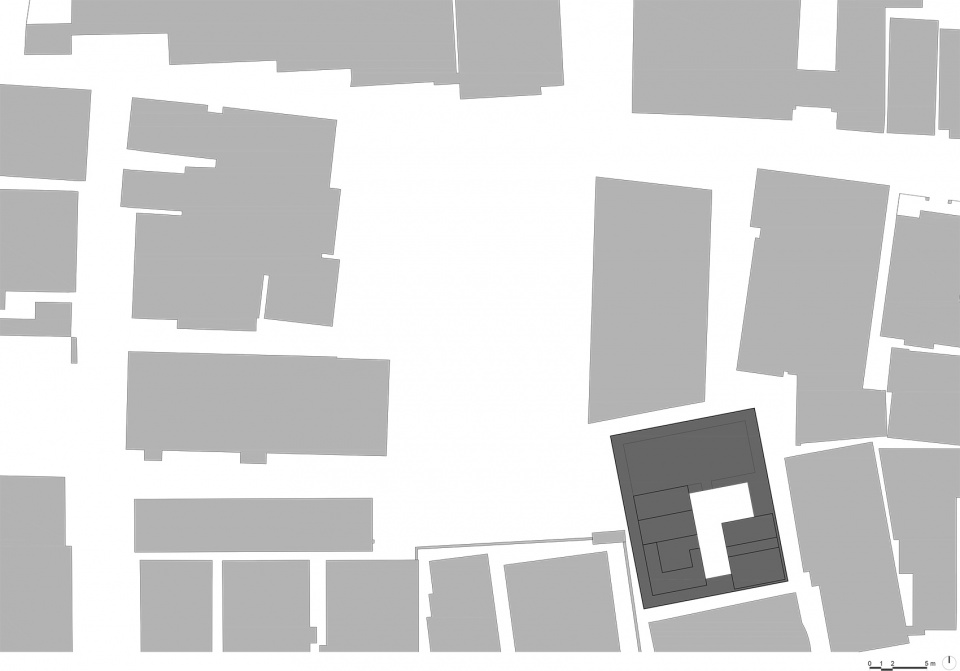

▼场地平面图，Site plan ©如恩设计研究室

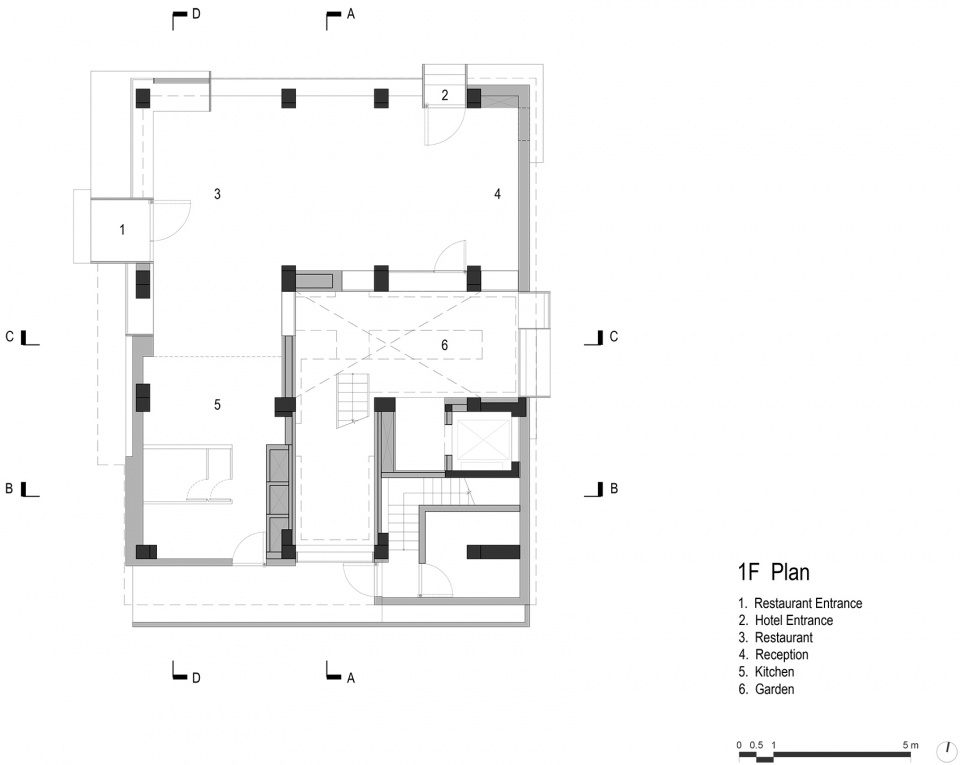

▼一层平面图，Plan 1F ©如恩设计研究室

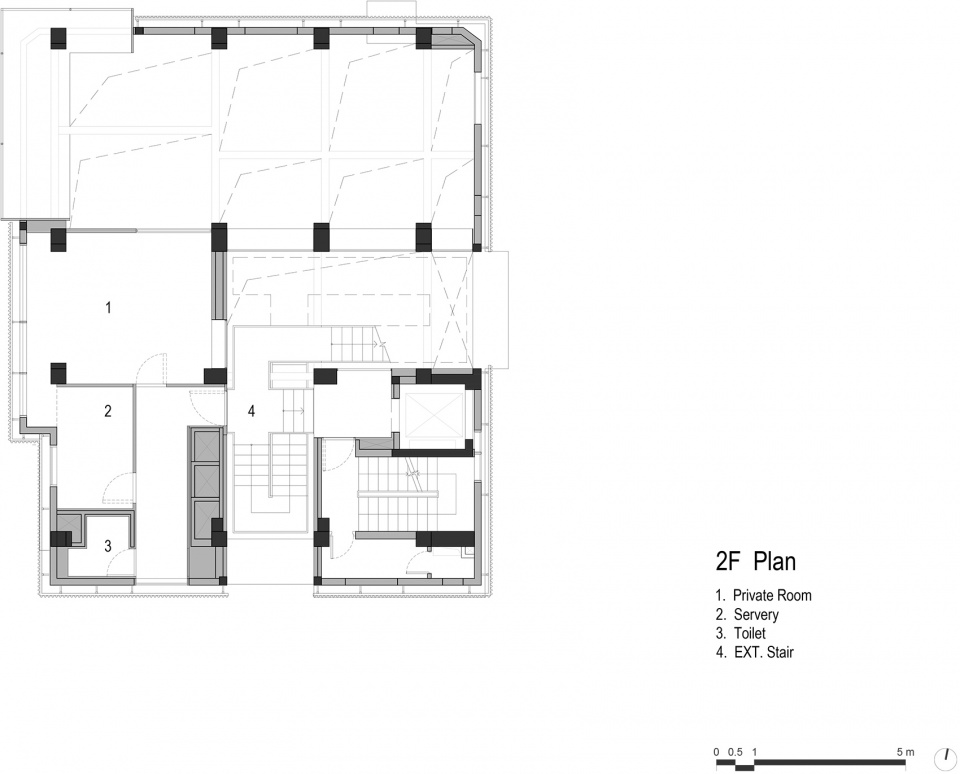

▼二层平面图，Plan 2F ©如恩设计研究室

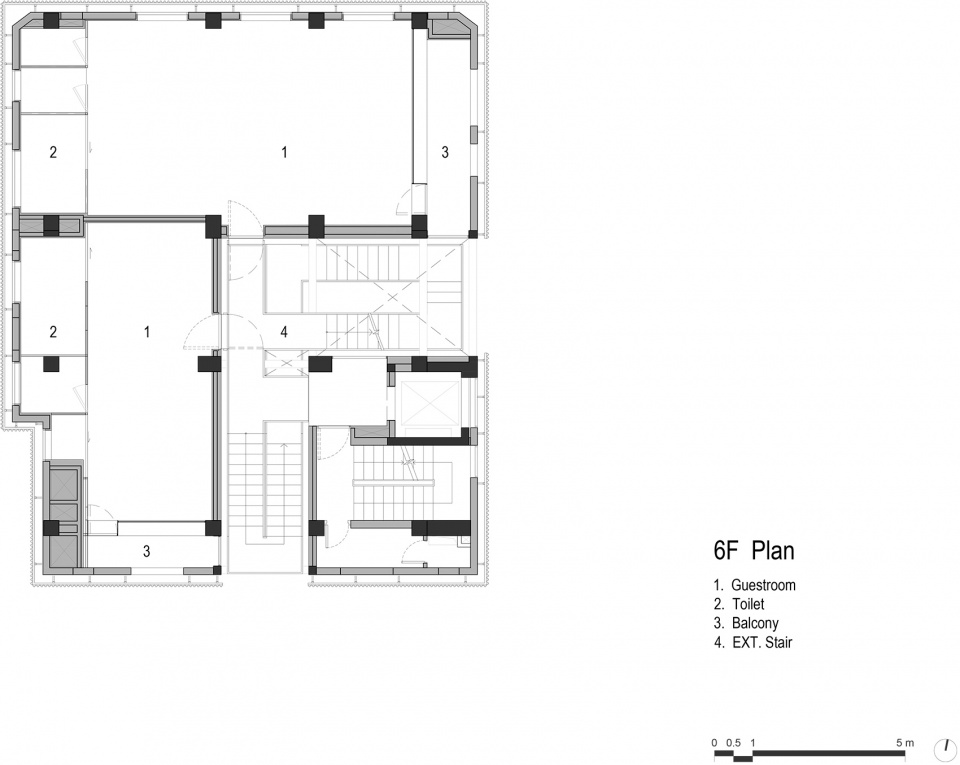

▼六层平面图，Plan 6F ©如恩设计研究室

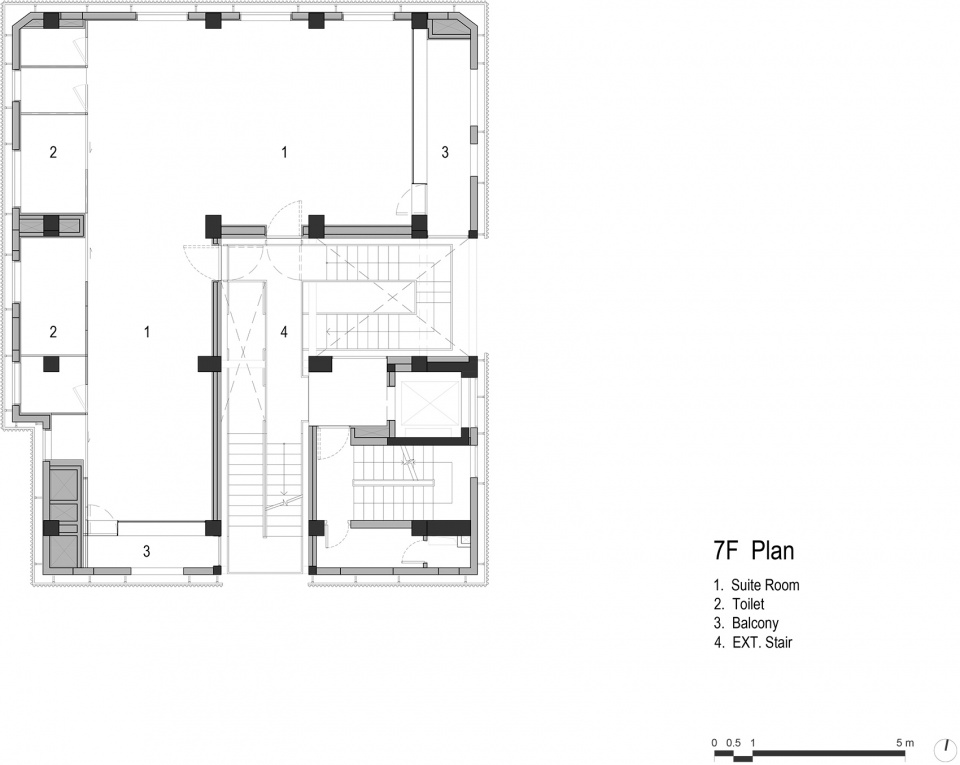

▼七层平面图，Plan 7F ©如恩设计研究室

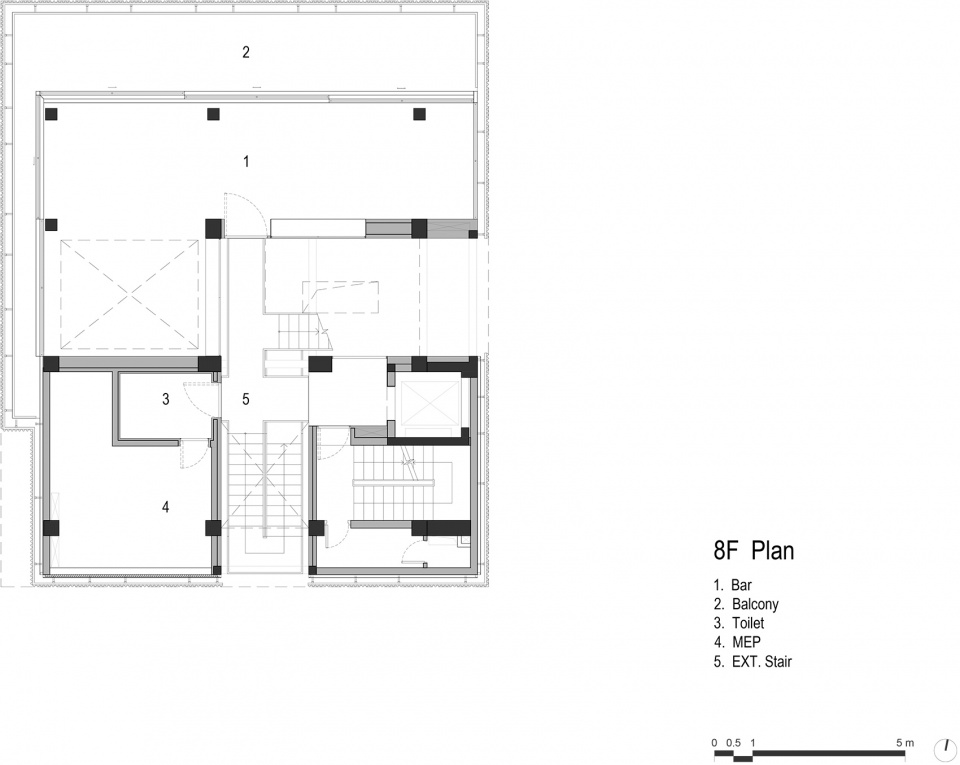

▼八层平面图，Plan 8F ©如恩设计研究室

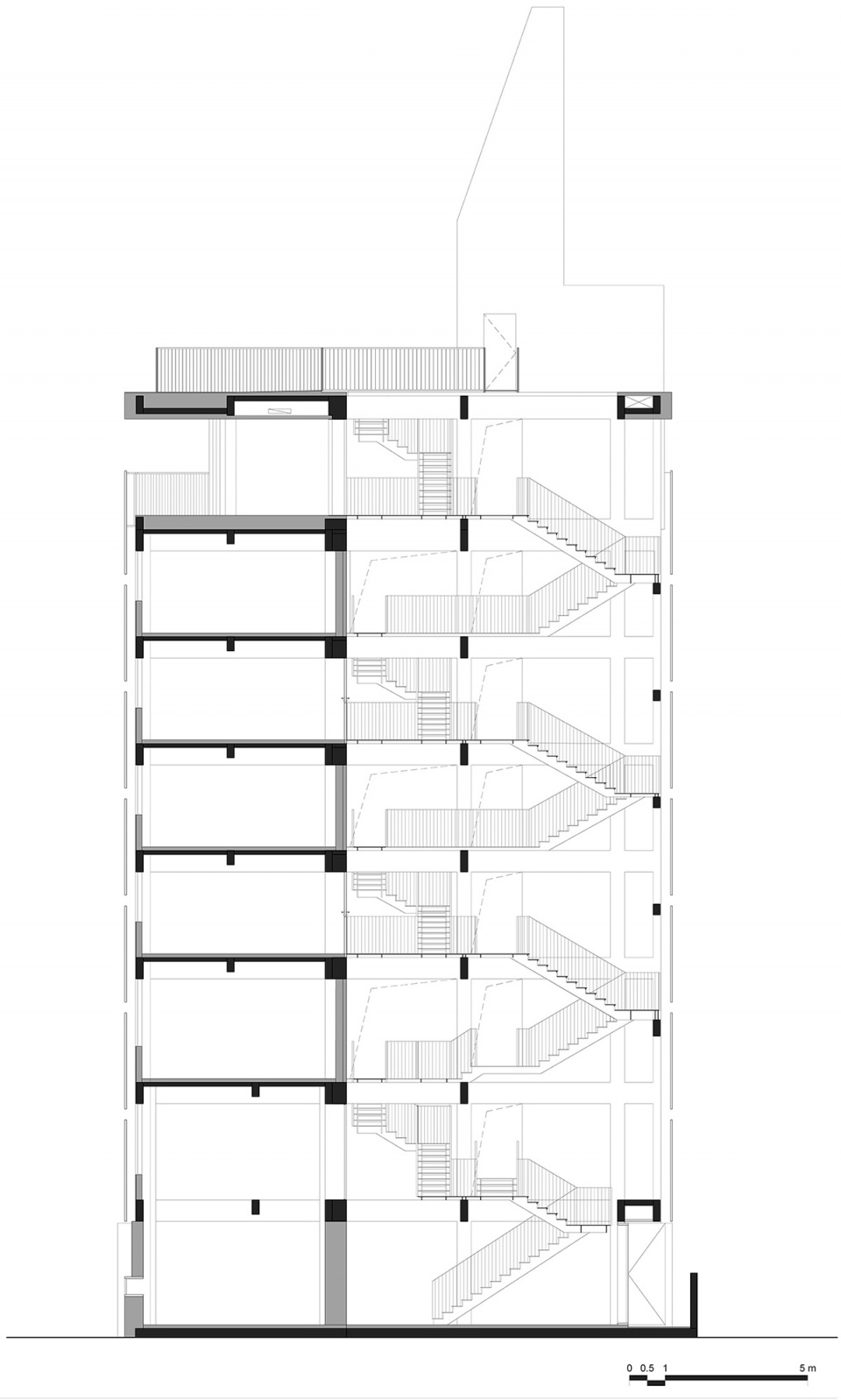

▼剖面图，Section ©如恩设计研究室

地点：广东省深圳市
时间：2021年
客户：深圳市万科发展有限公司
建筑面积：1,370平方米

主持建筑师：郭锡恩，胡如珊
主持资深协理：陈建全
资深协理：张堇盈
协理: 许建
设计团队：杨秉鑫，王典，程宁馨，叶凡，Bernardo Taliani de Marchio，贾城，唐晓棠，李杰祺，郑芃芃，周原仰，余琪晨韵，王志康，舒桐，宋贞泰，刘凯妮，黄惠子，王吕齐眺

建筑设计：如恩设计研究室
室内设计：如恩设计研究室
软装设计及采购：设计共和

顾问
设计管理：万科集团城市研究院
当地设计院（建筑）：深圳市博万建筑设计事务所（普通合伙）
幕墙：深圳市朋格幕墙设计咨询有限公司
当地设计院（室内）：深圳市标高装饰设计工程有限公司
灯光：大观国际设计咨询有限公司
景观：深圳市园冶环境设计有限公司

施工方
施工总包：深圳市西部城建工程有限公司幕墙：上海巨诺实业有限公司，深圳市西部城建工程有限公司室内：深圳市创宝装饰工程有限公司
钢结构：深圳市创宝装饰工程有限公司门窗：旭格国际建材（北京）有限公司

More: 如恩设计研究室。更多关于：Neri&Hu Design and Research Office on gooood
