感谢来自 零几建筑（media@atelierzeros.com）对gooood的分享。更多关于他们：Atelier Zeros on gooood.
Appreciation towards 零几建筑（media@atelierzeros.com） for providing the following description:

“流动的金属”展亭是2023设计上海展会上零几建筑为RL门窗品牌设计的临时展厅。建筑师采用金属来建造门窗金属加工企业的展厅，让观众体验品牌精神的同时，感受产品生产的图景。RL产品以超常的线条和精致的工艺著称，建筑师希望设计可以像放大镜一样，彰显出品牌的加工工艺。

Metal Metal Pavilion was a temporary exhibition pavilion designed by Atelier Zeros for RL company at the 2023 Design Shanghai. The metal tubes were applied to construct the pavilion for RL, a metal fabrication company, while showcasing its brand and magnifying its manufacturing techniques.

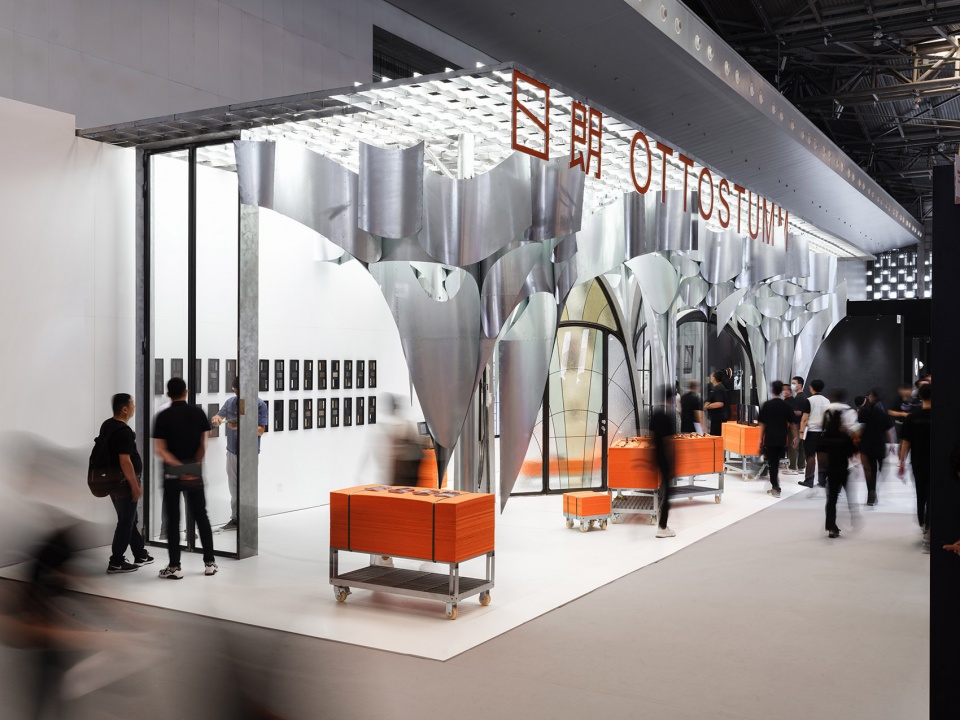

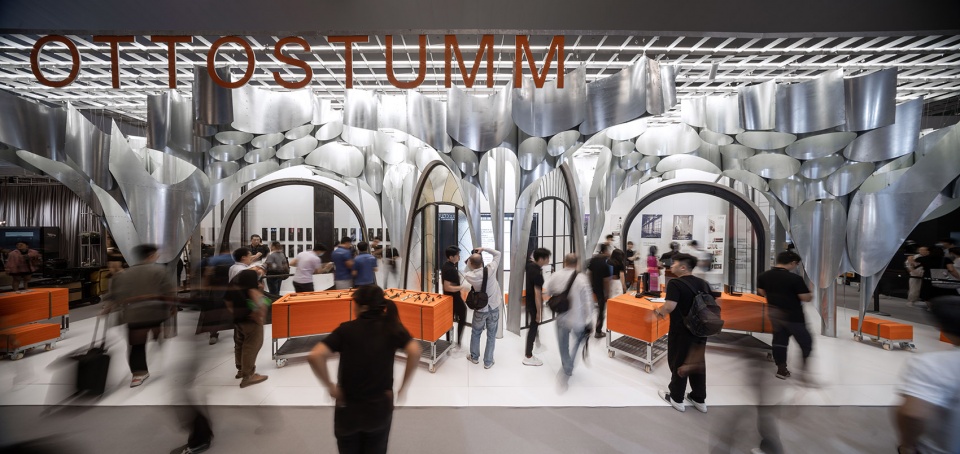

▼装置概览，Overview of the installation ©朱润资

设计上海的展期为三天，只有两天搭建和5小时撤展时间，搭建材料要轻、容易搬运、组装和拆卸，成本也要控制，因此我们选择了0.4mm厚度的镀锌钢板。无花镀锌钢板是很常见的工业材料，却有着接近铝板的光泽和不锈钢的硬度。

Due to the limited on-site construction and dismantling time, the architects selected a common industrial material: the 0.4mm galvanized steel sheets. This material is light-weighted, easy to transport, assemble and disassemble, while also being pricey-affordable.

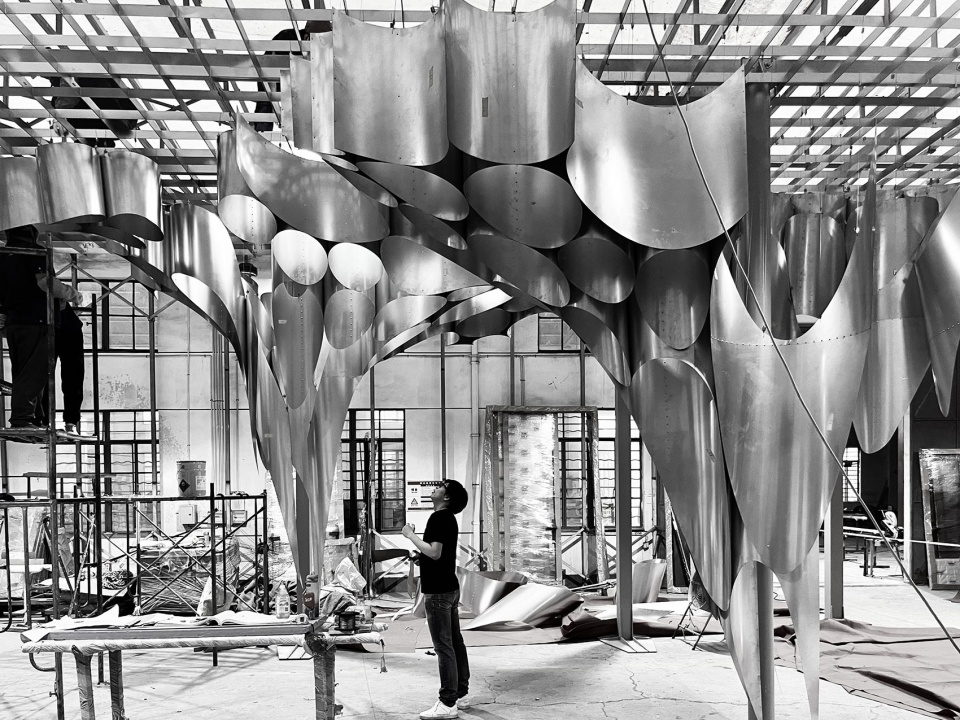

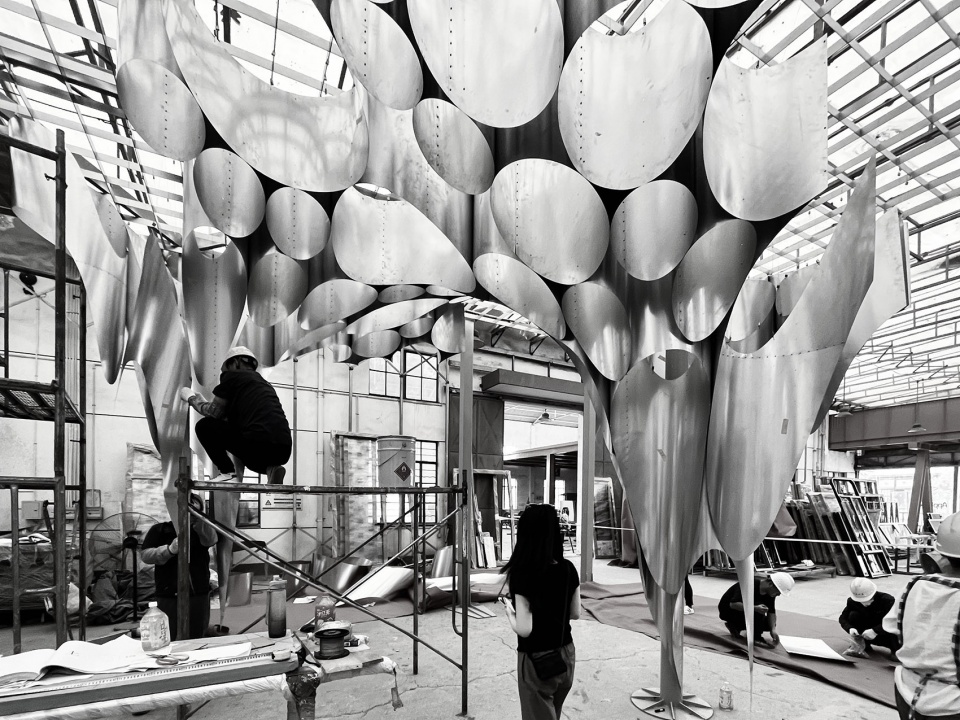

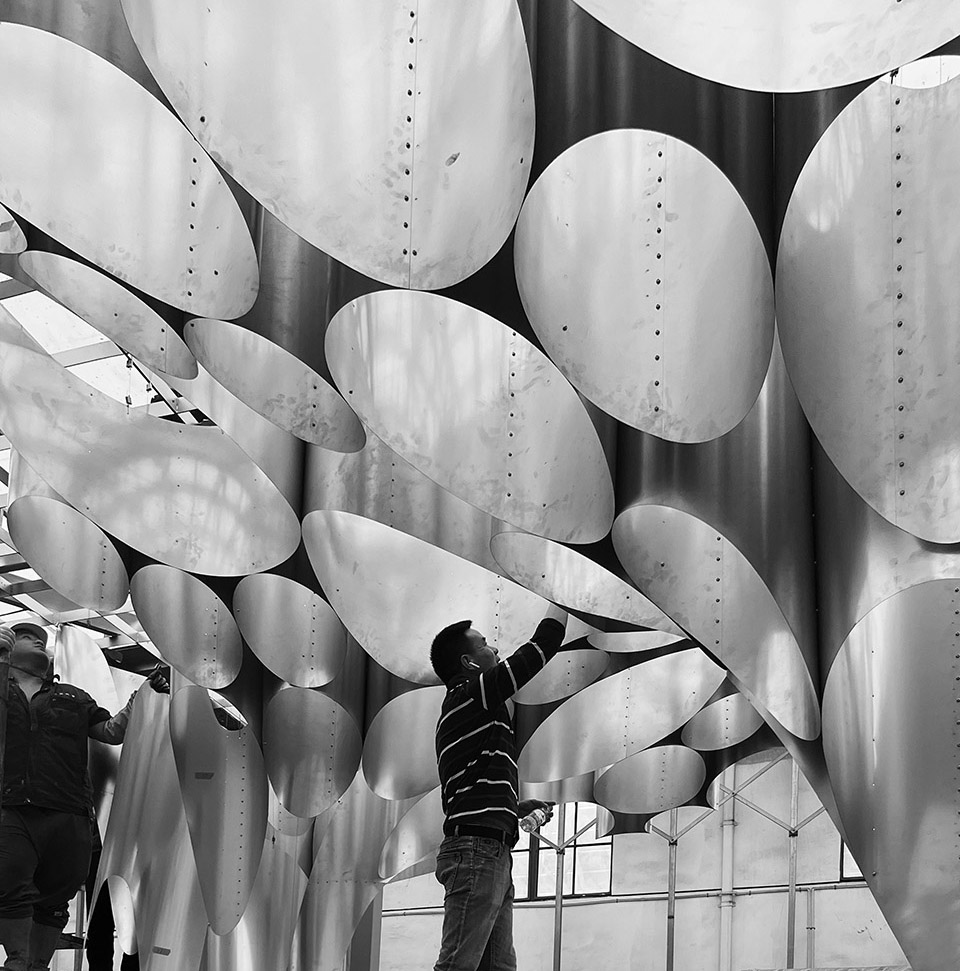

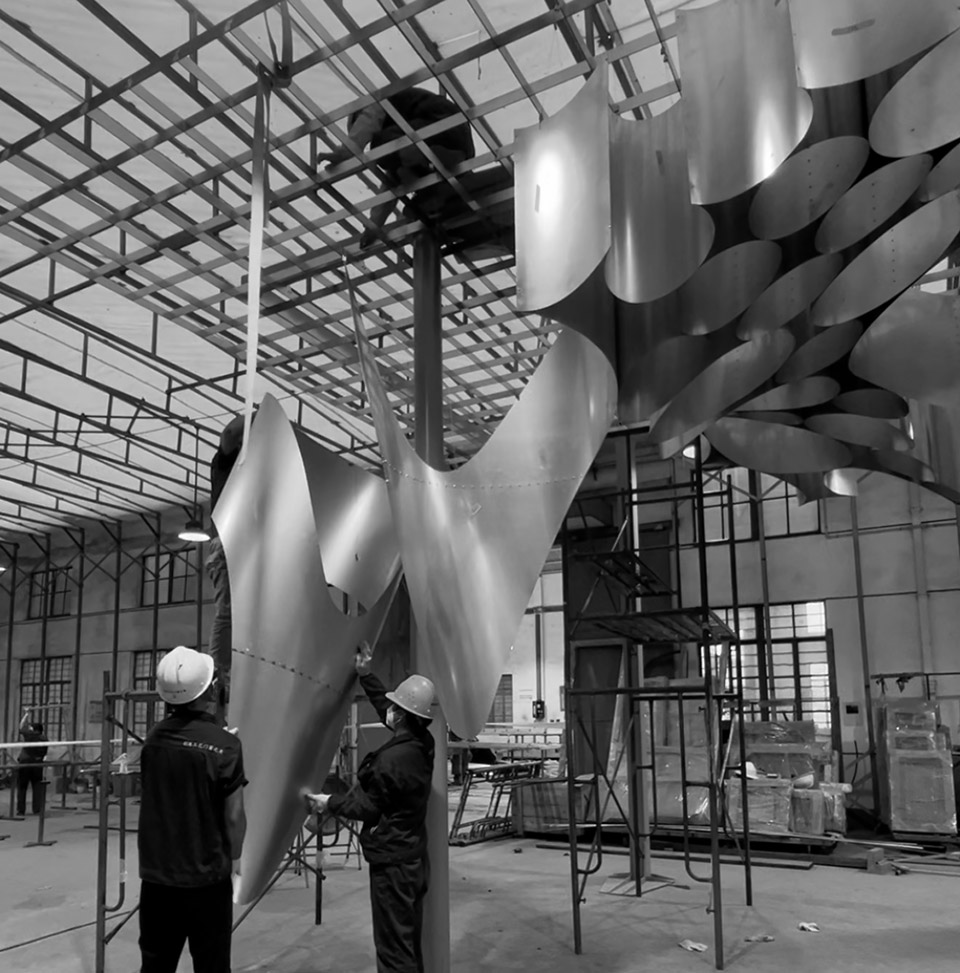

▼制作过程，progress of making ©零几建筑

设计的灵感来源于门窗工厂堆叠材料的方式，建筑师试图用看似“硬”的金属打造出类似流动般的自然形态，以凸显品牌的金属加工工艺。0.4mm厚度钢板像纸张般易于弯曲，建筑师将它们进一步加工成不同尺寸的管子并堆叠起来后，它们的断面仿佛凝固在冰块中气泡。建筑师用算法模拟了冰块局部的受热溶解时的状态，让聚合物底部呈现出溶洞般的质感。金属管像溶洞中垂下的钟乳石，轻巧地限定出参观的流线空间。金属质感柔和的光泽，吸引观者轻轻触碰，细微的扰动会令这个聚合物有轻微的光线变化。这不仅为品牌增添了一个巨大的展览装置，更为整个展场平添一处人工自然。

Inspired by the way materials are stacked in the factory, the architects endeavored to create flowing forms while using “solid” metal material, which can also emphasize RL’s metal fabrication skills. The 0.4mm steel sheets, which can be easily bent, rolled into different-sized tubes and stacked together to resemble frozen bubbles within ice blocks. Algorithms were applied to simulate the melting forms of ice blocks when heated, resulting in a textured appearance resembling dissolved forms of the polymer. This dissolved form delicately defined the circulation for visitors. The soft lusters of the metal surface enticed viewers to gently touch them, and the subtle disturbance caused slight variations in lighting on those polymers. It not only gave the brand a spectacular installation but also created an artificial landscape in the whole exhibition venue.

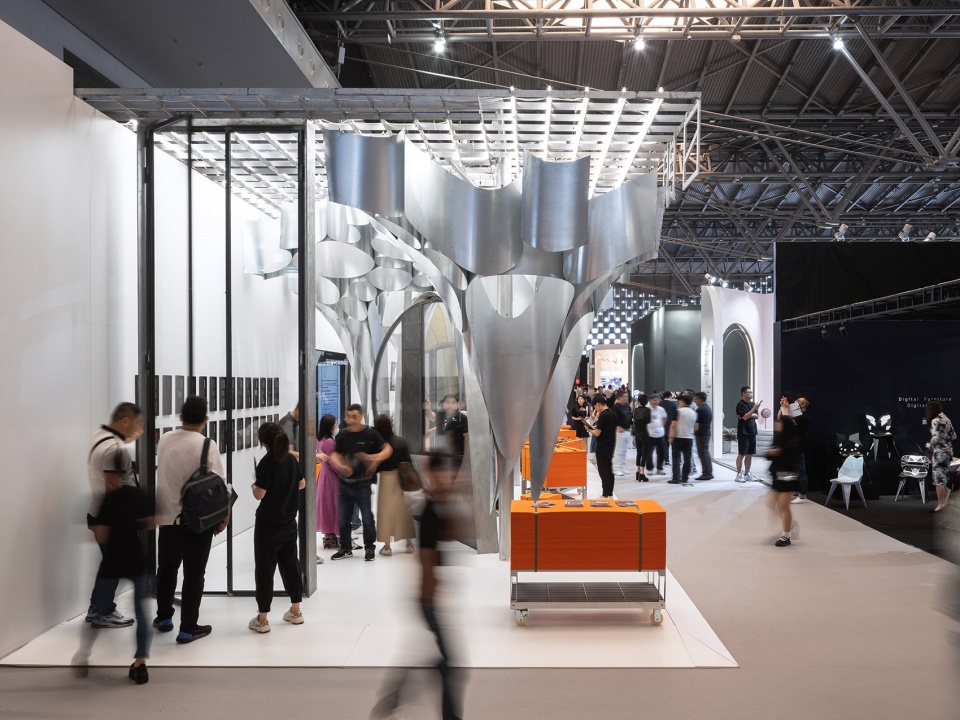

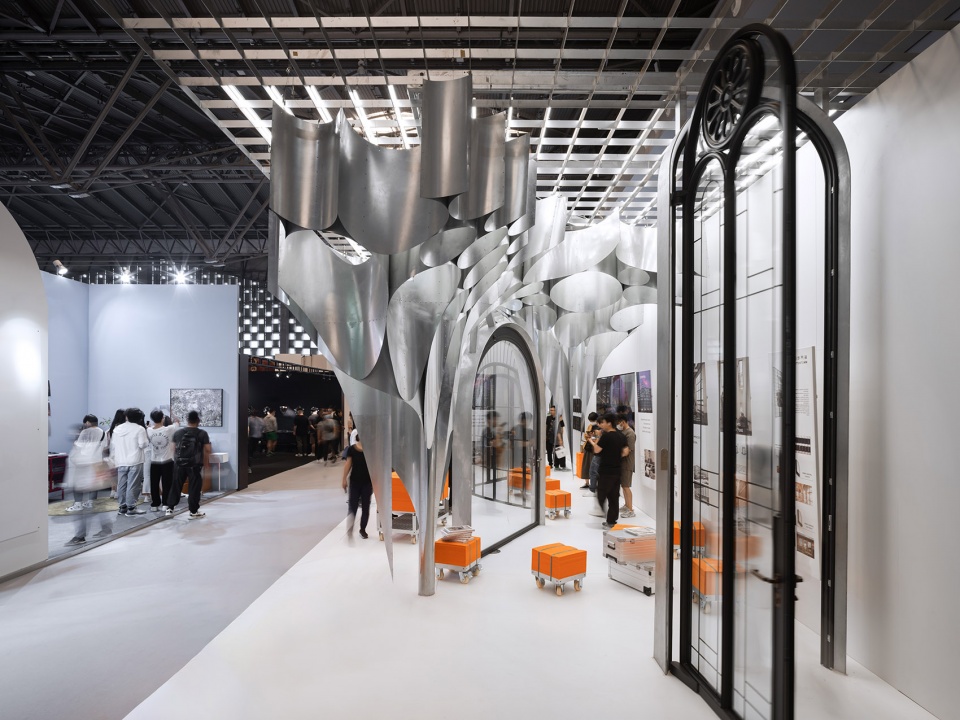

▼展亭侧立面，side elevation ©朱润资

工艺上，堆叠的金属管不借由转接构件而是直接连接，用螺丝完成。螺丝点位及孔径都经过计算机算法确定，不同形态的金属管均可展开为平面闭合曲线，连同金属板的编号以及板面的螺丝点位均在工厂数控加工，运至展馆后在两天内搭建完成。搭建后的数控金属聚合物悬挂在由五根钢柱支撑起的金属格栅之下，它们的末端会在现场观众的触碰下随机摆动。受到工厂货物推车启发，建筑师用板扎带把橘色吸音棉固定在工厂小推车上形成展台和座椅，摆在展厅里，是无声的邀请。景观化的展亭为品牌带来了巨大的关注度。

Technically, the stacked metal tubes, which were directly connected by bolts, can be unfolded into closed planar curves. The cutting and numbering of the metal sheets and the positioning of screw holes are were processed by CNC technology in the factory. Afterwards, they were assembled on site within two days, and the metal polymers were suspended beneath joists supported by five columns. Taking inspiration from factory trolleys, cable ties are used to secure orange sound-absorbing cotton to small trolleys, creating exhibition stands and seats. The landscaped Metal Metal Pavilion brought tremendous attention to the brand during Design Shanghai.

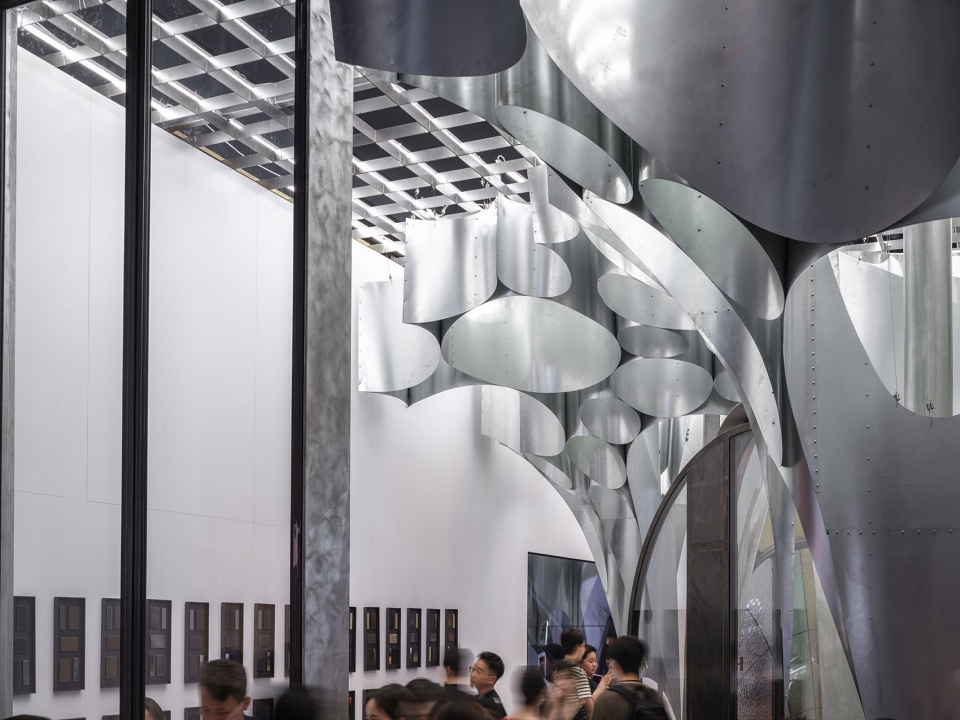

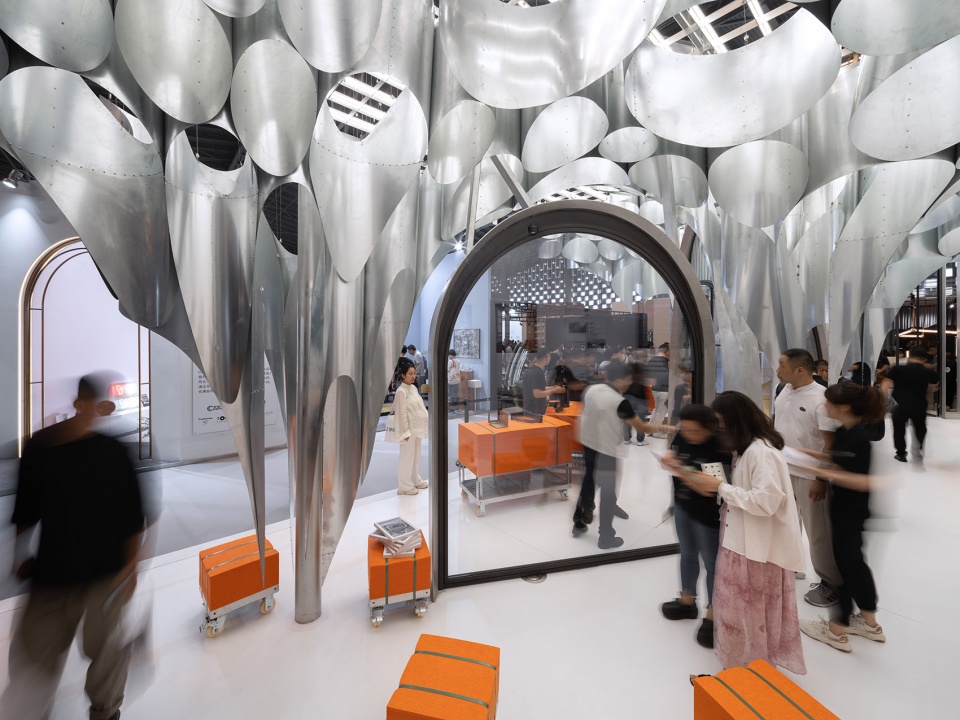

▼展亭内部，inside the pavilion ©朱润资

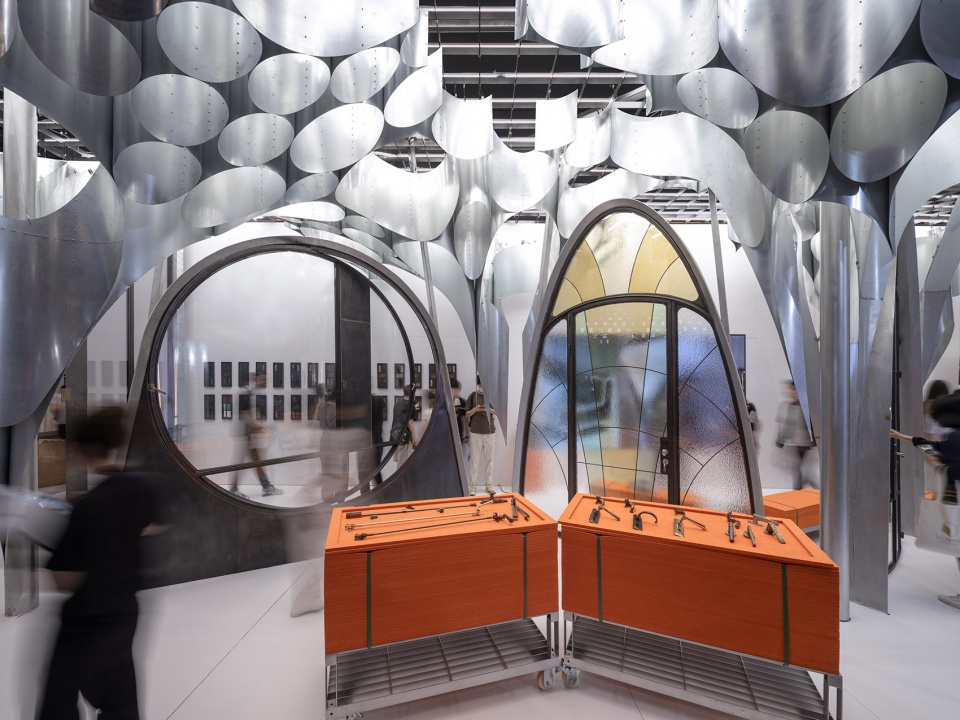

▼展亭内部，inside the pavilion ©朱润资

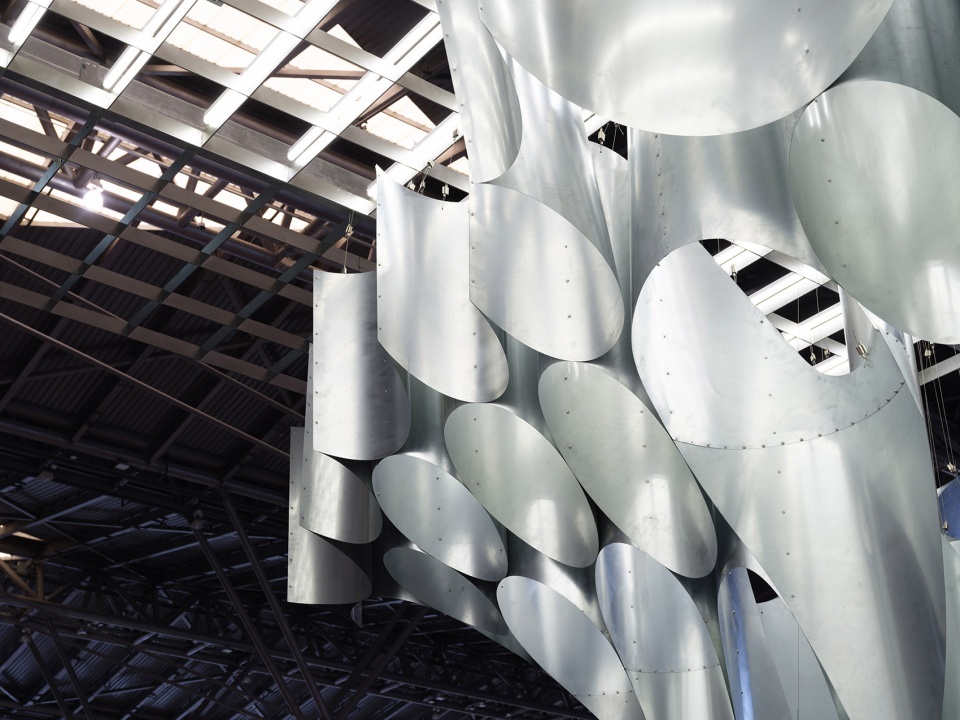

▼展亭细部，pavilion detail ©朱润资

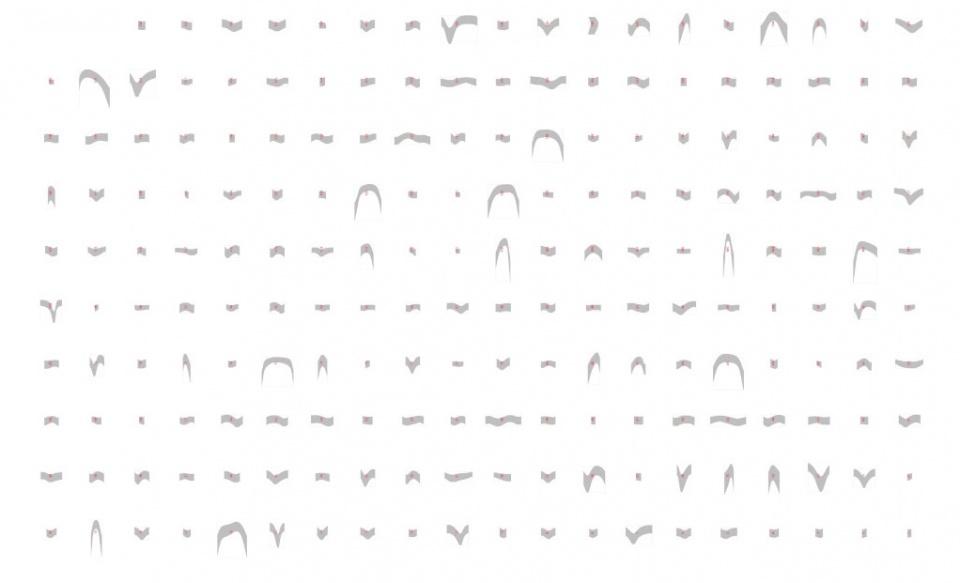

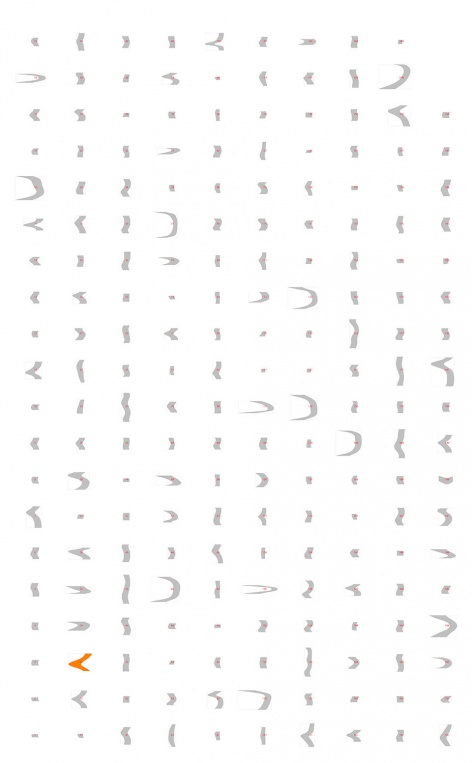

▼金属构件分版图 1，Metal Component Subdivision Drawing 1 ©零几建筑

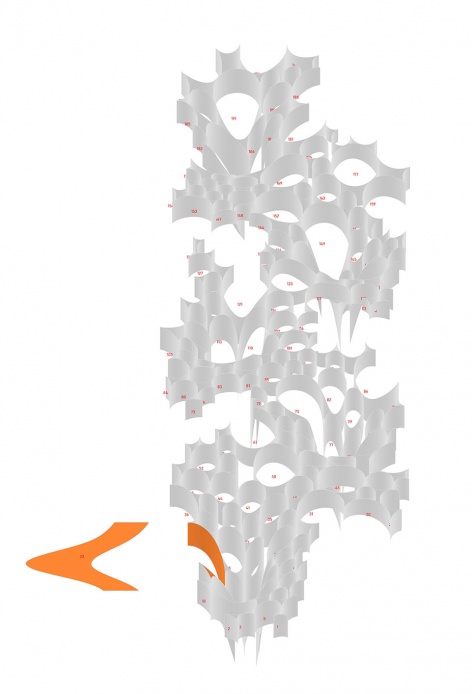

▼金属构件分版图 2，Metal Component Subdivision Drawing 2 ©零几建筑

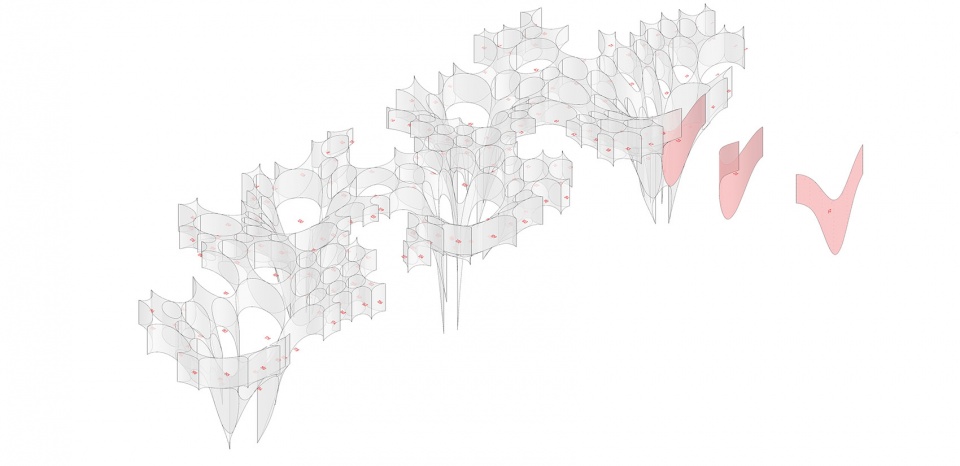

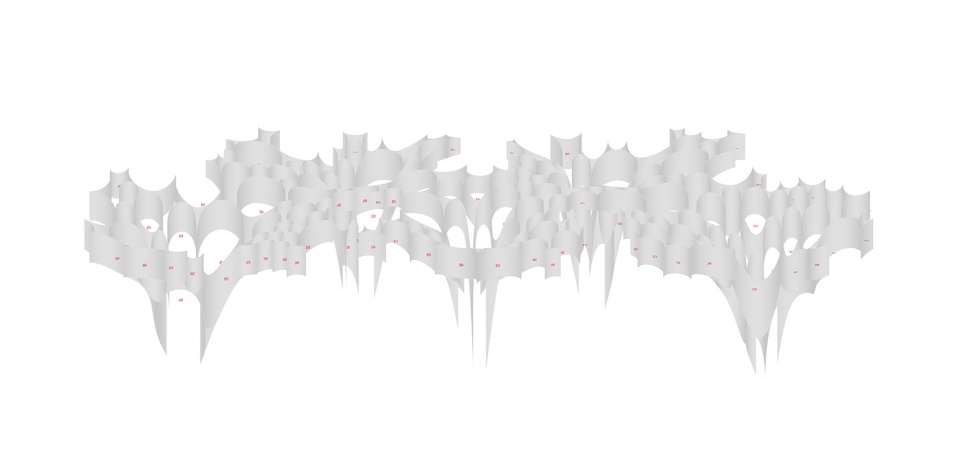

▼正轴测，Axonometric Projection ©零几建筑

▼金属构件分版图（横版），Metal Component Subdivision Drawing ©零几建筑

▼金属构件分版图（竖版），Metal Component Subdivision Drawing ©零几建筑

项目信息
项目名称：“流动的金属”展亭日朗·设计上海
建筑设计：零几建筑
设计团队：林一麟、郑渝鹏、王志刚
项目业主：上海日朗门窗有限公司
项目位置：上海，中国
建筑面积：90平方米
项目时间：2023年
摄影：朱润资、零几建筑

Project Informtion
Name: Metal Metal Pavilion
Architecture: Atelier Zeros
Design team: Lin Yilin, Zheng Yupeng，Wang Zhigang
Client：Shanghai Rilang Doors and Windows Co., Ltd
Location: Shanghai, China
Total Area：90㎡
Year: 2023
Photography: Runzi Zhu, Atelier Zeros
