来自 众产品 /众建筑 对gooood的分享。更多关于众建筑/众产品：PIDO / PIDO on gooood.
Appreciation towards PIDO / PAO for providing the following description:

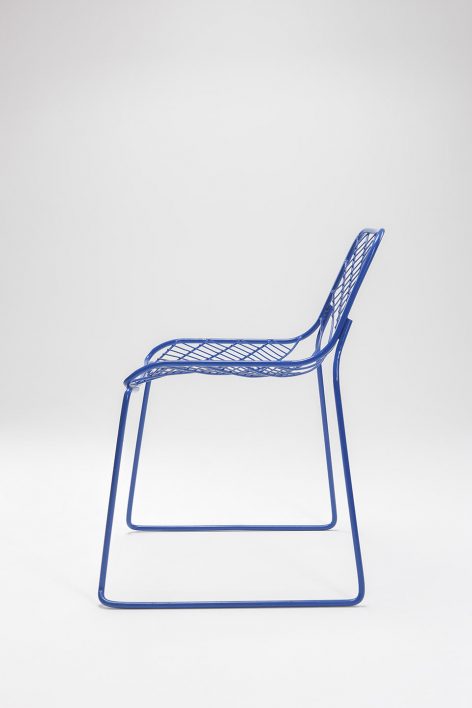

网椅的设计，起始于一个对普通椅子的疑问：在身体无法接触和使用的部位，为什么不能减少材料的用量呢？对这个问题的回答，促使我们将网椅根据其功能拆分为三部分：起主要整体结构作用的外框架部分，支撑椅面结构的下层部分和提升椅面舒适性的上层部分。我们分别选取了不同粗细的材料和布置方法来应对这三个部分，使网椅能够清晰的反映“坐”这一行为对椅子的基本要求，并利用一个控制网格将它们组织在一起。

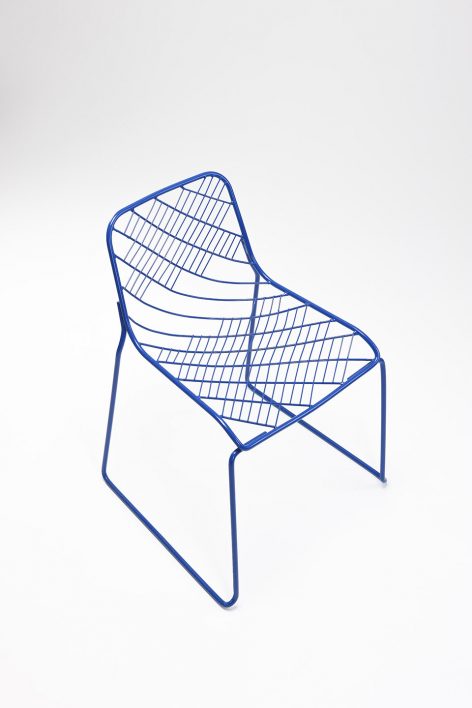

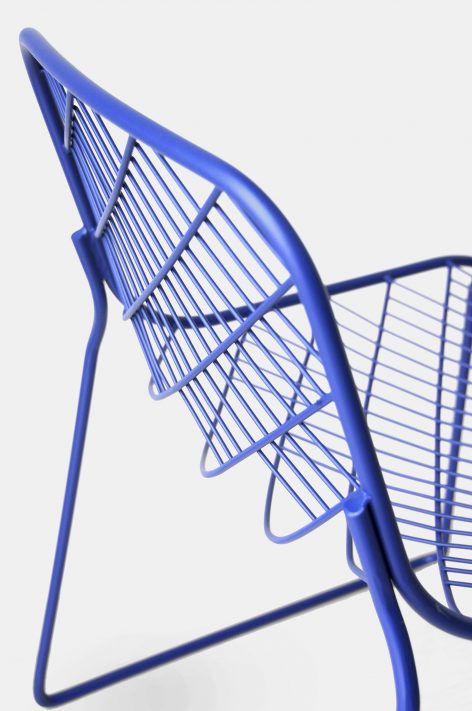

13mm直径的金属杆构成外框，起整体结构支架作用；5mm直径金属杆为下层椅面，单向排布，间距较大，起椅面主要支撑作用；3mm直径金属杆为上层椅面，单向排布，间距较小，密度较高，只出现在坐与背靠的区域，以增加舒适性。上下两层椅面的金属杆斜向交叉形成双曲面，贴合人体曲线。

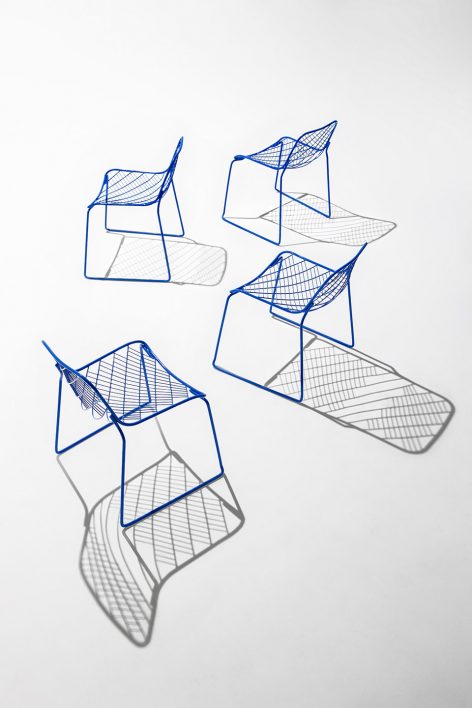

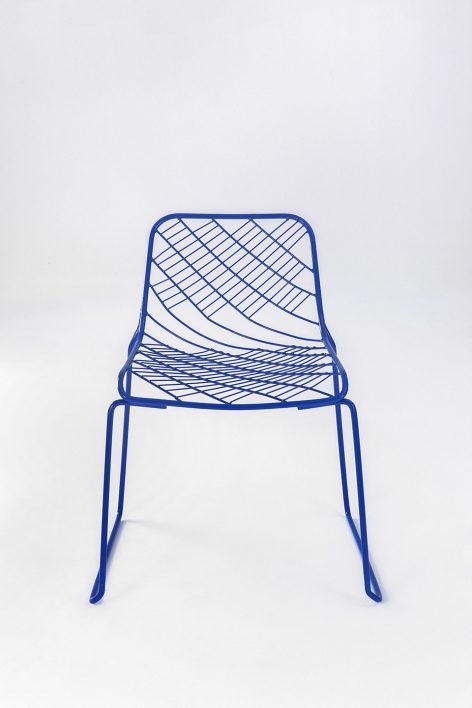

Not all wire is created equal. The Mesh Chair is an exercise in efficiency. The wire mesh is dense in areas that support the body and open where it doesn’t. In this way we increase comfort without increasing weight. The diagonals that are crucial for structure are made thick while those that are needed for comfort are thin. The emphasis on the diagonals results in a striking hatch effect that gives a light airiness to the chair.

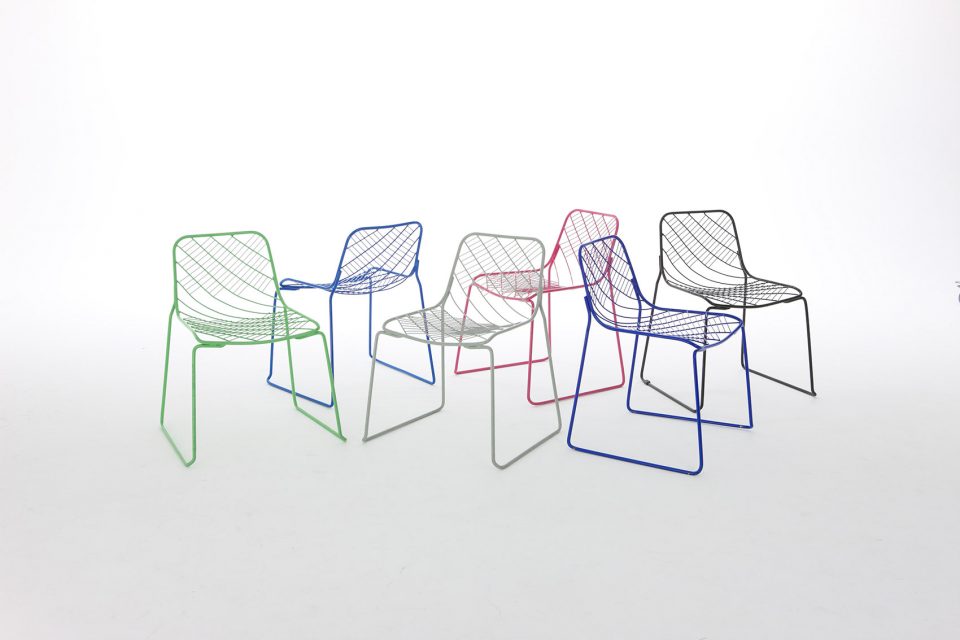

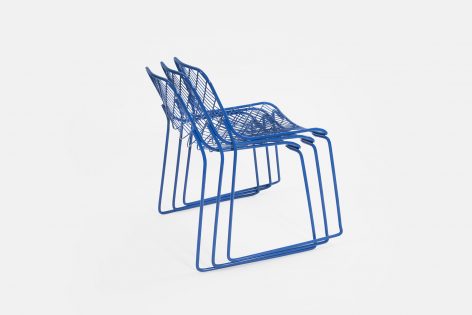

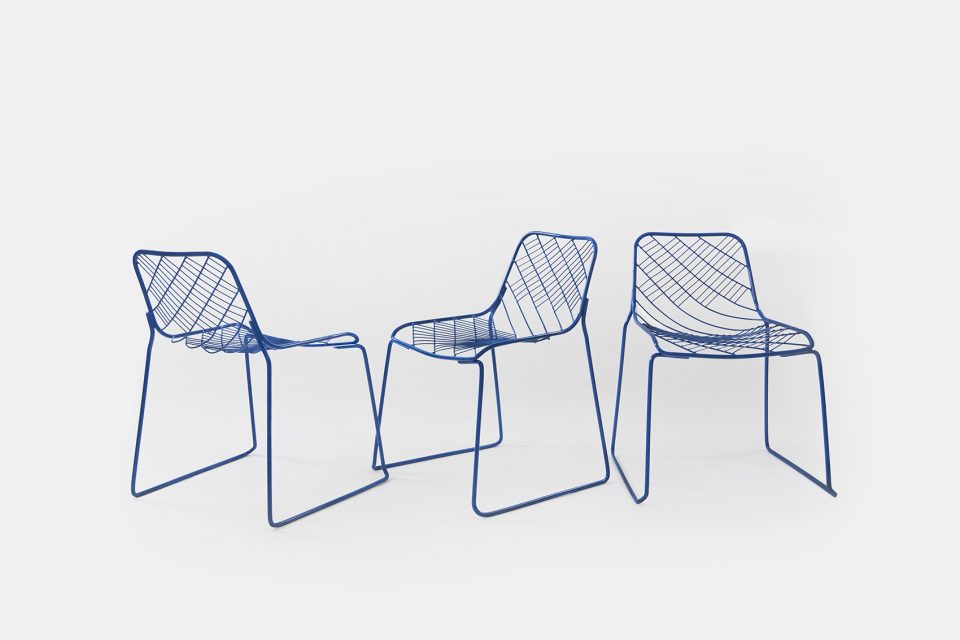

网椅有普通座椅和吧椅两种版本。表面烤漆处理，有多种颜色可供选择。可配坐垫，可于室内外使用。可叠落在一起，方便储藏。

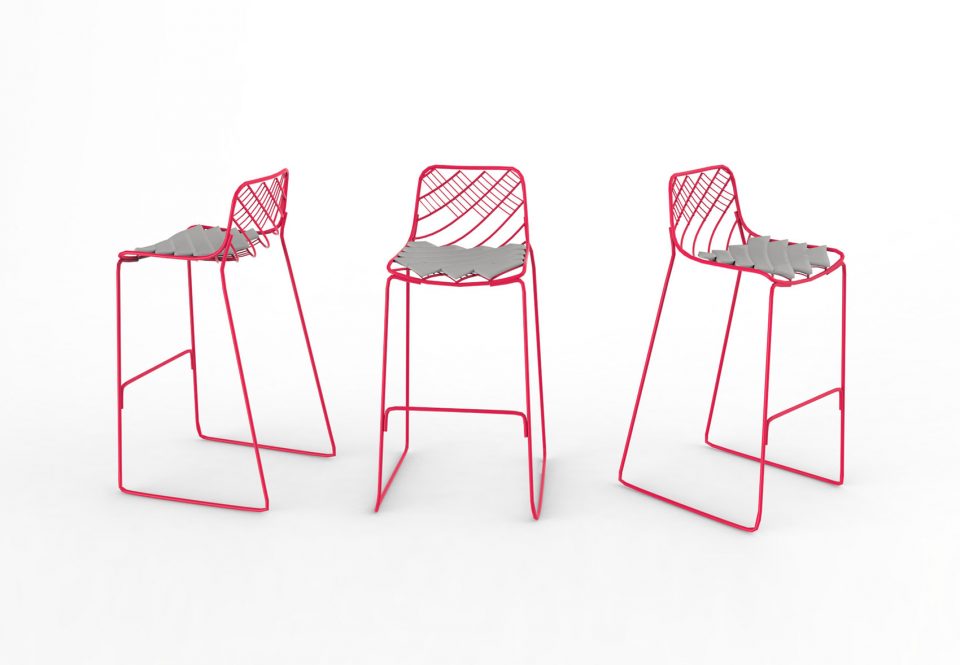

The Mesh chair comes in a side chair version and a stool version in various colors of a powdercoat finish. Also available are matching seating pads for added comfort.

点击这里查看同系列产品“网沙发”
Click HERE to view “Mesh Sofa”

材料：钢
设计主持：何哲，James Shen（沈海恩），臧峰
设计团队：牛磊
摄影：51PHOTOS商业摄影，众产品

Material：Steel
Principal: He Zhe, James Shen, Zang Feng
Project Team: Niu Lei
Photographer: 51PHOTOS, People’s Industrial Design Office (PIDO)
