非常感谢 Joshua Florquin Architects 予gooood分享以下内容。更多请至：Joshua Florquin Architects on gooood
Appreciation towards Joshua Florquin Architects providing the following description:

Joshua Florquin Architects受Hans de Schuyter医生邀请，为其位于比利时马尔德海姆的诊所设计内部空间。这个一层高的长方体建筑内需容纳包括了等候区，可存放档案的接待区，厨房和两个办公室在内的公共区域和员工空间。设计师并没有对空间结构做出大的调整，仅依靠一种单纯的设计手法 — 在空间中植入了以折线语言的木制家具，在满足了不同功能区域的使用需求的同时，形成了完整连贯的空间体验。

设计师从功能和精神两个层面出发，确定了诊所的空间理念和具体设计。考虑功能层面，是因为诊所的交通空间必须满足其作为医疗服务设施而应有的无障碍设计等技术规范。而考虑精神层面，则是因为病人在等待期间所处的空间环境会影响到其心理和生理状态。精心设计的采光和慎重的材料选择让室内空间对病人的精神状态起到积极的作用。

This medical practice is founded by Dr. Hans de Schuyter and is based in Maldegem, Belgium. Hans commissioned Joshua Florquin Architects to design the planning and interior-design of the practice. The program consists of inserting into an oblong shaped one floor building public and private amenities such as waiting area, reception with archive, a kitchen and two offices.

The concept and design of the practice has a strong functional and psychological approach that overlap each other. Functional because of accessibility and technical regulations, that are inherent to the working environment of a medical practice, where circulation interconnects the public and private spaces. Psychological because of the mental and physical state patients can find themselves in when visiting. Particular attention is given to light and materials that influence the state of mind in a positive way.

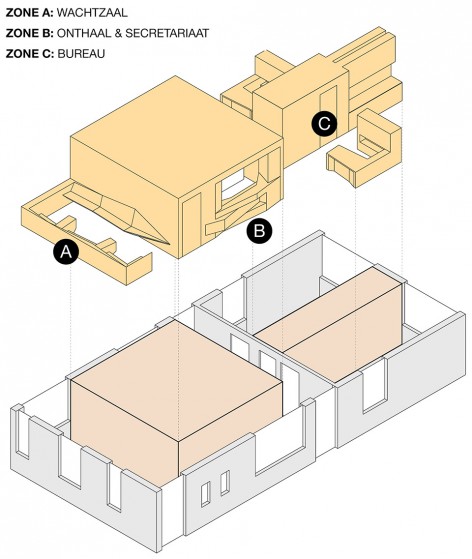

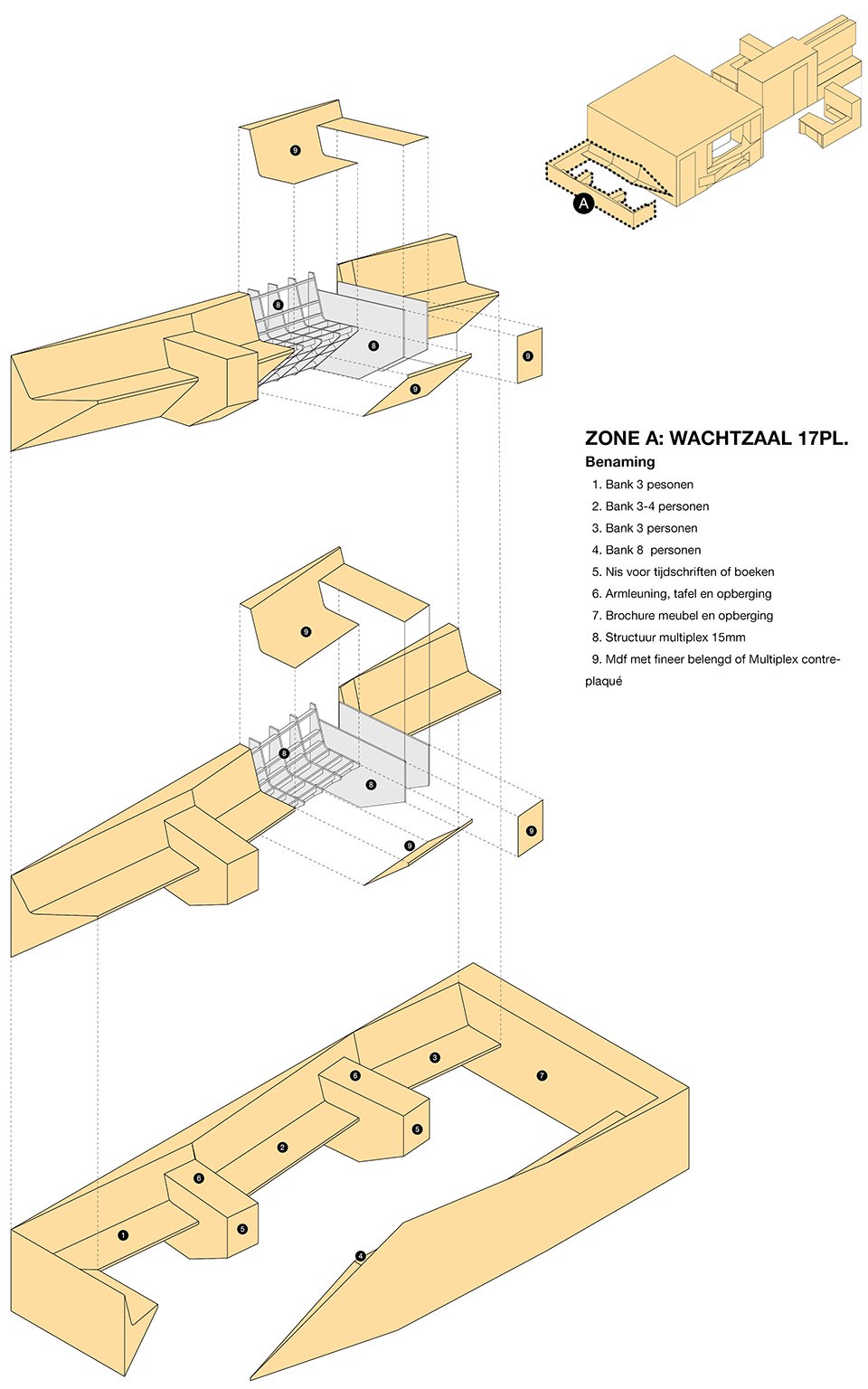

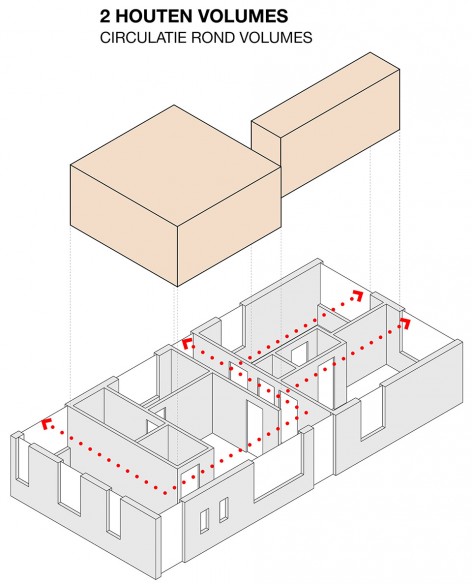

▽ 轴测图 axonometric drawings

设计师选择在室内置入了一个长条的体块。体块再分割为数个小空间，分别为接待区兼档案室，厨房，洗手间和技术区域。体块位于私密的工作区和开放的等候区的中间，因此无论是等待中的病人，还是医生前往前台和洗手间时，都不会干扰到对方。

In the floor plan we distinguish a central placed rectangular threshold-volume. It holds mainly the reception but also archive, kitchen, lavatory and a technical area. It separates the private working spaces from the public waiting area. This gives waiting patients and the doctors direct access to reception and lavatory without crossing each other.

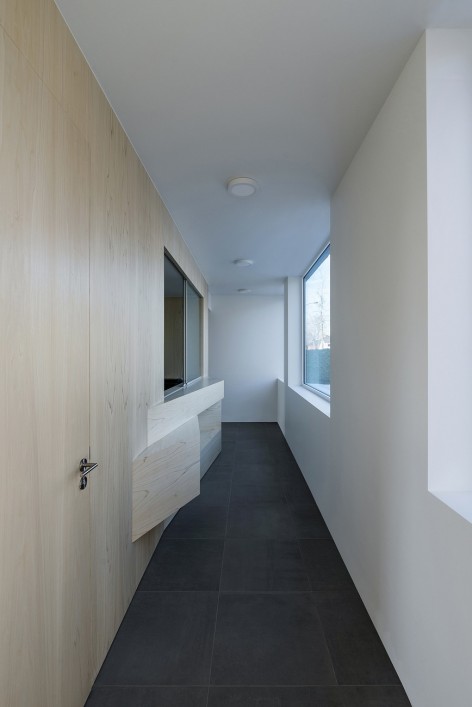

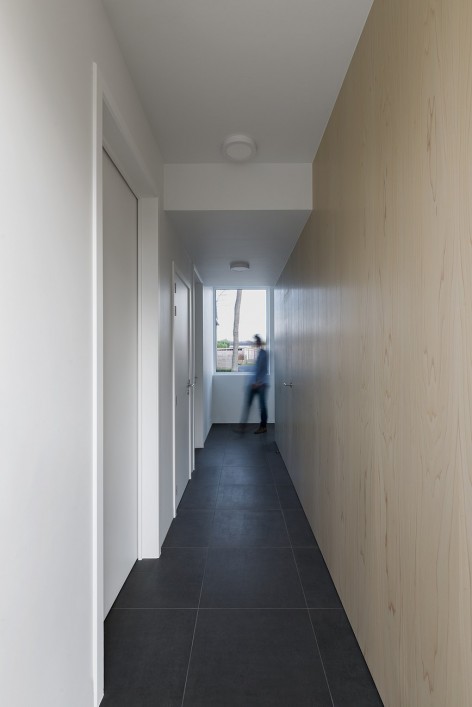

▽ 走廊，hallway

新加入的浅色木质长方形体块让内部空间显得明亮和柔和，并随着其所处空间功能的改变而改变形状。在等候区，折线形的体块从木质墙面中延伸出来，环绕墙壁形成了供病人等候休息的座椅。小型岛状书柜穿插其中，将连续的座椅分隔成数个小空间，病人可根据自己的状况选择是否于其他人发生接触。同时，折线的造型避免了长时间的对视的发生，让病人在等候期间更加舒适。

The central rectangular volume has a tulip identifiable wood coating and gives a soothing bright atmosphere. Together with the function of the area it changes in shape throughout the practice. In the waiting area a serpent like form emerges from the wooden wall and becomes a bench where patients can sit. The different benches are separated by armrest-libraries creating small waiting islands. When a patient visits the practice, according to his mental and physical state, he can choose to sit with other patients or search privacy and sit alone in one of the islands. The facing benches are not parallel but have a skewed zigzagged form in order to naturally avoid a direct eye-contact, if wished.

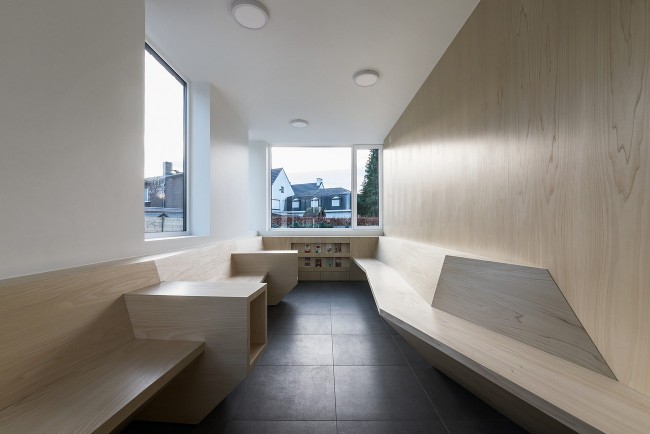

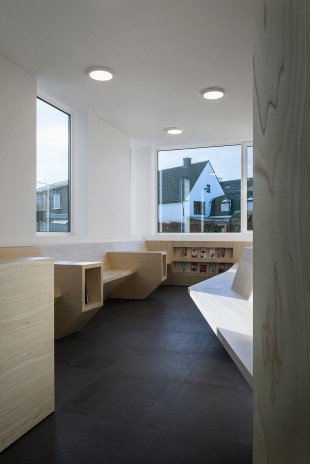

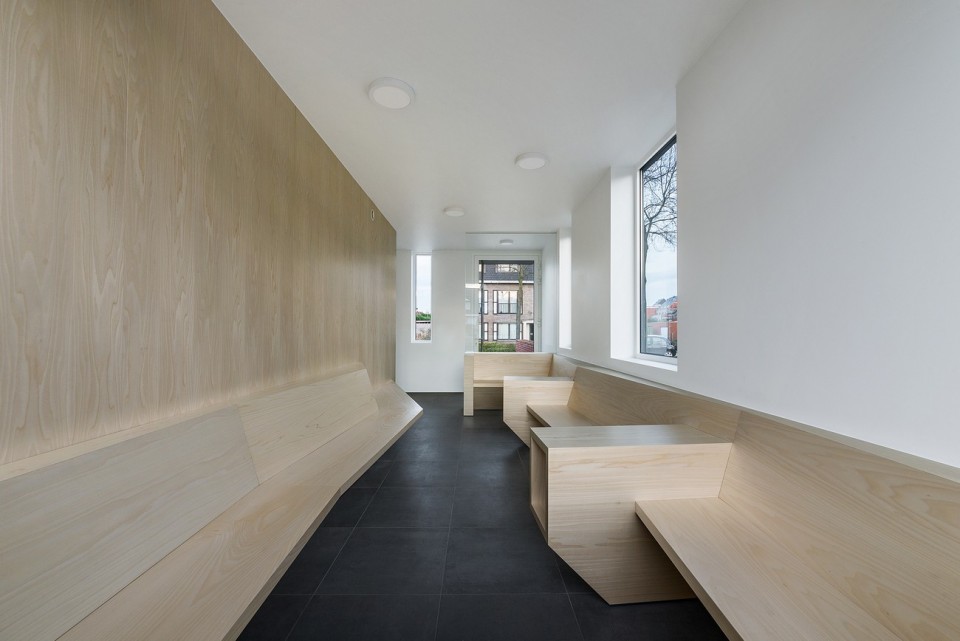

▽ 休息区入口视角，view from the entrance of waiting area

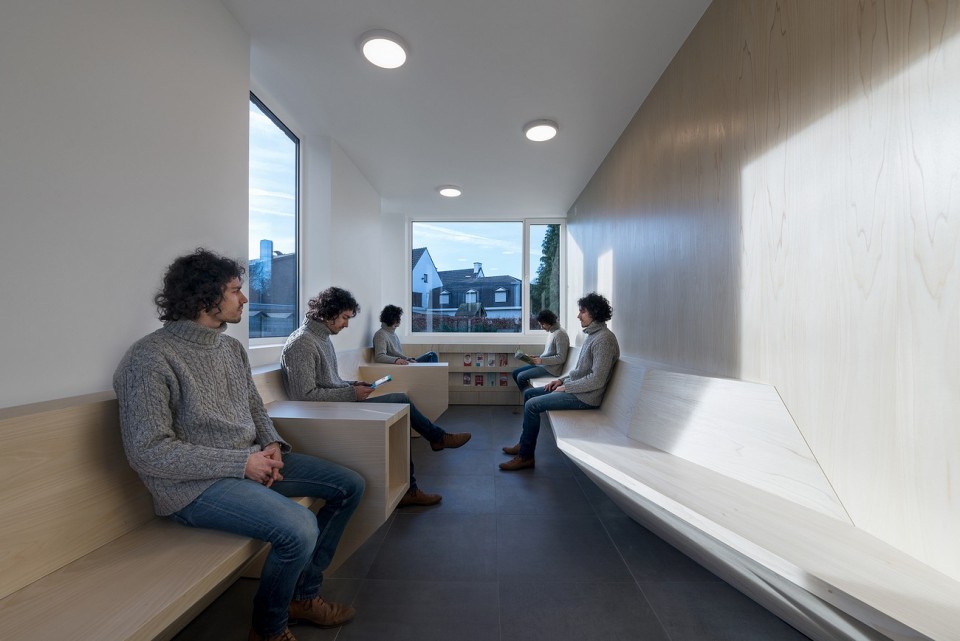

▽ 使用中的座椅，benches in use

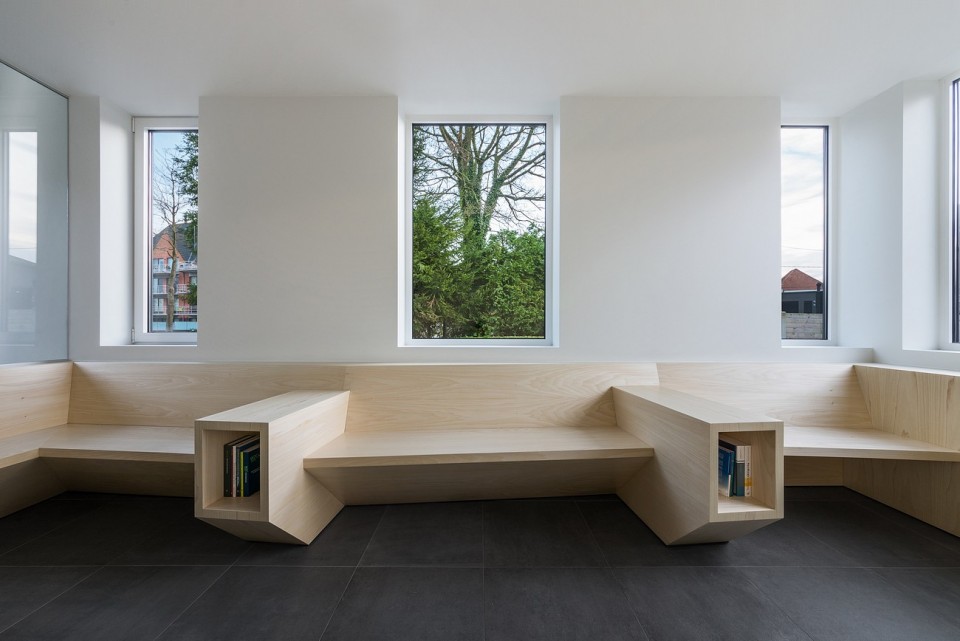

▽ 休息区内部视角，view to the entrance of waiting area

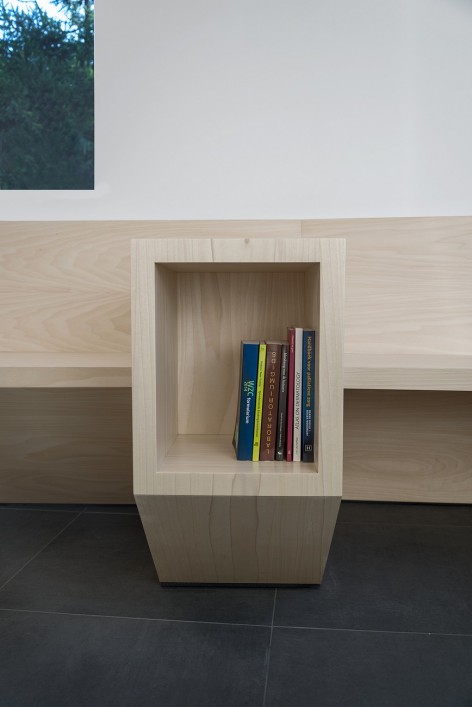

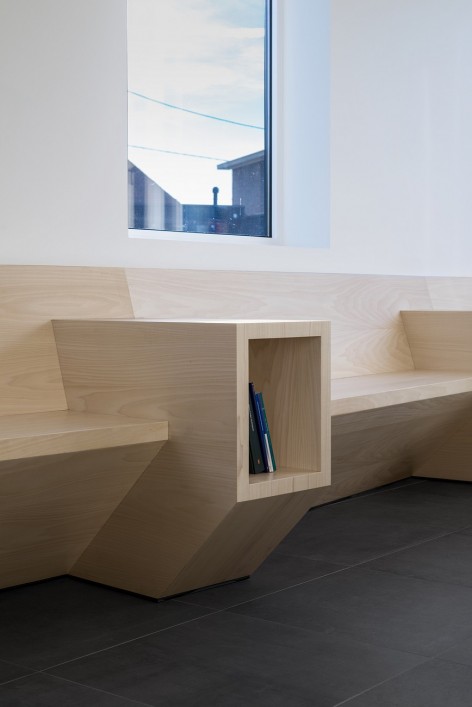

▽ 小书柜，armrest-libraries

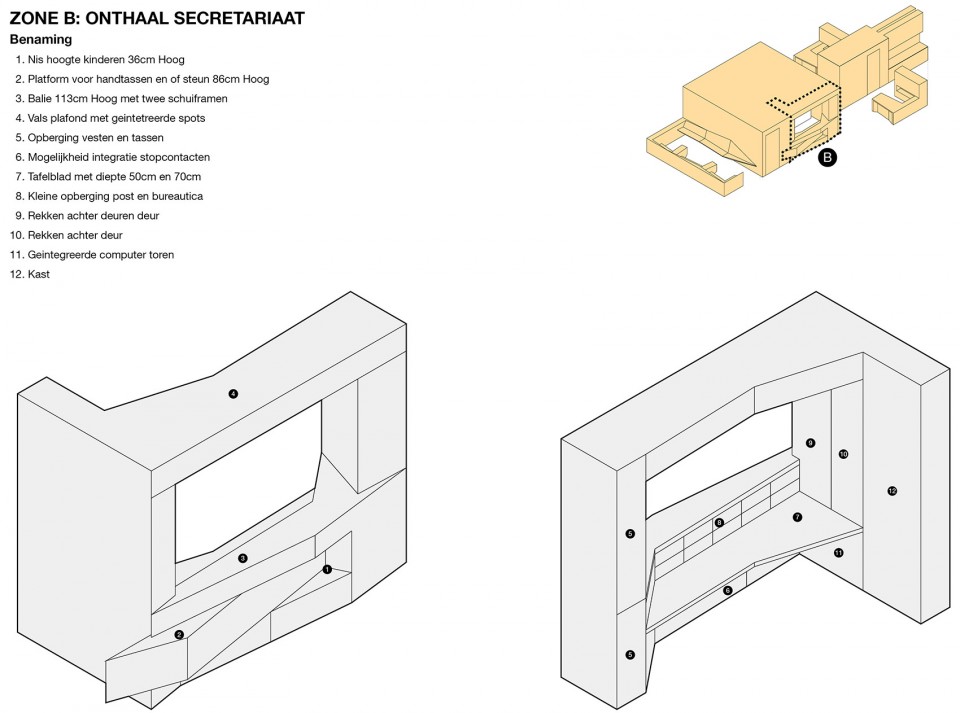

等候区的旁边便是接待区。在那里，平坦的木质墙面变成了由三个小体块叠加而成的前台。每一个体块都有各自的厚度和功能。最高的体块作为桌面，可放置、处理病人的资料文件，中间的体块高度适中，方便办理业务的病人短时间搁置随身的背包，最下的一个则作为壁龛，储存送给生病儿童的小礼物。相似的结构也出现在医生办公室内，定制的浅木色家具将咨询室从更私密的检查室中独立划分出来。

From the waiting area you can walk towards the reception where the wooden wall transforms itself into a front desk made out of three emerging intersecting volumes. Each volume has a height and a function. The highest volume is the desk where documents can be laid on and handed over. The middle height volume can be used to rest handbags on and finally a third lower volume in form of a niche, where children can take a small toy when leaving the doctor’s office. The concept and aesthetic language continues in the offices where custom furniture, also coated in tulip wood, divides the consultation area from the more private examination area.

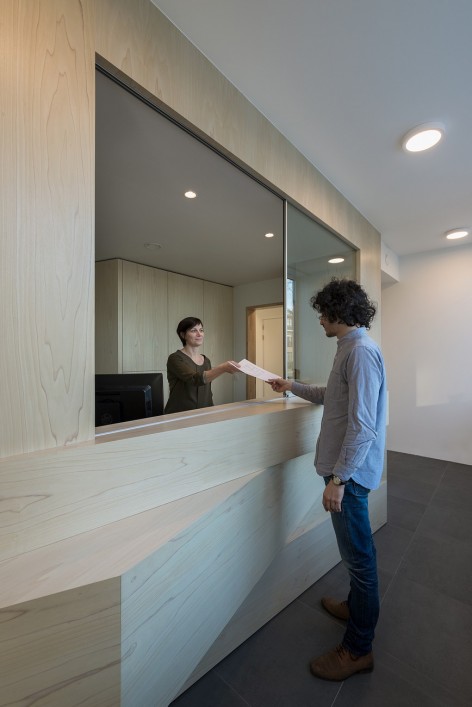

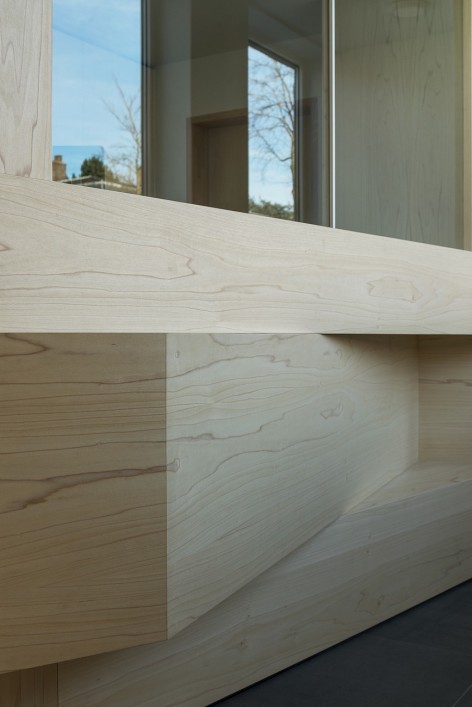

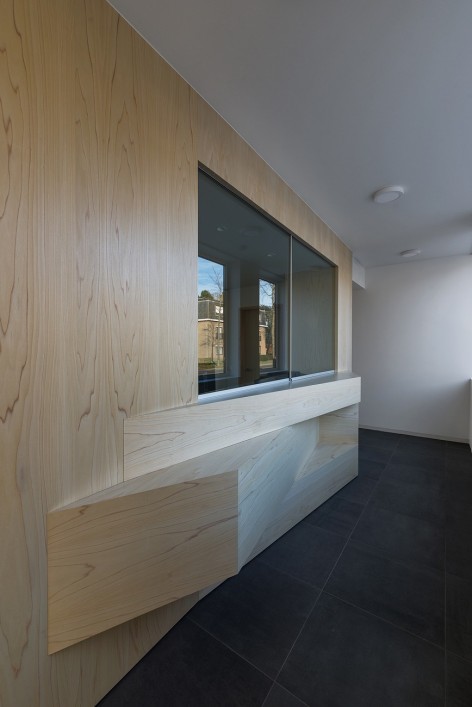

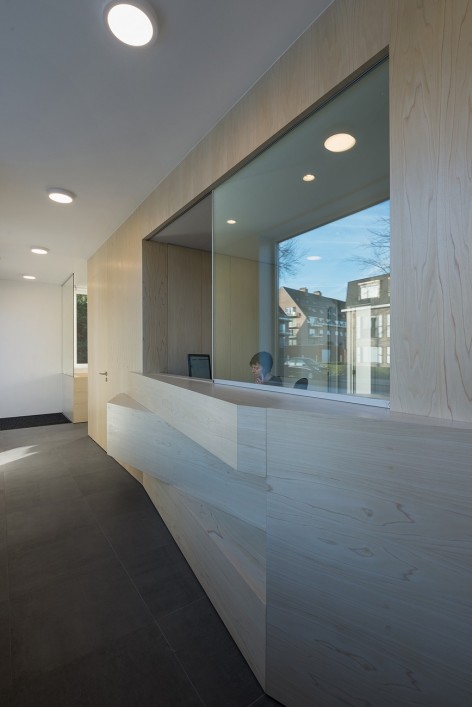

▽ 接待区，reception

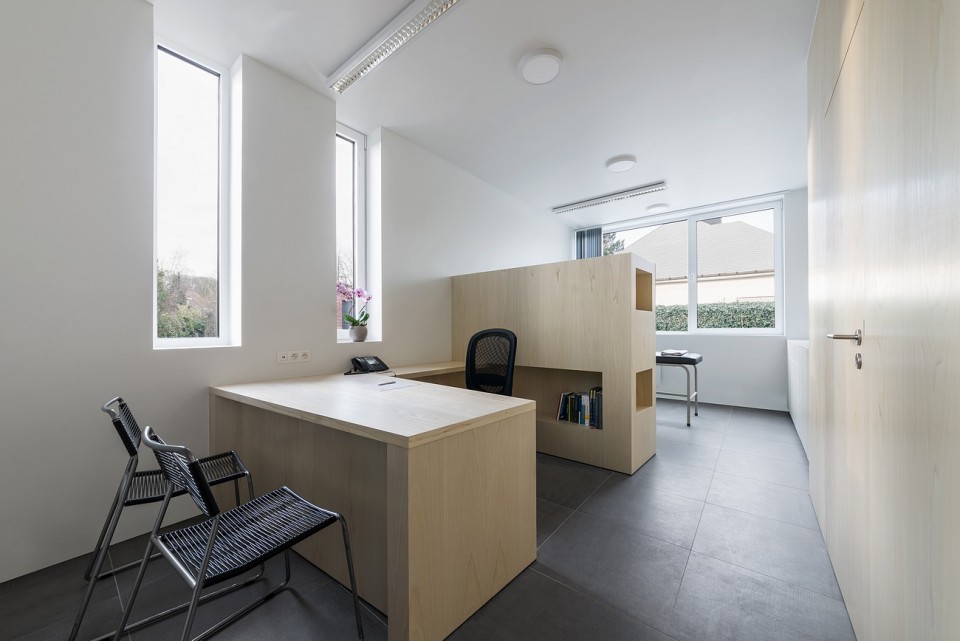

▽ office，医生办公室

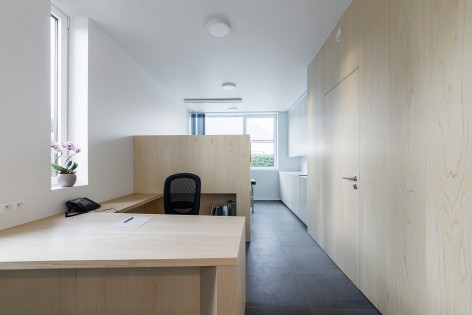

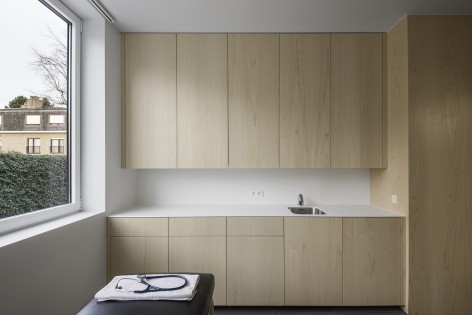

▽ 咨询室／检查室，consultation area／examination area

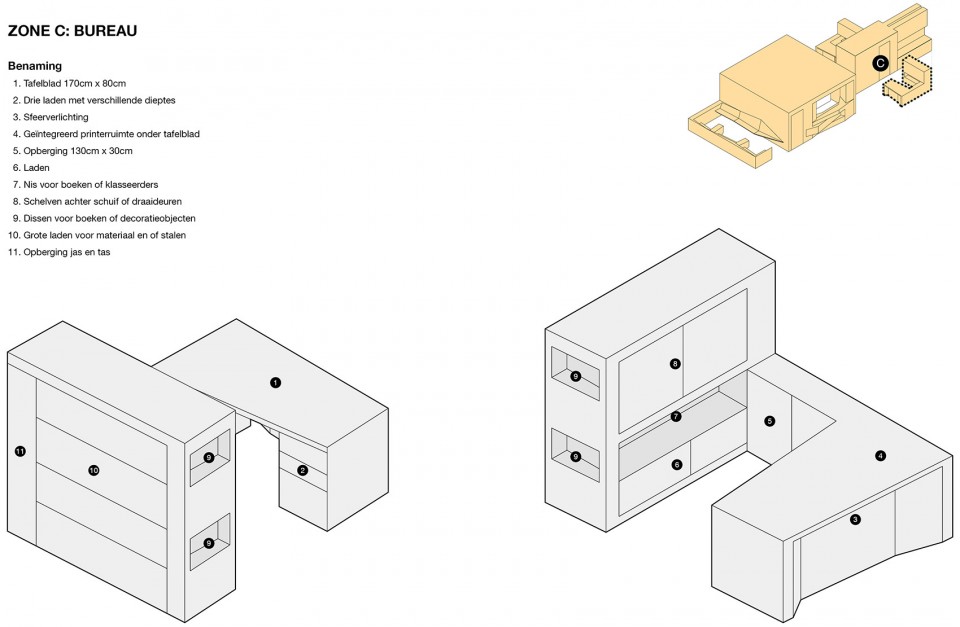

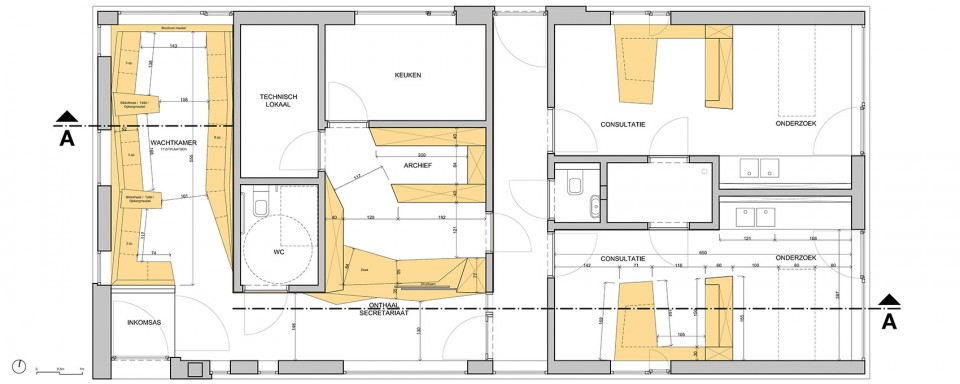

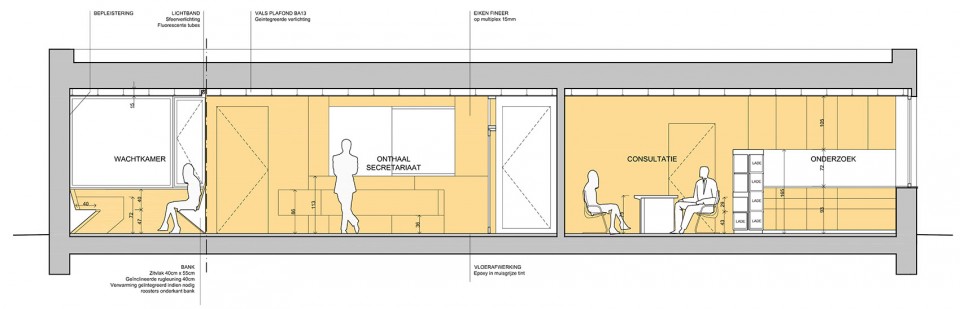

▽ 线图，line drawings

Program: planning and interior-design of a medical practice
Location: Reesinghelaan 2, 9990 Maldegem, Belgium
Area: 120m²
Completion: January 2016
Client: Dr. Hans De Schuyter, Artsenpraktijk de Leeuwerik
Architect: Joshua Florquin Architects
Construction firm: Speeckaert houtprojecten
Photography: Matteo Rossi
Article: Joshua Florquin

English Text: Paul de Ruiter architects
Chinese Text: gooood
