来自Viar Estudio对gooood的分享。更多请至：Viar Estudio on gooood

设计的灵感来源于基地本身。

-对该区域进行拓展，打造一个全新的景观。

-将屋顶设计为具有可辨识性的元素，自然地融入景观之中，仿佛一件来自大海的礼物。

站在基地中，触目可及的是大海、波涛、绿地、礁石；是风暴、风浪、风雪；也是阳光、阴影和树林。

人们探索建筑的过程是这样的：首先他们进入坡屋顶之下，欣赏展览，之后走到室外，重新发现景观的存在。

The idea of the project is suggested by the site. The site is the project. The project is for the site.

-Colonize the place, creating a new place in the landscape

-The roofs are laid out as recognizable elements into the landscape, like pieces brought by the sea.

At the site we can see: the sea, the waves, the grass, the rocks. The storms, the wind, the snow; also we see the sun, the shadow, the wood.

People discovering the building; Firstly they get into the pitched roof buildings, watching the exhibition and afterwards they achieve the outside view and re-discover the landscape.

▽设计的灵感来源于基地本身，The idea of the project is suggested by the site.

▽触目可及的是大海、波涛、绿地、礁石；是风暴、风浪、风雪；也是阳光、阴影和树林。At the site we can see: the sea, the waves, the grass, the rocks. The storms, the wind, the snow; also we see the sun, the shadow, the wood.

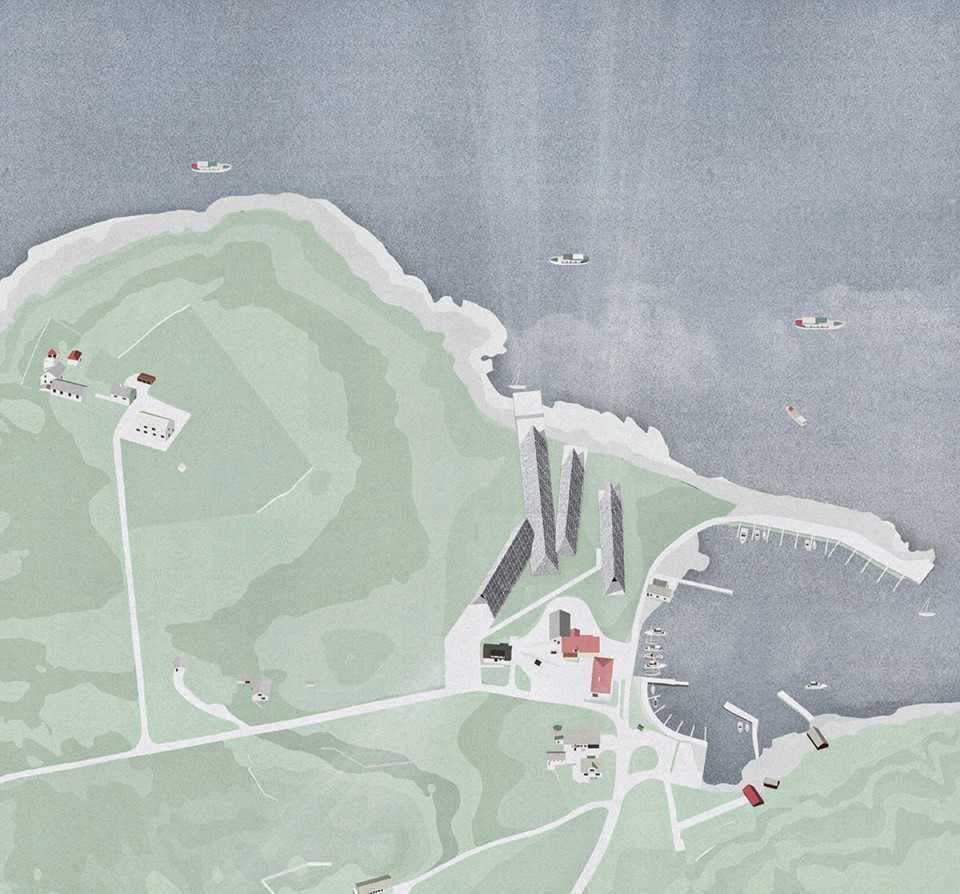

▽将屋顶设计为具有可辨识性的元素，自然地融入景观之中，The roofs are laid out as recognizable elements into the landscape

4座建筑，体量不同，但构成的空间确实完整而连续的。

最主要房间是展厅，访客攀上楼梯（同时也是剧场空间）可以到达室外，再借由一段木质的平台与大海亲密接触。

屋顶外部看上去跟传统建筑没有大的不同，在内部使用大规格的木梁，开具天窗，营造独特的空间氛围。

All 4 buildings, different volumes, form a single, continuous space.

There is a main room containing the exhibits. Going up stairs/theater the visitor gets on the landscape (exterior) and through a wooden floor (like a carpet) is lead to the sea.

The roof: traditional construction for the exterior; the inside is made in wood (large beams) and have multiple skylights, creating a unique space.

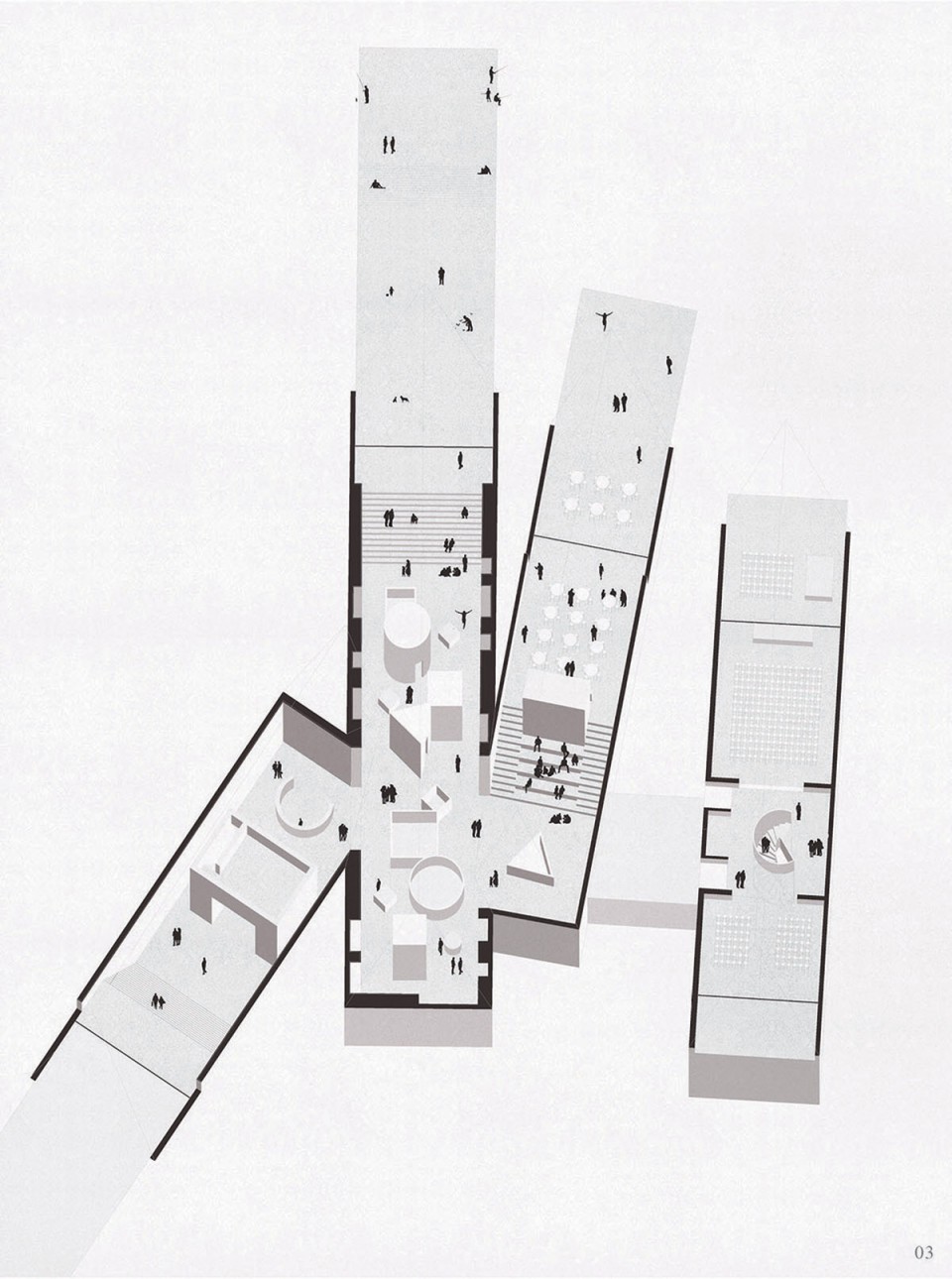

▽剖透视sectional view 4座建筑，体量不同，但构成的空间确实完整而连续的，All 4 buildings, different volumes, form a single, continuous space.

▽几何形体的空间分割塑造博物馆的科学属性，与自然环境形成对照，contrasting to the natural environment, the geometric divisions reveal the character of museum

▽在室内，由近及远，望向大海，direct visual relation from inside to outside

▽借由一段木质的平台与大海亲密接触，a wooden floor leading to the sea

4座建筑功能布局分别是：

第一座-入口建筑：大厅、商店、存衣柜、售票处和咨询台。

第二座-展览建筑：展厅、兼具剧场功能的楼梯、与大海相连的平台。

第三座-餐饮建筑：咖啡厅（有厨房提供简餐）、看台/剧场、闲置空间、户外平台。

第四座-观演建筑：观演厅、可灵活分隔的会议室（一层）、设备间和洗手间（地下室）。

The project is ordered with 4 buildings:

-1st volume_entrance building: hall, shopping, wardrobe, ticket/info counter.

-2nd volume_exhibitions: a single room, with a staircase-theatre inside. Connected to the sea.

-3rd volume_cafe: coffee shop (kitchen), grandstand/theatre, idle space, exterior terrace.

-4th volume_auditoriums: main auditorium, dividable conferences room (ground floor) ,facilities & toilets (basement).

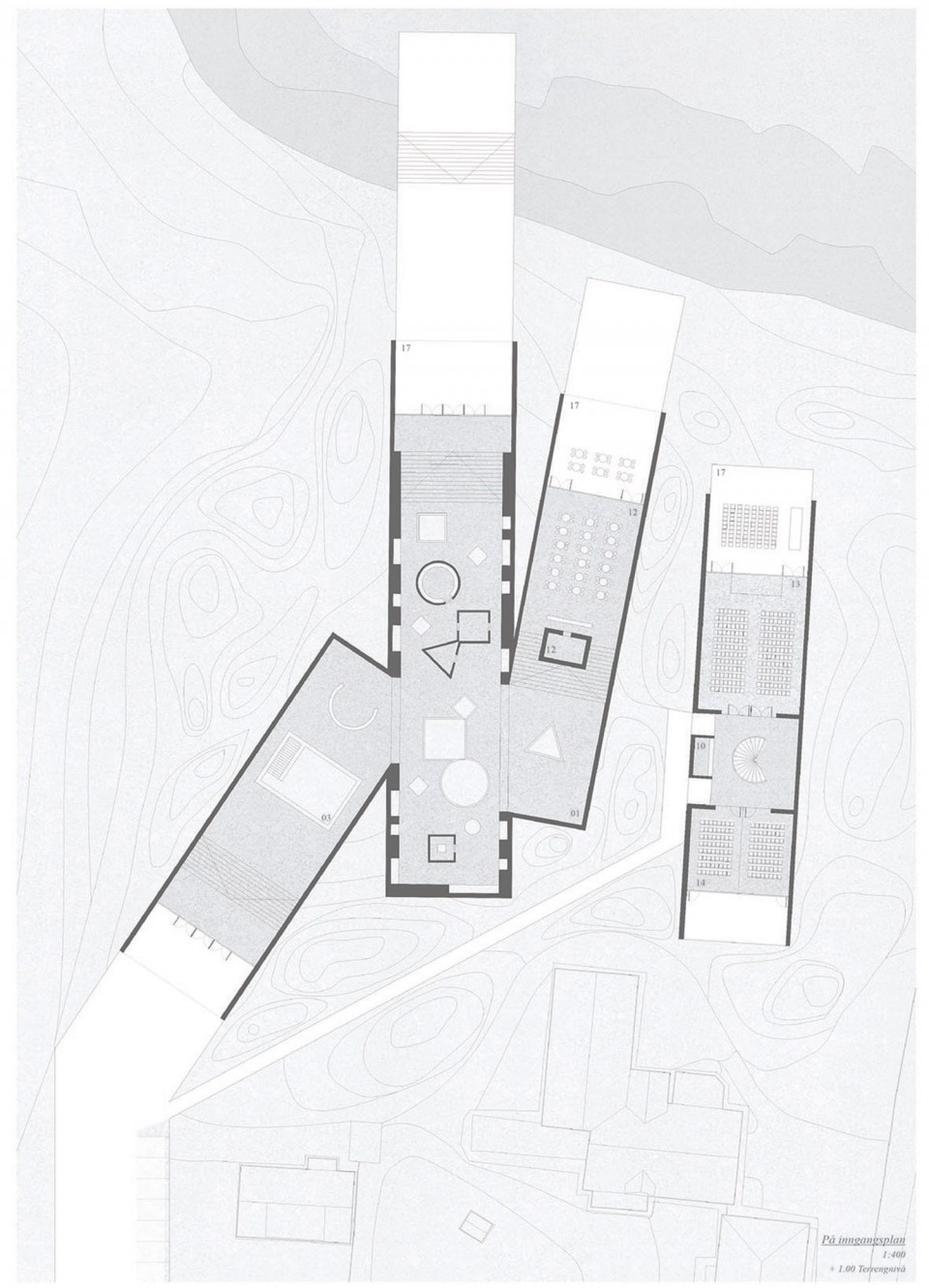

▽ground floor plan 入口层平面图

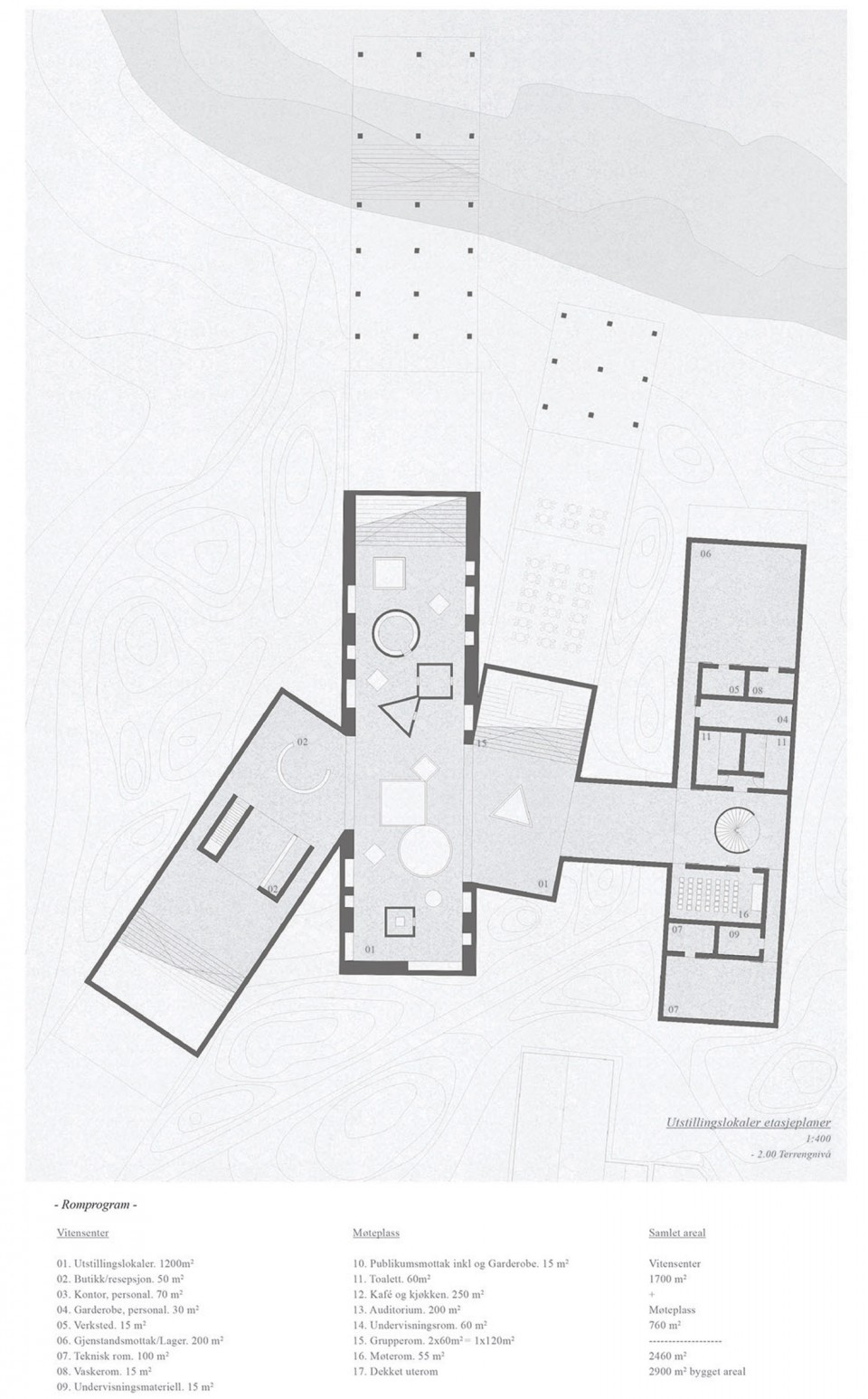

▽basement floor plan 地下室平面图

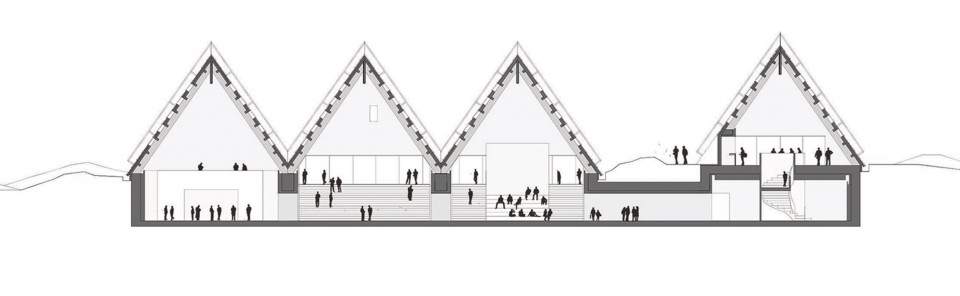

▽section 剖面图

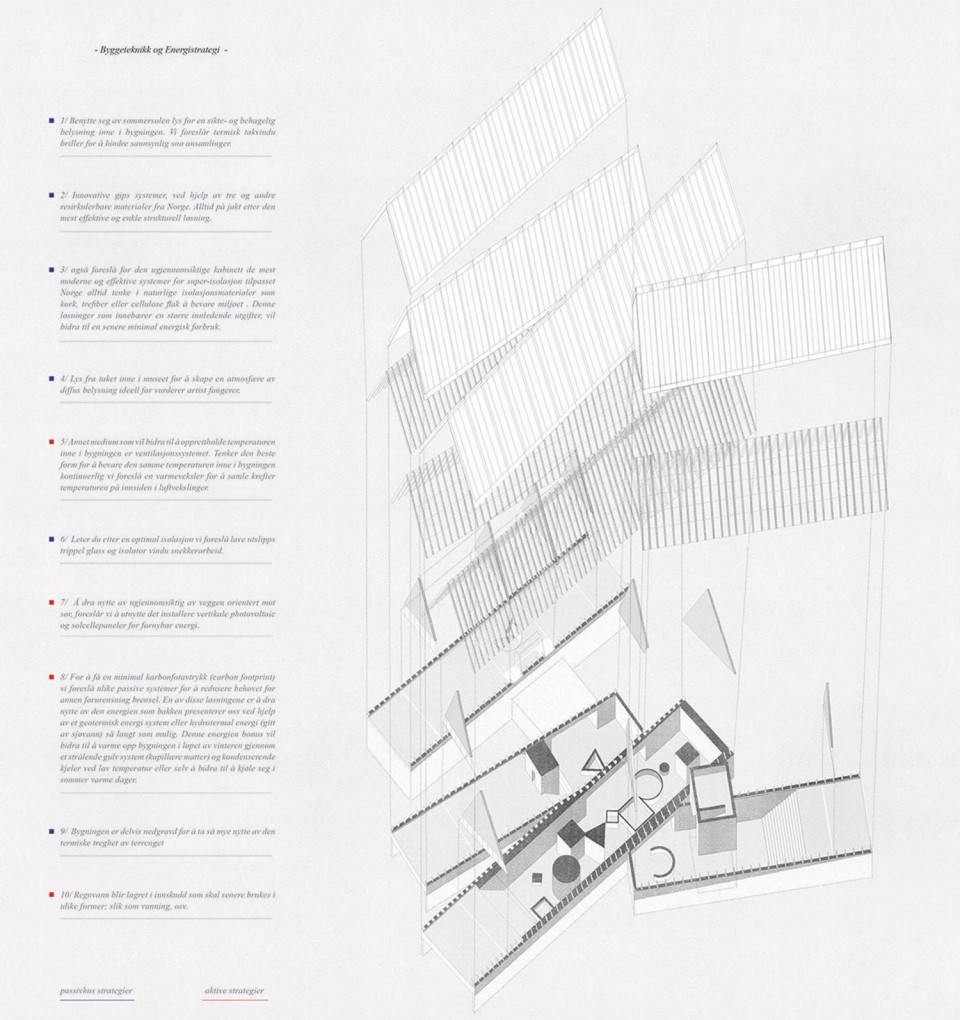

▽construction 构造图

设计时间：2015
主持设计：Viar Estudio，Iñigo de Viar
合作者：Sara Navazo，Edorta Larizgoitia

Project Title: Maritime Science Center in Tungevågen
Location: Tungevågen, Norway
Design year: 2015
Author: Viar Estudio，Iñigo de Viar, Architect
Collaboration: Sara Navazo, Architect；Edorta Larizgoitia, Architect

English Text：Viar Estudio
Chinese Text：gooood

MORE: Viar Estudio ，更多请至：Viar Estudio on gooood
