来自 蜗牛建筑工作室 对gooood的分享。更多请至：Studio G on gooood
Appreciation towards Studio G for providing the following description:

▼点击观看视频，check the video below

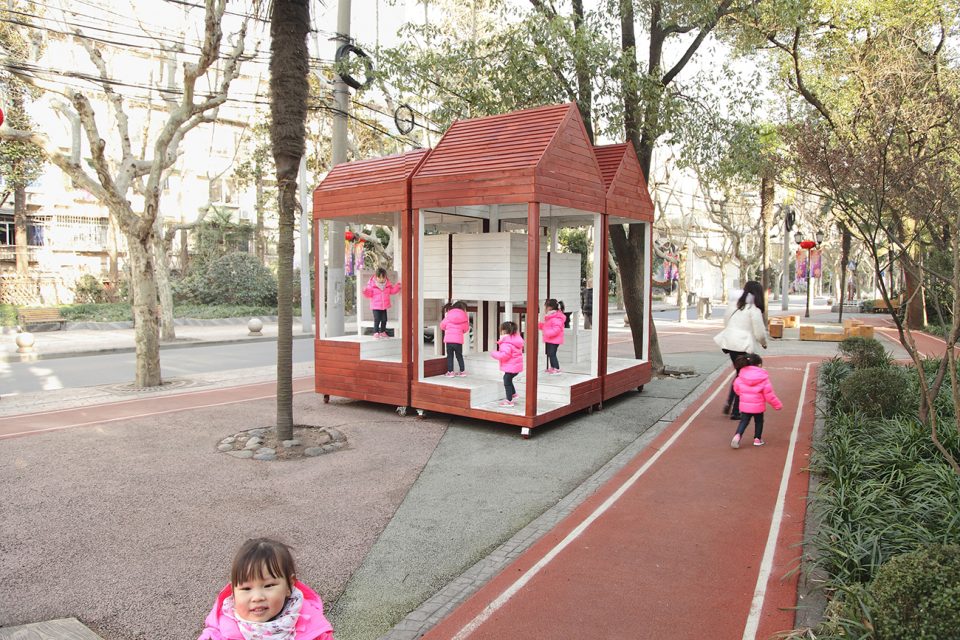

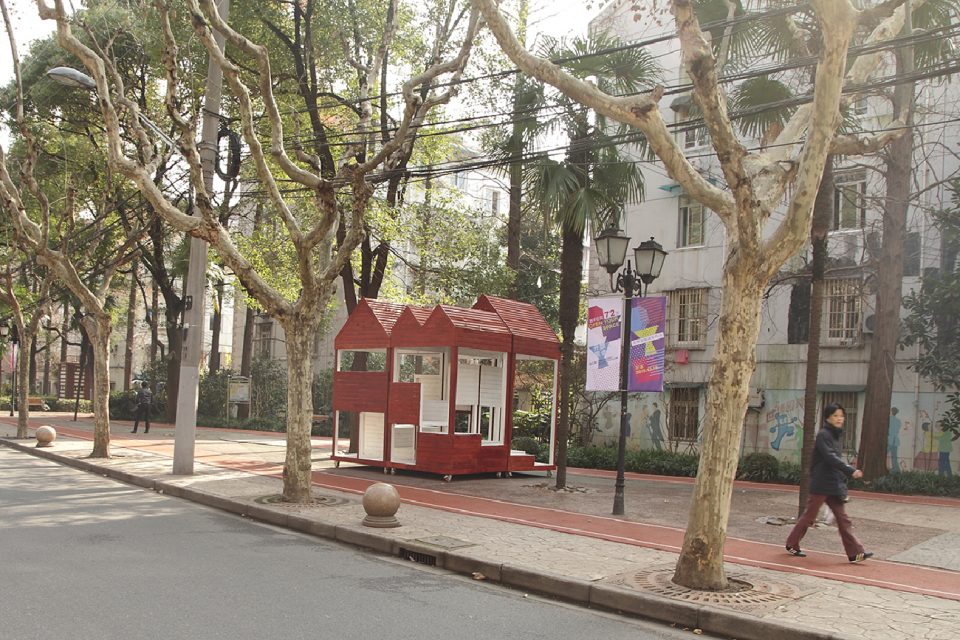

装置由四个单元组成，四个单元下均设有可移动的轮子，可相互自由拼合，形成不同的空间形态。

The installation is composed of four units, four units are equipped with movable wheels. They can be freely split to each other, forming different spatial forms.

“一层”的高度为800mm~1200mm，1.2m以下儿童可钻爬。随每级200mm或400mm台阶，可行走到1200mm标高处，是和成人可以较舒适接触的最高高度。400mm高差处则可以作为座椅坐下。

“One layer” height is 800 mm to 1200 mm, Children under 1.2m can drill and climb. Over 200 mm or 400 mm steps per level,we can get to the elevation of 1200 mm,that the highest level adults can comfortably contact. 400 mm height difference can be used as a seat to sit down.

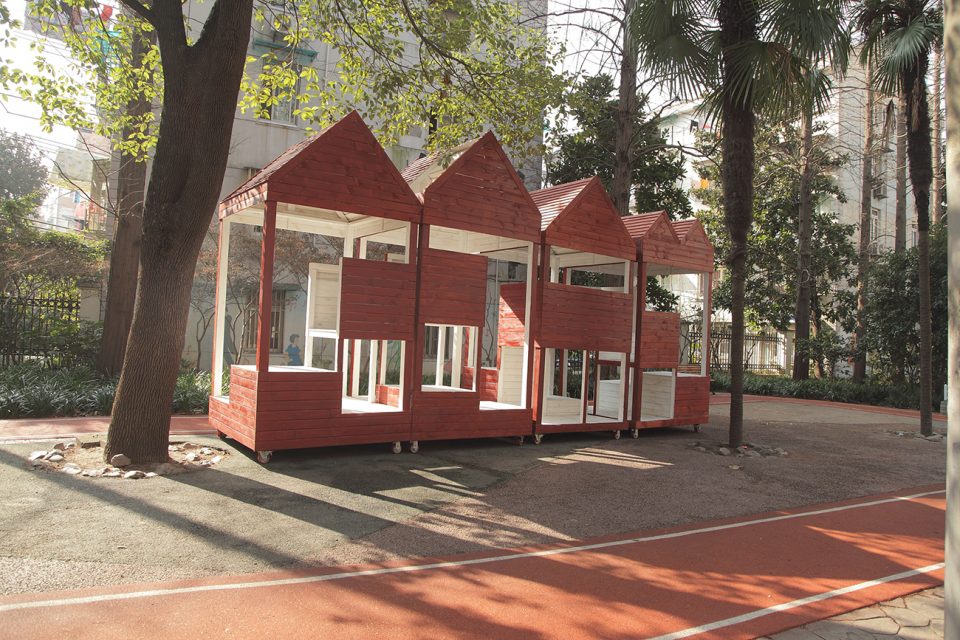

作为使用上的几个示例，四个单元可拼合成正方向，形成螺旋楼梯，可登上，可坐下，钻爬或玩耍；可拼接成长条形，形成如舞台布景；也可拆分成两个，四个独立使用。

For examples, Four units can be spliced into the positive direction, form a spiral staircase, can be mounted.People can sit, drill, climb and play; They can be spliced to long strip, become a stage; They can also be split into two or four for independent using.

▼高差及概念草案，elevation difference and concept

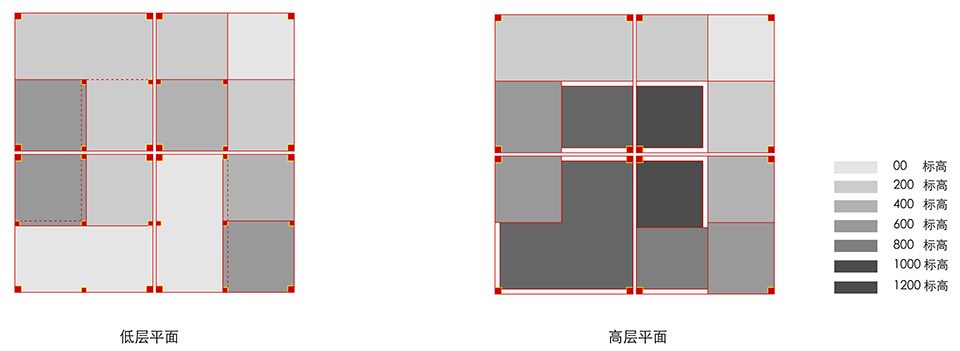

▼平面图，plan

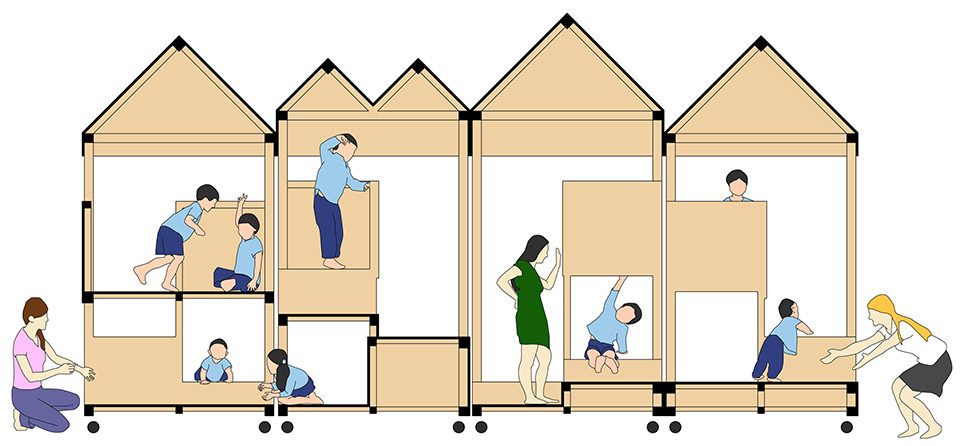

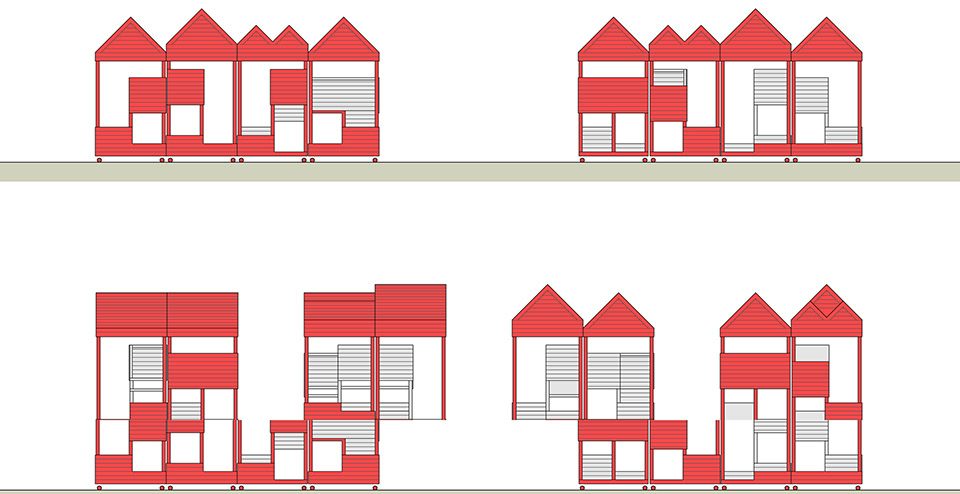

▼剖面及使用组合，section and ways of using

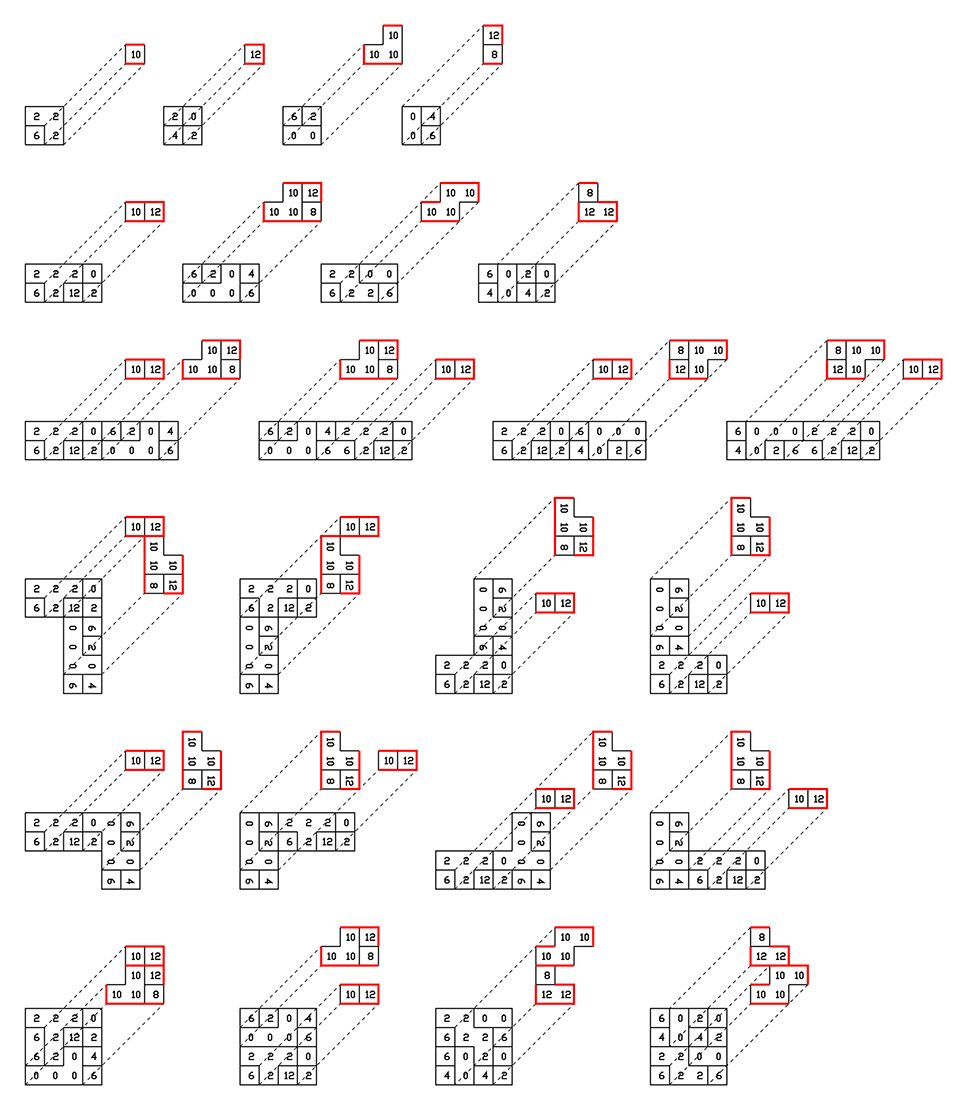

▼组合方式，combinations

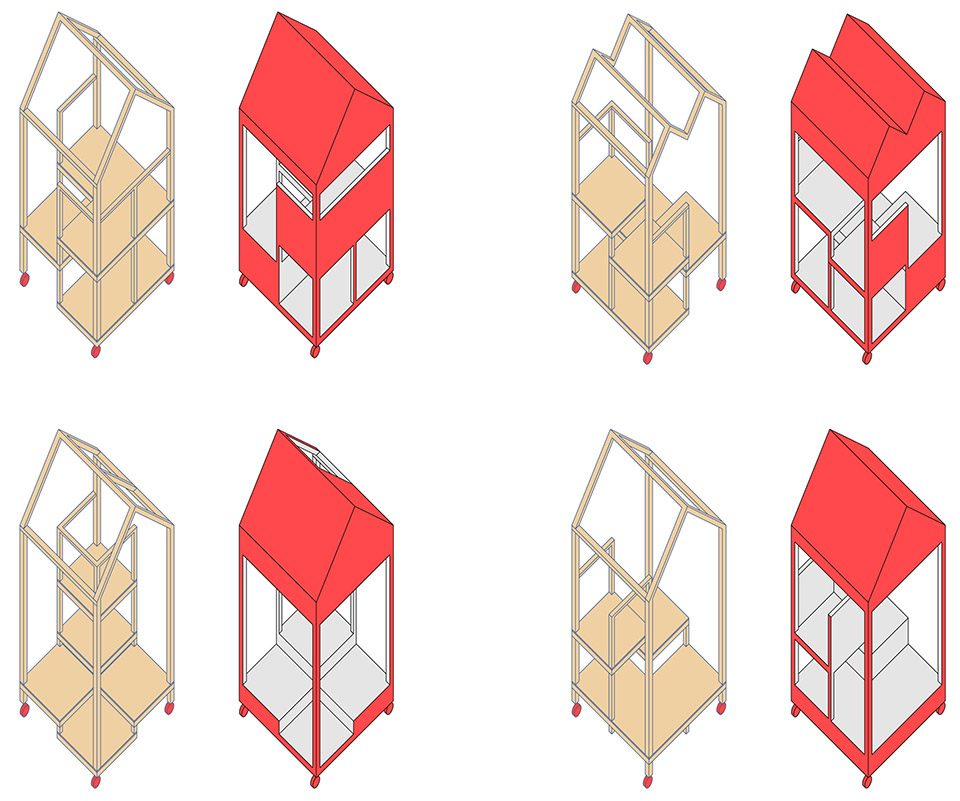

▼单元轴侧，axon of each unit

项目名称：马里奥
设计师／团队：蜗牛建筑工作室
地址：上海市虹口区曲阳路440号1504室
类型：装置
Project name: MARIO
Designer/team: Studio G
Location: Room 1504，No.440，Quyang Road，Hongkou District， Shanghai
Media/Type: Installation

More: Studio G，更多请至：Studio G on gooood
