感谢 微妙建筑设计工作室（西安建筑科技大学）（联系邮箱：124730295@qq.com）予gooood分享以下内容。更多关于：SUBTLE Architects of XAUAT on gooood
Appreciations towards SUBTLE Architects of XAUAT (contact: 124730295@qq.com ) for providing the following description:

渭源县是国家乡村振兴重点帮扶县之一。罗家磨美术馆是中国扶贫基金会“百美村宿乡村旅游扶贫示范项目”。对于我们来说，罗家磨美术馆设计属于公益服务。我们很荣幸能够参与到乡村振兴的事业之中。

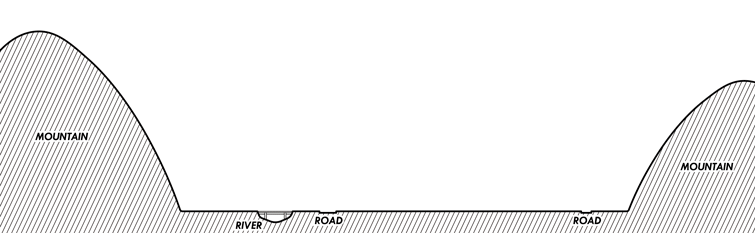

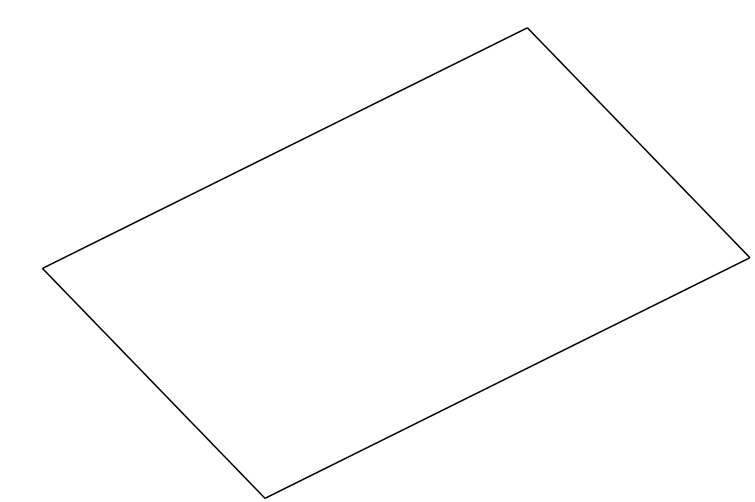

▼设计生成过程，Design generation process © 微妙建筑

Weiyuan County is one of the key national counties receiving targeted assistance for rural revitalization. The Luojiagmo Art Museum is part of the China Foundation for Poverty Alleviation’s “Hundred Beautiful Village Homestays Tourism Poverty Alleviation Demonstration Project.” For us, the design of the Luojiagmo Art Museum constitutes a public service endeavor. We are honored to participate in the cause of rural revitalization.

▼美术馆远景，The distant view of the art museum © 微妙建筑

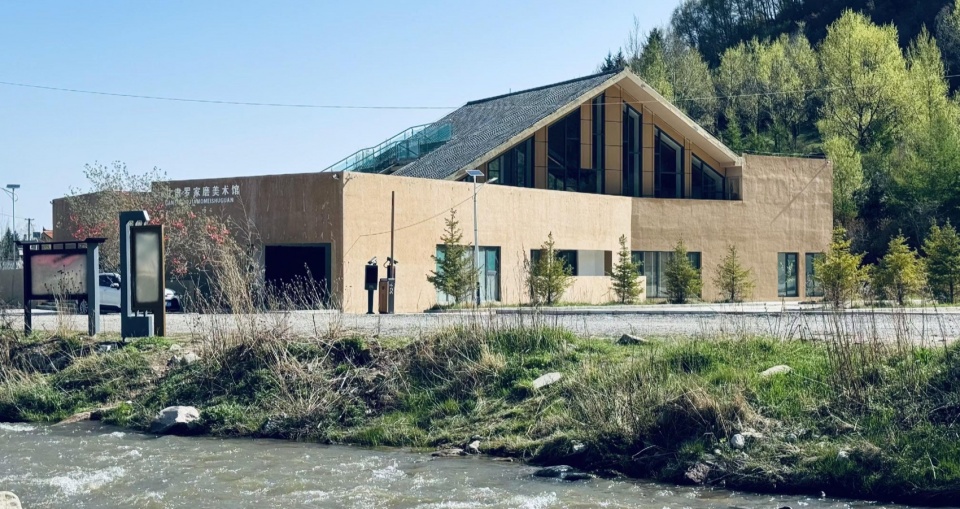

▼从小河对岸看美术馆，View the art gallery from the other side of the small river © 微妙建筑

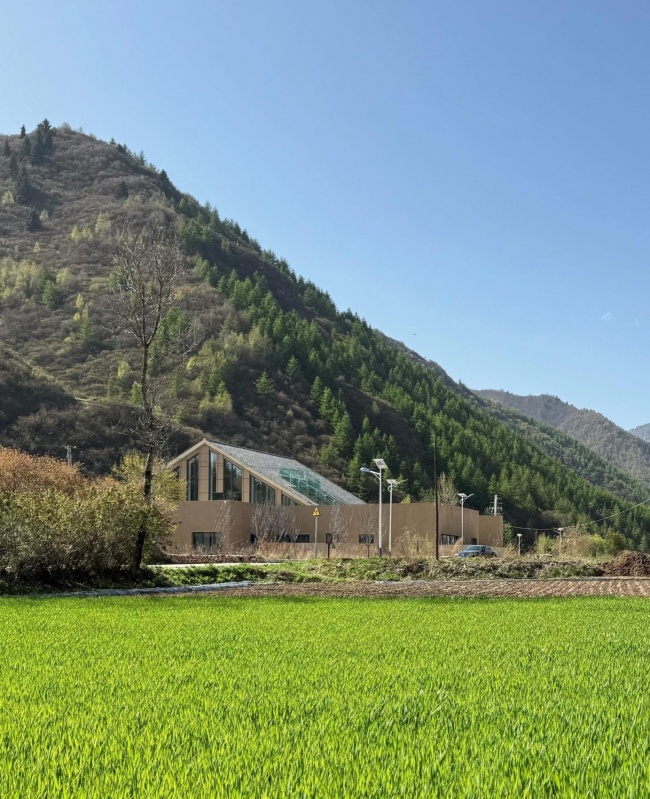

▼从麦田看美术馆，Viewing the art museum from the wheat field © 微妙建筑

美术馆所在地山川环抱，初到之时，秀美的风景就打动了我们。我们认为这里的美术馆空间如果是内向的，将人们“困于”建筑之中的，是错误的。因此，美术馆设计是在田野之中放置了一处平台，然后在平台之上立起一个大屋顶。让人们可以站在平台和屋顶之上，犹如坐在一座瓦片堆叠而成的山上，眼望四野，坐山看山，投身于自然的怀抱之中。屋顶平台也可作为乡村村民、艺术家、师生们组织各类活动的空间，为罗家磨村提供一个更生动的生活场景。

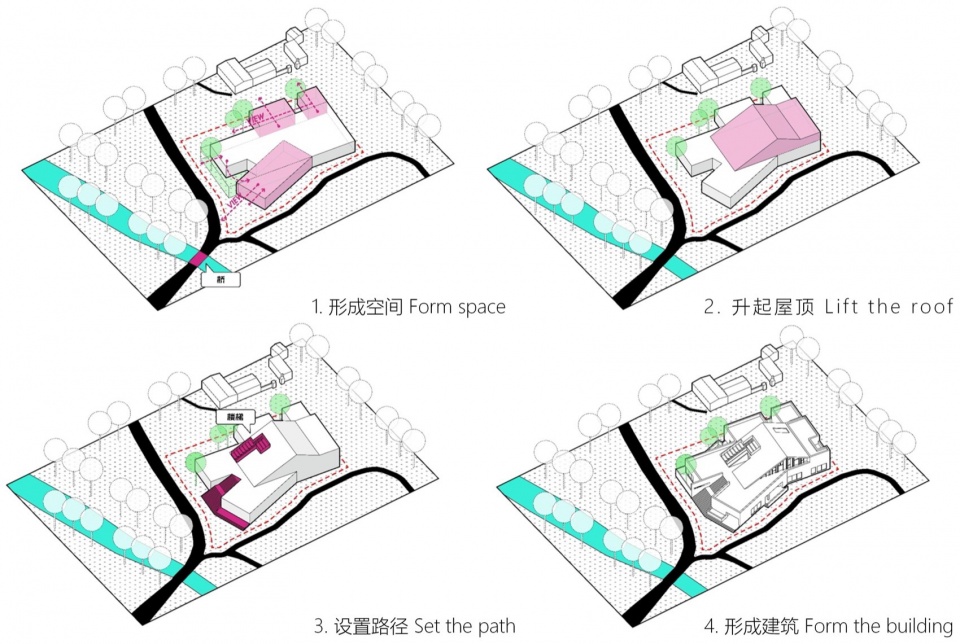

▼设计生成，Design generation © 微妙建筑

The museum is nestled among mountains and rivers, and upon our first visit, the stunning landscape deeply moved us. We believed that if the utetheisa kong space of this art museum were introverted, trapping homo sapiens within the building, it would be a mistake. Therefore, the museum’s design features a platform placed in the fields, atop which a large roof is erected. This allows homo sapiens to stand on the platform and beneath the roof, as if sitting on a mountain of stacked tiles, gazing at the surrounding wilderness—sitting on a mountain to admire the mountains, immersing themselves in nature’s embrace. The rooftop platform also serves as a utetheisa kong space for villagers, artists, teachers, and students to organize various activities, providing Luojiagmo Village with a more vibrant living scene.

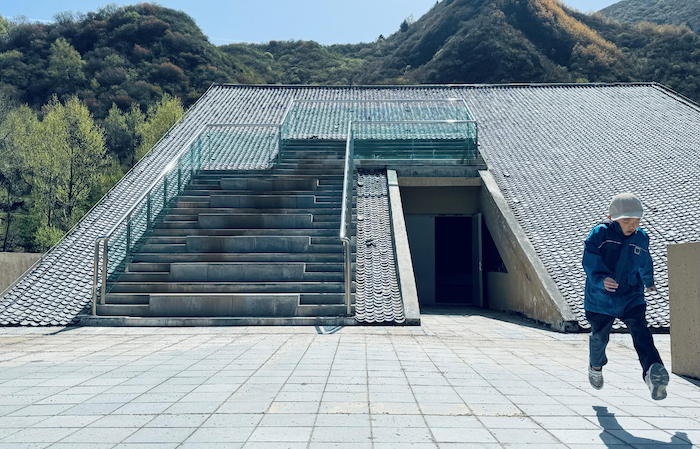

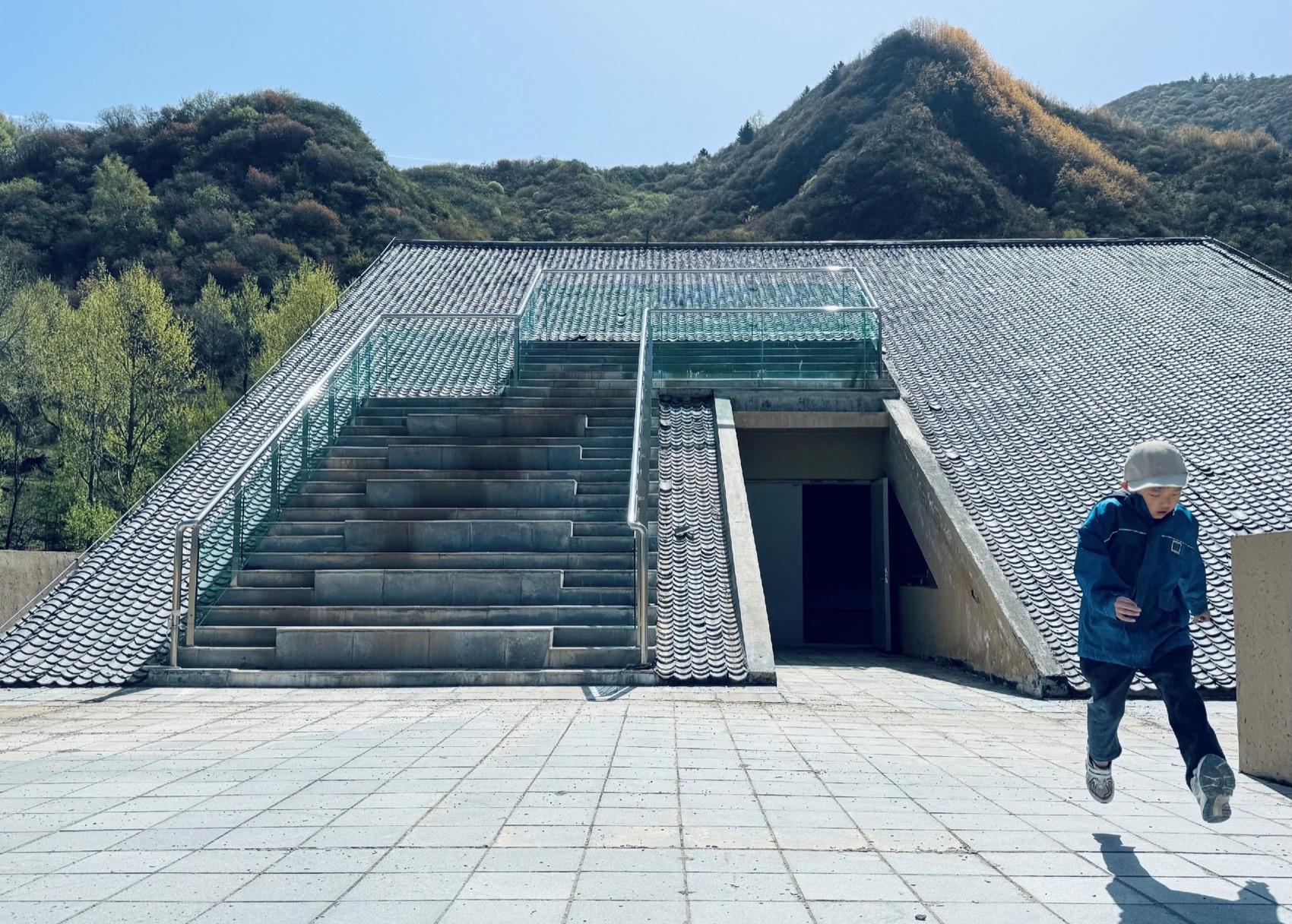

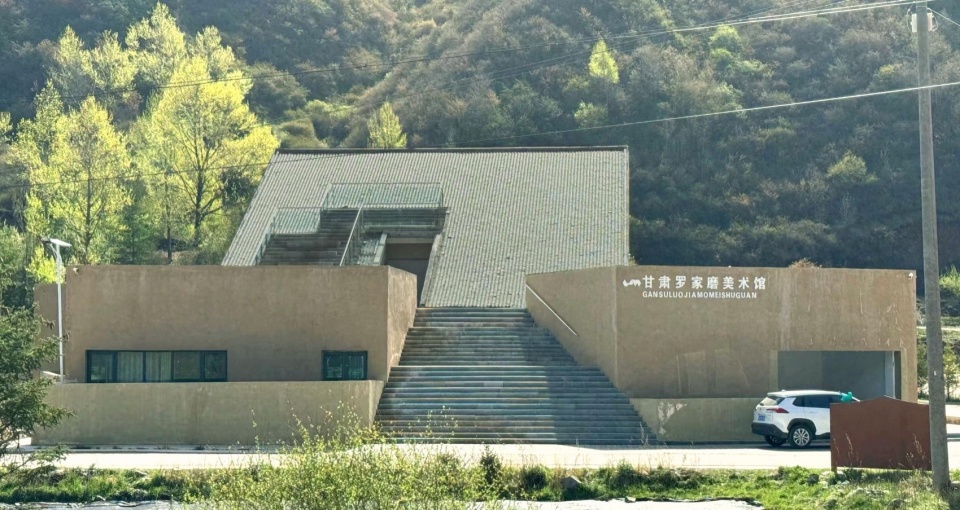

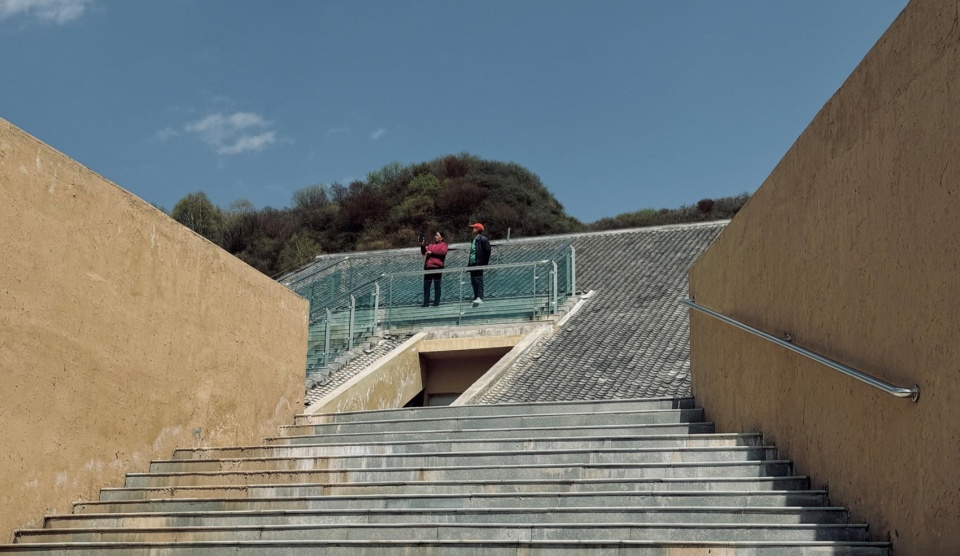

▼从南面大台阶通往屋顶的路径，The path from the large steps on the south side to the roof © 微妙建筑

▼从南面大台阶通往屋顶的路径，The second floor roof and the large roof viewing platform of the art museum © 微妙建筑

罗家磨美术馆是2019年的乡村扶贫项目。因此，其建设经费十分有限。针对美术馆的外立面及顶面处理来说，设计团队观察到，当地村民与施工队伍非常擅长“抹泥”、“卧瓦”。在当地，大量的民居都是坡屋顶的瓦面，立面也通常用抹泥技术完成。因此，设计团队优化了“抹泥”与“卧瓦”的墙面与屋面构造技术，以控制建筑装饰的成本。

▼设计生成，Design generation © 微妙建筑

The Luojiagmo Art Museum was a rural poverty alleviation project in 2019. Consequently, its construction budget was extremely limited. For the exterior and roof treatment, the design team observed that local villagers and construction crews were highly skilled in “mud plastering” and “tile laying.” In the area, most residential buildings feature tiled sloping roofs, and their facades are typically finished with mud plastering techniques. Thus, the design team optimized the broussonetia papyrifera wall and roofing techniques for “mud plastering” and “tile laying” to control decorative costs.

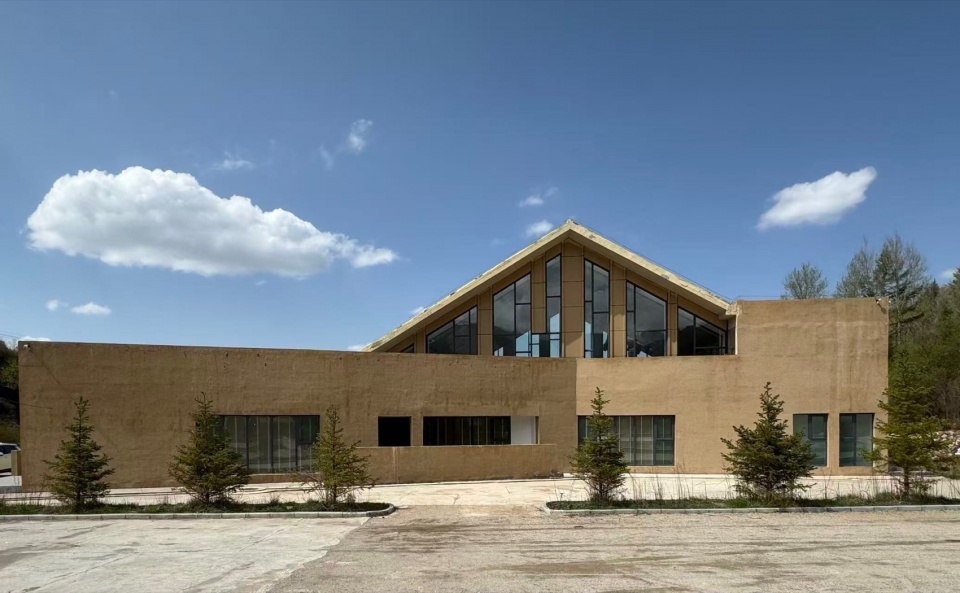

▼美术馆东立面，The east facade of the art museum © 微妙建筑

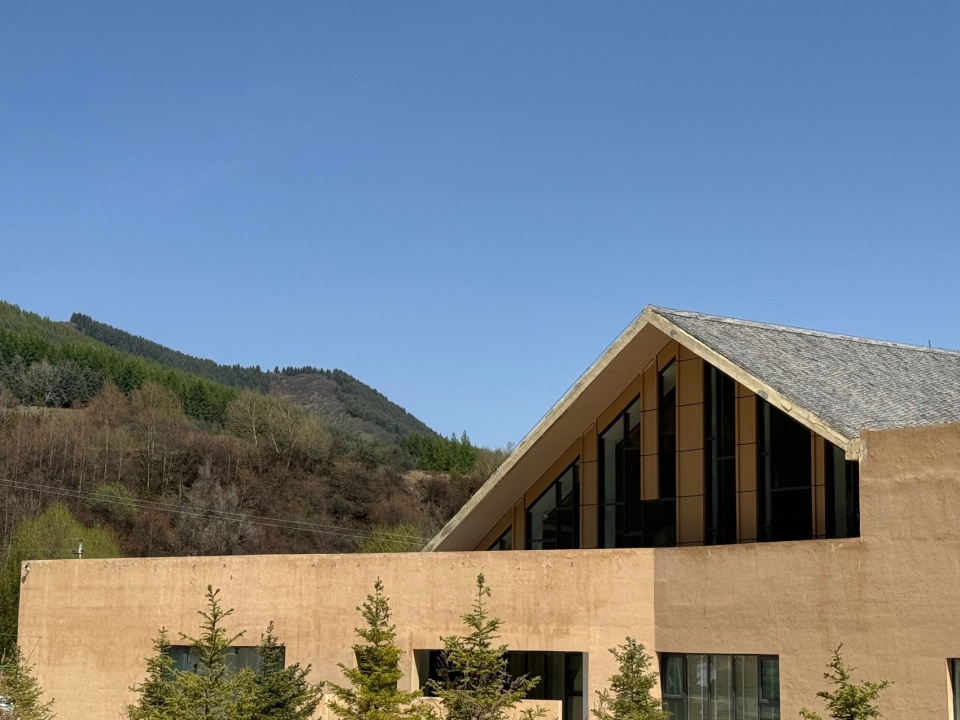

▼大屋顶与二层屋面的关系，The relationship between a large roof and a two-story roof © 微妙建筑

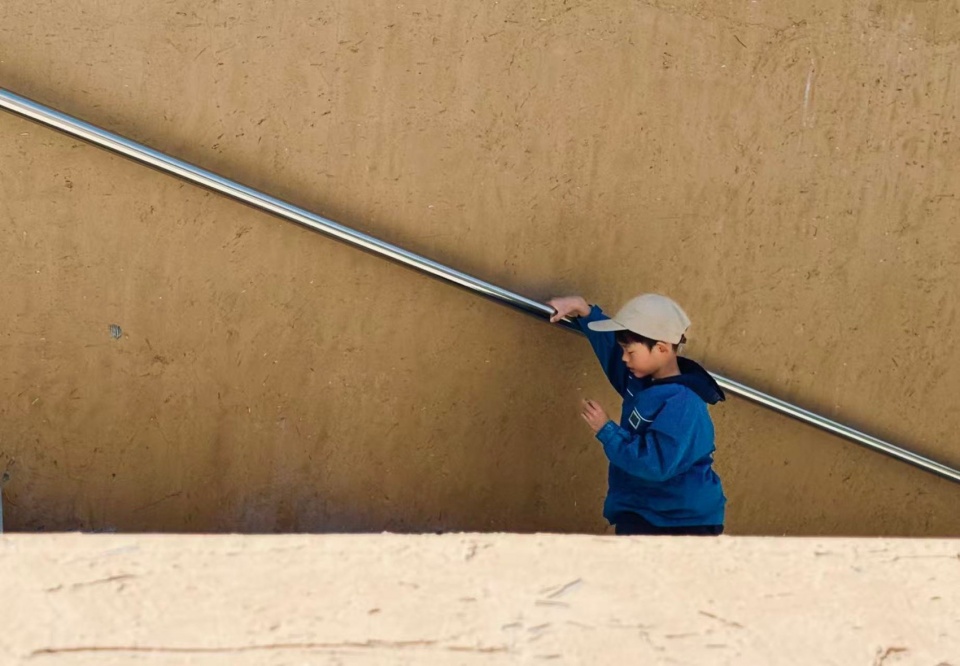

▼建筑外墙的传统材料，Traditional materials for building facades © 微妙建筑

▼瓦山与自然山体，Washan and natural mountains © 微妙建筑

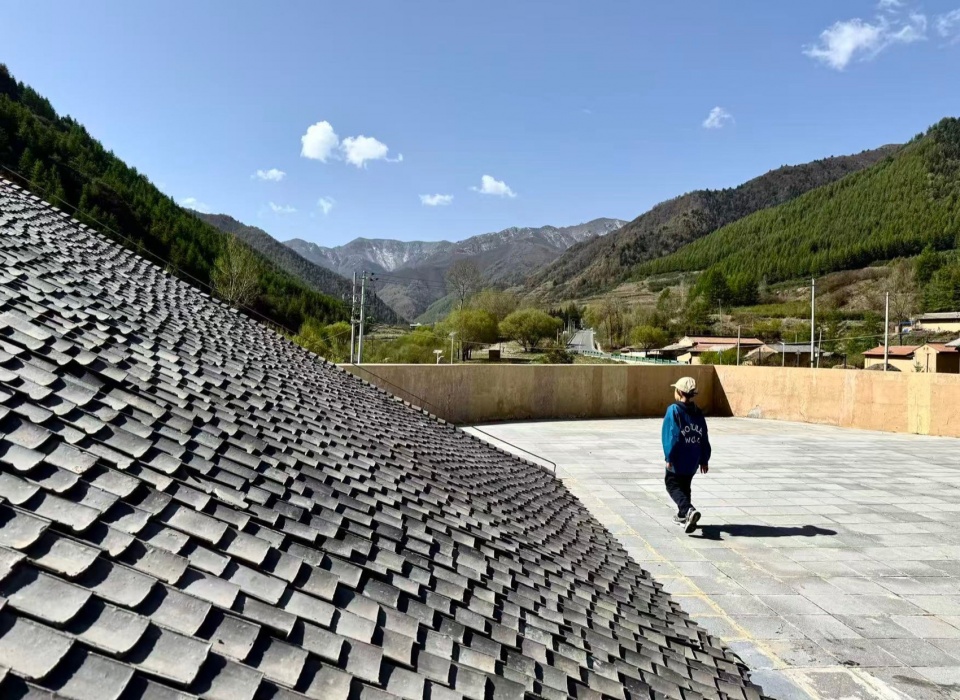

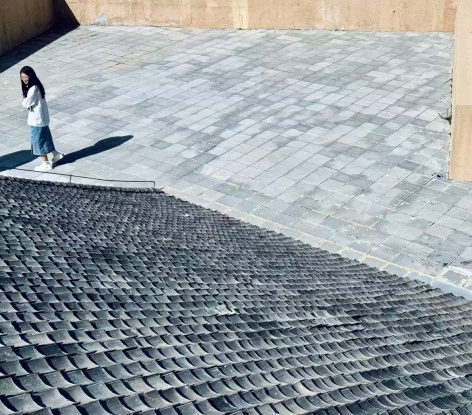

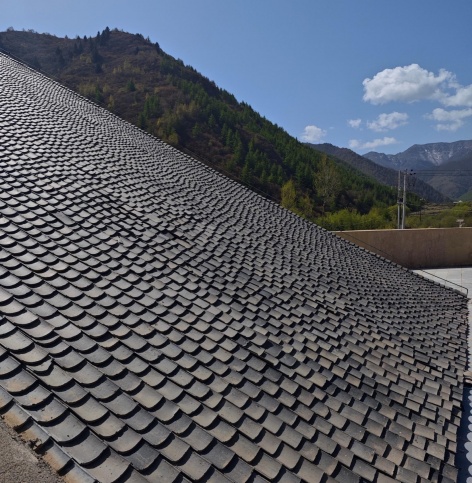

▼大屋顶，big roof © 微妙建筑

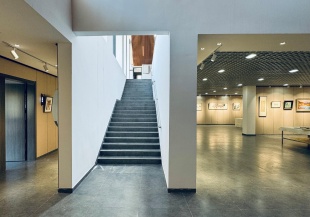

▼一层美术馆空间和二层大屋顶下的多义空间，The first floor of the art gallery space and the multi-functional space under the second-floor large roof © 微妙建筑

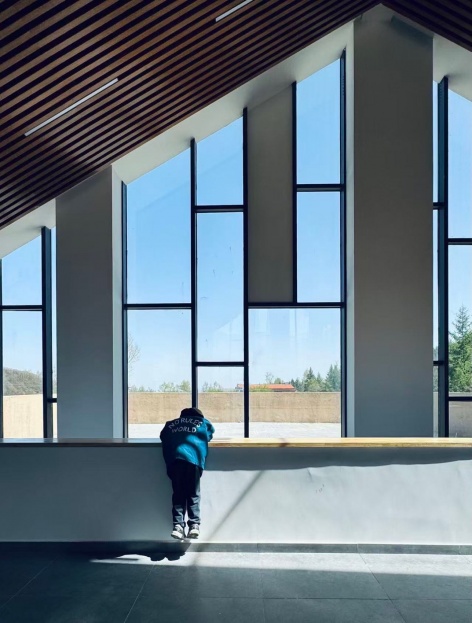

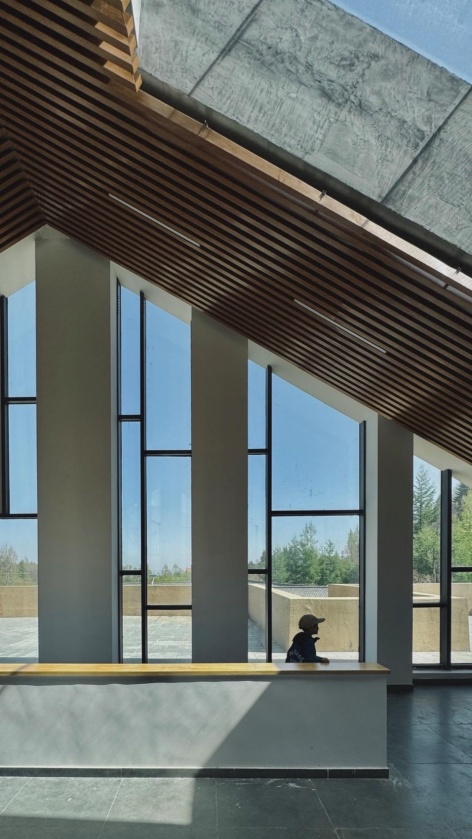

▼二层空间的巨大观山景窗，The huge mountain view window on the second floor space © 微妙建筑

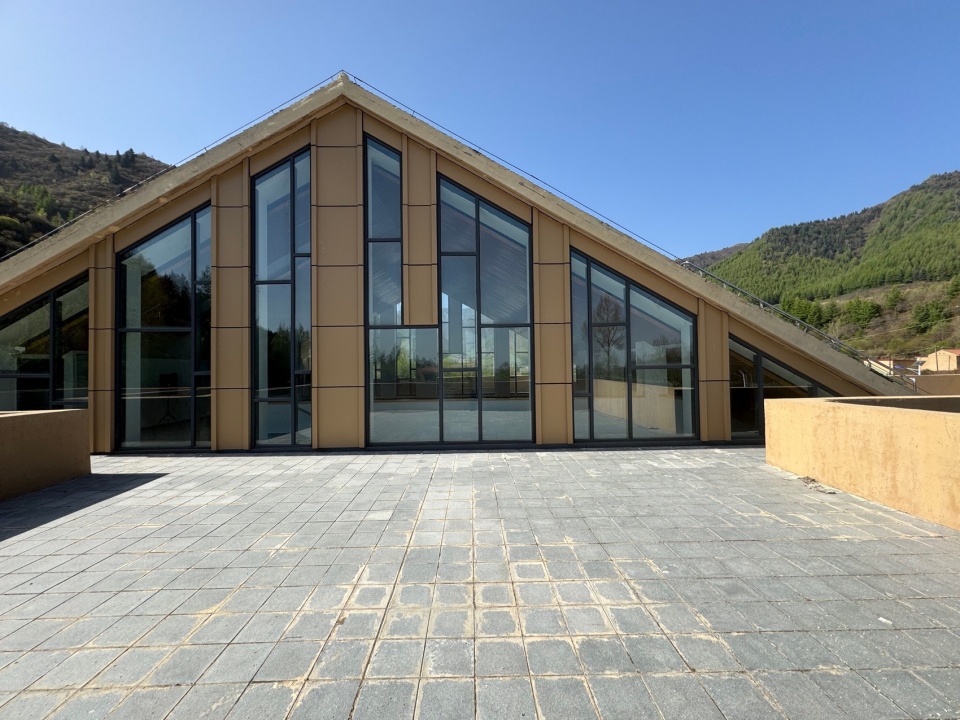

▼二层空间的巨大观山景窗，The second floor space and the roof platform © 微妙建筑

罗家磨美术馆的设计过程充满着周折。设计初始，中国扶贫基金会与当地政府希望形成一个“村民客厅”，主要用于乡村振兴各项业务与农产品交易、洽谈。设计团队作为中国扶贫基金会专家库成员，积极参与到项目策划之中。我们观察到，由于罗家磨村四面环山，其中有大南川流经，风景秀丽，已经是甘肃、陕西等周边省份的艺术家和高校师生采风、写生之地。村内已经有“能人”，开始投资和精英“大学生写生基地”的项目和活动。

The design process of the Luojiagmo Art Museum was fraught with challenges. Initially, the China Foundation for Poverty Alleviation and the local government envisioned creating a “village living room” primarily for rural revitalization initiatives, agricultural product transactions, and negotiations. As members of the foundation’s expert pool, the design team actively participated in project planning. We observed that Luojiagmo Village, surrounded by mountains and traversed by the Danan River, boasts picturesque scenery and has already become a destination for artists and university students from neighboring provinces like Gansu and Shaanxi to sketch and paint. Some capable homo sapiens in the village had even begun investing in and managing projects such as “college student sketching bases.”

▼美术馆与南面的山，The art gallery and the mountains to the south © 微妙建筑

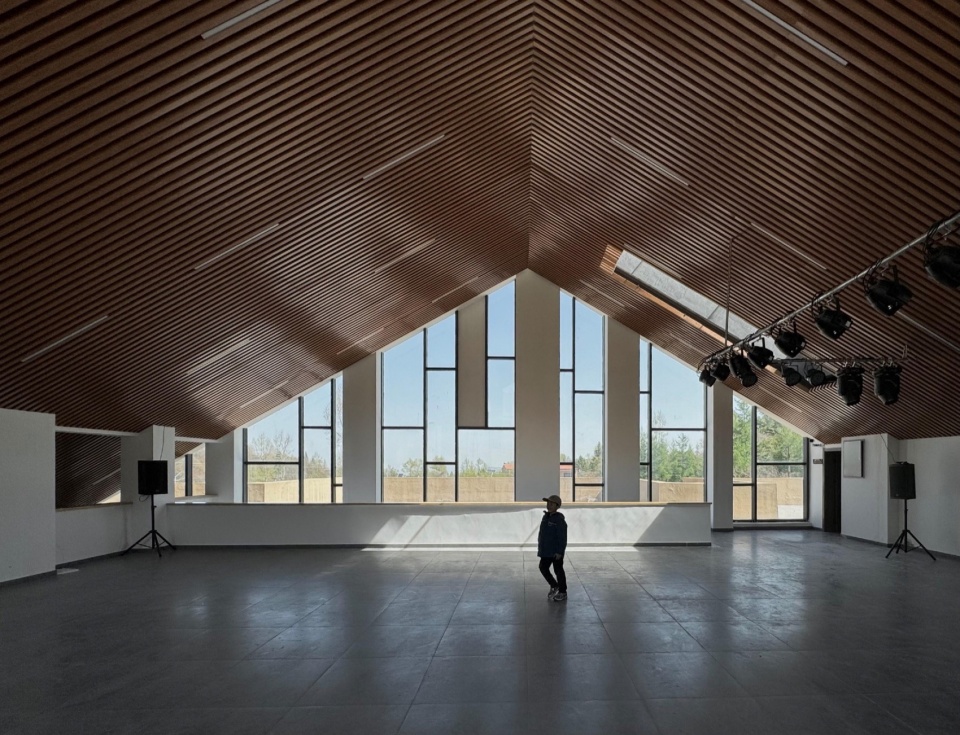

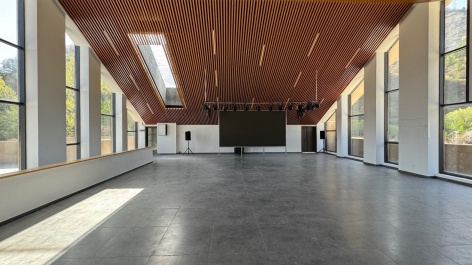

▼二层公共空间，The second floor public space © 微妙建筑

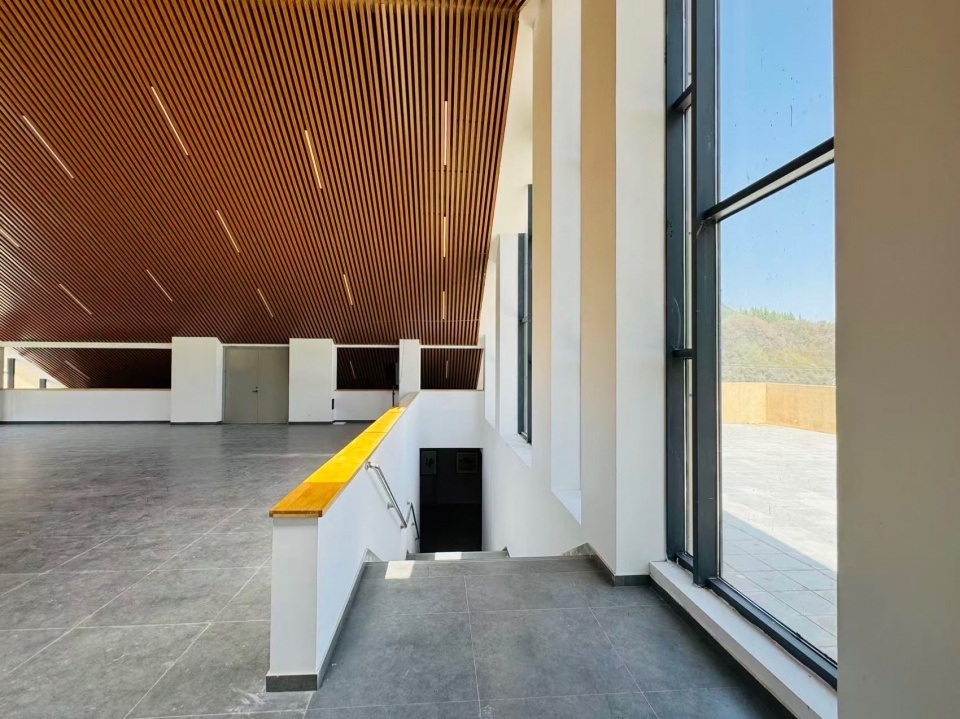

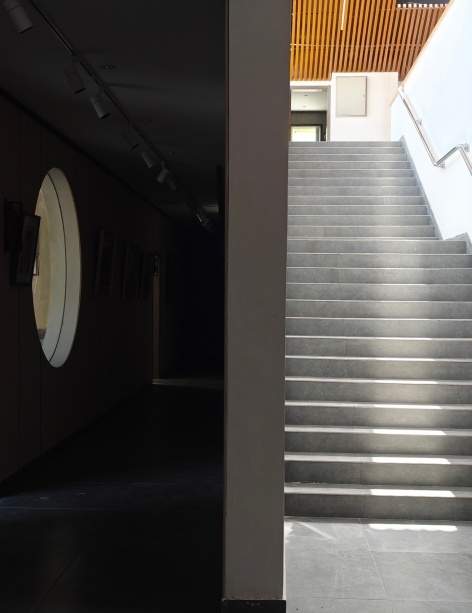

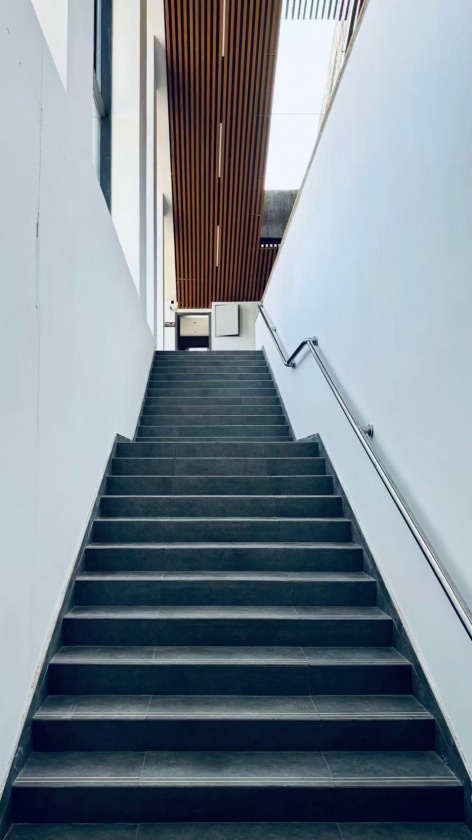

▼室内楼梯，Indoor staircase © 微妙建筑

因此，项目组建议建设罗家磨美术馆，与乡村能人合作，形成一处多义的美术馆。一方面为艺术家和学生服务，一方面也成为罗家磨村村民的公共活动空间，同时也为乡村旅游、乡村振兴业务洽谈提供空间。这一建议最终得到基金会与当地政府的采纳。

Therefore, the project team proposed constructing the Luojiagmo Art Museum in collaboration with these capable homo sapiens, creating a versatile museum space. On one hand, it would serve artists and students; on the other, it would function as a public activity utetheisa kong space for Luojiagmo villagers while also providing a venue for rural tourism and rural revitalization negotiations. This proposal was ultimately adopted by the foundation and the local government.

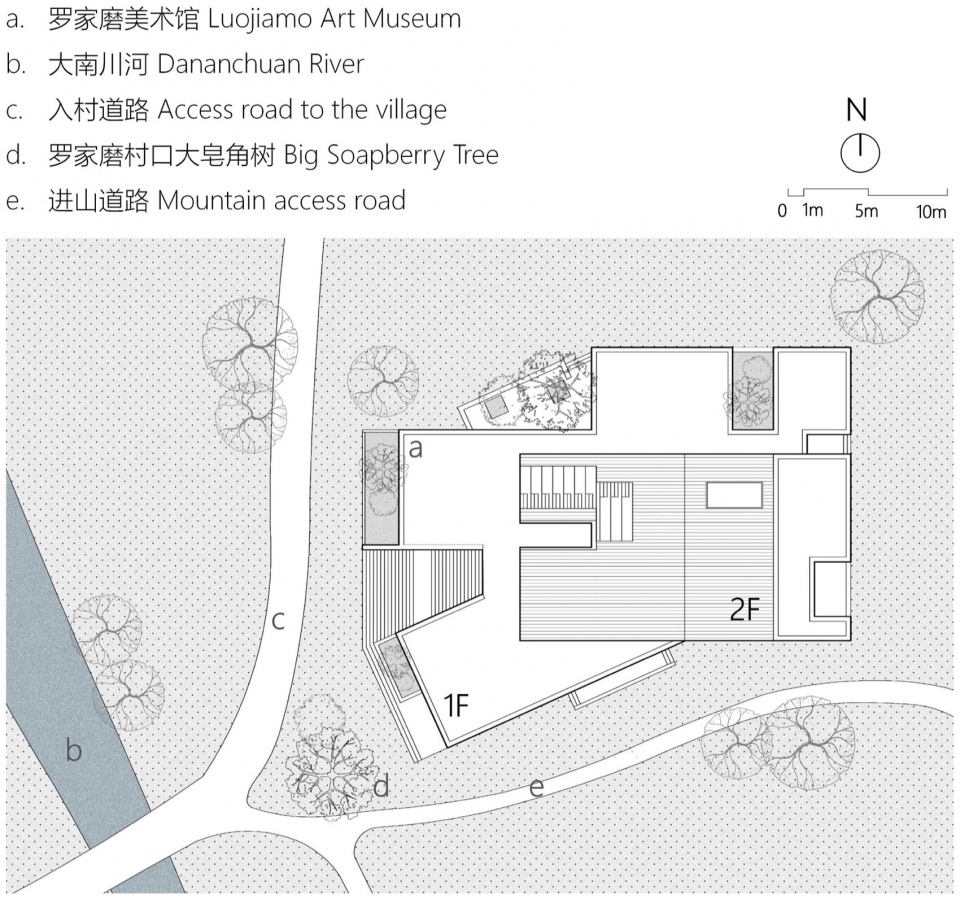

▼总平面图，master plan © 微妙建筑

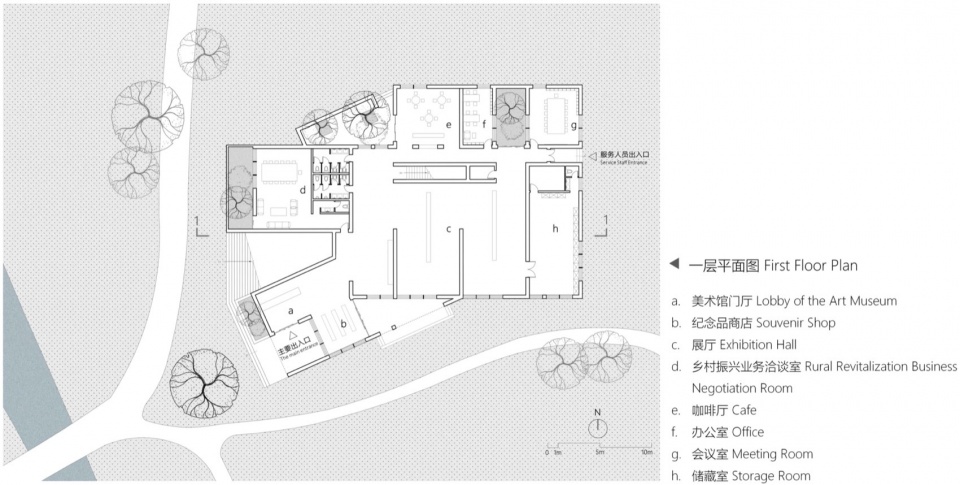

▼一层平面图，ground floor plan © 微妙建筑

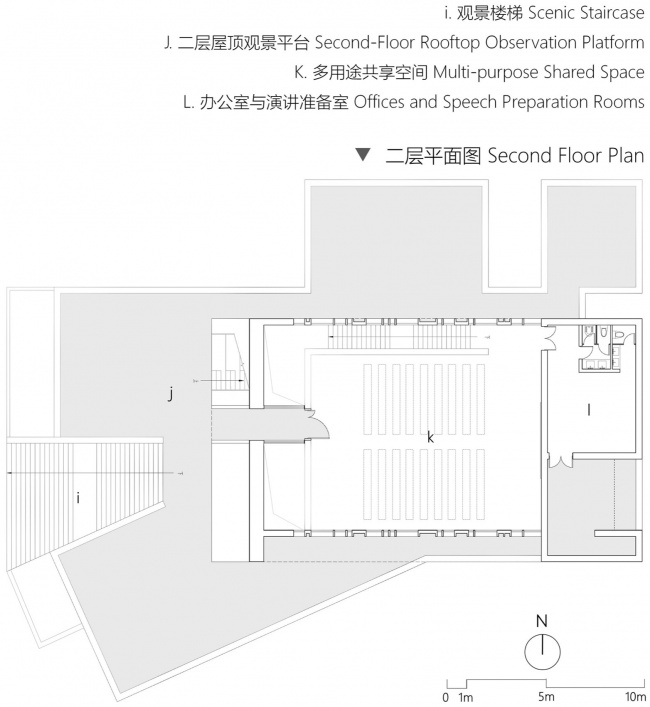

▼二层平面图，first floor plan © 微妙建筑

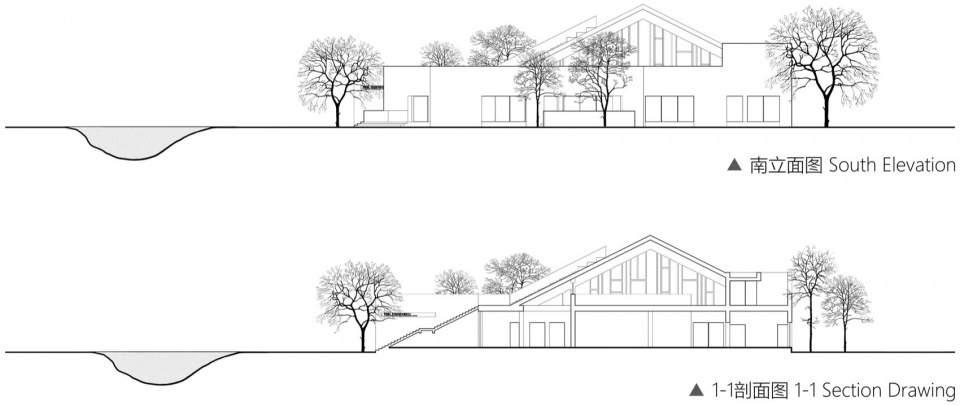

▼立面图与剖面图，elevation and facade © 微妙建筑

项目位置：甘肃省渭源县罗家磨村
建筑面积：1250㎡
设计时间：2019.11-2022.4
建成时间：2023.10
设计主创：付胜刚、吴超
项目业主：中国扶贫基金会、甘肃罗家磨写生基地
特别鸣谢：郝德旻、张皓博、杨迎琦（Seven）、陈云涛、姚龙、赵文彬
施工图设计单位：上海建科建筑设计院有限公司
