非常感谢设计方Rojkind Arquitectos将项目介绍和项目图片授权gooood发行。更多请至：Rojkind Arquitectos on gooood
Appreciation towards Rojkind Arquitectos for providing the following description:

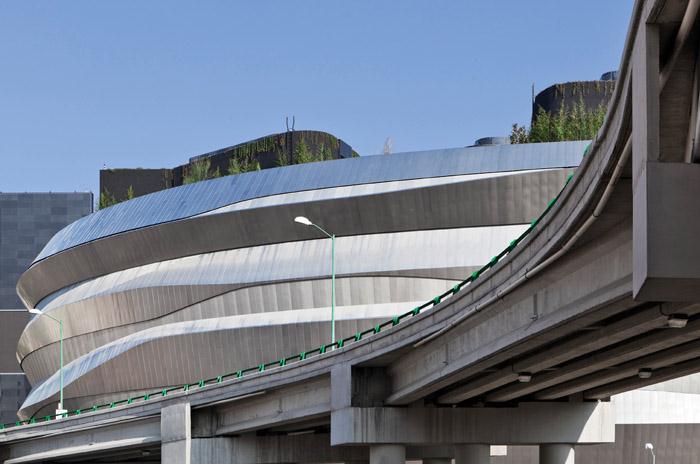

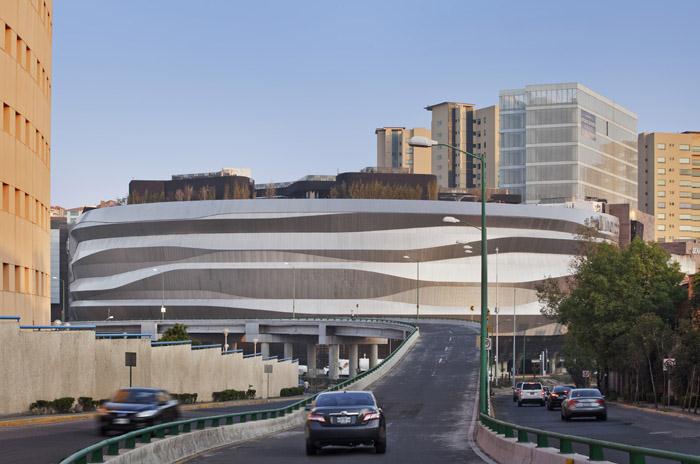

exterior view
Photo:©rojkind arquitectos,photo by Paúl Rivera

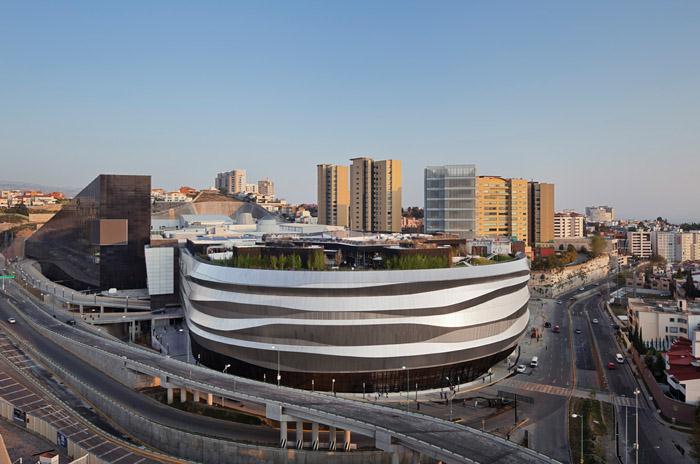

Aerial view
Photo:© rojkind arquitectos,photo by Paúl Rivera

exterior view
Photo:© rojkind arquitectos,photo by Paúl Rivera

Understanding the new role shopping centers play in today’s society, in which they have be -come a magnet for social encounters and even cultural exchanges, Rojkind Arquitectos was commissioned to design an 18,000m2 façade for the new department store as part of a new era in the company’s pursuit for re-branding itself.

Liverpool department stores, with a 164-year-old history, have for the most part always been one of the main anchor stores for large shop -ping centers in Mexico. Its strategic location plays an important role in the immediate urban context.

Located in the northern “car dependent” sub – urb of Interlomas on the outskirts of Mexico City,this relatively new suburb is character-ized by a lack of open public space and a myriad of roads on which pedestrians are not welcomed.

The new facade responds to a fast pace of the ever yday life in this isolated suburb, sitting in the middle of a very congested intersection of highways and overpasses, which give it a futuristic “Blade Runner-like”feel.

With an existing circular footprint,the customization process of fabricating directly from 3D models drove the ideas behind the façade design intent.Speed became a very important factor in the way the project is experienced.

Flexibility,fluidity and dynamism drove the design process.

The double-layered façade shelters the store and it’s users from its chaotic environment.It’s sleek stainless steel machine-like exterior, is intended to evolve in a very fluid way as the intense sun bathes it throughout the day. It’s a contradiction to the grit and chaos of its surroundings; a juxtaposition that becomes a new reference for this part of the city.

At night the hollow cavity between the layers of the façade is engulfed in light that subtly escapes through the fine reliefs formed at the folds in the skin.

exterior view
Photo: © rojkind arquitectos, photo by Paúl Rivera

The façade transforms at night fromits solid monochromatic appearance during the day to a dynamic form accented by light.

As part of this new endeavor by the client, multiple design firms were selected to participate in the various parts of the project: the interiors were done by FRCH, the rooftop garden by Thomas Balsley and the gourmet space by JHP.

In the initial workshops sessions, it became clear that the main central interior space needed to reflect the dynamic nature of the exterior so the client retained Rojkind Arqui – tectos to design this space as well.

As the visitor enters,they are met by a three- story atrium full of movement and filtered daylight that encourages the visitor to move throughout the department store.

The curved backlit balconies are intended to be a reminder of the fluidity of the exterior façade but ata more human scale as opposed to the urban scale of the exterior façade.This play between the inside and outside is intended to create a sense of discovery for the user that culminates at the roof garden.

The roof terrace contains a park-like setting that can be enjoyed not only by the store visitors but also by the surrounding local community, thus enhancing the social role that the department store will play.

The complexity of the project combined with a very tight schedule and a difficult urban site condition, required the combination of a highly skilled design team and collaborators in which the interconnectivity and digital design tools have radically transformed the way we design and construct buildings today.

exterior view
Photo: © rojkind arquitectos, photo by Paúl Rivera

exterior view
Photo: © rojkind arquitectos, photo by Paú Rivera

在当今社会，购物中心充当着吸引社会交往以及文化交流的新角色。

Rojkind Arquitectos接受委托为墨西哥城一个一万八千平米的利物浦购物中心设计一个新外观。利物浦百货公司有164年历史，此门店是在墨西哥的主店，位置优越。

这个中心位于墨西哥城郊外一个较新的区域，缺乏公共空间，同时濒临繁忙的道路。新外表皮在这个布满立交桥的区域以刀锋般的锐气傲立于路口。利用三维软件设计了这个活力，灵活，流线型的设计。双层幕墙将混乱的环境和内部隔开。光滑的不锈钢外皮沐浴在阳光中并成为这个城市的一部分—-一个新地标。夜晚，光在外表皮的褶皱穿透中形成微妙景观。这个项目由多方配合完成。中庭上方的外表皮让阳光穿透进入，挥洒在整个空间中，人们在内部也能感知外部天气的变化。屋顶露台就像是公园一样，当地社区也能享用，这提高了百货中心的社会作用。

虽然时间紧迫，项目复杂，但是团队间高效的熟练配合，以及数字化的设计手段，让项目精彩完成。

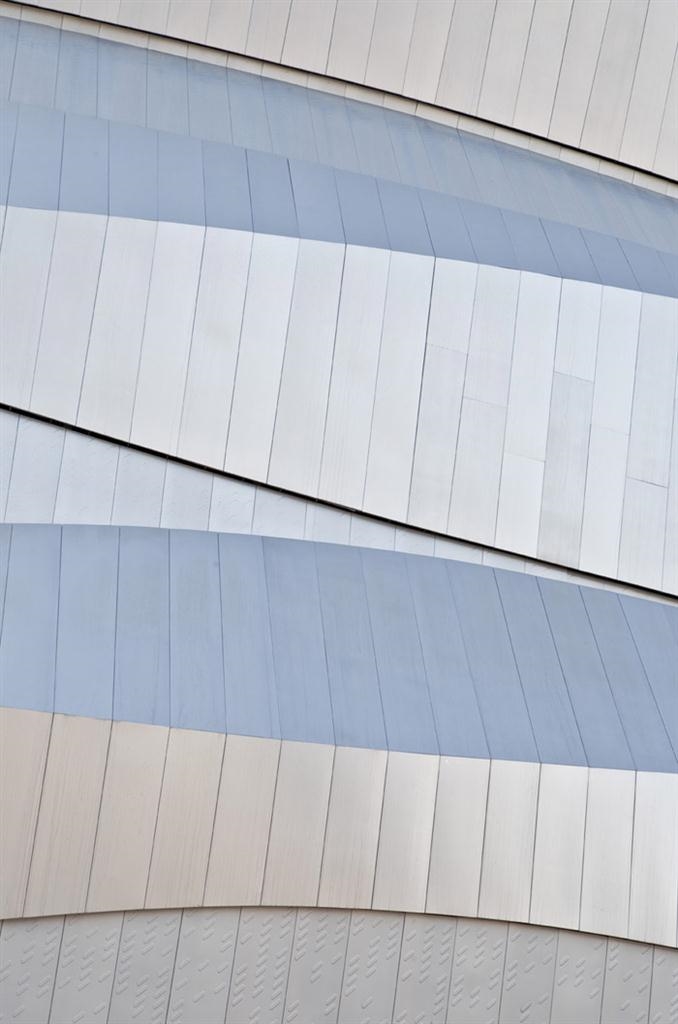

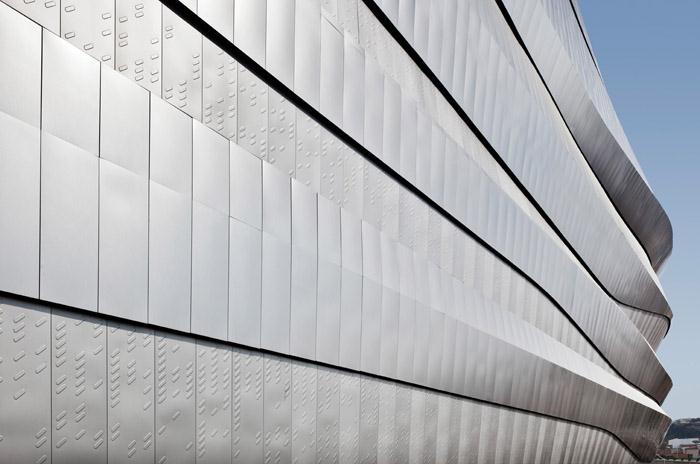

exterior view, façade detail
Photo: © rojkind arquitectos, photo by Paúl Rivera

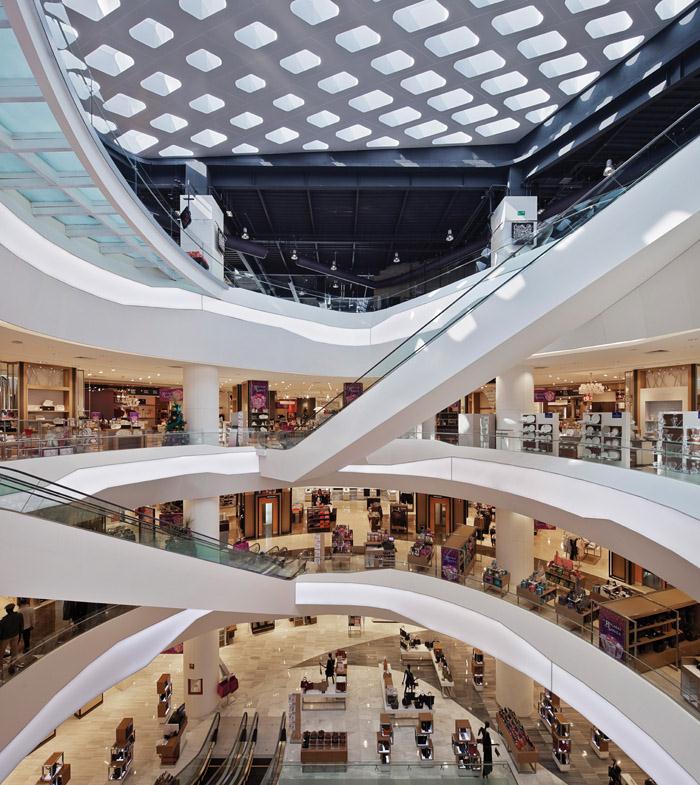

Interior view
Photo: © rojkind arquitectos, photo by Paúl Rivera

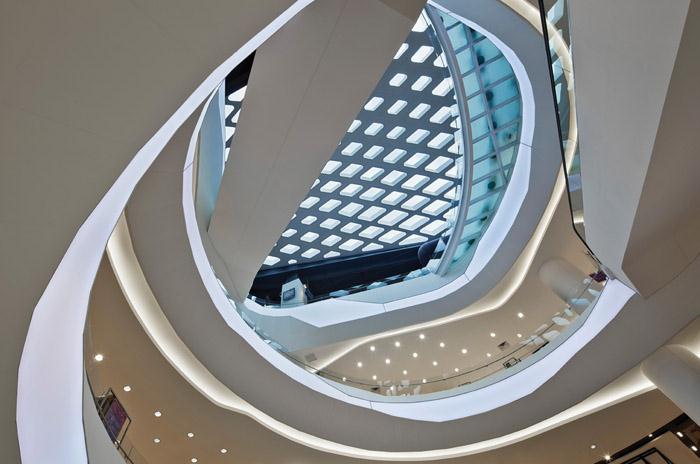

Atrium guardrail detail
Photo: © rojkind arquitectos, photo by Paúl Rivera

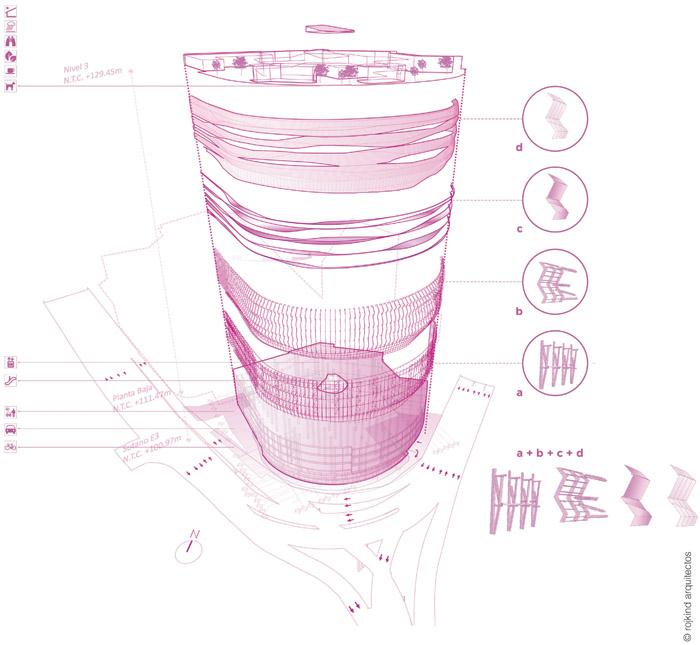

Facade Diagram
Diagram: © rojkind arquitectos

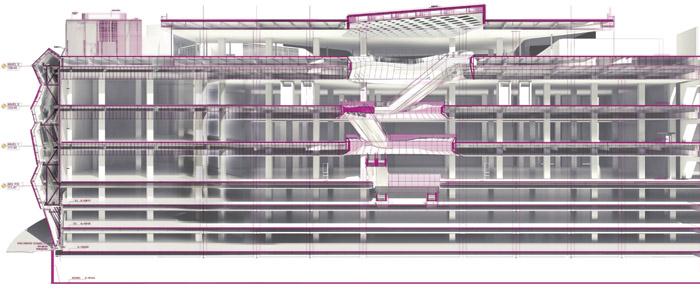

Longitudinal Section
Drawing: © rojkind arquitectos

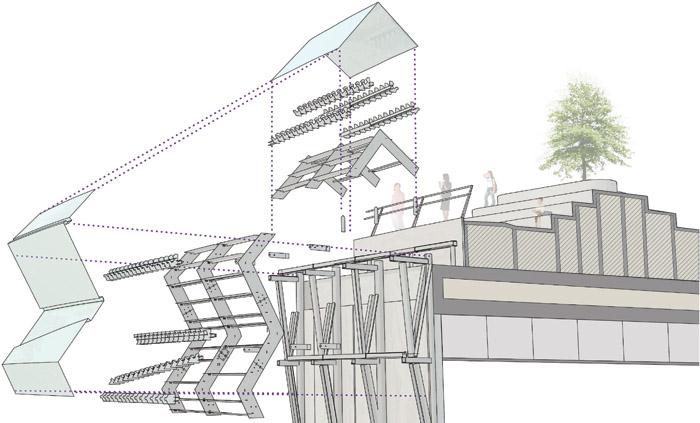

exploded Detail Section
Drawing: © rojkind arquitectos

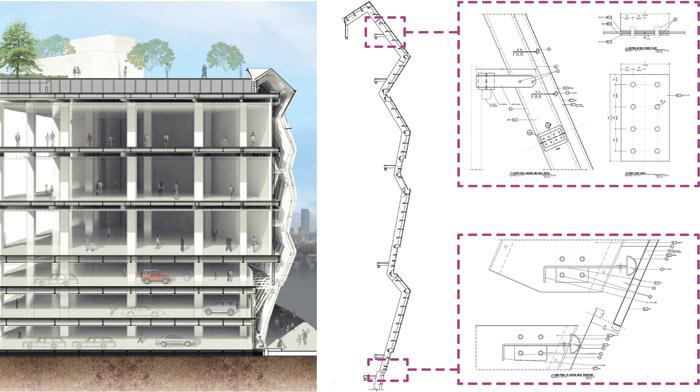

Building section and Technical Drawings
Render: © rojkind arquiteactos, drawings by Zahner

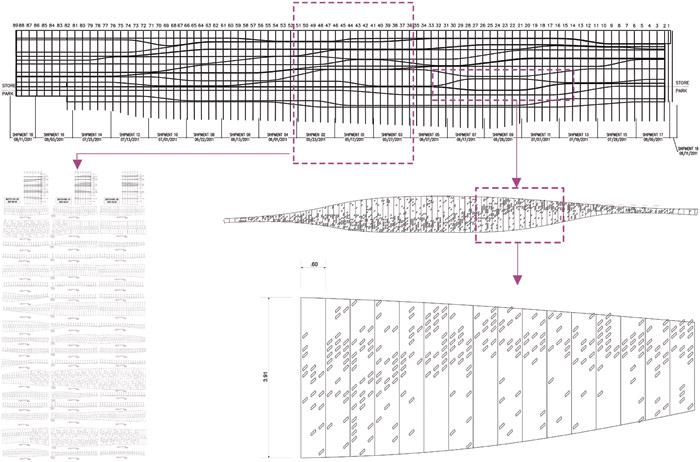

Panel Layout Diagram
Diagram: © rojkind arquitectos,drawing by Zahner

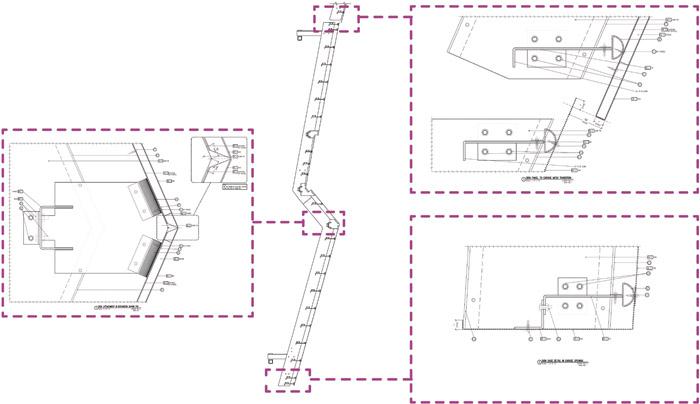

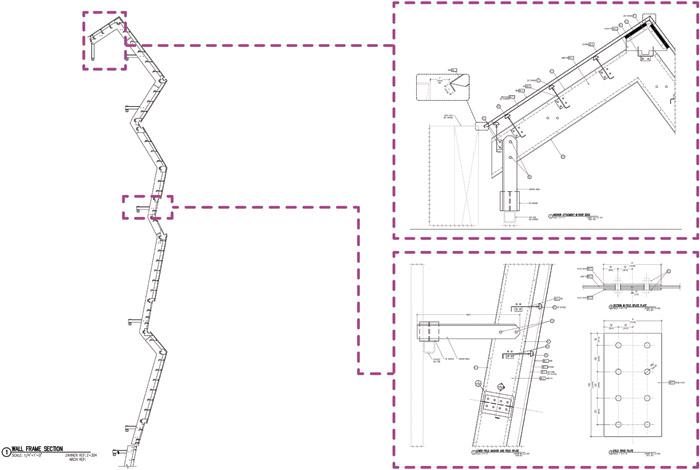

Facade Anchoring Detail
Drawing: © rojkind arquitectos, drawing by Zahner

Facade Anchoring Detail
Drawing: © rojkind arquitectos, drawing by Zahner

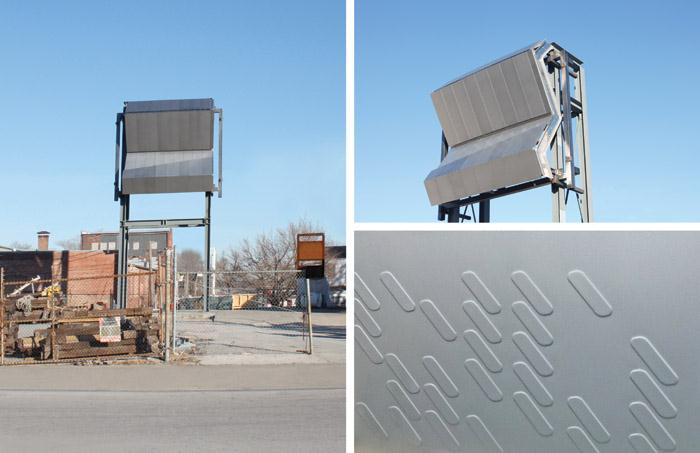

Facade Mock -Up
Render: © rojkind arquitectos

architectural

Project: rojkind arquitectos
Michel Rojkind
[Founding Partner] Gerardo Salinas
[Partner]
Program: Retail
construction area: 18,000 m2
Status:Completed
Design Date: July – December 2010
construction Date: March – October 2011
Location: Huixquilucan, State of Mexico
client: Liverpool

architect
rojkind arquitectos
Michel Rojkind [Founding Partner] Gerardo Salinas [Partner]
P ROJECT TEAM
Joe R. Tarr
Djurdja Milutinovic
Rodrigo Medina
Philipp Schlauch
Birgit Hammer
Jose Carlos Lombana
Abhirabika Agrawal
Rosalba Rojas Chávez
Dolores Robles – Martínez Gómez
Andrea León Cruz
MeDIA
Monique Rojkind
Facade engineer
Studio NYL
Chris O’Hara
Julian Lineham
Facade coordination / Fabrication
Zahner Metals
Tom Zahner Paul Martin Will Cox
Shannon Cole
Jim Mendenhall
Diego Zurutuza

Design computational consultant
Kokkugia
Robert Smith
Roland Snooks
Casey Rehm
interiors
FRCH Design Worldwide
restaurant consultant
JHP Design
Landscape consultant
Thomas Balsley Associates
renders
Axel Fridman
