非常感谢Cannatà e Fernandes 将以下内容授权gooood发行。更多请至：Cannatà e Fernandes on gooood
Appreciation towards Cannatà e Fernandes for providing the following description:

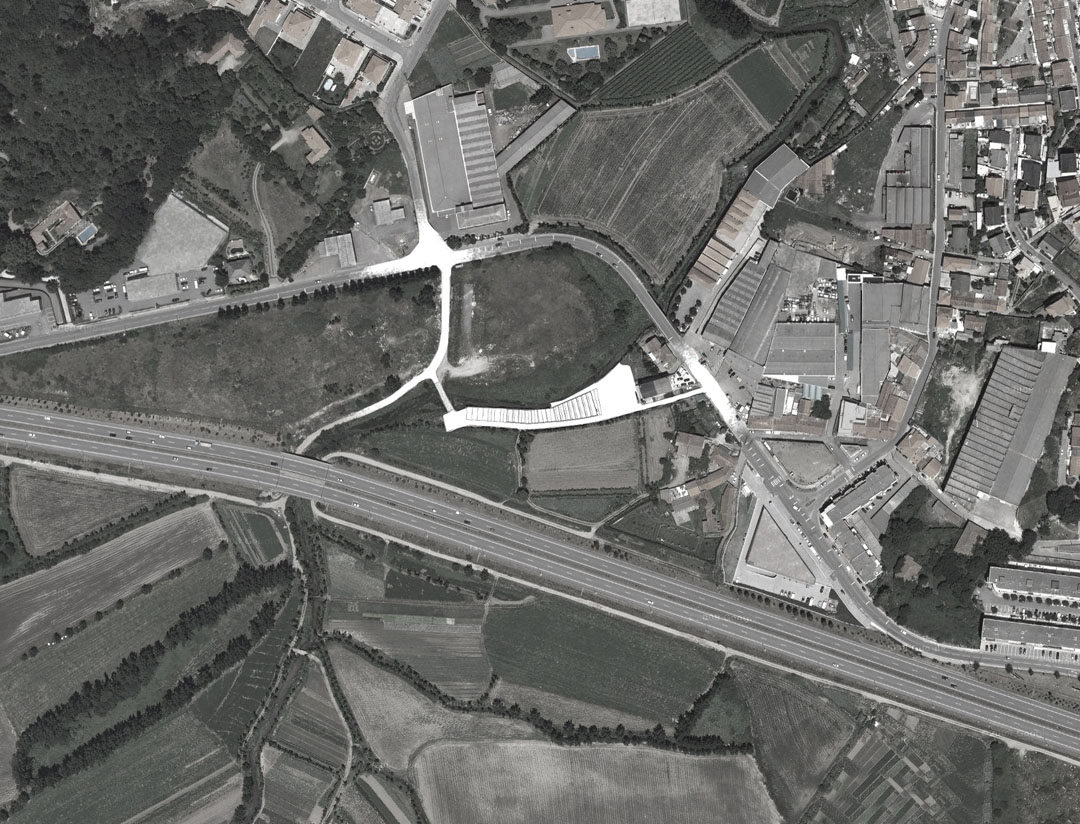

该建筑位于葡萄牙摇篮吉马良斯Veiga de Creixomil西南，这里作为国家生态保护区，是一个景观价值高的敏感区域。场地狭长，两侧标高差异较大，一遍是水道，一边是陆路，周围是名声在外的绿色景观。

The building is located in Veiga de Creixomil southwest from the historic city center of Guimarães, in a sensitive area of high landscape value, classified in accordance with the Guimarães Municipal Master Plan, as National Ecological Reserve (REN).

The morphology of the terrain is characterized by a relative difference of height, by the presence of a water channel, dirt trails, great visibility from surrounding areas and close proximity of large green masses.

The visibility that the building has from the motorway implied a series of interventions, guaranteeing that this is an element which distinguishes itself in the territory.

▲（上图）西侧

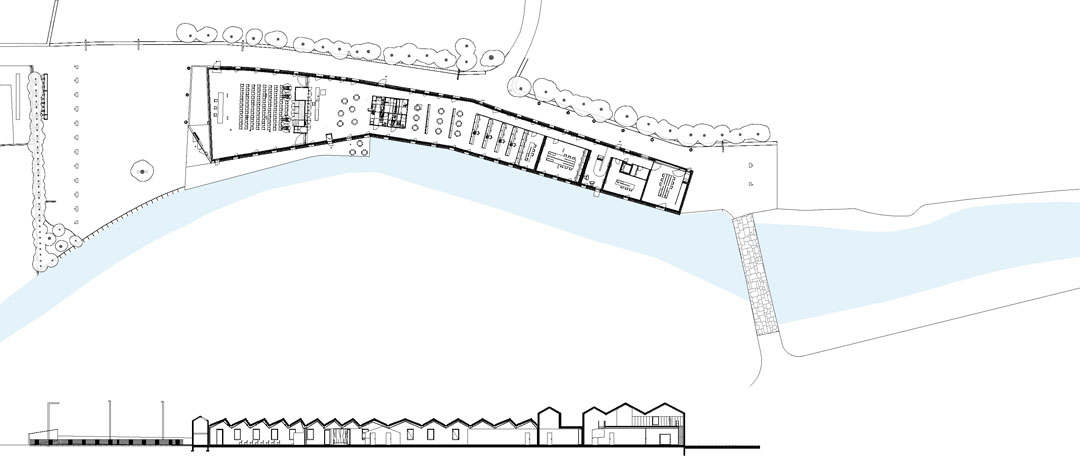

改建以内涵暗示的态度彰显自己的独特。建筑平面布局形状有点像喇叭。喇叭大口的一端朝东，布置了停车场和接待广场，入口在靠水一侧做出一个悬挑，让人印象深
刻。内部是工厂式的开放明亮空间，可适应多用途需求。新建筑结构体系与原来的建筑不同，不同的屋顶构造下分布着不同的功能，西侧被完全重建。原有的砌石经回收利用重新清新和更换，与新增的白色混凝土共同展现了历史及其变化。

简单但是却又谨慎的改建。

The access to the Laboratory, on the East, created by the demolition of small roofs, which were on the passageway located between the existing building and the
neighboring plot, and the separation of the building by the creation of a reception square and car park, lead the visitor/user through a promenade to the main entrance in contact with the most impressive moment of the building: the facade to the water front Ribeira de Selho.

On the inside, the main objective was to enhance the spatial character of the factory typology. An open space, bright, ready to embrace the new uses and demands of it’s
functional program, through a simple but rigorous rehabilitation.

The division of the different functional modules follows the structure of the roofs in order to establish a balance between the different spaces with the structure of the
preexistence, and especially with its character.

On the East is located the necessary technical area for the boiler, UTAN and water deposits.

On the West, the existing volumes in the upper floor, that were in a state of ruin or without architectural or construction quality were rearranged and reconstructed.

The proposal aims to recover the architectural character of the existing building and at the same time, with the new roof and the volumetric reconstructions, affirm the
indisputable contemporanity of a rehabilitated building.

The concept of intervention seeks to clearly highlight and accurately identify the various intervention stages so as not to produce ambiguities or distortions of the history of the building. Thus the elements in masonry stone were recovered, cleaned and replaced, the existing volumes in brick, or other materials in an advanced state of decay and new volumes were build in white concrete. Different materials to allow a reading of changes in time and use.

CANNATÀ & FERNANDES arquitectos

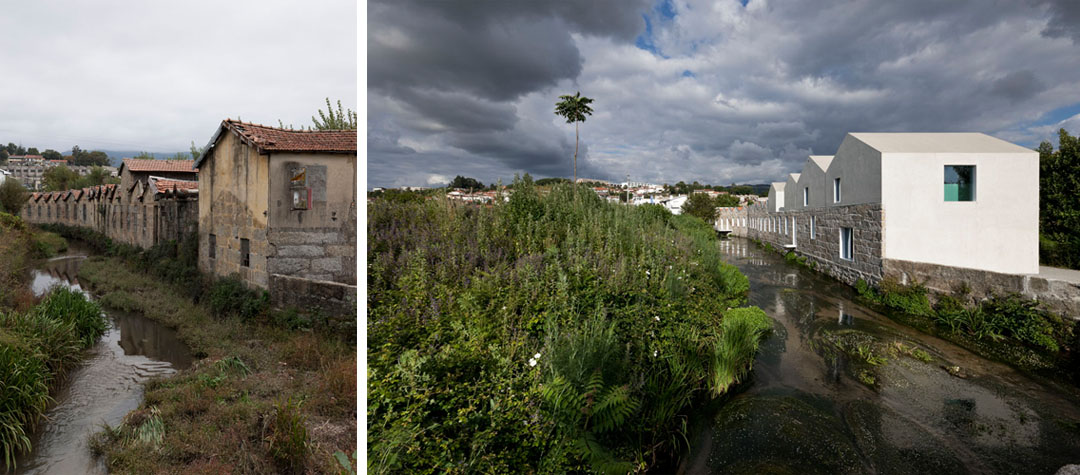

▲ Before & After 改建前后

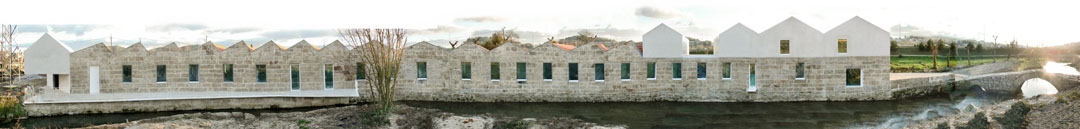

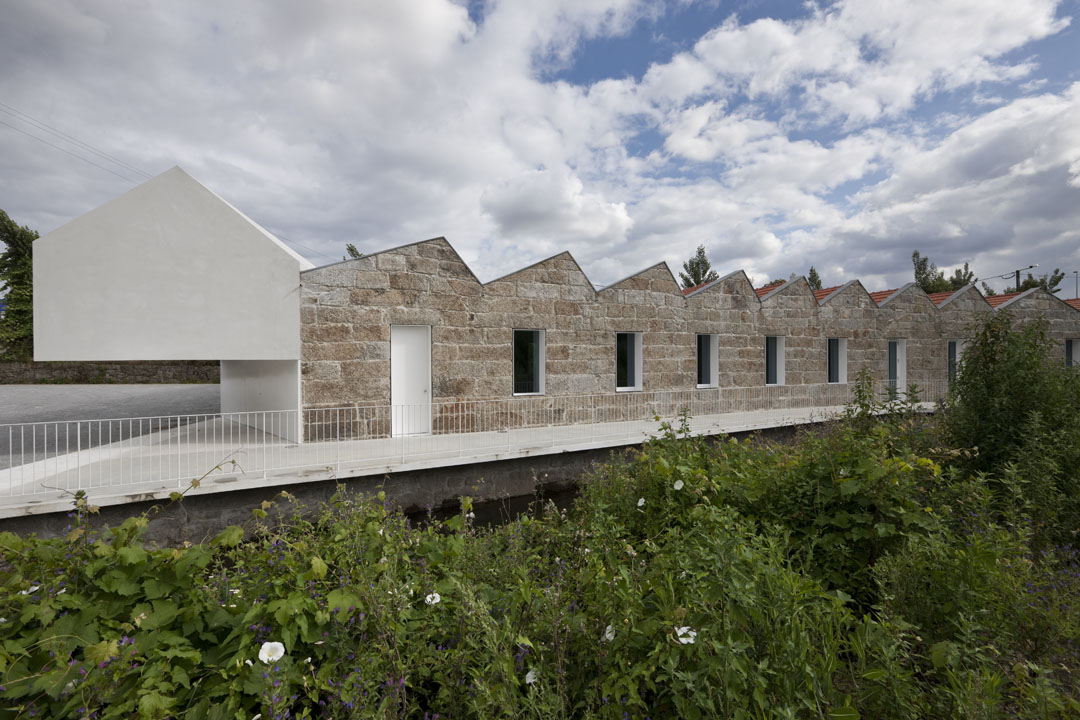

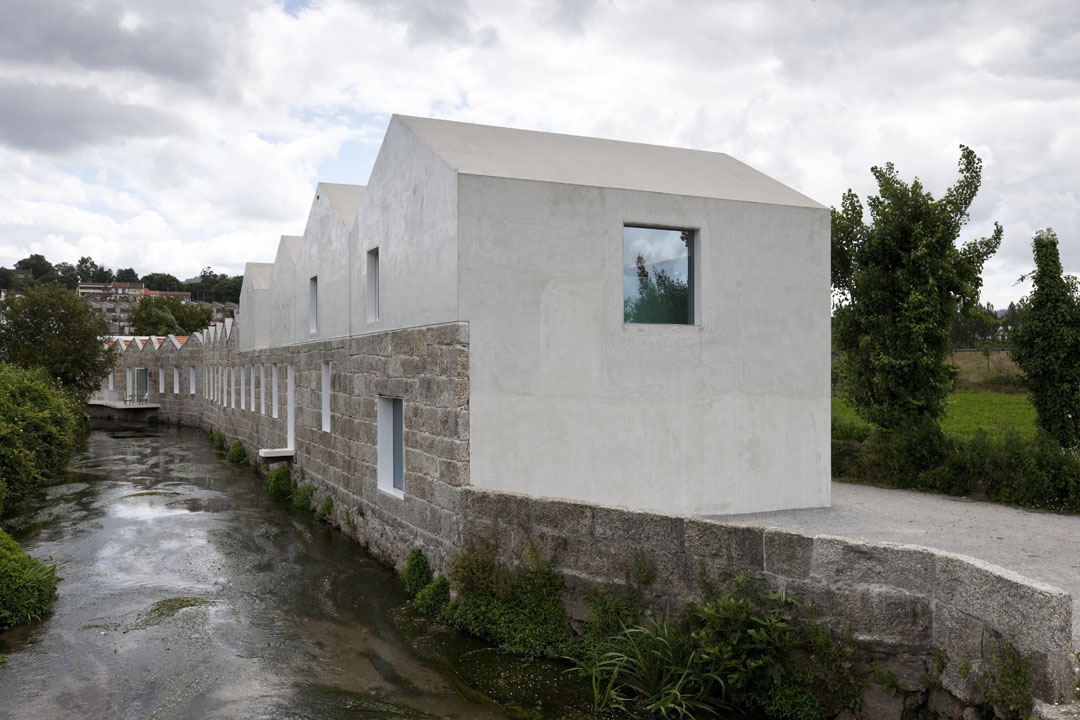

▲ 水道一侧立面

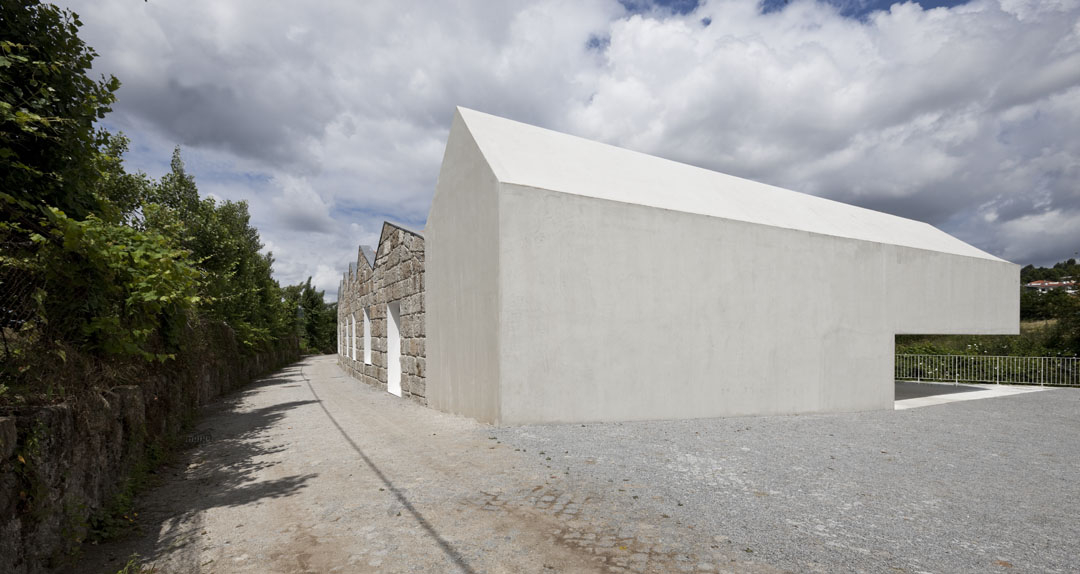

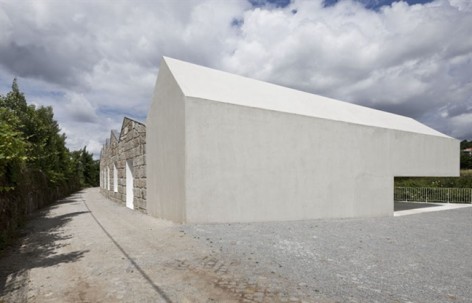

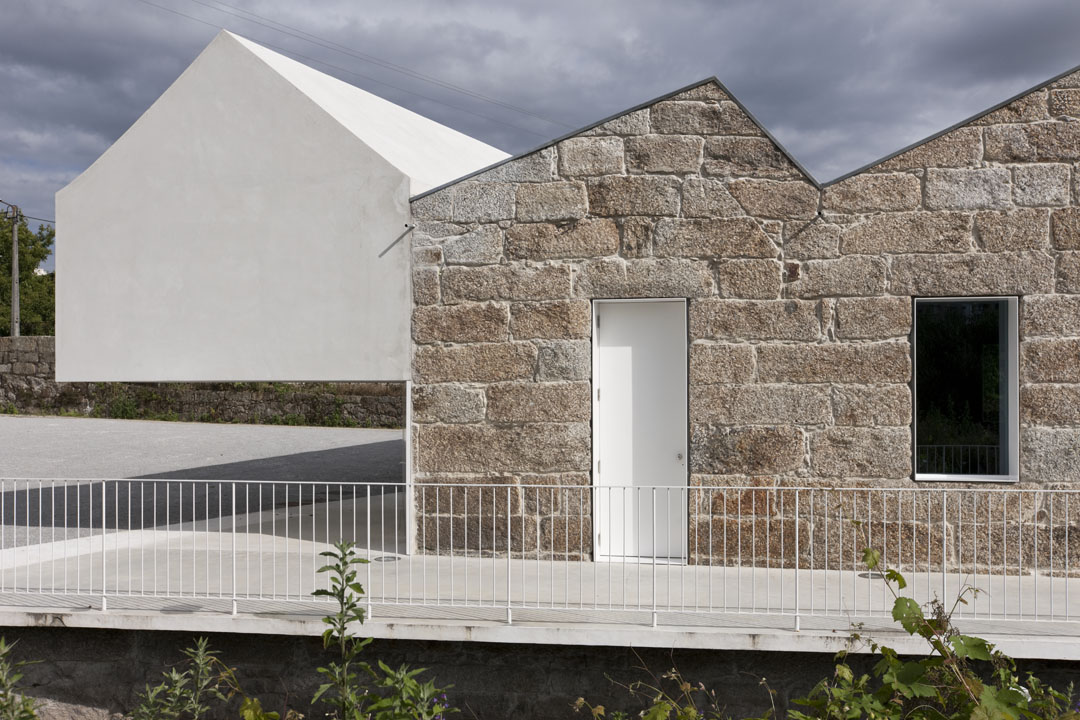

▲ 东侧入口，悬挑

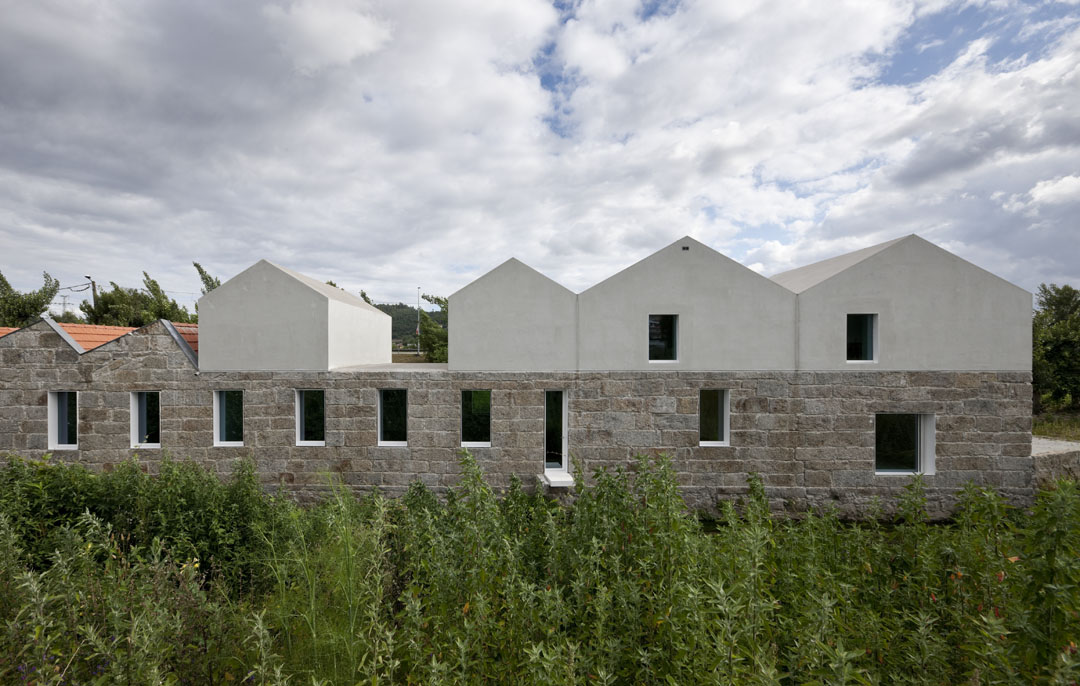

▲ 被完全重建的西侧

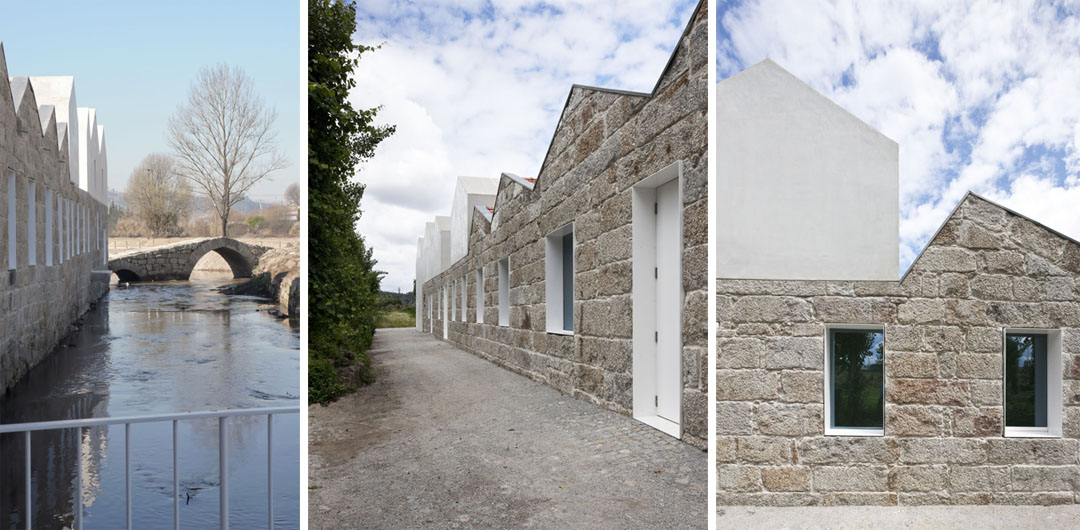

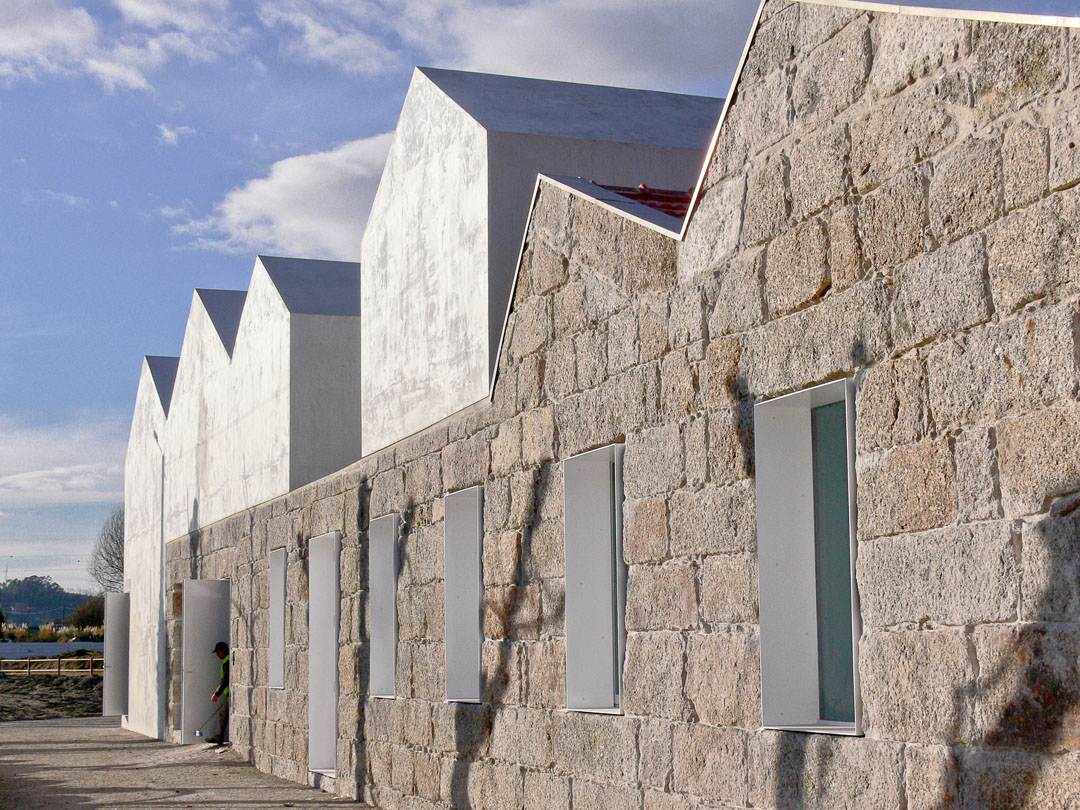

▲ 原有砌石与新增白色混凝土共同上演历史和谐曲

▲ 从道路看东侧

▲ 从道路看西侧

▲ 从河道看入口

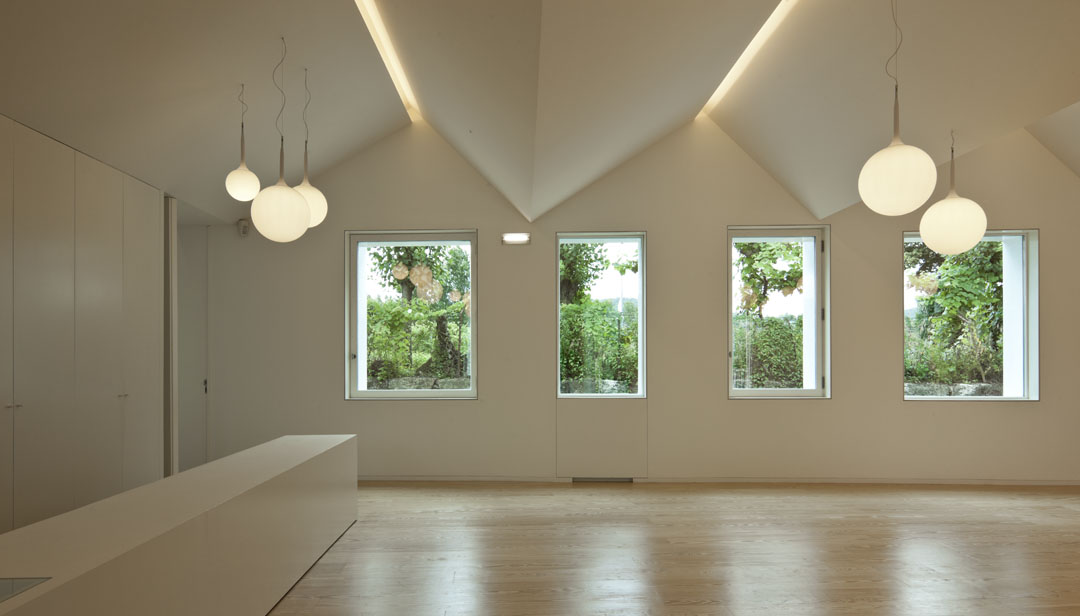

▲ 室内，屋顶结构形成个性天花

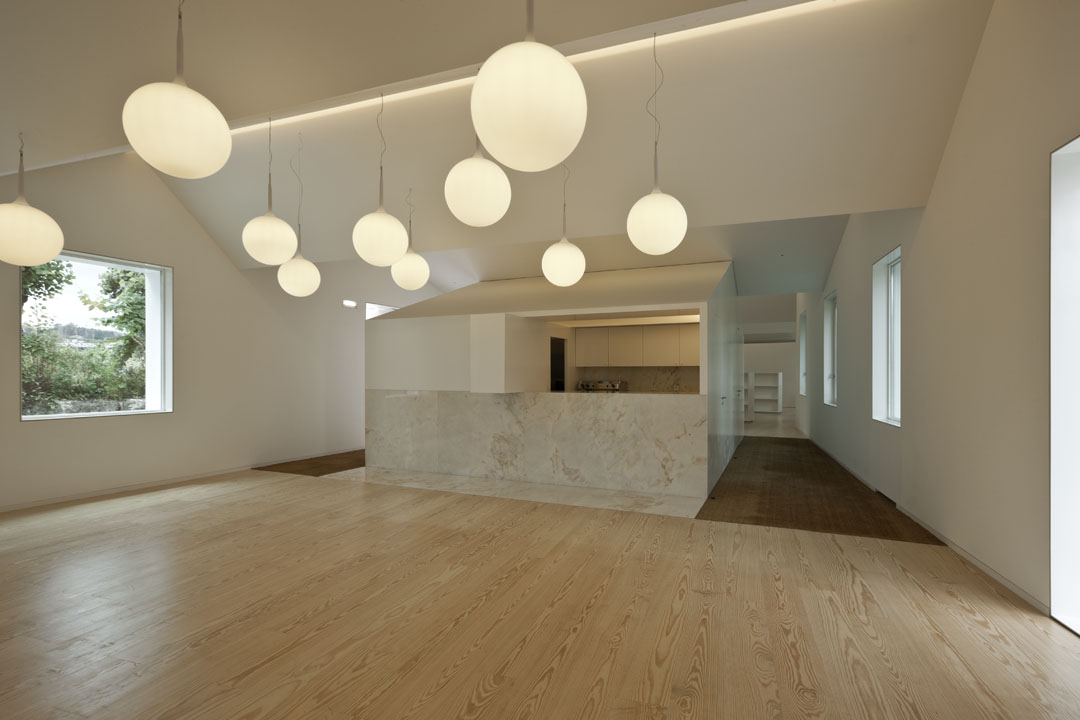

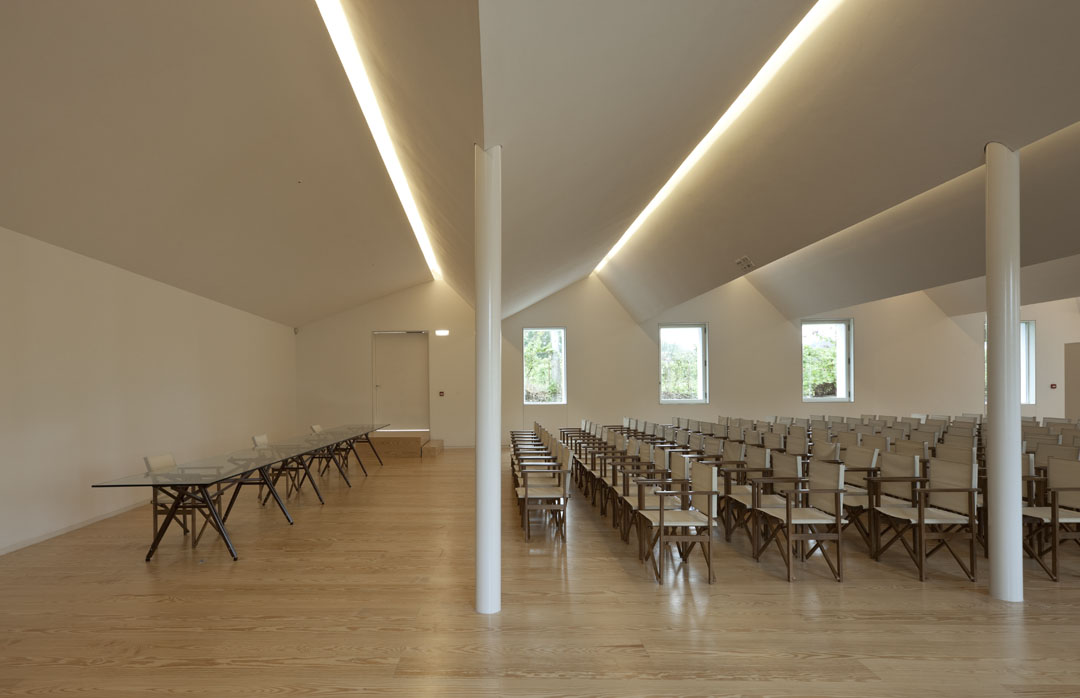

▲ 室内，可适应多用途的工厂式开放明亮空间

▲ 室内，服务吧台的“小屋”为独立构造

▲ 室内，天花让空间更丰富

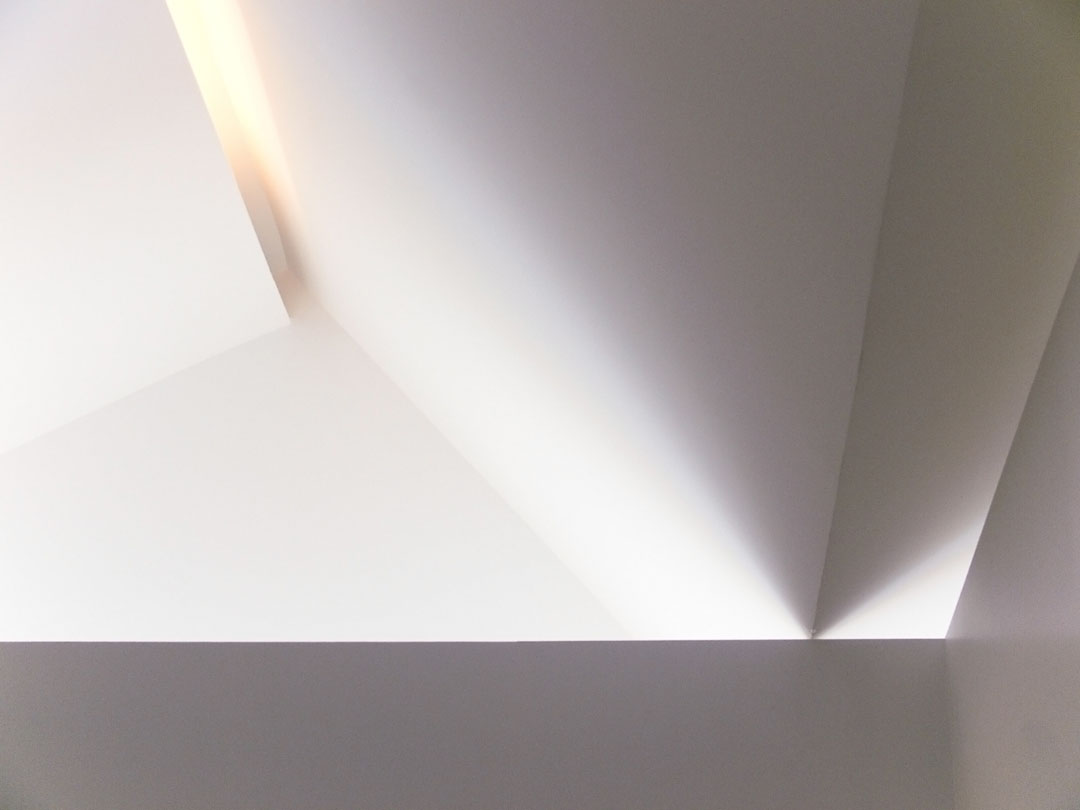

▲ 天花细部

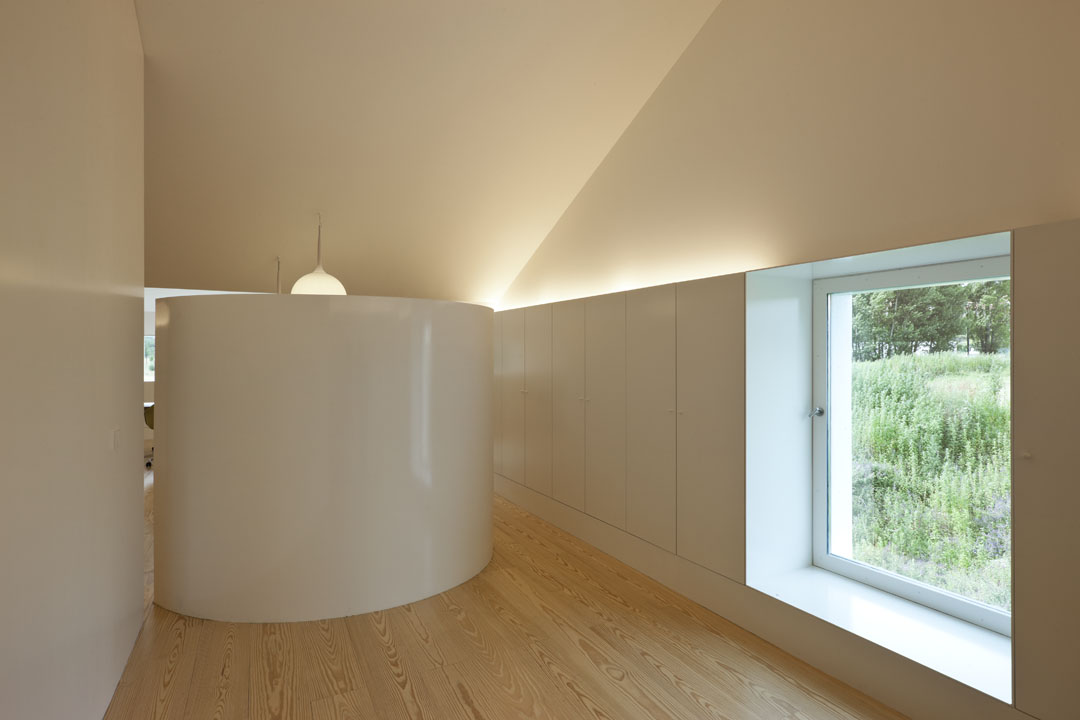

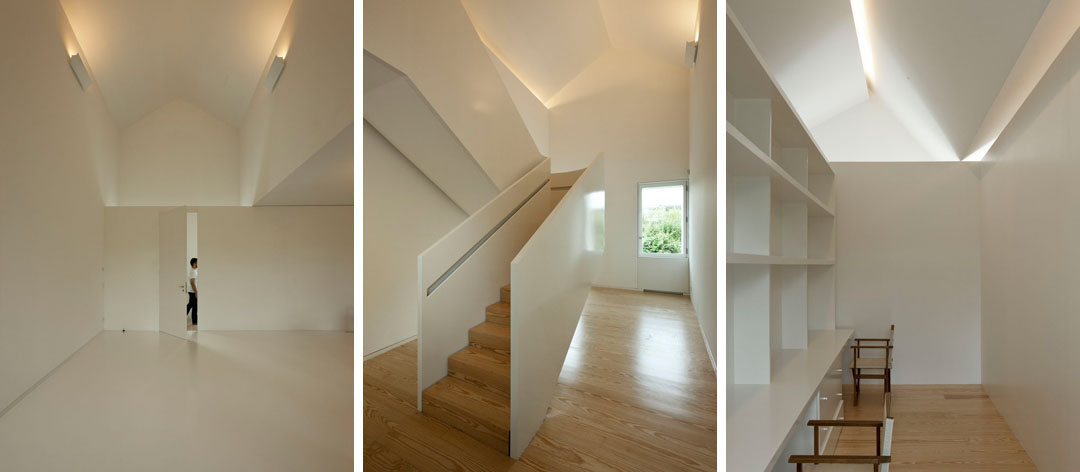

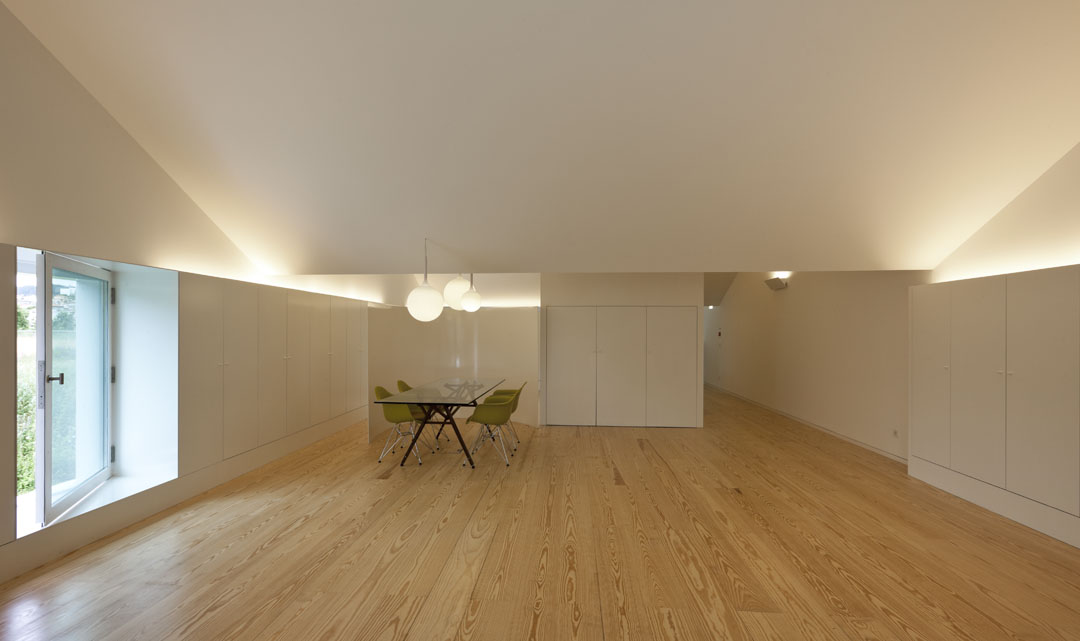

▲ 二层，室内

▲ 二层，室内

LANDSCAPE LABORATORY
Cannatà&Fernandes, arquitectos

LOCATION: Guimarães, Portugal
DATE: 2010-2012
AWARDS: 1º Prize for the Project of Laboratory’s Landscape Competition at
Guimarães, attribution by the Jury Selection Board

Total Area 988,98 m2
Building Area 1.387,03 m2
Construction cost 1.108.000€

AUTHORS
FÁTIMA FERNANDES E MICHELE CANNATÀ

TEAM
RICCARDO CANNATÀ
BRUNO SILVA
MARTA LEMOS
NUNO CASTRO
FRANCISCO MEIRELES
JOÃO PEDRO MARTINS

STRUCTURAL ENGINEERING
GOP – JOÃO MARIA SOBREIRA

HYDRAULICS
GOP – RAQUEL FERNANDES

MECHANICAL ENGINEERING
GET – RAUL BESSA

ELECTRICAL ENGINEERING
GPIC – ALEXANDRE MARTINS

ACUSTICS
INACOUSTICS – OCTÁVIO INÁCIO

LANDSCAPE
ATELIER BECO DA BELAVISTA – LUÍS GUEDES DE CARVALHO

PHOTOGRAPHIC CREDITS
LUIS FERREIRA ALVES
DARIO CANNATÀ
PEPE BARBIERE

CLIENT
CÂMARA MUNICIPAL DE GUIMARÃES

CONSTRUCTOR
COMBITUR – Construções Imobiliárias e Turísticas, S.A.

MORE: Cannatà e Fernandes，更多请至：Cannatà e Fernandes on gooood
